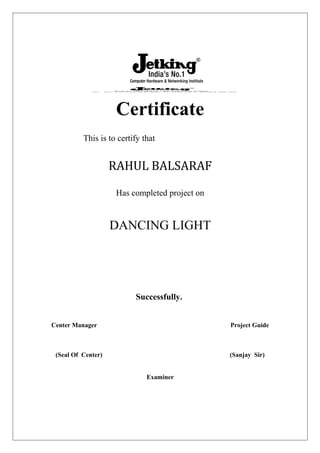

2. Certificate
This is to certify that
RAHUL BALSARAF
Has completed project on
DANCING LIGHT
Successfully.
Center Manager Project Guide
(Seal Of Center) (Sanjay Sir)
Examiner

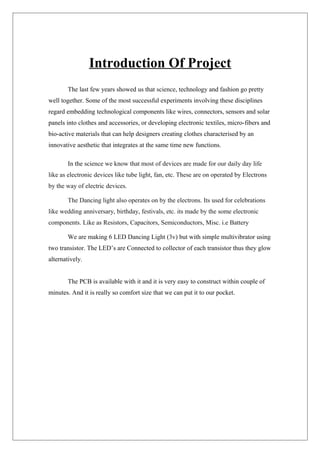

4. Introduction Of Project
The last few years showed us that science, technology and fashion go pretty
well together. Some of the most successful experiments involving these disciplines
regard embedding technological components like wires, connectors, sensors and solar
panels into clothes and accessories, or developing electronic textiles, micro-fibers and
bio-active materials that can help designers creating clothes characterised by an
innovative aesthetic that integrates at the same time new functions.
In the science we know that most of devices are made for our daily day life
like as electronic devices like tube light, fan, etc. These are on operated by Electrons
by the way of electric devices.
The Dancing light also operates on by the electrons. Its used for celebrations
like wedding anniversary, birthday, festivals, etc. its made by the some electronic
components. Like as Resistors, Capacitors, Semiconductors, Misc. i.e Battery
We are making 6 LED Dancing Light (3v) but with simple multivibrator using
two transistor. The LED’s are Connected to collector of each transistor thus they glow
alternatively.
The PCB is available with it and it is very easy to construct within couple of
minutes. And it is really so comfort size that we can put it to our pocket.

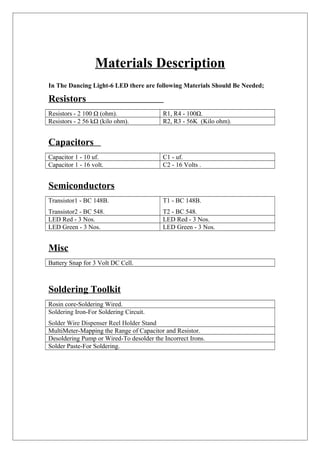

5. Materials Description
In The Dancing Light-6 LED there are following Materials Should Be Needed;
Resistors
Resistors - 2 100 Ω (ohm). R1, R4 - 100Ω.
Resistors - 2 56 kΩ (kilo ohm). R2, R3 - 56K (Kilo ohm).
Capacitors
Capacitor 1 - 10 uf. C1 - uf.
Capacitor 1 - 16 volt. C2 - 16 Volts .
Semiconductors
Transistor1 - BC 148B.
Transistor2 - BC 548.
T1 - BC 148B.
T2 - BC 548.
LED Red - 3 Nos. LED Red - 3 Nos.
LED Green - 3 Nos. LED Green - 3 Nos.
Misc
Battery Snap for 3 Volt DC Cell.
Soldering Toolkit
Rosin core-Soldering Wired.
Soldering Iron-For Soldering Circuit.
Solder Wire Dispenser Reel Holder Stand
MultiMeter-Mapping the Range of Capacitor and Resistor.
Desoldering Pump or Wired-To desolder the Incorrect Irons.
Solder Paste-For Soldering.

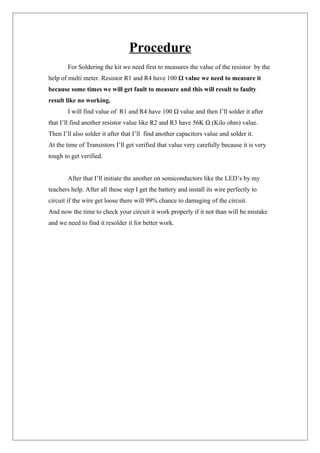

6. Procedure
For Soldering the kit we need first to measures the value of the resistor by the
help of multi meter. Resistor R1 and R4 have 100 Ω value we need to measure it
because some times we will get fault to measure and this will result to faulty
result like no working.
I will find value of R1 and R4 have 100 Ω value and then I’ll solder it after
that I’ll find another resistor value like R2 and R3 have 56K Ω (Kilo ohm) value.
Then I’ll also solder it after that I’ll find another capacitors value and solder it.
At the time of Transistors I’ll get verified that value very carefully because it is very
tough to get verified.
After that I’ll initiate the another on semiconductors like the LED’s by my
teachers help. After all these step I get the battery and install its wire perfectly to
circuit if the wire get loose there will 99% chance to damaging of the circuit.
And now the time to check your circuit it work properly if it not than will be mistake
and we need to find it resolder it for better work.

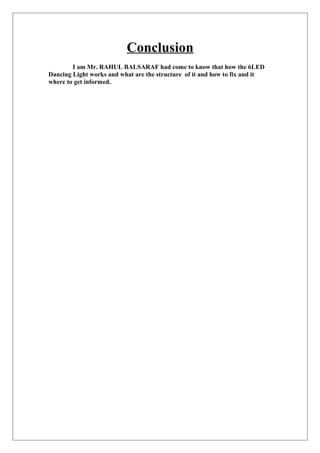

8. Conclusion
I am Mr. RAHUL BALSARAF had come to know that how the 6LED
Dancing Light works and what are the structure of it and how to fix and it
where to get informed.

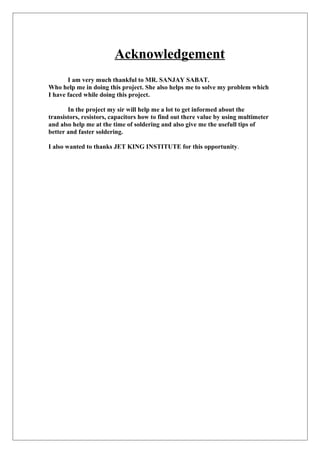

9. Acknowledgement
I am very much thankful to MR. SANJAY SABAT.
Who help me in doing this project. She also helps me to solve my problem which
I have faced while doing this project.
In the project my sir will help me a lot to get informed about the
transistors, resistors, capacitors how to find out there value by using multimeter
and also help me at the time of soldering and also give me the usefull tips of
better and faster soldering.
I also wanted to thanks JET KING INSTITUTE for this opportunity.
