This document describes an electronic voting machine project created by three students using an AT89C51 microcontroller. The project uses KEIL software to create a hex file that is burned onto the microcontroller using a PHYTON CHIPPROG programmer. The hardware includes an LCD, microcontroller, crystal, resistors, capacitor, potentiometer, buttons, and a breadboard. Voters can select from four parties by pressing labeled buttons and results are displayed by pressing a stop button. Potential improvements include adding reject and confirmation buttons, fingerprint authentication, and connecting it to GSM for mobile voting.

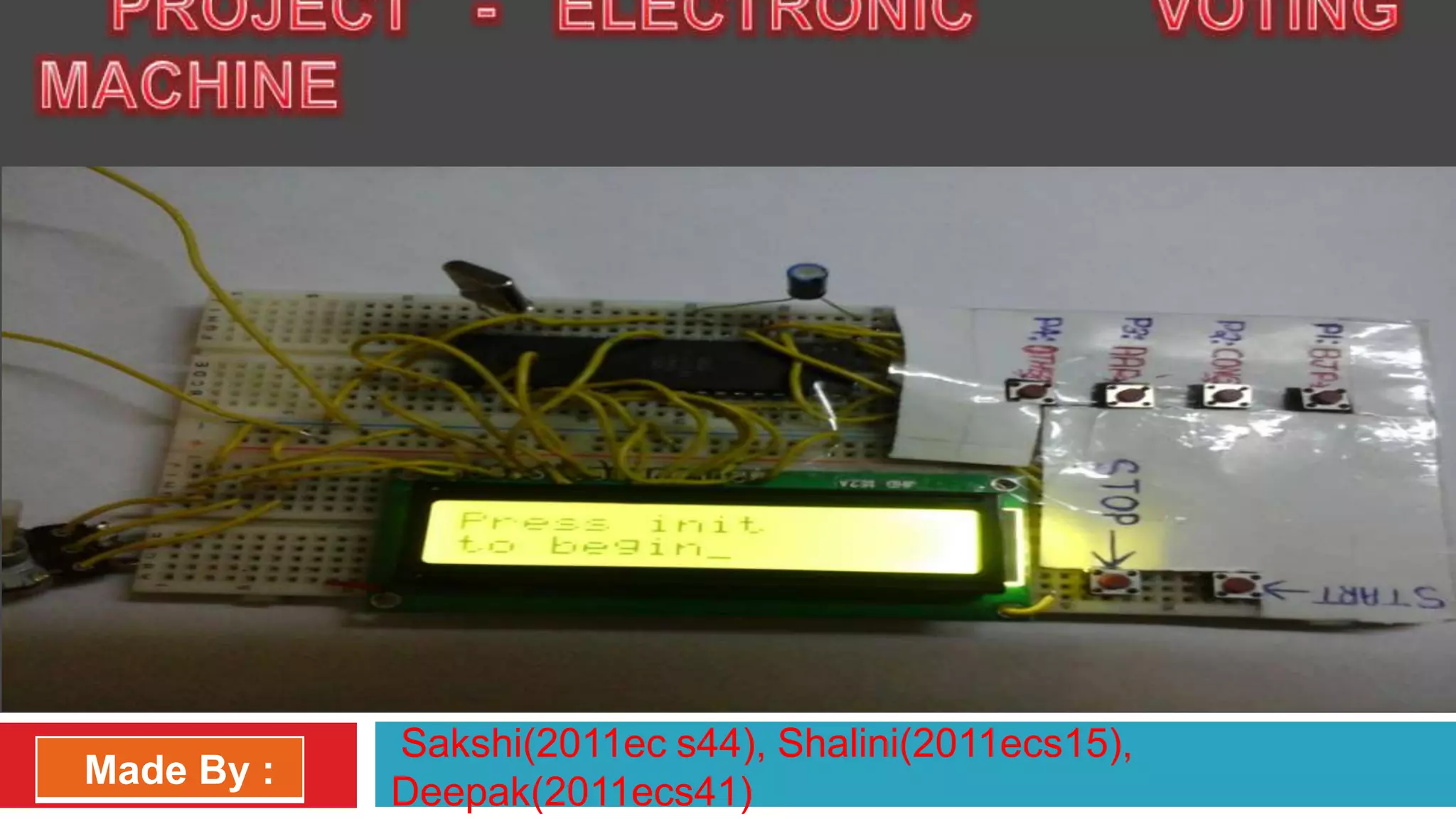

1. Made By :
Sakshi(2011ec s44), Shalini(2011ecs15),
Deepak(2011ecs41)

2. Widescreen Pictures
Pictures can also be presented more dramatically in widescreen.

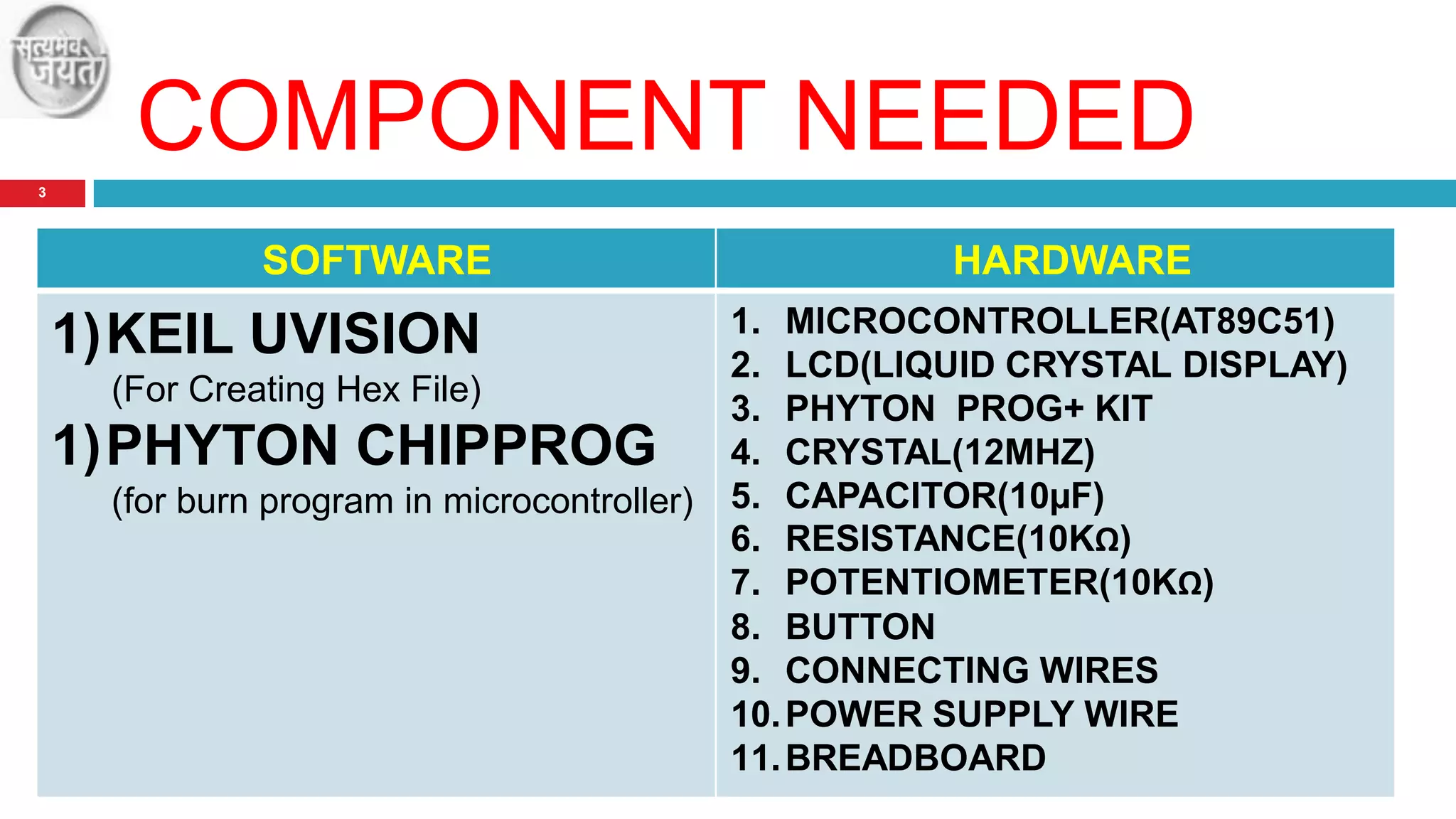

3. COMPONENT NEEDED
3
SOFTWARE
1)KEIL UVISION
(For Creating Hex File)
1)PHYTON CHIPPROG
(for burn program in microcontroller)
HARDWARE
1. MICROCONTROLLER(AT89C51)
2. LCD(LIQUID CRYSTAL DISPLAY)
3. PHYTON PROG+ KIT
4. CRYSTAL(12MHZ)
5. CAPACITOR(10µF)
6. RESISTANCE(10KΩ)
7. POTENTIOMETER(10KΩ)
8. BUTTON
9. CONNECTING WIRES
10. POWER SUPPLY WIRE
11. BREADBOARD

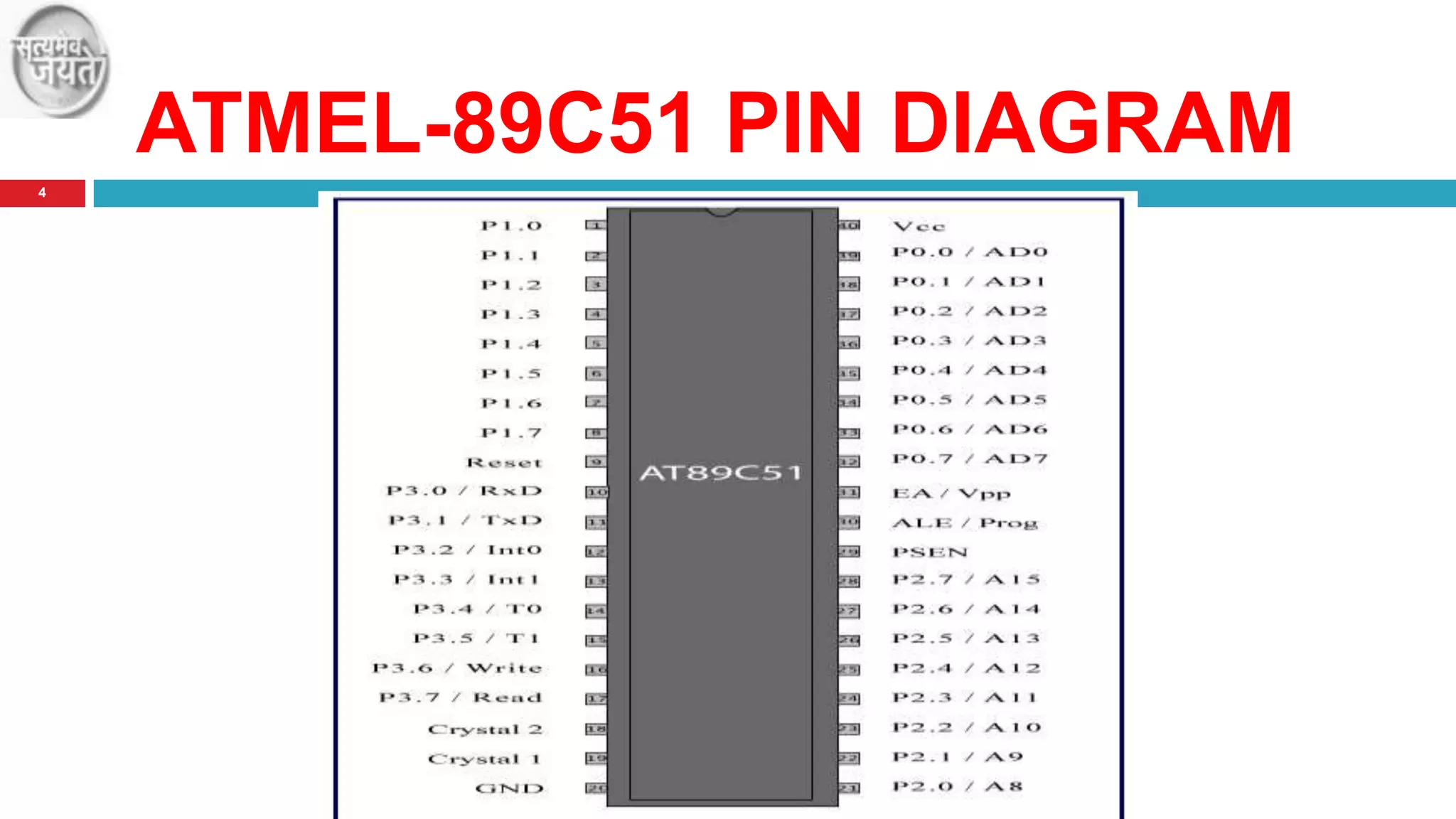

4. ATMEL-89C51 PIN DIAGRAM
4

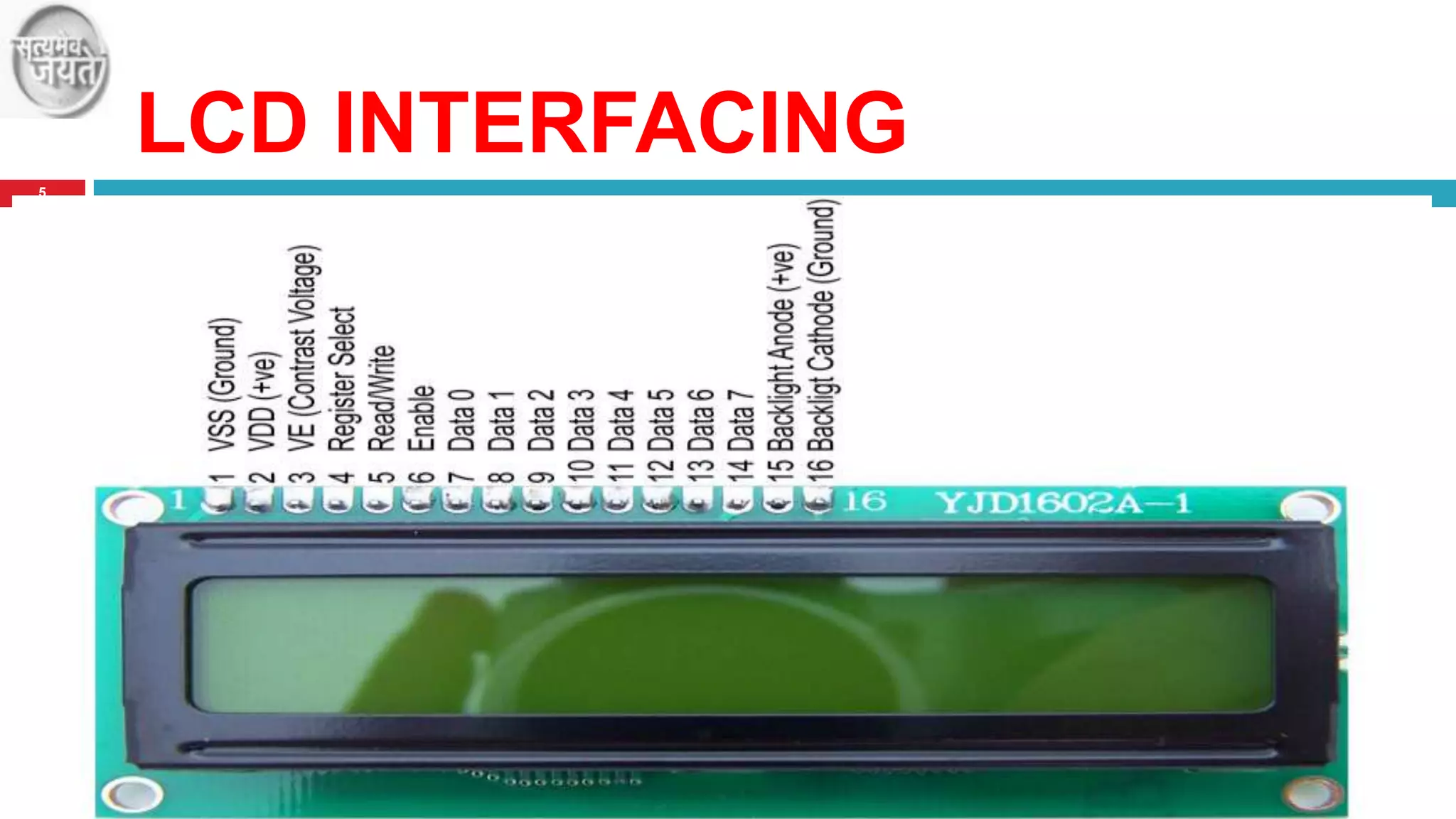

5. LCD INTERFACING
5

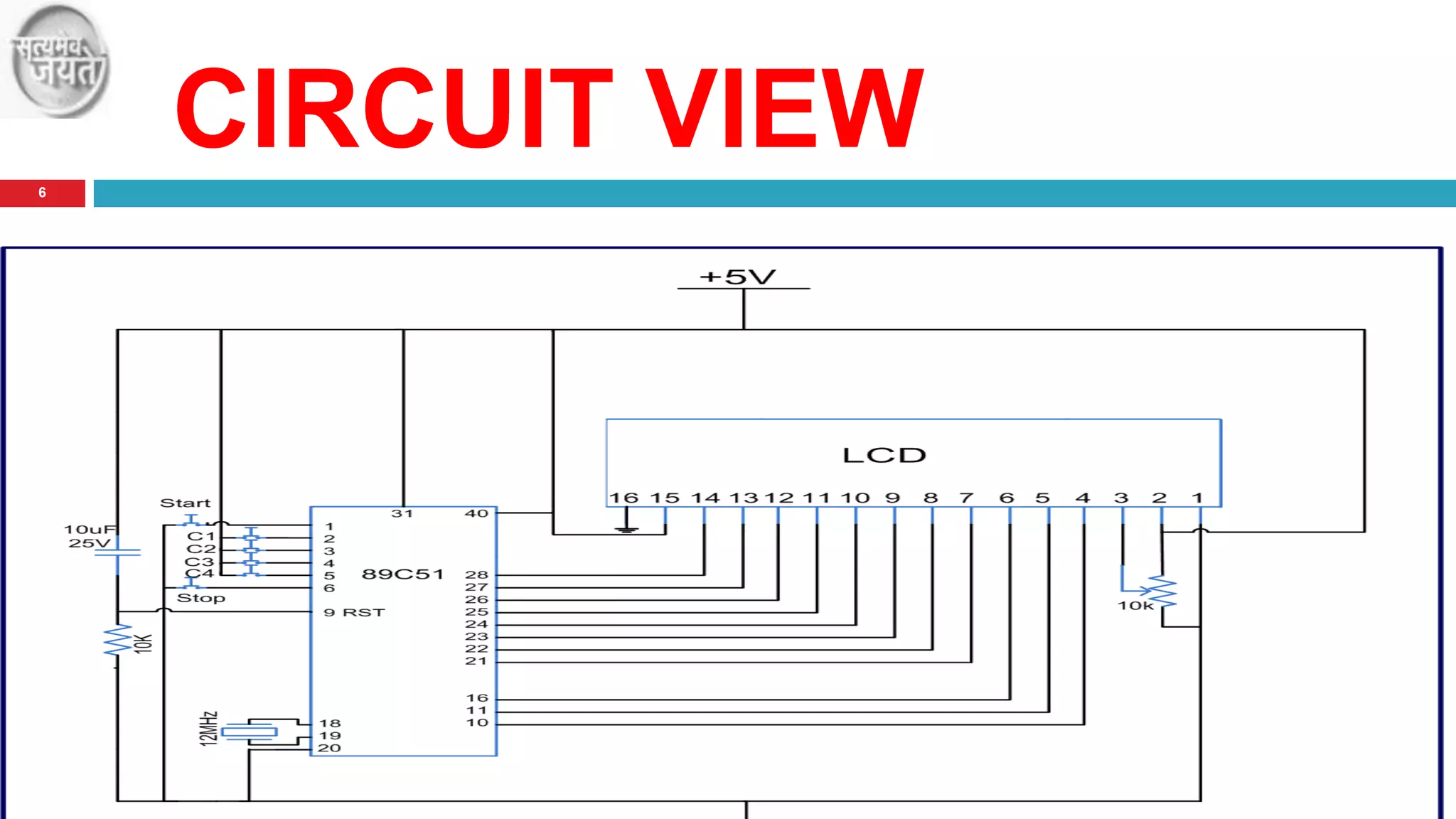

6. CIRCUIT VIEW
6

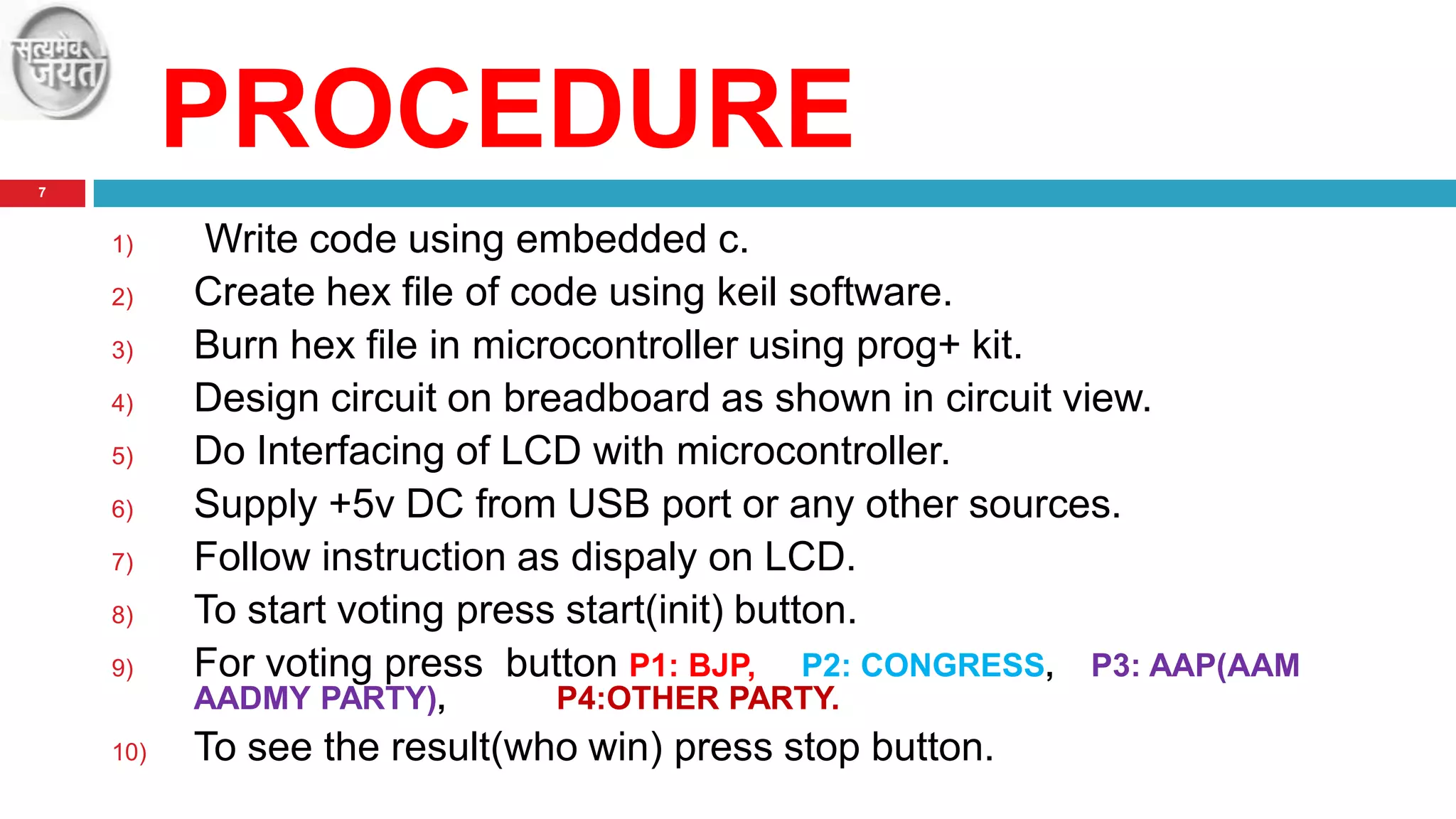

7. PROCEDURE
7
1)
2)
3)
4)
5)
6)
7)
8)
9)
Write code using embedded c.
Create hex file of code using keil software.
Burn hex file in microcontroller using prog+ kit.
Design circuit on breadboard as shown in circuit view.
Do Interfacing of LCD with microcontroller.
Supply +5v DC from USB port or any other sources.
Follow instruction as dispaly on LCD.

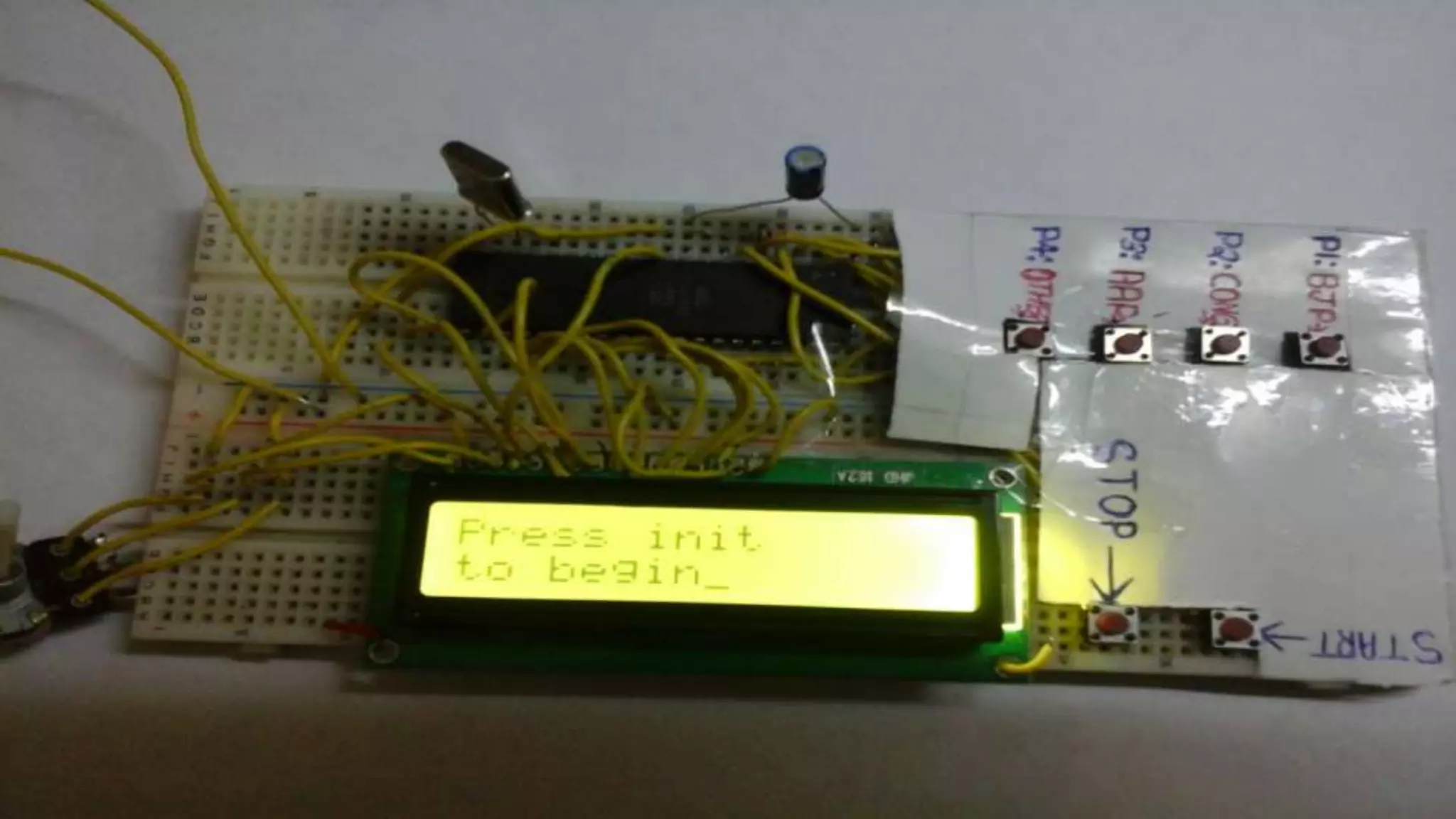

To start voting press start(init) button.
For voting press button P1: BJP, P2: CONGRESS, P3: AAP(AAM
AADMY PARTY),
10)
P4:OTHER PARTY.
To see the result(who win) press stop button.

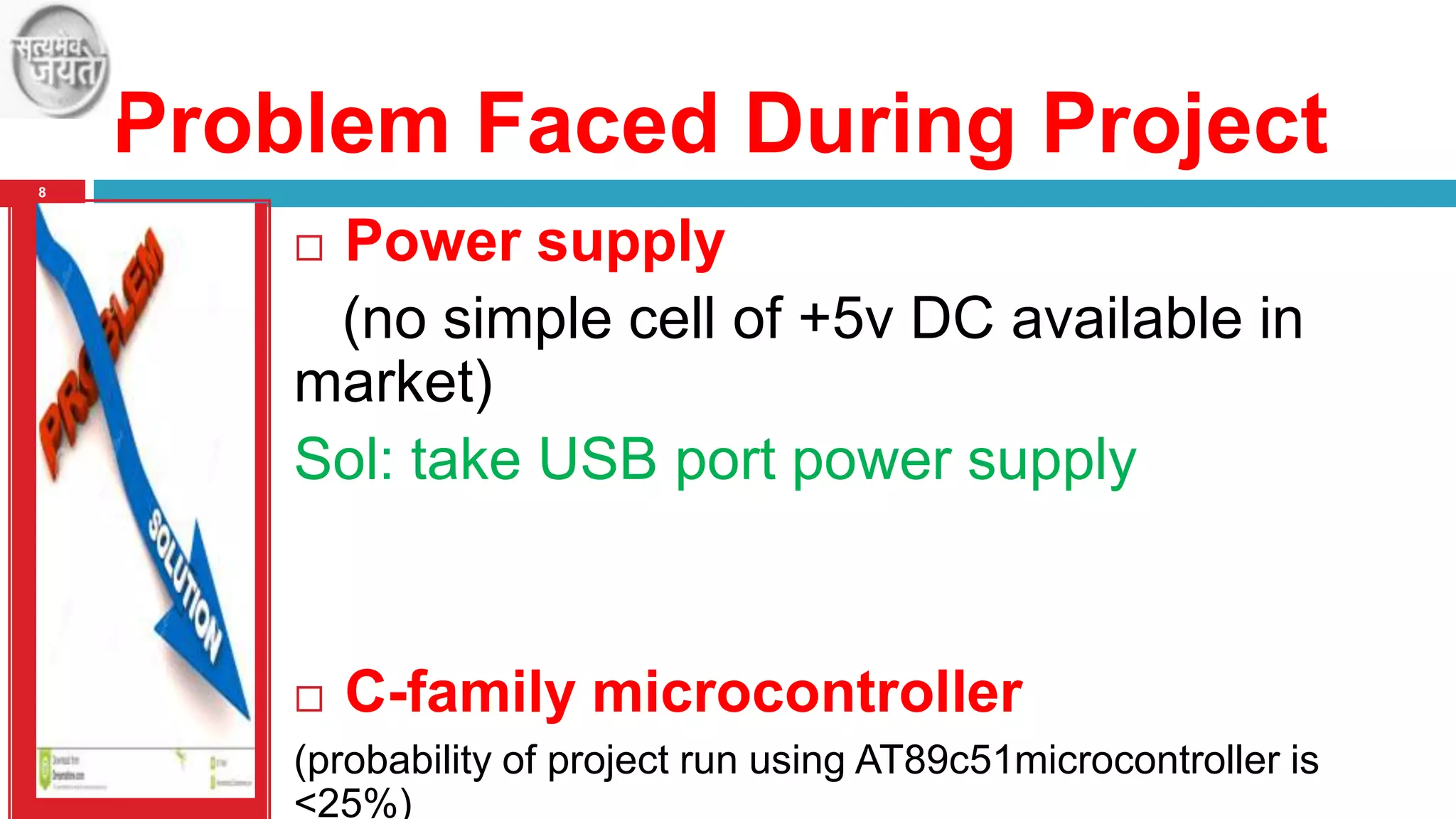

8. Problem Faced During Project
8
Power supply
(no simple cell of +5v DC available in
market)
Sol: take USB port power supply


C-family microcontroller
(probability of project run using AT89c51microcontroller is
<25%)

9. FUTURE IMPLEMENTATION
9

Add Of Reject Button
(vote for no candidate if no one is suitable)

Add Buzzer
(for confirmation of vote)

Replace Voting Button With Fingerprint
(so that no one can revote)

GSM Module Electronic Voting Machine
(vote using mobile phone)

Marketing
(market price of this project=10 times that I pay for this project)

10. 10

11. NOW YOUR TURN FOR
VOTING……..
11
