PROFINET to PROFIBUS gateways - Peter Thomas - 03 june 2020

Gateways, Couplers and Routers
Good Morning, the webinar will
start at 10:30 am
Please mute your microphone.
www.controlspecialists.co.uk

PROFINET Gateways © Control Specialists Ltd – June 2020 Page 2

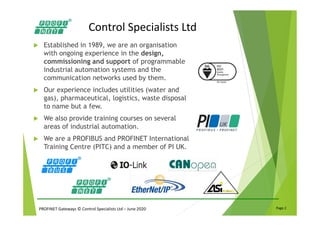

Control Specialists Ltd
Established in 1989, we are an organisation
with ongoing experience in the design,
commissioning and support of programmable
industrial automation systems and the
communication networks used by them.
Our experience includes utilities (water and
gas), pharmaceutical, logistics, waste disposal
to name but a few.
We also provide training courses on several
areas of industrial automation.
We are a PROFIBUS and PROFINET International
Training Centre (PITC) and a member of PI UK.

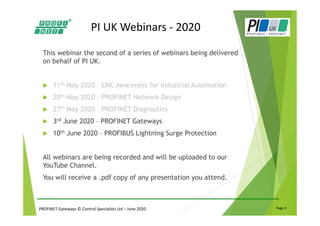

PI UK Webinars - 2020
This webinar the second of a series of webinars being delivered
on behalf of PI UK.
11th May 2020 – EMC Awareness for Industrial Automation
20th May 2020 – PROFINET Network Design
27th May 2020 – PROFINET Diagnostics
3rd June 2020 – PROFINET Gateways
10th June 2020 – PROFIBUS Lightning Surge Protection
All webinars are being recorded and will be uploaded to our
YouTube Channel.
You will receive a .pdf copy of any presentation you attend.

VSD
(0.70)
(FIBRE)
IOC.1
RACK 2
0.20-
0.23
IOC.2
RACK 4
0.40-
0.43
IOC.2
RACK 5
0.50-
0.53
IOC.2
RACK 6
0.60-
0.63
IOC.1
RACK 3
0.30-
0.33
IOC.1
RACK 1
0.10-
0.13
4 4 9
8 8 9
PHOENIX
factory.s
w3(0.6)
PHOENIX
factory.s
w2
(0.5)
RC
RC
1 5
5
(0.5)
(0.6)
IOC.1 FACTORY
SWITCH RACK
6
2
1
8
8
2
(0.101) (0.102) (0.103)
(0.104 (0.105) (0.106)
(16.3)
PROFIBUS
TRAINING
NETWORK
CANOPEN
TRAINING
NETWORK
(0.212)
PN / CAN
(HELMHOLZ)
ROUTER
(HELMHOLZ)
(0.214)(0.213)
DP/PN
(HELMHOLZ)
(0.201)
PN / PA
(SOFTING)
(0.211)
LOCAL PA
TRANSMITTERS
PN / OPC UA
(ADFWEB)
(0.215)
(80)
MQTT
RASP PI
(0.216)
(NAT 16.15)
DOMAIN
‘CSL PN TRAINING’
192.168.16.2
FIXED: 16.2 – 16.10
NAT: 16.11 – 16.30
DHCP: 16.31 – 16.49
REMOTE ACCESS
IO LINK
MASTER
MODULE
4 * IOL
DEVICES
PROCENTEC
office.sw1
5
6
7
8
5
6
8
(M)
(0.7)
(0.2)
IOC.1
IOC.2
SIEMENS
KTP700
HMI.1
1
2
3
4
IOC.1
SIEMENS
factory.sw1
(0.3)
1
4
2
7
MIRROR PORTX
3
(0.1)
ETHERTAP
PROCENTEC
PROCENTEC
ATLAS
(0.4)
ETHERMIRROR
(MRP)
(MRP)
RM

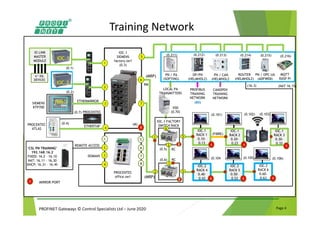

Training Network

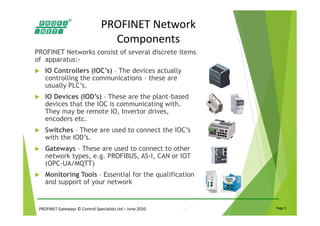

PROFINET Network
Components
PROFINET Networks consist of several discrete items
of apparatus:-
IO Controllers (IOC’s) – The devices actually
controlling the communications – these are
usually PLC’s.
IO Devices (IOD’s) – These are the plant-based
devices that the IOC is communicating with.
They may be remote IO, Invertor drives,
encoders etc.
Switches – These are used to connect the IOC’s
with the IOD’s.
Gateways – These are used to connect to other
network types, e.g. PROFIBUS, AS-I, CAN or IOT
(OPC-UA/MQTT)
Monitoring Tools – Essential for the qualification
and support of your network

Gateways, Couplers and
Routers
A PROFINET Gateway is a physical device that facilitates
communication between two industrial networks, one of which
will be a PROFINET network.
On the PROFINET side, the gateway will appear as an IO Device
and will have a GSDML file, to allow it to be incorporated into
the hardware configuration of an IO Controller (PLC), and a
PROFINET name.
Gateways are available for a wide range of network
combinations including PROFIBUS (DP), PROFIBUS (PA), AS-i,
CanBUS, IO Link and many more.
PROFINET-PROFINET Gateways are more commonly referred to
as Couplers.
In addition to connecting to other industrial networks there will
often be a need for connecting a PROFINET Network to an IT
network for support (Router)and IIoT purposes.

Many Manufacturers
MOXA
PROFINET/
PROFIBUS DP
gateway
Siemens
PROFINET/PROFIBUS
DP gateway
Softing
PROFINET/
PROFIBUS PA
gateway
ESD
PROFINET/
CANopen
gateway
IFM PROFINET/
AS-i gateway
Agilicom
PROFINET
gateways
Comtrol
PROFINET
/ IO-Link
gateway
And many more …..

PN-PN Couplers
A PROFINET Coupler facilitates the transfer of real-time data
between to separate PROFINET networks.
PN Network 1
192.168.0.x
IO Controller 1
IO Device 1
PN Network 2
192.168.16.x
IO Controller 2
IO Device 2

PN-PN Coupler Configuration
The GSDML file of the coupler needs to be
added to the hardware configuration of the
IO Controller in each network.
The device must be given a device name and
IP address.
The modules on each side appear as inputs
and outputs of varying sizes.
Output channels on one side must match
input channels on another.

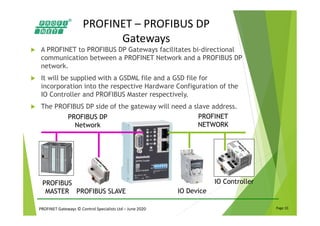

PROFINET – PROFIBUS DP
Gateways
A PROFINET to PROFIBUS DP Gateways facilitates bi-directional
communication between a PROFINET Network and a PROFIBUS DP
network.
It will be supplied with a GSDML file and a GSD file for
incorporation into the respective Hardware Configuration of the
IO Controller and PROFIBUS Master respectively.
The PROFIBUS DP side of the gateway will need a slave address.
PROFINET
NETWORK
IO Controller
IO Device
PROFIBUS DP
Network
PROFIBUS
MASTER PROFIBUS SLAVE

PN-PB DP Configuration
(PROFINET Side)
The GSDML file of the gateway needs to be
IO Controller on the PROFINET side.
Output channels on the PROFINET side must
match input channels on the PROFIBUS DP
side.

PN-PB DP Configuration
(PROFIBUS Side)
The GSD file of the gateway needs to be
DP Master on the PROFIBUS side.
Output channels on the PROFIBUS DP side
must match input channels on the PROFINET
side.

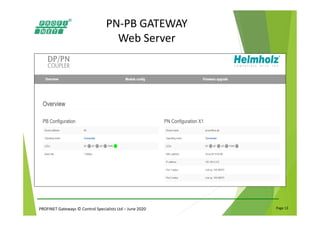

PN-PB GATEWAY
Web Server

PROFINET – PROFIBUS PA
Gateways
A PROFINET to PROFIBUS PA Gateways facilitates bi-directional
communication between a PROFINET Network and a PROFIBUS PA
network.
Here, the Gateway is acting as a PA Master on the PA side.
The configuration of these devices is a little more time-
consuming as it requires the creation on an application-specific
GSDML file.
PROFIBUS PA
Network
PROFIBUS SLAVES
PROFINET NETWORK

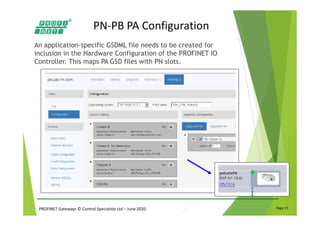

PN-PB PA Configuration
An application-specific GSDML file needs to be created for
inclusion in the Hardware Configuration of the PROFINET IO
Controller. This maps PA GSD files with PN slots.

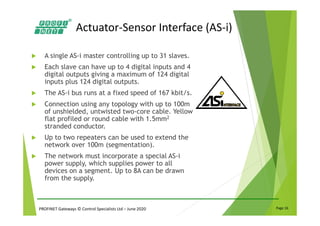

Actuator-Sensor Interface (AS-i)
A single AS-i master controlling up to 31 slaves.
Each slave can have up to 4 digital inputs and 4
digital outputs giving a maximum of 124 digital
inputs plus 124 digital outputs.
The AS-i bus runs at a fixed speed of 167 kbit/s.
Connection using any topology with up to 100m
of unshielded, untwisted two-core cable. Yellow
flat profiled or round cable with 1.5mm2
stranded conductor.
Up to two repeaters can be used to extend the
network over 100m (segmentation).
The network must incorporate a special AS-i
power supply, which supplies power to all
devices on a segment. Up to 8A can be drawn
from the supply.

PROFINET – AS-i Gateways
PROFINET to AS-i Gateways facilitate bi-directional
communications between a PROFINET network and an AS-I
Network.
They are available as a stand-alone PN-AS-i Master or as a
module that plugs into a PLC rack.
Stand-alone devices must be supplied with a GSDML file for
inclusion in the Hardware Configuration of the IO Controller
on the PROFINET side.

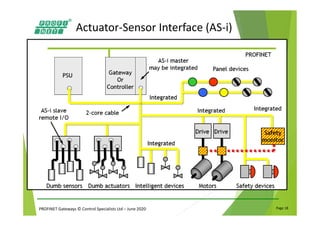

Actuator-Sensor Interface (AS-i)

PN-AS-I Configuration
AS-I Gateways are easier to configure
than those associated with higher-
level networks like PROFINET and
PROFIBUS.
This is because AS-i devices do not
have any form of device description
file.
Stand—alone PROFINET-AS-i gateways
work on the principle of mapping a
module slot number on the PN side
with an AS-i address (1-31).
PLC AS-I modules simply need to know
the number if individual AS-i devices
they will communicate with and the
address of each device.

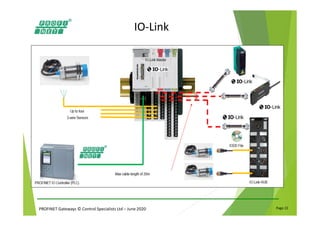

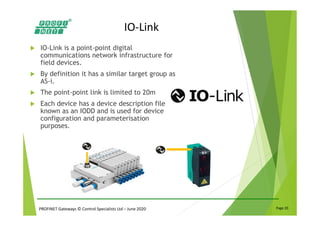

IO-Link
IO-Link is a point-point digital
communications network infrastructure for
field devices.
By definition it has a similar target group as
AS-i.
The point-point link is limited to 20m
Each device has a device description file
known as an IODD and is used for device
configuration and parameterisation
purposes.

PROFINET – IO-LINK Gateways
PROFINET to IO-Link Gateways facilitate bi-directional
communications between a PROFINET network and an IO-Link
Network.
They are available as a stand-alone device or as a module that
plugs into a PLC rack.
Stand-alone devices must be supplied with a GSDML file for
inclusion in the Hardware Configuration of the IO Controller
on the PROFINET side.

IO-Link

IIoT Gateways
IIoT Gateways (Industrial Internet
of Things) are devices that
facilitate the transfer of non-real
time data between an operational
network (OT) like PROFINET and
IT network.
The main uses of IIoT is either for
machine-machine or machine-
cloud data communication.
Two of the most common
protocols currently used by IIoT
applications are OPC-UA (Unified
Architecture) and MQTT (Message
Queuing Telemetry Transport)
Many PLCs and PROFINET
diagnostic tools support OPC-UA
and MQTT.
Softing

MQTT Demonstration
PROCENTEC ATLAS
(MQTT PUBLISHER)
Topic = /osiris/measurement/ethernet/devices
SUBSCRIBER
MQTT BROKER
SIEMENS S7 1200
(MQTT PUBLISHER)
Topic = /siemens/plc

PROFINET Routers
PROFINET is a non-routable
protocol.
This means that it is not possible to
achieve real-time communications
between devices on different
subnets.
Routers, with an integrated firewall,
can play an important part in the
support of PROFINET networks by
allowing secure access from an IT
network.
Network Address Translation (NAT)
can be used to map fixed IP
addresses in the IT network with
specific IP addresses in the
PROFINET network, e.g. web servers
of PLC, switches etc.
WAN - IT (192.168.16.x)
LAN - PROFINET (192.168.0.x)

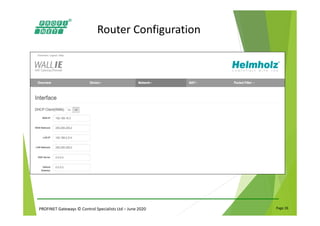

Router Configuration

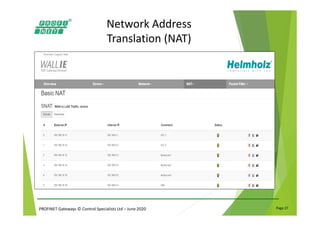

Network Address
Translation (NAT)

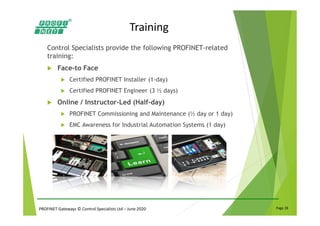

Training
Control Specialists provide the following PROFINET-related
training:
Face-to Face
Certified PROFINET Installer (1-day)
Certified PROFINET Engineer (3 ½ days)
Online / Instructor-Led (Half-day)
PROFINET Commissioning and Maintenance (½ day or 1 day)
EMC Awareness for Industrial Automation Systems (1 day)

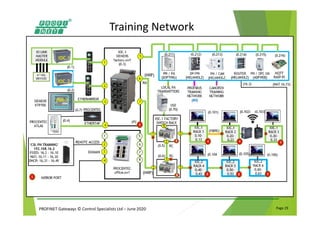

Training Network

Peter Thomas
Chairman of PI Training Centres and Technical Officer – PI UK
www.linkedin.com/in/petermthomas
peter.thomas@controlspecialists.co.uk
Control Specialists Ltd
www.controlspecialists.co.uk
Tel +44(0)1925 824003
