Cams are devices that convert rotary, oscillating, or linear motion into reciprocating or linear motion. There are several types of cams including plate, cylindrical, face, and end cams. Common types of cam followers are wedge, roller, and flat ended followers. Cam profiles determine the motion and include uniform velocity, uniform acceleration/retardation, and simple harmonic motion profiles.

1. Cams and Cam Followers

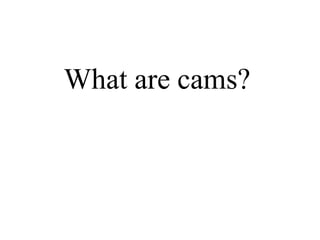

2. What are cams?

3. What are cams?
Cams convert rotary
oscillating or linear motion
into a linear or
reciprocating action to
carry out useful work.

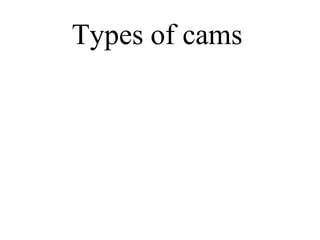

4. Types of cams

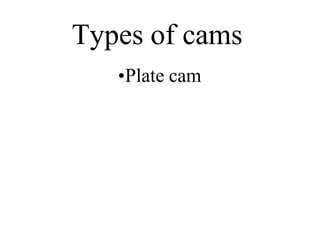

5. Types of cams
•Plate cam

6. Types of cams
•Plate cam
•Cylindrical cam

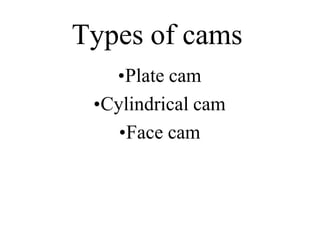

7. Types of cams
•Plate cam
•Cylindrical cam
•Face cam

8. Types of cams
•Plate cam
•Cylindrical cam
•Face cam
•End cam

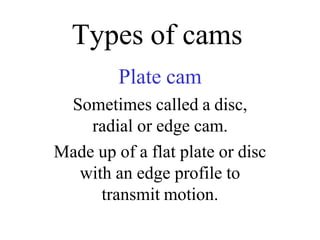

9. Types of cams
Plate cam
Sometimes called a disc,
radial or edge cam.
Made up of a flat plate or disc
with an edge profile to
transmit motion.

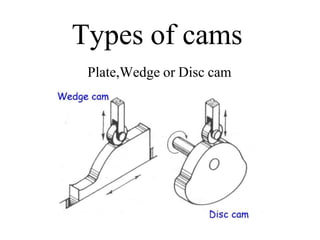

10. Types of cams
Plate,Wedge or Disc cam

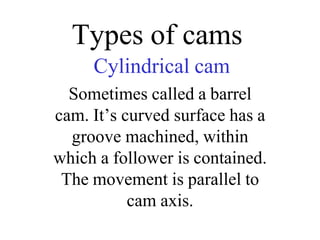

11. Types of cams
Cylindrical cam
Sometimes called a barrel
cam. It’s curved surface has a
groove machined, within
which a follower is contained.
The movement is parallel to
cam axis.

12. Types of cams
Cylindrical cam

13. Types of cams
Face cam
In its flat surface, this rotary
cam has a groove cut within
which a constrained follower
moves. The groove ensures no
need for a return spring.

14. Types of cams
Face cam

15. -Types of cams
End cam
In this case the end of the
cylindrical cam has the profile
machined on the end.

16. Types of cams
End cam

17. Types of cam follower

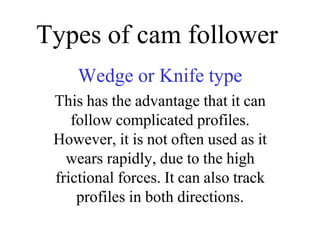

18. Types of cam follower
Wedge or Knife type
This has the advantage that it can
follow complicated profiles.
However, it is not often used as it
wears rapidly, due to the high
frictional forces. It can also track
profiles in both directions.

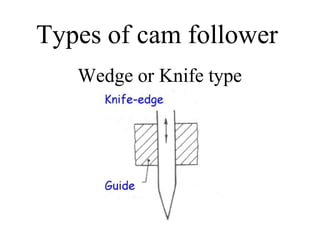

19. Types of cam follower
Wedge or Knife type

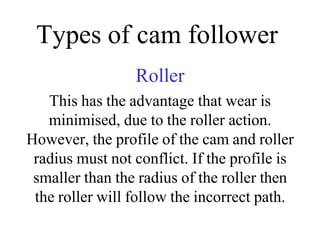

20. Types of cam follower
Roller
This has the advantage that wear is
minimised, due to the roller action.
However, the profile of the cam and roller
radius must not conflict. If the profile is
smaller than the radius of the roller then
the roller will follow the incorrect path.

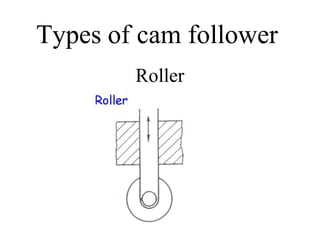

21. Types of cam follower
Roller

22. Types of cam follower
Flat ended
This cannot be used for concave
profiles. It wears slower than a
knife-edge follower, since the
points of contact move across the
surface of the follower. These are
often offset and allowed to spin.

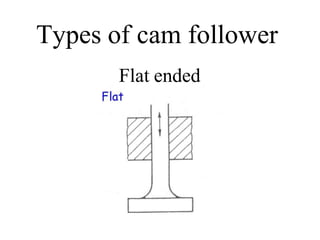

23. Types of cam follower
Flat ended

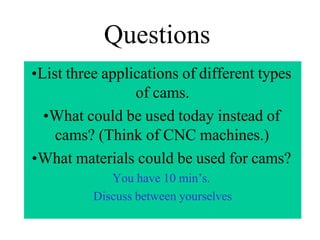

24. Questions
•List three applications of different types
of cams.
•What could be used today instead of
cams? (Think of CNC machines.)
•What materials could be used for cams?
You have 10 min’s.
Discuss between yourselves

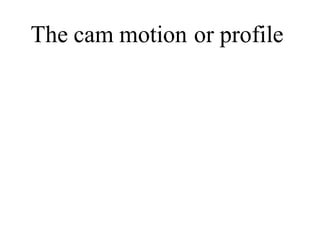

25. The cam motion or profile

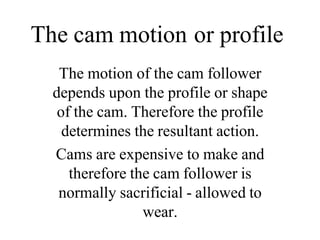

26. The cam motion or profile
The motion of the cam follower
depends upon the profile or shape
of the cam. Therefore the profile
determines the resultant action.
Cams are expensive to make and
therefore the cam follower is
normally sacrificial - allowed to
wear.

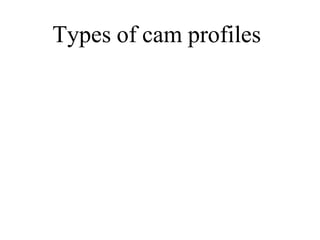

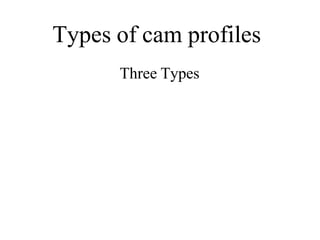

27. Types of cam profiles

28. Types of cam profiles
Three Types

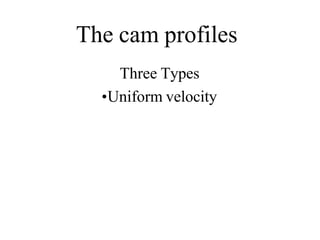

29. The cam profiles
Three Types
•Uniform velocity

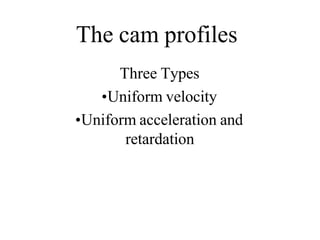

30. The cam profiles
Three Types
•Uniform velocity
•Uniform acceleration and
retardation

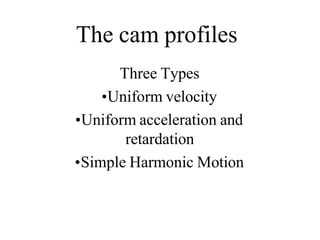

31. The cam profiles
Three Types
•Uniform velocity
•Uniform acceleration and
retardation
•Simple Harmonic Motion

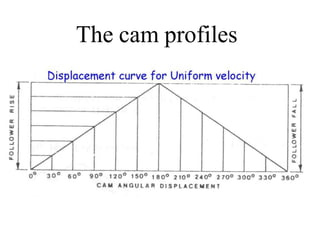

32. The cam profiles

33. The cam profiles

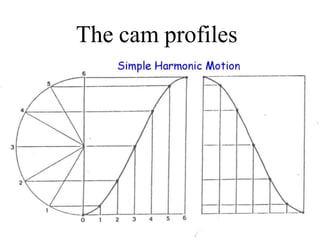

34. The cam profiles

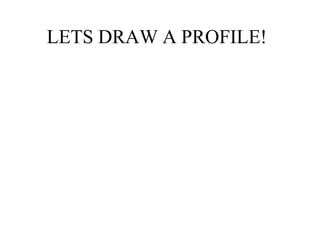

35. LETS DRAW A PROFILE!

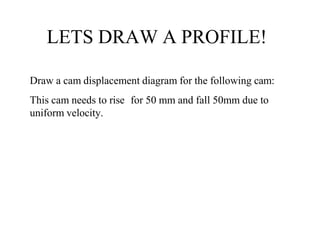

36. LETS DRAW A PROFILE!
Draw a cam displacement diagram for the following cam:
This cam needs to rise for 50 mm and fall 50mm due to
uniform velocity.

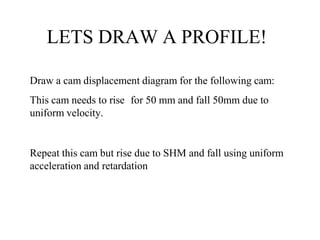

37. LETS DRAW A PROFILE!
Draw a cam displacement diagram for the following cam:
This cam needs to rise for 50 mm and fall 50mm due to
uniform velocity.
Repeat this cam but rise due to SHM and fall using uniform
acceleration and retardation

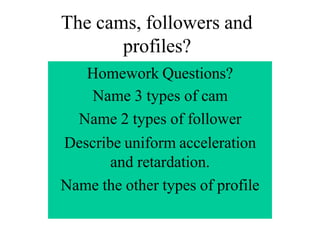

38. The cams, followers and
profiles?
Homework Questions?
Name 3 types of cam
Name 2 types of follower
Describe uniform acceleration
and retardation.
Name the other types of profile
