Simocode PRO trainning ppt
Read less
Read more
Engineering
Report
Share
Report
Share
1 of 42
Download now
Download to read offline
Recommended
Isa-sachin-upstream-onshore.ppt
Isa-sachin-upstream-onshore.ppt
Sachin Rasane
Tải Catalog biến tần Siemens Sinamic G120X
Tải Catalog biến tần Siemens Sinamic G120X
Công ty công nghệ tự động hóa Hoàng Gia
SIMATIC S7-1200 Overview
SIMATIC S7-1200 Overview
Luis Narvaez
TIA PORTAL SLIDES SIEMENS EMERSON EDUARDO RODRIGUES
TIA PORTAL SLIDES SIEMENS EMERSON EDUARDO RODRIGUES
EMERSON EDUARDO RODRIGUES
D18 1-2013-en
D18 1-2013-en
Группа компаний СИС
Siemens catalog tong hop 3 uf simocode
Siemens catalog tong hop 3 uf simocode
Dien Ha The
1 sinamics components
1 sinamics components
confidencial
Sce guide trainer_pakete_en_without_prices
Sce guide trainer_pakete_en_without_prices
Charles Santos
Recommended
Isa-sachin-upstream-onshore.ppt
Isa-sachin-upstream-onshore.ppt
Sachin Rasane
Tải Catalog biến tần Siemens Sinamic G120X
Tải Catalog biến tần Siemens Sinamic G120X
Công ty công nghệ tự động hóa Hoàng Gia
SIMATIC S7-1200 Overview
SIMATIC S7-1200 Overview
Luis Narvaez
TIA PORTAL SLIDES SIEMENS EMERSON EDUARDO RODRIGUES
TIA PORTAL SLIDES SIEMENS EMERSON EDUARDO RODRIGUES
EMERSON EDUARDO RODRIGUES
D18 1-2013-en
D18 1-2013-en
Группа компаний СИС
Siemens catalog tong hop 3 uf simocode
Siemens catalog tong hop 3 uf simocode
Dien Ha The
1 sinamics components
1 sinamics components
confidencial
Sce guide trainer_pakete_en_without_prices
Sce guide trainer_pakete_en_without_prices
Charles Santos
ajmer_malik
ajmer_malik
Ajmer Malik
Technical_Slides_S7-1500_en - Presentación.pdf
Technical_Slides_S7-1500_en - Presentación.pdf
DannyGarcia389134
2015 12 02_optiwind_optimization-operations-maintenance-offshore-wind-farms-k...
2015 12 02_optiwind_optimization-operations-maintenance-offshore-wind-farms-k...
Sirris
Catalogue biến tần Siemens V20 - đại lý biến tần siemens v20
Catalogue biến tần Siemens V20 - đại lý biến tần siemens v20
namtrungcompany
Simocode pro presentation for simodode dp customers share by voip.com.vn
Simocode pro presentation for simodode dp customers share by voip.com.vn
Tran Thanh
Engage with...Siemens | Driving the Electric Revolution Webinar
Engage with...Siemens | Driving the Electric Revolution Webinar
KTN
2 s120 commissioning
2 s120 commissioning
confidencial
D11 2011-en
D11 2011-en
Группа компаний СИС
Manual conversor dc siemens
Manual conversor dc siemens
Josh Santos
Cpu226
Cpu226
Slamet Pambudi
Rūpnieciskā automatizācija ar WAGO risinājumiem
Rūpnieciskā automatizācija ar WAGO risinājumiem
Elektrumlv
Tải Brochure biến tần siemens Sinamic G120
Tải Brochure biến tần siemens Sinamic G120
Công ty công nghệ tự động hóa Hoàng Gia
Siemens catalog tong hop siemens micromaster drive
Siemens catalog tong hop siemens micromaster drive
Dien Ha The
201105 ureason introduction
201105 ureason introduction
UReasonChannel
A nova geração de Solar-Log e o seu arranque
A nova geração de Solar-Log e o seu arranque
Krannich Solar Portugal
Dienhathe.com lv72 k-en_xx_2005
Dienhathe.com lv72 k-en_xx_2005
Dien Ha The
Data sheet 6 gk5108
Data sheet 6 gk5108
Giancarlo Valderrama Rivera
Siemens simatic simatic
Siemens simatic simatic
Dien Ha The
TechShanghai2016 - Reliable automotive-grade Isolators for new energy vehicles
TechShanghai2016 - Reliable automotive-grade Isolators for new energy vehicles
Hardway Hou
Systems for mobile machines
Systems for mobile machines
ifm electronic gmbh
Call Girls Pimpri Chinchwad Call Me 7737669865 Budget Friendly No Advance Boo...
Call Girls Pimpri Chinchwad Call Me 7737669865 Budget Friendly No Advance Boo...
roncy bisnoi
MANUFACTURING PROCESS-II UNIT-1 THEORY OF METAL CUTTING
MANUFACTURING PROCESS-II UNIT-1 THEORY OF METAL CUTTING
SIVASHANKAR N
More Related Content
Similar to Presentation - SIMOCODE Pro Presentation (1).pdf
ajmer_malik
ajmer_malik
Ajmer Malik
Technical_Slides_S7-1500_en - Presentación.pdf
Technical_Slides_S7-1500_en - Presentación.pdf
DannyGarcia389134
2015 12 02_optiwind_optimization-operations-maintenance-offshore-wind-farms-k...
2015 12 02_optiwind_optimization-operations-maintenance-offshore-wind-farms-k...
Sirris
Catalogue biến tần Siemens V20 - đại lý biến tần siemens v20
Catalogue biến tần Siemens V20 - đại lý biến tần siemens v20
namtrungcompany
Simocode pro presentation for simodode dp customers share by voip.com.vn
Simocode pro presentation for simodode dp customers share by voip.com.vn
Tran Thanh
Engage with...Siemens | Driving the Electric Revolution Webinar
Engage with...Siemens | Driving the Electric Revolution Webinar
KTN
2 s120 commissioning
2 s120 commissioning
confidencial
D11 2011-en
D11 2011-en
Группа компаний СИС
Manual conversor dc siemens
Manual conversor dc siemens
Josh Santos
Cpu226
Cpu226
Slamet Pambudi
Rūpnieciskā automatizācija ar WAGO risinājumiem
Rūpnieciskā automatizācija ar WAGO risinājumiem
Elektrumlv
Tải Brochure biến tần siemens Sinamic G120
Tải Brochure biến tần siemens Sinamic G120
Công ty công nghệ tự động hóa Hoàng Gia
Siemens catalog tong hop siemens micromaster drive
Siemens catalog tong hop siemens micromaster drive
Dien Ha The
201105 ureason introduction
201105 ureason introduction
UReasonChannel
A nova geração de Solar-Log e o seu arranque
A nova geração de Solar-Log e o seu arranque
Krannich Solar Portugal
Dienhathe.com lv72 k-en_xx_2005
Dienhathe.com lv72 k-en_xx_2005
Dien Ha The
Data sheet 6 gk5108
Data sheet 6 gk5108
Giancarlo Valderrama Rivera
Siemens simatic simatic
Siemens simatic simatic
Dien Ha The
TechShanghai2016 - Reliable automotive-grade Isolators for new energy vehicles
TechShanghai2016 - Reliable automotive-grade Isolators for new energy vehicles
Hardway Hou
Systems for mobile machines
Systems for mobile machines
ifm electronic gmbh
Similar to Presentation - SIMOCODE Pro Presentation (1).pdf
(20)
ajmer_malik
ajmer_malik
Technical_Slides_S7-1500_en - Presentación.pdf
Technical_Slides_S7-1500_en - Presentación.pdf
2015 12 02_optiwind_optimization-operations-maintenance-offshore-wind-farms-k...
2015 12 02_optiwind_optimization-operations-maintenance-offshore-wind-farms-k...
Catalogue biến tần Siemens V20 - đại lý biến tần siemens v20
Catalogue biến tần Siemens V20 - đại lý biến tần siemens v20
Simocode pro presentation for simodode dp customers share by voip.com.vn
Simocode pro presentation for simodode dp customers share by voip.com.vn
Engage with...Siemens | Driving the Electric Revolution Webinar
Engage with...Siemens | Driving the Electric Revolution Webinar
2 s120 commissioning
2 s120 commissioning
D11 2011-en
D11 2011-en
Manual conversor dc siemens
Manual conversor dc siemens
Cpu226
Cpu226
Rūpnieciskā automatizācija ar WAGO risinājumiem
Rūpnieciskā automatizācija ar WAGO risinājumiem
Tải Brochure biến tần siemens Sinamic G120
Tải Brochure biến tần siemens Sinamic G120
Siemens catalog tong hop siemens micromaster drive
Siemens catalog tong hop siemens micromaster drive
201105 ureason introduction
201105 ureason introduction
A nova geração de Solar-Log e o seu arranque
A nova geração de Solar-Log e o seu arranque
Dienhathe.com lv72 k-en_xx_2005
Dienhathe.com lv72 k-en_xx_2005
Data sheet 6 gk5108
Data sheet 6 gk5108
Siemens simatic simatic
Siemens simatic simatic
TechShanghai2016 - Reliable automotive-grade Isolators for new energy vehicles
TechShanghai2016 - Reliable automotive-grade Isolators for new energy vehicles
Systems for mobile machines
Systems for mobile machines
Recently uploaded
Call Girls Pimpri Chinchwad Call Me 7737669865 Budget Friendly No Advance Boo...
Call Girls Pimpri Chinchwad Call Me 7737669865 Budget Friendly No Advance Boo...
roncy bisnoi
MANUFACTURING PROCESS-II UNIT-1 THEORY OF METAL CUTTING
MANUFACTURING PROCESS-II UNIT-1 THEORY OF METAL CUTTING
SIVASHANKAR N
(ANVI) Koregaon Park Call Girls Just Call 7001035870 [ Cash on Delivery ] Pun...
(ANVI) Koregaon Park Call Girls Just Call 7001035870 [ Cash on Delivery ] Pun...
ranjana rawat
Sheet Pile Wall Design and Construction: A Practical Guide for Civil Engineer...
Sheet Pile Wall Design and Construction: A Practical Guide for Civil Engineer...
Dr.Costas Sachpazis
(INDIRA) Call Girl Aurangabad Call Now 8617697112 Aurangabad Escorts 24x7
(INDIRA) Call Girl Aurangabad Call Now 8617697112 Aurangabad Escorts 24x7
Call Girls in Nagpur High Profile Call Girls
result management system report for college project
result management system report for college project
Tonystark477637
Roadmap to Membership of RICS - Pathways and Routes
Roadmap to Membership of RICS - Pathways and Routes
M Maged Hegazy, LLM, MBA, CCP, P3O
(ANJALI) Dange Chowk Call Girls Just Call 7001035870 [ Cash on Delivery ] Pun...
(ANJALI) Dange Chowk Call Girls Just Call 7001035870 [ Cash on Delivery ] Pun...
ranjana rawat
Call Girls Service Nagpur Tanvi Call 7001035870 Meet With Nagpur Escorts
Call Girls Service Nagpur Tanvi Call 7001035870 Meet With Nagpur Escorts
Call Girls in Nagpur High Profile
CCS335 _ Neural Networks and Deep Learning Laboratory_Lab Complete Record
CCS335 _ Neural Networks and Deep Learning Laboratory_Lab Complete Record
Asst.prof M.Gokilavani
Introduction to Multiple Access Protocol.pptx
Introduction to Multiple Access Protocol.pptx
upamatechverse
Structural Analysis and Design of Foundations: A Comprehensive Handbook for S...
Structural Analysis and Design of Foundations: A Comprehensive Handbook for S...
Dr.Costas Sachpazis
Processing & Properties of Floor and Wall Tiles.pptx
Processing & Properties of Floor and Wall Tiles.pptx
pranjaldaimarysona
UNIT-II FMM-Flow Through Circular Conduits
UNIT-II FMM-Flow Through Circular Conduits
rknatarajan
Glass Ceramics: Processing and Properties
Glass Ceramics: Processing and Properties
Prabhanshu Chaturvedi
The Most Attractive Pune Call Girls Manchar 8250192130 Will You Miss This Cha...
The Most Attractive Pune Call Girls Manchar 8250192130 Will You Miss This Cha...
ranjana rawat
KubeKraft presentation @CloudNativeHooghly
KubeKraft presentation @CloudNativeHooghly
sanyuktamishra911
High Profile Call Girls Nagpur Isha Call 7001035870 Meet With Nagpur Escorts
High Profile Call Girls Nagpur Isha Call 7001035870 Meet With Nagpur Escorts
ranjana rawat
Coefficient of Thermal Expansion and their Importance.pptx
Coefficient of Thermal Expansion and their Importance.pptx
Asutosh Ranjan
Booking open Available Pune Call Girls Pargaon 6297143586 Call Hot Indian Gi...
Booking open Available Pune Call Girls Pargaon 6297143586 Call Hot Indian Gi...
Call Girls in Nagpur High Profile
Recently uploaded
(20)
Call Girls Pimpri Chinchwad Call Me 7737669865 Budget Friendly No Advance Boo...
Call Girls Pimpri Chinchwad Call Me 7737669865 Budget Friendly No Advance Boo...
MANUFACTURING PROCESS-II UNIT-1 THEORY OF METAL CUTTING
MANUFACTURING PROCESS-II UNIT-1 THEORY OF METAL CUTTING
(ANVI) Koregaon Park Call Girls Just Call 7001035870 [ Cash on Delivery ] Pun...
(ANVI) Koregaon Park Call Girls Just Call 7001035870 [ Cash on Delivery ] Pun...
Sheet Pile Wall Design and Construction: A Practical Guide for Civil Engineer...
Sheet Pile Wall Design and Construction: A Practical Guide for Civil Engineer...
(INDIRA) Call Girl Aurangabad Call Now 8617697112 Aurangabad Escorts 24x7
(INDIRA) Call Girl Aurangabad Call Now 8617697112 Aurangabad Escorts 24x7
result management system report for college project
result management system report for college project
Roadmap to Membership of RICS - Pathways and Routes
Roadmap to Membership of RICS - Pathways and Routes
(ANJALI) Dange Chowk Call Girls Just Call 7001035870 [ Cash on Delivery ] Pun...
(ANJALI) Dange Chowk Call Girls Just Call 7001035870 [ Cash on Delivery ] Pun...
Call Girls Service Nagpur Tanvi Call 7001035870 Meet With Nagpur Escorts
Call Girls Service Nagpur Tanvi Call 7001035870 Meet With Nagpur Escorts
CCS335 _ Neural Networks and Deep Learning Laboratory_Lab Complete Record
CCS335 _ Neural Networks and Deep Learning Laboratory_Lab Complete Record
Introduction to Multiple Access Protocol.pptx
Introduction to Multiple Access Protocol.pptx
Structural Analysis and Design of Foundations: A Comprehensive Handbook for S...
Structural Analysis and Design of Foundations: A Comprehensive Handbook for S...
Processing & Properties of Floor and Wall Tiles.pptx
Processing & Properties of Floor and Wall Tiles.pptx
UNIT-II FMM-Flow Through Circular Conduits
UNIT-II FMM-Flow Through Circular Conduits
Glass Ceramics: Processing and Properties
Glass Ceramics: Processing and Properties
The Most Attractive Pune Call Girls Manchar 8250192130 Will You Miss This Cha...
The Most Attractive Pune Call Girls Manchar 8250192130 Will You Miss This Cha...
KubeKraft presentation @CloudNativeHooghly
KubeKraft presentation @CloudNativeHooghly
High Profile Call Girls Nagpur Isha Call 7001035870 Meet With Nagpur Escorts
High Profile Call Girls Nagpur Isha Call 7001035870 Meet With Nagpur Escorts
Coefficient of Thermal Expansion and their Importance.pptx
Coefficient of Thermal Expansion and their Importance.pptx
Booking open Available Pune Call Girls Pargaon 6297143586 Call Hot Indian Gi...
Booking open Available Pune Call Girls Pargaon 6297143586 Call Hot Indian Gi...
Presentation - SIMOCODE Pro Presentation (1).pdf
1.
SIMOCODE pro Motor Management
System
2.
For SIEMENS personnel
and Automation Partners Only © Siemens Industry, Inc. 2013 All rights reserved. Page 2 Burns / DF CP Page 2 SIMOCODE pro Capabilities pro C 3UF7000… pro V 3UF7010… pro V PN 3UF7011… pro V MR 3UF7012… ▪ Protection ▪ Monitoring ▪ Local I/O ▪ Local Logic Main Functions: pro S 3UF7020… • PROFIBUS • PROFINET • MODBUS RTU
3.
For SIEMENS personnel
and Automation Partners Only © Siemens Industry, Inc. 2013 All rights reserved. Page 3 Burns / DF CP Page 3 Hardware Overview – SIMOCODE pro V Expansion modules ▪ Fail-safe digital module ▪ Digital I/Os ▪ Analog I/Os ▪ Temperature sensor ▪ External ground fault via summation current transformer Operator panel with or without display Current measuring module Basic unit 0.3 A - 630 A through-hole or busbar connection 4I/3O binary thermistor PROFIBUS DP PROFINET MODBUS RTU 24 V DC / 110-240 V AC/DC Current / Voltage measuring module 0.3 A – 630 A / 690 V through-hole or busbar connection
4.
For SIEMENS personnel
and Automation Partners Only © Siemens Industry, Inc. 2013 All rights reserved. Page 4 Burns / DF CP Page 4 Widths: Configuration Accessories PROFIBUS address assignment to one or several basic units ▪ Addressing plug for PROFIBUS address assignment without PC / programming device Easy duplication of configuration ▪ Memory module for parameterization or device replacement without PC / programming device Plug & play replacement ▪ Initialization module for automatic addressing and parameterization after device replacement
5.
For SIEMENS personnel
and Automation Partners Only © Siemens Industry, Inc. 2013 All rights reserved. Page 5 Burns / DF CP Page 5 SIMOCODE pro Software Detailed Options
6.
For SIEMENS personnel

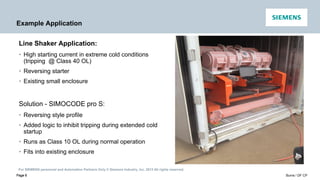

and Automation Partners Only © Siemens Industry, Inc. 2013 All rights reserved. Page 6 Burns / DF CP Page 6 Example Application Line Shaker Application: • High starting current in extreme cold conditions (tripping @ Class 40 OL) • Reversing starter • Existing small enclosure Solution - SIMOCODE pro S: • Reversing style profile • Added logic to inhibit tripping during extended cold startup • Runs as Class 10 OL during normal operation • Fits into existing enclosure
7.
For SIEMENS personnel

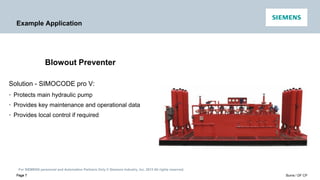

and Automation Partners Only © Siemens Industry, Inc. 2013 All rights reserved. Page 7 Burns / DF CP Page 7 Example Application Blowout Preventer Solution - SIMOCODE pro V: • Protects main hydraulic pump • Provides key maintenance and operational data • Provides local control if required
8.
For SIEMENS personnel
and Automation Partners Only © Siemens Industry, Inc. 2013 All rights reserved. Page 8 Burns / DF CP Page 8 Example Application MCC Retrofit Solution - SIMOCODE pro V: • Fits into existing bucket • Eliminate new Cap Expense • Flexible implementation • Provides key maintenance and operational data
9.
For SIEMENS personnel

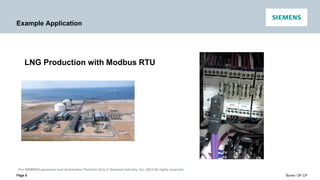

and Automation Partners Only © Siemens Industry, Inc. 2013 All rights reserved. Page 9 Burns / DF CP Page 9 Example Application LNG Production with Modbus RTU
10.
For SIEMENS personnel
and Automation Partners Only © Siemens Industry, Inc. 2013 All rights reserved. Page 10 Burns / DF CP Page 10 Project: Pumping System Modernization SIMOCODE pro – The intelligent interface between motor application and controller Business case: Legacy system was outdated and lacked modern communications, diagnostics, and future expansion needs for application SIMOCODE was selected as the ideal motor management system for the application along with Siemens S7 controllers, SINAUT remote communications, and WinCC SCADA for visualization & remote control Benefits included ▪ Improved communications and monitoring ▪ Improved maintenance through advanced diagnostics ▪ Lower operating cost ▪ Scalable and future focused
11.
For SIEMENS personnel
and Automation Partners Only © Siemens Industry, Inc. 2013 All rights reserved. Page 11 Burns / DF CP Page 11 Example Application Solution - SIMOCODE pro V: • Meets SIL 3 Safety Rating • Process Monitoring • Operational data MCC with Machine Safety
12.
For SIEMENS personnel
and Automation Partners Only © Siemens Industry, Inc. 2013 All rights reserved. Page 12 Burns / DF CP Page 12 Filter Flow rate Pump SIMOCODE pro Basic unit Protection against overload, stall, phase failure, Monitoring of power, Cos-Phi motor idling, rotational direction Digital modules Monitoring/Status e.g. overflow, run dry protection, Check-back signals: Open, Closed, On, Off Analog module Monitoring e.g. of the filling level, filter dirt, flow rate, run dry protection, Pressure of the cooling fluid or gear oil Temperature module Temperature monitoring e.g. of the bearings, windings, medium, cooling fluid - Protection - Control - Interlockings - Monitoring - Communication Controller Operator Panel SCADA Wireless Control & Monitoring SIMOCODE Pump Application Remote Access Application Example: Pump / Motor Control & Monitoring SIMOCODE pro – The intelligent interface between pump application and controller
13.
For SIEMENS personnel
and Automation Partners Only © Siemens Industry, Inc. 2013 All rights reserved. Page 13 Burns / DF CP Page 13 Filter Volume flow Fan Digital modules Monitoring/Status e.g. Check-back signals Open, Closed, On, Off Analog module Monitoring of e.g. pressure, filter dirt, volume flow Temperature module Temperature monitoring e.g. of the bearings, windings, incoming air, exhaust air Damper Heating Connection of the heating to Profibus via SIMOCODE, Protection, Switching, Monitoring completely in SIMOCODE SIMOCODE pro Basic unit - Protection - Control - Interlockings - Monitoring - Communication Protection against overload, stall, phase failure, Monitoring of power, driving belt slippage, rotational direction Controller Operator Panel SCADA Wireless Remote Access Application Example: Fan & Heating Control & Monitoring SIMOCODE Fan & Heating Application SIMOCODE pro – The intelligent interface between fan application and controller
14.
For SIEMENS personnel

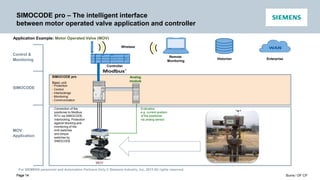

and Automation Partners Only © Siemens Industry, Inc. 2013 All rights reserved. Page 14 Burns / DF CP Page 14 Analog module MOV Connection of the positioner to Modbus RTU via SIMOCODE, Interlocking, Protection against blocking and monitoring of the limit switches and torque switches by SIMOCODE Evaluation e.g. current position of the positioner via analog sensor SIMOCODE pro Basic unit - Protection - Control - Interlockings - Monitoring - Communication SIMOCODE pro – The intelligent interface between motor operated valve application and controller Remote Monitoring Historian Enterprise Controller Wireless Control & Monitoring SIMOCODE MOV Application Application Example: Motor Operated Valve (MOV)
15.
For SIEMENS personnel

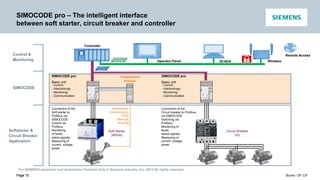

and Automation Partners Only © Siemens Industry, Inc. 2013 All rights reserved. Page 15 Burns / DF CP Page 15 Connection of the Soft starter to Profibus via SIMOCODE: Control via Profibus, Monitoring of faults, status signals, Measuring of current, voltage, power Temperature module Temperature monitoring e.g. of the bearings, windings Connection of the Circuit breaker to Profibus via SIMOCODE: Switching via Profibus, Monitoring of faults, status signals, Measuring of current, voltage, power SIMOCODE pro Basic unit - Control - Interlockings - Monitoring - Communication SIMOCODE pro Basic unit - Control - Interlockings - Monitoring - Communication Circuit Breaker 3VL Soft Starter 3RW40 SIMOCODE pro – The intelligent interface between soft starter, circuit breaker and controller Controller Operator Panel SCADA Wireless Remote Access Control & Monitoring SIMOCODE Softstarter & Circuit Breaker Application
16.
For SIEMENS personnel

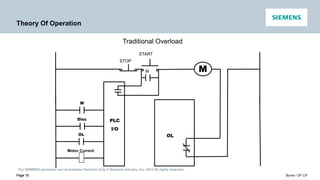

and Automation Partners Only © Siemens Industry, Inc. 2013 All rights reserved. Page 16 Burns / DF CP Page 16 M START STOP M Theory Of Operation Traditional Overload OL M Disc OL Motor Current PLC I/O
17.
For SIEMENS personnel
and Automation Partners Only © Siemens Industry, Inc. 2013 All rights reserved. Page 17 Burns / DF CP Page 17 PLC / DCS Motor Starter PLC / DCS Motor Starter PLC / DCS Motor Starter PLC / DCS Motor Starter PLC / DCS Motor Starter PLC / DCS Motor Starter PLC / DCS Motor Starter PLC / DCS Motor Starter PLC / DCS Motor Starter PLC / DCS Motor Starter PLC / DCS Motor Starter PLC / DCS Motor Starter PLC / DCS Motor Starter PLC / DCS Motor Starter PLC / DCS Motor Starter PLC / DCS Motor Starter PLC / DCS Motor Starter PLC / DCS Motor Starter PLC / DCS Motor Starter PLC / DCS Motor Starter PLC / DCS Motor Starter PLC / DCS Motor Starter PLC / DCS Motor Starter PLC / DCS Motor Starter PLC / DCS Motor Starter Theory Of Operation
18.
For SIEMENS personnel
and Automation Partners Only © Siemens Industry, Inc. 2013 All rights reserved. Page 18 Burns / DF CP Page 18 M START STOP M Theory Of Operation Traditional Overload OL M Disc OL Motor Current PLC I/O
19.
For SIEMENS personnel

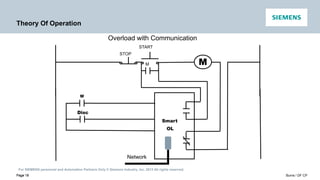

and Automation Partners Only © Siemens Industry, Inc. 2013 All rights reserved. Page 19 Burns / DF CP Page 19 M START STOP M Theory Of Operation Smart Network Overload with Communication OL M Disc
20.
For SIEMENS personnel
and Automation Partners Only © Siemens Industry, Inc. 2013 All rights reserved. Page 20 Burns / DF CP Page 20 M START STOP M Theory Of Operation Smart Network Overload with Communication OL M Disc SIMOCODE • Analog I/O • Digital I/O • RTD • Voltage/Power • Local Logic • Motor Profiles Additional Values
21.
For SIEMENS personnel

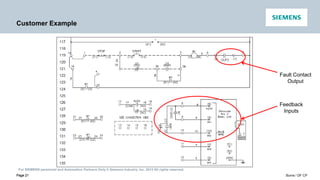

and Automation Partners Only © Siemens Industry, Inc. 2013 All rights reserved. Page 21 Burns / DF CP Page 21 Customer Example Fault Contact Output Feedback Inputs
22.
For SIEMENS personnel

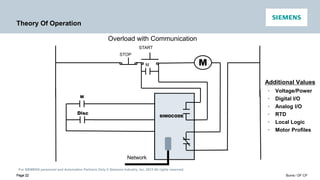

and Automation Partners Only © Siemens Industry, Inc. 2013 All rights reserved. Page 22 Burns / DF CP Page 22 M START STOP M Theory Of Operation Network Overload with Communication M Disc SIMOCODE • Analog I/O • Digital I/O • RTD • Voltage/Power • Local Logic • Motor Profiles Additional Values
23.
For SIEMENS personnel

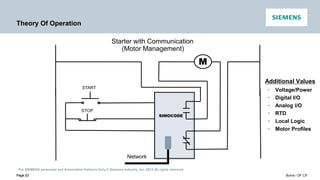

and Automation Partners Only © Siemens Industry, Inc. 2013 All rights reserved. Page 23 Burns / DF CP Page 23 M Theory Of Operation Network Starter with Communication STOP START (Motor Management) SIMOCODE • Analog I/O • Digital I/O • RTD • Voltage/Power • Local Logic • Motor Profiles Additional Values
24.
For SIEMENS personnel

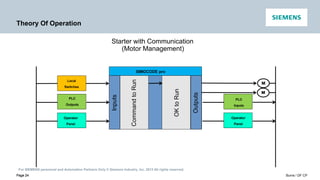

and Automation Partners Only © Siemens Industry, Inc. 2013 All rights reserved. Page 24 Burns / DF CP Page 24 Local Switches PLC Outputs Operator Panel M Command to Run OK to Run SIMOCODE pro Inputs Outputs PLC Inputs Operator Panel M Theory Of Operation Starter with Communication (Motor Management)
25.
For SIEMENS personnel

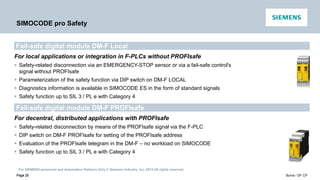

and Automation Partners Only © Siemens Industry, Inc. 2013 All rights reserved. Page 25 Burns / DF CP Page 25 Widths: SIMOCODE pro Safety Fail-safe digital module DM-F Local For local applications or integration in F-PLCs without PROFIsafe ▪ Safety-related disconnection via an EMERGENCY-STOP sensor or via a fail-safe control's signal without PROFIsafe ▪ Parameterization of the safety function via DIP switch on DM-F LOCAL ▪ Diagnostics information is available in SIMOCODE ES in the form of standard signals ▪ Safety function up to SIL 3 / PL e with Category 4 Fail-safe digital module DM-F PROFIsafe For decentral, distributed applications with PROFIsafe ▪ Safety-related disconnection by means of the PROFIsafe signal via the F-PLC ▪ DIP switch on DM-F PROFIsafe for setting of the PROFIsafe address ▪ Evaluation of the PROFIsafe telegram in the DM-F – no workload on SIMOCODE ▪ Safety function up to SIL 3 / PL e with Category 4
26.
For SIEMENS personnel

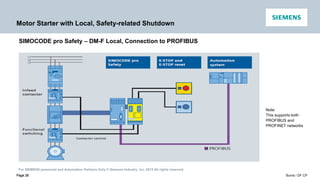

and Automation Partners Only © Siemens Industry, Inc. 2013 All rights reserved. Page 26 Burns / DF CP Page 26 Motor Starter with Local, Safety-related Shutdown SIMOCODE pro Safety – DM-F Local, Connection to PROFIBUS Note: This supports both PROFIBUS and PROFINET networks
27.
For SIEMENS personnel
and Automation Partners Only © Siemens Industry, Inc. 2013 All rights reserved. Page 27 Burns / DF CP Page 27 SIMOCODE pro Safety – DM-F Local, Connection to PROFIBUS Motor Starter with Local, Safety-related Shutdown Note: This supports both PROFIBUS and PROFINET networks
28.
For SIEMENS personnel

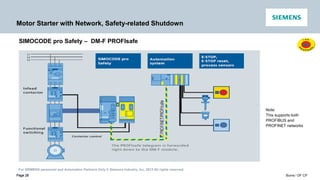

and Automation Partners Only © Siemens Industry, Inc. 2013 All rights reserved. Page 28 Burns / DF CP Page 28 SIMOCODE pro Safety – DM-F PROFIsafe Motor Starter with Network, Safety-related Shutdown Note: This supports both PROFIBUS and PROFINET networks
29.
For SIEMENS personnel

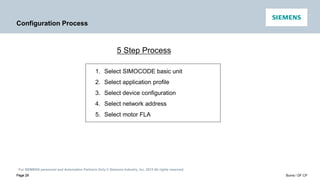

and Automation Partners Only © Siemens Industry, Inc. 2013 All rights reserved. Page 29 Burns / DF CP Page 29 Configuration Process 5 Step Process 1. Select SIMOCODE basic unit 2. Select application profile 3. Select device configuration 4. Select network address 5. Select motor FLA
30.
For SIEMENS personnel
and Automation Partners Only © Siemens Industry, Inc. 2013 All rights reserved. Page 30 Burns / DF CP Page 30 Add a New Device
31.
For SIEMENS personnel

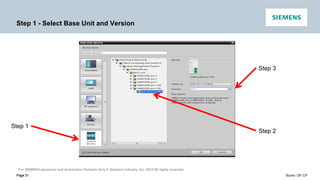

and Automation Partners Only © Siemens Industry, Inc. 2013 All rights reserved. Page 31 Burns / DF CP Page 31 Step 1 - Select Base Unit and Version Step 1 Step 2 Step 3
32.
For SIEMENS personnel

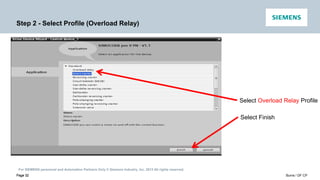

and Automation Partners Only © Siemens Industry, Inc. 2013 All rights reserved. Page 32 Burns / DF CP Page 32 Step 2 - Select Profile (Overload Relay) Select Overload Relay Profile Select Finish
33.
For SIEMENS personnel
and Automation Partners Only © Siemens Industry, Inc. 2013 All rights reserved. Page 33 Burns / DF CP Page 33 Step 3 – Match Existing Device
34.
For SIEMENS personnel

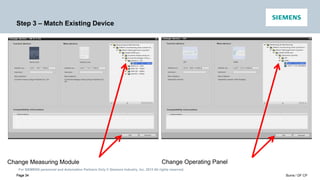

and Automation Partners Only © Siemens Industry, Inc. 2013 All rights reserved. Page 34 Burns / DF CP Page 34 Step 3 – Match Existing Device Change Measuring Module Change Operating Panel
35.
For SIEMENS personnel

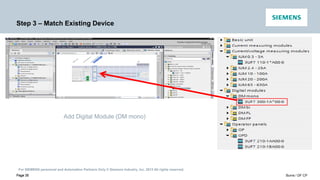

and Automation Partners Only © Siemens Industry, Inc. 2013 All rights reserved. Page 35 Burns / DF CP Page 35 Step 3 – Match Existing Device Add Digital Module (DM mono)
36.
For SIEMENS personnel
and Automation Partners Only © Siemens Industry, Inc. 2013 All rights reserved. Page 36 Burns / DF CP Page 36 Step 4 – Select Network Address
37.
For SIEMENS personnel

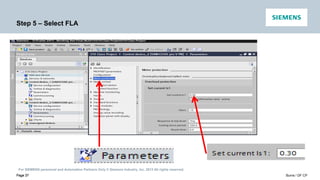

and Automation Partners Only © Siemens Industry, Inc. 2013 All rights reserved. Page 37 Burns / DF CP Page 37 Step 5 – Select FLA
38.
For SIEMENS personnel

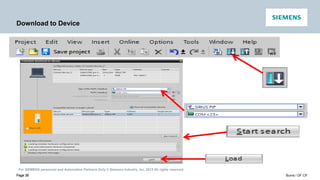

and Automation Partners Only © Siemens Industry, Inc. 2013 All rights reserved. Page 38 Burns / DF CP Page 38 Download to Device
39.
For SIEMENS personnel

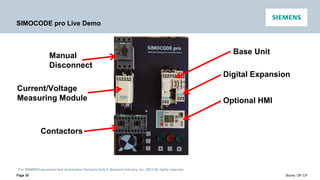

and Automation Partners Only © Siemens Industry, Inc. 2013 All rights reserved. Page 39 Burns / DF CP Page 39 SIMOCODE pro Live Demo Base Unit Digital Expansion Optional HMI Current/Voltage Measuring Module Manual Disconnect Contactors
40.
SIMOCODE pro Labs Hands
On Training
41.
For SIEMENS personnel
and Automation Partners Only © Siemens Industry, Inc. 2013 All rights reserved. Page 41 Burns / DF CP Page 41 Questions
42.
For SIEMENS personnel
and Automation Partners Only © Siemens Industry, Inc. 2013 All rights reserved. Page 42 Burns / DF CP Page 42 SIMOCODE Motor Management John Burns Lead Application Consultant SII DF CP 5300 Triangle Parkway Norcross, GA 30092 Tel.: +1 (770) 625-5726 Fax: +1 (678) 297-7250 Cell: +1 (678) 575-3086 E-mail: john.burns@siemens.com siemens.com
