1. VMware vSphere Certificate Management for Mere Mortals
Ryan Johnson, VMware, Inc
@tenthirtyam
Adam Eckerle, VMware, Inc
@eck79
vmware.com/go/podcast
INF4529
#INF4529

2. • This presentation may contain product features that are currently under development.
• This overview of new technology represents no commitment from VMware to deliver these
features in any generally available product.
• Features are subject to change, and must not be included in contracts, purchase orders, or
sales agreements of any kind.
• Technical feasibility and market demand will affect final delivery.
• Pricing and packaging for any new technologies or features discussed or presented have not
been determined.
Disclaimer
2

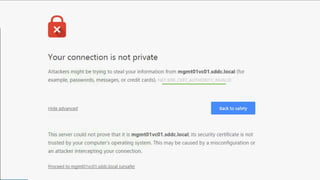

3. 3

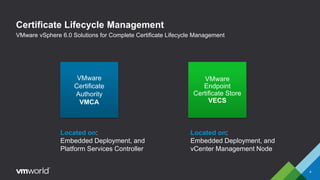

4. Certificate Lifecycle Management
VMware vSphere 6.0 Solutions for Complete Certificate Lifecycle Management
VMware
Certificate
Authority
VMCA
VMware
Endpoint
Certificate Store
VECS
Located on:
Embedded Deployment, and
Platform Services Controller
Located on:
Embedded Deployment, and
vCenter Management Node
4

5. VMware Certificate Authority (VMCA)
5
Dual Operational Modes
Root CA
• During installation, VMCA automatically
creates a root CA certificate.
• This certificate is capable of issuing
other certificates.
• All solutions and endpoint
certificates are created and trusted
through to this certificate.
Issuer CA
• Can replace the default root CA
certificate created during installation.
• Requires a CSR issued from VMCA to
be used by an enterprise or 3rd party
CA to generate a new issuing
certificate.
• Requires replacement of all issued
default certificates after
implementation.

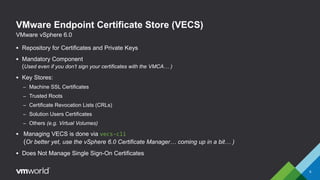

6. VMware Endpoint Certificate Store (VECS)
 Repository for Certificates and Private Keys
 Mandatory Component
(Used even if you don’t sign your certificates with the VMCA… )
 Key Stores:
– Machine SSL Certificates
– Trusted Roots
– Certificate Revocation Lists (CRLs)
– Solution Users Certificates
– Others (e.g. Virtual Volumes)
 Managing VECS is done via vecs-cli
(Or better yet, use the vSphere 6.0 Certificate Manager… coming up in a bit… )
 Does Not Manage Single Sign-On Certificates
6
VMware vSphere 6.0

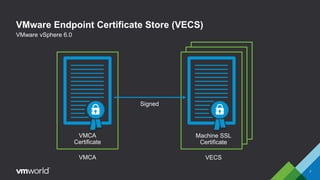

7. VECSVMCA
VMware Endpoint Certificate Store (VECS)
7
VMware vSphere 6.0
Signed
VMCA
Certificate
Machine SSL
Certificate

8. VMware vSphere 6.0 Certificate Types
 ESXi Certificates
 Machine SSL Certificate
 Solution User Certificates
 Single Sign-On Certificates
8

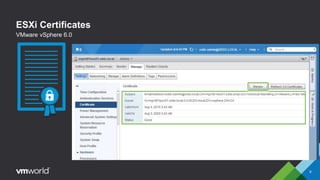

9. ESXi Certificates
9
VMware vSphere 6.0
 Post-install, ESXi always has an auto-generated
certificate
 VMCA will provision a signed certificate when host is
joined to vCenter (default mode)
 Custom certificates can be use if desired (custom mode)
 ESXi certificates are stored locally on each host in
the /etc/vmware/ssl
 VMCA issued certificates can be renewed via the
vSphere Web Client or PowerCLI

10. ESXi Certificates
10
VMware vSphere 6.0

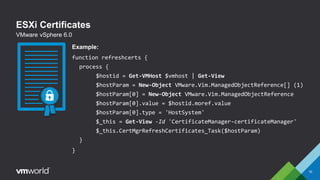

Example:
function refreshcerts {
process {
$hostid = Get-VMHost $vmhost | Get-View
$hostParam = New-Object VMware.Vim.ManagedObjectReference[] (1)
$hostParam[0] = New-Object VMware.Vim.ManagedObjectReference
$hostParam[0].value = $hostid.moref.value
$hostParam[0].type = 'HostSystem'
$_this = Get-View -Id 'CertificateManager-certificateManager'
$_this.CertMgrRefreshCertificates_Task($hostParam)
}
}

11. Machine SSL Certificates
 Creates a server-side SSL socket
 Server verification and secure communication
e.g. HTTPS or LDAPS
 Each node has its own Machine SSL Certificate.
i.e. Embedded Deployment; Management Node; or Platform Services Controller
 All services use a Machine SSL Certificate for endpoint encryption.
 All services communicate through the reverse proxy
 Traffic does not go to the services themselves
e.g. The vpxd service uses the MACHINE_SSL_CERT to expose its endpoint.
11
VMware vSphere 6.0

12. Solution User Certificate
Certificate stores are located in VECS on each management node and
embedded deployment:
 machine – Used by component manager, license server, and the
logging service
 vpxd – vCenter service daemon (vpxd) store on management nodes
and embedded deployments. vpxd uses the solution user certificate
to authenticate to vCenter Single Sign-On
 vpxd-extensions – Includes the Auto Deploy service, inventory
service, and other services that are not part of other solution users
 vsphere-webclient – Includes the vSphere Web Client and some
additional services such as the performance chart service
12
VMware vSphere 6.0 – More Services but Consolidated Behind Solution Users that Hold the Certificate

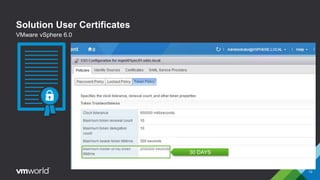

13. Solution User Certificates
 Encapsulates one or more vCenter Server services
 Certificate authenticated by vCenter Single Sign-On
and issued a SAML token to authenticate to other
solution user and services
 Each solution user must be authenticated to vCenter
Single Sign-On
 Re-authentication occurs after a reboot and after a
timeout
 The timeout configurable in the vSphere Web Client
and defaults to 2592000 seconds (30 days)
Maximum Holder-of-Key Token Lifetime
13
VMware vSphere 6.0
30 DAYS

14. Single Sign-On Certificates
VMware Directory Service SSL Certificate –
 With custom certificates you may need to replace this SSL
certificate explicitly.
VMware vCenter Single Sign-On Signing Certificate –
 Security Token Service (STS) – an identity provider that
issues, validates, and renews SAML tokens that are used for
authentication throughout vSphere
 By default, the STS signing certificate is generated by VMCA
 Manually refresh STS certificate via vSphere Web Client when
the certificate expires or changes
14
VMware vSphere 6.0

15. Single Sign-On Certificates
 Not stored in VECS.
 Not managed with certificate management tools.
 Changes are not necessary, but in special situations,
you can replace these certificates.
15
Remember…

16. VMware vSphere 6.0 Certificates
16
Summary
Certificate Type Provisioning Storage
ESXi Certificates VMCA (Default) Locally on ESXi Hosts
Machine SSL Certificates VMCA (Default) VECS
Solution User Certificates VMCA (Default) VECS
Single Sign-On Certificates Provisioned During Installation Manage in vSphere Web Client.
Directory Service Certificates Provisioned During Installation In certain custom certificate
corner cases, you may need to
replace this certificate.

17. Certificate Replacement Options
17
VMware vCenter Server 6.0
VMCA
as Root CA
VMCA
as Enterprise CA
Subordinate
Custom CA Hybrid

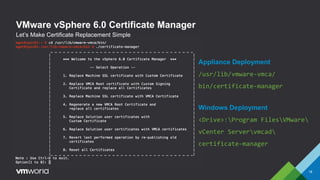

18. VMware vSphere 6.0 Certificate Manager
18
Let’s Make Certificate Replacement Simple
Appliance Deployment
/usr/lib/vmware-vmca/
bin/certificate-manager
Windows Deployment
<Drive>:Program FilesVMware
vCenter Servervmcad
certificate-manager

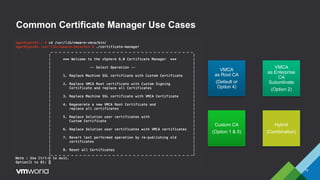

19. Common Certificate Manager Use Cases
19
VMCA
as Root CA
(Default or
Option 4)
VMCA
as Enterprise
CA
Subordinate
(Option 2)
Custom CA
(Option 1 & 5)
Hybrid
(Combination)

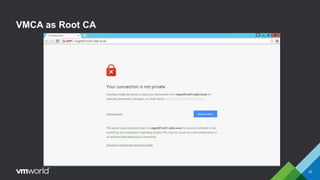

20. VMCA as Root CA
20
VMware KB 2108294

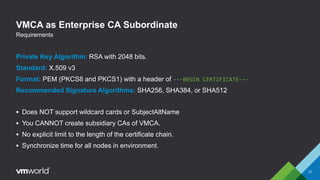

21. VMCA as Enterprise CA Subordinate
Private Key Algorithm: RSA with 2048 bits.
Standard: X.509 v3
Format: PEM (PKCS8 and PKCS1) with a header of ---BEGIN CERTIFICATE---
Recommended Signature Algorithms: SHA256, SHA384, or SHA512
 Does NOT support wildcard cards or SubjectAltName
 You CANNOT create subsidiary CAs of VMCA.
 No explicit limit to the length of the certificate chain.
 Synchronize time for all nodes in environment.
21
Requirements

22. VMCA as Enterprise CA Subordinate
 Create and publish custom Subordinate Certificate Authority template per KB 2112009
 Generate Certificate Signing Request and Key in Certificate Manager with Option 2
 On VCSA run chsh –s /bin/bash root to enable WinSCP file transfers.
 Submit Certificate Signing Request – root_signing_cert.csr – to Enterprise Certificate Authority
 Create the Full Certificate Chain – root_signing_chain.pem
 Import the Full Certificate Chain and Key to Replace VMCA Root Signing Certificate in Certificate Manager with Option 2
 Configure certool.cfg with proper values.
 Restart vCenter Services on Connected vCenter to Reflect the Change
 service-control –stop | --start –all
 Replace Machine SSL Certificate with VMCA Certificate on Connected vCenter(s) with Option 3
 Provide the FQDN or IP of Platform Service Controller
 Configure certool.cfg with proper values.
 Replace Solution User Certificates with VMCA Certificates on Connected vCenter(s) with Option 6
 Provide the FQDN or IP of Platform Service Controller
22
Workflow

23. Demo Time
VMCA as Enterprise CA Subordinate:
Certificate Replacement

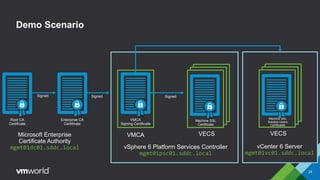

24. VECSVMCA
Demo Scenario
VMCA
Signing Certificate
Machine SSL
Certificate
Root CA
Certificate
Enterprise CA
Certificate
Microsoft Enterprise
Certificate Authority
mgmt01dc01.sddc.local vSphere 6 Platform Services Controller
mgmt01psc01.sddc.local
Signed Signed Signed
VECS
Machine SSL
Solution Users
Certificates
vCenter 6 Server
mgmt01vc01.sddc.local
24

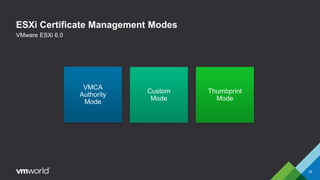

25. ESXi Certificate Management Modes
25
VMware ESXi 6.0
VMCA
Authority
Mode
Custom
Mode
Thumbprint
Mode

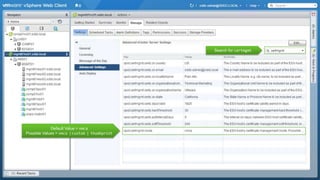

26. 26
Default Value = vmca
Possible Values = vmca | custom | thumbprint
Search for certmgmt

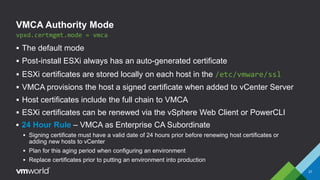

27. VMCA Authority Mode
 The default mode
 Post-install ESXi always has an auto-generated certificate
 ESXi certificates are stored locally on each host in the /etc/vmware/ssl
 VMCA provisions the host a signed certificate when added to vCenter Server
 Host certificates include the full chain to VMCA
 ESXi certificates can be renewed via the vSphere Web Client or PowerCLI
vpxd.certmgmt.mode = vmca
 24 Hour Rule – VMCA as Enterprise CA Subordinate
 Signing certificate must have a valid date of 24 hours prior before renewing host certificates or
adding new hosts to vCenter
 Plan for this aging period when configuring an environment
 Replace certificates prior to putting an environment into production
27

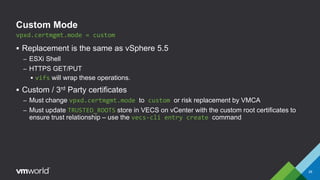

28. Custom Mode
 Replacement is the same as vSphere 5.5
– ESXi Shell
– HTTPS GET/PUT
 vifs will wrap these operations.
 Custom / 3rd Party certificates
– Must change vpxd.certmgmt.mode to custom or risk replacement by VMCA
– Must update TRUSTED_ROOTS store in VECS on vCenter with the custom root certificates to
ensure trust relationship – use the vecs-cli entry create command
vpxd.certmgmt.mode = custom
28

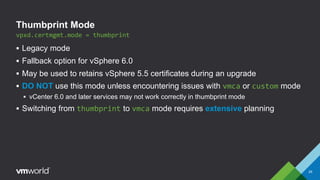

29. Thumbprint Mode
 Legacy mode
 Fallback option for vSphere 6.0
 May be used to retains vSphere 5.5 certificates during an upgrade
 DO NOT use this mode unless encountering issues with vmca or custom mode
 vCenter 6.0 and later services may not work correctly in thumbprint mode
 Switching from thumbprint to vmca mode requires extensive planning
29
vpxd.certmgmt.mode = thumbprint

30. Demo Time
VMCA as Enterprise CA Subordinate:
ESXi Certificate Replacement

31. VECSVMCA

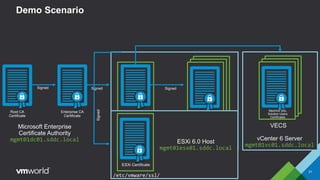

Demo Scenario
31
VMCA
Signing Certificate
Machine SSL
Certificate
Root CA
Certificate
Enterprise CA
Certificate
Microsoft Enterprise
Certificate Authority
mgmt01dc01.sddc.local vSphere 6 Platform Services Controller
mgmt01psc01.sddc.local
Signed Signed Signed
VECS
Machine SSL
Solution Users
Certificates
vCenter 6 Server
mgmt01vc01.sddc.local
/etc/vmware/ssl/
ESXi Certificate
ESXi 6.0 Host
mgmt01esx01.sddc.local
Signed

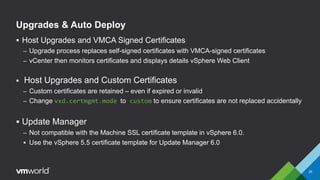

32. Upgrades and Operational
Considerations
VMware vSphere 6.0 Certificate Management

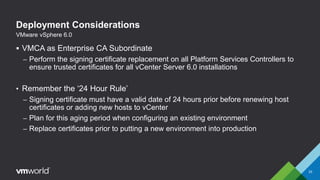

33. Deployment Considerations
 VMCA as Enterprise CA Subordinate
– Perform the signing certificate replacement on all Platform Services Controllers to
ensure trusted certificates for all vCenter Server 6.0 installations
• Remember the ‘24 Hour Rule’
– Signing certificate must have a valid date of 24 hours prior before renewing host
certificates or adding new hosts to vCenter
– Plan for this aging period when configuring an existing environment
– Replace certificates prior to putting a new environment into production
33
VMware vSphere 6.0

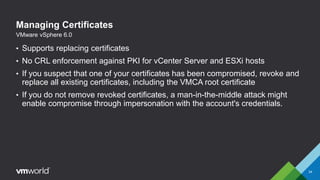

34. Managing Certificates
• Supports replacing certificates
• No CRL enforcement against PKI for vCenter Server and ESXi hosts
• If you suspect that one of your certificates has been compromised, revoke and
replace all existing certificates, including the VMCA root certificate
• If you do not remove revoked certificates, a man-in-the-middle attack might
enable compromise through impersonation with the account's credentials.
34
VMware vSphere 6.0

35. Upgrades & Auto Deploy
 Host Upgrades and VMCA Signed Certificates
– Upgrade process replaces self-signed certificates with VMCA-signed certificates
– vCenter then monitors certificates and displays details vSphere Web Client
 Host Upgrades and Custom Certificates
– Custom certificates are retained – even if expired or invalid
– Change vxd.certmgmt.mode to custom to ensure certificates are not replaced accidentally
 Update Manager
– Not compatible with the Machine SSL certificate template in vSphere 6.0.
 Use the vSphere 5.5 certificate template for Update Manager 6.0
35

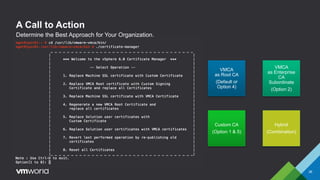

36. A Call to Action
Determine the Best Approach for Your Organization.
VMCA
as Root CA
(Default or
Option 4)
VMCA
as Enterprise
CA
Subordinate
(Option 2)
Custom CA
(Option 1 & 5)
Hybrid
(Combination)
36

37. CONFIDENTIAL 37vmware.com/go/inf4529

38. Ryan Johnson
Senior Technical Marketing Manager
@tenthirtyam
Adam Eckerle
Technical Account Manager
@eck79
vmware.com/go/podcast

40. VMware vSphere Certificate Management for Mere Mortals
Ryan Johnson, VMware, Inc
@tenthirtyam
Adam Eckerle, VMware, Inc
@eck79
vmware.com/go/podcast
INF4529
#INF4529
