- 1. Pre-insulated Pipe SupportsWebinar PIPING TECHNOLOGY& PRODUCTS, INC. Presents… Your Presenter is: David Baker Field Services Manager Attention Attendees : to listen to the audio portion, check that your speakers or headset are on and turned up OR dial the number and use the access code listed in your confirmation email. Attention P.E.’s : this Webinar is worth 1 PDH credit for TX P.E.’s (send request to [email_address] )

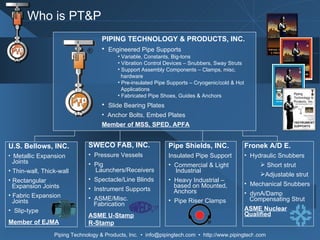

- 2. Pipe Shields, INC.Insulated Pipe Support Commercial & Light Industrial Heavy Industrial – based on Mounted, Anchors Pipe Riser Clamps Fronek A/D E. Hydraulic Snubbers Short strut Adjustable strut Mechanical Snubbers dynA/Damp Compensating Strut ASME Nuclear Qualified SWECO FAB, INC. Pressure Vessels Pig Launchers/Receivers Spectacle/Line Blinds Instrument Supports ASME/Misc. Fabrication ASME U-Stamp R-Stamp U.S. Bellows, INC. Metallic Expansion Joints Thin-wall, Thick-wall Rectangular Expansion Joints Fabric Expansion Joints Slip-type Member of EJMA Who is PT&P PIPING TECHNOLOGY & PRODUCTS, INC. Engineered Pipe Supports Variable, Constants, Big-tons Vibration Control Devices – Snubbers, Sway Struts Support Assembly Components – Clamps, misc. hardware Pre-insulated Pipe Supports – Cryogenic/cold & Hot Applications Fabricated Pipe Shoes, Guides & Anchors Slide Bearing Plates Anchor Bolts, Embed Plates Member of MSS, SPED, APFA
- 3. Certifications ASME U-Stamp EJMA ASME “R” Stamp Certified ASME NS Certified ISO 9001:2008 Certified Minority Business Enterprise (MBE) by the City of Houston

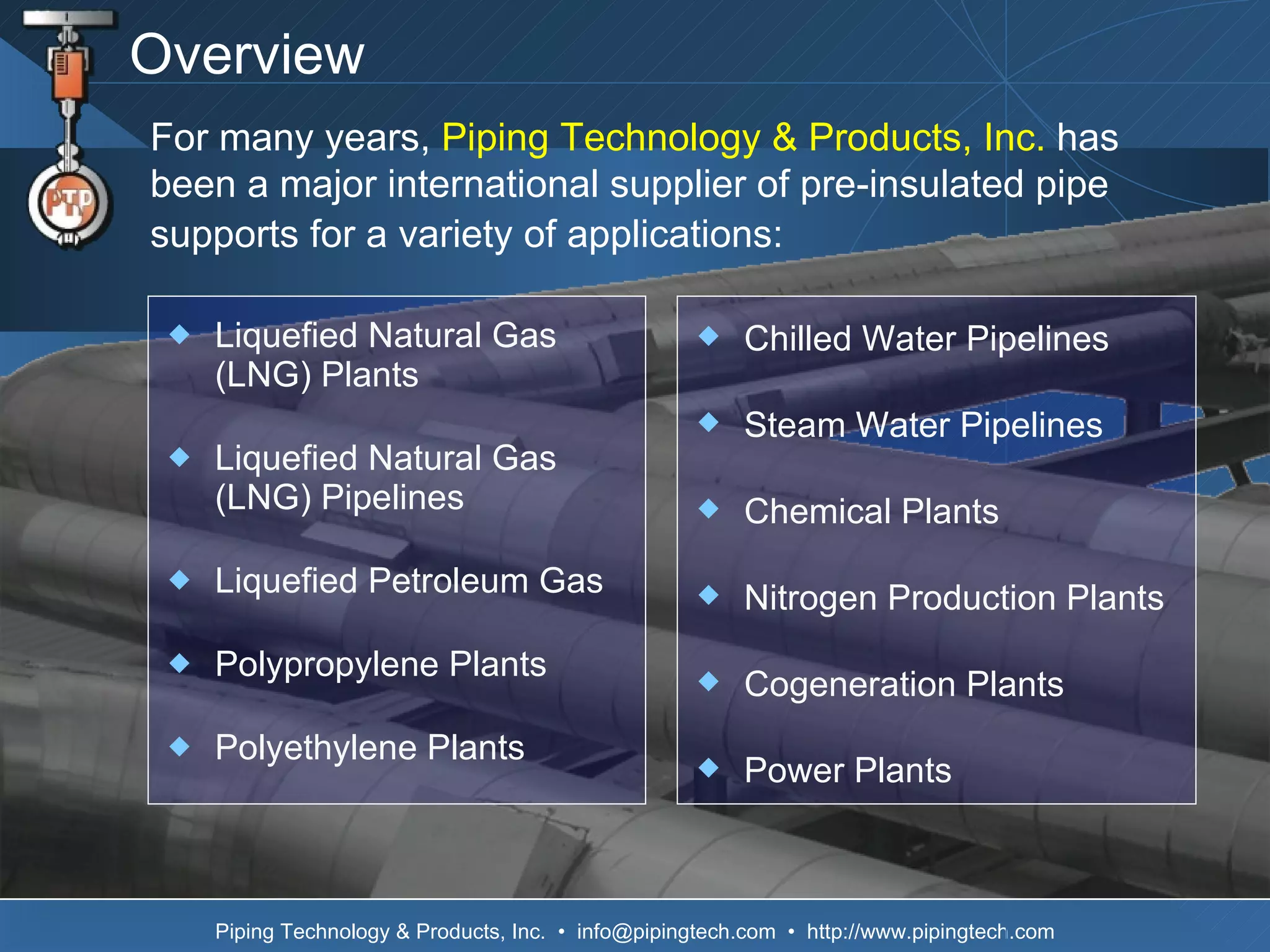

- 4. Overview Liquefied NaturalGas (LNG) Plants Liquefied Natural Gas (LNG) Pipelines Liquefied Petroleum Gas Polypropylene Plants Polyethylene Plants For many years, Piping Technology & Products, Inc. has been a major international supplier of pre-insulated pipe supports for a variety of applications: Chilled Water Pipelines Steam Water Pipelines Chemical Plants Nitrogen Production Plants Cogeneration Plants Power Plants
- 5. Experience Piping Technology& Products, Inc. has extensive experience with several types of insulation materials, some are shown here: Permali ® Micarta Foamglas ® Marinite ® Polyurethane Firetemp ® Calcium Silicate
- 6. Manufacturing Facility - Foam Shop > 100,000 lb. raw materials in stock

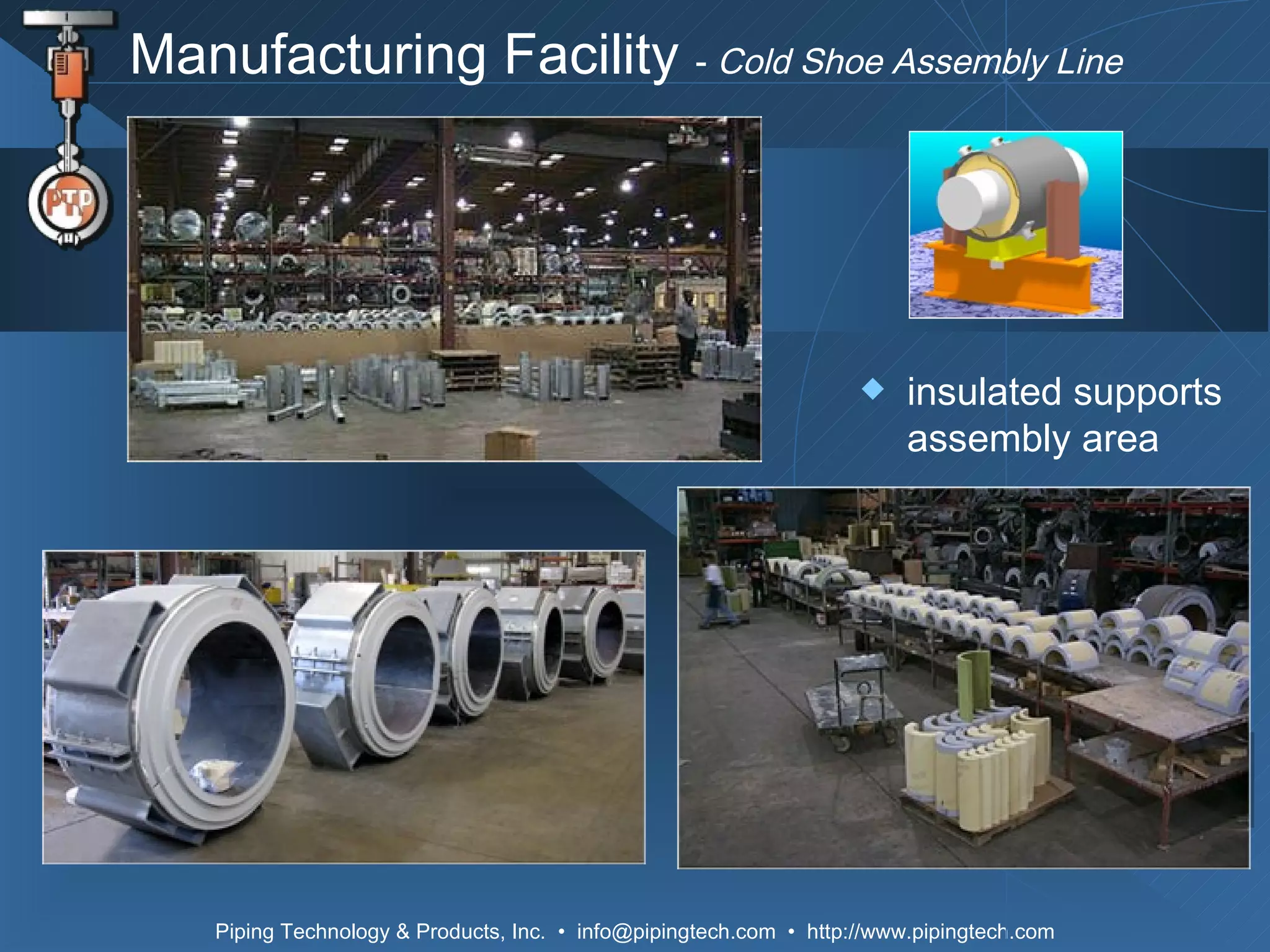

- 7. Manufacturing Facility - Cold Shoe Assembly Line insulated supports assembly area

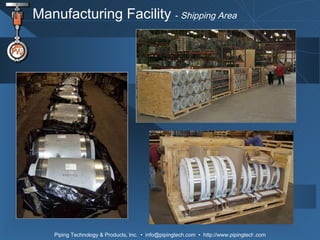

- 8. Manufacturing Facility - Shipping Area

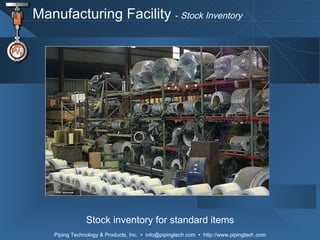

- 9. Manufacturing Facility - Stock Inventory Stock inventory for standard items
- 10. Insulated Supports DesignPT&P’s insulated supports act as load bearing members while simultaneously minimizing energy dissipation. Our supports can be designed for vertical, axial and/or lateral loading combinations in both low and high temperature applications. Higher Density PUF Lower Density PUF Multiple Layers
- 11. Insulated Pipe ShoeDesign When designing insulated pipe shoes, PT&P’s standard procedure is based on an analysis of… 1. Load Requirements 2. Temperature Details Design Load Resisting Load Energy Dissipation

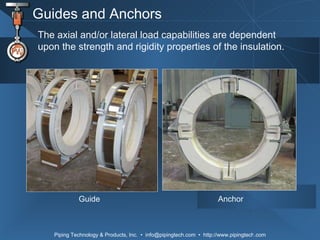

- 12. Guides and AnchorsThe axial and/or lateral load capabilities are dependent upon the strength and rigidity properties of the insulation. Guide Anchor

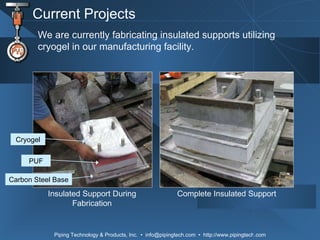

- 13. Current Projects Weare currently fabricating insulated supports utilizing cryogel in our manufacturing facility. Insulated Support During Fabrication Complete Insulated Support Cryogel PUF Carbon Steel Base

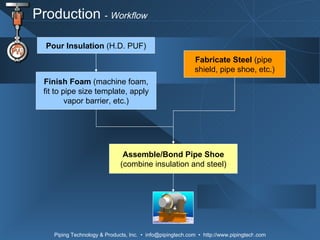

- 14. Production - Workflow Pour Insulation (H.D. PUF) Finish Foam (machine foam, fit to pipe size template, apply vapor barrier, etc.) Fabricate Steel (pipe shield, pipe shoe, etc.) Assemble/Bond Pipe Shoe (combine insulation and steel)
- 15. Production - Polyurethane foam Automatic Foam Mixing Machine uses shear mixing head produces homogeneous mixture of polyol and isocyanate to form polyurethane Mixing Head (shear mixing, mixes polyols and isocyanates)

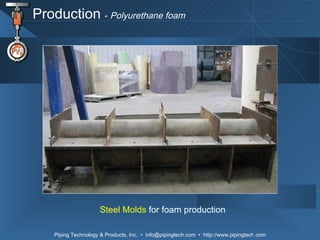

- 16. Production - Polyurethane foam Steel Molds for foam production

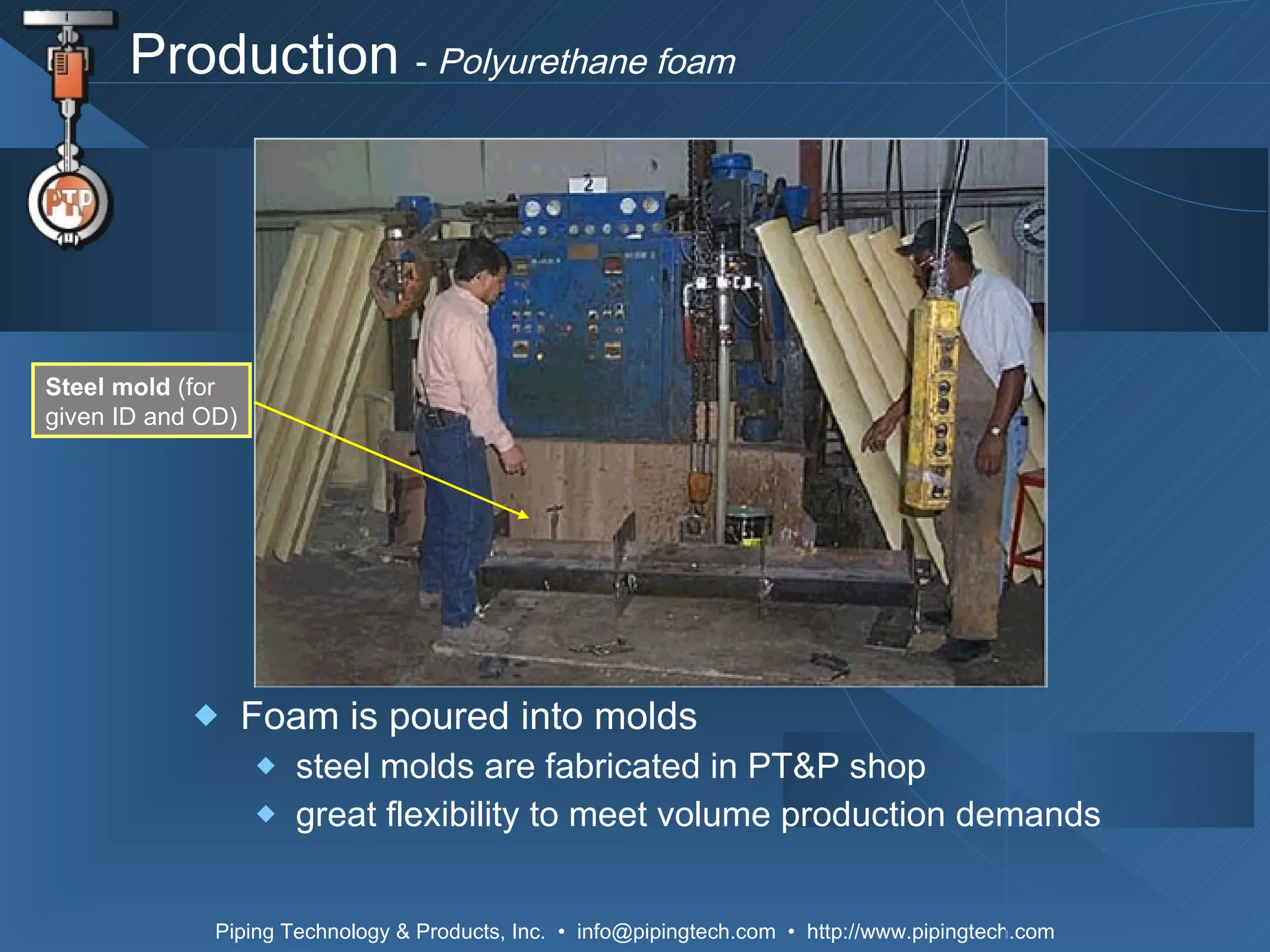

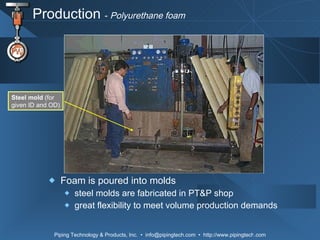

- 17. Production - Polyurethane foam Foam is poured into molds steel molds are fabricated in PT&P shop great flexibility to meet volume production demands Steel mold (for given ID and OD)

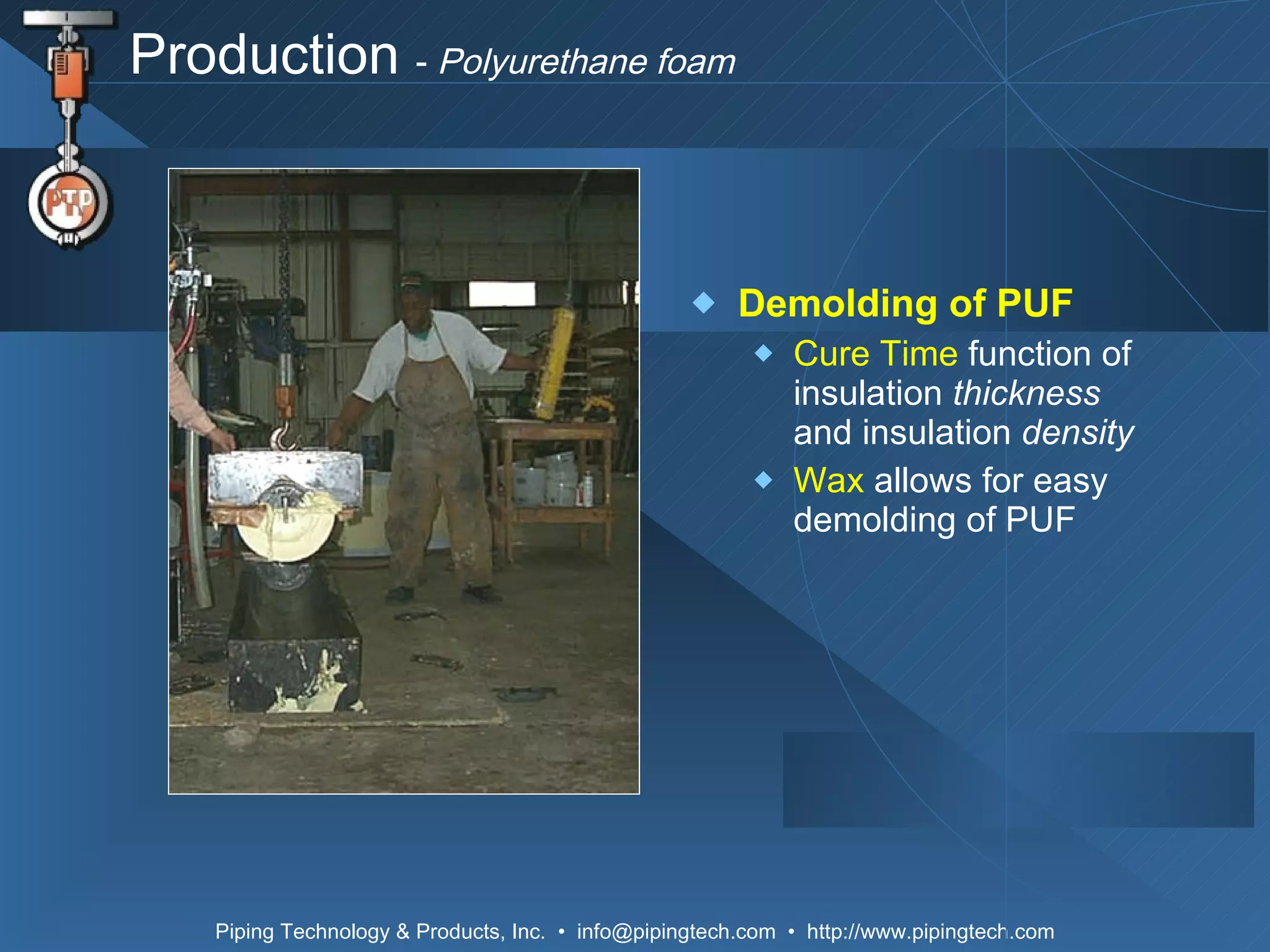

- 18. Production - Polyurethane foam Demolding of PUF Cure Time function of insulation thickness and insulation density Wax allows for easy demolding of PUF
- 19. Production - Polyurethane foam Demolding of PUF

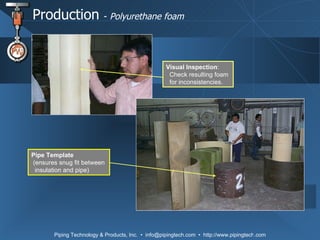

- 20. Production - Polyurethane foam Pipe Template (ensures snug fit between insulation and pipe) Visual Inspection : Check resulting foam for inconsistencies.
- 21. Production - Polyurethane foam Machining Foam (automatic routing machine, band saw machine) Cut to length foam

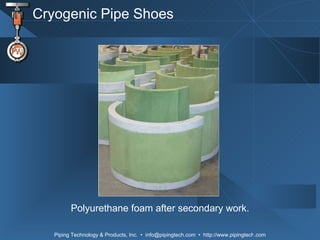

- 22. Cryogenic Pipe ShoesPolyurethane foam after secondary work.

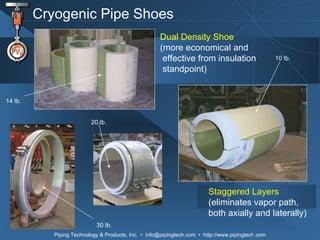

- 23. Cryogenic Pipe ShoesDual Density Shoe (more economical and effective from insulation standpoint) Staggered Layers (eliminates vapor path, both axially and laterally) 30 lb. 10 lb. 14 lb. 20 lb.

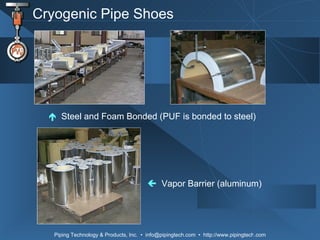

- 24. Cryogenic Pipe Shoes Steel and Foam Bonded (PUF is bonded to steel) Vapor Barrier (aluminum)
- 25. Cryogenic Pipe Shoes- Large Diameter Three-Layer Cold Shoes 30 " Pipe with 7 ½" Insulation 40 " Pipe with 8 ½" Insulation
- 26. Cryogenic Pipe Shoes24 " pipe with 2 " of insulation

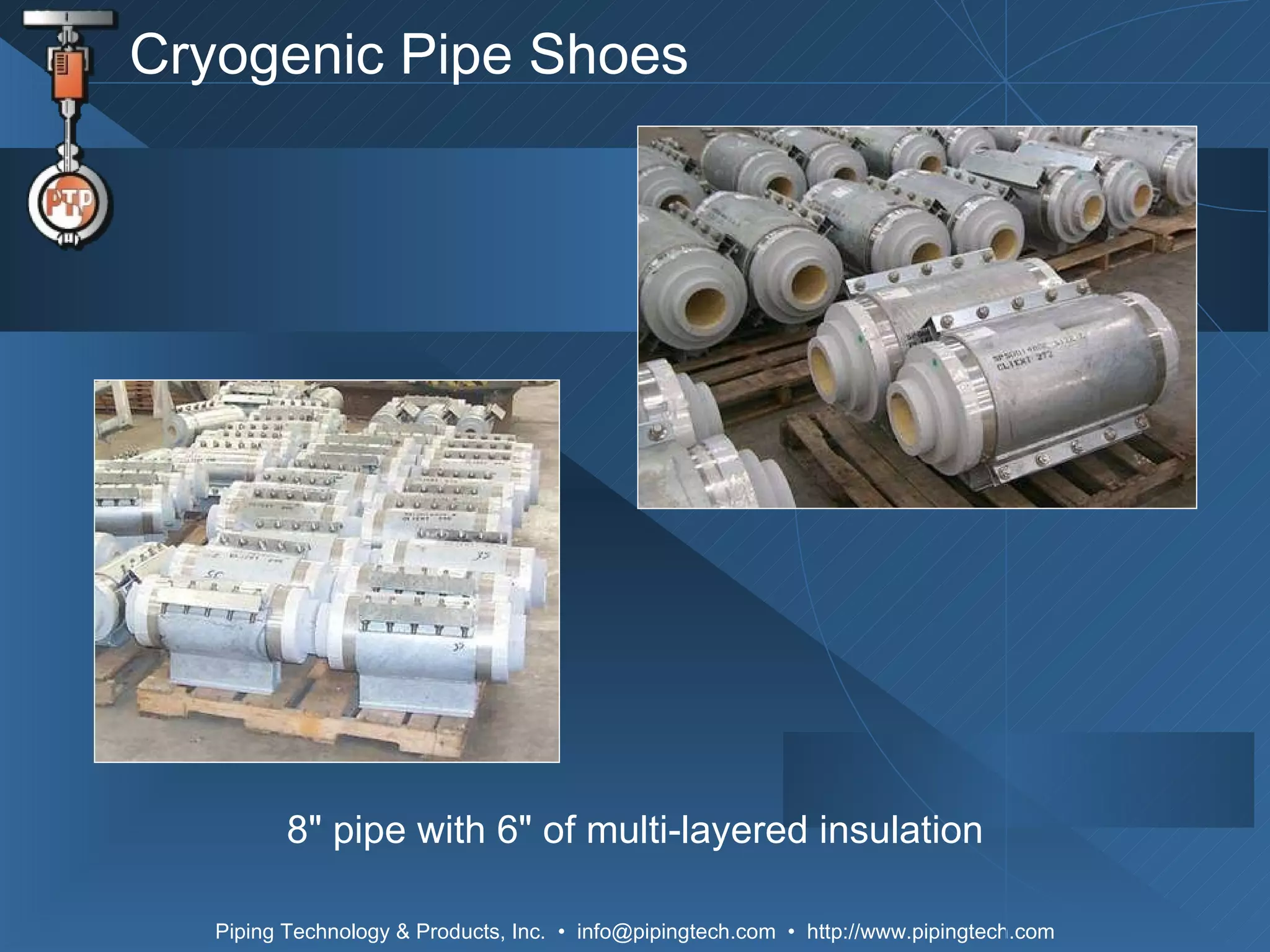

- 27. Cryogenic Pipe Shoes8 " pipe with 6 " of multi-layered insulation

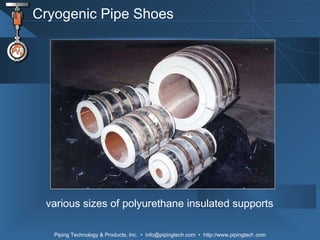

- 28. Cryogenic Pipe Shoesvarious sizes of polyurethane insulated supports

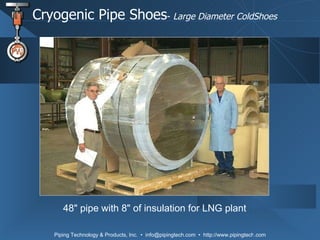

- 29. Cryogenic Pipe Shoes- Large Diameter ColdShoes 48 " pipe with 8 " of insulation for LNG plant

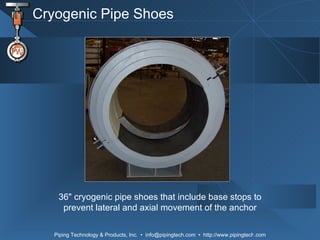

- 30. Cryogenic Pipe Shoes36 " cryogenic pipe shoes that include base stops to prevent lateral and axial movement of the anchor

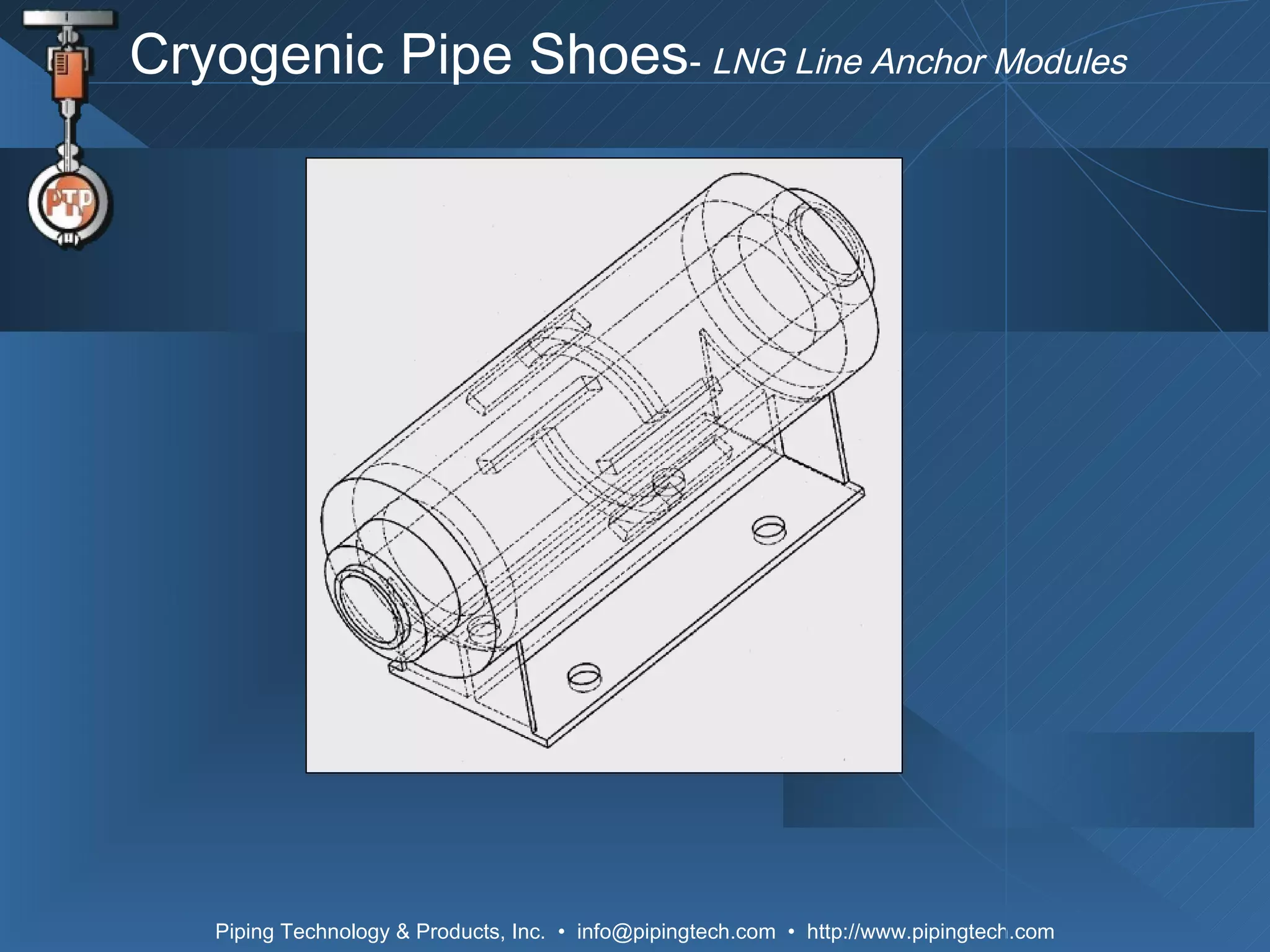

- 31. Cryogenic Pipe Shoes- LNG Line Anchor Modules

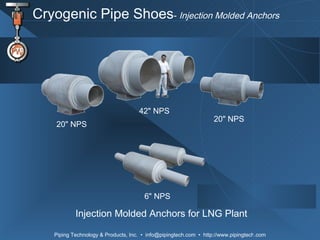

- 32. Cryogenic Pipe Shoes- Injection Molded Anchors Injection Molded Anchors for LNG Plant 20 " NPS 42" NPS 20 " NPS 6 " NPS

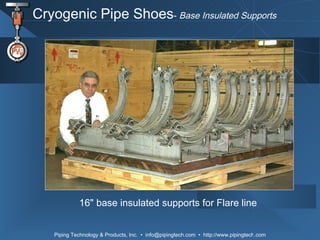

- 33. Cryogenic Pipe Shoes- Base Insulated Supports 16 " base insulated supports for Flare line
- 34. Cryogenic Experience ElbaIsland Project Cove Point Maryland Project Chevron Sadaf Westlake Quantum Chemical ALNG - Port Lisas, Trinidad & Tobago Sonatrach - Algeria Oxymar - Texas Petroquimica Bahia Blanca - Argentina Exxon Baytown Refinery Navacar - Alabama Hassi Messaoud LPG Recovery Project PSC II - Singapore Maraven BASF Exxon Singapore Olefins Project (SOP) Texaco - Syngas Exxon Baton Rouge Polyproplyne (BRPO) HCJV - Pertamina - Train H - LNG Expansion Project Maraven Texaco Sonatrach Pequiven Amoco Chemical

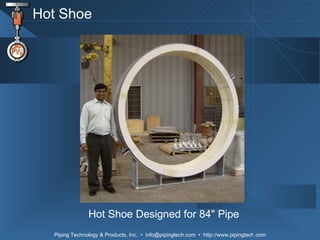

- 35. Hot Shoe HotShoe Designed for 84 " Pipe

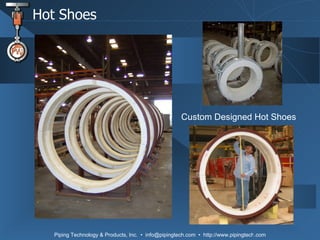

- 36. Hot Shoes CustomDesigned Hot Shoes

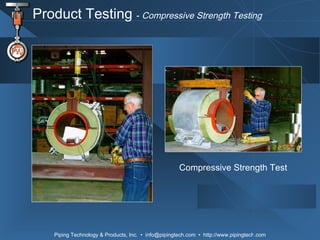

- 37. Product Testing - Compressive Strength Testing Compressive Strength Test

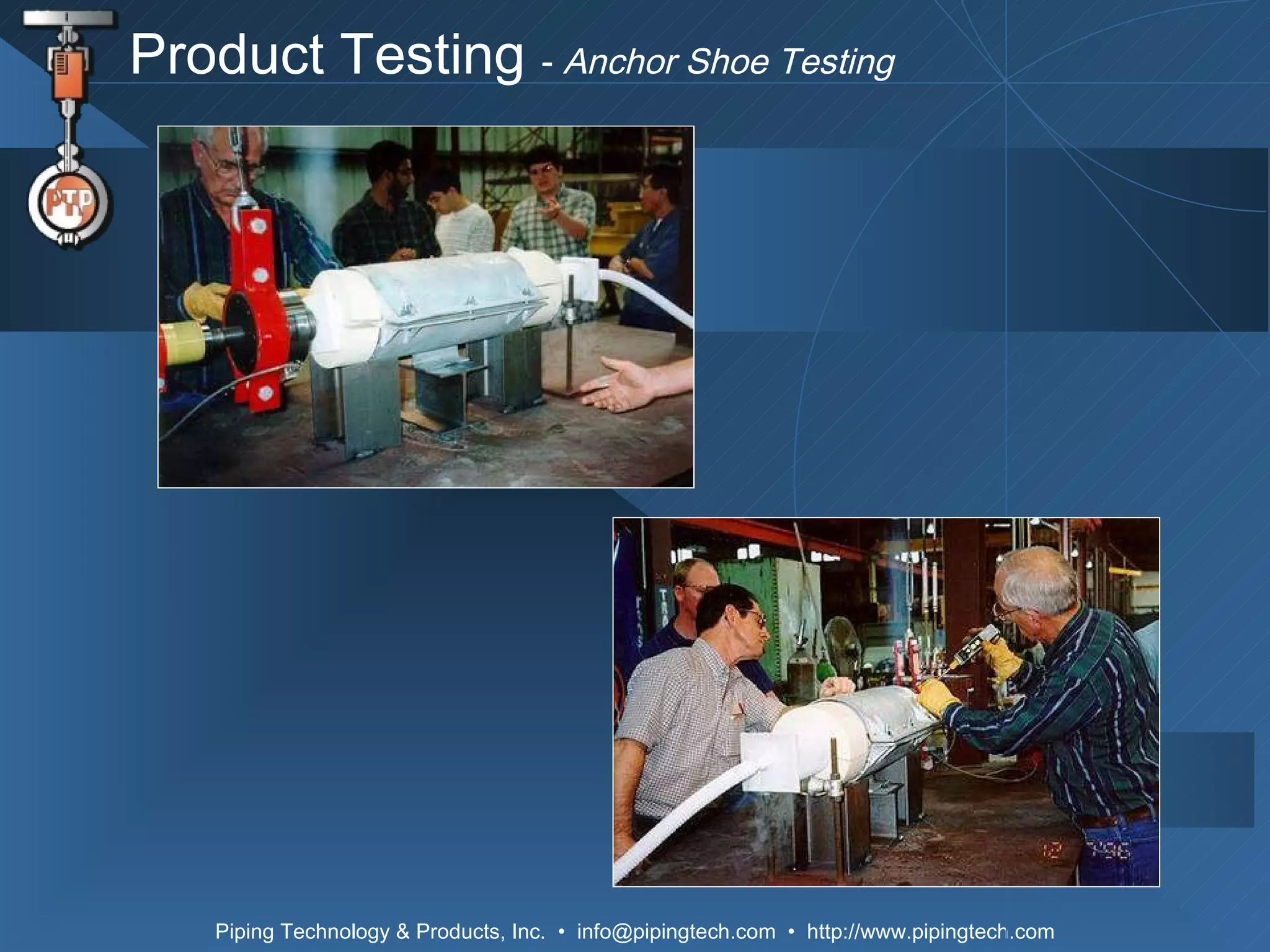

- 38. Product Testing - Anchor Shoe Testing Cryogenic Temperature Axial Loading
- 39. Product Testing - Anchor Shoe Testing

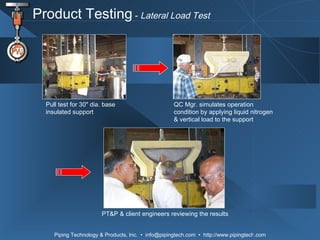

- 40. Product Testing - Lateral Load Test Pull test for 30 " dia. base insulated support QC Mgr. simulates operation condition by applying liquid nitrogen & vertical load to the support PT&P & client engineers reviewing the results

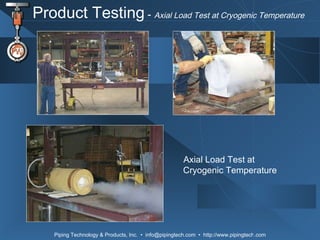

- 41. Product Testing - Axial Load Test at Cryogenic Temperature Axial Load Test at Cryogenic Temperature

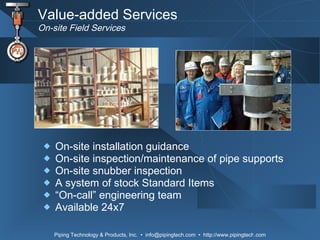

- 42. Value-added Services On-siteField Services On-site installation guidance On-site inspection/maintenance of pipe supports On-site snubber inspection A system of stock Standard Items “ On-call” engineering team Available 24x7

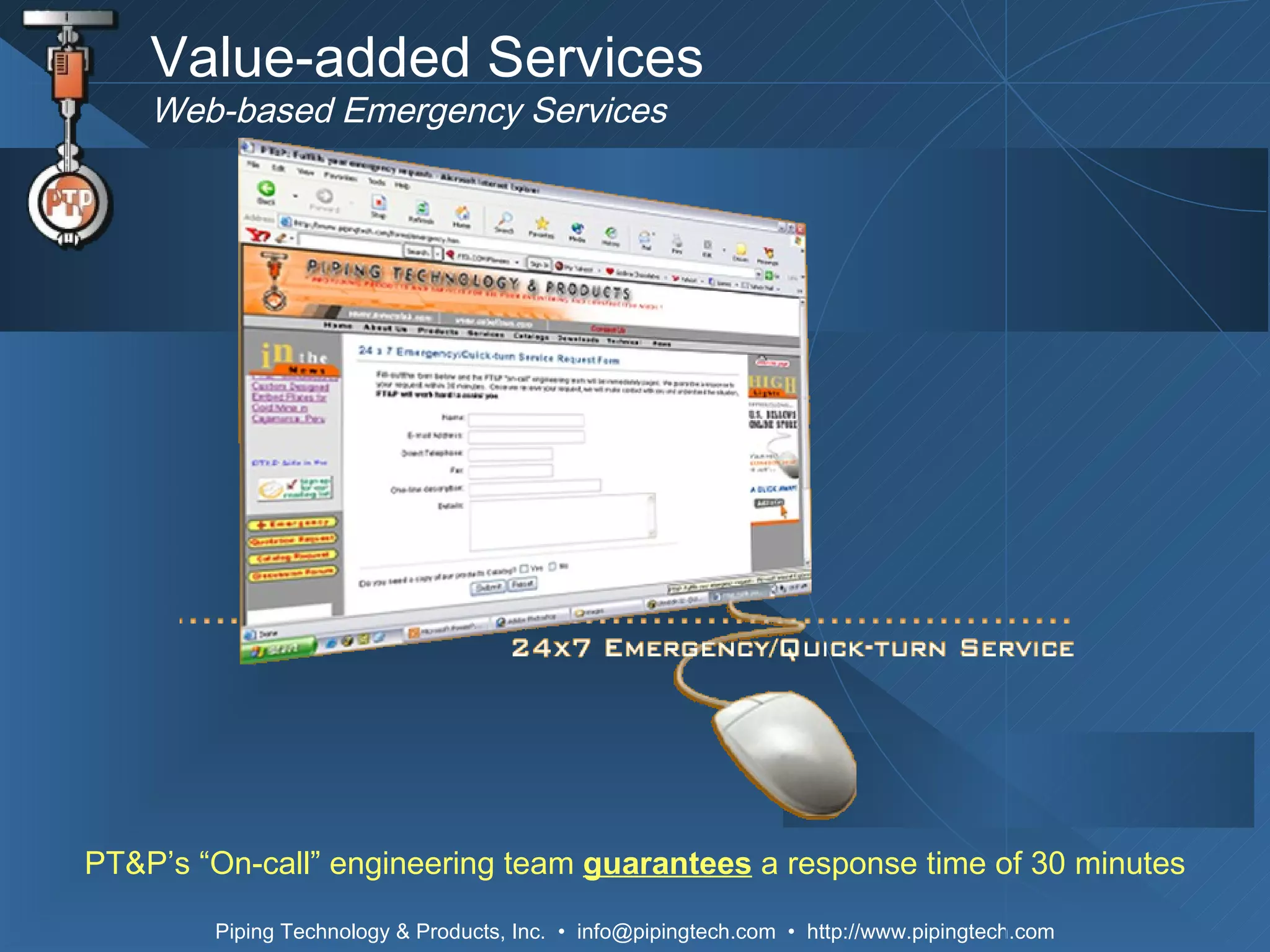

- 43. Value-added Services Web-basedEmergency Services PT&P’s “On-call” engineering team guarantees a response time of 30 minutes

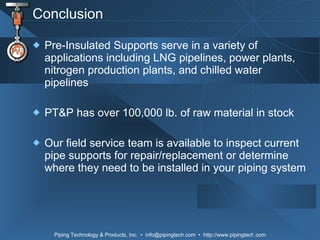

- 44. Conclusion Pre-Insulated Supportsserve in a variety of applications including LNG pipelines, power plants, nitrogen production plants, and chilled water pipelines PT&P has over 100,000 lb. of raw material in stock Our field service team is available to inspect current pipe supports for repair/replacement or determine where they need to be installed in your piping system
