PT&P manufactures pre-insulated pipe supports for applications such as LNG pipelines, power plants, and industrial facilities. They produce various types of supports including cryogenic and hot pipe shoes using polyurethane foam insulation. PT&P has extensive testing capabilities and provides value-added services like field installations and inspections. They aim to be a full service provider for pre-insulated pipe support systems.

1. Pre-insulated Pipe Supports PIPING TECHNOLOGY & PRODUCTS, INC. Presents

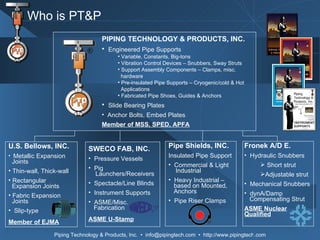

2. Pipe Shields, INC. Insulated Pipe Support Commercial & Light Industrial Heavy Industrial – based on Mounted, Anchors Pipe Riser Clamps Fronek A/D E. Hydraulic Snubbers Short strut Adjustable strut Mechanical Snubbers dynA/Damp Compensating Strut ASME Nuclear Qualified SWECO FAB, INC. Pressure Vessels Pig Launchers/Receivers Spectacle/Line Blinds Instrument Supports ASME/Misc. Fabrication ASME U-Stamp U.S. Bellows, INC. Metallic Expansion Joints Thin-wall, Thick-wall Rectangular Expansion Joints Fabric Expansion Joints Slip-type Member of EJMA Who is PT&P PIPING TECHNOLOGY & PRODUCTS, INC. Engineered Pipe Supports Variable, Constants, Big-tons Vibration Control Devices – Snubbers, Sway Struts Support Assembly Components – Clamps, misc. hardware Pre-insulated Pipe Supports – Cryogenic/cold & Hot Applications Fabricated Pipe Shoes, Guides & Anchors Slide Bearing Plates Anchor Bolts, Embed Plates Member of MSS, SPED, APFA

3. PT&P Certifications ASME U-Stamp EJMA ASME “R” Stamp Certified ASME NS Certified ISO 9001:2000 Certified Minority Business Enterprise (MBE) by the City of Houston

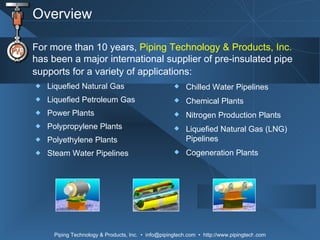

4. Overview Liquefied Natural Gas Liquefied Petroleum Gas Power Plants Polypropylene Plants Polyethylene Plants Steam Water Pipelines For more than 10 years, Piping Technology & Products, Inc. has been a major international supplier of pre-insulated pipe supports for a variety of applications: Chilled Water Pipelines Chemical Plants Nitrogen Production Plants Liquefied Natural Gas (LNG) Pipelines Cogeneration Plants

5. Manufacturing Facility - Foam Shop > 100,000 lb. raw materials in stock

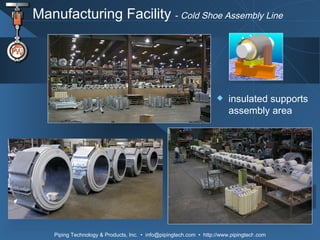

6. Manufacturing Facility - Cold Shoe Assembly Line insulated supports assembly area

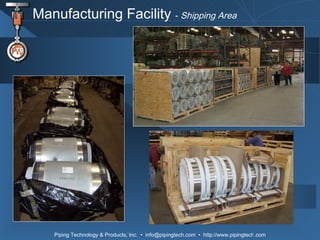

7. Manufacturing Facility - Shipping Area

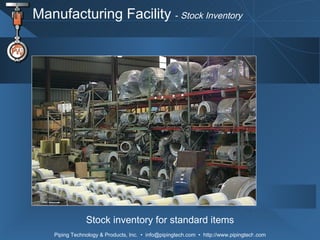

8. Manufacturing Facility - Stock Inventory Stock inventory for standard items

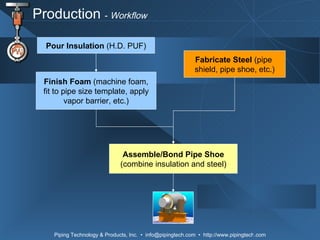

9. Production - Workflow Pour Insulation (H.D. PUF) Finish Foam (machine foam, fit to pipe size template, apply vapor barrier, etc.) Fabricate Steel (pipe shield, pipe shoe, etc.) Assemble/Bond Pipe Shoe (combine insulation and steel)

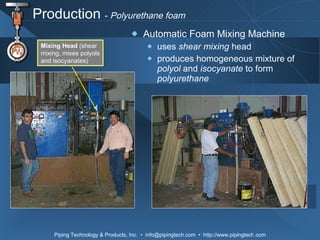

10. Production - Polyurethane foam Automatic Foam Mixing Machine uses shear mixing head produces homogeneous mixture of polyol and isocyanate to form polyurethane Mixing Head (shear mixing, mixes polyols and isocyanates)

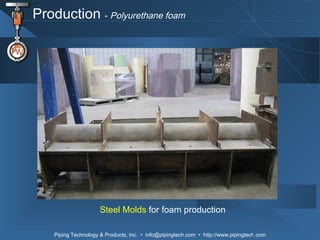

11. Production - Polyurethane foam Steel Molds for foam production

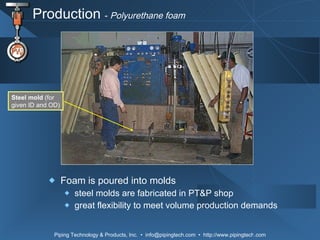

12. Production - Polyurethane foam Foam is poured into molds steel molds are fabricated in PT&P shop great flexibility to meet volume production demands Steel mold (for given ID and OD)

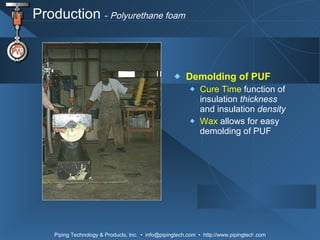

13. Production - Polyurethane foam Demolding of PUF Cure Time function of insulation thickness and insulation density Wax allows for easy demolding of PUF

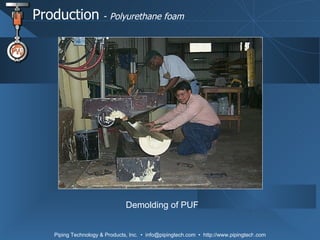

14. Production - Polyurethane foam Demolding of PUF

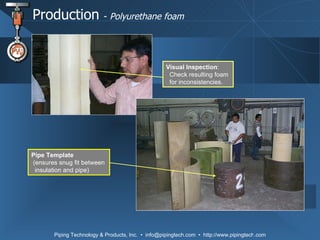

15. Production - Polyurethane foam Pipe Template (ensures snug fit between insulation and pipe) Visual Inspection : Check resulting foam for inconsistencies.

16. Production - Polyurethane foam  Machining Foam (automatic routing machine, band saw machine) Cut to length foam 

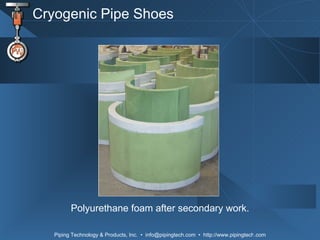

17. Cryogenic Pipe Shoes Polyurethane foam after secondary work.

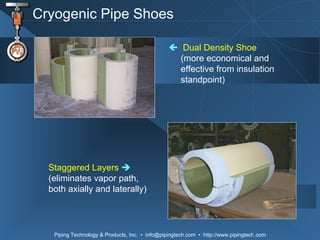

18. Cryogenic Pipe Shoes  Dual Density Shoe (more economical and effective from insulation standpoint) Staggered Layers  (eliminates vapor path, both axially and laterally)

19. Cryogenic Pipe Shoes  Steel and Foam Bonded (PUF is bonded to steel)  Vapor Barrier (aluminum)

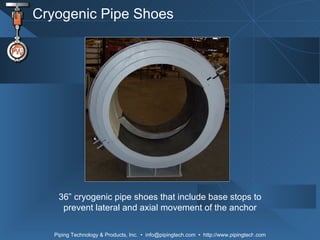

20. Cryogenic Pipe Shoes 36” cryogenic pipe shoes that include base stops to prevent lateral and axial movement of the anchor

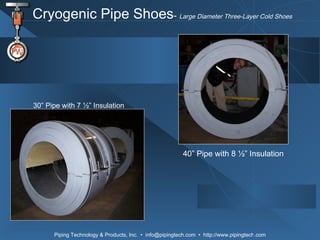

21. Cryogenic Pipe Shoes - Large Diameter Three-Layer Cold Shoes 30” Pipe with 7 ½” Insulation 40” Pipe with 8 ½” Insulation

22. Cryogenic Pipe Shoes 8” pipe with 6” of multi-layered insulation

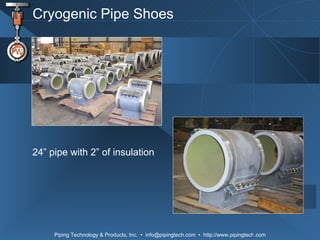

23. Cryogenic Pipe Shoes 24” pipe with 2” of insulation

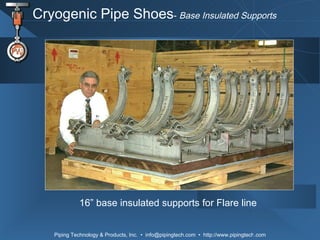

24. Cryogenic Pipe Shoes - Base Insulated Supports 16” base insulated supports for Flare line

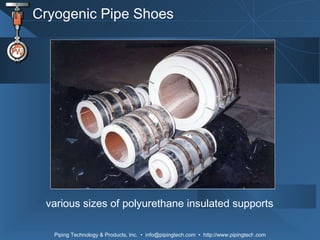

25. Cryogenic Pipe Shoes various sizes of polyurethane insulated supports

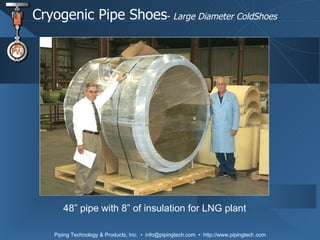

26. Cryogenic Pipe Shoes - Large Diameter ColdShoes 48” pipe with 8” of insulation for LNG plant

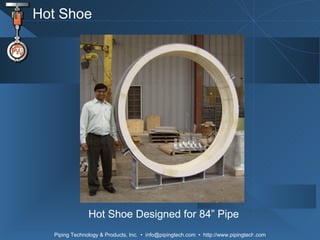

27. Hot Shoe Hot Shoe Designed for 84” Pipe

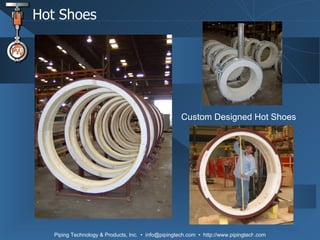

28. Hot Shoes Custom Designed Hot Shoes

29. Cryogenic Experience Elba Island Project Cove Point Maryland Project Chevron Sadaf Westlake Quantum Chemical ALNG - Port Lisas, Trinidad & Tobago Sonatrach - Algeria Oxymar - Texas Petroquimica Bahia Blanca - Argentina Exxon Baytown Refinery Navacar - Alabama Hassi Messaoud LPG Recovery Project PSC II - Singapore Maraven BASF Exxon Singapore Olefins Project (SOP) Texaco - Syngas Exxon Baton Rouge Polyproplyne (BRPO) HCJV - Pertamina - Train H - LNG Expansion Project Maraven Texaco Sonatrach Pequiven Amoco Chemical

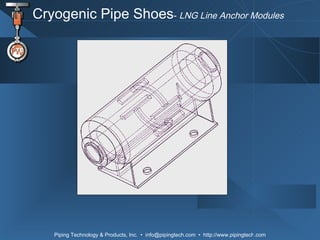

30. Cryogenic Pipe Shoes - LNG Line Anchor Modules

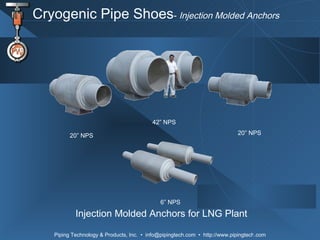

31. Cryogenic Pipe Shoes - Injection Molded Anchors Injection Molded Anchors for LNG Plant 20” NPS 42” NPS 20” NPS 6” NPS

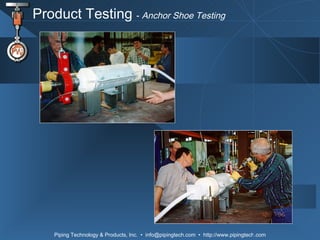

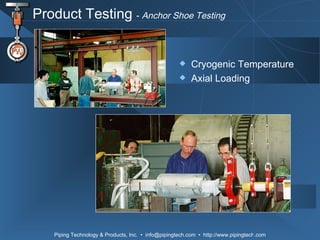

32. Product Testing - Anchor Shoe Testing Cryogenic Temperature Axial Loading

33. Product Testing - Anchor Shoe Testing

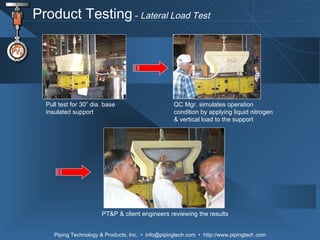

34. Product Testing - Lateral Load Test Pull test for 30” dia. base insulated support QC Mgr. simulates operation condition by applying liquid nitrogen & vertical load to the support PT&P & client engineers reviewing the results

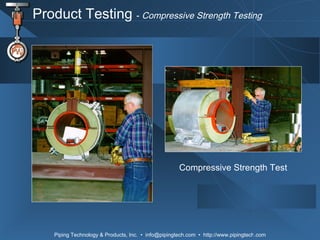

35. Product Testing - Compressive Strength Testing Compressive Strength Test

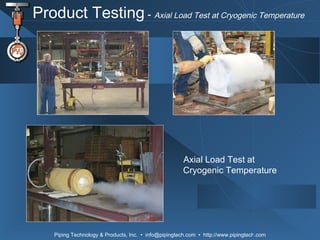

36. Product Testing - Axial Load Test at Cryogenic Temperature Axial Load Test at Cryogenic Temperature

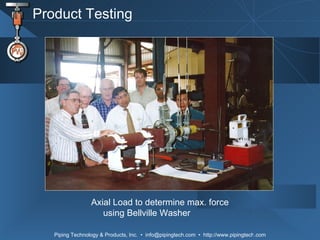

37. Product Testing Axial Load to determine max. force using Bellville Washer

38. Value-added Services On-site Field Services On-site installation guidance On-site inspection/maintenance of pipe supports On-site snubber inspection A system of stock Standard Items “ On-call” engineering team Available 24x7

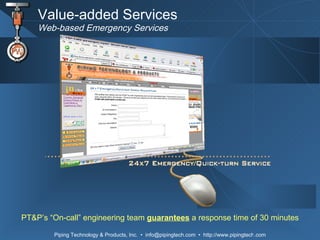

39. Value-added Services Web-based Emergency Services PT&P’s “On-call” engineering team guarantees a response time of 30 minutes

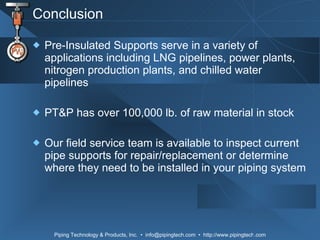

40. Conclusion Pre-Insulated Supports serve in a variety of applications including LNG pipelines, power plants, nitrogen production plants, and chilled water pipelines PT&P has over 100,000 lb. of raw material in stock Our field service team is available to inspect current pipe supports for repair/replacement or determine where they need to be installed in your piping system

41. Thank You for joining PT&P’s Pre-Insulated Pipe Supports Webinar Please forward any additional questions or inquiries to us at info@pipingtech.com or visit our website at www.pipingtech.com
