Praktek ARDUINO

PRAKTEK PEMROGRAMAN
ARDUINO
Drs.Dedi Supardi,MM
SMK Negeri 4 Jakarta
1

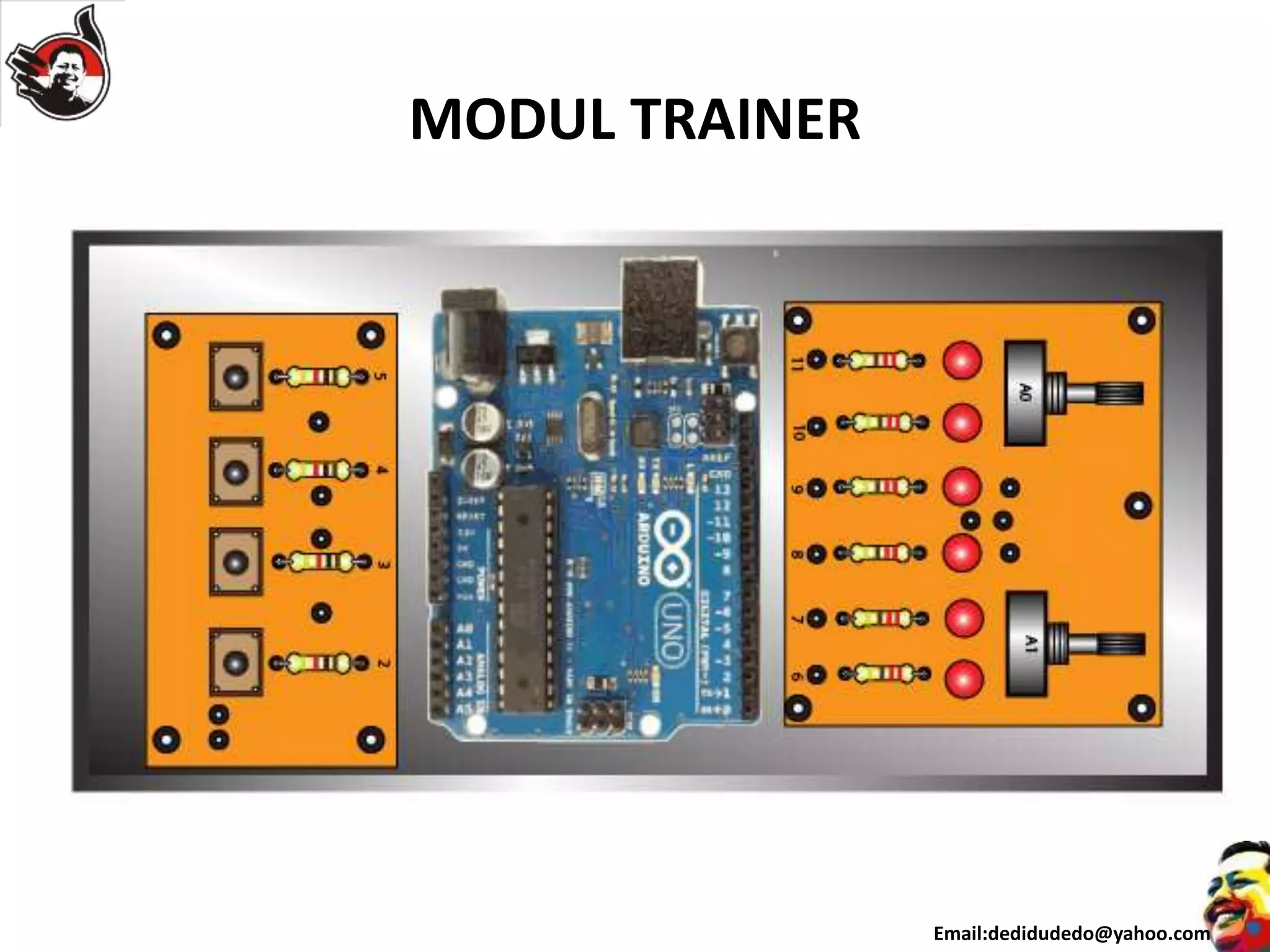

MODUL TRAINER
Email:dedidudedo@yahoo.com

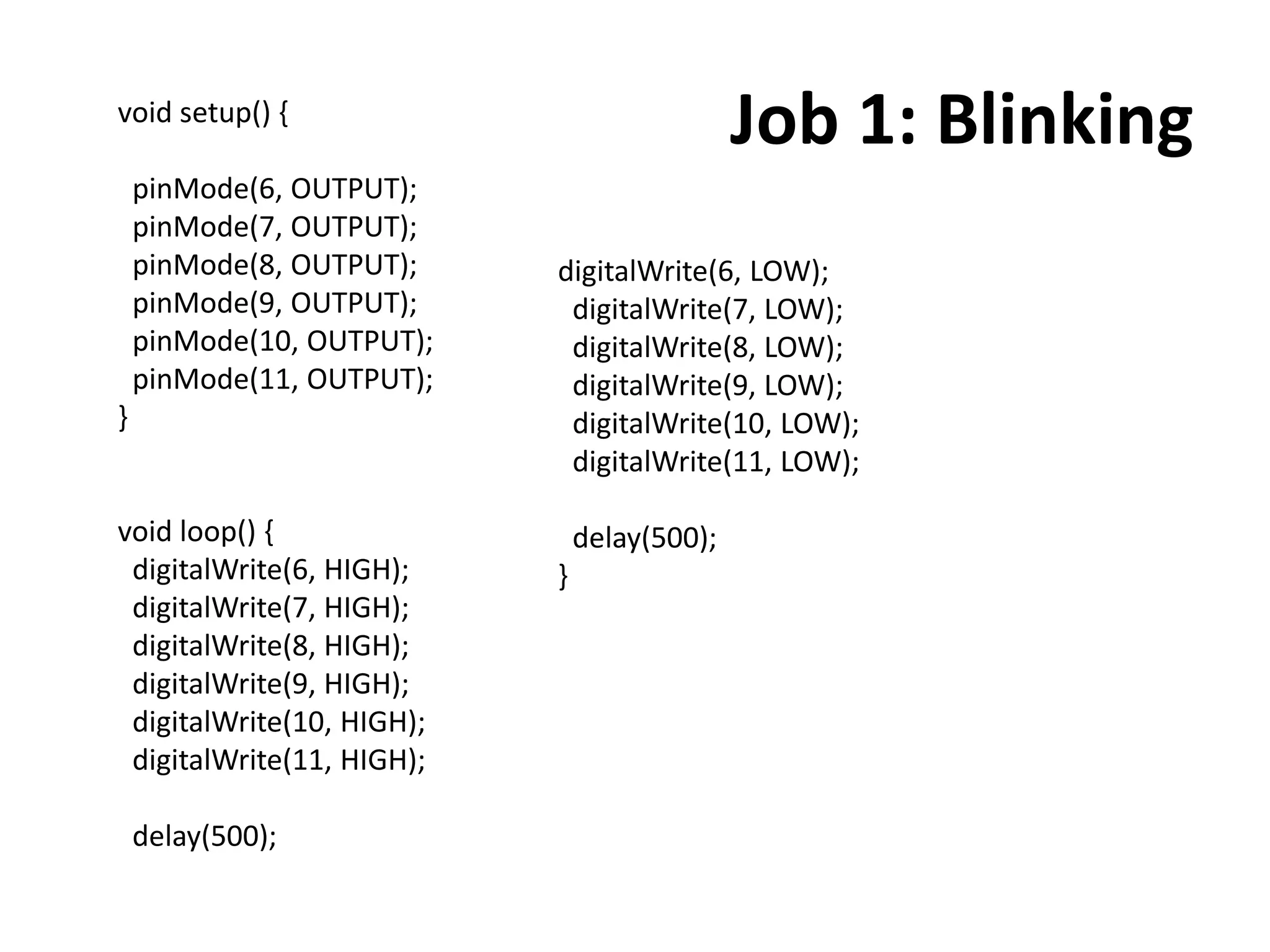

Job 1: Blinkingvoid setup() {
pinMode(6, OUTPUT);
pinMode(7, OUTPUT);
pinMode(8, OUTPUT);
pinMode(9, OUTPUT);
pinMode(10, OUTPUT);
}
void loop() {
digitalWrite(6, HIGH);
delay(500);
digitalWrite(6, LOW);
delay(500);
}

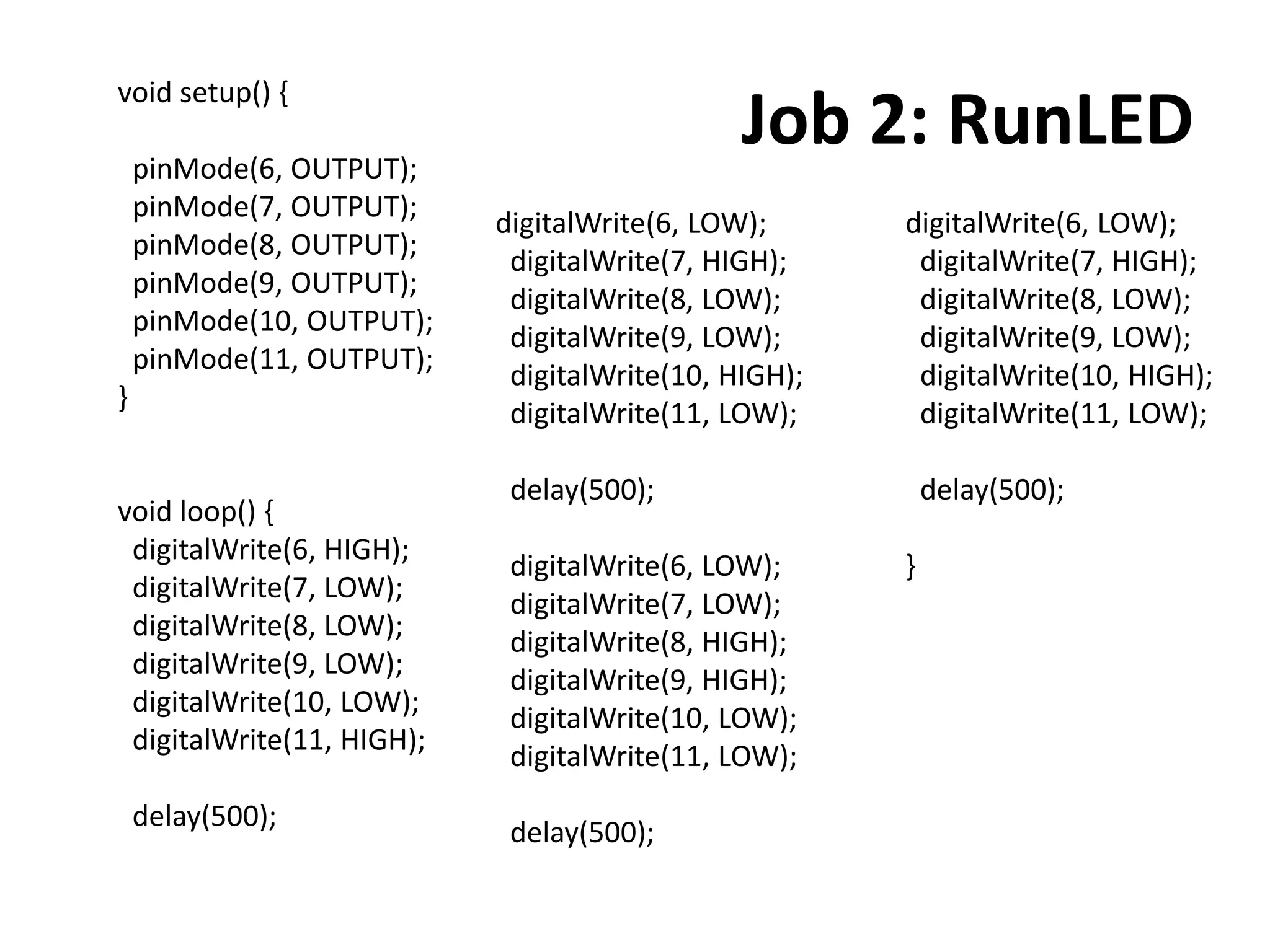

Job 2: RunLED
void setup() {
pinMode(6, OUTPUT);
pinMode(7, OUTPUT);
pinMode(8, OUTPUT);
pinMode(9, OUTPUT);
}
void loop() {
delay(500);
delay(500);
delay(500);
delay(500);
}

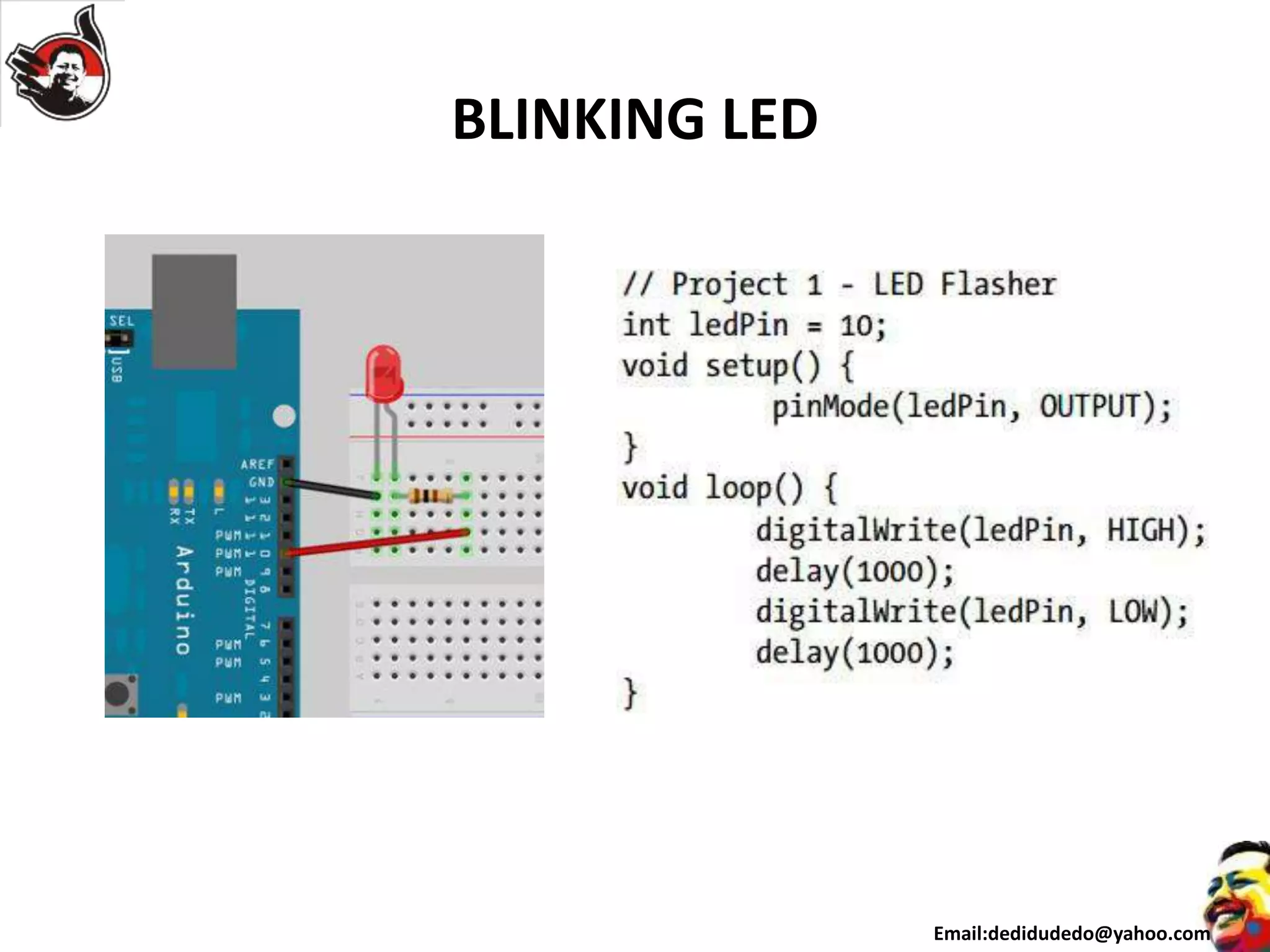

BLINKING LED

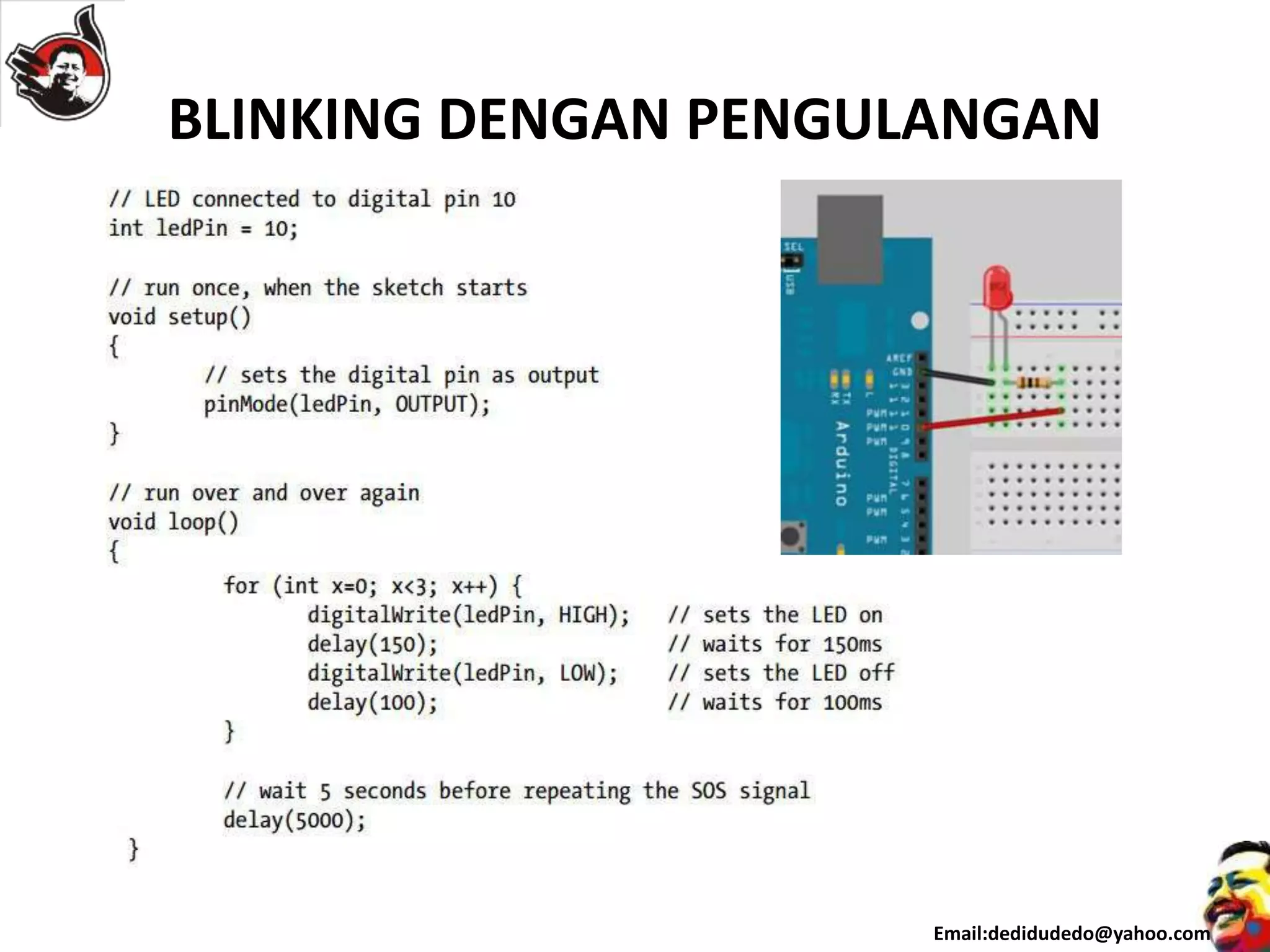

BLINKING DENGAN PENGULANGAN

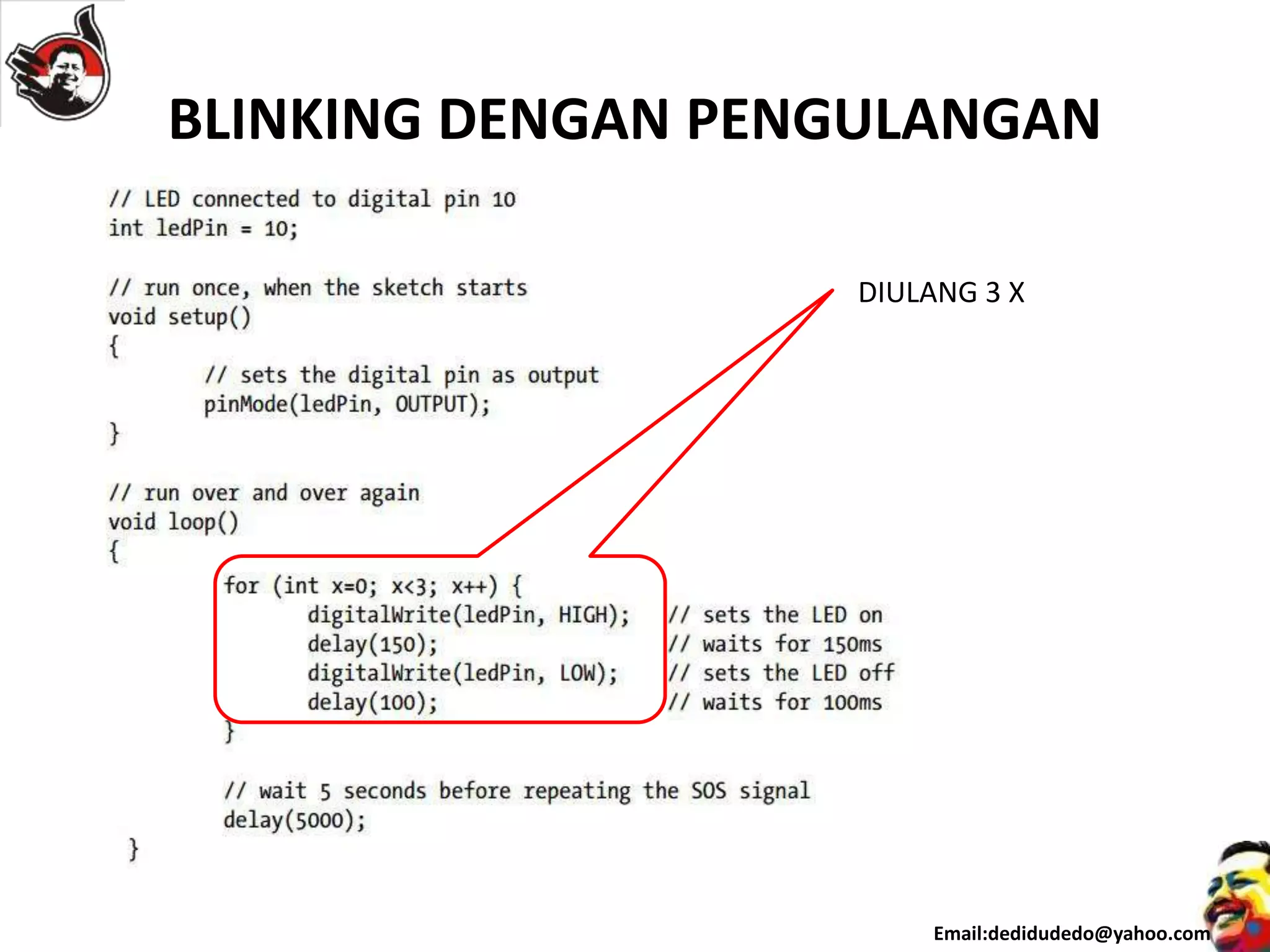

BLINKING DENGAN PENGULANGAN
DIULANG 3 X

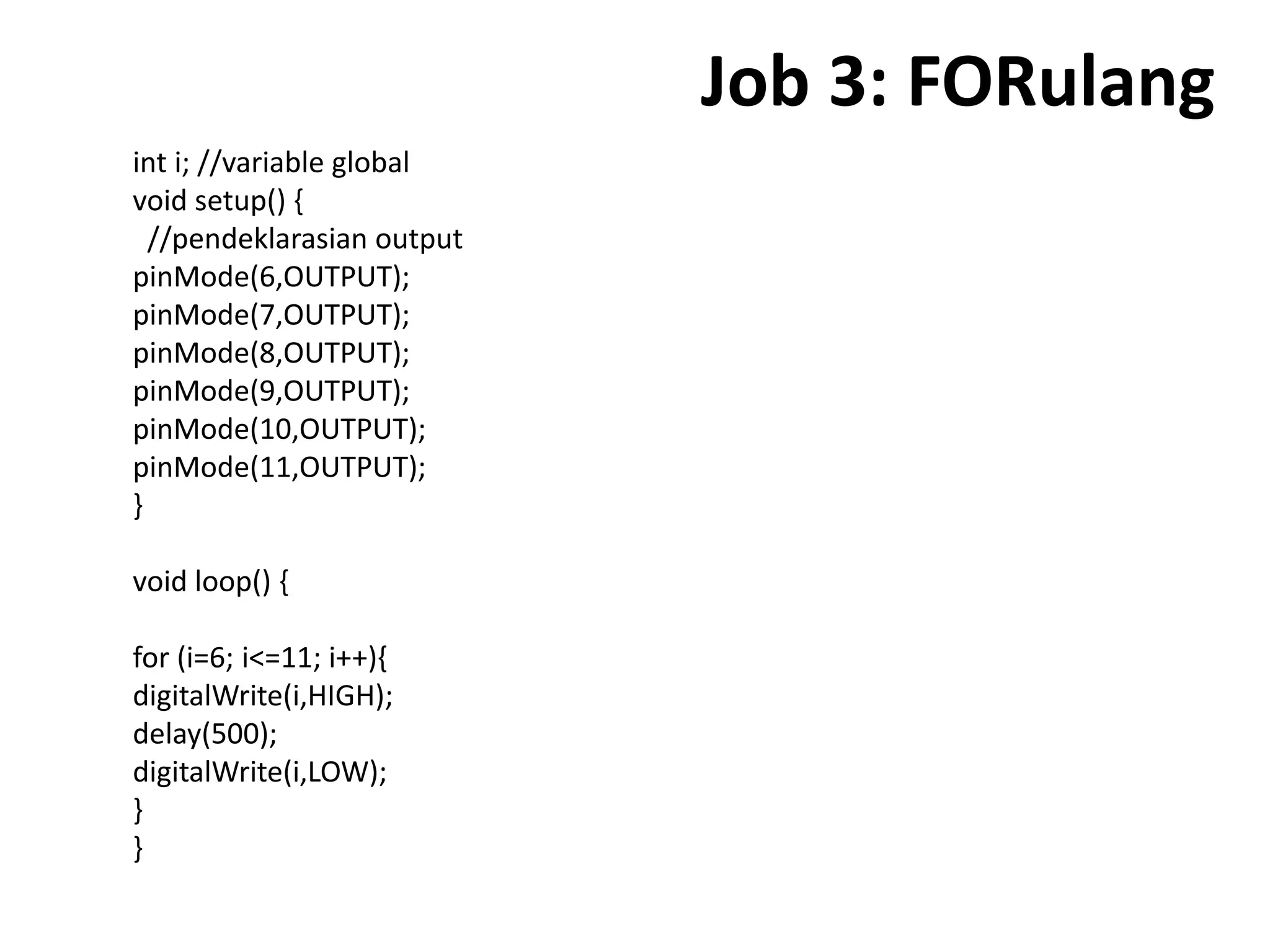

Job 3: FORulang
int i; //variable global
void setup() {
//pendeklarasian output
pinMode(6,OUTPUT);
pinMode(7,OUTPUT);
pinMode(8,OUTPUT);
pinMode(9,OUTPUT);
pinMode(10,OUTPUT);
pinMode(11,OUTPUT);
}
void loop() {
for (i=6; i<=11; i++){
digitalWrite(i,HIGH);
delay(500);
digitalWrite(i,LOW);
}
}

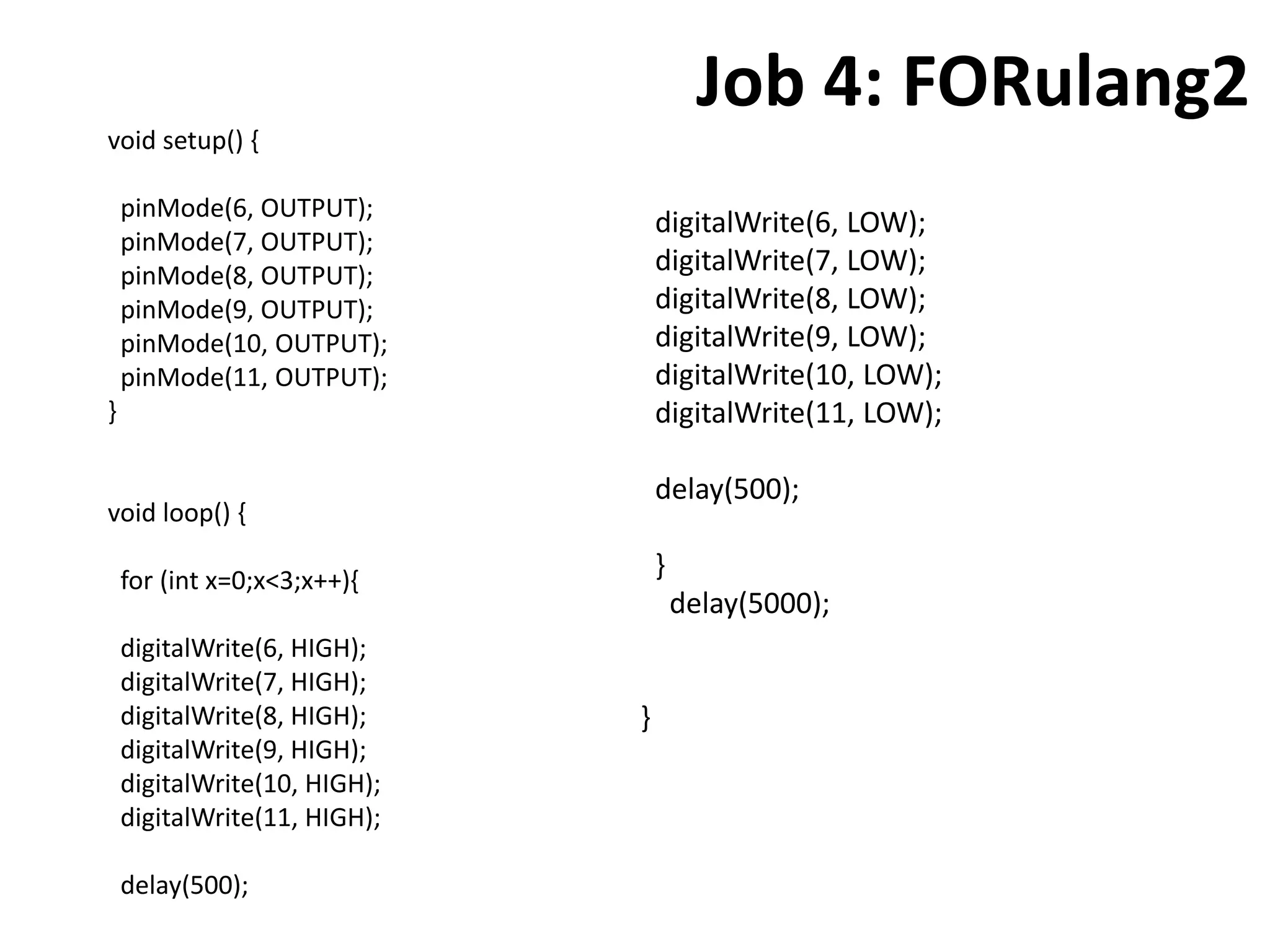

Job 4: FORulang2
void setup() {
pinMode(6, OUTPUT);
pinMode(7, OUTPUT);
pinMode(8, OUTPUT);
pinMode(9, OUTPUT);
}
void loop() {
for (int x=0;x<3;x++){
delay(500);
delay(500);
}
delay(5000);
}

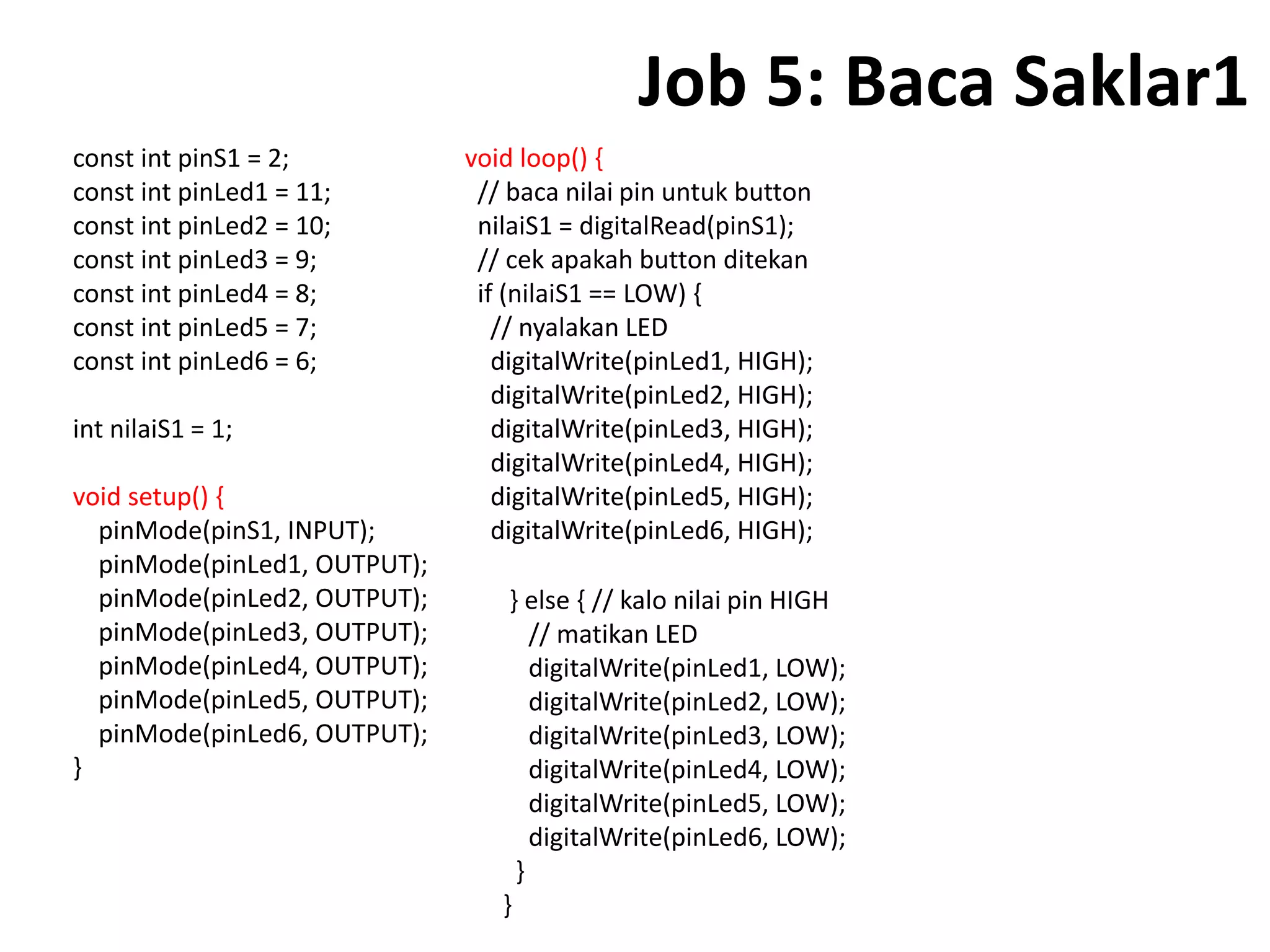

Job 5: Baca Saklar1
const int pinS1 = 2;
const int pinLed1 = 11;
int nilaiS1 = 1;
void setup() {
pinMode(pinS1, INPUT);
pinMode(pinLed1, OUTPUT);
}
void loop() {
// baca nilai pin untuk button
nilaiS1 = digitalRead(pinS1);
// cek apakah button ditekan
if (nilaiS1 == LOW) {
// nyalakan LED
digitalWrite(pinLed1, HIGH);
} else { // kalo nilai pin HIGH
// matikan LED
digitalWrite(pinLed1, LOW);
}
}

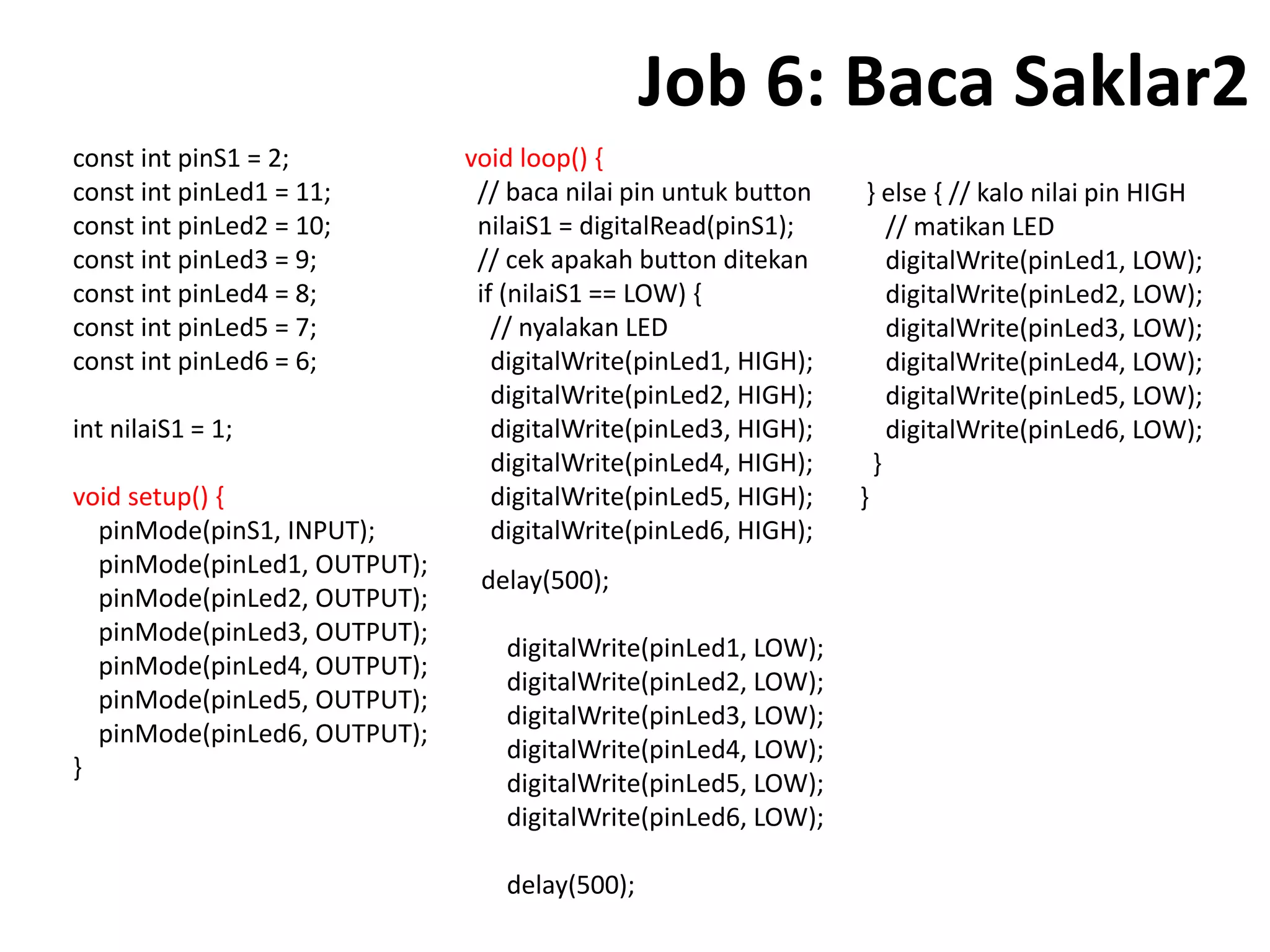

Job 6: Baca Saklar2
const int pinS1 = 2;
int nilaiS1 = 1;
void setup() {
pinMode(pinS1, INPUT);
}
void loop() {
// baca nilai pin untuk button
nilaiS1 = digitalRead(pinS1);
// cek apakah button ditekan
if (nilaiS1 == LOW) {
// nyalakan LED
} else { // kalo nilai pin HIGH
// matikan LED
}
}
delay(500);
delay(500);

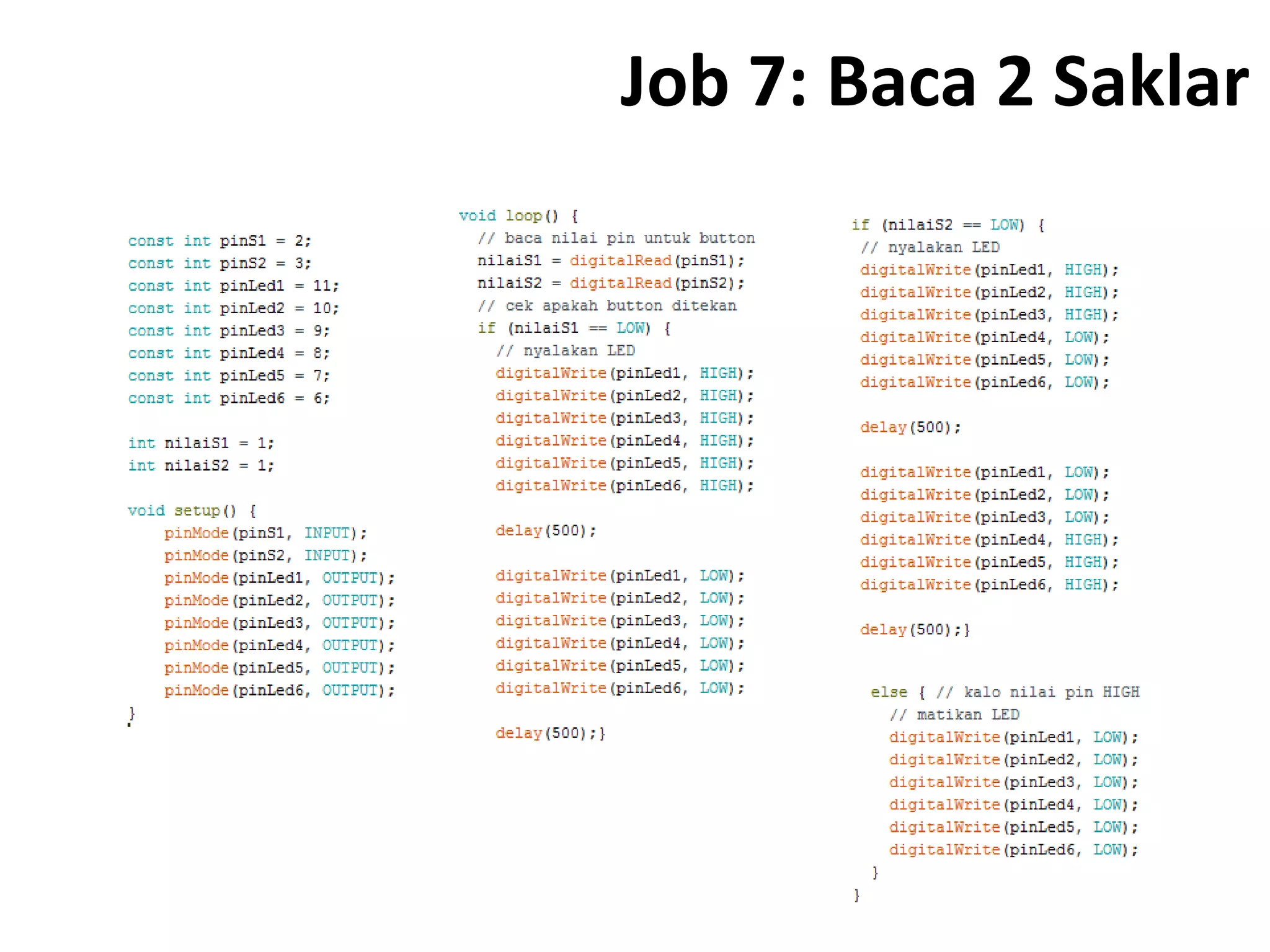

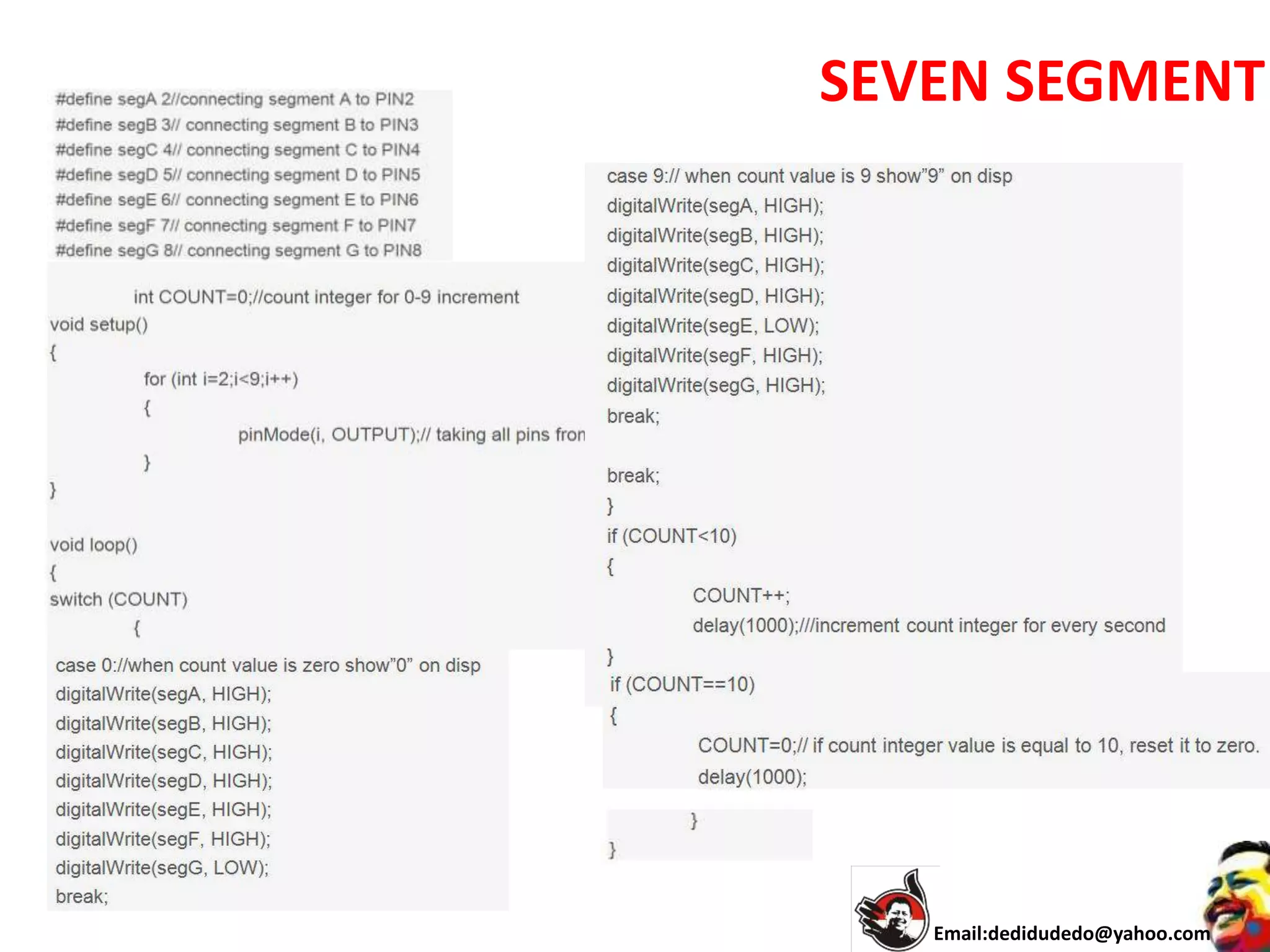

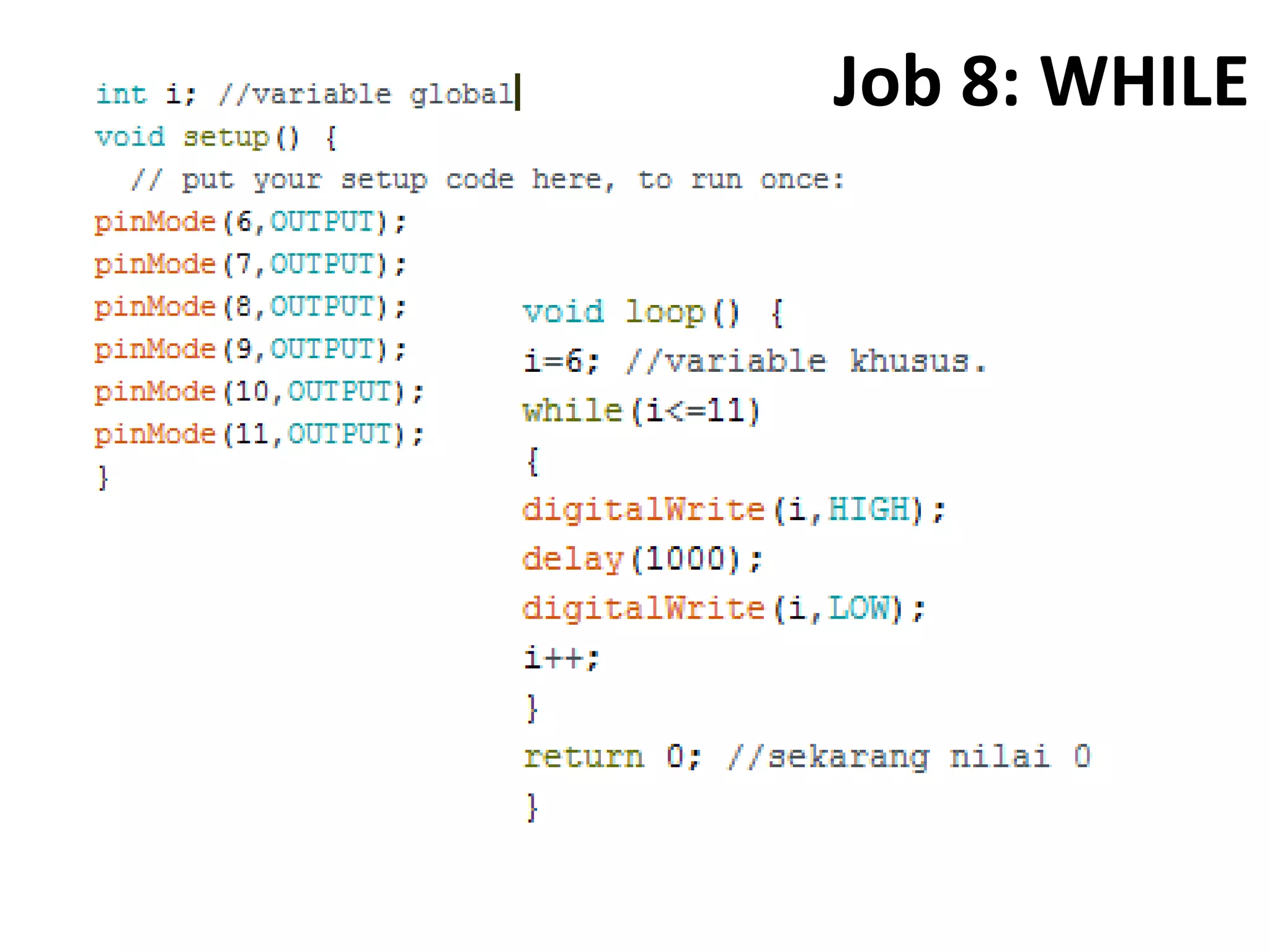

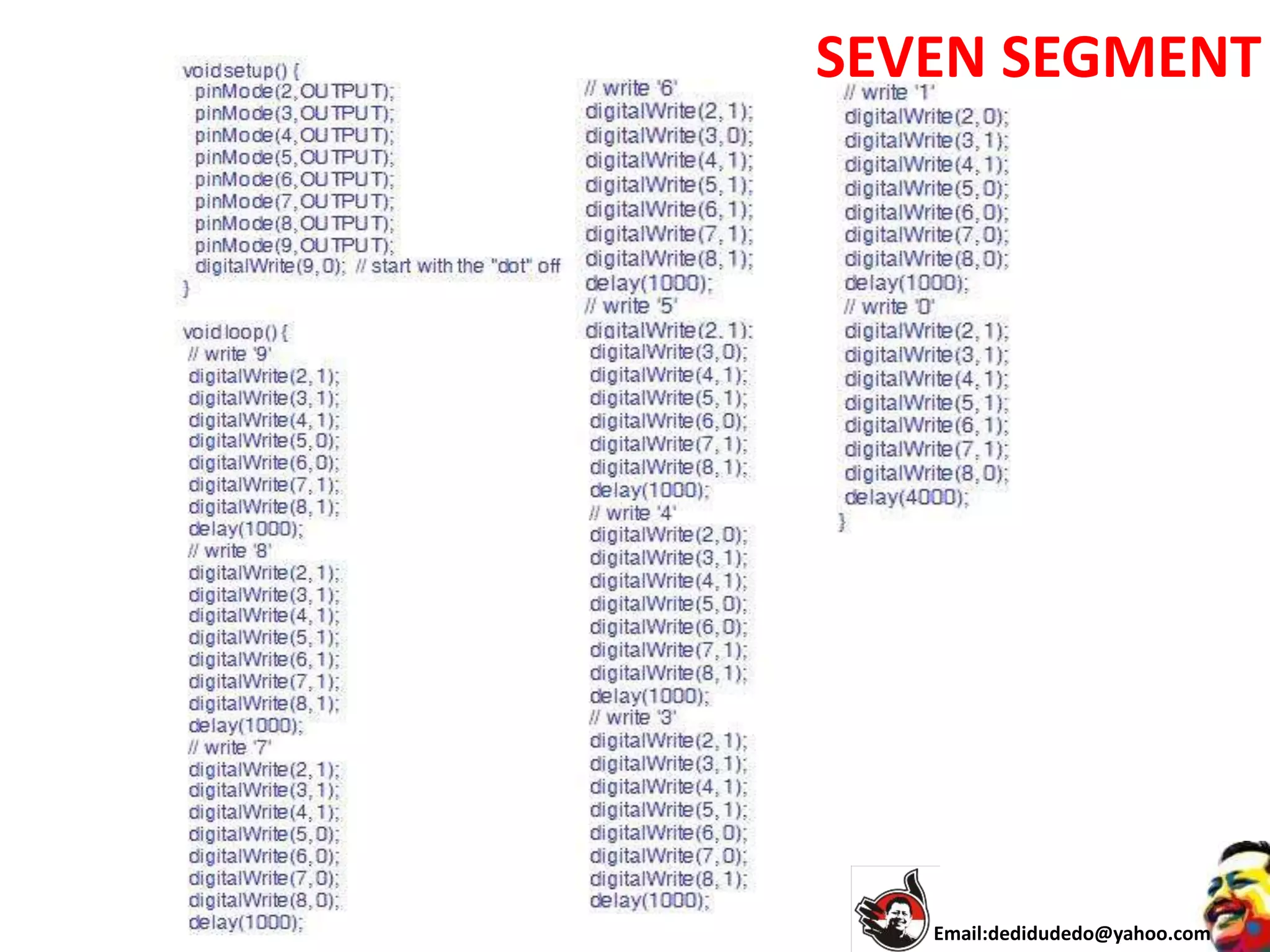

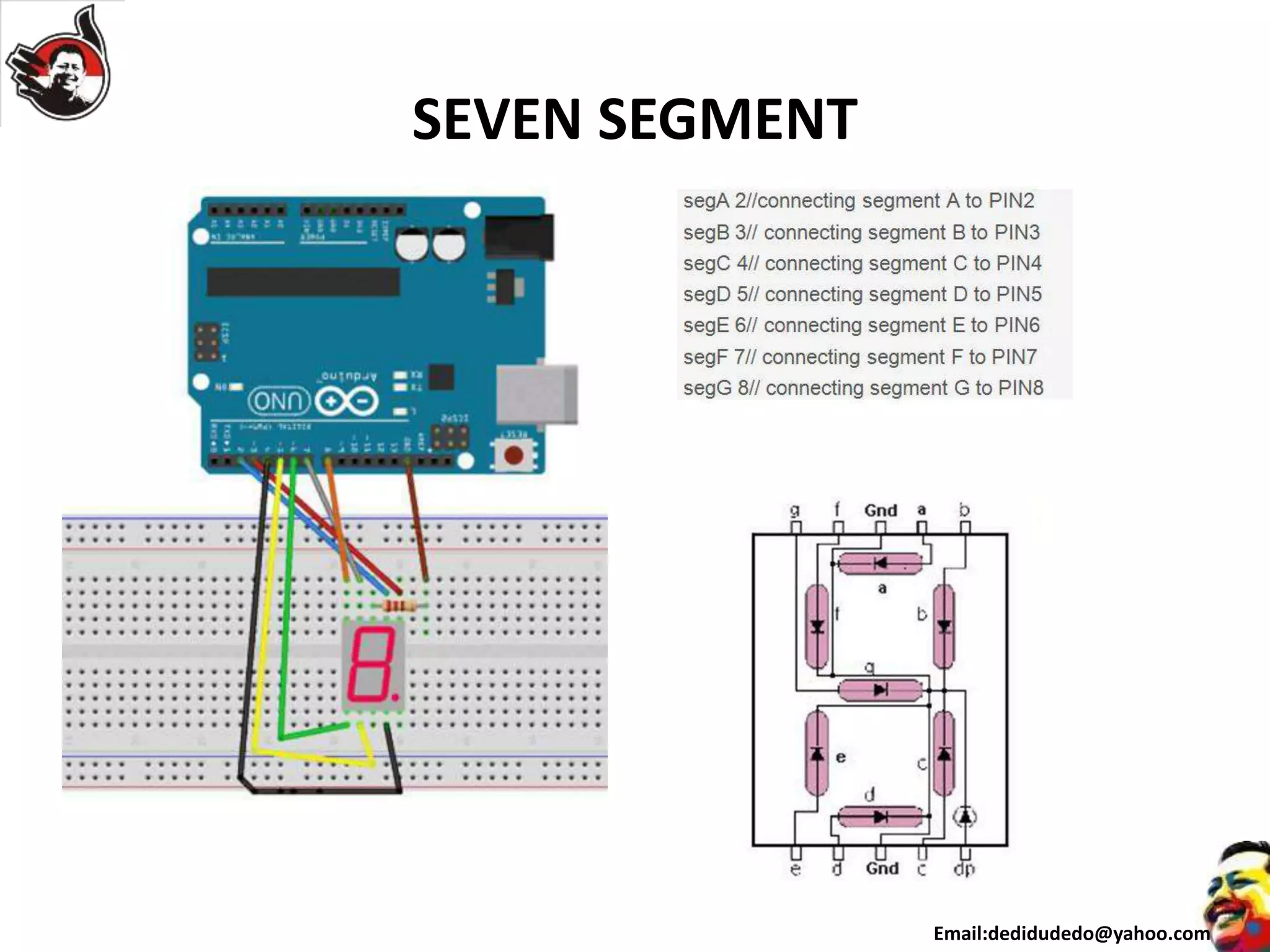

SEVEN SEGMENT

SEVEN SEGMENT

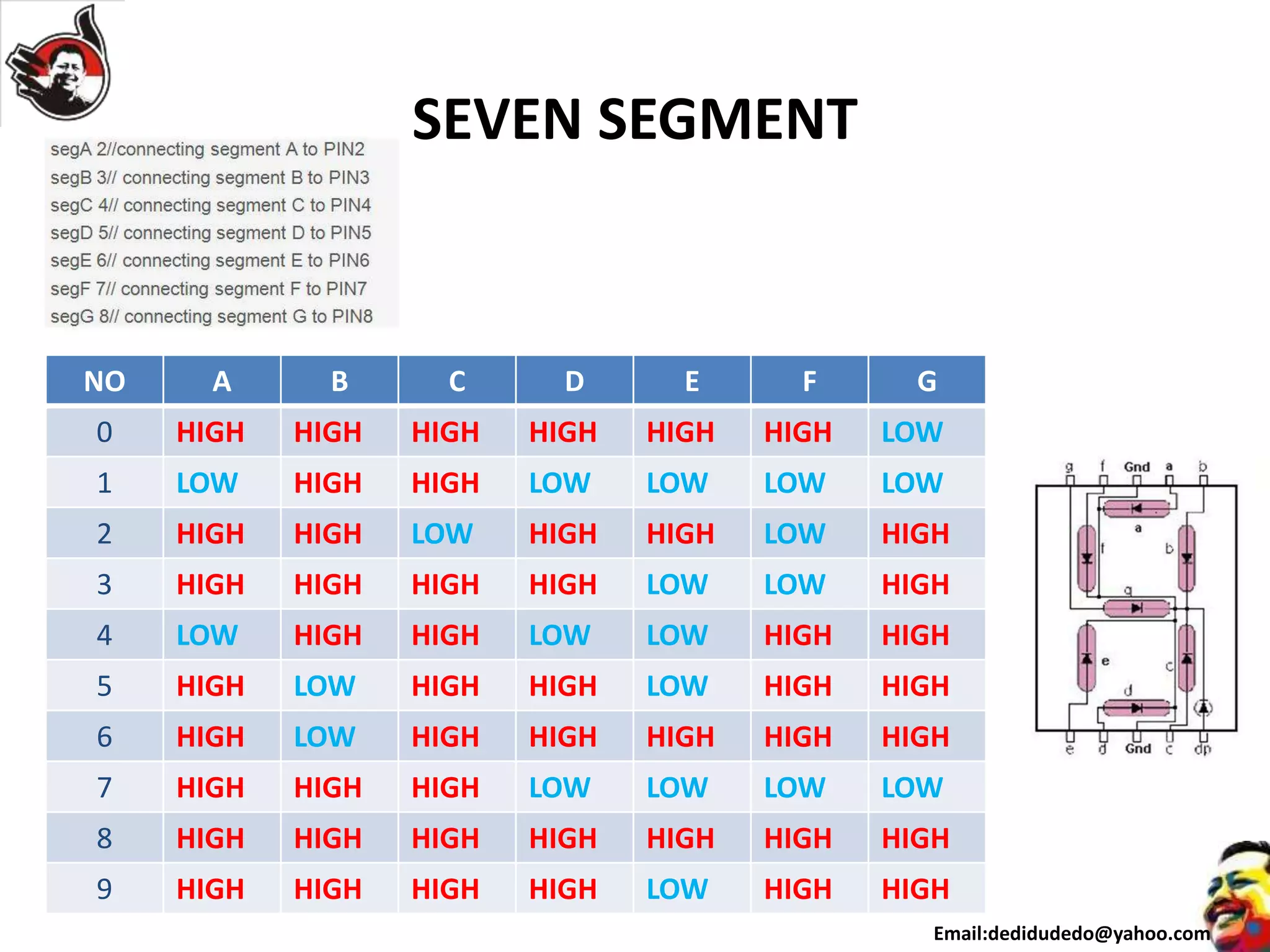

NO A B C D E F G
0 HIGH HIGH HIGH HIGH HIGH HIGH LOW
1 LOW HIGH HIGH LOW LOW LOW LOW
2 HIGH HIGH LOW HIGH HIGH LOW HIGH
3 HIGH HIGH HIGH HIGH LOW LOW HIGH
4 LOW HIGH HIGH LOW LOW HIGH HIGH
5 HIGH LOW HIGH HIGH LOW HIGH HIGH
6 HIGH LOW HIGH HIGH HIGH HIGH HIGH
7 HIGH HIGH HIGH LOW LOW LOW LOW
8 HIGH HIGH HIGH HIGH HIGH HIGH HIGH
9 HIGH HIGH HIGH HIGH LOW HIGH HIGH

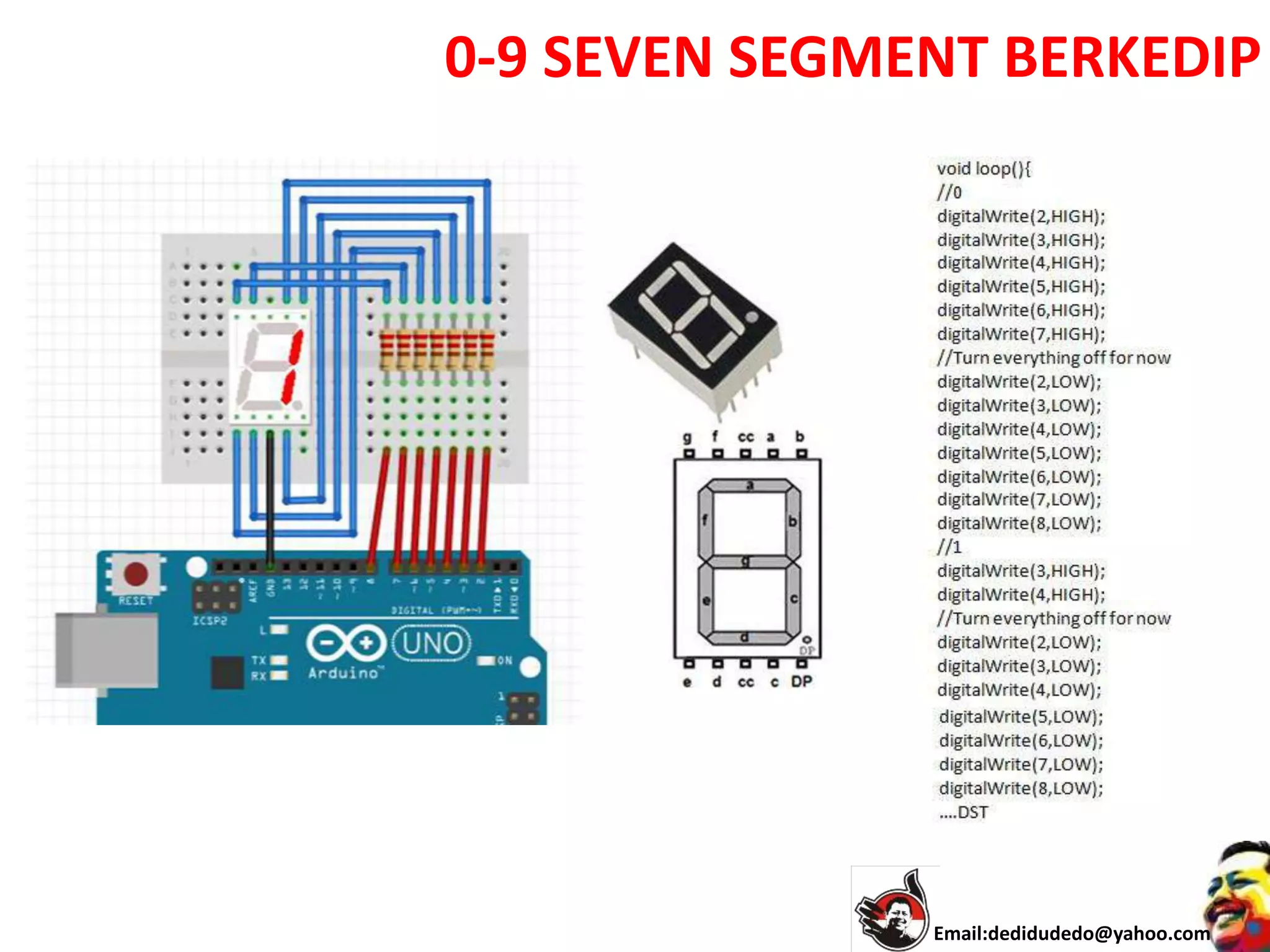

0-9 SEVEN SEGMENT BERKEDIP

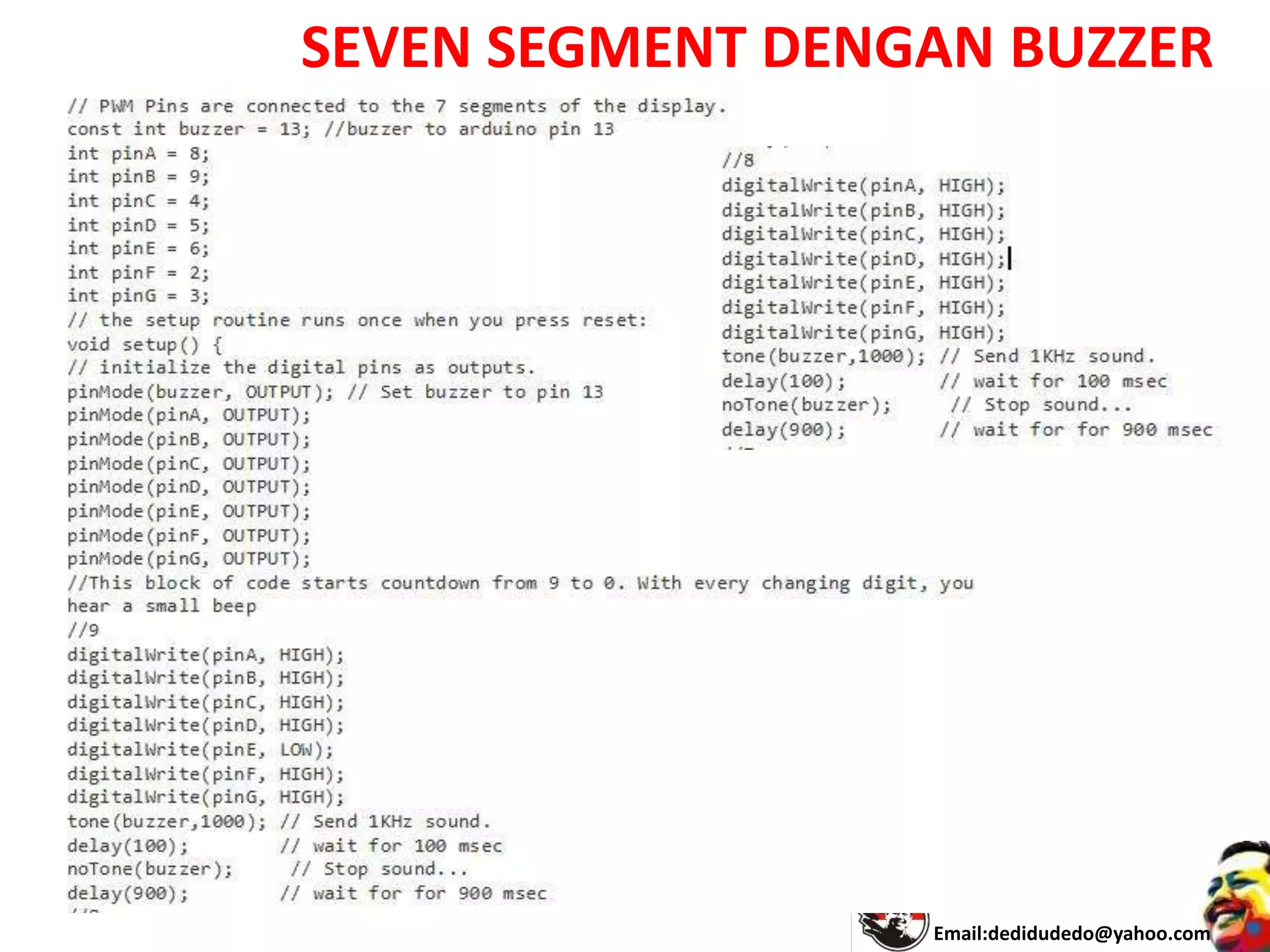

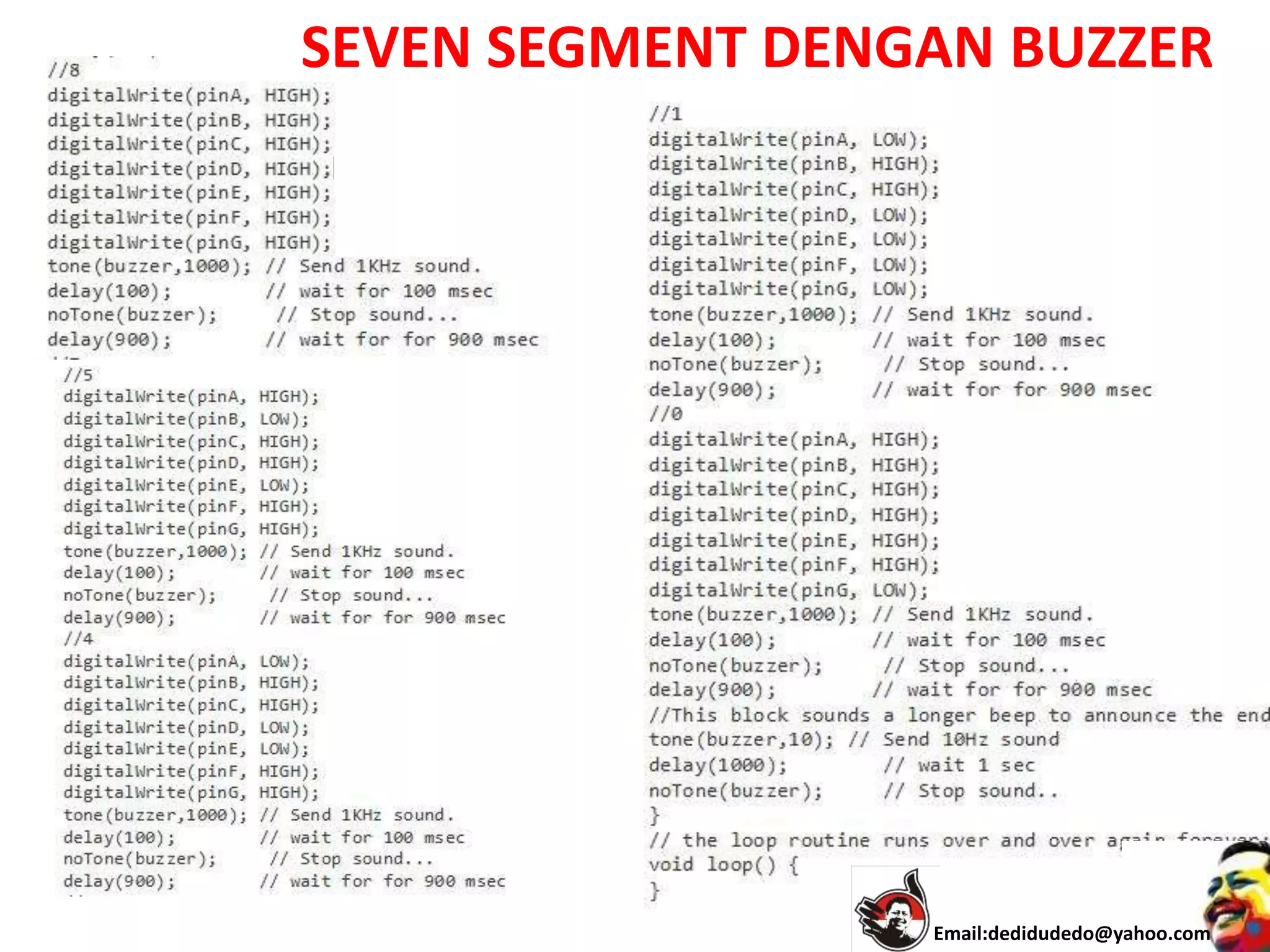

SEVEN SEGMENT DENGAN BUZZER

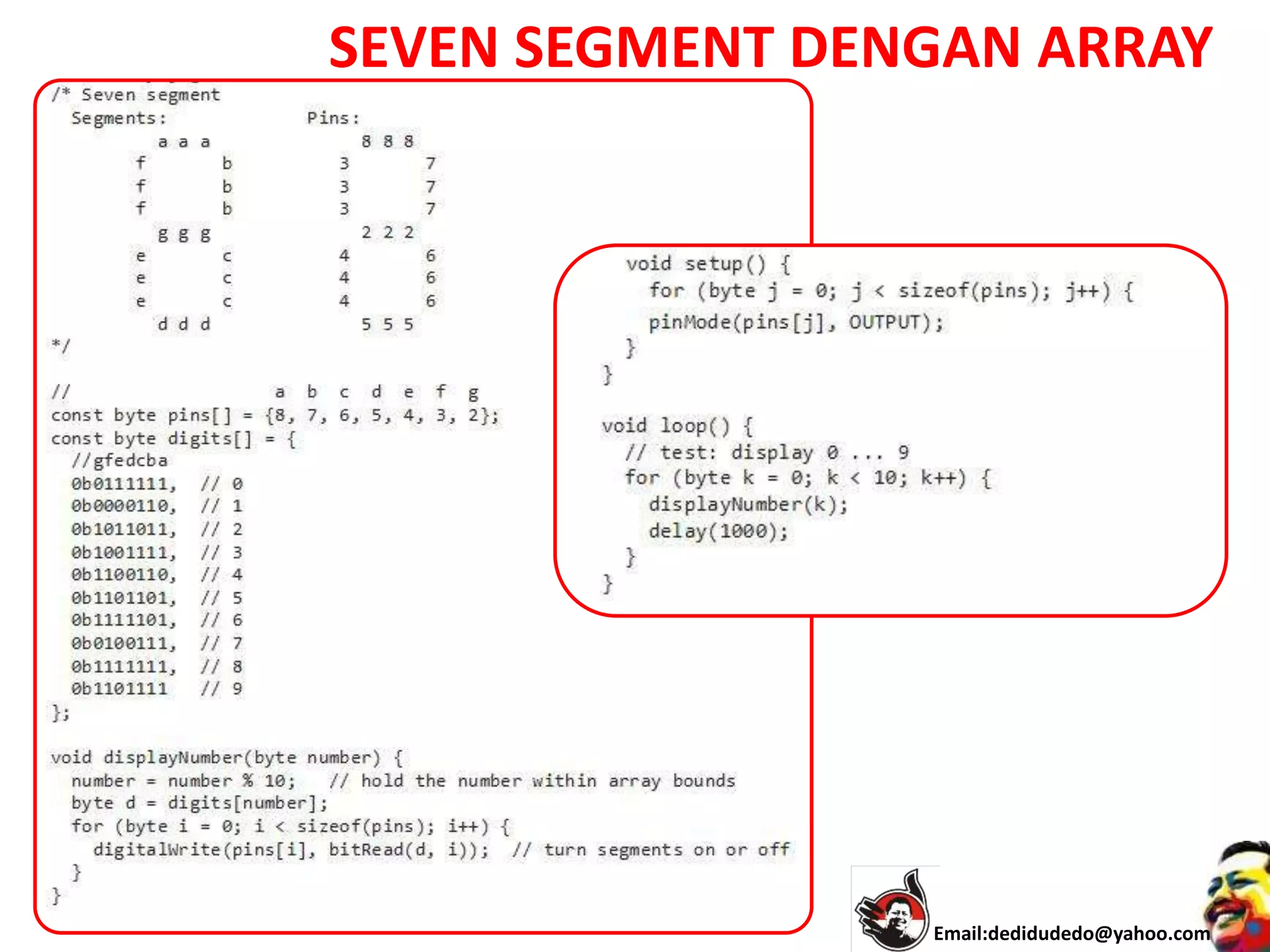

SEVEN SEGMENT DENGAN ARRAY

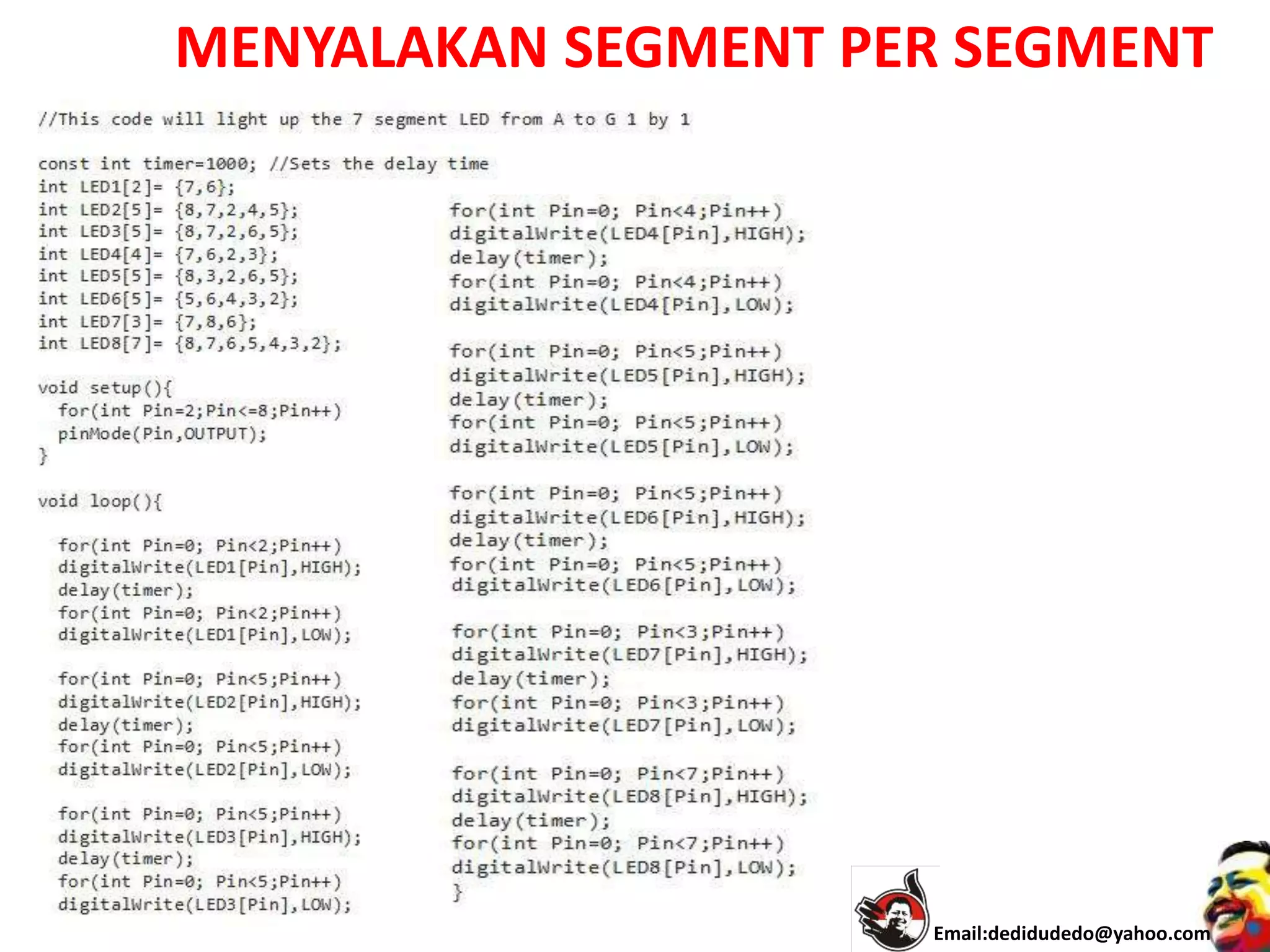

MENYALAKAN SEGMENT PER SEGMENT

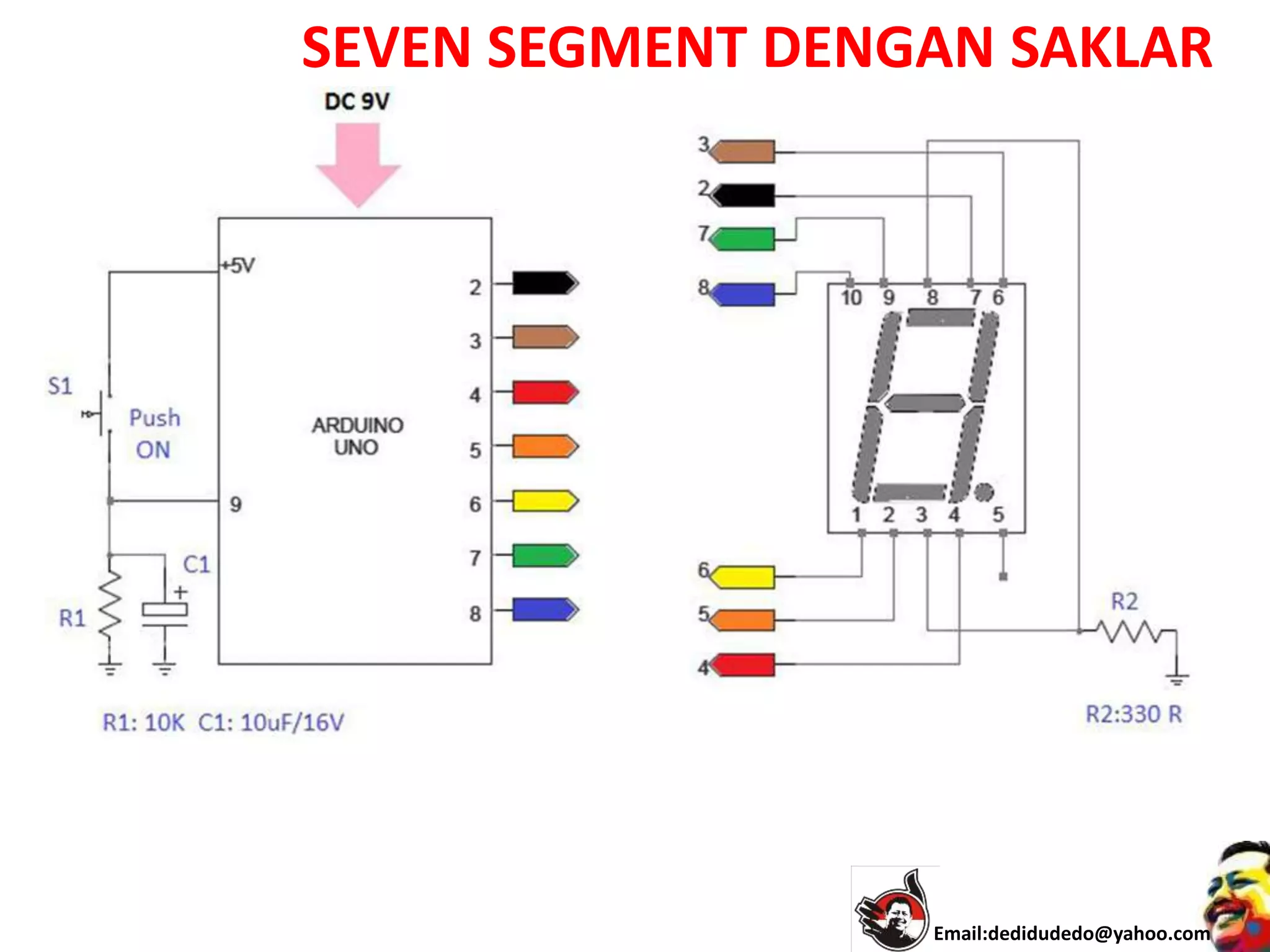

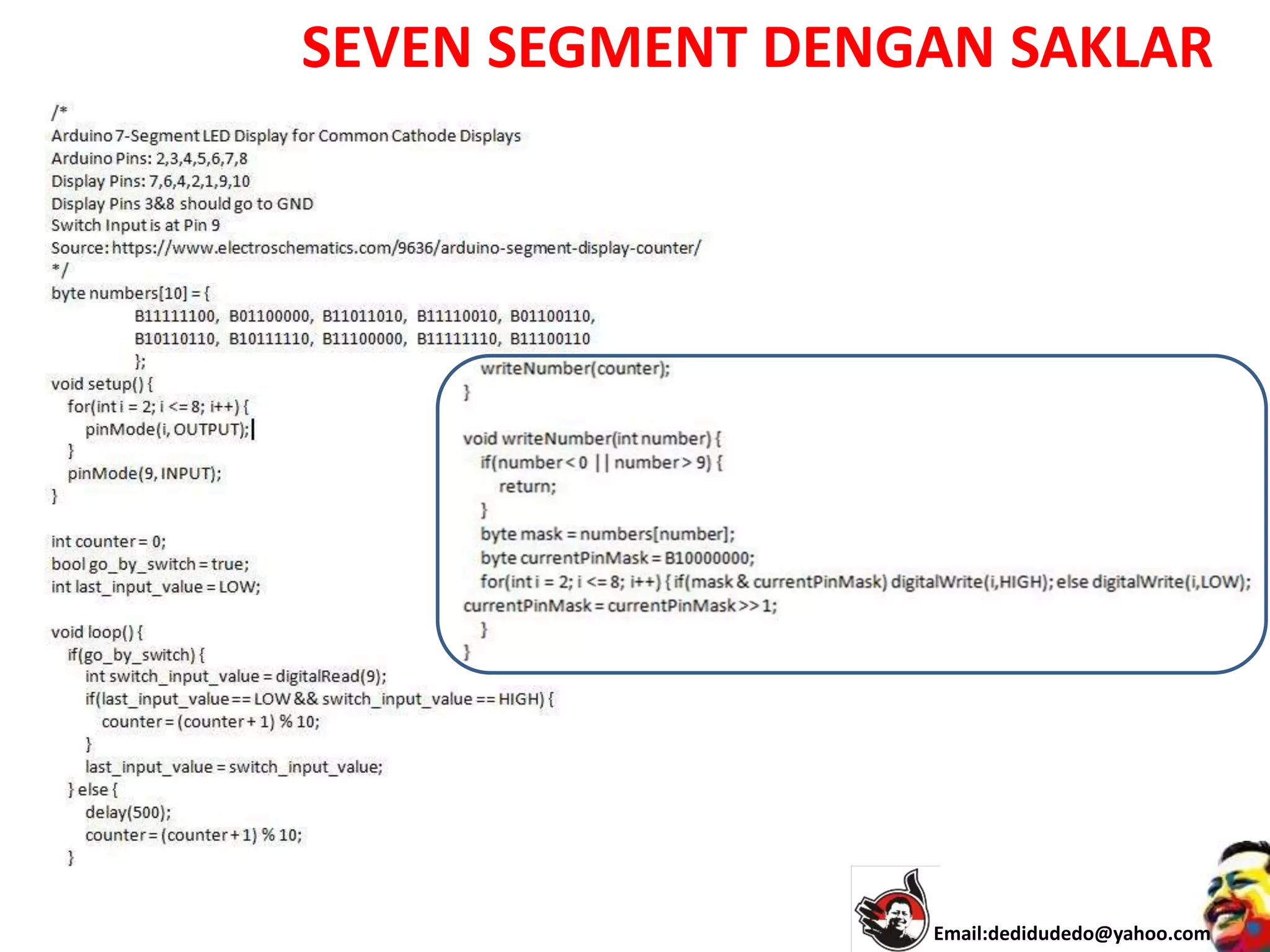

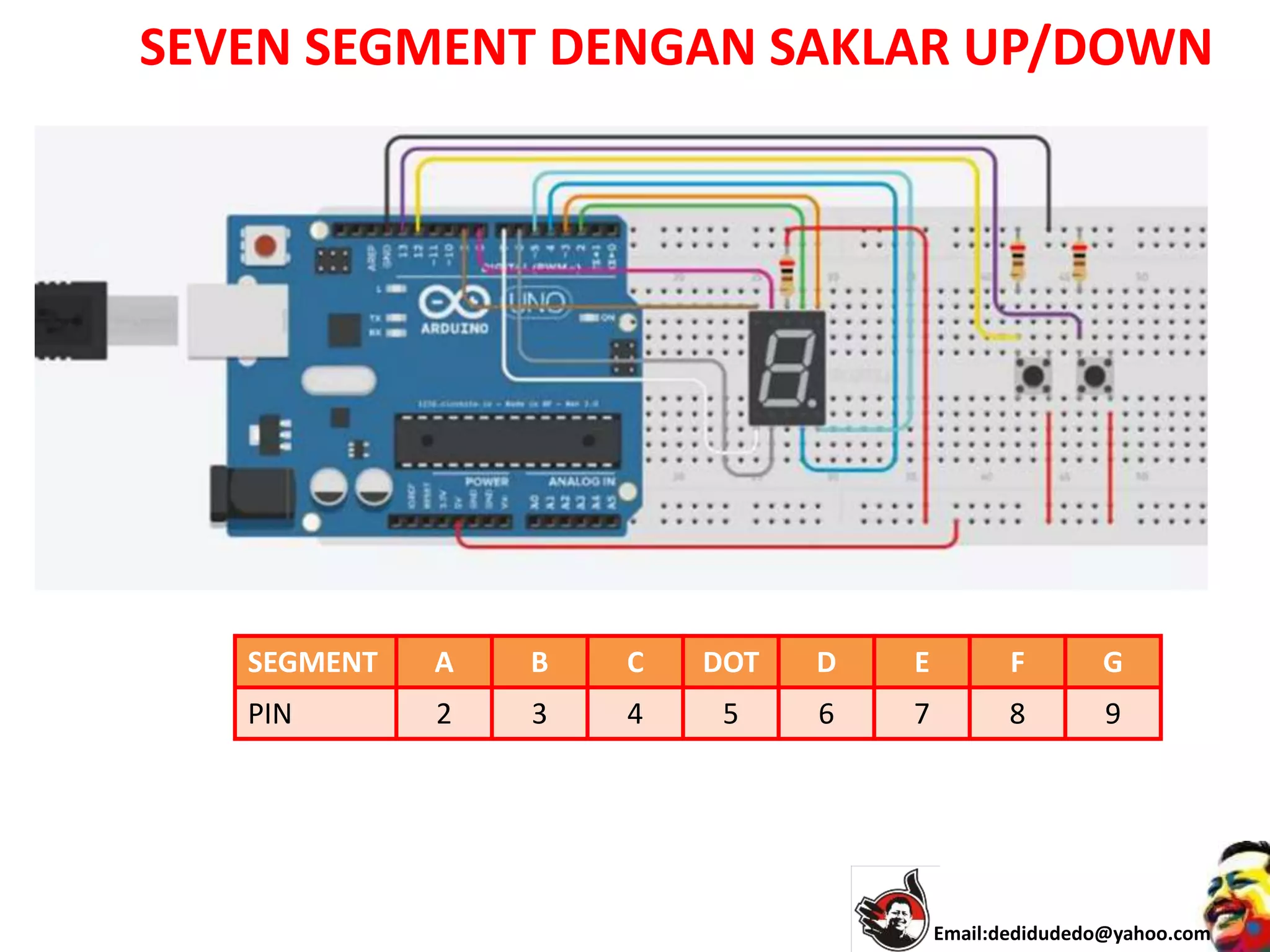

SEVEN SEGMENT DENGAN SAKLAR

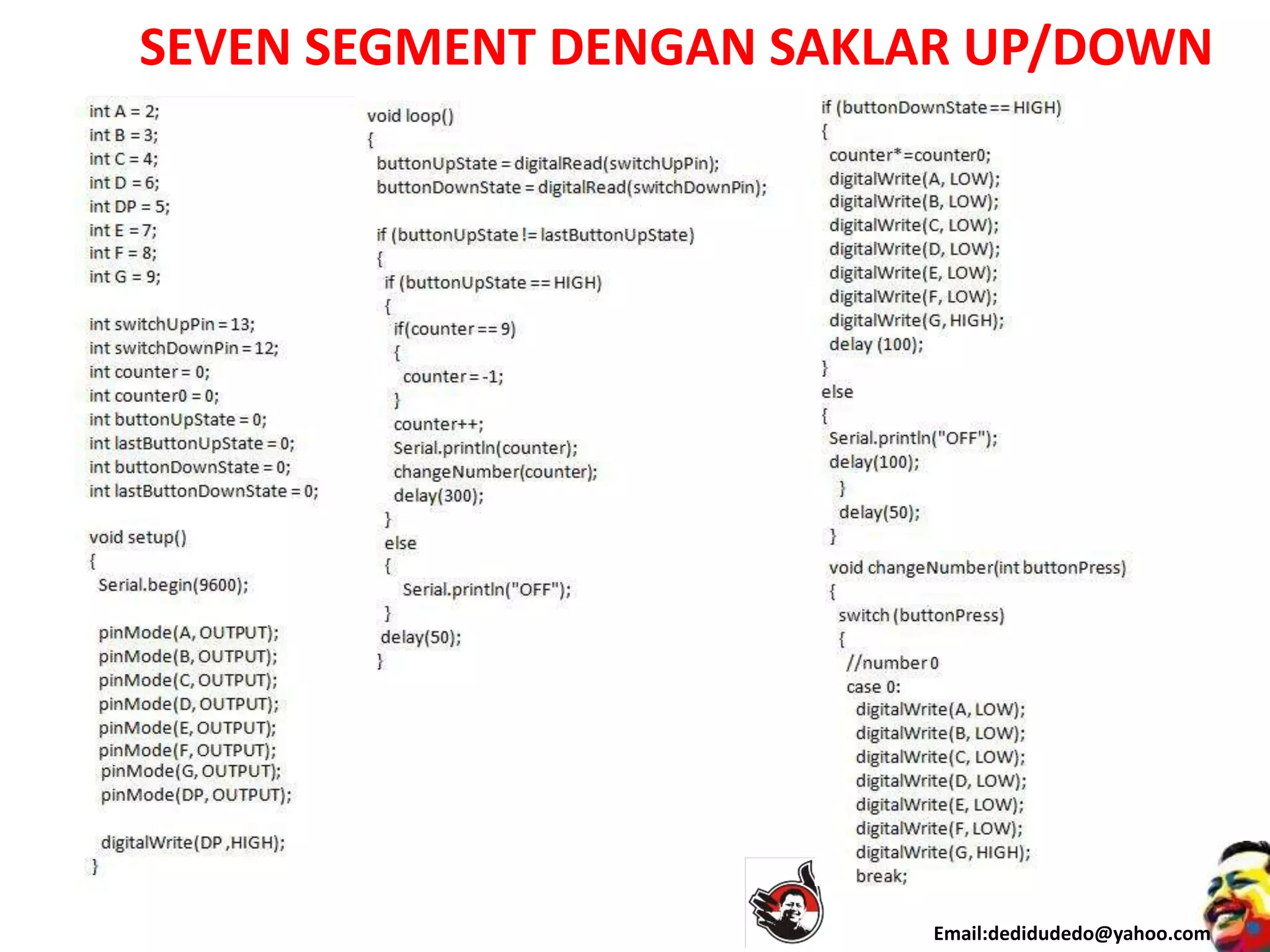

SEVEN SEGMENT DENGAN SAKLAR UP/DOWN
SEGMENT A B C DOT D E F G
PIN 2 3 4 5 6 7 8 9

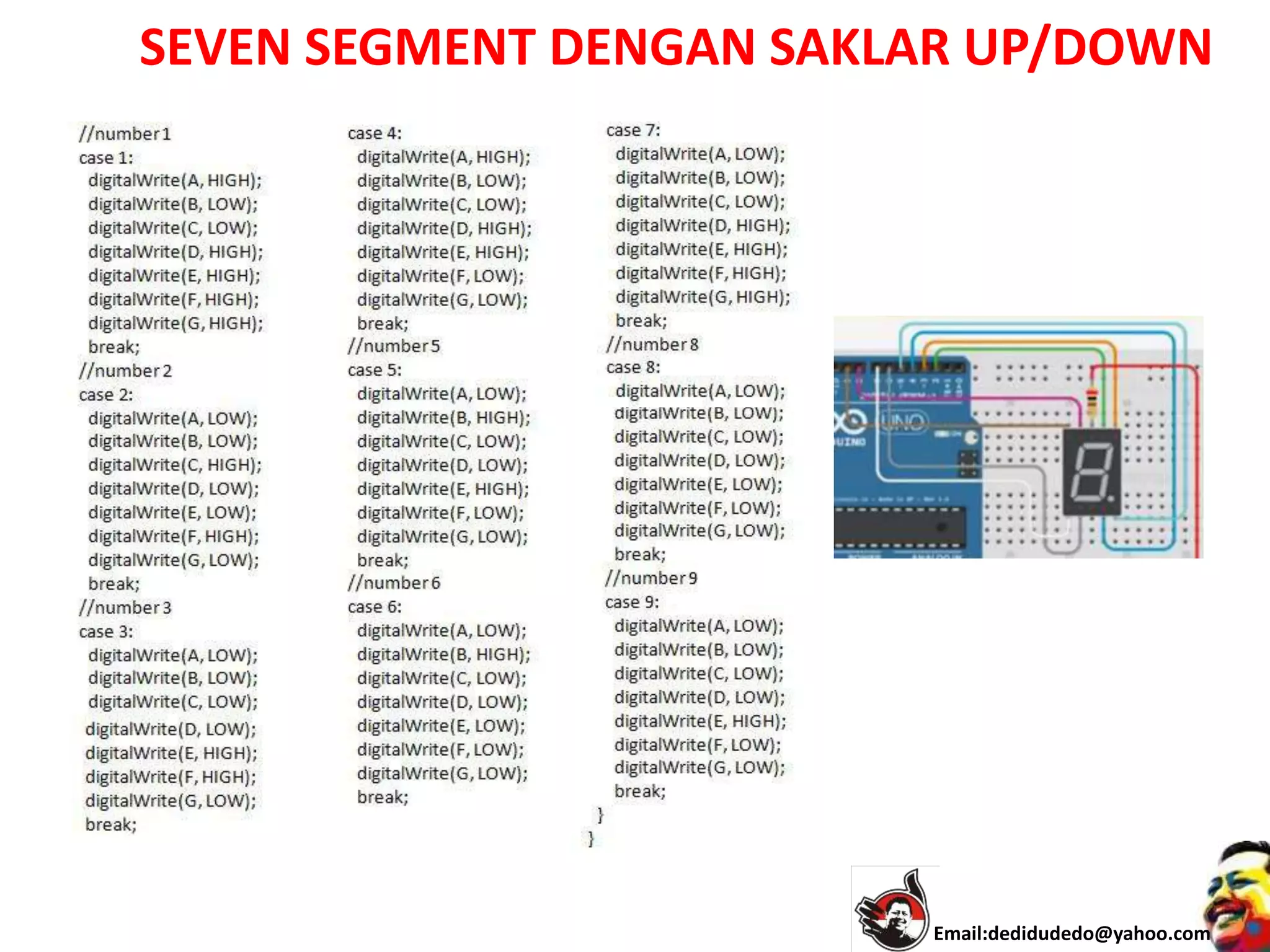

SEVEN SEGMENT DENGAN SAKLAR UP/DOWN

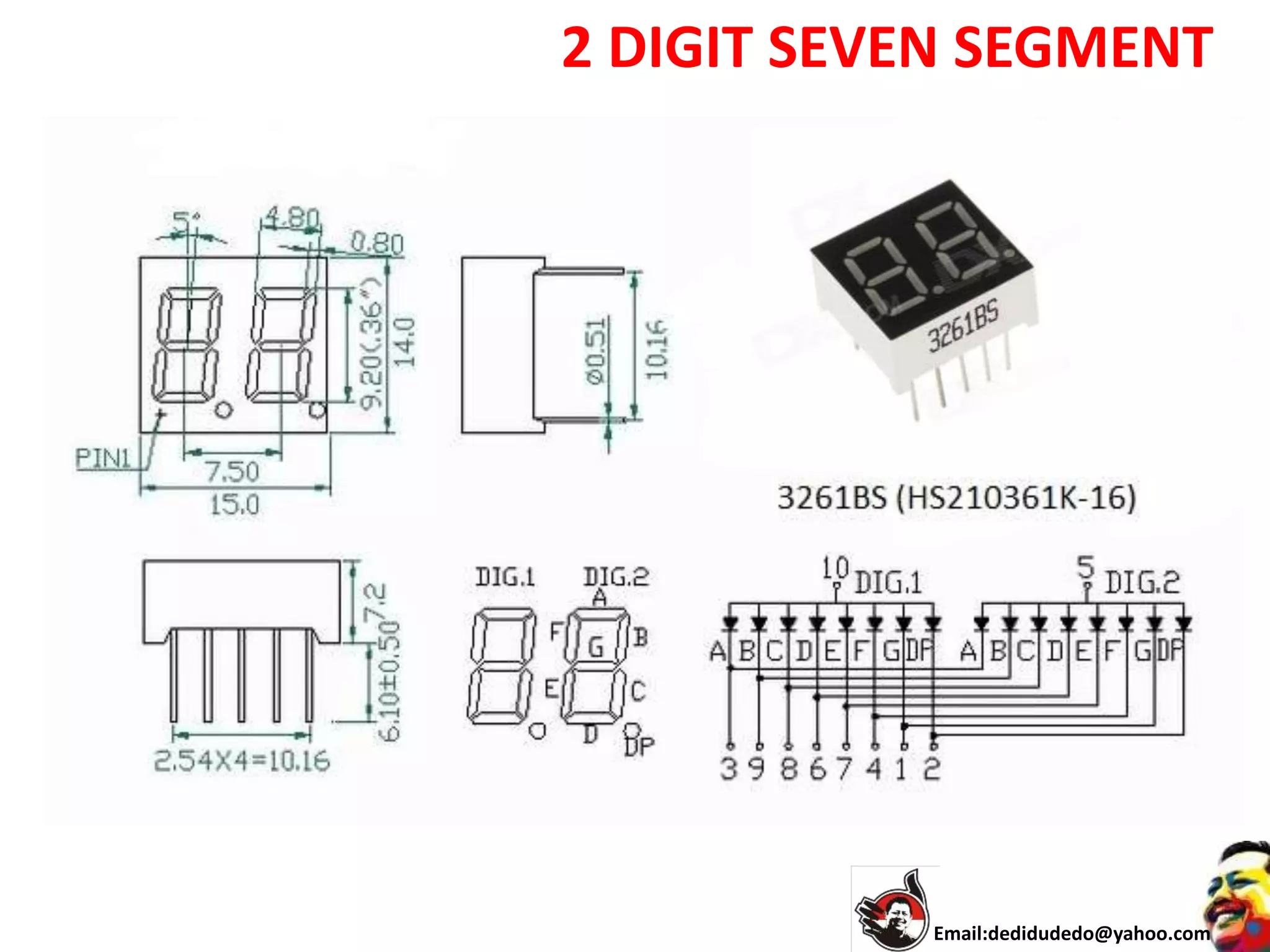

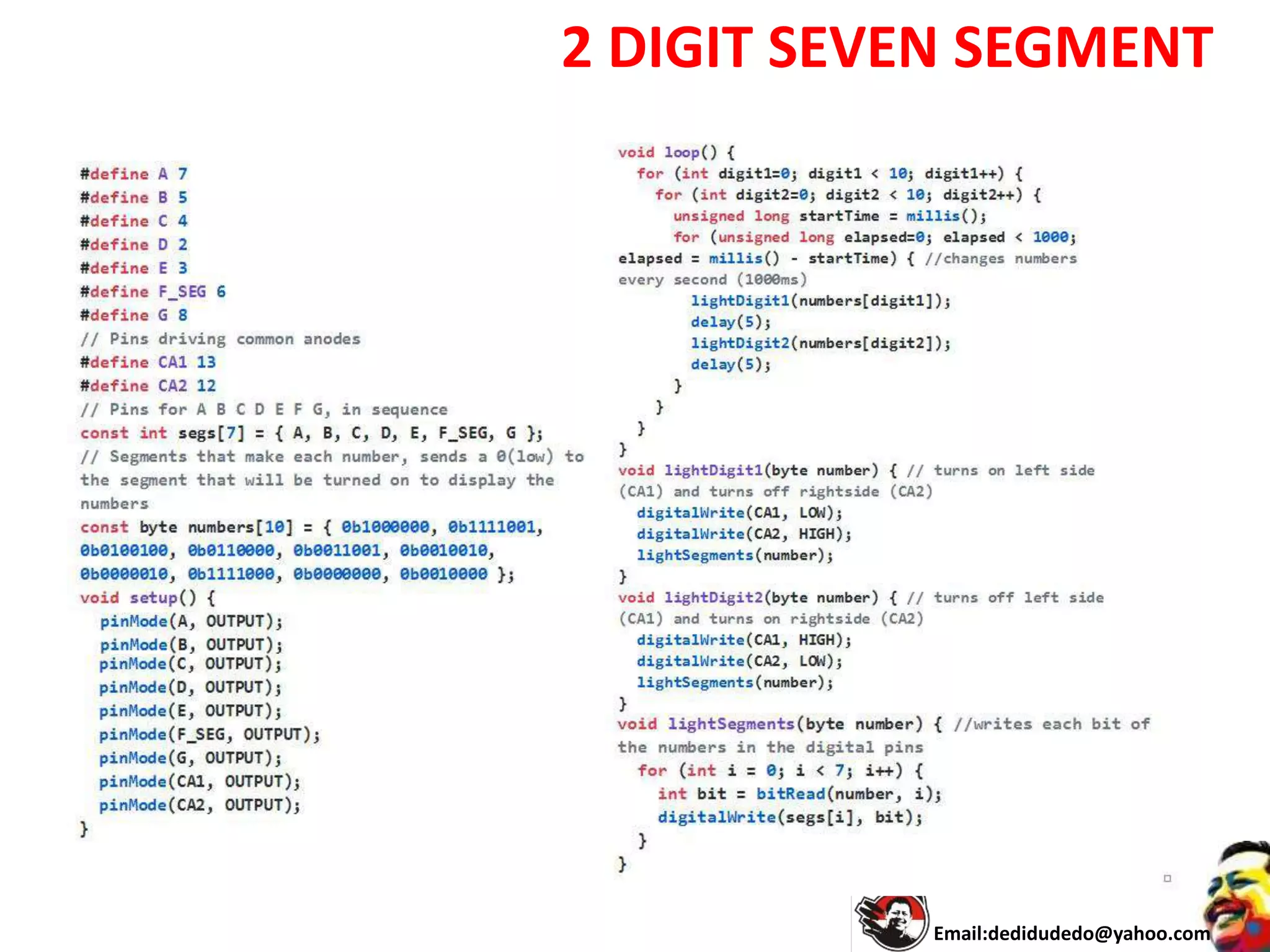

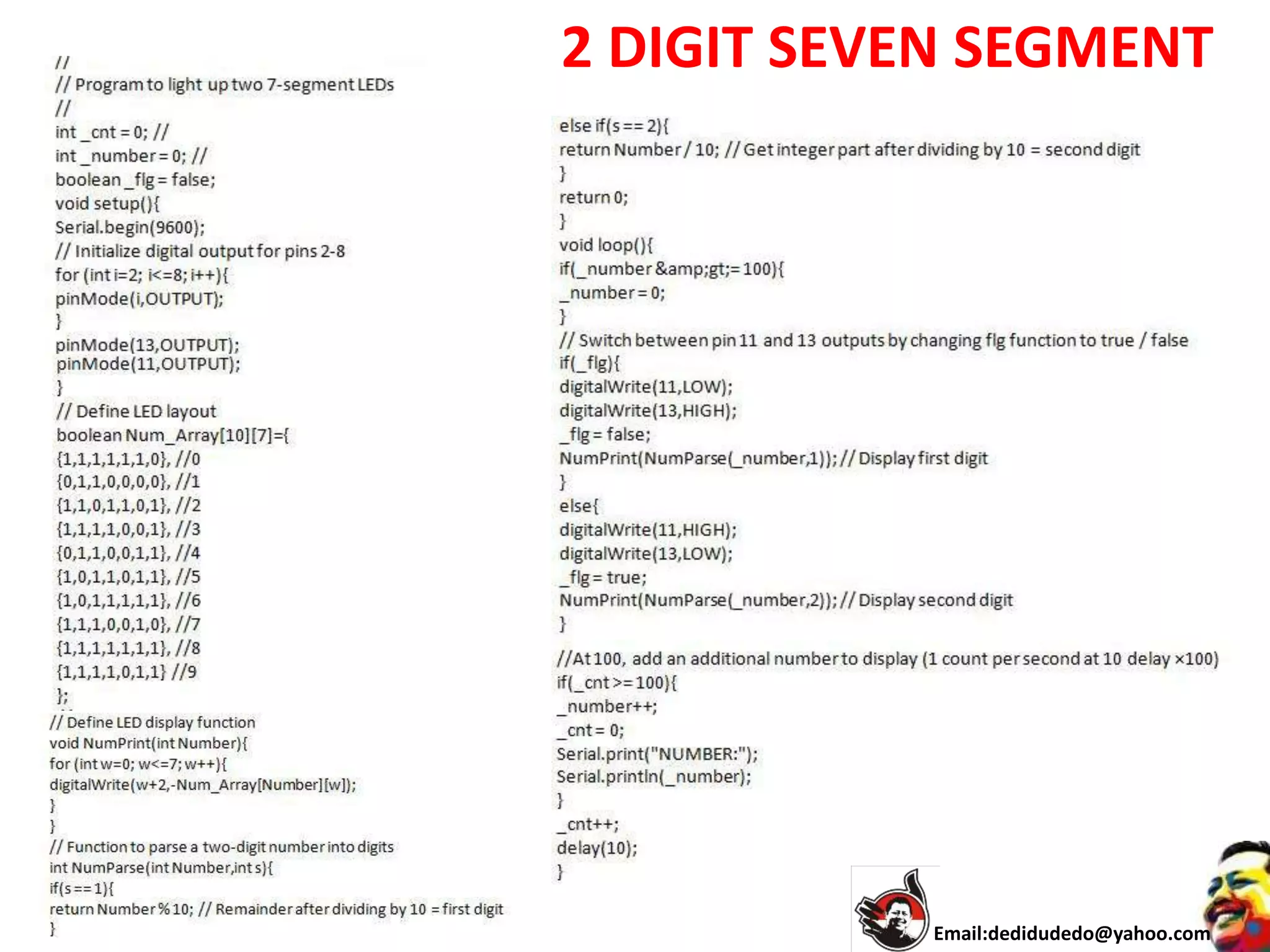

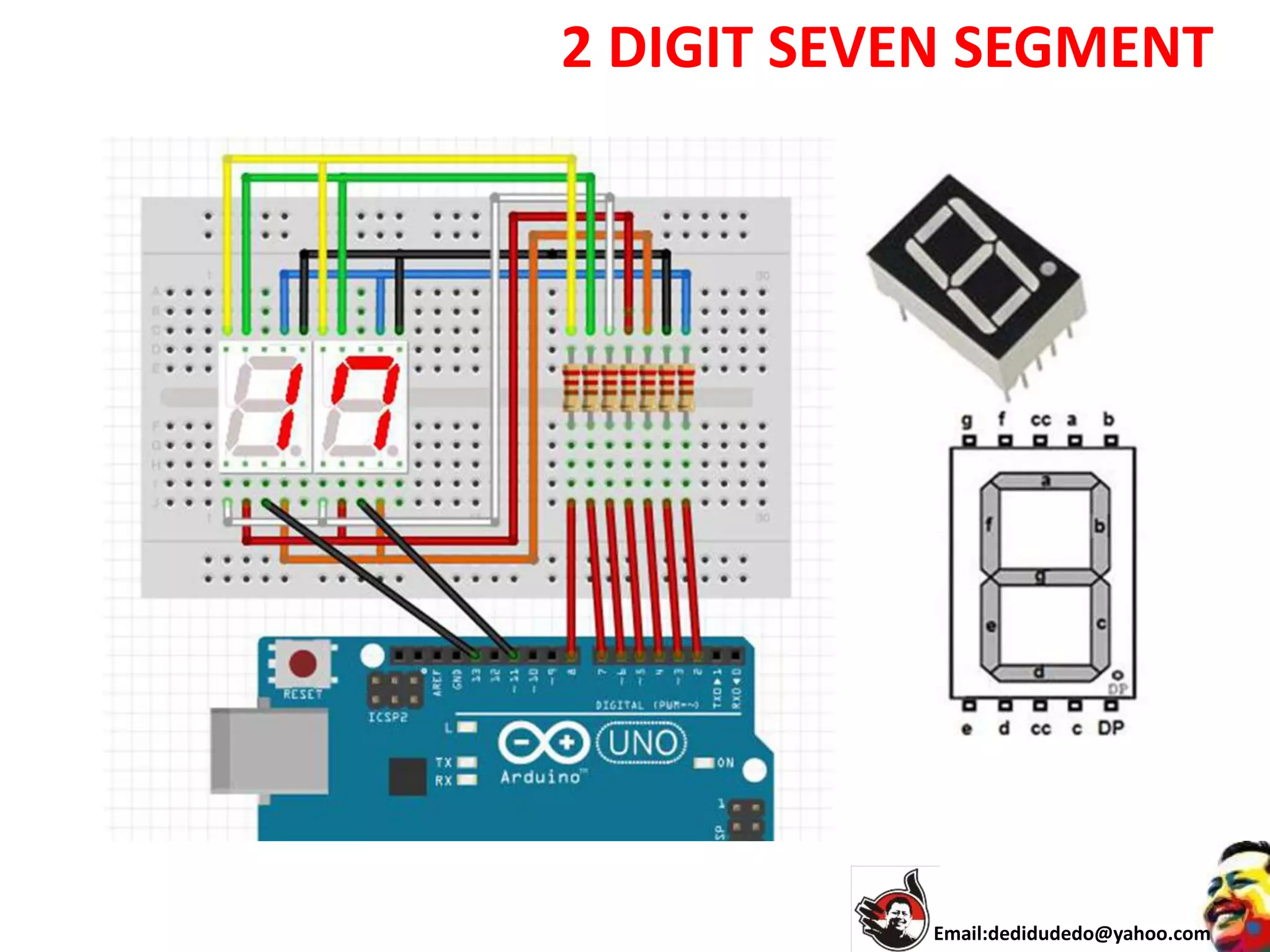

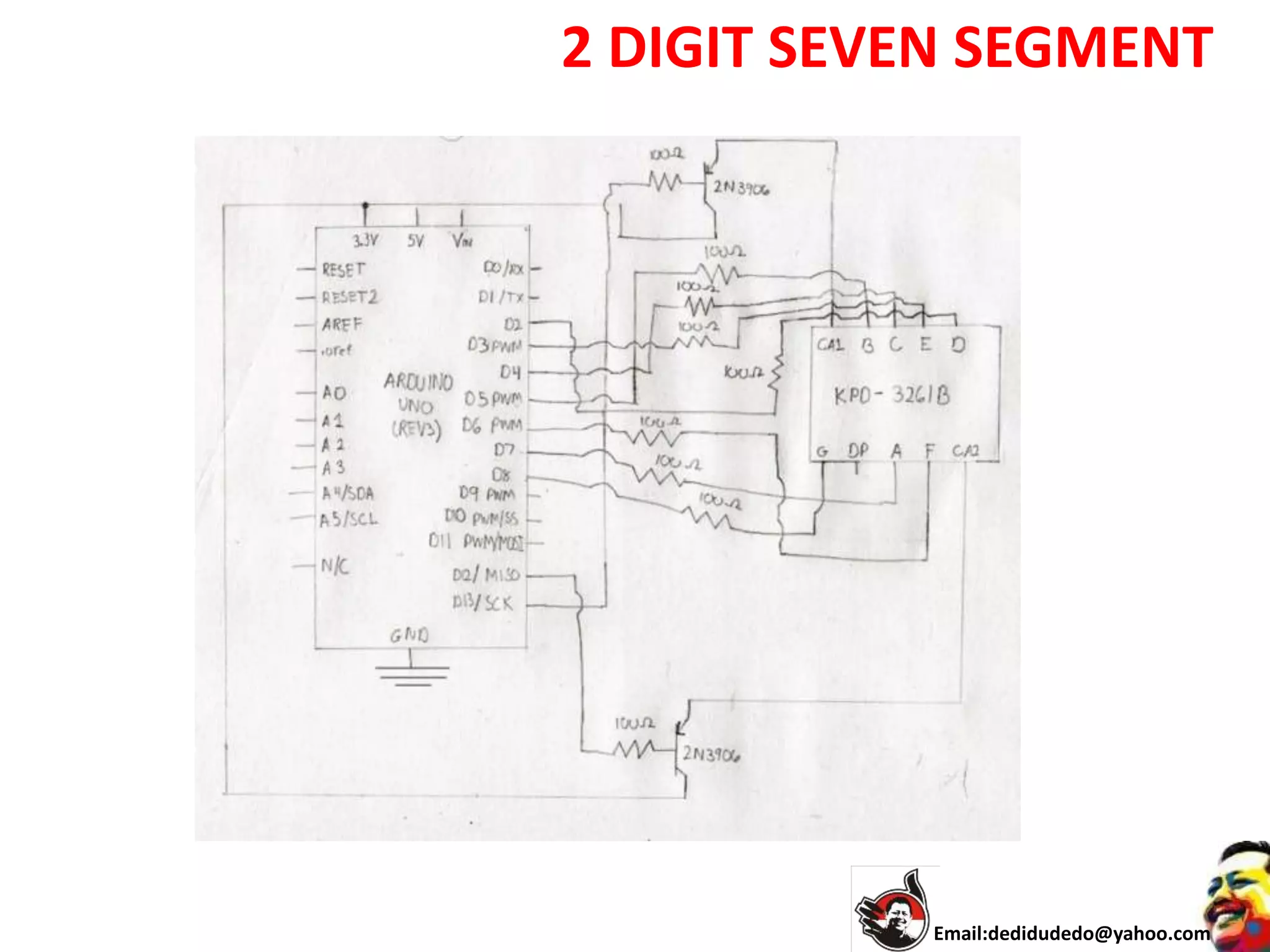

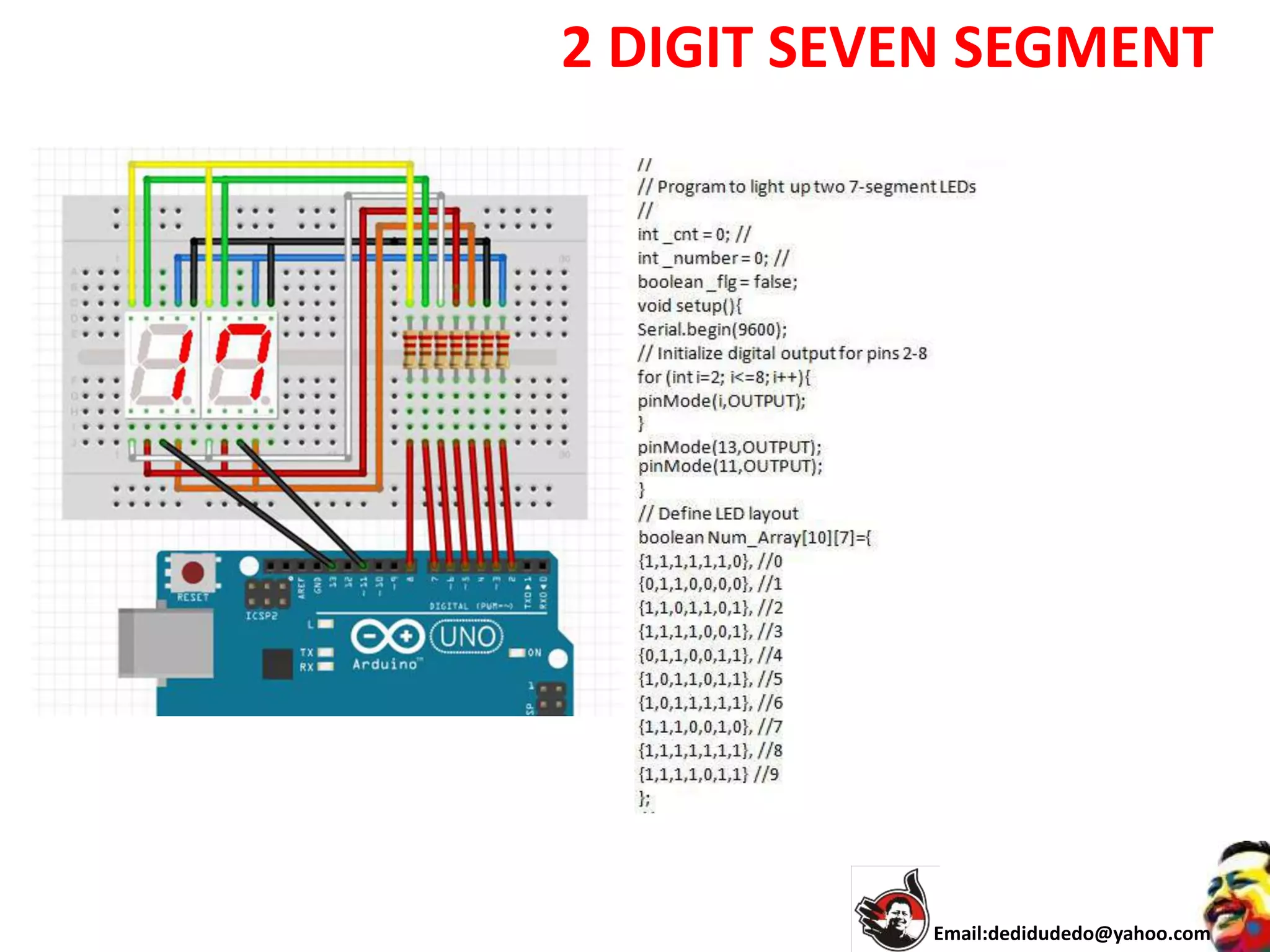

2 DIGIT SEVEN SEGMENT

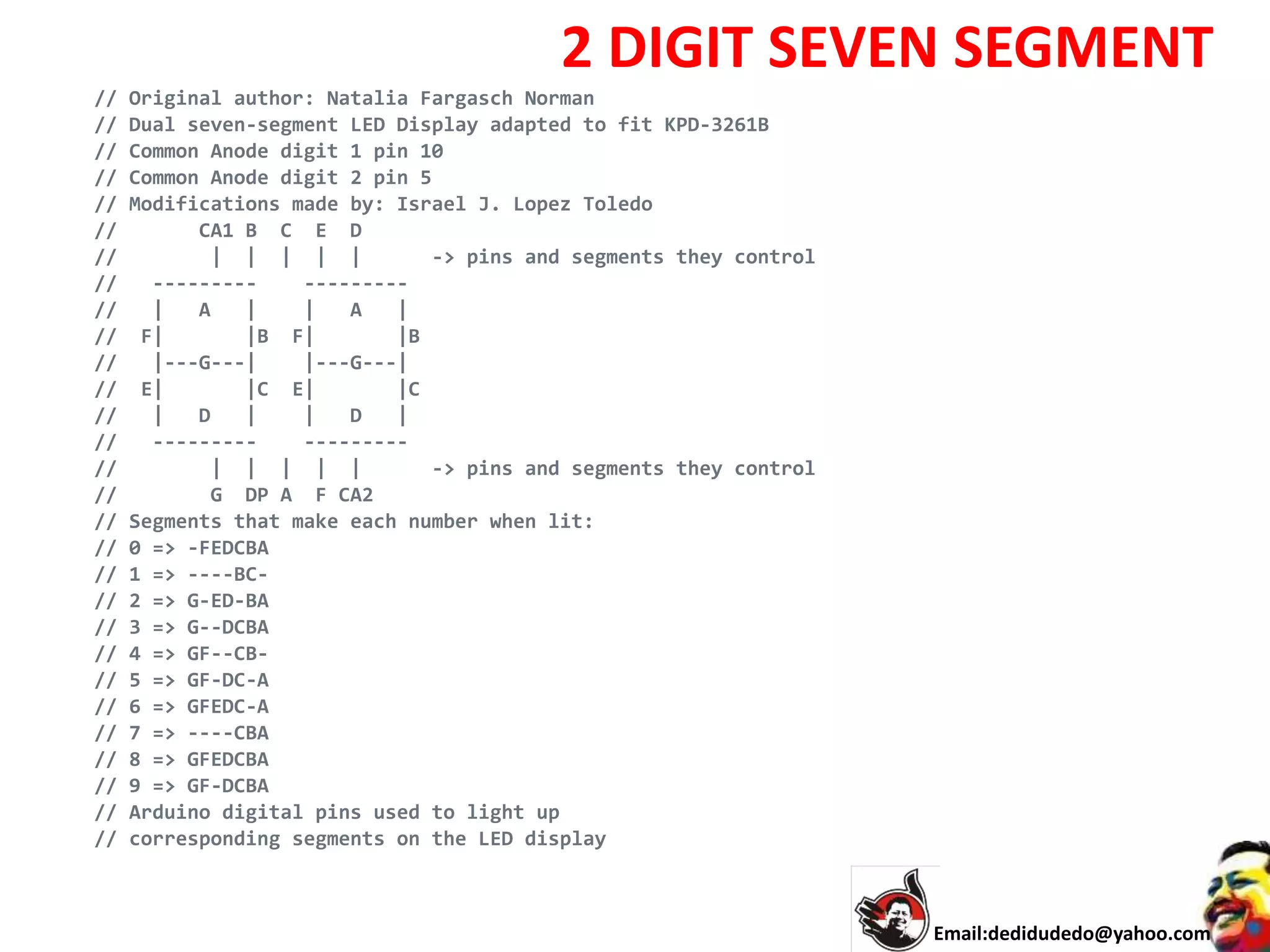

// Original author: Natalia Fargasch Norman
// Dual seven-segment LED Display adapted to fit KPD-3261B
// Common Anode digit 1 pin 10
// Common Anode digit 2 pin 5
// Modifications made by: Israel J. Lopez Toledo
// CA1 B C E D
// | | | | | -> pins and segments they control
// --------- ---------
// | A | | A |
// F| |B F| |B
// |---G---| |---G---|
// E| |C E| |C
// | D | | D |
// --------- ---------
// | | | | | -> pins and segments they control
// G DP A F CA2
// Segments that make each number when lit:
// 0 => -FEDCBA
// 1 => ----BC-
// 2 => G-ED-BA
// 3 => G--DCBA
// 4 => GF--CB-
// 5 => GF-DC-A
// 6 => GFEDC-A
// 7 => ----CBA
// 8 => GFEDCBA
// 9 => GF-DCBA
// Arduino digital pins used to light up
// corresponding segments on the LED display

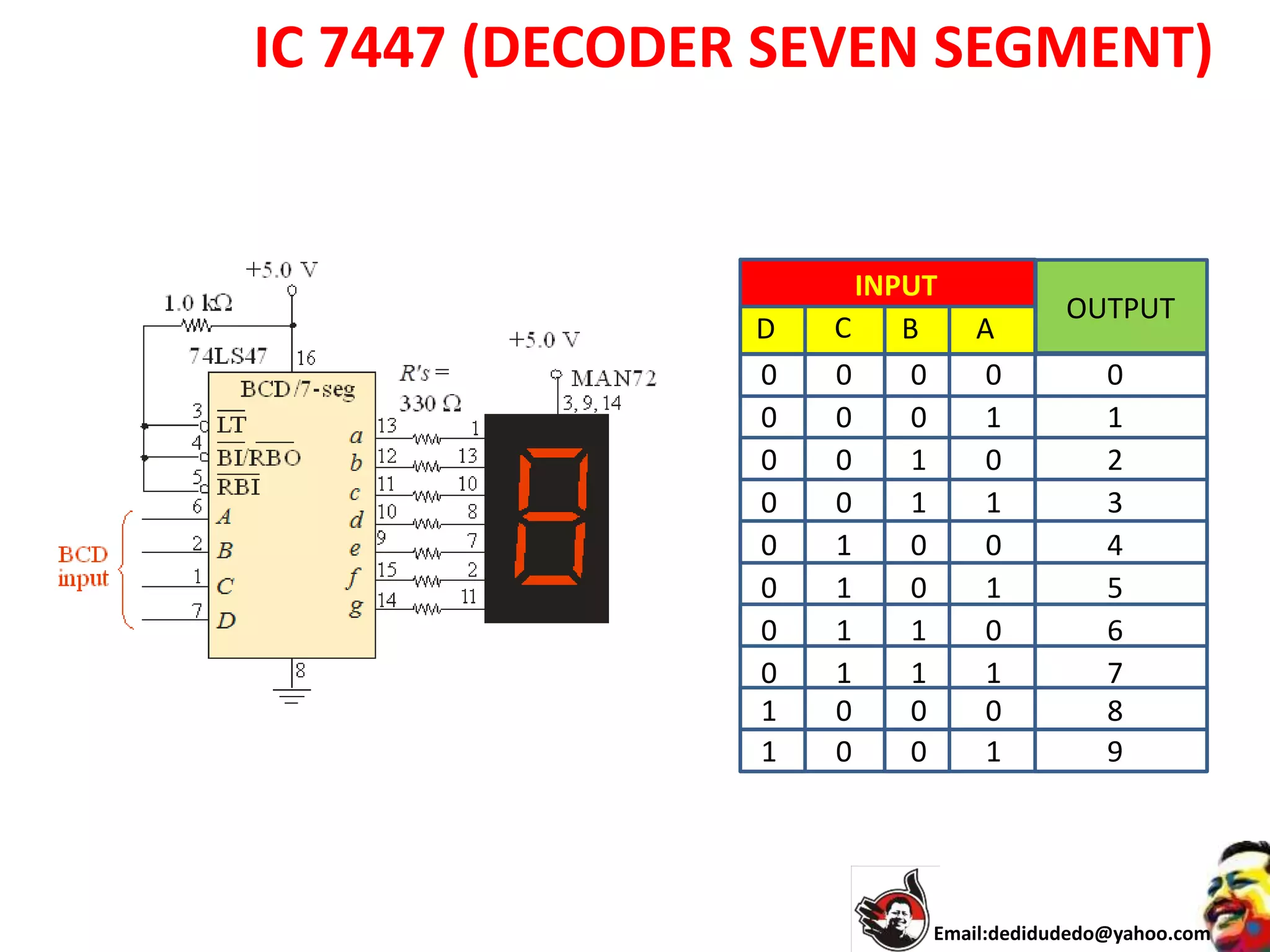

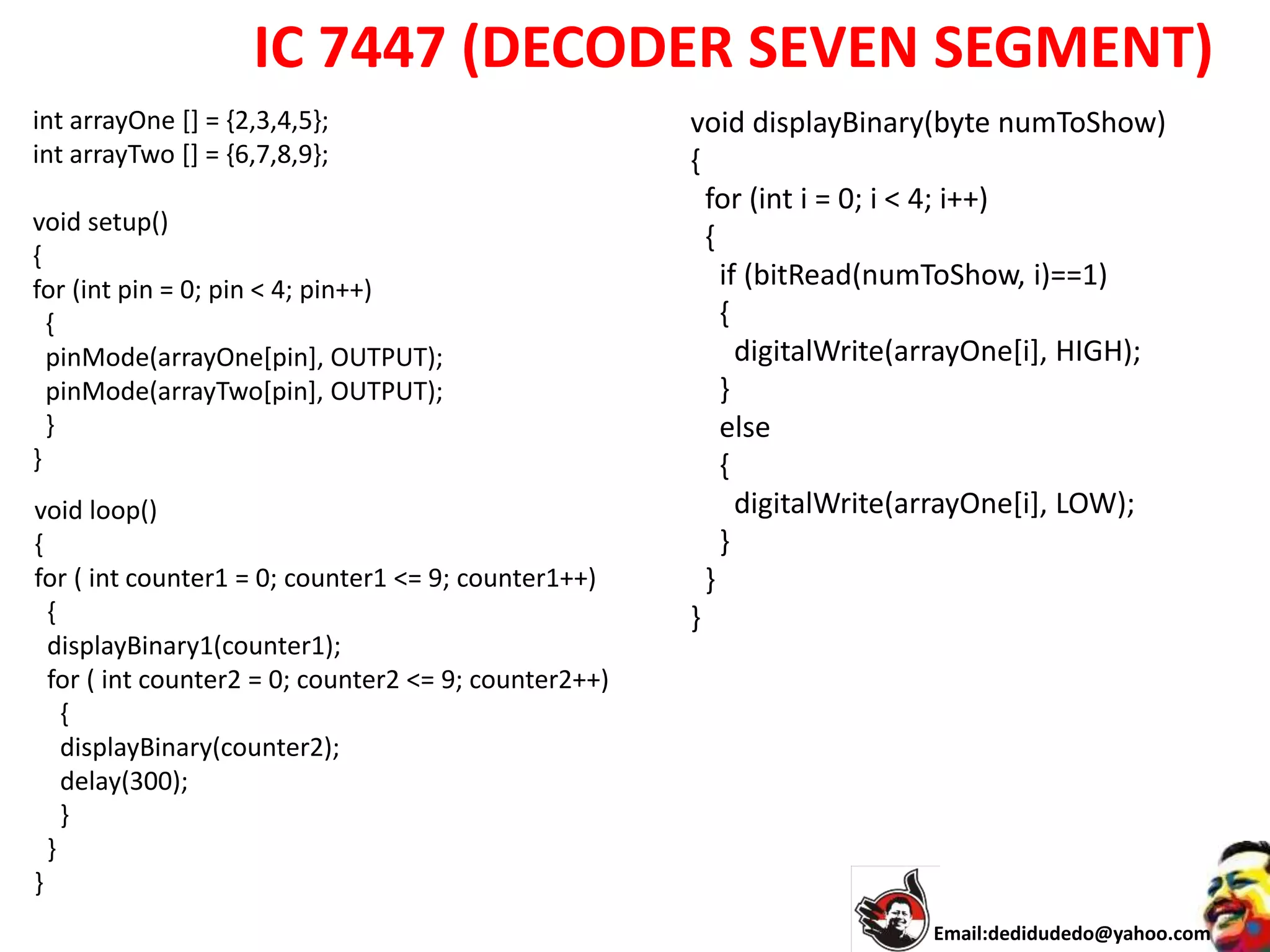

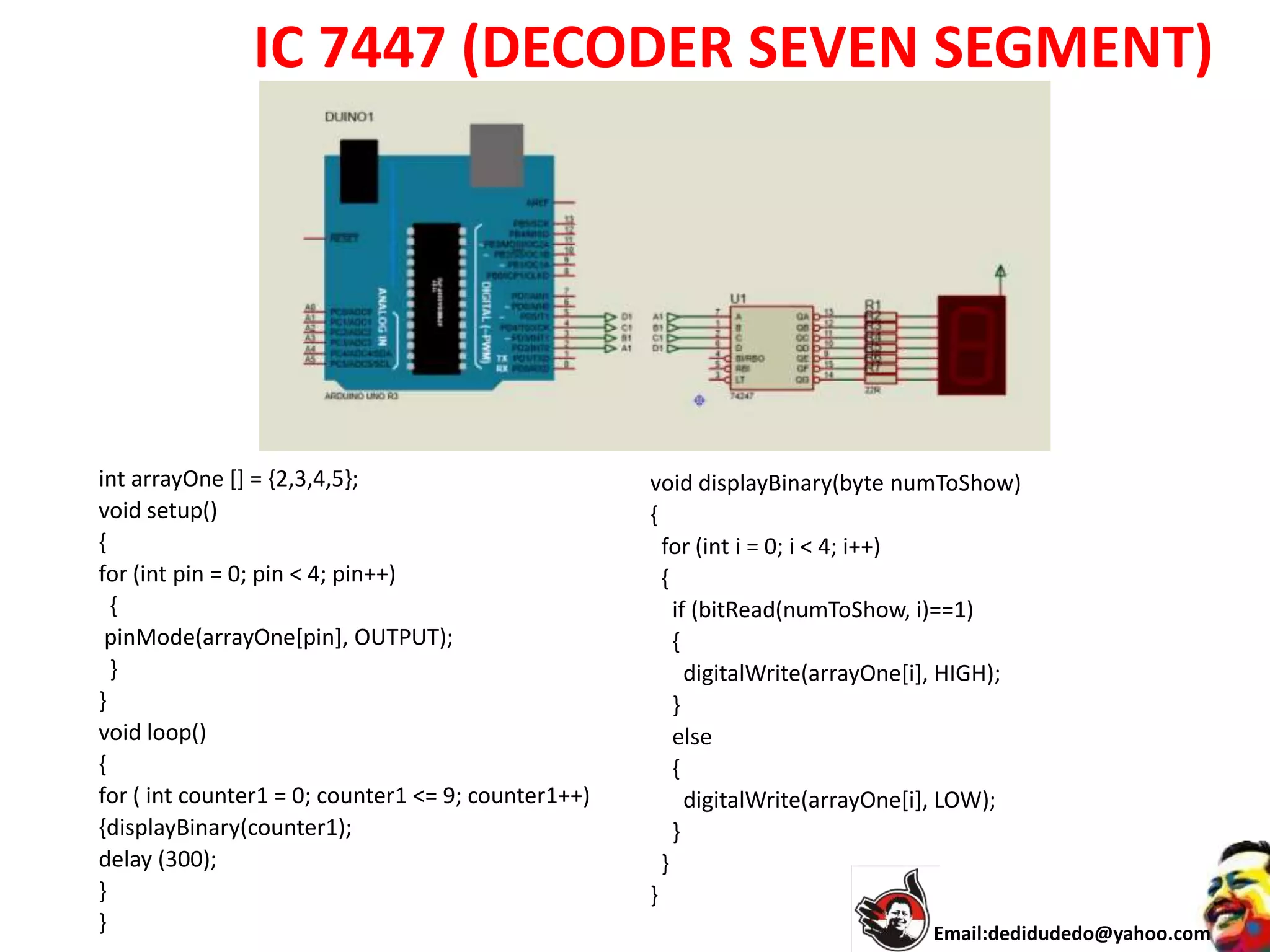

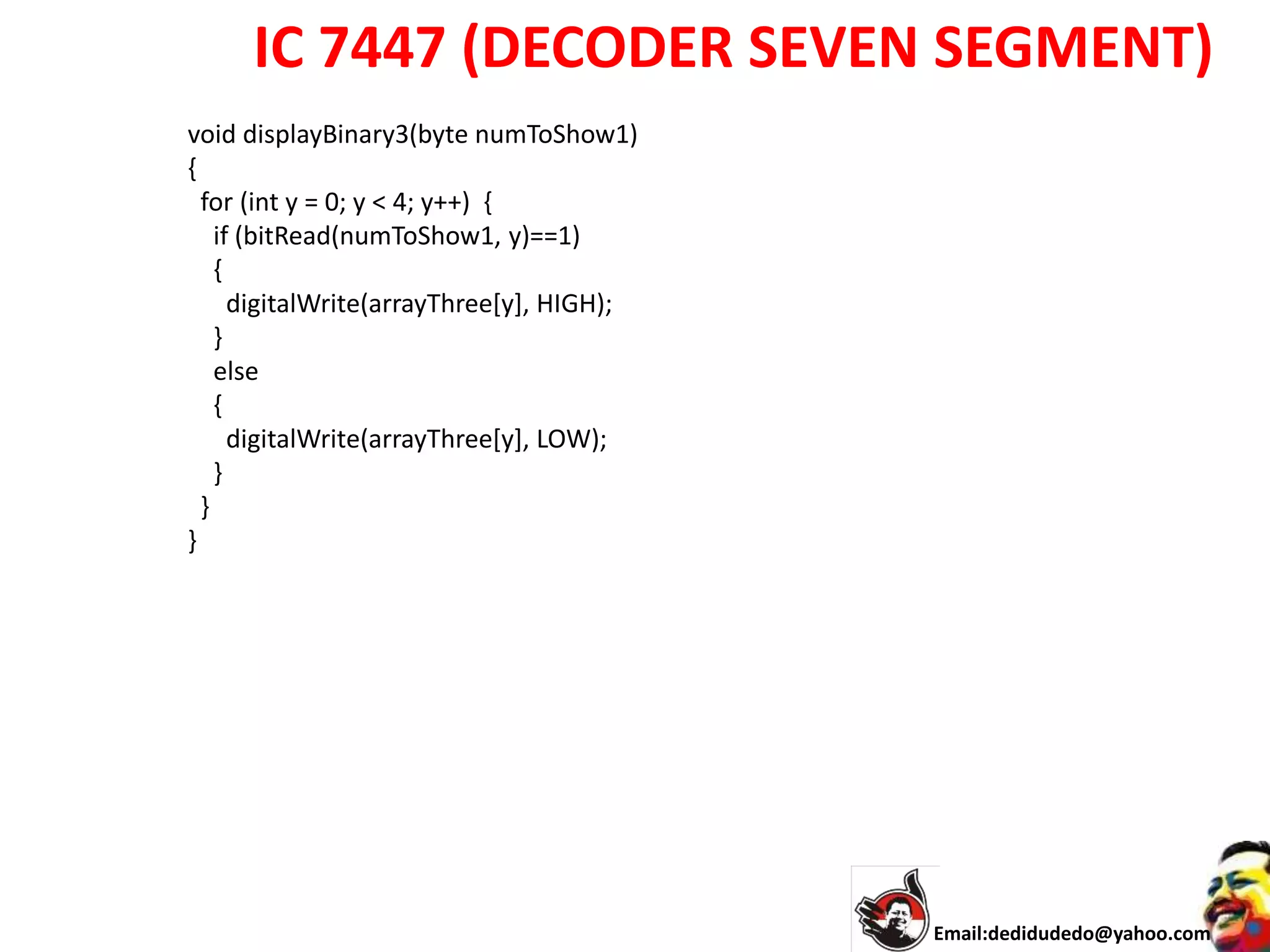

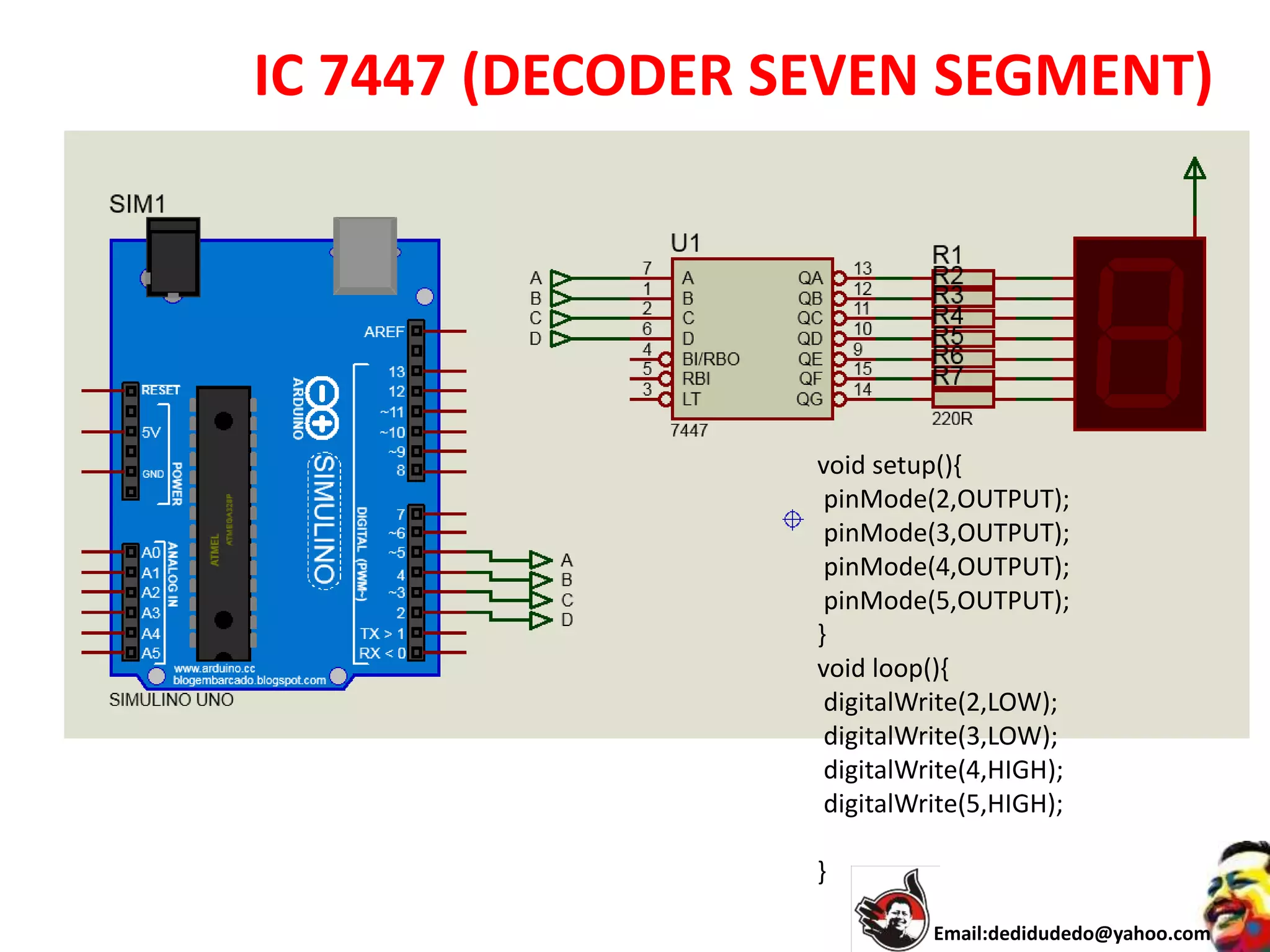

IC 7447 (DECODER SEVEN SEGMENT)
INPUT
OUTPUT
D C B A
0
1
2
3
4
5
6
7
8
9
0
1
0
1
0
1
0
1
0
1
0
0
1
1
0
0
1
1
0
0
0
0
0
0
1
1
1
1
0
0
0
0
0
0
0
0
0
0
1
1

void setup(){
pinMode(2,OUTPUT);
pinMode(3,OUTPUT);
pinMode(4,OUTPUT);
pinMode(5,OUTPUT);
}
void loop(){
digitalWrite(2,LOW);
digitalWrite(3,LOW);
digitalWrite(4,HIGH);
digitalWrite(5,HIGH);
}

int arrayOne [] = {2,3,4,5};
void setup()
{
for (int pin = 0; pin < 4; pin++)
{
pinMode(arrayOne[pin], OUTPUT);
}
}
void loop()
{
for ( int counter1 = 0; counter1 <= 9; counter1++)
{displayBinary(counter1);
delay (300);
}
}
void displayBinary(byte numToShow)
{
for (int i = 0; i < 4; i++)
{
if (bitRead(numToShow, i)==1)
{
digitalWrite(arrayOne[i], HIGH);
}
else
{
digitalWrite(arrayOne[i], LOW);
}
}
}

int arrayOne [] = {2,3,4,5};
int arrayTwo [] = {6,7,8,9};
void setup()
{
{
pinMode(arrayTwo[pin], OUTPUT);
}
}
void loop()
{
{
displayBinary1(counter1);
{
displayBinary(counter2);
delay(300);
}
}
}
void displayBinary(byte numToShow)
{
for (int i = 0; i < 4; i++)
{
{
}
else
{
}
}
}

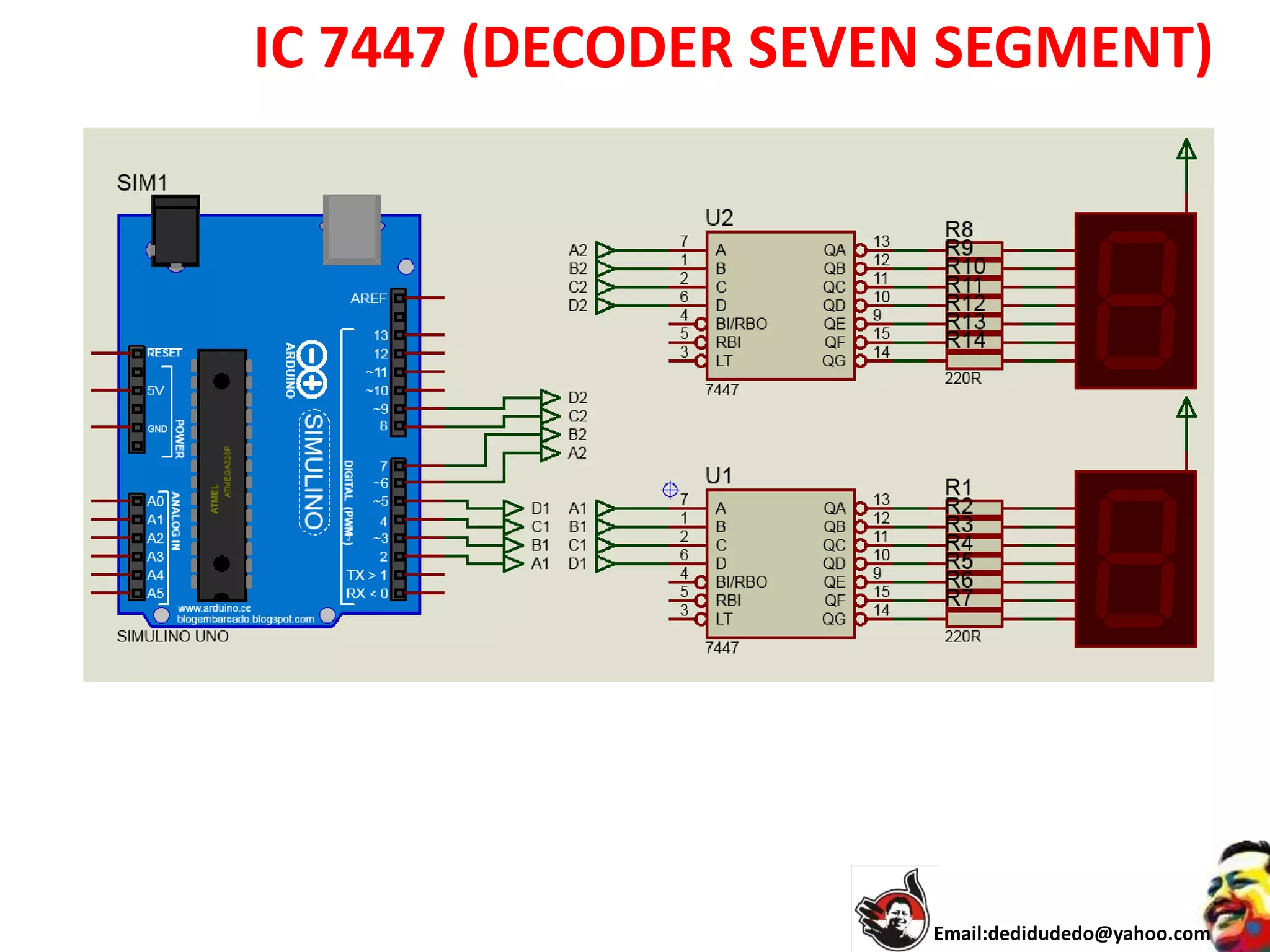

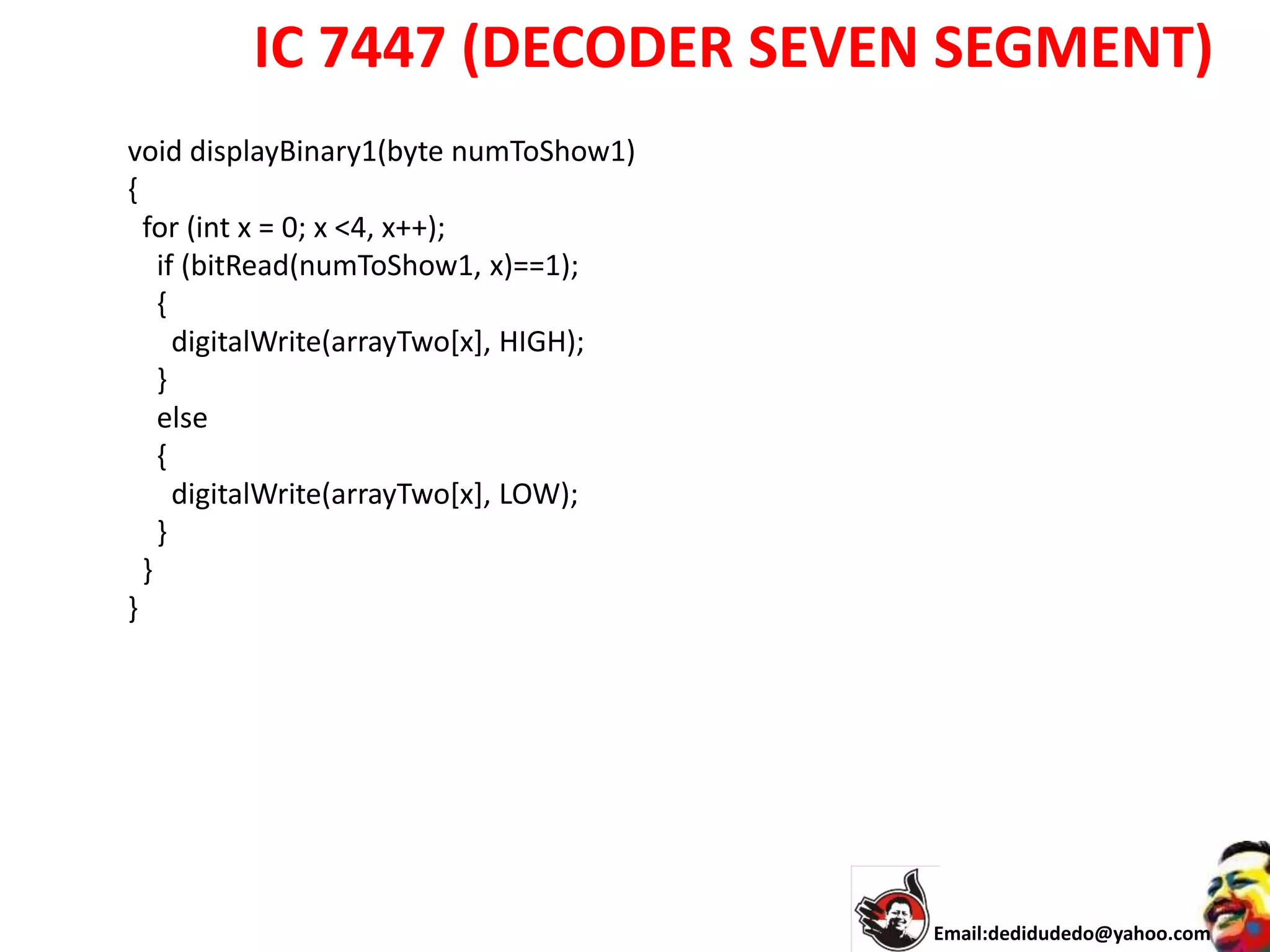

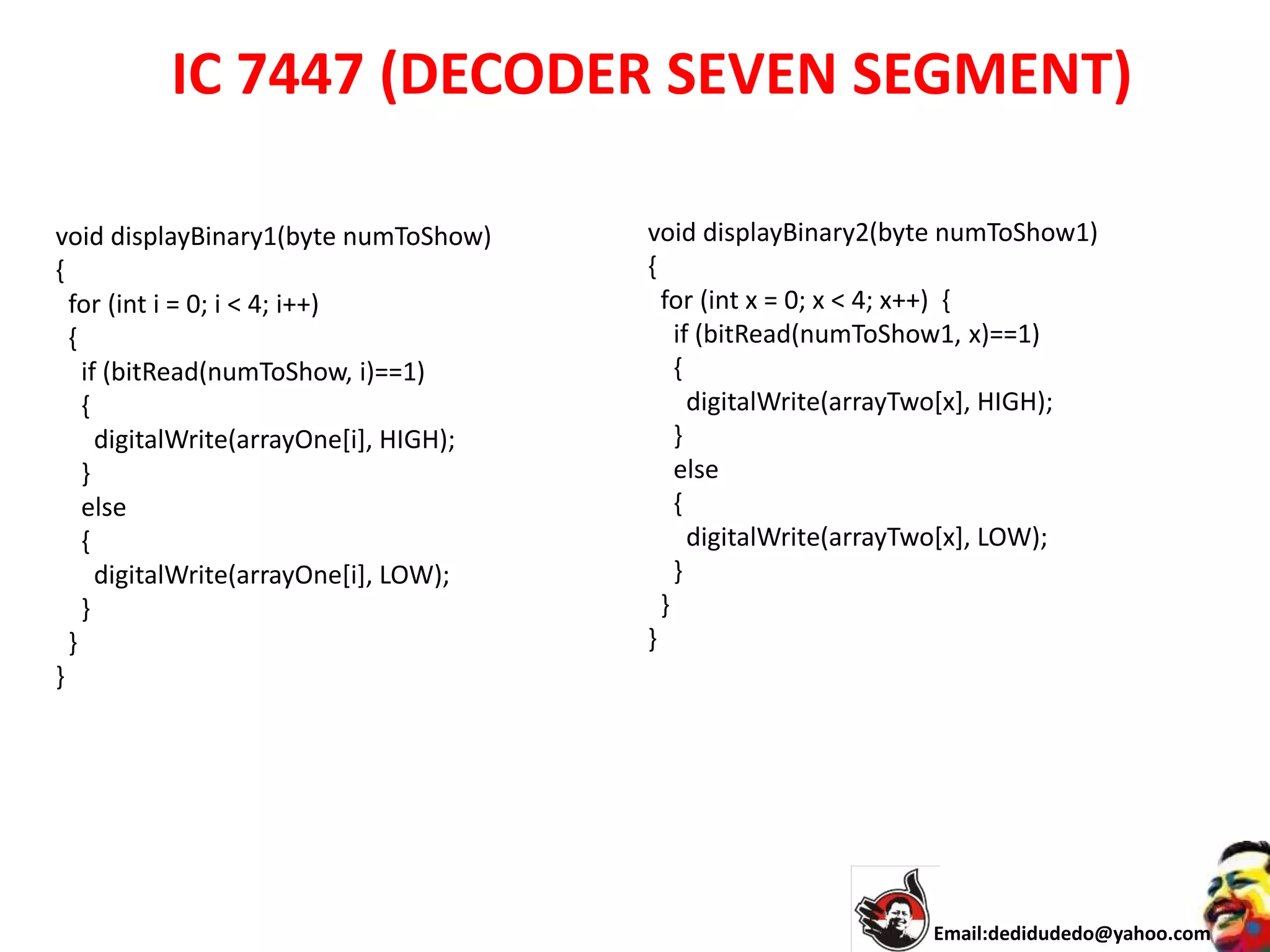

void displayBinary1(byte numToShow1)
{
for (int x = 0; x <4, x++);
if (bitRead(numToShow1, x)==1);
{
digitalWrite(arrayTwo[x], HIGH);
}
else
{
digitalWrite(arrayTwo[x], LOW);
}
}
}

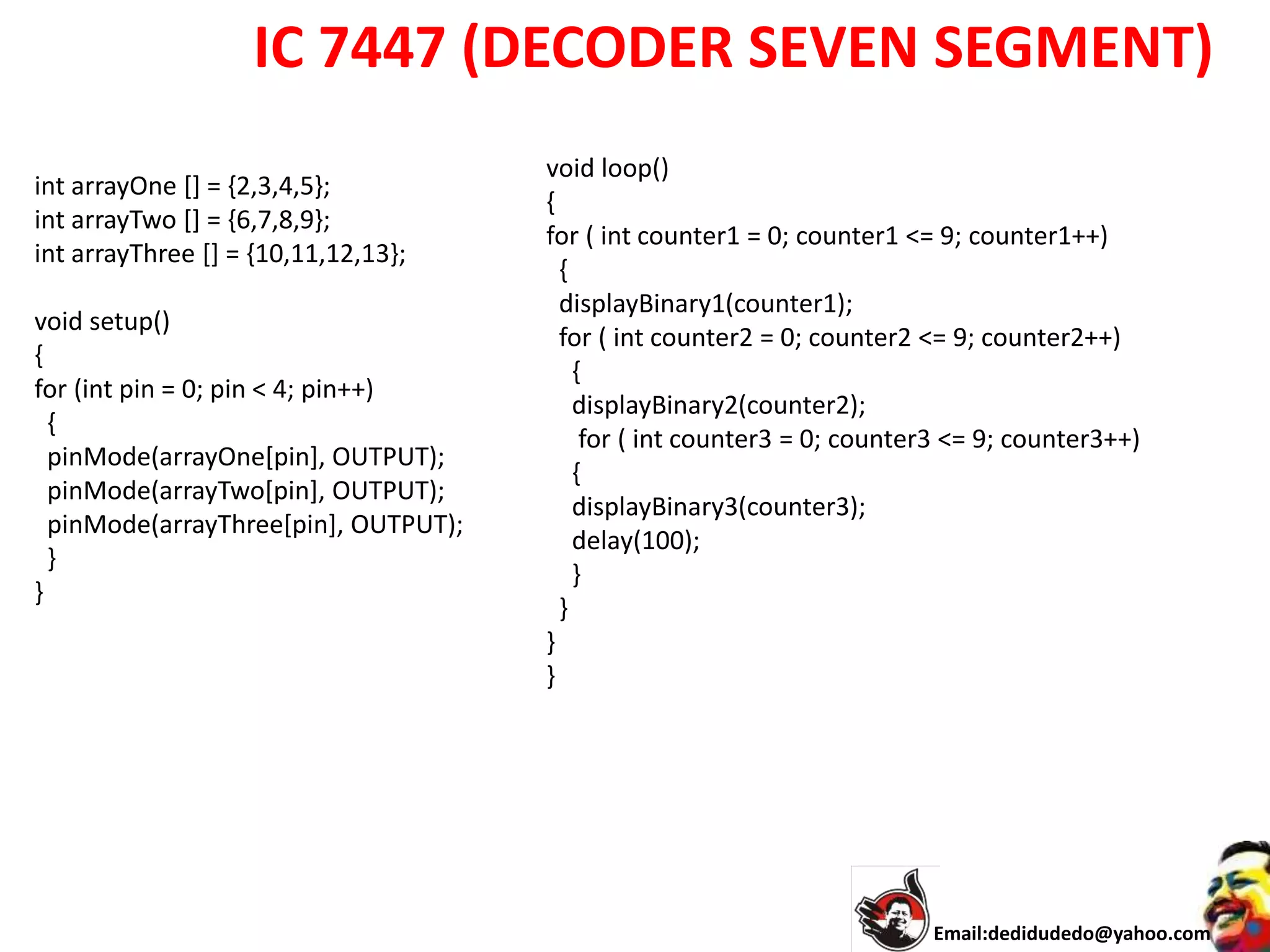

int arrayOne [] = {2,3,4,5};
int arrayTwo [] = {6,7,8,9};
int arrayThree [] = {10,11,12,13};
void setup()
{
{
pinMode(arrayTwo[pin], OUTPUT);
pinMode(arrayThree[pin], OUTPUT);
}
}
void loop()
{
{
{
{
delay(100);
}
}
}
}

void displayBinary1(byte numToShow)
{
for (int i = 0; i < 4; i++)
{
{
}
else
{
}
}
}
{
for (int x = 0; x < 4; x++) {
if (bitRead(numToShow1, x)==1)
{
digitalWrite(arrayTwo[x], HIGH);
}
else
{
digitalWrite(arrayTwo[x], LOW);
}
}
}

{
for (int y = 0; y < 4; y++) {
if (bitRead(numToShow1, y)==1)
{
digitalWrite(arrayThree[y], HIGH);
}
else
{
digitalWrite(arrayThree[y], LOW);
}
}
}

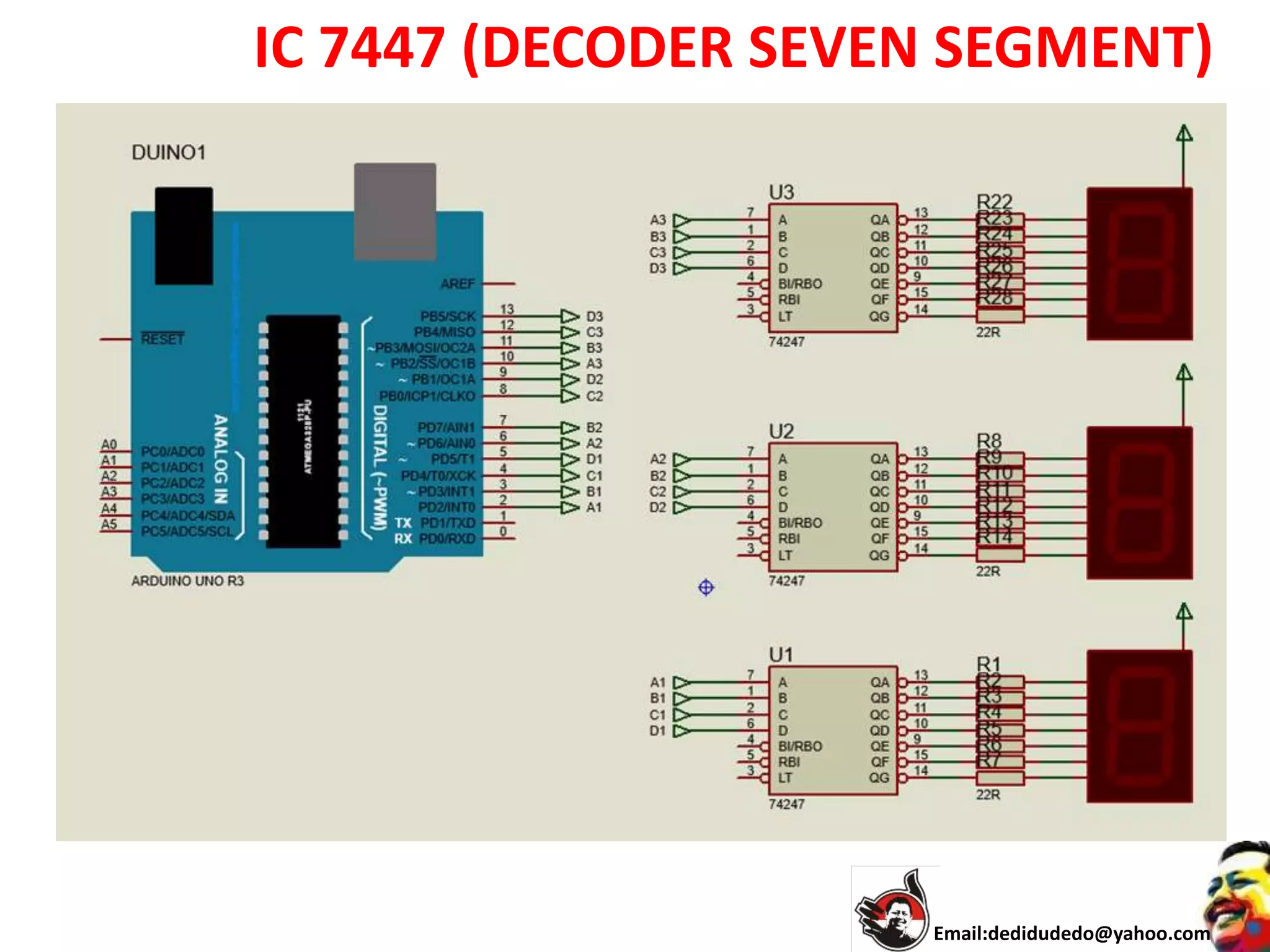

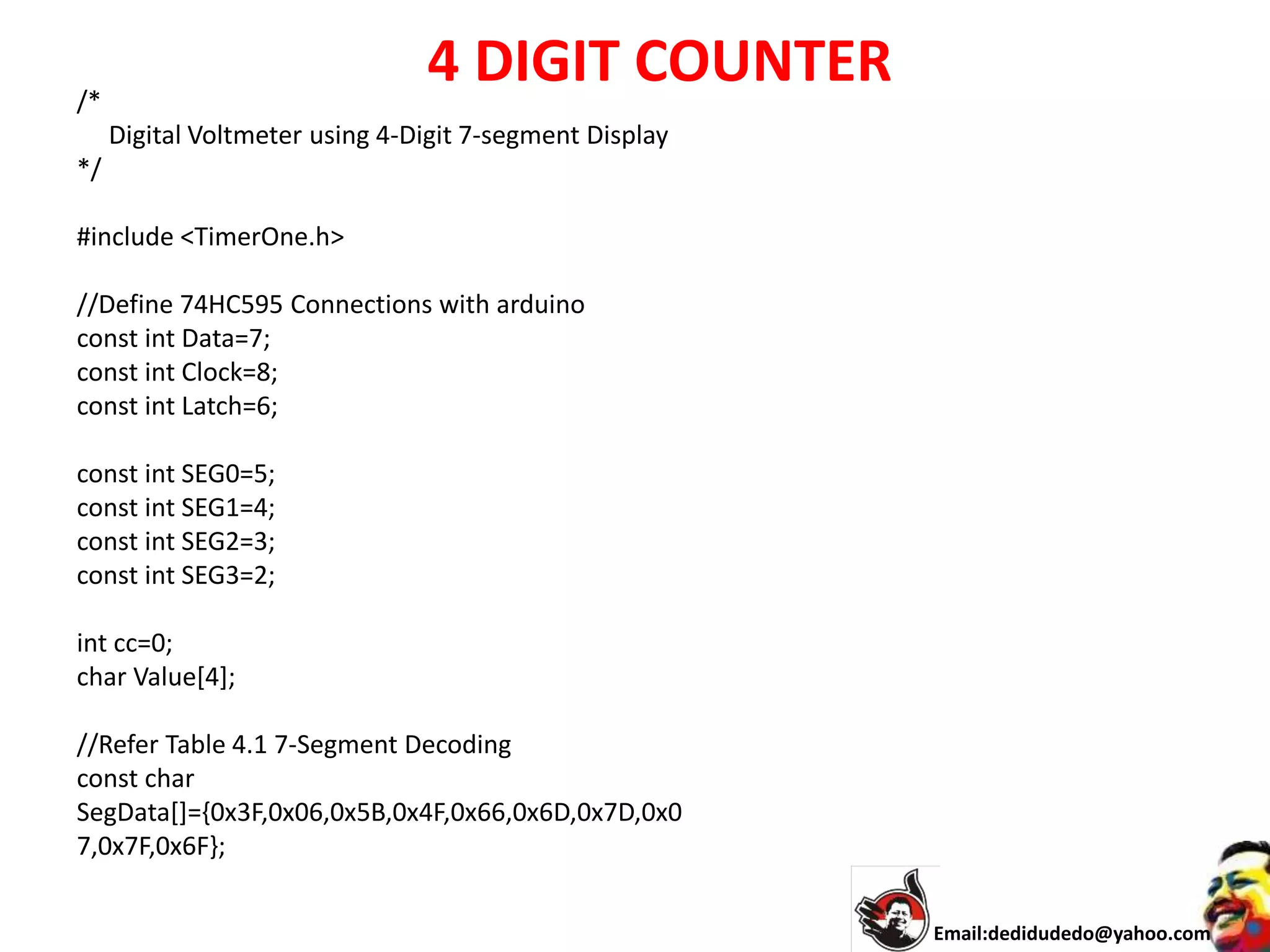

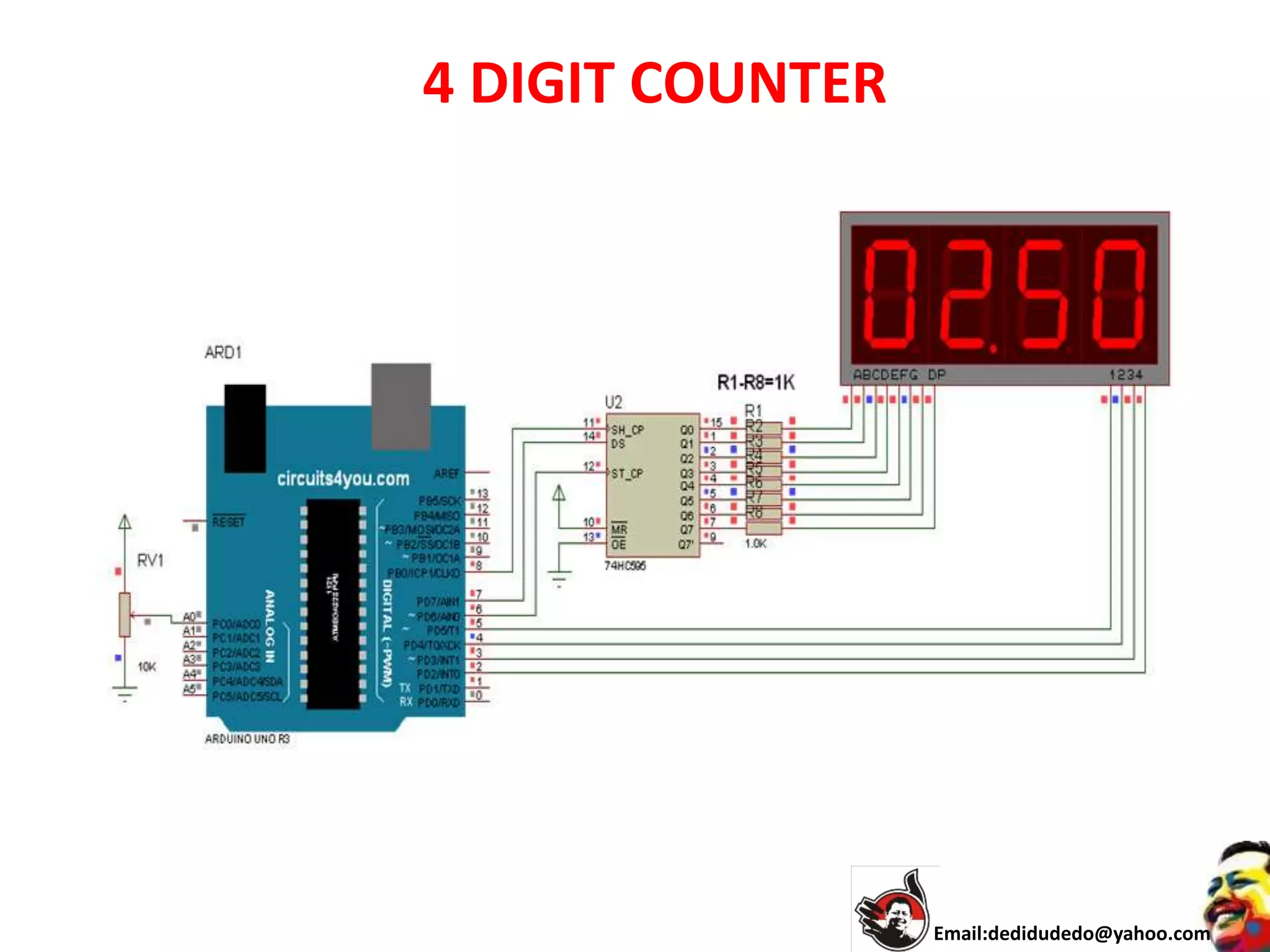

4 DIGIT COUNTER

/*
Digital Voltmeter using 4-Digit 7-segment Display
*/
#include <TimerOne.h>
//Define 74HC595 Connections with arduino
const int Data=7;
const int Clock=8;
const int Latch=6;
const int SEG0=5;
const int SEG1=4;
const int SEG2=3;
const int SEG3=2;
int cc=0;
char Value[4];
//Refer Table 4.1 7-Segment Decoding
const char
SegData[]={0x3F,0x06,0x5B,0x4F,0x66,0x6D,0x7D,0x0
7,0x7F,0x6F};
4 DIGIT COUNTER

//=============================================================

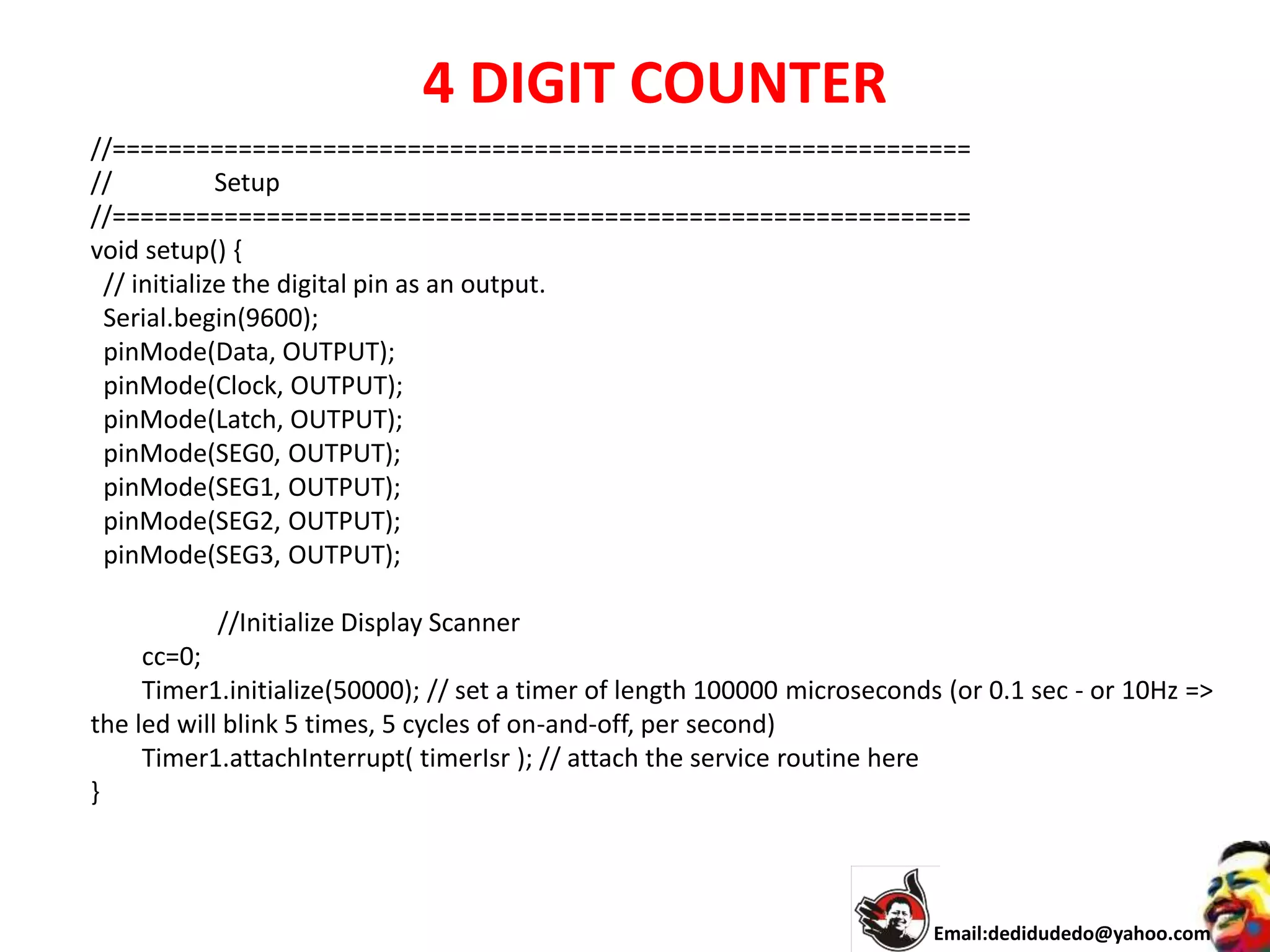

// Setup
//=============================================================
void setup() {
// initialize the digital pin as an output.
Serial.begin(9600);
pinMode(Data, OUTPUT);
pinMode(Clock, OUTPUT);
pinMode(Latch, OUTPUT);
pinMode(SEG0, OUTPUT);
//Initialize Display Scanner
cc=0;
Timer1.initialize(50000); // set a timer of length 100000 microseconds (or 0.1 sec - or 10Hz =>
the led will blink 5 times, 5 cycles of on-and-off, per second)
Timer1.attachInterrupt( timerIsr ); // attach the service routine here
}
4 DIGIT COUNTER

//=============================================================

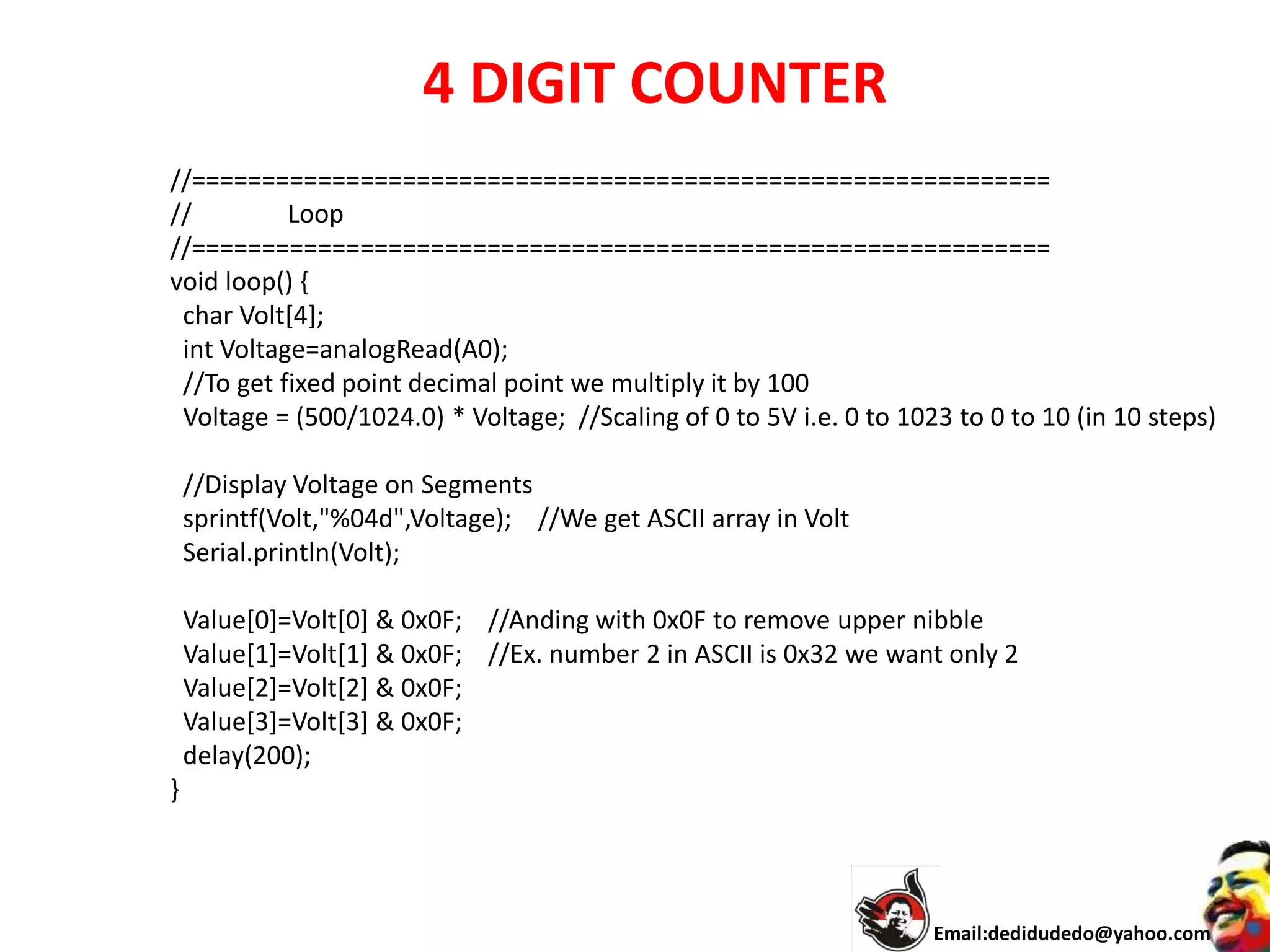

// Loop
//=============================================================
void loop() {
char Volt[4];
int Voltage=analogRead(A0);
//To get fixed point decimal point we multiply it by 100
Voltage = (500/1024.0) * Voltage; //Scaling of 0 to 5V i.e. 0 to 1023 to 0 to 10 (in 10 steps)
//Display Voltage on Segments
sprintf(Volt,"%04d",Voltage); //We get ASCII array in Volt
Serial.println(Volt);
Value[0]=Volt[0] & 0x0F; //Anding with 0x0F to remove upper nibble
Value[1]=Volt[1] & 0x0F; //Ex. number 2 in ASCII is 0x32 we want only 2
Value[2]=Volt[2] & 0x0F;
Value[3]=Volt[3] & 0x0F;
delay(200);
}
4 DIGIT COUNTER

//=============================================================

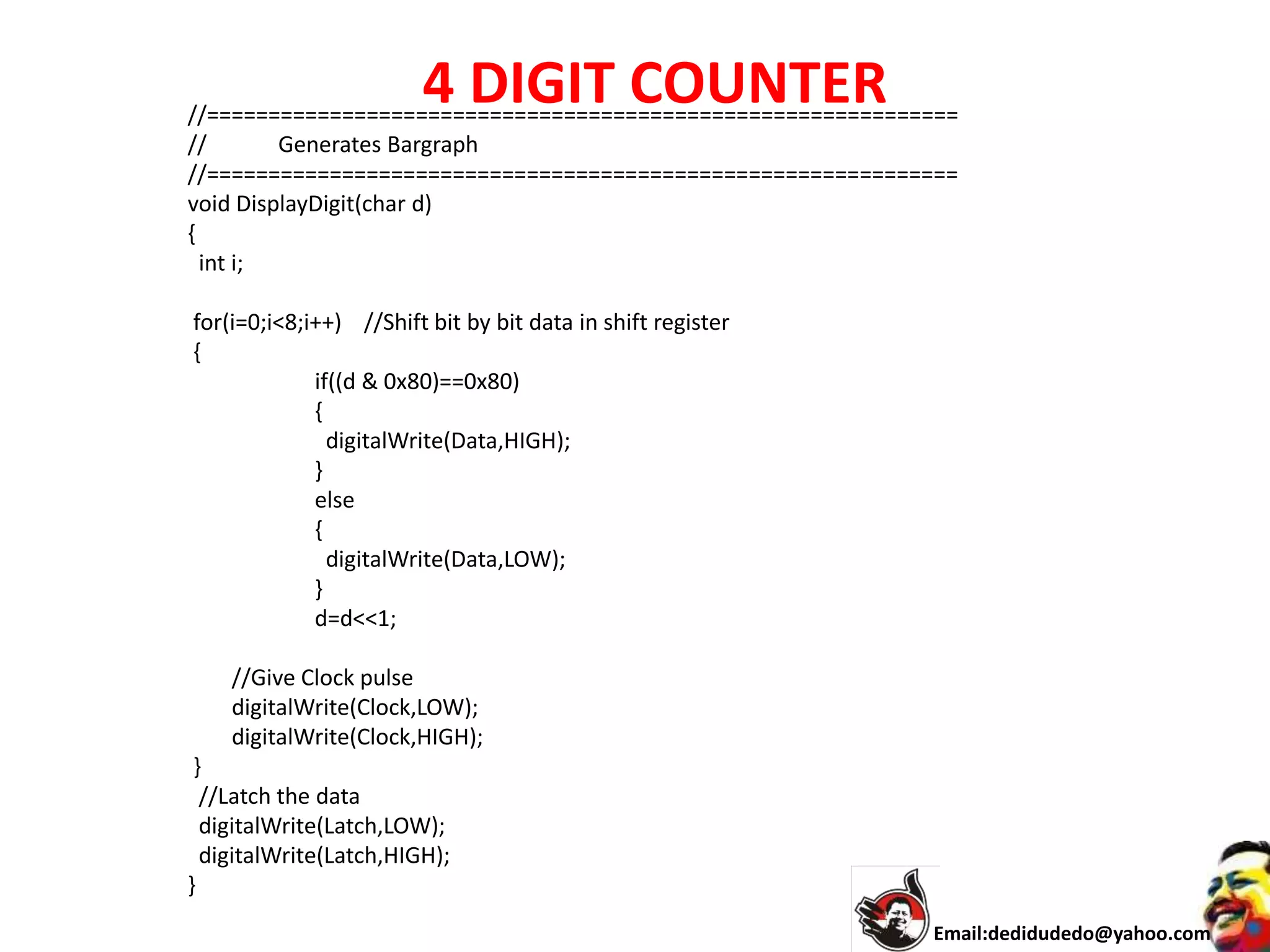

// Generates Bargraph
//=============================================================
void DisplayDigit(char d)
{
int i;
for(i=0;i<8;i++) //Shift bit by bit data in shift register
{
if((d & 0x80)==0x80)
{
digitalWrite(Data,HIGH);
}
else
{
digitalWrite(Data,LOW);
}
d=d<<1;
//Give Clock pulse
digitalWrite(Clock,LOW);
digitalWrite(Clock,HIGH);
}
//Latch the data
digitalWrite(Latch,LOW);
digitalWrite(Latch,HIGH);
}
4 DIGIT COUNTER

//===================================================================

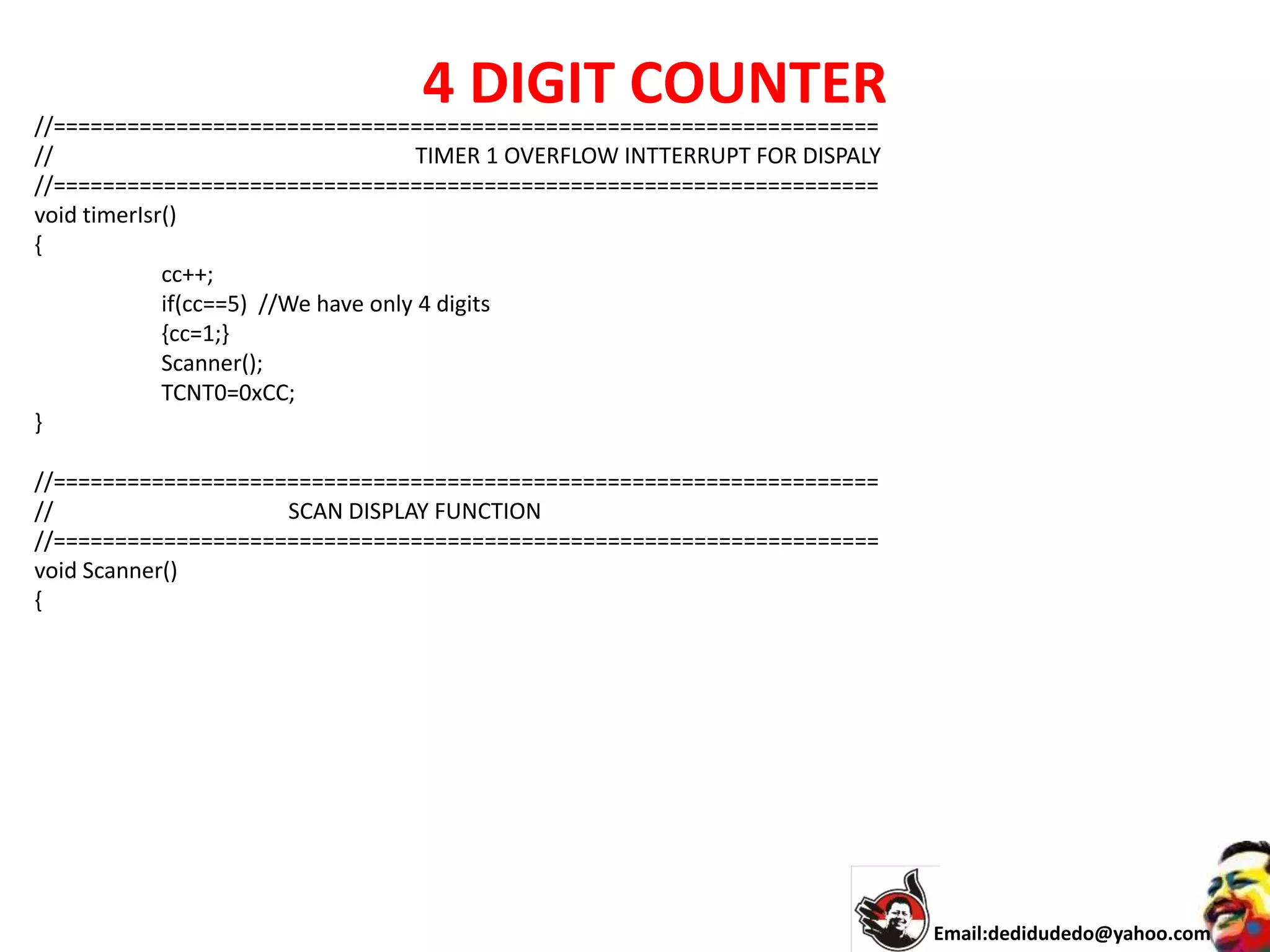

// TIMER 1 OVERFLOW INTTERRUPT FOR DISPALY
//===================================================================
void timerIsr()
{
cc++;
if(cc==5) //We have only 4 digits
{cc=1;}
Scanner();
TCNT0=0xCC;
}
//===================================================================
// SCAN DISPLAY FUNCTION
//===================================================================
void Scanner()
{
4 DIGIT COUNTER

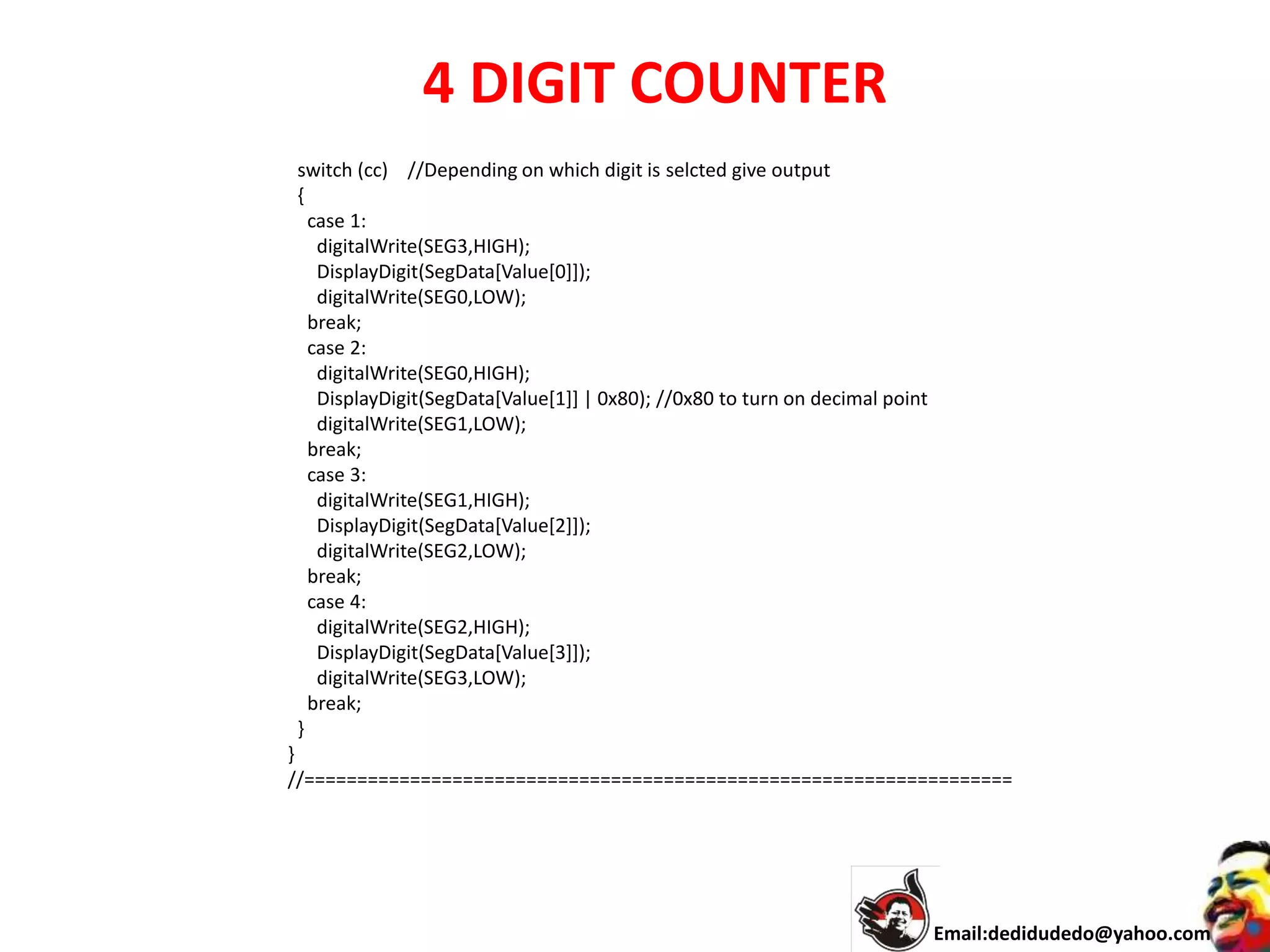

switch (cc) //Depending on which digit is selcted give output
{
case 1:
digitalWrite(SEG3,HIGH);
DisplayDigit(SegData[Value[0]]);
digitalWrite(SEG0,LOW);
break;
case 2:
DisplayDigit(SegData[Value[1]] | 0x80); //0x80 to turn on decimal point
break;
case 3:
break;
case 4:
break;
}
}
//===================================================================
4 DIGIT COUNTER

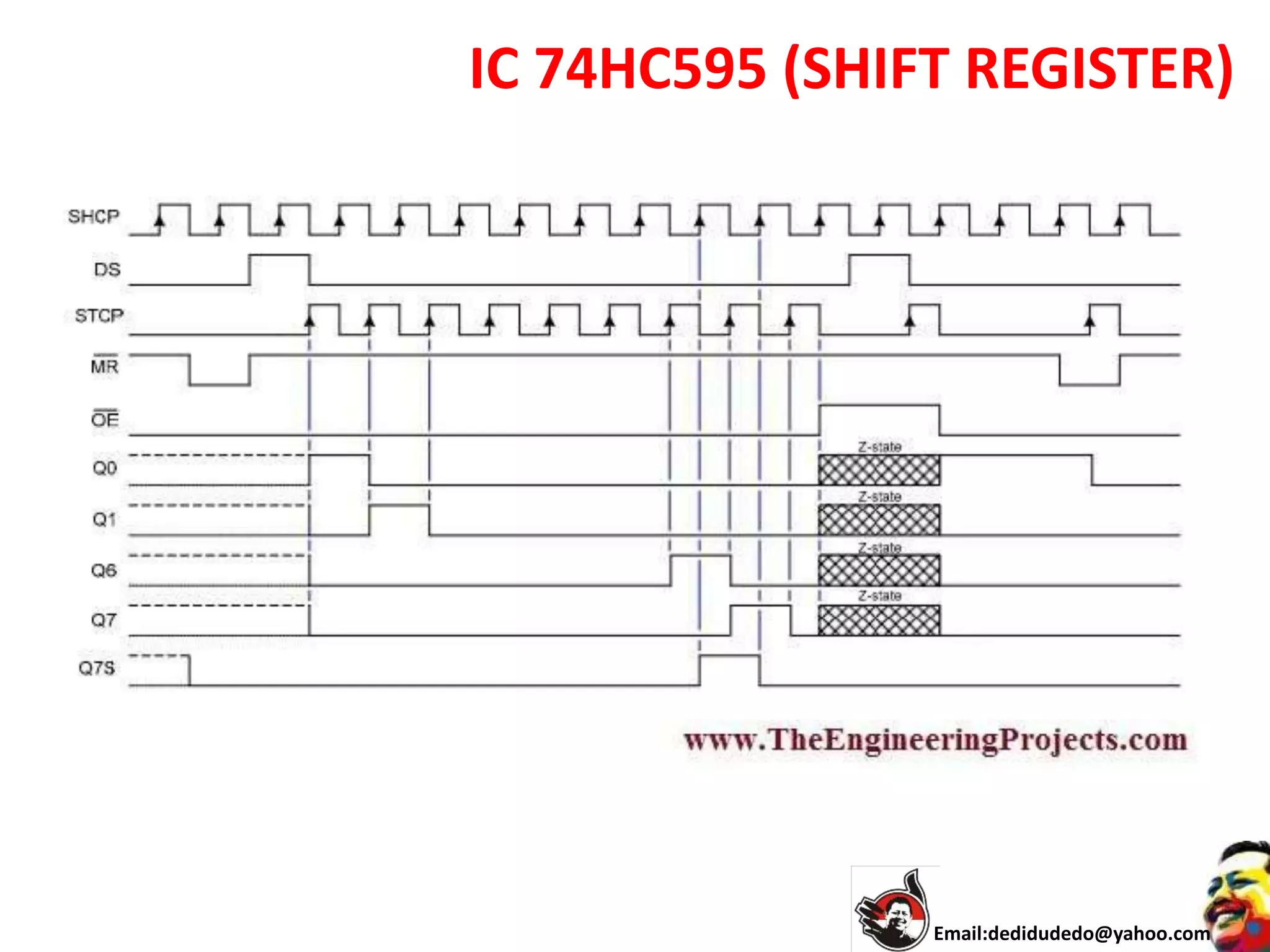

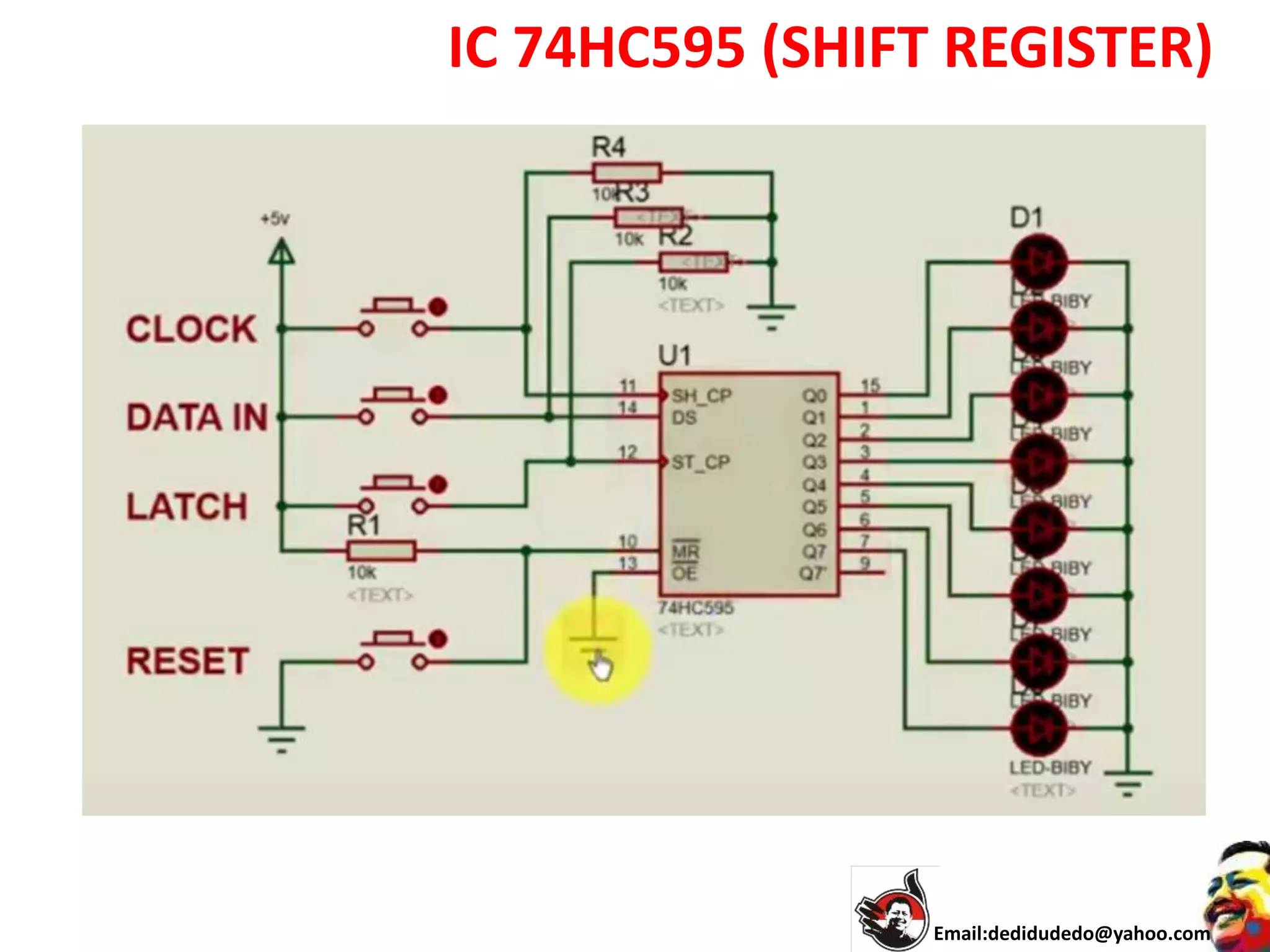

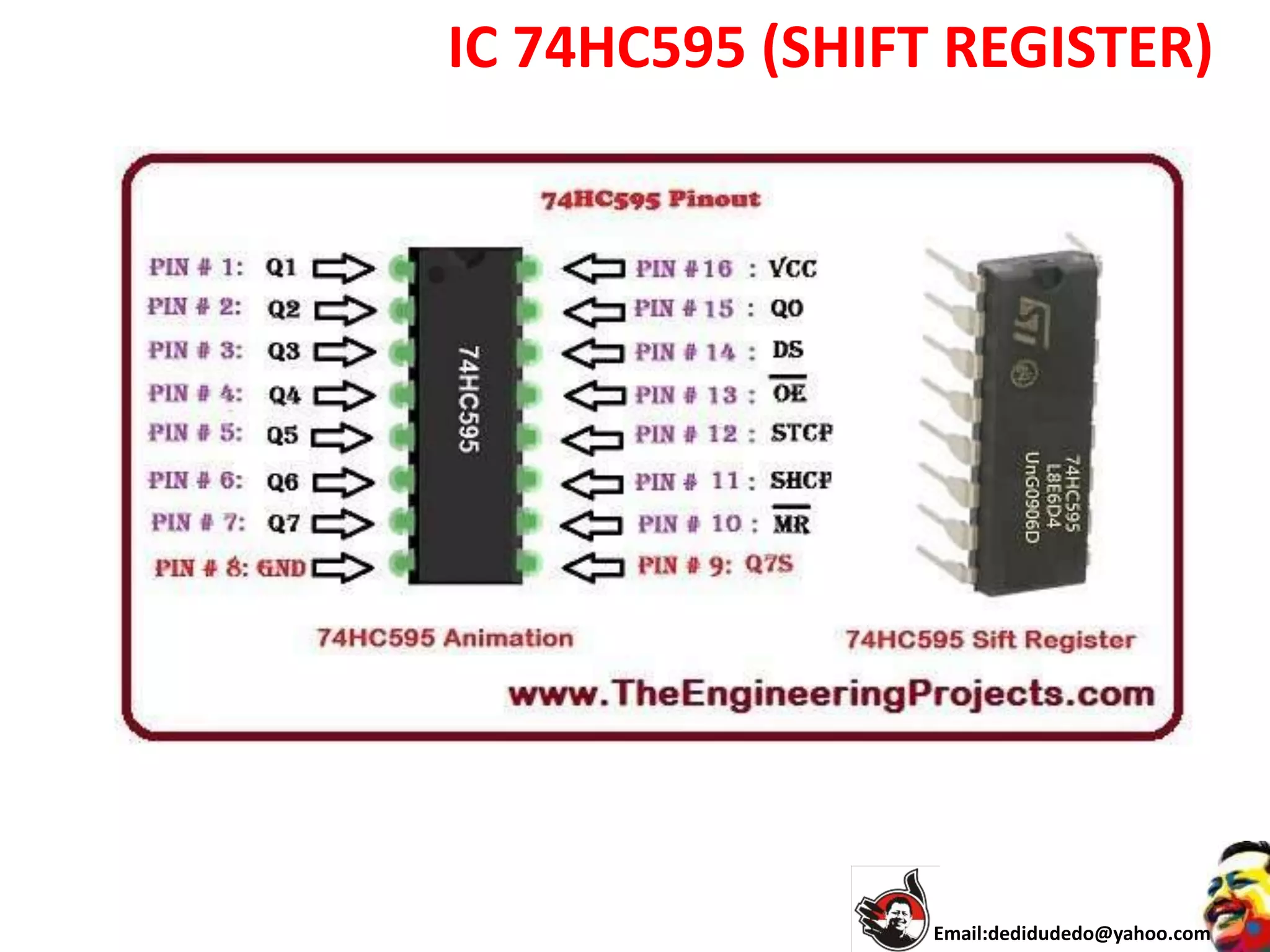

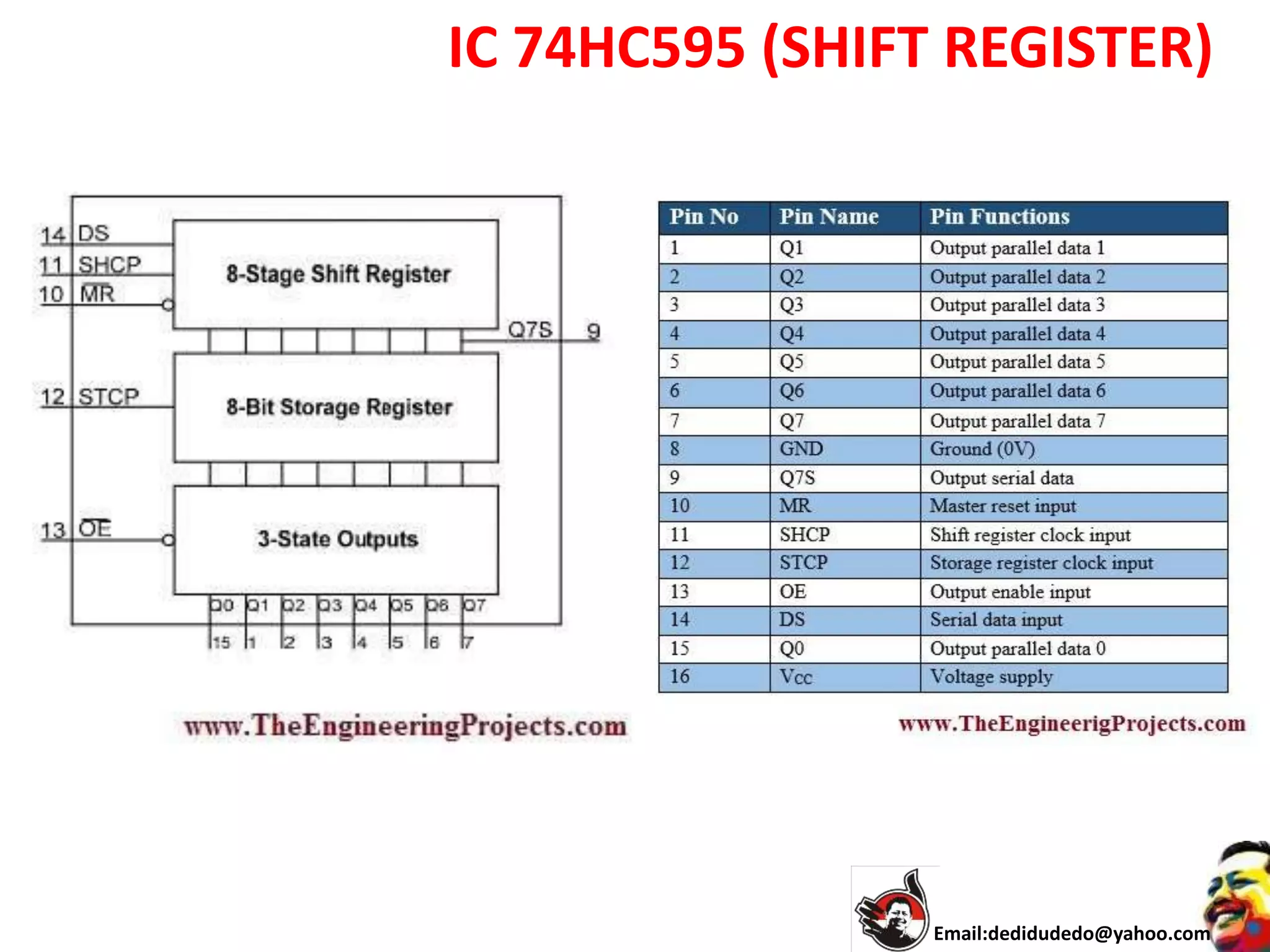

IC 74HC595 (SHIFT REGISTER)

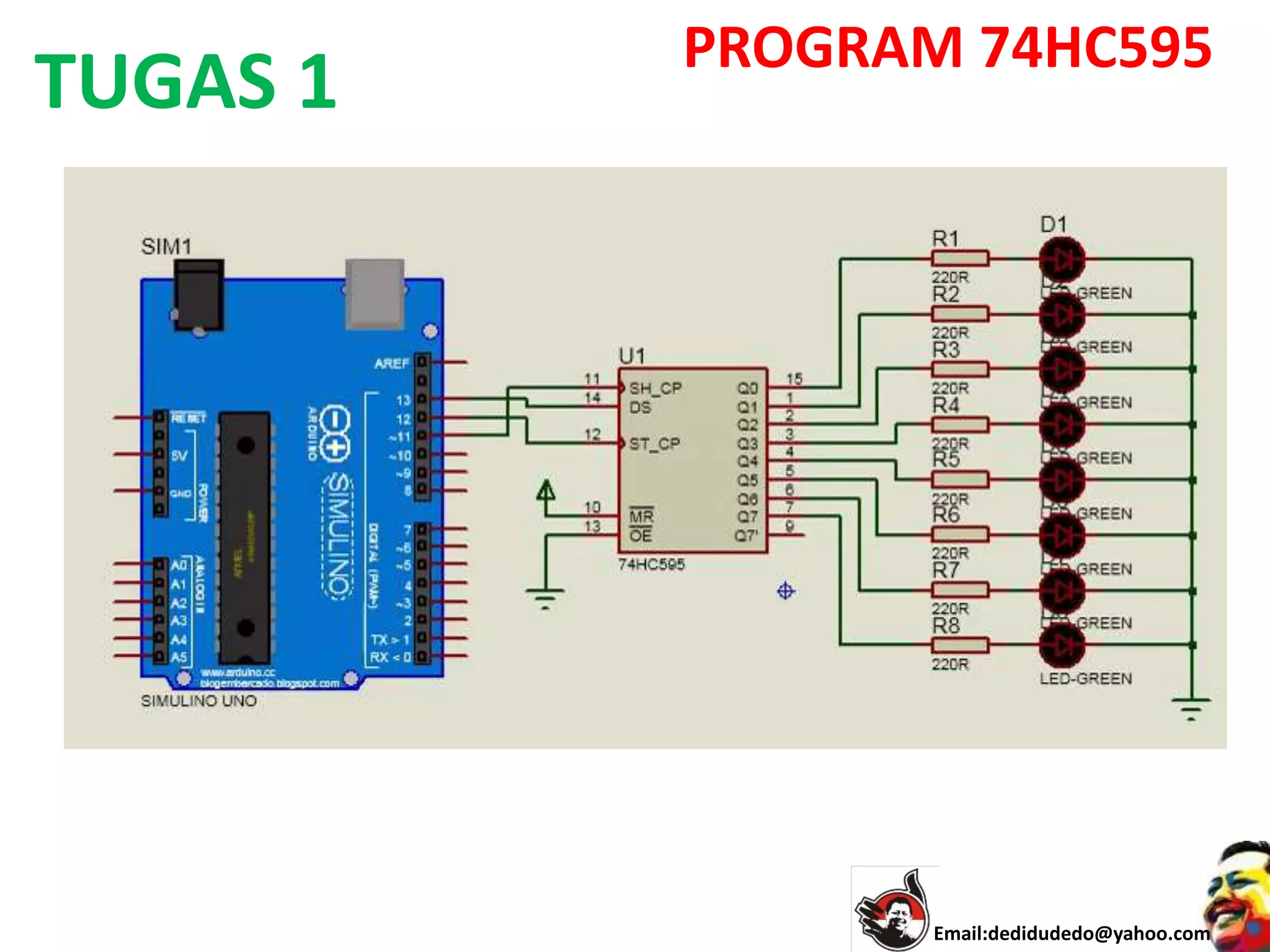

PROGRAM 74HC595

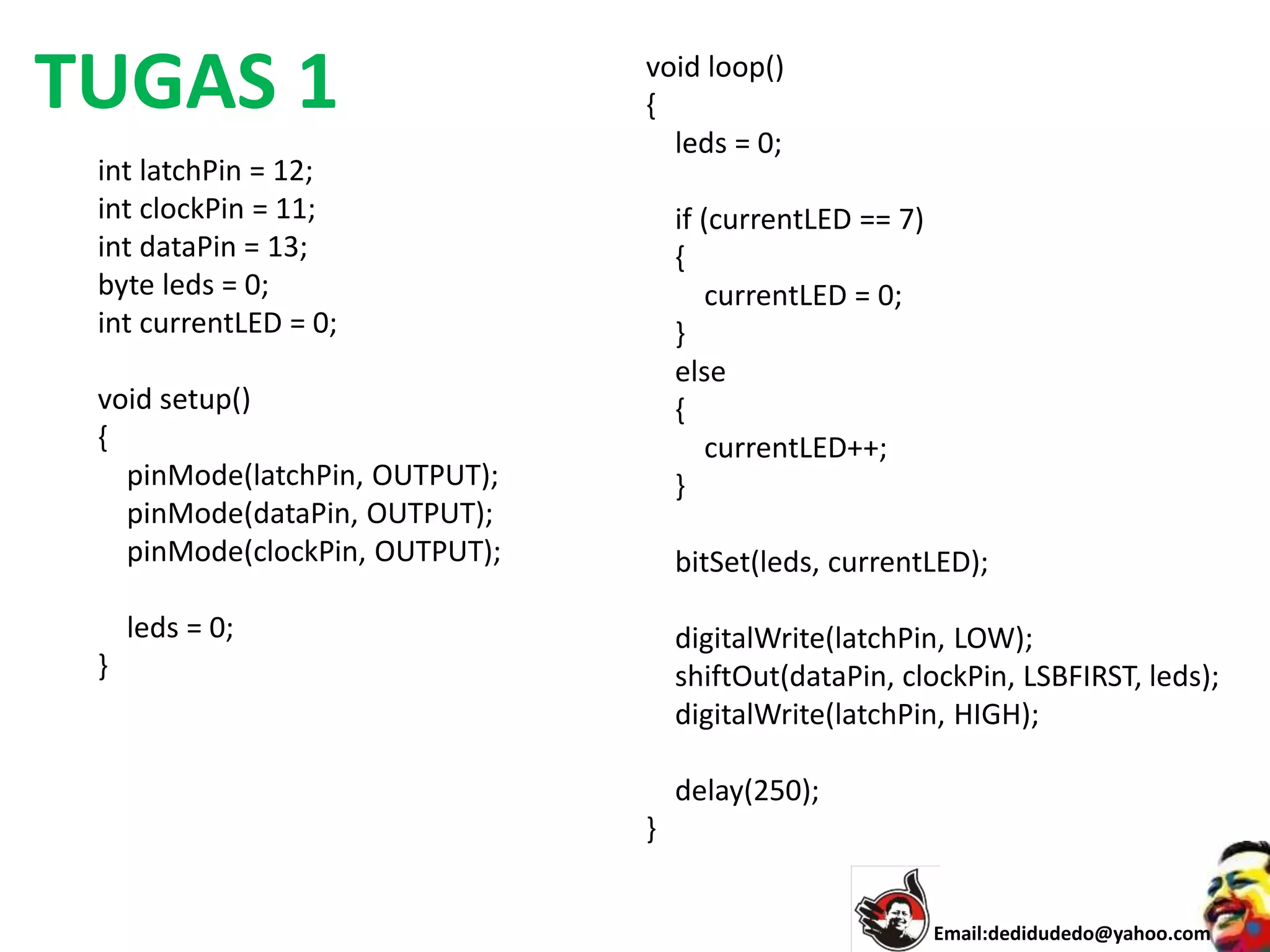

TUGAS 1

TUGAS 1
int latchPin = 12;
int clockPin = 11;
int dataPin = 13;
byte leds = 0;
int currentLED = 0;
void setup()
{
pinMode(latchPin, OUTPUT);
pinMode(dataPin, OUTPUT);
pinMode(clockPin, OUTPUT);
leds = 0;
}
void loop()
{
leds = 0;
if (currentLED == 7)
{
currentLED = 0;
}
else
{
currentLED++;
}
bitSet(leds, currentLED);
digitalWrite(latchPin, LOW);
shiftOut(dataPin, clockPin, LSBFIRST, leds);
digitalWrite(latchPin, HIGH);
delay(250);
}

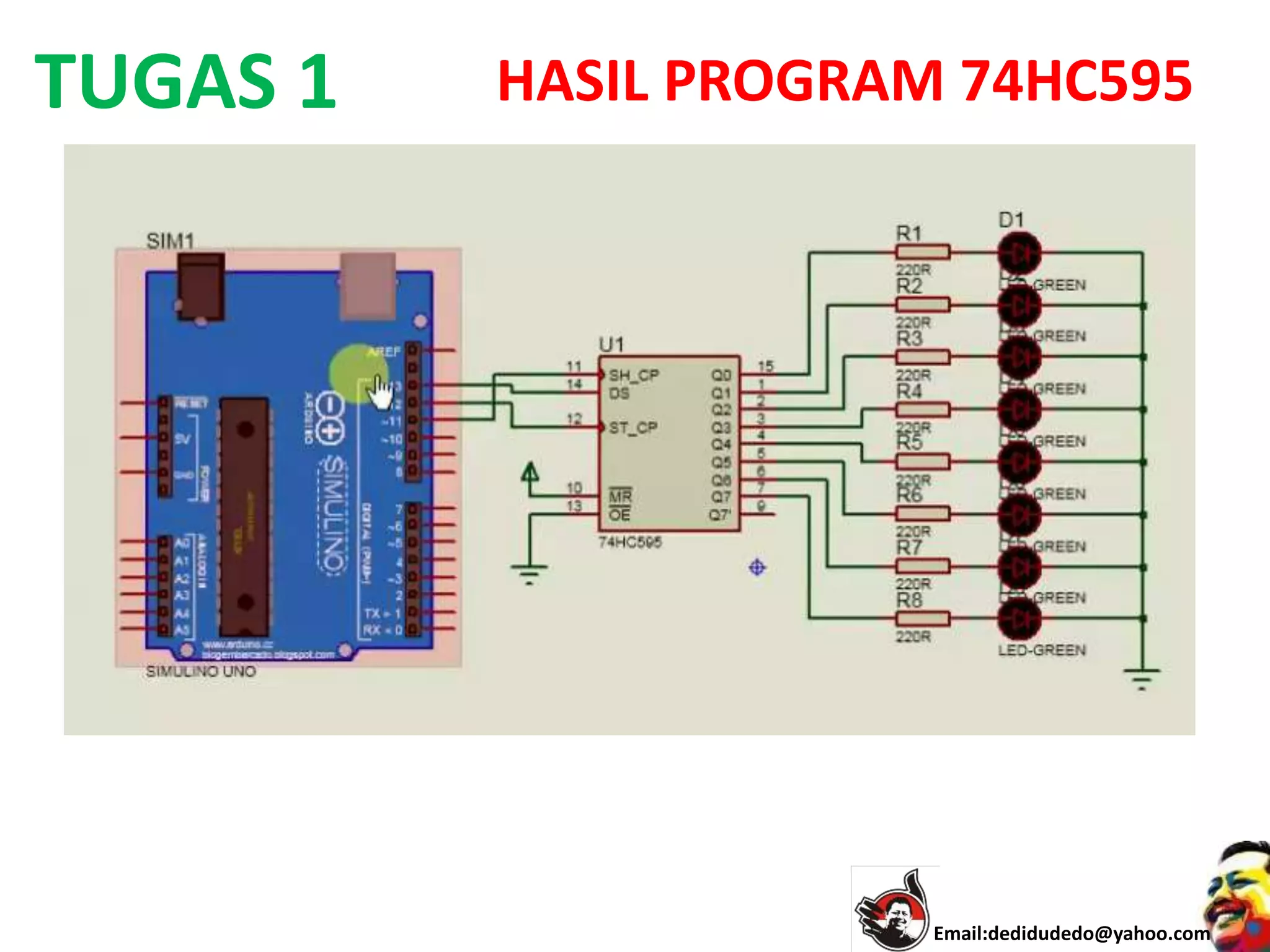

TUGAS 1 HASIL PROGRAM 74HC595

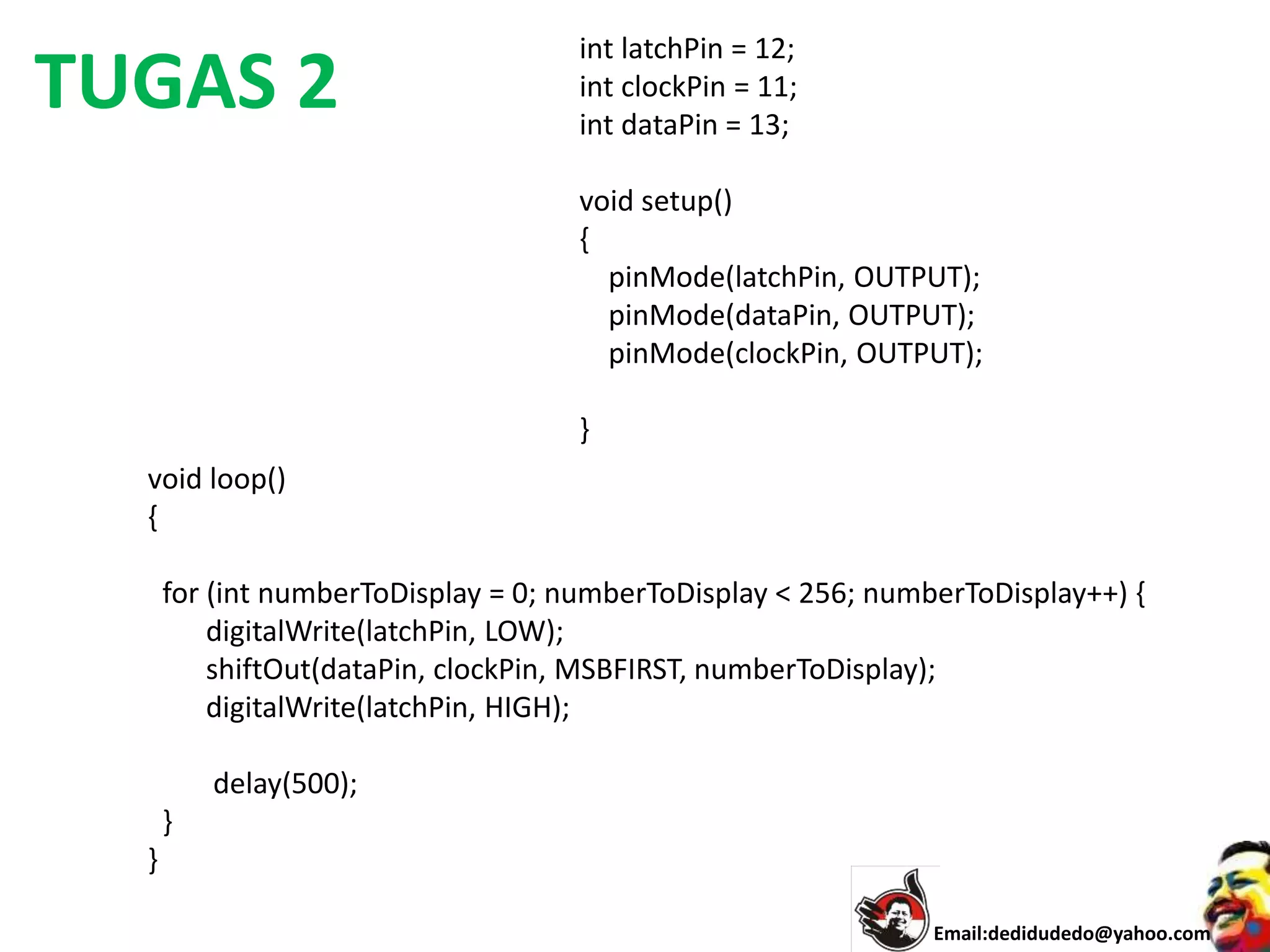

TUGAS 2
int latchPin = 12;
int clockPin = 11;
int dataPin = 13;
void setup()
{
}
void loop()
{
for (int numberToDisplay = 0; numberToDisplay < 256; numberToDisplay++) {
shiftOut(dataPin, clockPin, MSBFIRST, numberToDisplay);
delay(500);
}
}

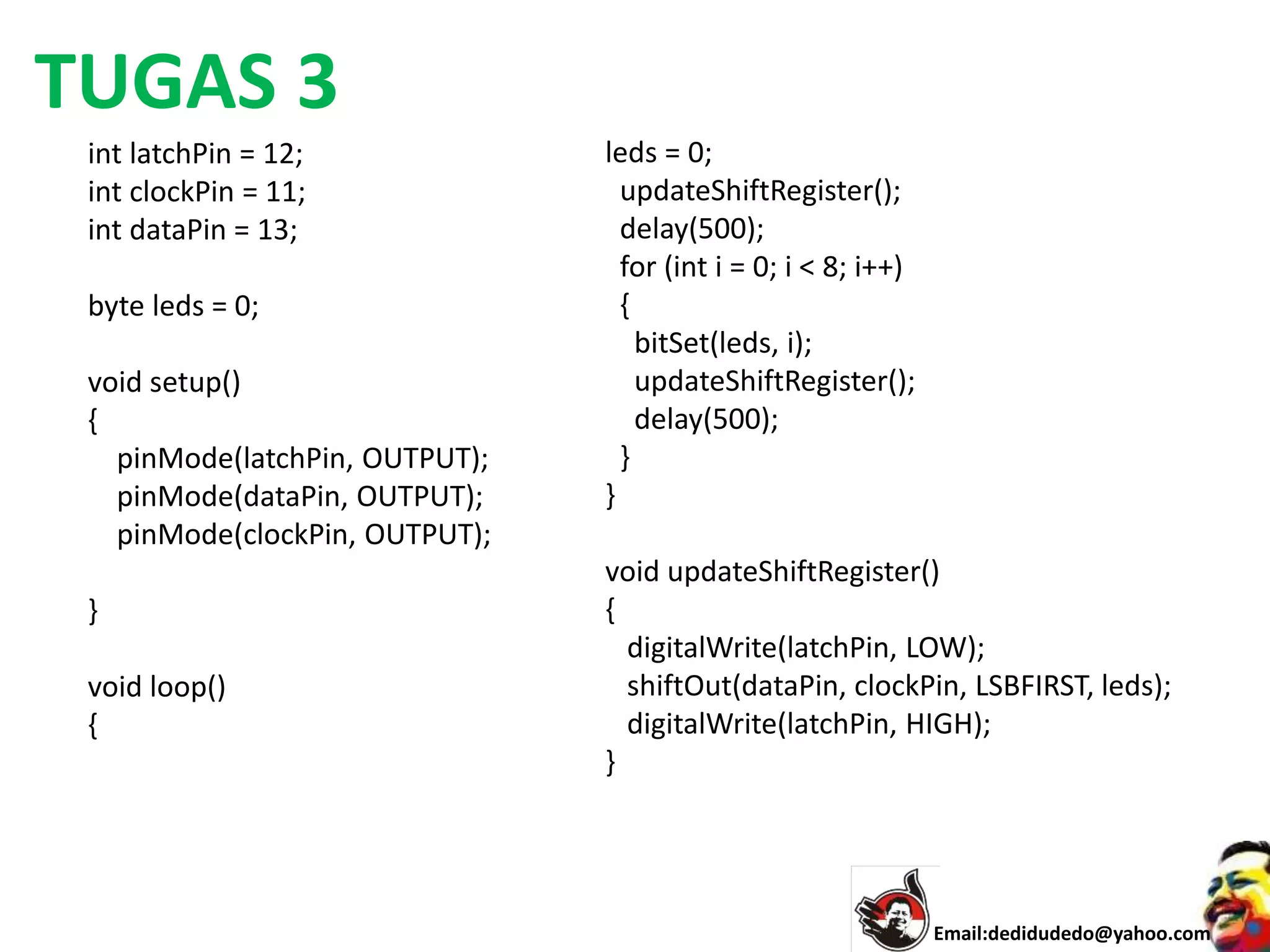

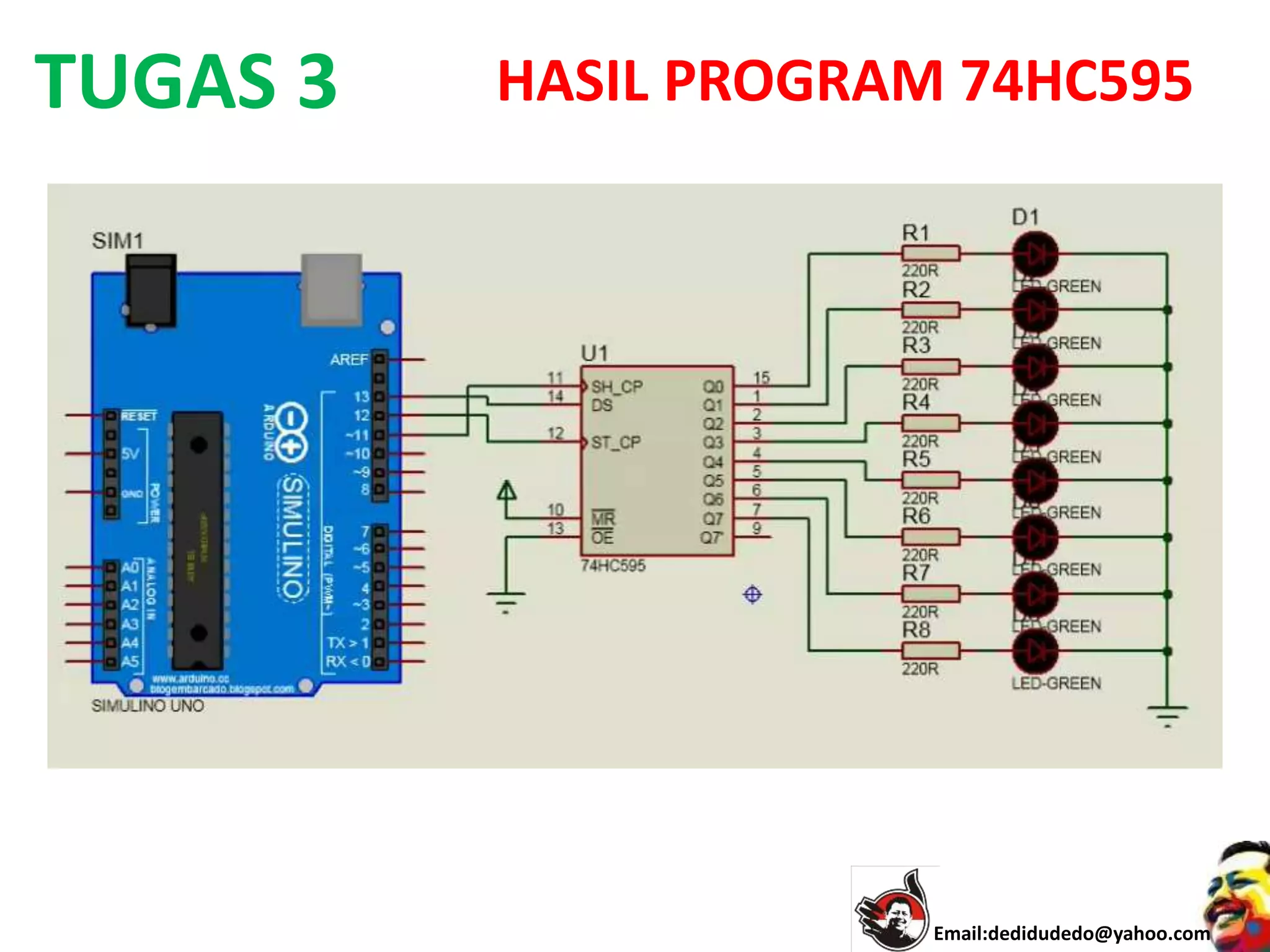

TUGAS 3
int latchPin = 12;
int clockPin = 11;
int dataPin = 13;
byte leds = 0;
void setup()
{
}
void loop()
{
leds = 0;
updateShiftRegister();
delay(500);
for (int i = 0; i < 8; i++)
{
bitSet(leds, i);
delay(500);
}
}
void updateShiftRegister()
{
}

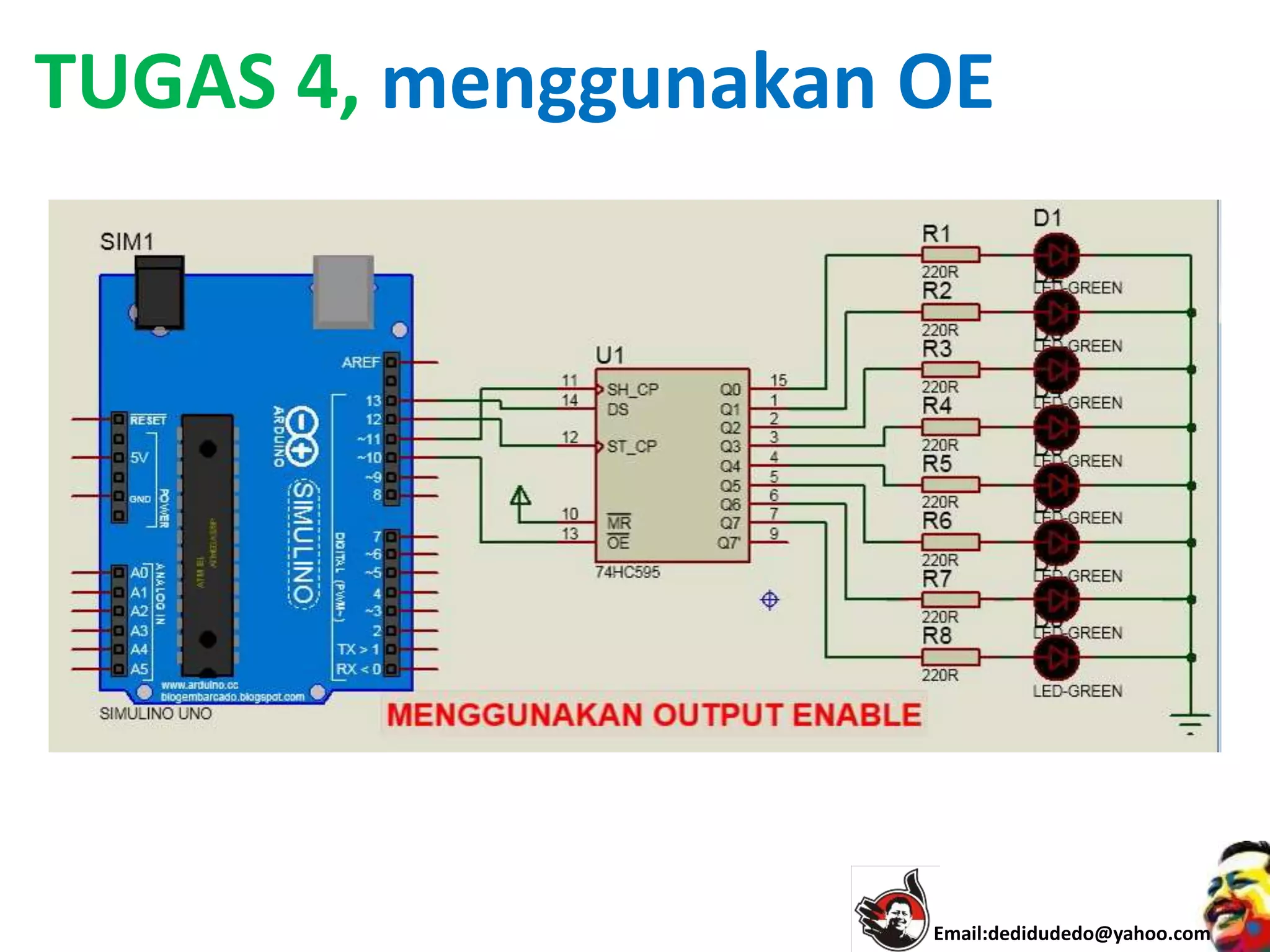

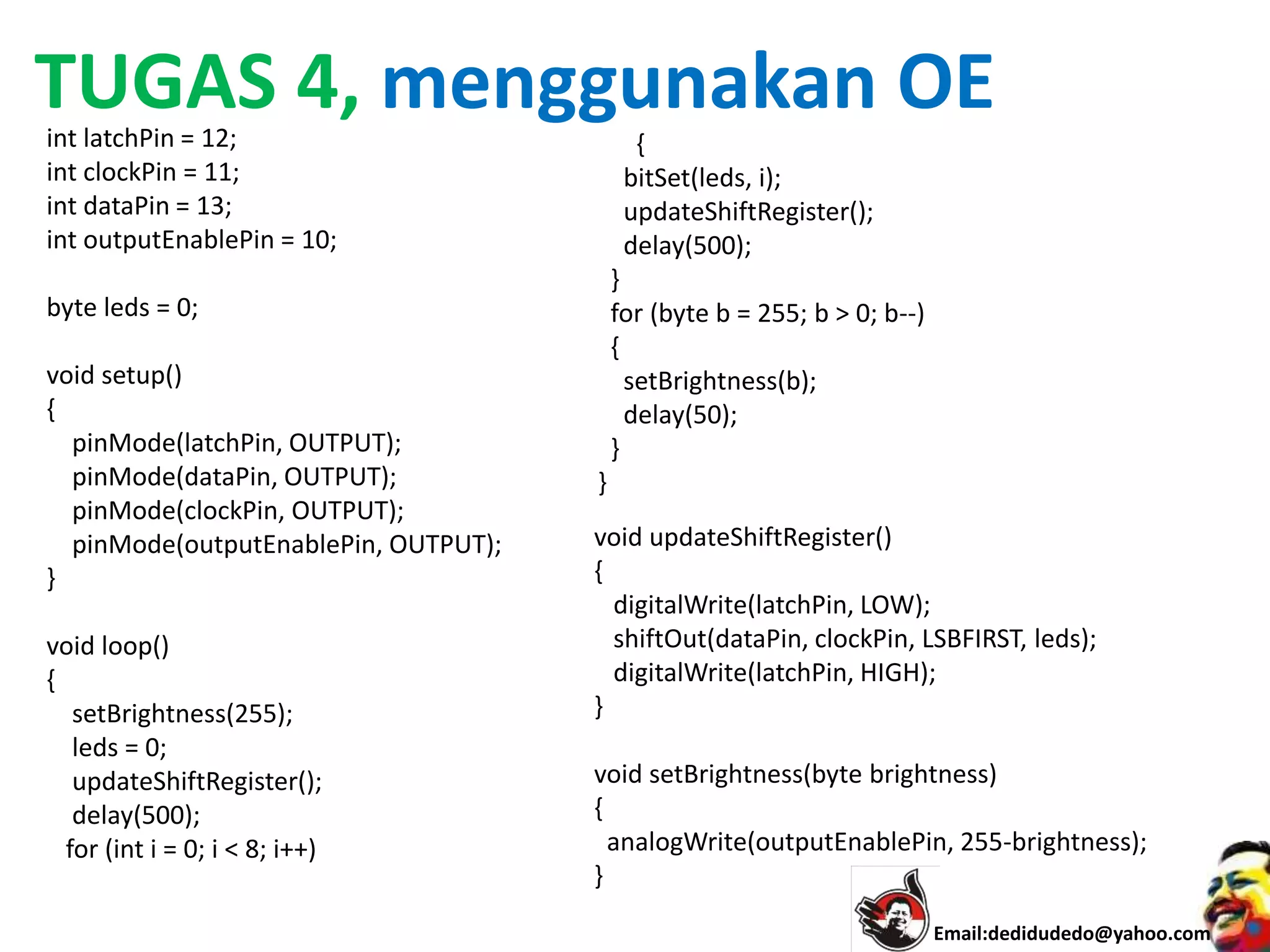

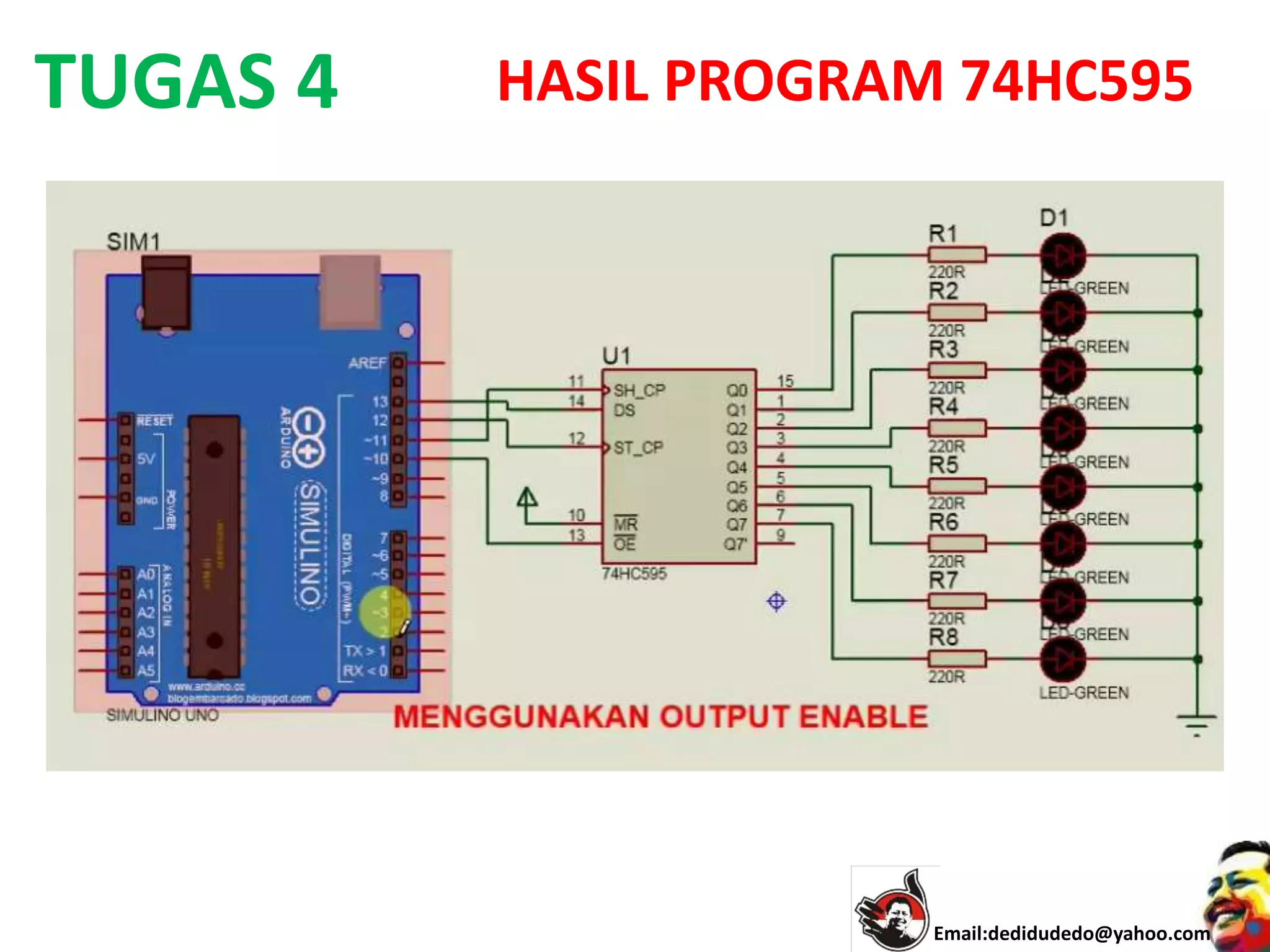

TUGAS 4, menggunakan OE

TUGAS 4, menggunakan OEint latchPin = 12;
int clockPin = 11;
int dataPin = 13;
int outputEnablePin = 10;
byte leds = 0;
void setup()
{
pinMode(outputEnablePin, OUTPUT);
}
void loop()
{
setBrightness(255);
leds = 0;
delay(500);
for (int i = 0; i < 8; i++)
{
bitSet(leds, i);
delay(500);
}
for (byte b = 255; b > 0; b--)
{
setBrightness(b);
delay(50);
}
}
void updateShiftRegister()
{
}
void setBrightness(byte brightness)
{
analogWrite(outputEnablePin, 255-brightness);
}
