Practical Computing with Chaos
Ted Dunning gives a presentation on practical machine learning techniques. He discusses randomized geo-coding to embed spatial data in a total order. He demonstrates Thompson sampling, a Bayesian approach to exploration-exploitation tradeoffs. He also covers dithering in signals and generating synthetic data when real data cannot be shared due to privacy issues.
More Related Content
Similar to Practical Computing with Chaos
More from MapR Technologies
Practical Computing with Chaos
- 1. © 2014 MapRTechnologies 1© 2014 MapR Technologies

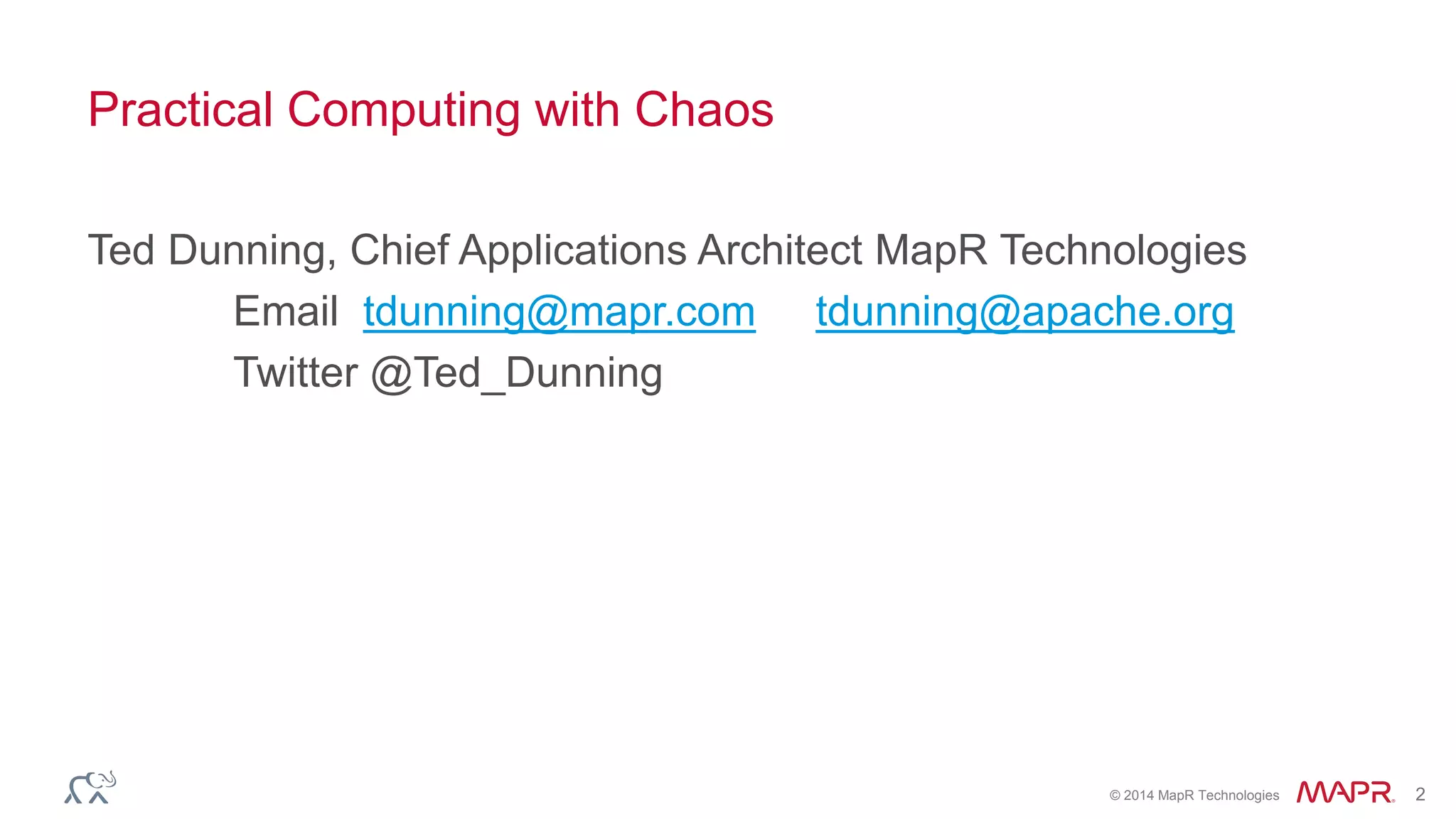

- 2. © 2014 MapRTechnologies 2 Practical Computing with Chaos Ted Dunning, Chief Applications Architect MapR Technologies Email tdunning@mapr.com tdunning@apache.org Twitter @Ted_Dunning
- 3. © 2014 MapRTechnologies 3 e-book available courtesy of MapR Also at MapR booth http://bit.ly/1jQ9QuL A New Look at Anomaly Detection by Ted Dunning and Ellen Friedman © June 2014 (published by O’Reilly)

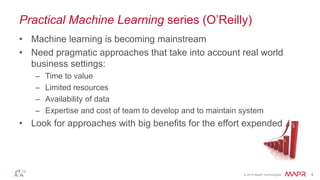

- 4. © 2014 MapRTechnologies 4 Practical Machine Learning series (O’Reilly) • Machine learning is becoming mainstream • Need pragmatic approaches that take into account real world business settings: – Time to value – Limited resources – Availability of data – Expertise and cost of team to develop and to maintain system • Look for approaches with big benefits for the effort expended

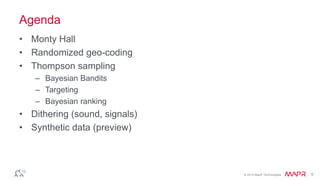

- 5. © 2014 MapRTechnologies 5 Agenda • Monty Hall • Randomized geo-coding • Thompson sampling – Bayesian Bandits – Targeting – Bayesian ranking • Dithering (sound, signals) • Synthetic data (preview)

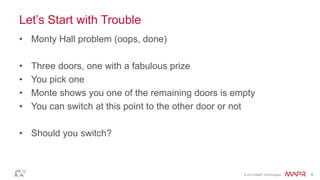

- 6. © 2014 MapRTechnologies 6 Let’s Start with Trouble • Monty Hall problem (oops, done) • Three doors, one with a fabulous prize • You pick one • Monte shows you one of the remaining doors is empty • You can switch at this point to the other door or not • Should you switch?
- 7. © 2014 MapRTechnologies 7
- 8. © 2014 MapRTechnologies 8
- 9. © 2014 MapRTechnologies 9

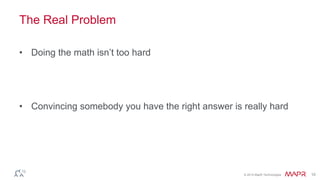

- 10. © 2014 MapRTechnologies 10 The Real Problem • Doing the math isn’t too hard • Convincing somebody you have the right answer is really hard
- 11. © 2014 MapRTechnologies 11 Live Coding With REAL Chaos
- 12. © 2014 MapRTechnologies 12 Geo-coding

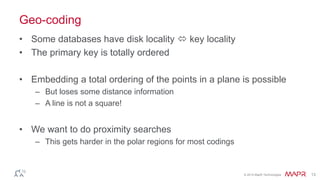

- 13. © 2014 MapRTechnologies 13 Geo-coding • Some databases have disk locality key locality • The primary key is totally ordered • Embedding a total ordering of the points in a plane is possible – But loses some distance information – A line is not a square! • We want to do proximity searches – This gets harder in the polar regions for most codings

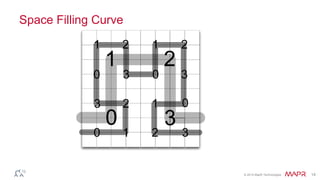

- 14. © 2014 MapRTechnologies 14 Space Filling Curve 0 1 23 01 2 3 0 1 2 3 0 1 2 3 0 1 2 3
- 15. © 2014 MapRTechnologies 15 Space Filling Curve 0123 2 3 3 1 0 2 2 3 1 1 0 0 3 20 1

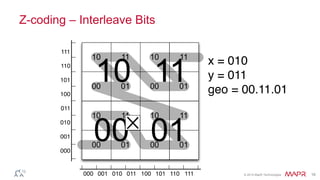

- 16. © 2014 MapRTechnologies 16 Z-coding – Interleave Bits 1110 0100 00 1110 11 01 01 10 00 00 11 01 10 01 1100 10
- 17. © 2014 MapRTechnologies 17 Neighbors Often Share Prefix 1110 0100 00 1110 11 01 01 10 00 00 11 01 10 01 1100 10 00. 11.11 10. 01.01 00. 11.01

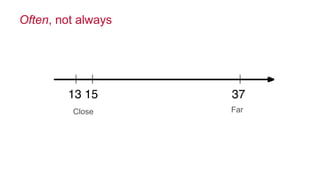

- 18. © 2014 MapRTechnologies 18 Often, not always Close Far

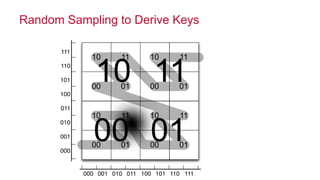

- 19. © 2014 MapRTechnologies 19 Random Sampling to Derive Keys 1110 0100 00 1110 11 01 01 10 00 00 11 01 10 01 1100 10

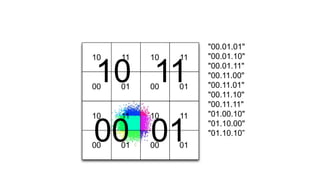

- 20. © 2014 MapRTechnologies 20 "00.01.01" "00.01.10" "00.01.11" "00.11.00" "00.11.01" "00.11.10" "00.11.11" "01.00.10" "01.10.00" "01.10.10” 1110 0100 00 1110 11 01 01 10 00 00 11 01 10 01 1100 10
- 21. © 2014 MapRTechnologies 21 "00.01.01" "00.01.10" "00.01.11" "00.11.00" "00.11.01" "00.11.10" "00.11.11" "01.00.10" "01.10.00" "01.10.10” 1110 0100 00 1110 11 01 01 10 00 00 11 01 10 01 1100 10

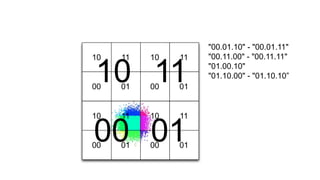

- 22. © 2014 MapRTechnologies 22 "00.01.10" - "00.01.11" "00.11.00" - "00.11.11" "01.00.10" "01.10.00" - "01.10.10” 1110 0100 00 1110 11 01 01 10 00 00 11 01 10 01 1100 10
- 23. © 2014 MapRTechnologies 23 Dithering
- 24. © 2014 MapRTechnologies 24 • 4 bit sine wave (listen for artifacts as volume decreases) • White dithering (artifacts gone, we hear through the noise) • Noise shaping (noise is easier to hear through)

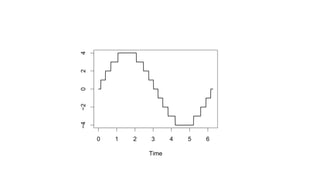

- 25. © 2014 MapRTechnologies 25 0 1 2 3 4 5 6 −4−2024 Time

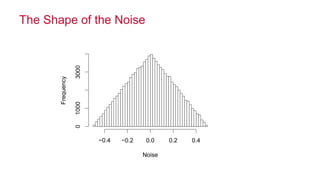

- 26. © 2014 MapRTechnologies 26 The Shape of the Noise Noise Frequency −0.4 −0.2 0.0 0.2 0.4 010003000

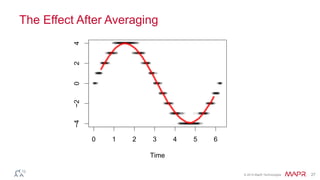

- 27. © 2014 MapRTechnologies 27 The Effect After Averaging 0 1 2 3 4 5 6 −4−2024 Time
- 28. © 2014 MapRTechnologies 28 Thompson Sampling
- 29. © 2014 MapRTechnologies 29 Learning in the Real World • In the real world we get to pick our training examples – Do we try this restaurant or not? • Learning has real and opportunity costs • Not learning has real and opportunity costs as well • Every sub-optimal choice we make incurs regret – We would like to minimize this – But we can’t quantify regret without incurring regret!

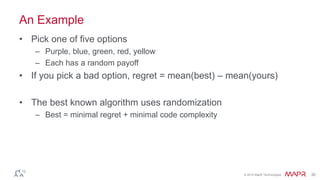

- 30. © 2014 MapRTechnologies 30 An Example • Pick one of five options – Purple, blue, green, red, yellow – Each has a random payoff • If you pick a bad option, regret = mean(best) – mean(yours) • The best known algorithm uses randomization – Best = minimal regret + minimal code complexity

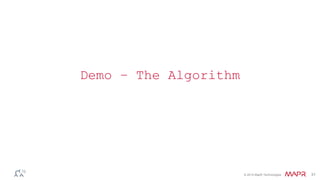

- 31. © 2014 MapRTechnologies 31 Demo – The Algorithm
- 32. © 2014 MapRTechnologies 32 Synthetic Data

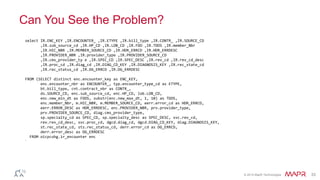

- 33. © 2014 MapRTechnologies 33 select IR.ENC_KEY ,IR.ENCOUNTER_ ,IR.ETYPE ,IR.bill_type ,IR.CONTR_ ,IR.SOURCE_CD ,IR.sub_source_cd ,IR.HP_CD ,IR.LOB_CD ,IR.FDO ,IR.TDOS ,IR.member_Nbr ,IR.HIC_NBR ,IR.MEMBER_SOURCE_CD ,IR.HDR_ERRCD ,IR.HDR_ERRDESC ,IR.PROVIDER_NBR ,IR.provider_type ,IR.PROVIDER_SOURCE_CD ,IR.cms_provider_ty e ,IR.SPEC_CD ,IR.SPEC_DESC ,IR.rev_cd ,IR.rev_cd_desc ,IR.proc_cd ,IR.diag_cd ,IR.DIAG_CD_KEY ,IR.DIAGNOSIS_KEY ,IR.rec_state_cd ,IR.rec_status_cd ,IR.DG_ERRCD ,IR.DG_ERRDESC FROM (SELECT distinct enc.encounter_key as ENC_KEY, enc.encounter_nbr as ENCOUNTER_, typ.encounter_type_cd as ETYPE, bt.bill_type, cnt.contract_nbr as CONTR_, ds.SOURCE_CD, enc.sub_source_cd, enc.HP_CD, lob.LOB_CD, enc.new_min_dt as FDOS, substr(enc.new_max_dt, 1, 10) as TDOS, enc.member_Nbr, m.HIC_NBR, m.MEMBER_SOURCE_CD, eerr.error_cd as HDR_ERRCD, eerr.ERROR_DESC as HDR_ERRDESC, enc.PROVIDER_NBR, prv.provider_type, prv.PROVIDER_SOURCE_CD, diag.cms_provider_type, sp.specialty_cd as SPEC_CD, sp.specialty_desc as SPEC_DESC, svc.rev_cd, rev.rev_cd_desc, svc.proc_cd, dgcd.diag_cd, dgcd.DIAG_CD_KEY, diag.DIAGNOSIS_KEY, st.rec_state_cd, sts.rec_status_cd, derr.error_cd as DG_ERRCD, derr.error_desc as DG_ERRDESC FROM oicpcuhg.ir_encounter enc ` Can You See the Problem?

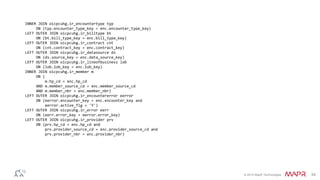

- 34. © 2014 MapRTechnologies 34 INNER JOIN oicpcuhg.ir_encountertype typ ON (typ.encounter_type_key = enc.encounter_type_key) LEFT OUTER JOIN oicpcuhg.ir_billtype bt ON (bt.bill_type_key = enc.bill_type_key) LEFT OUTER JOIN oicpcuhg.ir_contract cnt ON (cnt.contract_key = enc.contract_key) LEFT OUTER JOIN oicpcuhg.ir_datasource ds ON (ds.source_key = enc.data_source_key) LEFT OUTER JOIN oicpcuhg.ir_lineofbusiness lob ON (lob.lob_key = enc.lob_key) INNER JOIN oicpcuhg.ir_member m ON ( m.hp_cd = enc.hp_cd AND m.member_source_cd = enc.member_source_cd AND m.member_nbr = enc.member_nbr) LEFT OUTER JOIN oicpcuhg.ir_encountererror eerror ON (eerror.encounter_key = enc.encounter_key and eerror.active_flg = 'Y') LEFT OUTER JOIN oicpcuhg.ir_error eerr ON (eerr.error_key = eerror.error_key) LEFT OUTER JOIN oicpcuhg.ir_provider prv ON (prv.hp_cd = enc.hp_cd and prv.provider_source_cd = enc.provider_source_cd and prv.provider_nbr = enc.provider_nbr)

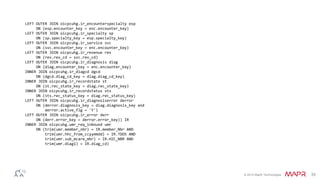

- 35. © 2014 MapRTechnologies 35 LEFT OUTER JOIN oicpcuhg.ir_encounterspecialty esp ON (esp.encounter_key = enc.encounter_key) LEFT OUTER JOIN oicpcuhg.ir_specialty sp ON (sp.specialty_key = esp.specialty_key) LEFT OUTER JOIN oicpcuhg.ir_service svc ON (svc.encounter_key = enc.encounter_key) LEFT OUTER JOIN oicpcuhg.ir_revenue rev ON (rev.rev_cd = svc.rev_cd) LEFT OUTER JOIN oicpcuhg.ir_diagnosis diag ON (diag.encounter_key = enc.encounter_key) INNER JOIN oicpcuhg.ir_diagcd dgcd ON (dgcd.diag_cd_key = diag.diag_cd_key) INNER JOIN oicpcuhg.ir_recordstate st ON (st.rec_state_key = diag.rec_state_key) INNER JOIN oicpcuhg.ir_recordstatus sts ON (sts.rec_status_key = diag.rec_status_key) LEFT OUTER JOIN oicpcuhg.ir_diagnosiserror derror ON (derror.diagnosis_key = diag.diagnosis_key and derror.active_flg = 'Y') LEFT OUTER JOIN oicpcuhg.ir_error derr ON (derr.error_key = derror.error_key)) IR INNER JOIN oicpcuhg.umr_req_inbound umr ON (trim(umr.member_nbr) = IR.member_Nbr AND trim(umr.hhc_from_ccyymmdd) = IR.TDOS AND trim(umr.sub_mcare_mbr) = IR.HIC_NBR AND trim(umr.diag1) = IR.diag_cd)

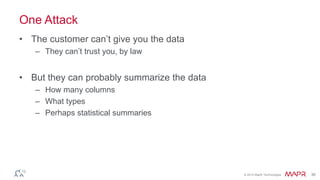

- 36. © 2014 MapRTechnologies 36 One Attack • The customer can’t give you the data – They can’t trust you, by law • But they can probably summarize the data – How many columns – What types – Perhaps statistical summaries

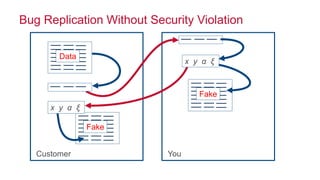

- 37. © 2014 MapRTechnologies 37 Bug Replication Without Security Violation Customer You DataData DataFake DataFake x y α ξ x y α ξ

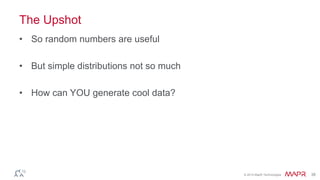

- 38. © 2014 MapRTechnologies 38 The Upshot • So random numbers are useful • But simple distributions not so much • How can YOU generate cool data?
- 39. © 2014 MapRTechnologies 39 e-book available courtesy of MapR http://bit.ly/1jQ9QuL A New Look at Anomaly Detection by Ted Dunning and Ellen Friedman © June 2014 (published by O’Reilly)
- 40. © 2014 MapRTechnologies 40 Last October: Time Series Databases by Ted Dunning and Ellen Friedman © Oct 2014 (published by O’Reilly)
- 41. © 2014 MapRTechnologies 41 Coming in February: Real World Hadoop by Ted Dunning and Ellen Friedman © Feb 2015 (published by O’Reilly)
- 42. © 2014 MapRTechnologies 42 Thank you for coming today!
Editor's Notes
- #4 Talk track: 2nd in series, first was on how to build a simple recommender. This one on anomaly detection is being sold by O’Reilly on Amazon, but for a limited time MapR is giving away the e-book for free. Here’s the link where you can register to get one.
- #5 Talk track: ELLEN New ways to do it that take into account real world business goals, realistic resources, new types of data and best time to value…
