1. The document describes the technical parameters and typical features of sealed connectors rated at IP68/67 including their electrical characteristics, mechanical properties, and temperature range.

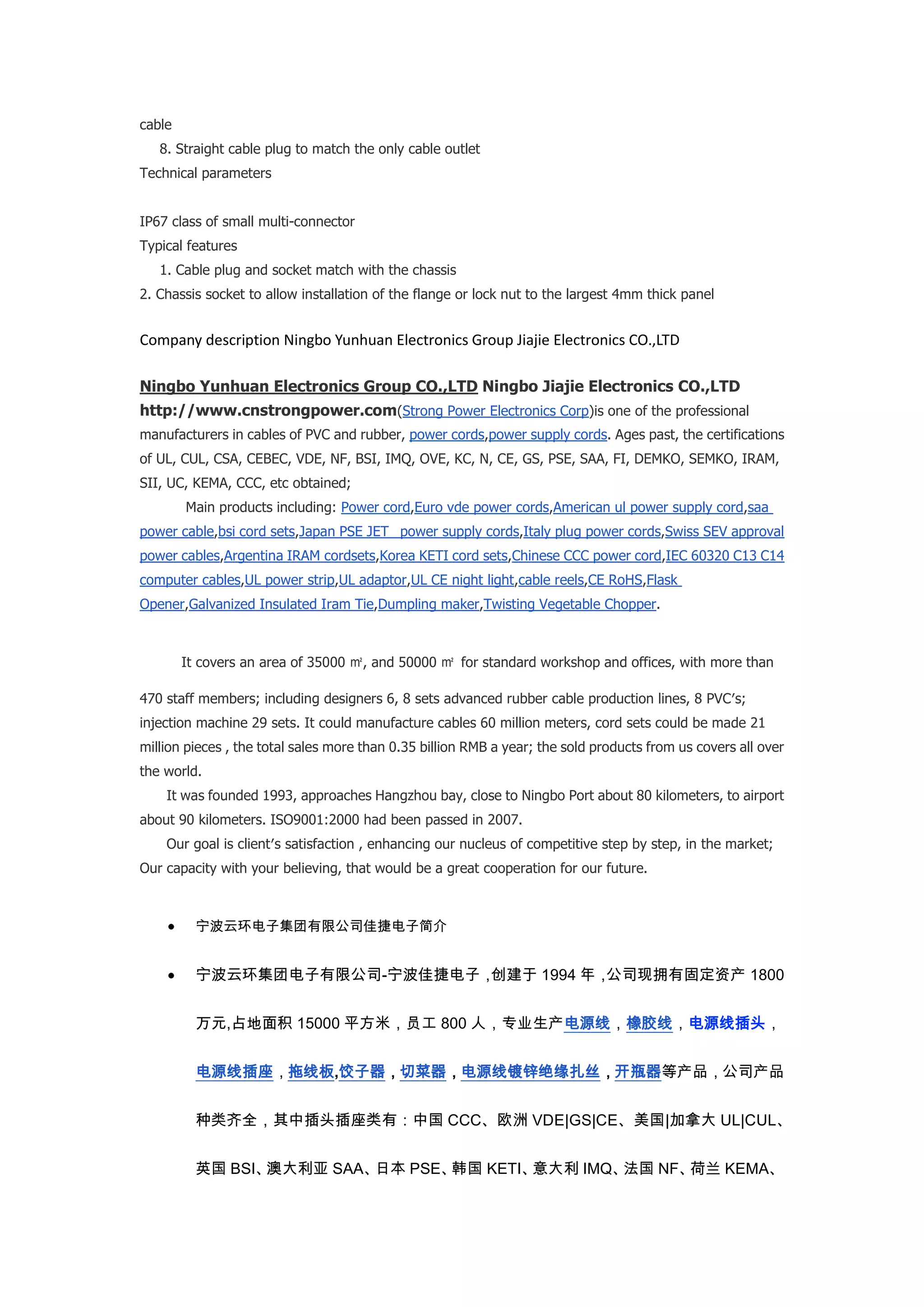

2. It then lists the typical features of small multi-connectors rated at IP67 including cable plug and socket compatibility and chassis socket installation options.
3. The document provides an overview of Ningbo Yunhuan Electronics Group and Ningbo Jiajie Electronics, the manufacturers of power cords, cables, and related accessories. It describes the companies' certifications, products, facilities, production capabilities, and goals.
Global Interconnection Group Joint Venture[960] (1).pdf
power cord

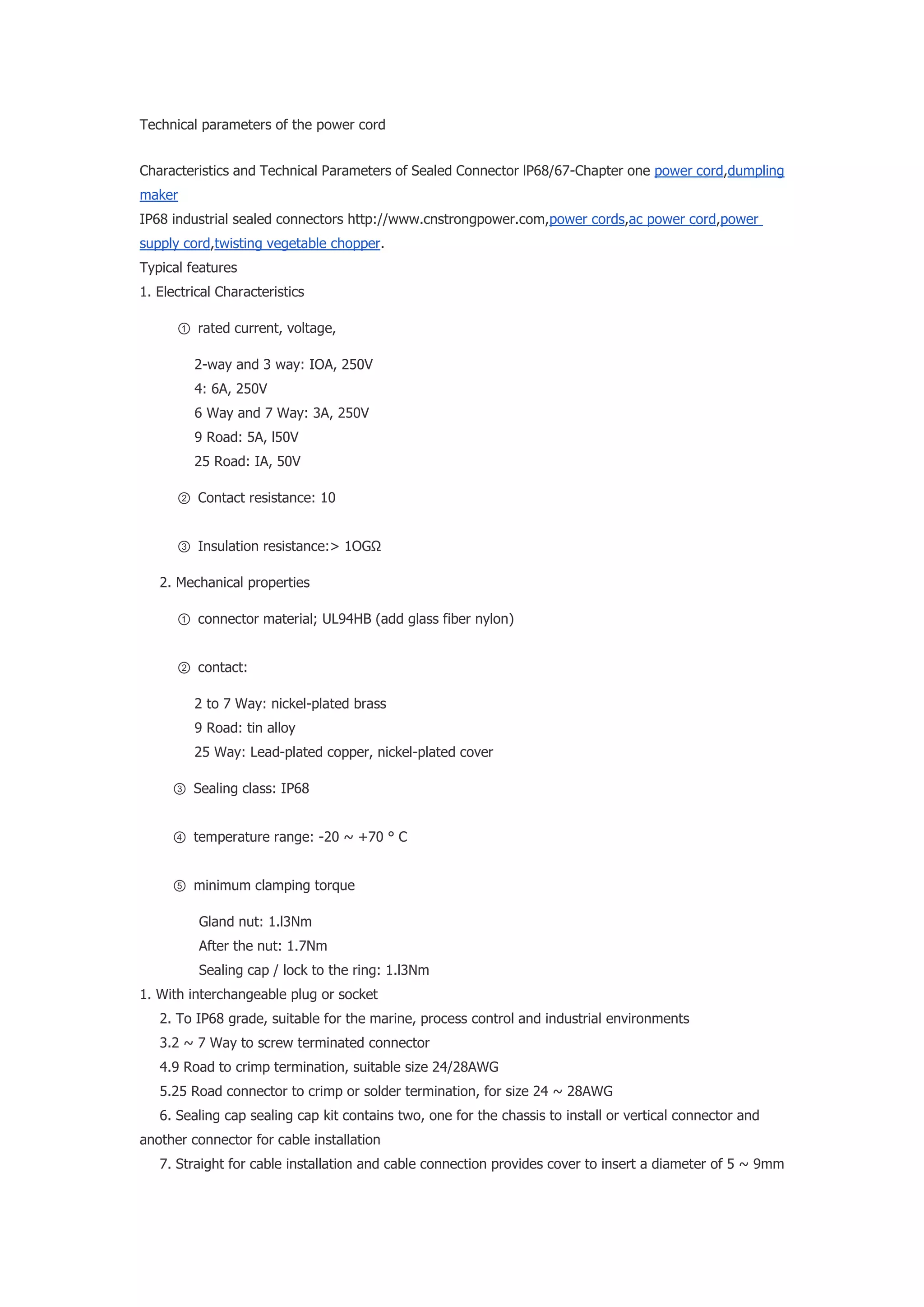

1. Technical parameters of the power cord<br />Characteristics and Technical Parameters of Sealed Connector lP68/67-Chapter one power cord,dumpling makerIP68 industrial sealed connectors http://www.cnstrongpower.com,power cords,ac power cord,power supply cord,twisting vegetable chopper.Typical features1. Electrical Characteristics ① rated current, voltage, 2-way and 3 way: IOA, 250V 4: 6A, 250V 6 Way and 7 Way: 3A, 250V 9 Road: 5A, l50V 25 Road: IA, 50V ② Contact resistance: 10 ③ Insulation resistance:> 1OGΩ 2. Mechanical properties ① connector material; UL94HB (add glass fiber nylon) ② contact: 2 to 7 Way: nickel-plated brass 9 Road: tin alloy 25 Way: Lead-plated copper, nickel-plated cover ③ Sealing class: IP68 ④ temperature range: -20 ~ +70 ° C ⑤ minimum clamping torque Gland nut: 1.l3Nm After the nut: 1.7Nm Sealing cap / lock to the ring: 1.l3Nm 1. With interchangeable plug or socket 2. To IP68 grade, suitable for the marine, process control and industrial environments 3.2 ~ 7 Way to screw terminated connector 4.9 Road to crimp termination, suitable size 24/28AWG 5.25 Road connector to crimp or solder termination, for size 24 ~ 28AWG 6. Sealing cap sealing cap kit contains two, one for the chassis to install or vertical connector and another connector for cable installation 7. Straight for cable installation and cable connection provides cover to insert a diameter of 5 ~ 9mm cable 8. Straight cable plug to match the only cable outlet Technical parameters IP67 class of small multi-connector Typical features 1. Cable plug and socket match with the chassis2. Chassis socket to allow installation of the flange or lock nut to the largest 4mm thick panel<br />Company description Ningbo Yunhuan Electronics Group Jiajie Electronics CO.,LTD<br />Ningbo Yunhuan Electronics Group CO.,LTD Ningbo Jiajie Electronics CO.,LTD http://www.cnstrongpower.com(Strong Power Electronics Corp)is one of the professional manufacturers in cables of PVC and rubber, power cords,power supply cords. Ages past, the certifications of UL, CUL, CSA, CEBEC, VDE, NF, BSI, IMQ, OVE, KC, N, CE, GS, PSE, SAA, FI, DEMKO, SEMKO, IRAM, SII, UC, KEMA, CCC, etc obtained; Main products including: Power cord,Euro vde power cords,American ul power supply cord,saa power cable,bsi cord sets,Japan PSE JET power supply cords,Italy plug power cords,Swiss SEV approval power cables,Argentina IRAM cordsets,Korea KETI cord sets,Chinese CCC power cord,IEC 60320 C13 C14 computer cables,UL power strip,UL adaptor,UL CE night light,cable reels,CE RoHS,Flask Opener,Galvanized Insulated Iram Tie,Dumpling maker,Twisting Vegetable Chopper.<br /> It covers an area of 35000㎡, and 50000㎡ for standard workshop and offices, with more than 470 staff members; including designers 6, 8 sets advanced rubber cable production lines, 8 PVC′s; injection machine 29 sets. It could manufacture cables 60 million meters, cord sets could be made 21 million pieces , the total sales more than 0.35 billion RMB a year; the sold products from us covers all over the world. It was founded 1993, approaches Hangzhou bay, close to Ningbo Port about 80 kilometers, to airport about 90 kilometers. ISO9001:2000 had been passed in 2007. Our goal is client′s satisfaction , enhancing our nucleus of competitive step by step, in the market; Our capacity with your believing, that would be a great cooperation for our future.<br />宁波云环电子集团有限公司佳捷电子简介<br />宁波云环集团电子有限公司-宁波佳捷电子,创建于1994年,公司现拥有固定资产1800万元,占地面积15000平方米,员工800人,专业生产电源线,橡胶线,电源线插头,电源线插座,拖线板,饺子器,切菜器,电源线镀锌绝缘扎丝,开瓶器等产品,公司产品种类齐全,其中插头插座类有:中国CCC、欧洲VDE|GS|CE、美国|加拿大UL|CUL、英国BSI、澳大利亚SAA、日本PSE、韩国KETI、意大利IMQ、法国NF、荷兰KEMA、瑞士SEV、阿根廷IRAM、巴西UC及南非SABS、以色列SII等多国认证的常规插头,欧式、美式、澳式延长线,美国标准自锁插头系列,美国标准干燥器插头系列以及IEC 60320连接器系列等等。 <br /> 橡胶电源线类有: H05RR-F、H05RN-F、H07RN-F、HHFF、HPN、S、SO、SOW、SJ、SJO、SJOW、SJOOW、HHFF、PNCTF、 245 IEC 57(YZW)、245 IEC 53(YZ)、245 IEC 66(YCW)、YZWB。 <br /> PVC绝缘塑料线类有:H03VV-F、H03VVH2-F、H03V2V2-F、H05VV-F、H05VVH2-F、H05V2V2-F、SVT、SJT、SJTW、SJTOW、 SPT、ST、STW、HVFF、VCT、VFF、VCTF、VCTFK、1015、1007、227 IEC 52(RVV)、227 IEC 53(RVV)。 <br /> 公司奉行quot;

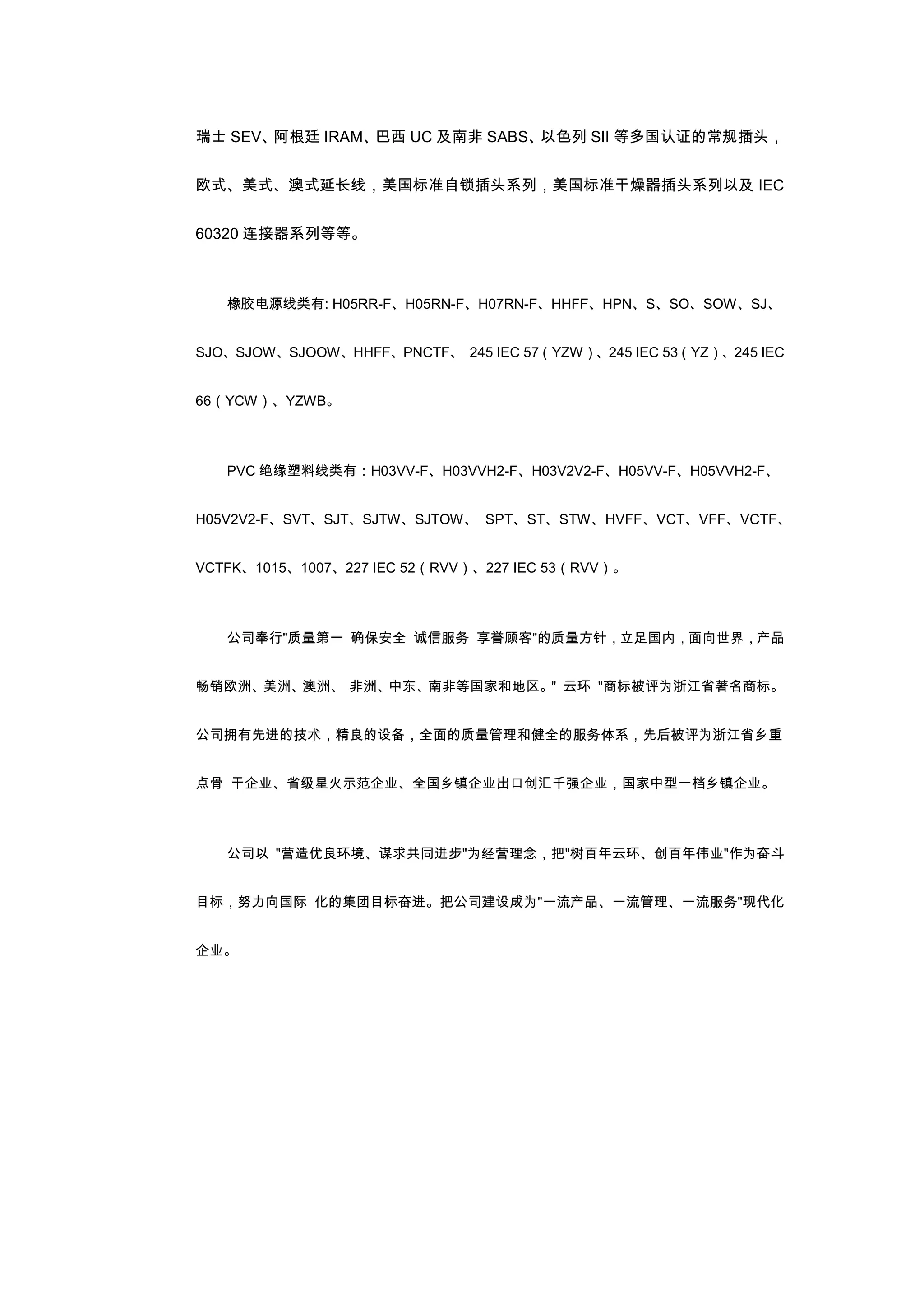

质量第一 确保安全 诚信服务 享誉顾客quot;
的质量方针,立足国内,面向世界,产品畅销欧洲、美洲、澳洲、 非洲、中东、南非等国家和地区。quot;
云环 quot;
商标被评为浙江省著名商标。 公司拥有先进的技术,精良的设备,全面的质量管理和健全的服务体系,先后被评为浙江省乡重点骨 干企业、省级星火示范企业、全国乡镇企业出口创汇千强企业,国家中型一档乡镇企业。 <br /> 公司以 quot;
营造优良环境、谋求共同进步quot;
为经营理念,把quot;
树百年云环、创百年伟业quot;
作为奋斗目标,努力向国际 化的集团目标奋进。把公司建设成为quot;
一流产品、一流管理、一流服务quot;
现代化企业。<br />
