This document provides tips for using a PowerPoint presentation on portal hypertension: 1. The presentation can be freely downloaded, edited, and modified. It contains blank slides for discussion between the title slides that provide information. 2. The instructor should first show the blank discussion slides, ask students what they know about the topic, then show the next slide with information. 3. This active learning process should be repeated for three revisions to fully engage students. 4. The presentation is also useful for self-study with notes providing bibliographic references.

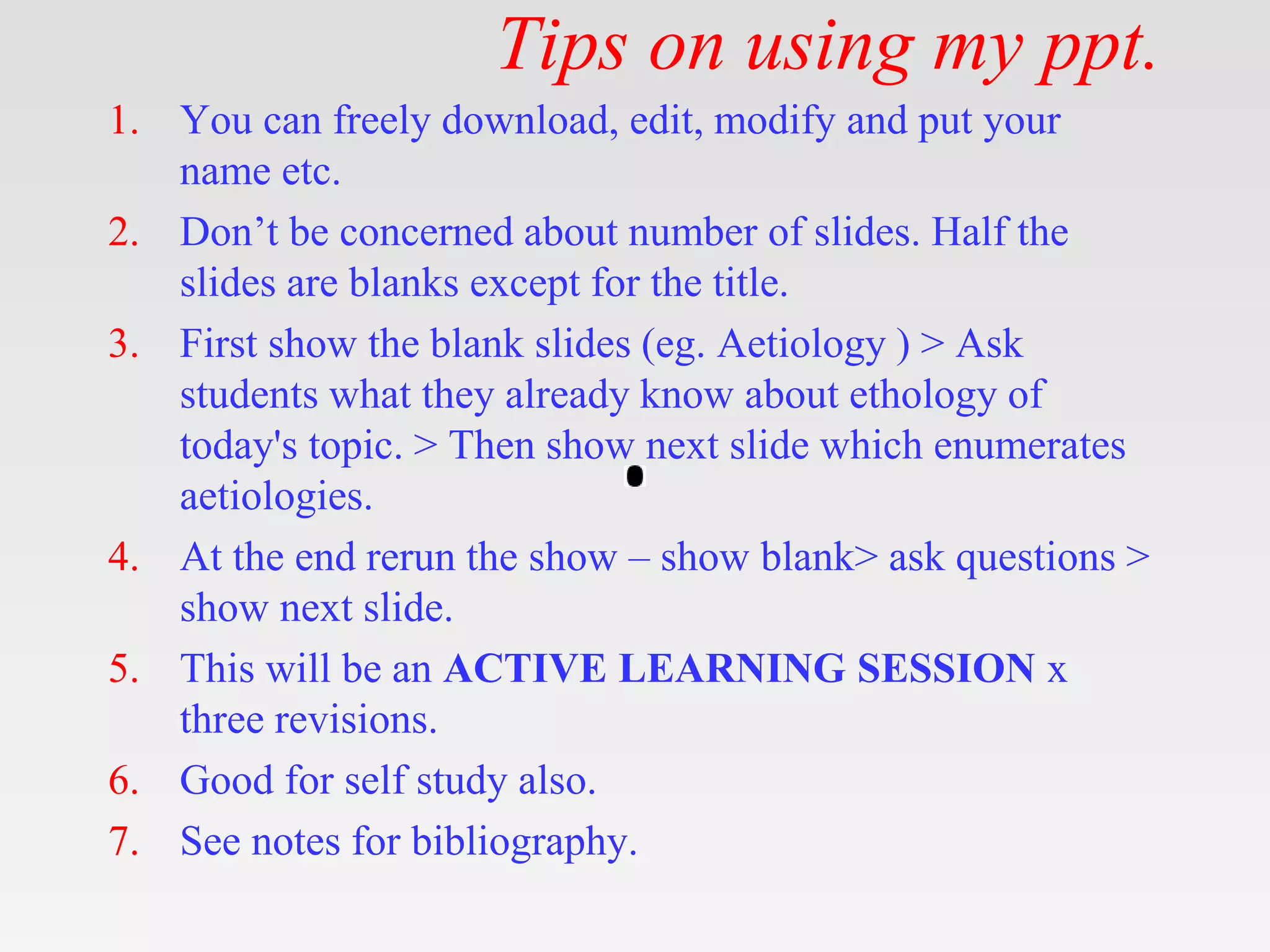

1. Tips on using my ppt.
1. You can freely download, edit, modify and put your
name etc.
2. Don’t be concerned about number of slides. Half the
slides are blanks except for the title.
3. First show the blank slides (eg. Aetiology ) > Ask
students what they already know about ethology of
today's topic. > Then show next slide which enumerates
aetiologies.
4. At the end rerun the show – show blank> ask questions >
show next slide.
5. This will be an ACTIVE LEARNING SESSION x
three revisions.
6. Good for self study also.
7. See notes for bibliography.

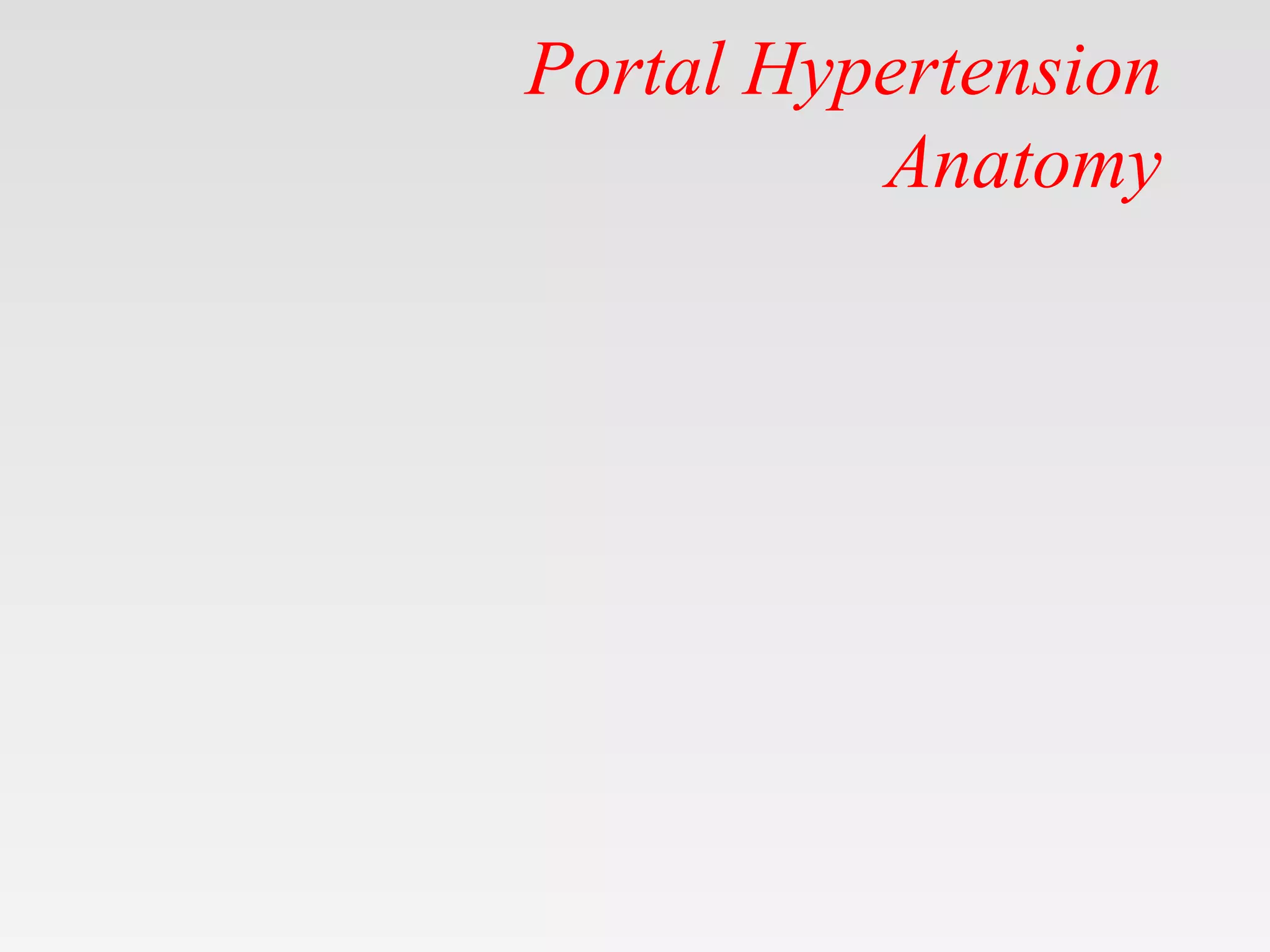

2. Portal Hypertension
Anatomy

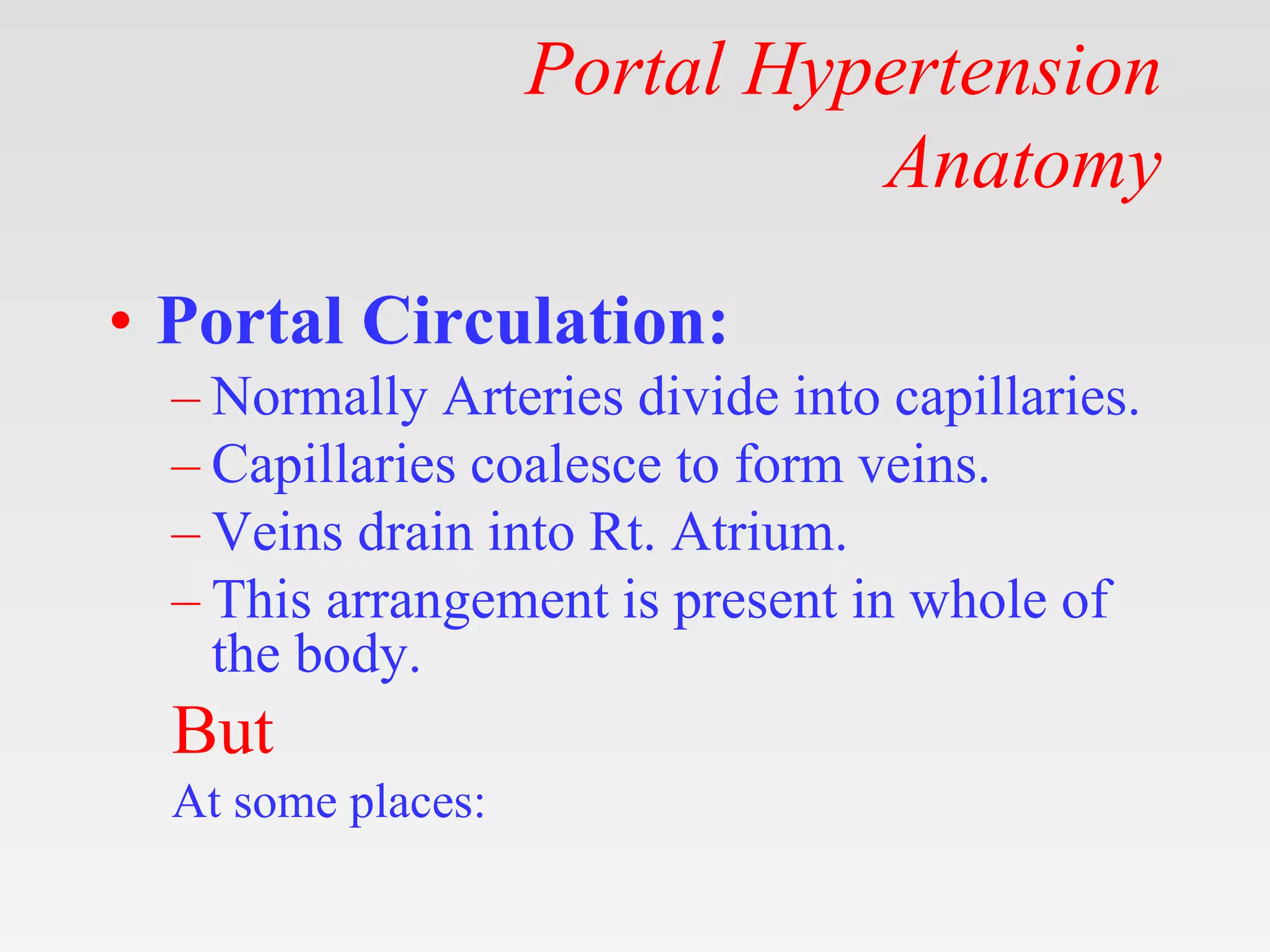

3. Portal Hypertension
Anatomy
• Portal Circulation:
– Normally Arteries divide into capillaries.
– Capillaries coalesce to form veins.
– Veins drain into Rt. Atrium.
– This arrangement is present in whole of
the body.
But
At some places:

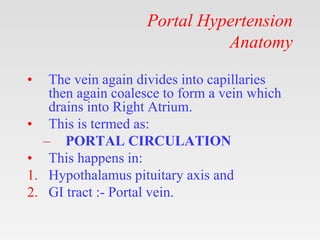

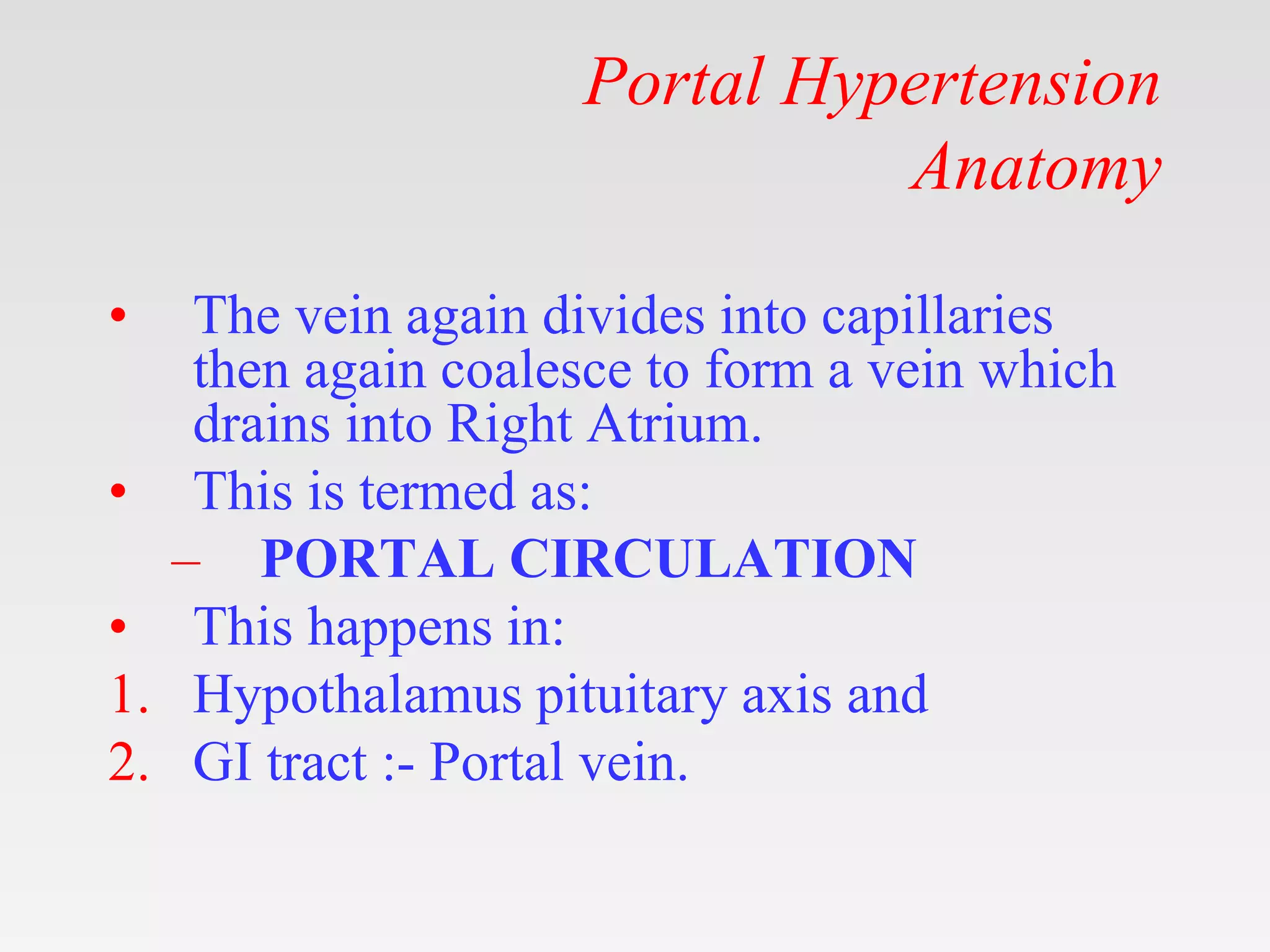

4. Portal Hypertension
Anatomy
• The vein again divides into capillaries
then again coalesce to form a vein which
drains into Right Atrium.
• This is termed as:
– PORTAL CIRCULATION
• This happens in:
1. Hypothalamus pituitary axis and
2. GI tract :- Portal vein.

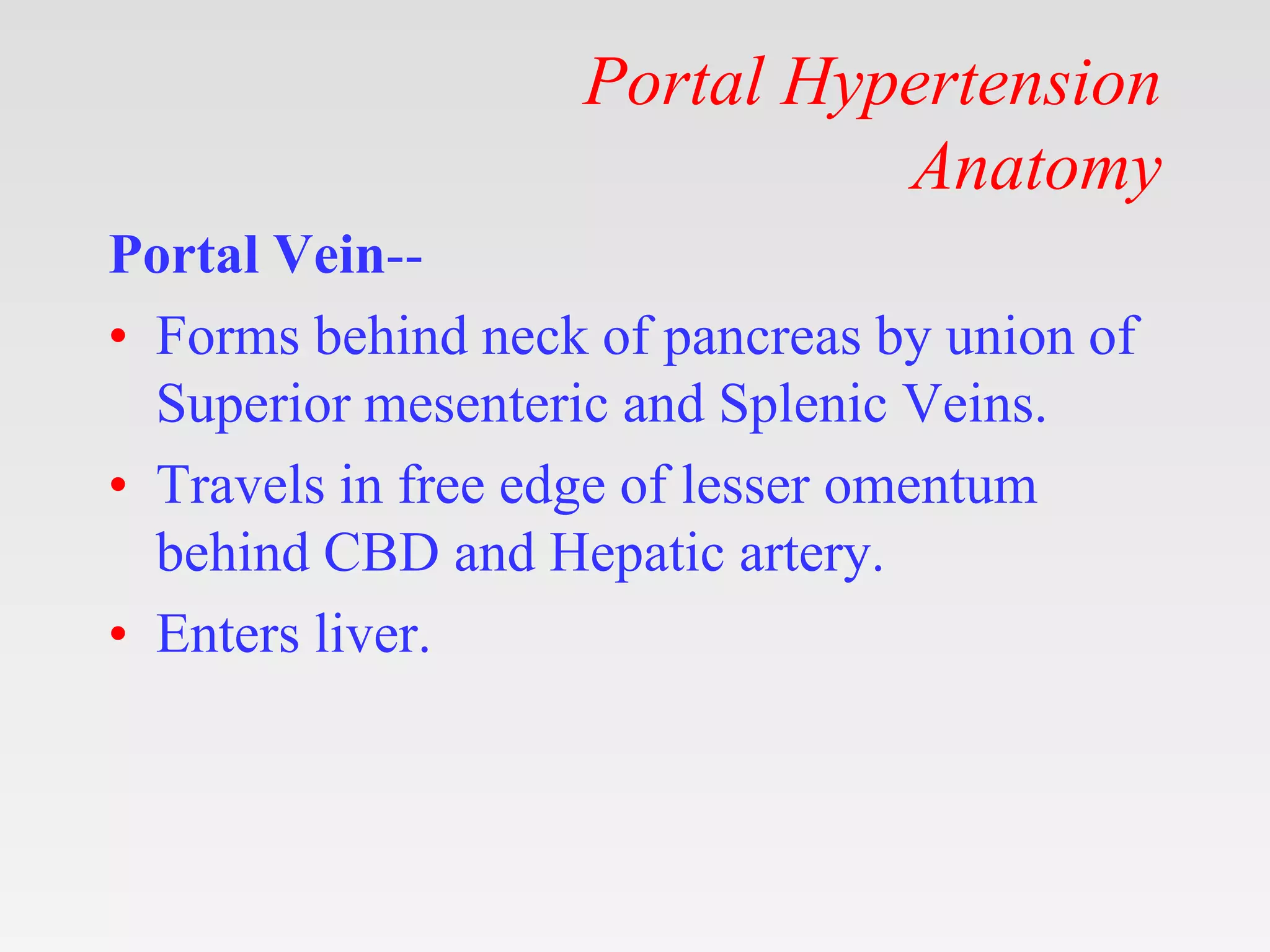

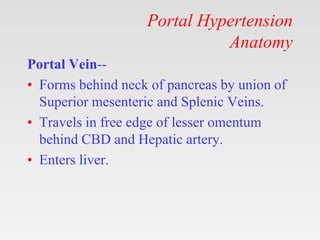

5. Portal Hypertension
Anatomy
Portal Vein--
• Forms behind neck of pancreas by union of
Superior mesenteric and Splenic Veins.
• Travels in free edge of lesser omentum
behind CBD and Hepatic artery.
• Enters liver.

6. Tributaries of Portal Vein

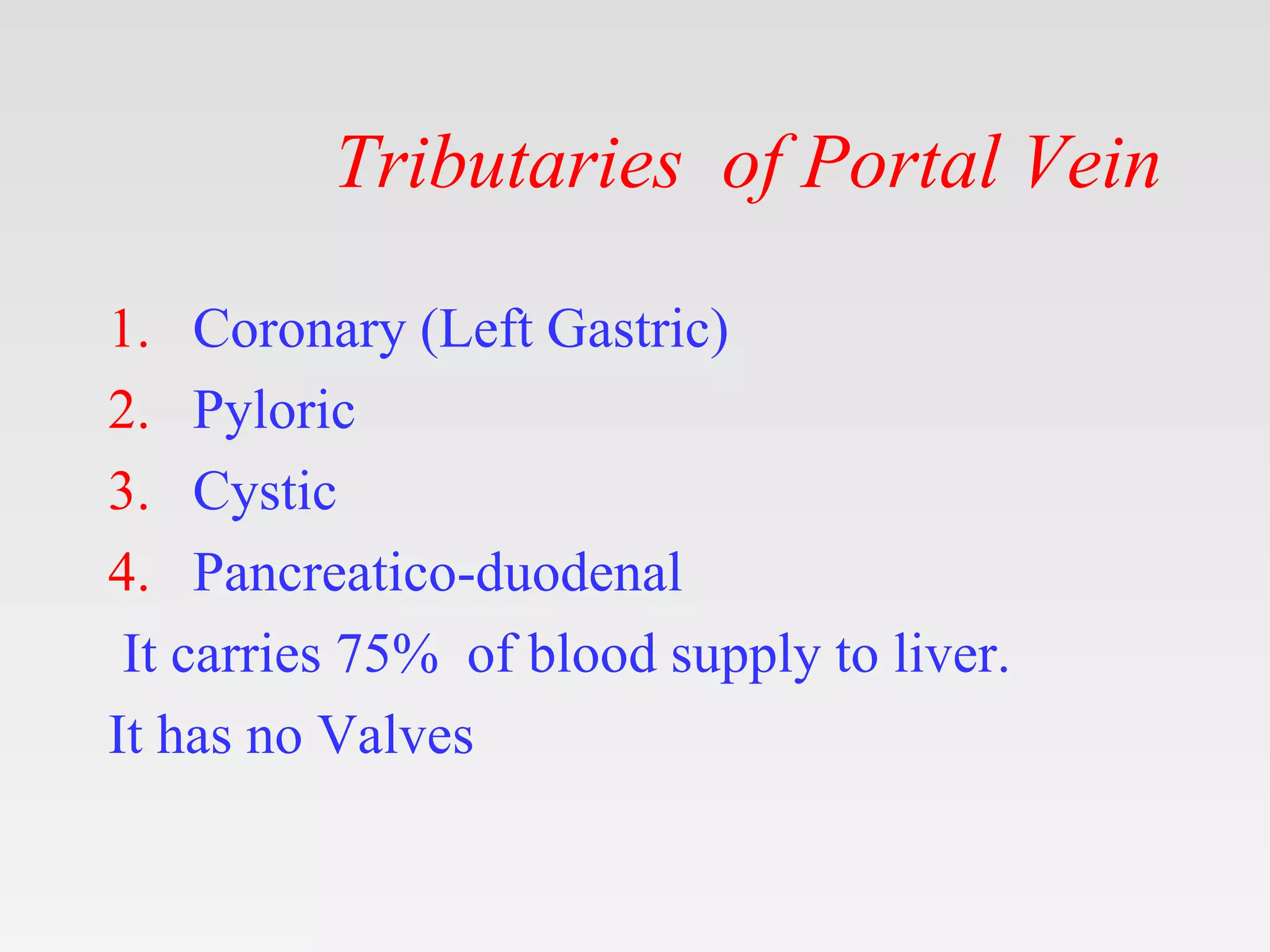

7. Tributaries of Portal Vein
1. Coronary (Left Gastric)
2. Pyloric
3. Cystic
4. Pancreatico-duodenal
It carries 75% of blood supply to liver.
It has no Valves

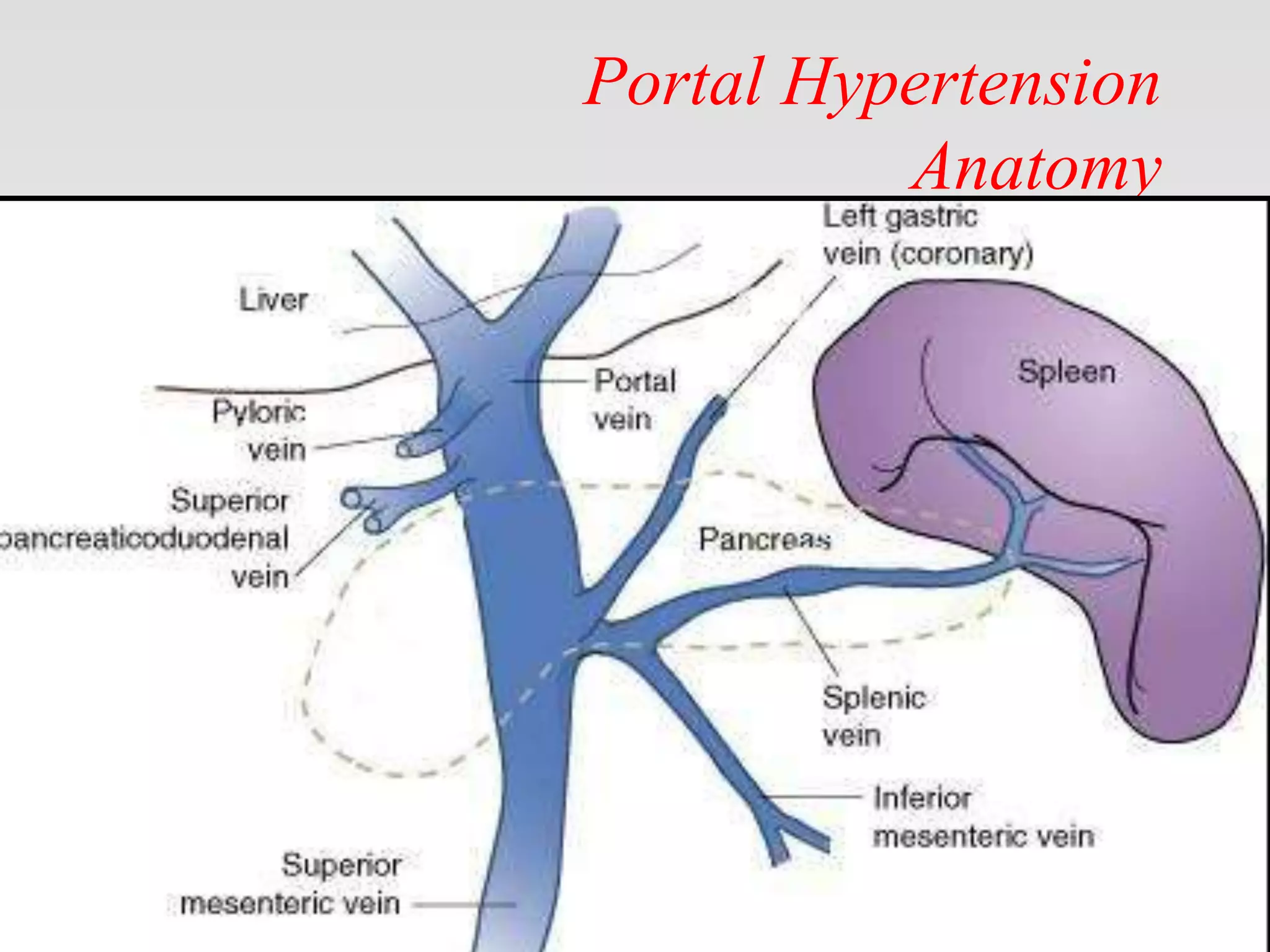

8. Portal Hypertension
Anatomy

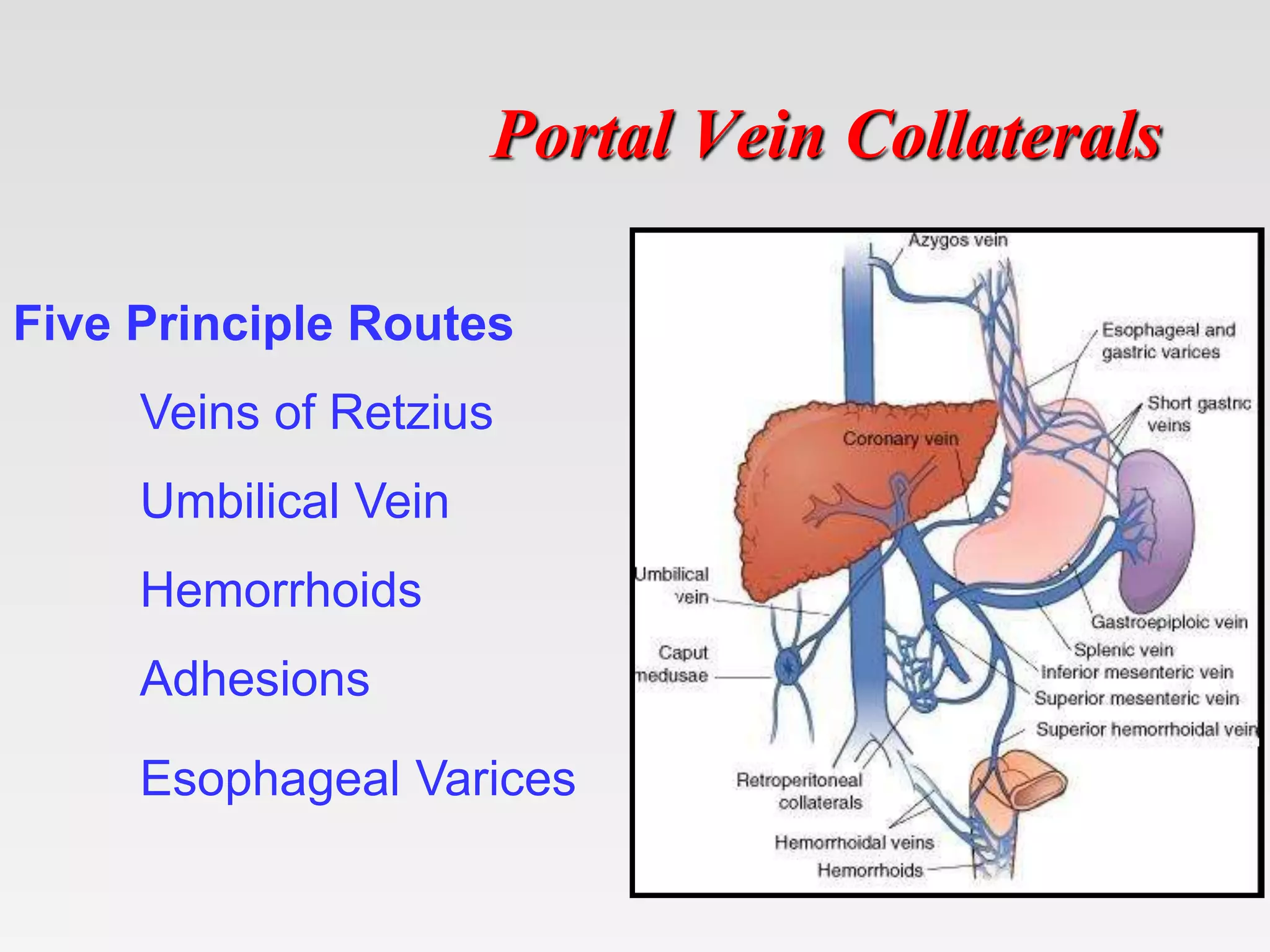

9. Portal Vein Collaterals
Five Principle Routes
Veins of Retzius
Umbilical Vein
Hemorrhoids
Adhesions
Esophageal Varices

10. Portal Vein Collaterals
Site Portal vein Systemic vein
Oesophageal Left Gastric, short
Gastric
Azygos
Caput meduse
(Cruveilhier-
Baumgarten bruit)
Umbilical and
Paraumbilical v.
Veins of Ant. Abd.
Wall
Rectum Superior Rectal Middle rectal
Splenorenal Splenic left renal via
Phrenic
Retroperitoneal Mesenteric &
peritoneal
Veins of Retzius

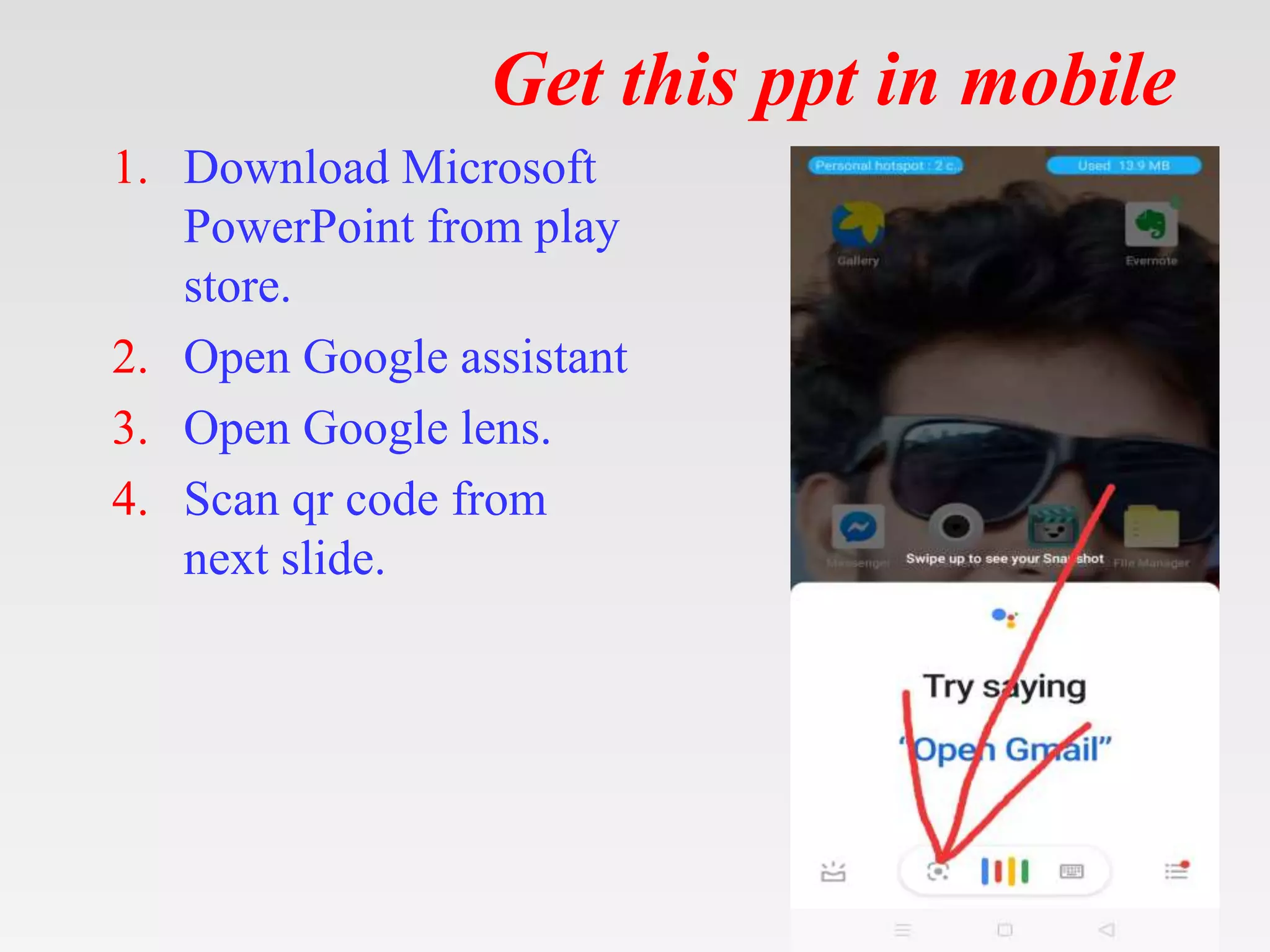

11. Get this ppt in mobile
1. Download Microsoft
PowerPoint from play
store.
2. Open Google assistant
3. Open Google lens.
4. Scan qr code from
next slide.

12. Get this ppt in mobile

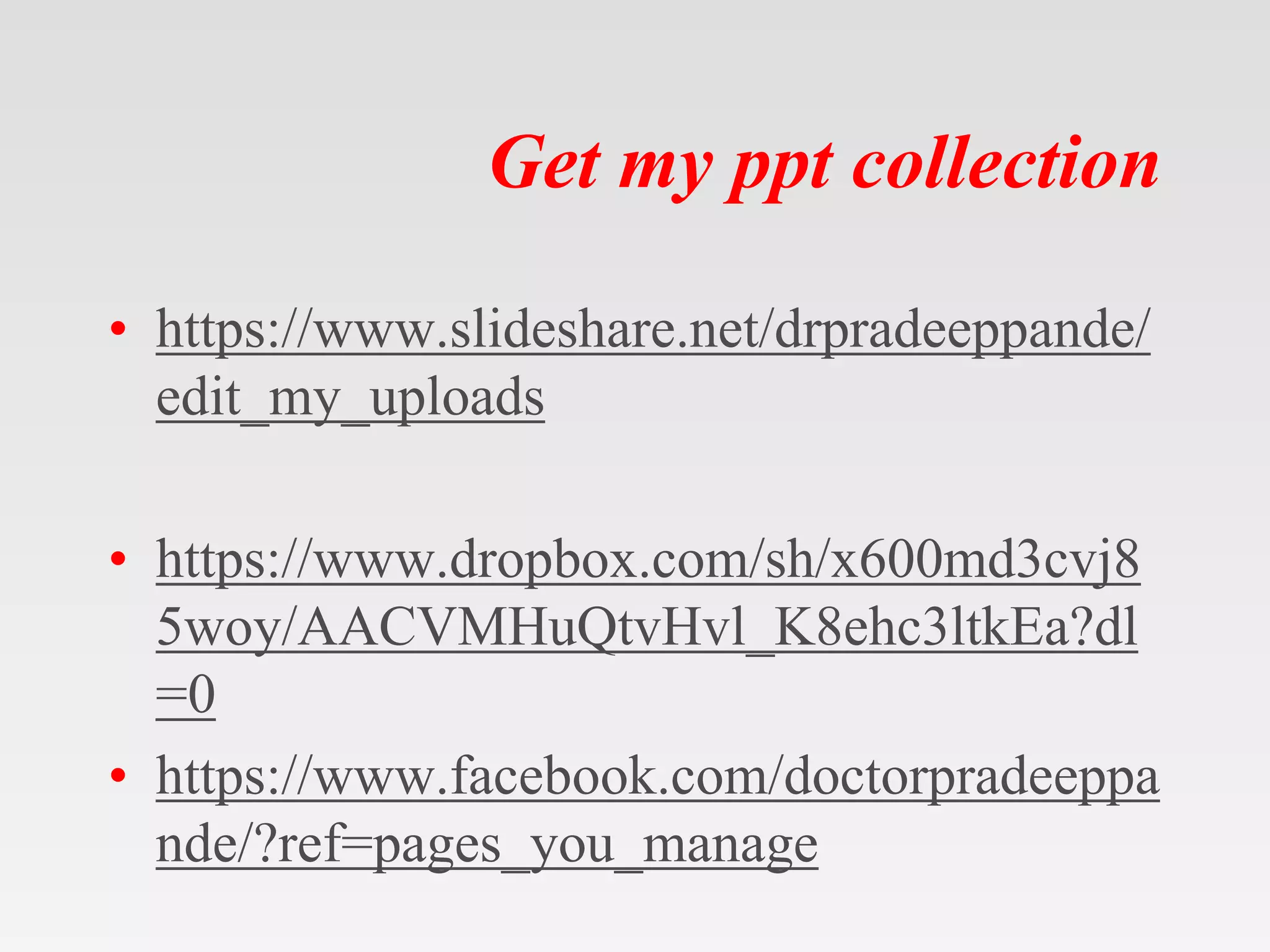

13. Get my ppt collection
