Portable Turbidity Meter quickly determines the number of suspended particles in water. Microprocessor-based circuitry assures high precise and repeatable readings. It uses an infrared light source and 90° scattering method, which is compliant with the ISO 7027 method. Portable design allows you to take measurement on-site instead of bringing solution back to the laboratory. 200 sets of data are stored and can be transferred to PC by USB communication interface.

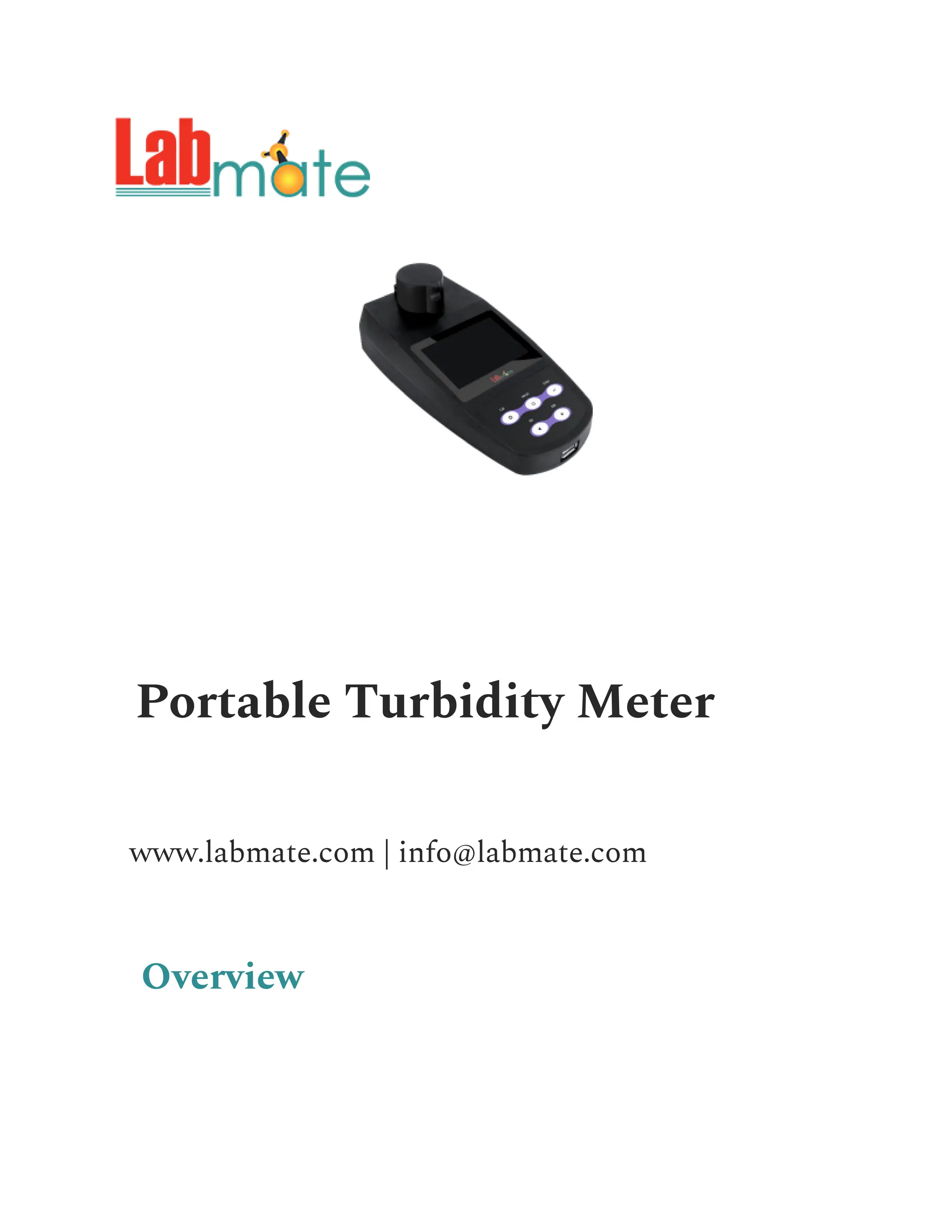

1. Portable Turbidity Meter
www.labmate.com | info@labmate.com
Overview

2. Portable Turbidity Meter quickly determines
the number of suspended partPortable
Turbidity Metericles in water.
Microprocessor-based circuitry assures high
precise and repeatable readings. It uses an
infrared light source and 90° scattering method,
which is compliant with the ISO 7027 method.
Portable design allows you to take
measurement on-site instead of bringing
solution back to the laboratory. 200 sets of data
are stored and can be transferred to PC by USB
communication interface. Single measurement
mode automatically recognizes the stable
readings.
Specifications :

3. Range 0 to 1100 NTU, 0 to 275 EBC, 0 to
9999 ASBC
Resoluti
on
0.01 (0 to 99 NTU), 0.1 (100 to 999
NTU), 1 (1000 to 1100 NTU)
Accurac
y
±2% of reading (0 to 500 NTU), ±3%
of reading (501 to 1100 NTU)
Calibrat
ion
Points
2 to 5 points
Calibrat
ion
0.02, 10, 200, 500, 1000 NTU

4. Standar
ds
Light
Source
Infrared-emitting diode (850 nm
wavelength)
Detector Silicon photodiode
Stray
Light
<0.02 NTU
Sample
Volume
30 ml
Memory Stores up to 100 data sets
Output USB communication interface

5. Display Custom LCD (60×40 mm)
Power 3×1.5V AA batteries or DC5V
power adapter
Auto-Po
wer Off
15 minutes after last key pressed
Dimensi
ons(L×
W×H)
180×85×70 mm
Weight 300 g
Features :

6. ​ - It accurately measures turbidity by the
intensity of reflected light
​ - Single measurement mode automatically
senses and locks a stable reading
​ - Continuous measurement mode is used
for indexing or matching the sample vials
​ - Auto power off effectively conserves
battery shelf life
​ - High-performance portable turbidity
meter meets the design criteria in ISO 7027
​ - Infrared light source is especially
supreme for testing solutions with color
Applications :
It is mainly used in drinking water, swimming
pool and also used for environmental
monitoring
