Benchtop Turbidity Meter

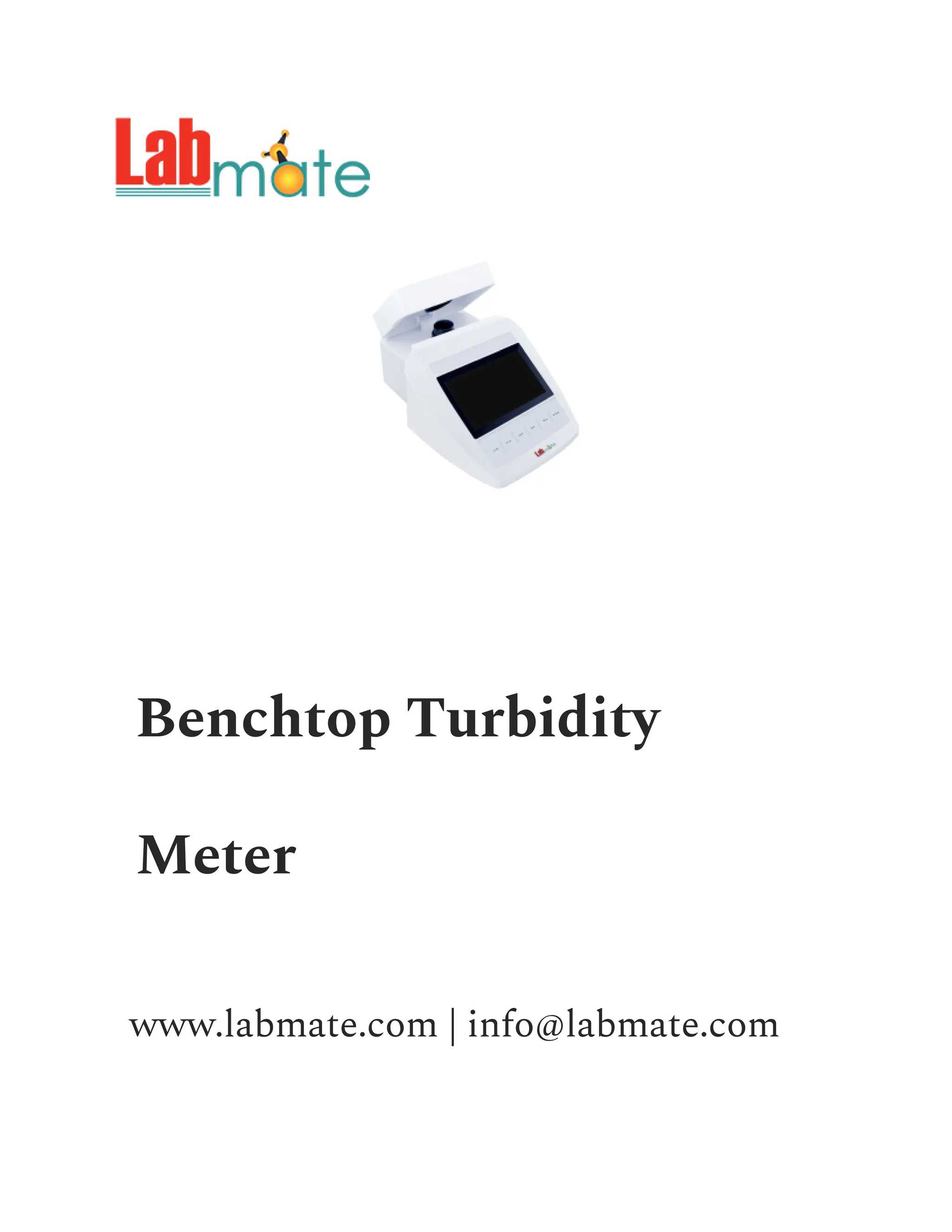

- 1. Benchtop Turbidity Meter www.labmate.com |info@labmate.com
- 2. Overview Benchtop TurbidityMeter isequipped with a 4.5 inches TFT display. TSS conversion factor ensures precise measurement of the total suspended solids. 200 sets of data are stored and can be transferred to computer by USB communication interphase. Password protection inhibits the unauthorized calibration and settings. It delivers highly precise results with better numerical calculations to meet GLP standards. Continuous
- 3. measurement mode isused for indexing and matching the sample vials. Specifications : Turbid ity Range 0 to 2000 NTU, 0 to 500 EBC, 0 to 9999 ASBC Turbid ity 0.01 (0 to 99 NTU), 0.1 (100 to 999 NTU), 1 (1000 to 2000 NTU)
- 4. Resolu tion Turbid ity Accur acy ±2% of reading(0 to 500 NTU), ±3% of reading (501 to 2000 NTU) Calibr ation Points 2 to 7 points
- 5. Calibr ation Standa rds 0.02, 10, 200,500, 1000, 1500, 2000 NTU TSS Range Depending on the TSS conversion factor TSS Resolu tion 0.1, 1

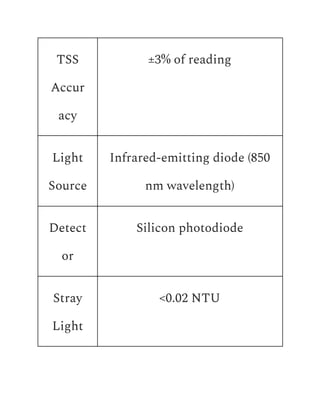

- 6. TSS Accur acy ±3% of reading Light Source Infrared-emittingdiode (850 nm wavelength) Detect or Silicon photodiode Stray Light <0.02 NTU

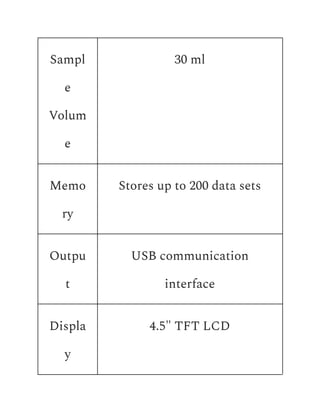

- 7. Sampl e Volum e 30 ml Memo ry Stores upto 200 data sets Outpu t USB communication interface Displa y 4.5" TFT LCD

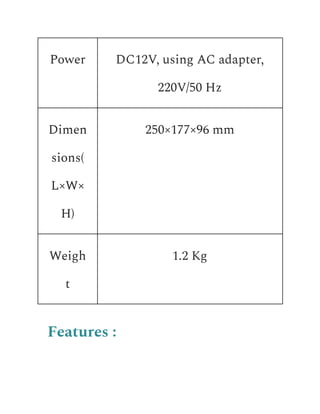

- 8. Power DC12V, usingAC adapter, 220V/50 Hz Dimen sions( L×W× H) 250×177×96 mm Weigh t 1.2 Kg Features :

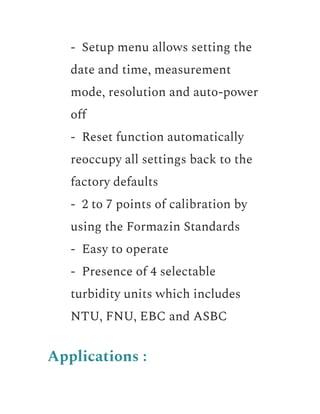

- 9. - Setupmenu allows setting the date and time, measurement mode, resolution and auto-power off - Reset function automatically reoccupy all settings back to the factory defaults - 2 to 7 points of calibration by using the Formazin Standards - Easy to operate - Presence of 4 selectable turbidity units which includes NTU, FNU, EBC and ASBC Applications :

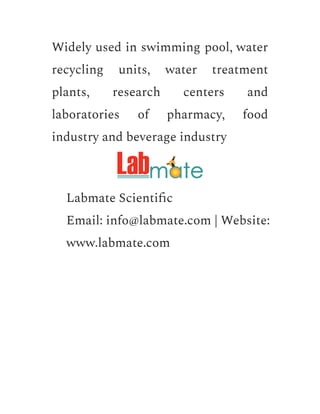

- 10. Widely used inswimming pool, water recycling units, water treatment plants, research centers and laboratories of pharmacy, food industry and beverage industry Labmate Scientific Email: info@labmate.com | Website: www.labmate.com
