Q-Gene Thermal Cycler is on-demand equipment with Peltier heating units which can process maximum 100 cycles. It can accommodate 16×0.2 ml (4×4 layout) sample with 0.2 ml single tube. We have advanced configuration of windows operations system and 5-inches TFT color touch-screen with graphical display. This device can be applied across a temperature range of 4 to100 °C with maximum ramping rate is 5 °C/s. It has unique approach to the user to secure his data using password and user login method. Offered with pre-installed 11 standard protocol broad and interfacing compatibility via USB, printer support.

1. Q-Gene Thermal Cycler
www.labmate.com | info@labmate.com
Overview
Q-Gene Thermal Cycler is on-demand equipment
with Peltier heating units which can process

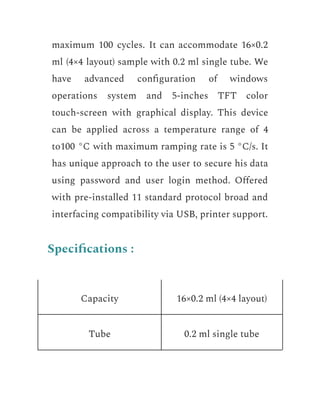

2. maximum 100 cycles. It can accommodate 16×0.2
ml (4×4 layout) sample with 0.2 ml single tube. We
have advanced configuration of windows
operations system and 5-inches TFT color
touch-screen with graphical display. This device
can be applied across a temperature range of 4
to100 °C with maximum ramping rate is 5 °C/s. It
has unique approach to the user to secure his data
using password and user login method. Offered
with pre-installed 11 standard protocol broad and
interfacing compatibility via USB, printer support.
Specifications :
Capacity 16×0.2 ml (4×4 layout)
Tube 0.2 ml single tube

3. Temperature Range 4 to 100 °C
Maximum. Heating
Rate
5 °C/s
Maximum. Cooling
Rate
4 °C/s
Uniformity ≤ ± 0.2 °C
Accuracy ≤ ± 0.2 °C
Display Resolution 0.1 °C
Temperature Control Block/ Tube

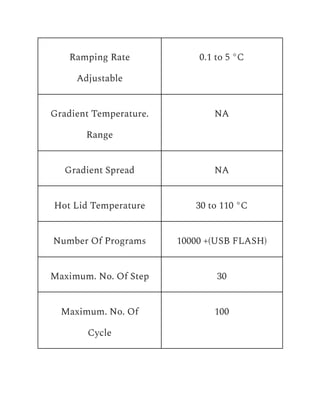

4. Ramping Rate
Adjustable
0.1 to 5 °C
Gradient Temperature.
Range
NA
Gradient Spread NA
Hot Lid Temperature 30 to 110 °C
Number Of Programs 10000 +(USB FLASH)
Maximum. No. Of Step 30
Maximum. No. Of
Cycle
100

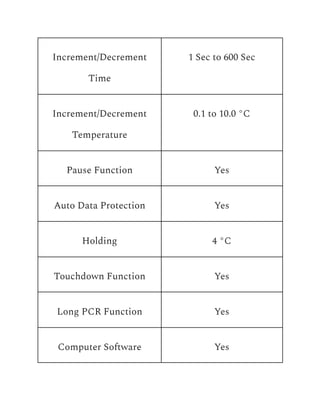

5. Increment/Decrement
Time
1 Sec to 600 Sec
Increment/Decrement
Temperature
0.1 to 10.0 °C
Pause Function Yes
Auto Data Protection Yes
Holding 4 °C
Touchdown Function Yes
Long PCR Function Yes
Computer Software Yes

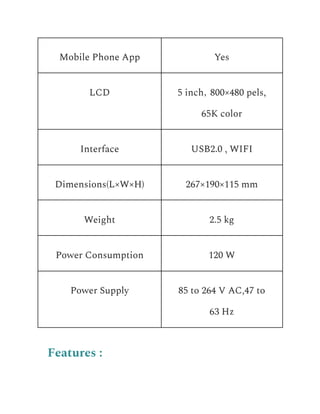

6. Mobile Phone App Yes
LCD 5 inch，800×480 pels,
65K color
Interface USB2.0 , WIFI
Dimensions(L×W×H) 267×190×115 mm
Weight 2.5 kg
Power Consumption 120 W
Power Supply 85 to 264 V AC,47 to
63 Hz
Features :

7. ​ - Uniform heating with 3 different
temperature of the samples is achieved with
Peltier heating units with maximum 100
cycles
​ - It is well built with anodizing technology
with aluminium block treatment which makes
the durable and corrosion resistant
​ - Maximum heating rate is 5 °C/s with
temperature range of 4 to 100 °C
​ - It has the capability to accommodate 16×0.2
ml (4×4 layout) and 32×0.2 ml (4×8 layout) with
moveable hot lid which can fit different sizes
of tubes
​ - It has the internal flash memory to store the
10000 files data for analysis
​ - The connectivity between computer is via
USB port and mini printer and can store the
GLP data after every step to get reliable
results

8. ​ - All the operations are controlled by a
computer software system which instrument
PCR protocols and also has in built 11
standard protocols
​ - It has power of operation recovery option
which helps in continuing the same command
after a recovering from power cut
​ - The user can access to his individual
experimental data by setting a password and
data management system
​ - To satisfy the customers need it is installed
with special feature like the user can add
sample while the process is going on to
encounter different variations
​ - The user will be sent notifications via email
about the process to alert when operation
ends
Applications :

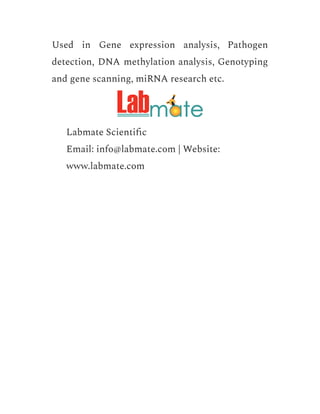

9. Used in Gene expression analysis, Pathogen
detection, DNA methylation analysis, Genotyping
and gene scanning, miRNA research etc.
