The dual block thermal cycler features 8 Peltier heating units for precise temperature control and can accommodate 96×0.2 ml samples, performing up to 100 PCR cycles. With a temperature range of 0 to 100 °C and a maximum heating rate of 5 °C/s, it offers fast operation through a Windows OS interface and mobile connectivity, while storing up to 10,000 PCR run data files. The device includes an 8-inch LCD for monitoring, supports various PCR protocols, and is designed for applications in gene expression analysis and pathogen detection.

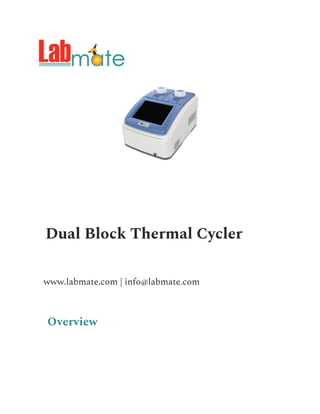

1. Dual Block Thermal Cycler
www.labmate.com | info@labmate.com
Overview

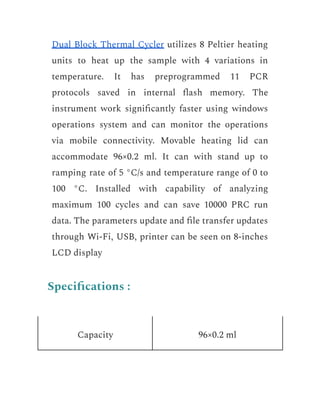

2. Dual Block Thermal Cycler utilizes 8 Peltier heating
units to heat up the sample with 4 variations in
temperature. It has preprogrammed 11 PCR
protocols saved in internal flash memory. The
instrument work significantly faster using windows
operations system and can monitor the operations
via mobile connectivity. Movable heating lid can
accommodate 96×0.2 ml. It can with stand up to
ramping rate of 5 °C/s and temperature range of 0 to
100 °C. Installed with capability of analyzing
maximum 100 cycles and can save 10000 PRC run
data. The parameters update and file transfer updates
through Wi-Fi, USB, printer can be seen on 8-inches
LCD display
Specifications :
Capacity 96×0.2 ml

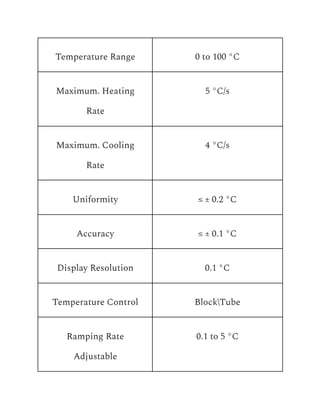

3. Temperature Range 0 to 100 °C
Maximum. Heating
Rate
5 °C/s
Maximum. Cooling
Rate
4 °C/s
Uniformity ≤ ± 0.2 °C
Accuracy ≤ ± 0.1 °C
Display Resolution 0.1 °C
Temperature Control BlockTube
Ramping Rate
Adjustable
0.1 to 5 °C

4. Gradient Uniformity NA
Gradient Accuracy NA
Gradient Temperature.
Range
NA
Gradient Spread NA
Hot Lid Temperature 30 to 110 °C
Hot Lid Height
Adjustable
Step less Adjustable
No. Of Programs 10000 +(USB FLASH)
Maximum. No. Of Step 30

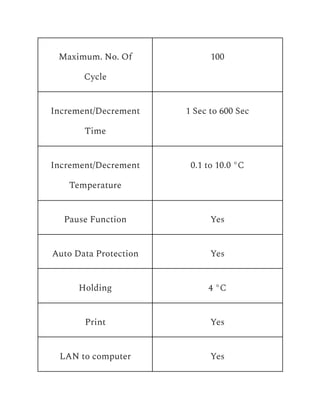

5. Maximum. No. Of
Cycle
100
Increment/Decrement
Time
1 Sec to 600 Sec
Increment/Decrement
Temperature
0.1 to 10.0 °C
Pause Function Yes
Auto Data Protection Yes
Holding 4 °C
Print Yes
LAN to computer Yes

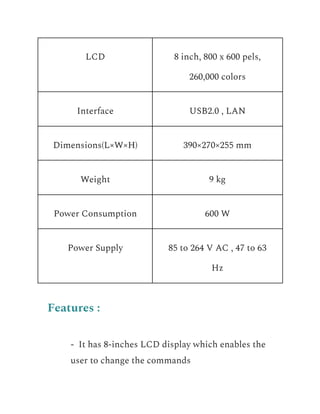

6. LCD 8 inch, 800 x 600 pels,
260,000 colors
Interface USB2.0 , LAN
Dimensions(L×W×H) 390×270×255 mm
Weight 9 kg
Power Consumption 600 W
Power Supply 85 to 264 V AC , 47 to 63
Hz
Features :
​ - It has 8-inches LCD display which enables the
user to change the commands

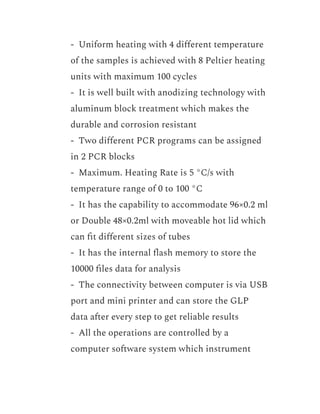

7. ​ - Uniform heating with 4 different temperature
of the samples is achieved with 8 Peltier heating
units with maximum 100 cycles
​ - It is well built with anodizing technology with
aluminum block treatment which makes the
durable and corrosion resistant
​ - Two different PCR programs can be assigned
in 2 PCR blocks
​ - Maximum. Heating Rate is 5 °C/s with
temperature range of 0 to 100 °C
​ - It has the capability to accommodate 96×0.2 ml
or Double 48×0.2ml with moveable hot lid which
can fit different sizes of tubes
​ - It has the internal flash memory to store the
10000 files data for analysis
​ - The connectivity between computer is via USB
port and mini printer and can store the GLP
data after every step to get reliable results
​ - All the operations are controlled by a
computer software system which instrument

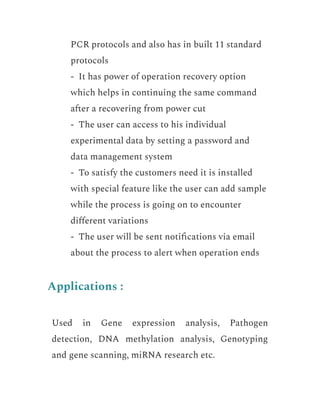

8. PCR protocols and also has in built 11 standard
protocols
​ - It has power of operation recovery option
which helps in continuing the same command
after a recovering from power cut
​ - The user can access to his individual
experimental data by setting a password and
data management system
​ - To satisfy the customers need it is installed
with special feature like the user can add sample
while the process is going on to encounter
different variations
​ - The user will be sent notifications via email
about the process to alert when operation ends
Applications :
Used in Gene expression analysis, Pathogen
detection, DNA methylation analysis, Genotyping
and gene scanning, miRNA research etc.
