1. Multi-Channel Data Logger
www.labmate.com | info@labmate.com
Overview
Unleash precision with the Multi-Channel Data Logger,
a beacon of innovation. Featuring a universal input

2. system supporting TCs, RTDs, mA, VDC, mV, and
frequency inputs. It effortlessly handles the diverse
needs of industries with its 48-channel capacity. Elevate
your measurements with enhanced flow totalization,
backed by temperature and pressure compensation. In
terms of industrial data logging, the gadget establishes a
new standard for ease and accuracy
Specifications :
Input
Channels
1 to 48
Thermocou
ple (TC)
input
K, J, T, E, R, S, B, N, Wre526, Wre325
RTD Input Pt100, CU50, CU100

3. Analog
Input
4-20 mA, 0-10 mA, 0-5 V, 1-5 V, 0-10
VDC
mV Input 0-20 mV, 0-60 mV, 0-100 mV, 0-500 mV
Working
ambient
Temperature: 0-50 ℃, Humidity: 10%-85
% (No dew)
Frequency
input
0-5 KHz, 3 Channel
Isolation photoelectric isolation
Accuracy ± (0.2%FS +1) digital
Resolution 0.1 ℃ when temperature input
Sample time 1 second per 8 channels

4. Data
Storage
Capacity
180 days × Record Interval Time/CH
number
RTD
Inp
ut
Ty
pe
Measure
d Range
Input
Independe
nce
Pt1
00
-200 to
600℃
>20 MΩ
CU
50
-50
to150℃
>20 MΩ

5. TC
Inp
ut
Ty
pe
Measure
d Range
Input
Independe
nce
CU
100
-50 to150
℃
>20 MΩ
K -50 to
1300 ℃
>20 MΩ
J 0 to 1000
℃
>20 MΩ
T -200 to
350 ℃
>20 MΩ

6. E 0 to 800
℃
>20 MΩ
R -50 to
1700 ℃
> 20 MΩ
S -50 to
1700 ℃
> 20 MΩ
B 300 to
1800 ℃
>20 MΩ
N 0 to 1300
℃
>20 MΩ

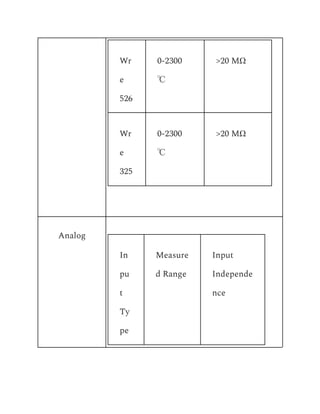

7. Wr
e
526
0-2300
℃
>20 MΩ
Wr
e
325
0-2300
℃
>20 MΩ
Analog
In
pu
t
Ty
pe
Measure
d Range
Input
Independe
nce

8. 4-2
0
m
A
-20000
to 20000
250 Ω
0-1
0
m
A
-20000
to 20000
500 Ω
0-5
V
D
C
-20000
to 20000
500 KΩ
1-5
V
-20000
to 20000
500 KΩ

9. D
C
mV
In
pu
t
Ty
pe
Measur
ed
Range
Input
Independ
ence
0-
60
m
V
-20000
to
20000
>20 MΩ

10. 0-
10
0
m
V
-20000
to
20000
>20 MΩ
Display 10.4-inch color TFT LCD
LCD
Resolution
640 × 480
Interval
time
1-3600 seconds, set flexibly
Insulation Power to ground (Housing > 1500 VAC)

11. Case
material
Metal for case and bezel
Mounting Panel flush mounting
Power
Supply
100-240 VAC, 47-63 Hz
Power 20 W
Dimension 288 × 288 × 180 mm
Net Weight 8.0 Kg
Features :
​ - Achieves high accuracy for reliable measurement
​ - TFT LCD display for clear and precise readings

12. ​ - Integrated thermocouple automatic cold junction
correction for better accuracy
​ - Provides mathematical function
​ - Memory Flash Drive Data Saving feature enables
flexible data management
​ - Durability is ensured by the sturdy metal casing
and bezel construction
Applications :
Multi-Channel Data Logger LMMCD-A100 finds
applications across diverse industries, including
manufacturing, energy, and pharmaceuticals, enabling
precise and comprehensive monitoring.
​ Labmate Scientific
​ Email: info@labmate.com | Website:
www.labmate.com
