- 1. 196 Page 1- WINTER COVERWITH BANDS 2- WINTER COVER WITH BINARY 3- WINTER COVER WITH LOOP 4- ACCESSORIES FOR WINTER COVER 5- EUROCOVER PUMP 6- WINTER COVER SPECIAL 7- THERMAL COVER 8- WINDING ROLLERS 9- SAFETY COVERS WITH BAR CALYPSO - MAMBO 10- AUTOMATIC SAFETY COVER ABRIBLU 11- SLATS FOR COMPARTMENT COVER 198 198 199 199 199 200 200 201 201 202 205
- 2.
- 3. Pool Covers 198 1- WINTER COVERWITH BANDS • Winter cover made in polyethylene sealed green/black anchor system with tubular and bolts in PE. • Weight 220 gr/m² • Tubular made in waterproof armed PVC. DESCRIPTION CODE 600600220 600600221 600600222 600600223 600600226 600600227 600600228 600600229 609600012 Winter cover p/tubolar square Winter cover p/tubolar roman ladder Winter cover p/tubolar free form Tubular armed in kit Standard tubular 1.5 ml Standard tubular 2.0 ml Standard tubular 2.5 ml Standard tubular 3.0 ml Bolds with clip winter cover 2- WINTER COVER WITH BINARY • Winter cover made in polyethylene sealed green/black anchor system with tubular and bolts in PE. • Weight 220 gr/m². • Tubular made in waterproof armed PVC. • Outer tubular made in armed tissue. DESCRIPTION CODE * To properly determine the cost of the coverage add 1.5 m on the length and the width of the pool. Cover for tubular binary square Cover for tubular binary roman ladder Cover for tubular binary free form Cover kit for tubular binary at measure Cover armed tubular binary 1.5 Ml Cover armed tubular binary 2.0 Ml Cover armed tubular binary 2.5 Ml Cover armed tubular binary 3.0 Ml Hook for cover up binary 600600200 600600201 600600202 600600204 600600205 600600206 600600207 600600208 609600013
- 4. 199 13 3- WINTER COVERWITH LOOP DESCRIPTION CODE 600600215 600600216 600600217 600600237 Cover winter cover loop+string square Cover winter cover loop+string roman ladder Cover winter cover loop+string free form Winter cover with loop 380gr 4- ACCESSORIES FOR WINTER COVER DESCRIPTION CODE Drainage Elastic rope for cover Picket PVC 30cm Anchor peg inox Anchoring bush for peg Peg-disappearance in brass Spring for winter cover Gizzmo save-skimmer 600600203 600600240 600600241 600600242 600600243 600600244 600600245 600600247 5- EUROCOVER PUMP • Electric pump totally constructed in thermoplastic water resistant material. • Motor, motor shaft and hardware in stainless steel. • Triple interposed ring seal with oil pre-chamber. • Integrated float for automatic operation, inserted in special housing accessible for seasonal cleaning when required. • Continuous duty asynchronous submersible motor. • Stator inserted in a stainless steel enclosure and covered with a cap to enclose wiring and capacitor. • IP68 Protection rating. Insulation class: F • Supply voltage: single-phase 230v 50Hz • Supplied with 10m cable and schuko socket, 10m cord to facilitate positioning above covers and a multi-hose fitting with clapped valve to simplify installation further. CODE 100100350
- 5. Pool Covers 200 6- WINTER COVERSPECIAL • Coverage that allows the passage of water but not the light. structure formed by a fine network 15g/m². • Green color. • Rreinforced rim and loop in every meter. • Complete with elastic cord D.8mm formed by a network. • Network coverage with high-strength made in polyethylene 212 g/m². • Light blue color. • Filtering structure for light and water. • Reinforced sides and edges with ribbon tie sewn. • Horizontal and vertical reinforcement belts every 2m with applied ring anchoring. DESCRIPTION CODE 600600235 Network square cover with loop+ cord DESCRIPTION CODE 600600236 600600238 Network reinforced cover Winter cover tubular 380gr 7- THERMAL COVER • Cover in air bubbles, made in double polyethylene sheet low density. • Light blue color, semi-trasparent, UV treated, chlorine, ozone. • PE blue in the ends edging, with loop every 50cm on the side of the roller tube. • Available in 2 weights 360 g/m² and 540 g/m². • Install with the side bubbles coupled with the water. DESCRIPTION CODE 600600300 600600301 600600302 Bollyterm cover square Bollyterm cover 540gr Bollyterm cover free form DESCRIPTION CODE 600600303 600600304 600600309 600600310 Insulated cover 5mm square Insulated cover 5mm shaped Tow floating rope d.8mm Tow floating with tube • Insulated cover, coupled with mousse in PE a closed cell, thickness 5mm 400g/m². • UV treated, chlorine, ozone. • Eyelets every 50cm on the side of roller tube and slotted on the opposite side of tube floating. • Reinforced outer edges • Install with the side bubbles coupled with the water.
- 6. DESCRIPTION CODE 600600505 201 13 8- WINDING ROLLERS DESCRIPTION CODE 600600500 600600502 600600501 600600503 600600020 600600021 Windingrollers 2.5/4.5m without support Winding rollers 4.3/5.7m without support Winding rollers 5.3/6.9m without support Winding rollers with support + wheels Kit 10 elastics for winding rollers Kit of 4 belts for winding rollers • Telescopic aluminum tube Ø110 mm complete with drag straps and handle. • Height from ground to the center tube 50 cm. • To match with INOX lateral support with wheels. • Winding rollers for swimming pool with maximum size 8x16mt. • Lateral support in INOX with supporting wheels. • Telescopic aluminum tube D. 110mm, height from ground to the center tube 430mm, supplied with 13 straps drag, D 320 mm wheel with crank. • Steering wheel D 320 mm with handle. Winding rollers 7.00>8.00 Mt complete 9- SAFETY COVERS WITH BAR CALYPSO - MAMBO • Calypso is made of reinforced polyester fabric UV-treated (650g/m²) and painted anti-chlorine on both surfaces. • Calypso has a bar and loop of the same color of the cover and supplied on the long sides of a stainless steel cable covered with PVC which stiffens the edges avoiding the passage of objects under the cover. • Calypso is in according with legislation French standard NF P 90-308. • Available in light blue, green, sand, gray. • Max. swimming pool size: 5x10m, to be completed with manual or electric winder. • Winder for safety covers MAMBO or CALYPSO, available in manual or motorized (with 12V battery and charger). DESCRIPTION CODE 600600350 600600351 600600353 600600354 600600362 600600363 Cover bar CALYPSO < 4.45 Cover bar CALYPSO < 5.45 Cover bar Mambo <4.45 Cover bar Mambo <5.45 Electrical winder cover bar Manual winder cover bar CALYPSO MAMBO

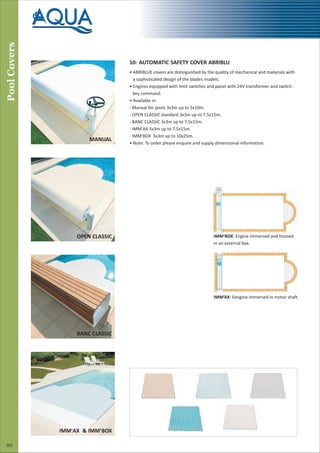

- 7. Pool Covers 202 10- AUTOMATIC SAFETYCOVER ABRIBLU • ABRIBLUE covers are distinguished by the quality of mechanical and materials with a sophisticated design of the blades models. • Engines equipped with limit switches and panel with 24V transformer and switch- key command. • Available in: - Manual for pools 3x3m up to 5x10m. - OPEN CLASSIC standard 3x3m up to 7.5x15m. - BANC CLASSIC 3x3m up to 7.5x15m. - IMM'AX 3x3m up to 7.5x15m. - IMM'BOX 3x3m up to 10x25m. • Note: To order please enquire and supply dimensional information. IMM’AX: Eengine immersed in motor shaft. IMM'BOX: Engine immersed and housed in an external box. MANUAL OPEN CLASSIC BANC CLASSIC IMM'AX & IMM'BOX
- 8. 203 13 MANUAL OPEN CLASSIC • Conformingto standards: The Abriblue covers conform to French standards NF P-308 and installed more than 50,000 covers. • Economical: Reduces evaporation. Better retention of heat for longer swimming season. Reduces chemical consumption. • Practical: Cover opens and closes in a few minutes. • Peace of Mind: Rest assured that when your cover is closed, it is securely closed. • Quality Materials: The cover surface is constructed from the height quality parts to ensure a lifetime of trouble free operation. • Fast and Simple Installation • Suitable for existing or under constructions pools • Quality Finish: 3 year guarantee with 5 year anti-corrosion warranty. • Conforming to Standards: The Abriblue covers conform to French standards NF P-308 and installed more than 50,000 covers. • Economical: Reduces evaporation. Better retention of heat for longer swimming season. Reduces chemical consumption. • Peace of mind: Rest assured that when your cover is closed, it is securely closed. • Quality materials: The cover surface is constructed from the height quality parts to ensure a lifetime of trouble free operation. • Types of fixation: Two operation available for mounting uprights: either on a flat surface or utilizing a base plat which can be adjusted for uneven surfaces • Practical: Cover opens and closes within 3 minutes with one turn of the key. • Quality Finish: 3 year guarantee with 5 year anti- corrosion warranty. • Calibrated positioning: The start and end positioning and calibrated for ease of operation to automatically open and close the cover to its exact distance • Protected motor • Electric key remote operation • Fast and simple installation • Suitable for existing or under constructions pools • Versatile adjust mounting: Adjustable base to fit onto coping stones and uneven surfaces
- 9. Pool Covers 204 BANC CLASSIC IMM'AX • Conformingto standards: The Abriblue covers conform to French standards NF P-308 and installed more than 50,000 covers. • Economical: Reduces evaporation. Better retention of heat for longer swimming season. Reduces chemical consumption. • Practical: Cover opens and closes within 3 minutes with one turn of the key. • Peace of Mind: Rest assured that when your cover is closed, it is securely closed • Quality materials: The over surface is constructed from the height quality parts to ensure a lifetime of trouble free operation • Fast and simple installation • Suitable for existing or under constructions pools • Quality Finish: 3 year guarantee with 5 year anti- corrosion warranty. • Calibrated Positioning: The start and end positioning and calibrated for ease of operation to automatically open and close the cover to its exact distance. • Protected Motor • Electric Key Remote Operation • Conforming to standards: The Abriblue covers conform to French standards NF P-308 and installed more than 50,000 covers. • Economical: Reduces evaporation. Better retention of heat for longer swimming season. Reduces chemical consumption. • Practical: Cover opens and closes within 3 minutes with one turn of the key. • Peace of Mind: Rest assured that when your cover is closed, it is securely closed • Quality materials: The over surface is constructed from the height quality parts to ensure a lifetime of trouble free operation • Fast and simple installation • Suitable for existing or under constructions pools • Quality Finish: 3 year guarantee with 5 year anti- corrosion warranty. • Calibrated Positioning: The start and end positioning and calibrated for ease of operation to automatically open and close the cover to its exact distance. • Protected Motor • Electric Key Remote Operation
- 10. 205 13 DESCRIPTION CODE 600600437 600600440 600600445 600600449 600600452 11- SLATS FORCOMPARTMENT COVER • Module compartment cover for rolling shutters, available in PVC (white or sand), aluminum (white sand) and untreated exotic wood. • Standard thickness 3cm width 67.5-85-92.5 Slats alluminium white at measure Slats alluminium sand at measure Slats exotic wood at measure Slats PvC white at measure Slats PvC sand at measure IMM'BOX • Conforming to standards: The Abriblue covers conform to French standards NF P-308 and installed more than 50,000 covers. • Economical: Reduces evaporation. Better retention of heat for longer swimming season. Reduces chemical consumption. • Practical: Cover opens and closes within 3 minutes with one turn of the key. • Peace of Mind: Rest assured that when your cover is closed, it is securely closed • Quality materials: The over surface is constructed from the height quality parts to ensure a lifetime of trouble free operation • Fast and simple installation • Suitable for existing or under constructions pools • Quality Finish: 3 year guarantee with 5 year anti- corrosion warranty. • Calibrated Positioning: The start and end positioning and calibrated for ease of operation to automatically open and close the cover to its exact distance. • Protected Motor • Electric Key Remote Operation
