1. Products Solutions Services
Application / FunctionOverview Technical data Dimensions
Electrical connection
Go to
shopContactAccessories Price table

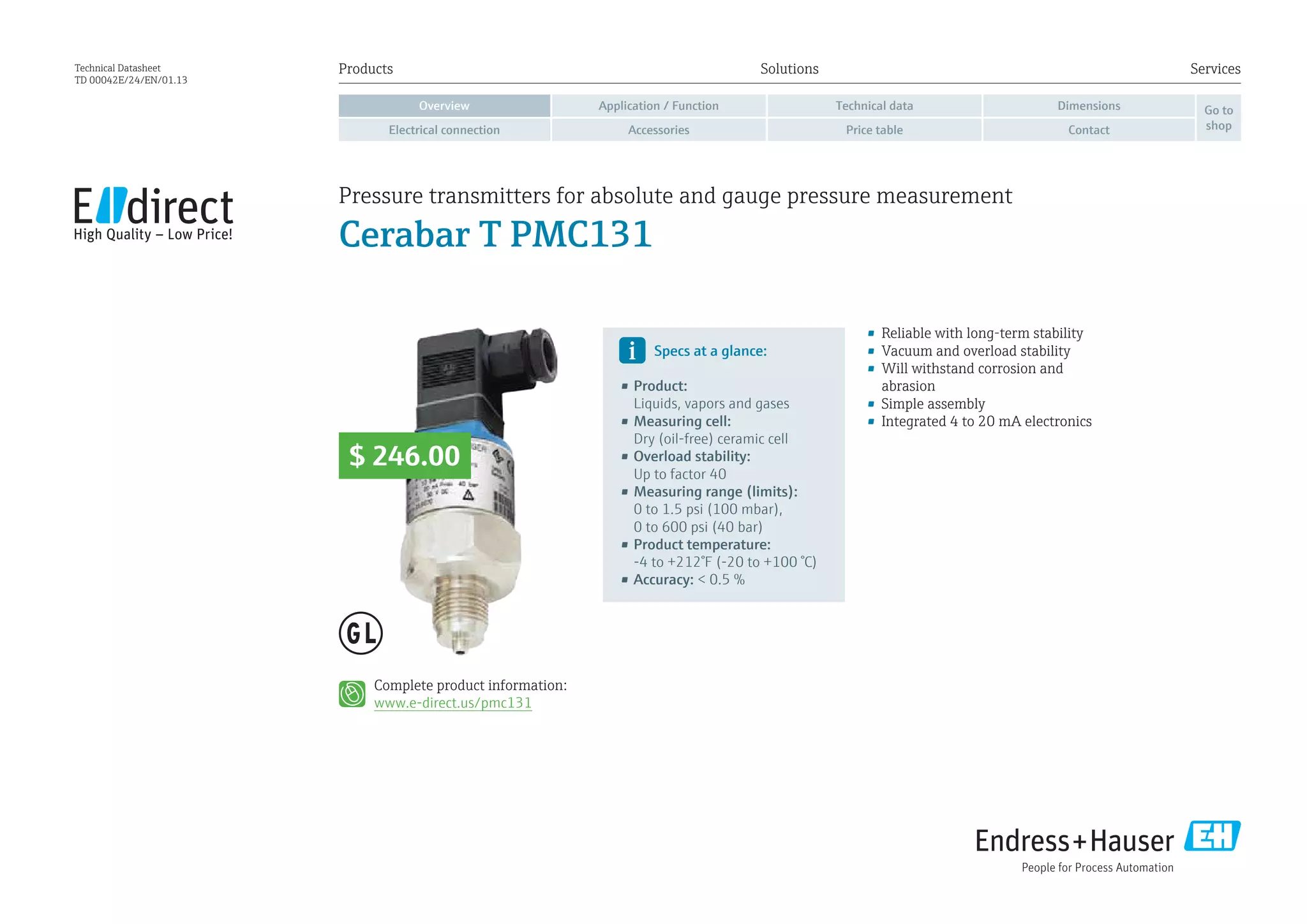

Technical Datasheet
TD 00042E/24/EN/01.13
• Reliable with long-term stability
• Vacuum and overload stability
• Will withstand corrosion and
abrasion
• Simple assembly
• Integrated 4 to 20 mA electronics
Complete product information:
www.e-direct.us/pmc131
Specs at a glance:
• Product:
Liquids, vapors and gases
• Measuring cell:
Dry (oil-free) ceramic cell
• Overload stability:
Up to factor 40
• Measuring range (limits):
0 to 1.5 psi (100 mbar),
0 to 600 psi (40 bar)
• Product temperature:
-4 to +212°F (-20 to +100 °C)
• Accuracy: < 0.5 %
Pressure transmitters for absolute and gauge pressure measurement
Cerabar T PMC131
$ 246.00

2. 4 to 20 mA
Auxiliary energy
(e.g. RN221N)
Cerabar T PMC131 2Contact
Overview Technical data Dimensions
Electrical connection Accessories Price table
Go to
shop
Application / Function

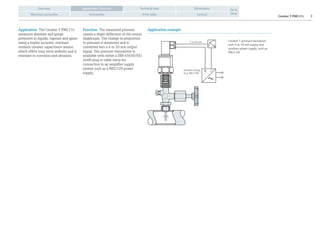

Application The Cerabar T PMC131
measures absolute and gauge
pressures in liquids, vapours and gases
using a highly accurate, overload
resilient ceramic capacitance sensor,
which offers long-term stability and is
resistant to corrosion and abrasion.
Application exampleFunction The measured pressure
causes a slight deflection of the sensor
diaphragm. The change in proportion
to pressure is measured and is
converted into a 4 to 20 mA output
signal. The pressure transmitter is
available with either a DIN 43650/ISO
4400 plug or cable entry for
connection to an amplifier supply
system such as a RN221N power
supply.
Cerabar T pressure transducer
with 4 to 20 mA output and
auxiliary power supply, such as
RN221N.

3. Cerabar T PMC131 3Contact
Application / FunctionOverview Dimensions
Electrical connection Accessories Price table
Go to
shop

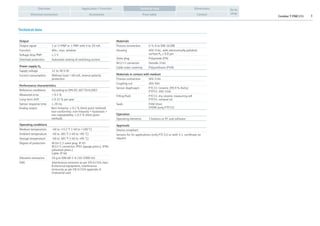

Technical data
Technical data
Output
Output signal 1 or 2×PNP or 1 PNP with 4 to 20 mA
Function Min., max. window
Voltage drop PNP ≤ 2 V
Overload protection Automatic testing of switching current
Power supply Ub
Supply voltage 12 to 30 V DC
Current consumption Without load < 60 mA, reverse polarity
protection
Performance characteristics
Reference conditions According to DIN IEC 60770/61003
Measured error < 0.5 %
Long-term drift ≤ 0.15 % per year
Sensor response time ≤ 20 ms
Analog output Non-linearity: ≤ 0.2 % (limit point method)
non-conformity: non-linearity + hysteresis +
non-repeatability: ≤ 0.5 % (limit point
method)
Operating conditions
Medium temperature -40 to +212 °F (-40 to +100 °C)
Ambient temperature -40 to 185 °F (-40 to +85 °C)
Storage temperature -40 to 185 °F (-40 to +85 °C)
Degree of protection M16×1.5 valve plug: IP 65
M12×1 connector: IP65 (gauge press.), IP66
(absolute press.)
Cable: IP 66
Vibration resistance 20 g to DIN 68-2-6 (10-2000 Hz)
EMC Interference emission as per EN 61326 class
B electrical equipment, interference
immunity as per EN 61326 appendix A
(industrial use)
Materials
Process connection G ½ A to DIN 16288
Housing AISI 316L, with electronically polished
surface Ra ≤ 0.8 µm
Valve plug Polyamide (PA)
M12×1 connector Outside 316L
Cable outer covering Polyurethane (PUR)
Materials in contact with medium
Process connection AISI 316L
Coupling nut AISI 304
Sensor diaphragm PTC31: Ceramic (99,9 % Al2O3)
PTP31: AISI 316L
Filling fluid PTC31: dry ceramic measuring cell
PTP31: mineral oil
Seals FKM Viton
EPDM (only PTP31)
Operation
Operating elements 3 buttons or PC and software
Approvals
Desina compliant
Sensors for O2-applications (only PTC31) or with 3.1. certificate on
request.

4. Cerabar T PMC131 4Contact
Application / FunctionOverview Technical data
Price table
Go to
shopAccessoriesElectrical connection

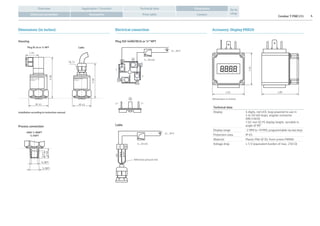

Dimensions
Dimensions (in inches) Electrical connection Accessory: Display PHX20
Plug M 16 or ½ NPT
Installation according to instruction manual.
Housing
Cable
ENDRESS+HAUSER
CERABAR T
ENDRESS+HAUSER
CERABAR T
1.26
AF 41
3.98
AF 41
3.58
Pg 11
ANSI ½ MNPT
¼ FNPT
Process connection
½ NPT
¼ NPT
0.47
0.98
12...30 V
4...20 mA
1+ 2–
1
2
–
+
Plug ISO 4400/M16 or ½" NPT
–
+
+ –
red
black
green
4…20 mA
12…30 V
Reference pressure line
Cable
1.65
1.65
(Dimensions in inches)
1.89
Technical data
Display 4 digits, red LED, loop powered to use in
4 to 20 mA loops, angular connector
DIN 43650
7.62 mm (0.3") display height, turnable in
angle of 90°
Display range -1 999 to +9 999, programmable via two keys
Protection class IP 65
Material Plastic PA6 GF30, front screen PMMA
Voltage drop ≤ 5 V (equivalent burden of max. 250 Ω)

5. Cerabar T PMC131 5Contact
Application / FunctionOverview Technical data Dimensions
Electrical connection Accessories
Go to
shopPrice table

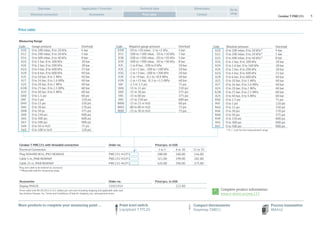

Price table
Cerabar T PMC131 with threaded connection Order no. Price/pcs. in USD
Electrical Connection 1 to 5 6 to 10 11 to 35
Plug ISO4400 M16, IP65 NEMA4X PMC131-A12F1 280.00 260.00 246.00
Cable 5 m, IP68 NEMA6P PMC131-A32F1 321.00 299.00 282.00
Cable 25 m, IP68 NEMA6P PMC131-A42F1 426.00 396.00 375.00
Plug and cable to be ordered as ‘accessory’
* Please add code for measuring range.
Accessories Order no. Price/pcs. in USD
Display PHX20 52022914 222.00
Prices valid until 09.30.2013 in U.S. dollars per unit (not including shipping and applicable sales tax).
See Endress+Hauser, Inc. Terms and Conditions of Sale for shipping, tax, and payment terms.
*
More products to complete your measuring point …
Measuring Range
Code Gauge pressure Overload
D10 0 to 100 mbar, 0 to 10 kPa 4 bar
D12 0 to 200 mbar, 0 to 20 kPa 5 bar
D14 0 to 400 mbar, 0 to 40 kPa 8 bar
A1G 0 to 1 bar, 0 to 100 kPa 10 bar
A1K 0 to 2 bar, 0 to 200 kPa 18 bar
A1Q 0 to 4 bar, 0 to 400 kPa 25 bar
A1R 0 to 6 bar, 0 to 600 kPa 40 bar
A1S 0 to 10 bar, 0 to 1 MPa 40 bar
A1T 0 to 16 bar, 0 to 1.6 MPa 40 bar
A1V 0 to 20 bar, 0 to 2 MPa 40 bar
A1W 0 to 25 bar, 0 to 2.5 MPa 60 bar
A1X 0 to 40 bar, 0 to 4 MPa 60 bar
Q4D 0 to 1.5 psi 60 psi
Q4F 0 to 5 psi 120 psi
Q4H 0 to 15 psi 150 psi
Q4K 0 to 30 psi 270 psi
Q4N 0 to 50 ps 375 psi
Q4R 0 to 150 psi 600 psi
Q4S 0 to 300 psi 600 psi
Q4T 0 to 500 psi 900 psi
S4N 0 to 50 in H2O 75 psi
S4Q 0 to 100 in H2O 120 psi
Code Absolute pressure Overload
D20 0 to 100 mbar, 0 to 10 kPa1) 4 bar
D22 0 to 200 mbar, 0 to 20 kPa1) 5 bar
D24 0 to 400 mbar, 0 to 40 kPa1) 8 bar
A2G 0 to 1 bar, 0 to 100 kPa 10 bar
A2H 0 to 1.6 bar, 0 to 160 kPa 18 bar
A2K 0 to 2 bar, 0 to 200 kPa 18 bar
A2Q 0 to 4 bar, 0 to 400 kPa 25 bar
A2R 0 to 6 bar, 0 to 600 kPa 40 bar
A2S 0 to 10 bar, 0 to 1 MPa 40 bar
A2T 0 to 16 bar, 0 to 1.6 MPa 40 bar
A2V 0 to 20 bar, 0 to 2 MPa 40 bar
A2W 0 to 25 bar, 0 to 2.5 MPa 60 bar
A2X 0 to 40 bar, 0 to 4 MPa 60 bar
R4D 0 to 1.5 psi 75 psi
R4F 0 to 5 psi 120 psi
R4H 0 to 15 psi 150 psi
R4K 0 to 30 psi 270 psi
R4N 0 to 50 psi 375 psi
R4R 0 to 150 psi 600 psi
R4S 0 to 300 psi 600 psi
R4T 0 to 500 psi 900 psi
1) FS = 1 bar for this measurement range
Code Negative gauge pressure Overload
D3W -20 to +20 mbar, -2 to +2 kPa 4 bar
D31 -100 to +100 mbar, -10 to +10 kPa 7 bar
D38 -200 to +200 mbar, -20 to +20 kPa 5 bar
D39 -300 to +300 mbar, -30 to +30 kPa 8 bar
A3C -1 to 0 bar, -100 to 0 kPa 10 bar
A3E -1 to +1 bar, -100 to +100 kPa 10 bar
A3G -1 to +3 bar, -100 to +300 kPa 20 bar
A3K -1 to +9 bar, -0.1 to +0.9 MPa 40 bar
A3N -1 to +15 bar, -0.1 to +1.5 MPa 40 bar
V6F -1.5 to 1.5 psi 75 psi
V6N -15 to 15 psi 150 psi
V6R -15 to 30 psi 375 psi
V6S -15 to 60 psi 375 psi
V6V -15 to 150 psi 600 psi
W6N -15 to 15 in H2O 60 psi
W6O -80 to 80 in H2O 75 psi
W6R -15 to 30 in H2O 75 psi
Complete product information:
www.e-direct.us/pmc131
Process transmitter
RMA42
Compact thermometer
Easytemp TMR31
Point level switch
Liquiphant T FTL20

6. Application / FunctionOverview Technical data Dimensions
Electrical connection
Go to
shopContactAccessories Price table
Contact
E-direct
Endress+Hauser, Inc.
2350 Endress Place
Greenwood, IN 46143
Direct order
Internet www.e-direct.us
by phone 888-EH-DIRECT
(343-4732)
per Fax 317-535-8498
E-Mail e-direct@us.endress.com
