Technical Datasheet
TD 00053E/24/EN/01.13
• Hygienic process connections,
surface finishing Ra ≤ 0.8 µm
• PC programmable transmitter with
4 to 20 mA output or Pt100 sensor
• Fast response times without
reduced tip
• M12×1 plug-in connector with IP 66
• Compact thermometer from
stainless steel
Complete product information:
www.e-direct.us/tmr35
Specs at a glance:
• Temperature range:
-50 to +200 °C (-58 to 392 °F)
• Accuracy:
< 0.08 %, Pt100 class A
• Immersion length (diameter):
40 to 600 mm (Ø 6 mm)
(1.6 to 23.6” (Ø 0.24))
• Sensor response time:
< 1.0 s (T50), < 2.0 s (T90)
Hygienic compact thermometer with M12 connector, Pt100 or 4 to 20 mA
Easytemp TMR35
$ 130.00

2. Easytemp TMR35 2
Overview Technical data Dimensions
Electrical connection Price table Contact
Go to
shop
Application / Function
Application Characterised by
simplicity and compact construction,
the Easytemp TMR35 is available with
a range of hygienic process
connections. It offers good accuracy
and response times and has been
specifically designed for hygienic
applications with 3-A certification.
Function The compact thermometer
consists of a Pt100 class A sensor,
(optional) transducer and housing
with hygienic process connection. The
built-in electronics can be
programmed using a PC and TXU10-
BA configuration kit to convert the
Pt100 input signal into a temperature
linear 4 to 20 mA signal.
Installation instructions
Pipe installation
a) At angle sections, against the
direction of flow
b) In smaller pipes, turned
against the direction of flow
c) Perpendicular to the direction
of flow
L = Insertion length
b)a)
c)
L

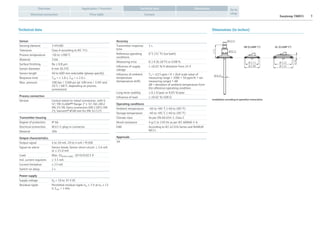

3. Easytemp TMR35 3
Application / FunctionOverview
Electrical connection Price table Contact
Go to
shop
DimensionsTechnical data
Technical data Dimensions (in inches)
Sensor
Sensing element 1×Pt100
Tolerance Class A according to IEC 751
Process temperature -50 to +200 °C
Material 316L
Surface finishing Ra ≤ 0.8 µm
Sensor diameter 6 mm (0.24)
Sensor length 40 to 600 mm selectable (please specify)
Response time T50 = ≤ 1.0 s; T90 = ≤ 2.0 s
Max. pressure 100 bar / 1500 psi (at 100 mm / 3.94 and
20 °C / 68 °F, depending on process
connection)
Process connection
Version Conical metal-to-metal connection, with G
½; TRI-CLAMP® flange 1 1-½, ISO 2852
DN 25/38; Dairy connection DIN 11851 DN
25; Varivent® Ø 68 mm for DN 32/125
Transmitter housing
Degree of protection IP 66
Electrical connection M12×1-plug-in connector
Material 304
Output characteristics
Output signal 4 to 20 mA, 20 to 4 mA / Pt100
Signal on alarm Sensor break; Sensor short-circuit: ≤ 3.6 mA
or ≥ 21.0 mA
Load Max. (Upower supply -10 V)/0.023 A
Ind. current requirem. ≤ 3.5 mA
Current limitation ≤ 23 mA
Switch-on delay 2 s
Power supply
Supply voltage Ub = 10 to 35 V DC
Residual ripple Permitted residual ripple Uss ≤ 3 V at Ub ≥ 13
V, fmax = 1 kHz
Accuracy
Transmitter response
time
1 s
Reference operating
conditions
0 °C (32 °F) (ice bath)
Measuring error 0.1 K (0.18 °F) or 0.08 %
Influence of supply
voltage
≤ ±0.01 %/V deviation from 24 V
Influence of ambient
temperature
(temperature drift)
Td = ±(15 ppm / K × (full scale value of
measuring range + 200) + 50 ppm/K × set
measuring range) × Δθ
Δθ = deviation of ambient temperature from
the reference operating condition
Long-term stability ≤ 0.1 K/year or 0.05 %/year
Influence of load ≤ ±0.02 %/100 Ω
Operating conditions
Ambient temperature -40 to +85 °C (-40 to 185 °F)
Storage temperature -40 to +85 °C (-40 to 185 °F)
Climate class As per EN 60 654-1, Class C
Shock resistance 4 g/2 to 150 Hz as per IEC 60068-2-6
EMC According to IEC 61326 Series and NAMUR
NE21
Approvals
3A
M12×1
Ø 1.71
DB (CLAMP 1“)
Installation according to operation instructions.
DL (CLAMP 2“)
1.71
0.39
Ø 0.71
Ø 0.24
Ø 1.99
Ø 2.22
Ø 2.52

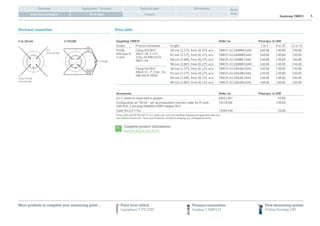

4. Easytemp TMR35 4
Application / FunctionOverview Technical data Dimensions
Contact
Go to
shopPrice tableElectrical connection
Price table
Easytemp TMR35 Order no. Price/pcs. in USD
Output Process Connection Length 1 to 5 6 to 10 11 to 35
Pt100,
DIN class A,
4-wire
Clamp ISO2852
DN25-38, 1-1½,
316L,3A DIN32676
DN25-40
38 mm (1.57); 3mm (0,12); w/o TMR35-A11ADBBA1AAA 148.00 138.00 130.00
83 mm (3.27); 3mm (0,12); w/o TMR35-A11ADBBB1AAA 148.00 138.00 130.00
68 mm (2.68); 3mm (0,12); w/o TMR35-A11ADBBC1AAA 148.00 138.00 130.00
98 mm (3.86); 3mm (0,12); w/o TMR35-A11ADBBD1AAA 148.00 138.00 130.00
CIamp ISO2852
DN40-51, 2, 316L, 3A,
DIN32676 DN50
38 mm (1.57); 3mm (0,12); w/o TMR35-A11ADLBA1AAA 148.00 138.00 130.00
83 mm (3.27); 3mm (0,12); w/o TMR35-A11ADLBB1AAA 148.00 138.00 130.00
68 mm (2.68); 3mm (0,12); w/o TMR35-A11ADLBC1AAA 148.00 138.00 130.00
98 mm (3.86); 3mm (0,12); w/o TMR35-A11ADLBD1AAA 148.00 138.00 130.00
Accessories Order no. Price/pcs. in USD
G1/2 metal to metal weld in adapter 60021387 49.00
Configuration kit TXU10 – set-up programme+interface cable for PC with
USB-Port. 4 pin plug+ReadWin2000+adapter M12
TXU10-BA 238.00
Cable M12x1 l=5m 51005148 20.00
Prices valid until 09.30.2013 in U.S. dollars per unit (not including shipping and applicable sales tax).
See Endress+Hauser, Inc. Terms and Conditions of Sale for shipping, tax, and payment terms.
Complete product information:
www.e-direct.us/tmr35
More products to complete your measuring point …
Electrical connection
red
1×Pt100
1×Pt100
white
4
4
3
3
0 V
(4 to 20 mA)
1
1
10 to 35 V DC
(4 to 20 mA)
4 to 20 mA
2
2
red
white
Pressure transmitter
Cerabar T PMP135
Point level switch
Liquiphant T FTL20H
Flow measuring system
Proline Promag 10D

5. Application / FunctionOverview Technical data Dimensions
Electrical connection Price table Contact
Go to
shop

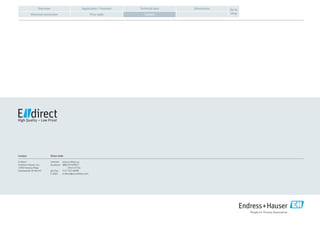

Contact
E-direct
Endress+Hauser, Inc.
2350 Endress Place
Greenwood, IN 46143
Direct order
Internet www.e-direct.us
by phone 888-EH-DIRECT
(343-4732)
per Fax 317-535-8498
