The Ecograph T RSG30 is a paperless recorder that can display and record measurements from processes like water treatment and manufacturing to monitor critical parameters. It has features like multiple input types, internal and external data storage, Ethernet connectivity, and a color graphic display. Prices range from around $1,194 to $2,407 depending on the housing, inputs, interfaces, and accessories.

1. Products Solutions Services
Application / FunctionOverview Technical data Dimensions
Electrical connection Price table Contact
Go to
shop
Technical Datasheet
TD 00051E/24/EN/01.13
• Low installation depth saves space
and money
• Reliable data archiving with internal
memory and separate CompactFlash
card (mechanically locked)
• No data loss in event of power failure
• Integrated web server function
allowing worldwide remote
monitoring
Complete product information:
www.e-direct.us/rsg30
Specs at a glance:
• Recording: 1 s up to 12 h
• Data medium:
CF-card up to 512 MB
• Input: Current, voltage and
temperature can be directly
connected
• Network integration and
remote data transmission:
Ethernet, RS232/RS485
(modem) and USB
• Installation depth:
171 mm (6,73”)
• Display:
LC color graphic display
Paperless recorder with multi-colored digital bargraph and curve display
Ecograph T RSG30
$ 1194.00

2. Ecograph T RSG30 2
Overview Technical data Dimensions
Electrical connection Price table Contact
Go to
shop

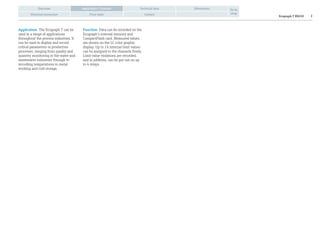

Application / Function
Application The Ecograph T can be
used in a range of applications
throughout the process industries. It
can be used to display and record
critical parameters in production
processes, ranging from quality and
quantity monitoring in the water and
wastewater industries through to
recording temperatures in metal
working and cold storage.
Function Data can be recorded on the
Ecograph’s internal memory and
CompactFlash card. Measured values
are shown on the LC color graphic
display. Up to 14 internal limit values
can be assigned to the channels freely.
Limit value violations are recorded,
and in addition, can be put out on up
to 4 relays.

3. Ecograph T RSG30 3
Application / FunctionOverview
Electrical connection Price table Contact
Go to
shop
DimensionsTechnical data

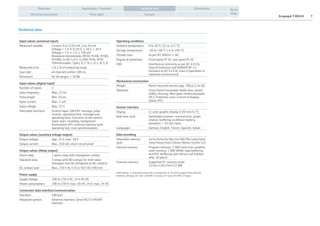

Technical data
Input values (universal input)
Measured variable Current: 0 to 5/20 mA, 4 to 20 mA
Voltage > 1 V: 0 5/10 V, ± 10 V, ± 30 V
Voltage ≤ 1 V: ± 1 V, ± 150 mV
Resistance thermometer (RTD): Pt100, Pt500,
Pt1000, Cu50, Cu53, Cu100, Pt46, Pt50
Thermocouples: Type J, K, T, N, L, D, C, B, S, R
Measured error ± 0.1 % of measuring range
Scan rate all channels within 100 ms
Resolution for all ranges: ≥ 18 Bit
Input values (digital input)
Number of inputs 3
Input frequency Max. 25 Hz
Pulse length Min. 20 ms
Input current Max. 2 mA
Input voltage Max. 32 V
Selectable functions Control input, ON/OFF message, pulse
counter, operating time, message and
operating time. Functions of the control
input: start, recording, background
illumination OFF, external memory cycle,
operating lock, time synchronization.
Output values (auxiliary voltage output)
Output voltage App. 24 V, max. 28 V
Output current Max. 250 mA, short-circuit proof
Output values (Relay output)
Alarm relay 1 alarm relay with changeover contact
Standard relay 3 relays with NO contact for limit value
messages (can be configured as NC contact)
AC contact load Max. 230 V AC/3 A or 50 V DC/300 mA
Power supply
Supply voltage 100 to 230 V AC; 24 V AC/DC
Power consumption 100 to 230 V: max. 30 VA; 24 V: max. 24 VA
Connection data interface/communication
Standard USB port
Advanced options Ethernet interface; Serial RS232/RS485
interface
Operating conditions
Ambient temperature 0 to 50 °C (32 to 122 °F)
Storage temperature -20 to +60 °C (-4 to 140 °F)
Climate class As per IEC 60654-1: B1
Degree of protection Front-panel IP 54, rear-panel IP 20
EMC Interference immunity as per IEC 61326,
Class B (industry) and NAMUR NE 21;
Emission to IEC 61326: Class A (operation in
industrial environment)
Mechanical construction
Weight Panel-mounted version app. 700 g (1.54 lb)
Materials Front frame/removable media door: plastic
(ABS); Housing: fiber-glass reinforced plastic
(PC); Protective cover in front of display:
plastic (PC)
Human interface
Display LC color graphic display (120 mm/4.7”)
Real time clock Switchable summer-/normal time, power
reserve: buffering via lithium battery,
deviation: < 10 min./year
Languages German, English, French, Spanish, Italian
Data recording
Selectable memory
cycle
1s/2s/3s/4s/5s/10s/15s/20s/30s/1min/2min/
3min/4min/5min/10min/30min/1h/6h/12h
Internal memory Program memory: 2 MB Flash (non-volatile),
main memory: 2 MB SRAM, data buffering
and RTC-buffering with lithium cell (replace
after 10 years)
External memory Supported CF memory cards:
32/64/128/256/512 MB
Information: 1 measured value/min. corresponds to 20 mm/h paper feed; Internal
memory: 28 days; CF-card 128 MB: 6.5 years; CF-card 256 MB: 13 years

4. Ecograph T RSG30 4
Application / FunctionOverview Technical data
Price table Contact
Go to
shopElectrical connection
Dimensions
Dimensions (in inches)
5.67
(Top view)
5.9 0.83
5.43
1.42
E
5.67
3.4
Installation depth approx. 6.73"
Panel cutout 5.43+0.04
"×5.43+0.04
"
Panel thickness 0.08" to 1.57"
Mounting as per DIN 43834
Installation according to instruction manual
Panel installation
11.55
9.7
7.4
4.0
6.98
8.34
Installation according to instruction manual
Desktop housing
-
+
-
+
-
+
b) 1 V≤a) > 1 V
RS 485
RxD/TxD(-)
RL
RxD/TxD(+)
RS 232
2
2
2
2
3
3
3
3
5
5
5
5
1
1
1
1
5
5
13
13
6
6
14
14
9
9
25
25
7
7
max. 250 V/3A
+
-
L+
N-
PE
115 / 230 V AC
50 / 60 Hz
9X 9X
12 V - 24 V DC
>5 mA
10 k
__ +
+_
>20 ms
_
RTD
I
U
TC
x12x11 x13 x14 x15 x16
x12x11 x13 x14 x15 x16
x12x11 x13 x14 x15 x16 x12x11 x13 x14 x15 x16
x12x11 x13 x14 x15 x16
x12x11 x13 x14 x15 x16
x12x11 x13 x14 x15 x16
R =L
9X
_
+
_
12 V - 24 V DC
24 V AC/DC
50 / 60 Hz
Outmax.250mA
56
9
1
61x51x41x31x21x11x
+
+
+
V1>U
CT
-
GND
RxD/Tx D +
RxD/Tx D -
Ethernet
232SR
14
24
13
23
12
22
11
13
12
L+
N-
PE
Rel4 Rel3 Rel2 Rel1
CH 4 CH 5 CH 6RS485
116
216
316
416
516
616
115
215
315
415
515
615
114
214
314
414
514
614
CH 1 CH 2 CH 3
111
211
311
411
511
611
112
212
312
412
512
612
113
213
313
413
513
613
+
DI3
39
29
19
Further units
Cable
resistance
Power
Digital in (DI)
To modem:
Cable with
25 pol.
Sub-D socket
To modem:
Cable with
9 pol.
Sub-D socket
To PC: Cable
with 25 pol.
Sub-D plug
To PC: Cable
with 9 pol.
Sub-D plug
RxD-3 GND-5
TxD-2
Analog inputs
LED yellow
LED green
24V DI1
out
+
-
Type:
Pt50, Pt100,
Pt500, Pt1000,
CU50, CU100
0...20 mA, 4...20 mA, 0...5 mA
(Volt drop ≤ 1 V, Ri ≤ 50 Ohm)
a) 0...5 V, 0...10 V, +/- 10 V, +/- 30 V
b) 0...1 V, +/- 150 mV, +/- 1 V
Type: J, K, T, N, L, D, C, B, S, R
Electrical connection

5. Ecograph T RSG30 5
Application / FunctionOverview Technical data Dimensions
Contact
Go to
shopElectrical connection Price table
Price table
Ecograph RSG30 Order no. Price/pcs. in USD
Housing Interface Power Supply Input Signal 1 to 5 6 to 10 11 to 35
Panel
144x144mm,
IP54, NEMA
2x
USB 100-230 V AC
(+/-10%)
3x universal U,I,TC,RTD RSG30-A1A3AEA1 1357.00 1262.00 1194.00
6x universal U,I,TC,RTD RSG30-B1A3AEA1 1597.00 1485.00 1405.00
24V (-10%; +15%)
AC/DC
3x universal U,I,TC,RTD RSG30-A2A3AEA1 1357.00 1262.00 1194.00
6x universal U,I,TC,RTD RSG30-B2A3AEA1 1597.00 1485.00 1405.00
USB +
RS232/485 +
Ethernet
100-230VAC
(+/-10%)
3x universal U,I,TC,RTD RSG30-A1B3AEA1 1445.00 1344.00 1272.00
6x universal U,I,TC,RTD RSG30-B1B3AEA1 1685.00 1567.00 1483.00
24V (-10%; +15%)
AC/DC
3x universal U,I,TC,RTD RSG30-A2B3AEA1 1445.00 1344.00 1272.00
6x universal U,I,TC,RTD RSG30-B2B3AEA1 1685.00 1567.00 1483.00
Desk top,
cable with US
plug
USB 100-230VAC
(+/-10%)
3x universal U,I,TC,RTD RSG30-A1A3DEA1 2167.00 2015.00 1907.00
6x universal U,I,TC,RTD RSG30-B1A3DEA1 2407.00 2239.00 2118.00
24V (-10%; +15%)
AC/DC
3x universal U,I,TC,RTD RSG30-A2A3DEA1 2167.00 2015.00 1907.00
6x universal U,I,TC,RTD RSG30-B2A3DEA1 2407.00 2239.00 2118.00
USB +
RS232/485 +
Ethernet
100-230VAC
(+/-10%)
3x universal U,I,TC,RTD RSG30-A1B3DEA1 2255.00 2097.00 1984.00
6x universal U,I,TC,RTD RSG30-B1B3DEA1 2495.00 2320.00 2196.00
24V (-10%; +15%)
AC/DC
3x universal U,I,TC,RTD RSG30-A2B3DEA1 2255.00 2097.00 1984.00
6x universal U,I,TC,RTD RSG30-B2B3DEA1 2495.00 2320.00 2196.00
Accessories Order no. Price/pcs. in USD
Memory card CF 128MB 71043991 78.00
Memory card compact-Flash 256MB 51009640 126.00
Prices valid until 09.30.2013 in U.S. dollars per unit (not including shipping and applicable sales tax).
See Endress+Hauser, Inc. Terms and Conditions of Sale for shipping, tax, and payment terms.
Complete product information:
www.e-direct.us/rsg30
More products to complete your measuring point … Power supply
RN221N
Point level switch
Liquiphant T FTL20
Pressure switch
Ceraphant T PTC31

6. Application / FunctionOverview Technical data Dimensions
Electrical connection Price table Contact
Go to
shop

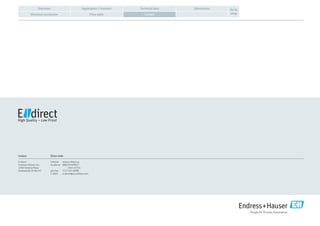

Contact
