PLEXOS®
Integrated Energy Model

Lea d ing the f ie ld i n

Energy Market Modelling
Wh at P L E XO S ® I nte grate d E n e rg y M o d e l i s
PLEXOS® Integrated Energy Model (PLEXOS Desktop Edition) is a proven power market
simulation software that uses cutting-edge mathematical programming and stochastic
optimisation techniques, combined with the latest user-interface and data handling
approaches to provide the most comprehensive, easy-to-use and robust analytical
framework for power market modellers.

Fu n c t i o n s a n d a p p l i cat i o n s o f P L E XO S
Below is a categorisation of some of the functions that PLEXOS is used for:
•
•
•
•
•
•
•
•
•
•

Price Forecasting
Power Market Simulation and Analysis
Detailed Operational Planning and Optimisation of Power Plants and Grid
Trading and Strategic Decision Support
Generation and Transmission Capacity Expansion Planning (Investment Analysis)
Renewable Integration Analysis
Co-optimisation of Ancillary Services and Energy Dispatch
Transmission Analysis and Congestion Management
Portfolio Optimisation and Valuation
Risk Management and Stochastic Optimisation

The wide range of features of PLEXOS has led to its use in many areas of the energy
sector. Globally, the types of users of PLEXOS include:
•
•
•
•
•
•
•
•
•
•

Power Generation Companies
Transmission System Operators
Electricity Market Operators
Energy Commission and Regulators
Energy Traders
Price Forecasting Agencies
Power Plant Manufacturers
Power Plant Construction Companies
Consultants
Academics and Research Institutions
S i m u l at i o n an d fo re c a s t i n g s o l u t i o n o f c h o i ce
Since its first release in 2000, PLEXOS has emerged as the power market simulation
tool of choice, with a customer base spanning the globe and including many of the
world’s largest and most sophisticated utilities and system operators. PLEXOS
simulation results are renowned for accuracy and robustness and have provided the
quantitative backbone to numerous publications, expert testimony, benchmarks,
policy documents and thought leadership pieces.
Trusted worldwide to provide the insights and market analysis required by generation
companies, regulators, system operators, transmission companies and independent
analysts PLEXOS is the solution of choice for:
•

Electricity Price Forecasting – From day-ahead clearing prices to long-term price
forecasts, PLEXOS rigorous fundamental market framework offers unparalleled
options for price forecasting. Starting from cost-based short-run marginal costs
to competitive bidding based on game theoretic models, empirical models or
heuristic methods.

•

Capacity Expansion Planning – Optimal generation and transmission expansion
planning over any timeframe. PLEXOS expansion utility has been built into the
comprehensive production model, allowing users to control the level of accuracy
of their production cost model without the need to create complex external
integration loops between decoupled modules.

•

Generation and Transmission Asset Valuation – The extensive range of detailed
operational characteristics allow PLEXOS to provide the most accurate asset
performance valuations in any market situation.

•

Market Analysis and Design – Examine the effect of a range of proposed market
developments and regulations on generation mix, inter-regional flows, prices and
profits.

•

Transmission Analysis – PLEXOS is used extensively by Transmission System
Operators (TSO) to examine and optimise transmission operation and congestion
costs.

•

Portfolio Optimisation – The powerful optimisation engines underlying PLEXOS
allows users to achieve the best possible outcome from their generation assets,
contractual terms and limited resources in an uncertain world.

•

Stochastic Optimisation – This ensures decisions are robust with respect to the
uncertainty in future inputs including fuel prices, load growth, renewable uptake
and generation. PLEXOS includes integrated stochastic optimisation of building
decisions, hydrology operating policies, transmission expansion and unit
commitment.

PLEXOS
I nte grate d

E n e rg y

M odel

®
Simulator Features
Co nve nt i o n al G e n e rat i o n
PLEXOS offers over 150 potential technical-economical generation characteristics
ensuring accurate representation on generation operation and more features such as:
•
•

Deterministic and stochastic unit commitment on/off decisions with random and
foreseeable outages

•

Temperature dependent operation and detailed ramping response behaviour

•

Multiple fuel optimisation with complex fuel transitions and operational modes

•
•

Compartmentalised combined cycle modelling featuring non-convex heat rates,
start-up/shutdown profiles and unit operational dependencies

H yd ro M o d e l l i n g
Full representation and optimisation of realistic cascading hydro networks and
generators featuring GIS visualisation from Google Earth and more features such as:
•
•

Efficiency curves, head storage dependency, waterway flow delay times, spillways,
evaporation, deterministic and stochastic solutions over any horizon

•
•

Seamless integration with detailed short-term unit commitment via target volumes
or future opportunity cost decomposition

•
•

Potential Energy model for simple closed-loop systems or water balance ‘Volume’
or ‘Level’ models for complex cascade hydro networks

•

Pumped storage energy and ancillary services market co-optimisation

I nte r m i t te nt R e so u rce M o d e l l i n g ( Wi n d a n d S o l a r )
Evaluate the full effect of intermittent resources on system operation, market prices or
generation plant valuation and more features such as:
•
•
•

Capacity to model one minute level variations in load or generation caused by
intermitted resources and the effect on system stability, ancillary service and
ramping provision

•

Various autoregressive models for wind speed, solar radiation and natural inflows

•

Stochastic optimisation of forecast uncertainty

Gas Modelling
Fully integrated energy model cooptimises electricity and gas system dispatch.
Includes models of gas fields, storages, pipelines, nodes and gas demands and more
features such as:
•
•

Integrates with long-term planning to produce expansion plans for gas and electric
infrastructure

•
•

Models constraints on short and mid-term gas supply and its impact on electricity
production
An c i l l a r y S e r v i ce s
Ancillary service provision co-optimised with generation dispatch and unit
commitment and more features such as:
•
•

Multiple reserve classes including spinning up and down, regulation up and down,
and replacement services

•
•

Detailed treatment of start-up and shutdown combined with ramping and reserve
interaction minute-by-minute

Em i ssi o n s
Generation dispatch constrained by emission limits and/or reflective of emissions
price and number of emission types and more features such as:
•
•

Optimisation of emission allocations over multiple fuels, generating units and
regional rules

•
•

Flexible grouping for emission constraint sets over any timeframe including
multi-annual

Tran sm i ssi o n
Optimal power flow with losses fully integrated with dispatch and unit commitment,
and more features such as:
•

Large connection of multiple AC networks, 10,000’s buses and lines

•

Security and n-x contingency constraints (SCUC), DC lines and phase shifters

•
•

Generic constraints and interface limits, transmission aggregation, network
reduction

•
•

Nodal pricing and decomposition into energy, congestion and marginal loss
components

Fi n an c i a l
Comprehensive financial reporting to Generator, Region and Company level and more
features such as:
•
•
•

Dynamic bidding of generation resources reflective of contract position and/or
medium term revenue requirements based on recovery of build costs from capacity
expansion planning

•
•

Bertrand and Cournot games, flexible user-defined mark-up definitions and
empirical schemes such as Residual Supply Index (RSI)

•

Physical, Financial and Fuel contract obligations

•

Financial transmission rights (FTR) and Settlement Residue Auction (SRA)

PLEXOS
I ntegrate d

E n e rg y

M o d el

®

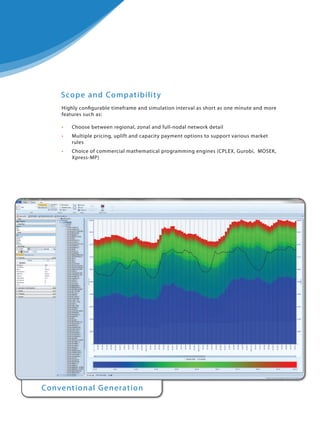

S co p e an d Co m p at i b i l i t y
Highly configurable timeframe and simulation interval as short as one minute and more
features such as:
•

Choose between regional, zonal and full-nodal network detail

•
•

Multiple pricing, uplift and capacity payment options to support various market
rules

•
•

Choice of commercial mathematical programming engines (CPLEX, Gurobi, MOSEK,
Xpress-MP)

Conve nt i o n a l G e n e rat i o n
Tra n s m i s s i o n

Cu sto m i zat i o n
PLEXOS COM libraries and OpenPLEXOS automation features allow user execution
control from simple external PLEXOS engine calls, custom pricing schemes to advanced
custom algorithm calls at different runtime stages. PLEXOS features a friendly generic
custom constraints builder that allows users to introduce custom expansion and
operational limitations such as expansion reliability policies, transmission proxies, water
irrigation conventions and more.

D at a M a n a ge m e nt
Long-term to short-term ready to execute models can co-exist in the same integrated
database. Import/export from known industry standards help users get started with
PLEXOS quickly and easily.

PLEXOS
I nte grated

En ergy

M o de l

®
Wh at PL E XO S ® Co n n e c t is
PLEXOS® Connect is the distributed, client-server system to complement the
PLEXOS Desktop Edition simulation tool. The product enables users to:
•

Collaborate in preparing input data for simulations

•

Track changes to input data and maintain a version history.

•
•

Distribute simulations for parallel execution over multiple client computers
or to the cloud

•

Remotely manage distributed simulation jobs

•

Easily share, compare and review simulation results

PLEXOS Connect allows you to control which computers jobs run on, the version
of input data used, and even the version of the simulation engine. This allows you
to keep a complete history of inputs, simulation engines and solutions.
There are three main components in PLEXOS Connect:

P L E XO S Co n n e c t S e r ve r
The server is the centralised data-storage manager. It resides in the
core of the network system and controls the data security, network
configuration, permission hierarchy and simulation engine version
control.

P L E XO S Co n n e c t C l i e nt
Clients query the server for inputs to perform simulations. All
PLEXOS execution jobs queued on the server are dispatched to
these computers for execution. On completion, the results are sent
back to the server for storage and retrieval.

P L E XO S Co n n e c t L a u n ch Co nt ro l
Launch Control is the interface used to configure executions,
retrieve/upload datasets and solutions, modify network
configuration, administrate permissions and more. It can be used
from a remote computer, client computer or within the server itself.
C l i e nt s
S er ver

Perform PLEXOS®
executions.

Data-storage
manager.

R esults

Configure all simulation
executions from here.

R es ul ts

La u n c h Co nt ro l

Data s et & Engine

Dataset &
Engi ne

Sys te m Arc h i te c t u re

L a u n c h Co nt ro l I nte r fa ce
Leading the field in
Energy Market Modelling

Energy Exemplar Pty Ltd

Energy Exemplar Ltd

Software Development

Europe Office

3/ 154-160 Prospect Road,
Prospect, Adelaide
SA 5082 Australia

Tel: +44 208 899 6500
Email: europe@energyexemplar.com

Tel: +61 8 8342 9616
Email: info@energyexemplar.com

Energy Exemplar LLC

Energy Exemplar LLC

West Coast USA Office

East Coast USA Office

Tel: +1 916 304 0555
Email: westcoastusa@energyexemplar.com

Tel: +1 860 461 0761
Email: eastcoastusa@energyexemplar.com

e n e r g ye xe m p l a r. c o m

More Related Content

What's hot

Short-term Load Forecasting based on Neural network and Local Regression
Short-term Load Forecasting based on Neural network and Local RegressionShort-term Load Forecasting based on Neural network and Local Regression
Short-term Load Forecasting based on Neural network and Local Regression
Jie Bao

Load forecasting
Load forecastingLoad forecasting
Load forecasting
sushrut p

Electrical Energy Storage
Electrical Energy StorageElectrical Energy Storage
Electrical Energy Storage
Cockrell School


What's hot (20)

Load Forecasting Techniques.pdf
Load Forecasting Techniques.pdfLoad Forecasting Techniques.pdf
Load Forecasting Techniques.pdf

Renewable energy grid integration
Renewable energy grid integrationRenewable energy grid integration
Renewable energy grid integration

Five most used load forecasting models
Five most used load forecasting modelsFive most used load forecasting models
Five most used load forecasting models

Electric Vehicle Grid Simulator
Electric Vehicle Grid SimulatorElectric Vehicle Grid Simulator
Electric Vehicle Grid Simulator

Renewable energy integration and energy storage
Renewable energy integration and energy storage Renewable energy integration and energy storage
Renewable energy integration and energy storage

Energy Storage
Energy StorageEnergy Storage
Energy Storage

Latest in energy storage
Latest in energy storageLatest in energy storage
Latest in energy storage

Flexibility of Power System (Sources of flexibility & flexibility markets)
Flexibility of Power System (Sources of flexibility & flexibility markets)Flexibility of Power System (Sources of flexibility & flexibility markets)
Flexibility of Power System (Sources of flexibility & flexibility markets)

Short-term Load Forecasting based on Neural network and Local Regression
Short-term Load Forecasting based on Neural network and Local RegressionShort-term Load Forecasting based on Neural network and Local Regression
Short-term Load Forecasting based on Neural network and Local Regression

Introduction to energy storage
Introduction to energy storageIntroduction to energy storage
Introduction to energy storage

Load forecasting
Load forecastingLoad forecasting
Load forecasting

Demand side management
Demand side managementDemand side management
Demand side management

Plastic solar cells
Plastic  solar  cells Plastic  solar  cells
Plastic solar cells

Load forecasting
Load forecastingLoad forecasting
Load forecasting

Energy, Enviroment and Society - Energy Storage
Energy, Enviroment and Society - Energy StorageEnergy, Enviroment and Society - Energy Storage
Energy, Enviroment and Society - Energy Storage

Power System Planning
Power System PlanningPower System Planning
Power System Planning

Electrical Energy Storage
Electrical Energy StorageElectrical Energy Storage
Electrical Energy Storage

Virtual Power Plant VPP
Virtual Power Plant VPPVirtual Power Plant VPP
Virtual Power Plant VPP

Peer-to-Peer energy trading and community self-consumption
Peer-to-Peer energy trading and community self-consumptionPeer-to-Peer energy trading and community self-consumption
Peer-to-Peer energy trading and community self-consumption

Hydrothermal scheduling
Hydrothermal schedulingHydrothermal scheduling
Hydrothermal scheduling


Similar to PLEXOS Integrated Energy Model - Energy Exemplar

PG&E_Distribution_Resource_Plan_Summary
PG&E_Distribution_Resource_Plan_SummaryPG&E_Distribution_Resource_Plan_Summary
PG&E_Distribution_Resource_Plan_Summary
Thomas Russell, PE


Similar to PLEXOS Integrated Energy Model - Energy Exemplar (20)

Electrification Infrastructure: Whole Life Cost Reduction Congress 2014
Electrification Infrastructure: Whole Life Cost Reduction Congress 2014Electrification Infrastructure: Whole Life Cost Reduction Congress 2014
Electrification Infrastructure: Whole Life Cost Reduction Congress 2014

Techno Financial Software for Wave Energy
Techno Financial Software for Wave EnergyTechno Financial Software for Wave Energy
Techno Financial Software for Wave Energy

e-Research & the art of linking Astrophysics to Deforestation
e-Research & the art of linking Astrophysics to Deforestatione-Research & the art of linking Astrophysics to Deforestation
e-Research & the art of linking Astrophysics to Deforestation

Throughlife integrated concurrent_engineering_master_gaudenzi_2016_lisi_v02
Throughlife integrated concurrent_engineering_master_gaudenzi_2016_lisi_v02Throughlife integrated concurrent_engineering_master_gaudenzi_2016_lisi_v02
Throughlife integrated concurrent_engineering_master_gaudenzi_2016_lisi_v02

A Research Framework for the Clean-Slate Design of Next-Generation Optical Ac...
A Research Framework for the Clean-Slate Design of Next-Generation Optical Ac...A Research Framework for the Clean-Slate Design of Next-Generation Optical Ac...
A Research Framework for the Clean-Slate Design of Next-Generation Optical Ac...

Katerine Dykes: 2013 Sandia National Laboratoies Wind Plant Reliability Workshop
Katerine Dykes: 2013 Sandia National Laboratoies Wind Plant Reliability WorkshopKaterine Dykes: 2013 Sandia National Laboratoies Wind Plant Reliability Workshop
Katerine Dykes: 2013 Sandia National Laboratoies Wind Plant Reliability Workshop

KBC decision making tool optimal planning scheduling utility
KBC decision making tool optimal planning scheduling utilityKBC decision making tool optimal planning scheduling utility
KBC decision making tool optimal planning scheduling utility

Raghu nambiar:industry standard benchmarks
Raghu nambiar:industry standard benchmarksRaghu nambiar:industry standard benchmarks
Raghu nambiar:industry standard benchmarks

Throughlife integrated concurrent_engineering_skoltech_2016_lisi_v01
Throughlife integrated concurrent_engineering_skoltech_2016_lisi_v01Throughlife integrated concurrent_engineering_skoltech_2016_lisi_v01
Throughlife integrated concurrent_engineering_skoltech_2016_lisi_v01

PG&E_Distribution_Resource_Plan_Summary
PG&E_Distribution_Resource_Plan_SummaryPG&E_Distribution_Resource_Plan_Summary
PG&E_Distribution_Resource_Plan_Summary

De Martini DOE EAC mtg 032615
De Martini DOE EAC mtg  032615De Martini DOE EAC mtg  032615
De Martini DOE EAC mtg 032615

Electricity Supply Systems of the Future
Electricity Supply Systems of the FutureElectricity Supply Systems of the Future
Electricity Supply Systems of the Future

Electric Distribution Grids in a 21st Century Energy System
Electric Distribution Grids in a 21st Century Energy SystemElectric Distribution Grids in a 21st Century Energy System
Electric Distribution Grids in a 21st Century Energy System

Advanced Automated Approach for Interconnected Power System Congestion Forecast
Advanced Automated Approach for Interconnected Power System Congestion ForecastAdvanced Automated Approach for Interconnected Power System Congestion Forecast
Advanced Automated Approach for Interconnected Power System Congestion Forecast

Performance management leaflet
Performance management leafletPerformance management leaflet
Performance management leaflet

Service systems engineering_moscow2014_lisi_v02
Service systems engineering_moscow2014_lisi_v02Service systems engineering_moscow2014_lisi_v02
Service systems engineering_moscow2014_lisi_v02

Sida LEAP Training Lectures #5 and #6: Cost-benefit analysis and optimization...
Sida LEAP Training Lectures #5 and #6: Cost-benefit analysis and optimization...Sida LEAP Training Lectures #5 and #6: Cost-benefit analysis and optimization...
Sida LEAP Training Lectures #5 and #6: Cost-benefit analysis and optimization...

Sida LEAP Training Lecture #3 and #4: Energy Supply and Emissions Modeling
Sida LEAP Training Lecture #3 and #4: Energy Supply and Emissions ModelingSida LEAP Training Lecture #3 and #4: Energy Supply and Emissions Modeling
Sida LEAP Training Lecture #3 and #4: Energy Supply and Emissions Modeling

Openflow for Mobile Broadband service providers_Nov'11
Openflow for Mobile Broadband service providers_Nov'11Openflow for Mobile Broadband service providers_Nov'11
Openflow for Mobile Broadband service providers_Nov'11

DESIGNING A FUTURE-PROOF EV CHARGING NETWORK
DESIGNING A FUTURE-PROOF EV CHARGING NETWORKDESIGNING A FUTURE-PROOF EV CHARGING NETWORK
DESIGNING A FUTURE-PROOF EV CHARGING NETWORK


Recently uploaded

Essentials of Automations: Optimizing FME Workflows with Parameters
Essentials of Automations: Optimizing FME Workflows with ParametersEssentials of Automations: Optimizing FME Workflows with Parameters
Essentials of Automations: Optimizing FME Workflows with Parameters
Safe Software

Future Visions: Predictions to Guide and Time Tech Innovation, Peter Udo Diehl
Future Visions: Predictions to Guide and Time Tech Innovation, Peter Udo DiehlFuture Visions: Predictions to Guide and Time Tech Innovation, Peter Udo Diehl
Future Visions: Predictions to Guide and Time Tech Innovation, Peter Udo Diehl
Peter Udo Diehl


Recently uploaded (20)

Neuro-symbolic is not enough, we need neuro-*semantic*
Neuro-symbolic is not enough, we need neuro-*semantic*Neuro-symbolic is not enough, we need neuro-*semantic*
Neuro-symbolic is not enough, we need neuro-*semantic*

Accelerate your Kubernetes clusters with Varnish Caching
Accelerate your Kubernetes clusters with Varnish CachingAccelerate your Kubernetes clusters with Varnish Caching
Accelerate your Kubernetes clusters with Varnish Caching

From Daily Decisions to Bottom Line: Connecting Product Work to Revenue by VP...
From Daily Decisions to Bottom Line: Connecting Product Work to Revenue by VP...From Daily Decisions to Bottom Line: Connecting Product Work to Revenue by VP...
From Daily Decisions to Bottom Line: Connecting Product Work to Revenue by VP...

Key Trends Shaping the Future of Infrastructure.pdf
Key Trends Shaping the Future of Infrastructure.pdfKey Trends Shaping the Future of Infrastructure.pdf
Key Trends Shaping the Future of Infrastructure.pdf

UiPath Test Automation using UiPath Test Suite series, part 1
UiPath Test Automation using UiPath Test Suite series, part 1UiPath Test Automation using UiPath Test Suite series, part 1
UiPath Test Automation using UiPath Test Suite series, part 1

Essentials of Automations: Optimizing FME Workflows with Parameters
Essentials of Automations: Optimizing FME Workflows with ParametersEssentials of Automations: Optimizing FME Workflows with Parameters
Essentials of Automations: Optimizing FME Workflows with Parameters

Unpacking Value Delivery - Agile Oxford Meetup - May 2024.pptx
Unpacking Value Delivery - Agile Oxford Meetup - May 2024.pptxUnpacking Value Delivery - Agile Oxford Meetup - May 2024.pptx
Unpacking Value Delivery - Agile Oxford Meetup - May 2024.pptx

Future Visions: Predictions to Guide and Time Tech Innovation, Peter Udo Diehl
Future Visions: Predictions to Guide and Time Tech Innovation, Peter Udo DiehlFuture Visions: Predictions to Guide and Time Tech Innovation, Peter Udo Diehl
Future Visions: Predictions to Guide and Time Tech Innovation, Peter Udo Diehl

To Graph or Not to Graph Knowledge Graph Architectures and LLMs
To Graph or Not to Graph Knowledge Graph Architectures and LLMsTo Graph or Not to Graph Knowledge Graph Architectures and LLMs
To Graph or Not to Graph Knowledge Graph Architectures and LLMs

Transcript: Selling digital books in 2024: Insights from industry leaders - T...
Transcript: Selling digital books in 2024: Insights from industry leaders - T...Transcript: Selling digital books in 2024: Insights from industry leaders - T...
Transcript: Selling digital books in 2024: Insights from industry leaders - T...

UiPath Test Automation using UiPath Test Suite series, part 3
UiPath Test Automation using UiPath Test Suite series, part 3UiPath Test Automation using UiPath Test Suite series, part 3
UiPath Test Automation using UiPath Test Suite series, part 3

GenAISummit 2024 May 28 Sri Ambati Keynote: AGI Belongs to The Community in O...
GenAISummit 2024 May 28 Sri Ambati Keynote: AGI Belongs to The Community in O...GenAISummit 2024 May 28 Sri Ambati Keynote: AGI Belongs to The Community in O...
GenAISummit 2024 May 28 Sri Ambati Keynote: AGI Belongs to The Community in O...

"Impact of front-end architecture on development cost", Viktor Turskyi
"Impact of front-end architecture on development cost", Viktor Turskyi"Impact of front-end architecture on development cost", Viktor Turskyi
"Impact of front-end architecture on development cost", Viktor Turskyi

Software Delivery At the Speed of AI: Inflectra Invests In AI-Powered Quality
Software Delivery At the Speed of AI: Inflectra Invests In AI-Powered QualitySoftware Delivery At the Speed of AI: Inflectra Invests In AI-Powered Quality
Software Delivery At the Speed of AI: Inflectra Invests In AI-Powered Quality

Mission to Decommission: Importance of Decommissioning Products to Increase E...
Mission to Decommission: Importance of Decommissioning Products to Increase E...Mission to Decommission: Importance of Decommissioning Products to Increase E...
Mission to Decommission: Importance of Decommissioning Products to Increase E...

IoT Analytics Company Presentation May 2024
IoT Analytics Company Presentation May 2024IoT Analytics Company Presentation May 2024
IoT Analytics Company Presentation May 2024

In-Depth Performance Testing Guide for IT Professionals
In-Depth Performance Testing Guide for IT ProfessionalsIn-Depth Performance Testing Guide for IT Professionals
In-Depth Performance Testing Guide for IT Professionals

UiPath Test Automation using UiPath Test Suite series, part 2
UiPath Test Automation using UiPath Test Suite series, part 2UiPath Test Automation using UiPath Test Suite series, part 2
UiPath Test Automation using UiPath Test Suite series, part 2

Connector Corner: Automate dynamic content and events by pushing a button
Connector Corner: Automate dynamic content and events by pushing a buttonConnector Corner: Automate dynamic content and events by pushing a button
Connector Corner: Automate dynamic content and events by pushing a button

Speed Wins: From Kafka to APIs in Minutes
Speed Wins: From Kafka to APIs in MinutesSpeed Wins: From Kafka to APIs in Minutes
Speed Wins: From Kafka to APIs in Minutes


PLEXOS Integrated Energy Model - Energy Exemplar

  • 1. PLEXOS® Integrated Energy Model Lea d ing the f ie ld i n Energy Market Modelling
  • 2. Wh at P L E XO S ® I nte grate d E n e rg y M o d e l i s PLEXOS® Integrated Energy Model (PLEXOS Desktop Edition) is a proven power market simulation software that uses cutting-edge mathematical programming and stochastic optimisation techniques, combined with the latest user-interface and data handling approaches to provide the most comprehensive, easy-to-use and robust analytical framework for power market modellers. Fu n c t i o n s a n d a p p l i cat i o n s o f P L E XO S Below is a categorisation of some of the functions that PLEXOS is used for: • • • • • • • • • • Price Forecasting Power Market Simulation and Analysis Detailed Operational Planning and Optimisation of Power Plants and Grid Trading and Strategic Decision Support Generation and Transmission Capacity Expansion Planning (Investment Analysis) Renewable Integration Analysis Co-optimisation of Ancillary Services and Energy Dispatch Transmission Analysis and Congestion Management Portfolio Optimisation and Valuation Risk Management and Stochastic Optimisation The wide range of features of PLEXOS has led to its use in many areas of the energy sector. Globally, the types of users of PLEXOS include: • • • • • • • • • • Power Generation Companies Transmission System Operators Electricity Market Operators Energy Commission and Regulators Energy Traders Price Forecasting Agencies Power Plant Manufacturers Power Plant Construction Companies Consultants Academics and Research Institutions
  • 3. S i m u l at i o n an d fo re c a s t i n g s o l u t i o n o f c h o i ce Since its first release in 2000, PLEXOS has emerged as the power market simulation tool of choice, with a customer base spanning the globe and including many of the world’s largest and most sophisticated utilities and system operators. PLEXOS simulation results are renowned for accuracy and robustness and have provided the quantitative backbone to numerous publications, expert testimony, benchmarks, policy documents and thought leadership pieces. Trusted worldwide to provide the insights and market analysis required by generation companies, regulators, system operators, transmission companies and independent analysts PLEXOS is the solution of choice for: • Electricity Price Forecasting – From day-ahead clearing prices to long-term price forecasts, PLEXOS rigorous fundamental market framework offers unparalleled options for price forecasting. Starting from cost-based short-run marginal costs to competitive bidding based on game theoretic models, empirical models or heuristic methods. • Capacity Expansion Planning – Optimal generation and transmission expansion planning over any timeframe. PLEXOS expansion utility has been built into the comprehensive production model, allowing users to control the level of accuracy of their production cost model without the need to create complex external integration loops between decoupled modules. • Generation and Transmission Asset Valuation – The extensive range of detailed operational characteristics allow PLEXOS to provide the most accurate asset performance valuations in any market situation. • Market Analysis and Design – Examine the effect of a range of proposed market developments and regulations on generation mix, inter-regional flows, prices and profits. • Transmission Analysis – PLEXOS is used extensively by Transmission System Operators (TSO) to examine and optimise transmission operation and congestion costs. • Portfolio Optimisation – The powerful optimisation engines underlying PLEXOS allows users to achieve the best possible outcome from their generation assets, contractual terms and limited resources in an uncertain world. • Stochastic Optimisation – This ensures decisions are robust with respect to the uncertainty in future inputs including fuel prices, load growth, renewable uptake and generation. PLEXOS includes integrated stochastic optimisation of building decisions, hydrology operating policies, transmission expansion and unit commitment. PLEXOS I nte grate d E n e rg y M odel ®
  • 4. Simulator Features Co nve nt i o n al G e n e rat i o n PLEXOS offers over 150 potential technical-economical generation characteristics ensuring accurate representation on generation operation and more features such as: • • Deterministic and stochastic unit commitment on/off decisions with random and foreseeable outages • Temperature dependent operation and detailed ramping response behaviour • Multiple fuel optimisation with complex fuel transitions and operational modes • • Compartmentalised combined cycle modelling featuring non-convex heat rates, start-up/shutdown profiles and unit operational dependencies H yd ro M o d e l l i n g Full representation and optimisation of realistic cascading hydro networks and generators featuring GIS visualisation from Google Earth and more features such as: • • Efficiency curves, head storage dependency, waterway flow delay times, spillways, evaporation, deterministic and stochastic solutions over any horizon • • Seamless integration with detailed short-term unit commitment via target volumes or future opportunity cost decomposition • • Potential Energy model for simple closed-loop systems or water balance ‘Volume’ or ‘Level’ models for complex cascade hydro networks • Pumped storage energy and ancillary services market co-optimisation I nte r m i t te nt R e so u rce M o d e l l i n g ( Wi n d a n d S o l a r ) Evaluate the full effect of intermittent resources on system operation, market prices or generation plant valuation and more features such as: • • • Capacity to model one minute level variations in load or generation caused by intermitted resources and the effect on system stability, ancillary service and ramping provision • Various autoregressive models for wind speed, solar radiation and natural inflows • Stochastic optimisation of forecast uncertainty Gas Modelling Fully integrated energy model cooptimises electricity and gas system dispatch. Includes models of gas fields, storages, pipelines, nodes and gas demands and more features such as: • • Integrates with long-term planning to produce expansion plans for gas and electric infrastructure • • Models constraints on short and mid-term gas supply and its impact on electricity production
  • 5. An c i l l a r y S e r v i ce s Ancillary service provision co-optimised with generation dispatch and unit commitment and more features such as: • • Multiple reserve classes including spinning up and down, regulation up and down, and replacement services • • Detailed treatment of start-up and shutdown combined with ramping and reserve interaction minute-by-minute Em i ssi o n s Generation dispatch constrained by emission limits and/or reflective of emissions price and number of emission types and more features such as: • • Optimisation of emission allocations over multiple fuels, generating units and regional rules • • Flexible grouping for emission constraint sets over any timeframe including multi-annual Tran sm i ssi o n Optimal power flow with losses fully integrated with dispatch and unit commitment, and more features such as: • Large connection of multiple AC networks, 10,000’s buses and lines • Security and n-x contingency constraints (SCUC), DC lines and phase shifters • • Generic constraints and interface limits, transmission aggregation, network reduction • • Nodal pricing and decomposition into energy, congestion and marginal loss components Fi n an c i a l Comprehensive financial reporting to Generator, Region and Company level and more features such as: • • • Dynamic bidding of generation resources reflective of contract position and/or medium term revenue requirements based on recovery of build costs from capacity expansion planning • • Bertrand and Cournot games, flexible user-defined mark-up definitions and empirical schemes such as Residual Supply Index (RSI) • Physical, Financial and Fuel contract obligations • Financial transmission rights (FTR) and Settlement Residue Auction (SRA) PLEXOS I ntegrate d E n e rg y M o d el ®
  • 6. S co p e an d Co m p at i b i l i t y Highly configurable timeframe and simulation interval as short as one minute and more features such as: • Choose between regional, zonal and full-nodal network detail • • Multiple pricing, uplift and capacity payment options to support various market rules • • Choice of commercial mathematical programming engines (CPLEX, Gurobi, MOSEK, Xpress-MP) Conve nt i o n a l G e n e rat i o n
  • 7. Tra n s m i s s i o n Cu sto m i zat i o n PLEXOS COM libraries and OpenPLEXOS automation features allow user execution control from simple external PLEXOS engine calls, custom pricing schemes to advanced custom algorithm calls at different runtime stages. PLEXOS features a friendly generic custom constraints builder that allows users to introduce custom expansion and operational limitations such as expansion reliability policies, transmission proxies, water irrigation conventions and more. D at a M a n a ge m e nt Long-term to short-term ready to execute models can co-exist in the same integrated database. Import/export from known industry standards help users get started with PLEXOS quickly and easily. PLEXOS I nte grated En ergy M o de l ®
  • 8. Wh at PL E XO S ® Co n n e c t is PLEXOS® Connect is the distributed, client-server system to complement the PLEXOS Desktop Edition simulation tool. The product enables users to: • Collaborate in preparing input data for simulations • Track changes to input data and maintain a version history. • • Distribute simulations for parallel execution over multiple client computers or to the cloud • Remotely manage distributed simulation jobs • Easily share, compare and review simulation results PLEXOS Connect allows you to control which computers jobs run on, the version of input data used, and even the version of the simulation engine. This allows you to keep a complete history of inputs, simulation engines and solutions. There are three main components in PLEXOS Connect: P L E XO S Co n n e c t S e r ve r The server is the centralised data-storage manager. It resides in the core of the network system and controls the data security, network configuration, permission hierarchy and simulation engine version control. P L E XO S Co n n e c t C l i e nt Clients query the server for inputs to perform simulations. All PLEXOS execution jobs queued on the server are dispatched to these computers for execution. On completion, the results are sent back to the server for storage and retrieval. P L E XO S Co n n e c t L a u n ch Co nt ro l Launch Control is the interface used to configure executions, retrieve/upload datasets and solutions, modify network configuration, administrate permissions and more. It can be used from a remote computer, client computer or within the server itself.
  • 9. C l i e nt s S er ver Perform PLEXOS® executions. Data-storage manager. R esults Configure all simulation executions from here. R es ul ts La u n c h Co nt ro l Data s et & Engine Dataset & Engi ne Sys te m Arc h i te c t u re L a u n c h Co nt ro l I nte r fa ce
  • 10. Leading the field in Energy Market Modelling Energy Exemplar Pty Ltd Energy Exemplar Ltd Software Development Europe Office 3/ 154-160 Prospect Road, Prospect, Adelaide SA 5082 Australia Tel: +44 208 899 6500 Email: europe@energyexemplar.com Tel: +61 8 8342 9616 Email: info@energyexemplar.com Energy Exemplar LLC Energy Exemplar LLC West Coast USA Office East Coast USA Office Tel: +1 916 304 0555 Email: westcoastusa@energyexemplar.com Tel: +1 860 461 0761 Email: eastcoastusa@energyexemplar.com e n e r g ye xe m p l a r. c o m
