Plc part 3

Course code: CS213
Course title :
(Programming Languages Concepts)
PART: 3
Prof. Taymoor Mohamed Nazmy
Dept. of computer science, faculty of computer science, Ain Shams uni.
Ex-vice dean of post graduate studies and research Cairo, Egypt
1

Statements level control structure
2

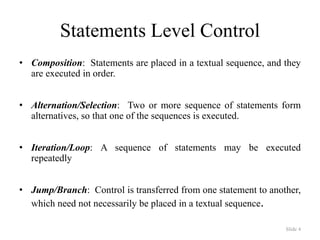

Statements Level Control
• Composition: Statements are placed in a textual sequence, and they
are executed in order.
• Alternation/Selection: Two or more sequence of statements form
alternatives, so that one of the sequences is executed.
• Iteration/Loop: A sequence of statements may be executed
repeatedly
• Jump/Branch: Control is transferred from one statement to another,
which need not necessarily be placed in a textual sequence.

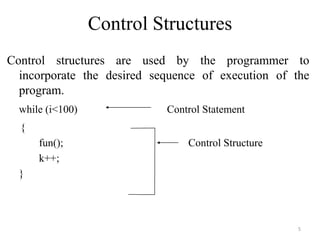

Control Structures
Control structures are used by the programmer to
incorporate the desired sequence of execution of the
program.
while (i<100) Control Statement
{
fun(); Control Structure
k++;
}
5

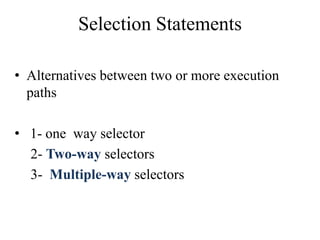

Selection Statements
• Alternatives between two or more execution
paths
• 1- one way selector
2- Two-way selectors
3- Multiple-way selectors

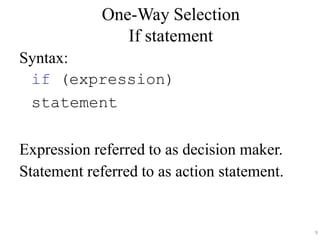

One-Way Selection
If statement
Syntax:
if (expression)
statement
Expression referred to as decision maker.
Statement referred to as action statement.
9

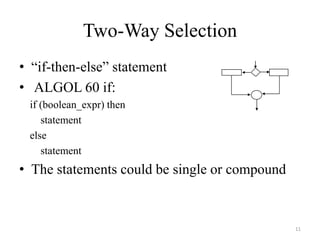

Two-Way Selection
• “if-then-else” statement
• ALGOL 60 if:
if (boolean_expr) then
statement
else
statement
• The statements could be single or compound
11

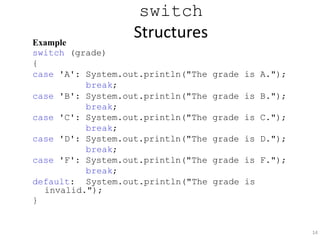

Example
switch (grade)
{
case 'A': System.out.println("The grade is A.");
break;
case 'B': System.out.println("The grade is B.");
break;
case 'C': System.out.println("The grade is C.");
break;
case 'D': System.out.println("The grade is D.");
break;
case 'F': System.out.println("The grade is F.");
break;
default: System.out.println("The grade is
invalid.");
}
14
switch
Structures

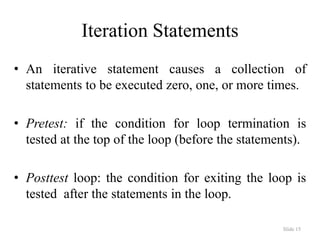

Iteration Statements
• An iterative statement causes a collection of
statements to be executed zero, one, or more times.
• Pretest: if the condition for loop termination is
tested at the top of the loop (before the statements).
• Posttest loop: the condition for exiting the loop is
tested after the statements in the loop.

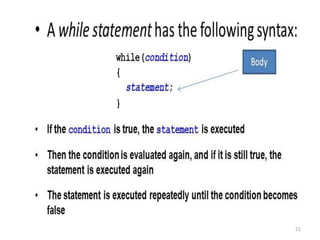

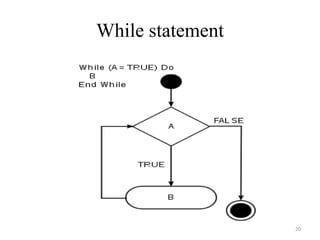

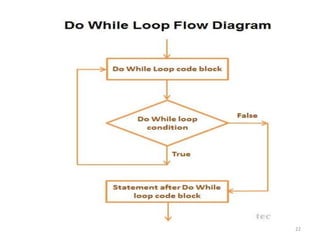

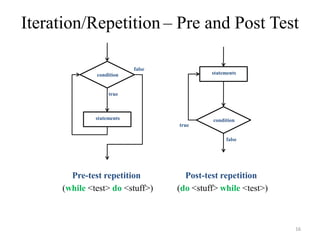

Iteration/Repetition – Pre and Post Test
Pre-test repetition
statements
true
false
condition
(while <test> do <stuff>)
true
false
statements
condition
Post-test repetition
(do <stuff> while <test>)
16

17

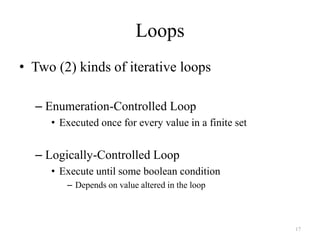

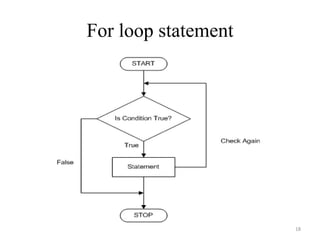

Loops
• Two (2) kinds of iterative loops
– Enumeration-Controlled Loop
• Executed once for every value in a finite set
– Logically-Controlled Loop
• Execute until some boolean condition
– Depends on value altered in the loop

24Slide 24

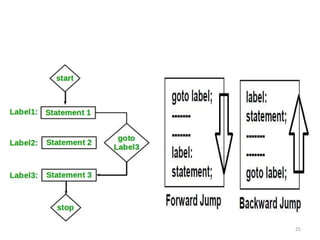

Branching (Jump) with goto

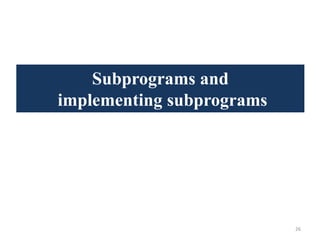

Subprograms and
implementing subprograms
26

Introduction
• Subprograms may be defined within programs, or
separately in libraries that can be used by many
programs.
• In different programming languages, a subroutine
may be called a procedure, a function, a routine,
a method, or a subprogram.
• The generic term callable unit is sometimes used.
27

Subroutines or subprogram
 The pieces of code used in this way are often called
subroutines and are common to all programming
languages (but with different names)
subroutines (Perl, FORTRAN)
functions (C,C++*,FORTRAN, Java*)
procedures (PASCAL)
 Essential for procedural or structured programming.
* object-oriented programming languages
28

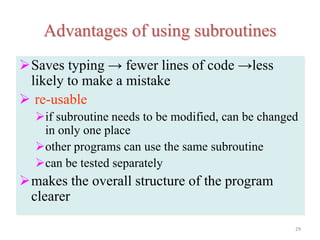

Advantages of using subroutines
Saves typing → fewer lines of code →less
likely to make a mistake
 re-usable
if subroutine needs to be modified, can be changed
in only one place
other programs can use the same subroutine
can be tested separately
makes the overall structure of the program
clearer
29

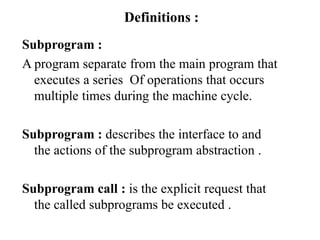

Definitions :
Subprogram :
A program separate from the main program that
executes a series Of operations that occurs
multiple times during the machine cycle.
Subprogram : describes the interface to and
the actions of the subprogram abstraction .
Subprogram call : is the explicit request that
the called subprograms be executed .

31

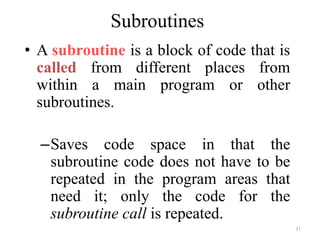

Subroutines
• A subroutine is a block of code that is
called from different places from
within a main program or other
subroutines.
–Saves code space in that the
subroutine code does not have to be
repeated in the program areas that
need it; only the code for the
subroutine call is repeated.

• A subroutine can have zero or more parameters
that control its operation
• A subroutine may need to use local variables for
computation.
• A subroutine may pass a return value back to the
caller.
• Space in data memory must be reserved for
parameters, local variables, and the return value.
32

9.34
Subprograms
This is useful because the subprogram makes
programming more structural: a subprogram to
accomplish a specific task can be written once but
called many times, just like predefined procedures in the
programming language.

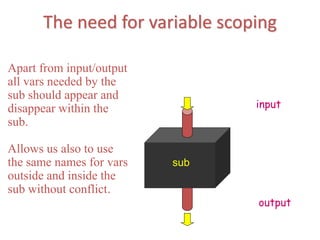

The need for variable scoping
sub
input
output
Apart from input/output
all vars needed by the
sub should appear and
disappear within the
sub.
Allows us also to use
the same names for vars
outside and inside the
sub without conflict.

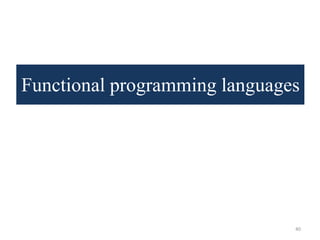

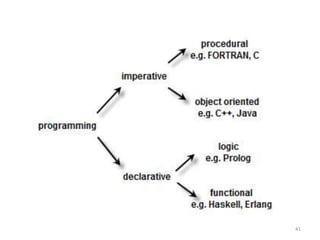

Functional programming languages
40

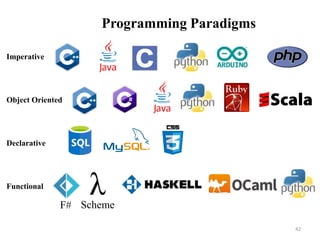

Imperative
Object Oriented
Declarative
Functional
Programming Paradigms
F# Scheme
42

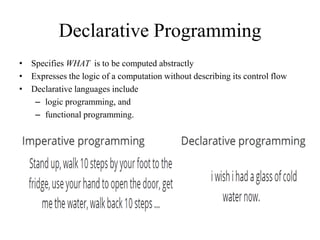

Declarative Programming
• Specifies WHAT is to be computed abstractly
• Expresses the logic of a computation without describing its control flow
• Declarative languages include
– logic programming, and
– functional programming.

4.45

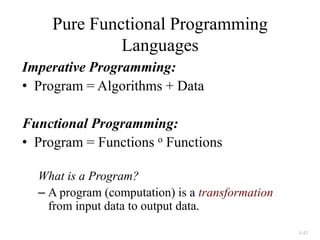

Pure Functional Programming
Languages
Imperative Programming:
• Program = Algorithms + Data
Functional Programming:
• Program = Functions o Functions
What is a Program?
– A program (computation) is a transformation
from input data to output data.

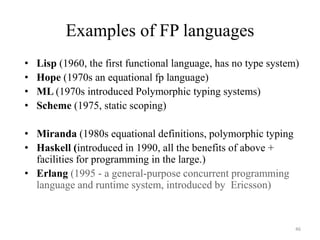

Examples of FP languages
• Lisp (1960, the first functional language, has no type system)
• Hope (1970s an equational fp language)
• ML (1970s introduced Polymorphic typing systems)
• Scheme (1975, static scoping)
• Miranda (1980s equational definitions, polymorphic typing
• Haskell (introduced in 1990, all the benefits of above +
facilities for programming in the large.)
• Erlang (1995 - a general-purpose concurrent programming
language and runtime system, introduced by Ericsson)
46

47

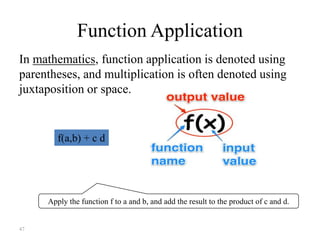

Function Application
In mathematics, function application is denoted using
parentheses, and multiplication is often denoted using
juxtaposition or space.
f(a,b) + c d
Apply the function f to a and b, and add the result to the product of c and d.

48

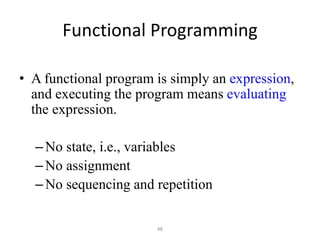

Functional Programming
• A functional program is simply an expression,
and executing the program means evaluating
the expression.
–No state, i.e., variables
–No assignment
–No sequencing and repetition

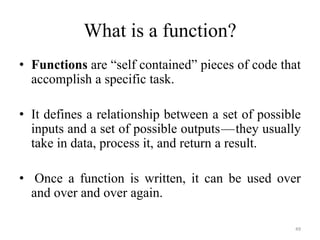

What is a function?
• Functions are “self contained” pieces of code that
accomplish a specific task.
• It defines a relationship between a set of possible
inputs and a set of possible outputs —they usually
take in data, process it, and return a result.
• Once a function is written, it can be used over
and over and over again.
49

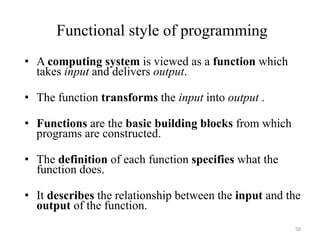

Functional style of programming
• A computing system is viewed as a function which
takes input and delivers output.
• The function transforms the input into output .
• Functions are the basic building blocks from which
programs are constructed.
• The definition of each function specifies what the
function does.
• It describes the relationship between the input and the
output of the function.
50

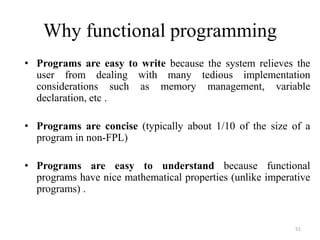

Why functional programming
• Programs are easy to write because the system relieves the
user from dealing with many tedious implementation
considerations such as memory management, variable
declaration, etc .
• Programs are concise (typically about 1/10 of the size of a
program in non-FPL)
• Programs are easy to understand because functional
programs have nice mathematical properties (unlike imperative
programs) .
51

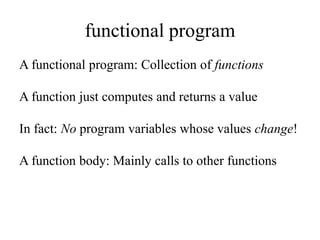

functional program
A functional program: Collection of functions
A function just computes and returns a value
In fact: No program variables whose values change!
A function body: Mainly calls to other functions

53
Examples
Mathematics Haskell
f(x)
f(x,y)
f(g(x))
f(x,g(y))
f(x)g(y)
f x
f x y
f (g x)
f x (g y)
f x * g y

55

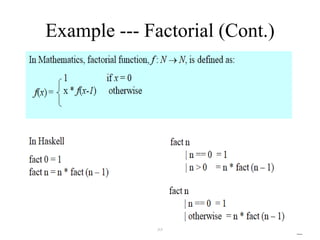

Example --- Factorial (Cont.)

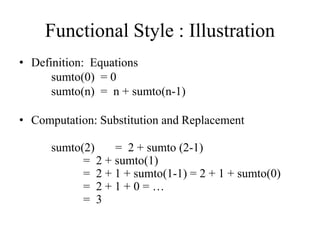

Functional Style : Illustration
• Definition: Equations
sumto(0) = 0
sumto(n) = n + sumto(n-1)
• Computation: Substitution and Replacement
sumto(2) = 2 + sumto (2-1)
= 2 + sumto(1)
= 2 + 1 + sumto(1-1) = 2 + 1 + sumto(0)
= 2 + 1 + 0 = …
= 3

9.57

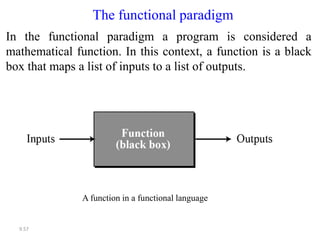

The functional paradigm
In the functional paradigm a program is considered a
mathematical function. In this context, a function is a black
box that maps a list of inputs to a list of outputs.
A function in a functional language

9.59

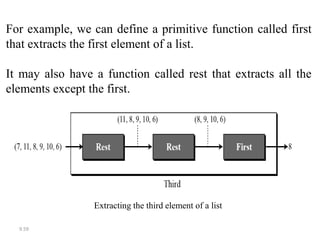

For example, we can define a primitive function called first
that extracts the first element of a list.
It may also have a function called rest that extracts all the
elements except the first.
Extracting the third element of a list

60

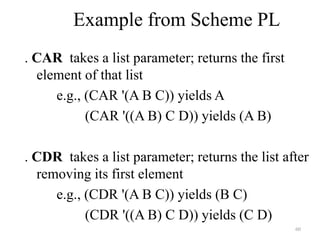

Example from Scheme PL
. CAR takes a list parameter; returns the first
element of that list
e.g., (CAR '(A B C)) yields A
(CAR '((A B) C D)) yields (A B)
. CDR takes a list parameter; returns the list after
removing its first element
e.g., (CDR '(A B C)) yields (B C)
(CDR '((A B) C D)) yields (C D)

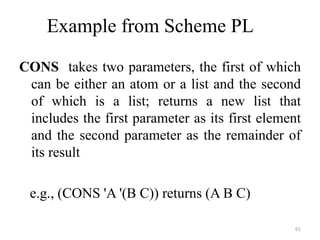

CONS takes two parameters, the first of which
can be either an atom or a list and the second
of which is a list; returns a new list that
includes the first parameter as its first element
and the second parameter as the remainder of
its result
e.g., (CONS 'A '(B C)) returns (A B C)
61
Example from Scheme PL

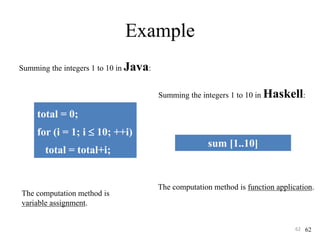

Example
Summing the integers 1 to 10 in Java:
total = 0;
for (i = 1; i  10; ++i)
total = total+i;
The computation method is
variable assignment.
62
Summing the integers 1 to 10 in Haskell:
sum [1..10]
The computation method is function application.
62

63

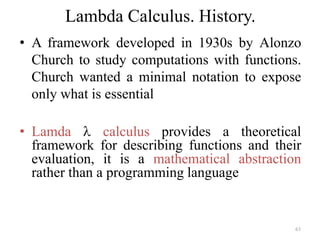

Lambda Calculus. History.
• A framework developed in 1930s by Alonzo
Church to study computations with functions.
Church wanted a minimal notation to expose
only what is essential
• Lamda l calculus provides a theoretical
framework for describing functions and their
evaluation, it is a mathematical abstraction
rather than a programming language

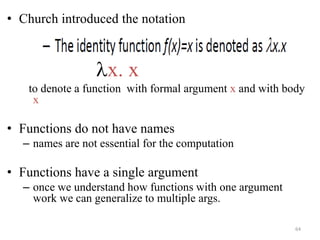

• Church introduced the notation
lx. x
to denote a function with formal argument x and with body
x
• Functions do not have names
– names are not essential for the computation
• Functions have a single argument
– once we understand how functions with one argument
work we can generalize to multiple args.
64

65
Why Study Lambda Calculus?
• l-calculus is the standard testbed for studying
programming language features
– Because of its minimality
– Despite its syntactic simplicity the l-calculus can
easily encode.

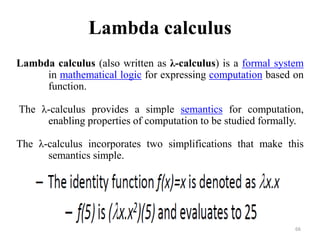

Lambda calculus
Lambda calculus (also written as λ-calculus) is a formal system
in mathematical logic for expressing computation based on
function.
The λ-calculus provides a simple semantics for computation,
enabling properties of computation to be studied formally.
The λ-calculus incorporates two simplifications that make this
semantics simple.
66

Lambda Expressions
A lambda expression specifies the parameter(s)
and the mapping of a function
Example: for the function cube(x) = x*x*x
lx. x * x * x
Lambda expressions describe nameless functions
Lambda expressions are applied to parameter(s) by placing
the parameter(s) after the expression
Example: (lx. x*x*x) (2) evaluated to 8
67

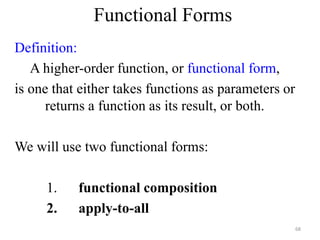

Functional Forms
Definition:
A higher-order function, or functional form,
is one that either takes functions as parameters or
returns a function as its result, or both.
We will use two functional forms:
1. functional composition
2. apply-to-all
68

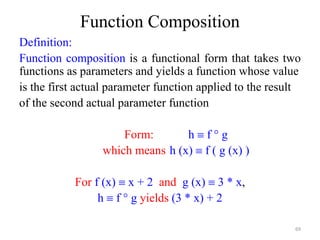

Function Composition
Definition:
Function composition is a functional form that takes two
functions as parameters and yields a function whose value
is the first actual parameter function applied to the result
of the second actual parameter function
Form: h  f ° g
which means h (x)  f ( g (x) )
For f (x)  x + 2 and g (x)  3 * x,
h  f ° g yields (3 * x) + 2
69

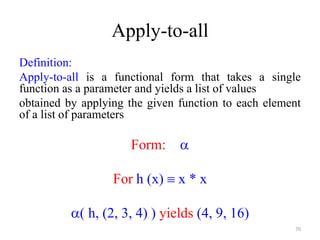

Apply-to-all
Definition:
Apply-to-all is a functional form that takes a single
function as a parameter and yields a list of values
obtained by applying the given function to each element
of a list of parameters
Form: 
For h (x)  x * x
( h, (2, 3, 4) ) yields (4, 9, 16)
70

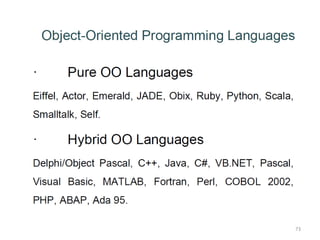

Object-Oriented Programming
OOP languages
71

76

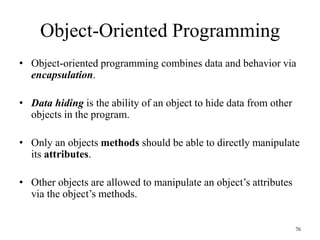

Object-Oriented Programming
• Object-oriented programming combines data and behavior via
encapsulation.
• Data hiding is the ability of an object to hide data from other
objects in the program.
• Only an objects methods should be able to directly manipulate
its attributes.
• Other objects are allowed to manipulate an object’s attributes
via the object’s methods.

OOP Terminologies
– Class: the abstract data type that provides a way to create new
objects based on a defintion of an object ,
(Example: The automobile class)
– Object: A class instance, it is an entity that has methods, has
attributes and can react to events.
– Attribute – Things which describe an object; the “adjectives” of
objects.
– Derived class (subclass): A class that is defined through
inheritance from another class.
– Parent class (superclass): A class from which a new class is
derived.

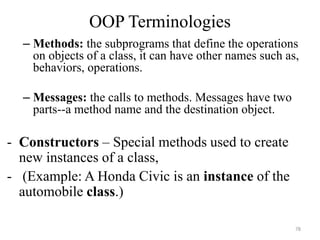

– Methods: the subprograms that define the operations
on objects of a class, it can have other names such as,
behaviors, operations.
– Messages: the calls to methods. Messages have two
parts--a method name and the destination object.
- Constructors – Special methods used to create
new instances of a class,
- (Example: A Honda Civic is an instance of the
automobile class.)
78

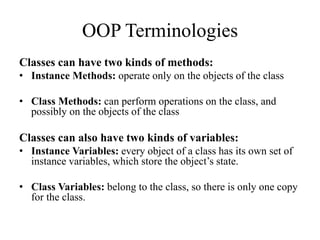

OOP Terminologies

Classes can have two kinds of methods:
• Instance Methods: operate only on the objects of the class
• Class Methods: can perform operations on the class, and
possibly on the objects of the class
Classes can also have two kinds of variables:
• Instance Variables: every object of a class has its own set of
instance variables, which store the object’s state.
• Class Variables: belong to the class, so there is only one copy
for the class.
OOP Terminologies

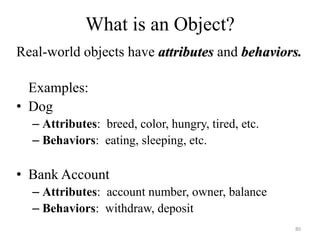

What is an Object?
Real-world objects have attributes and behaviors.
Examples:
• Dog
– Attributes: breed, color, hungry, tired, etc.
– Behaviors: eating, sleeping, etc.
• Bank Account
– Attributes: account number, owner, balance
– Behaviors: withdraw, deposit
80

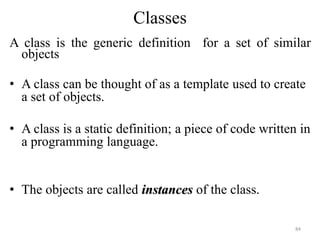

Classes
A class is the generic definition for a set of similar
objects
• A class can be thought of as a template used to create
a set of objects.
• A class is a static definition; a piece of code written in
a programming language.
• The objects are called instances of the class.
84

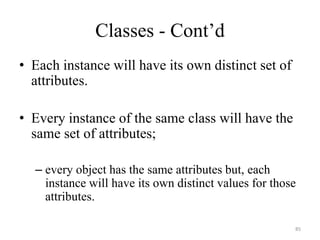

Classes - Cont’d
• Each instance will have its own distinct set of
attributes.
• Every instance of the same class will have the
same set of attributes;
– every object has the same attributes but, each
instance will have its own distinct values for those
attributes.
85

Account
+Owner: Person
+Ammount: double
+suspend()
+deposit(sum:double)
+withdraw(sum:double)

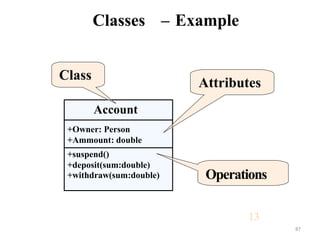

Classes – Example
Class
Attributes
Operations
13
Account
+Owner: Person
+Ammount: double
+suspend()
87

Account
+Owner: Person
+Ammount: double
+suspend()
ivanAccount
+Owner="Ivan Kolev"
+Ammount=5000.0
peterAccount
+Owner="Peter Kirov"
+Ammount=1825.33
kirilAccount
14
+Owner="Kiril Kirov"
+Ammount=25.0
Classes and
Example
Object
Objects –
Class
Object
+Ammount=1825.33
Object
kirilAccount
+Owner="Kiril Kirov"
+Ammount=25.0
peterAccount
+Owner="Peter Kirov"
Account
+Owner: Person
+Ammount: double
+suspend()
ivanAccount
+Owner="Ivan Kolev"
+Ammount=5000.0
89

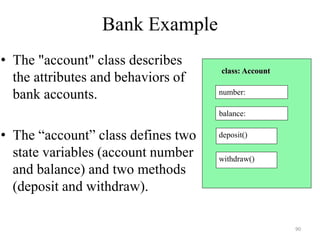

Bank Example
• The "account" class describes
the attributes and behaviors of
bank accounts.
• The “account” class defines two
state variables (account number
and balance) and two methods
(deposit and withdraw).
class: Account
deposit()
withdraw()
balance:
number:
90

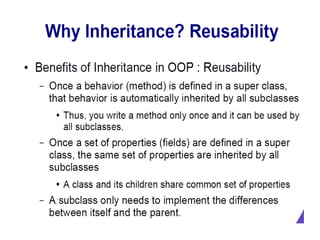

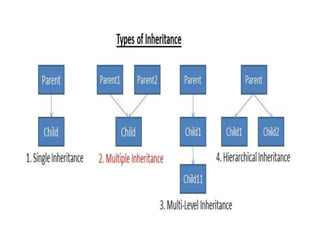

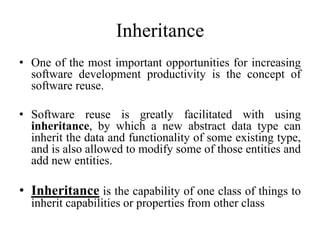

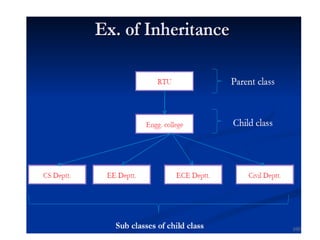

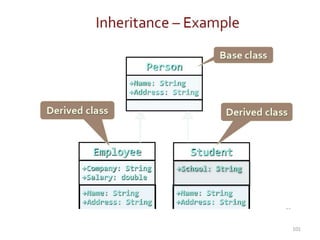

Inheritance
• One of the most important opportunities for increasing
software development productivity is the concept of
software reuse.
• Software reuse is greatly facilitated with using
inheritance, by which a new abstract data type can
inherit the data and functionality of some existing type,
and is also allowed to modify some of those entities and
add new entities.
• Inheritance is the capability of one class of things to
inherit capabilities or properties from other class

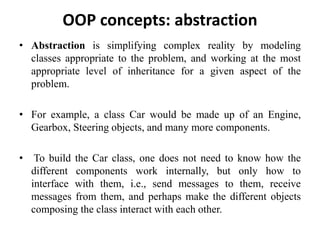

• Abstraction is simplifying complex reality by modeling
classes appropriate to the problem, and working at the most
appropriate level of inheritance for a given aspect of the
problem.
• For example, a class Car would be made up of an Engine,
Gearbox, Steering objects, and many more components.
• To build the Car class, one does not need to know how the
different components work internally, but only how to
interface with them, i.e., send messages to them, receive
messages from them, and perhaps make the different objects
composing the class interact with each other.
OOP concepts: abstraction
105

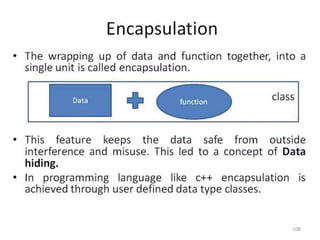

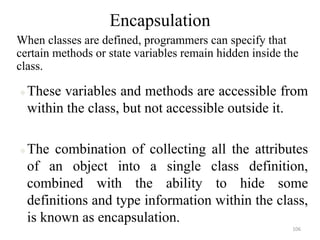

Encapsulation
When classes are defined, programmers can specify that
certain methods or state variables remain hidden inside the
class.
These variables and methods are accessible from
within the class, but not accessible outside it.
The combination of collecting all the attributes
of an object into a single class definition,
combined with the ability to hide some
definitions and type information within the class,
is known as encapsulation.
106

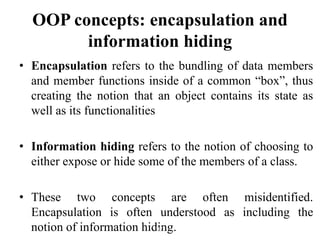

• Encapsulation refers to the bundling of data members
and member functions inside of a common “box”, thus
creating the notion that an object contains its state as
well as its functionalities
• Information hiding refers to the notion of choosing to
either expose or hide some of the members of a class.
• These two concepts are often misidentified.
Encapsulation is often understood as including the
notion of information hiding.
OOP concepts: encapsulation and
information hiding
107

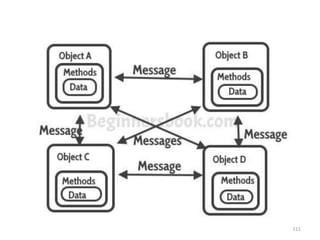

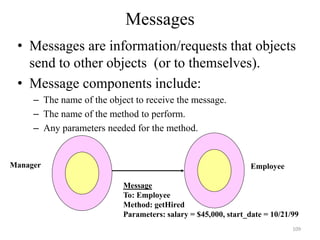

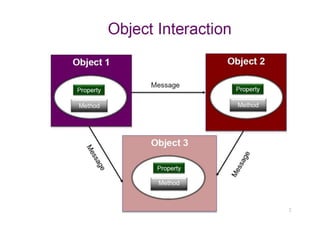

Messages
• Messages are information/requests that objects
send to other objects (or to themselves).
• Message components include:
– The name of the object to receive the message.
– The name of the method to perform.
– Any parameters needed for the method.
Manager Employee
Message
To: Employee
Method: getHired
Parameters: salary = $45,000, start_date = 10/21/99
109

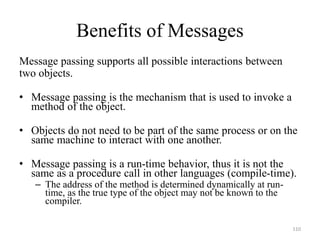

Benefits of Messages
Message passing supports all possible interactions between
two objects.
• Message passing is the mechanism that is used to invoke a
method of the object.
• Objects do not need to be part of the same process or on the
same machine to interact with one another.
• Message passing is a run-time behavior, thus it is not the
same as a procedure call in other languages (compile-time).
– The address of the method is determined dynamically at run-
time, as the true type of the object may not be known to the
compiler.
110

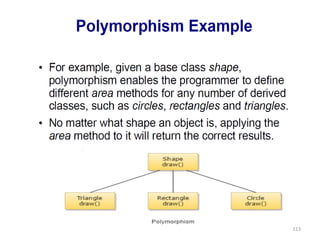

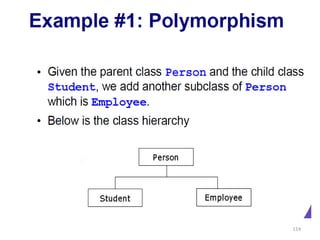

POLYMORPHISM
 Polymorphism means many forms (it derives from the Greek
words Poly, meaning many, and Morphos, meaning form).
 It is the ability for a message or data to be processed in more
than one form.
 It is a property by which the same message can be sent to
objects of several different classes, & each object can respond
in a different way depending on its class.
Languages that support classes but not polymorphism
are called OBJECT BASED languages.
112

Plc part 3

More Related Content

What's hot

Similar to Plc part 3

More from Taymoor Nazmy

Recently uploaded

Plc part 3
