1. Scaling PHP
… in an “Enterprise” environment
(what’s that?)
Sarel van der Walt
- I’m from the Internet … a.k.a. afrihost.com
facebook.com/sarelvdwalt
twitter.com/sfvdwalt

2. – Dustin Whittle
“Scalability is about the entire architecture,
not some minor code optimisations”

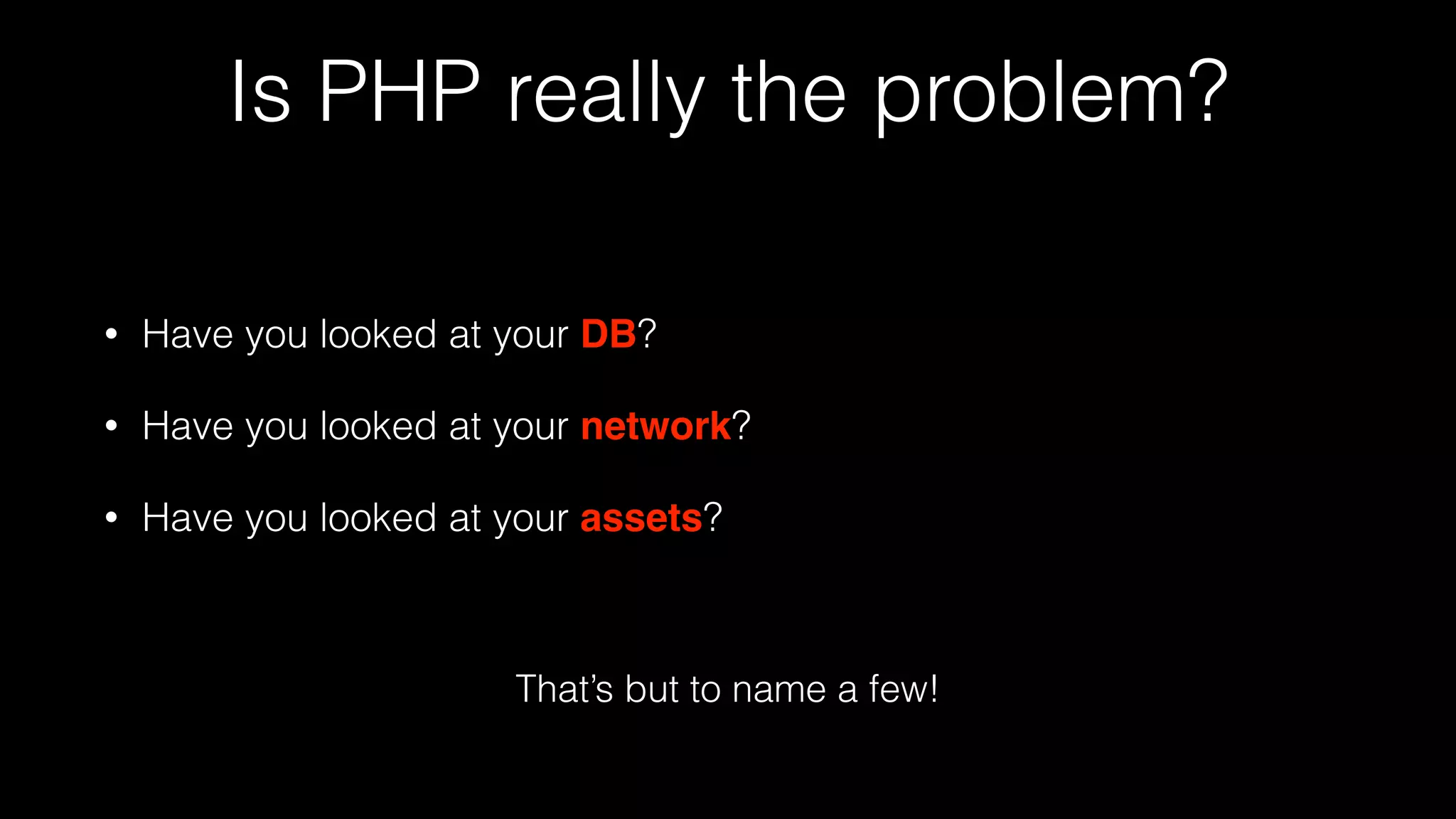

3. Is PHP really the problem?
• Have you looked at your DB?
• Have you looked at your network?
• Have you looked at your assets?
That’s but to name a few!

4. versus…
Vertical = expensive
Horizontal = inexpensive,
but complex

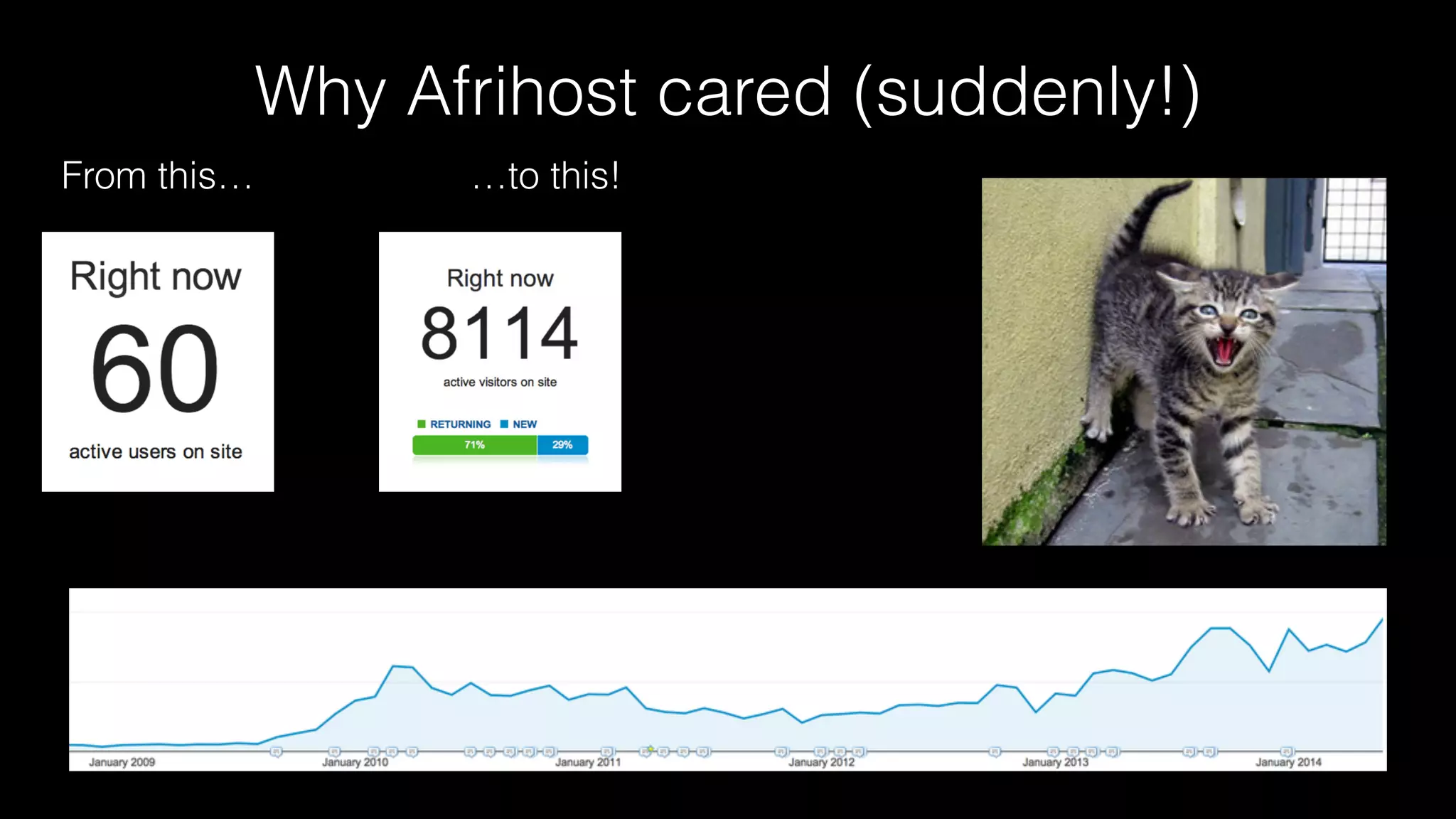

5. Why Afrihost cared (suddenly!)
From this… …to this!

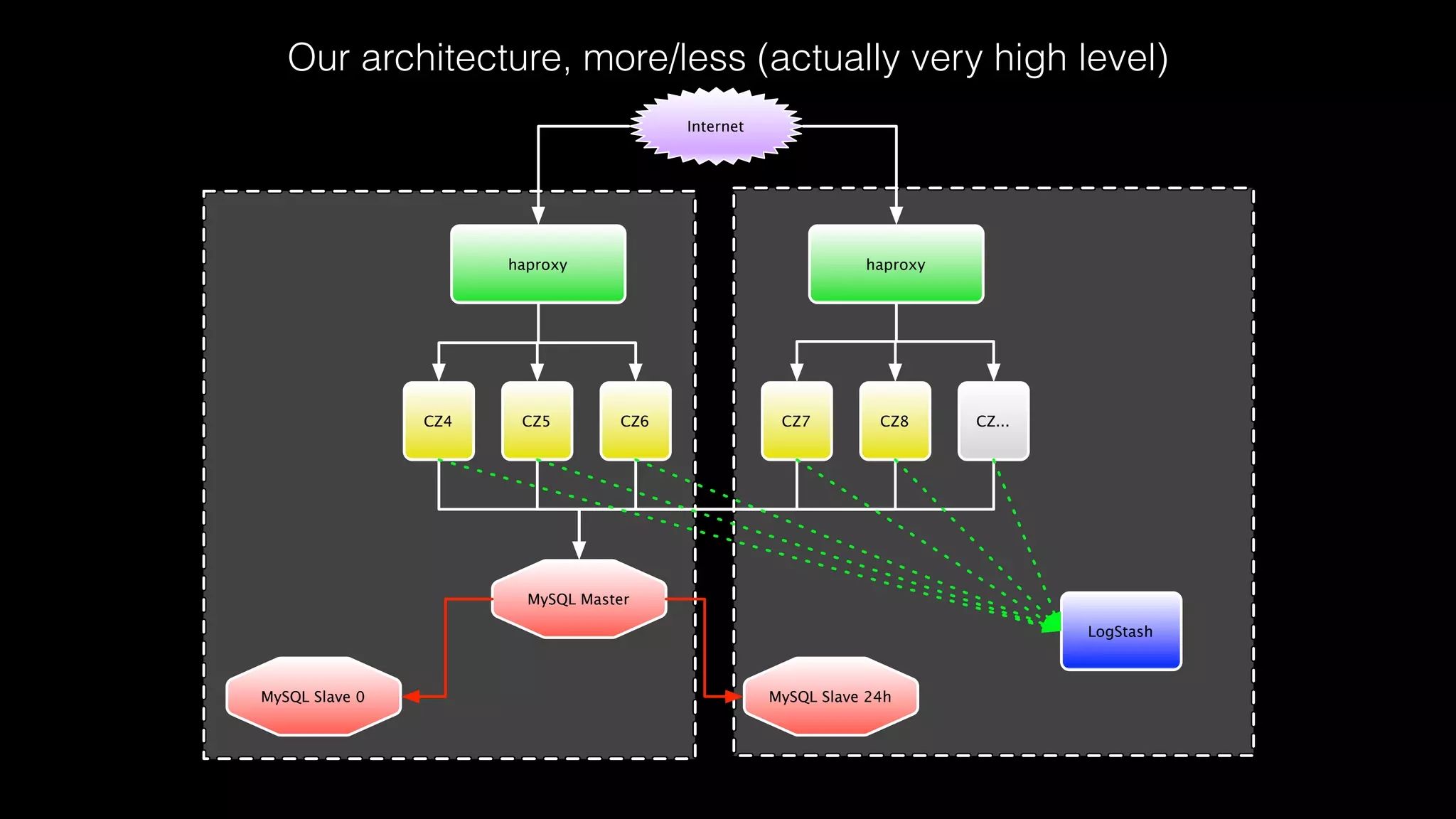

6. Our architecture, more/less (actually very high level)
haproxy haproxy
Internet
CZ4 CZ5 CZ6 CZ7 CZ8 CZ...
MySQL Master
MySQL Slave 0 MySQL Slave 24h
LogStash

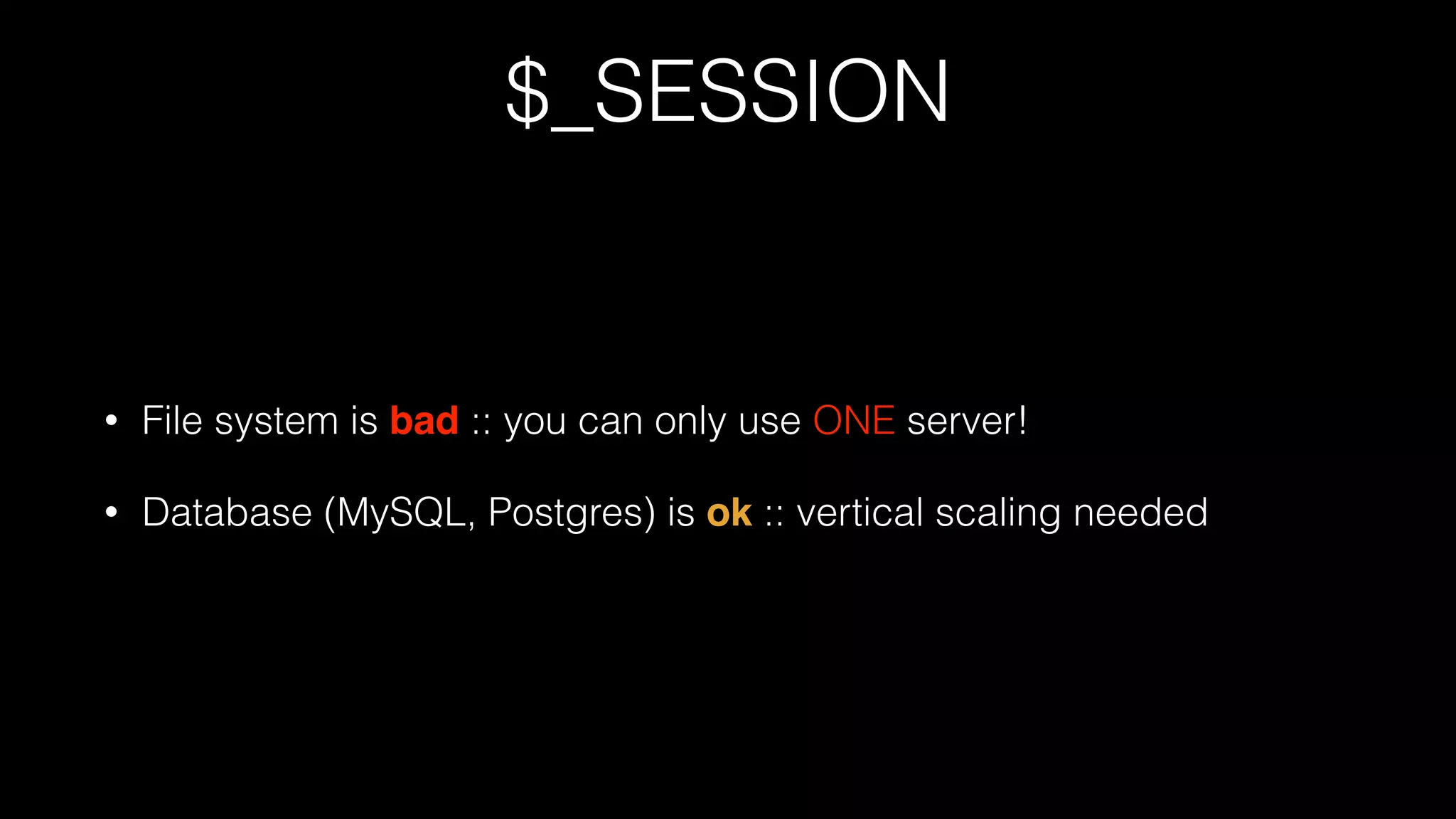

7. $_SESSION
• File system is bad :: you can only use ONE server!
• Database (MySQL, Postgres) is ok :: vertical scaling needed

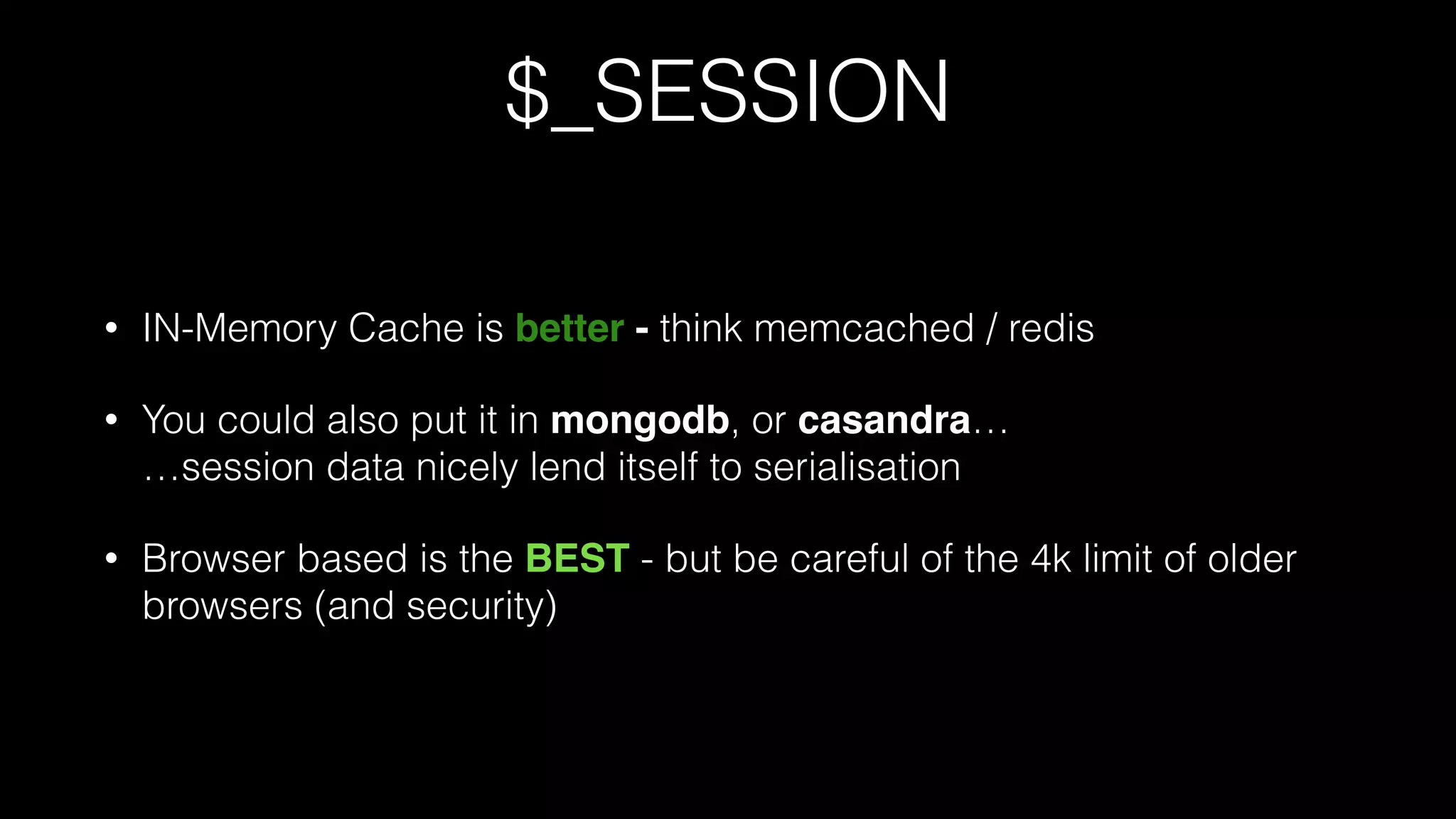

8. $_SESSION
• IN-Memory Cache is better - think memcached / redis
• You could also put it in mongodb, or casandra…
…session data nicely lend itself to serialisation
• Browser based is the BEST - but be careful of the 4k limit of older
browsers (and security)

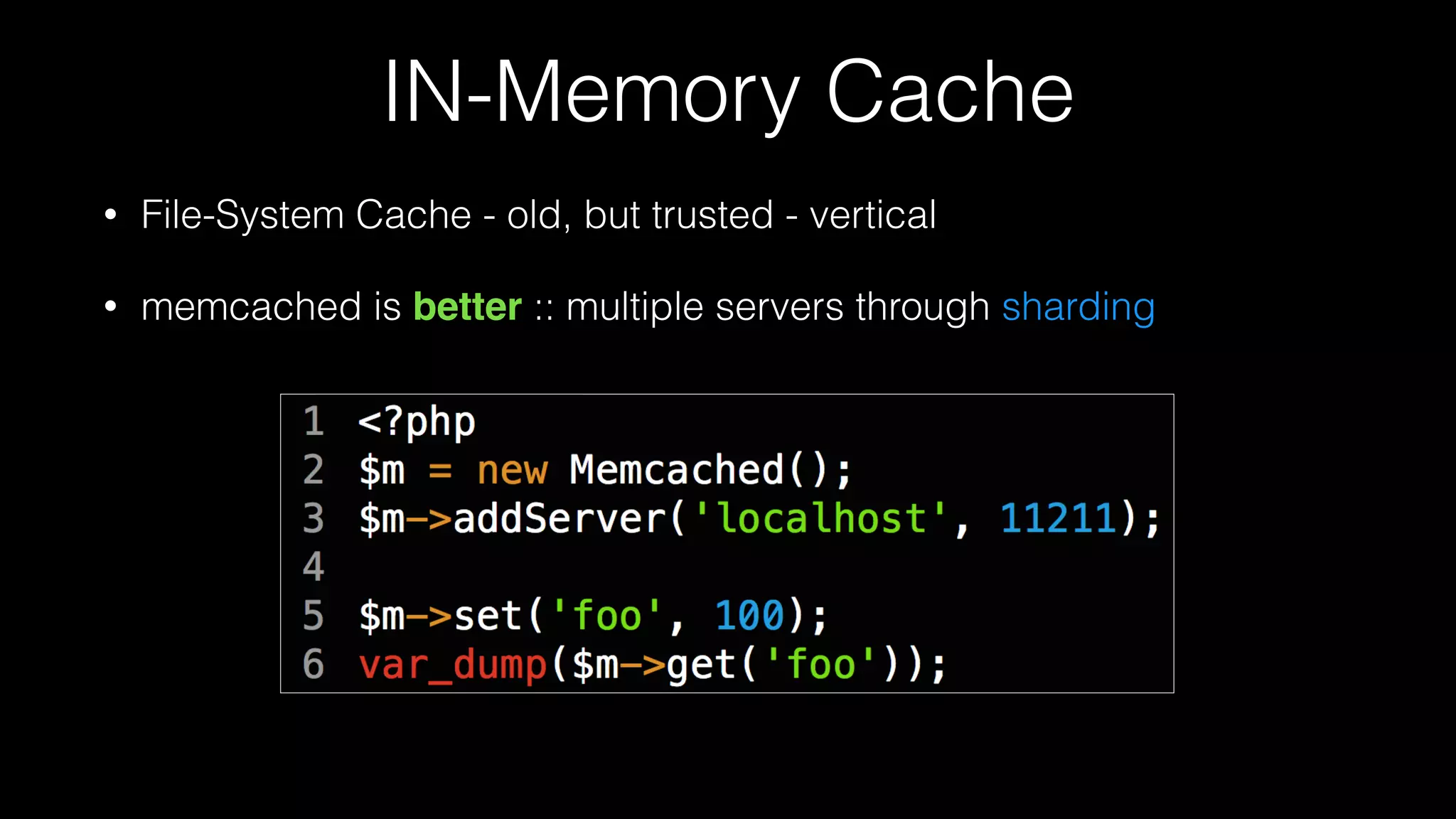

9. IN-Memory Cache
• File-System Cache - old, but trusted - vertical
• memcached is better :: multiple servers through sharding

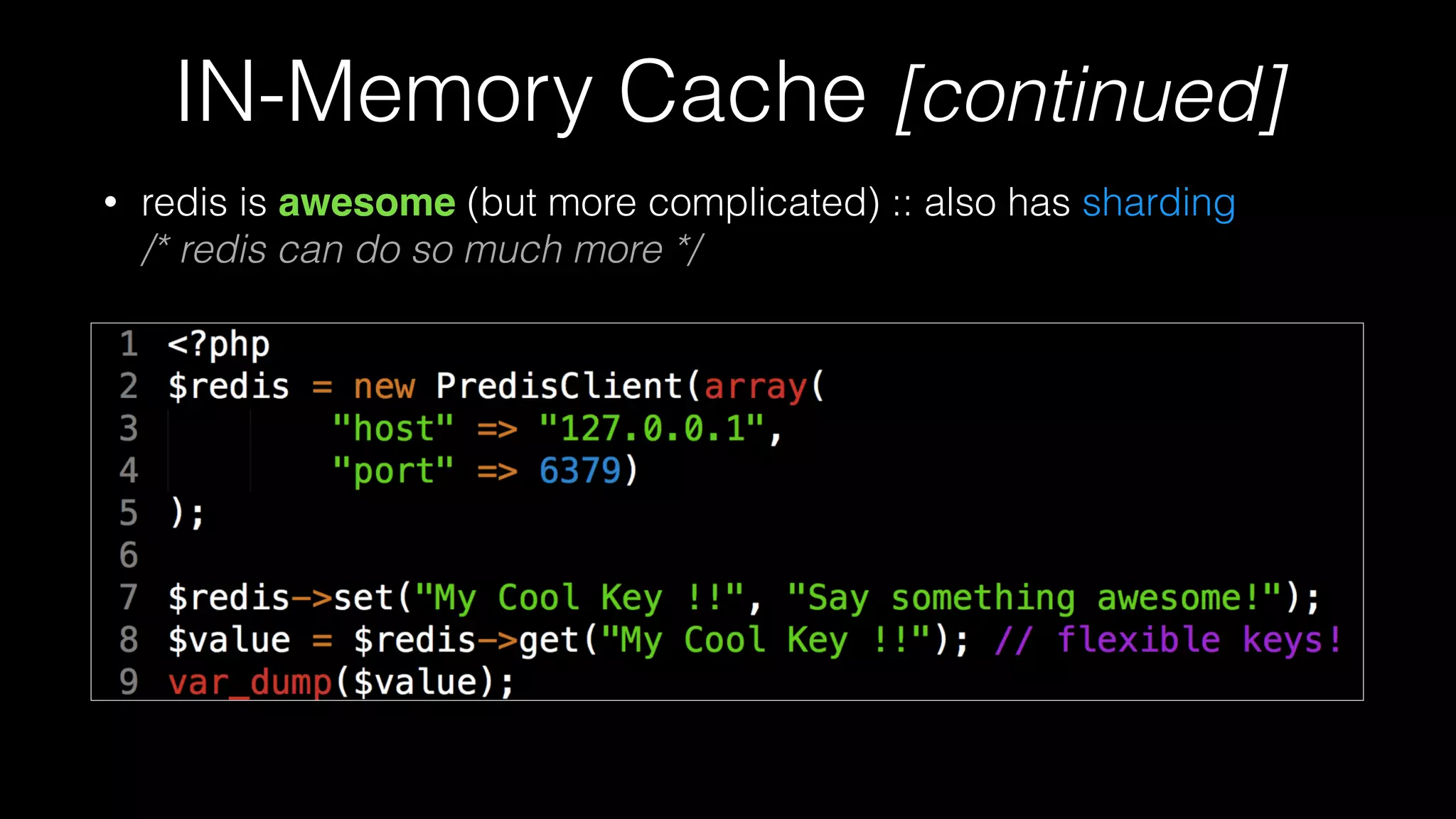

10. IN-Memory Cache [continued]
• redis is awesome (but more complicated) :: also has sharding
/* redis can do so much more */

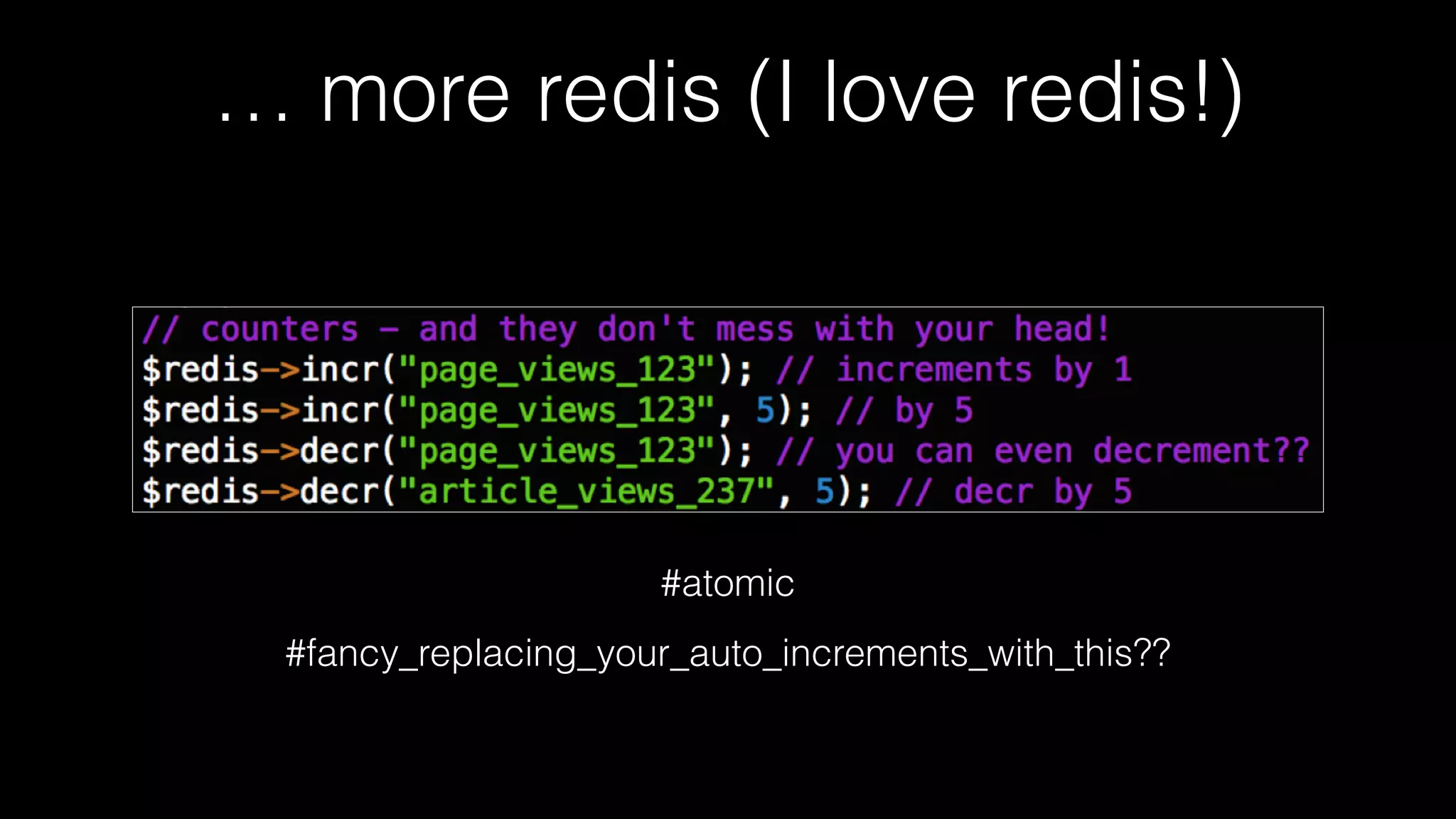

11. … more redis (I love redis!)
#atomic
#fancy_replacing_your_auto_increments_with_this??

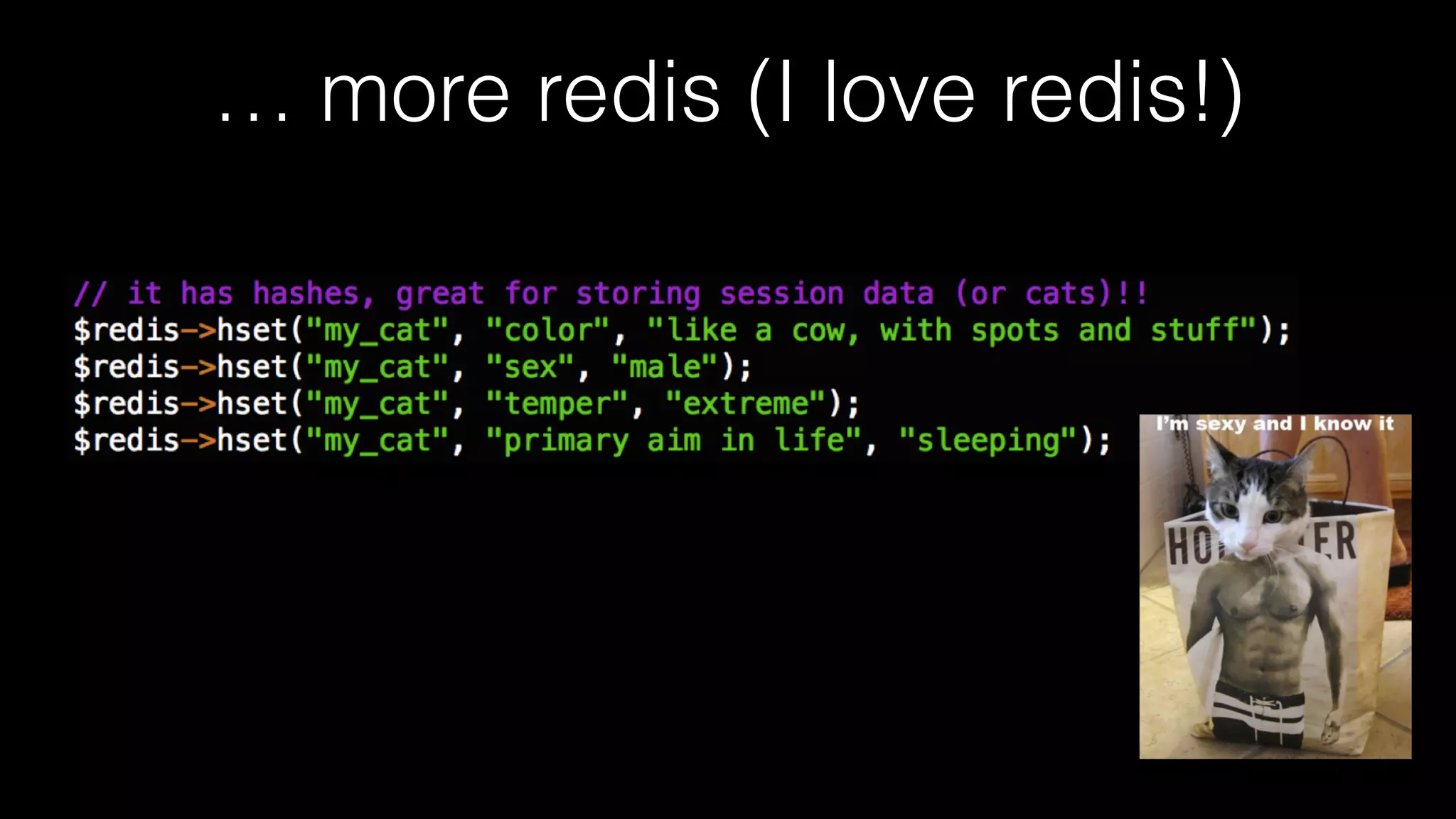

12. … more redis (I love redis!)

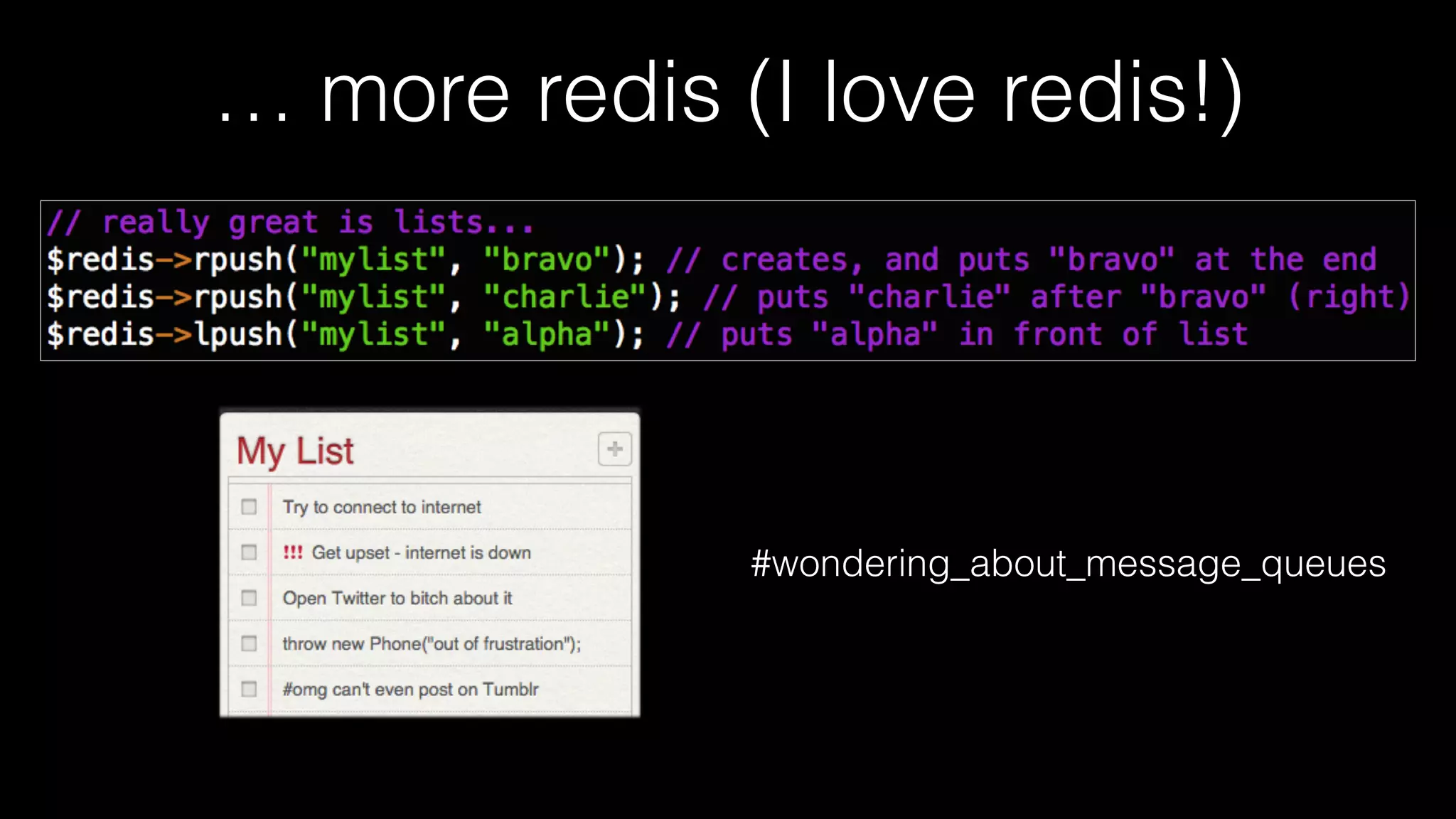

13. … more redis (I love redis!)
#wondering_about_message_queues

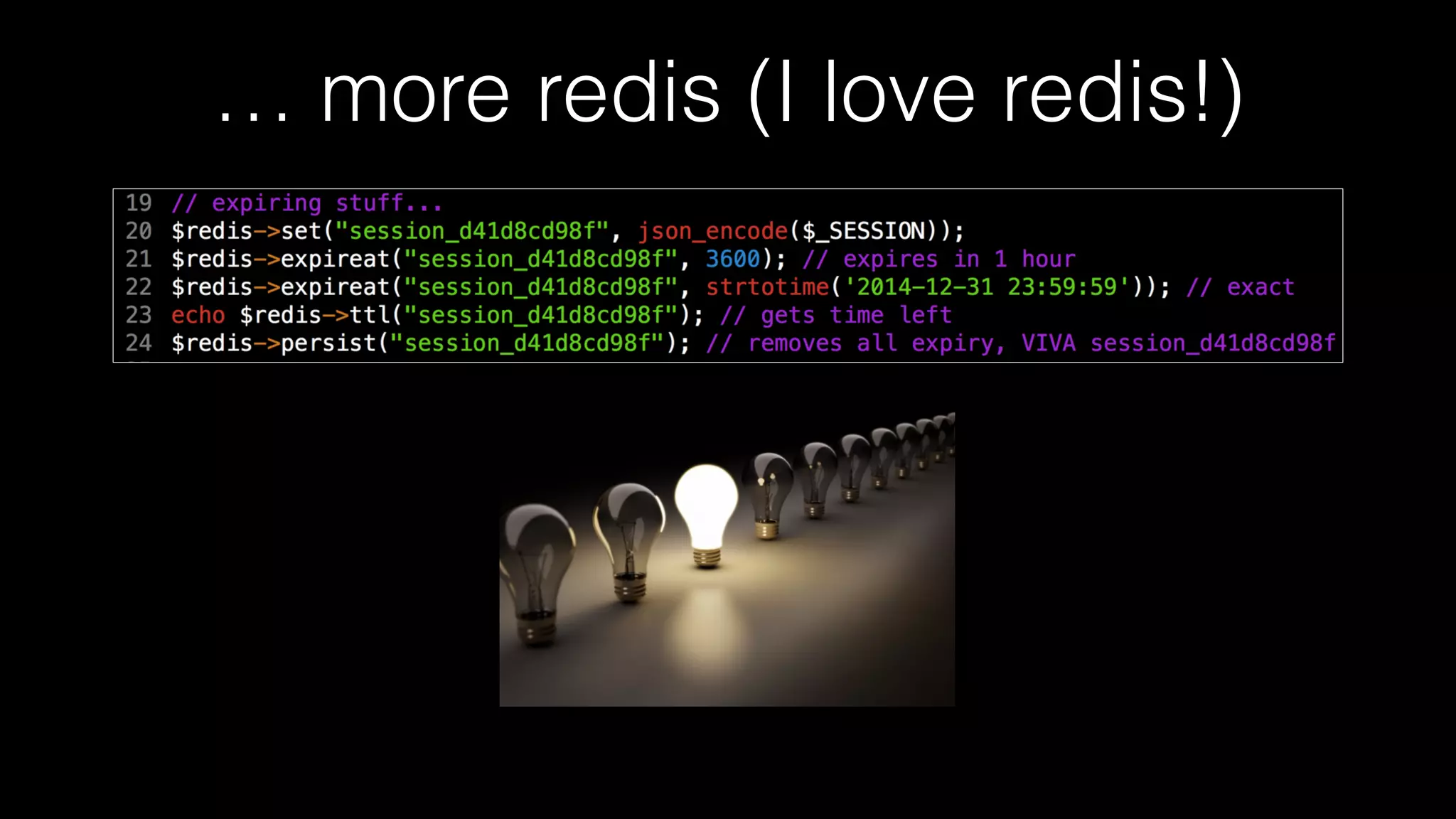

14. … more redis (I love redis!)

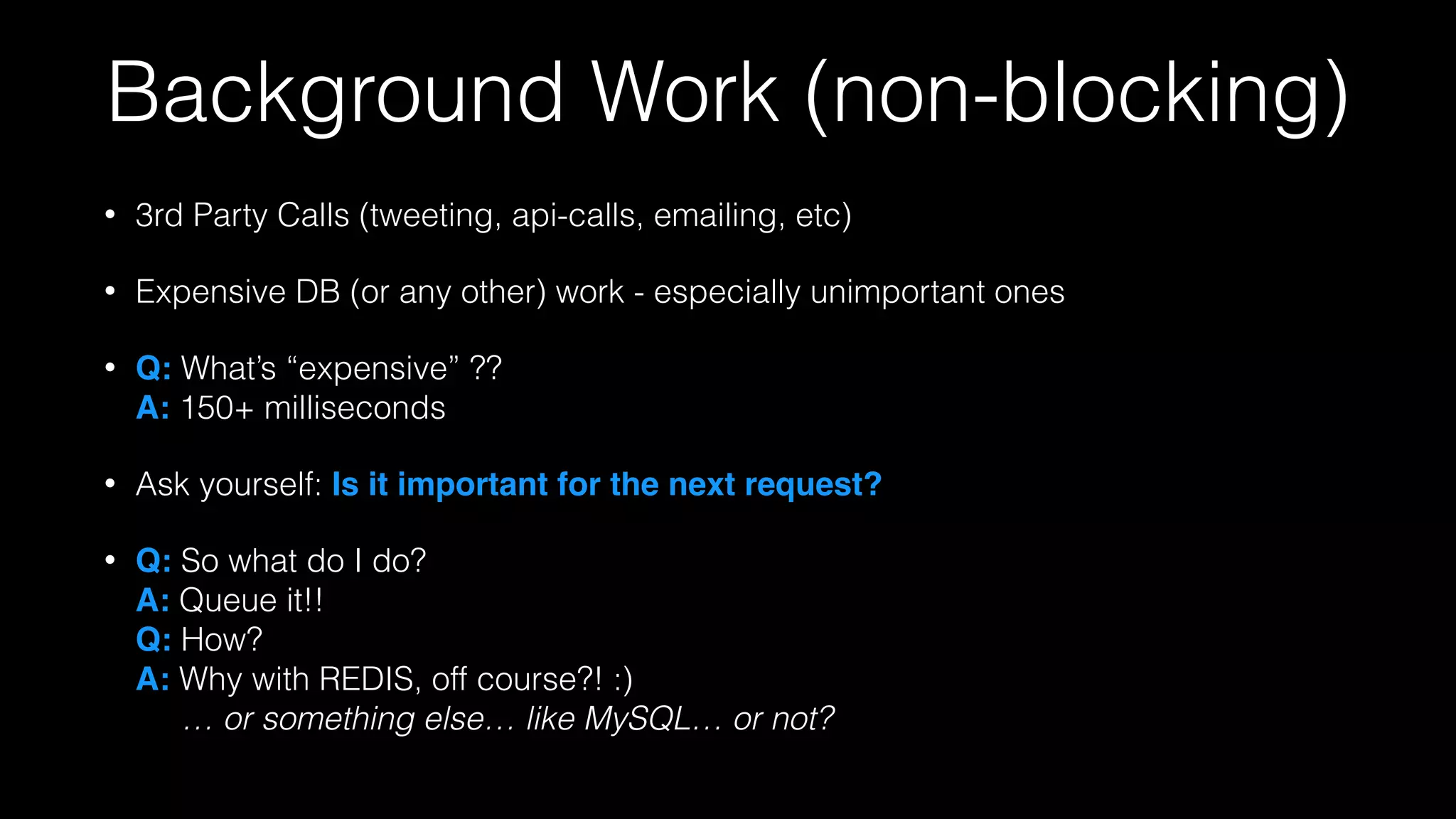

15. Background Work (non-blocking)
• 3rd Party Calls (tweeting, api-calls, emailing, etc)
• Expensive DB (or any other) work - especially unimportant ones
• Q: What’s “expensive” ??
A: 150+ milliseconds
• Ask yourself: Is it important for the next request?!
• Q: So what do I do?
A: Queue it!!
Q: How?
A: Why with REDIS, off course?! :)
… or something else… like MySQL… or not?

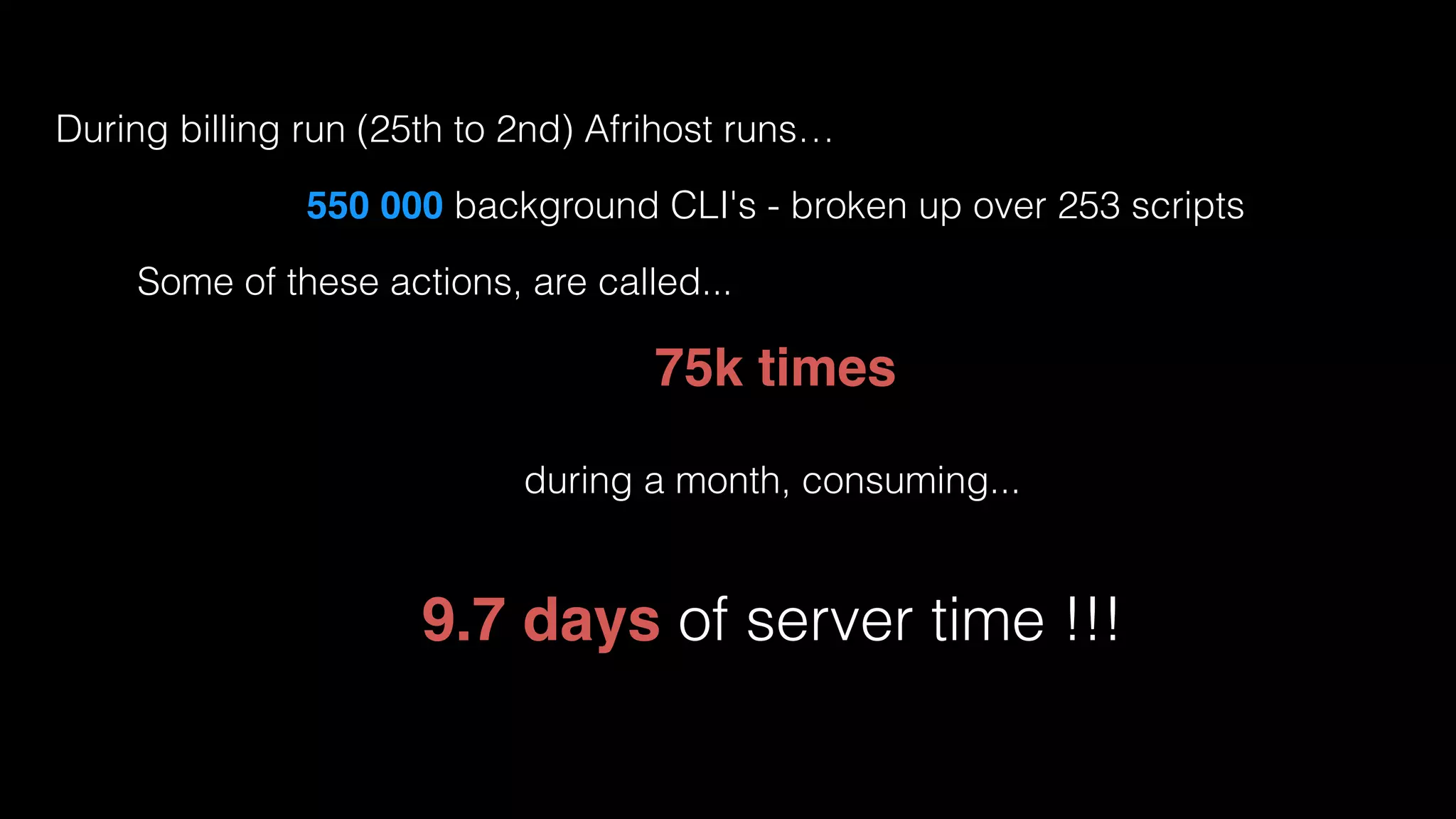

16. During billing run (25th to 2nd) Afrihost runs…
550 000 background CLI's - broken up over 253 scripts
Some of these actions, are called...
75k times
during a month, consuming...
9.7 days of server time !!!

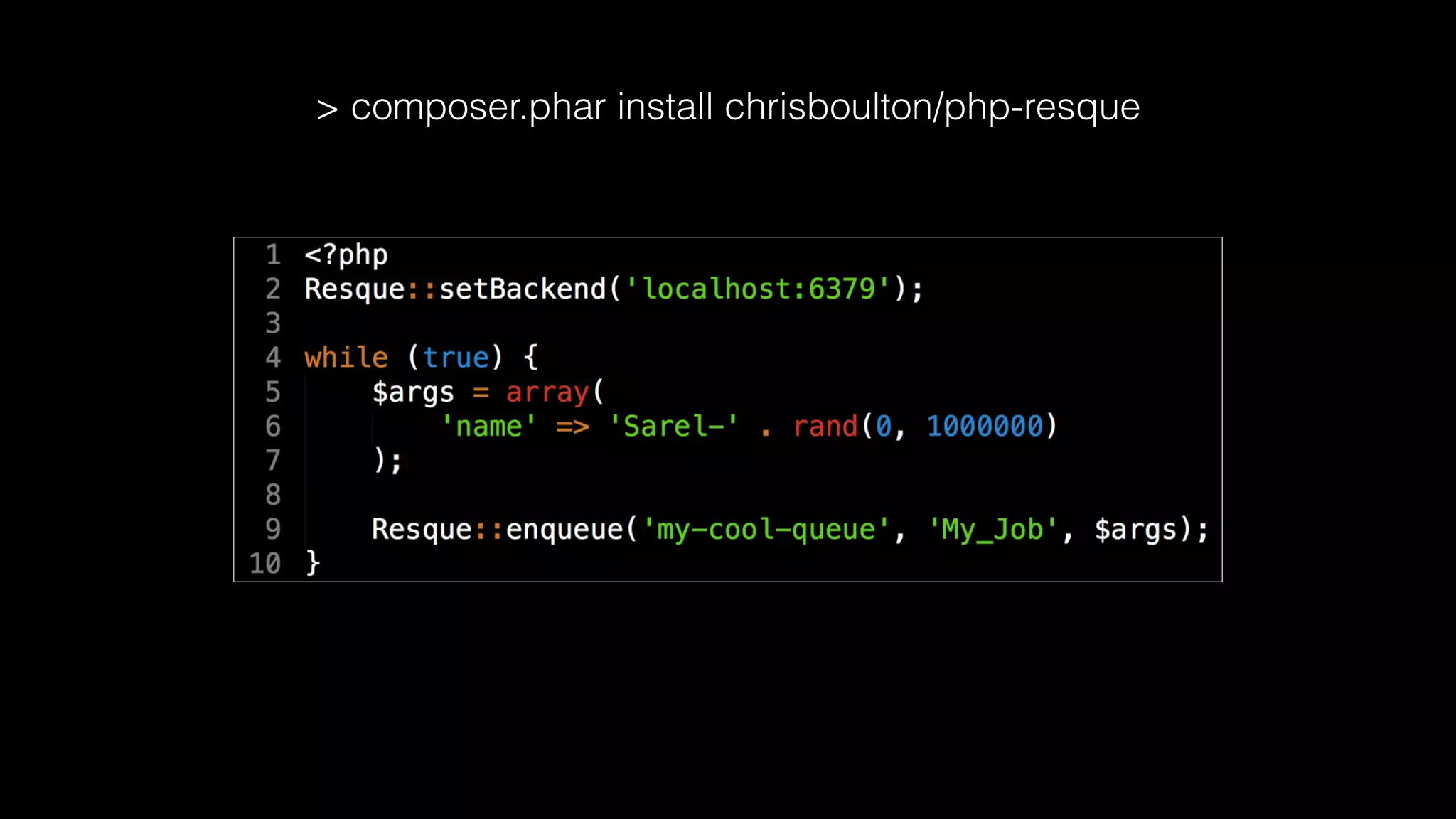

17. > composer.phar install chrisboulton/php-resque

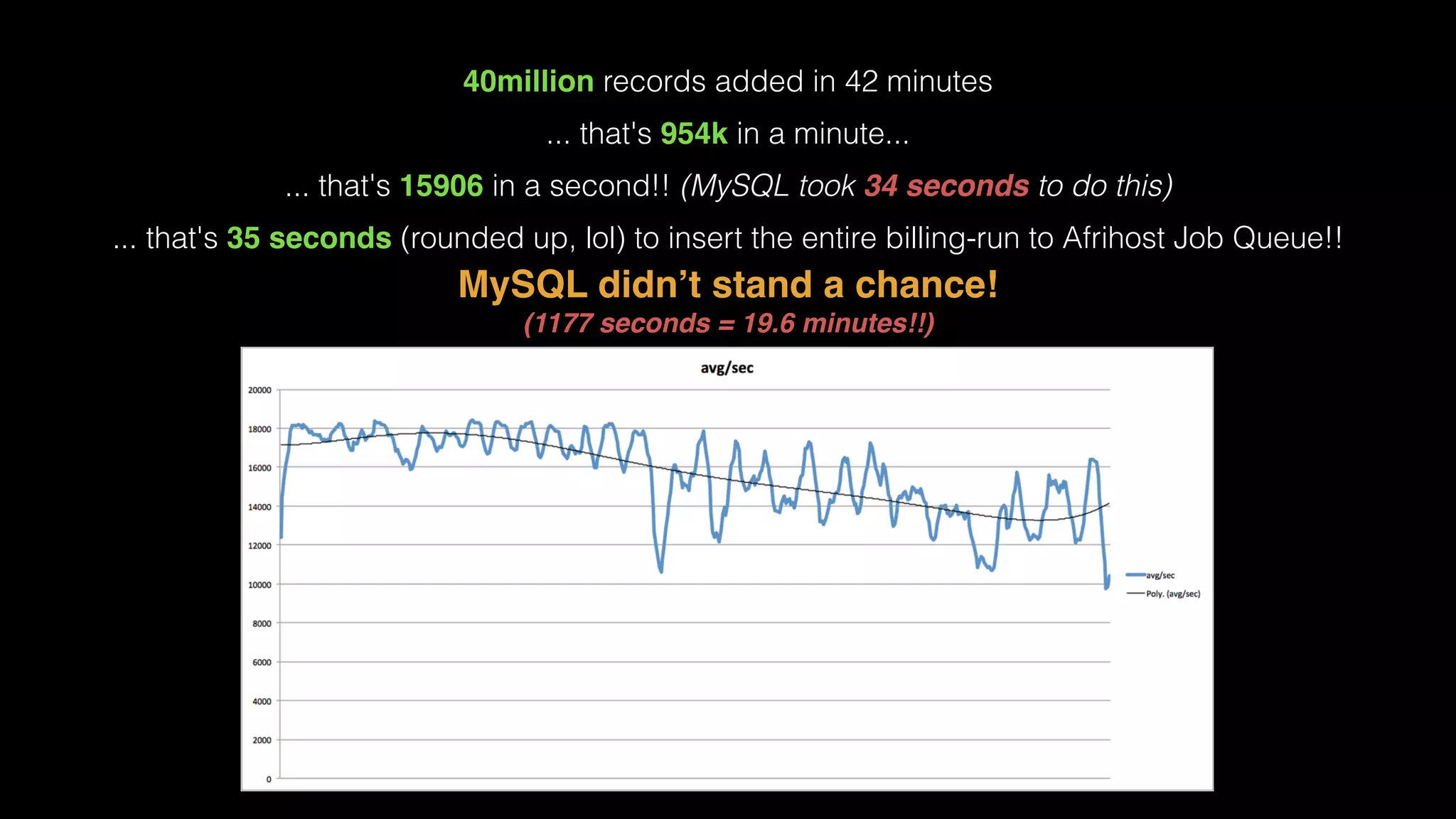

18. 40million records added in 42 minutes
... that's 954k in a minute...
... that's 15906 in a second!! (MySQL took 34 seconds to do this)
... that's 35 seconds (rounded up, lol) to insert the entire billing-run to Afrihost Job Queue!!
MySQL didn’t stand a chance!!
(1177 seconds = 19.6 minutes!!)

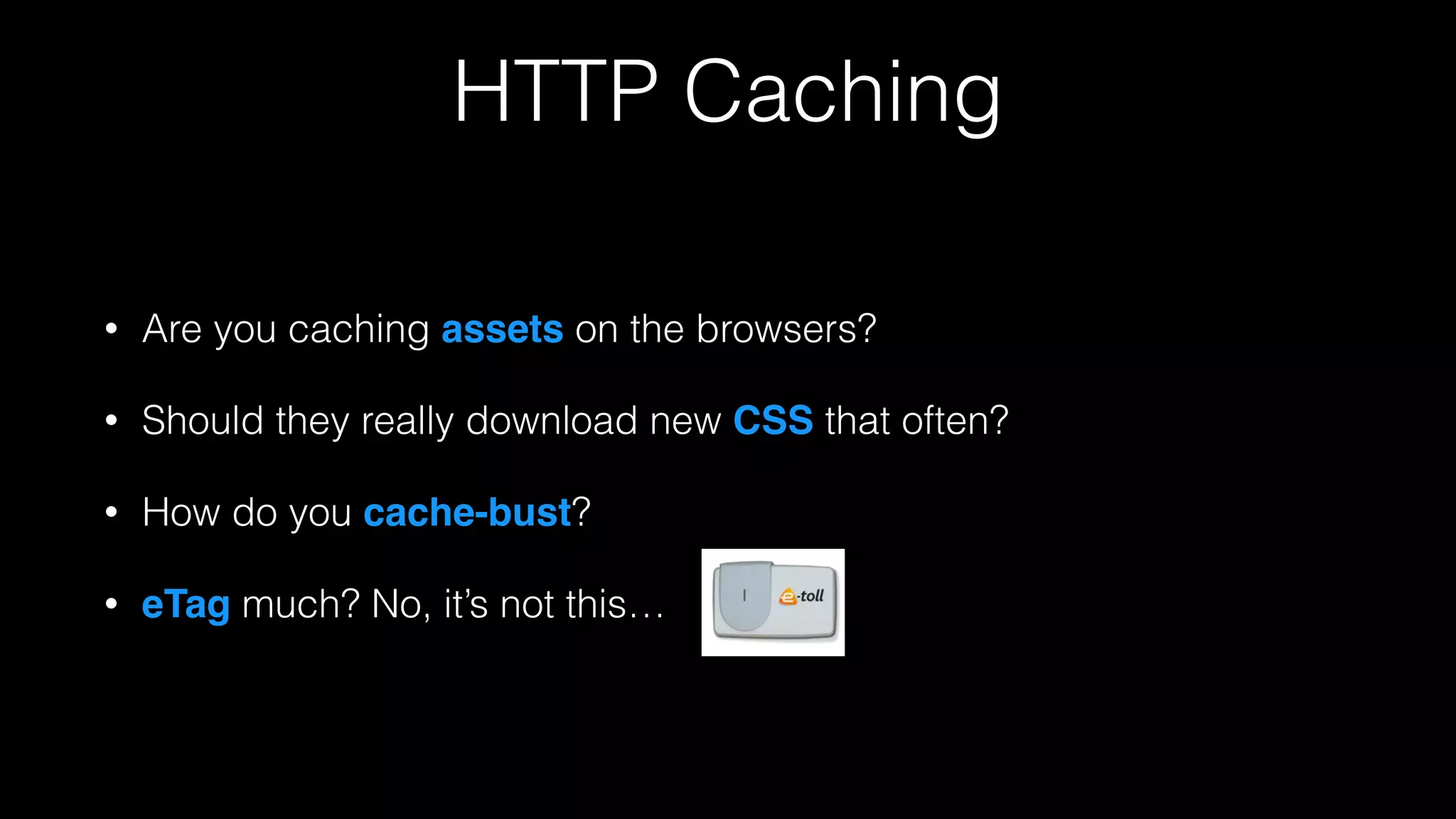

19. HTTP Caching
• Are you caching assets on the browsers?
• Should they really download new CSS that often?
• How do you cache-bust?
• eTag much? No, it’s not this…

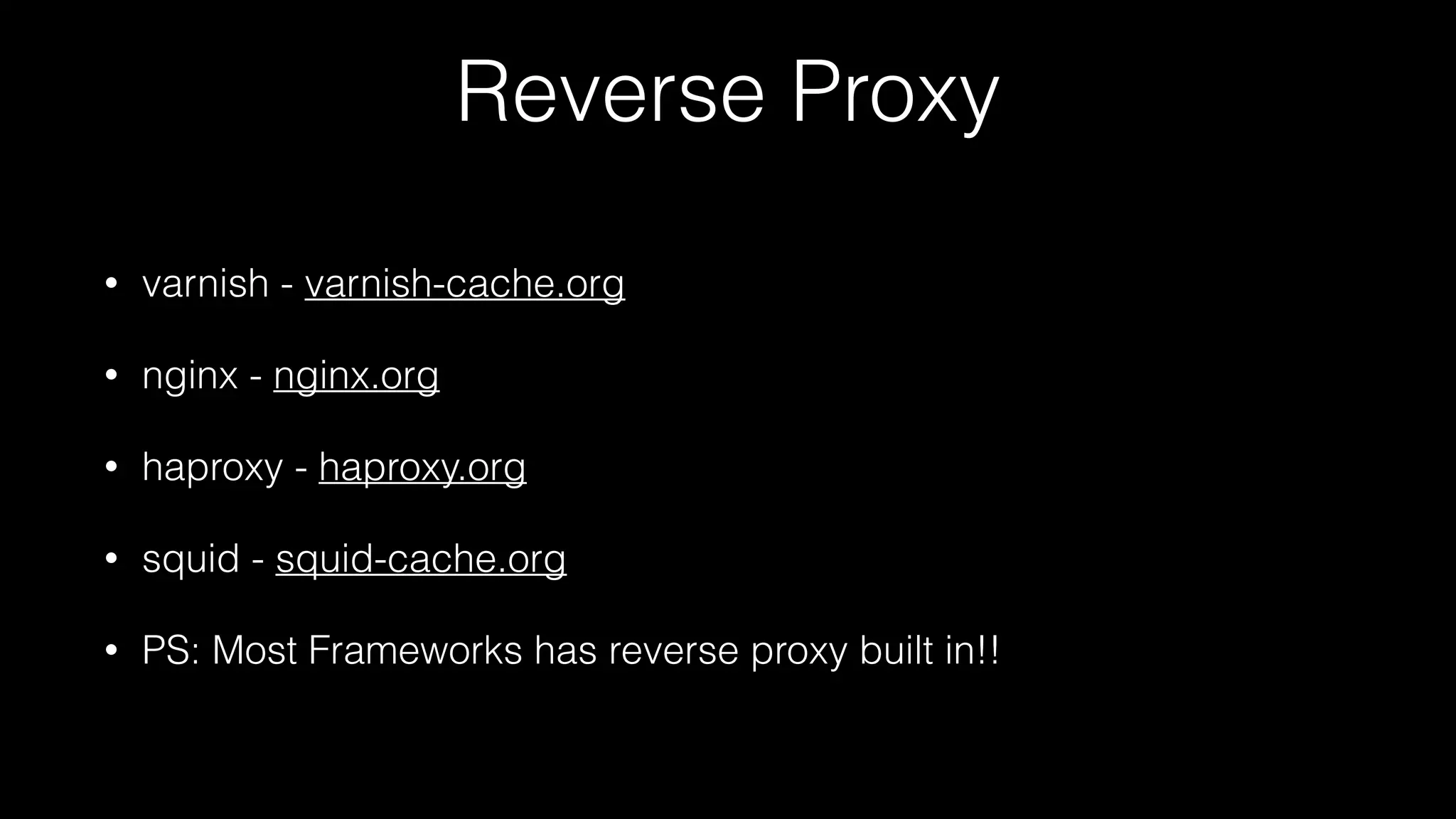

20. Reverse Proxy
• varnish - varnish-cache.org
• nginx - nginx.org
• haproxy - haproxy.org
• squid - squid-cache.org
• PS: Most Frameworks has reverse proxy built in!!

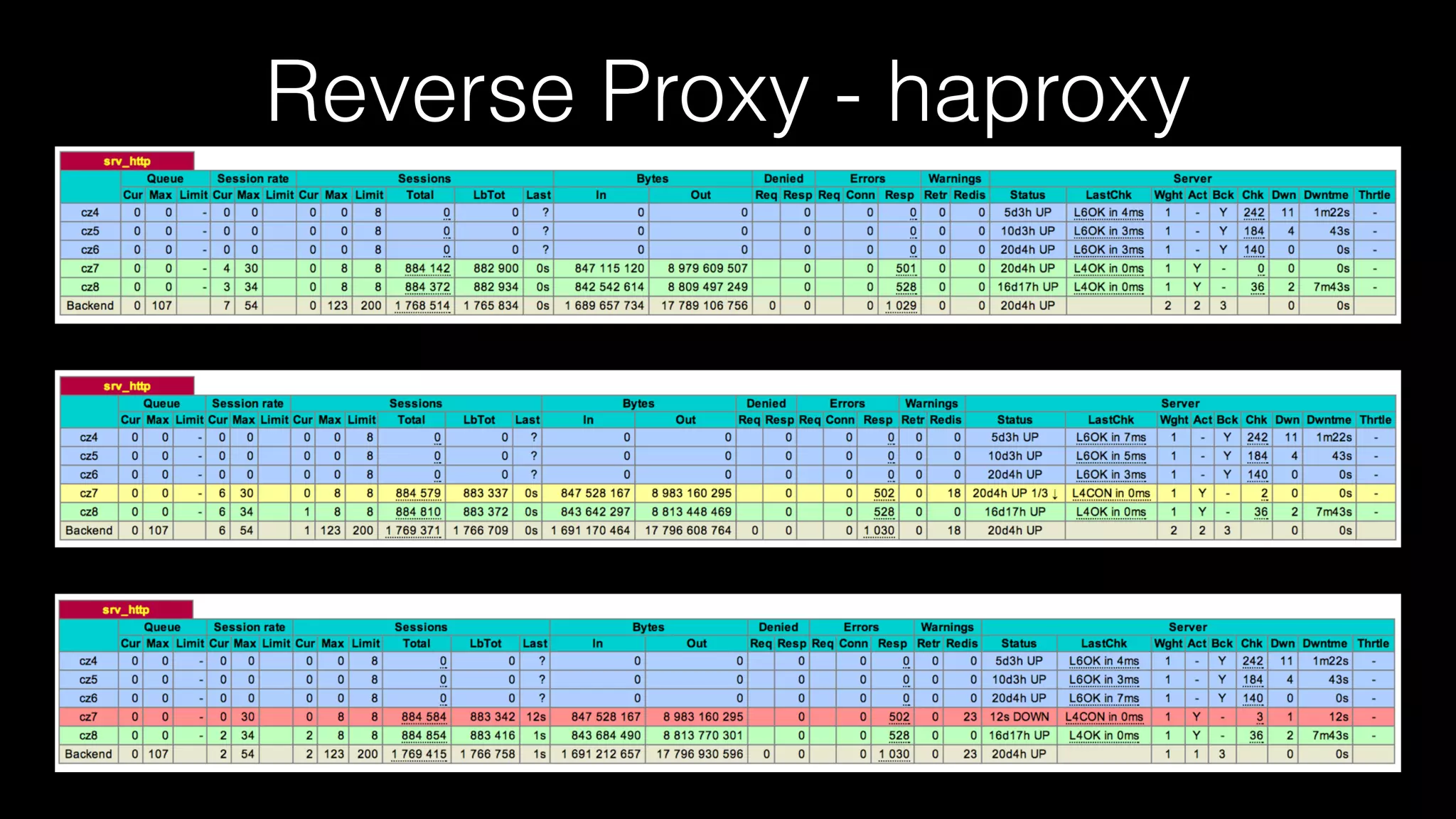

21. Reverse Proxy - haproxy

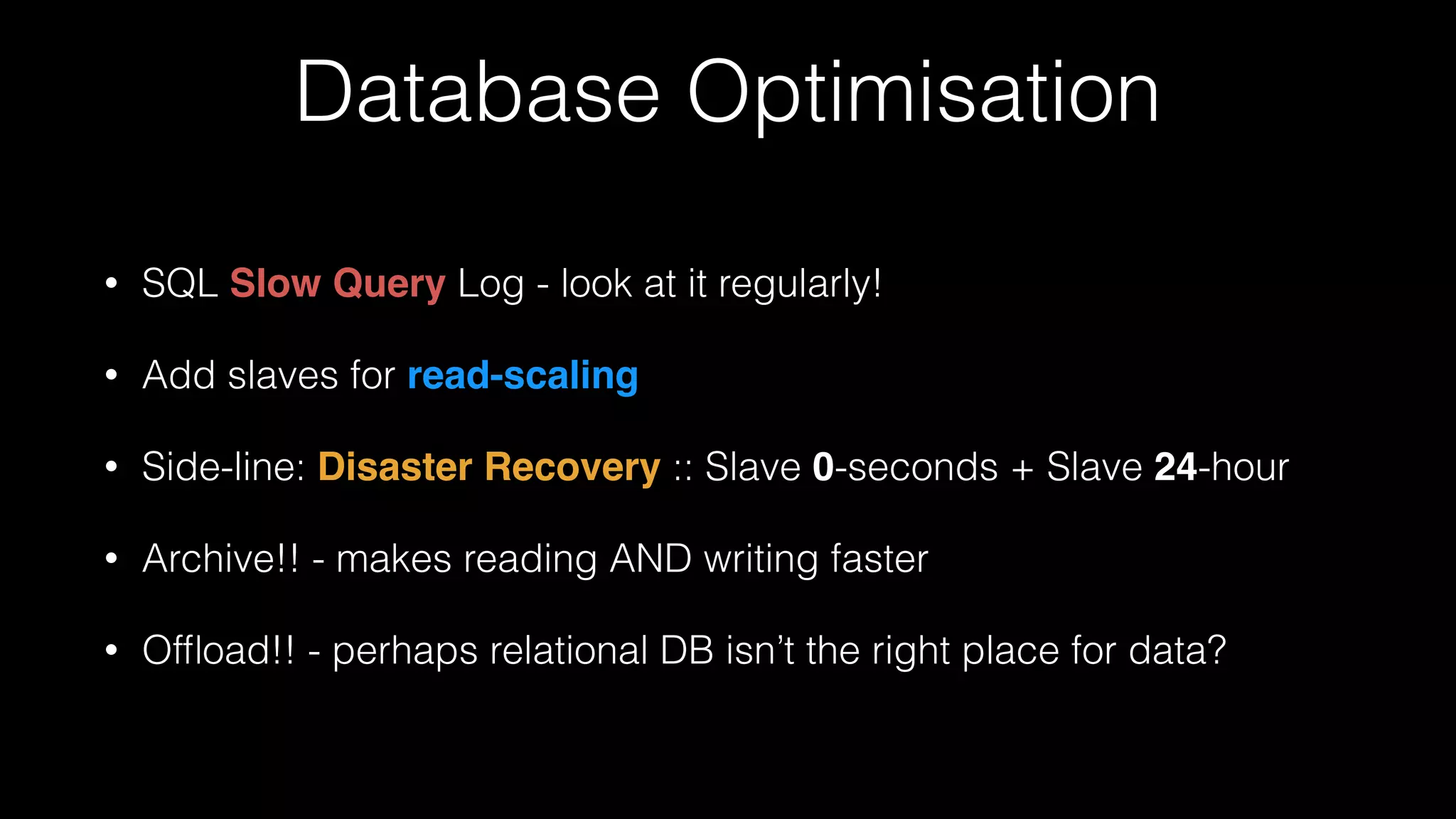

22. Database Optimisation
• SQL Slow Query Log - look at it regularly!
• Add slaves for read-scaling!
• Side-line: Disaster Recovery :: Slave 0-seconds + Slave 24-hour!
• Archive!! - makes reading AND writing faster
• Offload!! - perhaps relational DB isn’t the right place for data?

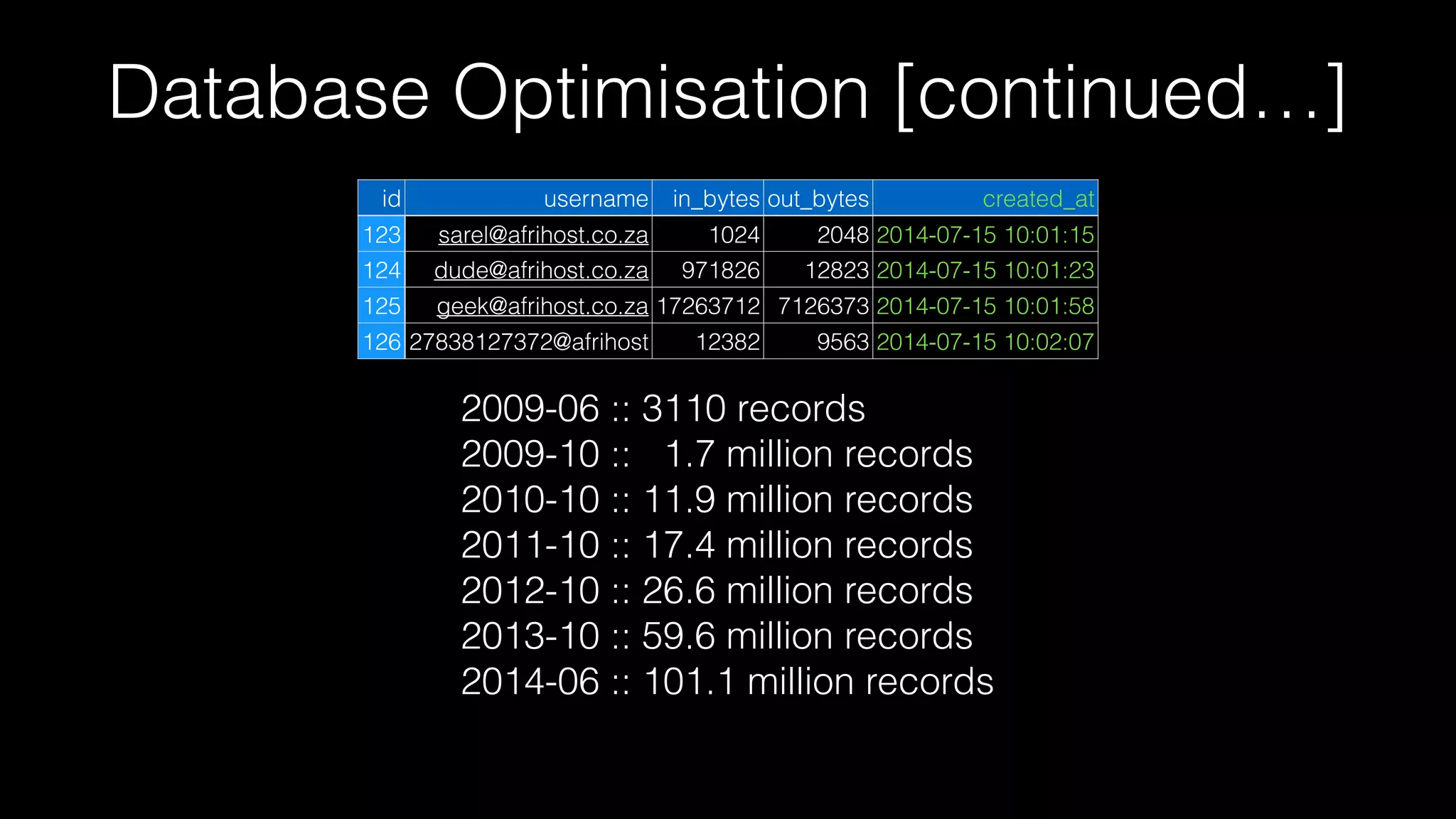

23. Database Optimisation [continued…]
id username in_bytes out_bytes created_at
123 sarel@afrihost.co.za 1024 2048 2014-07-15 10:01:15
124 dude@afrihost.co.za 971826 12823 2014-07-15 10:01:23
125 geek@afrihost.co.za 17263712 7126373 2014-07-15 10:01:58
126 27838127372@afrihost 12382 9563 2014-07-15 10:02:07
2009-06 :: 3110 records
2009-10 :: 1.7 million records
2010-10 :: 11.9 million records
2011-10 :: 17.4 million records
2012-10 :: 26.6 million records
2013-10 :: 59.6 million records
2014-06 :: 101.1 million records

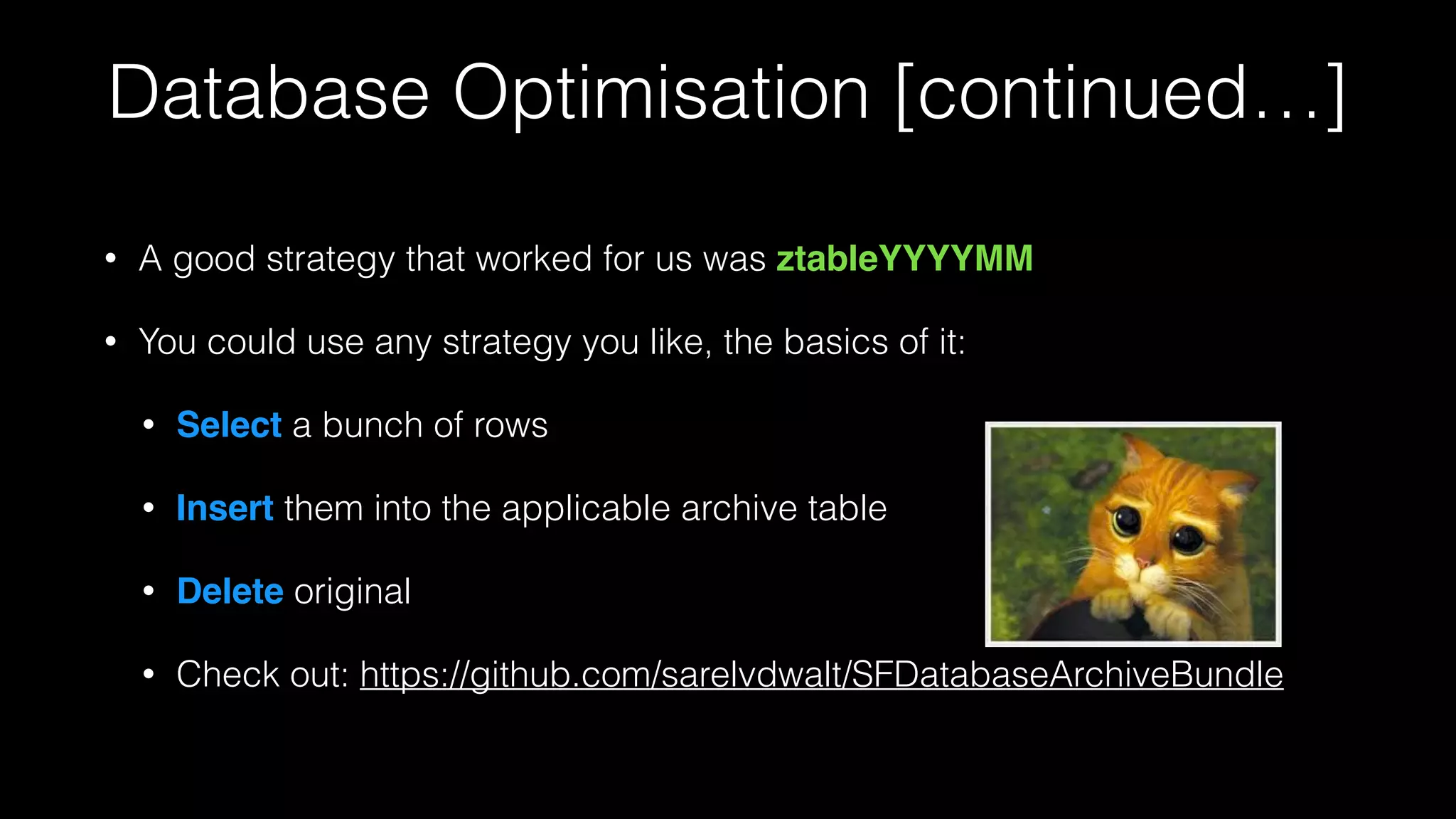

24. Database Optimisation [continued…]
• A good strategy that worked for us was ztableYYYYMM!
• You could use any strategy you like, the basics of it:
• Select a bunch of rows
• Insert them into the applicable archive table
• Delete original
• Check out: https://github.com/sarelvdwalt/SFDatabaseArchiveBundle

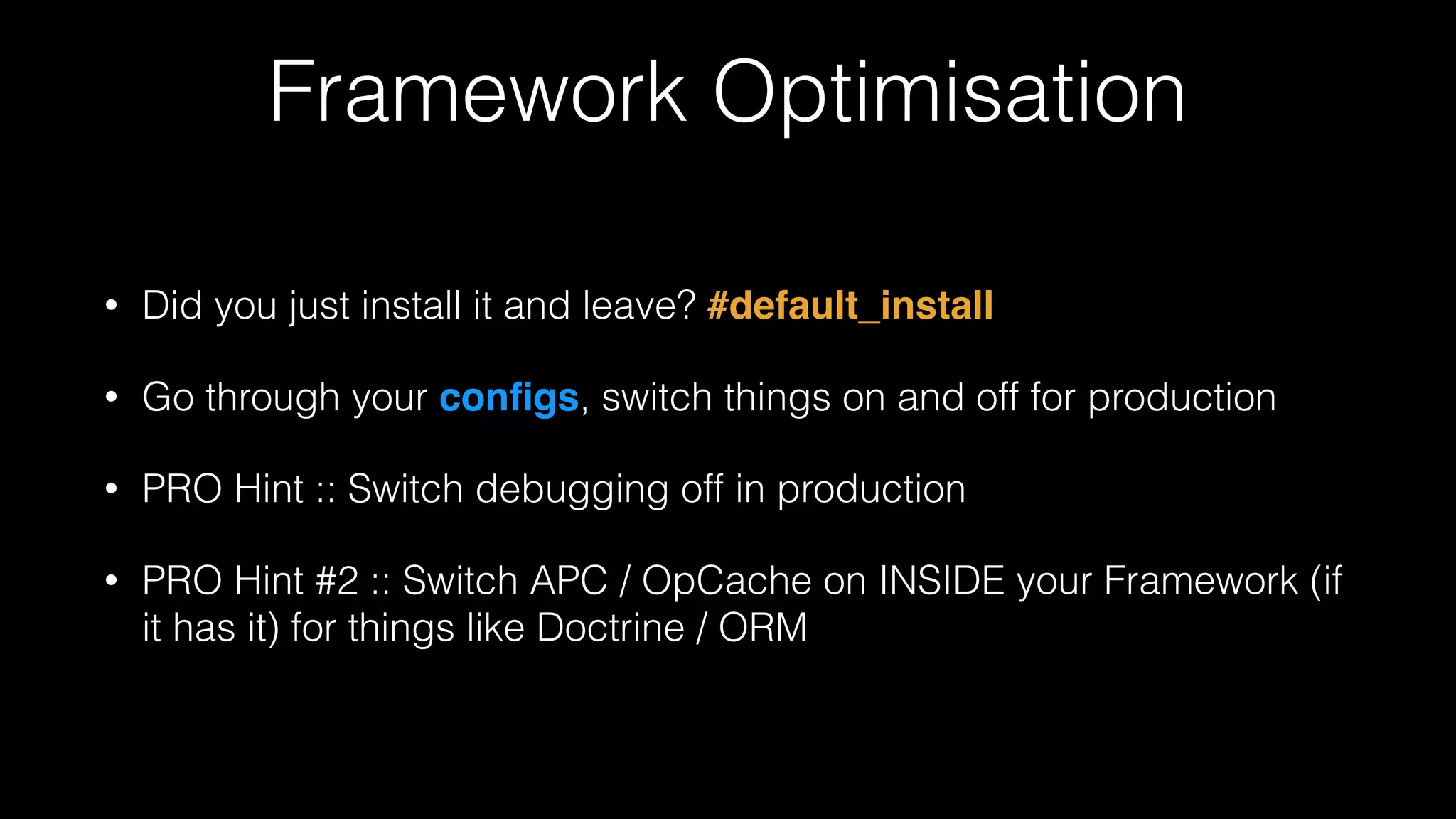

25. Framework Optimisation
• Did you just install it and leave? #default_install!
• Go through your configs, switch things on and off for production
• PRO Hint :: Switch debugging off in production
• PRO Hint #2 :: Switch APC / OpCache on INSIDE your Framework (if
it has it) for things like Doctrine / ORM

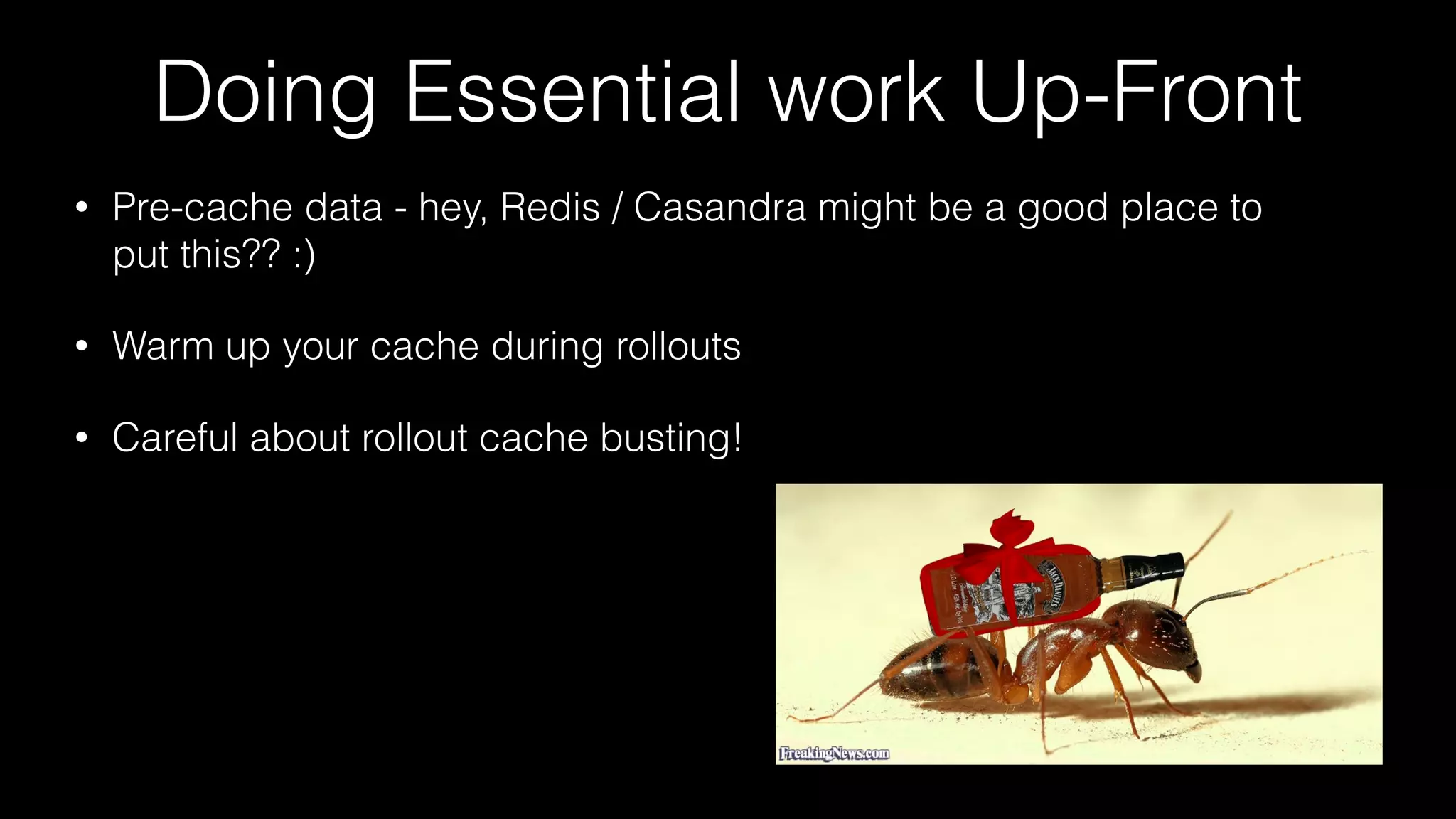

26. Doing Essential work Up-Front
• Pre-cache data - hey, Redis / Casandra might be a good place to
put this?? :)
• Warm up your cache during rollouts
• Careful about rollout cache busting!

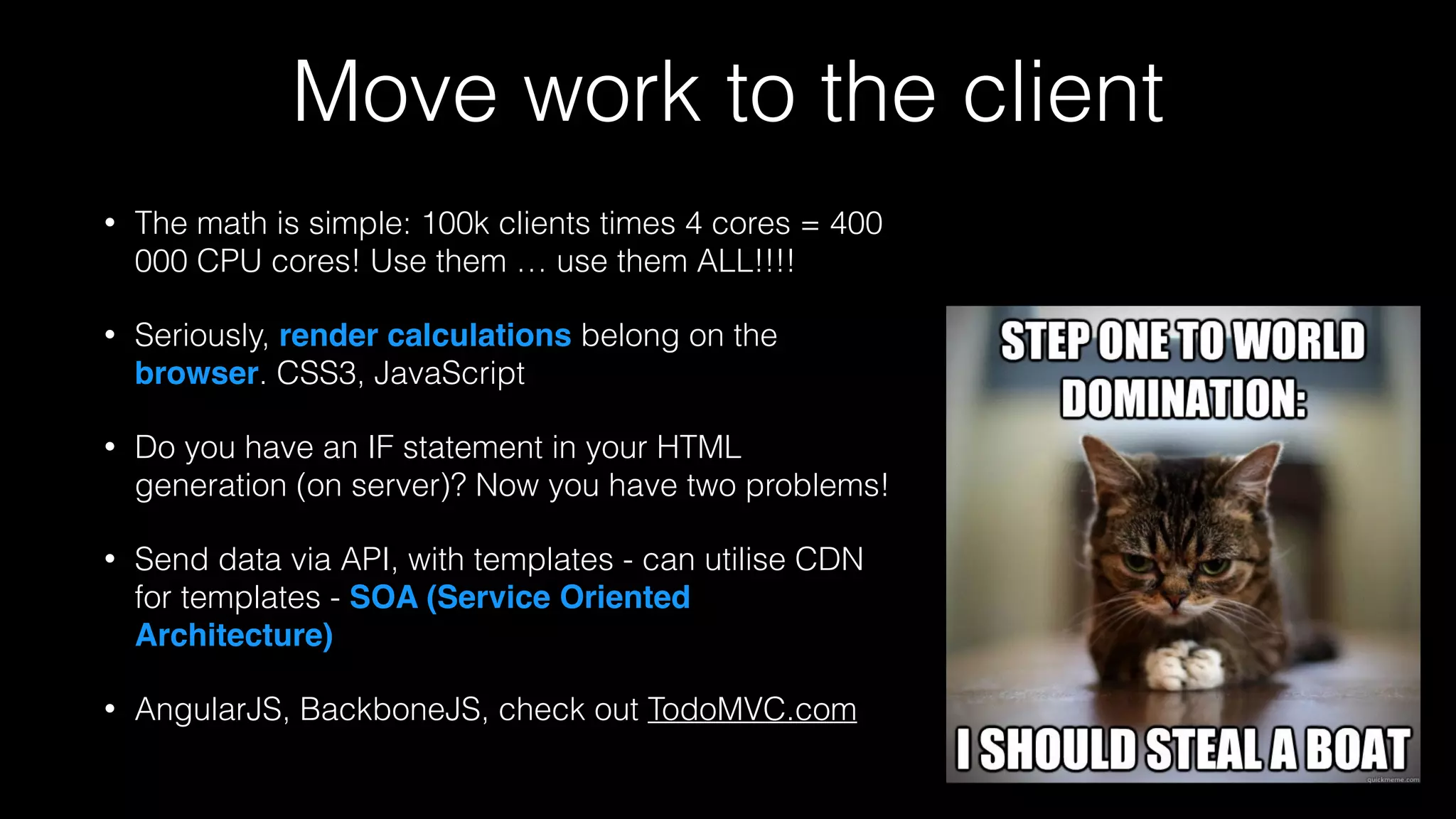

27. Move work to the client
• The math is simple: 100k clients times 4 cores = 400
000 CPU cores! Use them … use them ALL!!!!
• Seriously, render calculations belong on the
browser. CSS3, JavaScript
• Do you have an IF statement in your HTML
generation (on server)? Now you have two problems!
• Send data via API, with templates - can utilise CDN
for templates - SOA (Service Oriented
Architecture)
• AngularJS, BackboneJS, check out TodoMVC.com

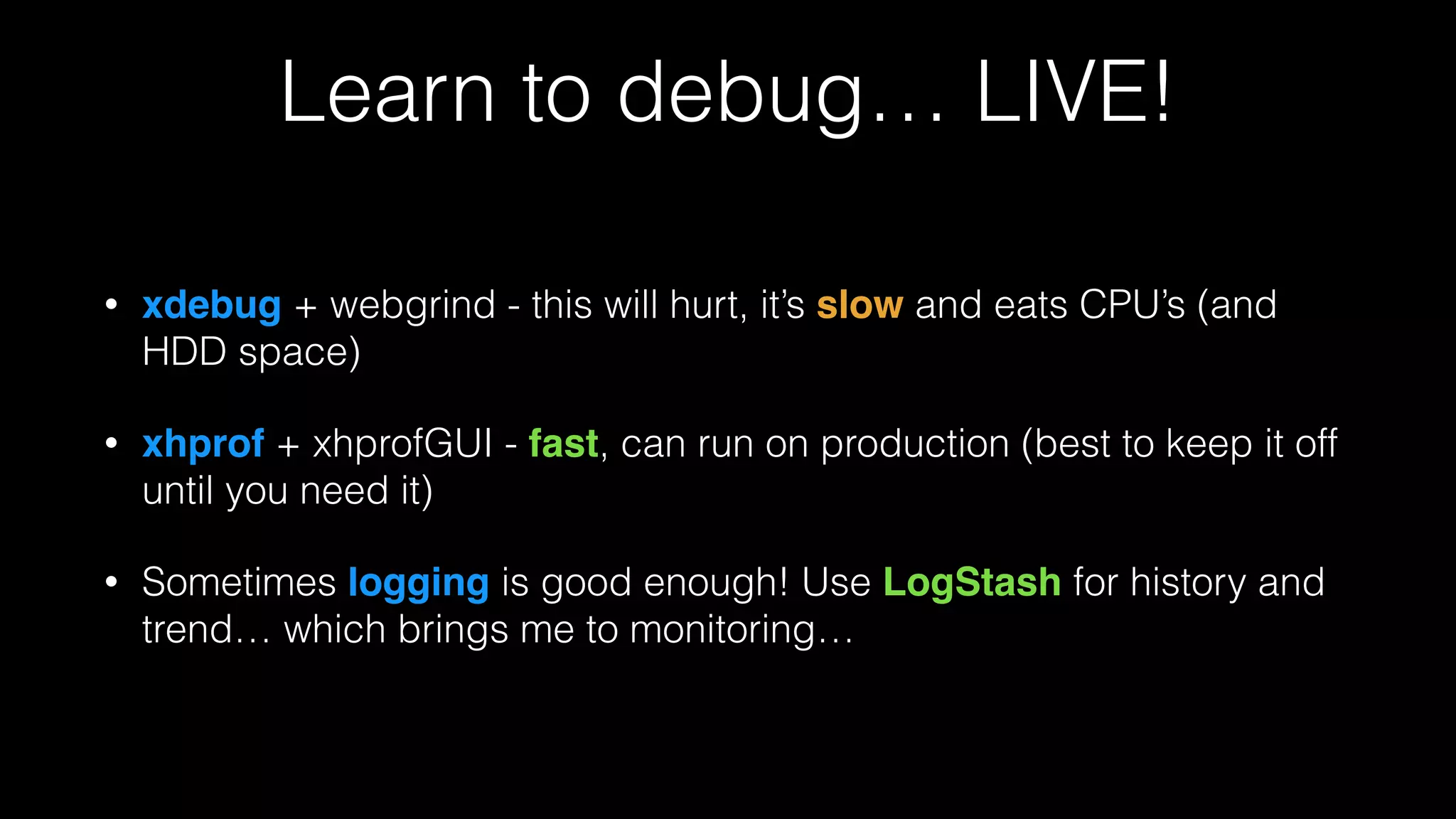

28. Learn to debug… LIVE!
• xdebug + webgrind - this will hurt, it’s slow and eats CPU’s (and
HDD space)
• xhprof + xhprofGUI - fast, can run on production (best to keep it off
until you need it)
• Sometimes logging is good enough! Use LogStash for history and
trend… which brings me to monitoring…

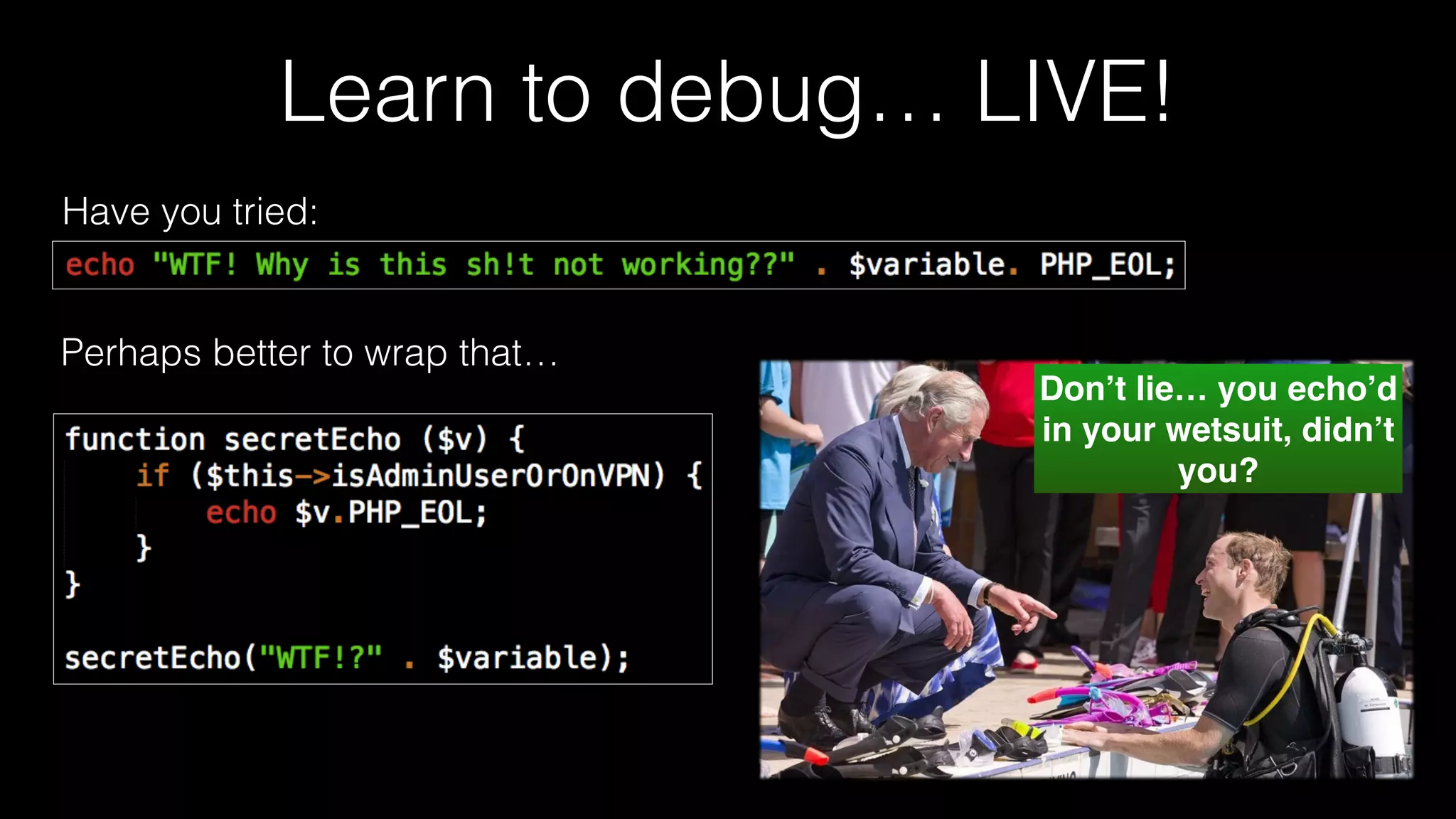

29. Learn to debug… LIVE!
Have you tried:
Don’t lie… you echo’d
in your wetsuit, didn’t
you?
Perhaps better to wrap that…

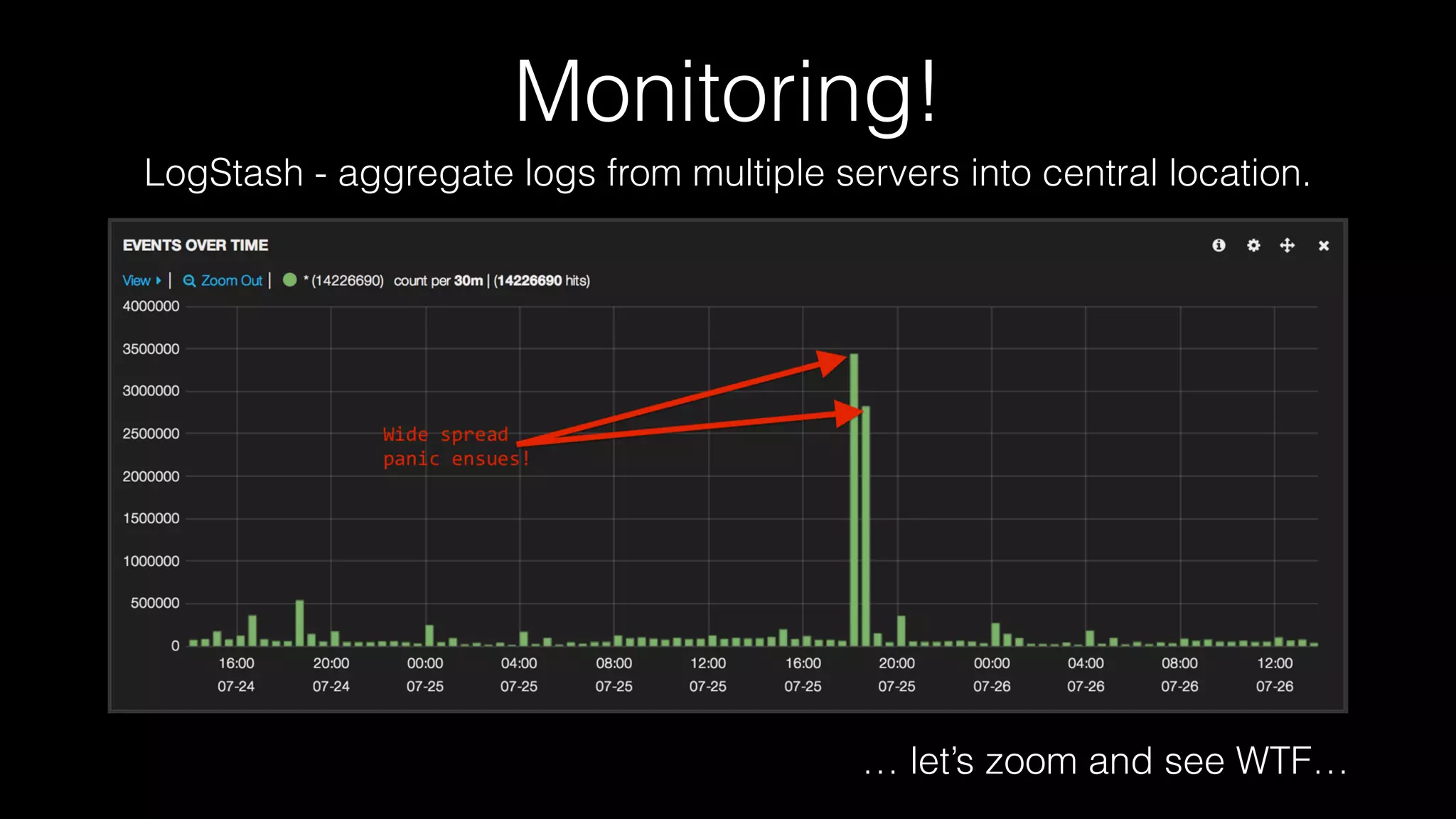

30. Monitoring!
LogStash - aggregate logs from multiple servers into central location.
… let’s zoom and see WTF…

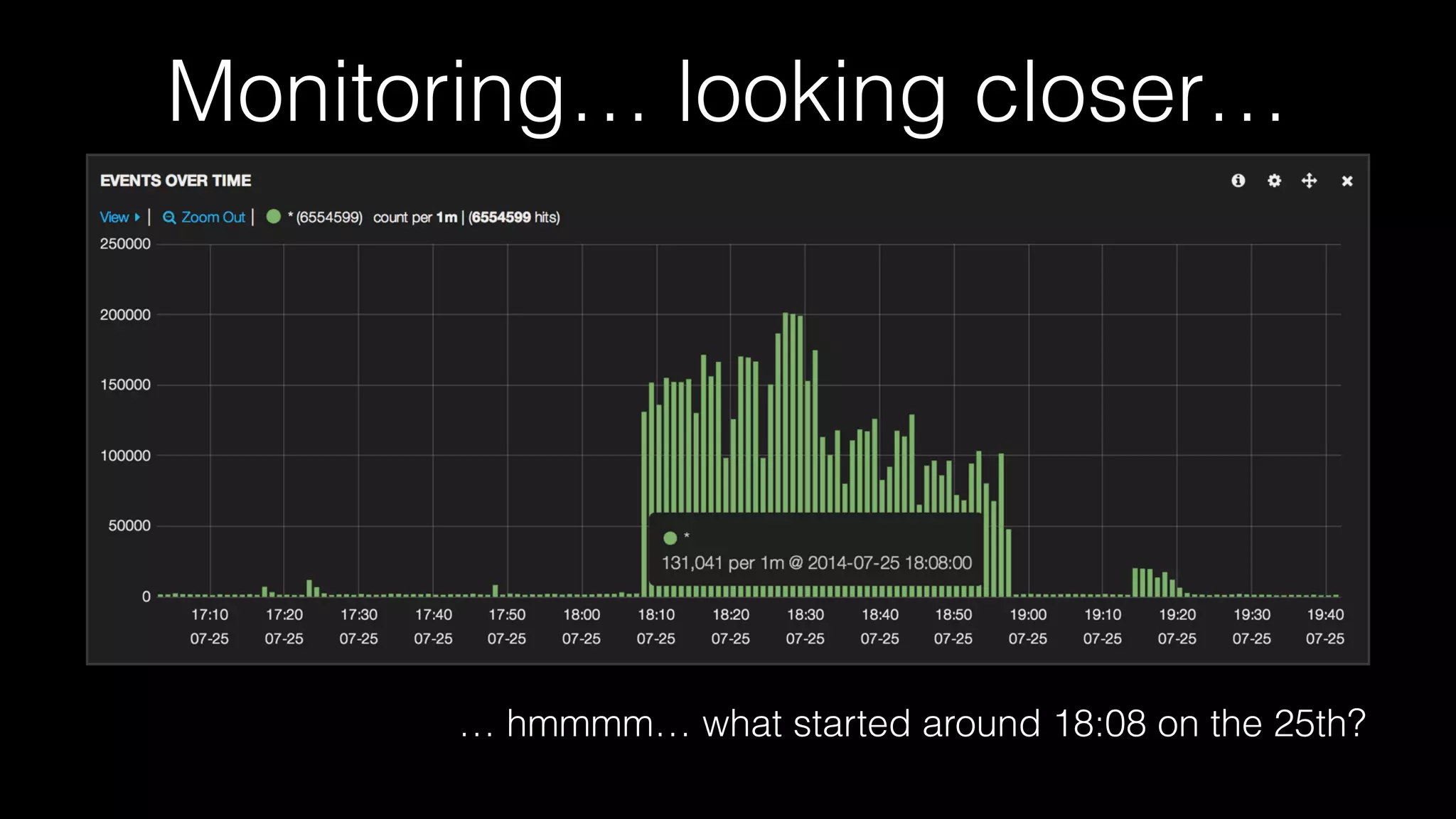

31. Monitoring… looking closer…
… hmmmm… what started around 18:08 on the 25th?

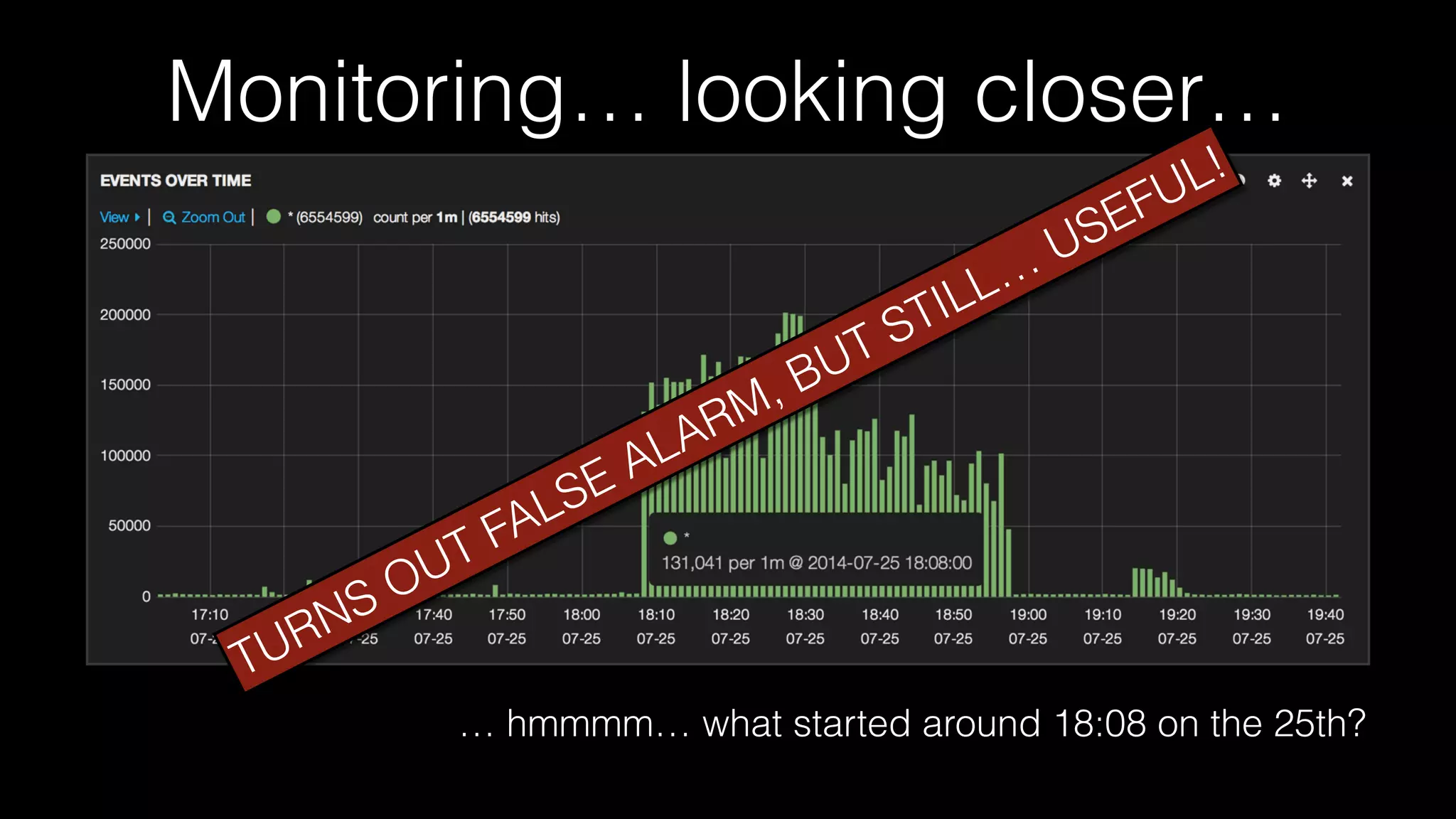

32. Monitoring… looking closer…
… hmmmm… what started around 18:08 on the 25th?
TURNS OUT FALSE ALARM, BUT STILL…
USEFUL!

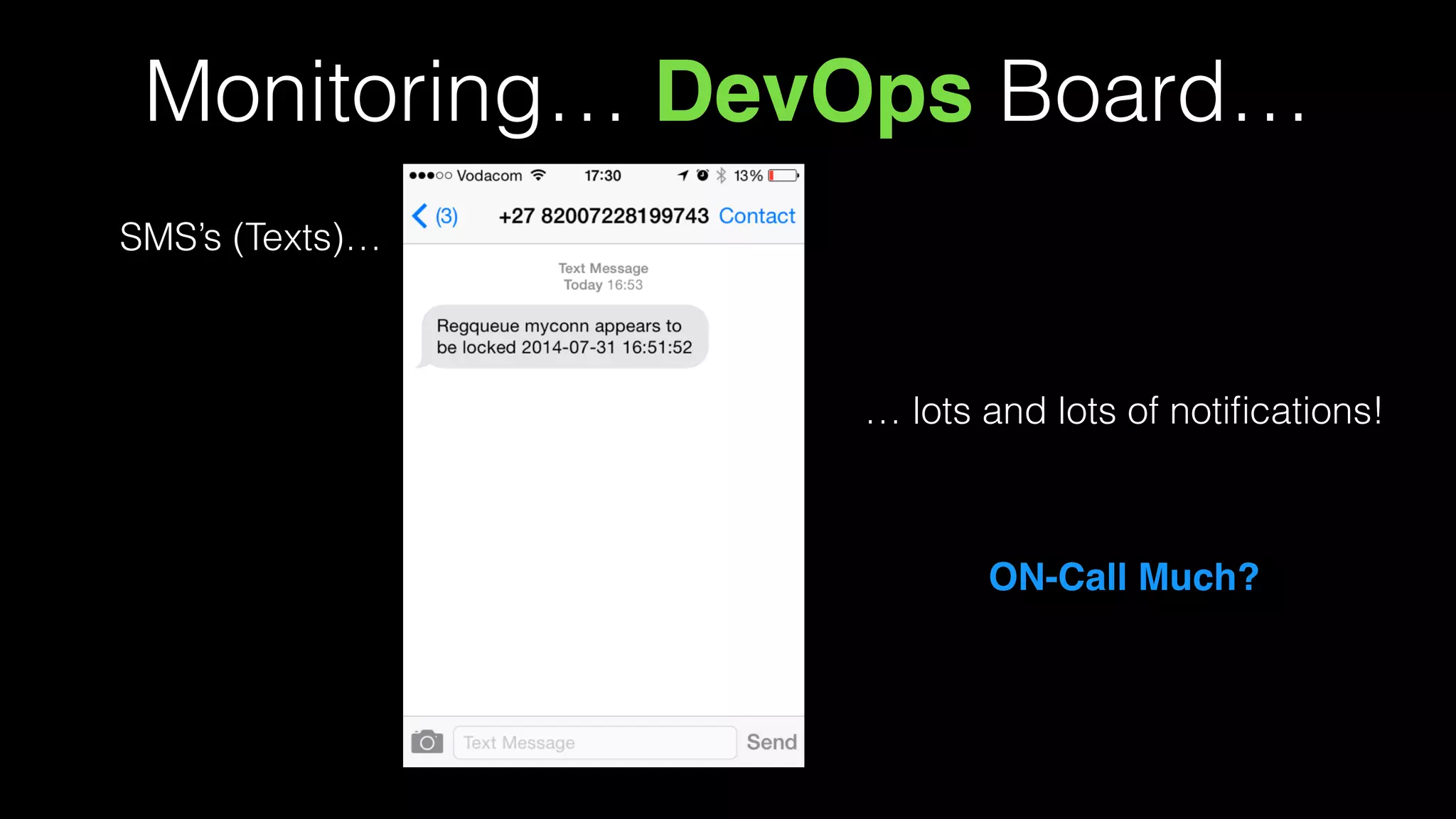

33. Monitoring… DevOps Board…

34. Monitoring… DevOps Board…
SMS’s (Texts)…
… lots and lots of notifications!
ON-Call Much?

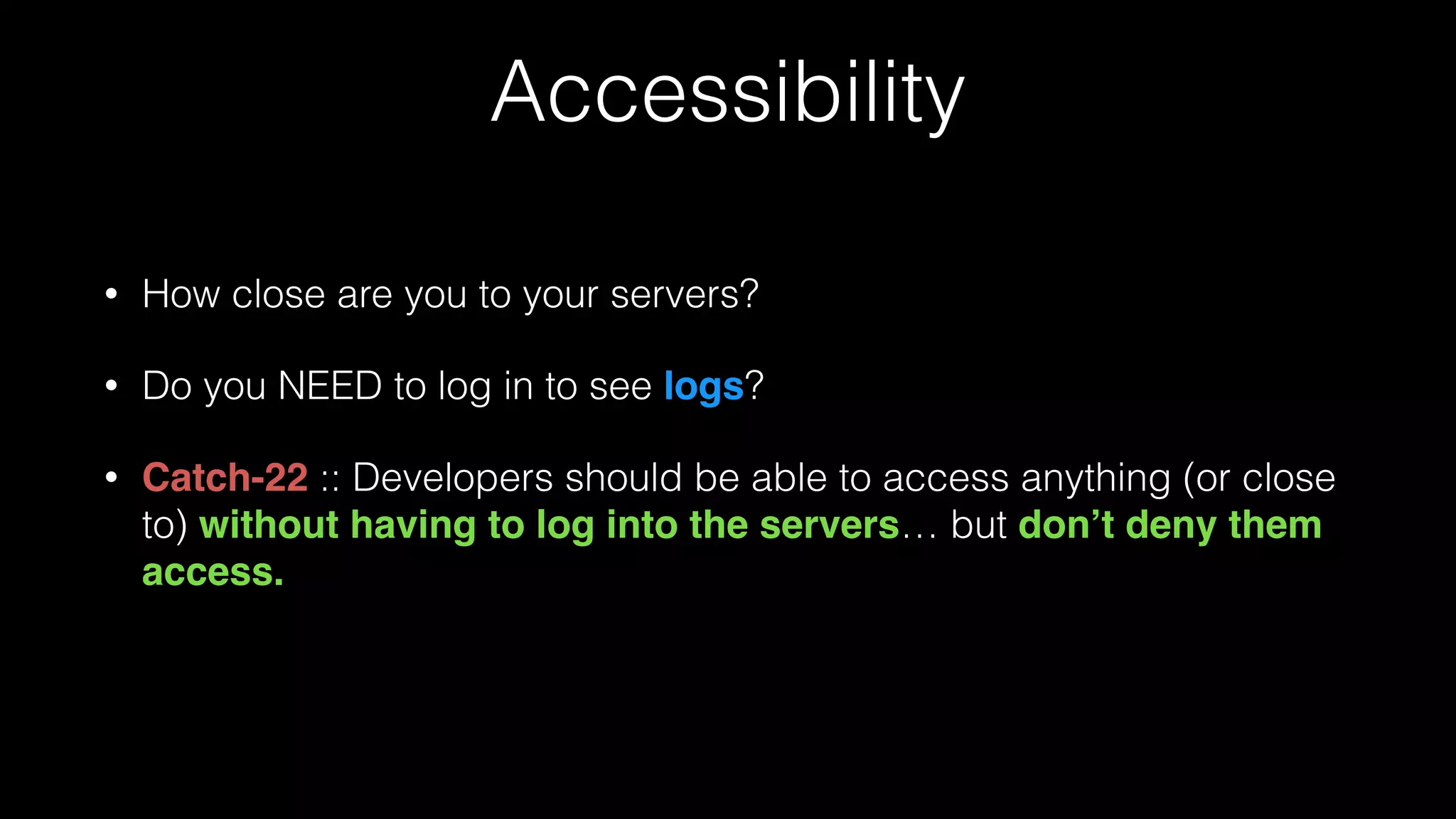

35. Accessibility
• How close are you to your servers?
• Do you NEED to log in to see logs?
• Catch-22 :: Developers should be able to access anything (or close
to) without having to log into the servers… but don’t deny them
access.

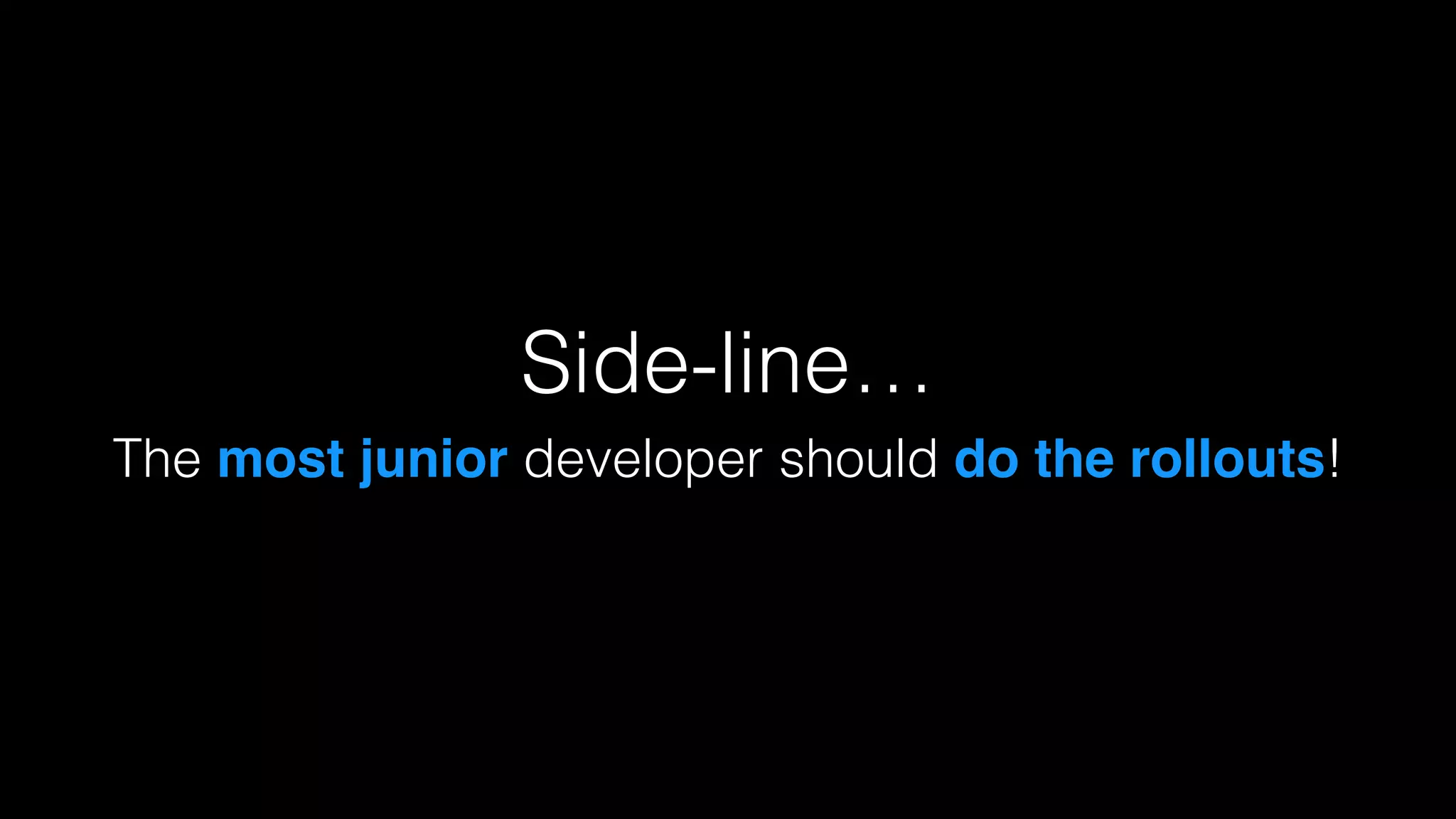

36. Side-line…
The most junior developer should do the rollouts!

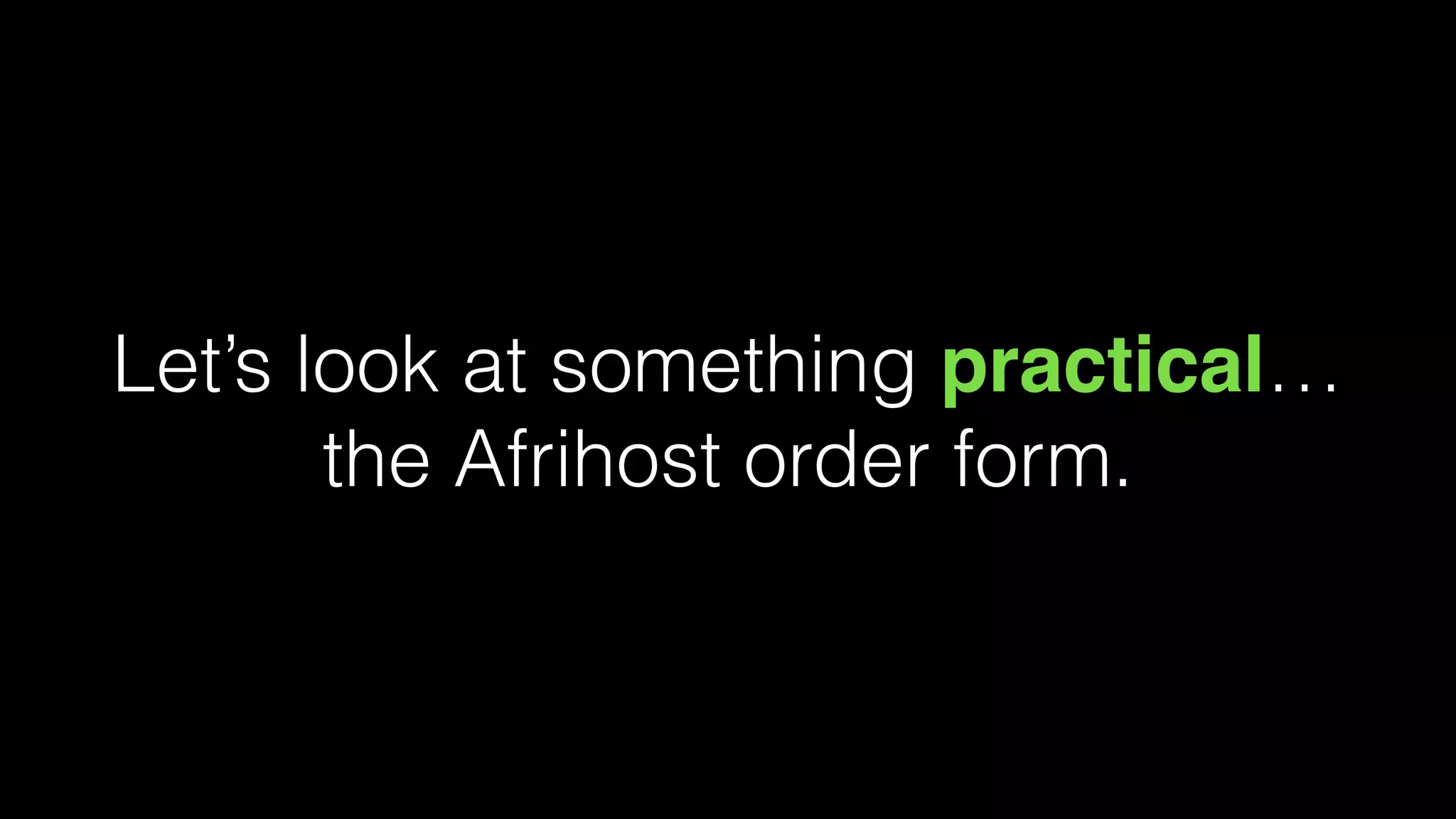

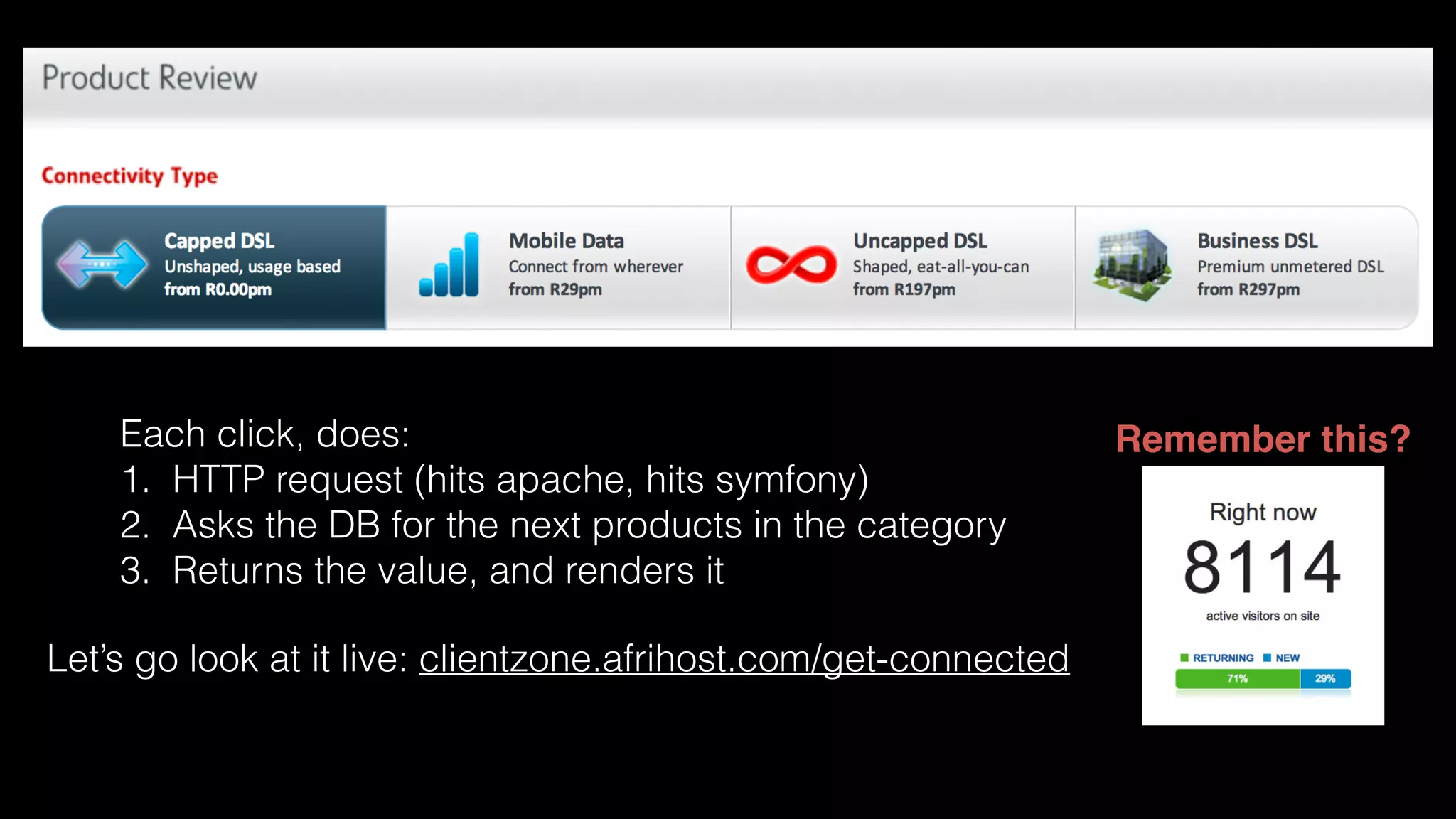

37. Let’s look at something practical…
the Afrihost order form.

38. Each click, does:
1. HTTP request (hits apache, hits symfony)
2. Asks the DB for the next products in the category
3. Returns the value, and renders it
Let’s go look at it live: clientzone.afrihost.com/get-connected
Remember this?

39. Final thoughts…
… but sometimes it’s not so elementary.

40. Thank you.
Charging beer… 36%
github.com/sarelvdwalt/php-jhb
