This document summarizes Julien Pauli's presentation on PHP 7 performance optimizations compared to PHP 5. It discusses profiling a Symfony application under PHP 5 and PHP 7, showing PHP 7 runs 23% faster with an opcode cache. Key PHP 7 optimizations discussed include a more efficient zval structure reducing variable size, more compact and cache-friendly hashtable design, and optimized string handling with the zend_string structure. Various virtual machine operations like array operations, casts, and concatenations also see significant performance gains in PHP 7.

1. PHP 7 performances
From PHP 5 in Symfony context

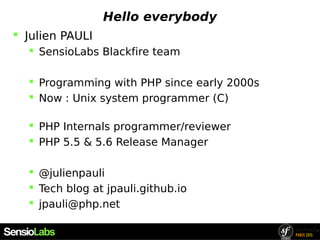

2. Hello everybody
 Julien PAULI
 SensioLabs Blackfire team
 Programming with PHP since early 2000s
 Now : Unix system programmer (C)
 PHP Internals programmer/reviewer
 PHP 5.5 & 5.6 Release Manager
 @julienpauli
 Tech blog at jpauli.github.io
 jpauli@php.net

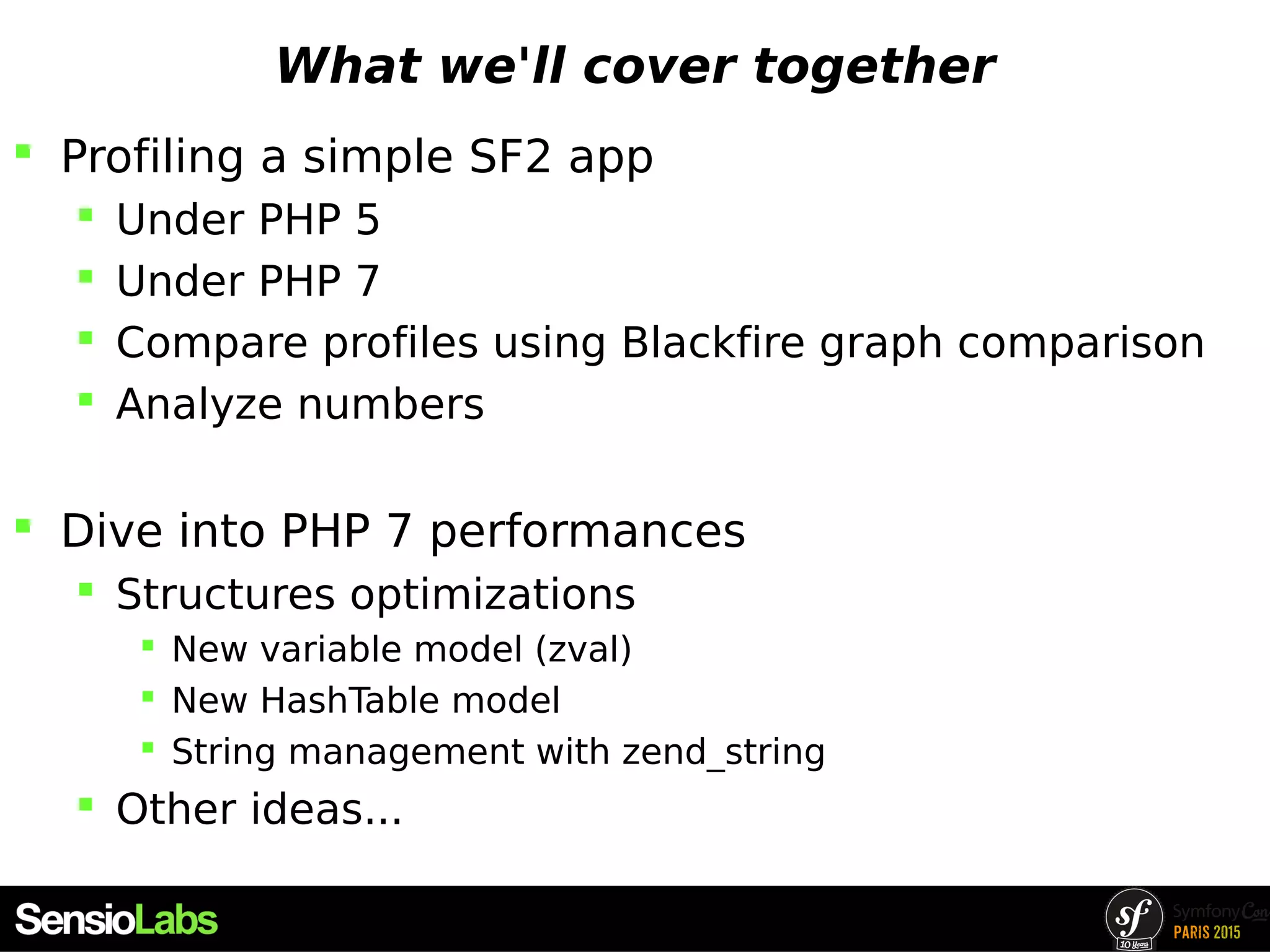

3. What we'll cover together
 Profiling a simple SF2 app
 Under PHP 5
 Under PHP 7
 Compare profiles using Blackfire graph comparison
 Analyze numbers
 Dive into PHP 7 performances
 Structures optimizations
 New variable model (zval)
 New HashTable model
 String management with zend_string
 Other ideas...

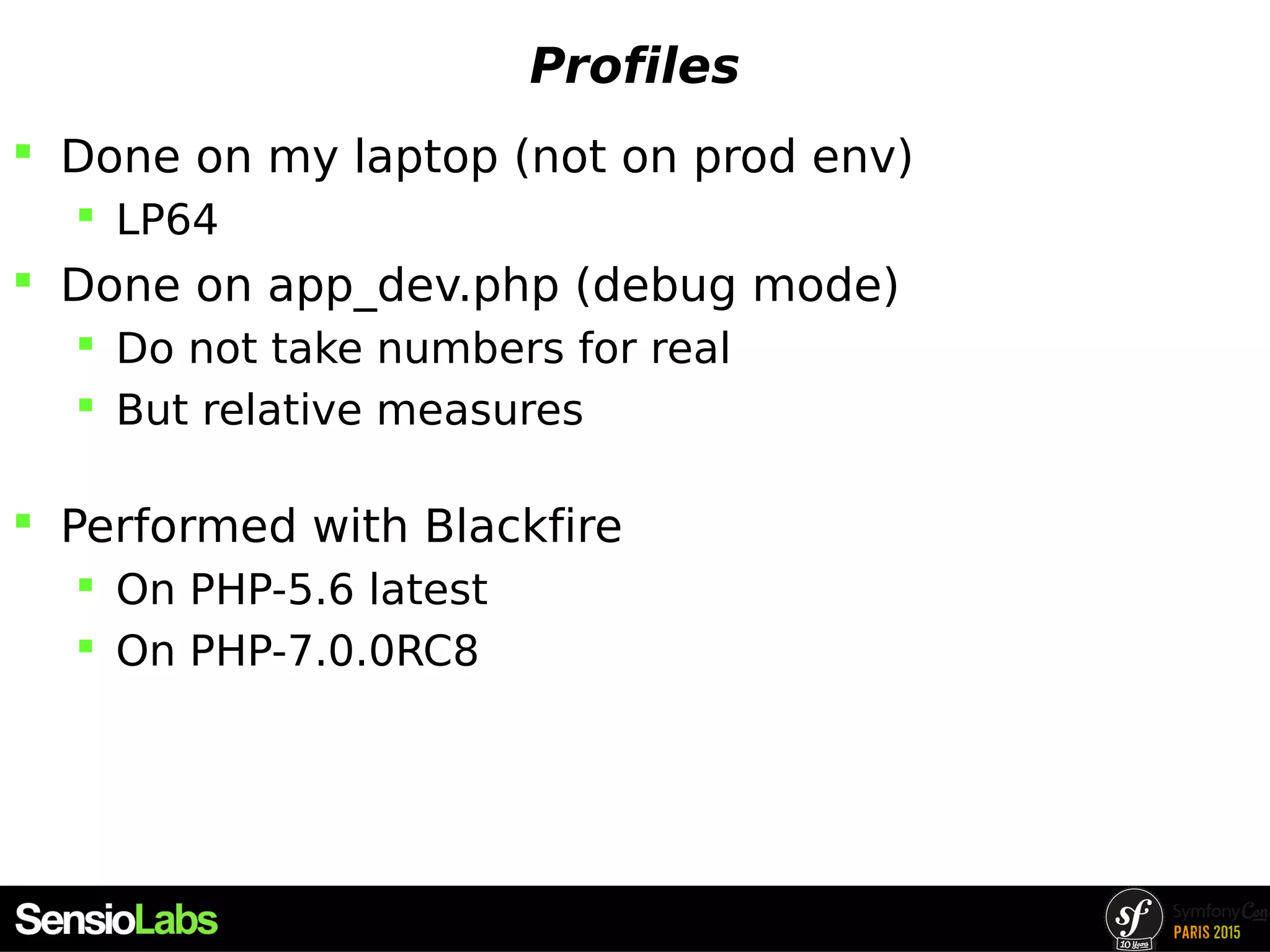

4. Profiles
 Done on my laptop (not on prod env)
 LP64
 Done on app_dev.php (debug mode)
 Do not take numbers for real
 But relative measures
 Performed with Blackfire
 On PHP-5.6 latest
 On PHP-7.0.0RC8

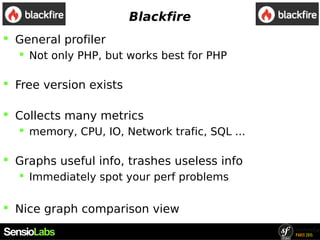

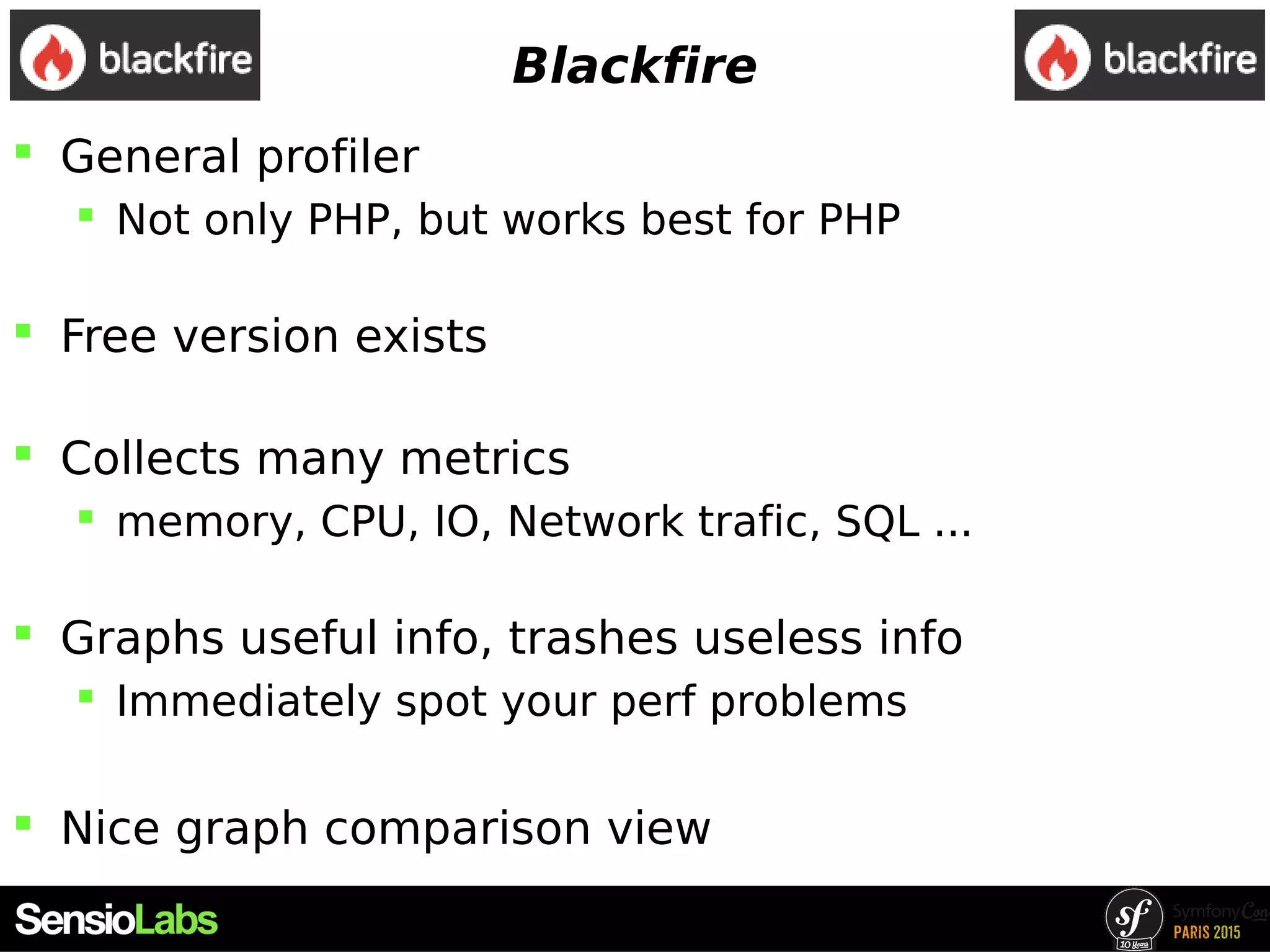

5. Blackfire
 General profiler
 Not only PHP, but works best for PHP
 Free version exists
 Collects many metrics
 memory, CPU, IO, Network trafic, SQL ...
 Graphs useful info, trashes useless info
 Immediately spot your perf problems
 Nice graph comparison view

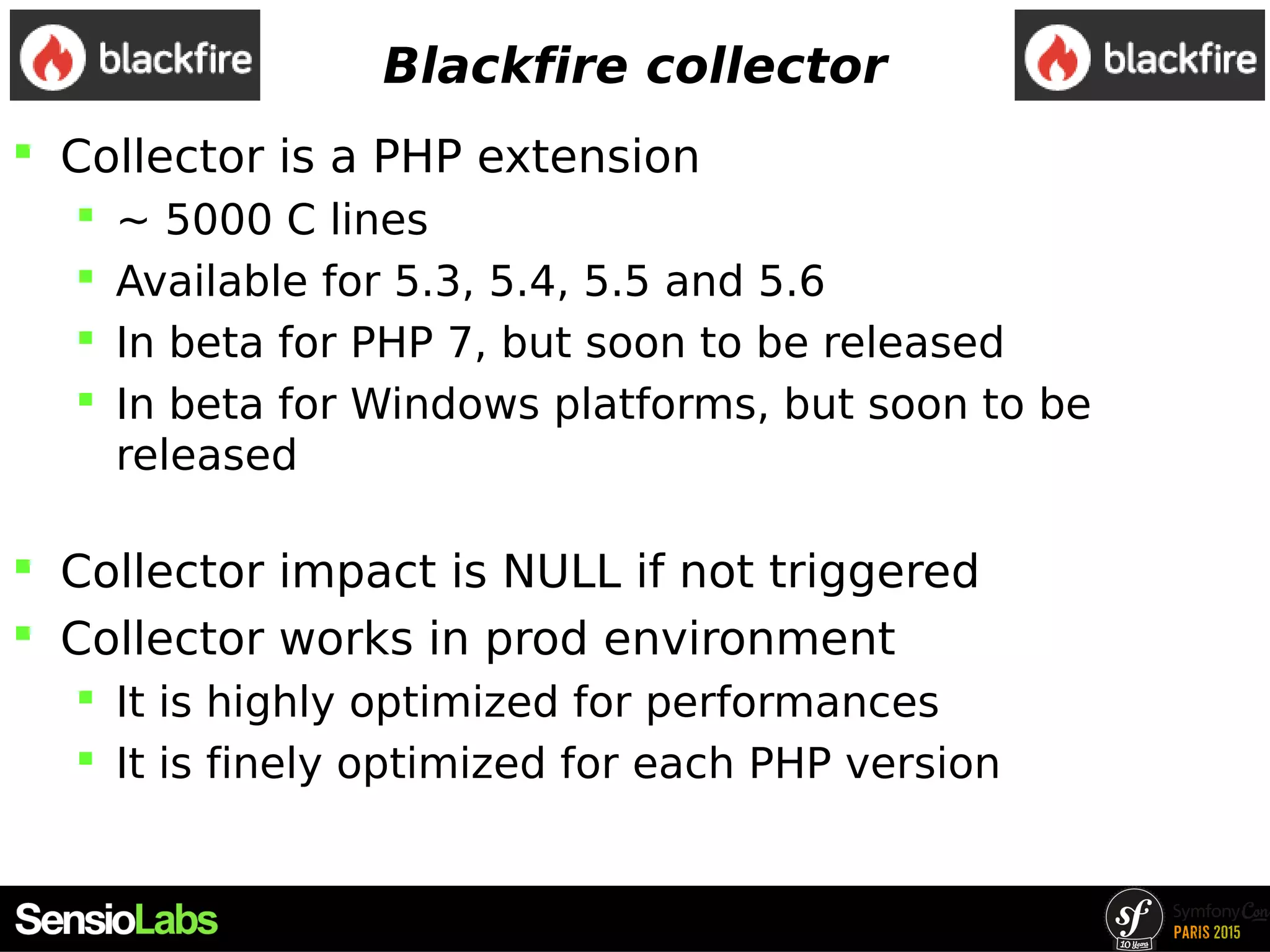

6. Blackfire collector
 Collector is a PHP extension
 ~ 5000 C lines
 Available for 5.3, 5.4, 5.5 and 5.6
 In beta for PHP 7, but soon to be released
 In beta for Windows platforms, but soon to be
released
 Collector impact is NULL if not triggered
 Collector works in prod environment
 It is highly optimized for performances
 It is finely optimized for each PHP version

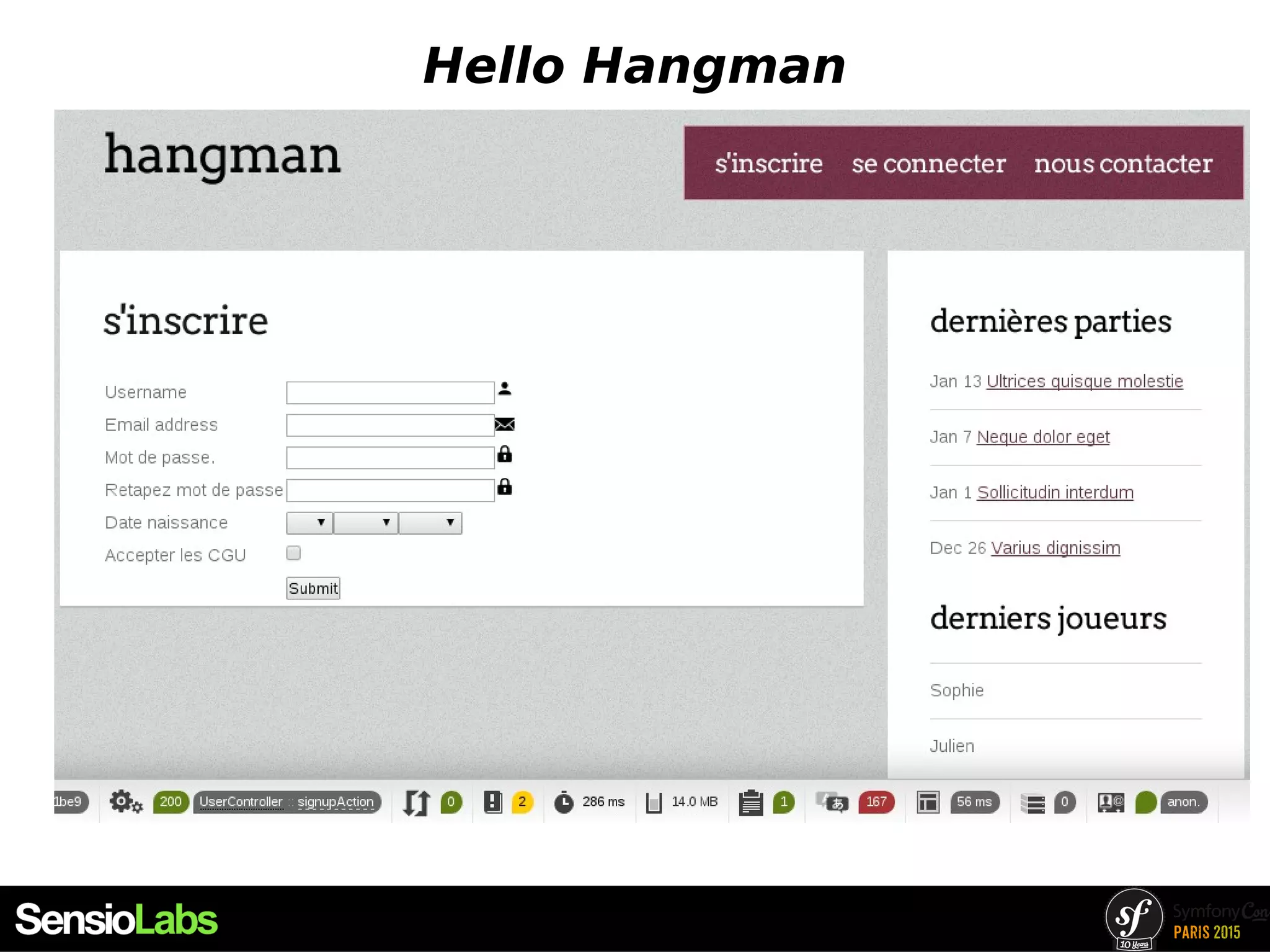

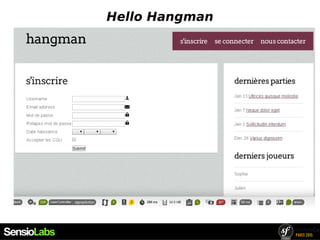

7. Hello Hangman

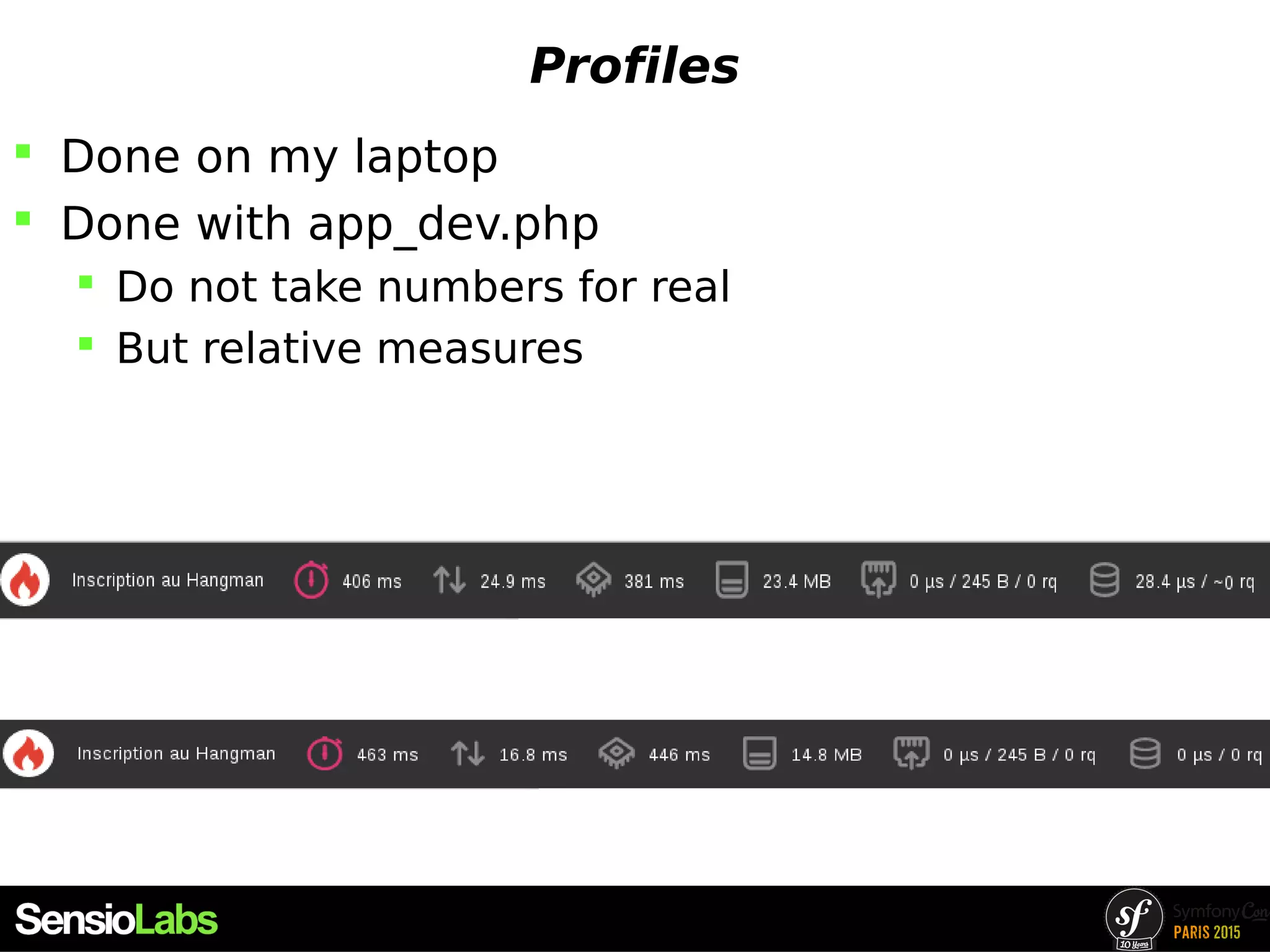

8. Profiles
 Done on my laptop
 Done with app_dev.php
 Do not take numbers for real
 But relative measures

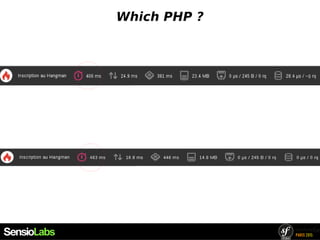

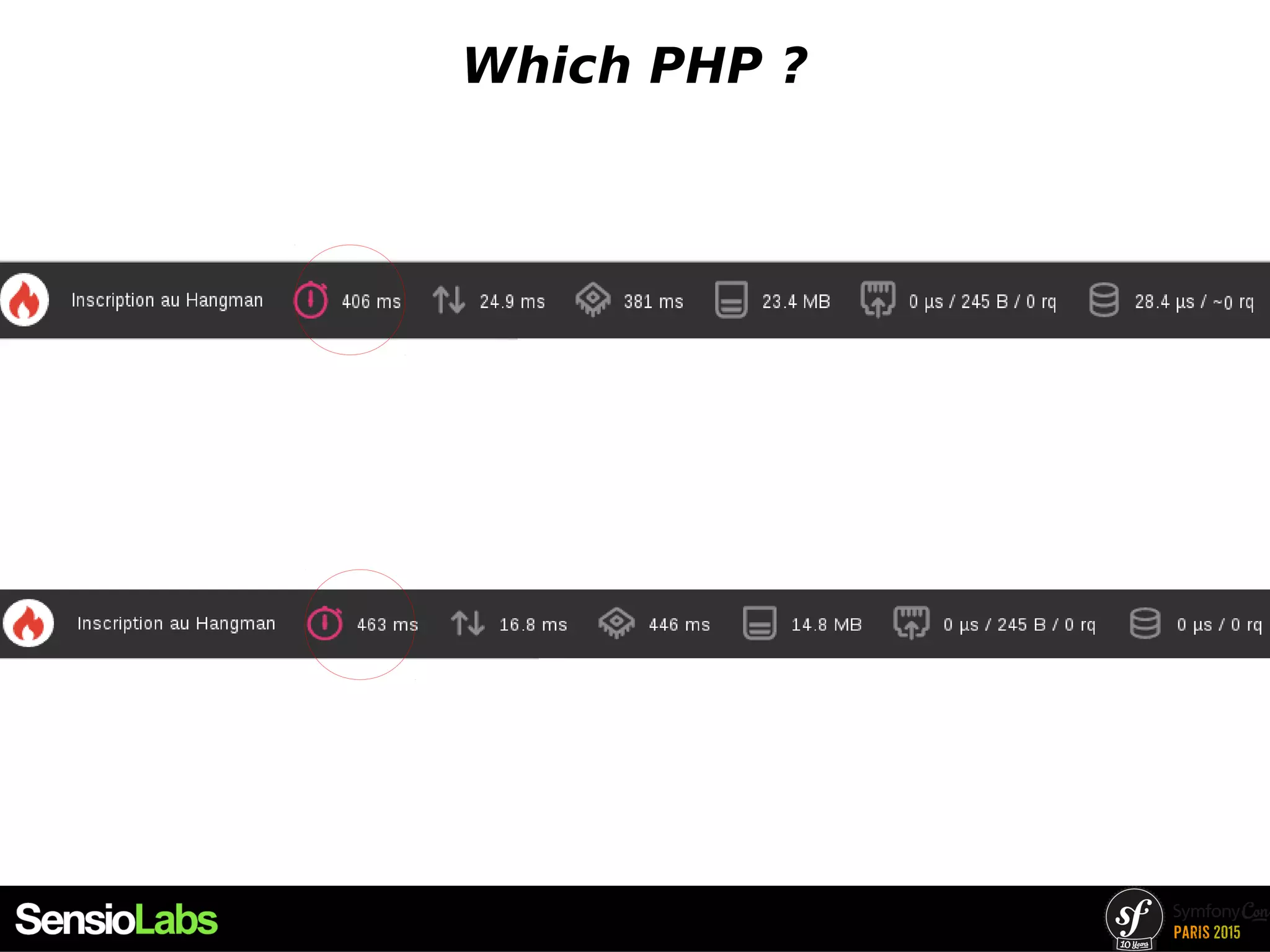

9. Which PHP ?

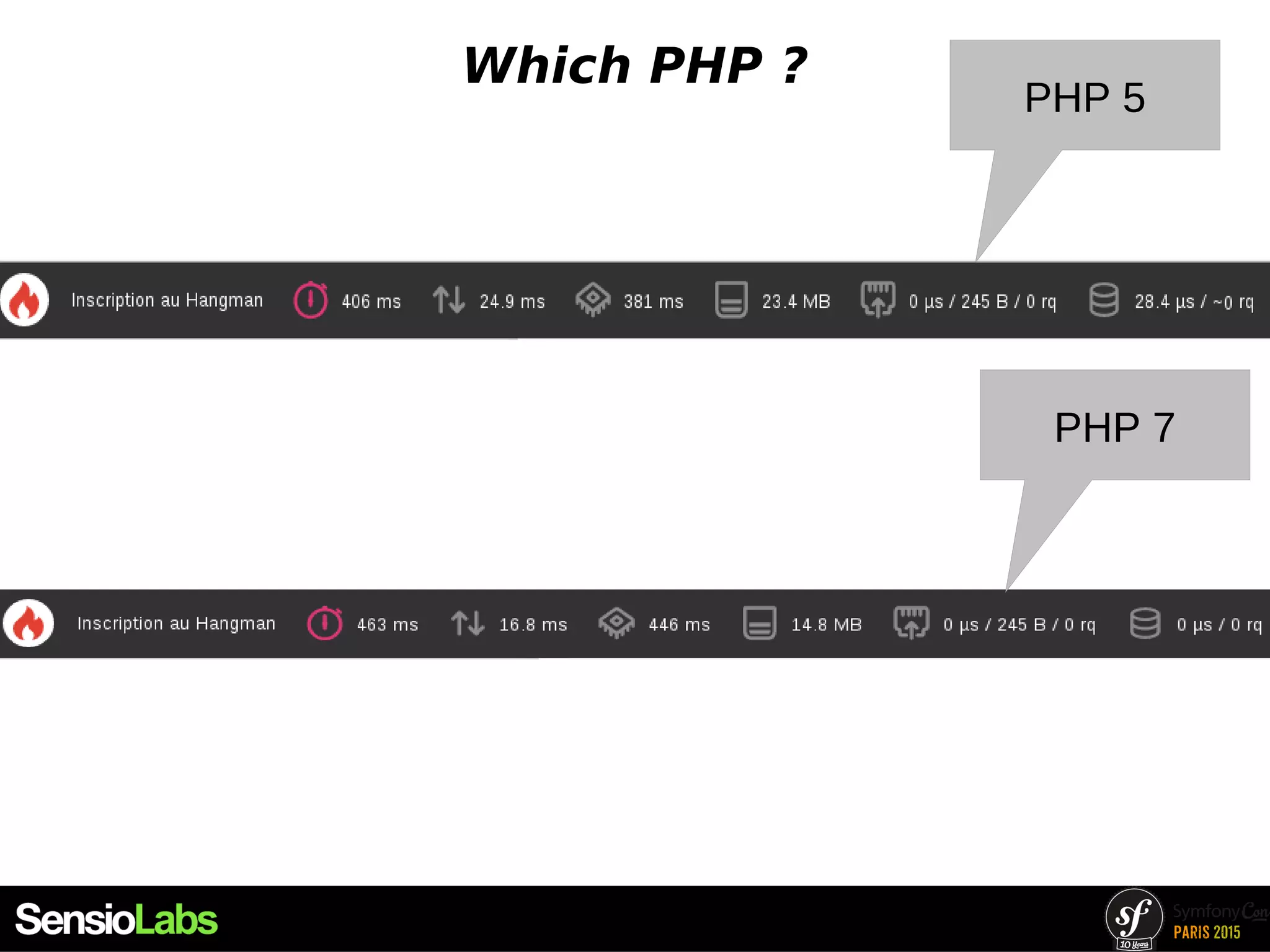

10. Which PHP ?
PHP 7
PHP 5

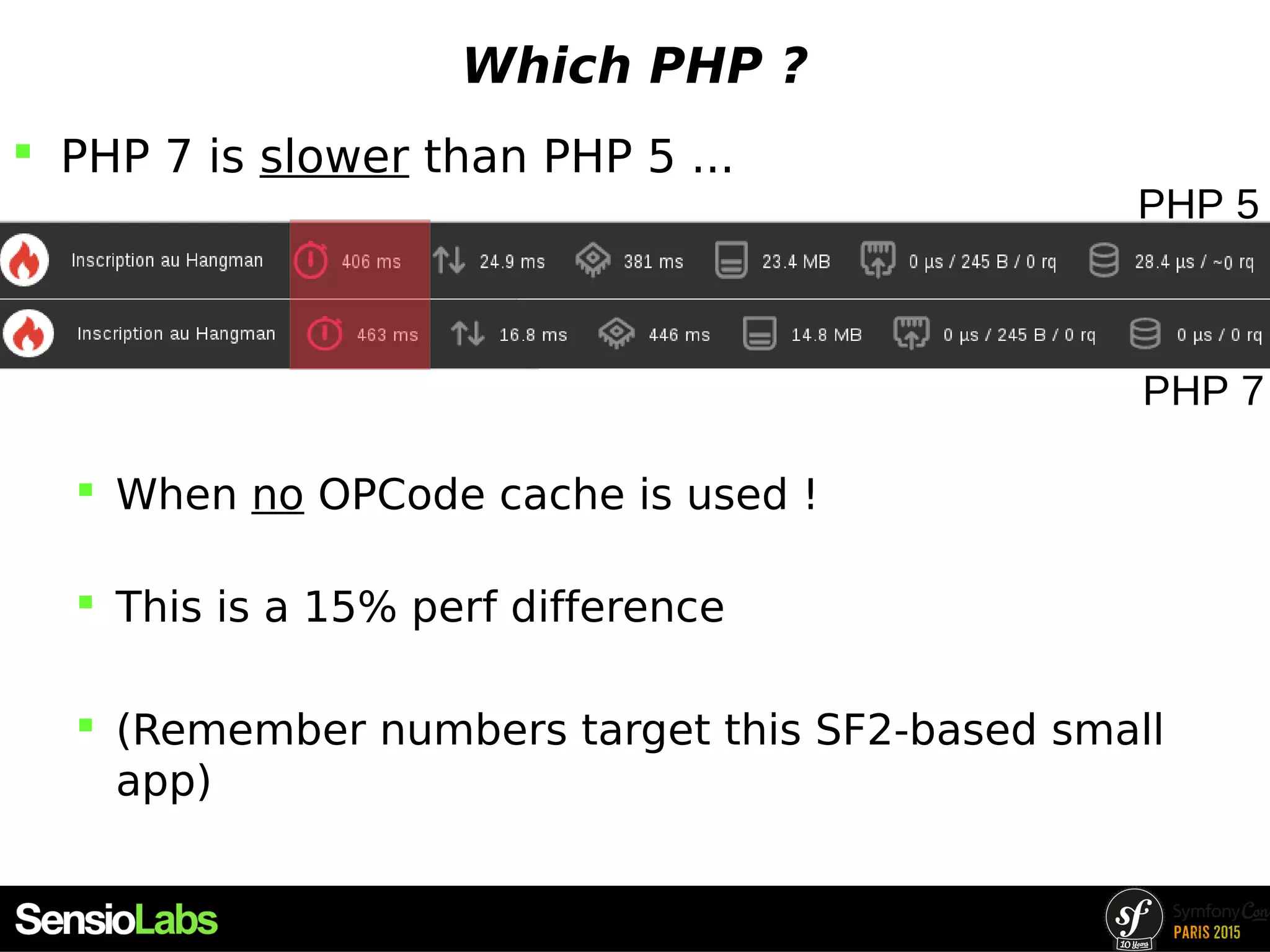

11. Which PHP ?
 PHP 7 is slower than PHP 5 ...
 When no OPCode cache is used !
 This is a 15% perf difference
 (Remember numbers target this SF2-based small
app)
PHP 5
PHP 7

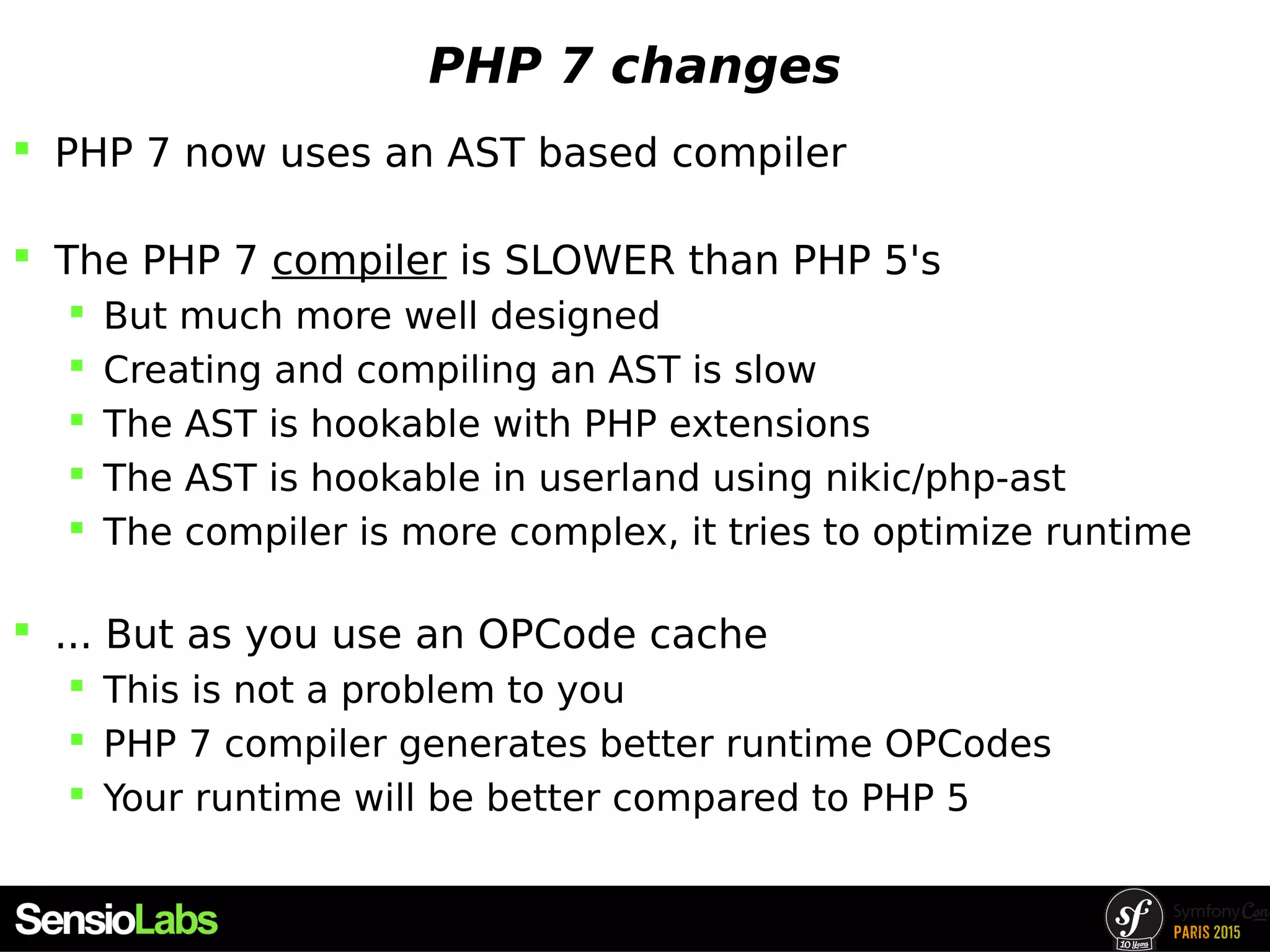

12. PHP 7 changes
 PHP 7 now uses an AST based compiler
 The PHP 7 compiler is SLOWER than PHP 5's
 But much more well designed
 Creating and compiling an AST is slow
 The AST is hookable with PHP extensions
 The AST is hookable in userland using nikic/php-ast
 The compiler is more complex, it tries to optimize runtime
 ... But as you use an OPCode cache
 This is not a problem to you
 PHP 7 compiler generates better runtime OPCodes
 Your runtime will be better compared to PHP 5

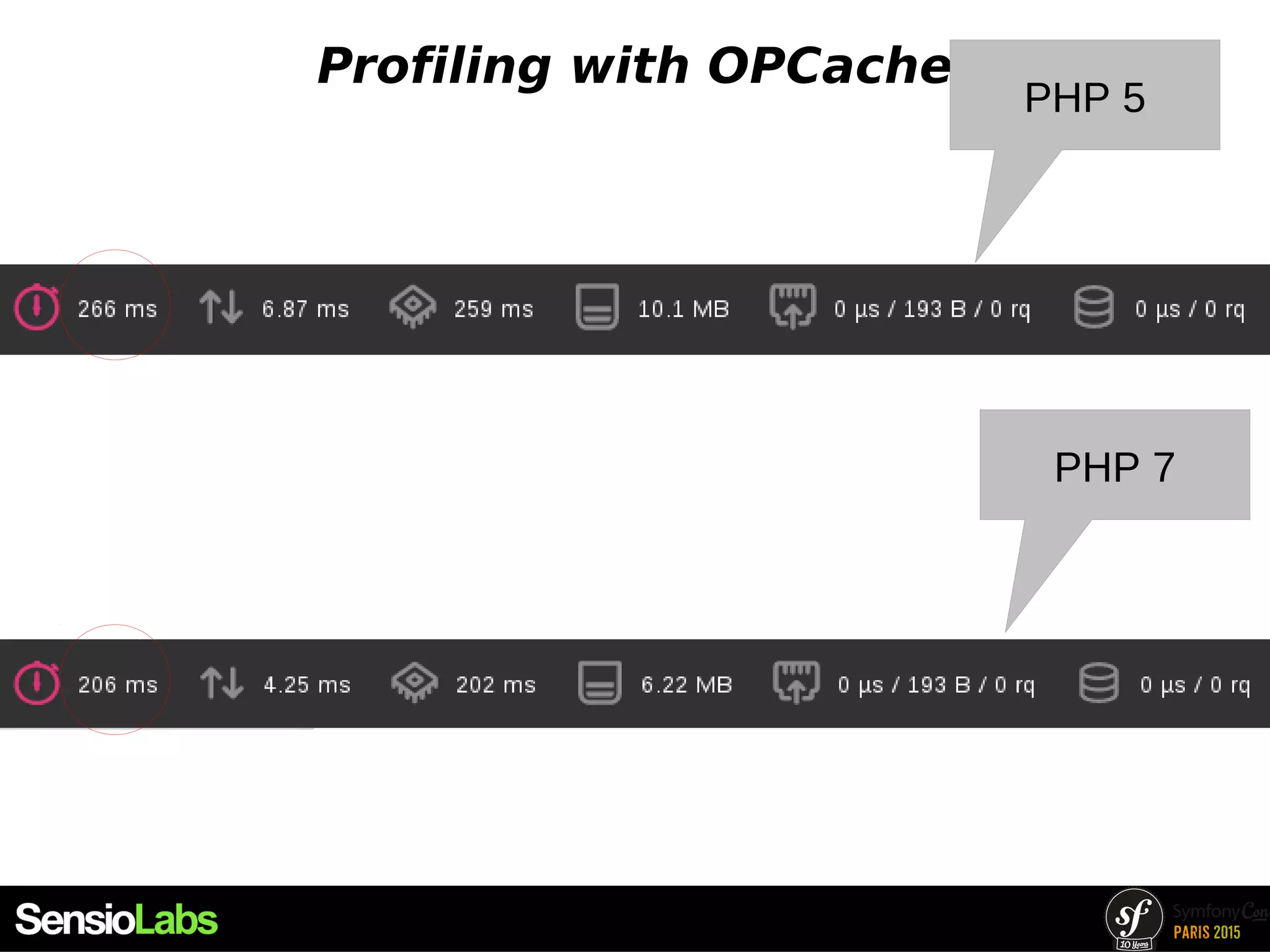

13. Profiling with OPCache
PHP 7
PHP 5

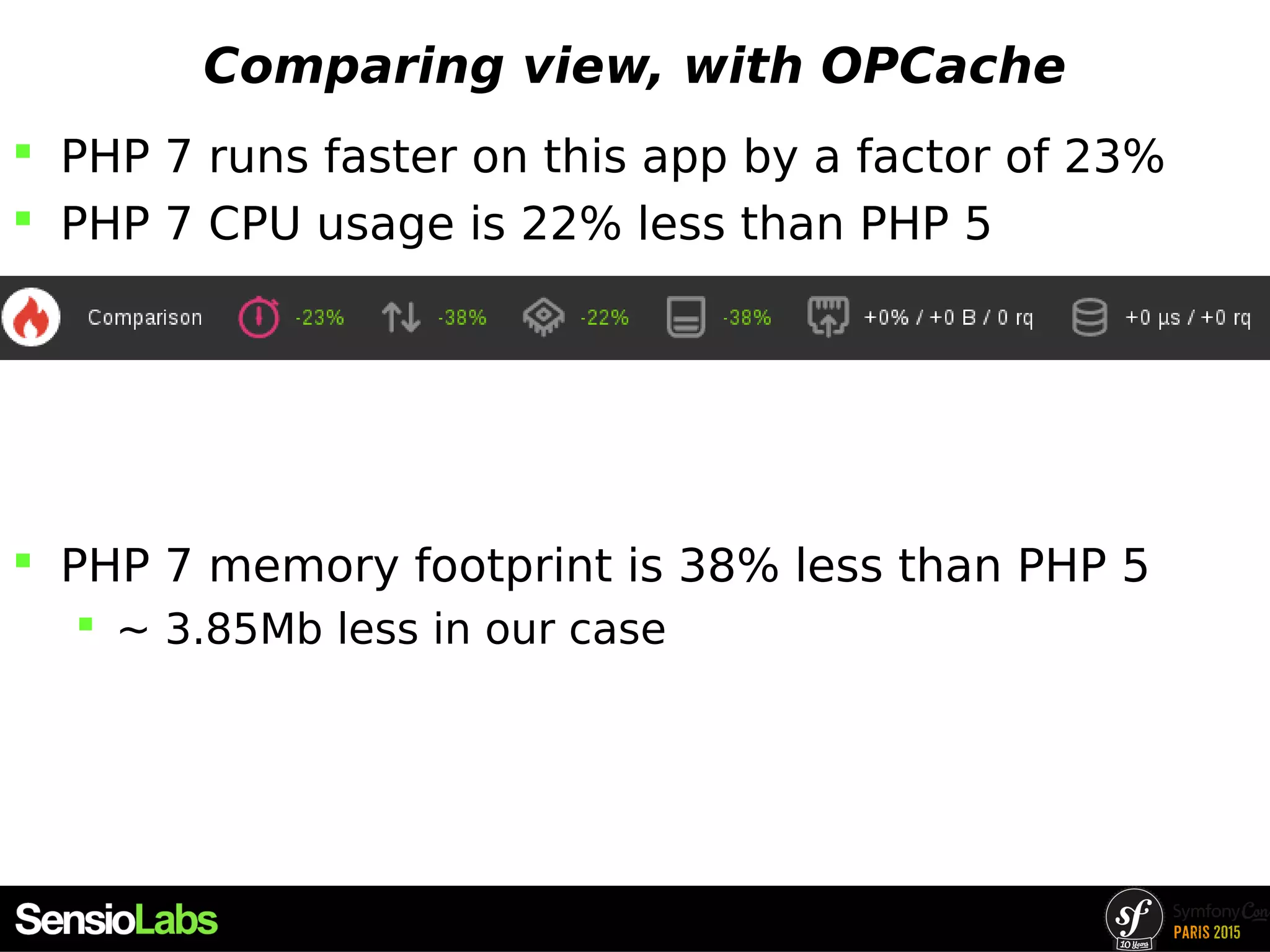

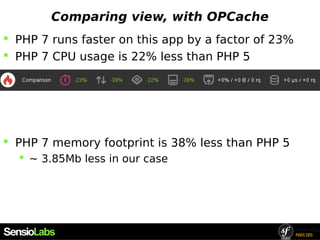

14. Comparing view, with OPCache
 PHP 7 runs faster on this app by a factor of 23%
 PHP 7 CPU usage is 22% less than PHP 5
 PHP 7 memory footprint is 38% less than PHP 5
 ~ 3.85Mb less in our case

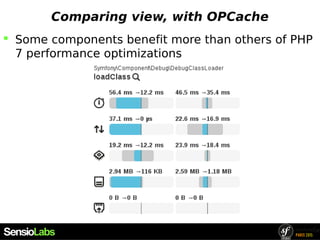

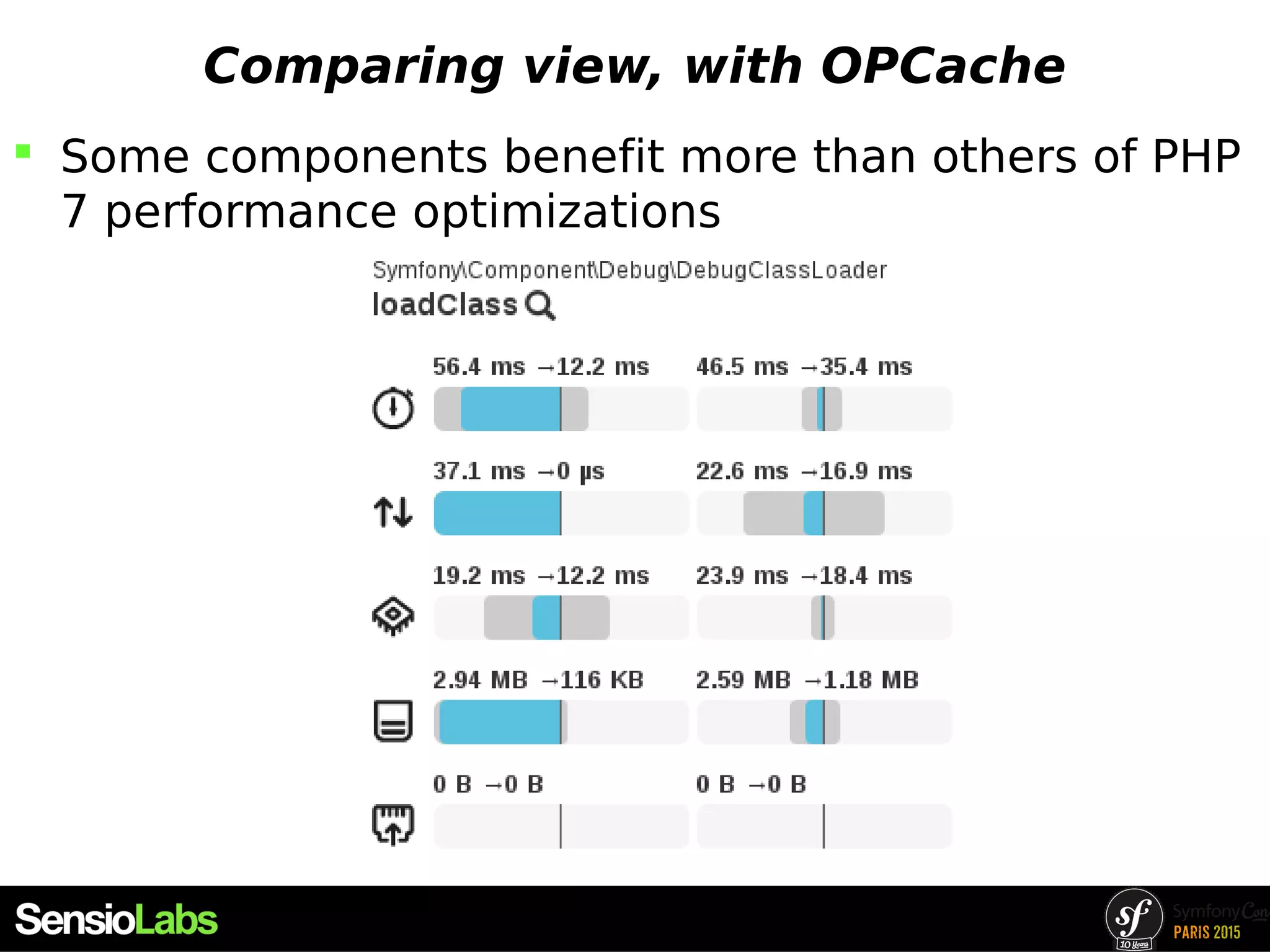

15. Comparing view, with OPCache
 Some components benefit more than others of PHP
7 performance optimizations

16. PHP 7 optimizations

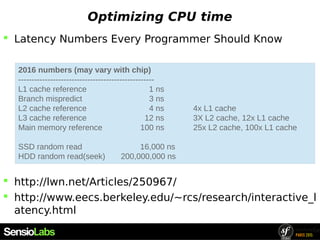

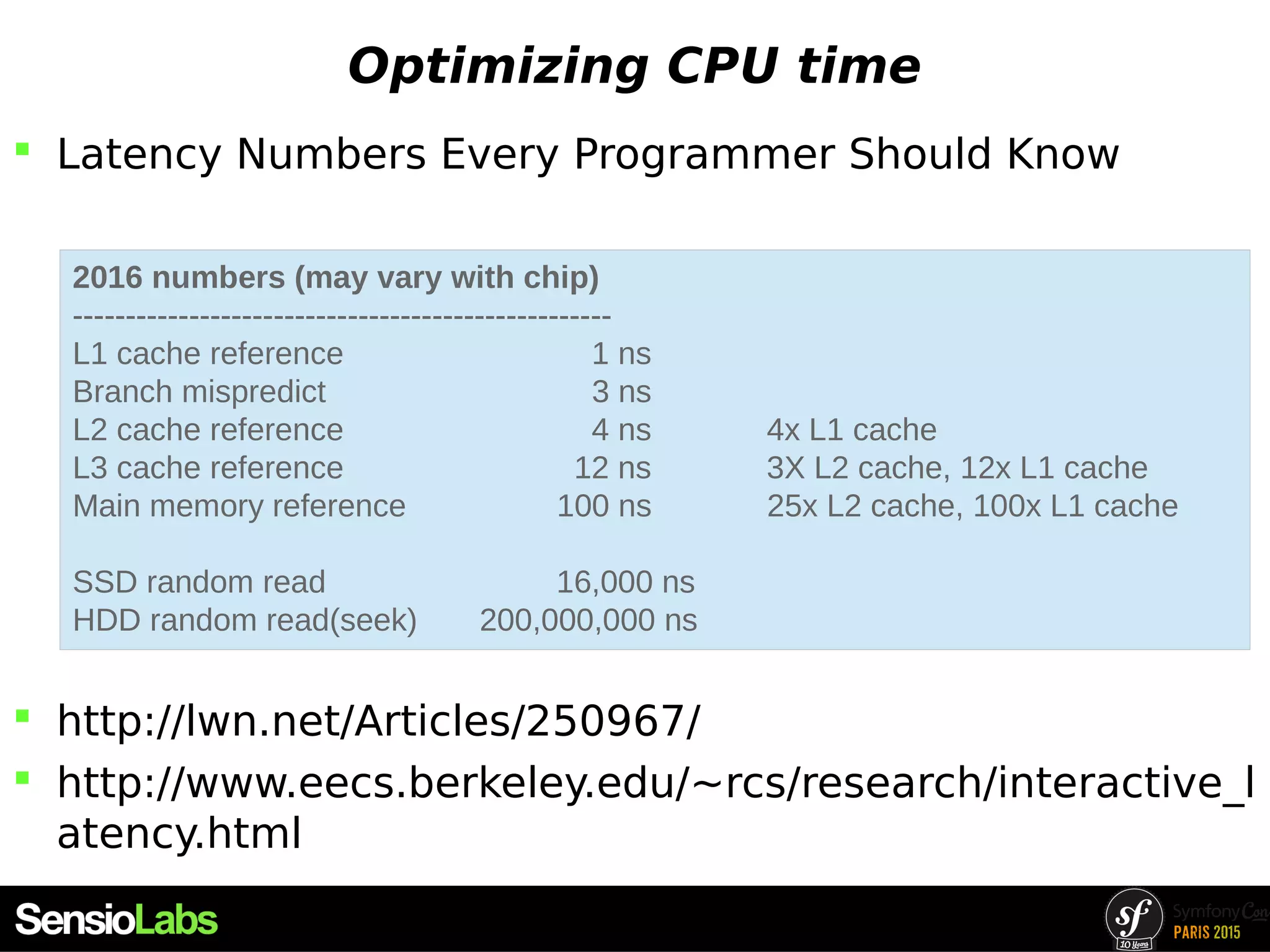

17. Optimizing CPU time
 Latency Numbers Every Programmer Should Know
 http://lwn.net/Articles/250967/
 http://www.eecs.berkeley.edu/~rcs/research/interactive_l
atency.html
2016 numbers (may vary with chip)
---------------------------------------------------
L1 cache reference 1 ns
Branch mispredict 3 ns
L2 cache reference 4 ns 4x L1 cache
L3 cache reference 12 ns 3X L2 cache, 12x L1 cache
Main memory reference 100 ns 25x L2 cache, 100x L1 cache
SSD random read 16,000 ns
HDD random read(seek) 200,000,000 ns

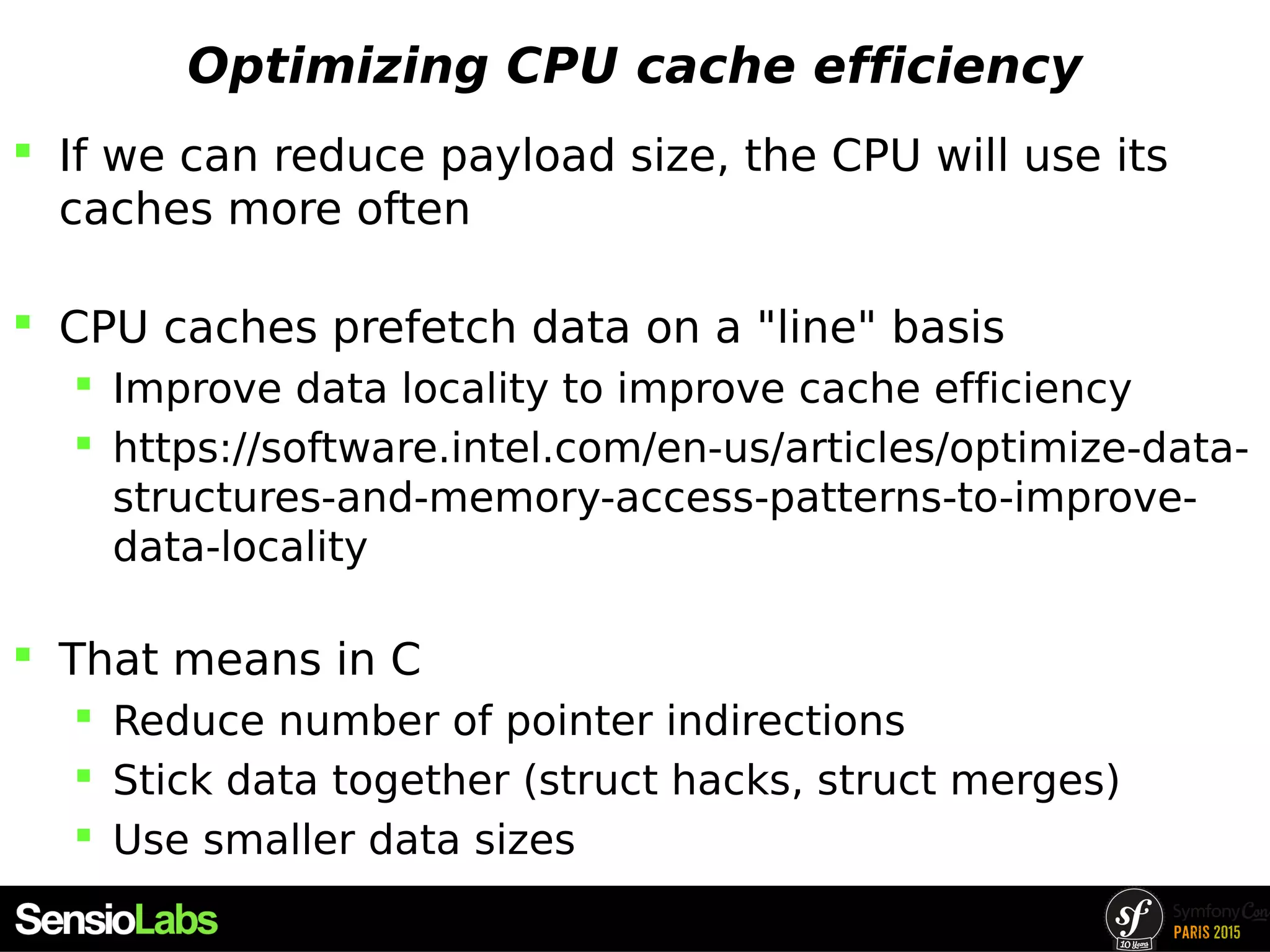

18. Optimizing CPU cache efficiency
 If we can reduce payload size, the CPU will use its
caches more often
 CPU caches prefetch data on a "line" basis
 Improve data locality to improve cache efficiency
 https://software.intel.com/en-us/articles/optimize-data-
structures-and-memory-access-patterns-to-improve-
data-locality
 That means in C
 Reduce number of pointer indirections
 Stick data together (struct hacks, struct merges)
 Use smaller data sizes

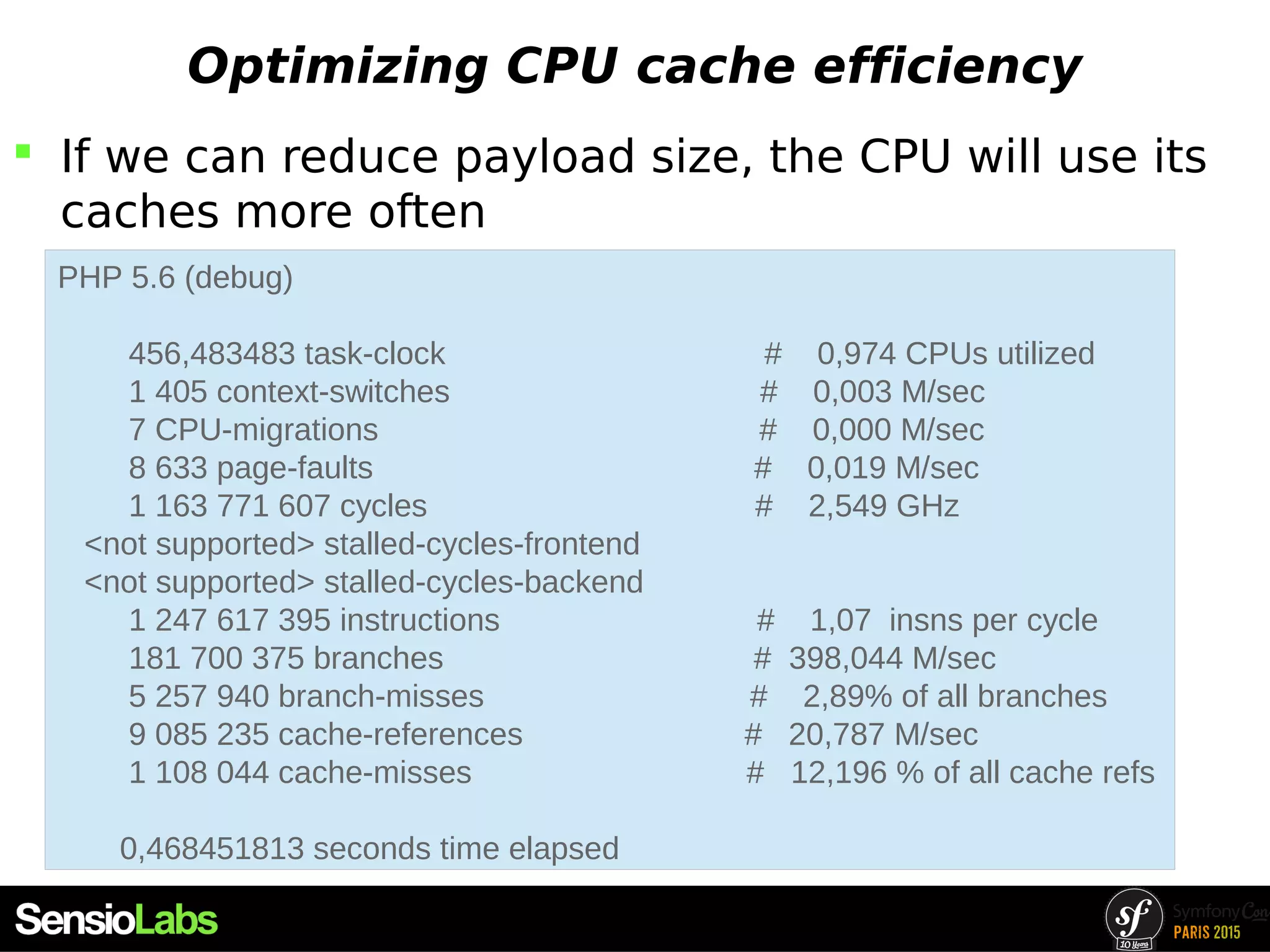

19. Optimizing CPU cache efficiency
 If we can reduce payload size, the CPU will use its
caches more often
PHP 5.6 (debug)
456,483483 task-clock # 0,974 CPUs utilized
1 405 context-switches # 0,003 M/sec
7 CPU-migrations # 0,000 M/sec
8 633 page-faults # 0,019 M/sec
1 163 771 607 cycles # 2,549 GHz
<not supported> stalled-cycles-frontend
<not supported> stalled-cycles-backend
1 247 617 395 instructions # 1,07 insns per cycle
181 700 375 branches # 398,044 M/sec
5 257 940 branch-misses # 2,89% of all branches
9 085 235 cache-references # 20,787 M/sec
1 108 044 cache-misses # 12,196 % of all cache refs
0,468451813 seconds time elapsed

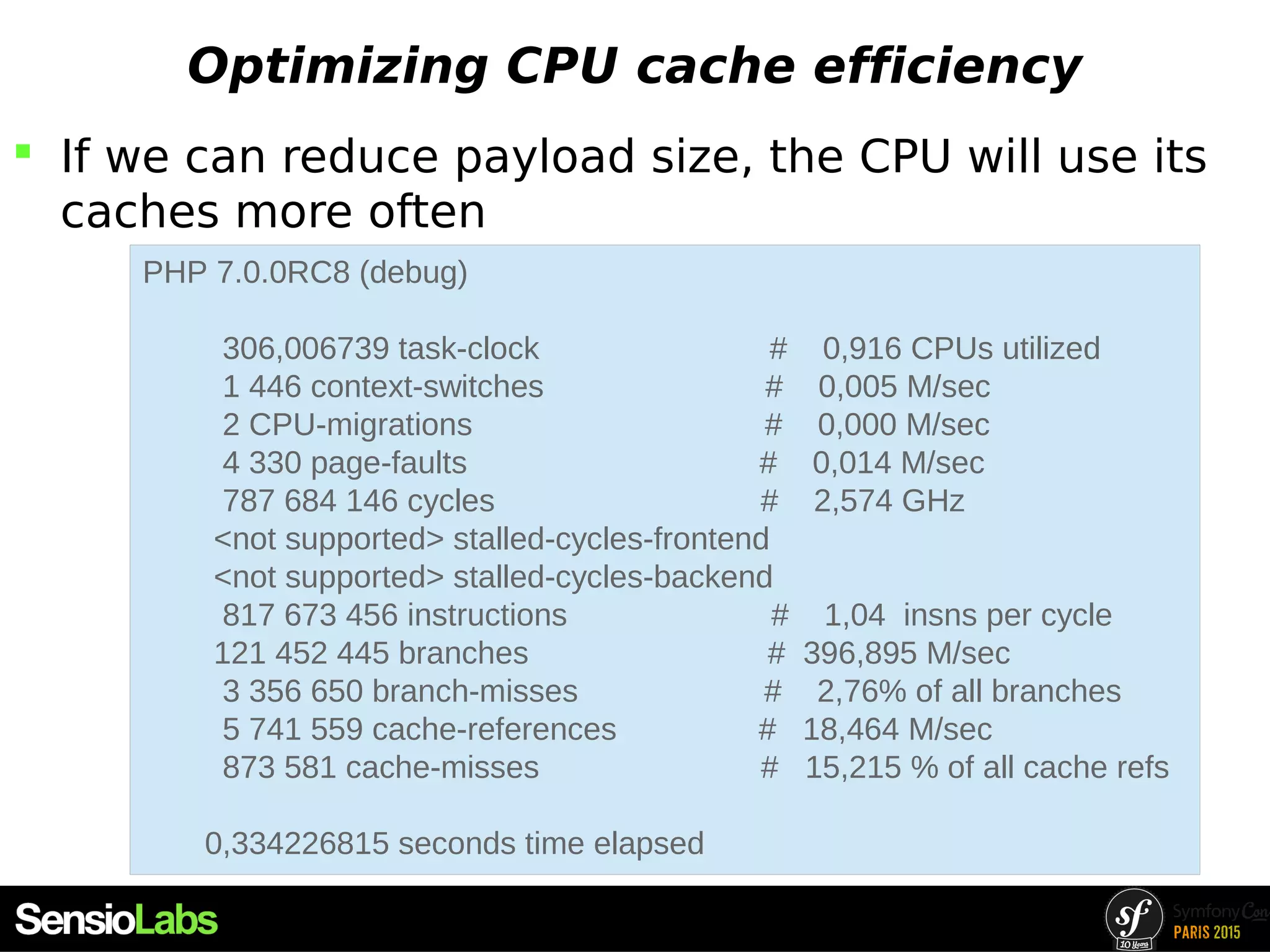

20. Optimizing CPU cache efficiency
 If we can reduce payload size, the CPU will use its
caches more often
PHP 7.0.0RC8 (debug)
306,006739 task-clock # 0,916 CPUs utilized
1 446 context-switches # 0,005 M/sec
2 CPU-migrations # 0,000 M/sec
4 330 page-faults # 0,014 M/sec
787 684 146 cycles # 2,574 GHz
<not supported> stalled-cycles-frontend
<not supported> stalled-cycles-backend
817 673 456 instructions # 1,04 insns per cycle
121 452 445 branches # 396,895 M/sec
3 356 650 branch-misses # 2,76% of all branches
5 741 559 cache-references # 18,464 M/sec
873 581 cache-misses # 15,215 % of all cache refs
0,334226815 seconds time elapsed

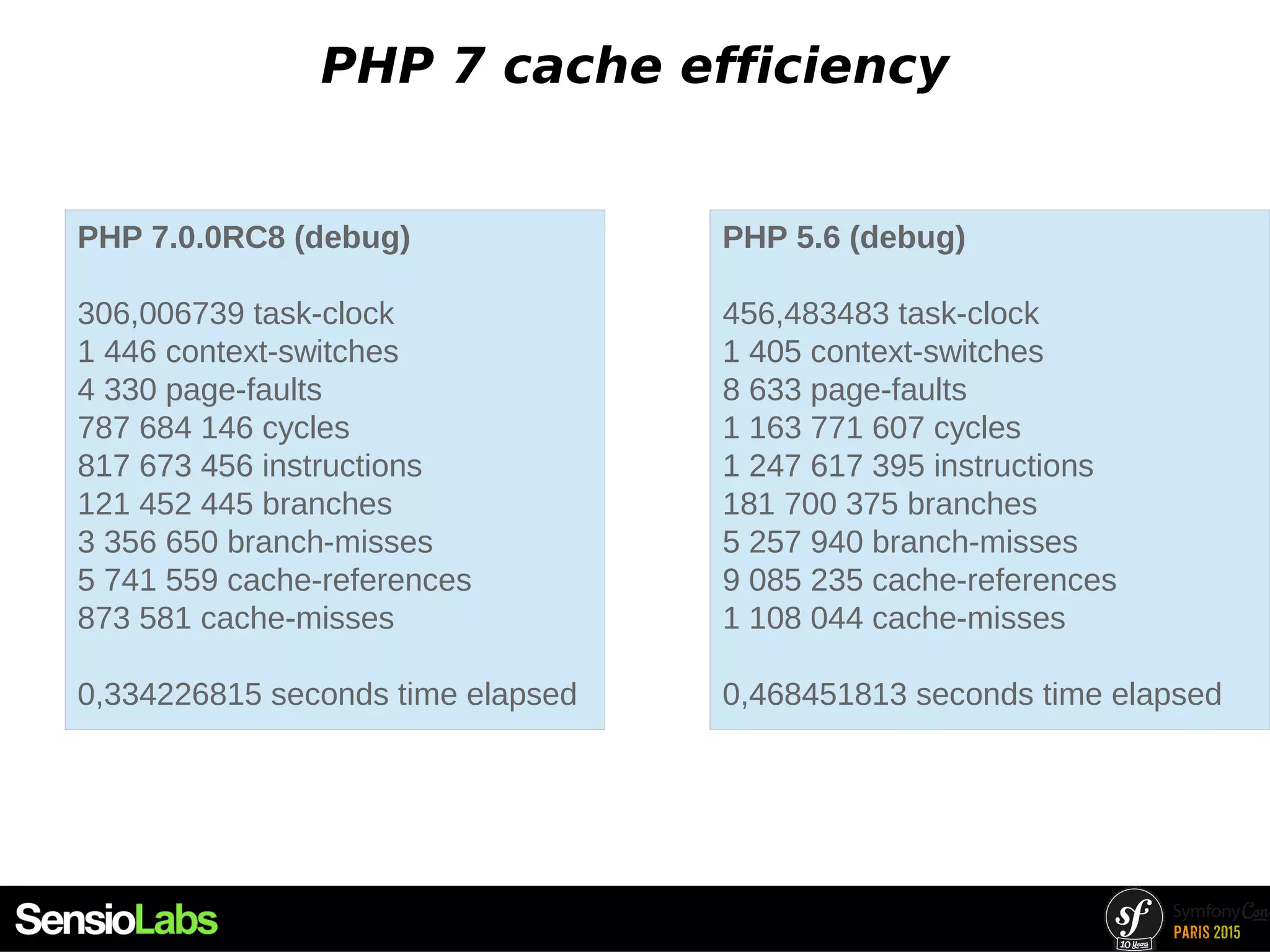

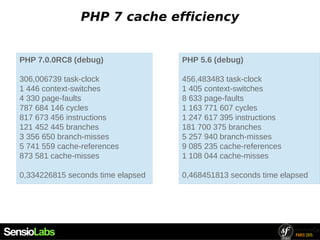

21. PHP 7 cache efficiency
PHP 7.0.0RC8 (debug)
306,006739 task-clock
1 446 context-switches
4 330 page-faults
787 684 146 cycles
817 673 456 instructions
121 452 445 branches
3 356 650 branch-misses
5 741 559 cache-references
873 581 cache-misses
0,334226815 seconds time elapsed
PHP 5.6 (debug)
456,483483 task-clock
1 405 context-switches
8 633 page-faults
1 163 771 607 cycles
1 247 617 395 instructions
181 700 375 branches
5 257 940 branch-misses
9 085 235 cache-references
1 108 044 cache-misses
0,468451813 seconds time elapsed

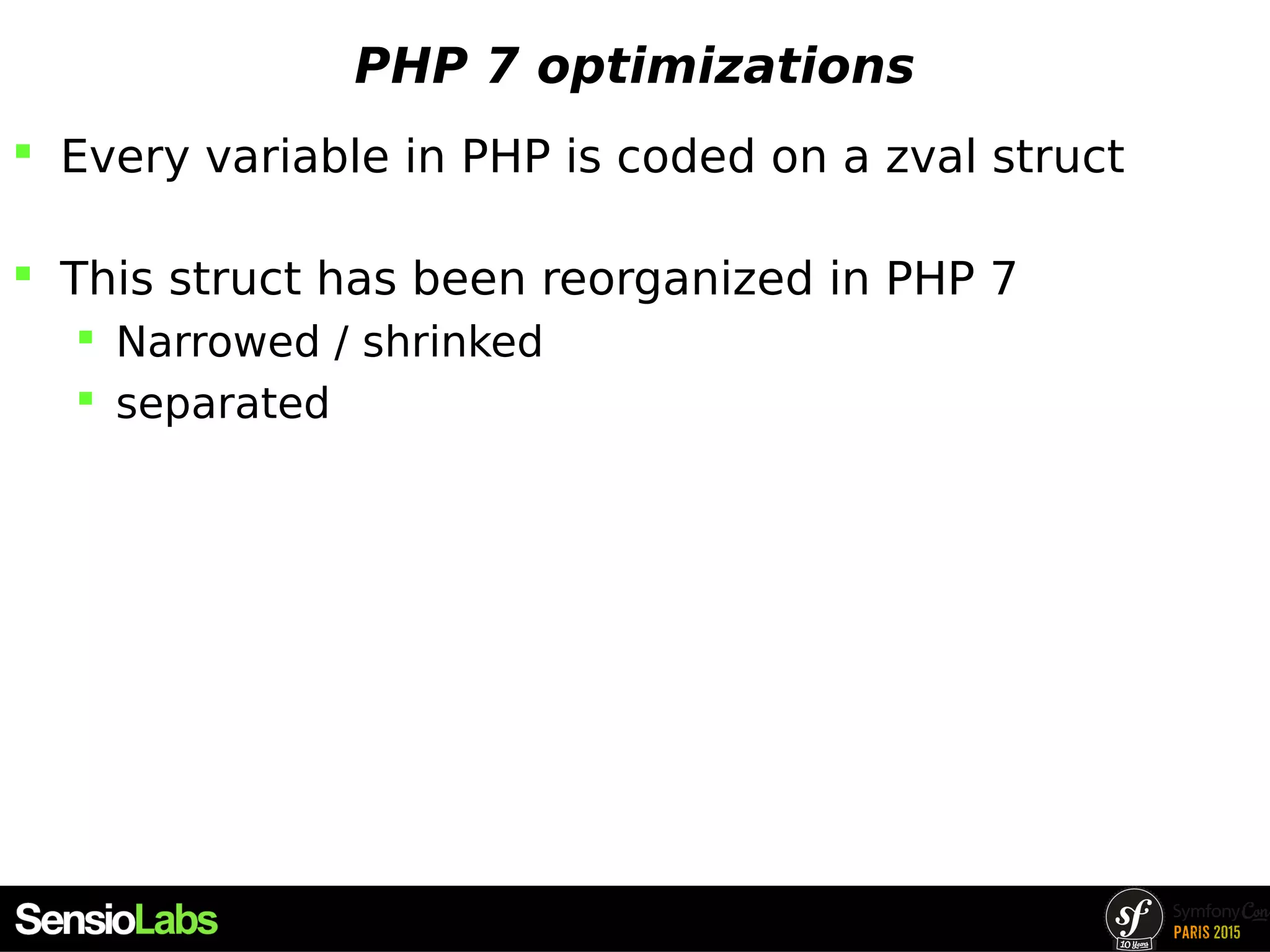

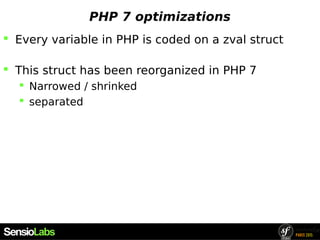

22. PHP 7 optimizations
 Every variable in PHP is coded on a zval struct
 This struct has been reorganized in PHP 7
 Narrowed / shrinked
 separated

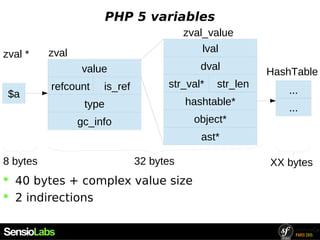

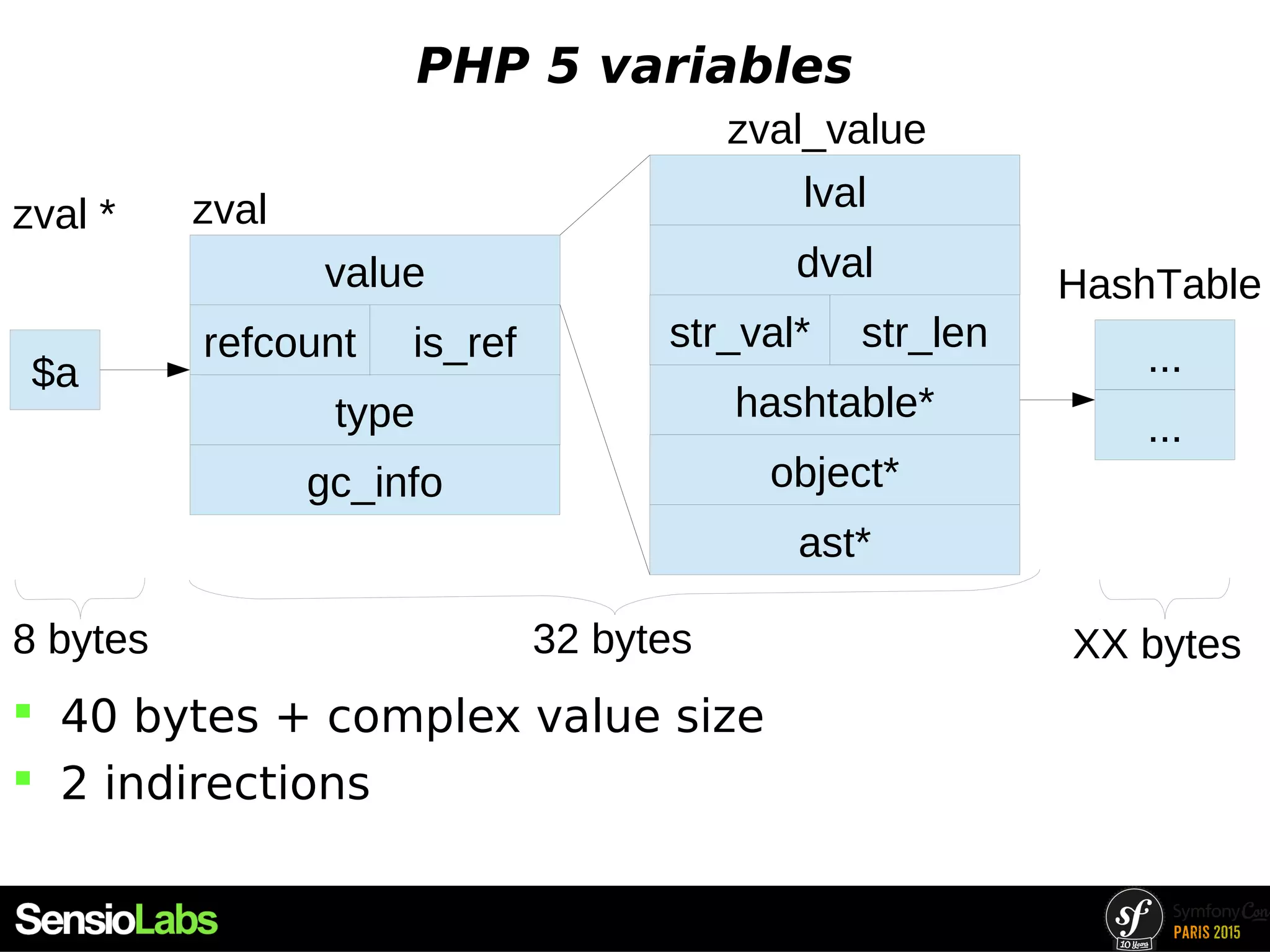

23. PHP 5 variables
value
refcount is_ref
type
gc_info
dval
str_val* str_len
hashtable*
object*
lval
ast*
zval
zval_value
...
...
HashTable
32 bytes
$a
8 bytes
zval *
XX bytes
 40 bytes + complex value size
 2 indirections

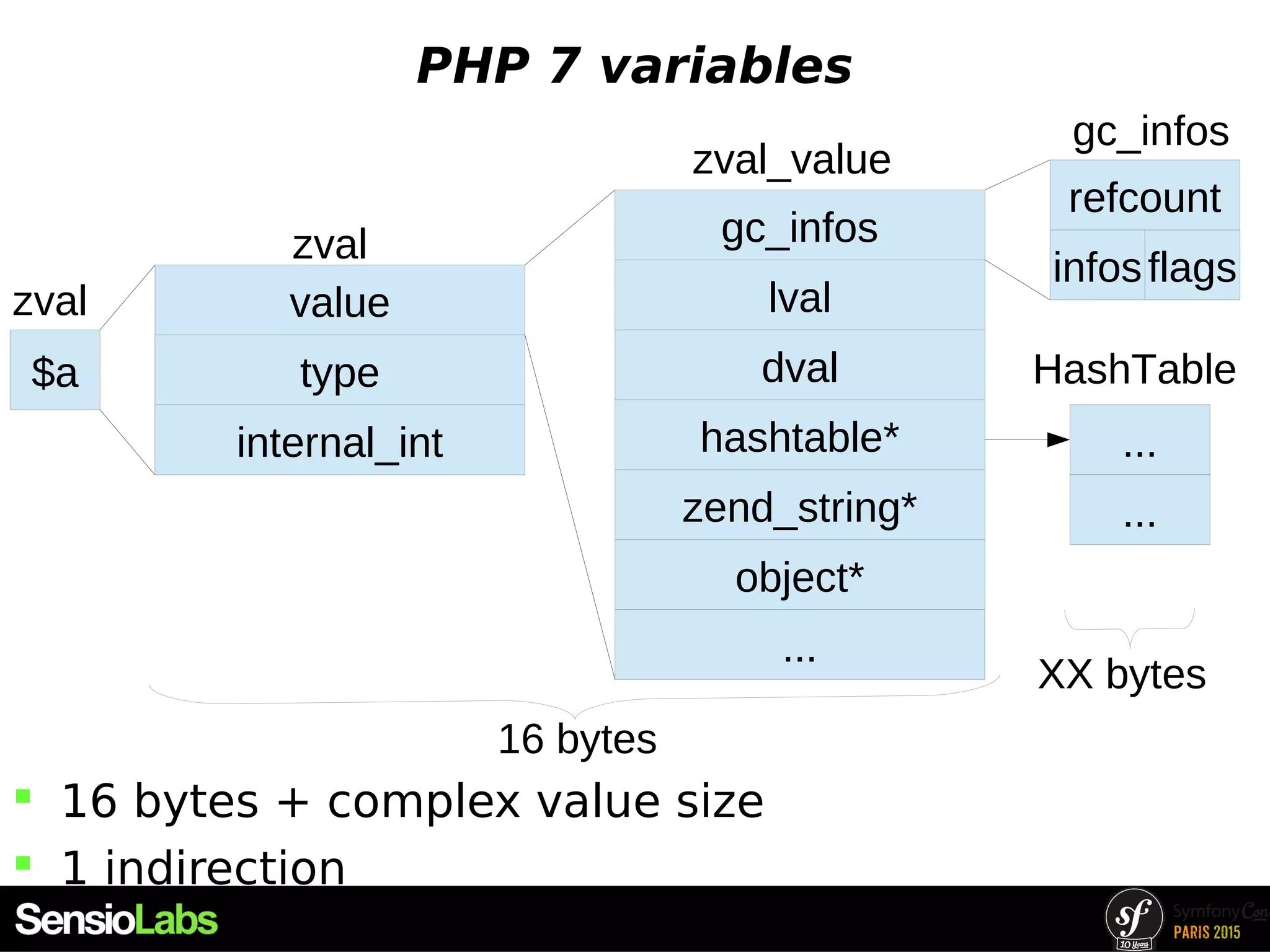

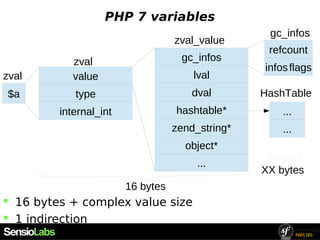

24. PHP 7 variables
value
type
internal_int
dval
zend_string*
object*
lval
...
zval
zval_value
...
...
HashTable
16 bytes
$a
zval
XX bytes
 16 bytes + complex value size
 1 indirection
hashtable*
gc_infos
refcount
infosflags
gc_infos

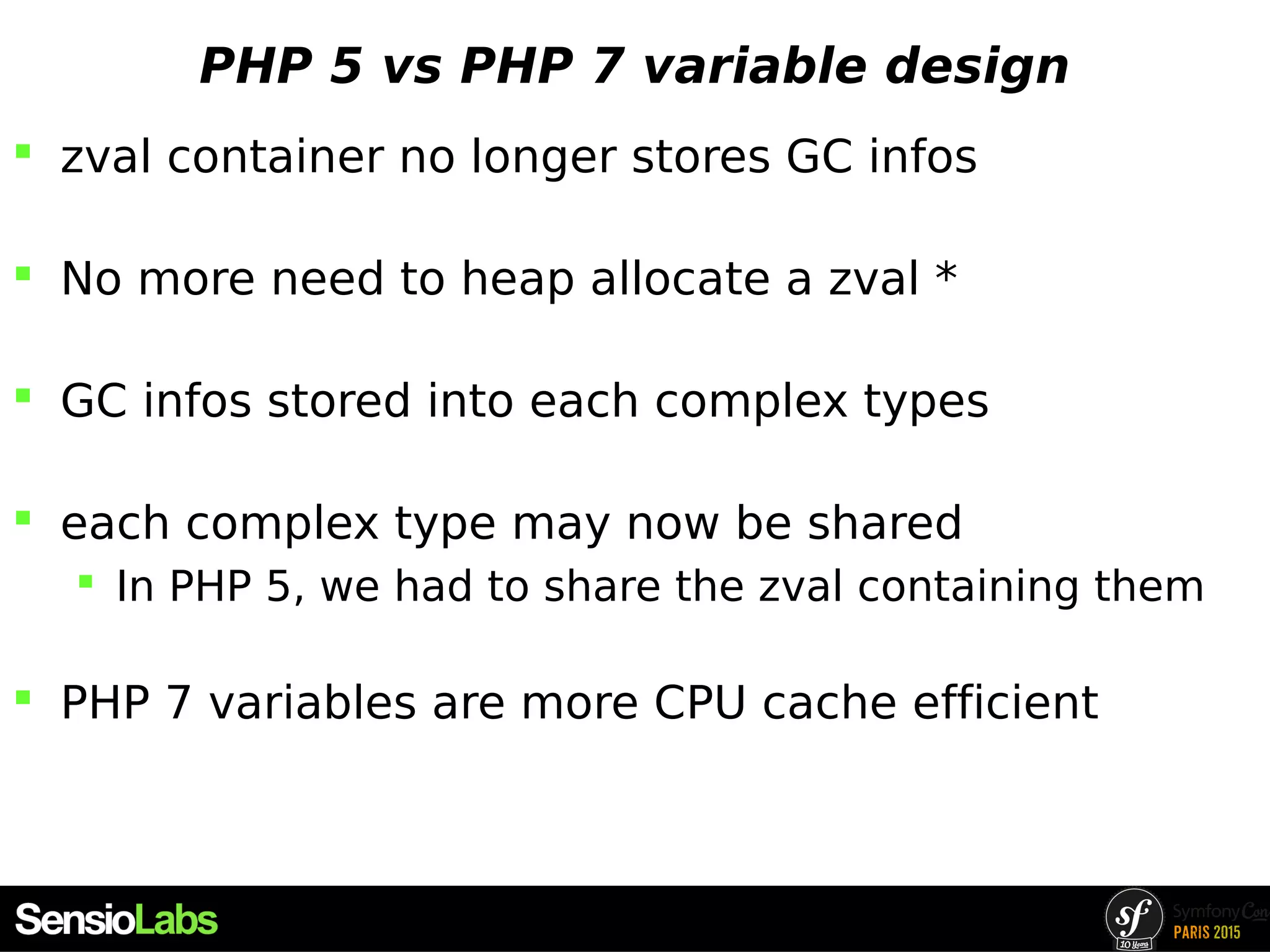

25. PHP 5 vs PHP 7 variable design
 zval container no longer stores GC infos
 No more need to heap allocate a zval *
 GC infos stored into each complex types
 each complex type may now be shared
 In PHP 5, we had to share the zval containing them
 PHP 7 variables are more CPU cache efficient

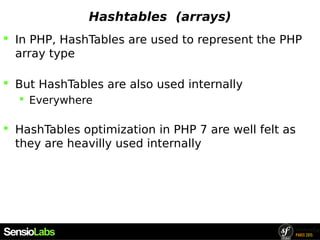

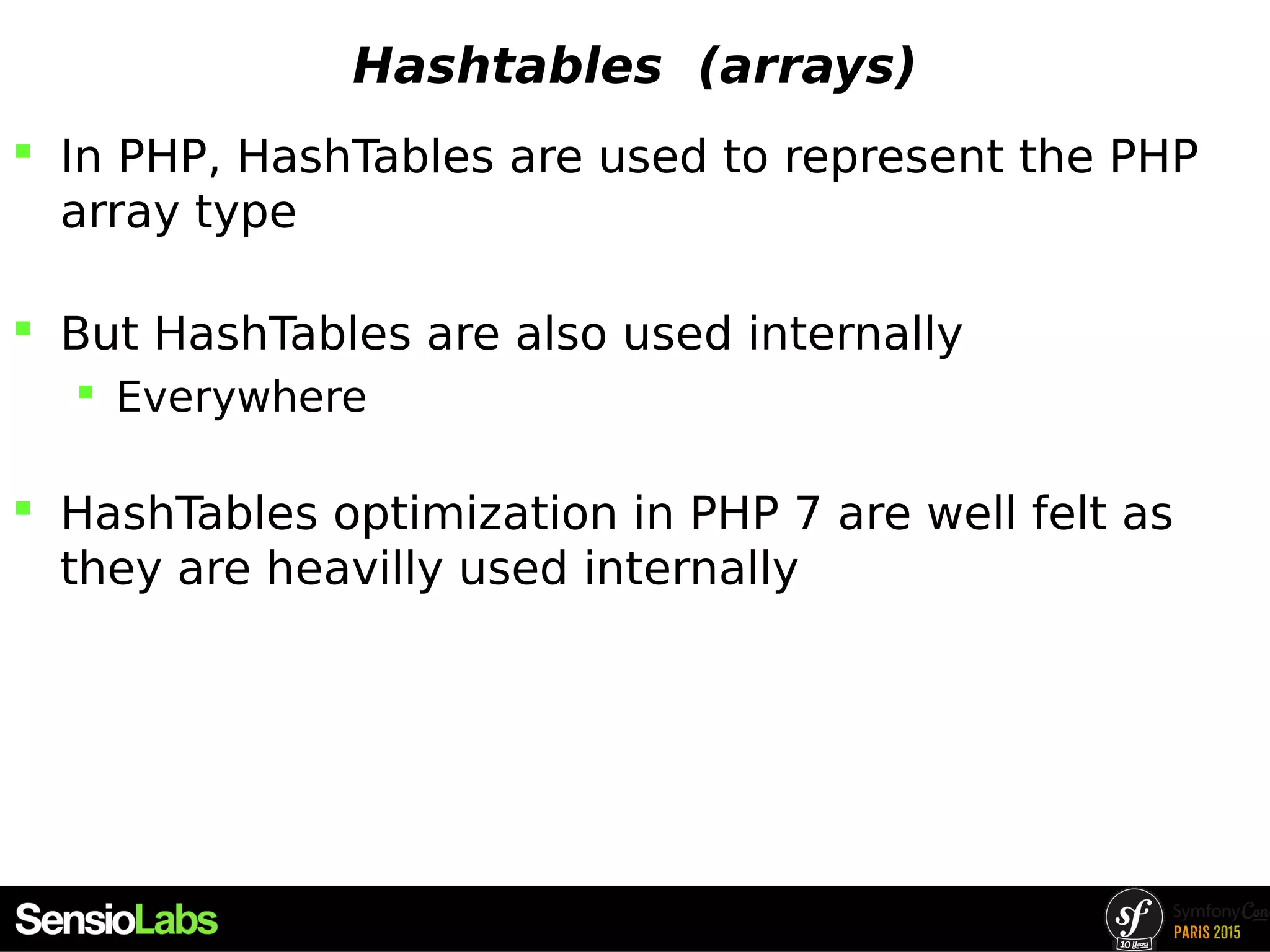

26. Hashtables (arrays)
 In PHP, HashTables are used to represent the PHP
array type
 But HashTables are also used internally
 Everywhere
 HashTables optimization in PHP 7 are well felt as
they are heavilly used internally

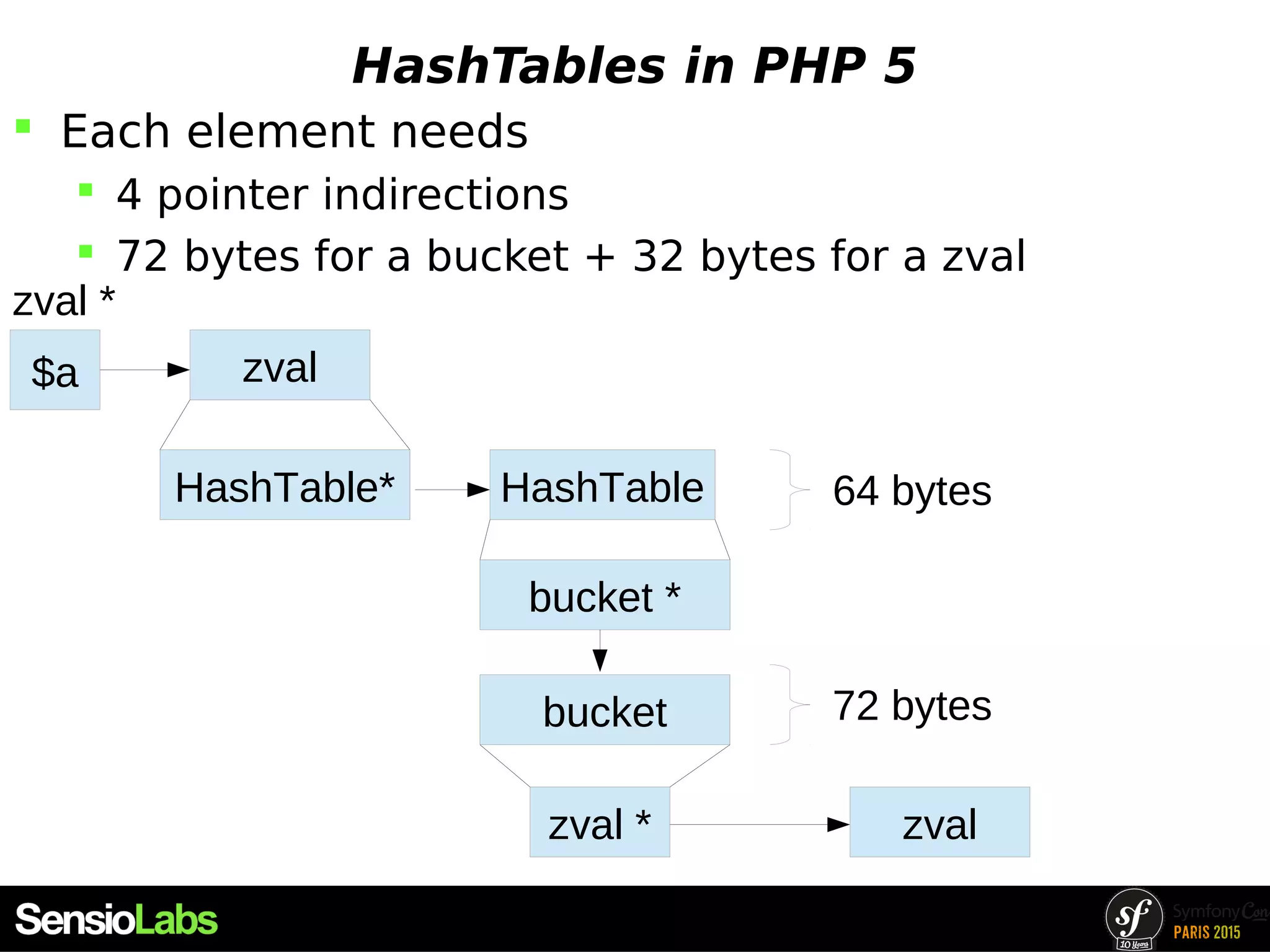

27. HashTables in PHP 5
 Each element needs
 4 pointer indirections
 72 bytes for a bucket + 32 bytes for a zval
zval
zval *
HashTable
$a
zval *
HashTable*
bucket *
zval
64 bytes
72 bytesbucket

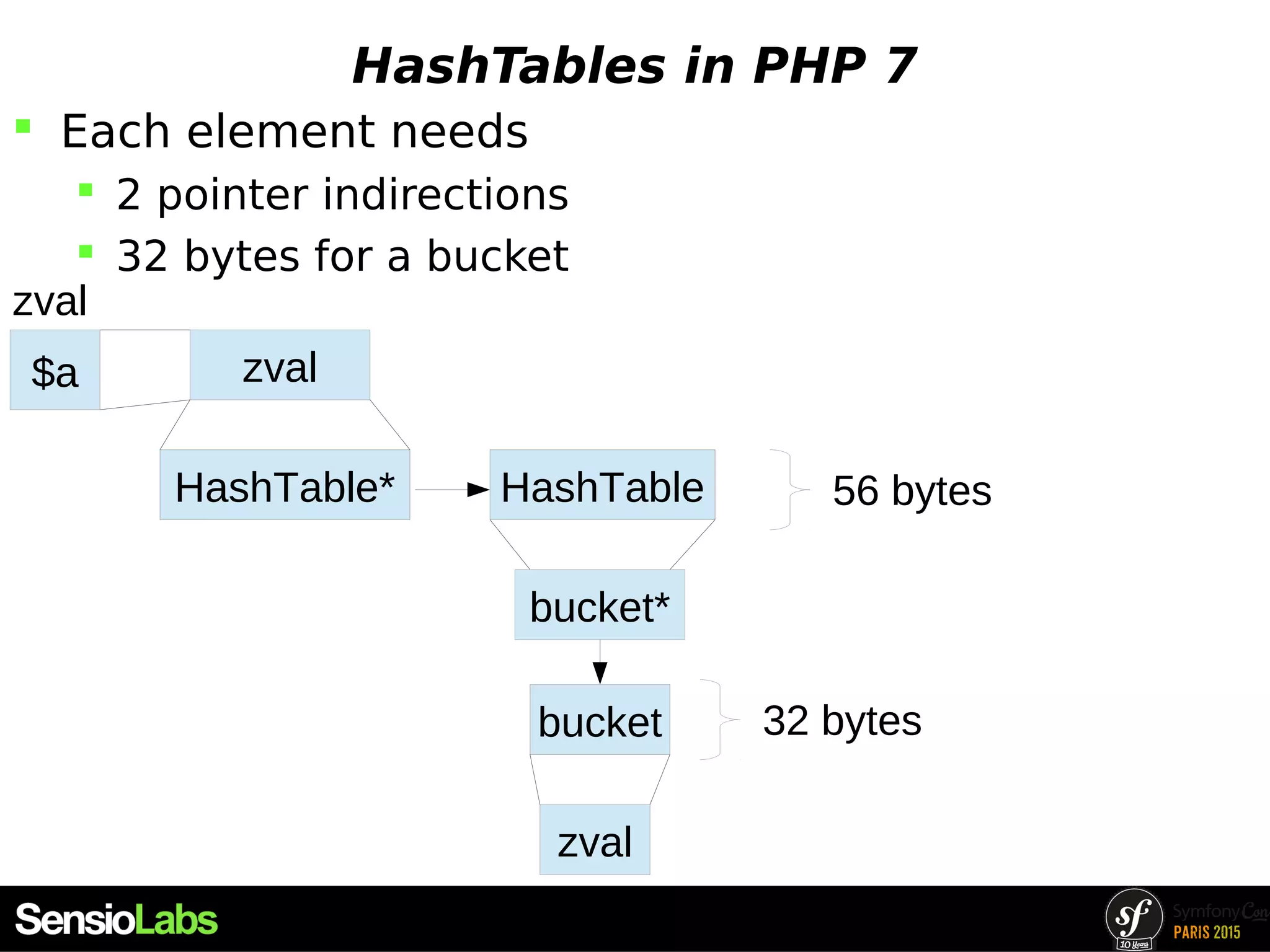

28. HashTables in PHP 7
 Each element needs
 2 pointer indirections
 32 bytes for a bucket
zval
bucket
HashTable
$a
zval
HashTable*
zval
56 bytes
32 bytes
bucket*

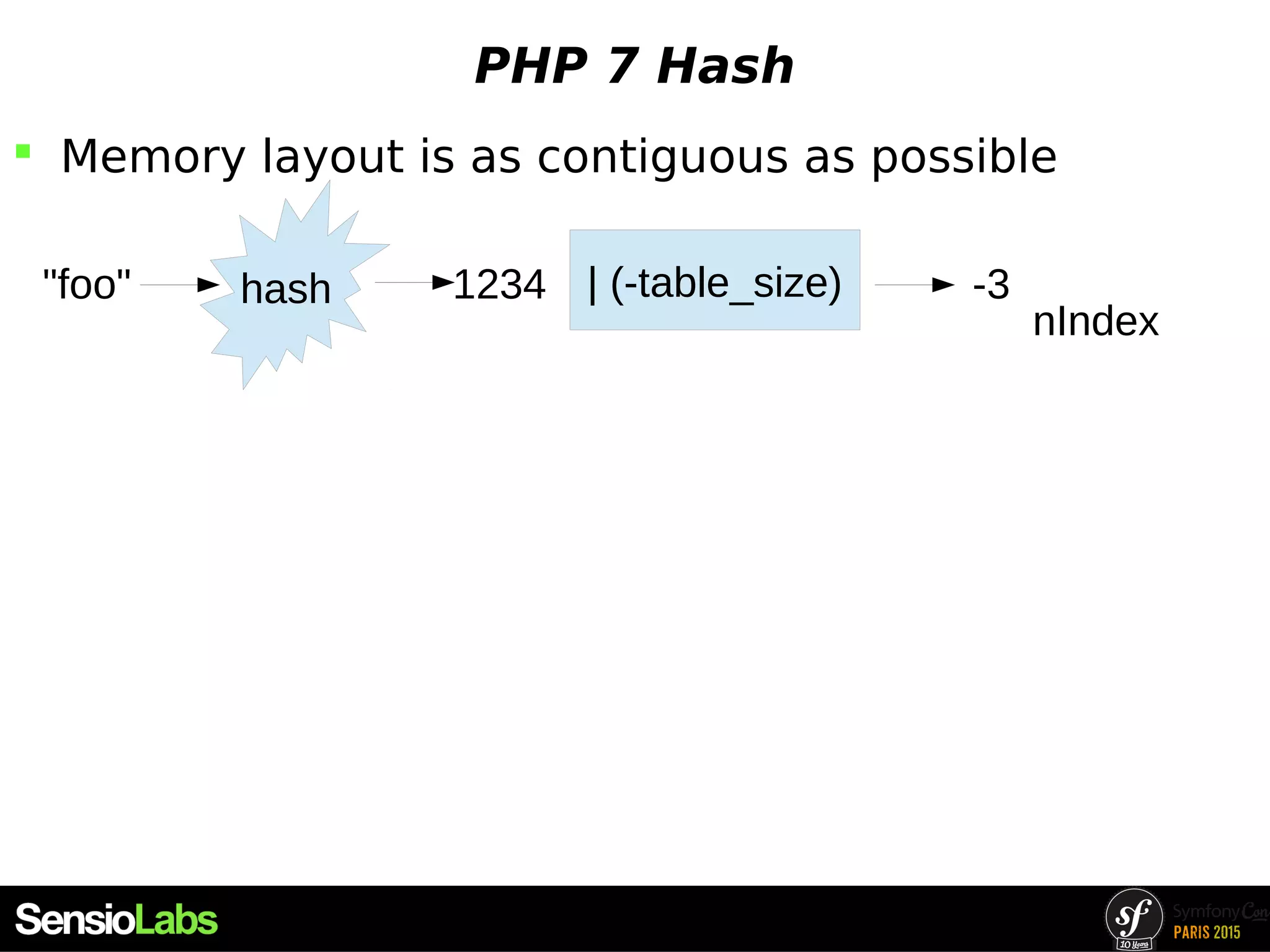

29. PHP 7 Hash
 Memory layout is as contiguous as possible
hash"foo" 1234 | (-table_size) -3
nIndex

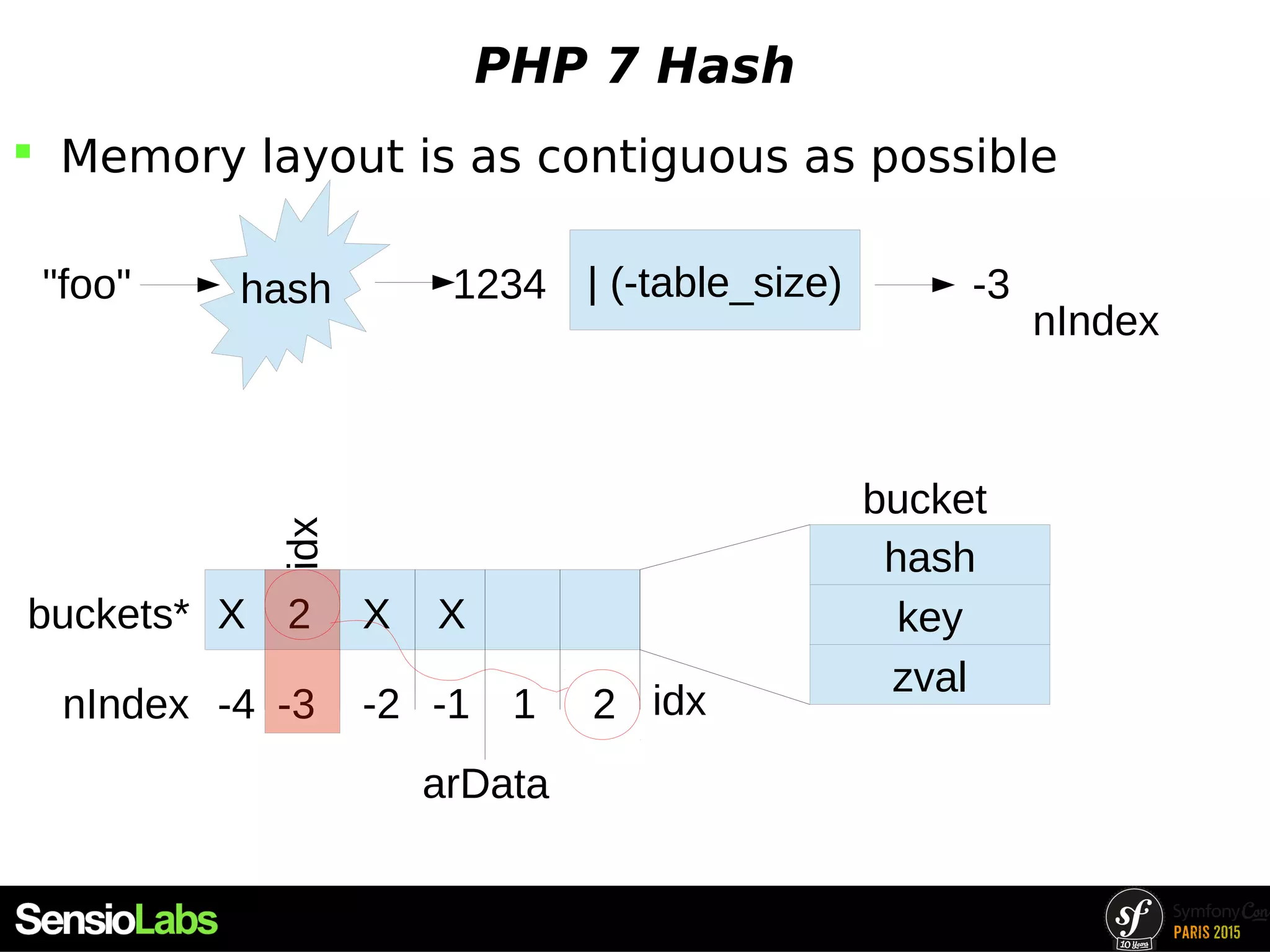

30. PHP 7 Hash
 Memory layout is as contiguous as possible
hash"foo" 1234 | (-table_size) -3
buckets*
arData
-1-2-3
2 X XX
-4 1 2
nIndex
nIndex idx
idx
hash
key
zval
bucket

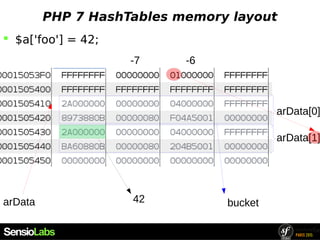

31. PHP 7 HashTables memory layout
 $a['foo'] = 42;
arData
-6-7
arData[0]
arData[1]
42 bucket

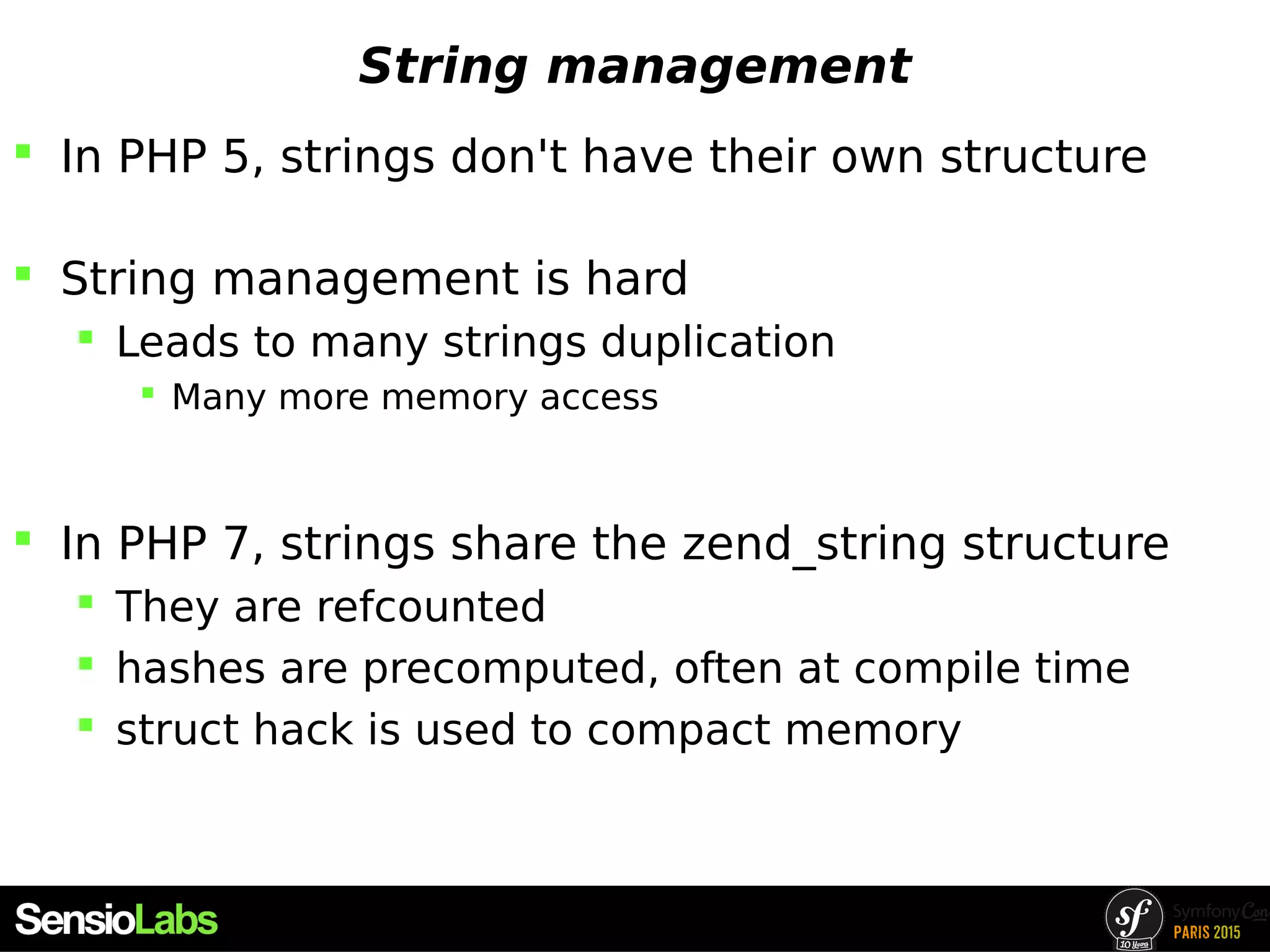

32. String management
 In PHP 5, strings don't have their own structure
 String management is hard
 Leads to many strings duplication
 Many more memory access
 In PHP 7, strings share the zend_string structure
 They are refcounted
 hashes are precomputed, often at compile time
 struct hack is used to compact memory

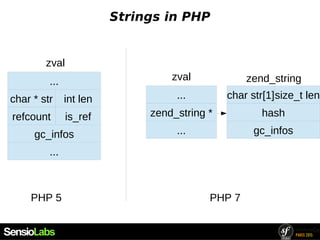

33. Strings in PHP
char * str
...
zval
gc_infos
int len
refcount is_ref zend_string *
...
zval
...
hash
gc_infos
char str[1]size_t len
...
zend_string
PHP 5 PHP 7

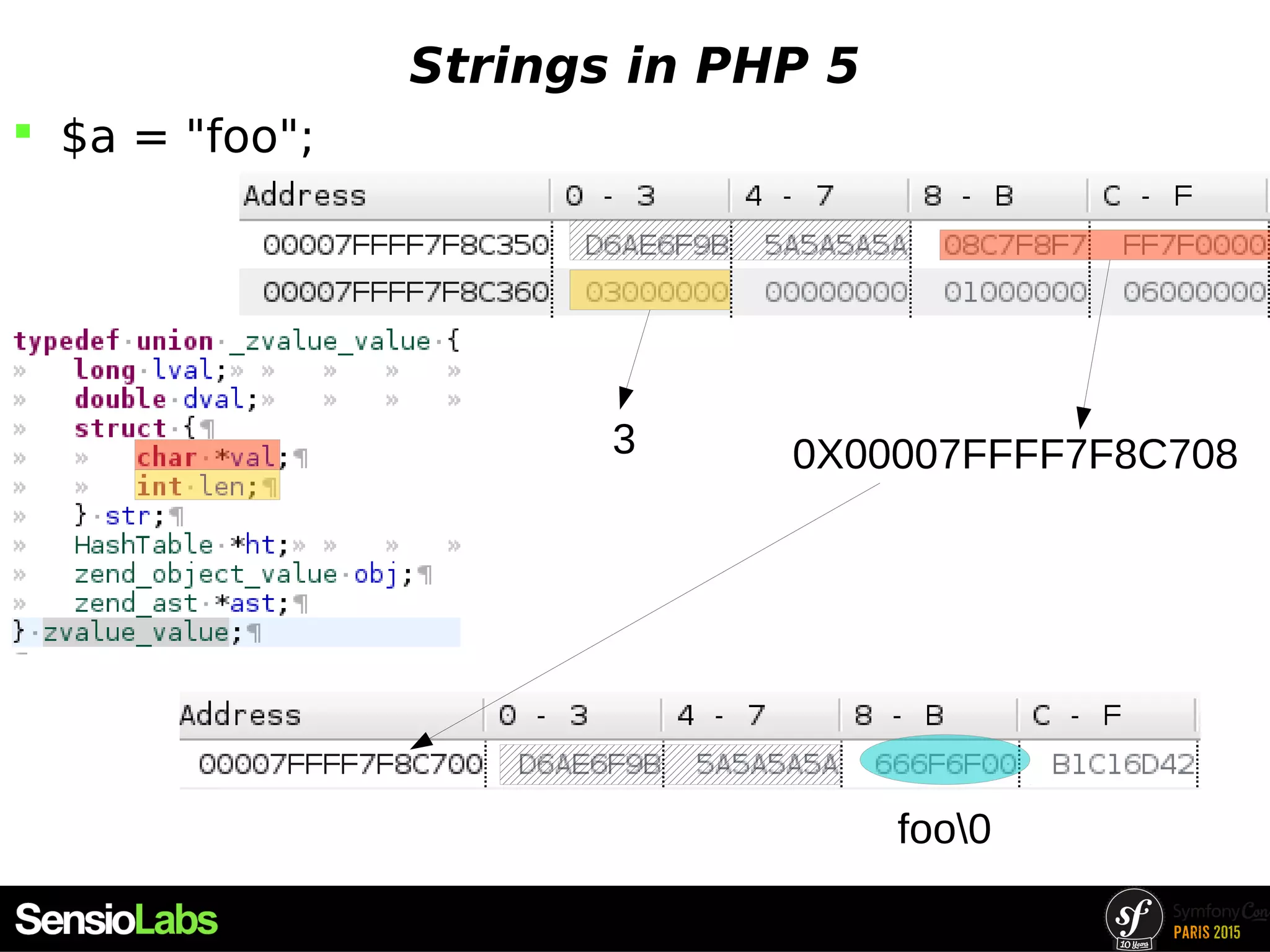

34. Strings in PHP 5
 $a = "foo";
3 0X00007FFFF7F8C708
foo0

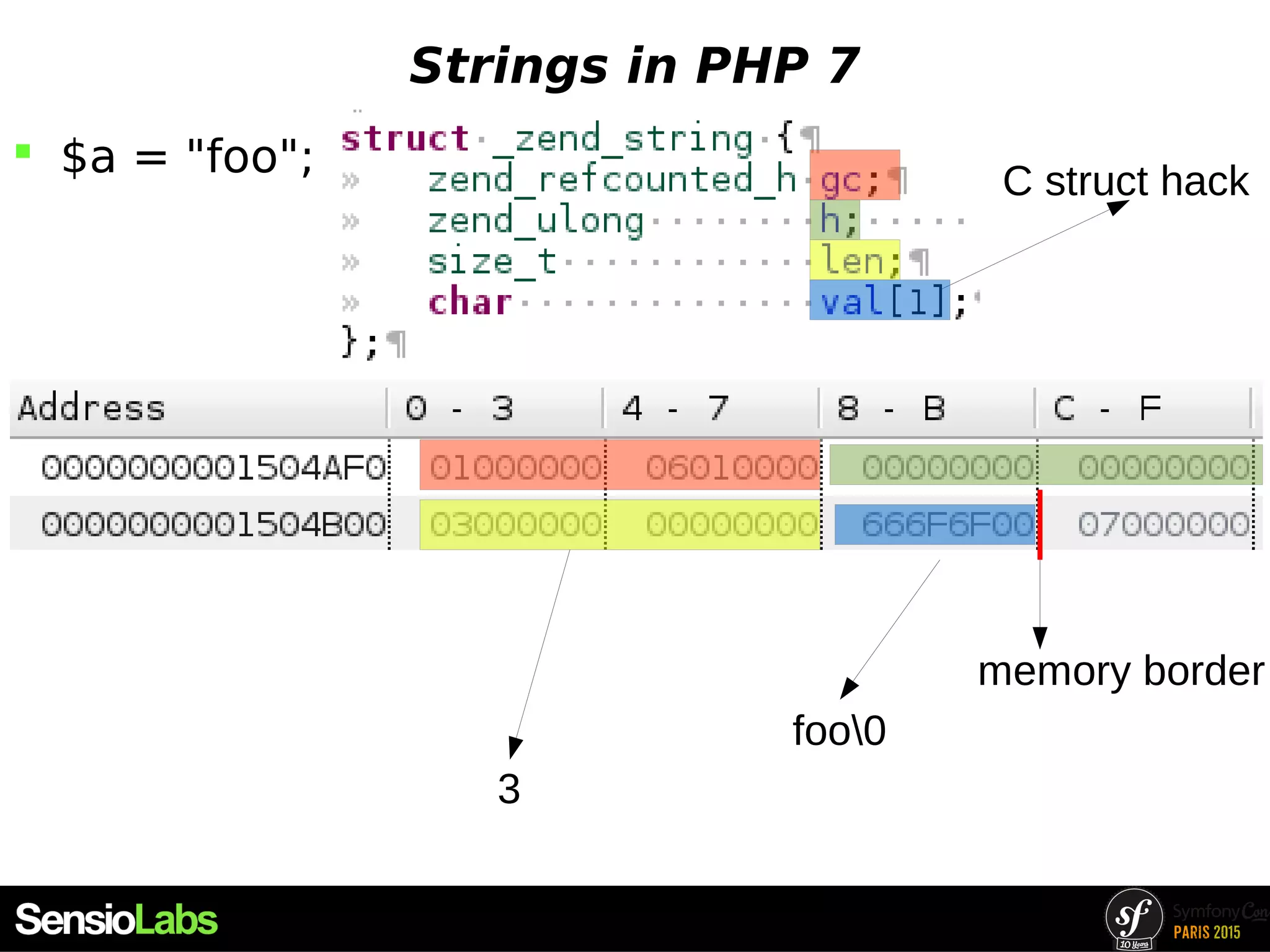

35. Strings in PHP 7
 $a = "foo";
foo0
C struct hack
3
memory border

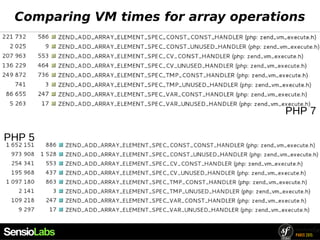

36. Comparing VM times for array operations
PHP 7
PHP 5

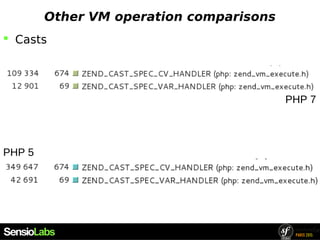

37. Other VM operation comparisons
 Casts
PHP 7
PHP 5

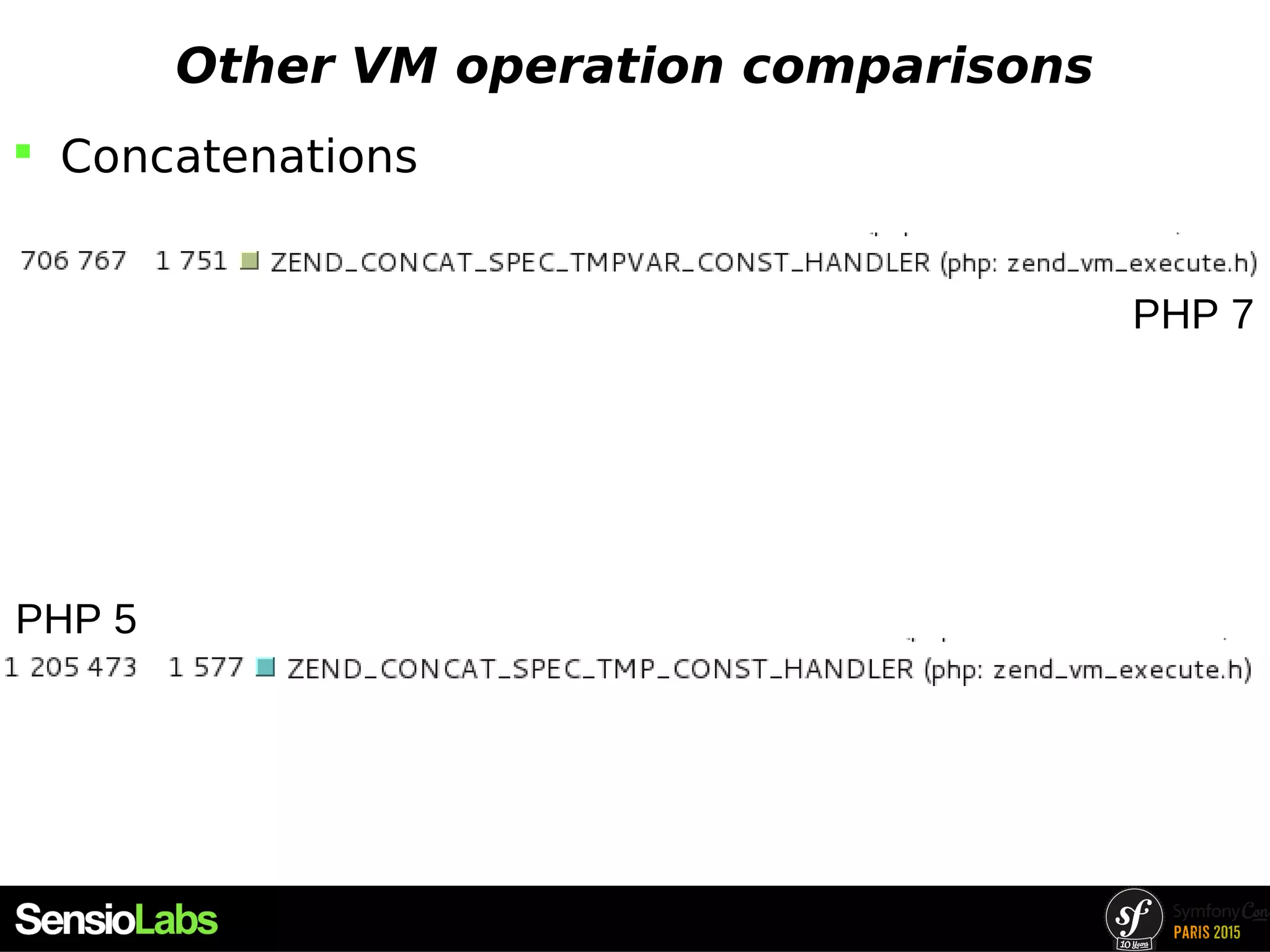

38. Other VM operation comparisons
 Concatenations
PHP 7
PHP 5

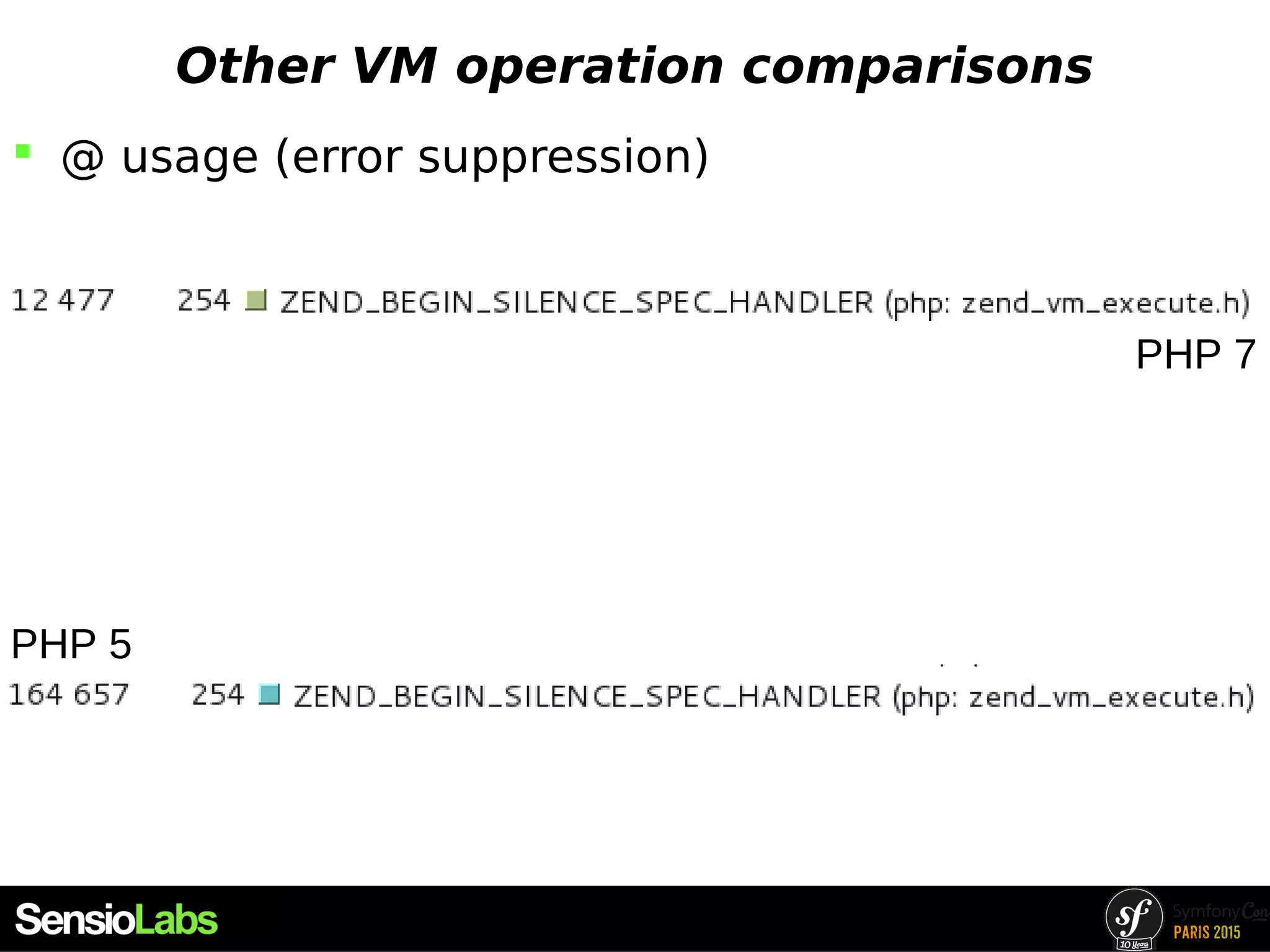

39. Other VM operation comparisons
 @ usage (error suppression)
PHP 7
PHP 5

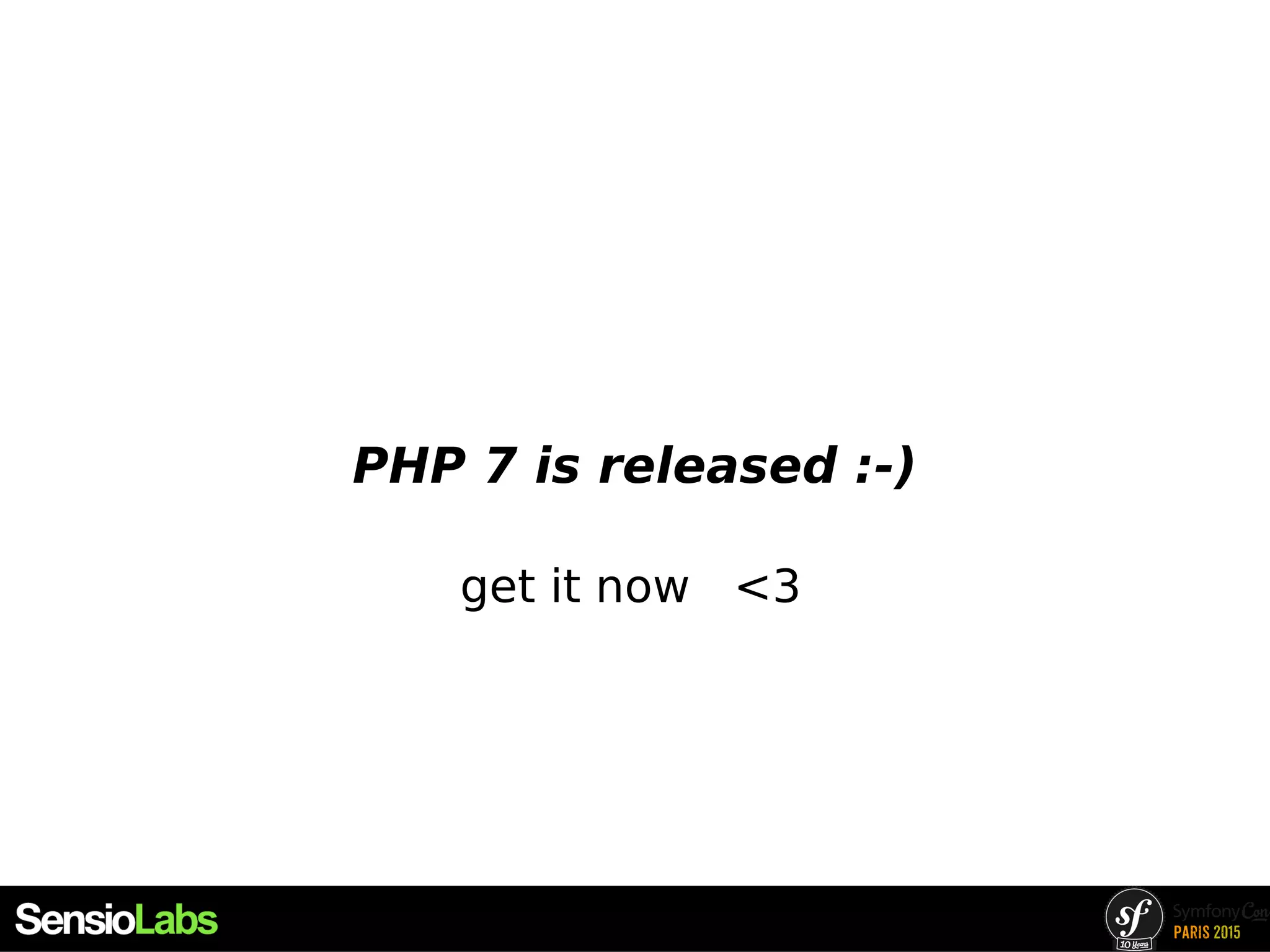

40. PHP 7 is released :-)
get it now <3

41. Thank you for listening
