Sunergy Solar Pte Ltd
(http://www.sunergysolar.com.sg)
Established since 2005
Trade : Silicon (Wafers and ingots), Solar Cells and Full System Solution
Full System Solution: Design, Configuration of Off-grid and Grid Tie System
BCA : SY05 L5 (2014)
Prepared by : Soh Guan Lee
Contact :
+65 9475 9803 (Mobile)
+65 6515 4780 (Office)
1PROPERTY OF SUNERGY SOLAR PTE LTDThursday, March 31, 2016

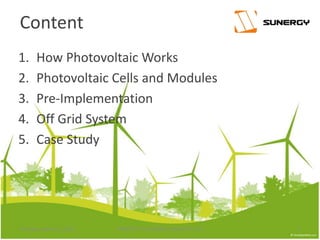

Content
1. How Photovoltaic Works
2. Photovoltaic Cells and Modules
3. Pre-Implementation
4. Off Grid System
5. Case Study
2PROPERTY OF SUNERGY SOLAR PTE LTDThursday, March 31, 2016
How Photovoltaic Works
3PROPERTY OF SUNERGY SOLAR PTE LTDThursday, March 31, 2016
4PROPERTY OF SUNERGY SOLAR PTE LTDThursday, March 31, 2016

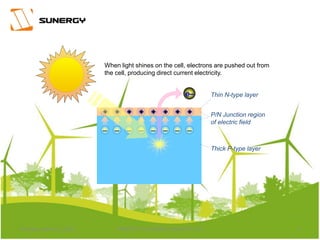

When light shines on the cell, electrons are pushed out from
the cell, producing direct current electricity.
Thin N-type layer
Thick P-type layer
e–
+ + + + + + + +
– – – – – – – –
P/N Junction region
of electric field
5PROPERTY OF SUNERGY SOLAR PTE LTDThursday, March 31, 2016

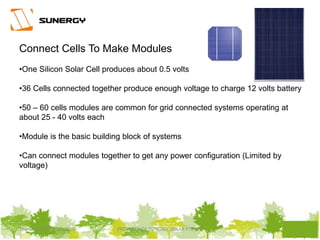

Connect Cells To Make Modules
•One Silicon Solar Cell produces about 0.5 volts
•36 Cells connected together produce enough voltage to charge 12 volts battery
•50 – 60 cells modules are common for grid connected systems operating at
about 25 - 40 volts each
•Module is the basic building block of systems
•Can connect modules together to get any power configuration (Limited by
voltage)

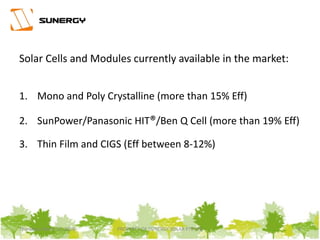

Solar Cells and Modules currently available in the market:
1. Mono and Poly Crystalline (more than 15% Eff)
2. SunPower/Panasonic HIT®/Ben Q Cell (more than 19% Eff)
3. Thin Film and CIGS (Eff between 8-12%)
6PROPERTY OF SUNERGY SOLAR PTE LTDThursday, March 31, 2016

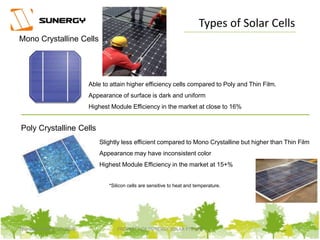

Mono Crystalline Cells
Poly Crystalline Cells
Able to attain higher efficiency cells compared to Poly and Thin Film.
Appearance of surface is dark and uniform
Highest Module Efficiency in the market at close to 16%
Slightly less efficient compared to Mono Crystalline but higher than Thin Film
Appearance may have inconsistent color
Highest Module Efficiency in the market at 15+%
*Silicon cells are sensitive to heat and temperature.
Types of Solar Cells
7PROPERTY OF SUNERGY SOLAR PTE LTDThursday, March 31, 2016

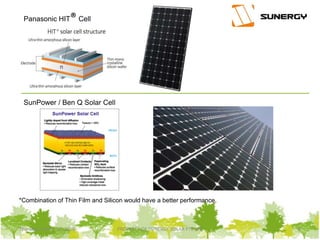

Panasonic HIT® Cell
SunPower / Ben Q Solar Cell
*Combination of Thin Film and Silicon would have a better performance.
8PROPERTY OF SUNERGY SOLAR PTE LTDThursday, March 31, 2016

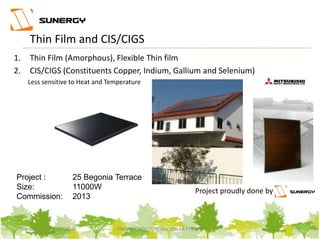

Project proudly done by
Thin Film and CIS/CIGS
Project :
Size:
Commission:
25 Begonia Terrace
11000W
2013
1. Thin Film (Amorphous), Flexible Thin film
2. CIS/CIGS (Constituents Copper, Indium, Gallium and Selenium)
Less sensitive to Heat and Temperature
9PROPERTY OF SUNERGY SOLAR PTE LTDThursday, March 31, 2016

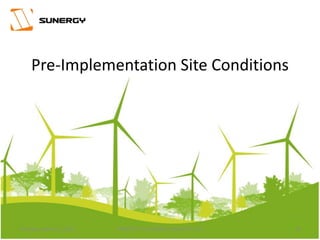

Pre-Implementation Site Conditions
10PROPERTY OF SUNERGY SOLAR PTE LTDThursday, March 31, 2016

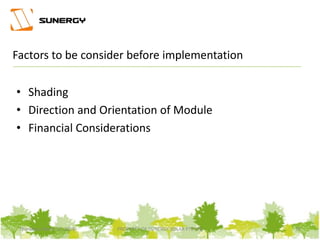

Factors to be consider before implementation
• Shading
• Direction and Orientation of Module
• Financial Considerations
11PROPERTY OF SUNERGY SOLAR PTE LTDThursday, March 31, 2016

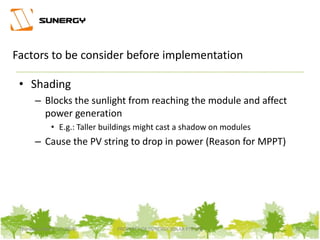

• Shading
– Blocks the sunlight from reaching the module and affect
power generation
• E.g.: Taller buildings might cast a shadow on modules
– Cause the PV string to drop in power (Reason for MPPT)
12PROPERTY OF SUNERGY SOLAR PTE LTDThursday, March 31, 2016

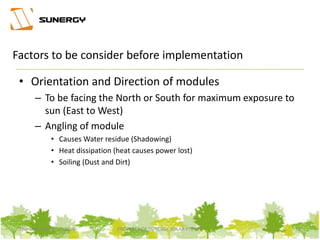

Factors to be consider before implementation
• Orientation and Direction of modules
– To be facing the North or South for maximum exposure to
sun (East to West)
– Angling of module
• Causes Water residue (Shadowing)
• Heat dissipation (heat causes power lost)
• Soiling (Dust and Dirt)
13PROPERTY OF SUNERGY SOLAR PTE LTDThursday, March 31, 2016
Factors to be consider before implementation

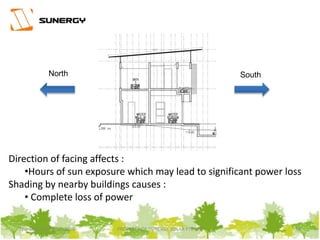

Direction of facing affects :
•Hours of sun exposure which may lead to significant power loss
Shading by nearby buildings causes :
• Complete loss of power
North South
Thursday, March 31, 2016 PROPERTY OF SUNERGY SOLAR PTE LTD 14

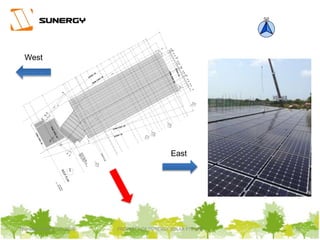

West
East
Thursday, March 31, 2016 PROPERTY OF SUNERGY SOLAR PTE LTD 15

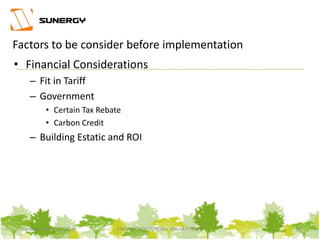

• Financial Considerations
– Fit in Tariff
– Government
• Certain Tax Rebate
• Carbon Credit
– Building Estatic and ROI
16PROPERTY OF SUNERGY SOLAR PTE LTDThursday, March 31, 2016
Factors to be consider before implementation
17PROPERTY OF SUNERGY SOLAR PTE LTDThursday, March 31, 2016

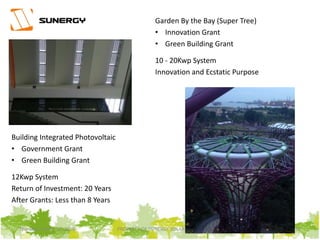

Building Integrated Photovoltaic
• Government Grant
• Green Building Grant
12Kwp System
Return of Investment: 20 Years
After Grants: Less than 8 Years
Garden By the Bay (Super Tree)
• Innovation Grant
• Green Building Grant
10 - 20Kwp System
Innovation and Ecstatic Purpose
Thursday, March 31, 2016 PROPERTY OF SUNERGY SOLAR PTE LTD 18

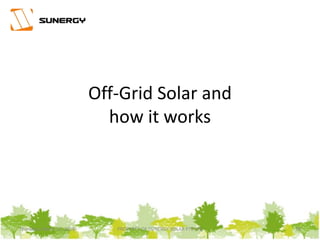

Off-Grid Solar and
how it works
Thursday, March 31, 2016 PROPERTY OF SUNERGY SOLAR PTE LTD 19

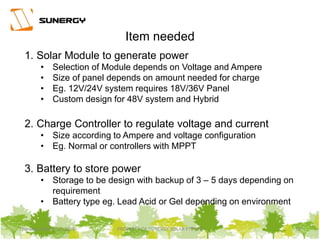

1. Solar Module to generate power
• Selection of Module depends on Voltage and Ampere
• Size of panel depends on amount needed for charge
• Eg. 12V/24V system requires 18V/36V Panel
• Custom design for 48V system and Hybrid
2. Charge Controller to regulate voltage and current
• Size according to Ampere and voltage configuration
• Eg. Normal or controllers with MPPT
3. Battery to store power
• Storage to be design with backup of 3 – 5 days depending on
requirement
• Battery type eg. Lead Acid or Gel depending on environment
Item needed
Thursday, March 31, 2016 PROPERTY OF SUNERGY SOLAR PTE LTD 20

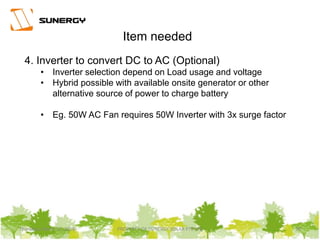

4. Inverter to convert DC to AC (Optional)
• Inverter selection depend on Load usage and voltage
• Hybrid possible with available onsite generator or other
alternative source of power to charge battery
• Eg. 50W AC Fan requires 50W Inverter with 3x surge factor
Item needed
Thursday, March 31, 2016 PROPERTY OF SUNERGY SOLAR PTE LTD 21

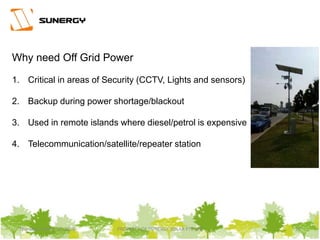

Why need Off Grid Power
1. Critical in areas of Security (CCTV, Lights and sensors)
2. Backup during power shortage/blackout
3. Used in remote islands where diesel/petrol is expensive
4. Telecommunication/satellite/repeater station
Thursday, March 31, 2016 PROPERTY OF SUNERGY SOLAR PTE LTD 22
Why need Off Grid Power
1. Expensive to install in areas where laying cables is
needed to connect to grid
2. Hard to reach areas accessible by boat or helicopter
3. Backup power for security devices
4. Portable power
Summary,
Power is critical to daily operation. with a reliable backup power
system, we can be assure that our security/safety are not compromised
Thursday, March 31, 2016 PROPERTY OF SUNERGY SOLAR PTE LTD 23

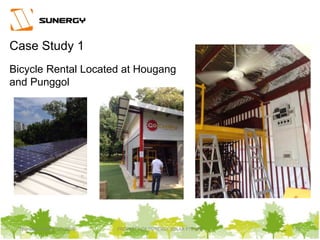

Case Study 1
Bicycle Rental Located at Hougang
and Punggol
Thursday, March 31, 2016 PROPERTY OF SUNERGY SOLAR PTE LTD 24

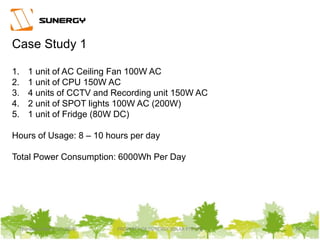

Case Study 1
1. 1 unit of AC Ceiling Fan 100W AC
2. 1 unit of CPU 150W AC
3. 4 units of CCTV and Recording unit 150W AC
4. 2 unit of SPOT lights 100W AC (200W)
5. 1 unit of Fridge (80W DC)
Hours of Usage: 8 – 10 hours per day
Total Power Consumption: 6000Wh Per Day
Thursday, March 31, 2016 PROPERTY OF SUNERGY SOLAR PTE LTD 25

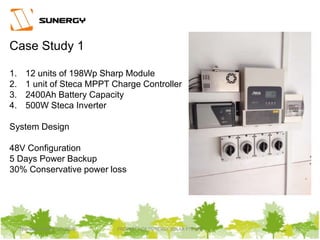

Case Study 1
1. 12 units of 198Wp Sharp Module
2. 1 unit of Steca MPPT Charge Controller
3. 2400Ah Battery Capacity
4. 500W Steca Inverter
System Design
48V Configuration
5 Days Power Backup
30% Conservative power loss
Thursday, March 31, 2016 PROPERTY OF SUNERGY SOLAR PTE LTD 26Thursday, March 31, 2016 PROPERTY OF SUNERGY SOLAR PTE LTD 26

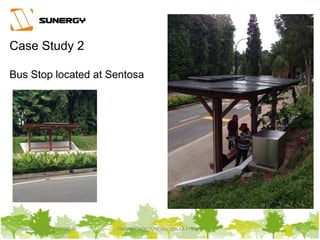

Case Study 2
Bus Stop located at Sentosa
Thursday, March 31, 2016 PROPERTY OF SUNERGY SOLAR PTE LTD 27Thursday, March 31, 2016 PROPERTY OF SUNERGY SOLAR PTE LTD 27

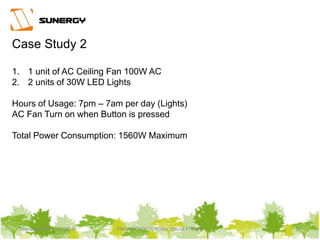

Case Study 2
1. 1 unit of AC Ceiling Fan 100W AC
2. 2 units of 30W LED Lights
Hours of Usage: 7pm – 7am per day (Lights)
AC Fan Turn on when Button is pressed
Total Power Consumption: 1560W Maximum
Thursday, March 31, 2016 PROPERTY OF SUNERGY SOLAR PTE LTD 28Thursday, March 31, 2016 PROPERTY OF SUNERGY SOLAR PTE LTD 28

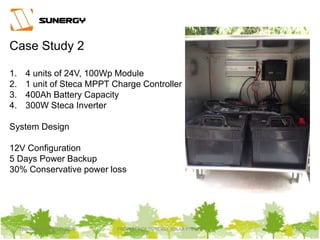

Case Study 2
1. 4 units of 24V, 100Wp Module
2. 1 unit of Steca MPPT Charge Controller
3. 400Ah Battery Capacity
4. 300W Steca Inverter
System Design
12V Configuration
5 Days Power Backup
30% Conservative power loss
PROPERTY OF SUNERGY SOLAR PTE LTD 29Thursday, March 31, 2016 PROPERTY OF SUNERGY SOLAR PTE LTD 29

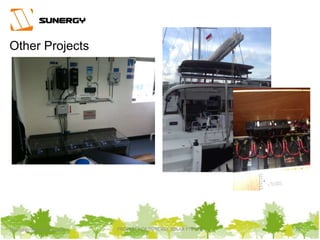

Other Projects
Thank you
Bringing Sun
Energy
Nearer To You
Prepared By: Soh Guan Lee
Thursday, March 31, 2016 PROPERTY OF SUNERGY SOLAR PTE LTD 30
