1. PRODUCT PRESENTATION

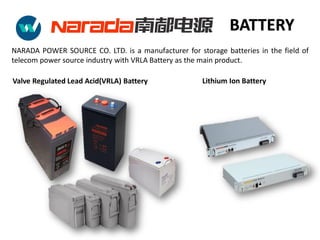

2. Valve Regulated Lead Acid(VRLA) Battery

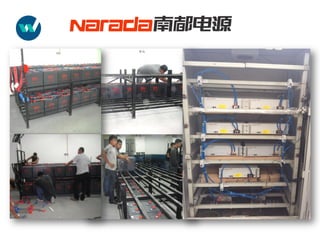

NARADA POWER SOURCE CO. LTD. is a manufacturer for storage batteries in the field of
telecom power source industry with VRLA Battery as the main product.
Lithium Ion Battery
BATTERY

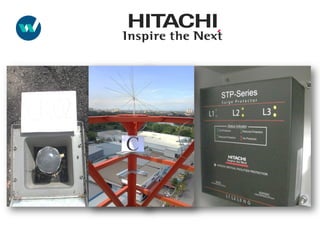

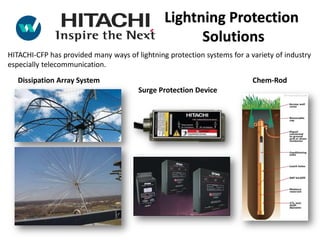

4. HITACHI-CFP has provided many ways of lightning protection systems for a variety of industry
especially telecommunication.
Dissipation Array System
Surge Protection Device
Chem-Rod
Lightning Protection
Solutions

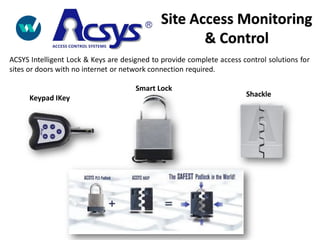

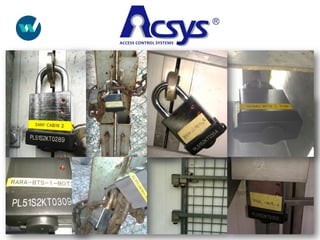

6. Keypad IKey
Smart Lock
Shackle
ACSYS Intelligent Lock & Keys are designed to provide complete access control solutions for
sites or doors with no internet or network connection required.
Site Access Monitoring
& Control

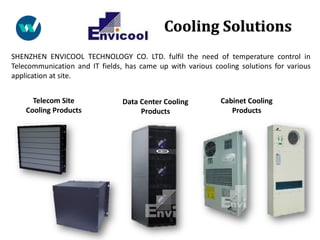

8. SHENZHEN ENVICOOL TECHNOLOGY CO. LTD. fulfil the need of temperature control in
Telecommunication and IT fields, has came up with various cooling solutions for various
application at site.
Telecom Site
Cooling Products
Data Center Cooling
Products
Cabinet Cooling
Products
Cooling Solutions

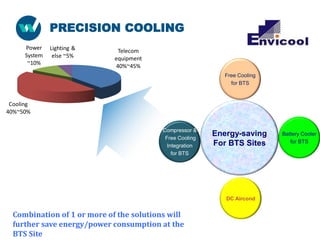

9. PRECISION COOLING
Energy-saving
For BTS Sites
Free Cooling
for BTS
Compressor &
Free Cooling
Integration
for BTS
Battery Cooler
for BTS
DC Aircond
Telecom
equipment
40%~45%
Cooling
40%~50%
Power
System
~10%
Lighting &
else ~5%
Combination of 1 or more of the solutions will
further save energy/power consumption at the
BTS Site

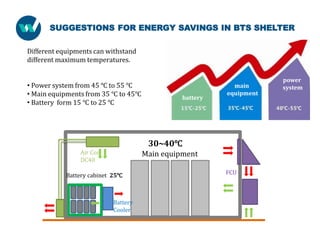

10. battery
main
equipment
power
system
Different equipments can withstand
different maximum temperatures.
• Power system from 45 ℃ to 55 ℃
• Main equipments from 35 ℃ to 45℃
• Battery form 15 ℃ to 25 ℃
Battery cabinet 25℃
30~40℃
Battery
Cooler
Main equipmentAir Con
DC40
FCU
SUGGESTIONS FOR ENERGY SAVINGS IN BTS SHELTER

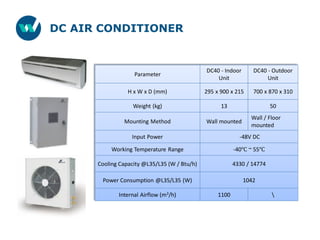

11. DC AIR CONDITIONER
Parameter
DC40 - Indoor
Unit
DC40 - Outdoor
Unit
H x W x D (mm) 295 x 900 x 215 700 x 870 x 310
Weight (kg) 13 50
Mounting Method Wall mounted
Wall / Floor
mounted
Input Power -48V DC
Working Temperature Range -40℃ ~ 55℃
Cooling Capacity @L35/L35 (W / Btu/h) 4330 / 14774
Power Consumption @L35/L35 (W) 1042
Internal Airflow (m3/h) 1100

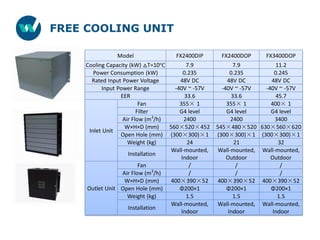

12. FREE COOLING UNIT
Model FX2400DIP FX2400DOP FX3400DOP
Cooling Capacity (kW) △T=10℃ 7.9 7.9 11.2
Power Consumption (kW) 0.235 0.235 0.245
Rated Input Power Voltage 48V DC 48V DC 48V DC
Input Power Range -40V ~ -57V -40V ~ -57V -40V ~ -57V
EER 33.6 33.6 45.7
Inlet Unit
Fan 355× 1 355× 1 400× 1
Filter G4 level G4 level G4 level
Air Flow (m3
/h) 2400 2400 3400
W×H×D (mm) 560×520×452 545×480×520 630×560×620
Open Hole (mm) (300×300)×1 (300×300)×1 (300×300)×1
Weight (kg) 24 21 32
Installation
Wall-mounted,
Indoor
Wall-mounted,
Outdoor
Wall-mounted,
Outdoor
Outlet Unit
Fan / / /
Air Flow (m3
/h) / / /
W×H×D (mm) 400×390×52 400×390×52 400×390×52
Open Hole (mm) Φ200×1 Φ200×1 Φ200×1
Weight (kg) 1.5 1.5 1.5
Installation
Wall-mounted,
Indoor
Wall-mounted,
Indoor
Wall-mounted,
Indoor

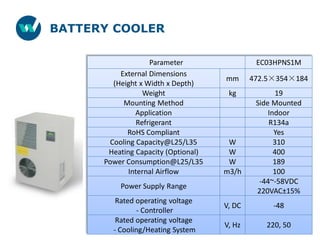

13. BATTERY COOLER
Parameter EC03HPNS1M
External Dimensions
(Height x Width x Depth)
mm 472.5×354×184
Weight kg 19
Mounting Method Side Mounted
Application Indoor
Refrigerant R134a
RoHS Compliant Yes
Cooling Capacity@L25/L35 W 310
Heating Capacity (Optional) W 400
Power Consumption@L25/L35 W 189
Internal Airflow m3/h 100
Power Supply Range
-44~-58VDC
220VAC±15%
Rated operating voltage
- Controller
V, DC -48
Rated operating voltage
- Cooling/Heating System
V, Hz 220, 50

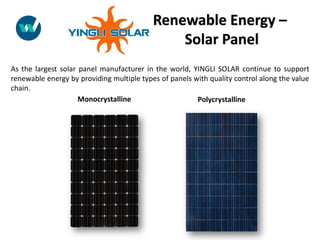

14. As the largest solar panel manufacturer in the world, YINGLI SOLAR continue to support
renewable energy by providing multiple types of panels with quality control along the value
chain.
Monocrystalline Polycrystalline
Renewable Energy –
Solar Panel

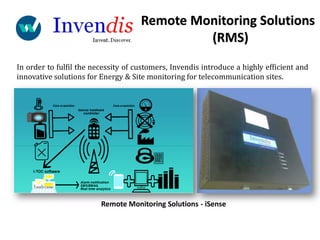

15. In order to fulfil the necessity of customers, Invendis introduce a highly efficient and
innovative solutions for Energy & Site monitoring for telecommunication sites.
Remote Monitoring Solutions - iSense
Remote Monitoring Solutions
(RMS)

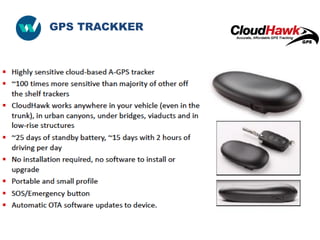

18. GPS TRACKKER

19. GPS TRACKKER

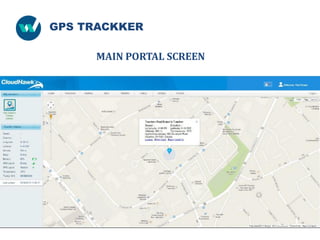

MAIN PORTAL SCREEN

20. GPS TRACKKER

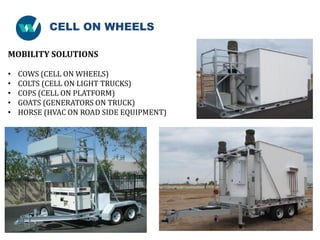

21. CELL ON WHEELS
MOBILITY SOLUTIONS
• COWS (CELL ON WHEELS)
• COLTS (CELL ON LIGHT TRUCKS)
• COPS (CELL ON PLATFORM)
• GOATS (GENERATORS ON TRUCK)
• HORSE (HVAC ON ROAD SIDE EQUIPMENT)

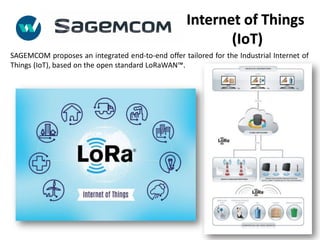

22. SAGEMCOM proposes an integrated end-to-end offer tailored for the Industrial Internet of
Things (IoT), based on the open standard LoRaWAN™.
Internet of Things
(IoT)

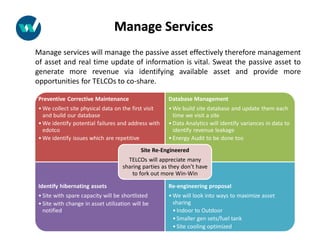

23. Manage Services
Manage services will manage the passive asset effectively therefore management
of asset and real time update of information is vital. Sweat the passive asset to
generate more revenue via identifying available asset and provide more
opportunities for TELCOs to co-share.
Preventive Corrective Maintenance
• We collect site physical data on the first visit
and build our database
• We identify potential failures and address with
edotco
• We identify issues which are repetitive
Database Management
• We build site database and update them each
time we visit a site
• Data Analytics will identify variances in data to
identify revenue leakage
• Energy Audit to be done too
Identify hibernating assets
• Site with spare capacity will be shortlisted
• Site with change in asset utilization will be
notified
Re-engineering proposal
• We will look into ways to maximize asset
sharing
•Indoor to Outdoor
•Smaller gen sets/fuel tank
•Site cooling optimized
Site Re-Engineered
TELCOs will appreciate many
sharing parties as they don’t have
to fork out more Win-Win
