A comprehensive learning experience for performance engineers
Presented by:
Kamran Shaukat Ali Khan
chromeis.com/loadrunner
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 2

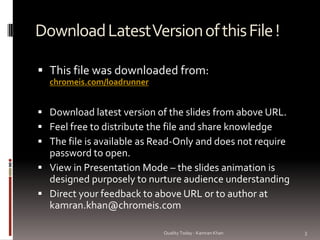

DownloadLatestVersionofthisFile!
 This file was downloaded from:
chromeis.com/loadrunner
 Download latest version of the slides from above URL.
 Feel free to distribute the file and share knowledge
 The file is available as Read-Only and does not require
password to open.
 View in Presentation Mode – the slides animation is
designed purposely to nurture audience understanding
 Direct your feedback to above URL or to author at
kamran.khan@chromeis.com
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 3
CourseObjectives
Discuss the value of load testing
Plan for effective load test
Establish load test goals
Run load test scenarios
Load and overload when executing
scenarios
Analyze and interpret load test results
Prerequisites:
Understanding of:
Client/Server,Windows,Web
Course Methodology
Slides, Experience sharing
Quizzes, Assignments
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 4
Trainer’sProfile
 9+ years of IT experience as lead engineer, specializing in SQA,
SoftwareTesting andTest Automation
 Vast experience of working with LoadRunner, winRunner, QTP,
TestComplete ,WatchFire and various other performance tools
 Proficient with Load testing of SOA based, Net Centric web-
based products, web and RIA applications
 Vast experience of conducting technical trainings – both
internally and externally.
 BSCS Hons., MBA (Marketing)
 Certified:CCNA, AIS HP Performance Center, LoadRunner, QTP
 Expertise Areas:
 QMS,TQM, AutomatedTesting usingWinRunner & QTP,TestComplete
PerformanceTesting using HP Performance Center, LoadRunner, IBM
Rational PerformanceTester, JMeter and others. PDA apps testing
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 5
PerformanceTesting
Lets get started…
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 7

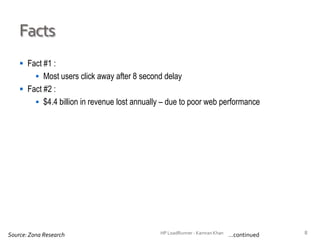

Facts
 Fact #1 :
 Most users click away after 8 second delay
 Fact #2 :
 $4.4 billion in revenue lost annually – due to poor web performance
Source: Zona Research …continuedHP LoadRunner - Kamran Khan – ChromeIS.com/institute 8

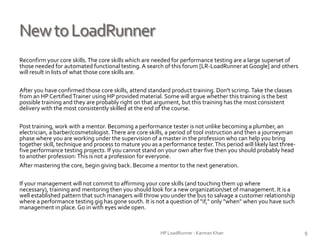

NewtoLoadRunner
Reconfirm your core skills.The core skills which are needed for performance testing are a large superset of
those needed for automated functional testing.A search of this forum [LR-LoadRunner at Google] and others
will result in lists of what those core skills are.
After you have confirmed those core skills, attend standard product training. Don't scrimp.Take the classes
from an HP CertifiedTrainer using HP provided material. Some will argue whether this training is the best
possible training and they are probably right on that argument, but this training has the most consistent
delivery with the most consistently skilled at the end of the course.
Post training, work with a mentor. Becoming a performance tester is not unlike becoming a plumber, an
electrician, a barber/cosmetologist.There are core skills, a period of tool instruction and then a journeyman
phase where you are working under the supervision of a master in the profession who can help you bring
together skill, technique and process to mature you as a performance tester.This period will likely last three-
five performance testing projects. If you cannot stand on your own after five then you should probably head
to another profession:This is not a profession for everyone.
After mastering the core, begin giving back. Become a mentor to the next generation.
If your management will not commit to affirming your core skills (and touching them up where necessary),
training and mentoring then you should look for a new organization/set of management. It is a well
established pattern that such managers will throw you under the bus to salvage a customer relationship
where a performance testing gig has gone south. It is not a question of "if," only "when" when you have such
management in place. Go in with eyes wide open.
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 9
Reground yourself in application architecture, particularly client-side architectures and communications methods.
Expect that with training and a mentor this will be an 18 month to 2 year path for you to become self sufficient.
There are thousands on the market with LoadRunner on their resume without training and mentoring that even after
five years of "work" have almost zero usable skills – they have been able to skate by in environments where they know
marginally more than the manager/client who is not capable of evaluating their work.
The testing world, by attempting to equate the skill sets of automated testers and performance testers has pushed
many thousands of automated testers into performance testing roles for which they are ill-equipped.They lack the
foundation process and mechanical skills to be successful. They lack the analytical skills to actually find the issues.
Heck, you would be hard pressed to find many who can give you a straight answer on what a performance requirement
actually looks like and how to evaluate whether the requirement is sound or not.All of this has led to an odd economic
situation: For the past ten years the demand for performance testing skills has been rising, but the average
compensation has been dropping. In a normal market with a skills scarcity rates would rise and bring more skilled
people into the market. But in this case the flood of low skilled low value individuals has actually caused value to drop
at a rate faster than demand is rising, leading to the odd economic situation of falling rates in a scarce resource high
demand market.
This is why the industry is "more fishy" due to this behavior…
James Pulley, LR-LoadRunner, 1st October, 2011`
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 10
Automated Testing
Put contents here
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 11
AutomatedPerformance Testing
Performance testing is the discipline concerned with determining and reporting the
current performance of a software application under various parameters
Automated performance testing is about applying production workloads to pre-
deployment systems while simultaneously measuring system performance and end-
user experience.
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 12
PerformanceEngineering
Performance testing is the discipline concerned with determining and reporting the
current performance of a software application under various parameters Performance
engineering is the process by which software is tested and tuned with the intent of
realizing the required performance.This process aims to optimize the most
important application performance trait, user experience.
Historically, testing and tuning have been distinctly separate and often competing
realms. In the last few years, however, several pockets of testers and developers
have collaborated independently to create tuning teams. Because these teams
have met with significant success, the concept of coupling performance testing
with performance tuning has caught on, and now we call it performance
engineering.
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 13
WhyLoadRunner?
Benefits of choosing LoadRunner
 LR Credibility - Industry Standard (77% market share)
 Meeting the criteria
 Scalable [supports add-in]
 Integration with QTP
 Integration with WR
 Scenario modification
 Others:
 Record n Play, Custom Code, Errors and Exceptions
Envision - Direct Revenue in long term
 Off shore services
 Outsourced services
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 14
LimitationsfosteringLTteam
Current Limitations
 Less resources available in market
 Trade off between Workload /Training others
 ZERO Support from vendor
 99% unplanned (ad hoc) activities*
 Stakeholders have incomplete, obscured or no knowledge
regarding Automation / LoadTesting
 Deficient in Real Environment – scaling requires heuristics
Tool cons
 Technology dependent
 Initial scripting would be decisive
 Different License for Desktop,Web, RIA and database protocols
 Not all licenses can be installed at a time
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 15

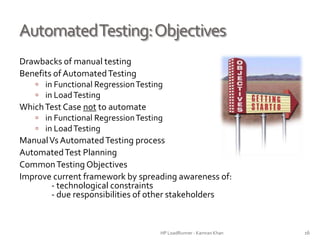

AutomatedTesting:Objectives
Drawbacks of manual testing
Benefits of AutomatedTesting
 in Functional RegressionTesting
 in LoadTesting
WhichTest Case not to automate
 in Functional RegressionTesting
 in LoadTesting
ManualVs AutomatedTesting process
AutomatedTest Planning
CommonTesting Objectives
Improve current framework by spreading awareness of:
- technological constraints
- due responsibilities of other stakeholders
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 16
PerformanceTestingtypes
What is PerformanceTesting
 Stress testing
 Load testing
 Volume testing
 Soak / Endurance testing
 …
When:
 When to test under load
Why:
 Why to automate
 Why not to automate
What:
 What to automate
 What not to automate
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 17

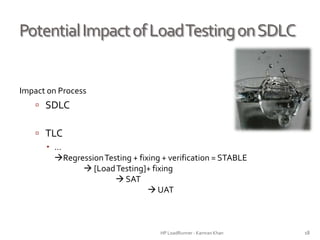

PotentialImpactofLoadTestingonSDLC
Impact on Process
 SDLC
 TLC
 …
RegressionTesting + fixing + verification = STABLE
 [LoadTesting]+ fixing
 SAT
 UAT
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 18
AutomatedPerformanceTesting
automated performance testing is about applying production workloads to
pre-deployment systems while simultaneously measuring system
performance and end-user experience !
Load: Number of concurrent users
Web Site
Response
Time
Good
(0 - 8 sec.)
Borderline
(9 – 15 sec.)
Unacceptable
(15 – 30 sec.)
Virtually
Offline
(> 30 sec.)
The 8 Second Barrier
Crash!
Source: Presentation by LloydTaylor, VPTechnology &Operations, KeynoteSystems
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 19
Why loadtestyourapplication?
Failure of Mission Critical product can be costly.
Deploy with confidence:
 assure business transactions work real-world
conditions
 Locate and resolve potential problems before
customer identifies them
 Scalability Testing buys us confirmation of
predictions about what will happen before it
actually happens, buying the lead time to do the right
thing when additional capacity is needed.
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 20

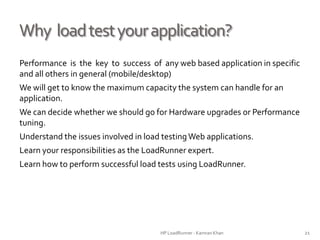

Why loadtestyourapplication?
Performance is the key to success of any web based application in specific
and all others in general (mobile/desktop)
We will get to know the maximum capacity the system can handle for an
application.
We can decide whether we should go for Hardware upgrades or Performance
tuning.
Understand the issues involved in load testingWeb applications.
Learn your responsibilities as the LoadRunner expert.
Learn how to perform successful load tests using LoadRunner.
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 21
Loadtesttypicalobjectives
Many concurrent users running the same application to see whether a
system handles the load without compromising functionality or
performance.
How many concurrent users can the system handle without increase in the
expected response time?
Can the system serve [x] concurrent users without any errors?
System works fine with X connections for Z number of hours.
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 22
Drawbacksofmanualtesting
•Repetitive
•Requires excessive resources
•May lack coverage
•Potentially inconsistent
•Monotonous
•Sometimes Impossible
Time
MoneyResources
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 23
Whytousetestingtools
Time Consuming
Inconsistent
Low Reliability
Expensive
 Human Resource
 Machines
Complicated
 Synchronize testers
 Analyze results
meaningfully
 Speed
 Repeatability / Consistent
 Coverage
 Programming capabilities
 Reliability
 Reusability
 Control all users—from a
single point of control
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 24
Whenautomationisapplicable
When a system combines a variety of software applications and hardware platforms to
determine the suitability of a server for any given application
To test the server before the necessary client software has been developed
Emulate an environment where multiple clients interact with a single server application
test an application under the load of tens, hundreds, or even thousands of potential
users
Test Repeatability is required
Automated Functional RegressionTesting  MercuryWinRunner / HPQTP etc.
Automated Stress/Performance/SoakTesting  HP LoadRunner / IBM Rational PerformanceTesterv
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 25
WhichTestCasetoautomate?
Tests that need to be run for every build of the web site (sanity level) 
FRT
Tests that use multiple data values for the same actions (data driven tests)
 FRT
Identical tests that need to be executed using different browsers  FRT
Mission-critical pages  FRT / LT
Transaction with pages which won't change in short term  FRT
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 26
WhichTestCasenottoautomate?
Usability testing
–"How easy is the web site to use?"
"ASAP" testing
–"We need to test NOW!"
Ad hoc/random testing
–based on intuition and knowledge of web site
FunctionalTesting
Business validation
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 27
BetterCandidate
Business Processes which:
 Involves large number of database tables
 Single database table with large entry
 Most frequently opened database tables
 Requires big data to reside in RAM
 Involves high processing like financial calculations
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 28
HowLoadRunnerdoesitall?
LoadRunner monitors the application performance online, enabling you to
fine-tune your system during test execution.
LoadRunner automatically records the performance of the application
during a test.You can choose from a wide variety of graphs and reports to
view the performance data.
LoadRunner checks where performance delays occur:
 network or client delays
 CPU performance
 I/O delays
 database locking
 network and server resources
 or other issues at the database server.
Because LoadRunner tests are fully automated, you can easily repeat them
as often as you need.
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 29
PerformanceTesting:ATeamWork
Project Manager:
- Manages the implementation of website/SUL
Functional Expert / Business Analyst:
- Provide Usage Analysis of SUL & provides expertise on business functionality of
website/SUL
AutomatedTesting Expert:
- Creates the automated tests & executes load scenarios
System Architect:
- Provides Blueprint of SUL
Web Developer / SME:
- Maintains website & provide monitoring aspects
- Develops website and fixes bugs
System Administrator:
- Maintains involved servers throughout testing project
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 30
Manual VsAutomatedTestplan
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 31
Planningaloadtest
What to Plan?
 Understand the functional testing objective(s)
of the AUT
 Know the user actions of each business
transaction of the AUT
 Know what input data to use for each transaction
 Know what to verify in the web site
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 32
PlanningAdvantages
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 33
CommonTestingObjectives
General page layout
 Frames
 Images
 Tables
FunctionalTesting
 of each transaction using different sets of valid data across
different browsers
BusinessTesting
 core business or objective of any application being developed
RegressionTesting
 hardware and software upgrades
 web site enhancements
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 34
PageLayoutVerification!
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 35
AutomatedTest:Objectives
Purpose of understanding test objectives:
 Create effective automated tests that meet test
requirements
 Gather the relevant information that will help you create
the automated test
 System Architecture
 System Components
 Users profile (application users)
 Clients behavior with application (TDD)
 3rd party components, integration and other technical details
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 36

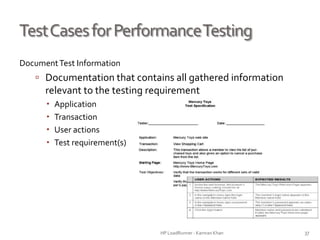

TestCasesforPerformanceTesting
DocumentTest Information
 Documentation that contains all gathered information
relevant to the testing requirement
 Application
 Transaction
 User actions
 Test requirement(s)
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 37
TestCasesforPerformanceTestingcont.
Certain information is “a must” when preparing for LoadTesting.
This includes:
 Testing environment
 Operating System (Windows XP Server 2002 SP2)
 Hardware Specifications (Intel® Pentium 4 CPU 3.00 GHz, 2 GB RAM)
 SQL Server 2005, IIS 6.0 etc
 Databases with user data (preferably client DB replica)
 Representatives from Dev,Testing, AT, Networks
Obtain master data – extract from database
 obtain help from domain experts
Create valid transactional data
 predict according to type of data
 obtain from Functional Expert
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 38
VitalingredientsinOrganizing aTest
•The architecture of the system
•A brief idea about the application
•The list of business transactions
•The time at which the system has peak load
•The acceptable response time for the transactions
•No. of concurrent users the system is expected to handle during peak load
• Select theTransactions to automate
• Decide on theTransaction Mix
• Obtain User details for the transactions
•The tables these transactions query
•The web server / application server components invoked by the
transactions
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 39
VitalingredientsinOrganizing aTest
Select the transactions
• Give priority to business critical transactions
• Give priority to transactions that have high database activity
• Give priority to transactions that have high web server or application server activity
• Know the peak load time
Decide onTransaction Mix
• Impact of the failure of a particular transaction on business
• The transactions that are executed during peak load
• The no. of times they are executed during peak load
User details
• For each of the chosen transactions find
• Who are the users who executing these transaction?
• How many simultaneous and concurrent users are there?
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 40
VitalingredientsinOrganizingaTest
For each of the chosen transactions find:
• The tables which a transaction queries
• The tables which a transaction updates
Server components invoked:
• The servlet / jsp that are invoked by the transaction.
Environment specifications:
• Application architecture
• HW specifications of machines where application is hosted
• SW specifications of machines where application is hosted
• HW/SW specifications of machines where load will be simulated
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 41
Summary
• Understanding of various stages of PerformanceTest automation
• Planning should be done before automation begins
• Proper planning can increase your test coverage and reduce test
development time
• Understanding the testing objectives helps devise effective automated
tests
• Identifying better candidates for performance testing
• Document all relevant test information and team representatives
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 42
Q&A
ThankYou !
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 43
Quiz
15 Minutes
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 44
HPLoadRunner
Architecture
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 46

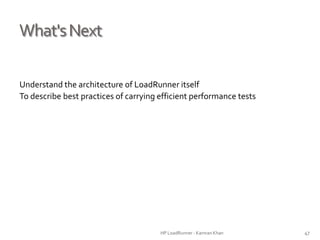

What'sNext
Understand the architecture of LoadRunner itself
To describe best practices of carrying efficient performance tests
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 47
HPLoadRunner Works
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 48
HPLoadRunnerArchitecture
Put contents here
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 49
LRStructure
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 50
HighlevelProcessoverview
Put contents here
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 51
PlanningRoadMap
Install LoadRunner
GatherTeam
Define Goals
Outline Business Processes
Define User Profiles
Document Business Processes
DefineTest Data Management Procedures
Outline Monitors
Document
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 52
GoalsofPerformanceTesting
Conceptual Goals
 What are we trying to achieve?
SUL Mission CriticalTransaction ResponseTime
 Is Booking Flight transaction fast enough?
 xyz business process supports 250 concurrent users
SUL Environment Benchmarking
 Are servers, network, software, etc. compatible?
 100 concurrent users can file contracts
for 1 hour if web server RAM is 1GB
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 53
BusinessProcesses
Mission Critical
 What BP
malfunctioning will put
you out of business?
Throughput
 How many users going through identified MissionCritical BPs?
Dynamic Contents
 How much data each transaction process through the SUL
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 54
SystemUsers
SUL User Profile
 What are the SUL users: level of experience with the System
SUL Users Regions
 Where all SUL users located:
America, Pakistan, KSA?
SUL Users Concurrency
 What is a pick of SUL usage per BP at given hour?
User Roles (Access rights on system)
 What types of user roles are in practice. Manager,TL, Dealer,
Auditor etc.
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 55
DocumentingBPs
User Action Steps
 Should BP start with User Login?
 Can we navigate through the BP manually using these steps?
SUL Navigation Expected Results
 What should we include in the Checkpoint once this step performed?
BPTransactions
 What trigger in the BP will be measured for response time?
ThinkTime
 How long user waits till the next step in the BP?
Parameters
 What static input data should be replaced with dynamic content?
 What type of parameter should it be? Data file, date, random?
 What parameter sequence should be set?
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 56

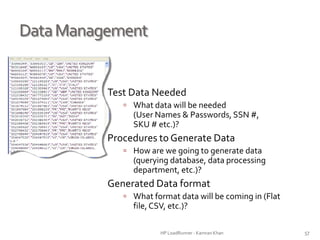

DataManagement
Test Data Needed
 What data will be needed
(User Names & Passwords, SSN #,
SKU # etc.)?
Procedures to Generate Data
 How are we going to generate data
(querying database, data processing department,
etc.)?
Generated Data format
 What format data will be coming in (Flat file, CSV,
etc.)?
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 57
PerformanceMonitors
Investigate SUL Environment
Set Monitor per each SULComponent
Add measure point gradually
 Set default measurements
 Add measurements as needed
 Consult with components SME
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 58
Whatconstitutesasystem!
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 59
Database
Web Servers /
Application Servers
Operating Systems
External Storage
Front End GUI
Clusters/
Load
Balancers
Memory
Threads
Kernal
Heap
Third Party
Components

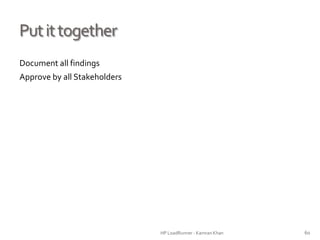

Putittogether
Document all findings
Approve by all Stakeholders
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 60
AutomatedTestingProcess
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 61
ATProcess:Planning
Step I: Planning theTest
Successful load testing requires that you plan to carry out certain business
process.A BP consists of clearly defined steps in compliance desired
business transactions – so as to accomplish your load testing objectives.
BusinessTransaction:
Examples:
 Reserving flight tickets
 Buying a computer from a online store
 Logging into your web-based email service
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 62
A business transaction is a set of user actions performed with an application to
accomplish a business task.
ATProcess:Scripting
Step II: Creating theVuser Scripts
VUsers emulate human users interacting with yourWeb-based application.
AVUser script contains the actions that eachVUser performs during
scenario execution.
In eachVUser script, you determine the tasks that will be:
performed by eachVuser
performed simultaneously by multipleVusers
measured as transactions
For more information on creatingVUser scripts, see the HPVirtual User
Generator User Guide.
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 63
ATProcess:CreateScenario
Step III: Creating the Scenario
A scenario describes the events that occur during a testing session. A scenario includes a
list of machines on whichVusers run, a list of scripts that
theVusers run, and a specified number ofVusers orVuser groups that run during the
scenario.You create scenarios using the Controller.
Creating a Manual Scenario
You create a scenario by definingVuser groups to which you assign a
quantity of individualVusers,Vuser scripts, and load generators to run the scripts.
You can also create a scenario using the Percentage Mode, in which you
define the total number ofVusers to be used in the scenario, and the load
generators and percentage of the total number ofVusers to be assigned to eachVuser
script.
Creating a Goal-Oriented Scenario
ForWeb tests, you can create a goal-oriented scenario, in which you define
the goals you want your test to achieve. LoadRunner automatically builds a
scenario for you, based on these goals.
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 64
ATProcess:RunScenario
Step IV: Running the Scenario
You emulate user load on the server by instructing multipleVusers to
perform tasks simultaneously.You can set the level of load by increasing
and decreasing the number ofVusers that perform tasks at the same time.
Before you run a scenario, you set the scenario configuration and
scheduling.This determines how all the load generators andVusers
behave when running a scenario.
You can run the entire scenario, groups ofVusers (Vuser groups), or
individualVusers.While a scenario runs, LoadRunner measures and
records the transactions that you defined in eachVuser script.You can also
monitor your system’s performance online.
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 65

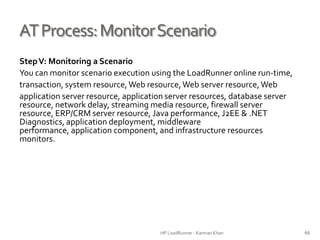

ATProcess:MonitorScenario
StepV: Monitoring a Scenario
You can monitor scenario execution using the LoadRunner online run-time,
transaction, system resource,Web resource,Web server resource,Web
application server resource, application server resources, database server
resource, network delay, streaming media resource, firewall server
resource, ERP/CRM server resource, Java performance, J2EE & .NET
Diagnostics, application deployment, middleware performance,
application component, and infrastructure resources monitors.
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 66
ATProcess:Analysis
StepVI: AnalyzingTest Results
During scenario execution, LoadRunner records the performance of the
application under different loads.You use LoadRunner’s graphs and
reports to analyze the application’s performance.
For more information about LoadRunner’s reports and graphs, see the HP
LoadRunner Analysis UserGuide.
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 67
Q&A
ThankYou !
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 68
Quiz
15 Minutes
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 69
HPLoadRunner
Virtual User Generator
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 71
What'sNext
UnderstandVirtual UserTechnology
Record a scripts
General options
Recording options
Runtime options
Replay recorded scripts
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 72
VirtualUserTechnology
Simulates a real-like virtual-user
Programming capabilities with greater control over test execution
Can synchronize actions performed by users
VUsers can communicate directly with a server by executing calls to the
server API-without relying on client software
Captures a business transaction by recording user actions performed
Monitors the communication between the application and the server
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 73
Beforewestart…
Scenario:
 A scenario defines the events that occur during each testing session.Thus,
for example, a scenario defines and controls the number of users to
emulate, the actions that they perform, and the machines on which they
run their emulations.
VUsers:
 In the scenario, LoadRunner replaces human users with virtual users or
Vusers.When you run a scenario,Vusers emulate the actions of human
users working with your application.While a workstation accommodates
only a single human user, manyVusers can run concurrently on a single
workstation. In fact, a scenario can contain tens, hundreds, or even
thousands ofVusers.
VUser Scripts:
 The actions that aVuser performs during the scenario are described in a
Vuser script.When you run a scenario, eachVuser executes aVuser script.
TheVuser scripts include functions that measure and record the
performance of your application’s components.
Others:
 System, ResponseTime,ThinkTime,Work Load,Transaction Mix,
Throughput
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 74
Beforewestart…
Transactions
 A transaction represents an action or a set of actions that you are interested in measuring.You
define transactions within yourVuser script by enclosing the appropriate sections of the script
with start and end transaction statements. For example, you can define a transaction that
measures the time it takes for the server to process a request to view the balance of an account
and for the information to be displayed at theATM.
Rendezvous points:
 You insert rendezvous points intoVuser scripts to emulate heavy user load on the server.
 Rendezvous points instructVusers to wait during test execution for multipleVusers to arrive at a
certain point, so that they may simultaneously perform a task. For example, to emulate peak
load on the bank server, you can insert a rendezvous point instructing 100Vusers to deposit cash
into their accounts at the same time.
Controller:
 You use the HP LoadRunnerController to manage and maintain your scenarios. Using the
Controller, you control all theVusers in a scenario from a single workstation.
Load Generator:
 When you execute a scenario, the Controller distributes eachVuser in the scenario to a load
generator.The load generator is the machine that executes theVuser script, enabling theVuser
to emulate the actions of a human user.
Performance analysis:
 VUser scripts include functions that measure and record system performance during load-testing
sessions. During a scenario run, you can monitor the network and server resources. Following a
scenario run, you can view performance analysis data in reports and graphs.
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 75
VUGen:RecordingmyFirstScriptinLR
Click File  New
Find the desired protocol from the list of protocols and click Create
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 76
VUGen:ScriptSections
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 77
Script Section Used when recording... Is executed when...
vuser_init a login to a server theVuser is initialized (loaded)
Actions client activity theVuser is in "Running" status
vuser_end a logoff procedure theVuser finishes or is stopped
Script View
Script Sections
Tree View

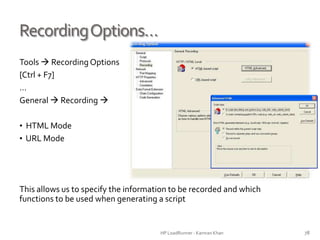

RecordingOptions…
Tools  Recording Options
[Ctrl + F7]
…
General  Recording 
• HTML Mode
• URL Mode
This allows us to specify the information to be recorded and which
functions to be used when generating a script
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 78
HTMLMode–URLModecomparison
The HTML mode is based on user
actions, and the scripts contain
functions that correspond directly to
the action taken
Example:
...
web_link(“Enterprise Systems
Performance",
"Text=Enterprise Systems
Performance ",
"Snapshot=t4.inf",
LAST);
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 79
The URL mode is based on HTTP requests
sent to the server as a result of user
actions.
Example:
...
web_url(“Enterprise Systems
Performance",
"URL=http://www.tcs.com/esp.html",
"TargetFrame=",
"Resource=0",
"RecContentType=text/html",
"Referer=http://www.tcs.com/atc?. . . ,
"Snapshot=t4.inf",
"Mode=URL",
LAST);
DecidingonRecordingMode
Deciding on Modes
For browser applications, use HTML mode.
For non-browser applications, use URL mode.
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 80
The option of mixing recording modes is available for very advanced users for
performance tuning
HTML Mode URL Mode
Intuitive and easy to understand Not as intuitive as the HTML scripts
Scalable More scalable and effective for creating a load test
OtherRecordingOptions
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 81

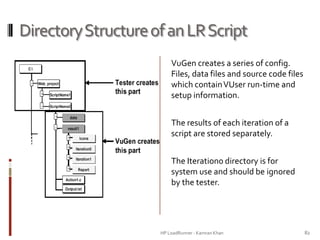

DirectoryStructureofanLRScript
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 82
VuGen creates a series of config.
Files, data files and source code files
which containVUser run-time and
setup information.
The results of each iteration of a
script are stored separately.
The Iteration0 directory is for
system use and should be ignored
by the tester.
ResponseTime
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 83
App
Server
DB Server
Load
Injector
Time in which the system responds for a particular
Transaction request
ThinkTime
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 84
Time taken for selecting a new Transaction after the response for
the previous Transaction has been received
Transaction 1
Transaction 2
ThinkTime = 10 Seconds
Workload
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 85
Database
Web Servers /
Application Servers
Operating
Systems
External
Storage
Front End
GUI
The System
Typical Workload
No. of Users
Transactions
Batch Programs
Background Load
TransactionMix
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 86
Varying execution frequency of different Transactions
Credit
Loans
Debit
Query Account Info
Account Opening
HPLoadRunnerVUserTechnology
On each Windows load generator, you install the Remote Agent Dispatcher (Process) and a LoadRunner Agent
Remote Agent Dispatcher:
 The Remote Agent Dispatcher (Process) enables the Controller to start: applications
on the load generator.
Agent:
 The LoadRunner Agent enables the Controller and the load generator to
communicate with each other.When you run a scenario, the Controller instructs the
Remote Agent Dispatcher (Process) to launch the LoadRunner agent.The agent
receives instructions from the Controller to initialize, run, pause, and stop Vusers. At
the same time, the agent also relays data on the status of the Vusers back to the
Controller.
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 87
VUGen-Introduction
Main components ofVuGen interface
 StartingVuGen
 Environment options (Protocols)
 Script view
 Tree view
 Output window etc
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 88
Stepstowardsabaselinescript
Commencement
 Selecting right combination of protocols
 Protocol Advisor (9.5 or newer)
Record
 Conventions and good practices
 Prepare andAssure availability ofTest data
 Understanding script
 Manual verification
Playback andVerification
 Through subject application
Parameterize/Correlation
Enhance
 Rendezvous,Transactions, Output message,
Image/Text check, Correlation, and additional
steps, Configuring Pacing, Iterations, Actions,
Log/Error messages &Think time and more
Runtime Settings
 Pacing, Iterations,Think time and more
Prepare for Execution
 Prepare andAssure availability ofTest data
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 89
RecordingfortheWeb
Example Exercise
 Create vuser script
 Understand vuser script
 Generation log
 Script regeneration
User authentication information
 web_set_user("domainuser, “password", “host:port");
 web_set_user(“chrometechkhankamran", "password123(",
“machine112:80");
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 90
Replayingarecordedscript
Verify the baseline script
Identify and configure appropriate runtime settings for replay
Replay vuser script
Replay log
Verify the application behavior
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 91
ScriptEnhancement
Transactions
Comments
Parameters
Rendezvous points
Text / Image verification
Adding Actions
Correlation
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 92
Transactions
 A mean to measure time taken by application
or its server side component in entertaining
certain client request.
 Or, the time to complete specific takes or activity
Defining transactions
 Preferably during recording else after recording
Syntax:
 lr_start_transaction(“Transaction Name”);
 lr_end_transaction(“Transaction Name”, <status>);
 e.g. lr_start_transaction(“Transaction Name”);
lr_end_transaction(“Transaction Name”, LR_AUTO);
lr_end_transaction(“Transaction Name”, LR_PASS);
lr_end_transaction(“Transaction Name”, LR_FAIL);
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 93

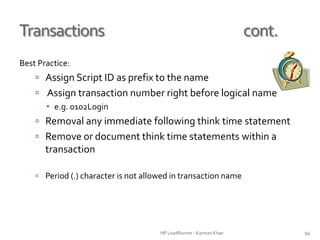

Transactions cont.
Best Practice:
 Assign Script ID as prefix to the name
 Assign transaction number right before logical name
 e.g. 0102Login
 Removal any immediate following think time statement
 Remove or document think time statements within a
transaction
 Period (.) character is not allowed in transaction name
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 94
SubTransactions
/* Notify that a transaction is starting */
lr_start_transaction("purchases");
/* Breakdown the transaction into a smaller transaction */
lr_start_sub_transaction("electrical_purchases", "purchases");
status = purchase_electrical_items(6); /* call to Server API */
/* End transaction with operation result - pass or fail */
if (status == 0)
lr_end_sub_transaction("electrical_purchases", LR_PASS);
else
lr_end_sub_transaction("electrical_purchases", LR_FAIL);
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 95
Comments
Add comments for
 To describe an activity
 To provide information about specific operation
 To separate two sections for distinction
Add comments:
 Comments during recording
 Comments after recording
Best Practice:
 Mark any comments on the top of each script file
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 96
RendezvousPoints
Rendezvous Points
 Introduce concurrency
Defining transactions
 during recording or after recording
Syntax: lr_rendesvous(“Logical Name”);
Best Practices:
 Prefix a rendezvous point with “rdv_”
 Use logical name of transaction being subjected
 e.g. rdv_Login
 Removal any immediate following think time statement
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 97
InsertingFunctionthroughmenu
Log messages
Debug messages
Error messages
Output messages
 Choose Insert > New Step.The Add Step dialog box opens. Scroll down and
select Output Message and clickOK.
 lr_output_message
 lr_log_message
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 98
Parameterization
A parameter is a placeholder which re-places a recorded value in aVuser script. At run
time, a value from an external source is substituted for the parameter against record
time value.
Parameterization solves certain problems that may occur during playback:
• Date constraints make recorded date invalid
• Unique constraints prevent reusing recorded data
• Data caching
• Response times are inaccurate
• Real user activity is not emulated
• Servers are not exercised
Problem examples:
Business process works only for the current date
Unique ID required as in case of Primary Key or fields in database with Unique constraint
How to measure the performance of the process which creates a new product?
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 99
Parameterization
What is Parameterization?
Which value to parameterize?
How to parameterize?
Properties of a Parameter?
Caution – line feed at the end of each
line in data file is mandated
space i.e. ‘%20’ is ignored by LR
Types of parameters
 Date/Time
 File
 Group name
 Random number
 Iteration number
 Unique number
 XML
 Vuser ID
 Load generator name
 User defined function
lr_output_message ( "We are on iteration #%s", lr_eval_string ( "{iteration}" ) );
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 100
Parameterconfiguration
Important options regarding properties of File /Table
parameters
 Data assignment method
 Update method
 When out of values
 Columns
 Rows
 When not enough rows
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 101
Whyexcessiveparameterization!
Problem: Since allVUsers use the same data, Data caching at servers makes
load test response times shorter than when real users load the system
Solution: Parameterize input data to force the system to get data from a
database
Data gets relocated in the server’s cache when it is reused for eachVuser
execution. As a result, server activity is not emulated during playback.While
Vuser execution is successful, it will not produce test results meaningful for
load testing because the server is not exercised. Using different data better
emulates server activity and exercises the system.That improves the
chances for meaningful load test results.
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 102
CreatingDataPool
How to create data pool to be used in parameterization files?
1. Extract master data from database
1. Write queries on tables being accessed by the business
transactions.
2. Spool data to a file
3. Write AWK scripts to generate a proper data pool from the
spooled file
2. Create valid transactional data
1. Predict according to type of data
2. Obtain from a functional expert
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 103
Parameterization–Process
Determine which fields to parameterize
Replace recorded values with parameters
Decide which parameter type to use
Choose the data access method and the number of iterations
Run theVuser and analyze the results to verify correct
execution
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 104
Parameterization–Process cont.
Right click on the data to parameterize
select “Replace with a Parameter”
The Select or Create Parameter dialog box opens.
Type a suitable Parameter Name and Select a ParameterType
Right-click the parameter name and select “Replace More
Occurrences” to replace the data by the parameter name
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 105
Parameters–Exercise
Data table values:
 Nida; Kamran; Michael; Jane; Ron; Alice; Ken; Julie; Fred
12 vusers and 3 iterations
Try all combinations of assignment method and update
method on provided data
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 106

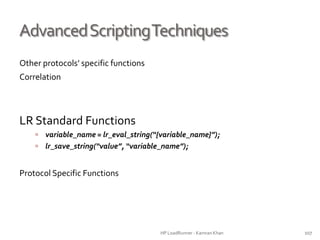

AdvancedScriptingTechniques
Other protocols’ specific functions
Correlation
LR Standard Functions
 variable_name = lr_eval_string(“{variable_name}”);
 lr_save_string(“value”, “variable_name”);
Protocol Specific Functions
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 107
Correlation
Many applications use dynamic values that change each time you
use the application. For example, some servers assign a unique
session ID for every new session. When you try to replay a recorded
session, the application creates a new session ID that differs from
the recorded session ID.
To simplify / optimize code
To generate dynamic data
To accommodate unique data records
Protocol Specific Functions:
 variable_name = lr_eval_string(“{variable_name}”);
 lr_save_string(“value”, “variable_name”);
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 108

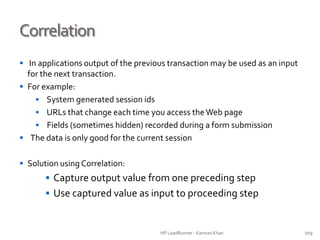

Correlation
 In applications output of the previous transaction may be used as an input
for the next transaction.
 For example:
 System generated session ids
 URLs that change each time you access theWeb page
 Fields (sometimes hidden) recorded during a form submission
 The data is only good for the current session
 Solution using Correlation:
 Capture output value from one preceding step
 Use captured value as input to proceeding step
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 109
Dynamic data is correlated automatically by the client application (running in
the browser) while recording a script
Correlated data is data which is sent to the client from the server, and later
sent back to the server by the client.
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 110
Network
Web Server
Client
Step 2 - Request
[Session ID =
22222]
Step 1
[Session ID =
22222]
Reusing recorded dynamic data will cause errors when you replay the script
Recorded dynamic data must be correlated using parameters
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 111
Network
Web Server
Client
Step 2 - Request
[Session ID =
22222]
Step 1
[Session ID =
23212]
Correlationtypes
Auto correlation
 LR detects and help solving them
Manual correlation
 LR detect but doesn’t provide direct interface to
correlate
 LR may not detect code requiring correlation
Question: when manual correlation is required?
Question: when auto correlation is required?
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 112
ManualCorrelation
1. Determine the value to capture
2. Find the right and left text boundaries of the value to capture (WEB)
3. Find which occurrence of the text boundaries should be used
4. Add a web_reg_save_param function to the script, above the step which
requests the page with the value to capture
5. Add the parameter name, left boundary, right boundary, and occurrence
to the function
6. Parameterize the dynamic value in the script every time it occurs
7. Verify correct execution
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 113
AutomaticCorrelation
There are three types of automatic correlation solutions
1. Auto-Detect Correlation
2. Rule-Based Correlation
3. CorrelatingAll Statements
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 114
Rule Name When to Use
Auto-detect
Correlation
Detect and correlate dynamic data for supported
application servers
Rule-Based When working with a non-supported application server
whose context is known.
Correlate All Blindly correlate all dynamic data.
AutomaticCorrelation
Auto-Detect Correlation
Automatically correlate the
recorded statements
CorrelatingAll recognizable
statements
Rule-BasedCorrelation
Rule-based correlation requires
correlation rules to be defined
before recording a session
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 115
Run-TimeSettings
Run Logic
 Iterations
 Action blocks
Pacing
Log
ThinkTimes
 No think time
 As Recorded
 Multiple of X-Recorded
 Randomize think time
 LimitThink time to Z sec.
Speed Simulation
 Bandwidth controlling
Browser Emulation
Proxy
 No proxy
 Specific proxy
 Pick proxy from browser
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 116
Run-TimeSettings
Control the behavior of the user when running the script
ConfigureWebVusers to emulate real users accessing theWeb site
Browser Emulation
Specify Browser type
Simulate cache
Emulate network capacity
Emulate modem speed
Log Settings
Can disable logging
Log a specific set of function calls and messages – Standard Log
Log parameter substitutions
Log response data from server
All the messages and function calls raised
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 117
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 118
ProtocolsRequeststoHP
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 119
NextGenerationofApplications–Web2.0
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 120
Applications Server
Web Server
SOA (WS, ESB, Etc.)
Network Convergence
(VOIP, IP Video)
AJAX frameworks
HTTPs Request - Response
Citrix
Microsoft RDP
Citrix
Microsoft RDP
.NET 1.02.0 Remoting
.NET 3.0 – WCFWPF
Rich Internet UI (AJAX, FLEX, APPLETS)
HTTPs RequestResponse & SOAP
LoadRunnersupportforWeb2.0
Web 2.0 Bundle
 Ajax Framework Solutions
 Flex 1.5 support forAMF version zero
 Flex 2.0 support - in 9.1
 Flex 3.0 support – in 11.0
 Web services protocol
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 121
AJAX–Whatisit?
• AJAX is Asynchronous JavaScriptAnd XML
• A web development technique for creating interactive web applications
• Allows exchanging small amounts of data with the server behind the
scenes, without the page having to reload each time
• Meant to increase web pages interactivity, speed, and customer
usability
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 122
Flex–Whatisit?
Adobe Flash has unique animation capabilities
Traditional application programmers found it challenging to adapt to Flash
Flex minimizes the problem by providing a workflow and programming
model that is familiar to application developers.
Flex provides an easier way to build Flash applications
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 123
WindowsPresentationFoundation–Whatisit?
WPFTechnologies
 New UI framework from Microsoft
 WindowsVista
 .Net 3.0 (4.0 not supported)
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 124
WCF–Whatisit?
Windows Communication Foundation, previously codenamed Indigo is a
communication subsystem to enable applications, in one machine or across
machines over network, to communicate.
TheWCF programming model unifies
 Web Services
 .NET Remoting
 DistributedTransactions
 Message Queues
LoadRunner support forWCF
 WCF protocol support
 .NET 3.5 support
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 125
NextGenerationofApplications–Web2.0
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 126
Applications Server
Web Server
SOA (WS, ESB, Etc.)
Network Convergence
(VOIP, IP Video)
AJAX frameworks
HTTPs Request - Response
Citrix
Microsoft RDP
Citrix
Microsoft RDP
.NET 1.02.0 Remoting
.NET 3.0 – WCFWPF
Rich Internet UI (AJAX, FLEX, APPLETS)
HTTPs RequestResponse & SOAP
RemoteAccessTechnologies–Whatisit?
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 127
Remote AccessTechnology
 Citrix – Market Leader
Testing Challenges
 Protocols support any activity
over the network not specific to
one application
 Very large deployments to
support many customers
 Remote Access is single point of
failure for business activity
RDP-Recording
A user creates a connection to a server using Remote desktop client:
After the desktop appears - user’s keyboard and mouse actions are recorded
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 128
RDP–Recording …cont.
Desktop snapshots are recorded and mouse clicks are highlighted.
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 129
RDPExampleScript
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 130
Q&A
ThankYou !
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 131
Quiz
15 Minutes
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 132
HPLoadRunner
Controller for Scenarios & Generators
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 134
AScenario
A scenario is the mean to emulate a real-
life behavior of application users – as in
real environment.
Scenarios include
1. a list of machines on whichVusers
run
2. a list of scripts that theVusers run
3. a specified number ofVusers or
4. Vuser groups that run during the
scenario
Scenarios are created using the
LoadRunnerController
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 135
Typesofscenarios
A Manual Scenario gives you control over the number of running
VUsers and the times at which they run, and lets you test how many
VUsers your application can run simultaneously. Create a scenario
by assigning VUsers quantity against each script/group and load
generators.
You can use the Percentage Mode to distribute the total number of
VUsers among scripts based on a percentage specified by your
business analyst.
A Goal-Oriented Scenario is used to determine if your system can
achieve a particular goal. LoadRunner automatically builds a
scenario based on these goals.
 ResponseTime for specified transaction
 Number of hits/transactions per second etc
…
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 136
Typesofscenarios
A Manual Scenario gives you control over the number of
runningVusers and the times at which they run, and lets you
test how manyVusers your application can run
simultaneously.You can use the Percentage Mode to
distribute the total number ofVusers among scripts based on
a percentage specified by your business analyst.
A Goal-Oriented Scenario is used to determine if your system
can achieve a particular goal.You determine the goal based
on, for example, a specified transaction response time or
number of hits/transactions per second, and LoadRunner
automatically builds a scenario for you based on these goals.
You will create a goal-oriented scenario in Lesson 9,
“Advanced Goal-Oriented Scenario.”
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 137
CreatingaManualScenario
CreateVuser groups
• Each script selected in the New Scenario dialog box is
assigned to aVuser group
• EachVuser group is assigned a number of virtual users
• AllVusers in a group can be assigned to run the same
script on the same load generator machine
OR
• Different scripts and load generators can be assigned to
the variousVUsers in a group
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 138
CreatingVUsersGruops
• Click the Add Group button on the
right of the Scenario groups
window.The Add Group dialog
box opens.
• Enter a name for theVUser group
and specify the number ofVusers
• Select a load generator from the
Load Generator Name list
• Select Add from the Load
Generator Name list if the load
generator is not listed.
• Select a script from the script list
• Click OK to close the Add Group
dialog box.The new group's
properties appear in the Scenario
Groups window
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 139
ConfiguringVUsersandVUsersgroup
Select theVuser group whose
VUsers scheme is to be modified,
and click theVusers button on the
right of the Scenario Groups
window.TheVusers dialog box
opens.
Here you can:
change the Script
change the Load Generator
Add/removeVUsers to the group
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 140
ConfiguringLoadGenerators
Click the Generators button to open
the LoadGenerator dialog box.
Name, Status, Platform and Details
of the LoadGenerators are
displayed
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 141
Changes LG status
from Down to ready
Add a new LG
Delete an LG
Open
Details of an LG
Disable an LG
Configuringascenario
Select group and click Details
button
Run-Time Settings from the
Controller shows the setting of
script saved inVuGen. If these
settings are modified in Controller,
LoadRunner runs the script using
the modified settings.This
overriding of settings is not saved
in script.
Clicking View will open script in
VUGen.
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 142
SchedulingaScenario–Makeitreal!
Selecting Initialize allVusers before Ramp-Up, instructs LoadRunner to
initializeVusers before beginning to load them
To gradually run theVusers, select the number ofVUsers to begin running
concurrently and the amount of delay-time.
LoadRunner has to wait betweenVuser ramp ups.
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 143
SchedulingaScenario–Makeitreal!
Click Next to navigate to Duration ActionType, there are 3 choices
1. Run until completion
2. Specify the amount of time for which the scenario will run, once all the Vusers have been
ramped up
3. Run indefinitely
Selecting Initialize allVusers before Ramp-Up, instructs LoadRunner to initializeVusers
before beginning to load them
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 144
SchedulingaGroup
After creating aVUser group, a group’s
execution settings can be scheduled
Select Schedule By Group to set the schedule
for theVUser group.
The options are similar to that of scheduling
the scenario – in new versions.
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 145
VUser group Execution Settings:
Amount of time that the group must wait
before it starts running
The number ofVusers that will run within a
specified period of time
The amount of time the group will run
OldScheduler
A fixed structure: Ramp Up –
Duration - Ramp Down
Very hard to simulate real life
behavior
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 146
DynamicScheduler
Accurate load testing capabilities
Easy to simulate real life scheduling
Increased usability, more Flexible
First step towards automatic generation of real life scenario from imported
production data
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 147
DynamicSchedulerContents
Multiple Ramp ups / downs
Easier to use
 Interactive Graph - edit actions, drag, zoom
 Grid for detailed editing
Timeline at runtime
Pause/Resume scheduler
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 148
RealScenario
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 149
RealLifeSchedule
Each schedule (by scenario / by group) is composed of a list of Actions:
Fixed actions – Start Group, Initialize
Dynamic actions
 StartVusers, StopVusers, Duration
 Can be used multiple times, in any order
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 150
VUsersQuantity
Determined by the scheduler – not by the group !
No Ramp Up “All”
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 151
ManualOperations
Do not affect the planned scheduling - not reflected in the design graph
Affect the runtime behavior - manually run vusers will be missing for next
ramp
Example: at a certain point, the user manually started some more vusers
 Blue – expected scheduling
 Red – actual behavior
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 152
Note: the red line is not
visible in the scheduler graph
All slides after this are in draft state.Those will be modified and updated on
website soon.
Keep checking back.
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 153
SystemMonitoring throughController
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 154
MonitoringSULCont.
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 155
WatchusersinReal-time
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 156
ScheduledRun-Completed
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 157
GoalOrientedScenario–DefiningaGoal
• the number of users that you want
to use to reach that goal
• the scenario duration
• load behavior
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 158
DefiningaGoalcont.
• Specify that the test should run for 5 minutes after the target has been
achieved, and select Continue scenario without reaching goal.
• Once the load of three hits per second has been reached, the
Controller keeps running the scenario for an additional five minutes,
adding or subtractingVusers as needed to keep the actual
measurement within 6% of the specified target.This is to ensure that
the server can sustain the load for a period of time.
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 159
ServiceLevelAgreement–SLADefinition
The user may define goals for the run on several measurements, like:
 Average transaction response time
 Total throughput (bytes) per run
The measurements are checked at run time, to see if there is a violation
The results can be viewed in the Analysis application
 Transactions success/failure stand up to SLA expectations
 LoadTest SLA violations, and the time they occurred
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 160
SLA Wizard
A wizard for easily defining SLA goals
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 161
Q&A
ThankYou !
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 162
Quiz
15 Minutes
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 163
HPLoadRunner
Analysis
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 165
What'sNext
Understanding HP Analysis [LR component]
Understanding various graphs, merging graphs, collating, correlating
Analysis and diagnostics
Reporting
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 166
AnalysisofTestResults
There comes a time after the tests are run when someone who's reviewing
the results asks the deceptively simple question, "So what, exactly, does all
this mean?!?"This point beyond performance testing is where the
capabilities of the human brain come in handy.
"Computers are good at swift, accurate computation and at storing great
masses of information.The brain, on the other hand, is not as efficient a
number cruncher and its memory is often highly fallible; a basic
inexactness is built into its design.The brain's strong point is its flexibility.
It is unsurpassed at making shrewd guesses and at grasping the total
meaning of information presented to it," writes British journalist Jeremy
Campbell inChapter 16 of Grammatical Man: Information, Entropy,
Language, and Life (1982).
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 167
Graphs:HitsperSecond
• The Hits per Second graph shows the number of hits (HTTP requests)
made to theWeb server byVusers during each second of the scenario
run.
• You can see that after a short period the required level of load is
reached.
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 168
Graphs:Trans.ResponseTime
• TheTransaction ResponseTime graph shows the amount of time it
takes for each transaction to be completed.
• Its important to watch
transaction response time to see the response times your customers
will have when the server is under load.
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 169
Graphs:WindowsResources
• You can monitor the server’s Windows Resources usage for processor,
disk, or memory utilization problems.
• Monitoring during a test can help you pinpoint the source of poor
performance immediately.
You can check theWindows Resources graph legend for a list of measurements.
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 170
TheLoadRunnerAnalysis
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 171
LoadRunnerAnalysis–cont.
Session Explorer:
In the upper left pane,Analysis shows the reports and graphs that are open
for viewing. From here you can display new reports or graphs that do not
appear when Analysis opens, or delete ones that you no longer want to
view.
GraphViewingArea:
In the upper right pane,Analysis displays the graphs.
 By default, the Analysis Summary report is displayed in this area when you
open a session.
Graph Legend
In the lower right pane, you can view data from the selected graph.
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 172
MoreinAnalysis!
There is a spectrum of graphs to
analyze.You can apply filters or even
cross with results. For every chart,
diagram, table or picture you add to
your presentation, you can go from
understated to wow or anywhere in
between.
1
2
3
4
5
1
2
3
4
5
1
2
3
4
5
1 2 3
1 2 3
1 2 3
1 2 3
1 2 3
1 2 3
1 2 3
1 2 3
1 2 3
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 173
AnalysisReport - WordandExcel,too!
Export to and spreadsheets that
match your presentation for a
“branded” look.
Cross with Results
Global Filters
Add Graphs
How to generate reports
Exporting reports into HTML and
*.doc
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 174
Q&A
ThankYou !
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 175
Quiz
15 Minutes
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 176
PerformanceTesting
Techniques
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 178
What'sNext
Understanding HP Analysis [LR component]
Understanding various graphs, merging graphs, collating, correlating
Analysis and diagnostics
Reporting
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 179
TriggerLeadTimetoReduceUpgradeRisk
Time
Predicted
point of failure
Upgraded Capacity
ExistingCapacity
Lead
TimeTrigger
Point
Anticipated
Peak Loads
Work
load
Usable
Reserve
Capacity
Point ResponseTime
degradation becomes
noticeable
Current
load
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 180
Q&A
ThankYou !
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 181
Quiz
15 Minutes
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 182
HPLoadRunner
Advance Analysis andTuning
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 184
PerformanceDesignandManagement
A real example of client requirement (A Fortune 100 company):
Describe the performance aspects of your system, e.g. from user actions
throughWeb server through application server through database and
back, including number of registered users/simultaneously-logged-on
users/simultaneously-active users, aggregate expected network traffic for
all segments, CPU loads/memory utilizations for client/app
server/database server, anticipated disk space requirements and growth,
and any other salient performance design assumptions or provisions.
Describe how these usage patterns will vary by time of day, day of the
week, and month of the year.]
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 185
RequiredCapacityPlanningProcesses
A real example of client requirement (A Fortune 100 company):
[Describe your expected capacity design rules and processes: what
resources need to be adjusted as application loads change, how much
disk/CPU/memory per user is needed, anticipated growth over time, and
the processes you expect the support teams to use to adjust capacity
during the lifecycle of the application.]
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 186
PerformanceTest ExitCriteria:
For PerformanceTest completion, the following items must be accomplished (Real example by Fortune 100 Client):
Performance test results have been reviewed and accepted by client.
All defects raised during test execution have been fixed and any deviations have been documented and agreed by client.
Chrome will provide effort estimates for all agreed deviations or faults that have been accepted by client.
Transaction response times during the course of the test runs should adhere to the target response times defined in SLA
Transactions meeting response time SLAs = 100% (See KeyTransaction table below for pass criteria)
Running / passed users during the test = 100%
Expected transaction throughput during Peak state = 100%
Average 15-minute CPU utilization should be < =70% for database and Application Server.
Average 15-minute Memory utilization on servers should be < =70%
No gradual loss of free memory over the course of the tests
Network bandwidth utilization in peak state <=70%
On database server, 15-minute average IO wait times must not exceed 10 milliseconds for more than 5% of test duration.
Any deviation (outside of agreed upon failure rate of 1%) to be discussed with client on a case-by-case basis.
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 187
TTFBandTTLB
In the case of objects with longTTFB times, like index.jsp, the solution often requires a
software-level optimization. It could involve adding a database index, introducing some
object-level caching, or a configuration change (such as database connection pooling).
Be careful to fall in to the trap of throwing more hardware at the problem to solve these
types of issues.While it might work in the short term, these issues almost always are
due to sub-optimal software and throwing extra hardware at the problem will be like
putting a band-aid on a bullet hole.
In the case of objects with relatively shortTTFB times but overall longTTLB times, the
solution is usually very different.While there may be a software solution, such as
configuring Apache’s connections to be better optimized for the server it runs on, most
of the time the root cause is due to network/hardware-related issues. Check with the
ISP that hosts the server to confirm the max bandwidth throughput allowed. If the
object response is slow during peak times but fast during off-peak times, it may need
extra web servers (ie: hardware).
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 188
ColdStartupandWarmStartup
Understanding Cold Startup andWarm Startup of an application
Cold Startup
Cold startup occurs when your application starts for the first time after a system reboot,
or when you start your application, close it, and then start it again after a long period of
time.When an application starts, if the required pages (code, static data, registry, etc)
are not present in theWindows memory manager's standby list, page faults occur. Disk
access is required to bring the pages into memory.
Warm Startup
Warm startup occurs when most of the pages for the main common language runtime
(CLR) components are already loaded in memory, which saves expensive disk access
time.That is why a managed application starts faster when it runs a second time.
Ref: http://msdn.microsoft.com/en-us/library/cc656914.aspx
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 189
BlankSlide
Put contents here
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 190
Q&A
ThankYou !
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 191
Quiz
15 Minutes
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 192
PowerPoint2007
Text, Graphics & Pictures
SmartArt
Themes & Quick Styles
New Layouts
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 193
Soft Shadow
Bevel
Reflection
PictureThis…
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 194
Character S p a c i n g
Kerning
Strikethrough
Styled Underline
VisualizeIt!
Business
Process
Operate
Support
Optimize
Change
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 195
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 196
GetCoordinatedwithThemes!
OfficeThemes give you effortless
coordination of the colors, fonts and
graphic effects applied to your
presentation. Everything you insert
into your presentation will be
automatically styled to match.
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 197
MixItUp!
OfficeThemes are infinitely
customizable.You can mix and
match the colors, fonts and effects
from different themes.
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 198
SlidePerfect!
PowerPoint has new layouts that
give you more ways to present your
words, images and media.
Everything you add into the layout
placeholders is arranged perfectly
for you.
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 199
ArrangeitYourWay
With custom layouts you design
your own slide arrangements.You
can create new kinds of documents
with PowerPoint. Easily create
everything from business pitchbooks
to family photo albums.
HP LoadRunner - Kamran Khan – ChromeIS.com/institute 200

More Related Content

What's hot

Types of performance testing
Types of performance testingTypes of performance testing
Types of performance testing
NaveenKumar Namachivayam

Jmeter Performance Testing
Jmeter Performance TestingJmeter Performance Testing
Jmeter Performance Testing
Atul Pant

Performance testing jmeter
Performance testing jmeterPerformance testing jmeter
Performance testing jmeter
Bhojan Rajan

Performance Testing
Performance TestingPerformance Testing
Performance Testing
sharmaparish

Using JMeter and Google Analytics for Software Performance Testing
Using JMeter and Google Analytics for Software Performance TestingUsing JMeter and Google Analytics for Software Performance Testing
Using JMeter and Google Analytics for Software Performance Testing
XBOSoft

Apache jMeter
Apache jMeterApache jMeter
Performance testing and reporting with JMeter
Performance testing and reporting with JMeterPerformance testing and reporting with JMeter
Performance testing and reporting with JMeter
jvSlideshare

J Meter Intro
J Meter IntroJ Meter Intro
J Meter Intro
Sam Varadarajan

Load testing jmeter
Load testing jmeterLoad testing jmeter
Load testing jmeter
Billa Kota Sriram

Performance and load testing
Performance and load testingPerformance and load testing
Performance and load testing
sonukalpana

Loadrunner vs Jmeter
Loadrunner vs JmeterLoadrunner vs Jmeter
Loadrunner vs Jmeter
Atul Pant

Performance Engineering Basics
Performance Engineering BasicsPerformance Engineering Basics
Performance Engineering Basics
Impetus Technologies

Load Runner
Load RunnerLoad Runner
Load Runner
Shama Ahsan

Introduction to jmeter
Introduction to jmeterIntroduction to jmeter
Introduction to jmeter
test test

JMeter - Performance testing your webapp
JMeter - Performance testing your webappJMeter - Performance testing your webapp
JMeter - Performance testing your webapp
Amit Solanki

Performance testing with Jmeter
Performance testing with JmeterPerformance testing with Jmeter
Performance testing with Jmeter
Prashanth Kumar

LoadRunner Performance Testing
LoadRunner Performance TestingLoadRunner Performance Testing
LoadRunner Performance Testing
Atul Pant

Introduction to performance testing
Introduction to performance testingIntroduction to performance testing
Introduction to performance testing
Tharinda Liyanage

Performance testing using Jmeter for apps which needs authentication
Performance testing using Jmeter for apps which needs authenticationPerformance testing using Jmeter for apps which needs authentication
Performance testing using Jmeter for apps which needs authentication
Jay Jha

Performance testing using jmeter
Performance testing using jmeterPerformance testing using jmeter
Performance testing using jmeter
Rachappa Bandi


What's hot (20)

Types of performance testing
Types of performance testingTypes of performance testing
Types of performance testing

Jmeter Performance Testing
Jmeter Performance TestingJmeter Performance Testing
Jmeter Performance Testing

Performance testing jmeter
Performance testing jmeterPerformance testing jmeter
Performance testing jmeter

Performance Testing
Performance TestingPerformance Testing
Performance Testing

Using JMeter and Google Analytics for Software Performance Testing
Using JMeter and Google Analytics for Software Performance TestingUsing JMeter and Google Analytics for Software Performance Testing
Using JMeter and Google Analytics for Software Performance Testing

Apache jMeter
Apache jMeterApache jMeter
Apache jMeter

Performance testing and reporting with JMeter
Performance testing and reporting with JMeterPerformance testing and reporting with JMeter
Performance testing and reporting with JMeter

J Meter Intro
J Meter IntroJ Meter Intro
J Meter Intro

Load testing jmeter
Load testing jmeterLoad testing jmeter
Load testing jmeter

Performance and load testing
Performance and load testingPerformance and load testing
Performance and load testing

Loadrunner vs Jmeter
Loadrunner vs JmeterLoadrunner vs Jmeter
Loadrunner vs Jmeter

Performance Engineering Basics
Performance Engineering BasicsPerformance Engineering Basics
Performance Engineering Basics

Load Runner
Load RunnerLoad Runner
Load Runner

Introduction to jmeter
Introduction to jmeterIntroduction to jmeter
Introduction to jmeter

JMeter - Performance testing your webapp
JMeter - Performance testing your webappJMeter - Performance testing your webapp
JMeter - Performance testing your webapp

Performance testing with Jmeter
Performance testing with JmeterPerformance testing with Jmeter
Performance testing with Jmeter

LoadRunner Performance Testing
LoadRunner Performance TestingLoadRunner Performance Testing
LoadRunner Performance Testing

Introduction to performance testing
Introduction to performance testingIntroduction to performance testing
Introduction to performance testing

Performance testing using Jmeter for apps which needs authentication
Performance testing using Jmeter for apps which needs authenticationPerformance testing using Jmeter for apps which needs authentication
Performance testing using Jmeter for apps which needs authentication

Performance testing using jmeter
Performance testing using jmeterPerformance testing using jmeter
Performance testing using jmeter


Viewers also liked

Performance Testing REST APIs
Performance Testing REST APIsPerformance Testing REST APIs
Performance Testing REST APIs
Jason Weden

Performance testing using hp load runner
Performance testing using hp load runnerPerformance testing using hp load runner
Performance testing using hp load runner
Return on Intelligence

What\'s new in LoadRunner and Performance Center 11
What\'s new in LoadRunner and Performance Center 11What\'s new in LoadRunner and Performance Center 11
What\'s new in LoadRunner and Performance Center 11
fsyed

Advanced Load Runner
Advanced Load RunnerAdvanced Load Runner
Advanced Load Runner
telab

Agile Is the New Waterfall
Agile Is the New WaterfallAgile Is the New Waterfall
Agile Is the New Waterfall
Naresh Jain

What is Loadrunner ?
What is Loadrunner ?What is Loadrunner ?
What is Loadrunner ?
Guru99

Hp Loadrunner
Hp LoadrunnerHp Loadrunner
Hp Loadrunner
guestb3416f

API Best Practices Webinar: Metrics - What to Measure
API Best Practices Webinar:  Metrics - What to MeasureAPI Best Practices Webinar:  Metrics - What to Measure
API Best Practices Webinar: Metrics - What to Measure
Apigee | Google Cloud

KPIs for APIs (and how API Calls are the new Web Hits, and you may be measuri...
KPIs for APIs (and how API Calls are the new Web Hits, and you may be measuri...KPIs for APIs (and how API Calls are the new Web Hits, and you may be measuri...
KPIs for APIs (and how API Calls are the new Web Hits, and you may be measuri...
John Musser

An Introduction to Performance Testing
An Introduction to Performance TestingAn Introduction to Performance Testing
An Introduction to Performance Testing
SWAAM Tech

QSpiders - Introduction to HP Load Runner
QSpiders - Introduction to HP Load RunnerQSpiders - Introduction to HP Load Runner
QSpiders - Introduction to HP Load Runner
Qspiders - Software Testing Training Institute

Performance testing interview questions and answers
Performance testing interview questions and answersPerformance testing interview questions and answers
Performance testing interview questions and answers
Garuda Trainings

Loadrunner presentation
Loadrunner presentationLoadrunner presentation
Loadrunner presentation
medsherb

Performance Testing With Loadrunner
Performance Testing With LoadrunnerPerformance Testing With Loadrunner
Performance Testing With Loadrunner
vladimir zaremba

Performance Requirement Gathering
Performance Requirement GatheringPerformance Requirement Gathering
Performance Requirement Gathering
Atul Pant

Performance Testing with LoadRunner Case Study
Performance Testing with LoadRunner Case StudyPerformance Testing with LoadRunner Case Study
Performance Testing with LoadRunner Case Study
Optimus Information Inc.

Introduction to performance testing
Introduction to performance testingIntroduction to performance testing
Introduction to performance testing
Richard Bishop

An Introduction to Software Performance Engineering
An Introduction to Software Performance EngineeringAn Introduction to Software Performance Engineering
An Introduction to Software Performance Engineering
Correlsense

Agile testing principles and practices - Anil Karade
Agile testing principles and practices - Anil KaradeAgile testing principles and practices - Anil Karade
Agile testing principles and practices - Anil Karade
IndicThreads


Viewers also liked (19)

Performance Testing REST APIs
Performance Testing REST APIsPerformance Testing REST APIs
Performance Testing REST APIs

Performance testing using hp load runner
Performance testing using hp load runnerPerformance testing using hp load runner
Performance testing using hp load runner

What\'s new in LoadRunner and Performance Center 11
What\'s new in LoadRunner and Performance Center 11What\'s new in LoadRunner and Performance Center 11
What\'s new in LoadRunner and Performance Center 11

Advanced Load Runner
Advanced Load RunnerAdvanced Load Runner
Advanced Load Runner

Agile Is the New Waterfall
Agile Is the New WaterfallAgile Is the New Waterfall
Agile Is the New Waterfall

What is Loadrunner ?
What is Loadrunner ?What is Loadrunner ?
What is Loadrunner ?

Hp Loadrunner
Hp LoadrunnerHp Loadrunner
Hp Loadrunner

API Best Practices Webinar: Metrics - What to Measure
API Best Practices Webinar:  Metrics - What to MeasureAPI Best Practices Webinar:  Metrics - What to Measure
API Best Practices Webinar: Metrics - What to Measure

KPIs for APIs (and how API Calls are the new Web Hits, and you may be measuri...
KPIs for APIs (and how API Calls are the new Web Hits, and you may be measuri...KPIs for APIs (and how API Calls are the new Web Hits, and you may be measuri...
KPIs for APIs (and how API Calls are the new Web Hits, and you may be measuri...

An Introduction to Performance Testing
An Introduction to Performance TestingAn Introduction to Performance Testing
An Introduction to Performance Testing

QSpiders - Introduction to HP Load Runner
QSpiders - Introduction to HP Load RunnerQSpiders - Introduction to HP Load Runner
QSpiders - Introduction to HP Load Runner

Performance testing interview questions and answers
Performance testing interview questions and answersPerformance testing interview questions and answers
Performance testing interview questions and answers

Loadrunner presentation
Loadrunner presentationLoadrunner presentation
Loadrunner presentation

Performance Testing With Loadrunner
Performance Testing With LoadrunnerPerformance Testing With Loadrunner
Performance Testing With Loadrunner

Performance Requirement Gathering
Performance Requirement GatheringPerformance Requirement Gathering
Performance Requirement Gathering

Performance Testing with LoadRunner Case Study
Performance Testing with LoadRunner Case StudyPerformance Testing with LoadRunner Case Study
Performance Testing with LoadRunner Case Study

Introduction to performance testing
Introduction to performance testingIntroduction to performance testing
Introduction to performance testing

An Introduction to Software Performance Engineering
An Introduction to Software Performance EngineeringAn Introduction to Software Performance Engineering
An Introduction to Software Performance Engineering

Agile testing principles and practices - Anil Karade
Agile testing principles and practices - Anil KaradeAgile testing principles and practices - Anil Karade
Agile testing principles and practices - Anil Karade


Similar to Performance Testing using LoadRunner - Kamran Khan [chromeis.com]

Sameer_Resume
Sameer_ResumeSameer_Resume
Sameer_Resume
Sameer Mohammad

Sreekanth 4+ PT
Sreekanth 4+ PTSreekanth 4+ PT
Sreekanth 4+ PT
Srikanth Reddy Gosula

Asha_4Yrs_Manual_3_Yrs_Automation
Asha_4Yrs_Manual_3_Yrs_AutomationAsha_4Yrs_Manual_3_Yrs_Automation
Asha_4Yrs_Manual_3_Yrs_Automation
cnasha

Performance Testing
Performance TestingPerformance Testing
Performance Testing
Selin Gungor

Mercurry WinRunner for Beginners - Kamran Khan [chromeis.com]
Mercurry WinRunner for Beginners - Kamran Khan [chromeis.com]Mercurry WinRunner for Beginners - Kamran Khan [chromeis.com]
Mercurry WinRunner for Beginners - Kamran Khan [chromeis.com]
Kamran Khan

AqtarResume_Performance Testing
AqtarResume_Performance TestingAqtarResume_Performance Testing
AqtarResume_Performance Testing
aqtar sk

RahulAnand_Testing_5.9years_exp_CV
RahulAnand_Testing_5.9years_exp_CVRahulAnand_Testing_5.9years_exp_CV
RahulAnand_Testing_5.9years_exp_CV
Rahul Anand

Mathumathi_Resume
Mathumathi_ResumeMathumathi_Resume
Mathumathi_Resume
Madhuravi 10593

FazilShaikh Resume 13th january
FazilShaikh Resume 13th januaryFazilShaikh Resume 13th january
FazilShaikh Resume 13th january
fazilahmed sheikh

FazilShaikh Resume 13th january
FazilShaikh Resume 13th januaryFazilShaikh Resume 13th january
FazilShaikh Resume 13th january
fazilahmed sheikh

Saravanan_Performance_Test
Saravanan_Performance_TestSaravanan_Performance_Test
Saravanan_Performance_Test
saravanan subramani

ALPS WG Update - IAB Ad Ops Summit, Fall 2009
ALPS WG Update - IAB Ad Ops Summit, Fall 2009ALPS WG Update - IAB Ad Ops Summit, Fall 2009
ALPS WG Update - IAB Ad Ops Summit, Fall 2009
Eric Goldsmith

Test Automation Vs. RPA Top 7 Differences That Set Them Apart.pptx
Test Automation Vs. RPA Top 7 Differences That Set Them Apart.pptxTest Automation Vs. RPA Top 7 Differences That Set Them Apart.pptx
Test Automation Vs. RPA Top 7 Differences That Set Them Apart.pptx
Calidad Infotech

Test automation: Are Enterprises ready to bite the bullet?
Test automation: Are Enterprises ready to bite the bullet?Test automation: Are Enterprises ready to bite the bullet?
Test automation: Are Enterprises ready to bite the bullet?
Aspire Systems

Rajesh_Dhanuskodi
Rajesh_DhanuskodiRajesh_Dhanuskodi
Rajesh_Dhanuskodi
Rajesh Dhanuskodi

Getting Started with Apache Jmeter
Getting Started with Apache JmeterGetting Started with Apache Jmeter
Getting Started with Apache Jmeter
Mindfire Solutions

Anupam_Resume
Anupam_ResumeAnupam_Resume
Anupam_Resume
Anupam Jha

Ganesamoorthi P_Performance_Testing_Loadrunner_2.9_yrs_of_Exp
Ganesamoorthi P_Performance_Testing_Loadrunner_2.9_yrs_of_ExpGanesamoorthi P_Performance_Testing_Loadrunner_2.9_yrs_of_Exp
Ganesamoorthi P_Performance_Testing_Loadrunner_2.9_yrs_of_Exp
Ganesamoorthi Pandi

Accelerate and Streamline Performance Testing with AI-powered Test Automation...
Accelerate and Streamline Performance Testing with AI-powered Test Automation...Accelerate and Streamline Performance Testing with AI-powered Test Automation...
Accelerate and Streamline Performance Testing with AI-powered Test Automation...
RohitBhandari66

Updated resume
Updated resumeUpdated resume
Updated resume
shriraam ms


Similar to Performance Testing using LoadRunner - Kamran Khan [chromeis.com] (20)

Sameer_Resume
Sameer_ResumeSameer_Resume
Sameer_Resume

Sreekanth 4+ PT
Sreekanth 4+ PTSreekanth 4+ PT
Sreekanth 4+ PT

Asha_4Yrs_Manual_3_Yrs_Automation
Asha_4Yrs_Manual_3_Yrs_AutomationAsha_4Yrs_Manual_3_Yrs_Automation
Asha_4Yrs_Manual_3_Yrs_Automation

Performance Testing
Performance TestingPerformance Testing
Performance Testing

Mercurry WinRunner for Beginners - Kamran Khan [chromeis.com]
Mercurry WinRunner for Beginners - Kamran Khan [chromeis.com]Mercurry WinRunner for Beginners - Kamran Khan [chromeis.com]
Mercurry WinRunner for Beginners - Kamran Khan [chromeis.com]

AqtarResume_Performance Testing
AqtarResume_Performance TestingAqtarResume_Performance Testing
AqtarResume_Performance Testing

RahulAnand_Testing_5.9years_exp_CV
RahulAnand_Testing_5.9years_exp_CVRahulAnand_Testing_5.9years_exp_CV
RahulAnand_Testing_5.9years_exp_CV

Mathumathi_Resume
Mathumathi_ResumeMathumathi_Resume
Mathumathi_Resume

FazilShaikh Resume 13th january
FazilShaikh Resume 13th januaryFazilShaikh Resume 13th january
FazilShaikh Resume 13th january

FazilShaikh Resume 13th january
FazilShaikh Resume 13th januaryFazilShaikh Resume 13th january
FazilShaikh Resume 13th january

Saravanan_Performance_Test
Saravanan_Performance_TestSaravanan_Performance_Test
Saravanan_Performance_Test

ALPS WG Update - IAB Ad Ops Summit, Fall 2009
ALPS WG Update - IAB Ad Ops Summit, Fall 2009ALPS WG Update - IAB Ad Ops Summit, Fall 2009
ALPS WG Update - IAB Ad Ops Summit, Fall 2009

Test Automation Vs. RPA Top 7 Differences That Set Them Apart.pptx
Test Automation Vs. RPA Top 7 Differences That Set Them Apart.pptxTest Automation Vs. RPA Top 7 Differences That Set Them Apart.pptx
Test Automation Vs. RPA Top 7 Differences That Set Them Apart.pptx

Test automation: Are Enterprises ready to bite the bullet?
Test automation: Are Enterprises ready to bite the bullet?Test automation: Are Enterprises ready to bite the bullet?
Test automation: Are Enterprises ready to bite the bullet?

Rajesh_Dhanuskodi
Rajesh_DhanuskodiRajesh_Dhanuskodi
Rajesh_Dhanuskodi

Getting Started with Apache Jmeter
Getting Started with Apache JmeterGetting Started with Apache Jmeter
Getting Started with Apache Jmeter

Anupam_Resume
Anupam_ResumeAnupam_Resume
Anupam_Resume

Ganesamoorthi P_Performance_Testing_Loadrunner_2.9_yrs_of_Exp
Ganesamoorthi P_Performance_Testing_Loadrunner_2.9_yrs_of_ExpGanesamoorthi P_Performance_Testing_Loadrunner_2.9_yrs_of_Exp
Ganesamoorthi P_Performance_Testing_Loadrunner_2.9_yrs_of_Exp

Accelerate and Streamline Performance Testing with AI-powered Test Automation...
Accelerate and Streamline Performance Testing with AI-powered Test Automation...Accelerate and Streamline Performance Testing with AI-powered Test Automation...
Accelerate and Streamline Performance Testing with AI-powered Test Automation...

Updated resume
Updated resumeUpdated resume
Updated resume


Recently uploaded

Essentials of Automations: Exploring Attributes & Automation Parameters
Essentials of Automations: Exploring Attributes & Automation ParametersEssentials of Automations: Exploring Attributes & Automation Parameters
Essentials of Automations: Exploring Attributes & Automation Parameters
Safe Software

"$10 thousand per minute of downtime: architecture, queues, streaming and fin...
"$10 thousand per minute of downtime: architecture, queues, streaming and fin..."$10 thousand per minute of downtime: architecture, queues, streaming and fin...
"$10 thousand per minute of downtime: architecture, queues, streaming and fin...
Fwdays

"NATO Hackathon Winner: AI-Powered Drug Search", Taras Kloba
"NATO Hackathon Winner: AI-Powered Drug Search",  Taras Kloba"NATO Hackathon Winner: AI-Powered Drug Search",  Taras Kloba
"NATO Hackathon Winner: AI-Powered Drug Search", Taras Kloba
Fwdays

A Deep Dive into ScyllaDB's Architecture
A Deep Dive into ScyllaDB's ArchitectureA Deep Dive into ScyllaDB's Architecture
A Deep Dive into ScyllaDB's Architecture
ScyllaDB

Session 1 - Intro to Robotic Process Automation.pdf
Session 1 - Intro to Robotic Process Automation.pdfSession 1 - Intro to Robotic Process Automation.pdf
Session 1 - Intro to Robotic Process Automation.pdf
UiPathCommunity

Demystifying Knowledge Management through Storytelling
Demystifying Knowledge Management through StorytellingDemystifying Knowledge Management through Storytelling
Demystifying Knowledge Management through Storytelling
Enterprise Knowledge

Must Know Postgres Extension for DBA and Developer during Migration
Must Know Postgres Extension for DBA and Developer during MigrationMust Know Postgres Extension for DBA and Developer during Migration
Must Know Postgres Extension for DBA and Developer during Migration
Mydbops

ScyllaDB Tablets: Rethinking Replication
ScyllaDB Tablets: Rethinking ReplicationScyllaDB Tablets: Rethinking Replication
ScyllaDB Tablets: Rethinking Replication
ScyllaDB

GNSS spoofing via SDR (Criptored Talks 2024)
GNSS spoofing via SDR (Criptored Talks 2024)GNSS spoofing via SDR (Criptored Talks 2024)
GNSS spoofing via SDR (Criptored Talks 2024)
Javier Junquera

AppSec PNW: Android and iOS Application Security with MobSF
AppSec PNW: Android and iOS Application Security with MobSFAppSec PNW: Android and iOS Application Security with MobSF
AppSec PNW: Android and iOS Application Security with MobSF
Ajin Abraham

Freshworks Rethinks NoSQL for Rapid Scaling & Cost-Efficiency
Freshworks Rethinks NoSQL for Rapid Scaling & Cost-EfficiencyFreshworks Rethinks NoSQL for Rapid Scaling & Cost-Efficiency
Freshworks Rethinks NoSQL for Rapid Scaling & Cost-Efficiency
ScyllaDB

What is an RPA CoE? Session 2 – CoE Roles
What is an RPA CoE?  Session 2 – CoE RolesWhat is an RPA CoE?  Session 2 – CoE Roles
What is an RPA CoE? Session 2 – CoE Roles
DianaGray10

"Frontline Battles with DDoS: Best practices and Lessons Learned", Igor Ivaniuk
"Frontline Battles with DDoS: Best practices and Lessons Learned",  Igor Ivaniuk"Frontline Battles with DDoS: Best practices and Lessons Learned",  Igor Ivaniuk
"Frontline Battles with DDoS: Best practices and Lessons Learned", Igor Ivaniuk
Fwdays

What is an RPA CoE? Session 1 – CoE Vision
What is an RPA CoE?  Session 1 – CoE VisionWhat is an RPA CoE?  Session 1 – CoE Vision
What is an RPA CoE? Session 1 – CoE Vision
DianaGray10

"Choosing proper type of scaling", Olena Syrota
"Choosing proper type of scaling", Olena Syrota"Choosing proper type of scaling", Olena Syrota
"Choosing proper type of scaling", Olena Syrota
Fwdays

"What does it really mean for your system to be available, or how to define w...
"What does it really mean for your system to be available, or how to define w..."What does it really mean for your system to be available, or how to define w...
"What does it really mean for your system to be available, or how to define w...
Fwdays

Nordic Marketo Engage User Group_June 13_ 2024.pptx
Nordic Marketo Engage User Group_June 13_ 2024.pptxNordic Marketo Engage User Group_June 13_ 2024.pptx
Nordic Marketo Engage User Group_June 13_ 2024.pptx
MichaelKnudsen27

Christine's Product Research Presentation.pptx
Christine's Product Research Presentation.pptxChristine's Product Research Presentation.pptx
Christine's Product Research Presentation.pptx
christinelarrosa

zkStudyClub - LatticeFold: A Lattice-based Folding Scheme and its Application...
zkStudyClub - LatticeFold: A Lattice-based Folding Scheme and its Application...zkStudyClub - LatticeFold: A Lattice-based Folding Scheme and its Application...
zkStudyClub - LatticeFold: A Lattice-based Folding Scheme and its Application...
Alex Pruden

Apps Break Data
Apps Break DataApps Break Data
Apps Break Data
Ivo Velitchkov


Recently uploaded (20)

Essentials of Automations: Exploring Attributes & Automation Parameters
Essentials of Automations: Exploring Attributes & Automation ParametersEssentials of Automations: Exploring Attributes & Automation Parameters
Essentials of Automations: Exploring Attributes & Automation Parameters

"$10 thousand per minute of downtime: architecture, queues, streaming and fin...
"$10 thousand per minute of downtime: architecture, queues, streaming and fin..."$10 thousand per minute of downtime: architecture, queues, streaming and fin...
"$10 thousand per minute of downtime: architecture, queues, streaming and fin...

"NATO Hackathon Winner: AI-Powered Drug Search", Taras Kloba
"NATO Hackathon Winner: AI-Powered Drug Search",  Taras Kloba"NATO Hackathon Winner: AI-Powered Drug Search",  Taras Kloba
"NATO Hackathon Winner: AI-Powered Drug Search", Taras Kloba

A Deep Dive into ScyllaDB's Architecture
A Deep Dive into ScyllaDB's ArchitectureA Deep Dive into ScyllaDB's Architecture
A Deep Dive into ScyllaDB's Architecture

Session 1 - Intro to Robotic Process Automation.pdf
Session 1 - Intro to Robotic Process Automation.pdfSession 1 - Intro to Robotic Process Automation.pdf
Session 1 - Intro to Robotic Process Automation.pdf

Demystifying Knowledge Management through Storytelling
Demystifying Knowledge Management through StorytellingDemystifying Knowledge Management through Storytelling
Demystifying Knowledge Management through Storytelling

Must Know Postgres Extension for DBA and Developer during Migration
Must Know Postgres Extension for DBA and Developer during MigrationMust Know Postgres Extension for DBA and Developer during Migration
Must Know Postgres Extension for DBA and Developer during Migration

ScyllaDB Tablets: Rethinking Replication
ScyllaDB Tablets: Rethinking ReplicationScyllaDB Tablets: Rethinking Replication
ScyllaDB Tablets: Rethinking Replication

GNSS spoofing via SDR (Criptored Talks 2024)
GNSS spoofing via SDR (Criptored Talks 2024)GNSS spoofing via SDR (Criptored Talks 2024)
GNSS spoofing via SDR (Criptored Talks 2024)

AppSec PNW: Android and iOS Application Security with MobSF
AppSec PNW: Android and iOS Application Security with MobSFAppSec PNW: Android and iOS Application Security with MobSF
AppSec PNW: Android and iOS Application Security with MobSF

Freshworks Rethinks NoSQL for Rapid Scaling & Cost-Efficiency
Freshworks Rethinks NoSQL for Rapid Scaling & Cost-EfficiencyFreshworks Rethinks NoSQL for Rapid Scaling & Cost-Efficiency
Freshworks Rethinks NoSQL for Rapid Scaling & Cost-Efficiency

What is an RPA CoE? Session 2 – CoE Roles
What is an RPA CoE?  Session 2 – CoE RolesWhat is an RPA CoE?  Session 2 – CoE Roles
What is an RPA CoE? Session 2 – CoE Roles

"Frontline Battles with DDoS: Best practices and Lessons Learned", Igor Ivaniuk
"Frontline Battles with DDoS: Best practices and Lessons Learned",  Igor Ivaniuk"Frontline Battles with DDoS: Best practices and Lessons Learned",  Igor Ivaniuk
"Frontline Battles with DDoS: Best practices and Lessons Learned", Igor Ivaniuk

What is an RPA CoE? Session 1 – CoE Vision
What is an RPA CoE?  Session 1 – CoE VisionWhat is an RPA CoE?  Session 1 – CoE Vision
What is an RPA CoE? Session 1 – CoE Vision

"Choosing proper type of scaling", Olena Syrota
"Choosing proper type of scaling", Olena Syrota"Choosing proper type of scaling", Olena Syrota
"Choosing proper type of scaling", Olena Syrota

"What does it really mean for your system to be available, or how to define w...
"What does it really mean for your system to be available, or how to define w..."What does it really mean for your system to be available, or how to define w...
"What does it really mean for your system to be available, or how to define w...

Nordic Marketo Engage User Group_June 13_ 2024.pptx
Nordic Marketo Engage User Group_June 13_ 2024.pptxNordic Marketo Engage User Group_June 13_ 2024.pptx
Nordic Marketo Engage User Group_June 13_ 2024.pptx

Christine's Product Research Presentation.pptx
Christine's Product Research Presentation.pptxChristine's Product Research Presentation.pptx
Christine's Product Research Presentation.pptx

zkStudyClub - LatticeFold: A Lattice-based Folding Scheme and its Application...
zkStudyClub - LatticeFold: A Lattice-based Folding Scheme and its Application...zkStudyClub - LatticeFold: A Lattice-based Folding Scheme and its Application...
zkStudyClub - LatticeFold: A Lattice-based Folding Scheme and its Application...

Apps Break Data
Apps Break DataApps Break Data
Apps Break Data


Performance Testing using LoadRunner - Kamran Khan [chromeis.com]

  • 1. A comprehensive learning experience for performance engineers Presented by: Kamran Shaukat Ali Khan chromeis.com/loadrunner
  • 2. HP LoadRunner - Kamran Khan – ChromeIS.com/institute 2
  • 3. DownloadLatestVersionofthisFile!  This file was downloaded from: chromeis.com/loadrunner  Download latest version of the slides from above URL.  Feel free to distribute the file and share knowledge  The file is available as Read-Only and does not require password to open.  View in Presentation Mode – the slides animation is designed purposely to nurture audience understanding  Direct your feedback to above URL or to author at kamran.khan@chromeis.com HP LoadRunner - Kamran Khan – ChromeIS.com/institute 3
  • 4. CourseObjectives Discuss the value of load testing Plan for effective load test Establish load test goals Run load test scenarios Load and overload when executing scenarios Analyze and interpret load test results Prerequisites: Understanding of: Client/Server,Windows,Web Course Methodology Slides, Experience sharing Quizzes, Assignments HP LoadRunner - Kamran Khan – ChromeIS.com/institute 4
  • 5. Trainer’sProfile  9+ years of IT experience as lead engineer, specializing in SQA, SoftwareTesting andTest Automation  Vast experience of working with LoadRunner, winRunner, QTP, TestComplete ,WatchFire and various other performance tools  Proficient with Load testing of SOA based, Net Centric web- based products, web and RIA applications  Vast experience of conducting technical trainings – both internally and externally.  BSCS Hons., MBA (Marketing)  Certified:CCNA, AIS HP Performance Center, LoadRunner, QTP  Expertise Areas:  QMS,TQM, AutomatedTesting usingWinRunner & QTP,TestComplete PerformanceTesting using HP Performance Center, LoadRunner, IBM Rational PerformanceTester, JMeter and others. PDA apps testing HP LoadRunner - Kamran Khan – ChromeIS.com/institute 5
  • 7. HP LoadRunner - Kamran Khan – ChromeIS.com/institute 7
  • 8. Facts  Fact #1 :  Most users click away after 8 second delay  Fact #2 :  $4.4 billion in revenue lost annually – due to poor web performance Source: Zona Research …continuedHP LoadRunner - Kamran Khan – ChromeIS.com/institute 8
  • 9. NewtoLoadRunner Reconfirm your core skills.The core skills which are needed for performance testing are a large superset of those needed for automated functional testing.A search of this forum [LR-LoadRunner at Google] and others will result in lists of what those core skills are. After you have confirmed those core skills, attend standard product training. Don't scrimp.Take the classes from an HP CertifiedTrainer using HP provided material. Some will argue whether this training is the best possible training and they are probably right on that argument, but this training has the most consistent delivery with the most consistently skilled at the end of the course. Post training, work with a mentor. Becoming a performance tester is not unlike becoming a plumber, an electrician, a barber/cosmetologist.There are core skills, a period of tool instruction and then a journeyman phase where you are working under the supervision of a master in the profession who can help you bring together skill, technique and process to mature you as a performance tester.This period will likely last three- five performance testing projects. If you cannot stand on your own after five then you should probably head to another profession:This is not a profession for everyone. After mastering the core, begin giving back. Become a mentor to the next generation. If your management will not commit to affirming your core skills (and touching them up where necessary), training and mentoring then you should look for a new organization/set of management. It is a well established pattern that such managers will throw you under the bus to salvage a customer relationship where a performance testing gig has gone south. It is not a question of "if," only "when" when you have such management in place. Go in with eyes wide open. HP LoadRunner - Kamran Khan – ChromeIS.com/institute 9
  • 10. Reground yourself in application architecture, particularly client-side architectures and communications methods. Expect that with training and a mentor this will be an 18 month to 2 year path for you to become self sufficient. There are thousands on the market with LoadRunner on their resume without training and mentoring that even after five years of "work" have almost zero usable skills – they have been able to skate by in environments where they know marginally more than the manager/client who is not capable of evaluating their work. The testing world, by attempting to equate the skill sets of automated testers and performance testers has pushed many thousands of automated testers into performance testing roles for which they are ill-equipped.They lack the foundation process and mechanical skills to be successful. They lack the analytical skills to actually find the issues. Heck, you would be hard pressed to find many who can give you a straight answer on what a performance requirement actually looks like and how to evaluate whether the requirement is sound or not.All of this has led to an odd economic situation: For the past ten years the demand for performance testing skills has been rising, but the average compensation has been dropping. In a normal market with a skills scarcity rates would rise and bring more skilled people into the market. But in this case the flood of low skilled low value individuals has actually caused value to drop at a rate faster than demand is rising, leading to the odd economic situation of falling rates in a scarce resource high demand market. This is why the industry is "more fishy" due to this behavior… James Pulley, LR-LoadRunner, 1st October, 2011` HP LoadRunner - Kamran Khan – ChromeIS.com/institute 10
  • 11. Automated Testing Put contents here HP LoadRunner - Kamran Khan – ChromeIS.com/institute 11
  • 12. AutomatedPerformance Testing Performance testing is the discipline concerned with determining and reporting the current performance of a software application under various parameters Automated performance testing is about applying production workloads to pre- deployment systems while simultaneously measuring system performance and end- user experience. HP LoadRunner - Kamran Khan – ChromeIS.com/institute 12
  • 13. PerformanceEngineering Performance testing is the discipline concerned with determining and reporting the current performance of a software application under various parameters Performance engineering is the process by which software is tested and tuned with the intent of realizing the required performance.This process aims to optimize the most important application performance trait, user experience. Historically, testing and tuning have been distinctly separate and often competing realms. In the last few years, however, several pockets of testers and developers have collaborated independently to create tuning teams. Because these teams have met with significant success, the concept of coupling performance testing with performance tuning has caught on, and now we call it performance engineering. HP LoadRunner - Kamran Khan – ChromeIS.com/institute 13
  • 14. WhyLoadRunner? Benefits of choosing LoadRunner  LR Credibility - Industry Standard (77% market share)  Meeting the criteria  Scalable [supports add-in]  Integration with QTP  Integration with WR  Scenario modification  Others:  Record n Play, Custom Code, Errors and Exceptions Envision - Direct Revenue in long term  Off shore services  Outsourced services HP LoadRunner - Kamran Khan – ChromeIS.com/institute 14
  • 15. LimitationsfosteringLTteam Current Limitations  Less resources available in market  Trade off between Workload /Training others  ZERO Support from vendor  99% unplanned (ad hoc) activities*  Stakeholders have incomplete, obscured or no knowledge regarding Automation / LoadTesting  Deficient in Real Environment – scaling requires heuristics Tool cons  Technology dependent  Initial scripting would be decisive  Different License for Desktop,Web, RIA and database protocols  Not all licenses can be installed at a time HP LoadRunner - Kamran Khan – ChromeIS.com/institute 15
  • 16. AutomatedTesting:Objectives Drawbacks of manual testing Benefits of AutomatedTesting  in Functional RegressionTesting  in LoadTesting WhichTest Case not to automate  in Functional RegressionTesting  in LoadTesting ManualVs AutomatedTesting process AutomatedTest Planning CommonTesting Objectives Improve current framework by spreading awareness of: - technological constraints - due responsibilities of other stakeholders HP LoadRunner - Kamran Khan – ChromeIS.com/institute 16
  • 17. PerformanceTestingtypes What is PerformanceTesting  Stress testing  Load testing  Volume testing  Soak / Endurance testing  … When:  When to test under load Why:  Why to automate  Why not to automate What:  What to automate  What not to automate HP LoadRunner - Kamran Khan – ChromeIS.com/institute 17
  • 18. PotentialImpactofLoadTestingonSDLC Impact on Process  SDLC  TLC  … RegressionTesting + fixing + verification = STABLE  [LoadTesting]+ fixing  SAT  UAT HP LoadRunner - Kamran Khan – ChromeIS.com/institute 18
  • 19. AutomatedPerformanceTesting automated performance testing is about applying production workloads to pre-deployment systems while simultaneously measuring system performance and end-user experience ! Load: Number of concurrent users Web Site Response Time Good (0 - 8 sec.) Borderline (9 – 15 sec.) Unacceptable (15 – 30 sec.) Virtually Offline (> 30 sec.) The 8 Second Barrier Crash! Source: Presentation by LloydTaylor, VPTechnology &Operations, KeynoteSystems HP LoadRunner - Kamran Khan – ChromeIS.com/institute 19
  • 20. Why loadtestyourapplication? Failure of Mission Critical product can be costly. Deploy with confidence:  assure business transactions work real-world conditions  Locate and resolve potential problems before customer identifies them  Scalability Testing buys us confirmation of predictions about what will happen before it actually happens, buying the lead time to do the right thing when additional capacity is needed. HP LoadRunner - Kamran Khan – ChromeIS.com/institute 20
  • 21. Why loadtestyourapplication? Performance is the key to success of any web based application in specific and all others in general (mobile/desktop) We will get to know the maximum capacity the system can handle for an application. We can decide whether we should go for Hardware upgrades or Performance tuning. Understand the issues involved in load testingWeb applications. Learn your responsibilities as the LoadRunner expert. Learn how to perform successful load tests using LoadRunner. HP LoadRunner - Kamran Khan – ChromeIS.com/institute 21
  • 22. Loadtesttypicalobjectives Many concurrent users running the same application to see whether a system handles the load without compromising functionality or performance. How many concurrent users can the system handle without increase in the expected response time? Can the system serve [x] concurrent users without any errors? System works fine with X connections for Z number of hours. HP LoadRunner - Kamran Khan – ChromeIS.com/institute 22
  • 23. Drawbacksofmanualtesting •Repetitive •Requires excessive resources •May lack coverage •Potentially inconsistent •Monotonous •Sometimes Impossible Time MoneyResources HP LoadRunner - Kamran Khan – ChromeIS.com/institute 23
  • 24. Whytousetestingtools Time Consuming Inconsistent Low Reliability Expensive  Human Resource  Machines Complicated  Synchronize testers  Analyze results meaningfully  Speed  Repeatability / Consistent  Coverage  Programming capabilities  Reliability  Reusability  Control all users—from a single point of control HP LoadRunner - Kamran Khan – ChromeIS.com/institute 24
  • 25. Whenautomationisapplicable When a system combines a variety of software applications and hardware platforms to determine the suitability of a server for any given application To test the server before the necessary client software has been developed Emulate an environment where multiple clients interact with a single server application test an application under the load of tens, hundreds, or even thousands of potential users Test Repeatability is required Automated Functional RegressionTesting  MercuryWinRunner / HPQTP etc. Automated Stress/Performance/SoakTesting  HP LoadRunner / IBM Rational PerformanceTesterv HP LoadRunner - Kamran Khan – ChromeIS.com/institute 25
  • 26. WhichTestCasetoautomate? Tests that need to be run for every build of the web site (sanity level)  FRT Tests that use multiple data values for the same actions (data driven tests)  FRT Identical tests that need to be executed using different browsers  FRT Mission-critical pages  FRT / LT Transaction with pages which won't change in short term  FRT HP LoadRunner - Kamran Khan – ChromeIS.com/institute 26
  • 27. WhichTestCasenottoautomate? Usability testing –"How easy is the web site to use?" "ASAP" testing –"We need to test NOW!" Ad hoc/random testing –based on intuition and knowledge of web site FunctionalTesting Business validation HP LoadRunner - Kamran Khan – ChromeIS.com/institute 27
  • 28. BetterCandidate Business Processes which:  Involves large number of database tables  Single database table with large entry  Most frequently opened database tables  Requires big data to reside in RAM  Involves high processing like financial calculations HP LoadRunner - Kamran Khan – ChromeIS.com/institute 28
  • 29. HowLoadRunnerdoesitall? LoadRunner monitors the application performance online, enabling you to fine-tune your system during test execution. LoadRunner automatically records the performance of the application during a test.You can choose from a wide variety of graphs and reports to view the performance data. LoadRunner checks where performance delays occur:  network or client delays  CPU performance  I/O delays  database locking  network and server resources  or other issues at the database server. Because LoadRunner tests are fully automated, you can easily repeat them as often as you need. HP LoadRunner - Kamran Khan – ChromeIS.com/institute 29
  • 30. PerformanceTesting:ATeamWork Project Manager: - Manages the implementation of website/SUL Functional Expert / Business Analyst: - Provide Usage Analysis of SUL & provides expertise on business functionality of website/SUL AutomatedTesting Expert: - Creates the automated tests & executes load scenarios System Architect: - Provides Blueprint of SUL Web Developer / SME: - Maintains website & provide monitoring aspects - Develops website and fixes bugs System Administrator: - Maintains involved servers throughout testing project HP LoadRunner - Kamran Khan – ChromeIS.com/institute 30
  • 31. Manual VsAutomatedTestplan HP LoadRunner - Kamran Khan – ChromeIS.com/institute 31
  • 32. Planningaloadtest What to Plan?  Understand the functional testing objective(s) of the AUT  Know the user actions of each business transaction of the AUT  Know what input data to use for each transaction  Know what to verify in the web site HP LoadRunner - Kamran Khan – ChromeIS.com/institute 32
  • 33. PlanningAdvantages HP LoadRunner - Kamran Khan – ChromeIS.com/institute 33
  • 34. CommonTestingObjectives General page layout  Frames  Images  Tables FunctionalTesting  of each transaction using different sets of valid data across different browsers BusinessTesting  core business or objective of any application being developed RegressionTesting  hardware and software upgrades  web site enhancements HP LoadRunner - Kamran Khan – ChromeIS.com/institute 34
  • 35. PageLayoutVerification! HP LoadRunner - Kamran Khan – ChromeIS.com/institute 35
  • 36. AutomatedTest:Objectives Purpose of understanding test objectives:  Create effective automated tests that meet test requirements  Gather the relevant information that will help you create the automated test  System Architecture  System Components  Users profile (application users)  Clients behavior with application (TDD)  3rd party components, integration and other technical details HP LoadRunner - Kamran Khan – ChromeIS.com/institute 36
  • 37. TestCasesforPerformanceTesting DocumentTest Information  Documentation that contains all gathered information relevant to the testing requirement  Application  Transaction  User actions  Test requirement(s) HP LoadRunner - Kamran Khan – ChromeIS.com/institute 37
  • 38. TestCasesforPerformanceTestingcont. Certain information is “a must” when preparing for LoadTesting. This includes:  Testing environment  Operating System (Windows XP Server 2002 SP2)  Hardware Specifications (Intel® Pentium 4 CPU 3.00 GHz, 2 GB RAM)  SQL Server 2005, IIS 6.0 etc  Databases with user data (preferably client DB replica)  Representatives from Dev,Testing, AT, Networks Obtain master data – extract from database  obtain help from domain experts Create valid transactional data  predict according to type of data  obtain from Functional Expert HP LoadRunner - Kamran Khan – ChromeIS.com/institute 38
  • 39. VitalingredientsinOrganizing aTest •The architecture of the system •A brief idea about the application •The list of business transactions •The time at which the system has peak load •The acceptable response time for the transactions •No. of concurrent users the system is expected to handle during peak load • Select theTransactions to automate • Decide on theTransaction Mix • Obtain User details for the transactions •The tables these transactions query •The web server / application server components invoked by the transactions HP LoadRunner - Kamran Khan – ChromeIS.com/institute 39
  • 40. VitalingredientsinOrganizing aTest Select the transactions • Give priority to business critical transactions • Give priority to transactions that have high database activity • Give priority to transactions that have high web server or application server activity • Know the peak load time Decide onTransaction Mix • Impact of the failure of a particular transaction on business • The transactions that are executed during peak load • The no. of times they are executed during peak load User details • For each of the chosen transactions find • Who are the users who executing these transaction? • How many simultaneous and concurrent users are there? HP LoadRunner - Kamran Khan – ChromeIS.com/institute 40
  • 41. VitalingredientsinOrganizingaTest For each of the chosen transactions find: • The tables which a transaction queries • The tables which a transaction updates Server components invoked: • The servlet / jsp that are invoked by the transaction. Environment specifications: • Application architecture • HW specifications of machines where application is hosted • SW specifications of machines where application is hosted • HW/SW specifications of machines where load will be simulated HP LoadRunner - Kamran Khan – ChromeIS.com/institute 41
  • 42. Summary • Understanding of various stages of PerformanceTest automation • Planning should be done before automation begins • Proper planning can increase your test coverage and reduce test development time • Understanding the testing objectives helps devise effective automated tests • Identifying better candidates for performance testing • Document all relevant test information and team representatives HP LoadRunner - Kamran Khan – ChromeIS.com/institute 42
  • 43. Q&A ThankYou ! HP LoadRunner - Kamran Khan – ChromeIS.com/institute 43
  • 44. Quiz 15 Minutes HP LoadRunner - Kamran Khan – ChromeIS.com/institute 44
  • 46. HP LoadRunner - Kamran Khan – ChromeIS.com/institute 46
  • 47. What'sNext Understand the architecture of LoadRunner itself To describe best practices of carrying efficient performance tests HP LoadRunner - Kamran Khan – ChromeIS.com/institute 47
  • 48. HPLoadRunner Works HP LoadRunner - Kamran Khan – ChromeIS.com/institute 48
  • 49. HPLoadRunnerArchitecture Put contents here HP LoadRunner - Kamran Khan – ChromeIS.com/institute 49
  • 50. LRStructure HP LoadRunner - Kamran Khan – ChromeIS.com/institute 50
  • 51. HighlevelProcessoverview Put contents here HP LoadRunner - Kamran Khan – ChromeIS.com/institute 51
  • 52. PlanningRoadMap Install LoadRunner GatherTeam Define Goals Outline Business Processes Define User Profiles Document Business Processes DefineTest Data Management Procedures Outline Monitors Document HP LoadRunner - Kamran Khan – ChromeIS.com/institute 52
  • 53. GoalsofPerformanceTesting Conceptual Goals  What are we trying to achieve? SUL Mission CriticalTransaction ResponseTime  Is Booking Flight transaction fast enough?  xyz business process supports 250 concurrent users SUL Environment Benchmarking  Are servers, network, software, etc. compatible?  100 concurrent users can file contracts for 1 hour if web server RAM is 1GB HP LoadRunner - Kamran Khan – ChromeIS.com/institute 53
  • 54. BusinessProcesses Mission Critical  What BP malfunctioning will put you out of business? Throughput  How many users going through identified MissionCritical BPs? Dynamic Contents  How much data each transaction process through the SUL HP LoadRunner - Kamran Khan – ChromeIS.com/institute 54
  • 55. SystemUsers SUL User Profile  What are the SUL users: level of experience with the System SUL Users Regions  Where all SUL users located: America, Pakistan, KSA? SUL Users Concurrency  What is a pick of SUL usage per BP at given hour? User Roles (Access rights on system)  What types of user roles are in practice. Manager,TL, Dealer, Auditor etc. HP LoadRunner - Kamran Khan – ChromeIS.com/institute 55
  • 56. DocumentingBPs User Action Steps  Should BP start with User Login?  Can we navigate through the BP manually using these steps? SUL Navigation Expected Results  What should we include in the Checkpoint once this step performed? BPTransactions  What trigger in the BP will be measured for response time? ThinkTime  How long user waits till the next step in the BP? Parameters  What static input data should be replaced with dynamic content?  What type of parameter should it be? Data file, date, random?  What parameter sequence should be set? HP LoadRunner - Kamran Khan – ChromeIS.com/institute 56
  • 57. DataManagement Test Data Needed  What data will be needed (User Names & Passwords, SSN #, SKU # etc.)? Procedures to Generate Data  How are we going to generate data (querying database, data processing department, etc.)? Generated Data format  What format data will be coming in (Flat file, CSV, etc.)? HP LoadRunner - Kamran Khan – ChromeIS.com/institute 57
  • 58. PerformanceMonitors Investigate SUL Environment Set Monitor per each SULComponent Add measure point gradually  Set default measurements  Add measurements as needed  Consult with components SME HP LoadRunner - Kamran Khan – ChromeIS.com/institute 58
  • 59. Whatconstitutesasystem! HP LoadRunner - Kamran Khan – ChromeIS.com/institute 59 Database Web Servers / Application Servers Operating Systems External Storage Front End GUI Clusters/ Load Balancers Memory Threads Kernal Heap Third Party Components
  • 60. Putittogether Document all findings Approve by all Stakeholders HP LoadRunner - Kamran Khan – ChromeIS.com/institute 60
  • 61. AutomatedTestingProcess HP LoadRunner - Kamran Khan – ChromeIS.com/institute 61
  • 62. ATProcess:Planning Step I: Planning theTest Successful load testing requires that you plan to carry out certain business process.A BP consists of clearly defined steps in compliance desired business transactions – so as to accomplish your load testing objectives. BusinessTransaction: Examples:  Reserving flight tickets  Buying a computer from a online store  Logging into your web-based email service HP LoadRunner - Kamran Khan – ChromeIS.com/institute 62 A business transaction is a set of user actions performed with an application to accomplish a business task.
  • 63. ATProcess:Scripting Step II: Creating theVuser Scripts VUsers emulate human users interacting with yourWeb-based application. AVUser script contains the actions that eachVUser performs during scenario execution. In eachVUser script, you determine the tasks that will be: performed by eachVuser performed simultaneously by multipleVusers measured as transactions For more information on creatingVUser scripts, see the HPVirtual User Generator User Guide. HP LoadRunner - Kamran Khan – ChromeIS.com/institute 63
  • 64. ATProcess:CreateScenario Step III: Creating the Scenario A scenario describes the events that occur during a testing session. A scenario includes a list of machines on whichVusers run, a list of scripts that theVusers run, and a specified number ofVusers orVuser groups that run during the scenario.You create scenarios using the Controller. Creating a Manual Scenario You create a scenario by definingVuser groups to which you assign a quantity of individualVusers,Vuser scripts, and load generators to run the scripts. You can also create a scenario using the Percentage Mode, in which you define the total number ofVusers to be used in the scenario, and the load generators and percentage of the total number ofVusers to be assigned to eachVuser script. Creating a Goal-Oriented Scenario ForWeb tests, you can create a goal-oriented scenario, in which you define the goals you want your test to achieve. LoadRunner automatically builds a scenario for you, based on these goals. HP LoadRunner - Kamran Khan – ChromeIS.com/institute 64
  • 65. ATProcess:RunScenario Step IV: Running the Scenario You emulate user load on the server by instructing multipleVusers to perform tasks simultaneously.You can set the level of load by increasing and decreasing the number ofVusers that perform tasks at the same time. Before you run a scenario, you set the scenario configuration and scheduling.This determines how all the load generators andVusers behave when running a scenario. You can run the entire scenario, groups ofVusers (Vuser groups), or individualVusers.While a scenario runs, LoadRunner measures and records the transactions that you defined in eachVuser script.You can also monitor your system’s performance online. HP LoadRunner - Kamran Khan – ChromeIS.com/institute 65
  • 66. ATProcess:MonitorScenario StepV: Monitoring a Scenario You can monitor scenario execution using the LoadRunner online run-time, transaction, system resource,Web resource,Web server resource,Web application server resource, application server resources, database server resource, network delay, streaming media resource, firewall server resource, ERP/CRM server resource, Java performance, J2EE & .NET Diagnostics, application deployment, middleware performance, application component, and infrastructure resources monitors. HP LoadRunner - Kamran Khan – ChromeIS.com/institute 66
  • 67. ATProcess:Analysis StepVI: AnalyzingTest Results During scenario execution, LoadRunner records the performance of the application under different loads.You use LoadRunner’s graphs and reports to analyze the application’s performance. For more information about LoadRunner’s reports and graphs, see the HP LoadRunner Analysis UserGuide. HP LoadRunner - Kamran Khan – ChromeIS.com/institute 67
  • 68. Q&A ThankYou ! HP LoadRunner - Kamran Khan – ChromeIS.com/institute 68
  • 69. Quiz 15 Minutes HP LoadRunner - Kamran Khan – ChromeIS.com/institute 69
  • 71. HP LoadRunner - Kamran Khan – ChromeIS.com/institute 71
  • 72. What'sNext UnderstandVirtual UserTechnology Record a scripts General options Recording options Runtime options Replay recorded scripts HP LoadRunner - Kamran Khan – ChromeIS.com/institute 72
  • 73. VirtualUserTechnology Simulates a real-like virtual-user Programming capabilities with greater control over test execution Can synchronize actions performed by users VUsers can communicate directly with a server by executing calls to the server API-without relying on client software Captures a business transaction by recording user actions performed Monitors the communication between the application and the server HP LoadRunner - Kamran Khan – ChromeIS.com/institute 73
  • 74. Beforewestart… Scenario:  A scenario defines the events that occur during each testing session.Thus, for example, a scenario defines and controls the number of users to emulate, the actions that they perform, and the machines on which they run their emulations. VUsers:  In the scenario, LoadRunner replaces human users with virtual users or Vusers.When you run a scenario,Vusers emulate the actions of human users working with your application.While a workstation accommodates only a single human user, manyVusers can run concurrently on a single workstation. In fact, a scenario can contain tens, hundreds, or even thousands ofVusers. VUser Scripts:  The actions that aVuser performs during the scenario are described in a Vuser script.When you run a scenario, eachVuser executes aVuser script. TheVuser scripts include functions that measure and record the performance of your application’s components. Others:  System, ResponseTime,ThinkTime,Work Load,Transaction Mix, Throughput HP LoadRunner - Kamran Khan – ChromeIS.com/institute 74
  • 75. Beforewestart… Transactions  A transaction represents an action or a set of actions that you are interested in measuring.You define transactions within yourVuser script by enclosing the appropriate sections of the script with start and end transaction statements. For example, you can define a transaction that measures the time it takes for the server to process a request to view the balance of an account and for the information to be displayed at theATM. Rendezvous points:  You insert rendezvous points intoVuser scripts to emulate heavy user load on the server.  Rendezvous points instructVusers to wait during test execution for multipleVusers to arrive at a certain point, so that they may simultaneously perform a task. For example, to emulate peak load on the bank server, you can insert a rendezvous point instructing 100Vusers to deposit cash into their accounts at the same time. Controller:  You use the HP LoadRunnerController to manage and maintain your scenarios. Using the Controller, you control all theVusers in a scenario from a single workstation. Load Generator:  When you execute a scenario, the Controller distributes eachVuser in the scenario to a load generator.The load generator is the machine that executes theVuser script, enabling theVuser to emulate the actions of a human user. Performance analysis:  VUser scripts include functions that measure and record system performance during load-testing sessions. During a scenario run, you can monitor the network and server resources. Following a scenario run, you can view performance analysis data in reports and graphs. HP LoadRunner - Kamran Khan – ChromeIS.com/institute 75
  • 76. VUGen:RecordingmyFirstScriptinLR Click File  New Find the desired protocol from the list of protocols and click Create HP LoadRunner - Kamran Khan – ChromeIS.com/institute 76
  • 77. VUGen:ScriptSections HP LoadRunner - Kamran Khan – ChromeIS.com/institute 77 Script Section Used when recording... Is executed when... vuser_init a login to a server theVuser is initialized (loaded) Actions client activity theVuser is in "Running" status vuser_end a logoff procedure theVuser finishes or is stopped Script View Script Sections Tree View
  • 78. RecordingOptions… Tools  Recording Options [Ctrl + F7] … General  Recording  • HTML Mode • URL Mode This allows us to specify the information to be recorded and which functions to be used when generating a script HP LoadRunner - Kamran Khan – ChromeIS.com/institute 78
  • 79. HTMLMode–URLModecomparison The HTML mode is based on user actions, and the scripts contain functions that correspond directly to the action taken Example: ... web_link(“Enterprise Systems Performance", "Text=Enterprise Systems Performance ", "Snapshot=t4.inf", LAST); HP LoadRunner - Kamran Khan – ChromeIS.com/institute 79 The URL mode is based on HTTP requests sent to the server as a result of user actions. Example: ... web_url(“Enterprise Systems Performance", "URL=http://www.tcs.com/esp.html", "TargetFrame=", "Resource=0", "RecContentType=text/html", "Referer=http://www.tcs.com/atc?. . . , "Snapshot=t4.inf", "Mode=URL", LAST);
  • 80. DecidingonRecordingMode Deciding on Modes For browser applications, use HTML mode. For non-browser applications, use URL mode. HP LoadRunner - Kamran Khan – ChromeIS.com/institute 80 The option of mixing recording modes is available for very advanced users for performance tuning HTML Mode URL Mode Intuitive and easy to understand Not as intuitive as the HTML scripts Scalable More scalable and effective for creating a load test
  • 81. OtherRecordingOptions HP LoadRunner - Kamran Khan – ChromeIS.com/institute 81
  • 82. DirectoryStructureofanLRScript HP LoadRunner - Kamran Khan – ChromeIS.com/institute 82 VuGen creates a series of config. Files, data files and source code files which containVUser run-time and setup information. The results of each iteration of a script are stored separately. The Iteration0 directory is for system use and should be ignored by the tester.
  • 83. ResponseTime HP LoadRunner - Kamran Khan – ChromeIS.com/institute 83 App Server DB Server Load Injector Time in which the system responds for a particular Transaction request
  • 84. ThinkTime HP LoadRunner - Kamran Khan – ChromeIS.com/institute 84 Time taken for selecting a new Transaction after the response for the previous Transaction has been received Transaction 1 Transaction 2 ThinkTime = 10 Seconds
  • 85. Workload HP LoadRunner - Kamran Khan – ChromeIS.com/institute 85 Database Web Servers / Application Servers Operating Systems External Storage Front End GUI The System Typical Workload No. of Users Transactions Batch Programs Background Load
  • 86. TransactionMix HP LoadRunner - Kamran Khan – ChromeIS.com/institute 86 Varying execution frequency of different Transactions Credit Loans Debit Query Account Info Account Opening
  • 87. HPLoadRunnerVUserTechnology On each Windows load generator, you install the Remote Agent Dispatcher (Process) and a LoadRunner Agent Remote Agent Dispatcher:  The Remote Agent Dispatcher (Process) enables the Controller to start: applications on the load generator. Agent:  The LoadRunner Agent enables the Controller and the load generator to communicate with each other.When you run a scenario, the Controller instructs the Remote Agent Dispatcher (Process) to launch the LoadRunner agent.The agent receives instructions from the Controller to initialize, run, pause, and stop Vusers. At the same time, the agent also relays data on the status of the Vusers back to the Controller. HP LoadRunner - Kamran Khan – ChromeIS.com/institute 87
  • 88. VUGen-Introduction Main components ofVuGen interface  StartingVuGen  Environment options (Protocols)  Script view  Tree view  Output window etc HP LoadRunner - Kamran Khan – ChromeIS.com/institute 88
  • 89. Stepstowardsabaselinescript Commencement  Selecting right combination of protocols  Protocol Advisor (9.5 or newer) Record  Conventions and good practices  Prepare andAssure availability ofTest data  Understanding script  Manual verification Playback andVerification  Through subject application Parameterize/Correlation Enhance  Rendezvous,Transactions, Output message, Image/Text check, Correlation, and additional steps, Configuring Pacing, Iterations, Actions, Log/Error messages &Think time and more Runtime Settings  Pacing, Iterations,Think time and more Prepare for Execution  Prepare andAssure availability ofTest data HP LoadRunner - Kamran Khan – ChromeIS.com/institute 89
  • 90. RecordingfortheWeb Example Exercise  Create vuser script  Understand vuser script  Generation log  Script regeneration User authentication information  web_set_user("domainuser, “password", “host:port");  web_set_user(“chrometechkhankamran", "password123(", “machine112:80"); HP LoadRunner - Kamran Khan – ChromeIS.com/institute 90
  • 91. Replayingarecordedscript Verify the baseline script Identify and configure appropriate runtime settings for replay Replay vuser script Replay log Verify the application behavior HP LoadRunner - Kamran Khan – ChromeIS.com/institute 91
  • 92. ScriptEnhancement Transactions Comments Parameters Rendezvous points Text / Image verification Adding Actions Correlation HP LoadRunner - Kamran Khan – ChromeIS.com/institute 92
  • 93. Transactions  A mean to measure time taken by application or its server side component in entertaining certain client request.  Or, the time to complete specific takes or activity Defining transactions  Preferably during recording else after recording Syntax:  lr_start_transaction(“Transaction Name”);  lr_end_transaction(“Transaction Name”, <status>);  e.g. lr_start_transaction(“Transaction Name”); lr_end_transaction(“Transaction Name”, LR_AUTO); lr_end_transaction(“Transaction Name”, LR_PASS); lr_end_transaction(“Transaction Name”, LR_FAIL); HP LoadRunner - Kamran Khan – ChromeIS.com/institute 93
  • 94. Transactions cont. Best Practice:  Assign Script ID as prefix to the name  Assign transaction number right before logical name  e.g. 0102Login  Removal any immediate following think time statement  Remove or document think time statements within a transaction  Period (.) character is not allowed in transaction name HP LoadRunner - Kamran Khan – ChromeIS.com/institute 94
  • 95. SubTransactions /* Notify that a transaction is starting */ lr_start_transaction("purchases"); /* Breakdown the transaction into a smaller transaction */ lr_start_sub_transaction("electrical_purchases", "purchases"); status = purchase_electrical_items(6); /* call to Server API */ /* End transaction with operation result - pass or fail */ if (status == 0) lr_end_sub_transaction("electrical_purchases", LR_PASS); else lr_end_sub_transaction("electrical_purchases", LR_FAIL); HP LoadRunner - Kamran Khan – ChromeIS.com/institute 95
  • 96. Comments Add comments for  To describe an activity  To provide information about specific operation  To separate two sections for distinction Add comments:  Comments during recording  Comments after recording Best Practice:  Mark any comments on the top of each script file HP LoadRunner - Kamran Khan – ChromeIS.com/institute 96
  • 97. RendezvousPoints Rendezvous Points  Introduce concurrency Defining transactions  during recording or after recording Syntax: lr_rendesvous(“Logical Name”); Best Practices:  Prefix a rendezvous point with “rdv_”  Use logical name of transaction being subjected  e.g. rdv_Login  Removal any immediate following think time statement HP LoadRunner - Kamran Khan – ChromeIS.com/institute 97
  • 98. InsertingFunctionthroughmenu Log messages Debug messages Error messages Output messages  Choose Insert > New Step.The Add Step dialog box opens. Scroll down and select Output Message and clickOK.  lr_output_message  lr_log_message HP LoadRunner - Kamran Khan – ChromeIS.com/institute 98
  • 99. Parameterization A parameter is a placeholder which re-places a recorded value in aVuser script. At run time, a value from an external source is substituted for the parameter against record time value. Parameterization solves certain problems that may occur during playback: • Date constraints make recorded date invalid • Unique constraints prevent reusing recorded data • Data caching • Response times are inaccurate • Real user activity is not emulated • Servers are not exercised Problem examples: Business process works only for the current date Unique ID required as in case of Primary Key or fields in database with Unique constraint How to measure the performance of the process which creates a new product? HP LoadRunner - Kamran Khan – ChromeIS.com/institute 99
  • 100. Parameterization What is Parameterization? Which value to parameterize? How to parameterize? Properties of a Parameter? Caution – line feed at the end of each line in data file is mandated space i.e. ‘%20’ is ignored by LR Types of parameters  Date/Time  File  Group name  Random number  Iteration number  Unique number  XML  Vuser ID  Load generator name  User defined function lr_output_message ( "We are on iteration #%s", lr_eval_string ( "{iteration}" ) ); HP LoadRunner - Kamran Khan – ChromeIS.com/institute 100
  • 101. Parameterconfiguration Important options regarding properties of File /Table parameters  Data assignment method  Update method  When out of values  Columns  Rows  When not enough rows HP LoadRunner - Kamran Khan – ChromeIS.com/institute 101
  • 102. Whyexcessiveparameterization! Problem: Since allVUsers use the same data, Data caching at servers makes load test response times shorter than when real users load the system Solution: Parameterize input data to force the system to get data from a database Data gets relocated in the server’s cache when it is reused for eachVuser execution. As a result, server activity is not emulated during playback.While Vuser execution is successful, it will not produce test results meaningful for load testing because the server is not exercised. Using different data better emulates server activity and exercises the system.That improves the chances for meaningful load test results. HP LoadRunner - Kamran Khan – ChromeIS.com/institute 102
  • 103. CreatingDataPool How to create data pool to be used in parameterization files? 1. Extract master data from database 1. Write queries on tables being accessed by the business transactions. 2. Spool data to a file 3. Write AWK scripts to generate a proper data pool from the spooled file 2. Create valid transactional data 1. Predict according to type of data 2. Obtain from a functional expert HP LoadRunner - Kamran Khan – ChromeIS.com/institute 103
  • 104. Parameterization–Process Determine which fields to parameterize Replace recorded values with parameters Decide which parameter type to use Choose the data access method and the number of iterations Run theVuser and analyze the results to verify correct execution HP LoadRunner - Kamran Khan – ChromeIS.com/institute 104
  • 105. Parameterization–Process cont. Right click on the data to parameterize select “Replace with a Parameter” The Select or Create Parameter dialog box opens. Type a suitable Parameter Name and Select a ParameterType Right-click the parameter name and select “Replace More Occurrences” to replace the data by the parameter name HP LoadRunner - Kamran Khan – ChromeIS.com/institute 105
  • 106. Parameters–Exercise Data table values:  Nida; Kamran; Michael; Jane; Ron; Alice; Ken; Julie; Fred 12 vusers and 3 iterations Try all combinations of assignment method and update method on provided data HP LoadRunner - Kamran Khan – ChromeIS.com/institute 106
  • 107. AdvancedScriptingTechniques Other protocols’ specific functions Correlation LR Standard Functions  variable_name = lr_eval_string(“{variable_name}”);  lr_save_string(“value”, “variable_name”); Protocol Specific Functions HP LoadRunner - Kamran Khan – ChromeIS.com/institute 107
  • 108. Correlation Many applications use dynamic values that change each time you use the application. For example, some servers assign a unique session ID for every new session. When you try to replay a recorded session, the application creates a new session ID that differs from the recorded session ID. To simplify / optimize code To generate dynamic data To accommodate unique data records Protocol Specific Functions:  variable_name = lr_eval_string(“{variable_name}”);  lr_save_string(“value”, “variable_name”); HP LoadRunner - Kamran Khan – ChromeIS.com/institute 108
  • 109. Correlation  In applications output of the previous transaction may be used as an input for the next transaction.  For example:  System generated session ids  URLs that change each time you access theWeb page  Fields (sometimes hidden) recorded during a form submission  The data is only good for the current session  Solution using Correlation:  Capture output value from one preceding step  Use captured value as input to proceeding step HP LoadRunner - Kamran Khan – ChromeIS.com/institute 109
  • 110. Dynamic data is correlated automatically by the client application (running in the browser) while recording a script Correlated data is data which is sent to the client from the server, and later sent back to the server by the client. HP LoadRunner - Kamran Khan – ChromeIS.com/institute 110 Network Web Server Client Step 2 - Request [Session ID = 22222] Step 1 [Session ID = 22222]
  • 111. Reusing recorded dynamic data will cause errors when you replay the script Recorded dynamic data must be correlated using parameters HP LoadRunner - Kamran Khan – ChromeIS.com/institute 111 Network Web Server Client Step 2 - Request [Session ID = 22222] Step 1 [Session ID = 23212]
  • 112. Correlationtypes Auto correlation  LR detects and help solving them Manual correlation  LR detect but doesn’t provide direct interface to correlate  LR may not detect code requiring correlation Question: when manual correlation is required? Question: when auto correlation is required? HP LoadRunner - Kamran Khan – ChromeIS.com/institute 112
  • 113. ManualCorrelation 1. Determine the value to capture 2. Find the right and left text boundaries of the value to capture (WEB) 3. Find which occurrence of the text boundaries should be used 4. Add a web_reg_save_param function to the script, above the step which requests the page with the value to capture 5. Add the parameter name, left boundary, right boundary, and occurrence to the function 6. Parameterize the dynamic value in the script every time it occurs 7. Verify correct execution HP LoadRunner - Kamran Khan – ChromeIS.com/institute 113
  • 114. AutomaticCorrelation There are three types of automatic correlation solutions 1. Auto-Detect Correlation 2. Rule-Based Correlation 3. CorrelatingAll Statements HP LoadRunner - Kamran Khan – ChromeIS.com/institute 114 Rule Name When to Use Auto-detect Correlation Detect and correlate dynamic data for supported application servers Rule-Based When working with a non-supported application server whose context is known. Correlate All Blindly correlate all dynamic data.
  • 115. AutomaticCorrelation Auto-Detect Correlation Automatically correlate the recorded statements CorrelatingAll recognizable statements Rule-BasedCorrelation Rule-based correlation requires correlation rules to be defined before recording a session HP LoadRunner - Kamran Khan – ChromeIS.com/institute 115
  • 116. Run-TimeSettings Run Logic  Iterations  Action blocks Pacing Log ThinkTimes  No think time  As Recorded  Multiple of X-Recorded  Randomize think time  LimitThink time to Z sec. Speed Simulation  Bandwidth controlling Browser Emulation Proxy  No proxy  Specific proxy  Pick proxy from browser HP LoadRunner - Kamran Khan – ChromeIS.com/institute 116
  • 117. Run-TimeSettings Control the behavior of the user when running the script ConfigureWebVusers to emulate real users accessing theWeb site Browser Emulation Specify Browser type Simulate cache Emulate network capacity Emulate modem speed Log Settings Can disable logging Log a specific set of function calls and messages – Standard Log Log parameter substitutions Log response data from server All the messages and function calls raised HP LoadRunner - Kamran Khan – ChromeIS.com/institute 117
  • 118. HP LoadRunner - Kamran Khan – ChromeIS.com/institute 118
  • 119. ProtocolsRequeststoHP HP LoadRunner - Kamran Khan – ChromeIS.com/institute 119
  • 120. NextGenerationofApplications–Web2.0 HP LoadRunner - Kamran Khan – ChromeIS.com/institute 120 Applications Server Web Server SOA (WS, ESB, Etc.) Network Convergence (VOIP, IP Video) AJAX frameworks HTTPs Request - Response Citrix Microsoft RDP Citrix Microsoft RDP .NET 1.02.0 Remoting .NET 3.0 – WCFWPF Rich Internet UI (AJAX, FLEX, APPLETS) HTTPs RequestResponse & SOAP
  • 121. LoadRunnersupportforWeb2.0 Web 2.0 Bundle  Ajax Framework Solutions  Flex 1.5 support forAMF version zero  Flex 2.0 support - in 9.1  Flex 3.0 support – in 11.0  Web services protocol HP LoadRunner - Kamran Khan – ChromeIS.com/institute 121
  • 122. AJAX–Whatisit? • AJAX is Asynchronous JavaScriptAnd XML • A web development technique for creating interactive web applications • Allows exchanging small amounts of data with the server behind the scenes, without the page having to reload each time • Meant to increase web pages interactivity, speed, and customer usability HP LoadRunner - Kamran Khan – ChromeIS.com/institute 122
  • 123. Flex–Whatisit? Adobe Flash has unique animation capabilities Traditional application programmers found it challenging to adapt to Flash Flex minimizes the problem by providing a workflow and programming model that is familiar to application developers. Flex provides an easier way to build Flash applications HP LoadRunner - Kamran Khan – ChromeIS.com/institute 123
  • 124. WindowsPresentationFoundation–Whatisit? WPFTechnologies  New UI framework from Microsoft  WindowsVista  .Net 3.0 (4.0 not supported) HP LoadRunner - Kamran Khan – ChromeIS.com/institute 124
  • 125. WCF–Whatisit? Windows Communication Foundation, previously codenamed Indigo is a communication subsystem to enable applications, in one machine or across machines over network, to communicate. TheWCF programming model unifies  Web Services  .NET Remoting  DistributedTransactions  Message Queues LoadRunner support forWCF  WCF protocol support  .NET 3.5 support HP LoadRunner - Kamran Khan – ChromeIS.com/institute 125
  • 126. NextGenerationofApplications–Web2.0 HP LoadRunner - Kamran Khan – ChromeIS.com/institute 126 Applications Server Web Server SOA (WS, ESB, Etc.) Network Convergence (VOIP, IP Video) AJAX frameworks HTTPs Request - Response Citrix Microsoft RDP Citrix Microsoft RDP .NET 1.02.0 Remoting .NET 3.0 – WCFWPF Rich Internet UI (AJAX, FLEX, APPLETS) HTTPs RequestResponse & SOAP
  • 127. RemoteAccessTechnologies–Whatisit? HP LoadRunner - Kamran Khan – ChromeIS.com/institute 127 Remote AccessTechnology  Citrix – Market Leader Testing Challenges  Protocols support any activity over the network not specific to one application  Very large deployments to support many customers  Remote Access is single point of failure for business activity
  • 128. RDP-Recording A user creates a connection to a server using Remote desktop client: After the desktop appears - user’s keyboard and mouse actions are recorded HP LoadRunner - Kamran Khan – ChromeIS.com/institute 128
  • 129. RDP–Recording …cont. Desktop snapshots are recorded and mouse clicks are highlighted. HP LoadRunner - Kamran Khan – ChromeIS.com/institute 129
  • 130. RDPExampleScript HP LoadRunner - Kamran Khan – ChromeIS.com/institute 130
  • 131. Q&A ThankYou ! HP LoadRunner - Kamran Khan – ChromeIS.com/institute 131
  • 132. Quiz 15 Minutes HP LoadRunner - Kamran Khan – ChromeIS.com/institute 132
  • 134. HP LoadRunner - Kamran Khan – ChromeIS.com/institute 134
  • 135. AScenario A scenario is the mean to emulate a real- life behavior of application users – as in real environment. Scenarios include 1. a list of machines on whichVusers run 2. a list of scripts that theVusers run 3. a specified number ofVusers or 4. Vuser groups that run during the scenario Scenarios are created using the LoadRunnerController HP LoadRunner - Kamran Khan – ChromeIS.com/institute 135
  • 136. Typesofscenarios A Manual Scenario gives you control over the number of running VUsers and the times at which they run, and lets you test how many VUsers your application can run simultaneously. Create a scenario by assigning VUsers quantity against each script/group and load generators. You can use the Percentage Mode to distribute the total number of VUsers among scripts based on a percentage specified by your business analyst. A Goal-Oriented Scenario is used to determine if your system can achieve a particular goal. LoadRunner automatically builds a scenario based on these goals.  ResponseTime for specified transaction  Number of hits/transactions per second etc … HP LoadRunner - Kamran Khan – ChromeIS.com/institute 136
  • 137. Typesofscenarios A Manual Scenario gives you control over the number of runningVusers and the times at which they run, and lets you test how manyVusers your application can run simultaneously.You can use the Percentage Mode to distribute the total number ofVusers among scripts based on a percentage specified by your business analyst. A Goal-Oriented Scenario is used to determine if your system can achieve a particular goal.You determine the goal based on, for example, a specified transaction response time or number of hits/transactions per second, and LoadRunner automatically builds a scenario for you based on these goals. You will create a goal-oriented scenario in Lesson 9, “Advanced Goal-Oriented Scenario.” HP LoadRunner - Kamran Khan – ChromeIS.com/institute 137
  • 138. CreatingaManualScenario CreateVuser groups • Each script selected in the New Scenario dialog box is assigned to aVuser group • EachVuser group is assigned a number of virtual users • AllVusers in a group can be assigned to run the same script on the same load generator machine OR • Different scripts and load generators can be assigned to the variousVUsers in a group HP LoadRunner - Kamran Khan – ChromeIS.com/institute 138
  • 139. CreatingVUsersGruops • Click the Add Group button on the right of the Scenario groups window.The Add Group dialog box opens. • Enter a name for theVUser group and specify the number ofVusers • Select a load generator from the Load Generator Name list • Select Add from the Load Generator Name list if the load generator is not listed. • Select a script from the script list • Click OK to close the Add Group dialog box.The new group's properties appear in the Scenario Groups window HP LoadRunner - Kamran Khan – ChromeIS.com/institute 139
  • 140. ConfiguringVUsersandVUsersgroup Select theVuser group whose VUsers scheme is to be modified, and click theVusers button on the right of the Scenario Groups window.TheVusers dialog box opens. Here you can: change the Script change the Load Generator Add/removeVUsers to the group HP LoadRunner - Kamran Khan – ChromeIS.com/institute 140
  • 141. ConfiguringLoadGenerators Click the Generators button to open the LoadGenerator dialog box. Name, Status, Platform and Details of the LoadGenerators are displayed HP LoadRunner - Kamran Khan – ChromeIS.com/institute 141 Changes LG status from Down to ready Add a new LG Delete an LG Open Details of an LG Disable an LG
  • 142. Configuringascenario Select group and click Details button Run-Time Settings from the Controller shows the setting of script saved inVuGen. If these settings are modified in Controller, LoadRunner runs the script using the modified settings.This overriding of settings is not saved in script. Clicking View will open script in VUGen. HP LoadRunner - Kamran Khan – ChromeIS.com/institute 142
  • 143. SchedulingaScenario–Makeitreal! Selecting Initialize allVusers before Ramp-Up, instructs LoadRunner to initializeVusers before beginning to load them To gradually run theVusers, select the number ofVUsers to begin running concurrently and the amount of delay-time. LoadRunner has to wait betweenVuser ramp ups. HP LoadRunner - Kamran Khan – ChromeIS.com/institute 143
  • 144. SchedulingaScenario–Makeitreal! Click Next to navigate to Duration ActionType, there are 3 choices 1. Run until completion 2. Specify the amount of time for which the scenario will run, once all the Vusers have been ramped up 3. Run indefinitely Selecting Initialize allVusers before Ramp-Up, instructs LoadRunner to initializeVusers before beginning to load them HP LoadRunner - Kamran Khan – ChromeIS.com/institute 144
  • 145. SchedulingaGroup After creating aVUser group, a group’s execution settings can be scheduled Select Schedule By Group to set the schedule for theVUser group. The options are similar to that of scheduling the scenario – in new versions. HP LoadRunner - Kamran Khan – ChromeIS.com/institute 145 VUser group Execution Settings: Amount of time that the group must wait before it starts running The number ofVusers that will run within a specified period of time The amount of time the group will run
  • 146. OldScheduler A fixed structure: Ramp Up – Duration - Ramp Down Very hard to simulate real life behavior HP LoadRunner - Kamran Khan – ChromeIS.com/institute 146
  • 147. DynamicScheduler Accurate load testing capabilities Easy to simulate real life scheduling Increased usability, more Flexible First step towards automatic generation of real life scenario from imported production data HP LoadRunner - Kamran Khan – ChromeIS.com/institute 147
  • 148. DynamicSchedulerContents Multiple Ramp ups / downs Easier to use  Interactive Graph - edit actions, drag, zoom  Grid for detailed editing Timeline at runtime Pause/Resume scheduler HP LoadRunner - Kamran Khan – ChromeIS.com/institute 148
  • 149. RealScenario HP LoadRunner - Kamran Khan – ChromeIS.com/institute 149
  • 150. RealLifeSchedule Each schedule (by scenario / by group) is composed of a list of Actions: Fixed actions – Start Group, Initialize Dynamic actions  StartVusers, StopVusers, Duration  Can be used multiple times, in any order HP LoadRunner - Kamran Khan – ChromeIS.com/institute 150
  • 151. VUsersQuantity Determined by the scheduler – not by the group ! No Ramp Up “All” HP LoadRunner - Kamran Khan – ChromeIS.com/institute 151
  • 152. ManualOperations Do not affect the planned scheduling - not reflected in the design graph Affect the runtime behavior - manually run vusers will be missing for next ramp Example: at a certain point, the user manually started some more vusers  Blue – expected scheduling  Red – actual behavior HP LoadRunner - Kamran Khan – ChromeIS.com/institute 152 Note: the red line is not visible in the scheduler graph
  • 153. All slides after this are in draft state.Those will be modified and updated on website soon. Keep checking back. HP LoadRunner - Kamran Khan – ChromeIS.com/institute 153
  • 154. SystemMonitoring throughController HP LoadRunner - Kamran Khan – ChromeIS.com/institute 154
  • 155. MonitoringSULCont. HP LoadRunner - Kamran Khan – ChromeIS.com/institute 155
  • 156. WatchusersinReal-time HP LoadRunner - Kamran Khan – ChromeIS.com/institute 156
  • 157. ScheduledRun-Completed HP LoadRunner - Kamran Khan – ChromeIS.com/institute 157
  • 158. GoalOrientedScenario–DefiningaGoal • the number of users that you want to use to reach that goal • the scenario duration • load behavior HP LoadRunner - Kamran Khan – ChromeIS.com/institute 158
  • 159. DefiningaGoalcont. • Specify that the test should run for 5 minutes after the target has been achieved, and select Continue scenario without reaching goal. • Once the load of three hits per second has been reached, the Controller keeps running the scenario for an additional five minutes, adding or subtractingVusers as needed to keep the actual measurement within 6% of the specified target.This is to ensure that the server can sustain the load for a period of time. HP LoadRunner - Kamran Khan – ChromeIS.com/institute 159
  • 160. ServiceLevelAgreement–SLADefinition The user may define goals for the run on several measurements, like:  Average transaction response time  Total throughput (bytes) per run The measurements are checked at run time, to see if there is a violation The results can be viewed in the Analysis application  Transactions success/failure stand up to SLA expectations  LoadTest SLA violations, and the time they occurred HP LoadRunner - Kamran Khan – ChromeIS.com/institute 160
  • 161. SLA Wizard A wizard for easily defining SLA goals HP LoadRunner - Kamran Khan – ChromeIS.com/institute 161
  • 162. Q&A ThankYou ! HP LoadRunner - Kamran Khan – ChromeIS.com/institute 162
  • 163. Quiz 15 Minutes HP LoadRunner - Kamran Khan – ChromeIS.com/institute 163
  • 165. HP LoadRunner - Kamran Khan – ChromeIS.com/institute 165
  • 166. What'sNext Understanding HP Analysis [LR component] Understanding various graphs, merging graphs, collating, correlating Analysis and diagnostics Reporting HP LoadRunner - Kamran Khan – ChromeIS.com/institute 166
  • 167. AnalysisofTestResults There comes a time after the tests are run when someone who's reviewing the results asks the deceptively simple question, "So what, exactly, does all this mean?!?"This point beyond performance testing is where the capabilities of the human brain come in handy. "Computers are good at swift, accurate computation and at storing great masses of information.The brain, on the other hand, is not as efficient a number cruncher and its memory is often highly fallible; a basic inexactness is built into its design.The brain's strong point is its flexibility. It is unsurpassed at making shrewd guesses and at grasping the total meaning of information presented to it," writes British journalist Jeremy Campbell inChapter 16 of Grammatical Man: Information, Entropy, Language, and Life (1982). HP LoadRunner - Kamran Khan – ChromeIS.com/institute 167
  • 168. Graphs:HitsperSecond • The Hits per Second graph shows the number of hits (HTTP requests) made to theWeb server byVusers during each second of the scenario run. • You can see that after a short period the required level of load is reached. HP LoadRunner - Kamran Khan – ChromeIS.com/institute 168
  • 169. Graphs:Trans.ResponseTime • TheTransaction ResponseTime graph shows the amount of time it takes for each transaction to be completed. • Its important to watch transaction response time to see the response times your customers will have when the server is under load. HP LoadRunner - Kamran Khan – ChromeIS.com/institute 169
  • 170. Graphs:WindowsResources • You can monitor the server’s Windows Resources usage for processor, disk, or memory utilization problems. • Monitoring during a test can help you pinpoint the source of poor performance immediately. You can check theWindows Resources graph legend for a list of measurements. HP LoadRunner - Kamran Khan – ChromeIS.com/institute 170
  • 171. TheLoadRunnerAnalysis HP LoadRunner - Kamran Khan – ChromeIS.com/institute 171
  • 172. LoadRunnerAnalysis–cont. Session Explorer: In the upper left pane,Analysis shows the reports and graphs that are open for viewing. From here you can display new reports or graphs that do not appear when Analysis opens, or delete ones that you no longer want to view. GraphViewingArea: In the upper right pane,Analysis displays the graphs.  By default, the Analysis Summary report is displayed in this area when you open a session. Graph Legend In the lower right pane, you can view data from the selected graph. HP LoadRunner - Kamran Khan – ChromeIS.com/institute 172
  • 173. MoreinAnalysis! There is a spectrum of graphs to analyze.You can apply filters or even cross with results. For every chart, diagram, table or picture you add to your presentation, you can go from understated to wow or anywhere in between. 1 2 3 4 5 1 2 3 4 5 1 2 3 4 5 1 2 3 1 2 3 1 2 3 1 2 3 1 2 3 1 2 3 1 2 3 1 2 3 1 2 3 HP LoadRunner - Kamran Khan – ChromeIS.com/institute 173
  • 174. AnalysisReport - WordandExcel,too! Export to and spreadsheets that match your presentation for a “branded” look. Cross with Results Global Filters Add Graphs How to generate reports Exporting reports into HTML and *.doc HP LoadRunner - Kamran Khan – ChromeIS.com/institute 174
  • 175. Q&A ThankYou ! HP LoadRunner - Kamran Khan – ChromeIS.com/institute 175
  • 176. Quiz 15 Minutes HP LoadRunner - Kamran Khan – ChromeIS.com/institute 176
  • 178. HP LoadRunner - Kamran Khan – ChromeIS.com/institute 178
  • 179. What'sNext Understanding HP Analysis [LR component] Understanding various graphs, merging graphs, collating, correlating Analysis and diagnostics Reporting HP LoadRunner - Kamran Khan – ChromeIS.com/institute 179
  • 180. TriggerLeadTimetoReduceUpgradeRisk Time Predicted point of failure Upgraded Capacity ExistingCapacity Lead TimeTrigger Point Anticipated Peak Loads Work load Usable Reserve Capacity Point ResponseTime degradation becomes noticeable Current load HP LoadRunner - Kamran Khan – ChromeIS.com/institute 180
  • 181. Q&A ThankYou ! HP LoadRunner - Kamran Khan – ChromeIS.com/institute 181
  • 182. Quiz 15 Minutes HP LoadRunner - Kamran Khan – ChromeIS.com/institute 182
  • 184. HP LoadRunner - Kamran Khan – ChromeIS.com/institute 184
  • 185. PerformanceDesignandManagement A real example of client requirement (A Fortune 100 company): Describe the performance aspects of your system, e.g. from user actions throughWeb server through application server through database and back, including number of registered users/simultaneously-logged-on users/simultaneously-active users, aggregate expected network traffic for all segments, CPU loads/memory utilizations for client/app server/database server, anticipated disk space requirements and growth, and any other salient performance design assumptions or provisions. Describe how these usage patterns will vary by time of day, day of the week, and month of the year.] HP LoadRunner - Kamran Khan – ChromeIS.com/institute 185
  • 186. RequiredCapacityPlanningProcesses A real example of client requirement (A Fortune 100 company): [Describe your expected capacity design rules and processes: what resources need to be adjusted as application loads change, how much disk/CPU/memory per user is needed, anticipated growth over time, and the processes you expect the support teams to use to adjust capacity during the lifecycle of the application.] HP LoadRunner - Kamran Khan – ChromeIS.com/institute 186
  • 187. PerformanceTest ExitCriteria: For PerformanceTest completion, the following items must be accomplished (Real example by Fortune 100 Client): Performance test results have been reviewed and accepted by client. All defects raised during test execution have been fixed and any deviations have been documented and agreed by client. Chrome will provide effort estimates for all agreed deviations or faults that have been accepted by client. Transaction response times during the course of the test runs should adhere to the target response times defined in SLA Transactions meeting response time SLAs = 100% (See KeyTransaction table below for pass criteria) Running / passed users during the test = 100% Expected transaction throughput during Peak state = 100% Average 15-minute CPU utilization should be < =70% for database and Application Server. Average 15-minute Memory utilization on servers should be < =70% No gradual loss of free memory over the course of the tests Network bandwidth utilization in peak state <=70% On database server, 15-minute average IO wait times must not exceed 10 milliseconds for more than 5% of test duration. Any deviation (outside of agreed upon failure rate of 1%) to be discussed with client on a case-by-case basis. HP LoadRunner - Kamran Khan – ChromeIS.com/institute 187
  • 188. TTFBandTTLB In the case of objects with longTTFB times, like index.jsp, the solution often requires a software-level optimization. It could involve adding a database index, introducing some object-level caching, or a configuration change (such as database connection pooling). Be careful to fall in to the trap of throwing more hardware at the problem to solve these types of issues.While it might work in the short term, these issues almost always are due to sub-optimal software and throwing extra hardware at the problem will be like putting a band-aid on a bullet hole. In the case of objects with relatively shortTTFB times but overall longTTLB times, the solution is usually very different.While there may be a software solution, such as configuring Apache’s connections to be better optimized for the server it runs on, most of the time the root cause is due to network/hardware-related issues. Check with the ISP that hosts the server to confirm the max bandwidth throughput allowed. If the object response is slow during peak times but fast during off-peak times, it may need extra web servers (ie: hardware). HP LoadRunner - Kamran Khan – ChromeIS.com/institute 188
  • 189. ColdStartupandWarmStartup Understanding Cold Startup andWarm Startup of an application Cold Startup Cold startup occurs when your application starts for the first time after a system reboot, or when you start your application, close it, and then start it again after a long period of time.When an application starts, if the required pages (code, static data, registry, etc) are not present in theWindows memory manager's standby list, page faults occur. Disk access is required to bring the pages into memory. Warm Startup Warm startup occurs when most of the pages for the main common language runtime (CLR) components are already loaded in memory, which saves expensive disk access time.That is why a managed application starts faster when it runs a second time. Ref: http://msdn.microsoft.com/en-us/library/cc656914.aspx HP LoadRunner - Kamran Khan – ChromeIS.com/institute 189
  • 190. BlankSlide Put contents here HP LoadRunner - Kamran Khan – ChromeIS.com/institute 190
  • 191. Q&A ThankYou ! HP LoadRunner - Kamran Khan – ChromeIS.com/institute 191
  • 192. Quiz 15 Minutes HP LoadRunner - Kamran Khan – ChromeIS.com/institute 192
  • 193. PowerPoint2007 Text, Graphics & Pictures SmartArt Themes & Quick Styles New Layouts HP LoadRunner - Kamran Khan – ChromeIS.com/institute 193 Soft Shadow Bevel Reflection
  • 194. PictureThis… HP LoadRunner - Kamran Khan – ChromeIS.com/institute 194 Character S p a c i n g Kerning Strikethrough Styled Underline
  • 196. HP LoadRunner - Kamran Khan – ChromeIS.com/institute 196
  • 197. GetCoordinatedwithThemes! OfficeThemes give you effortless coordination of the colors, fonts and graphic effects applied to your presentation. Everything you insert into your presentation will be automatically styled to match. HP LoadRunner - Kamran Khan – ChromeIS.com/institute 197
  • 198. MixItUp! OfficeThemes are infinitely customizable.You can mix and match the colors, fonts and effects from different themes. HP LoadRunner - Kamran Khan – ChromeIS.com/institute 198
  • 199. SlidePerfect! PowerPoint has new layouts that give you more ways to present your words, images and media. Everything you add into the layout placeholders is arranged perfectly for you. HP LoadRunner - Kamran Khan – ChromeIS.com/institute 199
  • 200. ArrangeitYourWay With custom layouts you design your own slide arrangements.You can create new kinds of documents with PowerPoint. Easily create everything from business pitchbooks to family photo albums. HP LoadRunner - Kamran Khan – ChromeIS.com/institute 200

Editor's Notes

  1. Target Audience: Developers and Testers who wish to work with HP LoadRunner on Web based ApplicationsLast Updated: 20140107© Copy Rights ReservedAuthor: Kamran Shaukat Ali KhanE-mail: kamran.khan@chromeis.com [you can add this on GTalk/Google Hangout as long as you don’t expect me to reply  ]http://chromeis.com/institute
  2. This file was downloaded from:http://chromeinstitute.com/006_loadrunner
  3. Ref: http://osdir.com/ml/LR-LoadRunner/2011-10/msg00009.htmlJames Pulley profile: http://www.linkedin.com/in/loadrunnerbythehour
  4. Ref: http://osdir.com/ml/LR-LoadRunner/2011-10/msg00009.htmlJames Pulley profile: http://www.linkedin.com/in/loadrunnerbythehour
  5. Scenario Modification: Adding/ Removing Vusers, Real-life schedule, group or scenario configuration and execution etcDirect Revenue:LR Consultants making up to 85 USD per hourRef: http://www.hotgigs.com/rates/skill/LoadRunner-hourly-consultant-bill-rates/
  6. SQA – Software Quality Assurance/Dept.SQAAT – SQA - Automated Testing Teamhttp://answers.google.com/answers/threadview/id/555953.html
  7. Is not part of Load Testing, however, if downloading of HTML, javascript files or CSS fails because of non-responsiveness of Web Server, then it is a concern of Performance Testing.
  8. http://www.radiumtesting.blogspot.com/2008/03/whats-new-in-hp-loadrunner-software_14.html
  9. Vuser Script Sections Each Vuser script contains at least three sections: vuser_init, one or more Actions, and vuser_end. Before and during recording, you can select the section of the script into which VuGen will insert the recorded functions. The following table shows what to record into each section, and when each section is executed. You use the VuGen script editor to display and edit the contents of each of the script sections. You can display the contents of only a single section at a time. To display a section, highlight its name in the Sections box.
  10. HTML-Based Scripts The HTML based script option, which is the default recording mode, instructs VuGen to record HTML actions in the context of the current Web page. The actions are recorded as URL steps (web_url), link steps (web_link), image steps (web_image), and form submission steps (web_submit_form). VuGen records only the HTTP requests that return HTML pages, but not javascript or applications. /* HTML-based *//... web_link(&quot;Click Here For Additional Restrictions&quot;, &quot;Text=Click Here For Additional Restrictions&quot;, &quot;Snapshot=t4.inf&quot;, LAST); web_image(&quot;buttonhelp.gif&quot;, &quot;Src=/images/buttonhelp.gif&quot;, &quot;Snapshot=t5.inf&quot;, LAST); . . .
  11. Benefits of HTML Recording• Reduces need to capture dynamic values – action tag values and hidden data are NOT hard coded – they are retrieved from memory during playback – if they are dynamic, the Vuser still runs• Script is only as big as the business process–one step per pageDisadvantages of HTML Recording• Scripts are less scalable• Memory (cache) is searched during playback – requires more memory – requires more CPU powerBenefits of URL Recording• Flexibility – support for Java Applets and ActiveX objects on the page – ability to replay on Unix• Scalability – scripts are more scalable than HTML scripts because they require fewer resourcesDisadvantages of URL recording• Scripts require more correlation (nothing is retrieved from cache)• Context-sensitive checks won’t work (parser is disabled)*• Scripts are large (all images and frames are recorded as separate steps)
  12. Setting Advanced Recording Options Use the Advanced recording options tab to record custom headers, apply a content type filter, specify non-resources, and set the think-time threshold. Recording Think Time Think time emulates the time that a real user waits between actions. To record user think time, select Record think time. You can specify the minimum amount of time that a user waits that should be recorded as think time by defining a Think time threshold. For example, you can set the think time threshold to 5, so if a user waits for less than five seconds, think time is not recorded. Use the Think Time run-time settings to influence how the Vuser uses the recorded think time when you run the script. Reset Context for Each Action You can instructs VuGen to reset all HTTP contexts between Actions, to their states before the initial recording. This setting allows the Vuser to more accurately emulate a new user beginning a browsing session. It resets all cookies, closes all keep-alive connections, clears the cache, and resets the user-names and passwords. (enabled by default) Creating a Trace Log Select Full trace recording log to create a trace log during recording to use when debugging your script. (disabled by default) Recording Custom Headers Web Vusers automatically send several standard HTTP headers with every HTTP request submitted to the server. Click Headers to instruct VuGen to record additional HTTP headers. You can work in three modes: Do not Record Headers, Record Headers in list, or Record Headers not in list. When you work in the first mode, VuGen does not record any headers. In the second mode, VuGen only records the checked custom headers. If you specify Record headers not in list, VuGen records all custom headers except for those that are checked. By default, headers are not recorded.Filtering Content Type VuGen allows you to filter the content type for your recorded script. You specify the type of the content you wish to record or exclude from your script. You can work in three modes: Do not Filter Content Types, Exclude content types in list, or Exclude content types not in list. When you work in the first mode, VuGen does not filter any content type. In the second mode, VuGen only excludes the selected content types. If you specify Exclude content types not in list, VuGen filters all content type except for the ones that are checked. By default, no filters are active. Handling Non-HTML Resources Many Web pages contain non-HTML elements, such as applets, XML, or javascript. These elements usually contain or retrieve their own resources. For example, a javascriptjsfile, called from the recorded web page, may load several images. An applet may load an external text file. Using the Advanced options, you can control how VuGen records non-HTML elements. The following options are available: Do not record non-HTML elements Record non-HTM elements as separate functions Record non-HTML elements in current HTML function (default)
  13. Data gets relocated in the server’s cache when it is reused for each Vuser execution. As a result, server activity is not emulated during playback. While Vuser execution is successful, it will not produce test results meaningful for load testing because the server is not exercised. Using different data better emulates server activity and exercises the system. That improves the chances for meaningful load test results.A date that is hard-coded in the VUser during recording may no longer be valid when that date has passed. Parameterizing the date allows Vuser execution to succeed by replacing the hard-coded date.A field that uses unique data is constrained because the business process will not allow reuse of the data after it has been added to the system and processed.
  14. lr_output_message ( &quot;We are on iteration #%s&quot;, lr_eval_string ( &quot;{iteration}&quot; ) );
  15. Creating Parameters You create a parameter by specifying its name and type. There is no limit to the number of parameters you can create in a Vuser script. There is no limit to the number of records present in a parameter file, however, LR may show only first 100 parameters in view state. In Web Vuser scripts, you can create parameters in the text-based script view using the procedure below, or you can create parameters in the icon-based tree view.
  16. Creating Parameters You create a parameter by specifying its name and type. There is no limit to the number of parameters you can create in a Vuser script. In Web Vuser scripts, you can create parameters in the text-based script view using the procedure below, or you can create parameters in the icon-based tree view. To create a parameter: Right-click on the string to parameterize. The right-click pop-up menu opens. From the pop-up menu, select Replace with a Parameter. The Select or Create Parameter dialog box opens. Type a name for the parameter in the Parameter name box, or select an existing parameter name from the list. Select a parameter type from the Parameter type list. Click OK to close the Select or Create Parameter dialog box. VuGen replaces the selected string in your script with the name of the parameter, surrounded by angle brackets. To replace additional occurrences of the string with the same parameter, right-click on the parameter. From the pop-up menu, select Replace More Occurrences. The Search and Replace dialog box opens. The Find What box displays the value you want to replace. The Replace With box displays the parameter name in angle brackets. Select the appropriate check boxes for matching whole words or case. Click Replace or Replace All.
  17. Question: write benefits of correlation?
  18. The cause of this Vuser execution problem is that the dynamic value returned from the server was recorded and, therefore, was part of the Vuser script. When the script is played back, the Vuser attempts to reuse the recorded value, while the server is expecting another value, assigned for the current playback session.
  19. web_reg_save_param(&quot;OracleAppJSESSIONID3&quot;, &quot;LB/IC=JSESSIONID=&quot;, &quot;RB/IC=;&quot;, &quot;Ord=1&quot;, &quot;Search=headers&quot;, &quot;RelFrameId=1&quot;, LAST);web_reg_save_param(&quot;Siebel_Analytic_ViewState2&quot;, &quot;LB/IC=ViewState\&quot; value=\&quot;&quot;, &quot;RB/IC=\&quot;&quot;, &quot;Ord=1&quot;, &quot;Search=Body&quot;, &quot;RelFrameId=1&quot;, LAST);
  20. Emulate different Types of VUsers
  21. 1
  22. Ref: http://msdn.microsoft.com/en-us/library/ms731082.aspxWindows Communication Foundation (WCF) is a framework for building service-oriented applications. Using WCF, you can send data as asynchronous messages from one service endpoint to another. A service endpoint can be part of a continuously available service hosted by IIS, or it can be a service hosted in an application. An endpoint can be a client of a service that requests data from a service endpoint. The messages can be as simple as a single character or word sent as XML, or as complex as a stream of binary data. A few sample scenarios include:A secure service to process business transactions. A service that supplies current data to others, such as a traffic report or other monitoring service.A chat service that allows two people to communicate or exchange data in real time.A dashboard application that polls one or more services for data and presents it in a logical presentation. Exposing a workflow implemented using Windows Workflow Foundation as a WCF service.A Silverlight application to poll a service for the latest data feeds.
  23. You can instruct LoadRunner to execute a scenario or Vuser group with a delay. The time duration of a scenario or Vuser group can be limited. The scenario or Vuser group stops running after the elapse of this time.You can stipulate how many Vusers LoadRunner runs within a certain time frame during a scenario or Vuser group.
  24. i.e. no way to keep on fluctuating user ramp up/ramp down behavior
  25. Once a problem has been isolated, a corroborative effort involving developers, DBAs, network, and other systems experts is required to fix the bottleneck. After adjustments are made, the load test is repeated to confirm that the adjustments had the desired effect. You repeat this cycle to optimize system performance.
  26. http://www.radiumtesting.blogspot.com/2008/03/whats-new-in-hp-loadrunner-software_14.html
  27. http://www.ibm.com/developerworks/rational/library/4169.html
  28. http://www.radiumtesting.blogspot.com/2008/03/whats-new-in-hp-loadrunner-software_14.html
  29. Ref: http://forums.cpanel.net/f189/improving-ttfb-ttlb-206371.html
