1. Google Web Toolkit
Building Web Apps Sanely
Chris Ramsdale
Developer Relations, Google

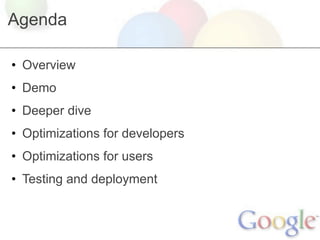

2. Agenda
• Overview
• Demo
• Deeper dive
• Optimizations for developers
• Optimizations for users
• Testing and deployment

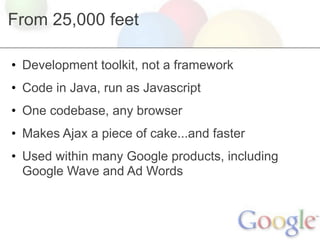

3. From 25,000 feet
• Development toolkit, not a framework
• Code in Java, run as Javascript
• One codebase, any browser
• Makes Ajax a piece of cake...and faster
• Used within many Google products, including
Google Wave and Ad Words

4. The GWT Family
GWT SDK Google Plugin Speed Tracer
For Eclipse

5. It’s a loving relationship

6. It’s a loving relationship
Develop

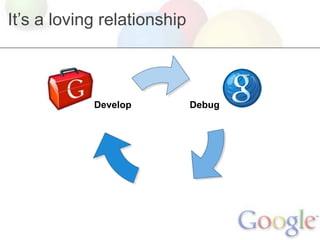

7. It’s a loving relationship
Develop Debug

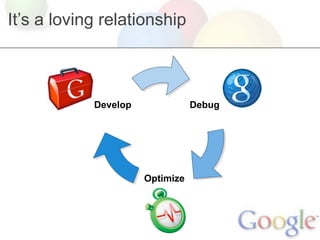

8. It’s a loving relationship
Develop Debug
Optimize

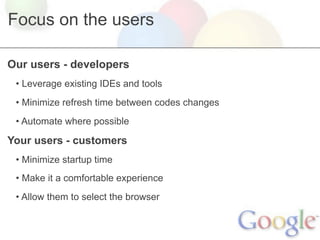

9. Focus on the users
Our users - developers
• Leverage existing IDEs and tools
• Minimize refresh time between codes changes
• Automate where possible
Your users - customers
• Minimize startup time
• Make it a comfortable experience
• Allow them to select the browser

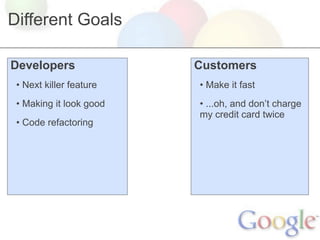

10. Different Goals
Developers Customers
• Next killer feature • Make it fast
• Making it look good • ...oh, and don’t charge
my credit card twice
• Code refactoring

11. Different Goals
Developers Customers
• Next killer feature • Make it fast
• Making it look good • ...oh, and don’t charge
my credit card twice
• Code refactoring

12. No plugins required
Silverlight
VML Flash

13. Nothing against them, but...
Foo Player not available for
your device
We restrict use of
technologies required by
products like Foo Player...

14. Quirkiness
Firefox Webkit (Safari) Opera IE
Typical portable 2876 ms 1276 ms 2053 ms 4078 ms
setInnerText()
textContent=... - 908 ms 1386 ms -
innerText=... 2477 ms 918 ms 1520 ms 2469 ms
DOM manipulation 7148 ms 1997 ms 4836 ms 14800 ms

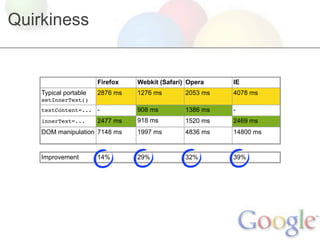

15. Quirkiness
Firefox Webkit (Safari) Opera IE
Typical portable 2876 ms 1276 ms 2053 ms 4078 ms
setInnerText()
textContent=... - 908 ms 1386 ms -
innerText=... 2477 ms 918 ms 1520 ms 2469 ms
DOM manipulation 7148 ms 1997 ms 4836 ms 14800 ms
Improvement 14% 29% 32% 39%

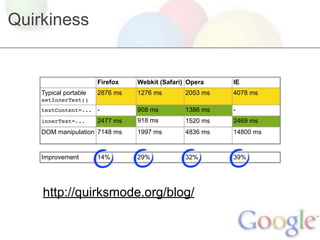

16. Quirkiness
Firefox Webkit (Safari) Opera IE
Typical portable 2876 ms 1276 ms 2053 ms 4078 ms
setInnerText()
textContent=... - 908 ms 1386 ms -
innerText=... 2477 ms 918 ms 1520 ms 2469 ms
DOM manipulation 7148 ms 1997 ms 4836 ms 14800 ms
Improvement 14% 29% 32% 39%
http://quirksmode.org/blog/

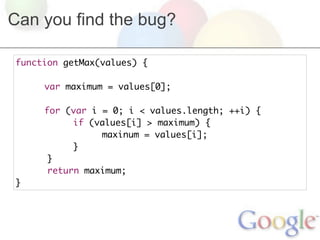

17. Can you find the bug?
function getMax(values) {
var maximum = values[0];
for (var i = 0; i < values.length; ++i) {
if (values[i] > maximum) {
maxinum = values[i];
}
}
return maximum;
}

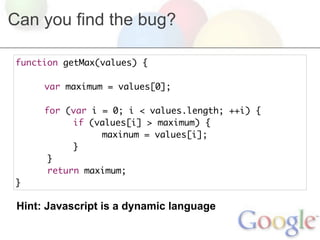

18. Can you find the bug?
function getMax(values) {
var maximum = values[0];
for (var i = 0; i < values.length; ++i) {
if (values[i] > maximum) {
maxinum = values[i];
}
}
return maximum;
}
Hint: Javascript is a dynamic language

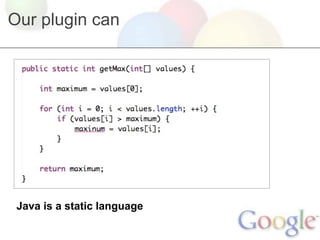

19. Our plugin can
Java is a static language

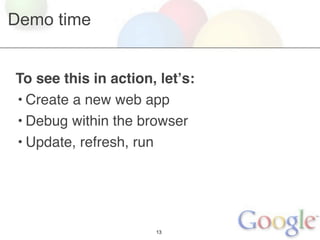

20. Demo time
To see this in action, letʼs:
• Create a new web app
• Debug within the browser
• Update, refresh, run
13

21. Simple enough.
14

22. He’s an Ajax pro
15

23. A Java to Javascript compiler right?
16

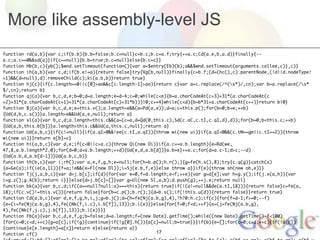

24. More like assembly-level JS
function rd(a,b){var c;if(b.b){b.b=false;b.c=null}c=b.c;b.c=a.f;try{++a.c;Cd(a.e,b,a.d)}finally{--
a.c;a.c==0&&sd(a)}if(c==null){b.b=true;b.c=null}else{b.c=c}}
function Hb(b,c){yb();$wnd.setTimeout(function(){var a=$entry(Eb)(b);a&&$wnd.setTimeout(arguments.callee,c)},c)}
function ih(a,b){var c,d;if(b.e!=a){return false}try{Vg(b,null)}finally{c=b.f;(d=(hc(),c).parentNode,(!d||d.nodeType!
=1)&&(d=null),d).removeChild(c);ki(a.b,b)}return true}
function hj(c){if(c.length==0||c[0]>ao&&c[c.length-1]>ao){return c}var a=c.replace(/^(s*)/,cn);var b=a.replace(/s*
$/,cn);return b}
function qj(a){var b,c,d,e;b=0;d=a.length;e=d-4;c=0;while(c<e){b=a.charCodeAt(c+3)+31*(a.charCodeAt(c
+2)+31*(a.charCodeAt(c+1)+31*(a.charCodeAt(c)+31*b)))|0;c+=4}while(c<d){b=b*31+a.charCodeAt(c++)}return b|0}
function Bj(a){var b,c,d,e;e=this.v();a.length<e&&(a=Pd(a,e));d=a;c=this.p();for(b=0;b<e;++b)
{Ud(d,b,c.s())}a.length>e&&Ud(a,e,null);return a}
function xl(a){var b,c,d;a.length<this.c&&(a=(c=a,d=Qd(0,this.c),Sd(c.aC,c.tI,c.qI,d),d));for(b=0;b<this.c;++b)
{Ud(a,b,this.b[b])}a.length>this.c&&Ud(a,this.c,null);return a}
function Ud(a,b,c){if(c!=null){if(a.qI>0&&!ee(c.tI,a.qI)){throw wi(new ui)}if(a.qI<0&&(c.tM==gm||c.tI==2)){throw
wi(new ui)}}return a[b]=c}
function hi(a,b,c){var d,e;if(c<0||c>a.c){throw Qi(new Oi)}if(a.c==a.b.length){e=Rd(we,
47,8,a.b.length*2,0);for(d=0;d<a.b.length;++d){Ud(e,d,a.b[d])}a.b=e}++a.c;for(d=a.c-1;d>c;--d)
{Ud(a.b,d,a.b[d-1])}Ud(a.b,c,b)}
function th(b,c){var i;rh();var a,e,f,g,h;e=null;for(h=b.p();h.r();){g=fe(h.s(),8);try{c.q(g)}catch(a)
{a=Ge(a);if(ie(a,11)){f=a;!e&&(e=Fl(new Dl));i=Sj(e.b,f,e)}else throw a}}if(e){throw sh(new oh,e)}}
function Tj(j,a,b,c){var d=j.b[c];if(d){for(var e=0,f=d.length;e<f;++e){var g=d[e];var h=g.y();if(j.x(a,h)){var
i=g.z();g.A(b);return i}}}else{d=j.b[c]=[]}var g=Ul(new Sl,a,b);d.push(g);++j.e;return null}
function bk(a){var b,c,d;if((a==null?null:a)===this){return true}if(!(a!=null&&de(a.tI,18))){return false}c=fe(a,
18);if(c.v()!=this.v()){return false}for(b=c.p();b.r();){d=b.s();if(!this.u(d)){return false}}return true}
function Cd(a,b,c){var d,e,f,g,h,i,j;g=b.j();d=(h=fe(Nj(a.b,g),4),!h?0:h.c);if(c){for(f=d-1;f>=0;--f)
{e=(i=fe(Nj(a.b,g),4),fe((Nk(f,i.c),i.b[f]),13));b.i(e)}}else{for(f=0;f<d;++f){e=(j=fe(Nj(a.b,g),
4),fe((Nk(f,j.c),j.b[f]),13));b.i(e)}}}
function Fb(a){var b,c,d,e,f,g;b=false;d=a.length;f=(new Date).getTime();while((new Date).getTime()-f<100)
{for(c=0;c<d;++c){g=a[c];if(!g){continue}if(!g[0].h()){a[c]=null;b=true}}}if(b){e=[];for(c=0;c<d;++c){if(!a[c])
{continue}e[e.length]=a[c]}return e}else{return a}}
function cf() 17

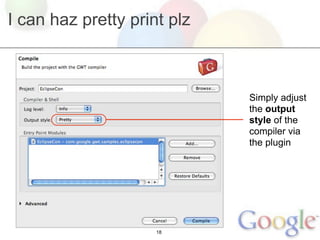

25. I can haz pretty print plz
Simply adjust
the output
style of the
compiler via
the plugin
18

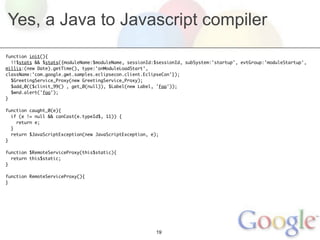

26. Yes, a Java to Javascript compiler
function init(){
!!$stats && $stats({moduleName:$moduleName, sessionId:$sessionId, subSystem:'startup', evtGroup:'moduleStartup',
millis:(new Date).getTime(), type:'onModuleLoadStart',
className:'com.google.gwt.samples.eclipsecon.client.EclipseCon'});
$GreetingService_Proxy(new GreetingService_Proxy);
$add_0(($clinit_99() , get_0(null)), $Label(new Label, 'Foo'));
$wnd.alert('foo');
}
function caught_0(e){
if (e != null && canCast(e.typeId$, 11)) {
return e;
}
return $JavaScriptException(new JavaScriptException, e);
}
function $RemoteServiceProxy(this$static){
return this$static;
}
function RemoteServiceProxy(){
}
19

27. But wait...thereʼs more
20

28. Let’s take a look under
the hood
21

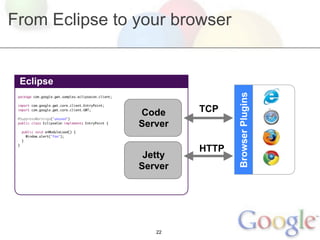

29. From Eclipse to your browser
Eclipse
Browser Plugins
package com.google.gwt.samples.eclipsecon.client;
TCP
import com.google.gwt.core.client.EntryPoint;
import com.google.gwt.core.client.GWT;
@SuppressWarnings("unused")
Code
public class EclipseCon implements EntryPoint {
Server
public void onModuleLoad() {
Window.alert("foo");
}
HTTP
}
Jetty
Server
22

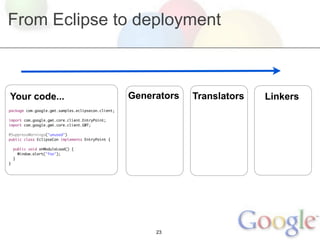

30. From Eclipse to deployment
Your code... Generators Translators Linkers
package com.google.gwt.samples.eclipsecon.client;
import com.google.gwt.core.client.EntryPoint;
import com.google.gwt.core.client.GWT;
@SuppressWarnings("unused")
public class EclipseCon implements EntryPoint {
public void onModuleLoad() {
Window.alert("foo");
}
}
23

31. From Eclipse to deployment
Your code... Generators Translators Linkers
package com.google.gwt.samples.eclipsecon.client;
import com.google.gwt.core.client.EntryPoint;
import com.google.gwt.core.client.GWT;
@SuppressWarnings("unused")
public class EclipseCon implements EntryPoint {
public void onModuleLoad() {
Window.alert("foo");
}
}
24

32. Generators Provide the power behind your
GWT app
Automate away boilerplate code
Foundation for permutations
25

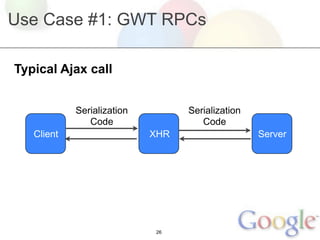

33. Use Case #1: GWT RPCs
Typical Ajax call
Serialization Serialization
Code Code
Client XHR Server
26

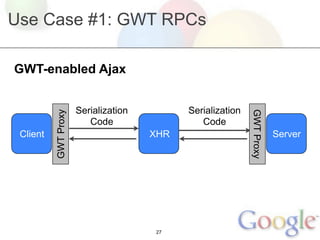

34. Use Case #1: GWT RPCs
GWT-enabled Ajax
Serialization Serialization
GWT Proxy
GWT Proxy
Code Code
Client XHR Server
27

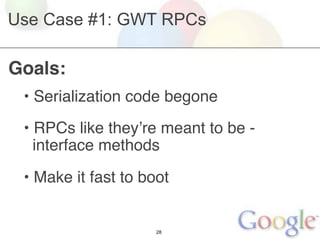

35. Use Case #1: GWT RPCs
Goals:
• Serialization code begone
• RPCs like theyʼre meant to be -
interface methods
• Make it fast to boot
28

36. Use Case #1: GWT RPCs
You write code that looks like this:
@RemoteServiceRelativePath("suggest")
public interface SuggestService extends RemoteService {
String getSuggestions(String str) throws IllegalArgumentException;
}
29

37. Use Case #2: Creating UIs
Goals:
• Utilize common dev practices
• Minimize boilerplate code
interface methods
• Remove a few other frustrations
along the way
30

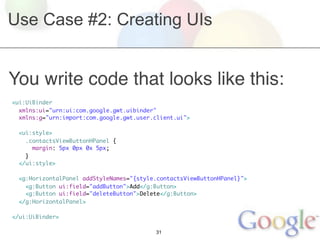

38. Use Case #2: Creating UIs
You write code that looks like this:
<ui:UiBinder
xmlns:ui="urn:ui:com.google.gwt.uibinder"
xmlns:g="urn:import:com.google.gwt.user.client.ui">
<ui:style>
.contactsViewButtonHPanel {
margin: 5px 0px 0x 5px;
}
</ui:style>
<g:HorizontalPanel addStyleNames="{style.contactsViewButtonHPanel}">
<g:Button ui:field="addButton">Add</g:Button>
<g:Button ui:field="deleteButton">Delete</g:Button>
</g:HorizontalPanel>
</ui:UiBinder>
31

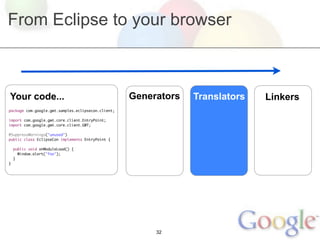

39. From Eclipse to your browser
Your code... Generators Translators Linkers
package com.google.gwt.samples.eclipsecon.client;
import com.google.gwt.core.client.EntryPoint;
import com.google.gwt.core.client.GWT;
@SuppressWarnings("unused")
public class EclipseCon implements EntryPoint {
public void onModuleLoad() {
Window.alert("foo");
}
}
32

40. Java
Javascript
33

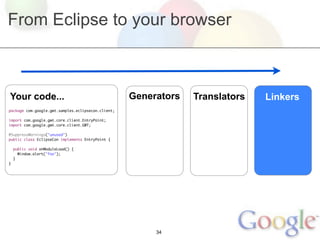

41. From Eclipse to your browser
Your code... Generators Translators Linkers
package com.google.gwt.samples.eclipsecon.client;
import com.google.gwt.core.client.EntryPoint;
import com.google.gwt.core.client.GWT;
@SuppressWarnings("unused")
public class EclipseCon implements EntryPoint {
public void onModuleLoad() {
Window.alert("foo");
}
}
34

42. Entry points for your GWT app
35

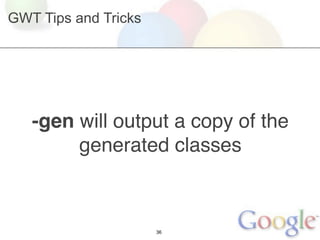

43. GWT Tips and Tricks
-gen will output a copy of the
generated classes
36

44. Question: What’s up with those compile times?
37

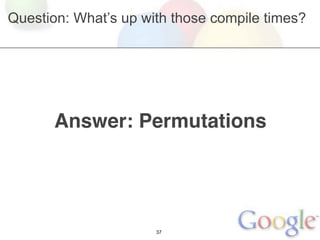

45. Question: What’s up with those compile times?
Answer: Permutations
37

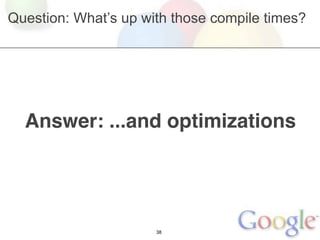

46. Question: What’s up with those compile times?
Answer: ...and optimizations
38

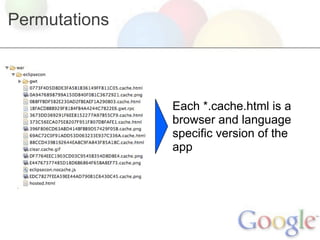

47. Permutations
Each *.cache.html is a
browser and language
specific version of the
app

48. Permutations
They’re a matrix, and will
grow fast

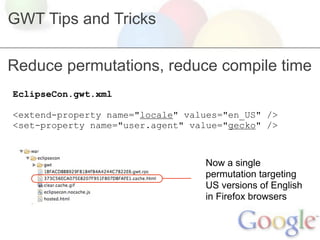

49. GWT Tips and Tricks
Reduce permutations, reduce compile time
EclipseCon.gwt.xml
<extend-property name="locale" values="en_US" />
<set-property name="user.agent" value="gecko" />
Now a single
permutation targeting
US versions of English
in Firefox browsers

50. GWT Tips and Tricks
Reduce optimizations, reduce compile time
-draftCompile
• Skip all optimizations
• Development only

51. GWT Tips and Tricks
Reduce optimizations, reduce compile time
-draftCompile
• Skip all optimizations
• Development only
Why worry about compiling at all?

52. Is it done yet?

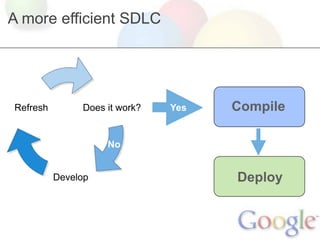

53. A more efficient SDLC
Refresh Does it work? Yes Compile
No
Develop Deploy

54. We’re happy
45

55. But what about
our users?
46

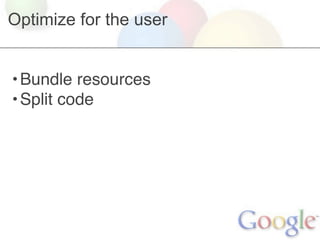

56. Optimize for the user
• Bundle resources
• Split code

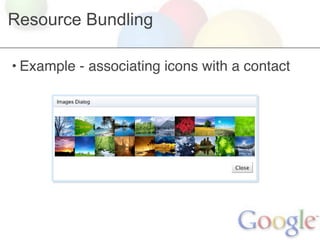

57. Resource Bundling
• Example - associating icons with a contact

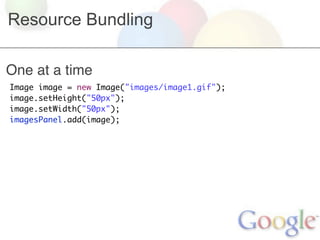

58. Resource Bundling
One at a time
Image image = new Image("images/image1.gif");
image.setHeight("50px");
image.setWidth("50px");
imagesPanel.add(image);

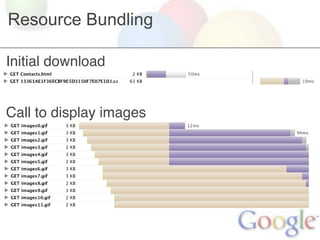

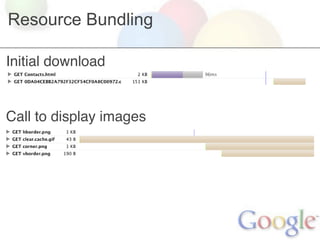

59. Resource Bundling
Initial download
Call to display images

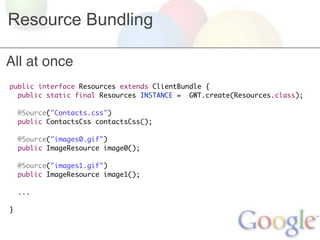

60. Resource Bundling
All at once
public interface Resources extends ClientBundle {
public static final Resources INSTANCE = GWT.create(Resources.class);
@Source("Contacts.css")
public ContactsCss contactsCss();
@Source("images0.gif")
public ImageResource image0();
@Source("images1.gif")
public ImageResource image1();
...
}

61. Resource Bundling
Initial download
Call to display images

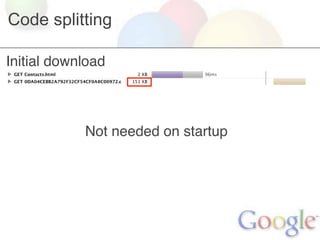

62. Code splitting
Initial download
Not needed on startup

63. Code splitting
Split points - runAsync()
@UiHandler("showImagesButton")
void onOkClicked(ClickEvent event) {
GWT.runAsync(new RunAsyncCallback() {
public void onSuccess() {
showImagesDialog();
}
});
}

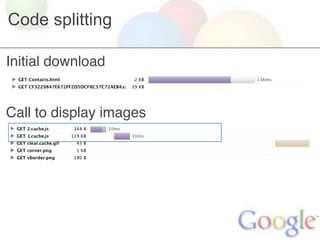

64. Code splitting
Initial download
Call to display images

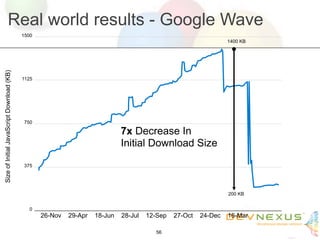

65. Real world results - Google Wave
1500
1400 KB
Size of Initial JavaScript Download (KB)
1125
750
7x Decrease In
Initial Download Size
375
200 KB
0
26-Nov 29-Apr 18-Jun 28-Jul 12-Sep 27-Oct 24-Dec 16-Mar
56

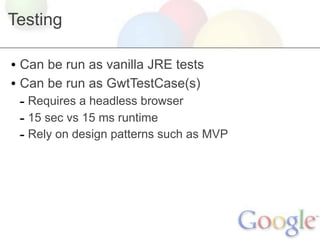

66. Testing
• Can be run as vanilla JRE tests
• Can be run as GwtTestCase(s)
- Requires a headless browser
- 15 sec vs 15 ms runtime
- Rely on design patterns such as MVP

67. Deployment and App Engine

68. Deployment and App Engine
Stick around for the next talk

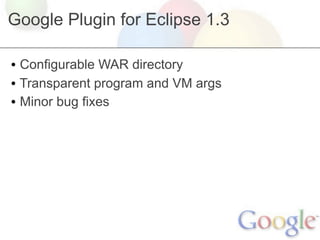

69. Google Plugin for Eclipse 1.3
• Configurable WAR directory
• Transparent program and VM args
• Minor bug fixes

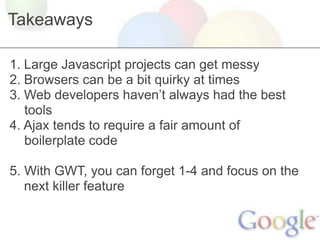

70. Takeaways
1. Large Javascript projects can get messy
2. Browsers can be a bit quirky at times
3. Web developers haven’t always had the best
tools
4. Ajax tends to require a fair amount of
boilerplate code
5. With GWT, you can forget 1-4 and focus on the
next killer feature

71. </presentation>
Chris Ramsdale
cramsdale@google.com
Twitter: @cramsdale
http://googlewebtoolkit.blogspot.com/
