1. Yonatan Levin
Android
Academy

2. How to create great apps
that also working well

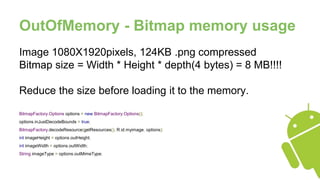

3. OutOfMemory - Bitmap memory usage
Image 1080X1920pixels, 124KB .png compressed
Bitmap size = Width * Height * depth(4 bytes) = 8 MB!!!!
Reduce the size before loading it to the memory.
BitmapFactory.Options options = new BitmapFactory.Options();
options.inJustDecodeBounds = true;
BitmapFactory.decodeResource(getResources(), R.id.myimage, options);
int imageHeight = options.outHeight;
int imageWidth = options.outWidth;
String imageType = options.outMimeType;

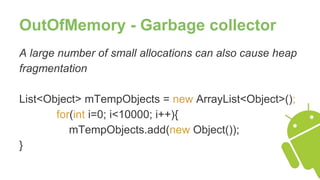

4. OutOfMemory - Garbage collector
A large number of small allocations can also cause heap
fragmentation
List<Object> mTempObjects = new ArrayList<Object>();
for(int i=0; i<10000; i++){
mTempObjects.add(new Object());
}

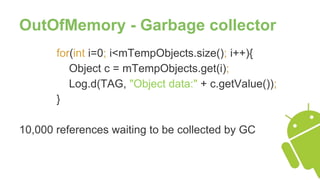

5. OutOfMemory - Garbage collector
for(int i=0; i<mTempObjects.size(); i++){
Object c = mTempObjects.get(i);
Log.d(TAG, "Object data:" + c.getValue());
}
10,000 references waiting to be collected by GC

6. OutOfMemory - Garbage collector
“To improve is to change; to be perfect is to change often.” – Winston Churchill
Object c;
for(int i=0; i<mTempObjects.size(); i++){
c = mTempObjects.get(i);
Log.d(TAG, "Object data:" + c.getValue());
}

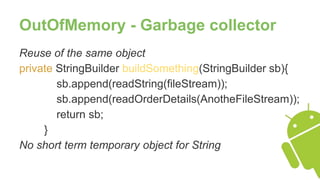

7. OutOfMemory - Garbage collector
Reuse of the same object
private StringBuilder buildSomething(StringBuilder sb){
sb.append(readString(fileStream));
sb.append(readOrderDetails(AnotheFileStream));
return sb;
}
No short term temporary object for String

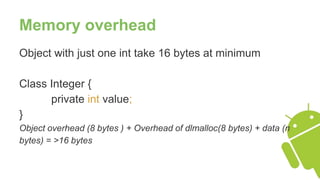

8. Memory overhead
Object with just one int take 16 bytes at minimum
Class Integer {
private int value;
}
Object overhead (8 bytes ) + Overhead of dlmalloc(8 bytes) + data (n
bytes) = >16 bytes

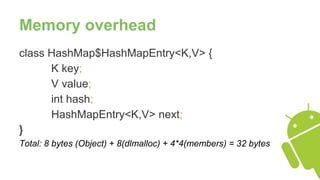

9. Memory overhead
class HashMap$HashMapEntry<K,V> {
K key;
V value;
int hash;
HashMapEntry<K,V> next;
}
Total: 8 bytes (Object) + 8(dlmalloc) + 4*4(members) = 32 bytes

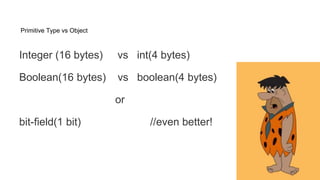

10. Primitive Type vs Object
Integer (16 bytes) vs int(4 bytes)
Boolean(16 bytes) vs boolean(4 bytes)
or
bit-field(1 bit) //even better!

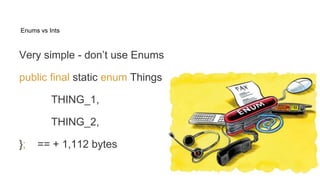

11. Enums vs Ints
Very simple - don’t use Enums
public final static enum Things {
THING_1,
THING_2,
}; == + 1,112 bytes

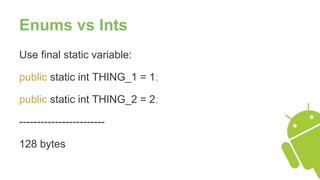

12. Enums vs Ints
Use final static variable:
public static int THING_1 = 1;
public static int THING_2 = 2;
------------------------
128 bytes

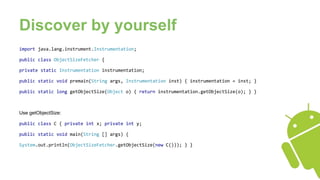

13. Discover by yourself
import java.lang.instrument.Instrumentation;
public class ObjectSizeFetcher {
private static Instrumentation instrumentation;
public static void premain(String args, Instrumentation inst) { instrumentation = inst; }
public static long getObjectSize(Object o) { return instrumentation.getObjectSize(o); } }
Use getObjectSize:
public class C { private int x; private int y;
public static void main(String [] args) {
System.out.println(ObjectSizeFetcher.getObjectSize(new C())); } }

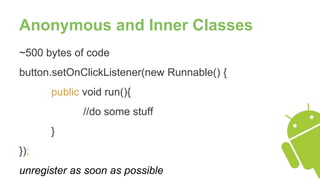

14. Anonymous and Inner Classes
~500 bytes of code
button.setOnClickListener(new Runnable() {
public void run(){
//do some stuff
}
});
unregister as soon as possible

15. Service
- Very usefull, but overused.
- Bind to Lifecycle
- Stop it when no need.
- Use IntentService instead (will stop when job is done)

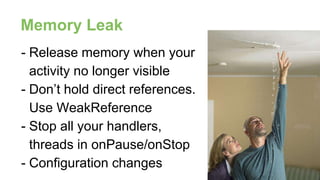

16. - Release memory when your
activity no longer visible
- Don’t hold direct references.
Use WeakReference
- Stop all your handlers,
threads in onPause/onStop
- Configuration changes
Memory Leak

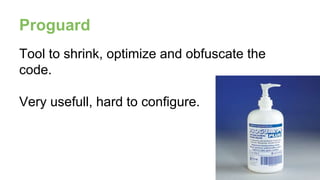

17. Proguard
Tool to shrink, optimize and obfuscate the
code.
Very usefull, hard to configure.

18. levinyon@gmail.com
https://plus.google.com/+YonatanLevin
