This document summarizes PayPal's risk platform architecture. It discusses how PayPal processes over 1 billion payments per year using an asynchronous architecture for its risk data access layer (DAL) service. The async solution improved latency, throughput, CPU and memory usage compared to the synchronous approach. Future plans include further optimizing the async DAL service, RPC, and in-memory data access. The goal is to process payments at tremendous scale with low latency and system load through an event-driven and highly reusable architecture.

1. PayPal Risk Platform
High Performance Practice
Ling ZhiJun (Brian Ling)

2. 2017 Software Architecture Summit
AGENDA
PayPal & PayPal Risk (Platform)
Risk DAL Service Challenge
Async Solution
Async Future Plan

3. 2017 Software Architecture Summit
AGENDA
PayPal & PayPal Risk (Platform)
Risk DAL Service Challenge
Async Solution
Async Future Plan

4. 2017 Software Architecture Summit
TPV/day
~1
BILLIONpayments/year
6.1
BILLIO
N
Computation/day
~20
Billion
Active Customer
Accounts
210M
petabytes of
data
105
Queries/ day
250
Billion
PayPal operates
one of the largest
Online
Payment
in the world
0.32%
Loss Rate
The power of
our platform
Our technology transformation enables us to:
• Process payments at tremendous scale (200+ countries & 25currencies
supported)
• Accelerate the innovation of new products
• Engage world-class developers & technologists
PayPal Overview

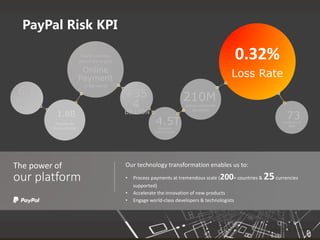

5. 2017 Software Architecture Summit
TPV
+35
4
BILLION
payments/year
6.1
BILLIO
N
payments/
second at peak
1.8B
active customer
accounts
210M
petabytes of
data
73
database
calls/ quarter
4.5T
PayPal operates
one of the largest
Online
Payment
in the world
0.32%
Loss Rate
The power of
our platform
Our technology transformation enables us to:
• Process payments at tremendous scale (200+ countries & 25currencies
supported)
• Accelerate the innovation of new products
• Engage world-class developers & technologists
PayPal Risk KPI
Payments
transactions

6. Requirement for Risk Platform
Accuracy vs Latency Low Latency + Hardware Investment
Vs Large Throughput

7. 2017 Software Architecture Summit
PayPal Risk Platform Architecture
Online
Offline
DAL
Service
Real-time
Compute Data
Offline
Generated Data
Model +
Variable
Computation
Service
Decision
Service
Variable Rollup
Service
Logging System/ ETL
Read
Path
Write
Path
Gateway
Service
Offline
Generated Data
Simulated
Real-time
Data
Offline Variable
Simulation
PlatformModel
Training
Platform Offline Variable
Aggregation
Service

8. 2017 Software Architecture Summit
PayPal Risk Platform Architecture
Online
Offline
DAL
Service
Offline
Generated Data
Real-time
Compute Data
Model +
Variable
Computation
Service
Decision
Service
Variable
Aggregation
Service
Logging System/ ETL
Read
Path
Write
Path
Gateway
Service
Offline
Generated Data
Simulated
Real-time
Data
Offline Variable
Simulation
PlatformModel
Training
Platform Offline Variable
Aggregation
Service

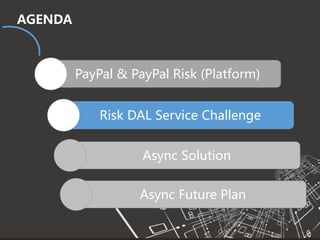

9. 2017 Software Architecture Summit
AGENDA
PayPal & PayPal Risk (Platform)
Risk DAL Service Challenge
Async Solution
Async Future Plan

10. DAL Service Ultimate Questions
JVM-Based High Performance & ATB DAL Service
<100ms P99.99 Latency ??
For single instance, 20k-30k Peak TPS ??
• 99.99% Availability-To-Business??

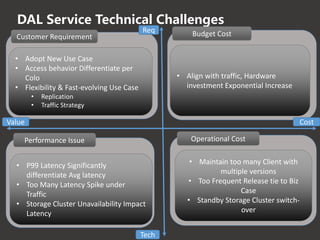

11. DAL Service Technical Challenges
Budget Cost
• Align with traffic, Hardware
investment Exponential Increase
Performance Issue
• P99 Latency Significantly
differentiate Avg latency
• Too Many Latency Spike under
Traffic
• Storage Cluster Unavailability Impact
Latency
Customer Requirement
• Adopt New Use Case
• Access behavior Differentiate per
Colo
• Flexibility & Fast-evolving Use Case
• Replication
• Traffic Strategy
Operational Cost
• Maintain too many Client with
multiple versions
• Too Frequent Release tie to Biz
Case
• Standby Storage Cluster switch-
over
Req
Tech
Value Cost

12. 2017 Software Architecture Summit
AGENDA
PayPal & PayPal Risk (Platform)
Risk DAL Service Challenge
Async Solution
Async Future Plan

13. 2017 Software Architecture Summit

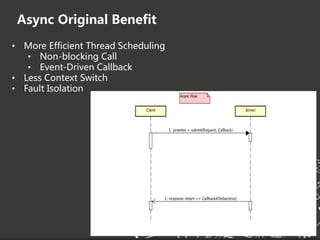

Async Original Benefit
• More Efficient Thread Scheduling
• Non-blocking Call
• Event-Driven Callback
• Less Context Switch
• Fault Isolation

14. 2017 Software Architecture Summit
Reactor Pattern Threading Model

15. 2017 Software Architecture Summit

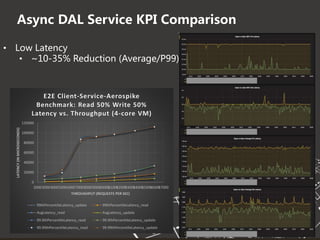

Async DAL Service KPI Comparison
• Low Latency
• ~10-35% Reduction (Average/P99)
0
20000
40000
60000
80000
100000
120000
200030004000500060007000800090001000011000120001300014000150001600017000
LATENCY(INMICROSECONDS)
THROUGHPUT (REQUESTS PER SEC)
E2E Client-Service-Aerospike
Benchmark: Read 50% Write 50%
Latency vs. Throughput (4-core VM)
99thPercentileLatency_update 99thPercentileLatency_read
AvgLatency_read AvgLatency_update
99.9thPercentileLatency_read 99.9thPercentileLatency_update
99.99thPercentileLatency_read 99.99thPercentileLatency_update

16. 2017 Software Architecture Summit
Async DAL Service KPI Comparison – Cont.
• High Throughput
• 3-10X Increase (Single Instance Comparison)

17. 2017 Software Architecture Summit
Async DAL Service KPI Comparison – Cont.
• Less CPU Usage
• 50% CPU Usage Reduction
• 66%+ Reduction for Context Switch & System Interrupts

18. 2017 Software Architecture Summit
Async DAL Service KPI Comparison – Cont.
• Less Thread Pool
• 90% Reduction for Thread pool number
0
20
40
60
80
100
120
140
160
180
200
Server RPC Thread Operation Thread Replication Thread Management Thread
9
0 0 2
200
14
40
2
Thread Number Comparison
Async Sync

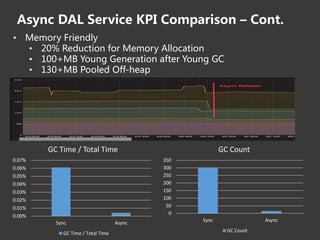

19. Async DAL Service KPI Comparison – Cont.
• Memory Friendly
• 20% Reduction for Memory Allocation
• 100+MB Young Generation after Young GC
• 130+MB Pooled Off-heap
0.00%
0.01%
0.02%
0.03%
0.04%
0.05%
0.06%
0.07%
Sync Async
GC Time / Total Time
GC Time / Total Time
0
50
100
150
200
250
300
350
Sync Async
GC Count
GC Count

20. We Have ONE Async Dream
• Reform Application Charter from CPU-bound Charter to IO-
bound
• Traffic Throughput (non-)linear growth with CPU Usage
• By guarantee Low Latency, Taking 20-30K TPS with 500MB
JVM Heap (After young GC)
• Cloud Friendly Application
• Less Hardware Investment
• Low Operational Cost
• Easy Capacity Estimation

21. High Performance Design
E2E Async • Non-blocking Pipeline: Async
RPC + Async DataAccess
Less is More • Shared ThreadPool OVER
Separate ThreadPool
• Inline Execution over
Execution cross Multiple
Thread Pool
Autonomous Memory
Management
• Use Off-Heap as much as
possible
（inbound/outbound &
[de]serialization）
• Release Inbound Memory At
earlier stage (submitRequest)

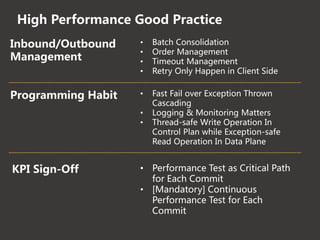

22. High Performance Good Practice
• Performance Test as Critical Path
for Each Commit
• [Mandatory] Continuous
Performance Test for Each
Commit
Inbound/Outbound
Management
• Batch Consolidation
• Order Management
• Timeout Management
• Retry Only Happen in Client Side
Programming Habit • Fast Fail over Exception Thrown
Cascading
• Logging & Monitoring Matters
• Thread-safe Write Operation In
Control Plan while Exception-safe
Read Operation In Data Plane
KPI Sign-Off

23. Async High Level Architecture
Real Time Data Service
Data Set Clients
Data Set 1
Client
Data Set N
Client
Data Set Schema
Data Access API Metadata API Generic Configuration API
KV Store APIClient
Server
Biz logic
HTTP(s) RPC Client
HTTP(s) RPC Server
KV Store API
Generic logic
Schema-less
Read
KV Store
Metadata namespace Data set namespace
Configuration
namespace
Direct access
Service access
Store/Cache

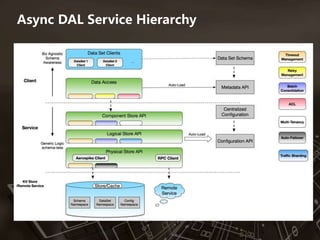

24. Async DAL Service Hierarchy

25. Async Data Access Maturity
• Client& Server RoR Identification
• biz-schema aware on Client Side
• Schema-less on Sever Side
• Traffic Sharding & Routing
• Active-Active/Active-Standby
• Auto-Failover
• Multi-Tenancy
• ACL
• Direct/Service-To-Service Replication
… ....
• Source-of-Truth for Online Guideline &
Offline Inventory
• Centralized Configuration
• Zero Restart/Auto-Fresh
DAL Service Feature
Metadata Driven
Data Access
Mapping
DataSet => KV Mapping
Logical => Physical DataSet Mapping

26. 2017 Software Architecture Summit
Async RPC Control Plane Abstraction

27. 2017 Software Architecture Summit

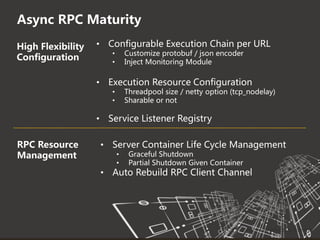

Async RPC Maturity
• Configurable Execution Chain per URL
• Customize protobuf / json encoder
• Inject Monitoring Module
• Execution Resource Configuration
• Threadpool size / netty option (tcp_nodelay)
• Sharable or not
• Service Listener Registry
• Server Container Life Cycle Management
• Graceful Shutdown
• Partial Shutdown Given Container
• Auto Rebuild RPC Client Channel
High Flexibility
Configuration
RPC Resource
Management

28. Async RPC Embrace Async DataAccess

29. Async Core Value
• Low Latency + High Throughput
• Low System Load
• SLA Isolation
• Understand Performance Contribution More
• Zero Code Change + Zero Release (new case
on-board)
• Minimize new DB Storage Integration Effort
• Lego-Style Customization
• Highly Reusable Functionality
High Performance
Easy Adoption
Cost Saving • Less Hardware Investment
• Loose Constraint for Hardware/VM SKU
High Flexibility
Configuration
• Execution Chain per URL (RPC)
• DataAccess Storage & Option [consistency &
ttl]
• Traffic Routing Strategy
• Replication Strategy

30. 2017 Software Architecture Summit

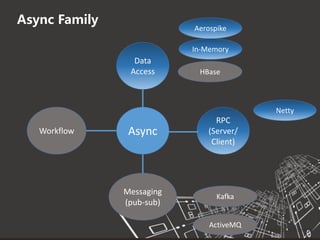

Async Family
Async
Data
Access
RPC
(Server/
Client)
In-Memory
Aerospike
Workflow
Messaging
(pub-sub)
Kafka
ActiveMQ
Netty
HBase

31. 2017 Software Architecture Summit
AGENDA
PayPal & PayPal Risk (Platform)
Risk DAL Service Challenge
Async Solution
Async Future Plan

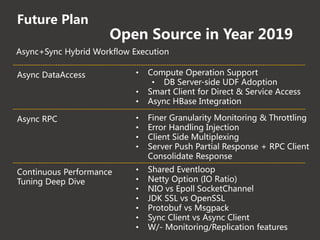

32. Future Plan
• Shared Eventloop
• Netty Option (IO Ratio)
• NIO vs Epoll SocketChannel
• JDK SSL vs OpenSSL
• Protobuf vs Msgpack
• Sync Client vs Async Client
• W/- Monitoring/Replication features
Async DataAccess • Compute Operation Support
• DB Server-side UDF Adoption
• Smart Client for Direct & Service Access
• Async HBase Integration
Async RPC • Finer Granularity Monitoring & Throttling
• Error Handling Injection
• Client Side Multiplexing
• Server Push Partial Response + RPC Client
Consolidate Response
Async+Sync Hybrid Workflow Execution
Continuous Performance
Tuning Deep Dive
Open Source in Year 2019
