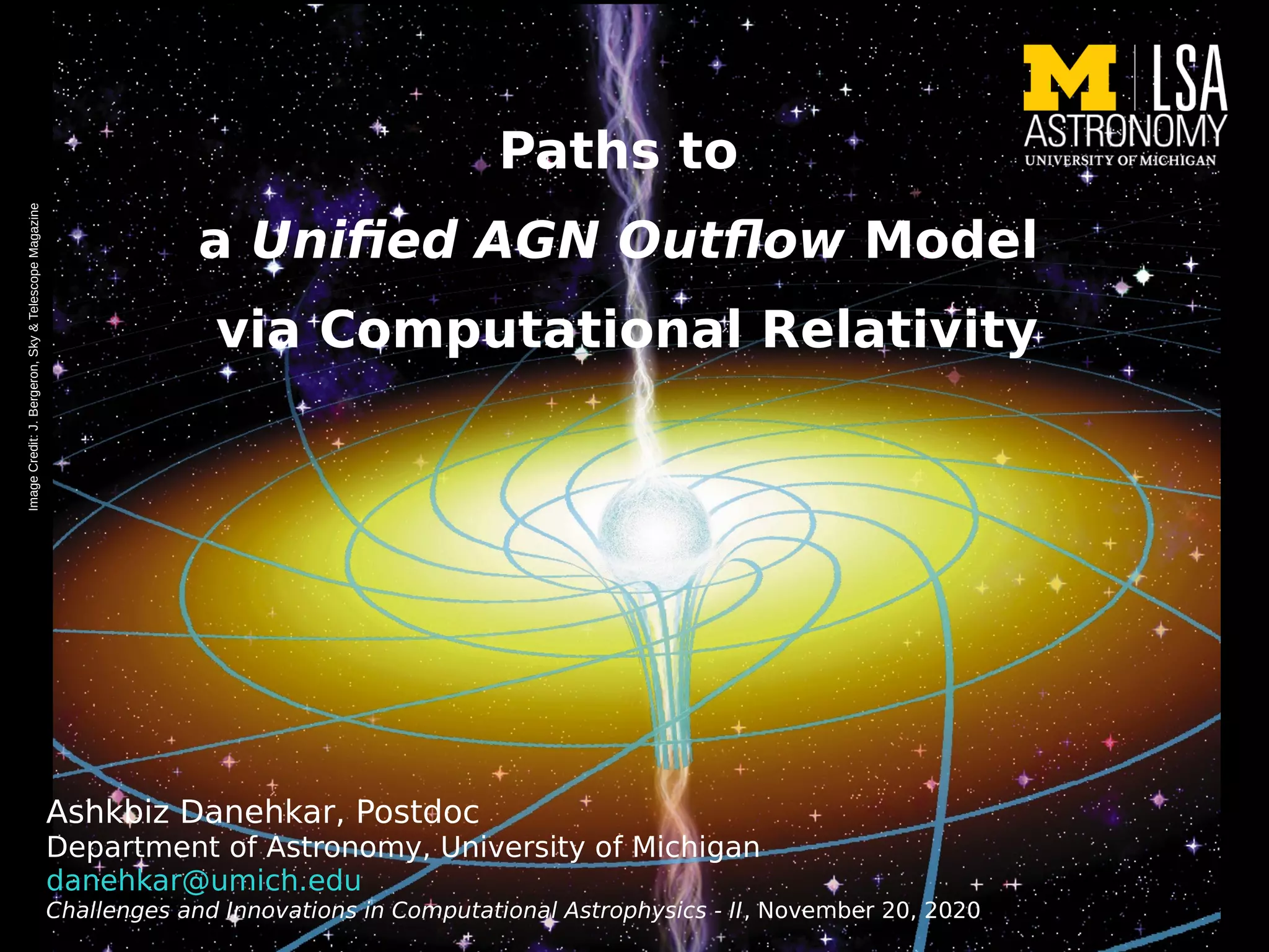

Paths to a Unified AGN Outflow Model via Computational Relativity
1. Paths to
a Unified AGN Outflow Model
via Computational Relativity
Ashkbiz Danehkar, Postdoc
Department of Astronomy, University of Michigan
danehkar@umich.edu
Challenges and Innovations in Computational Astrophysics - II, November 20, 2020
Credit:
J.
Bergeron,
Sky
&
Telescope
Magazine
Credit:
J.
Bergeron,
Sky
&
Telescope
Magazine
2. 20/11/2020 Computational Astrophysics II
2

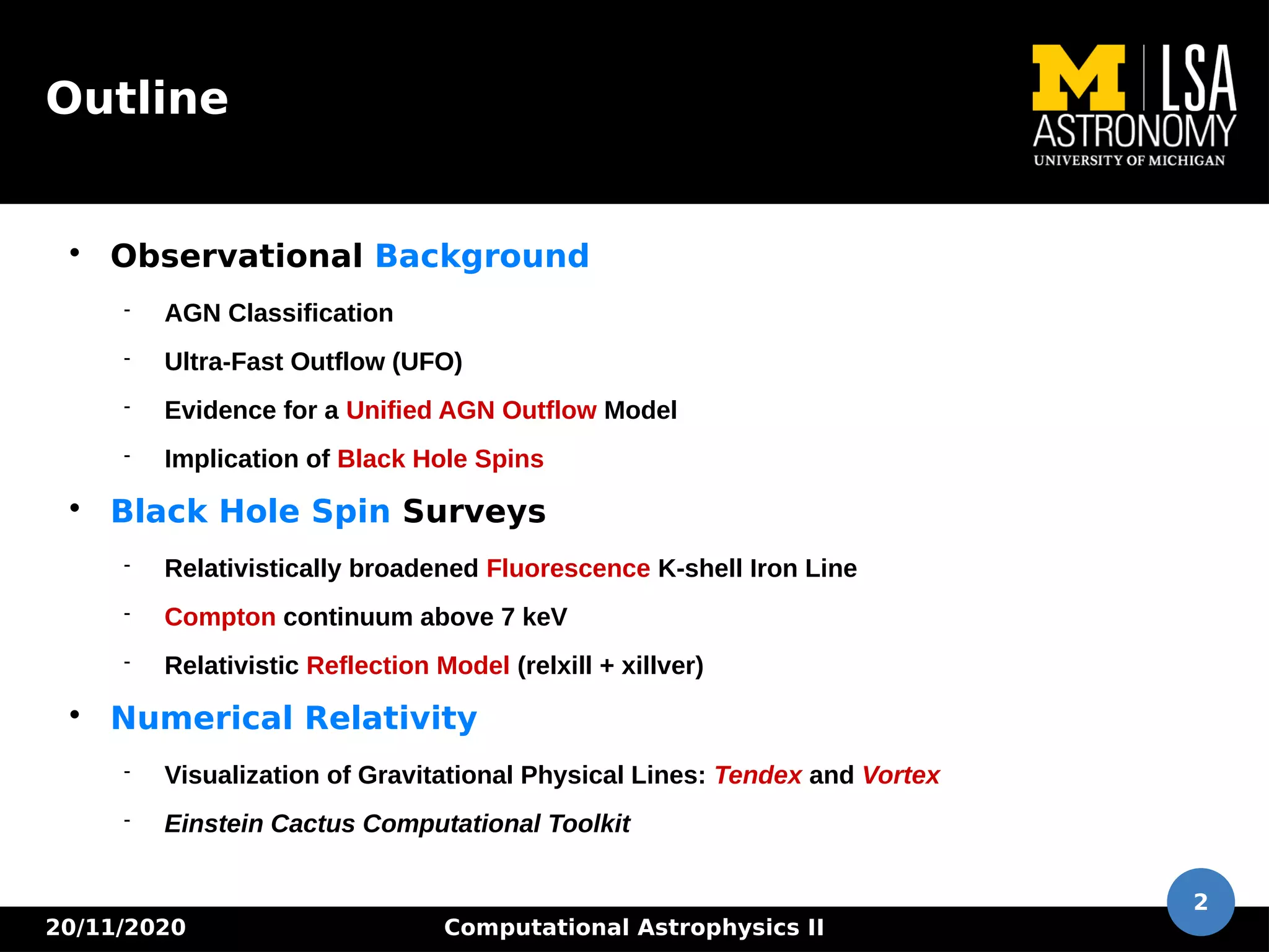

Outline
Observational Background
AGN Classification
Ultra-Fast Outflow (UFO)
Evidence for a Unified AGN Outflow Model
Implication of Black Hole Spins
Black Hole Spin Surveys
Relativistically broadened Fluorescence K-shell Iron Line
Compton continuum above 7 keV
Relativistic Reflection Model (relxill + xillver)
Numerical Relativity
Visualization of Gravitational Physical Lines: Tendex and Vortex
Einstein Cactus Computational Toolkit
3. 20/11/2020 Computational Astrophysics II
3
AGN Classification
Observational Background
AGN Unified Model (radio-loud & -quiet AGN, Seyfert I & II Galaxies)
Beckmann & Shrader 2012,
Active Galactic Nuclei
Unified Models for AGNs
Antonucci, ARA&A, 1993, 31, 473
Unified Schemes for AGNs
Megan Urry & Padovani, 1995, PASP, 107, 803
(Bernie Fanaroff &
Julia Riley 1974)
AGN Unified Model
• Radio-Quiet AGN
Seyfert I (BLR+NLR,
compact outflows)
Seyfert II (NLR)
• Radio-Loud AGN
FR I (compact radio jets)
FR II (extended radio jets)
Blazar (relativistic beams)
(Carl Seyfert 1942)
4. 20/11/2020 Computational Astrophysics II
4
Ultra-fast Outflows
Disk
Black-
body
Hot Corona
Warm
Absorbers
K-shell Iron
Beckmann & Shrader 2012
Risaliti & Elvis 2004
(bbody + powerlaw + ∑ emis) x ∏ abs
5. 20/11/2020 Computational Astrophysics II
5
Evidence for Unified AGN Outflow
Correlation between outflow kinematics and physical conditions
Tombesi + 2013
(Ultra-fast outflows)
(Warm Absorbers)
6. 20/11/2020 Computational Astrophysics II
6
Problems
Radio-quiet and radio-loud AGN
Garofalo + 2010
●
Radio-quiet AGN
– Compact Outflows
– Weak Radio Source
●
Radio-loud AGN
– Extended Jets
– Strong Radio Source
– Typically in elliptical massive
galaxies evolved from recent mergers (binary SMBH?)
8. 20/11/2020 Computational Astrophysics II
8
Implication of Black Hole Spins
Correlation between SMBH Angular Momentum with Uktra-fast Outflows
Danehkar +
9. 20/11/2020 Computational Astrophysics II
9
Measurements of Black Hole Spins
Black Hole Spin Measurement (see Brenneman 2013)
●
Thermal Continuum Fitting (UV observation)
– stellar-mass black hole
– AGN (may problematic due to UV absorption lines!)
●
Inner Disk Reflection Modeling
– AGN (X-ray)
●
High Frequency Quasi-Periodic Oscillations
– AGN + stellar-mass black hole (fully not developed)
●
X-ray Polarimetry
– Need sensitive X-ray polarimter (not available now!)
●
Imaging the Event Horizon Shadow
– Need Very Long Baseline Interferometry (in development)
– Suitable only for Sgr A* and M87
a = J c / G M2
(a: BH spin, J: angular momentum, M: BH mass, G: gravitational constant, c: speed of light)
10. 20/11/2020 Computational Astrophysics II
10
Measurements of Black Hole Spins
Relativistically broadened Kα iron line (6.4 keV)
Compton hump (> 10keV)
Black Hole Spin Measurement from X-ray
a = - 1
a = 0
a = 1
Image credit: NASA/JPL-Caltech
13. 20/11/2020 Computational Astrophysics II
13
Numerical Relativity
Weyl (Vacuum Riemann) Tensor
Einstein’s 70th birthday, Institute for Advanced Study, 1949
Weyl, Mathematische Zeitschrift, 2, 384, 1918
14. 20/11/2020 Computational Astrophysics II
14
Numerical Relativity
Gravitoelectric and Gravitomagnetic Tensors
●
Gravitoelectric & Gravitomagnetic fields
– Names coined by Kip Thorne (IAU, 97, 255, 1982)
– Thorne et al. Black holes: The membrane paradigm (Yale
University, 1986)
●
Gravitoelectric Tensor
– Newtonian Tidal Force
●
Gravitomagnetic Tensor
– Frame-dragging vortex & Gravitational Waves
●
Bianchi Identities
– Constraints for gravitoelectric & gravitomagnetic
(see e.g. Relativistic Cosmology, Ellis, Maartens, &
MacCallum, Cambridge, 2012)
Kip Thorne’s 60th birthday, Caltech, 2000
15. 20/11/2020 Computational Astrophysics II
15
Numerical Relativity
Tendex and Vortex Lines
●
Visualization of Gravitoelectric & Gravitomagnetic tensors
– Nichols et al. PRD 84, 124012, 2011; PRD 86, 104028, 2012
●
Tidal Tendex Line
– Tendex coined by David Nichols (tendere: ‘to stretch’)
– integral curves of eigenvectors of gravitoeletric tensor
– Owen el al. PRL 106, 151101, 2011
– Zhang et al. PRD 86, 084049, 2012
●
Frame-dragging Vortex Line
– integral curves of eigenvectors of gravitomagnetic tensor
eigenvector eigenvalue
eigenvector eigenvalue
Owen el al. PRL 106, 151101, 2011
16. 20/11/2020 Computational Astrophysics II
16
Numerical Relativity
Tendex and Vortex Lines of Slowly Spinning SMBH
Danehkar, IJMPD, 2020, arXiv:2006.13287 [gr-qc]
●
Visualization of Eab & Hab around a slow Kerr BH
– slow Kerr metric (Zhang et al. PRD 86, 084049, 2012)
– gravitoelectric tensor
– gravitomagnetic tensor (Zhang et al. PRD 86, 084049, 2012)
17. 20/11/2020 Computational Astrophysics II
17
Numerical Relativity
Tendex and Vortex Lines of Fast Spinning BH
●
Visualization of Eab & Hab around a fast Kerr BH
Tidal Tendex Line Frame-dragging Vortex Line
Zhang et al. PRD 86, 084049, 2012
18. 20/11/2020 Computational Astrophysics II
18
Numerical Relativity
Tendex and Vortex Lines of Merging Binary BH
●
Visualization of Eab & Hab around binary BHs
Tidal Tendex Line Frame-dragging Vortex Line
●
Spectral Einstein Code (SpEC)
– https://www.black-holes.org/code/SpEC.html
– SpEC is not publicity available
●
New version: SpECTRE
– https://github.com/sxs-collaboration/spectre
– SpECTRE is still under development by the SXS (Simulating eXtreme Spacetimes) Collaboration, and not yet ready
– Updates on SpECTRE code: https://icerm.brown.edu/programs/sp-f20/w3/ (see talk, Oct 28)
Owen el al. PRL 106, 151101, 2011
19. 20/11/2020 Computational Astrophysics II
19
Numerical Relativity
Gravitational Waves
●
Visualization of Eab & Hab around binary BHs
– Gravitational Wave Simulations by SpEC
Owen el al. PRL 106, 151101, 2011
LIGO detection of gravitational waves, 2016
20. 20/11/2020 Computational Astrophysics II
20
Numerical Relativity
Einstein Cactus Computational Toolkit
●
The Einstein Toolkit (https://einsteintoolkit.org/)
– Cactus Thorns (http://svn.einsteintoolkit.org/cactus/)
– Recent Tutorial: https://icerm.brown.edu/programs/sp-f20/w1/
●
Einstein Toolkit Thorn: EinsteinAnalysis/WeylScal4
– calculates Weyl scalars in the Einstein Toolkit
– converted to Thorn using Kranc (http://kranccode.org/)
●
New Module for gravitoelectric and gravitomagnetic tensors in the Einstein
Toolkit
– can be made by Mathemtica scripts and converted to Thorn using Kranc
●
Kranc: Mathematica program turns tensorial equations into a thorn for the Cactus
Computational Toolkit
transverse wave component for GW simulations of mergers
21. 20/11/2020 Computational Astrophysics II
21
Summary
Unified AGN Outflow Model via BH Spin Survey
& Numerical Relativity
●
Observational Background
– Observational Evidence for a Unified AGN Outflow Model
– Possible correlation between SMBH angular momentum and AGN outflows
– Physical mechanism behind radio-loud AGN: binary SMBH in radio-loud?
●
Black Hole Spin Surveys
Relativistically broadened Fluorescence Iron Line + Compton continuum
Relativistic Reflection Model (relxill + xillver)
●
Numerical Relativity
– Gravitoelectric and Gravitiomagnetic tensors
visualized using their Tidal Tendex and Frame-dragging Vortex Lines.
– Visualization of Tendex and Vortex lines for exact solutions and binary BHs are very
complex, but can be done using a new module made by either Kranc or NRPy+ for the
Einstein Toolkit. These simulations are computationally expensive (need HPC)
22. 20/11/2020 Computational Astrophysics II
22
Credit:
J.
Bergeron,
Sky
&
Telescope
Magazine
Credit:
J.
Bergeron,
Sky
&
Telescope
Magazine
Thank you for your attention
Thank you for your attention
