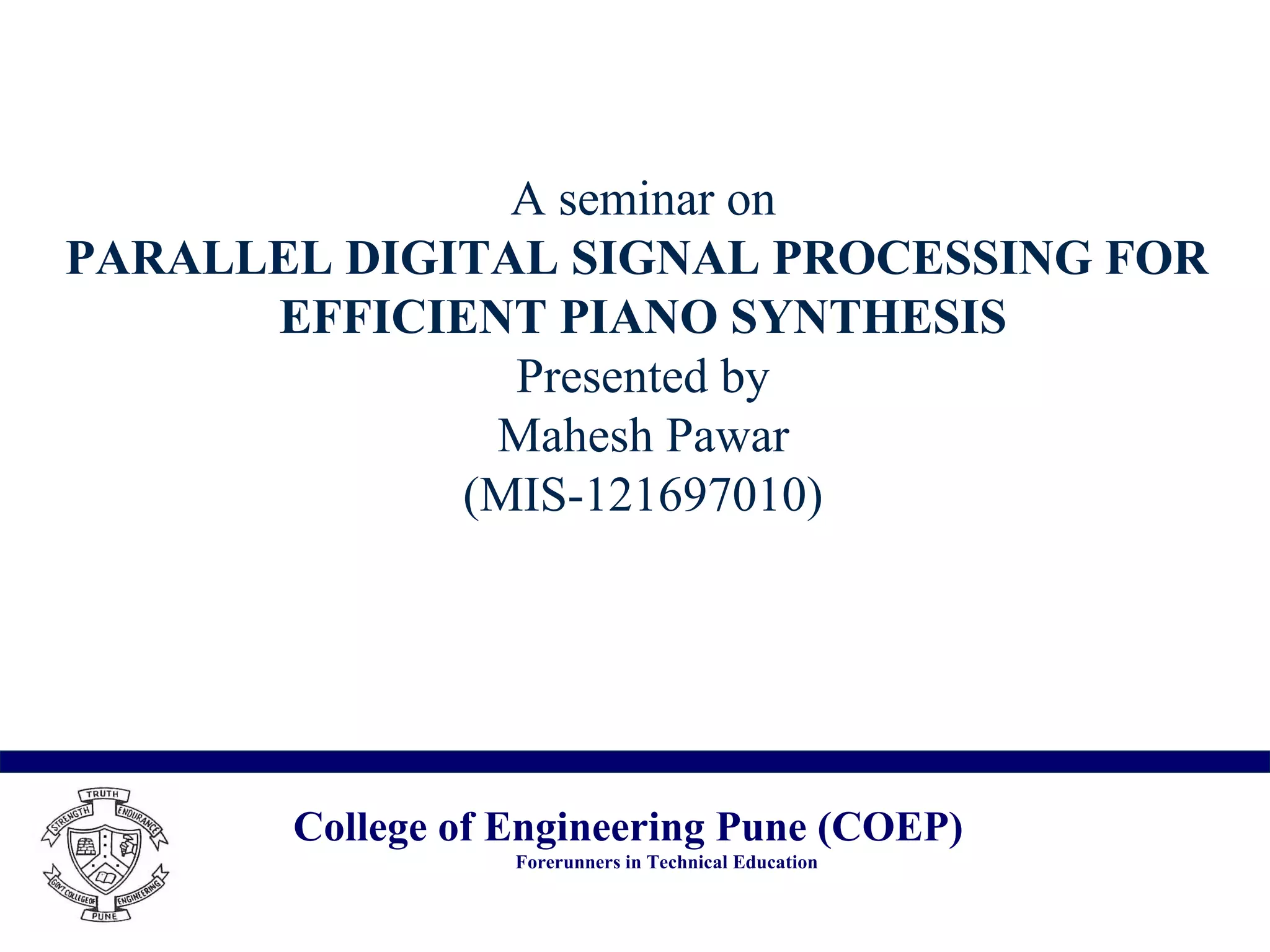

A seminar on
PARALLEL DIGITAL SIGNAL PROCESSING FOR
EFFICIENT PIANO SYNTHESIS
Presented by
Mahesh Pawar
(MIS-121697010)
College of Engineering Pune (COEP)
Forerunners in Technical Education

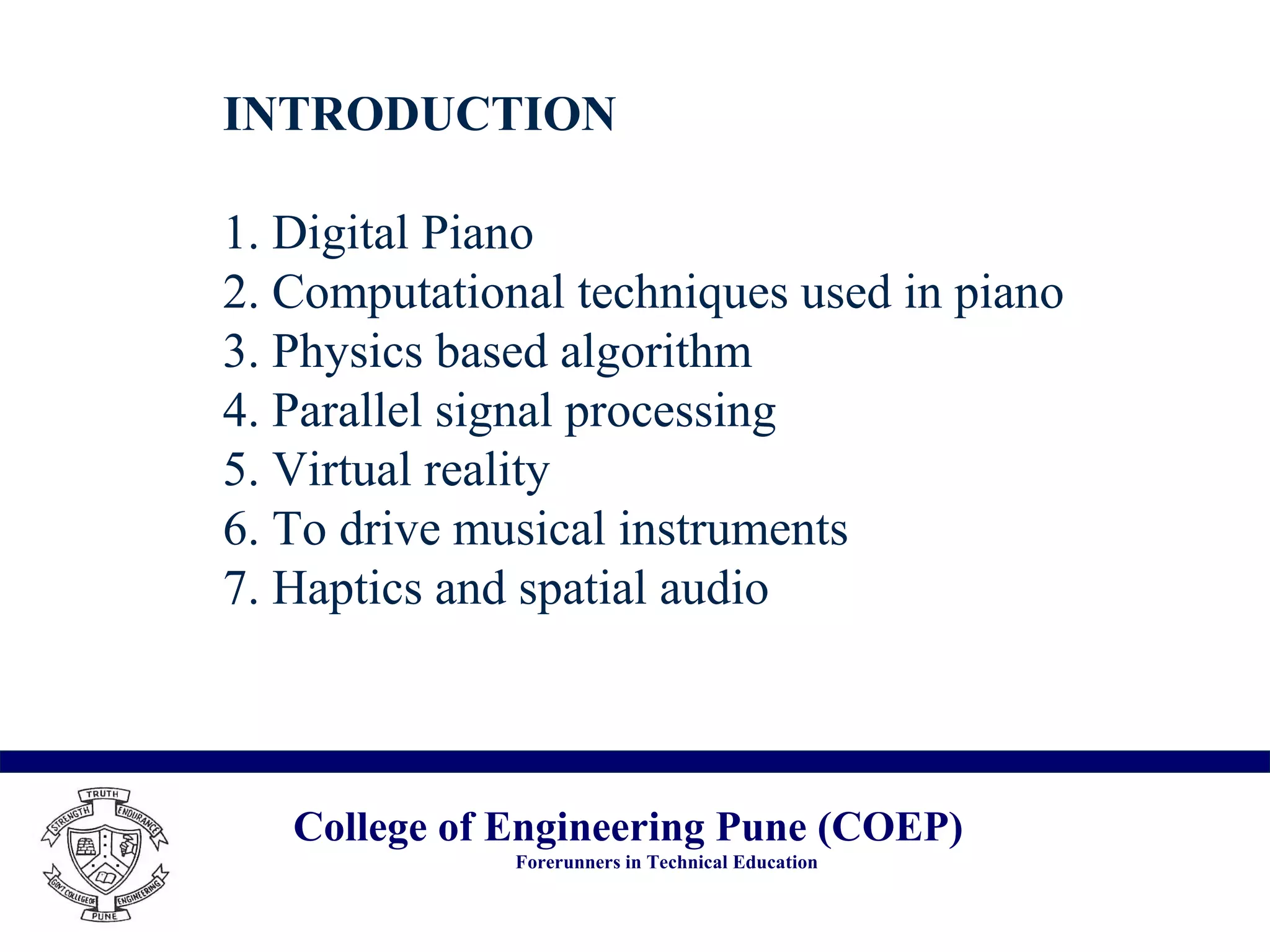

INTRODUCTION
1. Digital Piano
2. Computational techniques used in piano
3. Physics based algorithm
4. Parallel signal processing
5. Virtual reality
6. To drive musical instruments
7. Haptics and spatial audio
College of Engineering Pune (COEP)
Forerunners in Technical Education
BACKGROUND
1.Traditional and Physics based synthesis
2.Realistic performance can be observed
3.Sympathetic Resonance
4.Vibrotactile feedback in virtual pianos
Vibrotactile Feedback
College of Engineering Pune (COEP)
Forerunners in Technical Education
NECESSITY OF PARALLEL DSP
1.Large computational requirement
2.Higher Throughput
3.Important for keyboard which are small
like portable devices
College of Engineering Pune (COEP)
Forerunners in Technical Education
ARCHITECTURE OF PIANO SYNTHESIS
1.Signal Processing blocks corresponding to mech. elements
- Hammer is for exciter
- String is for resonator
- Instrument body is for resonator
2. String partial differential equation
3.Discretization technique used in Numerical solution
4.Previous Methods used for Solution of PDE of string
- Finite difference
- Digital waveguide
5.New method : Variation of modal Synthesis
College of Engineering Pune (COEP)
Forerunners in Technical Education
(Continued……….)
6.Base of Algorithm: Decomposition of the string displacement
Where , y(t) = amplitude of the partial
7. This results in ordinary 2nd
order DE for each modes
∑=
=
N
n
n
L
xn
tytxy
1
)sin()(),(
π
College of Engineering Pune (COEP)
Forerunners in Technical Education
NUMERICAL COMPUTATION OF STRING BLOCKS
2
,2
1
,1
1
,1
,mod
1
,,mod,
1
)()(
)()()(
−−
−
=
++
=
=
=
∑
zaza
zb
H
WzHWzH
zFzHzF
kk
k
ke
N
k
koutkekinstring
hstringstring
Where,
Fstring (z) : is the transversal force at the bridge
Fh (z) is the force coming from the hammer
Hmode,k(z) are the transfer functions of the normal modes
College of Engineering Pune (COEP)
Forerunners in Technical Education
BLOCKS OF ACOUSTIC PIANO MODEL
•Secondary Resonators
- Needed for simulating the complex beating envelopes
found in piano partials
- They are employed for the simulation of the sympathetic
resonance effect
•duplex resonators model
- A portion of the strings above their speaking length
- Synchronization Mechanism is required
Synthesis Architecture of the acoustic piano model
College of Engineering Pune (COEP)
Forerunners in Technical Education
SOUNDBOARD FILTERING
-Soundboard Radiation Module
-First Version of Piano : Block based convolution
-Algorithm capable of computing 4 responses at the same
time
-It is based on parallel second-order filter approximation
-Buffer size is kept low (64 samples)
-50x faster compared to FFT based convolution
College of Engineering Pune (COEP)
Forerunners in Technical Education
PARALLEL IMPLEMENTATION
- Maximum number of resonators :
1. C674x : 5200
2. Cortex – A7 : 3920
3. x86-i5 : 17300
-Modelling of soundboard would require nearly 3 GFLOPS
-Parallel computation of N oscillators is obtained by resorting
to explicit SIMD instruction, SSE2 or NEON for x86 and
ARM processors.
College of Engineering Pune (COEP)
Forerunners in Technical Education
C67x basics
1.Can implement complex linear or nonlinear algorithms.
3. Can modify easily by changing software.
4. Reduced parts count makes fabrication easier
5. High reliability
6. Features :
- Operating at 225 MHz
- AIC23 stereo codec
- 16 MB RAM, 512 MB non-volatile memory
- Software board configurations
- Configurable boot options
- Expansion Connections
- JTAG emulation
College of Engineering Pune (COEP)
Forerunners in Technical Education
BLOCK DIAGRAM OF PARALLEL COMPUTING SYSTEM
College of Engineering Pune (COEP)
Forerunners in Technical Education
CHALLENGES
1.Parallel solutions are harder to implement
2.suffers from communication and coordination overhead
3.Upper bound on Speed up
4.Complexity
5.Portability
6.Resource requirement
7.Scalability
8.Parallel slowdown
College of Engineering Pune (COEP)
Forerunners in Technical Education
CONCLUSION
1. Parallel DSP can reduce the power consumption of a system
by reducing the supply voltage.
2. This Model presents technical aspects of modern
computational acoustics.
3. Useful for both digital piano and virtual musical instrument.
4. This model allows for large computational savings.
5. Resonators emulate both Sympathetic resonance and
envelope effects.
College of Engineering Pune (COEP)
Forerunners in Technical Education
REFERENCES
[1] Federico Fontana, Hanna J¨arvel¨ainen, Stefano Papetti, Federico Avanzini, Francesco Zanini, and Valerio Zanini,
“Perception of interactive vibrotactile cues on the acoustic grand and upright piano,” in Proc.Of Joint SMC and ICMC 2014
Conference. National and Kapdistrian University of Athens, Greece, 2014.
[2] Yuri De Pra, Fausto Spoto, Federico Fontana, and Linmi Tao, “Infrared vs. ultrasonic finger detection on a virtual piano
keyboard,”in Proc.of Joint SMC and ICMC 2014 Conference.National and Kapodistrian University of Athens,Greece, 2014
[3] Stefano Zambon, Leonardo Gabrielli, and Balazs Bank, “Expressive physical modeling of keyboard instruments: From
theory to implementation,” in Audio Engineering Society Convention 134. Audio Engineering Society, 2013.
[4] S. Zambon, E. Giordani, B. Bank, and F. Fontana, “A system to reproduce the sound of a stringed instrument,” Deposited
PCT international patent, March 2013.
College of Engineering Pune (COEP)
Forerunners in Technical Education
Thank You
College of Engineering Pune (COEP)
Forerunners in Technical Education
17
Fig. Acoustic Piano Model<<
