Botnet Communication Patterns
Gernot Vormayr, Tanja Zseby, and Joachim Fabini
Abstract—Malicious botnets have become a common threat
and pervade large parts of the Internet today. Existing surveys
and taxonomies focus on botnet topologies, Command and
Control (C&C) protocols, and botnet objectives. Building on these
research results, network-based detection techniques have been
proposed that are capable of detecting known botnets. Methods
for botnet establishment and operation have evolved significantly
over the past decade resulting in the need for detection methods
that are capable of detecting new, previously unknown types of
botnets.
In this paper we present an in-depth analysis of all network
communication aspects in botnet establishment and operation.
We examine botnet topology, protocols, and analyze a large set
of very different and highly sophisticated existing botnets from
a network communication perspective. Based on our analysis,
we introduce a novel taxonomy of generalized communication
patterns for botnet communication using standardized Unified
Modeling Language (UML) sequence diagrams. We furthermore
examine data exchange options and investigate the influence of
encryption and hiding techniques. Our generalized communi-
cation patterns provide a useful basis for the development of
sophisticated network-based botnet detection mechanisms and
can offer a key component for building protocol- and topology-
independent network-based detectors.
Index Terms—bot, botnet, C&C, botnet detection
I. INTRODUCTION
NETWORKED computers enable distributed computing
and sharing of resources. Distributing tasks over multiple
machines allows the execution of tasks whose demands exceed
the resources available on one single computer. This technique
can also speed up the processing of a single task by splitting it
up into sub tasks that can be performed on several computers
simultaneously.
One option to design such systems is by combining re-
sources on networked computers, which are called bots, de-
signed to perform a task or sub tasks.
An additional networked computer, called the master, is
needed for coordinating the bots. Hence, the given name
botnet, which is a combination of bot and network.
Since the Internet contains vast amounts of unused pro-
cessing power and network bandwidth, malicious actors found
ways to use those machines for their goals. This is achieved
by infecting machines with malicious software (malware), and
therefore building a malicious botnet, which uses compro-
mised machines for computation.
Manuscript received ...
G. Vormayr, T. Zseby, and J. Fabini are with Institute of Telecommunica-
tions, TU Wien, Vienna, Austria (email: {first.last}@nt.tuwien.ac.at)
Digital Object Identifier ...
A. Malicious Botnets
Malicious botnets are used for various tasks including infor-
mation theft [1], [2] or abuse of online services [3]. Another
large percentage of botnets is employed for service disruption,
which is used for stifling other players (e.g., competition, for-
eign states) [4], [5]. Those malicious botnets pose a real threat
to individuals on the Internet [2], [6], networked infrastructures
[7], and even the Internet overall [4], [8]. Therefore, various
taxonomies [9]–[11] and recommendations [12] categorizing
different aspects of botnets and ways of detection have been
published. In line with the majority of earlier publications,
the remainder of this work uses the term botnets to refer to
malicious botnets.
A botnet consists of i) several bots, ii) a Command and
Control (C&C) server, and iii) a botmaster. Additionally,
this work uses the term victim for the target of an attack
or a bot infection. The diagram in fig. 1 illustrates botnet
participants, roles, and communication in a hypothetical botnet
with centralized command structure.
Bots (also called zombies [13]) are infected machines that
execute the bot executable. Those machines process the tasks
supplied by the C&C server.
The C&C server is the central rallying point for the botnet.
Since this server is capable of controlling every bot, it has
to be protected from takeover by third-parties like, e.g., law
enforcement, researchers, or rivaling bot masters. Modern
botnet topologies (e.g., Peer to Peer (P2P)) can utilize regular
bots that are part of the botnet as C&C server. Thus, the threat
of bringing down the botnet via a single point of failure is
remedied.
The botmaster is the person controlling the botnet via the
C&C server. Botmasters try to stay as stealthy as possible,
because unmasking the identity of the botmaster can lead to
potential prosecution. This can be achieved for example by
using as little traffic as possible, or by not using a direct
connection to the rest of the botnet.
B. Botnet Detectors
Botnets taking part in possibly illegal activity can cause
unwanted network traffic, or interfere with day to day business.
Thus, detection and removal of botnets are important tasks.
Since botnets tend to hide their operation, detection of botnets
is an active field of research. Botnet detection can target one
of the three parts of a botnet (bot, C&C server, or botmaster,
as has been explained above and in fig. 1). Although this
work concentrates on bot detection, the topologies described
in section III and the protocols described in section IV also
concern the C&C server. Furthermore, the C&C server is part
of the presented communication patterns in section VI. A
0000–0000/00$00.00 c 2016 IEEE. Personal use is permitted, but republication/redistribution requires IEEE permission.
See http://wwww.ieee.org/publications standards/publications/rights/index.html for more information.

2
Internet
Access router
detector (b)
detector(a)
Host
Botmaster
CC
Bot
Bot
Bot
Bot
BotBot
Operating System
Application A
Bot Binary
Application C
Fig. 1. Botnet overview example consisting of a centralized botnet including botmaster, C&C server, communication channels, bots, and bot binary. Additionally,
example network-based detector positions (a) and (b) are depicted. Detector (a) acts as an intermediate node while (b) is included in a router.
communication pattern is a sequence of exchanged messages
needed for a specific communication scenario. Thus, this work
can also be used as a base for building a C&C server detector.
Since network communication is paramount for a botnet, it
has to be present and can therefore be used for bot detection.
This is called network-based bot detection. Example positions
for network-based botnet detectors can be seen in fig. 1
(Detectors (a) and (b)).
The least complex approach for implementing a network-
based detector is signature-based detection or syntactic detec-
tion [9]. This technique works by first collecting communica-
tion from known botnets. Next, representative byte-sequences
or text excerpts used by the targeted botnets during C&C
communication can be extracted from these samples. In the
last step these results are compared with unknown traffic. If
there is a match, bots have been detected.
Since the above mentioned byte-sequences or text excerpts
need to match exactly, a straightforward countermeasure for
hiding from such detection techniques is to modify the used
C&C commands. A generalization of this idea is to add
random sequences at the beginning or at arbitrary positions
of a C&C command, which is called padding. Adding data
at the beginning can be used to exploit length restrictions in
detectors, while adding patterns at other locations can defeat
the signature detection itself. Although padding and protocol
variations can be mitigated by splitting up the captured com-
munication into sub patterns, protocol encryption can thwart
every signature-based detection.
Behavioral network analysis can be used to overcome this
limitation. This technique relies on classifying network traffic
as either normal traffic or anomalous traffic [9]. Therefore, this
technique is also called network anomaly detection.
One way to build a network anomaly detector is to observe
“abnormal” behavior (e.g., botnet C&C traffic) and to find
characteristic patterns or properties (e.g., packet timing, packet
count, packet length). These properties are called features.
The same can be achieved by observing “normal” behavior
(i.e., legitimate traffic captured during network operation),
extracting features, and defining network traffic that does not
match these patterns as an anomaly.
No inspection of the payload is needed, and therefore
this approach works with encrypted or obfuscated network
traffic. Since this technique tries to find generalized properties
of unwanted traffic, it can theoretically be used to detect
previously unknown botnets.
A simple way to implement this procedure is to use machine
learning. Machine learning is a process which modifies the
parameters of an algorithm until the algorithm output matches
the expected output for given inputs. This is called training. A
trained machine learning algorithm can be an approximation
of the dependencies between the trained parameters and the
expected results. Since there is not necessarily an underlying
correlation in the data, the results have to be validated and
used with caution.
Various detectors have been proposed that train different
machine learning techniques with observed botnet traffic. Saad
et al. [14] used the above mentioned approach of extracting
features from network traffic, training a machine learning
algorithm with known data, and using the trained algorithm
for detection botnets. The algorithms were trained with normal
and botnet traffic. For evaluation, this procedure was used
on five different machine learning techniques. The results
compare the different algorithms according to training and
classification speed, and detection performance. Saad et al.
[14] concluded that by using this simple approach it is possible
to detect botnets with analyzing only the packet metadata.

3

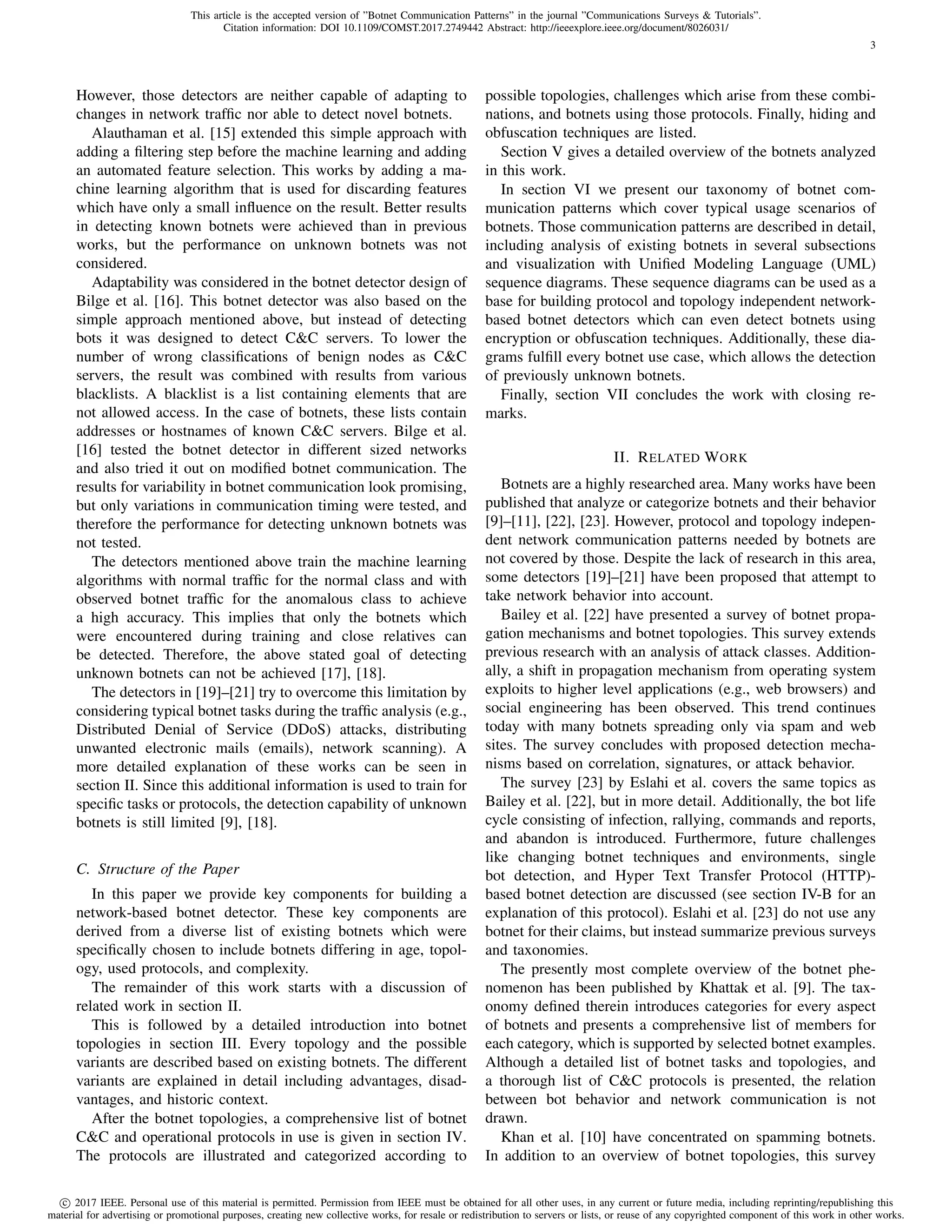

However, those detectors are neither capable of adapting to
changes in network traffic nor able to detect novel botnets.
Alauthaman et al. [15] extended this simple approach with
adding a filtering step before the machine learning and adding
an automated feature selection. This works by adding a ma-
chine learning algorithm that is used for discarding features
which have only a small influence on the result. Better results
in detecting known botnets were achieved than in previous
works, but the performance on unknown botnets was not
considered.
Adaptability was considered in the botnet detector design of
Bilge et al. [16]. This botnet detector was also based on the
simple approach mentioned above, but instead of detecting
bots it was designed to detect C&C servers. To lower the
number of wrong classifications of benign nodes as C&C
servers, the result was combined with results from various
blacklists. A blacklist is a list containing elements that are
not allowed access. In the case of botnets, these lists contain
addresses or hostnames of known C&C servers. Bilge et al.
[16] tested the botnet detector in different sized networks
and also tried it out on modified botnet communication. The
results for variability in botnet communication look promising,
but only variations in communication timing were tested, and
therefore the performance for detecting unknown botnets was
not tested.
The detectors mentioned above train the machine learning
algorithms with normal traffic for the normal class and with
observed botnet traffic for the anomalous class to achieve
a high accuracy. This implies that only the botnets which
were encountered during training and close relatives can
be detected. Therefore, the above stated goal of detecting
unknown botnets can not be achieved [17], [18].
The detectors in [19]–[21] try to overcome this limitation by
considering typical botnet tasks during the traffic analysis (e.g.,
Distributed Denial of Service (DDoS) attacks, distributing
unwanted electronic mails (emails), network scanning). A
more detailed explanation of these works can be seen in
section II. Since this additional information is used to train for
specific tasks or protocols, the detection capability of unknown
botnets is still limited [9], [18].
C. Structure of the Paper
In this paper we provide key components for building a
network-based botnet detector. These key components are
derived from a diverse list of existing botnets which were
specifically chosen to include botnets differing in age, topol-
ogy, used protocols, and complexity.
The remainder of this work starts with a discussion of
related work in section II.
This is followed by a detailed introduction into botnet
topologies in section III. Every topology and the possible
variants are described based on existing botnets. The different
variants are explained in detail including advantages, disad-
vantages, and historic context.
After the botnet topologies, a comprehensive list of botnet
C&C and operational protocols in use is given in section IV.
The protocols are illustrated and categorized according to
possible topologies, challenges which arise from these combi-
nations, and botnets using those protocols. Finally, hiding and
obfuscation techniques are listed.
Section V gives a detailed overview of the botnets analyzed
in this work.
In section VI we present our taxonomy of botnet com-
munication patterns which cover typical usage scenarios of
botnets. Those communication patterns are described in detail,
including analysis of existing botnets in several subsections
and visualization with Unified Modeling Language (UML)
sequence diagrams. These sequence diagrams can be used as a
base for building protocol and topology independent network-
based botnet detectors which can even detect botnets using
encryption or obfuscation techniques. Additionally, these dia-
grams fulfill every botnet use case, which allows the detection
of previously unknown botnets.
Finally, section VII concludes the work with closing re-
marks.
II. RELATED WORK
Botnets are a highly researched area. Many works have been
published that analyze or categorize botnets and their behavior
[9]–[11], [22], [23]. However, protocol and topology indepen-
dent network communication patterns needed by botnets are
not covered by those. Despite the lack of research in this area,
some detectors [19]–[21] have been proposed that attempt to
take network behavior into account.
Bailey et al. [22] have presented a survey of botnet propa-
gation mechanisms and botnet topologies. This survey extends
previous research with an analysis of attack classes. Addition-
ally, a shift in propagation mechanism from operating system
exploits to higher level applications (e.g., web browsers) and
social engineering has been observed. This trend continues
today with many botnets spreading only via spam and web
sites. The survey concludes with proposed detection mecha-
nisms based on correlation, signatures, or attack behavior.
The survey [23] by Eslahi et al. covers the same topics as
Bailey et al. [22], but in more detail. Additionally, the bot life
cycle consisting of infection, rallying, commands and reports,
and abandon is introduced. Furthermore, future challenges
like changing botnet techniques and environments, single
bot detection, and Hyper Text Transfer Protocol (HTTP)-
based botnet detection are discussed (see section IV-B for an
explanation of this protocol). Eslahi et al. [23] do not use any
botnet for their claims, but instead summarize previous surveys
and taxonomies.
The presently most complete overview of the botnet phe-
nomenon has been published by Khattak et al. [9]. The tax-
onomy defined therein introduces categories for every aspect
of botnets and presents a comprehensive list of members for
each category, which is supported by selected botnet examples.
Although a detailed list of botnet tasks and topologies, and
a thorough list of C&C protocols is presented, the relation
between bot behavior and network communication is not
drawn.
Khan et al. [10] have concentrated on spamming botnets.
In addition to an overview of botnet topologies, this survey

4
TABLE I
SUMMARY OF RELATED PUBLICATIONS AND THEIR COVERAGE.
Reference Type Topologies C&C Protocols Botnet Tasks Network patterns Number of Botnets1
[22] Survey ∼ – ∼ – 0 (4)
[23] Survey ∼ ∼ – 0 (0)
[9] Taxonomy ∼ – 0 (32)
[10] Survey ∼ ∼ ∼a – 15 (7)
[11] Survey ∼ ∼ ∼b – 33 (1)
[21] Detector – ∼ – ∼ 1 (6)
[19] Detector ∼ – ∼ ∼ 2 (1)
[20] Detector – – ∼ ∼ 0 (19)
Topic covered in detail. ∼ Topic covered in part or discussed briefly. – Topic not covered.
1 Number of analyzed botnets and number of mentioned botnets, e.g., used as an example, in brackets.
a Focus of [10] is spam distributing botnets.
b Focus of [11] is DDoS.
has a detailed description of multiple spam related botnets.
Examples of covered botnets are Rustock, Storm, and Waledac.
The main or primary objective of those botnets is to distribute
spam, which is the massive distribution of unsolicited emails.
The purpose of those messages is either advertising or spread-
ing malware. A more detailed analysis of these botnets is
included in section V.
Furthermore, Khan et al. [10] provide an overview and anal-
ysis of different spam and botnet detectors. While proposed
techniques include spam detection in botnet detectors, a more
general network view is not presented.
A similar work by Hoque et al. [11] covers DDoS related
botnets, with a focus on topologies. Like [10], this survey
also covers botnets have been observed on the Internet in
detail. Covered botnets include Sinit, Phatbot, Rustock, Storm,
and Waledac (see also section V). Those botnets contain the
ability to execute DDoS attacks during which at least as many
requests as needed are targeted at a web-service for the sole
purpose of disrupting the operation of said web-service. In
addition to those botnets, Hoque et al. [11] cover a number of
non DDoS related mobile botnets for comparing stationary and
mobile botnets. This work concludes with DDoS and botnet
detection techniques. Some of those techniques try to infer
botnets from detected DDoS attacks.
Gu et al. [21] have proposed a botnet detector which is
intended to detect botnets without the need for training or
signatures. It is based on a basic infection dialog that consists
of inbound scan, inbound infection, egg (executable binary)
download, and outbound scan for C&C communication. This
detector uses and enhances an existing Intrusion Detection
System (IDS) to match network events to rules generated
from the infection dialog. This approach is limited by the
need for unencrypted network communication, very basic
communication patterns, the need for multiple bot infections
in the local network, and the requirement for active botnet
propagation.
Gu et al. [19] have improved the previously mentioned tech-
nique to become independent of the C&C model, the botnet
topology, and the infection model. This detector splits the
measured network traffic into activity traffic, which is network
traffic needed to accomplish given botnet tasks (e.g., scanning,
spamming, exploits), and control traffic, which is C&C com-
munication. Detection is achieved by cross correlating both
kinds of traffic, i.e., finding multiple hosts that perform the
same attacks while communicating with a common botmaster.
While this work has improved on the previous detector by
tolerating encrypted network traffic, multiple bot infections
are still needed and local bots attacking local targets are not
considered.
Ashfaq et al. [20] have extended the previously discovered
infection dialog with passive botnet infections by considering
spam in addition to network scans. One drawback of previous
detectors is the need for observing complete bot life cycles.
This deficiency is overcome by this detector with a Bayesian
network. A Bayesian network represents a set of random
variables and their conditional probabilities via a directed
graph. In [20], the proposed botnet life cycle is represented
via such a graph. The conditional probabilities are learned
from training data, and the trained model then used to infer if
a host is a bot.
Since Ashfaq et al. [20] conclude that the life cycle will
stay the same in the future, but events will evolve, the part
responsible for generating the events is interchangeable.
A qualitative overview of these publications can be seen
in table I. This table categorizes these papers into survey,
taxonomy, or detector. Additionally, the table contains a rough
assessment regarding the covered topics topologies, C&C
protocols, botnet tasks, and network patterns. Furthermore, the
number of analyzed or mentioned botnets can be seen, which
is an indicator if conclusions have been drawn from existing
botnets or previous surveys.
Common to all the above mentioned works is that the
communication behavior of botnets is only observed from a
topology and protocol perspective. This work adds a more in
depth look into botnet C&C communication by providing the
following contributions:
1) An in depth look into existing botnet topologies from
a communication perspective. The different topologies
and variations thereof are explained in detail including
advantages, disadvantages, and challenges. Additionally,

5
C&C
Bot C&C C&C Server Proxy Layer Worker Layer

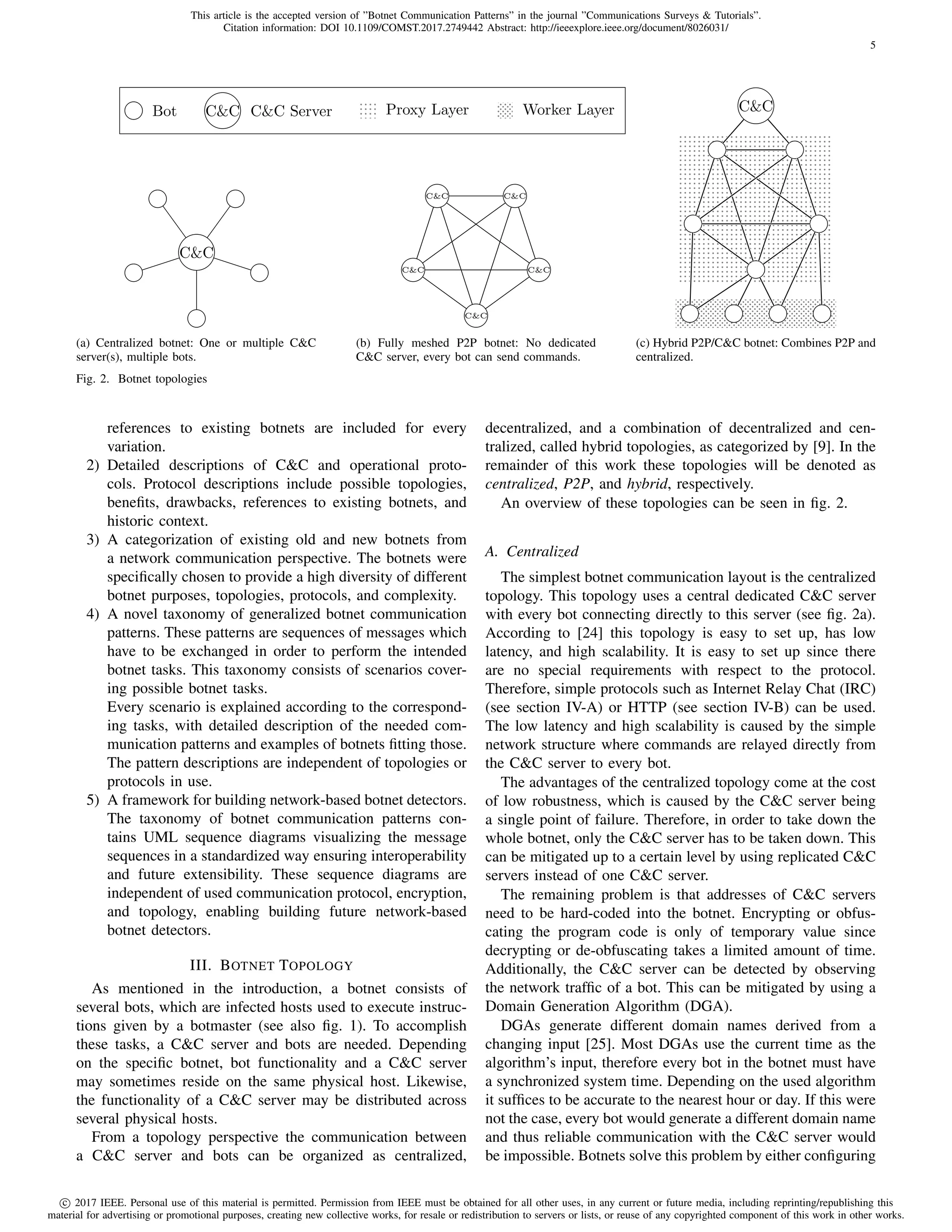

(a) Centralized botnet: One or multiple C&C
server(s), multiple bots.
C&C
C&C
C&CC&C
C&C
(b) Fully meshed P2P botnet: No dedicated
C&C server, every bot can send commands.
C&C
(c) Hybrid P2P/C&C botnet: Combines P2P and
centralized.
Fig. 2. Botnet topologies
references to existing botnets are included for every
variation.
2) Detailed descriptions of C&C and operational proto-
cols. Protocol descriptions include possible topologies,
benefits, drawbacks, references to existing botnets, and
historic context.
3) A categorization of existing old and new botnets from
a network communication perspective. The botnets were
specifically chosen to provide a high diversity of different
botnet purposes, topologies, protocols, and complexity.
4) A novel taxonomy of generalized botnet communication
patterns. These patterns are sequences of messages which
have to be exchanged in order to perform the intended
botnet tasks. This taxonomy consists of scenarios cover-
ing possible botnet tasks.
Every scenario is explained according to the correspond-
ing tasks, with detailed description of the needed com-
munication patterns and examples of botnets fitting those.
The pattern descriptions are independent of topologies or
protocols in use.
5) A framework for building network-based botnet detectors.
The taxonomy of botnet communication patterns con-
tains UML sequence diagrams visualizing the message
sequences in a standardized way ensuring interoperability
and future extensibility. These sequence diagrams are
independent of used communication protocol, encryption,
and topology, enabling building future network-based
botnet detectors.
III. BOTNET TOPOLOGY
As mentioned in the introduction, a botnet consists of
several bots, which are infected hosts used to execute instruc-
tions given by a botmaster (see also fig. 1). To accomplish
these tasks, a C&C server and bots are needed. Depending
on the specific botnet, bot functionality and a C&C server
may sometimes reside on the same physical host. Likewise,
the functionality of a C&C server may be distributed across
several physical hosts.
From a topology perspective the communication between
a C&C server and bots can be organized as centralized,
decentralized, and a combination of decentralized and cen-
tralized, called hybrid topologies, as categorized by [9]. In the
remainder of this work these topologies will be denoted as
centralized, P2P, and hybrid, respectively.
An overview of these topologies can be seen in fig. 2.
A. Centralized
The simplest botnet communication layout is the centralized
topology. This topology uses a central dedicated C&C server
with every bot connecting directly to this server (see fig. 2a).
According to [24] this topology is easy to set up, has low
latency, and high scalability. It is easy to set up since there
are no special requirements with respect to the protocol.
Therefore, simple protocols such as Internet Relay Chat (IRC)
(see section IV-A) or HTTP (see section IV-B) can be used.
The low latency and high scalability is caused by the simple
network structure where commands are relayed directly from
the C&C server to every bot.
The advantages of the centralized topology come at the cost
of low robustness, which is caused by the C&C server being
a single point of failure. Therefore, in order to take down the
whole botnet, only the C&C server has to be taken down. This
can be mitigated up to a certain level by using replicated C&C
servers instead of one C&C server.
The remaining problem is that addresses of C&C servers
need to be hard-coded into the botnet. Encrypting or obfus-
cating the program code is only of temporary value since
decrypting or de-obfuscating takes a limited amount of time.
Additionally, the C&C server can be detected by observing
the network traffic of a bot. This can be mitigated by using a
Domain Generation Algorithm (DGA).
DGAs generate different domain names derived from a
changing input [25]. Most DGAs use the current time as the
algorithm’s input, therefore every bot in the botnet must have
a synchronized system time. Depending on the used algorithm
it suffices to be accurate to the nearest hour or day. If this were
not the case, every bot would generate a different domain name
and thus reliable communication with the C&C server would
be impossible. Botnets solve this problem by either configuring

6
the computers the bot executable runs on to synchronize time
or by querying popular web sites [25].
A further drawback of this system is that after figuring out
the algorithm, everyone can take over the botnet by reserving
a domain name the DGA will generate at a specific time
in the future [25]. The domain registration problem can be
mitigated to a degree by using a non-deterministic input into
the DGA. Botnets have been observed in the past which used
trending topics on twitter or currency exchange rates. Instead
of registering domain names in advance, whoever is fastest in
registering the new domain name can control the botnet [26].
Besides hiding the C&C server, this technique can also be
used for links in generated spam emails. With this technique
Uniform Resource Locator (URL)-based spam detection can
be defeated [25]. A URL (web address) is a reference to a
web resource [27].
URL-based spam detection works by constructing a list of
URLs from known spam messages. URLs in emails can then
be compared against this list and if a positive match is found
the email be marked as spam. If a DGA is used for generating
these URLs, the list creation can not keep up with the newly
generated URLs.
Another way to mitigate the low robustness of a centralized
topology is to create a fast-flux network. In a fast-flux network
the Domain Name System (DNS) is utilized as a multiplexer
and load balancer. DNS is a hierarchical system and ac-
companying protocol to associate information with domain
names. This system is commonly used to associate domain
names with Internet Protocol (IP) addresses (host record) [28].
Therefore, DNS provides a way to use words that can be
remembered more easily instead of numbers. Additional uses
include associating multiple domain names with the same IP
address providing the possibility to use the same host for
multiple different web pages.
It is also possible to assign multiple IP addresses to the
same domain name enabling the use of multiple hosts for
a single web page. This mechanism is used in a fast-flux
network, where multiple bots register for one DNS host record.
Upon resolving the record, one or several of these bots are
returned. Instead of connecting directly to the C&C server
these bots are used as intermediate hosts which in turn relay
the data to the C&C server. Therefore, only these so called
proxy bots know the real C&C server. Since registering and
de-registering servers can be done at any time, this method
can be used to cycle through multiple servers quickly [9]. This
increases the effort needed to shut down the botnet. The fast-
flux method shifts the single point of failure to the DNS server.
This can also be remedied by additionally using the botnet as
authoritative name server with the same cycling scheme, which
is called double-flux.
Later variants of the Zeus botnet use a centralized architec-
ture employing a DGA [29]. Another example is Conficker,
which generates 50000 domains per day in version C. This
high number of domains helps in distributing the load on
the C&C servers and makes pre-registering the domains a
logistically challenging task [30]. Examples for double-flux
networks are Storm [31] and Waledac [32]. A more detailed
explanation of these botnets can be seen in section V.
B. P2P
To further improve the resilience against take down or
network failure a P2P topology can be used. This topology
consists only of bots where every bot can be a potential C&C
server. Every bot is connected to at least one other bot and
commands can only reach the whole botnet if every bot has
the ability to relay the commands to directly connected bots
(see fig. 2b).
In a fully meshed botnet every bot is connected to every
other bot. This ensures a low communication latency since
messages do not need to be relayed through additional bots in
order to broadcast a message to every bot. Furthermore, fully
meshed botnets feature a high robustness, because removing
an arbitrary number of bots from the botnet does not disrupt
the communication. Since a very high number of network
connections is needed for larger botnets, this approach is not
scalable. Depending on the type of protocol, a fully meshed
botnet may have a maximum number of bots due to operating
systems limiting the maximum number of Transport Control
Protocol (TCP) sockets. TCP is a transport protocol capable of
reliably transferring streams of data between two hosts [33].
Additionally, the number of needed connections increases
the visibility of the botnet. Furthermore, adding and removing
bots due to changes in the network require a high number of
coordination messages. Therefore, most P2P botnets are not
fully meshed [34].
As mentioned by [24], P2P topologies are hard to imple-
ment. This is caused by the challenges of finding the initial
peers and reliably distributing commands to every bot.
Finding peers can be solved by inserting a hard coded list of
known peers into the bot executable. Another way to store this
initial list is to utilize cache servers of existing P2P application
networks. Since the bot executable has to be distributed on the
Internet in order to form the botnet and the cache servers are
publicly accessible, researchers can extract this initial peer list.
Therefore, the single point of failure, as has been discussed
above for the centralized topology, is shifted to this initial
peer list. In order to get rid of publicly available peer lists, a
different solution for finding the initial peers is to randomly
scan the Internet for peers.
The protocol has to take care of reliably distributing com-
mands through a botnet with a P2P topology. As mentioned
earlier, botnets do not use fully meshed topologies. This is
why bots must support message relaying in order to broadcast
messages to every bot. Existing P2P protocols already provide
all the functionality needed. If a neoteric protocol or an
existing non P2P protocol is used, then reliability and routing
functionality has to be added. This will be discussed in detail
in section IV.
Not every computer is reachable from the Internet. This
can be caused by firewalls or Network Address Translation
(NAT) which hide several computers behind a single router.
Therefore, some botnets classify bots into the categories super-
nodes and NAT-nodes. Upon infection the connectivity is
detected and later only the NAT-nodes are used for malicious
activity, while the super-nodes are only used as botnet C&C
communication relays. This way of deploying a P2P topology
was also explored in [35].

7
Examples for botnets using a P2P topology with hard coded
peer lists are the Zeus botnet, which falls back to centralized if
no peer is reachable [36], and Sality (version 3 and 4), which
has also a fallback to a centralized topology [37]. Phatbot
solved the peer list problem by utilizing cache servers of a
file sharing platform for the initial peer list [38]. Examples
for random scanning botnets are Sinit [39] and Conficker [40].
Zeroaccess divided the network into super-nodes and NAT-
nodes [41]. For a more detailed explanation of these botnets
see section V.
C. Hybrid
As can be seen above, P2P topologies exhibit weaknesses
(e.g., possibility of total disruption by removing parts of
the network, non-reliable transmission of commands, finding
peers, full take over via a single peer) that need to be overcome
via careful design. Another way to remedy those weaknesses is
to combine P2P and centralized topologies to get the benefits
of both worlds [35]. Instead of the bots connecting directly
to C&C servers, an additional proxy layer consisting of bots
connected in a P2P topology is added. To lower the visibility
of this proxy layer a third layer consisting of bots which
execute the botnet tasks is added. A schematic overview of
this implementation can be seen in fig. 2c.
Determining if a bot becomes a worker bot or a proxy bot
can be done, as mentioned earlier for the P2P topology, based
on the Internet connectivity properties of the bot. At the cost
of message latency, additional layers can be added to further
increase the protection of the C&C server against detection.
Another way to implement a hybrid botnet is to use a
centralized topology for one part of the C&C communication
and P2P for another part. For example, P2P could be used to
bypass DNS for an otherwise centralized topology.
Legacy can be another reason for using part P2P topology
and part centralized topology. One way to continue using ex-
isting web servers is to use P2P just for exchanging commands
and a centralized topology for data transfer.
Examples for botnets using a hybrid topology are the
Miner botnet [42] and later versions of the Zeus botnet [43].
Storm replaced DNS by using an existing P2P network for
finding C&C servers [44]. Version 3 of the Sality botnet
uses a hybrid network where the P2P part is responsible for
exchanging commands, while centralized web servers are used
for downloading the data. Since this centralized component
represented a single point of failure, version 4 migrated to a
P2P only network [37]. A more detailed explanation of botnets
can be seen in section V.
IV. BOTNET PROTOCOLS
Central to a botnet is its communication, which is needed to
remotely control the bots. As has been discussed in section III,
the layout of a botnet’s topology can be mapped to one of three
alternatives: centralized, P2P, and hybrid. The different topolo-
gies pose different restrictions on the communication protocols
that can be used. Furthermore, protocols can be tailored to
special needs such as stealthiness, which can be achieved by
creating a protocol that mimics legitimate traffic or by reusing
an existing protocol. Another important factor is the ease of
implementation. Botnets often reuse existing implementations,
therefore simplifying development. A different driving factor
can be network restrictions. For example, the usage of the IRC
protocol for botnet C&C communication is declining since
most corporate networks do not allow IRC.
According to [9] two main categories of botnet C&C
protocols exist: i) existing protocol, which means (re)using an
existing application protocol that was designed for a different
purpose or ii) a neoteric protocol implemented specifically
for the respective botnet. In addition to the C&C protocol, a
botnet needs to use additional protocols, to fulfill the desired
objectives and tasks.
A. IRC
The IRC protocol was initially developed for Internet chat
applications. It is a text-based protocol that allows clients to
communicate with a server which is responsible for relaying
the chat messages to other clients and servers. Messages
can be exchanged either between a client and a group of
clients residing in a so called channel or between two clients.
Channels can be password protected, allowing botmasters to
prevent others from taking over the botnet [45]. Additionally,
file transfers are supported, allowing for the distribution of
additional binaries, configuration files, or updates [46]. The
IRC protocol uses a centralized topology, is easy to implement,
has low latency, and is widely used on the Internet.
IRC has the disadvantage that it can be blocked easily by
security devices like firewalls. Furthermore, it is not common
in business networks. Later botnets with centralized topology
use different protocols (e.g., HTTP).
One of the earliest botnets called PrettyPark, which ap-
peared in 1999, uses a crude implementation of the existing
IRC protocol for C&C and is based on the idea of IRC bots
[47]. Later botnets, such as GTBot, utilize the scripting utilities
of an IRC client called mIRC [47], thereby limiting the needed
development time. Even later botnets, including Agobot, the
predecessor to Phatbot [38] (see section V), still rely on IRC.
B. HTTP
HTTP was designed for delivering web pages from web
servers to web browsers. It is a request-response protocol,
meaning that a client can make a request, which is answered
with a response from the server [48].
As main consequence, group communication is not pos-
sible with this protocol. Additionally, HTTP has a higher
latency than IRC, because every bot has to specifically request
commands from the server. Like IRC, HTTP is also easy to
implement since several server and client implementations are
available for free or as open source. Examples include nginx1
and Apache HTTP Server2
, which are both open source web
server implementations.
If every bot in the botnet implements a HTTP server and
client, HTTP can also be used in a P2P topology. Since HTTP
1https://nginx.org/
2https://httpd.apache.org/

8
a
b
c
(1)
(2)
(3)
(4)
Fig. 3. P2P botnet: Duplicate message. Message delivery: (1) from node a
to node b, (2) forwarded to c, (3) back to a, (4) again to b.
a
cd
be
(1)
(1)
(2)ZZ
(1)
(2) ZZ
(2) ZZ(2) ZZ
Fig. 4. P2P botnet: Lost message. Message delivery: (1) node a sends message
to every other node; node a is not connected with d, (2) node c and d are not
connected; e and b miss forwarding the message to d.
was designed for a centralized topology, additional care has to
be taken to prevent loops. Such application layer loops could
flood bots with replicated messages. This can be caused for
instance by every bot forwarding a message to other bots,
which in turn could forward the message back again (see
fig. 3). Additional topics that need to be addressed are reliable
communication across the botnet and finding other bots. An
example of unreliable communication can be seen in fig. 4. In
this example the botnet is not fully meshed and additionally
bots miss forwarding a message. These P2P specific needs
have to be addressed in an additional network layer on top of
HTTP.
An example solution can be seen in fig. 5. In this model
additional layers are inserted between the application layer
(HTTP) and the payload (the actual botnet command). The
Transport Layer (e.g., TCP)
optional Application Layer (e.g., HTTP)
P2P Layer
optional Routing/VPN Layer
Command/Payload
Fig. 5. P2P botnet protocol stack with non-P2P capable application protocol
and optional routing/VPN layer. In case of a neoteric protocol, the application
layer is not used.
P2P layer can be used to add information needed for reliably
sending messages to every node and preventing the above men-
tioned message flooding problem. Optionally, an additional
routing layer can be used for additional information which
allows sending a command to a specific bot without knowing
the needed network path in the P2P network. Additionally,
messages can be routed through an arbitrary number of bots,
raising the difficulty level of detecting the message origin. The
reliability problem could also be solved with this routing layer.
The main benefit of using HTTP is that it is predominantly
used on the Internet, and therefore communication via HTTP
blends into normal traffic patterns.
Examples for P2P-based botnets that use HTTP for commu-
nication are Blackenergy [49], Miner [42], Regin [50], early
versions of Sality [37], Sinit [39], and Waledac [32] (see also
section V).
C. SMB
Another protocol that conceals communication within typ-
ical traffic patterns in home and business networks is the
Server Message Block (SMB) protocol. Like HTTP, SMB is a
request-response protocol and works by exchanging messages
between a client and a server. First a client has to authenticate
itself to the server with user credentials or as an anonymous
user. After authentication, a client can request a list of available
shares, which are pools of files or services, or access files or
services (e.g., shared printers) [51].
The SMB protocol is mainly used to provide access to files
and printers over a network. Additionally, the SMB protocol
implements named pipes, which are a mechanism for Inter-
Process Communication (IPC), even across the network. IPC
can be used by different processes to exchange messages or
call specific functions.
Another way to use the SMB protocol is for infecting other
hosts. If a computer shares files via the SMB protocol, and
those files are writable, then a bot can inject malicious code
into these files. To infect a computer with those files, a user
has to open them. Therefore, this is called passive infection
(see also section VI-C).
The SMB protocol is often blocked at the gateway that
provides access to the Internet. Hence, this mechanism is used
mostly for communication in local networks.
Examples of botnets using the SMB protocol are Regin [50]
and Duqu 2.0, which is also capable of emulating a SMB
server for collecting passwords from authentication attempts
[52]. Additionally, Phatbot can propagate by infecting files
shared via the SMB protocol [38], [53]. More details about
the botnet examples can be seen in section V.
D. P2P Protocols
Existing P2P protocols which were originally developed for
file sharing and collaboration purposes can be used for botnets
with a P2P topology. These can be used to form a separate
P2P network or to hide as part of one of the existing networks
(see fig. 6).

This article is the accepted version of ”Botnet Communication Patterns” in the journal ”Communications Surveys Tutorials”.
9
Fig. 6. P2P botnet (gray) utilizing parts of an existing P2P network for CC.
An example for an existing protocol is WASTE3
, a protocol
originally designed for collaboration [55]. Another popular
class of P2P protocols are based on Kademlia. These protocols
can be used to store values or hashes in a distributed and fault
tolerant way [56].
A botnet using parts of an existing network is Phatbot,
which uses Gnutella cache servers for finding its peers. The
CC part of Phatbot uses the WASTE protocol, but without
encryption, therefore simplifying the communication [38].
Examples for Kademlia based protocols are the P2P variants
of Zeus, that use the same distance metric as Kademlia [43],
and Storm, which uses the Overnet protocol instead of DNS
[44]. Overnet is a Kademlia based P2P network and protocol,
that includes its own routing layer and addressing. It is mainly
used for file sharing [57].
E. Neoteric Protocols
As has been mentioned in the beginning of this section, there
are also botnets that use neoteric protocols for CC. Most of
these protocols are User Datagram Protocol (UDP) or TCP-
based. UDP is a simple transport protocol that offers datagram
services, i.e., unreliably transmitting single packets [58]. TCP
is a transport protocol capable of reliably transferring streams
of data between two hosts [33]. Additionally, Internet Control
Message Protocol (ICMP)-based CC channels have been
observed. ICMP is a protocol for exchanging control messages
(e.g., destination host unreachable) [59].
Depending on the used botnet topology and base protocol,
care has to be taken during the protocol design. For P2P
topologies, the protocol has to be reliable and prevent flood-
ing the network with duplicate messages (see section IV-B).
Additionally, if UDP is used, the reliable transmission of
messages between two hosts needs to be implemented. This
can be achieved by prepending headers to the actual command
contained in a single UDP packet (see fig. 5). Duplicate com-
mands can be detected using a command id from the command
header. Reliability can be implemented using retransmissions
and the optional sending of acknowledgments. This solution
is faster, more lightweight, and has less protocol overhead
compared to TCP. A higher number of concurrent connections
can be operated compared to TCP as no dedicated connections
need to be maintained. Moreover, this solution can help to
work around limits that are imposed by the operating system
3WASTE is a reference to the novel “The Crying of Lot 49” [54]
with respect to the maximum number of concurrent TCP
connections.
The payload can be either binary or text-based. Since no text
parsing is needed, binary protocols are easier to implement.
Additionally, the text-based protocols can be easier reverse
engineered since the commands have to be listed in the bot
binary and thus can be extracted with low effort.
The following paragraphs contain examples of neoteric
protocols which were invented for different botnets. For a more
detailed description of the listed botnets see also section V.
One of the first botnets using a neoteric protocol is trinoo.
CC communication is split into two parts, where one part
uses a password protected, American Standard Code for In-
formation Interchange (ASCII)-based, self-developed protocol
via TCP, while the other part uses UDP packets containing
short ASCII strings [60]–[62].
An example for a botnet that uses a binary protocol is the
Slapper botnet. Slapper uses UDP for the transport and writes
C structures directly into the payload [63]. A C structure
is a container for variables which are arranged directly one
after another in memory. Slapper uses the above mentioned
technique of adding headers to the packet payloads to handle
reliability and routing (transport layer, P2P layer, routing layer,
command in fig. 5) [63].
The Conficker botnet is only capable of distributing and
executing binaries. This allows for a much simpler neoteric
P2P-based protocol. Bots can only query if a newer binary is
available and download it if this is the case [40]. With these
restrictions in mind the duplicate message problem is solved
with the binary version since the newest version always wins
and binaries are only exchanged if there is a newer one. Since
every bot periodically tries to find new versions, the reliability
problem is also solved.
Another example for a botnet with a simple P2P protocol
is Sality. Like Conficker, Sality’s main purpose is to distribute
malware binaries. In addition to the file sharing capabilities
implemented in Conficker, the Sality protocol implements a
peer exchange and a command for marking a bot as super peer.
A super peer is publicly accessible from the Internet and can
therefore be contacted by other bots. Peer lists consist only
of super peers. Similar to Conficker, the duplicate message
problem is solved with a version of the files to be downloaded
and the reliability problem with every bot trying to download
new versions periodically [37].
F. Communication Hiding Obfuscation
1) Covert Channels: One drawback of neoteric protocols
(see section IV-E) is that they are not commonly used in
networks. Therefore, they can be easily detected. Existing
protocols have the drawback that botnets cause communication
that does not exist during normal operation. Both problems can
be remedied with the use of covert channels. Covert channels
are used to hide the existence of communication [64]. This
is achieved by using means of communication that are not
intended for communication use. For instance unused header
bits in, e.g., TCP or IP, can be used to transmit information
[64].

10
The Tribe Flood Network uses the identifier field of ICMP
echo reply packets as a command for CC [60], [62]. Despite
the effort to hide the communication, these packets can be
easily detected and manipulated by looking for ICMP echo
replies with missing ICMP echo requests.
2) Encryption: Encryption allows to hide the transmitted
commands and even the used protocol from detectors. This
defeats every type of network-based detector that needs to
inspect the payload. Common to every encryption algorithm
is that with the help of a single key or multiple keys clear text
can be transformed into cipher text and vice versa. Encryption
algorithms can either be stream based or block based. With
stream based encryption algorithms it is possible to encrypt
single bytes, while block based encryption algorithms can only
encrypt blocks of fixed size.
Furthermore, algorithms can be either symmetric, meaning
the same key is used for encryption and decryption, or
asymmetric, where two complementing keys are used [65].
The easiest way to encrypt data is with the exclusive or
(XOR) operation, where the exclusive disjunction between
every bit of the clear text and every bit of the key is calculated.
Repeating this operation on the resulting cipher text results in
the original clear text. This is a simple symmetric stream-based
encryption algorithm. One of the drawbacks is, that using the
same key with the same clear text results in the same cipher
text. This means, that if a botnet uses a predefined key and
fixed commands, the resulting encrypted commands can again
be identified. Even if the same key is used to encrypt multiple
samples, it is possible to calculate the original key from just
the cipher texts [65].
These problems can be solved by using an endless key,
which is the idea behind stream ciphers which create an
endless pseudo random sequence which is determined by the
key. This sequence is then used with the XOR operation on
the clear text. An example for such a cipher is Rivest Cipher
4 (RC4) [66].
Block ciphers work in several rounds on the clear text,
which consist of different combinations of XOR operations,
substitutions, and permutations. Examples for symmetric block
ciphers are Advanced Encryption Standard (AES) [67], Camel-
lia [68], Rivest Cipher 5 (RC5) [69], Tiny Encryption Algo-
rithm (TEA) [70], and Extended Tiny Encryption Algorithm
(XTEA) [71].
Asymmetric ciphers are based on numeric problems that
are hard to solve (e.g., prime factorization). One example is
Rivest-Shamir-Adleman (RSA) [65]. Since these algorithms
are computationally expensive, they are used mainly to ex-
change keys for a symmetric encrypted connection and for
signing.
Without the knowledge of the key it should not be possible
to derive the clear text from the cipher text. Exceptions can
arise if errors in the algorithm or errors in the implementations
are found or requirements of the algorithm are violated.
Therefore, it is advisable to use existing implementations like
Transport Layer Security (TLS). TLS handles encryption and
optionally authentication. One commonly used protocol is
Hyper Text Transfer Protocol Secure (HTTPS), which is HTTP
layered on top of TLS [72], [73]. Several libraries exist that
implement all the needed functionality.
Examples for botnets using flawed implementations of en-
cryption algorithms are the Tribe Flood Network 2000, which
caused every network packet generated by the botnet to end in
ASCII ’A’ characters [60], and Blackenergy 2, which reused
the same key for every message [74]. Blackenergy version 3
changed this implementation to using HTTPS instead [75].
Another example which uses HTTPS is Adwind [2].
Sality version 3 and 4 use RC4 encryption for P2P protocol
messages. Since the key for encryption is always transmitted
in the same message, this is used solely to obfuscate the com-
munication and defeat signature-based detection approaches
[37].
3) Multiple Protocols: To further increase stealthiness of
the botnet instead of a single CC protocol, different protocols
within the botnet can be used. This can be achieved by building
a variable communication layer capable of using different
communication protocols.
Duqu 2.0 is a botnet that is capable of using HTTP,
SMB named pipes, HTTPS, or a neoteric TCP protocol for
CC traffic. Those protocols can be combined with several
compression and encryption methods [52]. With this vast
choice of protocols the botnet can use the most predominant
protocol of the target network.
4) Compression: Another way to obfuscate communication
is to use compression. A compression algorithm reduces
the input according to an algorithm (e.g., replace repeating
sequences with sequence and number of repetitions, use in-
dex into a dictionary instead of the sequence itself). Unlike
encryption, no key is used and thus everyone knowing the
compression algorithm can decompress the data. Therefore,
compression can only obfuscate the data.
Used algorithms include zlib, Lempel Ziv Jeff Bonwick
(LZJB), Lempel Ziv Free (LZF), Fast Lempel Ziv (FastLZ),
Lempel Ziv Oberhumer (LZO), and bzip2 [76].
Examples for botnets using compression are Zeus, which
uses zlib [43], and Duqu 2.0, which can use multiple different
algorithms [52].
5) Steganography: An additional obfuscation technique is
steganography, which means hiding information in containers
that are not meant for communicating. This technique is
similar to covert channels, but instead of network protocols
files are used as carriers (e.g., images, videos, documents) [64].
The botnet Duqu 2.0 uses this technique if unencrypted
HTTP is used as protocol for CC communication [52]. Na-
garaja et al. [77] have proposed a botnet that uses an existing
social network as CC channel and hides the communication
in Joint Photographic Experts Group (JPEG) pictures. Since
this method relies on the user uploading images, the number
of possible transmitted messages is limited.
A more novel approach by Compagno et al. [78] hides the
CC communication in text messages exchanged via social
networks by users. This approach encodes the CC messages
with control codes that are not displayed by web browsers.
Additionally, information is encoded by rearranging code
combinations which result in the same visual representation.
Both approaches piggyback the CC communication onto

11
master CC
Fig. 7. Stepping stones between botmaster and CC server, which improve
stealthiness of botmaster.
legitimate user traffic defeating most network based botnet
detection mechanisms.
6) Stepping Stones: Since botnets are mostly used for
malicious activities, a botmaster needs to stay as hidden as
possible. One way to increase the secrecy is to use stepping
stones, which are hosts that are used as intermediate hops for
communication between the botmaster and the CC server
(see fig. 7).
In a P2P topology this can also be achieved with bots
in the network. In order to simulate the behavior of having
intermediate hosts between the botmaster and the source of
the control commands, an additional routing layer can be used
(see section IV-B). This routing layer adds the capability to
specify a number of intermediate hosts that the command
needs to be relayed through until it is allowed to reach its
target destination.
The Slapper botnet uses this mechanism by choosing a
random next hop at each step [63].
G. Operational Protocols
In addition to CC traffic, botnets also need to communi-
cate with other services in order to achieve their objectives.
This is achieved via operational protocols, which can be
distinct from the used CC protocol and topology.
In order to send spam, which is unsolicited email traffic,
botnets need to be able to communicate via Simple Mail
Transfer Protocol (SMTP). The SMTP protocol is a very
simple request-response protocol, where anyone can connect
to a mail server and submit emails [79]. Most servers require
authentication only for sending emails which are intended for
a different server, which is the main cause for spam. Therefore,
many email providers try to block emails that originate from
home IP addresses.
HTTP and HTTPS are also needed for implementing click
fraud. Click fraud is a scheme, that uses bots to access
advertising URLs, which in turn generates revenue [9].
In addition to click fraud the HTTP protocol, as well as
UDP or TCP is also needed to execute DDoS attacks. A DDoS
attack is an attack, that attempts to overload a networked
service. This can be achieved by sending large numbers of
packets to the target host or network. Since bandwidth is
limited, this will result in a service outage by consuming all
the bandwidth with attack traffic. Another way to overload
the service, is to send computationally intensive requests to
the targeted application. These requests will use up all the
available processing power rendering the service unresponsive
[11].
V. BOTNETS
Botnets are used for varying purposes including Remote
Administration Tool (RAT), DDoS attacks, distributing spam,
click fraud, service disruption, distributing malware, or as
a general purpose Content Delivery Network (CDN). Those
objectives, the distribution, and the maintenance of the botnet
have different communication needs. To fully understand the
communication patterns of botnets, a highly diverse list of
botnets is analyzed in this paper.
The previous botnet surveys [10], [11] are limited to botnets
with a specific targeted purpose, while more general surveys
[9], [22] only reference or mention botnets as examples. In
contrast, the focus of this work is on the specification of
general models for botnet communication. As a consequence,
this taxonomy is built on top of an intentionally diverse list of
botnets in order to extract the communication commonalities
of a variety of botnets.
To compile a taxonomy of task dependent communication
patterns, the botnets have been analyzed according to:
• Topology of the botnet for determining if the topology
has an influence on generalized communication patterns.
• Purpose of the botnet.
• CC protocols used and the relation to the purpose of
the botnet.
• CC communication related obfuscation and hiding tech-
niques and the influence on the communication patterns.
• Tasks that can be executed.
• CC communication needed for those tasks.
• Network communication needed for the botnet tasks.
The following list of assorted botnets (see also table II) in-
cludes botnets with varying degrees of sophistication, different
communication approaches, various topologies, and differing
goals. Botnets in the list were selected as representatives of
their class, either because they were the first including some
new methods or because they use an especially sophisticated
variant of a particular technique. Further botnets have been
selected that went through a radical evolution during their
lifetime. This evolution represents a general botnet trend.
Furthermore, old and new botnets have been chosen to inspect
if and how communication patterns evolved over time.
1) Adwind [2], [80]: A special feature of this botnet is that it
is marketed as software as a service. This means, that the
software is hosted by a provider and one can only buy
a subscription that lasts for a limited time. Therefore,
Adwind requires the use of a centralized structure with
a limited number of CC servers for license checking.
So despite the fact that most modern botnets use P2P
or hybrid topologies this botnet still uses a centralized
structure with a limited number of CC servers. This
licensing scheme could also be achieved with a hybrid
topology, but this would increase the implementation and
operation costs. The use of a hybrid topology also im-
poses restrictions on the minimum size of the botnet since
a number of bots are needed to relay communication. This
makes the business model of software as a service for a
botnet too expensive to use it in a targeted attack.
Since there are also rebranded, copied, and cracked
versions, many more CC servers than the initial ones
exist. This is one reason why blacklists for blocking
CC servers are only of limited value. Adwind is mainly
Proxying

12
TABLE II
OVERVIEW OF COVERED BOTNETS, FEATURES AND REFERENCES
Botnet Year1 CC Protocol Topology Encryption Comp. Purpose Related/Family Refs
Adwind 2012 HTTPS central TLS - RAT, modular AlienSpy, Frutas,
jFrutas, Unrecom,
Sockrat, JSocket, jRat
[2], [80]
Blackenergy 2007 HTTP, google+ central v1: -; v2 RC4a;
v3: TLS
- DDoS,
modular
multiple versions [29], [49],
[74], [75],
[81], [82]
Conﬁcker 2008 HTTP, SMB,
UDP, TCP
central; later
P2P, central
RC4 (P2P) - distribute
malware
Downadup, multiple
versions (A – E)
[30], [40],
[83], [84]
Duqu 2.0 2014 HTTP, SMB
named pipe,
HTTPS, TCP
central Camellia, AES,
XTEA, RC4,
XOR, TLS
LZJB,
LZF,
FastLZ,
LZO
RAT, modular Duqu, Flame, Gauss,
Stuxnet, miniFlame
[52], [85]
Miner 2010 HTTP central; later
hybrid P2P/
central
- - PPI, (Bitcoin),
DDoS, steal
identities
multiple versions [42]
Phatbot 2004 WASTEb, IRC P2P, central - - steal data,
DDoS, deploy
malware
Agobot, Gaobot,
Forbot, XtrmBot, over
1000 variants
[38], [53],
[86]
Regin 2003 UDP, TCP,
SMB, HTTP,
HTTPS
P2P, VPN RC5, TLS - modular QWERTY [50],
[87]–[89]
Rustock 2005 HTTP central RC4c, TEA - spam multiple variants [90], [91]
Sality 2003 email, HTTP,
UDP, TCP
central; later
P2P
- - load software,
steal data
multiple versions [37]
Sinit 2003 UDP P2P - - distribute
malware
Calyps.a, Calypso [39]
Slapper 2002 UDP P2P, routing - - DDoS, load
software
Scalper, Cinik, Unlock,
multiple versions
[63], [92]
Storm 2007 Overnetd, HTTP hybrid P2P/
central
XOR zlib spam, DDoS Peacomm, Nuwar, Tibs,
Zhelatin
[31], [44],
[93], [94]
Stuxnet 2005 HTTP, TCP,
SMB named
pipe
P2P, central XOR - disrupt
SCADA
Duqu, Duqu 2.0,
Flame, Gauss,
miniFlame
[5]
TFNe 1999 TCP, UDP,
ICMP
central original: -;
2000:
CAST-256
- DDoS Stacheldraht [60], [62],
[95]
Trinoo 1999 TCP, UDP central - - DDoS Stacheldraht, Trin00 [60]–[62]
Waledac 2008 HTTP hybrid P2P/
central
AES, RSA bzip2 spam, load
software
- [32], [96]
Zeroaccess 2011 UDP, TCP P2P RC4, custom
XOR
- click fraud,
load software
Smiscer, Max++
rootkit, Sirefef
[41], [97],
[98]
Zeus 2006 UDP, TCP,
HTTP
central; later
hybrid
P2P/central
RC4 zlib steal
credentials
multiple variants,
Gameover, Murofet,
Licat
[29], [36],
[43], [99],
[100]
1 First sample a Version 2 used a weak implementation of RC4 [74]. b Without encryption [38], [86]. c Key matching computer hardware of bot.
d Overnet is used as a replacement for DNS [44]. e Tribe Flood Network

13
used as a RAT in targeted attacks. A RAT allows the
botmaster full control of the computer the bot executable
runs on. Depending on the included plugins, Adwind can
be used to delete files, upload files, modify files, monitor
the owner of the computer including access to attached
devices like webcams, exfiltrate sensitive data including
login credentials, and even access all data on mobile
phones. This functionality in the Adwind botnet was used
to get access to financial institutions, monitor government
officials, or simple money extortion schemes.
Besides being used as a RAT, Adwind also allows for
other scenarios due to the modular design. Discovered
plugins include a crypto currency miner, and proxies. Ad-
ditionally, it contains a java obfuscater to evade detection
and is able to run on OSX, Windows, Linux, and Android.
Communication is protected via HTTPS and uses non-
standard ports, which means that a different port than
443 is used which is suggested by the standard [73] for
HTTPS.
2) Blackenergy [29], [49], [74], [75], [81], [82]: This botnet
exists in multiple versions. Every version uses a central-
ized topology and a HTTP server as CC. Early versions
did not use encryption and were only capable of DDoS
attacks. Later versions secure the communication with
a weak RC4 implementation and add several modules
enabling the botnet to be used for service disruption
(e.g., routers, Supervisory Control and Data Acquisition
(SCADA)).
SCADA systems are used for controlling processes in
large scale industrial control systems. Since those systems
are sometimes geographically dispersed, they need to be
connected to the Internet. Additionally, those systems are
often connected to office networks for exporting data to
accounting or updating processes remotely [101].
Blackenergy can also be used as an Advanced Persistent
Threat (APT), which is a targeted attack where a skilled
adversary gains access to a network and remains there
undetected. This allows for further reconnaissance and
accessing different levels of the network to finally achieve
the main objective (e.g., data exfiltration, interrupting
normal operation) [101], [102].
At present time the latest version uses HTTPS for com-
munication and a module has been identified which can
use the social network Google+4
for communication.
Blackenergy represents one of the trends in botnet evolu-
tion. It started out as a simple DDoS capable botnet with
unencrypted CC communication and utilized a central-
ized topology. Later on, Blackenergy was modularized,
which allowed for additional purposes besides DDoS.
During this process encryption with differing levels of
sophistication was added. Despite the simple start it is
currently even used in high profile attacks on the power
grid [7].
3) Conficker [30], [40], [83], [84]: This botnet evolved
very fast in 2008 and 2009, undergoing five different
versions (named A – E). All the earlier versions received
4https://plus.google.com/
updates, upgrading bots to the latest version. Additionally,
version E installed malware on the infected computers
and removed itself on 3rd of May 2009.
Early versions employed a centralized botnet topology,
using a DGA for generating domain names. Since the
DGA used the current time as a seed, bots sent HTTP re-
quests to popular web sites for retrieving the current time.
The only purpose of the central server was to distribute
binaries. Since those binaries got loaded directly into the
botnet, it was possible to add additional functionality.
After the DGA was reverse engineered and the results
were used to disrupt the botnet, the DGA was updated.
Additionally, later versions of Conficker also contained a
P2P component for distributing binaries. Under specific
circumstances, the centralized part was switched off and
only the P2P component used.
To harden the botnet against adversaries, Conficker em-
ployed RSA signatures for every binary update, and
used RC4 encryption for the P2P protocol. Furthermore,
the P2P component used random scanning for peers.
Additionally, the ports used by the P2P component were
generated from the current week number and the IP
address.
4) Duqu 2.0 [52], [85]: This sophisticated botnet was first
discovered by Kaspersky Lab during a security sweep
within their own network. It is highly modular, can be
used as a RAT, and features several techniques that make
it especially suited as an APT. In order to evade detection,
several encryption techniques including Camellia, AES,
XTEA, RC4, and chunk-wise XOR with a fixed key can
be used by this botnet.
Additionally, multiple proxy modules are available that
enable translating from any of the used protocols to
HTTP, HTTPS, SMB named pipes, and a neoteric TCP
protocol over different ports. Moreover, network traffic
over HTTP is hidden using steganography (see sec-
tion IV-F5).
Further network traffic mangling can be achieved by
utilizing the compression modules which support LZJB,
LZF, FastLZ, and LZO. This APT has the unique behav-
ior that the persistence module is only used on servers,
which means that other hosts need to be reinfected after
every reboot, causing additional traffic.
5) Miner [42]: Early versions of the Miner botnet use a
centralized approach with several CC servers. Later
versions replace this topology with a layered structure
consisting of static master CC servers, a P2P/CDN
layer, and a worker layer. Clear text HTTP over port
8080 is used for communication. Transmitted binaries are
signed with an RSA encrypted Message Digest 5 (MD5)
hash.
Hashing functions are one way algorithms that transform
input of arbitrary size into shorter numbers representing
the original content. The hash of two identical copies
results in the same number. This can be used as a shortcut
for verifying file contents [65].
The Miner botnet, as a Pay-Per-Install (PPI) service, is
used as CDN for additional malware and for running

14
DDoS attacks. The most used additional malware in-
cludes bitcoin miners and software capable of stealing
social network identities.
The Miner botnet is an example of a botnet which
harnesses the computing power of its victims for financial
gain (e.g., mining bitcoins).
6) Phatbot [38], [53], [86]: This botnet is a successor of
Agobot, which used a centralized topology over IRC. In
this evolution an additional communication mechanism
using a P2P topology via the WASTE protocol is added
(see section IV-D for a description of WASTE). The
encryption part of the protocol is removed in order
to avoid the problem of key distribution, which is not
a part of WASTE. The botnet utilizes Gnutella cache
servers for finding its peers. Binaries needed during the
infection stage and updates are transmitted over plain
text File Transfer Protocol (FTP). FTP is a simple text-
based request-response protocol used for transferring files
between a server and a client [103].
The botnet uses a modular architecture for its payload
allowing for various malicious activities. The main goals
of this botnets include stealing of data, performing DDoS
attacks, and deploying additional malware.
Phatbot is one of the earliest attempts to replace the
centralized topology, which was predominant by that
time, with P2P. This attempt seems to have failed since
despite extensive modifications to the rest of the bot,
in later version of the botnet the WASTE protocol was
never updated. Additionally, Phatbot still contains the
IRC protocol and the WASTE protocol was designed for
small networks with 10-50 nodes.
Since the source code for the original Agobot and Phatbot
was published on the Internet, there are several thousand
variants of this botnet.
7) Regin [50], [87]–[89]: Although the first known sample of
Regin dates back to 2003, this botnet was first discovered
in 2012. This is caused by the sophisticated Service
Oriented Architecture (SOA), which is used to implement
a highly modular botnet where every module communi-
cates through a Virtual Private Network (VPN). With this
design the functionality can be spread over several bots
and changed dynamically during run time. The VPN can
be transported over a neoteric UDP protocol, a neoteric
TCP protocol, SMB, HTTP, and HTTPS.
To initialize the connection between two bots, one bot
sends a knocking sequence to the other bot. The two bots
then negotiate which transport protocol should be chosen
for CC communication. This knocking sequence can
use any of the above mentioned protocols and addition-
ally, ICMP. With this technique, the communication is
adapted to match the non malicious traffic occurring in
the target network. Additionally, this technique can be
used to exfiltrate data through firewalls since a protocol
can be chosen that is permitted by the firewall. Com-
munication is protected by TLS including certificates for
authentication. The whole mechanism is used to build a
P2P network and is mainly used as an APT.
While Duqu 2.0 is also capable of using different pro-
tocols between bots, Regin is capable of handling this
automatically. Additionally, the overlaid VPN hides this
complexity from the operator. Duqu 2.0 is also the only
known botnet as of today, that uses a SOA for its modules.
8) Rustock [90], [91]: The Rustock botnet is used for
distributing spam. Earlier versions use HTTP for com-
munication and encrypt the transmitted data with RC4
including a custom key exchange. Later versions replace
HTTP by a TEA encrypted neoteric protocol disguised
as HTTPS traffic with keys derived from the system
information of the infected host.
Every version uses a central CC server for coordination.
In case the configured CC server can not be reached,
Rustock tries to contact CC server addresses generated
by a DGA.
In addition to sending spam via SMTP this botnet is also
capable of using web-based mail services (e.g., windows
live hotmail) with stolen credentials, which increases the
difficulty of detecting the botnet by observing network
traffic.
Rustock is highly visible on the Internet since it tries to
send as much spam as possible. Despite this fact, a joint
effort of law enforcement, multiple security firms, and a
pharma group was needed to bring the botnet down by
seizing multiple CC servers around the world at the
same time.
9) Sality [37]: Early versions of Sality are used to steal
information including passwords and data obtained by
keylogging. The collected data is sent back to the attacker
via email and no control of the infected hosts is possible.
Later versions split the malware into a botnet being
capable of installing additional software and a payload
which provides the information stealing capabilities.
This simple botnet uses clear text HTTP to communicate
with a central CC server. Since the URLs are hard-
coded, take down of the botnet is easily achieved by
shutting down the central server. To prevent this, the
topology of Sality was changed to P2P with RC4 en-
crypted communication over pseudo random generated
UDP ports. Bots are split into worker bots executing
the botnet tasks, and super peers used solely for CC
communication purposes.
The main purpose of the latest version of Sality is to
load additional software for information theft and network
scanning.
Sality is designed to be take down resistant. The P2P code
keeps a list of peers, which is refreshed every 40 minutes.
This makes it impossible to inject bad peers. For security
measures, these peer lists are limited to 1000 peers per
bot, therefore preventing a single entity from knowing
big parts of the network. Additionally, binary downloads
are signed.
10) Sinit [39]: The main purpose of this botnet is to serve as
a CDN, which is used to distribute additional malware.
Sinit uses a neoteric protocol on top of UDP. The botnet
topology is P2P and bots find peers by random scanning
the Internet. UDP port 53 is used for communication,
which is the same port and protocol DNS uses. This lead

15
to peer discovery being mistakenly interpreted as DNS
fingerprinting.
Distributed binaries are digitally signed to prevent foreign
code. In addition to the P2P protocol, the botnet includes
a small web server, which only provides the bot binary
for downloading, thus spreading the botnet.
Sinit is one of the early attempts of building a P2P
topology with a neoteric protocol.
11) Slapper [63], [92]: The Slapper botnet is a successor to
the Scalper botnet, which uses a P2P topology and is ca-
pable of distributing spam, executing arbitrary commands
on the infected host, and performing DDoS attacks.
The P2P protocol is made more robust and efficient com-
pared to the predecessor. This is handled by an additional
reliability layer in the protocol used for acknowledgment.
An additional routing layer is capable of routing a mes-
sage through several bots before it reaches the target bot.
This allows for hiding the origin of messages. The routing
layer can also thwart correlation based detection attempts
since it enables bots in the same network to receive the
same message from different bots.
12) Storm [31], [44], [93], [94]: This botnet utilizes a hybrid
P2P/centralized architecture consisting of a central CC
server hidden behind proxy servers. These proxy servers
are connected to the existing P2P network Overnet (see
also section IV-D). The P2P network is used as a re-
placement for DNS, thus hiding from DNS-based botnet
detectors. The information stored in Overnet is only 16
bytes long and encrypted with a static 16 byte key using
XOR.
Only worker bots are used for performing DDoS attacks
and distributing spam, while the other bots are in charge
of providing a double-flux network for the botnet in mul-
tiple layers. Files are distributed via HTTP and commands
via a neoteric text-based TCP protocol. Storm has the
capability to detect scanning attempts and launch DDoS
attacks in order to prevent detailed investigation of the
botnet.
13) Stuxnet [5]: The main purpose of this botnet is to disrupt
a specific SCADA infrastructure. This botnet has only
limited control abilities and uses a P2P network for
updates in networks with no Internet connection, HTTP
in networks with Internet connection, and can also spread
and update itself via infected Universal Serial Bus (USB)
drives. The combination of USB infected drives and
network communication allows this botnet to even infect
air gapped systems (see also section VI-C2) and offers the
option to control these networks at the cost of very high
unreliability and very high latencies. P2P communication
is XOR encrypted with a static key and runs on top of
a neoteric TCP protocol or SMB named pipes. Stuxnet
is very sophisticated, believed to be targeted at a single
industrial facility, and supposedly ordered or authored by
a nation state’s intelligence service.
14) Tribe Flood Network [60], [62], [95]: The Tribe Flood
Network was created in late 1999 as a show case to
demonstrate the possibility of a sophisticated DDoS at-
tack tool. Early versions use ICMP echo reply packets
for communication, with the command encoded in the
identifier field in order to evade detection. The later
version Tribe Flood Network 2000 changes the CC
communication to a neoteric CAST-256 encrypted pro-
tocol transported via UDP and is also able to run on
Windows, Linux, and Solaris. Stealthiness is further
increased by omitting acknowledgments. To eliminate
potential communication channel unreliability, commands
are sent multiple times to the bots. The botnet can be
further disguised by sending fake command packets to
fake destinations. Although this botnet is one of the
earliest, it already features modern hiding techniques like
covert channels and encryption.
15) Trinoo [60]–[62]: Trinoo was developed in early 1999
to launch coordinated DDoS attacks. It features a CC
server component called handler and bots called agents.
Commands can be sent to the CC server over a simple
text-based neoteric TCP protocol. The CC server is
password protected with a hard coded password and it
tries to notify the botmaster of botnet overtaking attempts.
A neoteric UDP protocol featuring simple text-based
commands and custom acknowledgments is used as CC
protocol. Like Tribe Flood Network, Trinoo is also a very
early attempt to create a botnet.
16) Waledac [32], [96]: This botnet is mainly used to dis-
tribute spam and execute additional malware on the target
host. The topology used for communication is a hybrid
CC/P2P approach consisting of a master CC server, a
layer of relay nodes, and a slave node layer. Like the
Storm botnet, this infrastructure is used as a fast-flux
network. Communication uses AES and RSA encrypted
HTTP requests, which are additionally compressed with
bzip2. One feature distinguishing Waledac from other
botnets is that every bot generates RSA keys and cer-
tificates. These are used to encrypt session keys, which
in turn are used to AES encrypt the CC communica-
tion. Additionally, the CC communication is heavily
obfuscated by using multiple steps like compressing,
encrypting, encoding, and mangling the messages.
17) Zeroaccess [41], [97], [98]: The Zeroaccess botnet em-
ploys a P2P network for communication. This P2P net-
work is divided into super-nodes used for file distribution
and normal nodes. Super-nodes need to be reachable from
the Internet, and therefore nodes are declared as normal
nodes if they are behind a NAT. As a communication
protocol, a neoteric UDP and TCP protocol is used, which
are encrypted with RC4 or a custom XOR-based encryp-
tion. One of the main purposes of this botnet is click
fraud. Additionally, this botnet is used for search engine
poisoning, which is the hosting of malicious websites that
contain targeted keywords. Therefore, these pages show
up in search engine results, luring unsuspecting users to
malicious web content.
Zeroaccess has a very limited set of CC commands,
which can only be used for updating the bot binary or
loading additional malware. The additional communica-
tion needed by the modules needs to be handled by the
modules themselves. Therefore, this botnet needs multiple

16
CC channels, each acting differently.
18) Zeus [29], [36], [43], [99], [100]: This botnet uses several
central CC servers in the early versions. In order to
make the botnet resilient against CC server take-downs,
the botnet features a DGA, that randomly generates 1000
DNS host names per day in order to find CC servers.
Since this algorithm was discovered, the Zeus botnet
migrated to a P2P topology. In case a bot can not access
any peers via P2P, it falls back to finding a CC server
via DGA. The protocol uses UDP for messages and
TCP for file transfers. Communication is encrypted with
RC4 and compressed with zlib. During startup of the
bot executable, peers are discovered by connecting to
hosts taken from a hard coded peer list. Several thousand
variants of the botnet exist, because the source code of
the botnet was published on the Internet. The different
variants also feature variations in the protocol, making it
suitable for determining similarities in behavior although
different protocols are used.
VI. COMMUNICATION PATTERNS
A central component to botnets is the communication be-
tween botmaster and bots. As explained in sections III and IV,
it is paramount for the botmaster to stay hidden. Therefore,
botmasters do not communicate directly with bots but use a
CC server. Since detection of the botmaster can potentially
lead to prosecution, the botmaster tries to stay hidden, using
as little traffic as possible [9]. Bots typically generate addi-
tional network traffic during execution of their assigned tasks,
which increases their visibility in the network. Thus, detecting
botnets based on network traffic has the highest chance of
success when observing traffic close to the bots. Therefore,
this work concentrates on the communication patterns that can
be observed at or near bots.
A. Notation
The communication patterns identified for botnets are pre-
sented in generalized communication patterns. A communi-
cation pattern is a sequence of exchanged messages needed
to achieve a specific task. For example, in order to display
a web page, a web browser needs to send a request to a
web server. The server sends back a response containing the
contents of the requested page. If, for instance, this web
page contains pictures, the same request-response process has
to be repeated for every picture. Web browsers use HTTP
as the network protocol, which was designed to fulfill this
communication pattern. A form of visual representation for
such patterns is provided by UML sequence diagrams. An
example of a sequence diagram representing the web browser
communication pattern is visualized in fig. 8.
A communication pattern is called an interaction in UML
sequence diagrams. The base components of such an interac-
tion are lifelines and messages [104]. The participants in an
interaction are represented by lifelines. In the example given
by fig. 8, these are the Web Browser and the Web Server.
These participants exchange messages over the lifetime of the
communication pattern.
Web Browser Web Server
request page
page contents(A)
request picture
looploop [until finished]
optopt [if page contains pictures]
(B)
Fig. 8. Communication pattern example: Web browser requesting a web page
which may contain pictures.
Messages can be synchronous (also termed calls) or asyn-
chronous. A call consists of the two messages request and
reply. An example of the synchronous call consisting of the
request request page (filled arrow) and the reply page contents
(non-filled arrow and dashed line) can be seen in fig. 8
step (A). Asynchronous messages consist of a request without
any reply. Those are drawn with a non filled arrow.
An additional component is a combined fragment, which
consists of an operator kind, a constraint, and an operand
[104]. Combined fragments are drawn with a box enclosing
the operand, which is an arbitrary combination of messages
or further fragments. The upper left of the box contains the
operator kind which specifies the type of fragment and option-
ally a constraint enclosed by square brackets. An example of
a combined fragment can be seen in fig. 8 step (B).
Combined fragments used in this work are opt and loop.
Fragments with the operator kind opt denote optional parts
of the communication pattern [104]. The contents of this
fragment occur only if the constraint is met. For example,
fig. 8 step (B) is applicable only if the page contains pictures.
The loop fragment is used to depict repeating communication
[104]. For every picture the request picture call is executed
in step (B). The opt fragment in fig. 8 contains only the loop
fragment. Therefore, step (B) could have also been depicted
with only the loop fragment since it gets executed for every
picture, which is zero times in the case of no pictures.
Another UML sequence diagram part used in this work is
an interaction use. This part is a reference to another sequence
diagram. An interaction use is drawn like a combined fragment
with ref as the operator kind and without a constraint [104].
In this work those are used to refer to parts that can not be
generalized, like the infection part. Examples can be seen in
fig. 9. If messages are exchanged through the network during
such a reference, this is additionally depicted by an arrow in
this work (e.g., fig. 9a). This is not part of the UML standard
[105] and used as a visual aid.
The following communication patterns use a generalized list
of common messages. These messages and calls are explained
in the following list:
coordinate: Coordination message. In case the specific task

17
is not automated, this is needed to instruct the bot what
to do.
scan: Network scan. This could be an ICMP echo request,
a TCP or UDP scan, or a targeted scan for vulnerable
services.
data: General data. This could be a bot binary, arbitrary files,
or network data that is communicated with the botnet or
other hosts.
register: Message needed for rallying. In case of a P2P topol-
ogy this is needed to set up peer to peer communication.
execute, gather/compute, install/store, infect: Generalized
tasks which are executed by the bot net. Those are either
not visible in the network or specific to the botnet.
B. Overview
Depending on the topology, CC traffic arriving at a bot
can either be sent by another bot or by the CC server. To
keep the sequence diagrams simple, the generic term CC is
used as the communication partner of the bot. In a centralized
topology CC is one of the CC servers, in the P2P topology
another bot, and if proxying is used a proxy. The aim of
this work is to present generalized communication patterns
related to bot detection, which is why the distinction between
CC server and bot is not relevant. Commands could also be
relayed through another bot instead of originating from the
CC server directly.
One important part of botnet communication is coordina-
tion. Except for automated tasks, every task is executed only
after a command is received via the CC channel. Without
this coordination, only the effective botnet actions can be
monitored by a third party. Therefore, the more tasks are
automated, the stealthier the botnet is. Examples for automated
tasks in botnets include the harvesting of login information
in Sality [37] and Storm [93], as well as self-updating in
Stuxnet [5], and network traffic modification in Miner [42] and
Zeroaccess [98]. Limiting coordination comes at the expense
of flexibility. Hence, there are only a limited number of
tasks that are automated in current botnets, excluding highly
specialized ones which were built for a dedicated purpose (e.g.,
Stuxnet [5]). One exception to this is the Conficker botnet,
which was only capable of distributing and executing new
binaries [84]. Since this process was initiated by the bots
themselves, every task in the botnet was automated.
Communication in botnets can happen via the pull method
or the push method. Pulling means that a bot requests out-
standing commands from CC, while the push method means
that CC sends commands to the bots actively. The used
method depends mainly on the protocol in use. E.g., HTTP
is built upon a request-response model, which means bots
are only capable of using the pull method (see section IV-B
for a more detailed explanation of HTTP). Additionally, the
transport protocol might need acknowledgments which can
be seen as data flowing into the other direction. To keep the
following interaction diagrams simple, the distinction between
push and pull, and possible acknowledgments are left out. In a
network-based detector this distinction can also be left out by
including a filter step that converts pull-based communication
to push-based communication. Including this step is necessary
to become protocol independent.
Botnet communication can be separated into the two stages
propagation and operation. From the view of the infected host
and bot binary these two steps can only occur sequentially
since the infection (propagation) has to occur before the bot
can become operational.
The first stage is propagation, which is used for recruiting
new bots. Propagation can happen actively, when the botnet
tries to infect additional victims, or passively, when the bot
binary is distributed via other means (e.g., email or drive-
by download). After propagation, newly created bots may
register with the botnet. If the propagation happens passively
and the registration is omitted, then this step can only be
observed with Deep Packet Inspection (DPI). With DPI it is
possible to extract binaries from network traffic which could
then be classified as bot binaries. This approach works only
if no encryption is used. Section VI-C discusses propagation
methods in more detail.
The second stage is the operation stage. During this stage
the botnet performs the actual work. Network communication
during the operation stage depends on the purpose of the
botnet. Section VI-D explains the different operation modes
of a botnet in detail.
C. Propagation
Propagation is the first step in the life of a bot. Since the
potential power of a botnet increases with its size, botnets
continuously try to recruit new bots. E.g., botnets capable of
DDoS attacks can cause more traffic with more bots, botnets
used to steal data can accumulate more data by spreading to
additional hosts, and the spam volume of botnets sending email
spam is directly dependent on the number of bots. APTs on
the other hand need to stay as hidden as possible. Additionally,
APTs are targeted attacks, and therefore only a specific number
of infected machines is needed. These botnets exhibit the
propagation step only seldom.
The propagation can happen either actively or passively, and
is followed by a registration step.
Both propagation techniques infect a victim host with the
botnet executable and launch the bot. This infection can
happen in multiple stages where the victim first runs only a
small bootstrap binary which in turn fetches the actual bot
executable from the botnet or even a completely different
botnet (see fig. 9a step (D) and fig. 9b step (B)). For example,
the Rustock botnet used a multistage installer where the last
stage was encrypted by the CC server with a key generated
from system information of the target computer [90]. This
technique increases the difficulty for researchers to obtain a
bot executable for reverse engineering.
1) Active: Propagation through bots that use existing vul-
nerabilities for infecting additional hosts is called active prop-
agation. This can happen on command or automatically. De-
pending on the implementation of the used exploit, a scanning
step might be necessary before the actual infection can occur.
This might be used to keep the needed computational resources
at a minimum since, depending on the attack, scanning can
OS

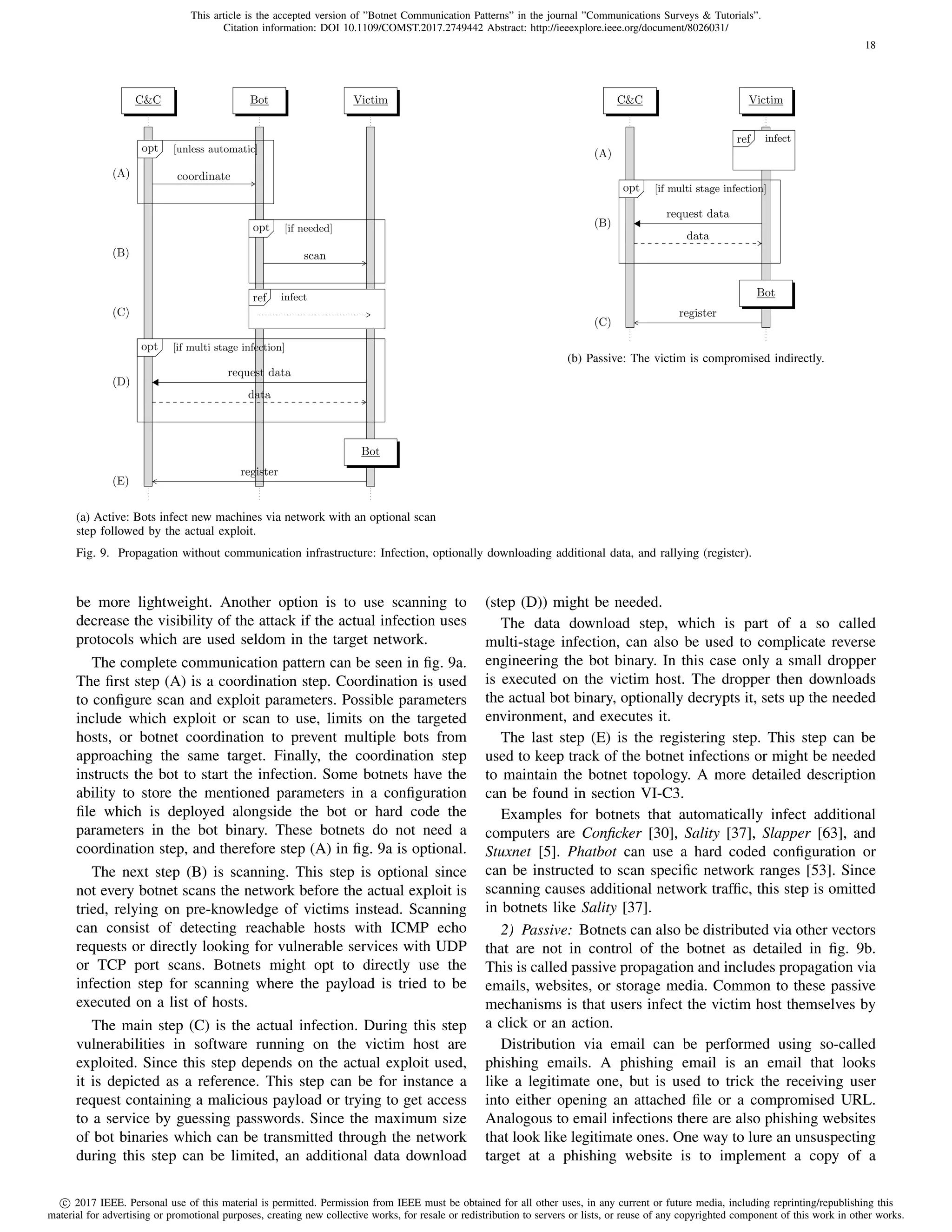

18
CC Bot Victim
coordinate
optopt [unless automatic]
(A)
scan
optopt [if needed]
(B)
xref infectref infect
(C)
request data
data
optopt [if multi stage infection]
(D)
Bot
register
(E)
(a) Active: Bots infect new machines via network with an optional scan
step followed by the actual exploit.
CC Victim
ref infectref infect
(A)
request data
data
optopt [if multi stage infection]
(B)
Bot
register
(C)
(b) Passive: The victim is compromised indirectly.
Fig. 9. Propagation without communication infrastructure: Infection, optionally downloading additional data, and rallying (register).
be more lightweight. Another option is to use scanning to
decrease the visibility of the attack if the actual infection uses
protocols which are used seldom in the target network.
The complete communication pattern can be seen in fig. 9a.
The first step (A) is a coordination step. Coordination is used
to configure scan and exploit parameters. Possible parameters
include which exploit or scan to use, limits on the targeted
hosts, or botnet coordination to prevent multiple bots from
approaching the same target. Finally, the coordination step
instructs the bot to start the infection. Some botnets have the
ability to store the mentioned parameters in a configuration
file which is deployed alongside the bot or hard code the
parameters in the bot binary. These botnets do not need a
coordination step, and therefore step (A) in fig. 9a is optional.
The next step (B) is scanning. This step is optional since
not every botnet scans the network before the actual exploit is
tried, relying on pre-knowledge of victims instead. Scanning
can consist of detecting reachable hosts with ICMP echo
requests or directly looking for vulnerable services with UDP
or TCP port scans. Botnets might opt to directly use the
infection step for scanning where the payload is tried to be
executed on a list of hosts.
The main step (C) is the actual infection. During this step
vulnerabilities in software running on the victim host are
exploited. Since this step depends on the actual exploit used,
it is depicted as a reference. This step can be for instance a
request containing a malicious payload or trying to get access
to a service by guessing passwords. Since the maximum size
of bot binaries which can be transmitted through the network
during this step can be limited, an additional data download
(step (D)) might be needed.
The data download step, which is part of a so called
multi-stage infection, can also be used to complicate reverse
engineering the bot binary. In this case only a small dropper
is executed on the victim host. The dropper then downloads
the actual bot binary, optionally decrypts it, sets up the needed
environment, and executes it.
The last step (E) is the registering step. This step can be
used to keep track of the botnet infections or might be needed
to maintain the botnet topology. A more detailed description
can be found in section VI-C3.
Examples for botnets that automatically infect additional
computers are Conficker [30], Sality [37], Slapper [63], and
Stuxnet [5]. Phatbot can use a hard coded configuration or
can be instructed to scan specific network ranges [53]. Since
scanning causes additional network traffic, this step is omitted
in botnets like Sality [37].
2) Passive: Botnets can also be distributed via other vectors
that are not in control of the botnet as detailed in fig. 9b.
This is called passive propagation and includes propagation via
emails, websites, or storage media. Common to these passive
mechanisms is that users infect the victim host themselves by
a click or an action.
Distribution via email can be performed using so-called
phishing emails. A phishing email is an email that looks
like a legitimate one, but is used to trick the receiving user
into either opening an attached file or a compromised URL.
Analogous to email infections there are also phishing websites
that look like legitimate ones. One way to lure an unsuspecting
target at a phishing website is to implement a copy of a
network

19
TABLE III
BOTNET PROPAGATION SUMMARY
Botnet Active Passive Coordination Scanning Registration
Adwind – – –
Blackenergy –/ a –/ a –/ a
Conficker – –
Duqu 2.0 –/ a –/ a –/ a –/ b
Miner – – –
Phatbot
Regin –/ a c c c c
Rustock – – –
Sality – –
Sinit – – –
Slapper – –
Storm – – –
Stuxnet – d
TFNe – – – –f
Trinoo – – –
Waledac – – –
Zeroaccess – – –
Zeus – – –
Featured. – Not Featured.
a Only for lateral movement in network.
b Infected machines without pre-programmed CC server stay dormant until woken [52].
c Unknown [50], [88].
d Only if Internet connection is available [5].
e Tribe Flood Network.
f List of bot IPs needs to be maintained manually.
website with common mistypes in the web address. Instead
of involving the user, it is also possible to use vulnerabilities
in the client browser or plugins therein. In this case, the botnet
gets installed automatically upon visit. This is called a drive-
by download. It can be used by infecting a website which is
used regularly by the targeted victims. Targeting the attack this
way is called a watering hole attack. Another way is to infect
an advertising (Ad) network, which provides Ads to legitimate
websites.
Only the underlying communication, like receiving an email
or browsing a website, can be detected by a network-based
detector. Since the user might have to actively open a down-
loaded file, the time of infection can be unrelated to the time of
download. Additionally, the communication is the same as for
non malicious emails or web sites. Therefore, a network-based
detector can only detect the malicious content by employing
DPI, which is made impossible with the use of encryption.
Removable storage media can be used to breach air gaps.
Air gaps are computers or parts of a network that are not
connected to the rest of the network for security reasons. If
the complete botnet binary resides on the removable storage
medium and the storage medium is used for communication,
this form of propagation can not be detected by network-based
botnet detection since no network traffic is exchanged.
The communication pattern which occurs during passive
propagation can be seen in fig. 9b. First the bot binary is exe-
cuted on the victim in step (A). Like with active propagation,
this first binary could also be only a part of the bot executable.
Therefore, the next step (B) is downloading additional data in
case of a multi step infection. A more detailed explanation
of this step can be seen in section VI-C1. The last step (C)
is the registration with the botnet, which will be explained in
section VI-C3.
Targeted phishing emails which installed the Adwind botnet,
were used in attacks against different banking institutions [2].
The Waledac botnet distributes itself by sending high volume
of infected spam [32]. In addition to email, the Zeus botnet is
also distributed via drive-by downloads [99]. Stuxnet employs
removable storage media in addition to active propagation
to breach air gaps [5], [106]. The Conficker botnet was
also capable of infecting removable storage media to further
increase its reach [84].
3) Registration: The last step of the propagation process is
the registration (see fig. 9b step (C) and fig. 9a step (E)). This
step is also called rallying [9]. Registration adds the possibility
for monitoring the botnet status, size, and is also needed for
push-based setups since the server needs to know where to
send the commands to. In P2P topologies this step can also be
used to obtain a list of bots which is needed for bootstrapping
the P2P network.
The Adwind botnet used this step to verify the software
subscription status of the botmaster [2]. One of the earliest
botnets, the Tribe Flood Network, left out the registration step,
and therefore the list of bots had to be maintained manually
[60], [95]. This was automated by the later incarnation Stachel-
draht, which combined the source code of the Tribe Flood
Network and other botnets [60].
USB

20

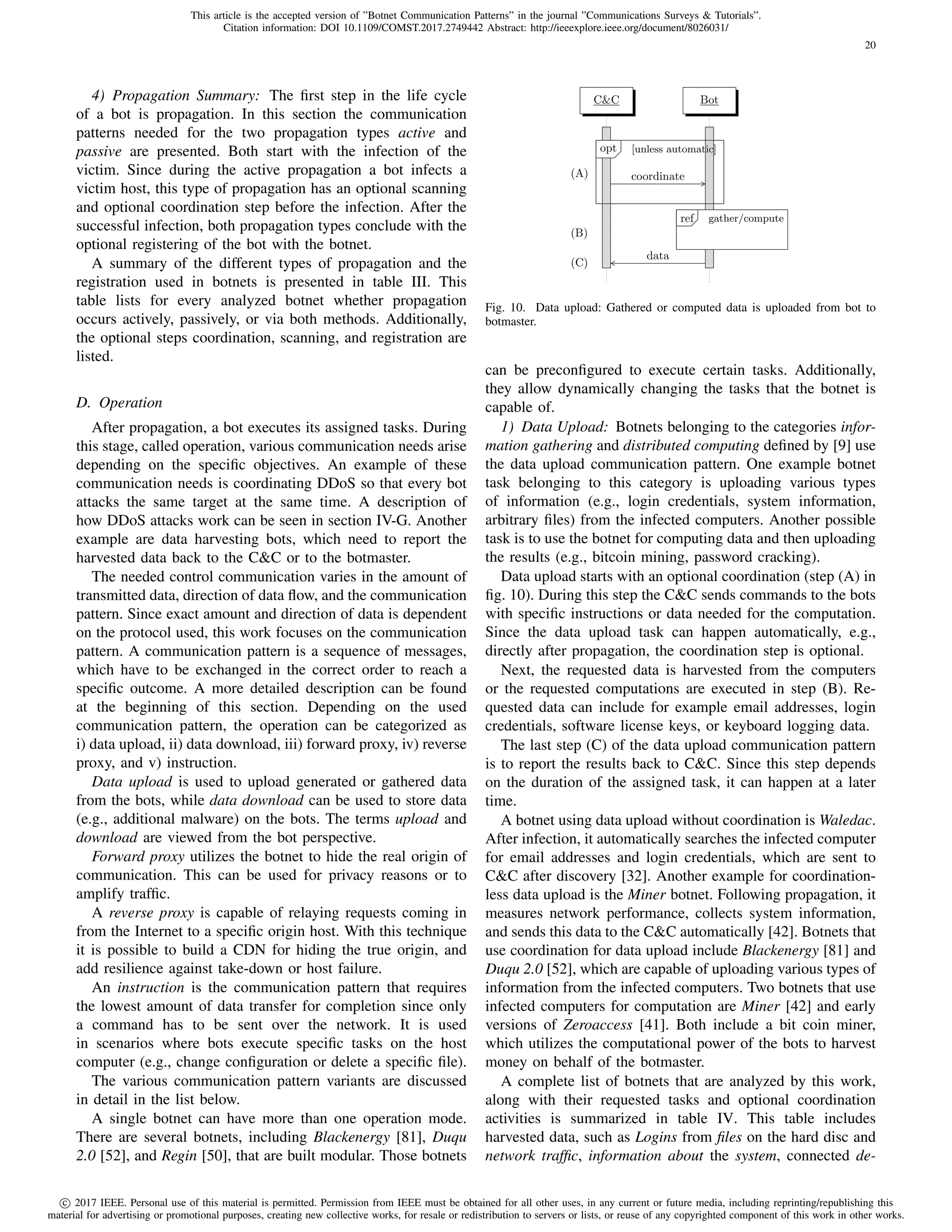

4) Propagation Summary: The first step in the life cycle
of a bot is propagation. In this section the communication
patterns needed for the two propagation types active and
passive are presented. Both start with the infection of the
victim. Since during the active propagation a bot infects a
victim host, this type of propagation has an optional scanning
and optional coordination step before the infection. After the
successful infection, both propagation types conclude with the
optional registering of the bot with the botnet.
A summary of the different types of propagation and the
registration used in botnets is presented in table III. This
table lists for every analyzed botnet whether propagation
occurs actively, passively, or via both methods. Additionally,
the optional steps coordination, scanning, and registration are
listed.
D. Operation
After propagation, a bot executes its assigned tasks. During
this stage, called operation, various communication needs arise
depending on the specific objectives. An example of these
communication needs is coordinating DDoS so that every bot
attacks the same target at the same time. A description of
how DDoS attacks work can be seen in section IV-G. Another
example are data harvesting bots, which need to report the
harvested data back to the CC or to the botmaster.
The needed control communication varies in the amount of
transmitted data, direction of data flow, and the communication
pattern. Since exact amount and direction of data is dependent
on the protocol used, this work focuses on the communication
pattern. A communication pattern is a sequence of messages,
which have to be exchanged in the correct order to reach a
specific outcome. A more detailed description can be found
at the beginning of this section. Depending on the used
communication pattern, the operation can be categorized as
i) data upload, ii) data download, iii) forward proxy, iv) reverse
proxy, and v) instruction.
Data upload is used to upload generated or gathered data
from the bots, while data download can be used to store data
(e.g., additional malware) on the bots. The terms upload and
download are viewed from the bot perspective.
Forward proxy utilizes the botnet to hide the real origin of
communication. This can be used for privacy reasons or to
amplify traffic.
A reverse proxy is capable of relaying requests coming in
from the Internet to a specific origin host. With this technique
it is possible to build a CDN for hiding the true origin, and
add resilience against take-down or host failure.
An instruction is the communication pattern that requires
the lowest amount of data transfer for completion since only
a command has to be sent over the network. It is used
in scenarios where bots execute specific tasks on the host
computer (e.g., change configuration or delete a specific file).
The various communication pattern variants are discussed
in detail in the list below.
A single botnet can have more than one operation mode.
There are several botnets, including Blackenergy [81], Duqu
2.0 [52], and Regin [50], that are built modular. Those botnets
CC Bot
coordinate
(A)
ref gather/computeref gather/compute
(B)
data
(C)
Fig. 10. Data upload: Gathered or computed data is uploaded from bot to
botmaster.
can be preconfigured to execute certain tasks. Additionally,
they allow dynamically changing the tasks that the botnet is
capable of.
1) Data Upload: Botnets belonging to the categories infor-
mation gathering and distributed computing defined by [9] use
the data upload communication pattern. One example botnet
task belonging to this category is uploading various types
of information (e.g., login credentials, system information,
arbitrary files) from the infected computers. Another possible
task is to use the botnet for computing data and then uploading
the results (e.g., bitcoin mining, password cracking).
Data upload starts with an optional coordination (step (A) in
fig. 10). During this step the CC sends commands to the bots
with specific instructions or data needed for the computation.
Since the data upload task can happen automatically, e.g.,
directly after propagation, the coordination step is optional.
Next, the requested data is harvested from the computers
or the requested computations are executed in step (B). Re-
quested data can include for example email addresses, login
credentials, software license keys, or keyboard logging data.
The last step (C) of the data upload communication pattern
is to report the results back to CC. Since this step depends
on the duration of the assigned task, it can happen at a later
time.
A botnet using data upload without coordination is Waledac.
After infection, it automatically searches the infected computer
for email addresses and login credentials, which are sent to
CC after discovery [32]. Another example for coordination-
less data upload is the Miner botnet. Following propagation, it
measures network performance, collects system information,
and sends this data to the CC automatically [42]. Botnets that
use coordination for data upload include Blackenergy [81] and
Duqu 2.0 [52], which are capable of uploading various types of
information from the infected computers. Two botnets that use
infected computers for computation are Miner [42] and early
versions of Zeroaccess [41]. Both include a bit coin miner,
which utilizes the computational power of the bots to harvest
money on behalf of the botmaster.
A complete list of botnets that are analyzed by this work,
along with their requested tasks and optional coordination
activities is summarized in table IV. This table includes
harvested data, such as Logins from files on the hard disc and
network traffic, information about the system, connected de-

21
TABLE IV
DATA UPLOAD OVERVIEW
Collects logins from Collects information about Captured events and data Comp.
Botnet File Net Sys Dev Net Traffic AVa Screen Keyb. Bitcoin EmailA. Generic
Adwind C – N – – – C C C/Nb – – C
Blackenergy C C C C – C – C C – – C
Conficker – – – – – – – – – – – –
Duqu 2.0 C C C C C – – C C – – C
Miner – N N – N – – – – C – C
Phatbot C C C – C C – – C – C –
Regin C C C C C C – C C – – C
Rustock – – N – – – – – – – – –
Sality N – – – – – – – – – – –
Sinit – – – – – – – – – – – –
Slapper – – – – – – – – – – – –
Storm N – – – – – – – – – N –
Stuxnet – – N – – – – – – – – –
TFNc – – – – – – – – – – – –
Trinoo – – – – – – – – – – – –
Waledac N – N – N – – – – – N –
Zeroaccess N N N – – N – – – Cd – –
Zeus C/N C/N N – – C/N – C/N C/N – – –
C Coordination. N No Coordination. – Not Featured.
a Microphone, Camera.
b Online and offline keylogging possible [2].
c Tribe Flood Network.
d Earlier versions. Has been removed from the botnet.
CC Bot
coordinate
(A)
data
optopt [unless already in binary]
(B)
ref install/storeref install/store
(C)
Fig. 11. Data download: Store or install data downloaded from adversary
onto bot.
vices and network, and email addresses. Additionally, captured
data from network, audio or video devices, and screen- and
keyboard-sniffers are listed. Furthermore, bitcoin computing
botnets and botnets that allow uploading of generic data are
listed. Botnets which use coordination are marked with C and
botnets that automatically upload data with N.
2) Data Download: This mode of operation is needed
for storing data onto bots. This data can be arbitrary files,
additional software (spreading malware in [9]), or a botnet
binary update. Arbitrary files may include illegal content
which can be used to discredit the victim. Additionally, this
mechanism can be used to monetize the botnet by offering
the bots as a potential installation base to other malware
developers.
Adding the capability for self-update enables the botmaster
to adapt the botnet to novel needs or to secure against future
threats. This self-updating adds an attack vector to the botnet,
which can be used to take over the botnet or replace it with a
different one. Therefore, this procedure needs to be secured.
The data download communication pattern (see fig. 11)
starts with the coordination step (A). During coordination the
CC instructs the bot which file should be downloaded and
where to find it. This simplifies the CC protocol since no file
transfer capabilities are needed and expands the capabilities
of the botnet allowing downloading of arbitrary files. Bot
binaries can contain an additional configuration file which
starts the data download right after propagation. Therefore,
the coordination step is optional.
After coordination, the data has to be downloaded to the
bot in step (B). This additional data can already be included
in the bot binary used during propagation or be part of the
coordination command.
The last step (C) is to store the downloaded files on the
computer or install the downloaded software. Although there
is no need for communicating back to CC, the additional
installed software or updates to the botnet client can cause ad-
ditional traffic after this step. One example for this additional
communication can be registration during this propagation (see
section VI-C).

22
TABLE V
DATA DOWNLOAD OVERVIEW
Install Software
Botnet Self-update Additional Arbitrary files
Adwind – C C
Blackenergy C C C
Conficker N N –
Duqu 2.0 – C C
Miner C/Na C/Na –
Phatbot C – C
Regin – C C
Rustock C – –
Sality – C –
Sinit – C –
Slapper – – –
Storm C C –
Stuxnet C C –
TFNb – – –
Trinoo – – –
Waledac C C –
Zeroaccess C C –
Zeus C C C
a Automatically after infection [42].
b Tribe Flood Network.
Installing additional malware was one of the main goals of
the botnets Conficker [30], Sality [37], Sinit [39], and Waledac
[32]. The Miner botnet can include additional software in
the bot binary used during propagation, and therefore the
coordination step is not used every time [42].
A complete list of botnets featured in this paper, and
data download targets can be seen in table V. The targets
include the installation of software in order to self-update
the bot or install additional software. Some botnets are also
capable of storing arbitrary files on the computer. Botnets
that use coordination are marked with a C, while botnets that
automatically download files to the victim are marked with N.
3) Forward Proxy: Botnets, which are used for distribut-
ing spam or performing DDoS attacks need the capability
to connect to other hosts on behalf of the botmaster (see
section IV-G). This mimics the botnet being used as a forward
proxy. A forward proxy is an intermediate server that is able to
make connections to specific hosts on behalf of the requesting
host. Therefore, forward proxies can be used to preserve
the anonymity of the requesting host, to tunnel connections
through a different protocol, or to make connections which
would be otherwise prohibited or impossible.
Botnets can implement either a bidirectional or a unidirec-
tional forward proxy.
Bidirectional is used if the botmaster or a third party needs
the result of a request. For example, some botnets include a
Socket Secure (SOCKS) proxy service, which allows using
the botnet as an anonymizing service. A SOCKS proxy is a
generic proxy that can be used to forward arbitrary TCP and
UDP connections. After an initial setup phase, the SOCKS
proxy forwards raw data transparently, which allows the use
of the proxy even with applications that do not support proxies
[107].
Another example for bidirectional proxying is to traverse
firewalls or NATs. This can be achieved by infecting the
firewall or NAT device with a bot which in turn acts as a
bridge into the local network.
To increase stealthiness of the botnet, forward proxying
can also be used to hide protocols in one or several other
protocols, i.e., to employ protocol encapsulation. With this
approach a single CC communication pattern can propagate
over several protocols along the path. This technique increases
the complexity of network-based botnet detectors since the
detectors need to be capable of understanding all the imple-
mented protocols and reconstruct the original communication.
Unidirectional forward proxying can be used to overload a
single service with requests. This can be achieved by instruct-
ing bots to send requests to the network services continuously.
Since neither CC needs to control each message, nor are
replies of interest, it suffices to instruct bots about the target
and communication type.
Another way of employing unidirectional forward proxying
is to use it for distributed email spam. During coordination
spam templates and lists of destination addresses are sent to
the bot. The list of destination addresses could originate from
the botnet itself, where it was obtained via data upload (see
section VI-D1). After the coordination step, the emails are
distributed to email servers.
A variation of the same method can be used to perform
click fraud (see also section IV-G). Like email spam, the target
URLs are distributed to the bots during the coordination step,
which in turn send the requests afterwards.
Botnets supporting these tasks are part of the categories
called cyber fraud, unsolicited marketing, and network service
disruption as defined in [9].
The communication pattern for the forward proxy mode
can be seen in fig. 12. Both bidirectional and unidirectional
start with coordination (step (A) in fig. 12a and step (A) in
fig. 12b). In the bidirectional case the coordination step is used
to set the proxy configuration including forwarded ports and
protocols. Since this configuration can already be hard-coded
in the bot binary, this step is optional. Since unidirectional
proxying is used exclusively for handling automated tasks,
the coordination step is not optional. E.g., for a DDoS attack
during coordination the target, type of attack, and optionally an
attack duration must be set up. Theoretically, this information
could also be hard-coded in the bot binary, but the inflexibility
limits the practicability of this approach due to short-lived and
sudden nature of DDoS attacks. Therefore, all the analyzed
botnets use the coordination step for unidirectional proxying.
The last step in the forward proxy communication pattern
is the exchange of the data requests. Bidirectional communi-
cation consists of requests and replies that are relayed through
the bot in step (B) in fig. 12a. In case the botnet is used as
a generic proxy, the initiator of the requested data can also
be a different host instead of CC. Unidirectional forward
proxying consists only of data sent from the bot to the target
in step (B) in fig. 12b.
check

23
CC Bot Host/Victim/Bot
coordinate
(A)
request data
request data
data
data
(B)
(a) Bidirectional: Response is sent back.
CC Bot Host/Victim/Bot
coordinate
(A)
data
(B)
(b) Unidirectional: Responses are ignored.
Fig. 12. Forward proxy: Relay communication originating from adversary via the botnet.
TABLE VI
FORWARD PROXY OVERVIEW
Bidirectional Unidirectional
Botnet Generica Port scan Net scan NAT trav. Prot. transl. Spam DDoS Click fraud
Adwind C – – – – – – –
Blackenergy C C – – – – C –
Conﬁcker – – – – – – – –
Duqu 2.0 – C C C C – – –
Miner N – – – – – C –
Phatbot C – C – – – C –
Regin – – C C C – – –
Rustock – – – – – C – –
Sality – – – – – – – –
Sinit – – – – – – – –
Slapper – – – – – – C –
Storm – – – – – C Cb –
Stuxnet – – – – – – – –
TFNc – – – – – – C –
Trinoo – – – – – – C –
Waledac – – – – – C – –
Zeroaccess – – – – – – – C
Zeus – – – – – – – –
a E.g., SOCKS-, HTTP-, or HTTPS-proxy.
b Launched against networks that appear to investigate the botnet [94].
Examples for bidirectional forward proxying botnets include
Miner [42], Adwind [2], and Phatbot [38]. Those feature a
SOCKS proxy in order to provide an anonymizing service.
Duqu 2.0 employs various proxy capabilities to enable NAT
traversal and protocol translation in order to increase the
stealthiness of the botnet [52].
The two botnets Trinoo and Tribe Flood Network use
unidirectional forward proxying to perform DDoS attacks [60],
[62]. An example for a botnet capable of distributing spam is
Rustock [91]. Zeroaccess uses unidirectional forward proxy to
implement click fraud [98].
A complete summary of the analyzed botnets can be seen in
table VI. This summary includes tasks ordered by bidirectional
mode and unidirectional mode. Generic stands for generic
proxies such as SOCKS, HTTP, or HTTPS. Port scan and
network scan depicts bots which are able to perform scanning
on behalf of the botmaster. Botnets capable of NAT traversal
and protocol translation use those techniques to increase the
stealthiness and reachability of the CC channel. Unidirec-
tional proxy modes listed include the distribution of spam,
DDoS attacks, and click fraud. Botnets capable of using this
feature with coordination are marked with a C, whereas botnets

24

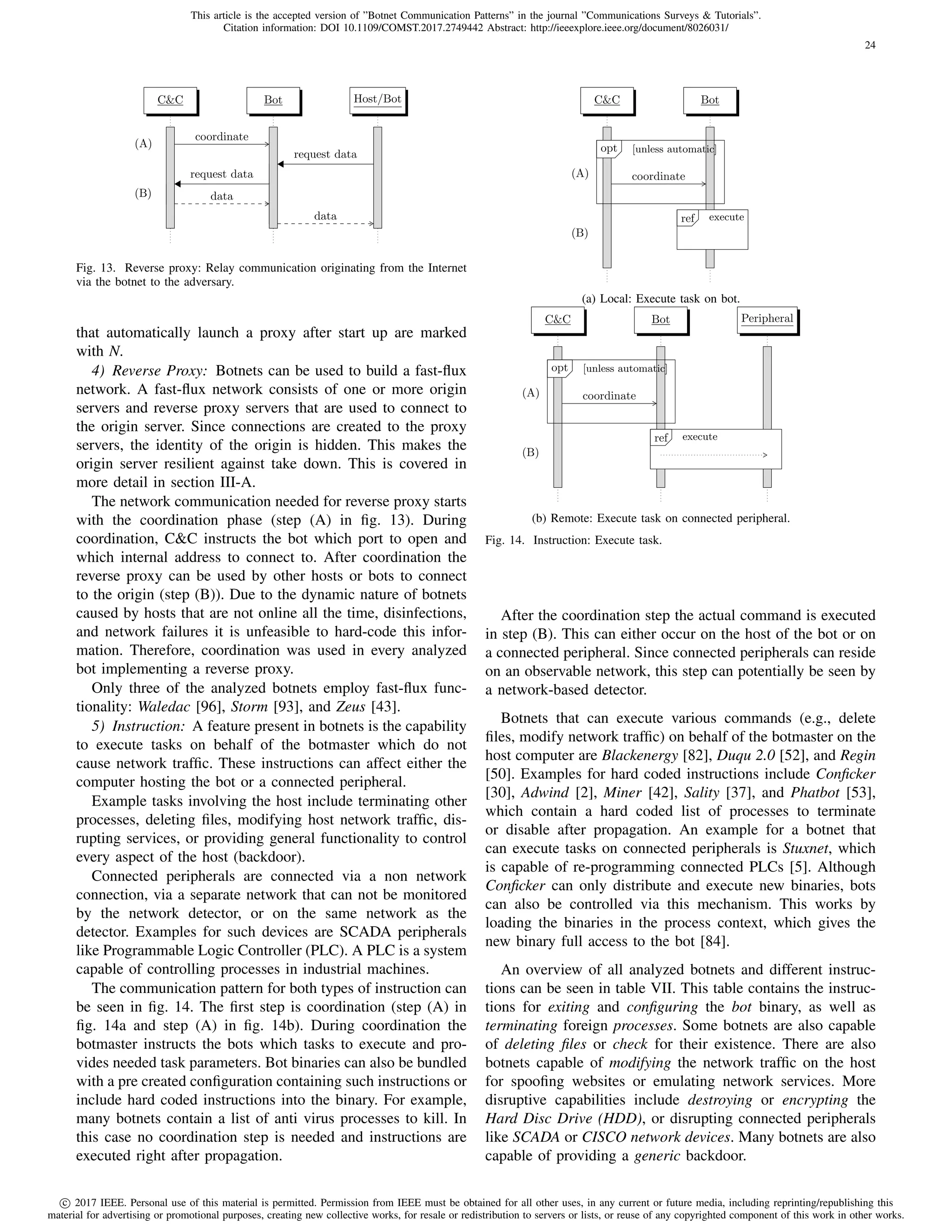

CC Bot Host/Bot
coordinate
(A)
request data
request data
data
data
(B)
Fig. 13. Reverse proxy: Relay communication originating from the Internet
via the botnet to the adversary.
that automatically launch a proxy after start up are marked
with N.
4) Reverse Proxy: Botnets can be used to build a fast-flux
network. A fast-flux network consists of one or more origin
servers and reverse proxy servers that are used to connect to
the origin server. Since connections are created to the proxy
servers, the identity of the origin is hidden. This makes the
origin server resilient against take down. This is covered in
more detail in section III-A.
The network communication needed for reverse proxy starts
with the coordination phase (step (A) in fig. 13). During
coordination, CC instructs the bot which port to open and
which internal address to connect to. After coordination the
reverse proxy can be used by other hosts or bots to connect
to the origin (step (B)). Due to the dynamic nature of botnets
caused by hosts that are not online all the time, disinfections,
and network failures it is unfeasible to hard-code this infor-
mation. Therefore, coordination was used in every analyzed
bot implementing a reverse proxy.
Only three of the analyzed botnets employ fast-flux func-
tionality: Waledac [96], Storm [93], and Zeus [43].
5) Instruction: A feature present in botnets is the capability
to execute tasks on behalf of the botmaster which do not
cause network traffic. These instructions can affect either the
computer hosting the bot or a connected peripheral.
Example tasks involving the host include terminating other
processes, deleting files, modifying host network traffic, dis-
rupting services, or providing general functionality to control
every aspect of the host (backdoor).
Connected peripherals are connected via a non network
connection, via a separate network that can not be monitored
by the network detector, or on the same network as the
detector. Examples for such devices are SCADA peripherals
like Programmable Logic Controller (PLC). A PLC is a system
capable of controlling processes in industrial machines.
The communication pattern for both types of instruction can
be seen in fig. 14. The first step is coordination (step (A) in
fig. 14a and step (A) in fig. 14b). During coordination the
botmaster instructs the bots which tasks to execute and pro-
vides needed task parameters. Bot binaries can also be bundled
with a pre created configuration containing such instructions or
include hard coded instructions into the binary. For example,
many botnets contain a list of anti virus processes to kill. In
this case no coordination step is needed and instructions are
executed right after propagation.
CC Bot
coordinate
(A)
ref executeref execute
(B)
(a) Local: Execute task on bot.
CC Bot Peripheral
coordinate
(A)
xref executeref execute
(B)
(b) Remote: Execute task on connected peripheral.
Fig. 14. Instruction: Execute task.
After the coordination step the actual command is executed
in step (B). This can either occur on the host of the bot or on
a connected peripheral. Since connected peripherals can reside
on an observable network, this step can potentially be seen by
a network-based detector.
Botnets that can execute various commands (e.g., delete
files, modify network traffic) on behalf of the botmaster on the
host computer are Blackenergy [82], Duqu 2.0 [52], and Regin
[50]. Examples for hard coded instructions include Conficker
[30], Adwind [2], Miner [42], Sality [37], and Phatbot [53],
which contain a hard coded list of processes to terminate
or disable after propagation. An example for a botnet that
can execute tasks on connected peripherals is Stuxnet, which
is capable of re-programming connected PLCs [5]. Although
Conficker can only distribute and execute new binaries, bots
can also be controlled via this mechanism. This works by
loading the binaries in the process context, which gives the
new binary full access to the bot [84].
An overview of all analyzed botnets and different instruc-
tions can be seen in table VII. This table contains the instruc-
tions for exiting and configuring the bot binary, as well as
terminating foreign processes. Some botnets are also capable
of deleting files or check for their existence. There are also
botnets capable of modifying the network traffic on the host
for spoofing websites or emulating network services. More
disruptive capabilities include destroying or encrypting the
Hard Disc Drive (HDD), or disrupting connected peripherals
like SCADA or CISCO network devices. Many botnets are also
capable of providing a generic backdoor.

25
TABLE VII
SUMMARY OF SUPPORTED BOTNET INSTRUCTIONS
Bot Process Files Traffic HDD Disrupt
Botnet Exit Config. Term. Delete Check Modify Destroy Encrypt CISCO SCADA Generica
Adwind C C C/N C C – – – – – C
Blackenergy C C C C C C C C C C C
Conficker N – N – – N – – – – Nb
Duqu 2.0 – – – C C C – – – – C
Miner – – N – – N – – – – –
Phatbot C C C/N – – – – – – – C
Regin C C C C C C – – – – C
Rustock – – C C – – – – – – –
Sality – – N N – – – – – – –
Sinit – – – – – – – – – – –
Slapper – – – – – – – – – – –
Storm – – – – – – – – – – –
Stuxnet N – – – – – – – – N –
TFNc – – – – – – – – – – Cd
Trinoo C – – – – – – – – – –
Waledac – – – – – – – – – – –
Zeroaccess – – – – – N – – – – C
Zeus – C – Ce – – – – – – C
a Backdoor.
b Loads binaries into process context, therefore allowing dynamic reconfiguration.
d Optional.
e System files, rendering the computer unusable [99].
TABLE VIII
BOTNET COMMUNICATION SUMMARY
Data Proxy
Botnet Propagation Upload Download Forward Reverse Instruction
Adwind PR C/N C C – C/N
Blackenergy (ACS)PR C C C C C
Conficker APS – N – – N
Duqu 2.0 (ACS)P(R) C C C C C
Miner PR C/N C/N C – N
Phatbot ACSPR C C C C C/N
Regin (A)a C C C C C
Rustock PR N C C – C
Sality APR N C – – N
Sinit PR – C – – –
Slapper AR – – C – –
Storm PR N C C C –
Stuxnet APSR N C – – N
TFNb P – – C – Cc
Trinoo PR – – C – C
Waledac PR N C C C –
Zeroaccess PR N C C – C/N
Zeus PR C/N C – – C
A Active. C Coordination. P Passive. S Scanning. R Registration. N No Coordination. –
Not Featured. () Only for lateral movement.
a Unknown [50], [88]. b Tribe Flood Network. c Optional.

26
E. Operation Summary
After propagation, the botnet performs the actual tasks
during operation. Tasks from a diverse set of botnets varying in
sophistication, age, purpose, and topology have been analyzed
with respect to network communication. The botnet tasks from
this list were categorized according to their objective and
communication pattern into: i) data download, ii) data upload,
iii) forward proxy, iv) reverse proxy, and v) instruction.
These fundamental communication patterns can be used to
match botnet behavior and build the base for a network-based
botnet detector.
A summary of all the communication patterns is shown
in table VIII. This table lists the botnets analyzed in this
work along with their communication patterns and whether
coordination (C) is involved. The propagation column lists
how propagation is performed with respect to active or passive
propagation, scanning, and registration. Propagation modes
in brackets are only used for lateral movement, which is
propagation in the local network.
VII. CONCLUSION
The botnet landscape is changing over time. Driven by the
objective to hide within legitimate systems and communica-
tions, botnets follow the evolution of applications and proto-
cols in the Internet. With respect to communication protocols,
recent botnet implementations prefer HTTP and proprietary
protocols over the IRC protocol, that was predominant in
early botnets. Concurrently, botnet topologies evolved from a
centralized concept to more distributed and resilient control
structures. Common to many recent botnets is the shifting
of their focus toward stealthiness and encryption in order to
increase their expected lifetime until detection and take-down.
But despite these trends centralized botnets still exist today
and even some newly created ones rely on legacy techniques
to keep complexity and implementation effort at a low level.
Summarizing, the increasing use of encryption and the wide
diversity in active botnet variants are two main reasons why
detecting botnets via network-based methods is an essential,
rewarding, but also challenging research field for now and in
the future.
In this paper we have presented an in-depth analysis of
botnet communication. The first part of this paper consists of
botnet fundamentals and network-based detectors in section I
and an extended survey of botnet topologies in section III. The
topologies and accompanying challenges are discussed from
a network communication perspective including examples of
existing botnets and a historic context.
This is followed by a detailed list of CC protocols that
are known and in use as of writing this paper in section IV.
Protocol details include how the protocol works, possible
botnet topologies and discussion how to implement those,
hiding and obfuscation techniques, and example botnets.
The main part of this paper is a novel taxonomy of botnet
CC network communication patterns which was derived
from a diverse set of botnets described in section V. Botnets in
this set were chosen to represent a distinct list varying accord-
ing to age, used protocols, used topology, and sophistication.
Following this description we present the communication
patterns subdivided into the generalized scenarios i) propa-
gation, ii) data download, iii) data upload, iv) forward proxy,
v) reverse proxy, and vi) instruction in section VI. The scenar-
ios include an introductory description helping to understand
why they are needed, a description of the message exchanges,
and examples of botnets using those. These communication
patterns and scenarios cover every possible botnet task, which
can also be seen in the accompanying tables providing an
overview of the analyzed botnets with respect to the scenarios.
Additionally, visualizations are provided in standardized UML
sequence diagrams, which ease the implementation of a possi-
ble network-based botnet detector and can be easily extended
in the future.
The generality and extensibility of the proposed communi-
cation pattern abstractions recommends them as indispensable
mechanism to support researchers in developing advanced
detection tools. Examples of possible applications include, but
are not limited to, network-based botnet detectors or event
generation engines as mentioned in [20].
A hypothetical botnet detector could use machine learning
to extract message exchanges from network traffic. These mes-
sage exchanges can then be tested against the proposed dialogs
in section VI, identifying possible botnet communication.
The main benefit of a detector capable of matching com-
munication patterns is its independence from CC protocol,
topology, and botnet family. Additionally, depending on the
way those patterns are matched, the detection of encrypted
CC protocols is also possible.
LIST OF ACRONYMS
Ad advertising
AES Advanced Encryption Standard
APT Advanced Persistent Threat
ASCII American Standard Code for Information Interchange
CC Command and Control
CDN Content Delivery Network
DDoS Distributed Denial of Service
DGA Domain Generation Algorithm
DNS Domain Name System
DPI Deep Packet Inspection
email electronic mail
FastLZ Fast Lempel Ziv
FTP File Transfer Protocol
HDD Hard Disc Drive
HTTP Hyper Text Transfer Protocol
HTTPS Hyper Text Transfer Protocol Secure
ICMP Internet Control Message Protocol
IDS Intrusion Detection System
IP Internet Protocol
IPC Inter-Process Communication
IRC Internet Relay Chat
JPEG Joint Photographic Experts Group
LZF Lempel Ziv Free
LZJB Lempel Ziv Jeff Bonwick
LZO Lempel Ziv Oberhumer
malware malicious software
re_organize

27
MD5 Message Digest 5
NAT Network Address Translation
P2P Peer to Peer
PLC Programmable Logic Controller
PPI Pay-Per-Install
RAT Remote Administration Tool
RC4 Rivest Cipher 4
RC5 Rivest Cipher 5
RSA Rivest-Shamir-Adleman
SCADA Supervisory Control and Data Acquisition
SMB Server Message Block
SMTP Simple Mail Transfer Protocol
SOA Service Oriented Architecture
SOCKS Socket Secure
TCP Transport Control Protocol
TEA Tiny Encryption Algorithm
TLS Transport Layer Security
UDP User Datagram Protocol
UML Unified Modeling Language
URL Uniform Resource Locator
USB Universal Serial Bus
VPN Virtual Private Network
XOR exclusive or
XTEA Extended Tiny Encryption Algorithm
REFERENCES
[1] C. Wueest, “Financial threats 2015,” Symantec Corporation,
Tech. Rep. Version 1.0, Mar. 2016. [Online]. Avail-
able: https://www.symantec.com/content/dam/symantec/docs/security-
center/white-papers/financial-threats-15-en.pdf
[2] V. Kamluk and A. Gostev, “Adwind - A cross-platform RAT,” Kasper-
sky lab, Tech. Rep., Feb. 2016. [Online]. Available: https://securelist.
com/securelist/files/2016/02/KL AdwindPublicReport 2016.pdf
[3] “ZeroAccess Botnet Resumes Click-Fraud Activity,” SecureWorks,
Jan. 2015. [Online]. Available: https://www.secureworks.com/blog/
zeroaccess-botnet-resumes-click-fraud-activity-after-six-month-break
[4] O. Kupreev, J. Strohschneider, and A. Khalimonenko,
“Kaspersky DDOS intelligence report for Q3 2016,”
Kaspersky lab, Tech. Rep., Oct. 2016. [Online]. Avail-
able: https://securelist.com/analysis/quarterly-malware-reports/76464/
kaspersky-ddos-intelligence-report-for-q3-2016/
[5] N. Falliere, L. O Muruchu, and E. Chien, “W32.Stuxnet Dossier,”
Symantec Corporation, Tech. Rep. Version 1.4, Feb. 2011. [Online].
Available: https://www.symantec.com/content/en/us/enterprise/media/
security response/whitepapers/w32 stuxnet dossier.pdf
[6] B. Krebs, “KrebsOnSecurity Hit With Record DDoS,” Sep.
2016. [Online]. Available: https://krebsonsecurity.com/2016/09/
krebsonsecurity-hit-with-record-ddos/
[7] R. M. Lee, M. J. Assante, and T. Conway, “Analysis of the Cyber
Attack on the Ukrainian Power Grid,” Mar. 2016.
[8] D. Salmi, “Could an Internet of Things botnet army threaten the
internet?” Oct. 2016. [Online]. Available: https://blog.avast.com/could-
an-internet-of-things-botnet-army-threaten-the-internet
[9] S. Khattak, N. R. Ramay, K. R. Khan, A. A. Syed, and S. A. Khayam,
“A Taxonomy of Botnet Behavior, Detection, and Defense,” IEEE
Commun. Surv. Tutor., vol. 16, no. 2, pp. 898–924, Second Quarter
2014.
[10] W. Z. Khan, M. K. Khan, F. T. B. Muhaya, M. Y. Aalsalem, and H. C.
Chao, “A Comprehensive Study of Email Spam Botnet Detection,”
IEEE Commun. Surv. Tutor., vol. 17, no. 4, pp. 2271–2295, Fourth
Quarter 2015.
[11] N. Hoque, D. K. Bhattacharyya, and J. K. Kalita, “Botnet in DDoS
Attacks: Trends and Challenges,” IEEE Commun. Surv. Tutor., vol. 17,
no. 4, pp. 2242–2270, Fourthquarter 2015.
[12] J. Livingood and N. Mody, “Recommendations for the Remediation of
Bots in ISP Networks,” RFC6561, Mar. 2012.
[13] R. W. Shirey, “Internet Security Glossary, Version 2,” RFC 4949, Aug.
2007.
[14] S. Saad, I. Traore, A. Ghorbani, B. Sayed, D. Zhao, W. Lu, J. Felix,
and P. Hakimian, “Detecting P2P botnets through network behavior
analysis and machine learning,” in 2011 Ninth Annual International
Conference on Privacy, Security and Trust (PST), Jul. 2011, pp. 174–
180.
[15] M. Alauthaman, N. Aslam, L. Zhang, R. Alasem, and M. A. Hossain,
“A P2P Botnet detection scheme based on decision tree and adaptive
multilayer neural networks,” Neural Comput Applic, pp. 1–14, Oct.
2016.
[16] L. Bilge, D. Balzarotti, W. Robertson, E. Kirda, and C. Kruegel,
“Disclosure: Detecting Botnet Command and Control Servers Through
Large-scale NetFlow Analysis,” in Proceedings of the 28th Annual
Computer Security Applications Conference, ser. ACSAC ’12. New
York, NY, USA: ACM, 2012, pp. 129–138.
[17] R. Sommer and V. Paxson, “Outside the Closed World: On Using
Machine Learning for Network Intrusion Detection,” in 2010 IEEE
Symposium on Security and Privacy (SP), May 2010, pp. 305–316.
[18] S. Garc´ıa, “Survey on Network-based Botnet Detection Methods,”
Secur. Commun. Netw., 2013.
[19] G. Gu, R. Perdisci, J. Zhang, and W. Lee, “BotMiner: Clustering
Analysis of Network Traffic for Protocol- and Structure-Independent
Botnet Detection,” ser. 2, vol. 5, 2008, pp. 139–154.
[20] A. B. Ashfaq, Z. Abaid, M. Ismail, M. U. Aslam, A. A. Syed, and
S. A. Khayam, “Diagnosing bot infections using Bayesian inference,”
J Comput Virol Hack Tech, pp. 1–18, Sep. 2016.
[21] G. Gu, P. Porras, V. Yegneswaran, M. Fong, and W. Lee, “BotHunter:
Detecting Malware Infection Through IDS-driven Dialog Correlation,”
in Proceedings of 16th USENIX Security Symposium on USENIX
Security Symposium, ser. SS’07. Berkeley, CA, USA: USENIX
Association, 2007, pp. 12:1–12:16.
[22] M. Bailey, E. Cooke, F. Jahanian, Y. Xu, and M. Karir, “A Survey
of Botnet Technology and Defenses,” in Conference For Homeland
Security, 2009. CATCH ’09. Cybersecurity Applications Technology,
Mar. 2009, pp. 299–304.
[23] M. Eslahi, R. Salleh, and N. B. Anuar, “Bots and botnets: An overview
of characteristics, detection and challenges,” in 2012 IEEE Interna-
tional Conference on Control System, Computing and Engineering
(ICCSCE), Nov. 2012, pp. 349–354.
[24] Z. Zhang, R. Ando, and Y. Kadobayashi, “Hardening Botnet by a
Rational Botmaster,” in Information Security and Cryptology, ser.
Lecture Notes in Computer Science. Springer Berlin Heidelberg, Dec.
2008, no. 5487, pp. 348–369.
[25] S. Yadav, A. K. K. Reddy, A. N. Reddy, and S. Ranjan, “Detecting
Algorithmically Generated Malicious Domain Names,” in Proceedings
of the 10th ACM SIGCOMM Conference on Internet Measurement, ser.
IMC ’10. ACM, 2010, pp. 48–61.
[26] D. Plohmann, K. Yakdan, M. Klatt, J. Bader, and E. Gerhards-
Padilla, “A Comprehensive Measurement Study of Domain Generating
Malware,” in 25th USENIX Security Symposium, Austin, TX, Aug.
2016.
[27] T. Berners-Lee, R. Fielding, and L. Masinter, “Uniform Resource
Identifier (URI): Generic Syntax,” RFC 3986, Jan. 2005.
[28] P. Mockapetris, “DOMAIN NAMES - IMPLEMENTATION AND
SPECIFICATION,” RFC 1035, Nov. 1987.
[29] K. O’Meara, D. Shick, J. Spring, and E. Stoner, “Malware Capability
Development Patterns Respond to Defenses: Two Case Studies,” White
Paper, Software Engineering Institute, Carnegie Mellon University,
2016.
[30] F. Leder and W. Tillmann, “Know Your Enemy: Containing Conficker,”
The Honeynet Project, Tech. Rep., Apr. 2009. [Online]. Available:
https://www.honeynet.org/sites/default/files/files/KYE-Conficker.pdf
[31] J. Stewart, “Inside the Storm: Protocols and Encryption of the Storm
Botnet,” Blackhat Technical Security Conference, 2008.
[32] G. Tenebro, “W32.Waledac Threat Analysis,” Syman-
tec Corporation, Tech. Rep., 2009. [Online].
Available: http://www.symantec.com/content/en/us/enterprise/media/
security response/whitepapers/W32 Waledac.pdf
[33] “TRANSMISSION CONTROL PROTOCOL,” RFC 793, Sep. 1982.
[34] C. Rossow, D. Andriesse, T. Werner, B. Stone-Gross, D. Plohmann,
C. Dietrich, and H. Bos, “SoK: P2PWNED - Modeling and Evaluating
the Resilience of Peer-to-Peer Botnets,” in 2013 IEEE Symposium on
Security and Privacy (SP), May 2013, pp. 97–111.
[35] P. Wang, S. Sparks, and C. C. Zou, “An Advanced Hybrid Peer-to-Peer
Botnet,” IEEE Trans. Dependable Secure Comput., vol. 7, no. 2, pp.
113–127, Apr. 2010.

28
[36] B. Stone-Gross, “The Lifecycle of Peer to Peer (Gameover)
ZeuS,” SecureWorks, Tech. Rep., Jul. 2012. [Online]. Avail-
able: https://www.secureworks.com/research/the lifecycle of peer to
peer gameover zeus
[37] N. Falliere, “Sality: Story of a Peer-to-Peer Viral Network,”
Symantec Corporation, Tech. Rep. Version 1.0, Jul. 2011. [Online].
security response/whitepapers/sality peer to peer viral network.pdf
[38] J. Stewart. (2004, Mar.) Phatbot Trojan Analysis. SecureWorks.
[Online]. Available: http://web.archive.org/web/20080917193007/http:
//www.secureworks.com/research/threats/phatbot/
[39] ——. (2003, Dec.) Sinit P2P Trojan Analysis. SecureWorks.
[Online]. Available: http://web.archive.org/web/20080921095447/http:
//www.secureworks.com/research/threats/sinit/
[40] P. Porras, H. Saidi, and V. Yegneswaran, “Conficker C P2P Protocol
and Implementation,” Technical report, SRI International, Tech. Rep.,
2009.
[41] J. Morris, “Cracking the Encrypted CC Protocol of the
ZeroAccess Botnet,” VirusBulletin, Kindsight Security Labs, Dallas,
2012. [Online]. Available: https://www.virusbulletin.com/uploads/pdf/
conference slides/2012/Morris-VB2012.pdf
[42] D. Plohmann and E. Gerhards-Padilla, “Case study of the Miner
Botnet,” in 4th International Conference on Cyber Conflict (CYCON),
Jun. 2012, pp. 1–16.
[43] D. Andriesse, C. Rossow, B. Stone-Gross, D. Plohmann, and H. Bos,
“Highly resilient peer-to-peer botnets are here: An analysis of
Gameover Zeus,” in 8th International Conference on Malicious and
Unwanted Software: ”The Americas” (MALWARE), Oct. 2013, pp.
116–123.
[44] G. Wichersky, T. Werner, F. Leder, and M. Schlösser, “Stormfucker:
0wning the Storm Botnet,” 25th Chaos Communication Congress, Dec.
2008.
[45] J. Oikarinen and D. Reed, “Internet Relay Chat Protocol,” RFC 1459,
May 1993.
[46] K. Zeuge, T. Rollo, and B. Mesander, “The Client-To-Client Protocol
(CTCP),” IRC Protocol Specification, Aug. 1994.
[47] J. Canavan, “The evolution of malicious IRC bots,” in Virus Bulletin
Conference, 2005, pp. 104–114.
[48] R. Fielding, J. Gettys, J. Mogul, H. Frystyk, L. Masinter, P. Leach,
and T. Berners-Lee, “Hypertext Transfer Protocol – HTTP/1.1,” RFC
2616, Jun. 1999.
[49] J. Nazario, “BlackEnergy DDoS Bot Analysis,” Arbor Networks,
Tech. Rep., Oct. 2007. [Online]. Available: http://atlas-public.ec2.
arbor.net/docs/BlackEnergy+DDoS+Bot+Analysis.pdf
[50] “Regin: Top-tier espionage tool enables stealthy surveillance,”
Symantec Corporation, Tech. Rep. Version 1.1, Aug. 2015. [Online].
Available: http://www.symantec.com/content/en/us/enterprise/media/
security response/whitepapers/regin-analysis.pdf
[51] R. Sharpe, “Just what is SMB,” V1.2, Oct. 2002.
[52] “The Duqu 2.0 Technical Details,” Kaspersky lab,
Tech. Rep. Version 2.1, Jun. 2015. [Online]. Avail-
able: https://securelist.com/files/2015/06/The Mystery of Duqu 2 0
a sophisticated cyberespionage actor returns.pdf
[53] L. Fulton, “Eradicating the Masses Round 1 with Phatbot?” SANS
Institute, Tech. Rep., Jun. 2004. [Online]. Available: http://pen-testing.
sans.org/resources/papers/gcih/eradicating-masses-1-phatbot-106262
[54] (2004, Jun.) WASTE Official Documentation FAQ Rev. 5. [Online].
Available: http://waste.sourceforge.net/docs/docs.html
[55] J. Frankel. (2003) Waste P2P Darknet. [Online]. Available: http:
//waste.sourceforge.net
[56] P. Maymounkov and D. Mazières, “Kademlia: A Peer-to-Peer Infor-
mation System Based on the XOR Metric,” in Peer-to-Peer Systems,
ser. Lecture Notes in Computer Science. Springer Berlin Heidelberg,
Mar. 2002, no. 2429, pp. 53–65.
[57] K. Kutzner and T. Fuhrmann, “Measuring Large Overlay Networks
—The Overnet Example,” in Kommunikation in Verteilten Systemen
(KiVS), ser. Informatik aktuell. Springer Berlin Heidelberg, 2005, pp.
193–204.
[58] J. Postel, “User Datagram Protocol,” RFC 768, Aug. 1980.
[59] ——, “Internet Control Message Protocol,” RFC 792, Sep. 1981.
[60] P. J. Criscuolo, “Distributed Denial of Service: Trin00, Tribe Flood
Network, Tribe Flood Network 2000, and Stacheldraht CIAC-2319,”
California University Livermore Radiation Lab, Tech. Rep., Feb.
2000. [Online]. Available: http://oai.dtic.mil/oai/oai?verb=getRecord
metadataPrefix=htmlidentifier=ADA396999
[61] Trinoo Source Code. [Online]. Available: http://packetstormsecurity.
org/distributed/trinoo.tgz
[62] F. Lau, S. H. Rubin, M. H. Smith, and L. Trajkovic, “Distributed denial
of service attacks,” in IEEE International Conference on Systems, Man,
and Cybernetics, vol. 3, 2000, pp. 2275–2280 vol.3.
[63] I. Arce and E. Levy, “An analysis of the Slapper worm,” IEEE Secur.
Priv., vol. 1, no. 1, pp. 82–87, Jan. 2003.
[64] S. Zander, G. Armitage, and P. Branch, “A survey of covert channels
and countermeasures in computer network protocols,” IEEE Commun.
Surv. Tutor., vol. 9, no. 3, pp. 44–57, Third 2007.
[65] W. Stallings, Cryptography and Network Security: Principles and
Practice, 6th ed. Prentice Hall, 2013.
[66] B. Schneier, Applied Cryptography: Protocols, Algorithms, and Source
Code in C. John Wiley Sons, 2007.
[67] “Announcing the advanced encryption standard (AES),” Standard,
NIST-FIPS 197, 2001.
[68] M. Matsui, J. Nakajima, and S. Moriai, “A Description of the Camellia
Encryption Algorithm,” RFC 3713, Apr. 2004.
[69] R. L. Rivest, “The RC5 encryption algorithm,” in Fast Software
Encryption. Springer, Berlin, Heidelberg, Dec. 1994, pp. 86–96.
[70] D. J. Wheeler and R. M. Needham, “TEA, a tiny encryption algorithm,”
in Fast Software Encryption. Springer, Berlin, Heidelberg, Dec. 1994,
pp. 363–366.
[71] R. M. Needham and D. J. Wheeler, “Tea extensions,” Report, Cam-
bridge University, Cambridge, UK, 1997.
[72] T. Dierks and E. Rescorla, “The Transport Layer Security (TLS)
Protocol Version 1.2,” RFC 5246, Aug. 2008.
[73] E. Rescorla, “HTTP Over TLS,” RFC 2818, May 2000.
[74] J. Wolf, “Black Energy Crypto,” Mar. 2010. [On-
line]. Available: https://www.fireeye.com/blog/threat-research/2010/
03/black-energy-crypto.html
[75] K. Baumgartner and M. Garnaeva, “BE2 custom plugins,
router abuse, and target profiles,” Nov. 2014. [Online]. Avail-
able: https://securelist.com/blog/research/67353/be2-custom-plugins-
router-abuse-and-target-profiles/
[76] Y. Rathore, M. K. Ahirwar, and R. Pandey, “A brief study of data
compression algorithms,” Int. J. Comput. Sci. Inf. Secur., vol. 11, no. 10,
p. 86, 2013.
[77] S. Nagaraja, A. Houmansadr, P. Piyawongwisal, V. Singh, P. Agarwal,
and N. Borisov, “Stegobot: A Covert Social Network Botnet,” in
Information Hiding, ser. Lecture Notes in Computer Science. Springer
Berlin Heidelberg, May 2011, no. 6958, pp. 299–313.
[78] A. Compagno, M. Conti, D. Lain, G. Lovisotto, and L. V. Mancini,
“Boten ELISA: A novel approach for botnet C C in Online Social
Networks,” in 2015 IEEE Conference on Communications and Network
Security (CNS), Sep. 2015, pp. 74–82.
[79] J. Klensin, “Simple Mail Transfer Protocol,” RFC 5321, Apr. 2008.
[80] “RAT in a jar: A phishing campaign using Unrecom,” Threat
Advisory, Fidelis Cybersecurity Solutions, Tech. Rep., May 2014.
[Online]. Available: https://www.fidelissecurity.com/sites/default/files/
FTA 1013 RAT in a jar.pdf
[81] “Blackenergy Quedagh The convergence of crimeware and APT
attacks,” Sep. 2014, White Paper, F-Secure.
[82] R. Samani and C. Beek, “Updated BlackEnergy Trojan Grows More
Powerful,” Jan. 2016. [Online]. Available: https://blogs.mcafee.com/
mcafee-labs/updated-blackenergy-trojan-grows-more-powerful/
[83] G. Lawton, “On the Trail of the Conficker Worm,” Computer, vol. 42,
no. 6, pp. 19–22, Jun. 2009.
[84] P. Porras, H. Saidi, and V. Yegneswaran, “An analysis of conficker’s
logic and rendezvous points,” Technical report, SRI International, Tech.
Rep., 2009.
[85] GReAT. (2015, Jun.) The Duqu 2.0 persistence module. Securelist.
[Online]. Available: https://securelist.com/blog/research/70641/the-
duqu-2-0-persistence-module/
[86] D. Dittrich and S. Dietrich, “Command and control structures in
malware,” Usenix Mag., vol. 32, no. 6, 2007.
[87] M. Kaczmarek, “Malware Instrumentation Application to Regin Anal-
ysis,” J. Cybercriminalité Investig. Numér., vol. 1, no. 1, pp. 1–12, Dec.
2015.
[88] “The Regin Platform Nation-State Ownage of GSM Networks,”
Kaspersky lab, Tech. Rep. Version 1.0, Nov. 2014. [On-
line]. Available: https://cdn.securelist.com/files/2014/11/Kaspersky
Lab whitepaper Regin platform eng.pdf
[89] G. Bonfante, J. Y. Marion, and F. Sabatier, “Gorille sniffs code similar-
ities, the case study of qwerty versus regin,” in 2015 10th International
Conference on Malicious and Unwanted Software (MALWARE), Oct.
2015, pp. 82–89.
[90] K. Chiang and L. Lloyd, “A case study of the rustock rootkit and spam
bot,” in The First Workshop in Understanding Botnets, vol. 20, 2007.

29
[91] David Nselmi, Richard Boscovich, T.J. Campana, Samantha
Doerr, Marc Lauricella, Oleg Petrovsky, Tareq Saade, and Holly
Stewart, “Battling the Rustock Threat,” Microsoft, Tech. Rep.,
2011. [Online]. Available: https://lammgl.files.wordpress.com/2011/
03/battling-the-rustock-threat english.pdf
[92] “WORM:LINUX/SLAPPER Threat description,” 2002. [On-
line]. Available: https://www.f-secure.com/v-descs/worm linux
slapper.shtml
[93] P. Porras, H. Saidi, and V. Yegneswaran, “A Multi-Perspective
Analysis of the Storm (Peacomm) Worm,” Computer Science
Laboratory, SRI International, Tech. Rep., Oct. 2007. [Online].
Available: http://www.cyber-ta.org/pubs/StormWorm/report/
[94] D. Jackson. (2007, Sep.) Analysis of Storm
Worm DDoS Traffic. SecureWorks. [Online]. Available:
http://web.archive.org/web/20101129235652/http://secureworks.com/
research/blog/index.php/2007/09/12/analysis-of-storm-worm-ddos-
traffic/
[95] Mixter. Tribe Flood Network Source Code. [Online]. Avail-
able: http://web.archive.org/web/20010215035009/http://packetstorm.
securify.com/distributed/tfn.tgz
[96] J. Baltazar, J. Costoya, and R. Flores, “Infiltrating WALEDAC
Botnet’s Covert Operations,” Trendmicro, Tech. Rep., 2013. [Online].
Available: http://www.trendmicro.com/cloud-content/us/pdfs/security-
intelligence/white-papers/wp infiltrating the waledac botnet v2.pdf
[97] K. McNamee, “Malware Analysis Report Botnet: ZeroAccess/Sirefef,”
Kindsight Security Labs, Tech. Rep., Feb. 2012. [Online].
Available: http://web.archive.org/web/20140710070427/http:
//www.kindsight.net/sites/default/files/Kindsight Malware Analysis-
ZeroAcess-Botnet-final.pdf
[98] S. Hittel and R. Zhou, “Trojan.ZeroAccess Infection Analysis,”
Symantec Corporation, Tech. Rep., 2012. [Online]. Available:
http://www.symantec.com/content/en/us/enterprise/media/security
response/whitepapers/trojan zeroaccess infection analysis.pdf
[99] N. Falliere and E. Chien, “Zeus: King of the
Bots,” Symantec Corporation, Tech. Rep., 2009. [Online].
security response/whitepapers/zeus king of bots.pdf
[100] Zeus Source Code. [Online]. Available: https://github.com/Visgean/
Zeus/
[101] R. Radvanovsky and J. Brodsky, Handbook of Scada/Control Systems
Security. Crc Pr Inc, Jan. 2013.
[102] O. Thonnard, L. Bilge, G. O’Gorman, S. Kiernan, and M. Lee, “Indus-
trial Espionage and Targeted Attacks: Understanding the Characteristics
of an Escalating Threat,” in Research in Attacks, Intrusions, and
Defenses. Springer, Berlin, Heidelberg, Sep. 2012, pp. 64–85.
[103] J. Postel and J. Reynolds, “FILE TRANSFER PROTOCOL (FTP),”
RFC 959, Oct. 1985.
[104] Z. Micskei and H. Waeselynck, “The many meanings of UML 2
Sequence Diagrams: A survey,” Softw Syst Model, vol. 10, no. 4, pp.
489–514, Oct. 2011.
[105] Object Management Group, “Unified Modeling Language,” Mar. 2015.
[Online]. Available: http://www.omg.org/spec/UML/2.5
[106] H. Berghel, “A Farewell to Air Gaps, Part 1,” Computer, vol. 48, no. 6,
pp. 64–68, Jun. 2015.
[107] M. Leech, M. Ganis, Y. Lee, R. Kuris, D. Koblas, and L. Jones,
“SOCKS Protocol Version 5,” RFC 1928, Mar. 1996.
Gernot Vormayr received his B.Sc. degree in elec-
trical engineering and his Dipl.-Ing. degree (M.Sc.
equivalent) in computer technology from the TU
Wien, Vienna, Austria. Since 2016, he has been
employed as a University Assistant at the Insti-
tute of Telecommunications, TU Wien, where he is
pursuing his doctoral degree. His current research
interest is in malware communication with a focus
on botnets.
Tanja Zseby received her diploma degree (Dipl.-
Ing.) in electrical engineering and her doctoral
degree (Dr.-Ing.) from TU Berlin, Germany. She
worked as Scientist and Head of the Network Re-
search Group at the Fraunhofer Institute for Open
Communication Systems, Berlin, Germany and as
a visiting scientist at the University of California,
San Diego (UCSD). She now is a full professor of
communication networks at TU Wien.
Joachim Fabini received his Dipl.-Ing. degree in
computer sciences and his Dr.Techn. degree in elec-
trical engineering from the TU Wien. After five years
of research and development with Ericsson Austria,
he joined the Institute of Telecommunications, TU
Wien, in 2003. He is a Senior Scientist with the
Communication Networks Group with research fo-
cus on active measurement methodologies.

Paper(edited)

More Related Content

Similar to Paper(edited)

Recently uploaded

Paper(edited)
