IPsec is a suite of protocols that work at Layer 3 and above of the OSI reference model. It can be used to just authenticate users or it can also be used for authentication and encryption. It will use one of two modes—transport or tunnel. Common protocols discussed include FTP, SFTP, SCP, TFTP, and RDP.

1. Common network
protocols III.

2. Page 2
Instructor, PACE-IT Program – Edmonds Community College
Areas of expertise Industry Certifications
 PC Hardware
 Network Administration
 IT Project Management
 Network Design
 User Training
 IT Troubleshooting
Qualifications Summary
Education
 M.B.A., IT Management, Western Governor’s University
 B.S., IT Security, Western Governor’s University
Entrepreneur, executive leader, and proven manger
with 10+ years of experience turning complex issues
into efficient and effective solutions.
Strengths include developing and mentoring diverse
workforces, improving processes, analyzing
business needs and creating the solutions
required— with a focus on technology.

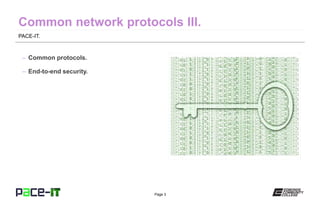

3. Page 3
PACE-IT.
– Common protocols.
– End-to-end security.

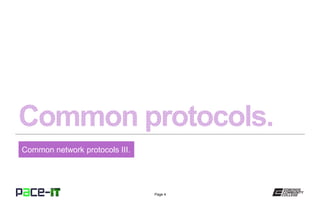

4. Page 4
Common network protocols III.

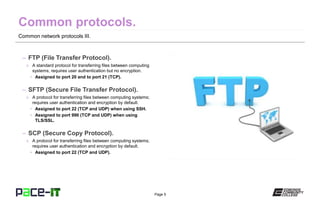

5. Page 5
Common network protocols III.
– FTP (File Transfer Protocol).
» A standard protocol for transferring files between computing
systems; requires user authentication but no encryption.
• Assigned to port 20 and to port 21 (TCP).
– SFTP (Secure File Transfer Protocol).
» A protocol for transferring files between computing systems;
requires user authentication and encryption by default.
• Assigned to port 22 (TCP and UDP) when using SSH.
• Assigned to port 990 (TCP and UDP) when using
TLS/SSL.
– SCP (Secure Copy Protocol).
» A protocol for transferring files between computing systems;
requires user authentication and encryption by default.
• Assigned to port 22 (TCP and UDP).

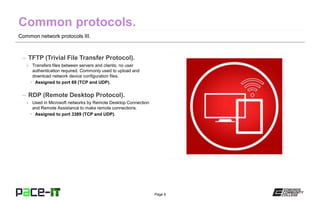

6. Page 6
Common network protocols III.
– TFTP (Trivial File Transfer Protocol).
» Transfers files between servers and clients; no user
authentication required. Commonly used to upload and
download network device configuration files.
• Assigned to port 69 (TCP and UDP).
– RDP (Remote Desktop Protocol).
» Used in Microsoft networks by Remote Desktop Connection
and Remote Assistance to make remote connections.
• Assigned to port 3389 (TCP and UDP).

7. Page 7
Common network protocols III.

8. Page 8
Common network protocols III.
– IPsec (Internet Protocol Security).
» Works at Layer 3 of the OSI model and above.
• The most common suite of protocols to secure a VPN
connection.
» Can be used with the Authentication Header (AH) protocol.
• AH only offers authentication services, no encryption.
» Can be used with Encapsulating Security Payload (ESP).
• ESP both authenticates and encrypts packets (the most
popular method).
» Both AH and ESP will operate in one of two modes.
• Can be used in transport mode—between two devices (e.g.,
the host-to-host VPN).
• Can be used in tunnel mode—between two endpoints (e.g.,
the site-to-site VPN).
» IPSec implements Internet Security Association and Key
Management (ISAKMP) by default.
• ISAKMP provides a method for transferring security keys and
authentication data between systems, outside of the security
key generating process (a much more secure process).

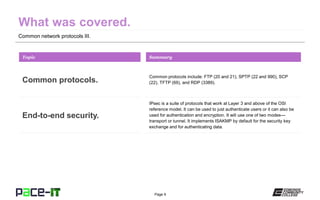

9. Page 9
Common network protocols III.
Common protocols include: FTP (20 and 21), SPTP (22 and 990), SCP
(22), TFTP (69), and RDP (3389).
Topic
Common protocols.
Summary
IPsec is a suite of protocols that work at Layer 3 and above of the OSI
reference model. It can be used to just authenticate users or it can also be
used for authentication and encryption. It will use one of two modes—
transport or tunnel. It implements ISAKMP by default for the security key
exchange and for authenticating data.
End-to-end security.

10. Page 10
THANK YOU!

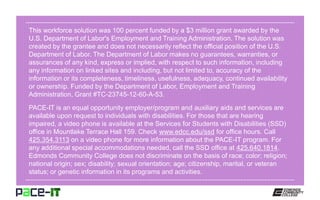

11. This workforce solution was 100 percent funded by a $3 million grant awarded by the
