Dissolved Oxygen Meter is used to determine water quality in a variety of applications including wastewater, aquariums, and fish hatcheries. Alternatively, it displays DO and temperature readings. Equipped with a waterproof feature to ensure complete protection in harsh conditions. The presence of replaceable electrode module reduces maintenance and replacement cost. This basic pen-type dissolved oxygen meter is provided with an American original sensor. It is simple and easy to use.

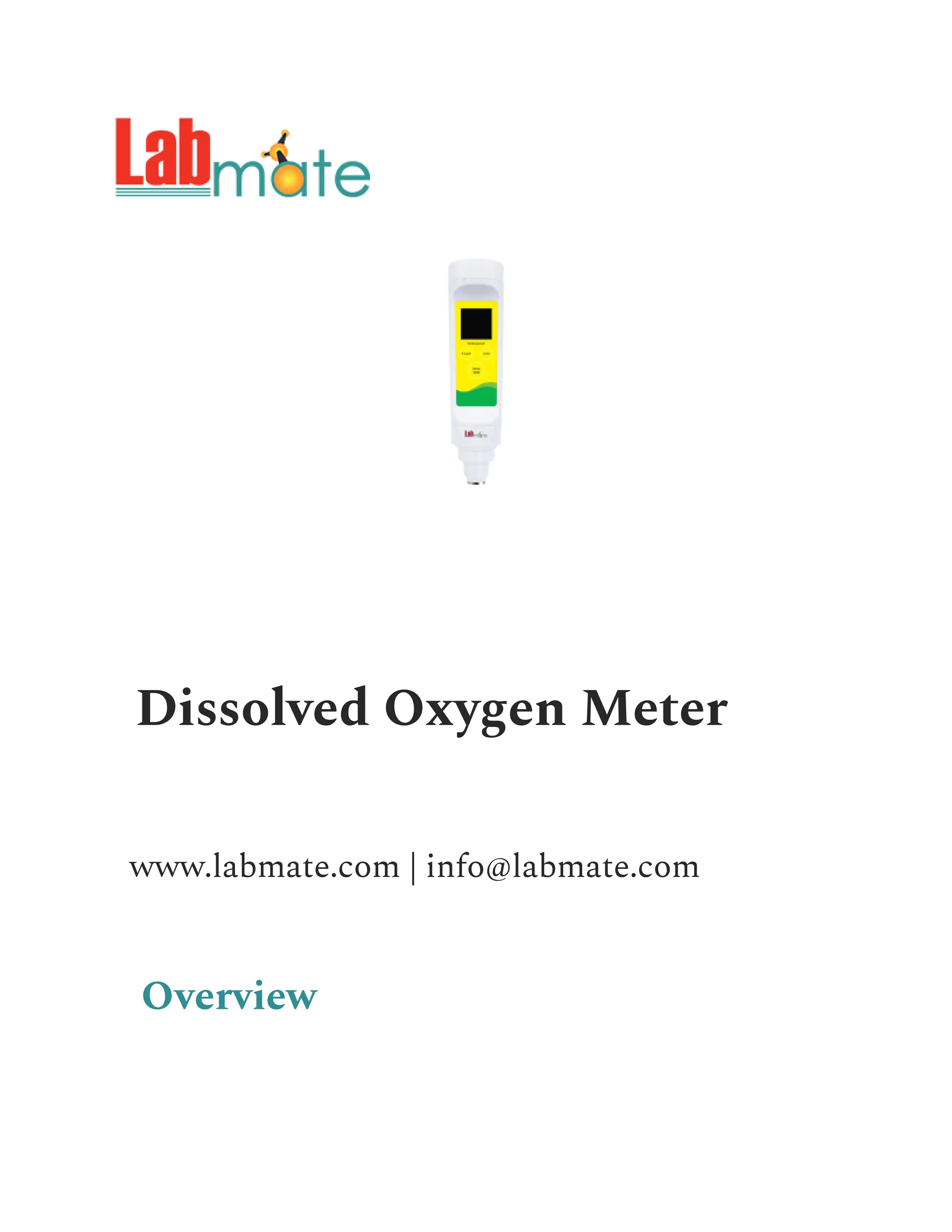

1. Dissolved Oxygen Meter
www.labmate.com | info@labmate.com
Overview

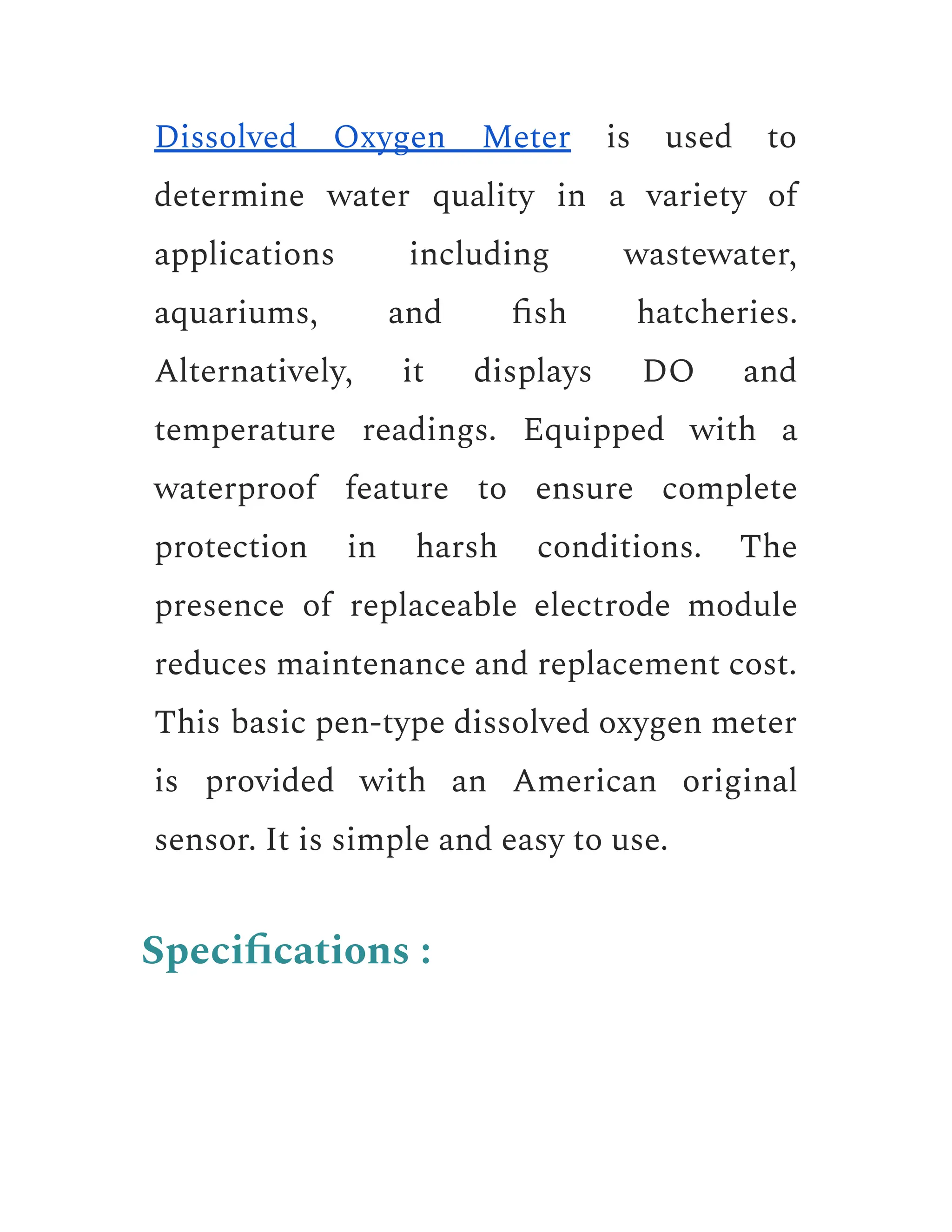

2. Dissolved Oxygen Meter is used to
determine water quality in a variety of
applications including wastewater,
aquariums, and fish hatcheries.
Alternatively, it displays DO and
temperature readings. Equipped with a
waterproof feature to ensure complete
protection in harsh conditions. The
presence of replaceable electrode module
reduces maintenance and replacement cost.
This basic pen-type dissolved oxygen meter
is provided with an American original
sensor. It is simple and easy to use.
Specifications :

3. Dissolved
Oxygen Range
0.0 to 20.0mg/L or ppm
Dissolved
Oxygen
Resolution
0.1 mg/L
Dissolved
Oxygen
Accuracy
±2.0%
% Saturation
Range
0.0 to 200.0%

4. % Saturation
Resolution
0.001
Accuracy ±2.0%
Calibration
points
1 or 2 points
Temperature
compensations
0 to 40°C/32 to 104°F,
automatic
Barometric
Pressure
Correction
450 to 850 mm Hg,
manual

5. Salinity
Correction
0 to 35g/L, manual
Hold Function Manual or
auto-endpoint
Auto-Off 8 minutes after last key
pressed
Operating
Temperature
0 to 50°C
Display Dual-line LCD (21×
21mm)

6. Power
Requirements
2×1.5V AAA batteries
Battery Life Approximately 200
hours of continuous use
Dimensions(L×
D)
175×40 mm
Weight 100 g
Features :

7. ​ - Economy dissolved oxygen tester is
provided with a polar graphic DO
probe
​ - Salinity and barometric pressure
compensations remove the
measurement error
​ - Auto-Read function senses and locks
the measurement at endpoint
​ - Set up menu allows setting the
number calibration points, temperature
and concentration unit
​ - Restart function automatically
resumes all settings back to the factory
defaults
​ - Automatic Power Off effectively
conserves battery life

8. ​ - This meter includes Dissolved oxygen
probe, membrane cap, DO electrolyte
solution and carrying case
​ - Battery indicator shows the left over
battery capacity
Applications :
It is used for the measurement of dissolved
oxygen concentration or percent saturation
of water. Widely used for education
applications
