The document discusses the history and development of Apache Arrow, an open-source cross-language development platform for in-memory data. Some key points: - Arrow started in 2016 to optimize data transfer between systems using a standardized columnar memory format. - It has since expanded to include libraries in many languages, file formats like Arrow and Parquet, and distributed computing capabilities like Arrow Flight for RPC. - Over time, more projects have adopted Arrow as an internal data structure for improved performance, including Spark, DuckDB, and Streamlit. - Today Arrow is an ecosystem of interoperable components, with continued work on higher-level tools around databases, machine learning, and geospatial data.

1. Arrow in Flight
New Developments in
Data Connectivity
David Li / Voltron Data

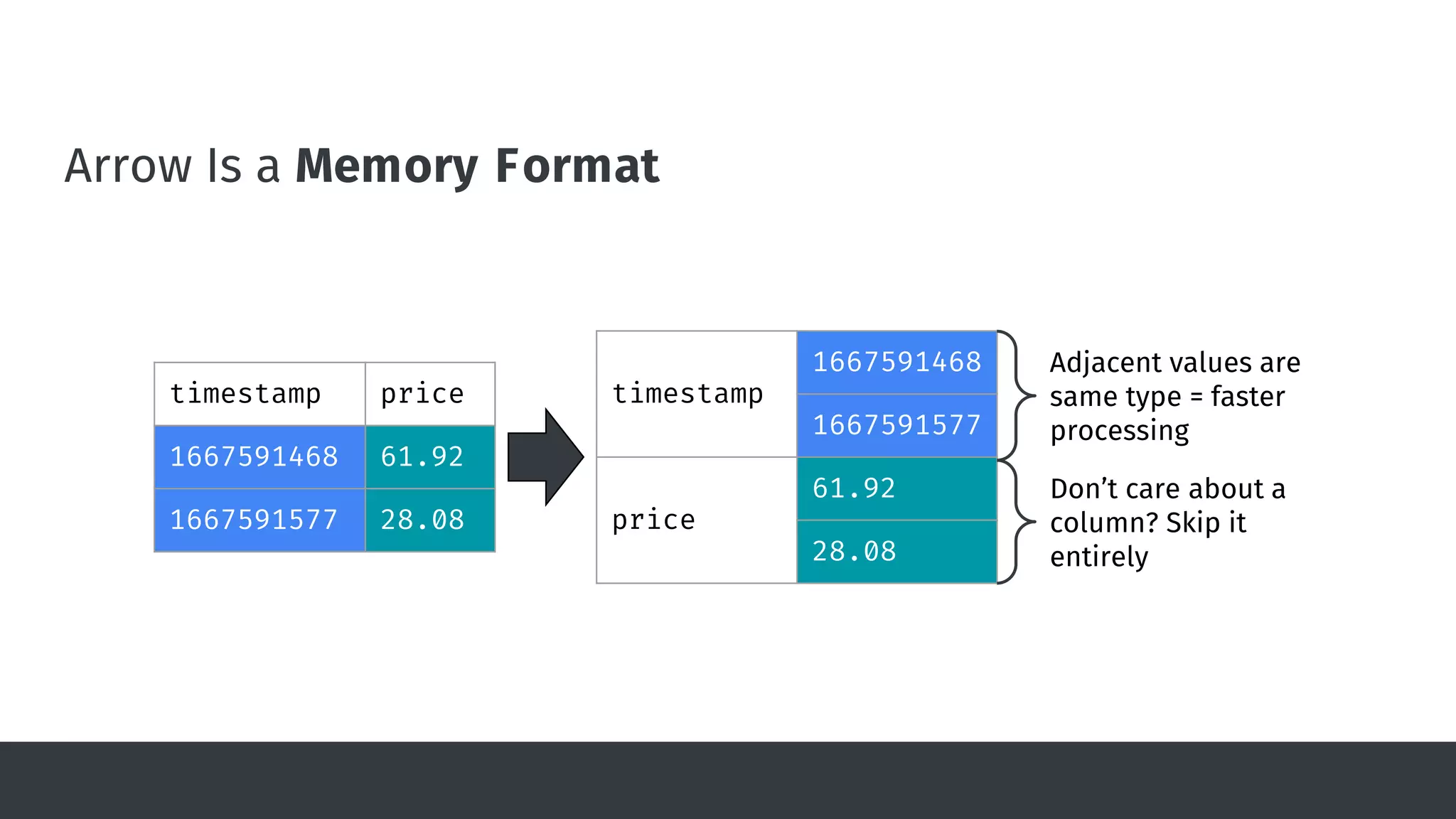

2. Arrow Is a Memory Format
timestamp price
1667591468 61.92
1667591577 28.08
timestamp
1667591468
1667591577
price
61.92
28.08
Adjacent values are
same type = faster
processing
Don’t care about a
column? Skip it
entirely

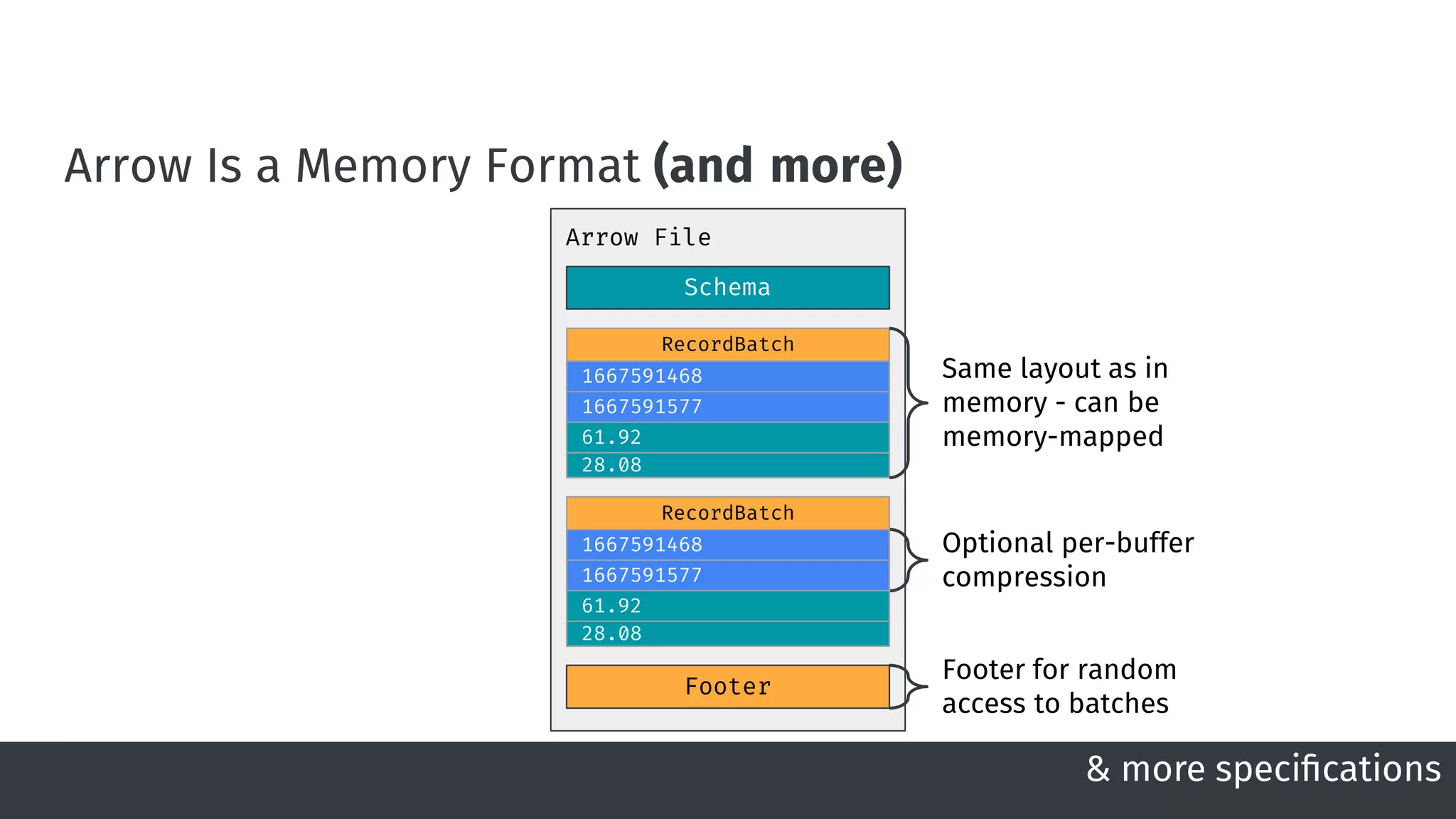

3. Arrow File
Arrow Is a Memory Format (and more)
& more specifications
RecordBatch
1667591468
1667591577
61.92
28.08
Schema
Footer
Same layout as in
memory - can be
memory-mapped
Footer for random
access to batches
Optional per-buffer
compression
RecordBatch
1667591468
1667591577
61.92
28.08

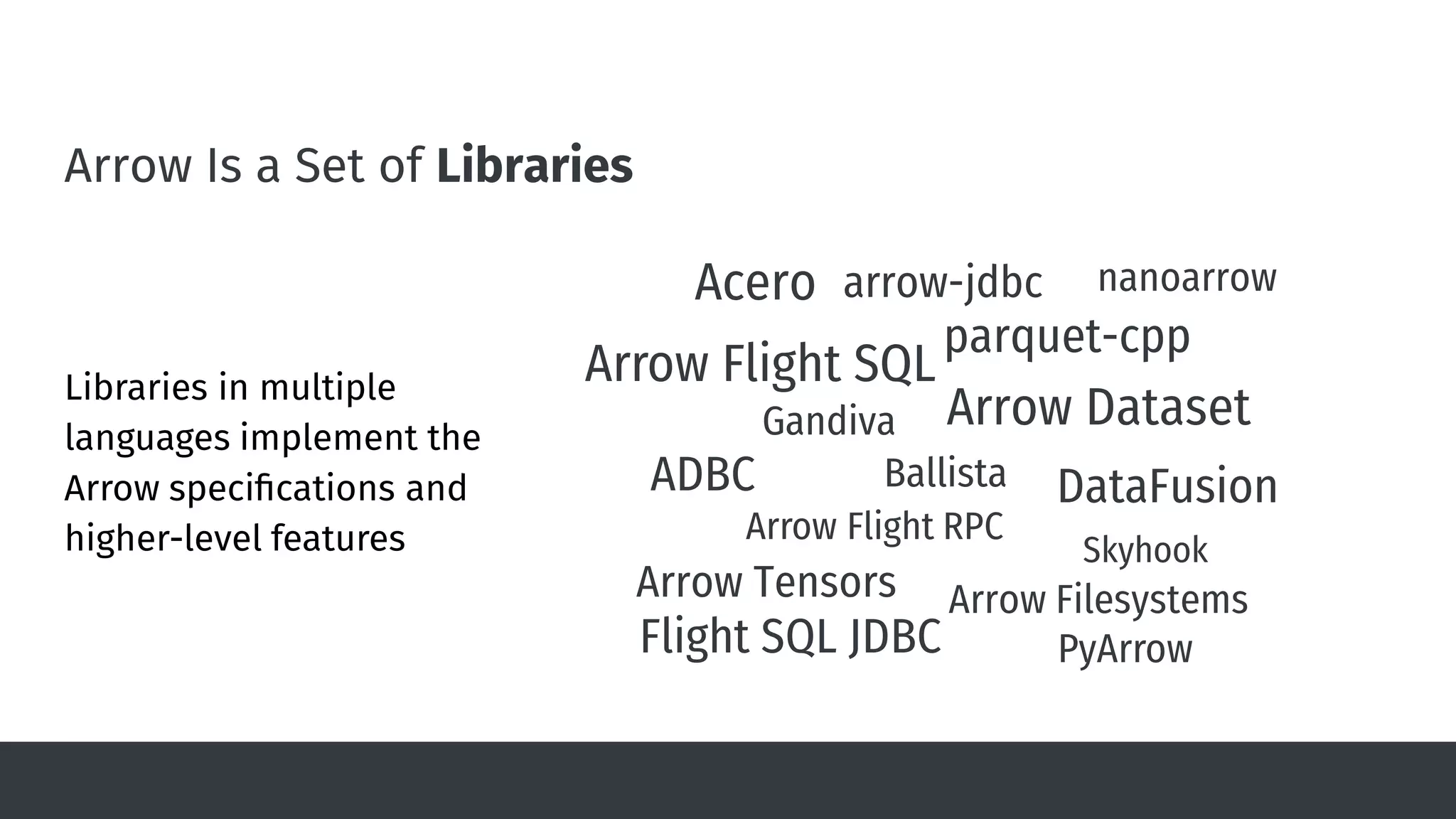

4. Arrow Is a Set of Libraries
Libraries in multiple
languages implement the
Arrow specifications and
higher-level features Arrow Flight RPC
Arrow Dataset
parquet-cpp
Acero
DataFusion
Arrow Filesystems
arrow-jdbc
Arrow Flight SQL
ADBC
Gandiva
Skyhook
Arrow Tensors
Ballista
Flight SQL JDBC
nanoarrow
PyArrow

5. An Incomplete History
of Apache Arrow

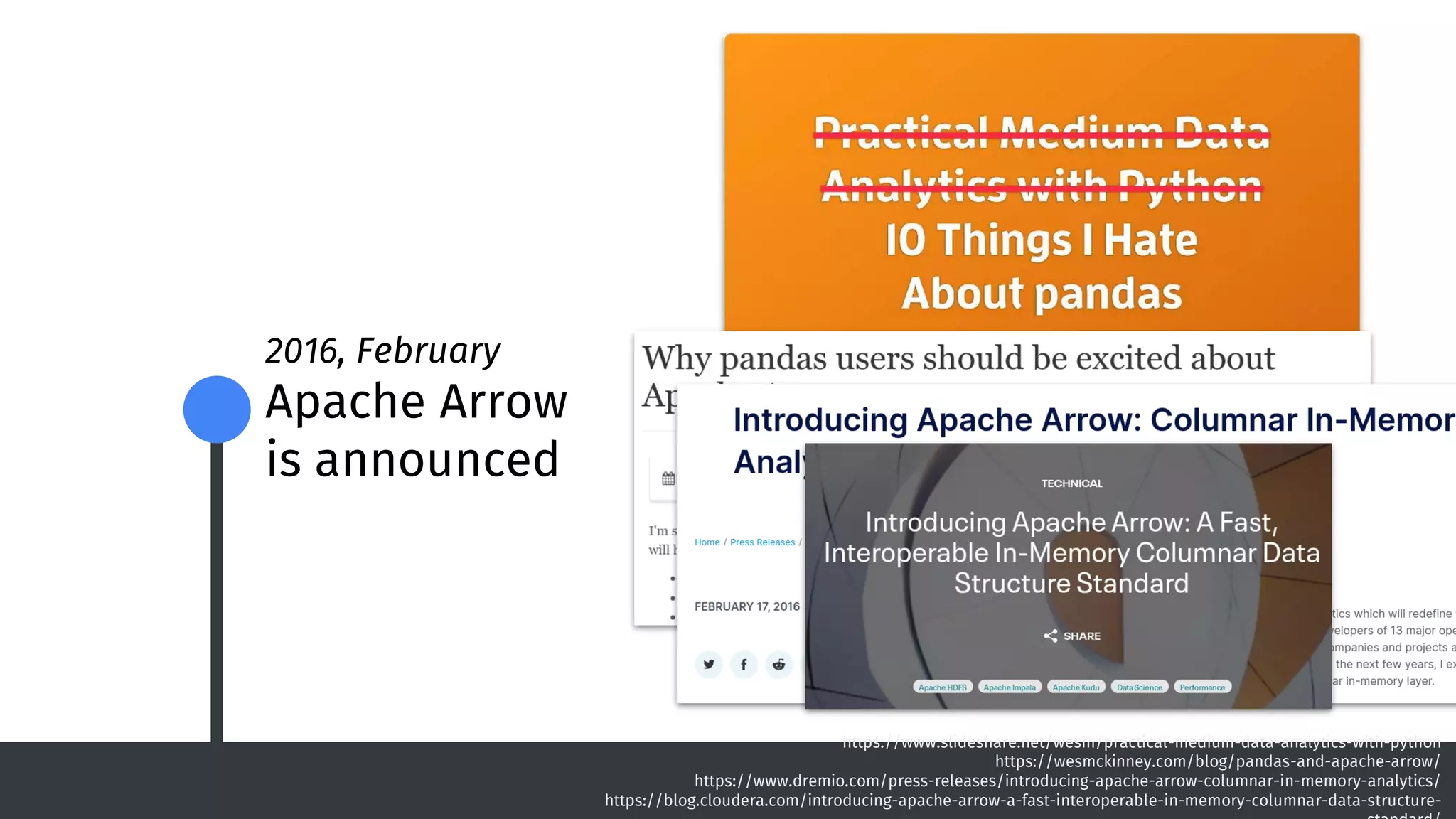

6. 2016, February
Apache Arrow
is announced
https://www.slideshare.net/wesm/practical-medium-data-analytics-with-python
https://wesmckinney.com/blog/pandas-and-apache-arrow/
https://www.dremio.com/press-releases/introducing-apache-arrow-columnar-in-memory-analytics/
https://blog.cloudera.com/introducing-apache-arrow-a-fast-interoperable-in-memory-columnar-data-structure-

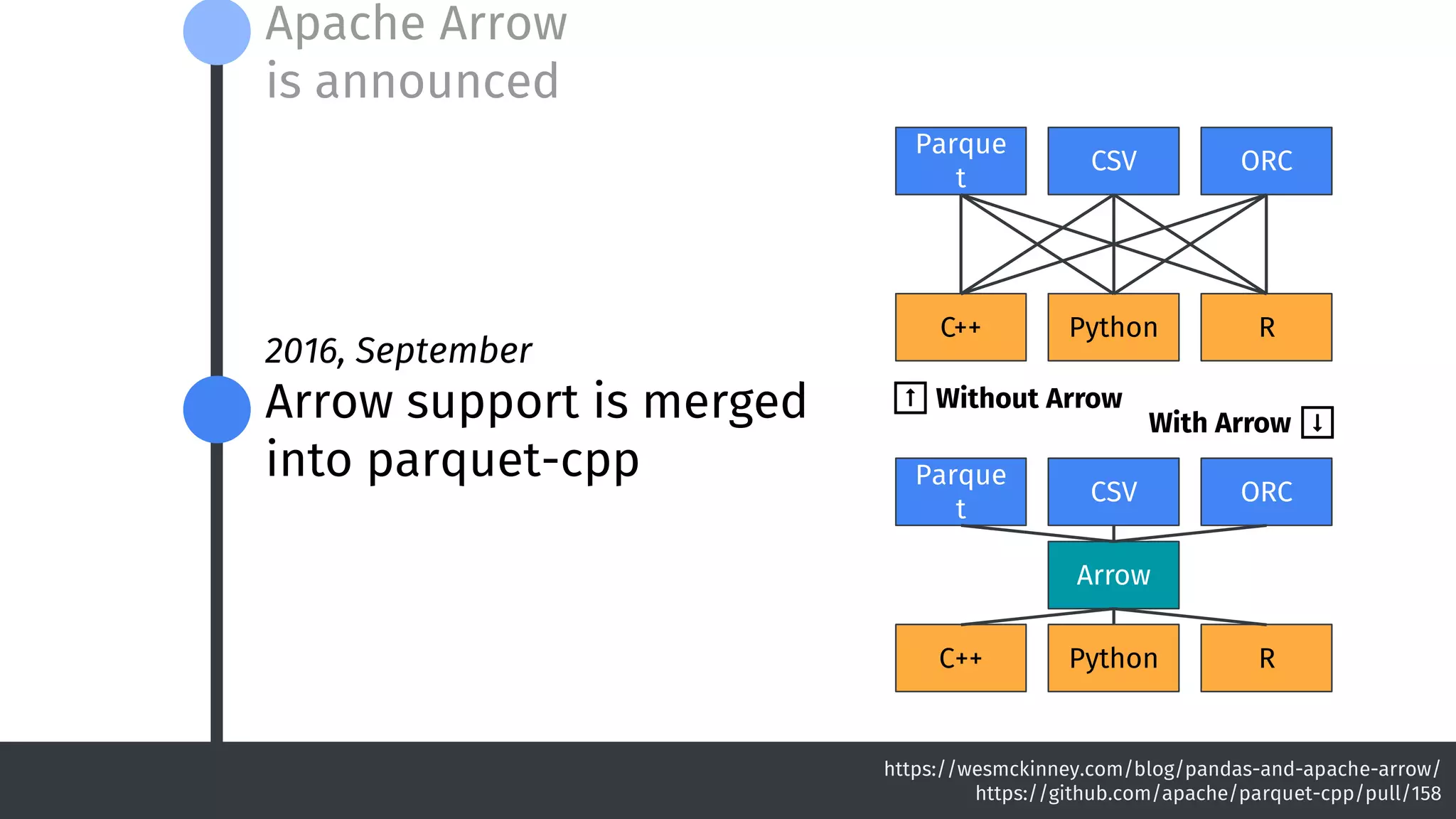

7. 2016, September
Arrow support is merged
into parquet-cpp
Apache Arrow
is announced
https://wesmckinney.com/blog/pandas-and-apache-arrow/
https://github.com/apache/parquet-cpp/pull/158
C++ Python R
Parque
t
CSV ORC
C++ Python R
Parque
t
CSV ORC
Arrow
⬆️ Without Arrow
With Arrow ⬇️

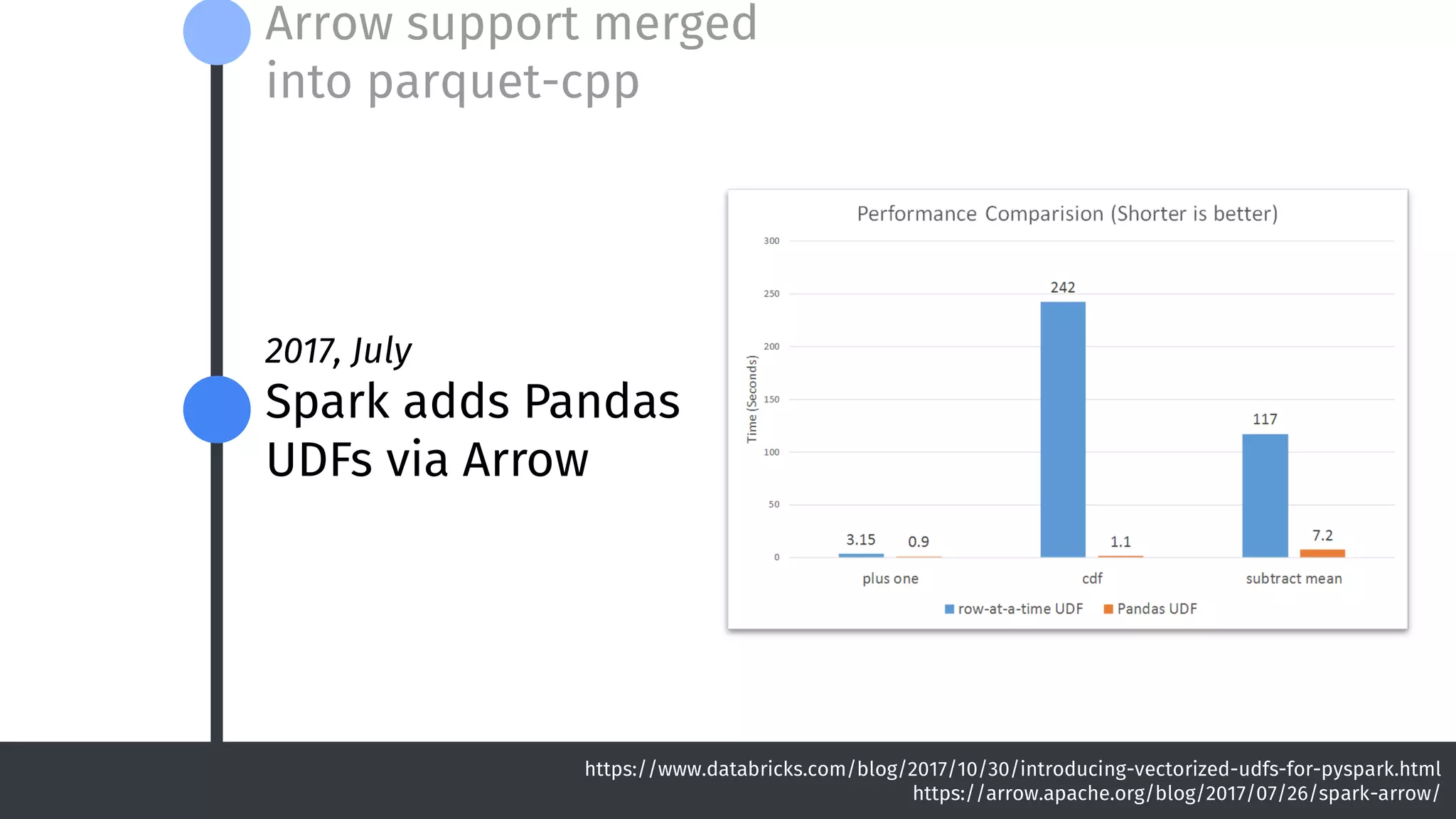

8. 2017, July
Spark adds Pandas
UDFs via Arrow
Arrow support merged
into parquet-cpp
https://www.databricks.com/blog/2017/10/30/introducing-vectorized-udfs-for-pyspark.html
https://arrow.apache.org/blog/2017/07/26/spark-arrow/

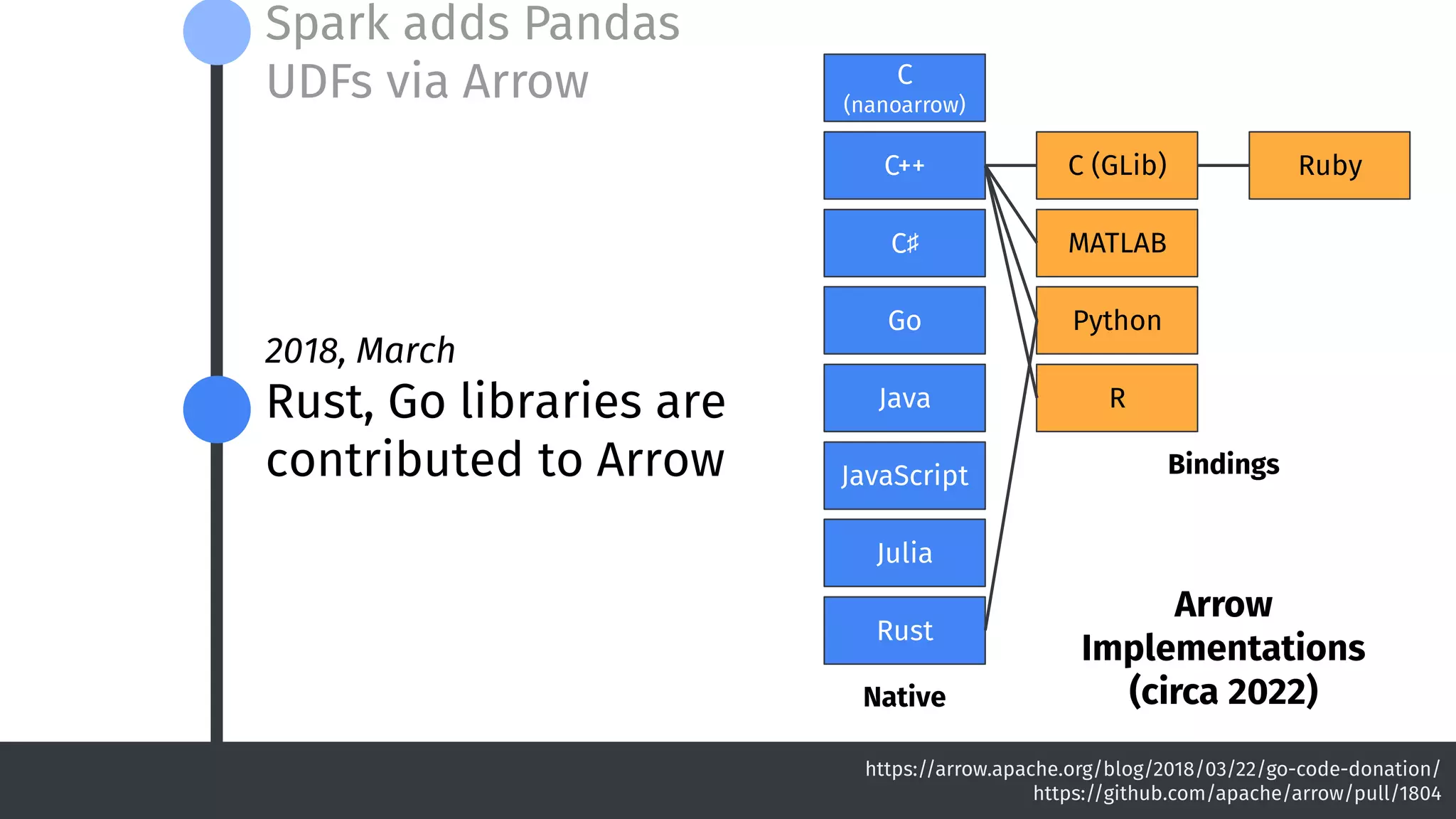

9. 2018, March
Rust, Go libraries are
contributed to Arrow
Spark adds Pandas
UDFs via Arrow
https://arrow.apache.org/blog/2018/03/22/go-code-donation/
https://github.com/apache/arrow/pull/1804
C++
C♯
Java
JavaScript
Go
C (GLib)
C
(nanoarrow)
MATLAB
Python
R
Ruby
Rust
Julia
Native
Bindings
Arrow
Implementations
(circa 2022)

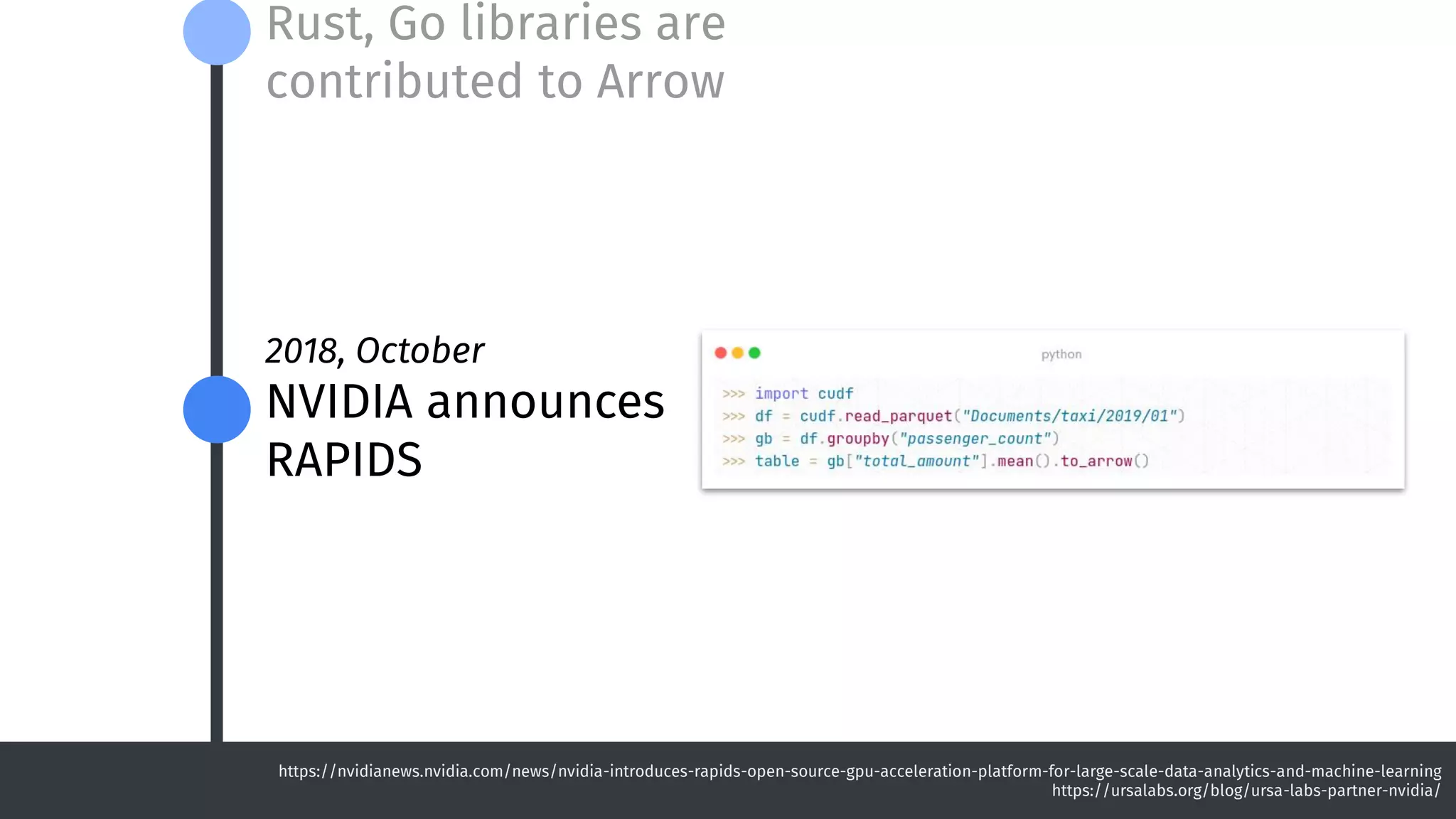

10. 2018, October
NVIDIA announces
RAPIDS
Rust, Go libraries are
contributed to Arrow
https://nvidianews.nvidia.com/news/nvidia-introduces-rapids-open-source-gpu-acceleration-platform-for-large-scale-data-analytics-and-machine-learning
https://ursalabs.org/blog/ursa-labs-partner-nvidia/

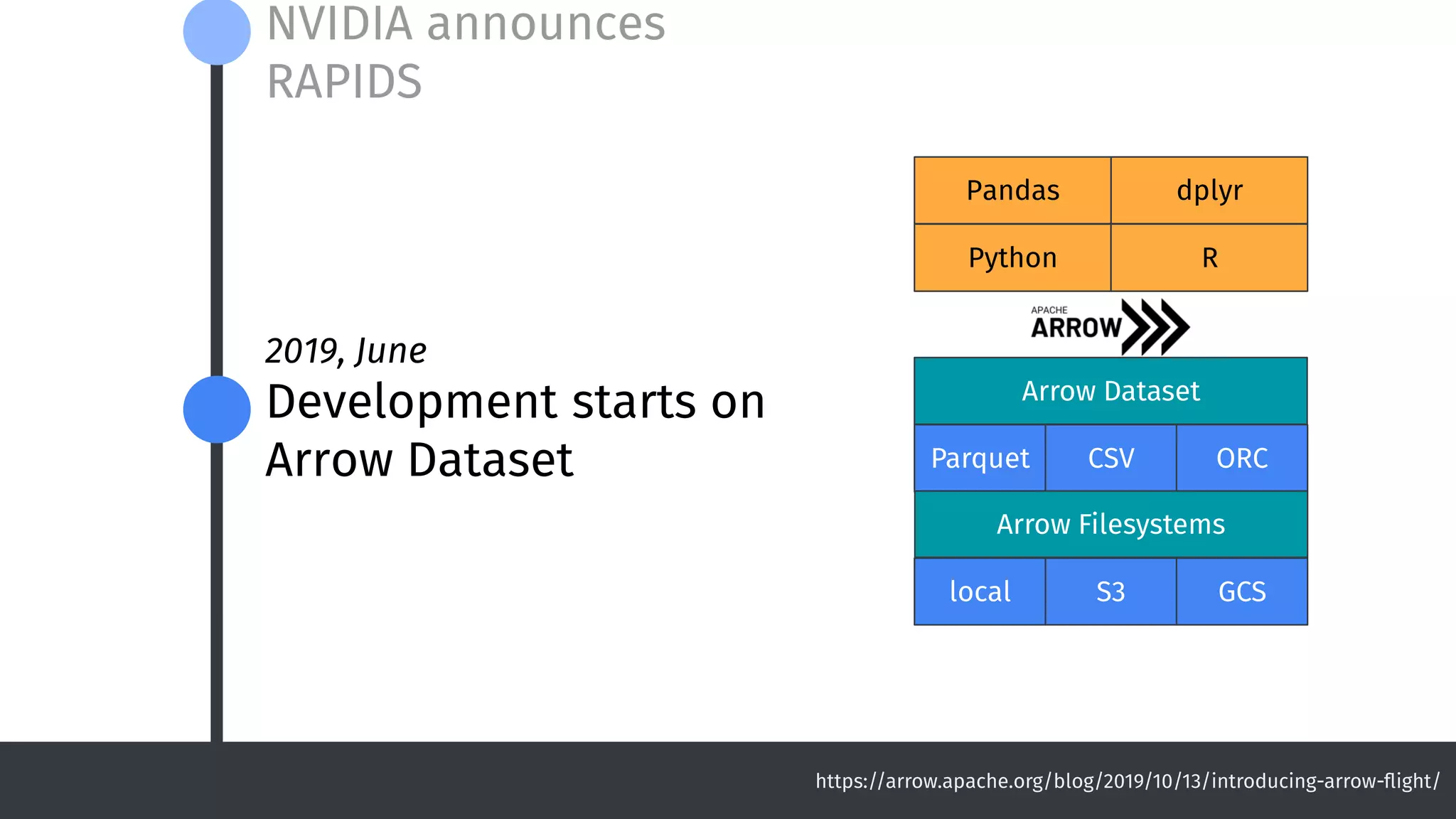

11. 2019, June
Development starts on
Arrow Dataset
NVIDIA announces
RAPIDS
https://arrow.apache.org/blog/2019/10/13/introducing-arrow-flight/
Arrow Dataset
Parquet CSV ORC
Arrow Filesystems
local S3 GCS
Python R
dplyr
Pandas

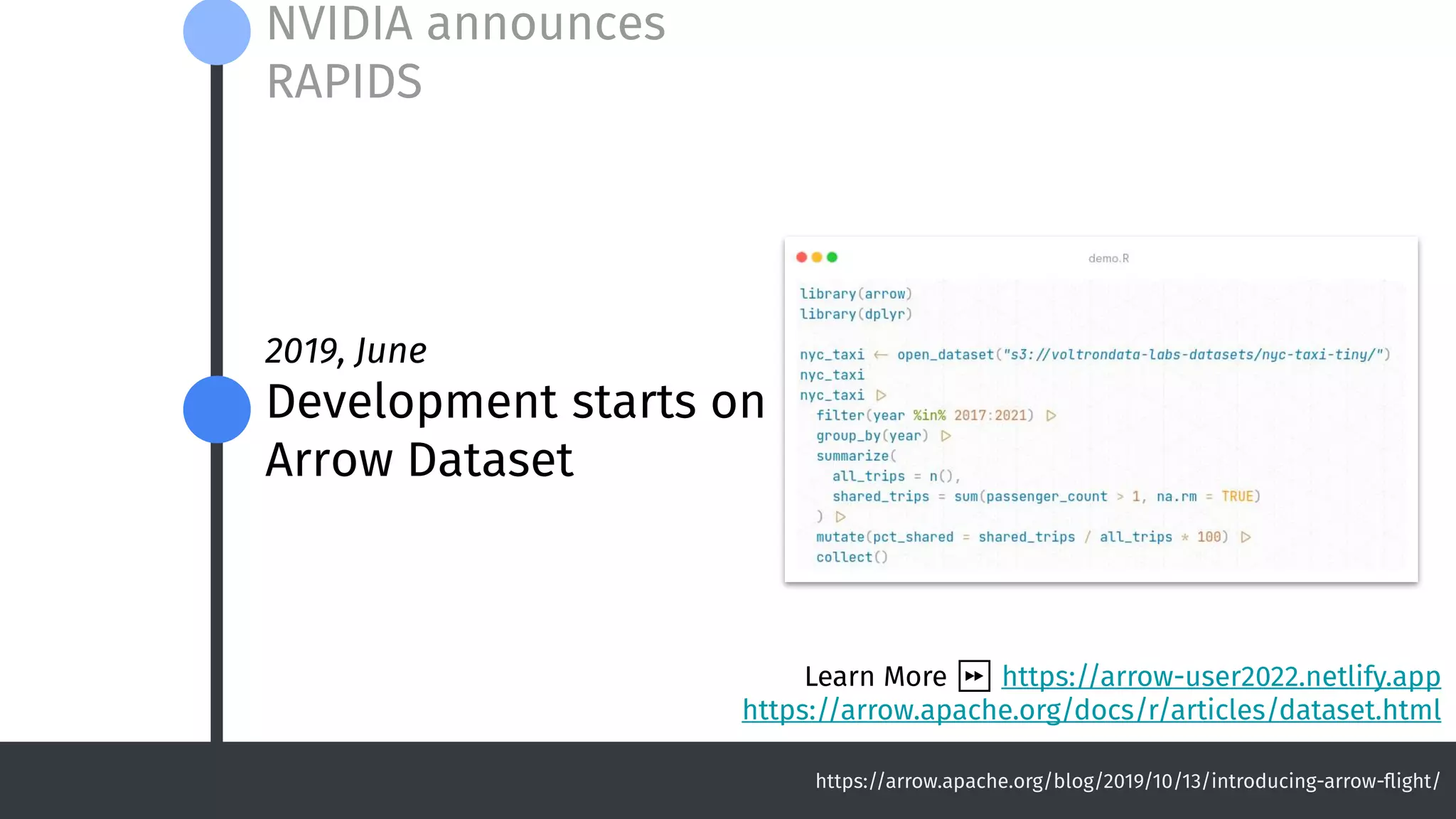

12. 2019, June
Development starts on
Arrow Dataset
NVIDIA announces
RAPIDS
https://arrow.apache.org/blog/2019/10/13/introducing-arrow-flight/
R code sample (with timing?)
goes here
Learn More ⏩ https://arrow-user2022.netlify.app
https://arrow.apache.org/docs/r/articles/dataset.html

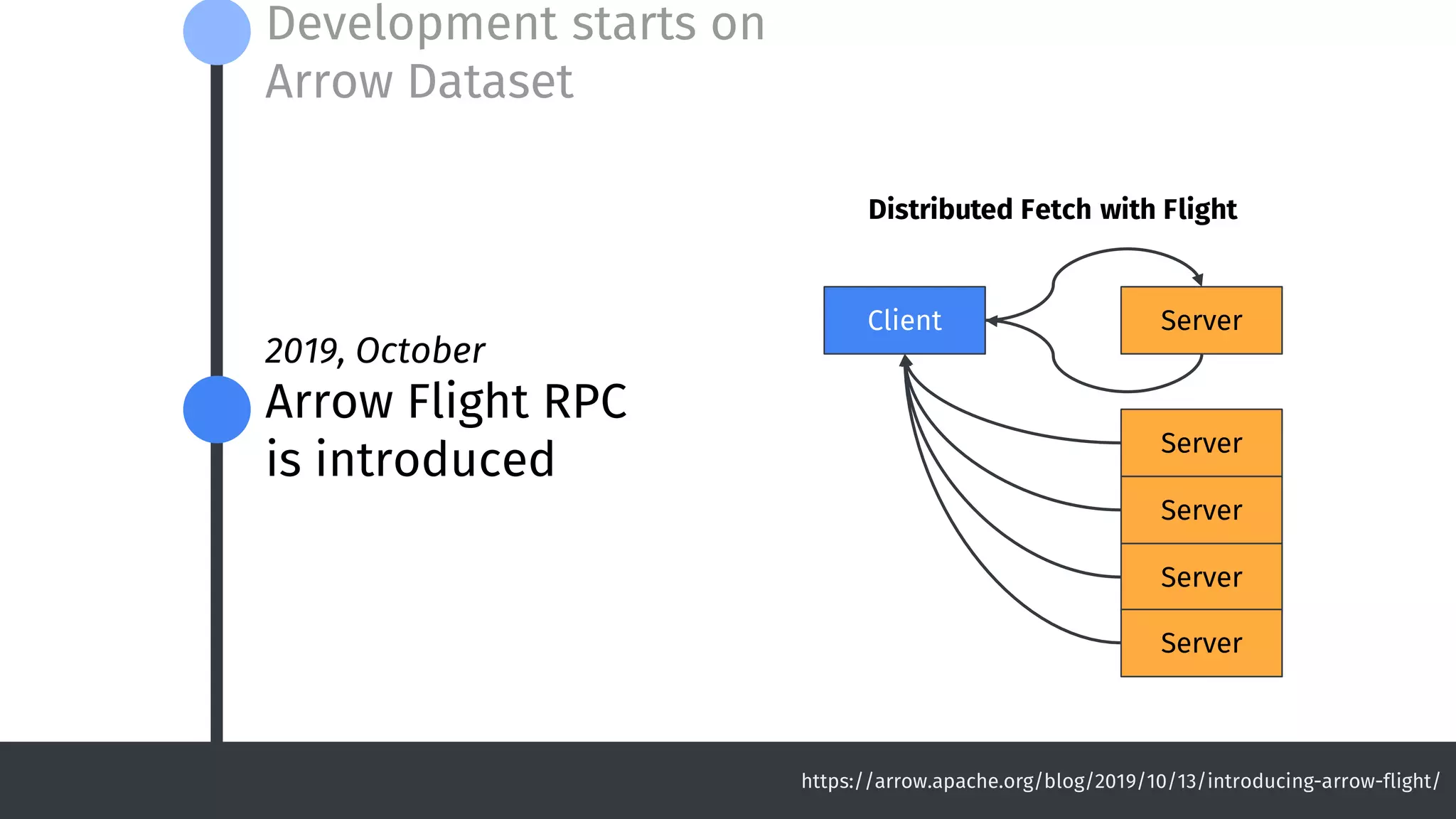

13. 2019, October
Arrow Flight RPC
is introduced
Development starts on
Arrow Dataset
https://arrow.apache.org/blog/2019/10/13/introducing-arrow-flight/
Client Server
Server
Server
Server
Server
Distributed Fetch with Flight

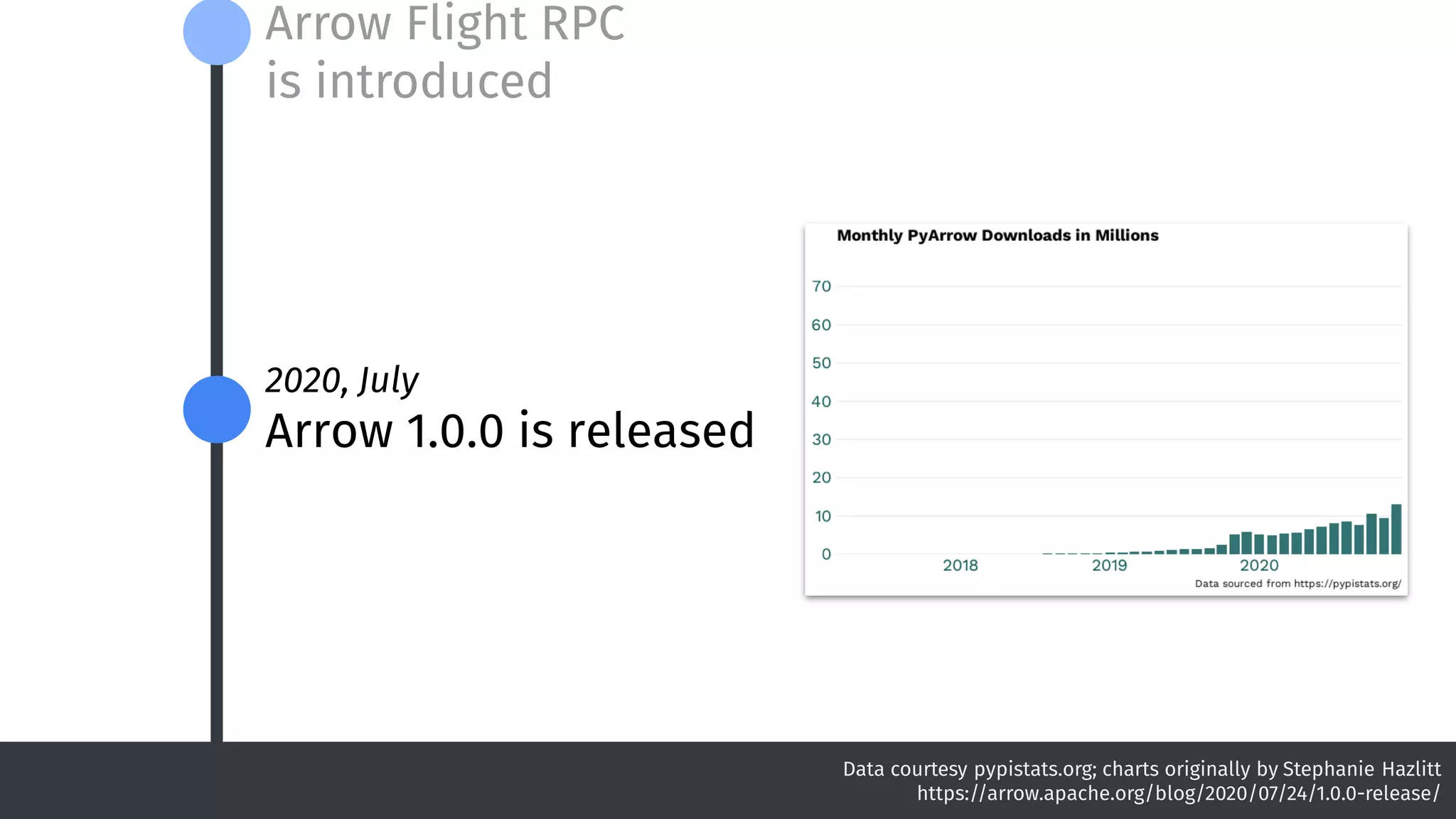

14. 2020, July
Arrow 1.0.0 is released
Arrow Flight RPC
is introduced
Data courtesy pypistats.org; charts originally by Stephanie Hazlitt
https://arrow.apache.org/blog/2020/07/24/1.0.0-release/

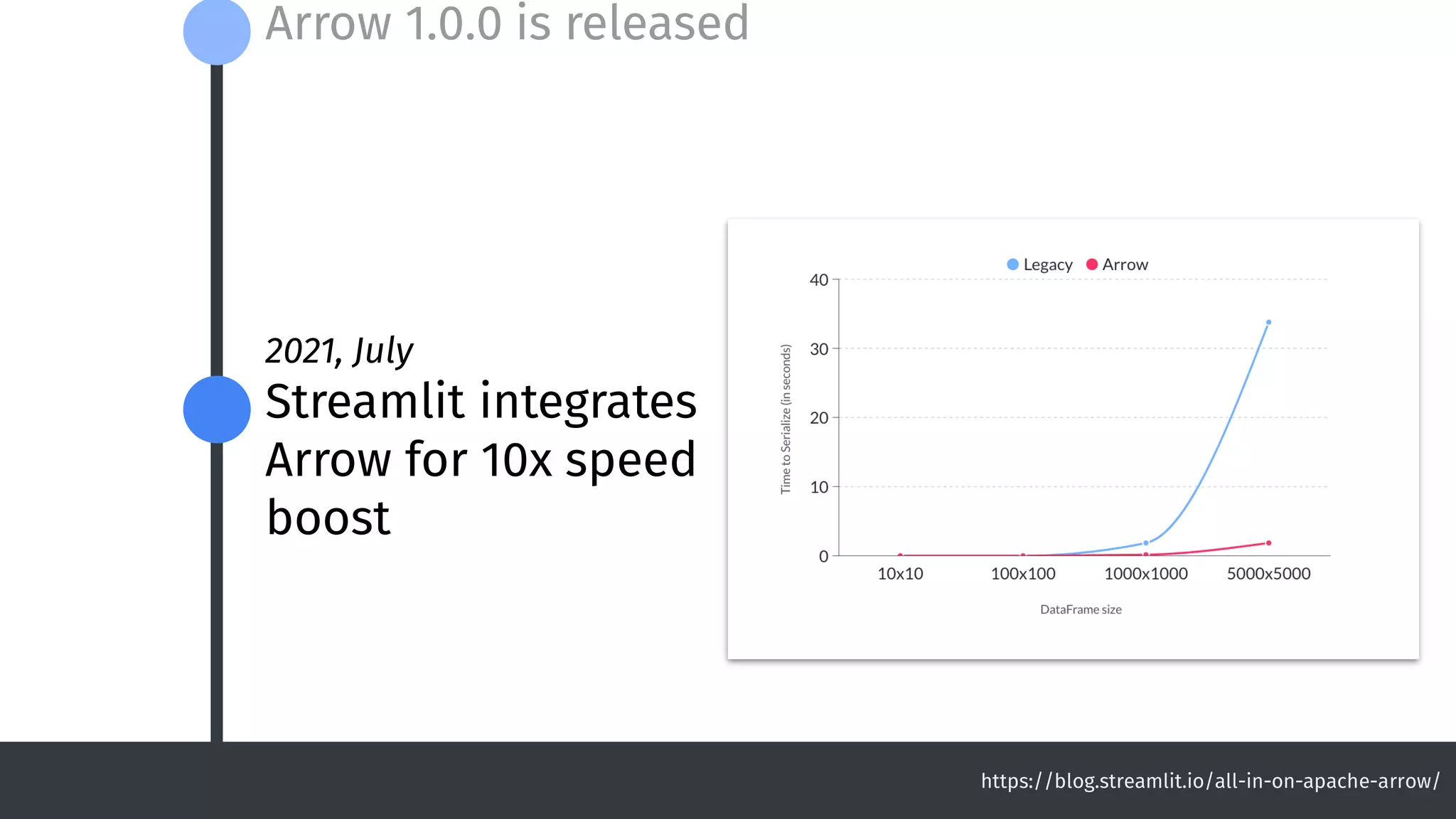

15. 2021, July
Streamlit integrates
Arrow for 10x speed
boost
Arrow 1.0.0 is released
https://blog.streamlit.io/all-in-on-apache-arrow/

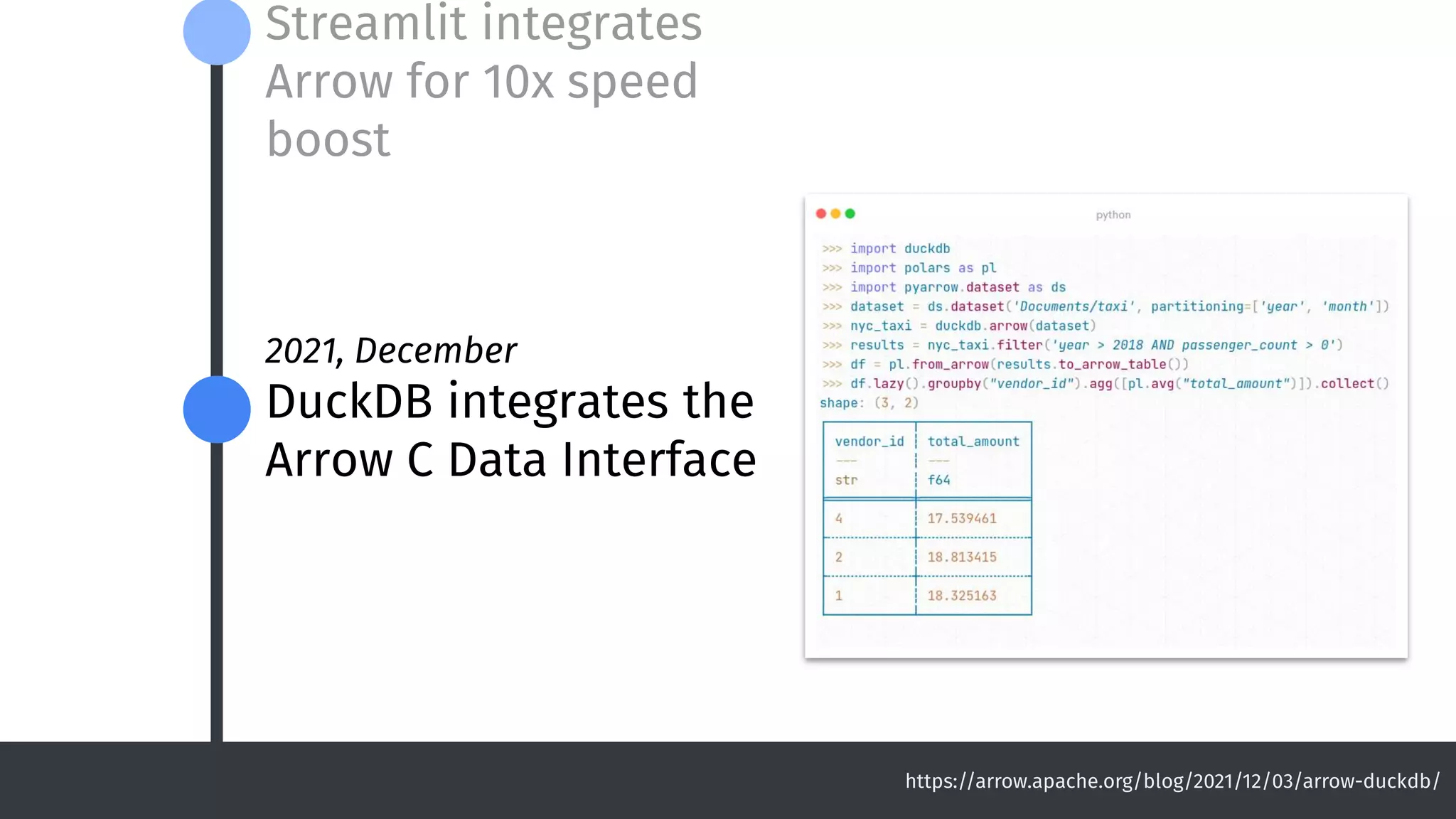

16. 2021, December
DuckDB integrates the
Arrow C Data Interface
Streamlit integrates
Arrow for 10x speed
boost
https://arrow.apache.org/blog/2021/12/03/arrow-duckdb/

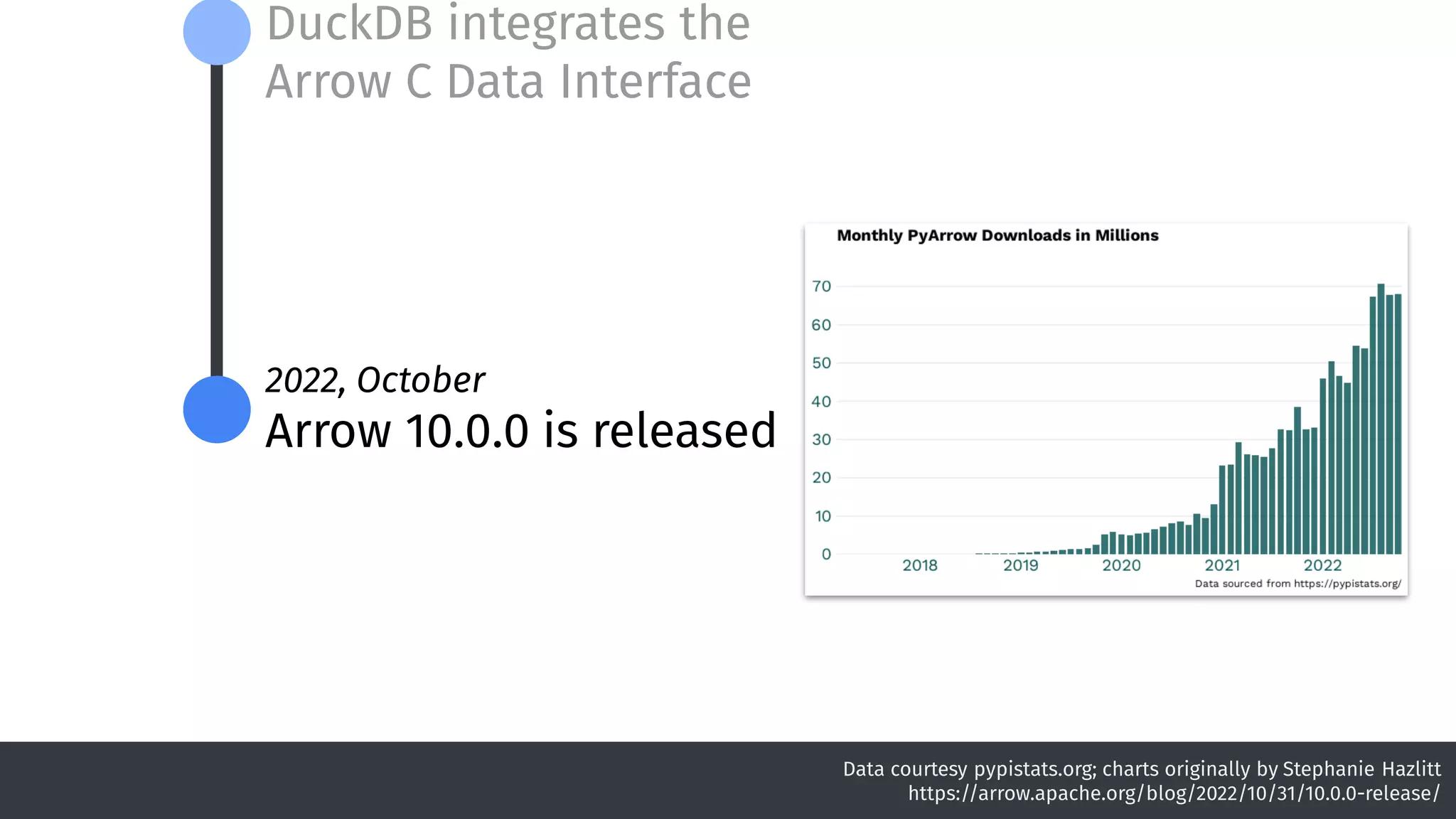

17. 2022, October
Arrow 10.0.0 is released
DuckDB integrates the
Arrow C Data Interface
Data courtesy pypistats.org; charts originally by Stephanie Hazlitt
https://arrow.apache.org/blog/2022/10/31/10.0.0-release/

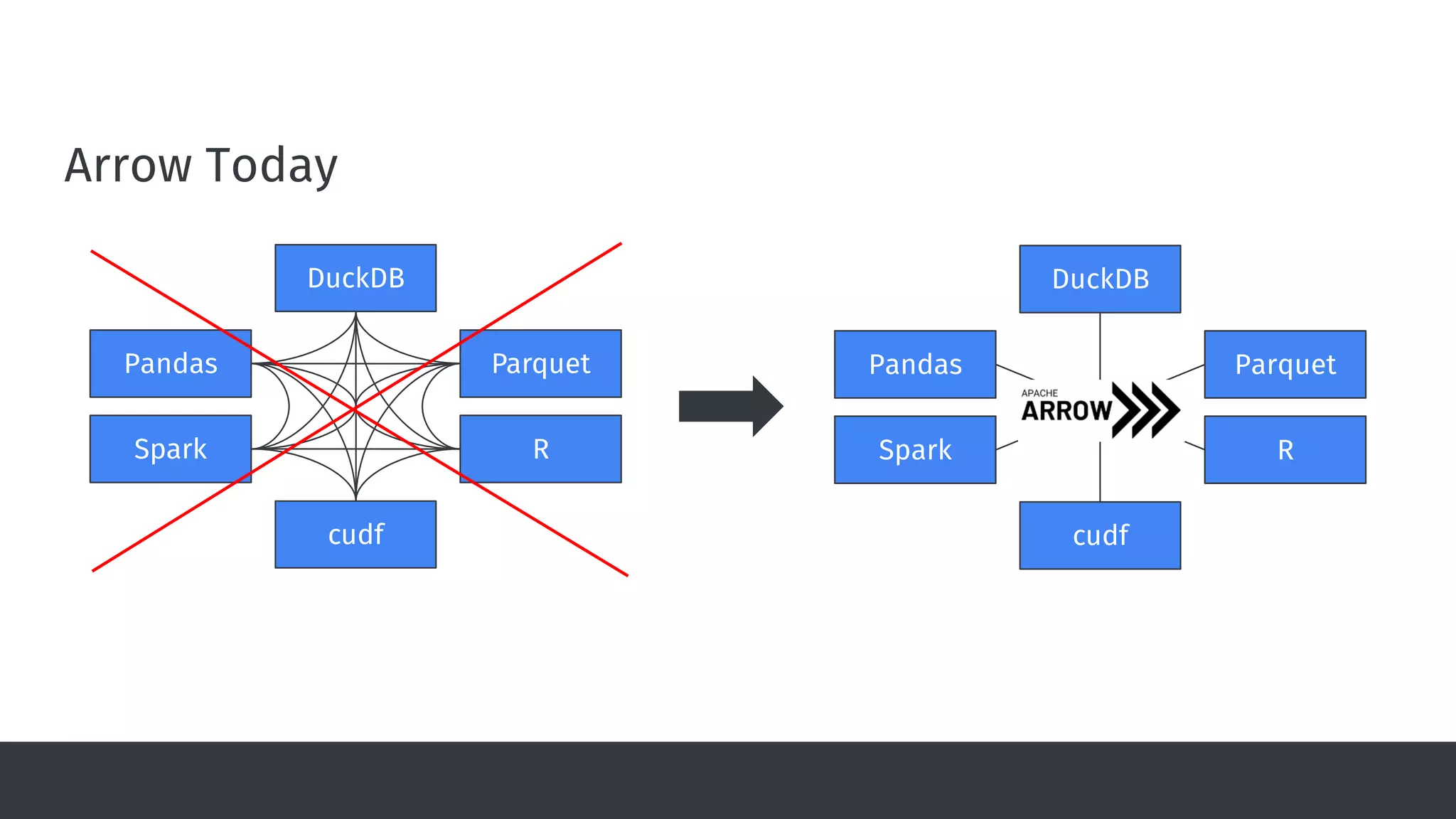

18. Arrow Today
DuckDB
Pandas Parquet
Spark R
cudf
DuckDB
Pandas Parquet
Spark R
cudf

19. Arrow Is an Ecosystem
…and more!

20. Apache Arrow,
Taking Off

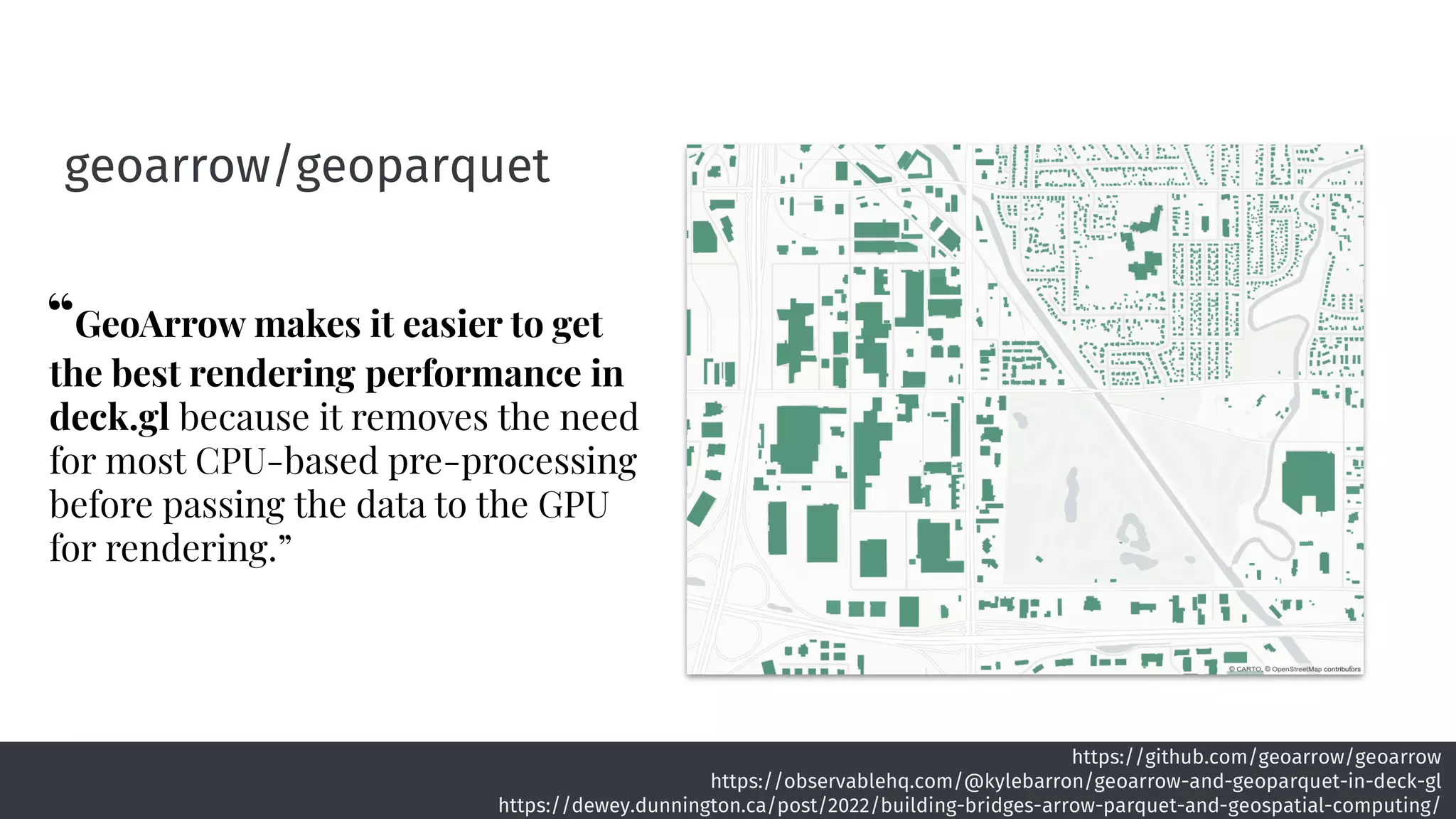

21. geoarrow/geoparquet
https://github.com/geoarrow/geoarrow
https://observablehq.com/@kylebarron/geoarrow-and-geoparquet-in-deck-gl
https://dewey.dunnington.ca/post/2022/building-bridges-arrow-parquet-and-geospatial-computing/
“GeoArrow makes it easier to get
the best rendering performance in
deck.gl because it removes the need
for most CPU-based pre-processing
before passing the data to the GPU
for rendering.”

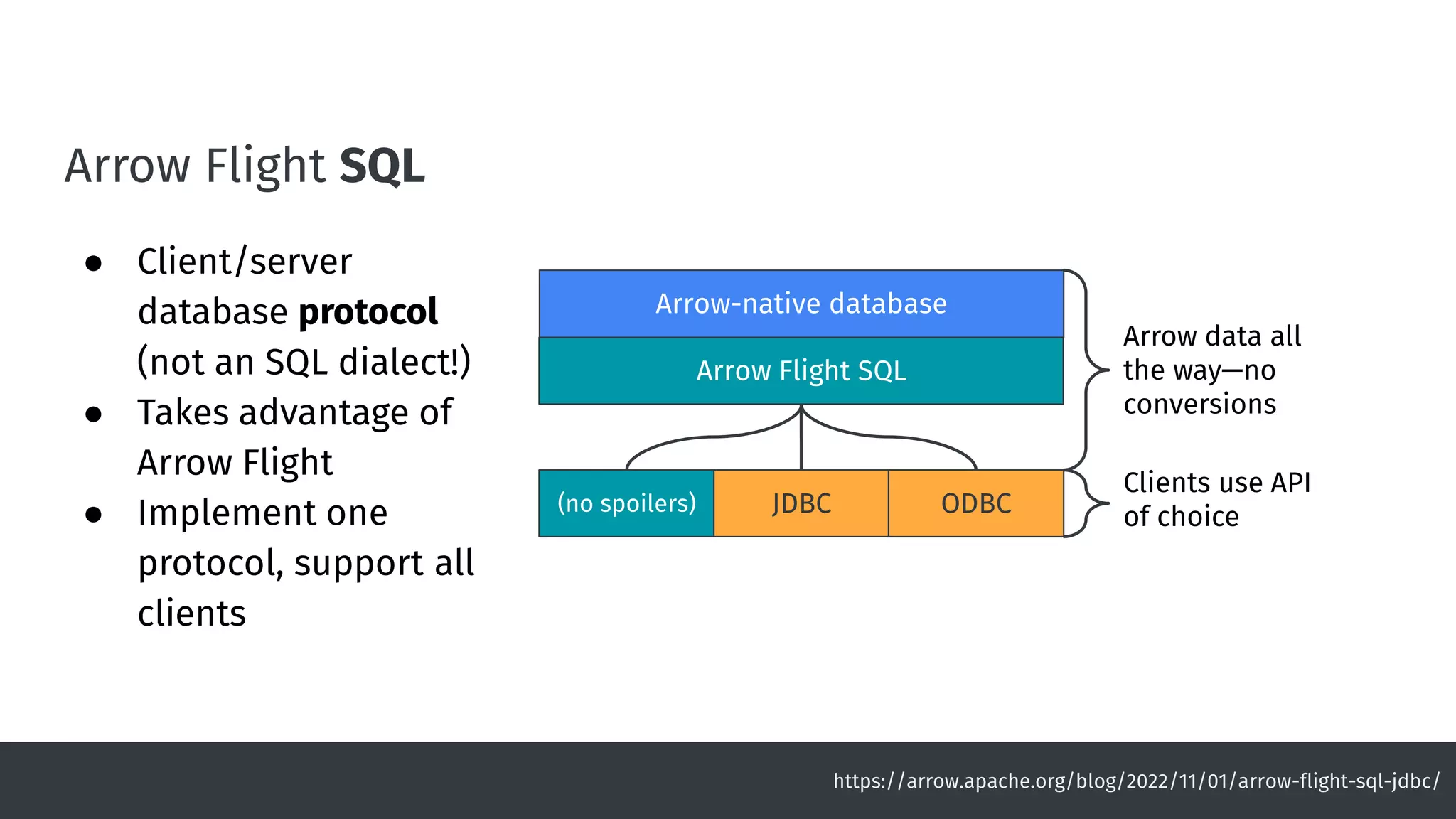

22. Arrow Flight SQL
● Client/server
database protocol
(not an SQL dialect!)
● Takes advantage of
Arrow Flight
● Implement one
protocol, support all
clients
https://arrow.apache.org/blog/2022/11/01/arrow-flight-sql-jdbc/
Arrow Flight SQL
Arrow-native database
(no spoilers) JDBC ODBC
Arrow data all
the way—no
conversions
Clients use API
of choice

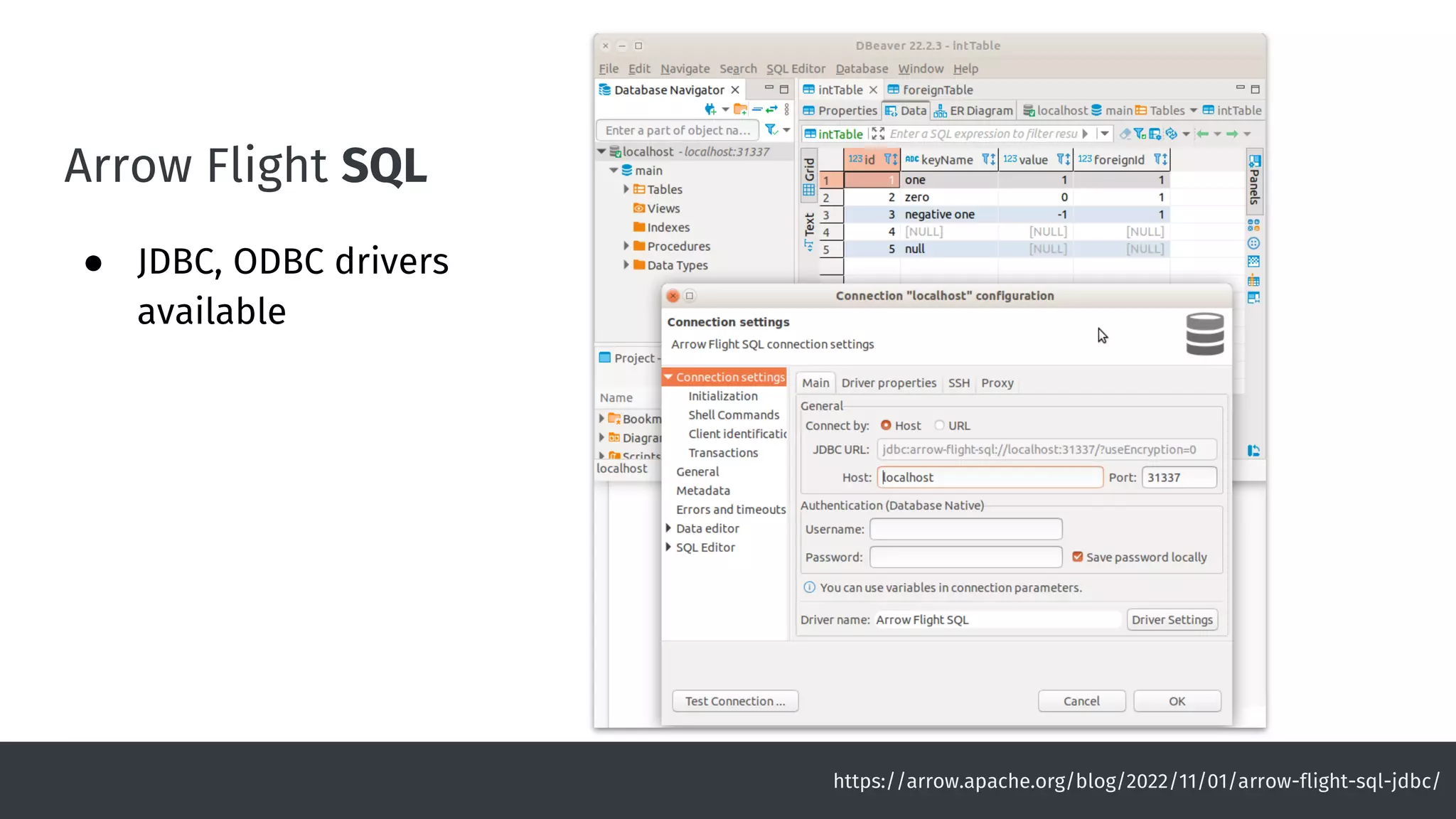

23. Arrow Flight SQL
● JDBC, ODBC drivers
available
https://arrow.apache.org/blog/2022/11/01/arrow-flight-sql-jdbc/

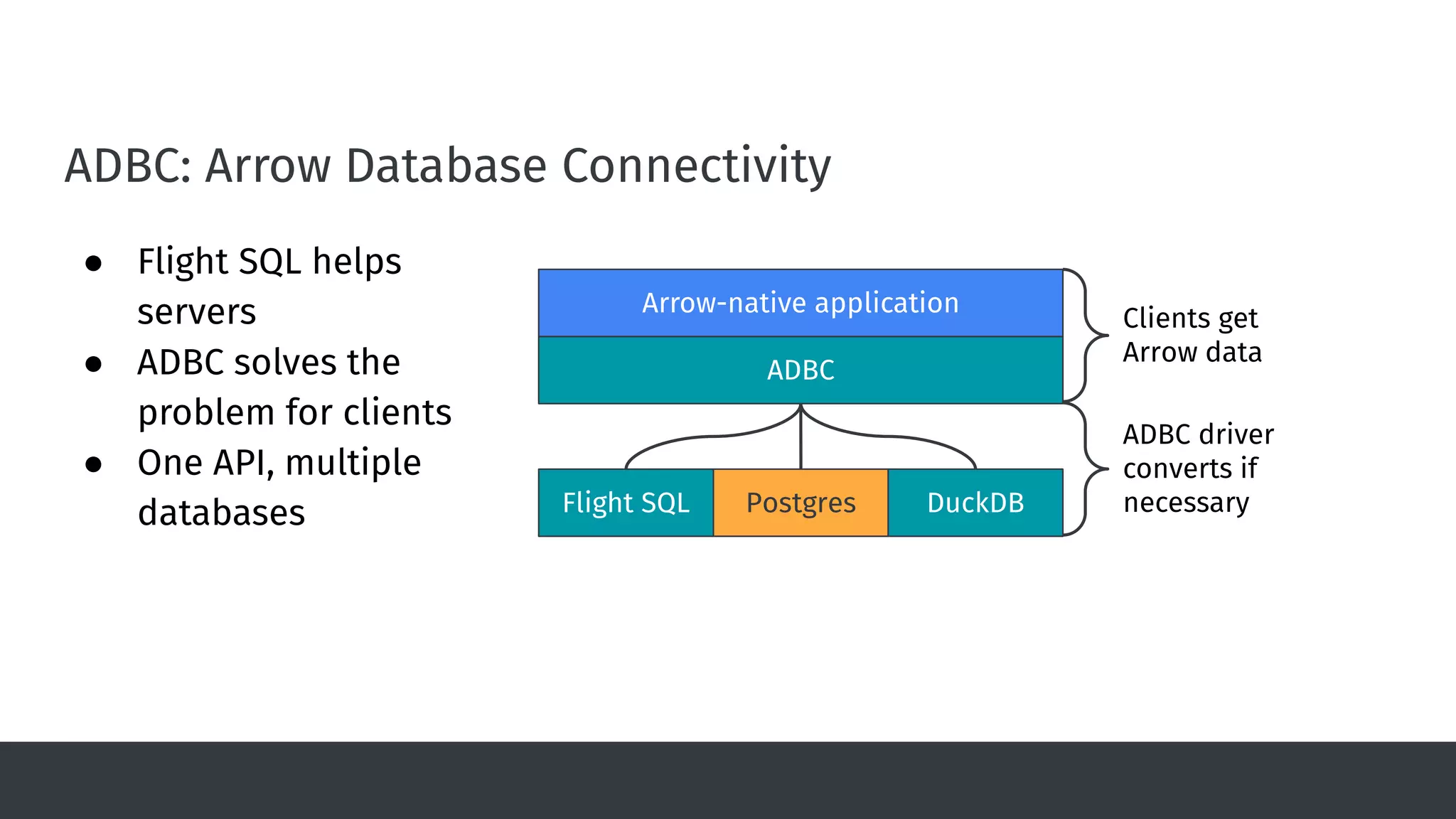

24. ADBC: Arrow Database Connectivity
● Flight SQL helps
servers
● ADBC solves the
problem for clients
● One API, multiple
databases
ADBC
Arrow-native application
Flight SQL Postgres DuckDB
Clients get
Arrow data
ADBC driver
converts if
necessary

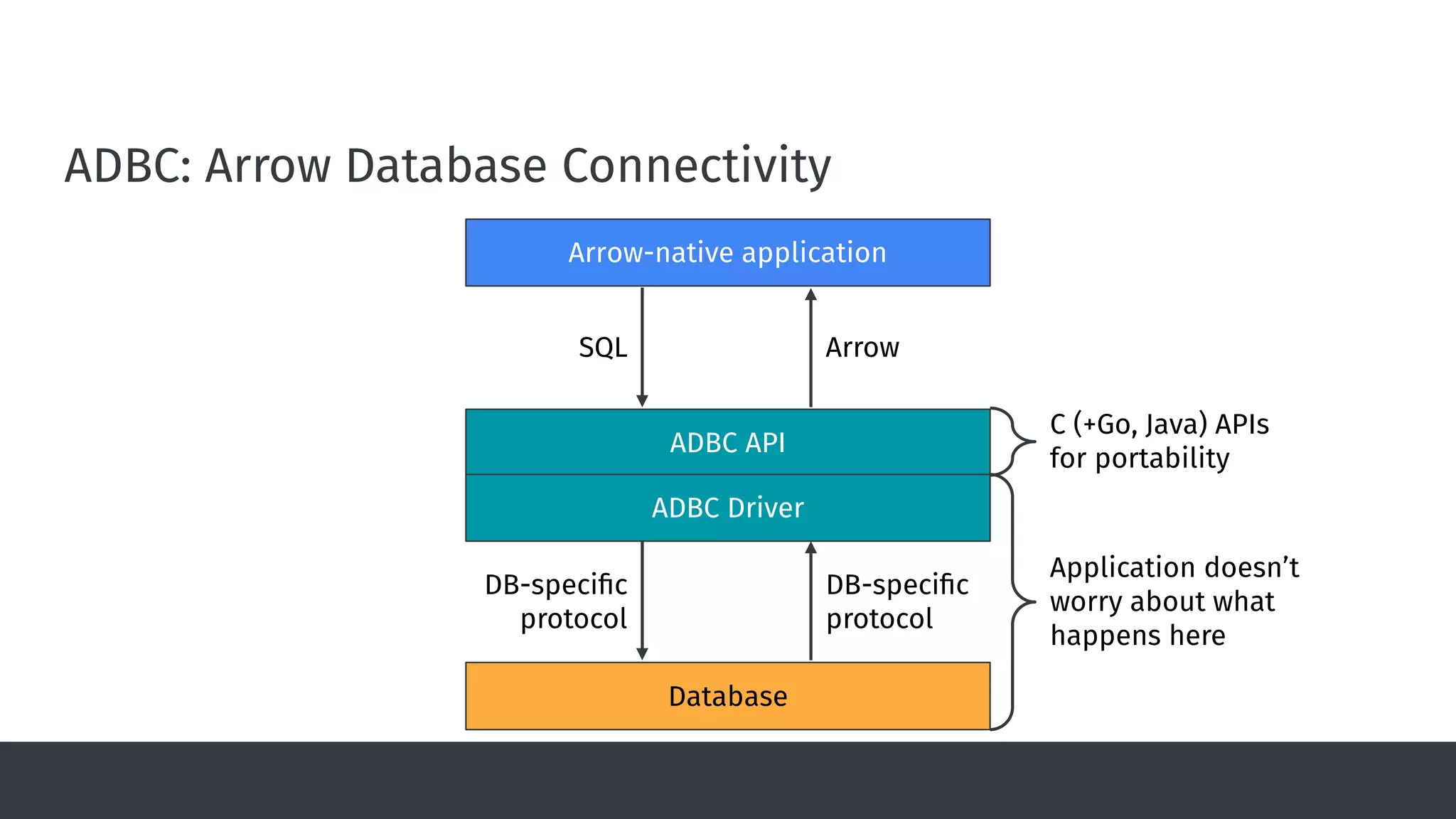

25. ADBC: Arrow Database Connectivity
ADBC API
Arrow-native application
ADBC Driver
Database
SQL
DB-specific
protocol
DB-specific
protocol
Arrow
Application doesn’t
worry about what
happens here
C (+Go, Java) APIs
for portability

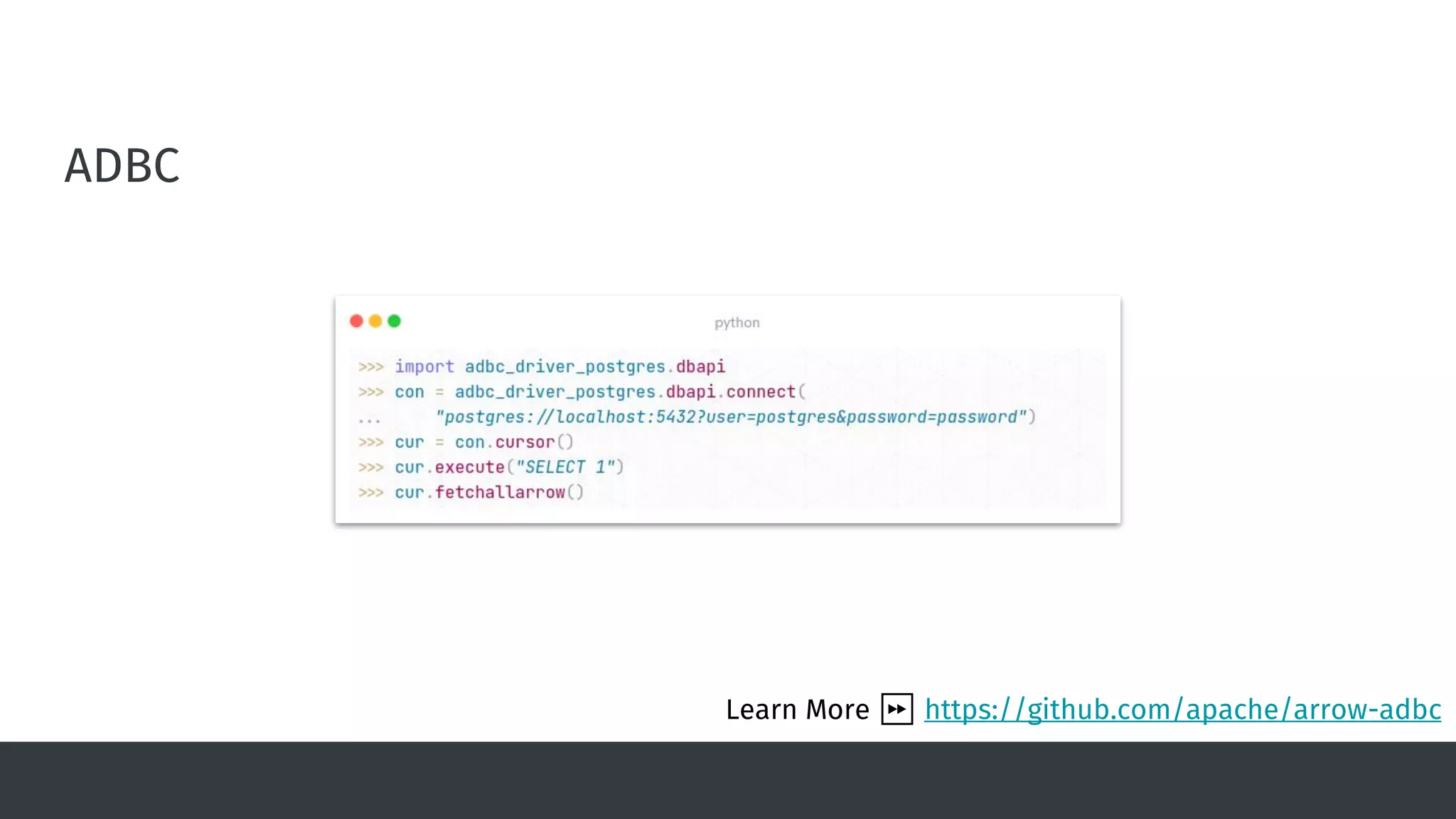

26. ADBC
Learn More ⏩ https://github.com/apache/arrow-adbc

27. Query Engines
● Direct computation
on Arrow(-like) data
● All interoperable
● Arrow-native ‘core’
for bigger projects
Acero

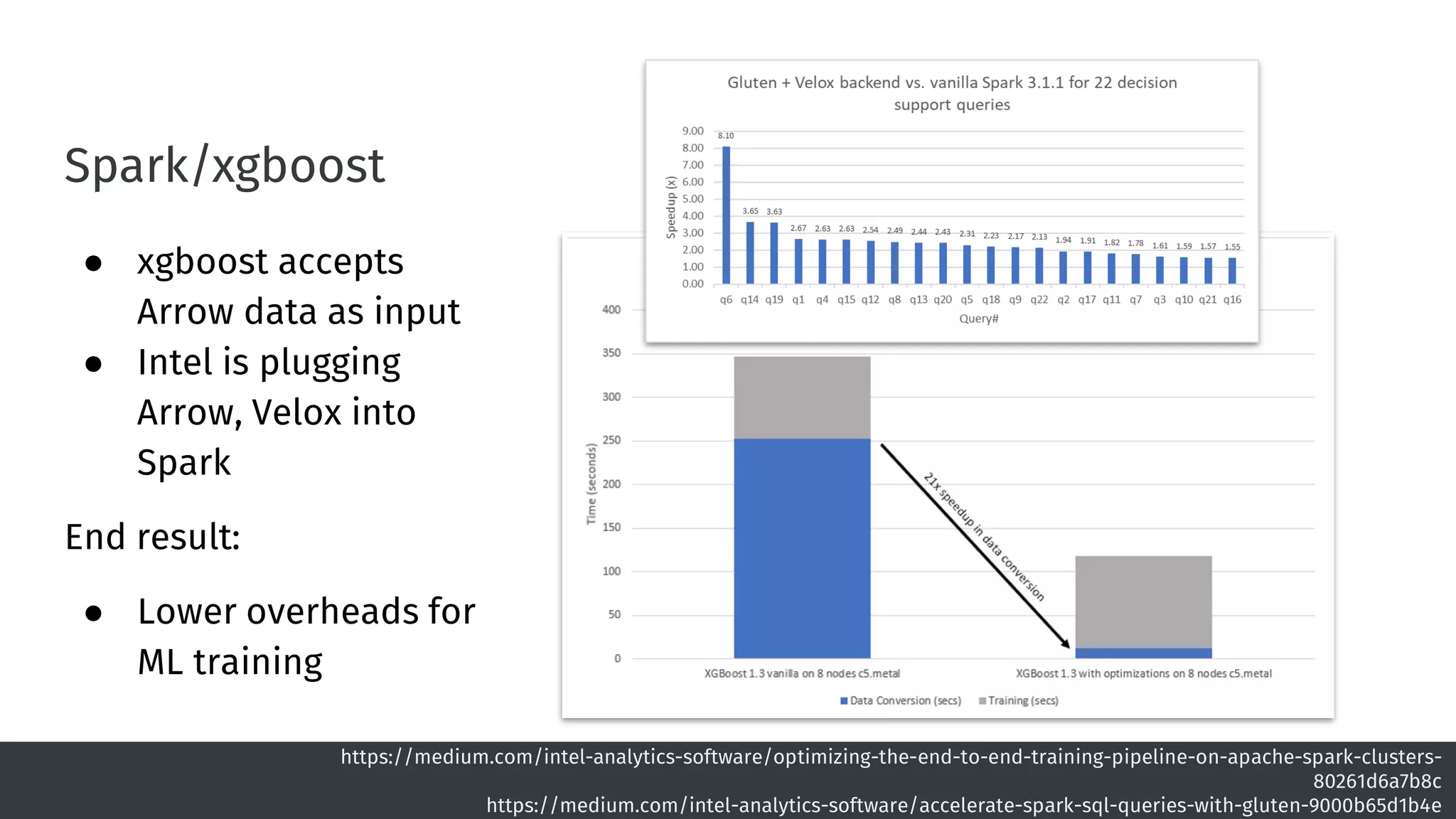

28. Spark/xgboost
● xgboost accepts
Arrow data as input
● Intel is plugging
Arrow, Velox into
Spark
End result:
● Lower overheads for
ML training
https://medium.com/intel-analytics-software/optimizing-the-end-to-end-training-pipeline-on-apache-spark-clusters-
80261d6a7b8c
https://medium.com/intel-analytics-software/accelerate-spark-sql-queries-with-gluten-9000b65d1b4e

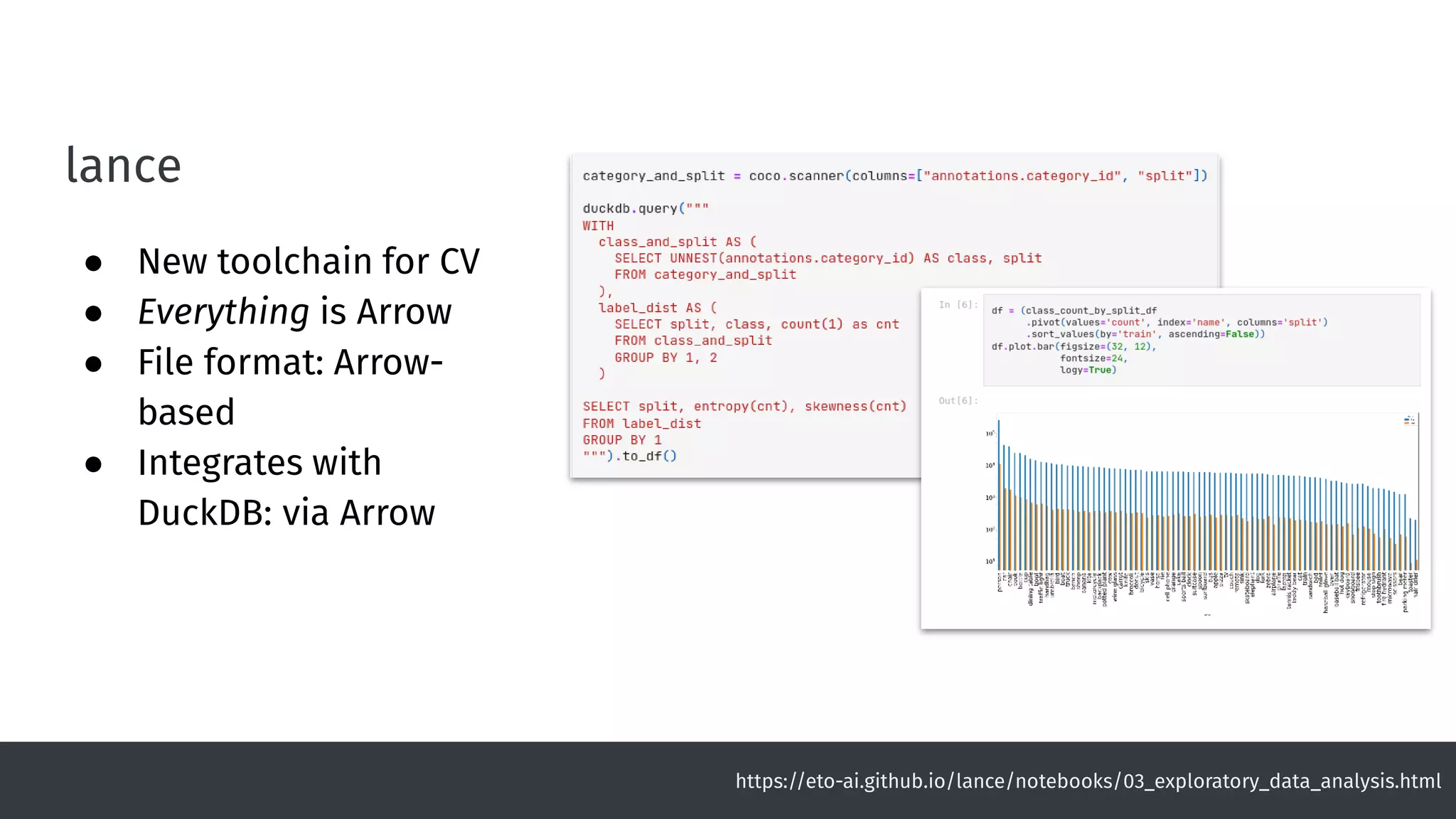

29. lance
● New toolchain for CV
● Everything is Arrow
● File format: Arrow-
based
● Integrates with
DuckDB: via Arrow
https://eto-ai.github.io/lance/notebooks/03_exploratory_data_analysis.html

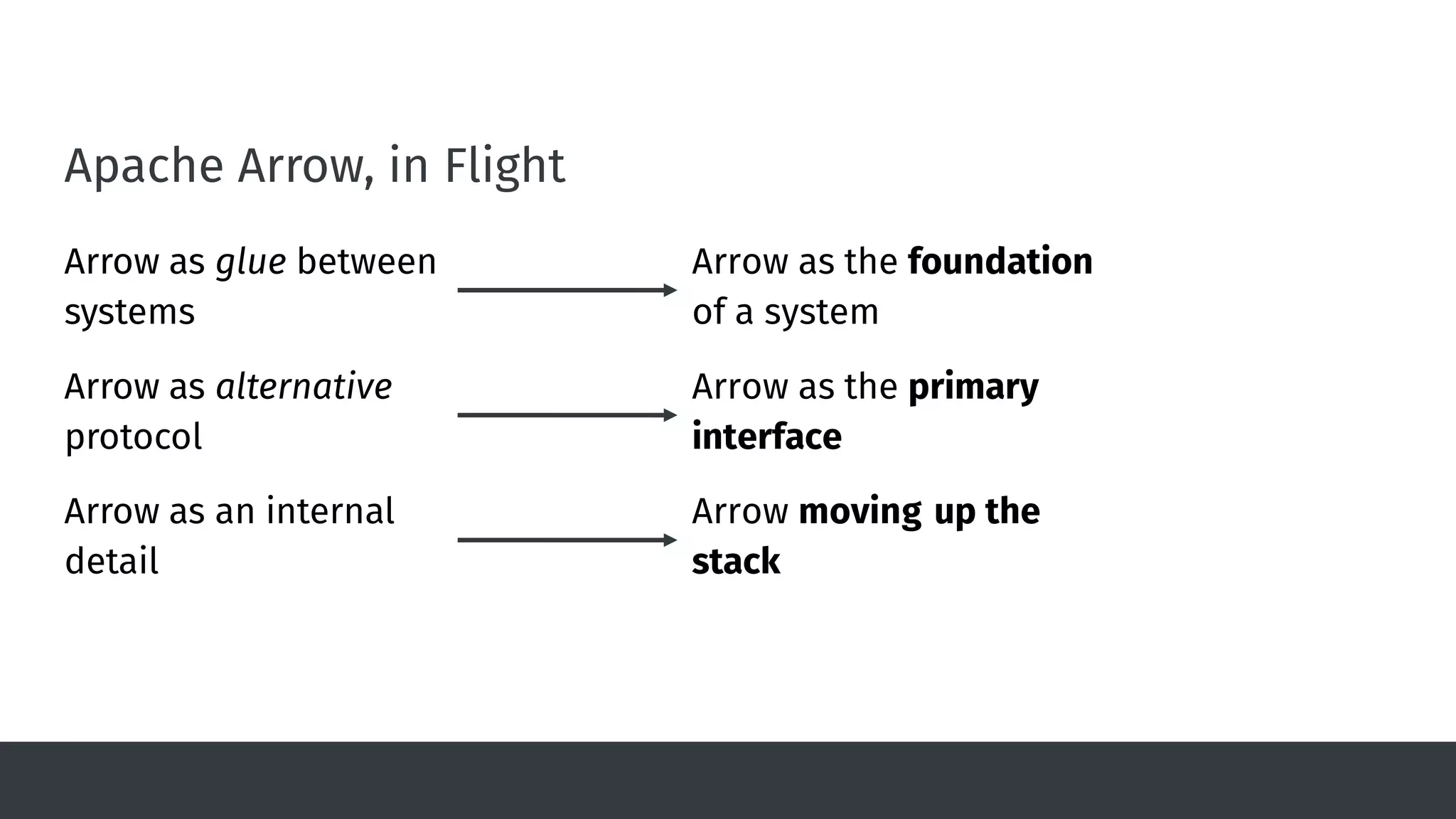

30. Apache Arrow, in Flight
Arrow as glue between
systems
Arrow as alternative
protocol
Arrow as an internal
detail
Arrow as the foundation
of a system
Arrow as the primary
interface
Arrow moving up the
stack

31. Questions?
Learn More/Get Involved ⏩ https://arrow.apache.org/community/
