Self Hosted Bare Metal Kubernetes for SMEs
Thomas Hoppe
v1.0

2Self Hosted Bare Metal Kubernetes for SMEs

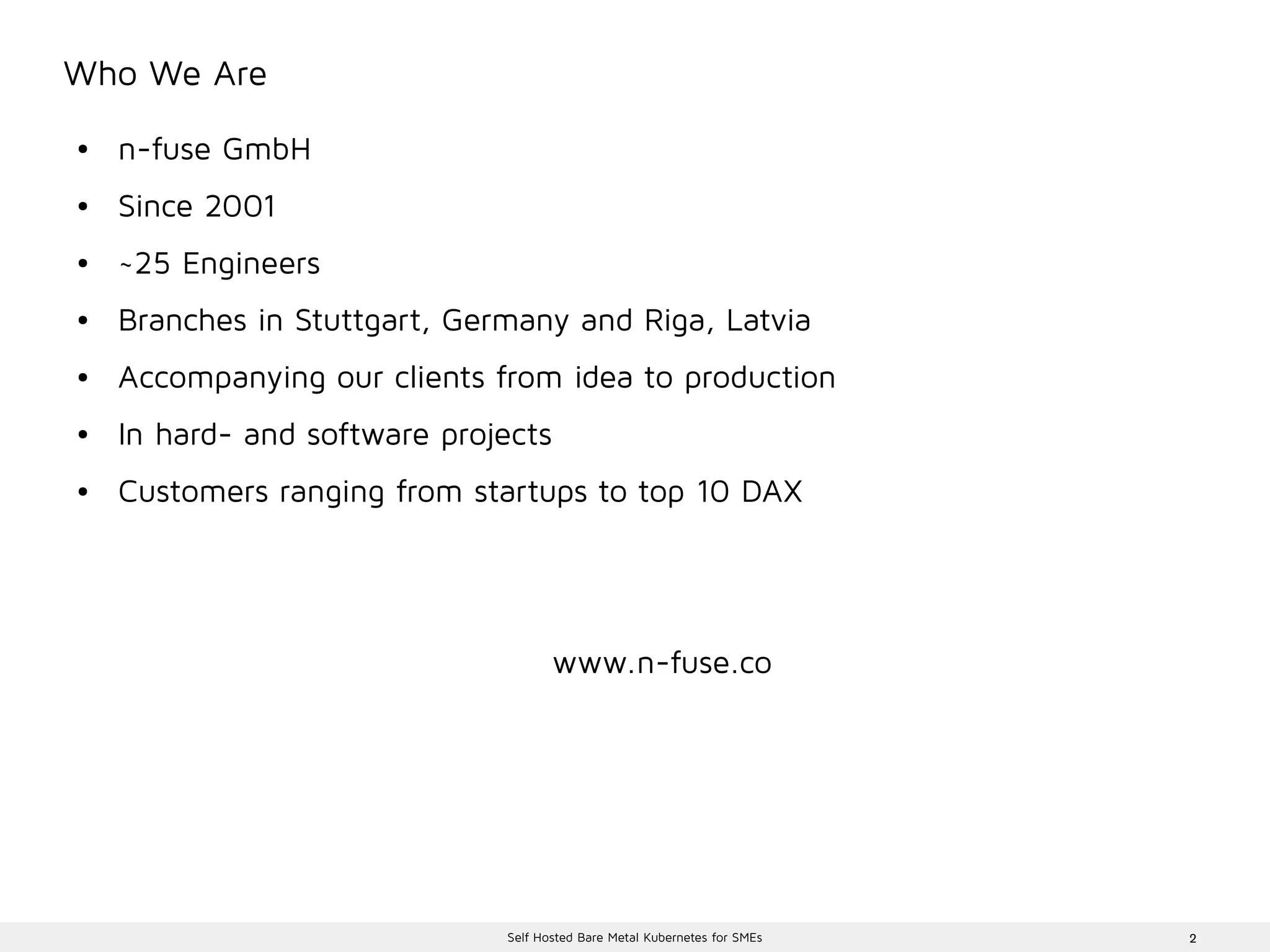

Who We Are
● n-fuse GmbH
● Since 2001
● ~25 Engineers
● Branches in Stuttgart, Germany and Riga, Latvia
● Accompanying our clients from idea to production
● In hard- and software projects
● Customers ranging from startups to top 10 DAX
www.n-fuse.co

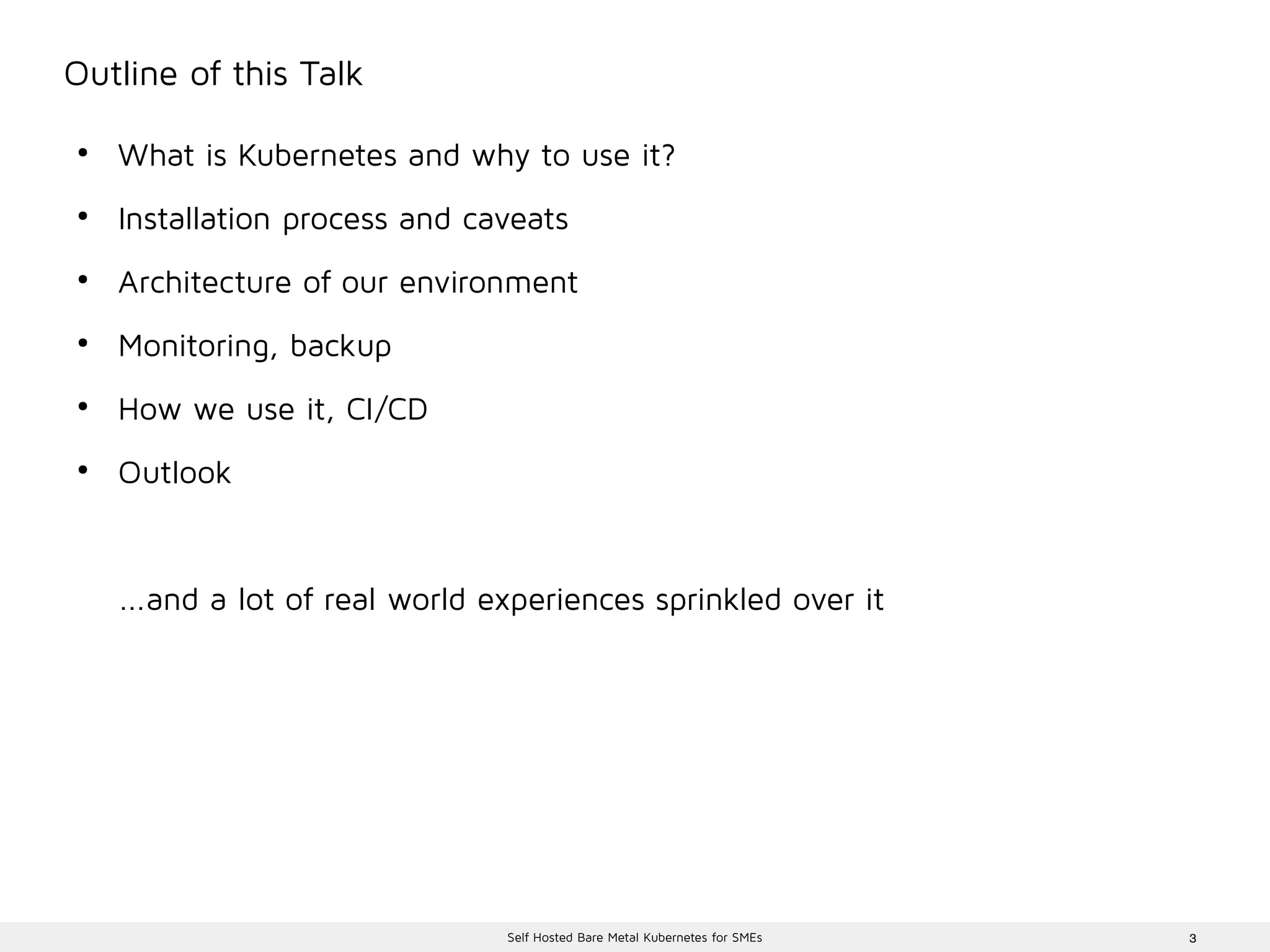

Outline of this Talk
●
What is Kubernetes and why to use it?
●
Installation process and caveats
●
Architecture of our environment
●
Monitoring, backup
●
How we use it, CI/CD
●
Outlook
...and a lot of real world experiences sprinkled over it

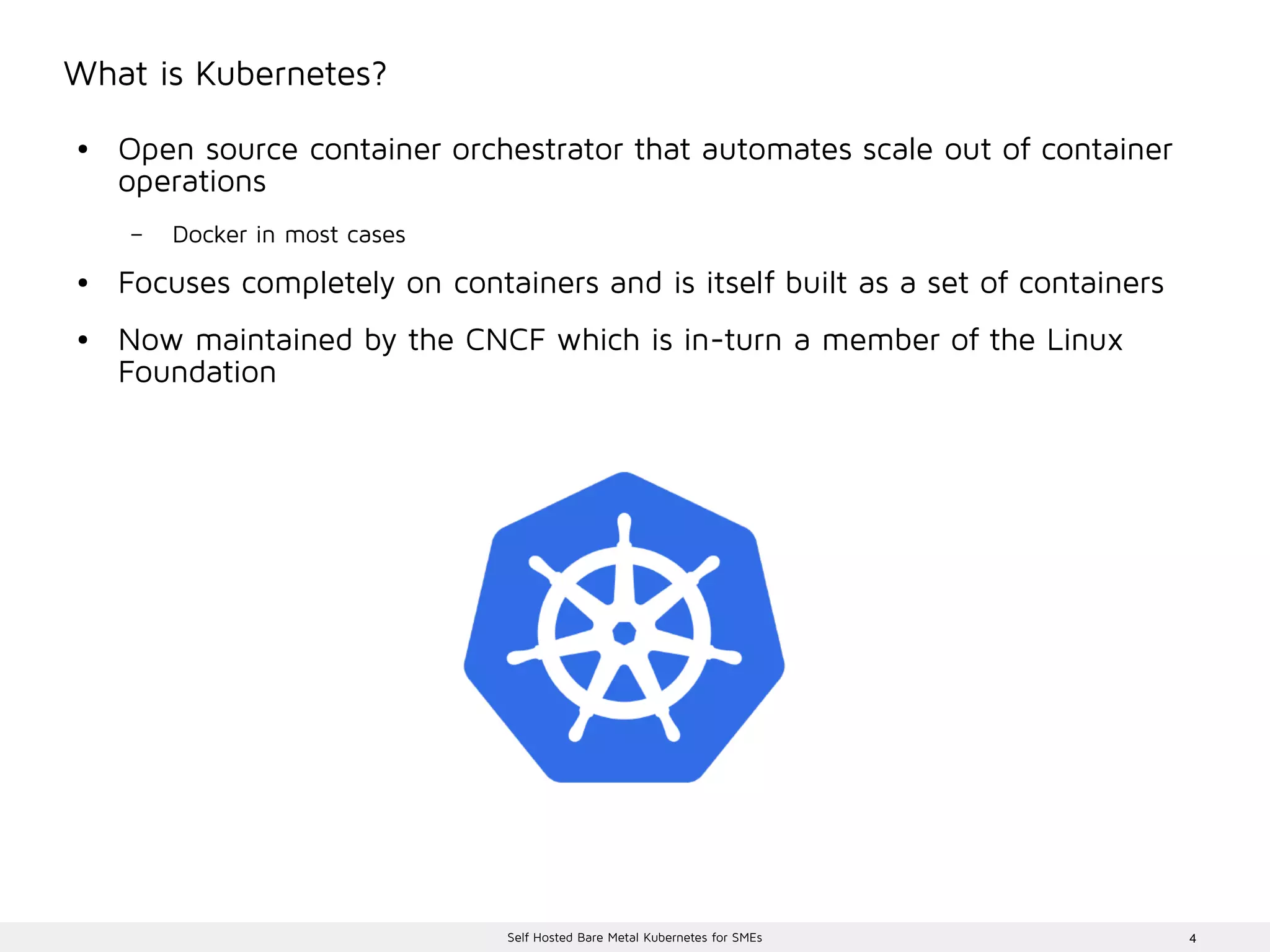

What is Kubernetes?
● Open source container orchestrator that automates scale out of container
operations
– Docker in most cases
● Focuses completely on containers and is itself built as a set of containers
● Now maintained by the CNCF which is in-turn a member of the Linux
Foundation

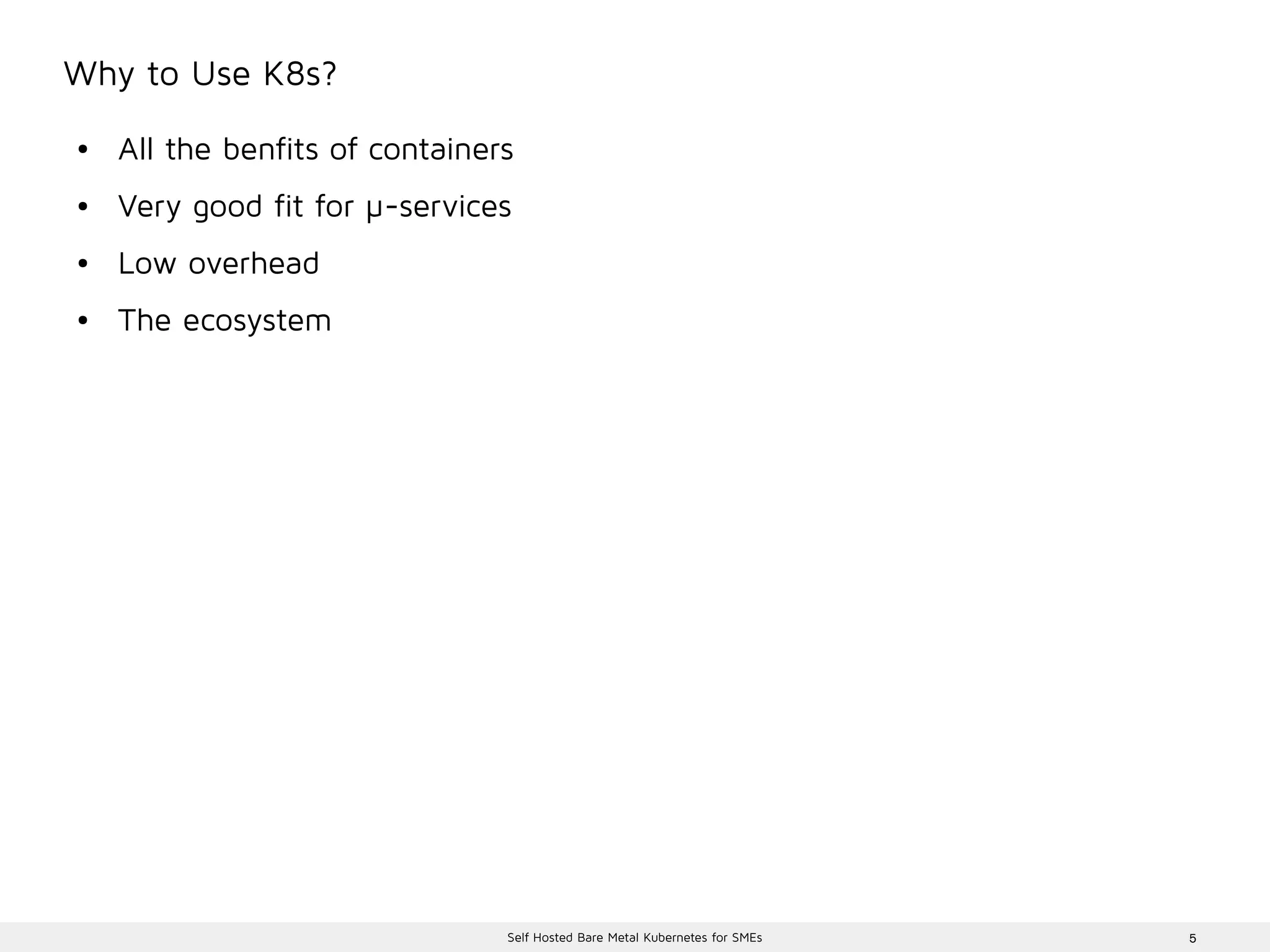

Why to Use K8s?
● All the benfits of containers
● Very good fit for µ-services
● Low overhead
● The ecosystem

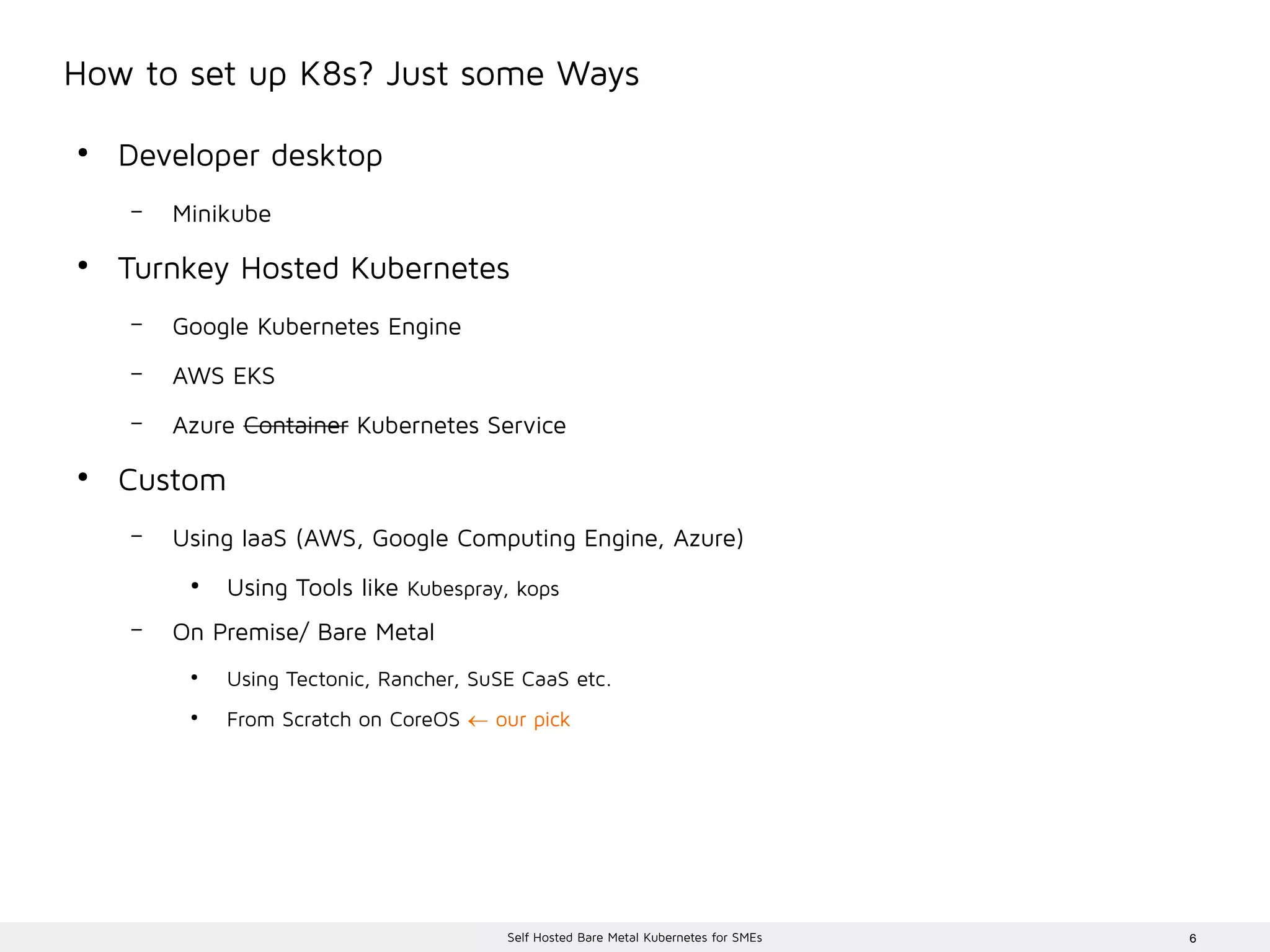

How to set up K8s? Just some Ways
●
Developer desktop
– Minikube
●
Turnkey Hosted Kubernetes
– Google Kubernetes Engine
– AWS EKS
– Azure Container Kubernetes Service
●
Custom
– Using IaaS (AWS, Google Computing Engine, Azure)
●
Using Tools like Kubespray, kops
– On Premise/ Bare Metal
●
Using Tectonic, Rancher, SuSE CaaS etc.
●
From Scratch on CoreOS  our pick

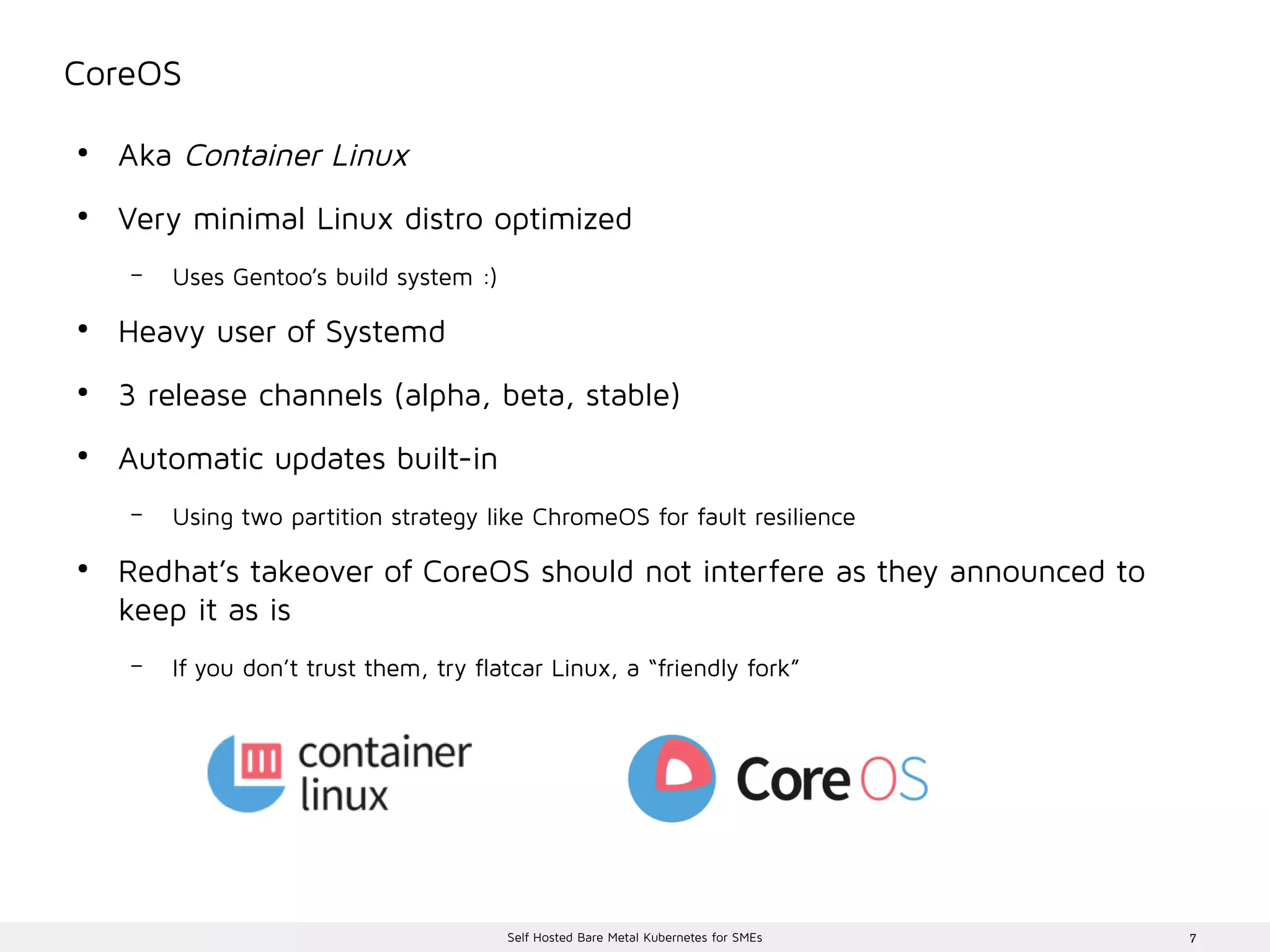

CoreOS
●
Aka Container Linux
●
Very minimal Linux distro optimized
– Uses Gentoo’s build system :)
●
Heavy user of Systemd
●
3 release channels (alpha, beta, stable)
●
Automatic updates built-in
– Using two partition strategy like ChromeOS for fault resilience
●
Redhat’s takeover of CoreOS should not interfere as they announced to
keep it as is
– If you don’t trust them, try flatcar Linux, a “friendly fork”

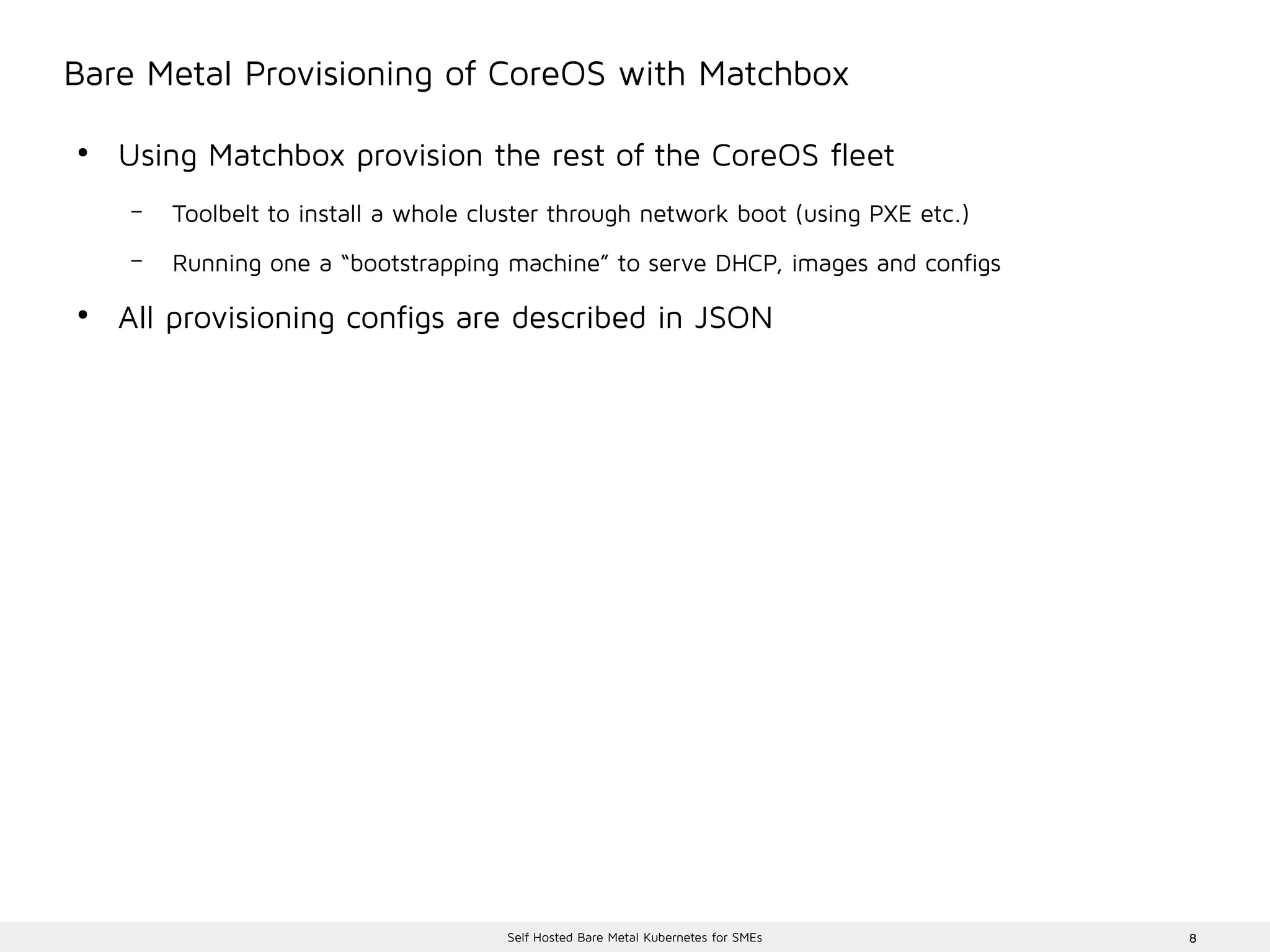

Bare Metal Provisioning of CoreOS with Matchbox
●
Using Matchbox provision the rest of the CoreOS fleet
– Toolbelt to install a whole cluster through network boot (using PXE etc.)
– Running one a “bootstrapping machine” to serve DHCP, images and configs
●
All provisioning configs are described in JSON

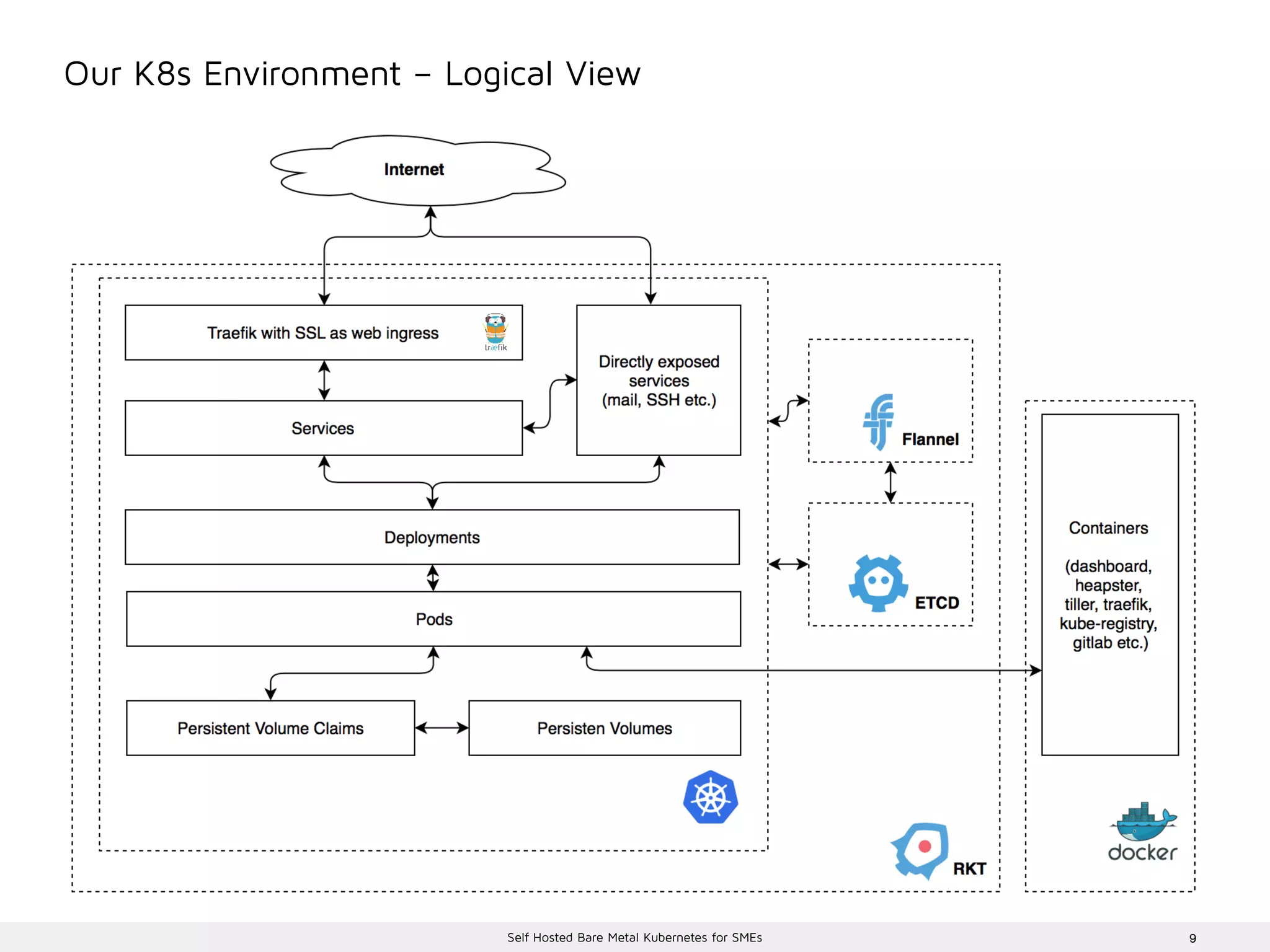

Our K8s Environment – Logical View

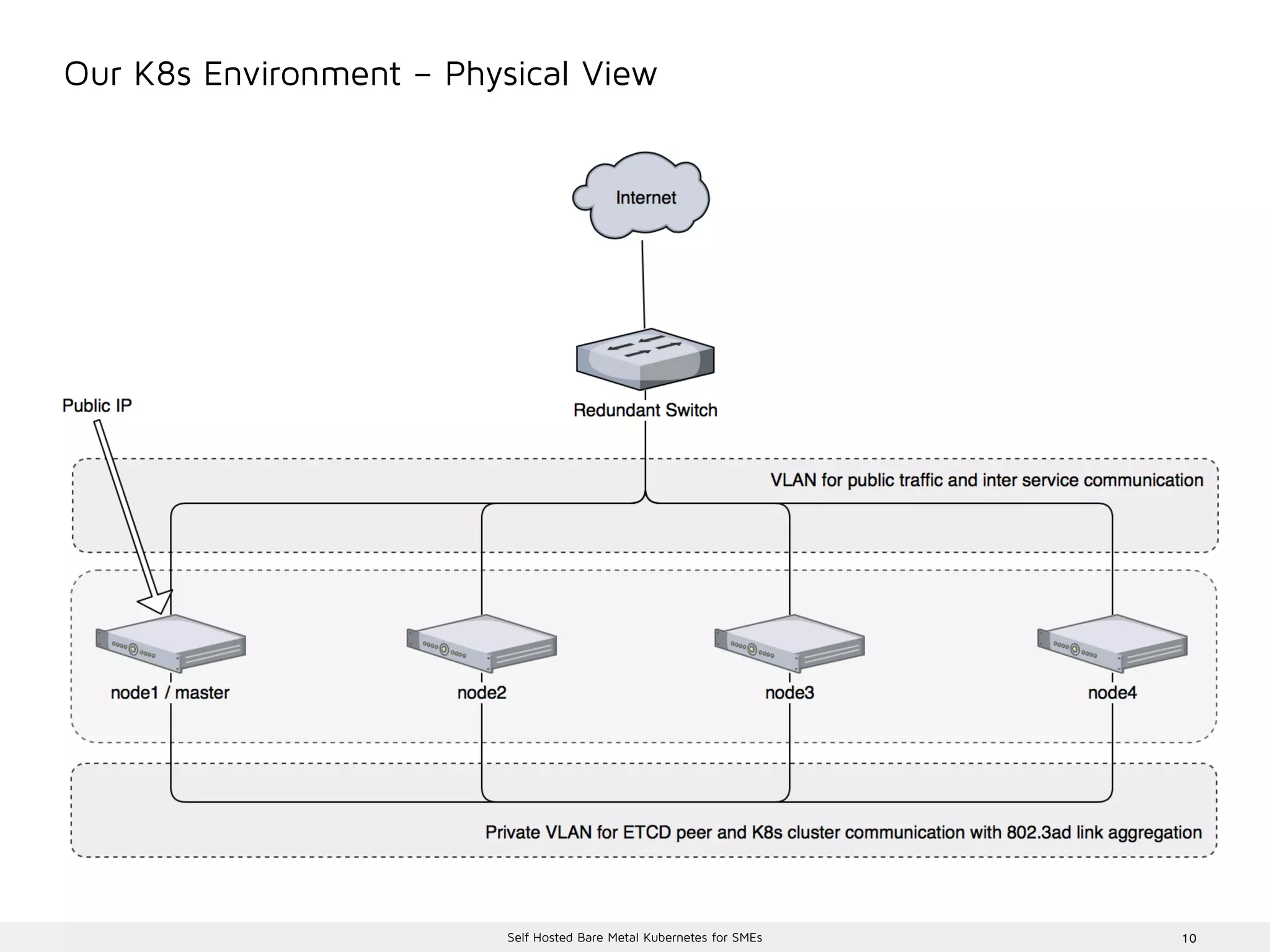

Our K8s Environment – Physical View

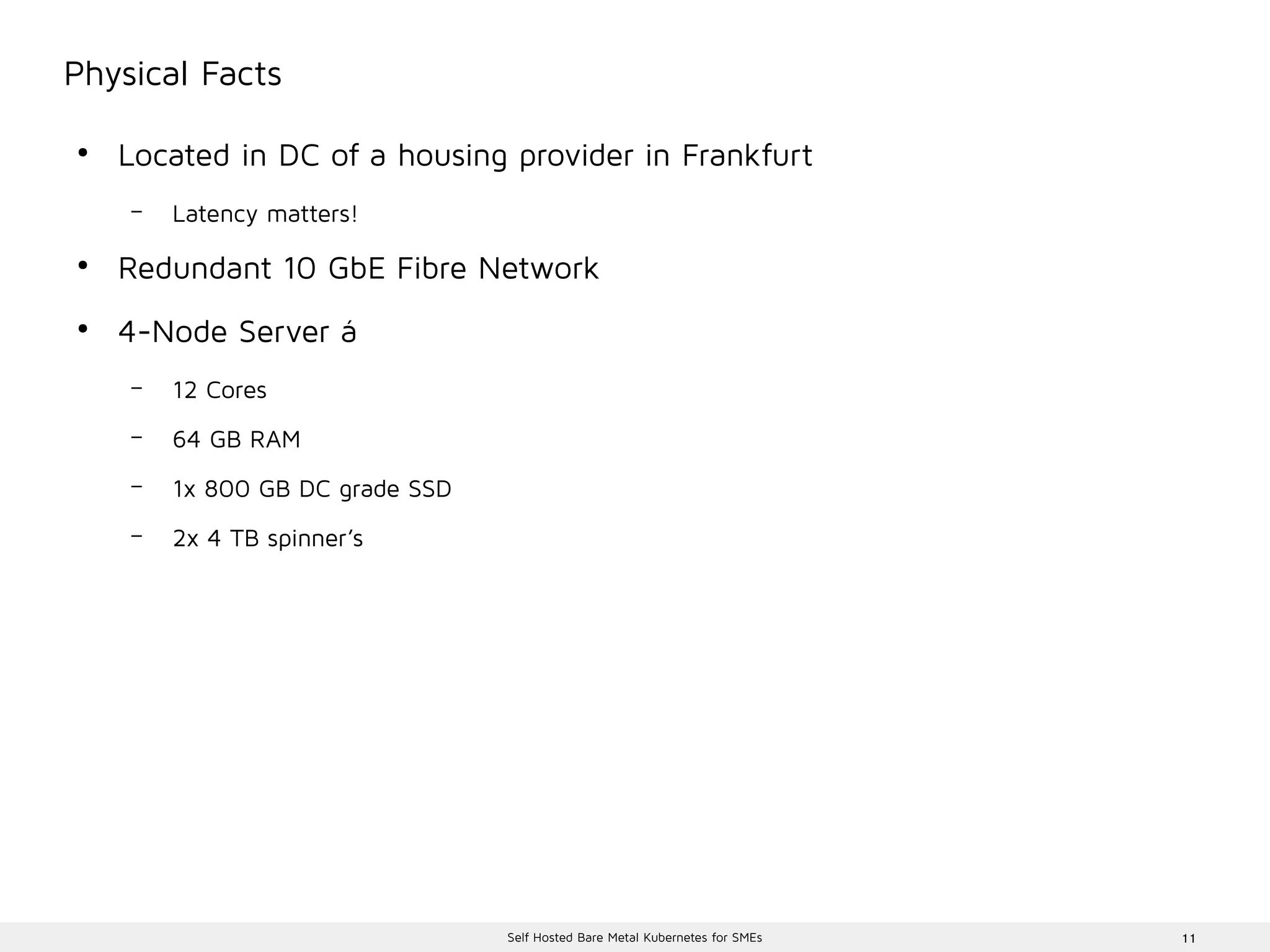

Physical Facts
●
Located in DC of a housing provider in Frankfurt
– Latency matters!
●
Redundant 10 GbE Fibre Network
●
4-Node Server á
– 12 Cores
– 64 GB RAM
– 1x 800 GB DC grade SSD
– 2x 4 TB spinner’s

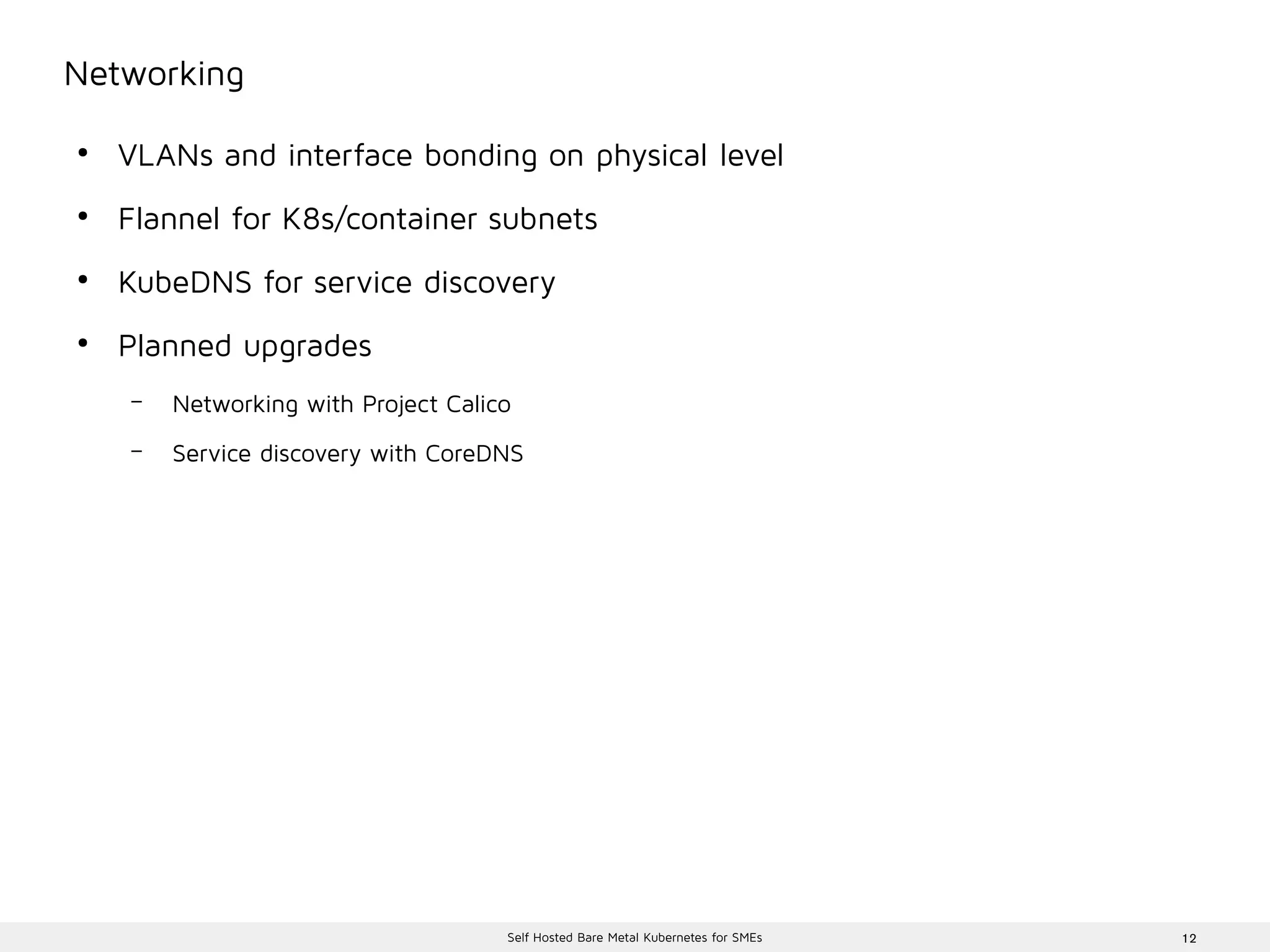

Networking
●
VLANs and interface bonding on physical level
●
Flannel for K8s/container subnets
●
KubeDNS for service discovery
●
Planned upgrades
– Networking with Project Calico
– Service discovery with CoreDNS

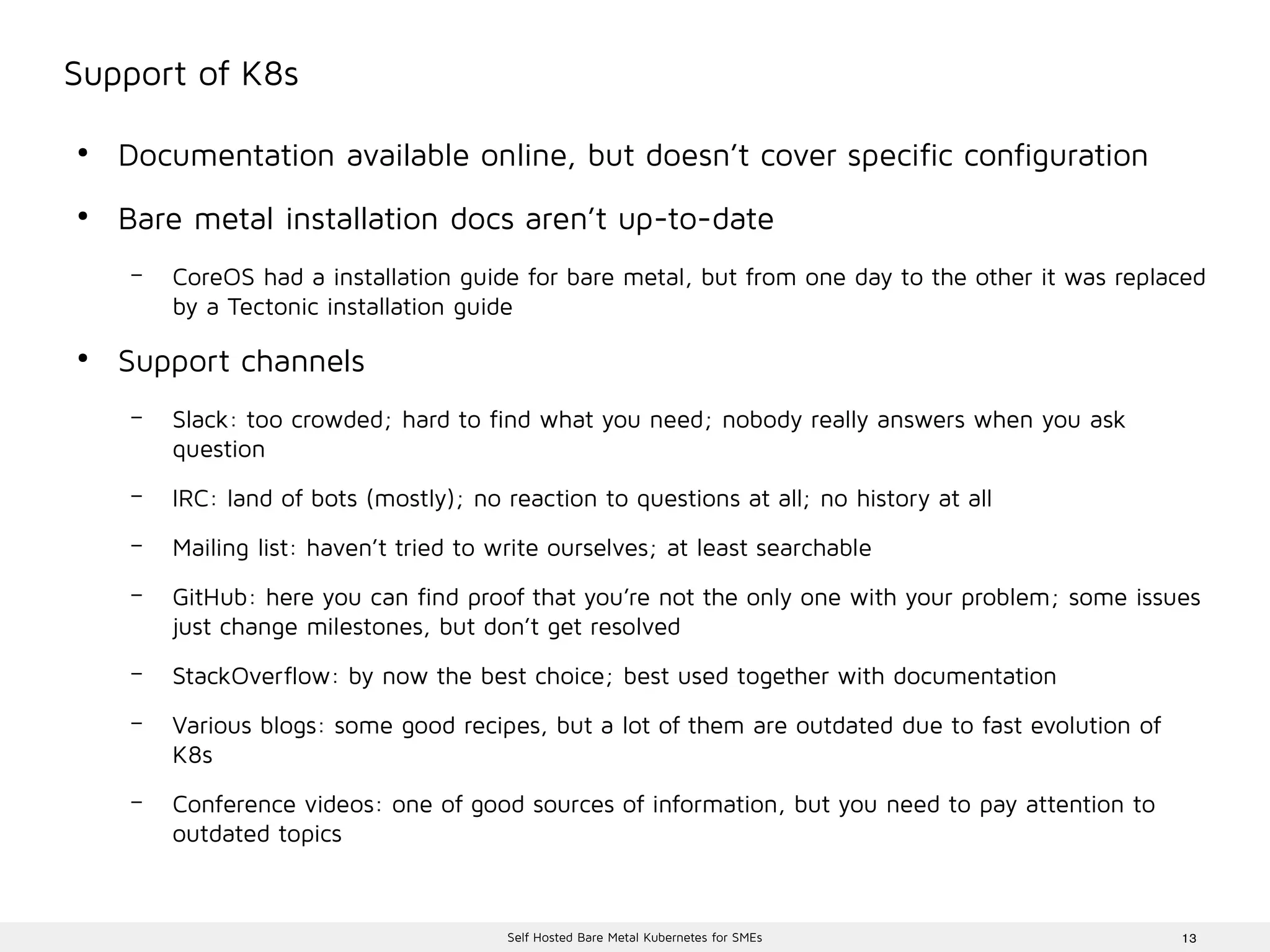

Support of K8s
●
Documentation available online, but doesn’t cover specific configuration
●
Bare metal installation docs aren’t up-to-date
– CoreOS had a installation guide for bare metal, but from one day to the other it was replaced
by a Tectonic installation guide
●
Support channels
– Slack: too crowded; hard to find what you need; nobody really answers when you ask
question
– IRC: land of bots (mostly); no reaction to questions at all; no history at all
– Mailing list: haven’t tried to write ourselves; at least searchable
– GitHub: here you can find proof that you’re not the only one with your problem; some issues
just change milestones, but don’t get resolved
– StackOverflow: by now the best choice; best used together with documentation
– Various blogs: some good recipes, but a lot of them are outdated due to fast evolution of
K8s
– Conference videos: one of good sources of information, but you need to pay attention to
outdated topics

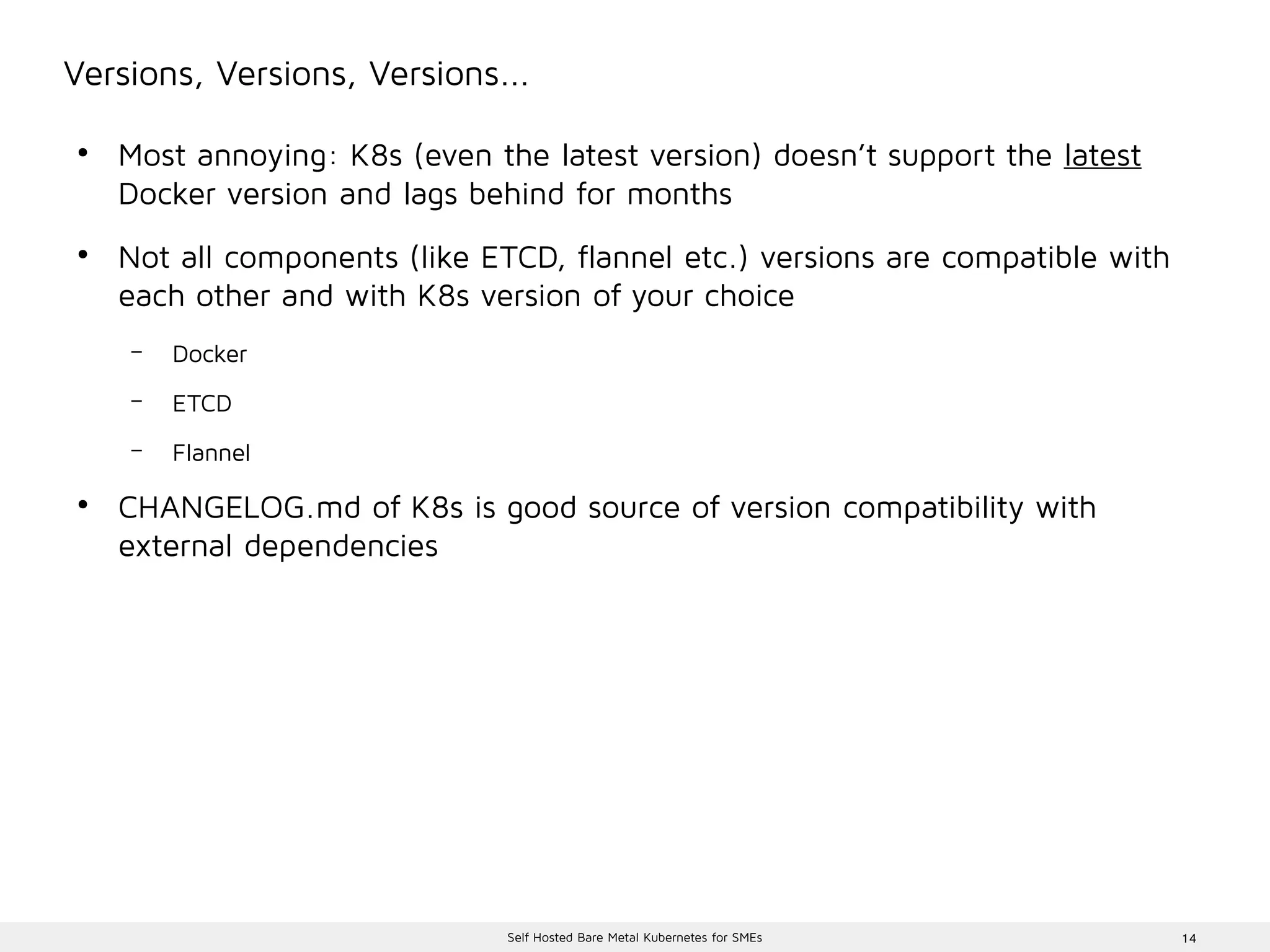

Versions, Versions, Versions...
●
Most annoying: K8s (even the latest version) doesn’t support the latest
Docker version and lags behind for months
●
Not all components (like ETCD, flannel etc.) versions are compatible with
each other and with K8s version of your choice
– Docker
– ETCD
– Flannel
●
CHANGELOG.md of K8s is good source of version compatibility with
external dependencies

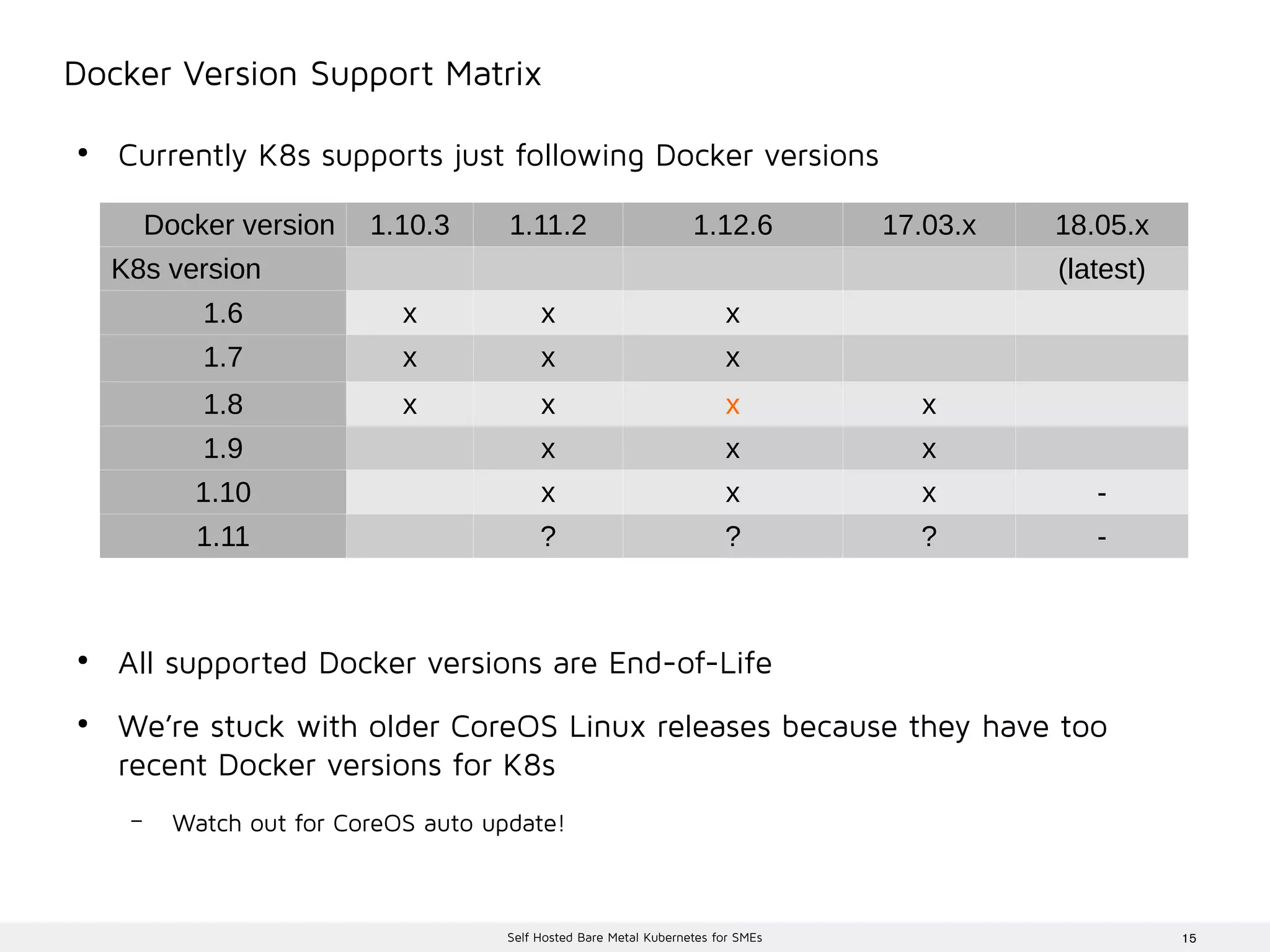

Docker Version Support Matrix
●
Currently K8s supports just following Docker versions
●
All supported Docker versions are End-of-Life
●
We’re stuck with older CoreOS Linux releases because they have too
recent Docker versions for K8s
– Watch out for CoreOS auto update!
Docker version 1.10.3 1.11.2 1.12.6 17.03.x 18.05.x
K8s version (latest)
1.6 x x x
1.7 x x x
1.8 x x x x
1.9 x x x
1.10 x x x -
1.11 ? ? ? -

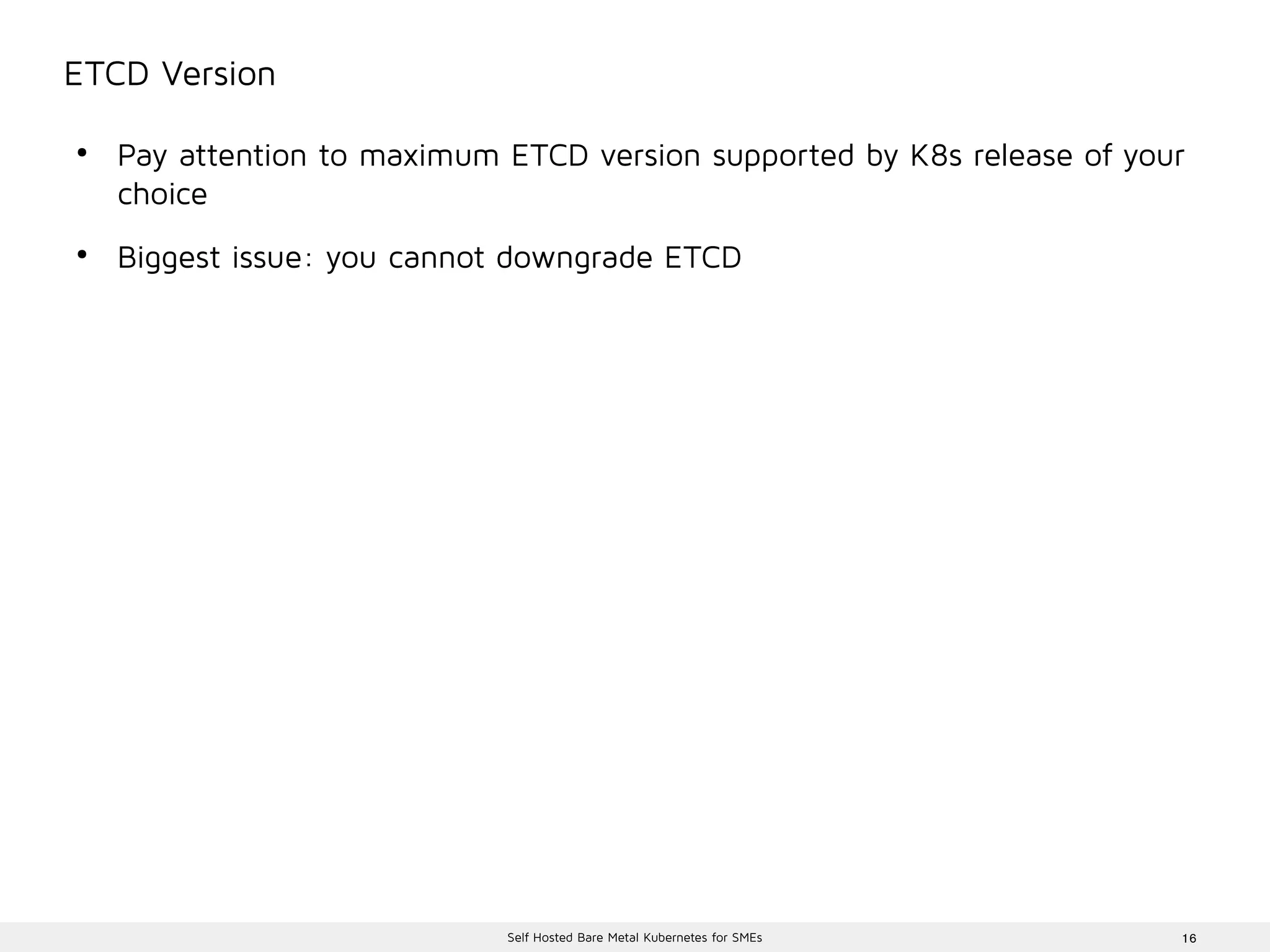

ETCD Version
●
Pay attention to maximum ETCD version supported by K8s release of your
choice
●
Biggest issue: you cannot downgrade ETCD

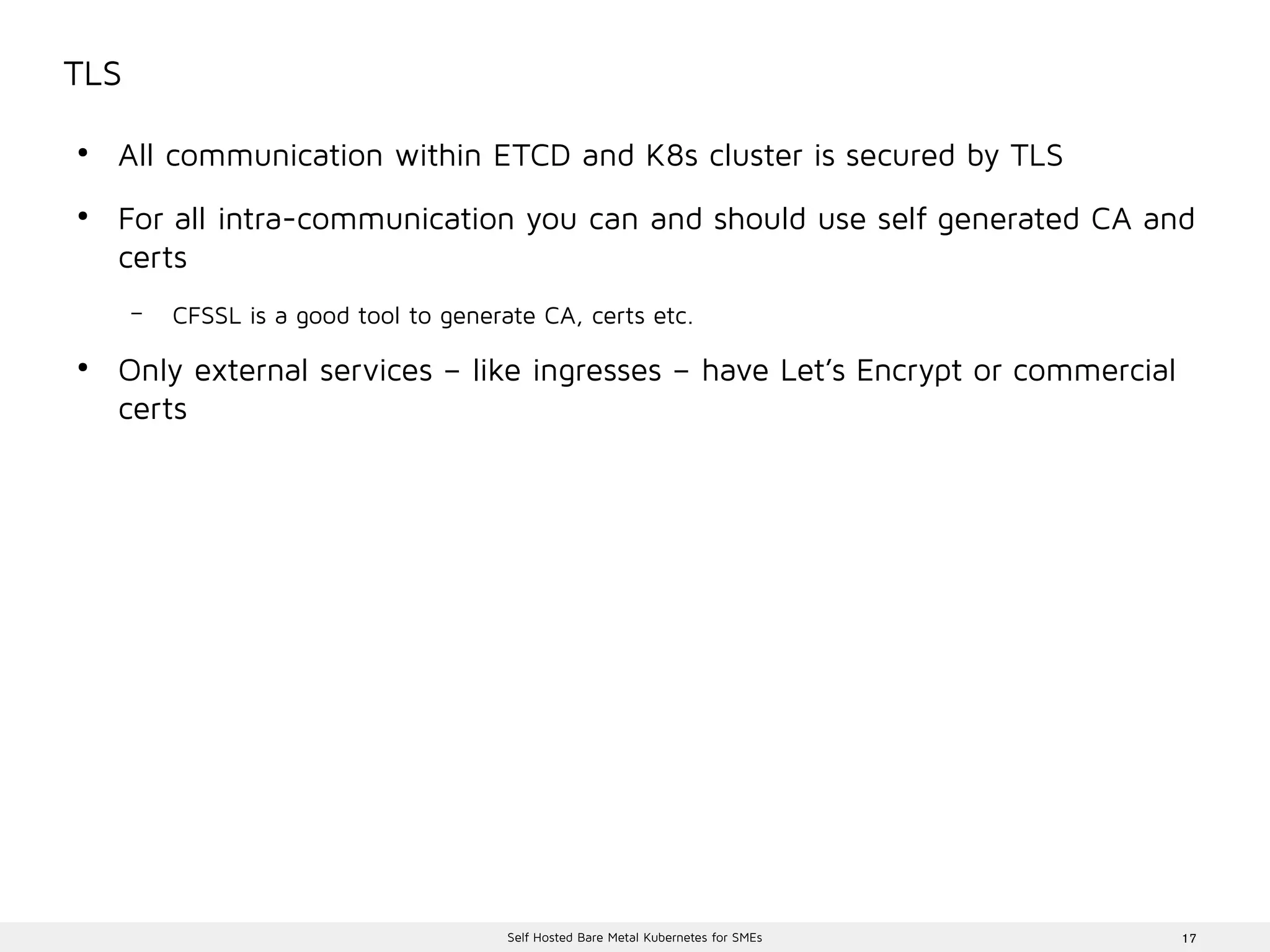

TLS
●
All communication within ETCD and K8s cluster is secured by TLS
●
For all intra-communication you can and should use self generated CA and
certs
– CFSSL is a good tool to generate CA, certs etc.
●
Only external services – like ingresses – have Let’s Encrypt or commercial
certs

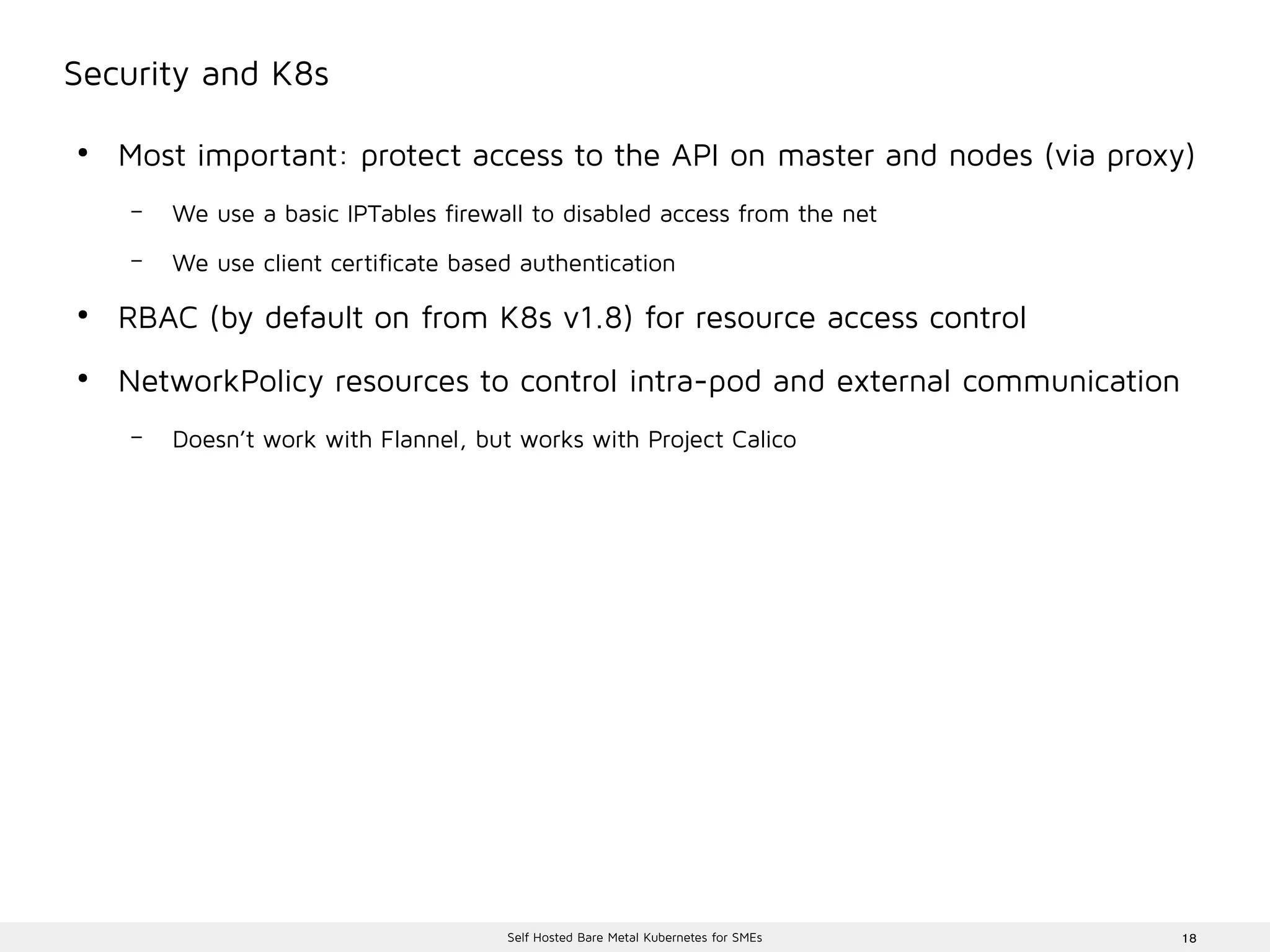

Security and K8s
●
Most important: protect access to the API on master and nodes (via proxy)
– We use a basic IPTables firewall to disabled access from the net
– We use client certificate based authentication
●
RBAC (by default on from K8s v1.8) for resource access control
●
NetworkPolicy resources to control intra-pod and external communication
– Doesn’t work with Flannel, but works with Project Calico

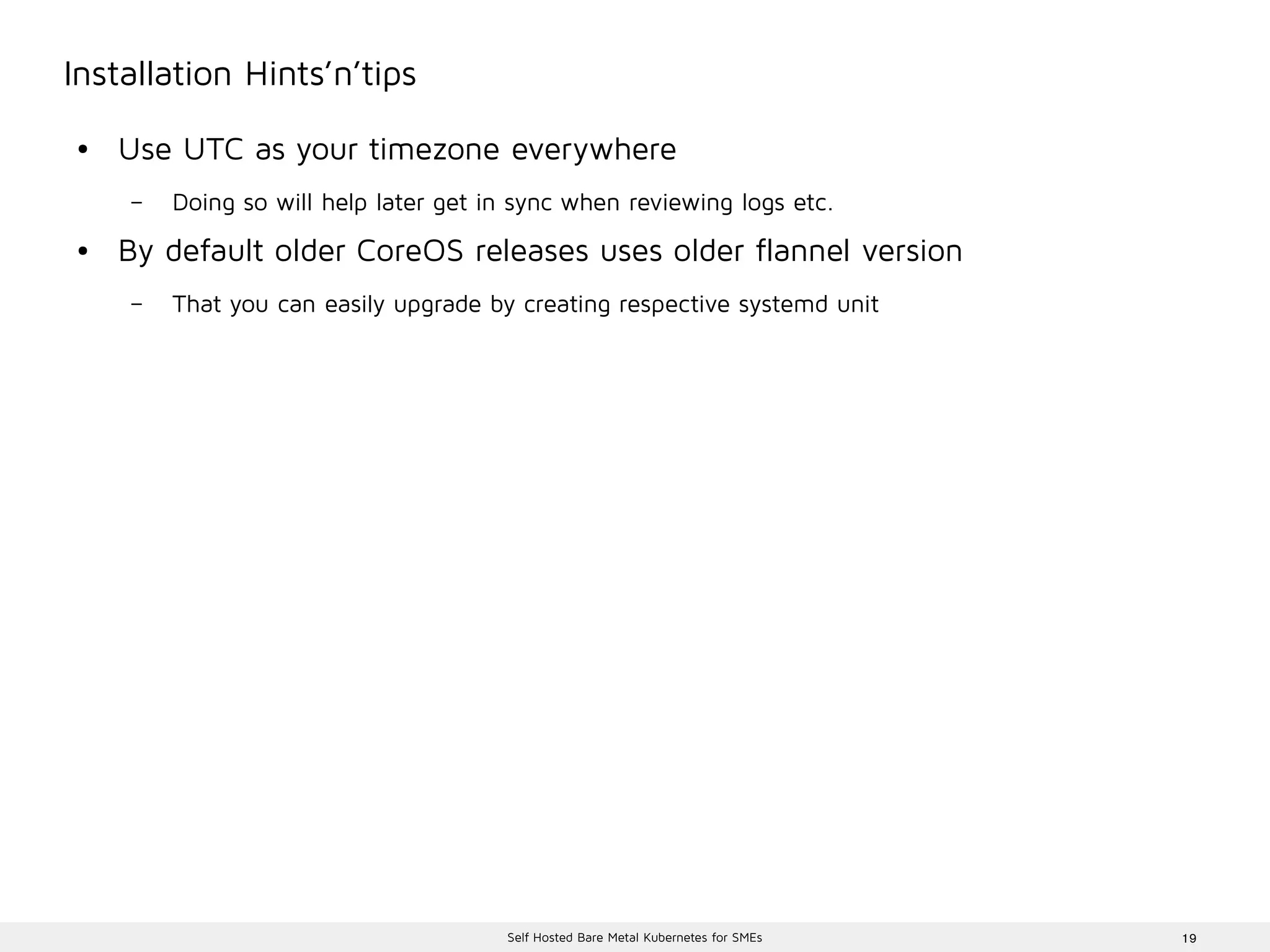

Installation Hints’n’tips
● Use UTC as your timezone everywhere
– Doing so will help later get in sync when reviewing logs etc.
● By default older CoreOS releases uses older flannel version
– That you can easily upgrade by creating respective systemd unit

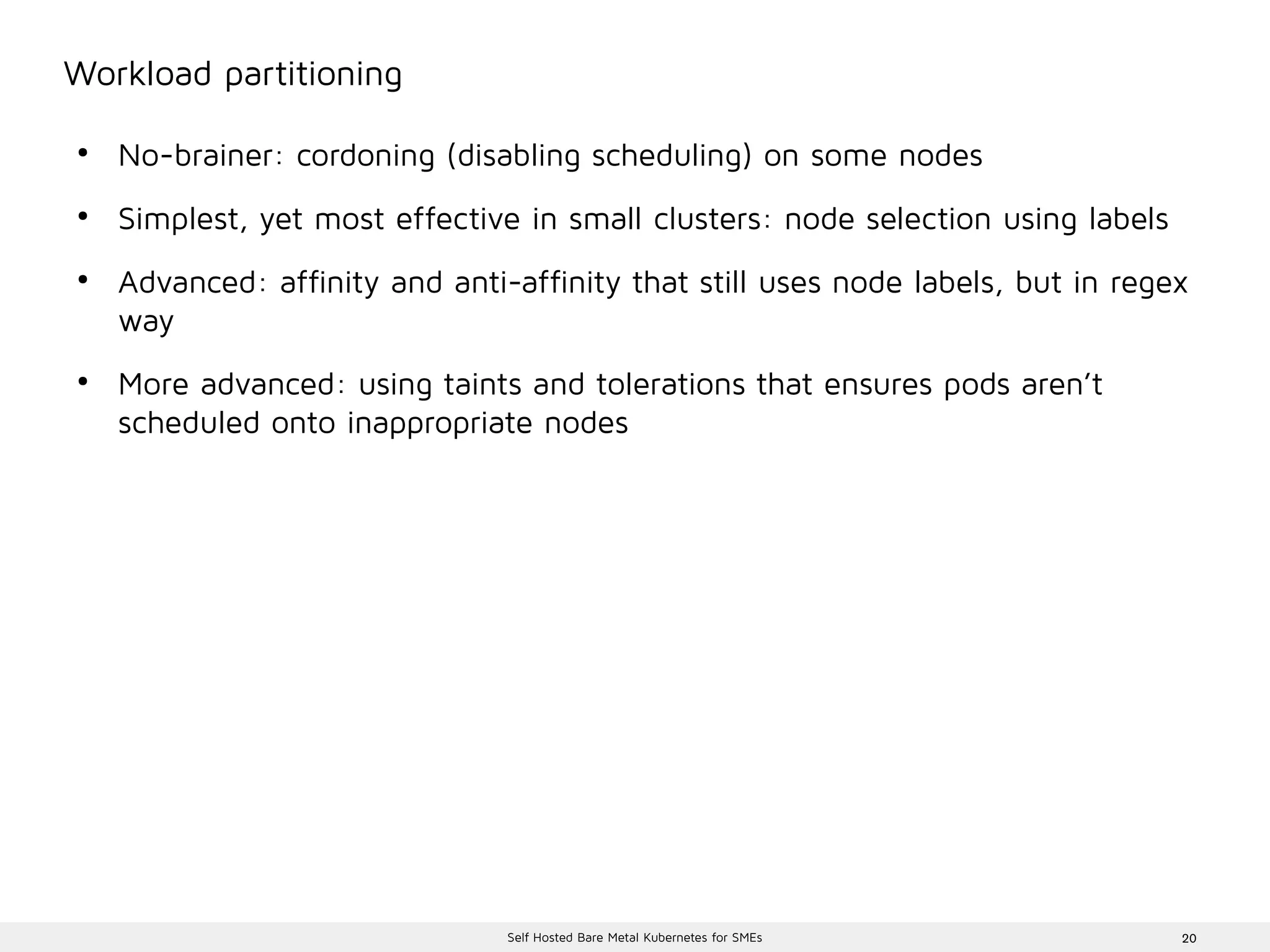

Workload partitioning
●
No-brainer: cordoning (disabling scheduling) on some nodes
●
Simplest, yet most effective in small clusters: node selection using labels
●
Advanced: affinity and anti-affinity that still uses node labels, but in regex
way
●
More advanced: using taints and tolerations that ensures pods aren’t
scheduled onto inappropriate nodes

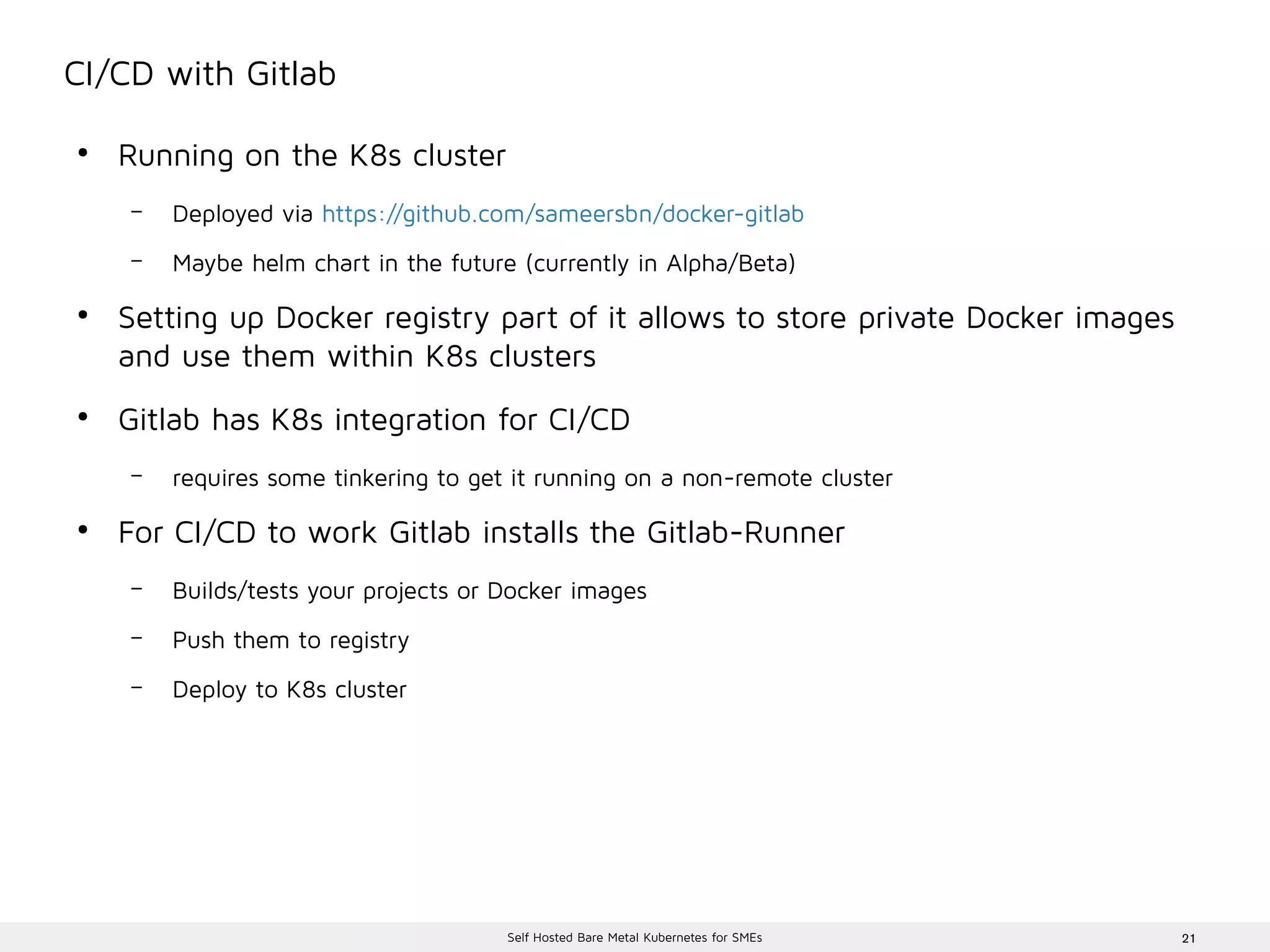

CI/CD with Gitlab
●
Running on the K8s cluster
– Deployed via https://github.com/sameersbn/docker-gitlab
– Maybe helm chart in the future (currently in Alpha/Beta)
●
Setting up Docker registry part of it allows to store private Docker images
and use them within K8s clusters
●
Gitlab has K8s integration for CI/CD
– requires some tinkering to get it running on a non-remote cluster
●
For CI/CD to work Gitlab installs the Gitlab-Runner
– Builds/tests your projects or Docker images
– Push them to registry
– Deploy to K8s cluster

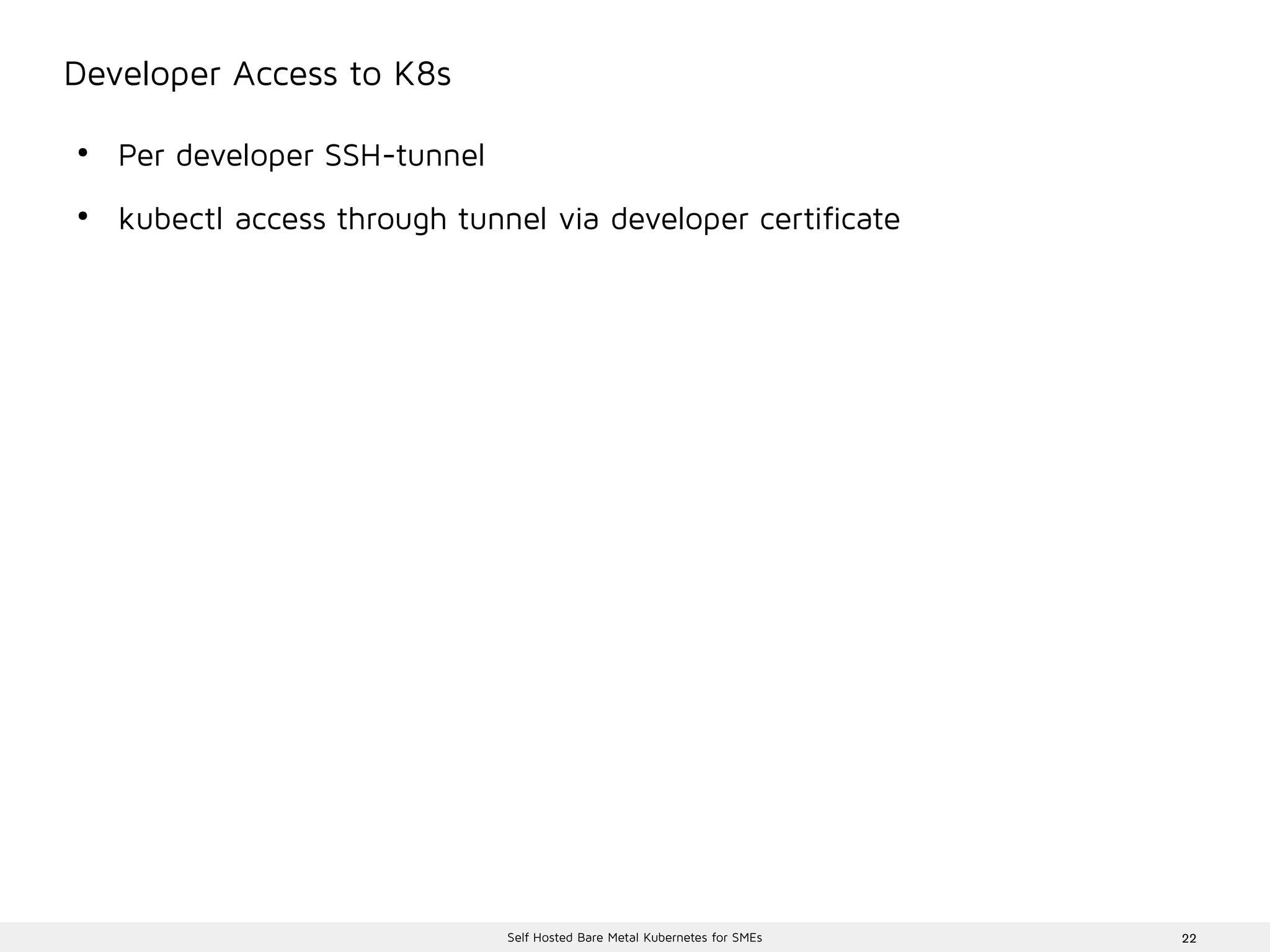

Developer Access to K8s
●
Per developer SSH-tunnel
●
kubectl access through tunnel via developer certificate

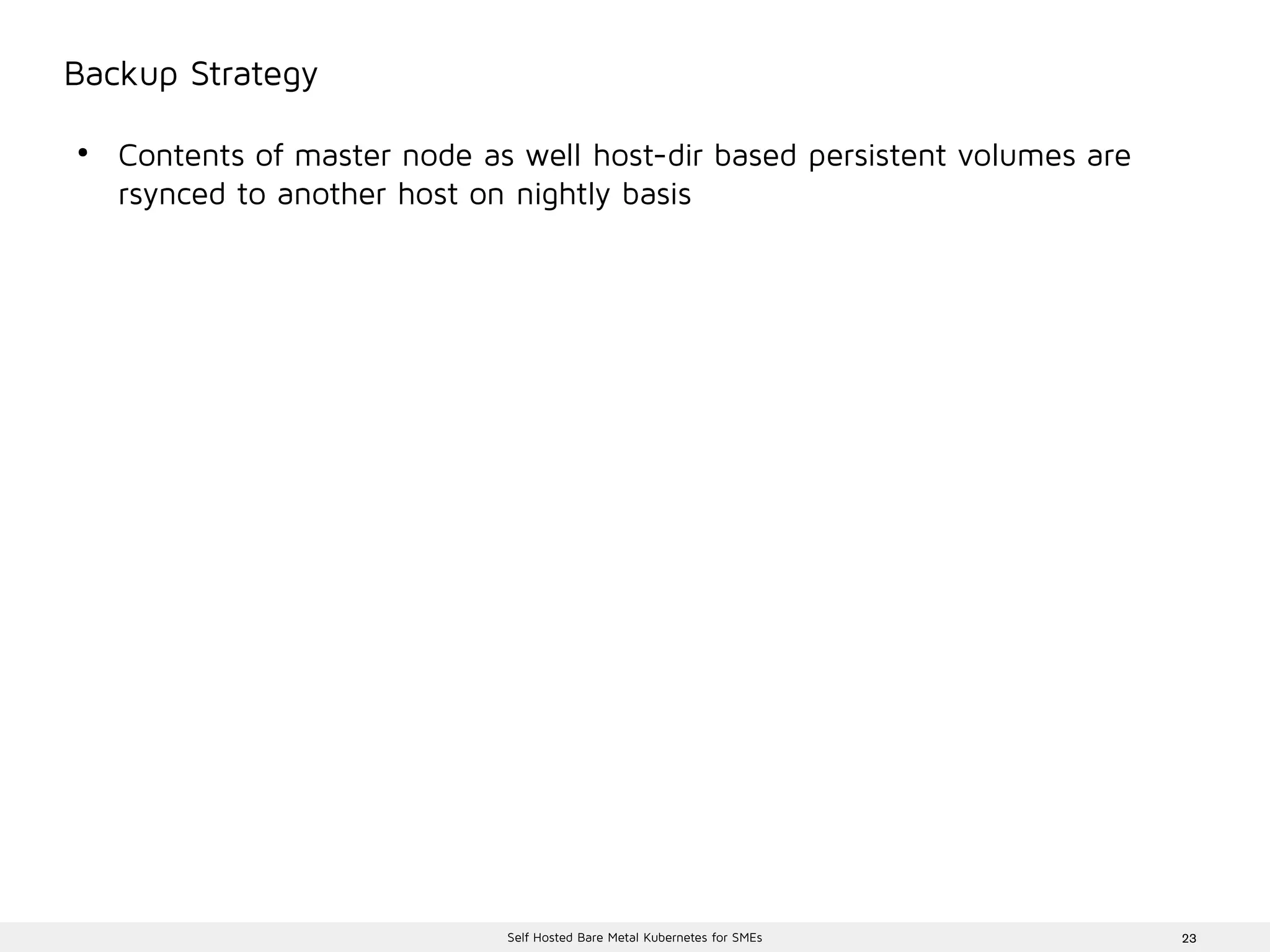

Backup Strategy
●
Contents of master node as well host-dir based persistent volumes are
rsynced to another host on nightly basis

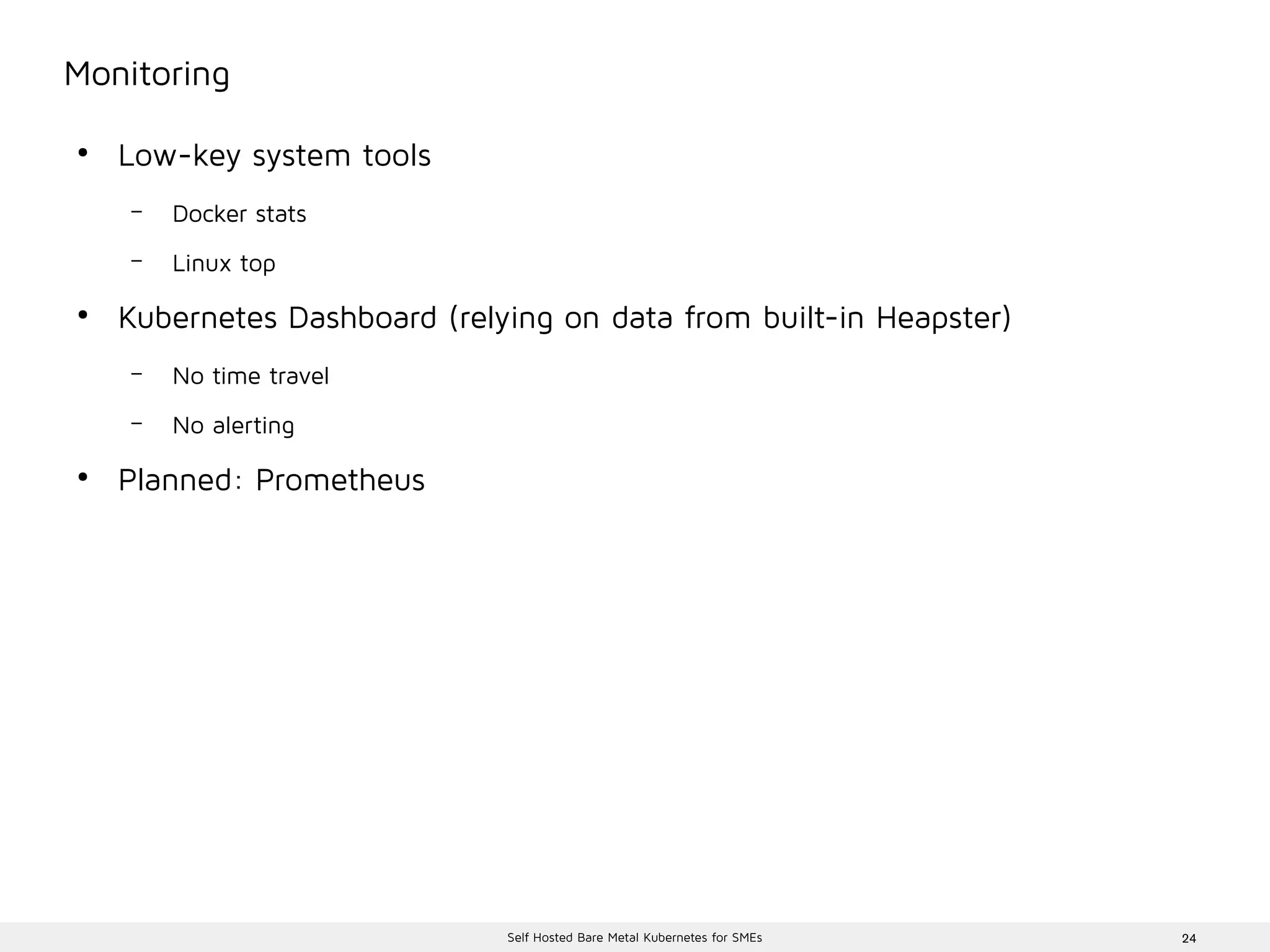

Monitoring
●
Low-key system tools
– Docker stats
– Linux top
●
Kubernetes Dashboard (relying on data from built-in Heapster)
– No time travel
– No alerting
●
Planned: Prometheus

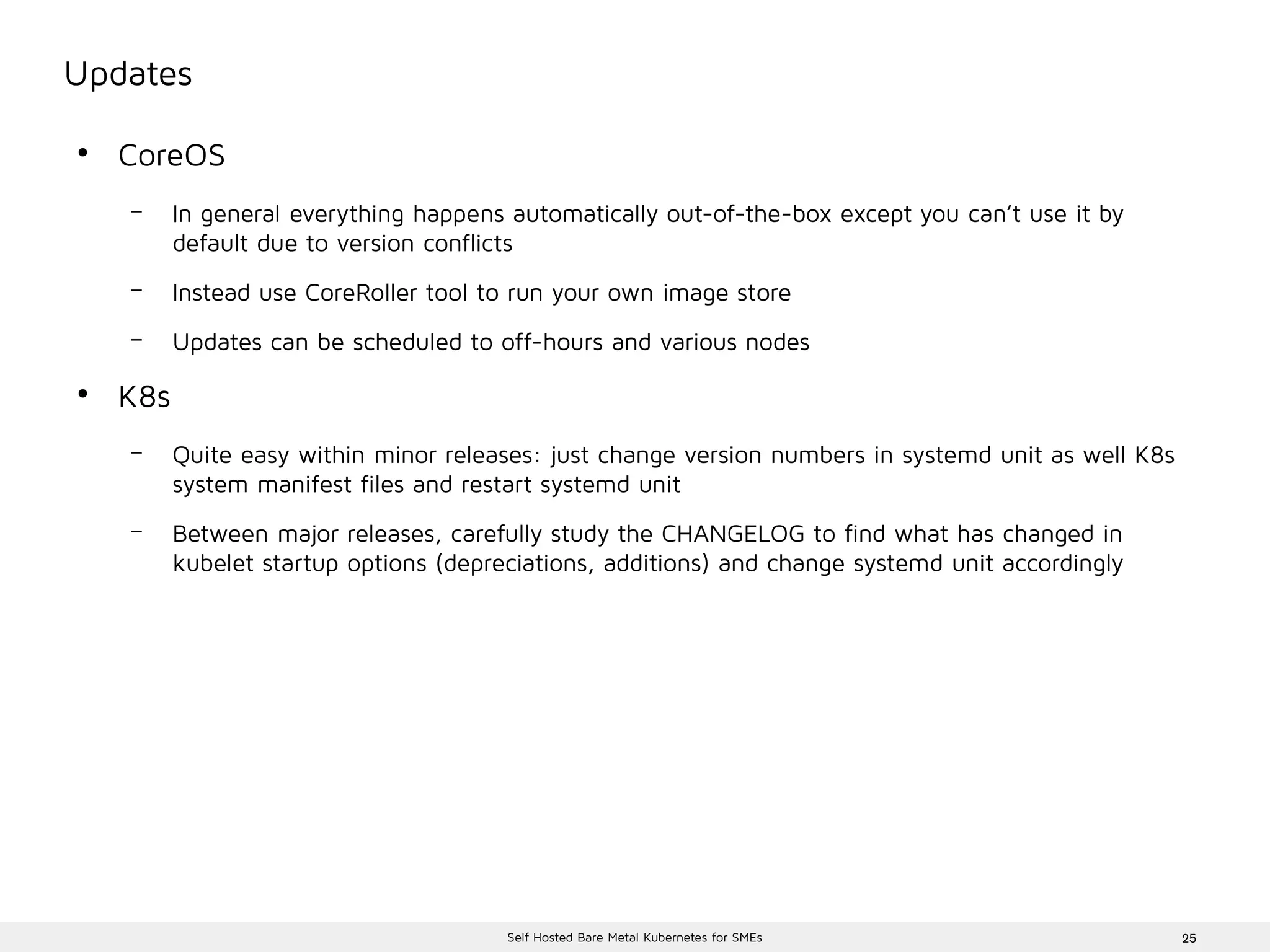

Updates
●
CoreOS
– In general everything happens automatically out-of-the-box except you can’t use it by
default due to version conflicts
– Instead use CoreRoller tool to run your own image store
– Updates can be scheduled to off-hours and various nodes
●
K8s
– Quite easy within minor releases: just change version numbers in systemd unit as well K8s
system manifest files and restart systemd unit
– Between major releases, carefully study the CHANGELOG to find what has changed in
kubelet startup options (depreciations, additions) and change systemd unit accordingly

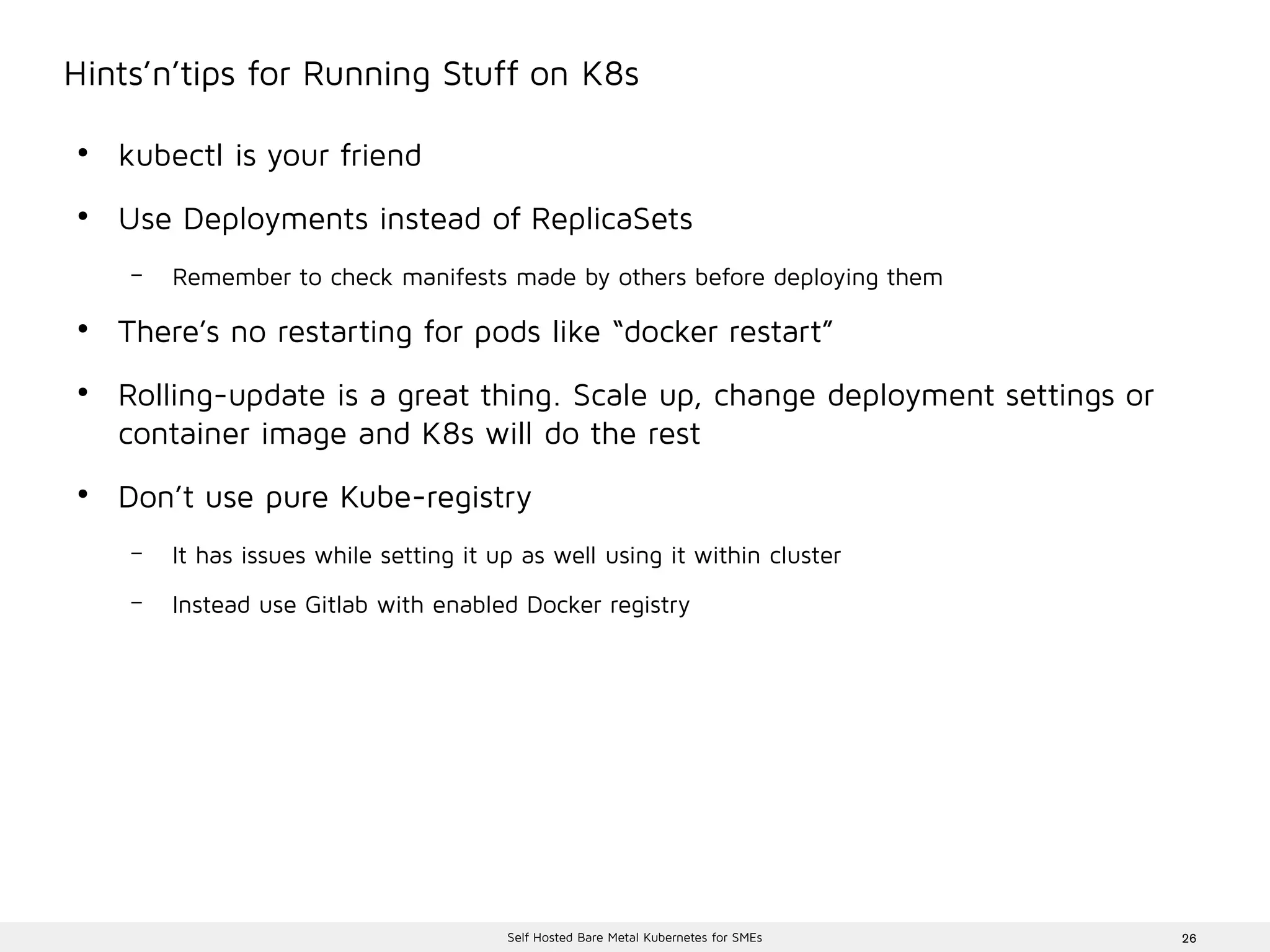

Hints’n’tips for Running Stuff on K8s
●
kubectl is your friend
●
Use Deployments instead of ReplicaSets
– Remember to check manifests made by others before deploying them
●
There’s no restarting for pods like “docker restart”
●
Rolling-update is a great thing. Scale up, change deployment settings or
container image and K8s will do the rest
●
Don’t use pure Kube-registry
– It has issues while setting it up as well using it within cluster
– Instead use Gitlab with enabled Docker registry

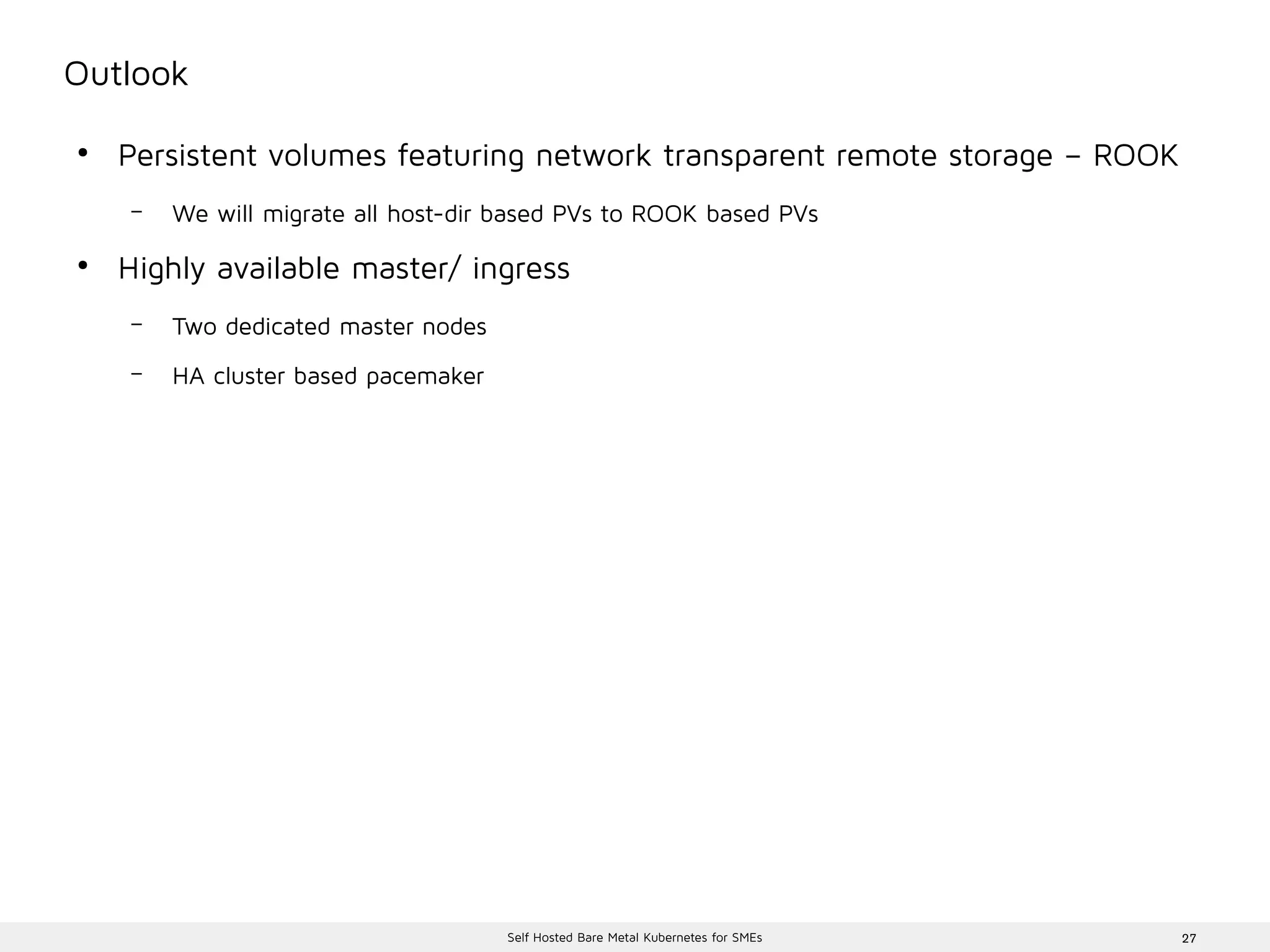

Outlook
●
Persistent volumes featuring network transparent remote storage – ROOK
– We will migrate all host-dir based PVs to ROOK based PVs
●
Highly available master/ ingress
– Two dedicated master nodes
– HA cluster based pacemaker
