1. Accelerating adoption of Open Infrastructure
May 2014
Log Management and Mining

2. Copyright 2014 Solinea, Inc.
Logging has a Long History…
photo credit: <a href="http://www.flickr.com/photos/foresthistory/3662397221/">The
Forest History Society</a> via <a href="http://photopin.com">photopin</a> <a
href="http://creativecommons.org/licenses/by-nc/2.0/">cc</a>

3. Copyright 2014 Solinea, Inc.
In Multiple Domains

4. Copyright 2014 Solinea, Inc.
Like Many Things, It Has Evolved…
photo credit: <a href="http://www.flickr.com/photos/rahimageworks/
9196119199/">Richard Hurd</a> via <a href="http://photopin.com">photopin</a> <a
href="http://creativecommons.org/licenses/by/2.0/">cc</a>
photo credit: <a href="http://www.flickr.com/photos/rahimageworks/
9179873919/">Richard Hurd</a> via <a href="http://photopin.com">photopin</a> <a
href="http://creativecommons.org/licenses/by/2.0/">cc</a>

5. Copyright 2014 Solinea, Inc.
Here Too…

6. Copyright 2014 Solinea, Inc.
Complexity Reigns in Cloud

7. Copyright 2014 Solinea, Inc.
BEEF
Nova
Cinder
Etc.
rsyslog logstash elasticsearch
tcp:5514 tcp:9200
verbose = True
use_syslog = True
syslog_log_facility=LOG_LOCAL{n}
local{n}.* @@logstash:5514

8. Copyright 2014 Solinea, Inc.
Standards are Elusive
§ We have a couple standards that might apply:
– RFC5424 (The Syslog Protocol)
– NCSA/Apache CLF (Web servers)
§ Project adoption varies, but right trajectory
§ Some duplication of fields with rsyslog
– When shipping remotely
§ Don’t get me started on timestamps!

9. Copyright 2014 Solinea, Inc.
Anatomy of an OpenStack Message
§ Most projects use a similar format
– Date: 2014-05-02 14:10:57.278
– PID: 3609
– Level: INFO
– Prog: oslo.messaging._drivers.impl_qpid
– ID: [-]
– Msg: Connected to AMQP …

10. Copyright 2014 Solinea, Inc.
use_syslog = True
§ Existing syslog format is DEPRECATED during I,
and then will be changed in J to honor RFC5424
– <132>
– May 15 12:28:57
– compute-01
– 2014-05-15 12:28:57.767
– 20739 WARNING nova.openstack.common.loopingcall
– [-]
– task run outlasted interval by 110.003069 sec
Note1: standard ryslog config on CentOS 6.5 with remote shipping to central server

11. Copyright 2014 Solinea, Inc.

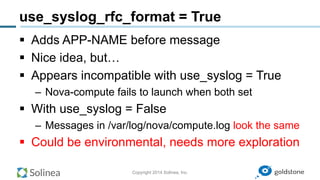

use_syslog_rfc_format = True
§ Adds APP-NAME before message
§ Nice idea, but…
§ Appears incompatible with use_syslog = True
– Nova-compute fails to launch when both set
§ With use_syslog = False
– Messages in /var/log/nova/compute.log look the same
§ Could be environmental, needs more exploration

12. Copyright 2014 Solinea, Inc.

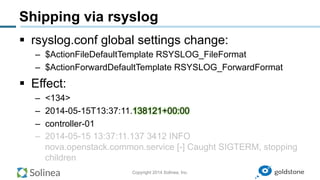

Shipping via rsyslog
§ rsyslog.conf global settings change:
– $ActionFileDefaultTemplate RSYSLOG_FileFormat
– $ActionForwardDefaultTemplate RSYSLOG_ForwardFormat
§ Effect:
– <134>
– 2014-05-15T13:37:11.138121+00:00
– controller-01
– 2014-05-15 13:37:11.137 3412 INFO
nova.openstack.common.service [-] Caught SIGTERM, stopping
children

13. Copyright 2014 Solinea, Inc.

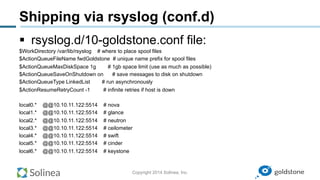

Shipping via rsyslog (conf.d)
§ rsyslog.d/10-goldstone.conf file:
$WorkDirectory /var/lib/rsyslog # where to place spool files
$ActionQueueFileName fwdGoldstone # unique name prefix for spool files
$ActionQueueMaxDiskSpace 1g # 1gb space limit (use as much as possible)
$ActionQueueSaveOnShutdown on # save messages to disk on shutdown
$ActionQueueType LinkedList # run asynchronously
$ActionResumeRetryCount -1 # infinite retries if host is down
local0.* @@10.10.11.122:5514 # nova
local1.* @@10.10.11.122:5514 # glance
local2.* @@10.10.11.122:5514 # neutron
local3.* @@10.10.11.122:5514 # ceilometer
local4.* @@10.10.11.122:5514 # swift
local5.* @@10.10.11.122:5514 # cinder
local6.* @@10.10.11.122:5514 # keystone

14. Copyright 2014 Solinea, Inc.

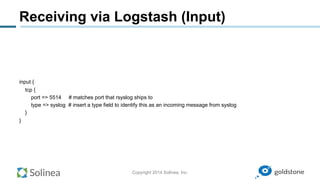

Receiving via Logstash (Input)
input {
tcp {
port => 5514 # matches port that rsyslog ships to
type => syslog # insert a type field to identify this as an incoming message from syslog
}
}

15. Copyright 2014 Solinea, Inc.

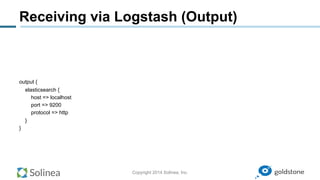

Receiving via Logstash (Output)
output {
elasticsearch {
host => localhost
port => 9200
protocol => http
}
}

16. Copyright 2014 Solinea, Inc.

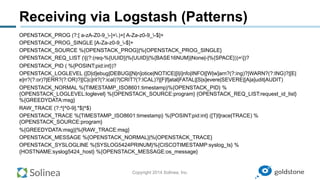

Receiving via Logstash (Patterns)
OPENSTACK_PROG (?:[ a-zA-Z0-9_-]+.)+[ A-Za-z0-9_-$]+
OPENSTACK_PROG_SINGLE [A-Za-z0-9_-$]+
OPENSTACK_SOURCE %{OPENSTACK_PROG}|%{OPENSTACK_PROG_SINGLE}
OPENSTACK_REQ_LIST ([(?:(req-%{UUID}|%{UUID}|%{BASE16NUM}|None|-|%{SPACE}))+])?
OPENSTACK_PID ( %{POSINT:pid:int})?
OPENSTACK_LOGLEVEL ([D|d]ebug|DEBUG|[N|n]otice|NOTICE|[I|i]nfo|INFO|[W|w]arn?(?:ing)?|WARN?(?:ING)?|[E|
e]rr?(?:or)?|ERR?(?:OR)?|[C|c]rit?(?:ical)?|CRIT?(?:ICAL)?|[F|f]atal|FATAL|[S|s]evere|SEVERE|[A|a]udit|AUDIT)
OPENSTACK_NORMAL %{TIMESTAMP_ISO8601:timestamp}%{OPENSTACK_PID} %
{OPENSTACK_LOGLEVEL:loglevel} %{OPENSTACK_SOURCE:program} {OPENSTACK_REQ_LIST:request_id_list}
%{GREEDYDATA:msg}
RAW_TRACE (?:^[^0-9].*$|^$)
OPENSTACK_TRACE %{TIMESTAMP_ISO8601:timestamp} %{POSINT:pid:int} ([T|t]race|TRACE) %
{OPENSTACK_SOURCE:program}
%{GREEDYDATA:msg}|%{RAW_TRACE:msg}
OPENSTACK_MESSAGE %{OPENSTACK_NORMAL}|%{OPENSTACK_TRACE}
OPENSTACK_SYSLOGLINE %{SYSLOG5424PRINUM}%{CISCOTIMESTAMP:syslog_ts} %
{HOSTNAME:syslog5424_host} %{OPENSTACK_MESSAGE:os_message}

17. Copyright 2014 Solinea, Inc.
Receiving via Logstash (Filter Fun)
filter {
if ([type] == "syslog”) {
grok {
patterns_dir => "/opt/logstash/patterns"
match => { "message" => "%{OPENSTACK_SYSLOGLINE}" }
add_field => { "received_at" => "%{@timestamp}" }
add_field => { "_message" => "%{syslog5424_host} %{message}" }
}
if ("_grokparsefailure" not in [tags]) {
… see following slides …
}
}
}

18. Copyright 2014 Solinea, Inc.
Receiving via Logstash (Filter Fun)
syslog_pri {
severity_labels => ["EMERGENCY", "ALERT", "CRITICAL", "ERROR", "WARNING", "NOTICE", "INFO",
"DEBUG"]
syslog_pri_field_name => "syslog5424_pri"
}
date {
match => [ "timestamp", "yyyy-MM-dd HH:mm:ss.SSS" ]
remove_field => "timestamp"
timezone => "Etc/UTC"
}
…
NOTE1: syslog_pri parses up that ugly number at the front of the incoming message (i.e. <132>)
NOTE2: This date processing is based on the timestamp in the OpenStack generated message, not the rsyslog
message. With enhanced rsyslog template, or better OpenStack message format, we can avoid inferring timezone.

19. Copyright 2014 Solinea, Inc.
Receiving via Logstash (Filter Fun)
translate {
field => "syslog_facility"
dictionary => [
"local0", "nova",
"local1", "glance",
"local2", "neutron",
"local3", "ceilometer",
"local4", "swift",
"local5", "cinder",
"local6", "keystone"
]
fallback => "unknown"
destination => "component"
}
…
NOTE1: syslog_facility generated by syslog_pri earlier. Adds a new component field so we can figure out who
generated these messages.

20. Copyright 2014 Solinea, Inc.
Receiving via Logstash (Filter Fun)
mutate {
rename => [ "msg", "message" ]
rename => [ "syslog5424_host", "host" ]
remove_field => "syslog_ts"
remove_field => "syslog5424_pri"
remove_field => "os_message"
add_tag => ["processed", "openstack_syslog", "filter_34"]
}
Note1: We made it to the end of the filter successfully, so let’s clean up a little and add some tags to indicate how we
navigated the filter space.

21. Copyright 2014 Solinea, Inc.
Result in ES:
photo credit: <a href="http://www.flickr.com/photos/
robbie73/4346732208/">Robbert van der Steeg</a> via <a href="http://
photopin.com">photopin</a> <a href="http://creativecommons.org/
licenses/by-sa/2.0/">cc</a>

22. Copyright 2014 Solinea, Inc.

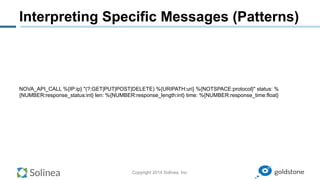

Interpreting Specific Messages (Patterns)
NOVA_API_CALL %{IP:ip} "(?:GET|PUT|POST|DELETE) %{URIPATH:uri} %{NOTSPACE:protocol}" status: %
{NUMBER:response_status:int} len: %{NUMBER:response_length:int} time: %{NUMBER:response_time:float}

23. Copyright 2014 Solinea, Inc.

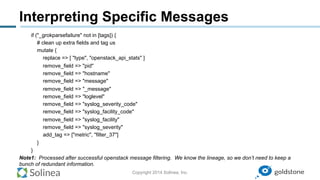

Interpreting Specific Messages
if ("_grokparsefailure" not in [tags]) {
# clean up extra fields and tag us
mutate {
replace => [ "type", "openstack_api_stats" ]
remove_field => "pid"
remove_field => "hostname"
remove_field => "message"
remove_field => "_message"
remove_field => "loglevel"
remove_field => "syslog_severity_code"
remove_field => "syslog_facility_code"
remove_field => "syslog_facility"
remove_field => "syslog_severity"
add_tag => ["metric", "filter_37"]
}
}
Note1: Processed after successful openstack message filtering. We know the lineage, so we don’t need to keep a
bunch of redundant information.

24. Copyright 2014 Solinea, Inc.
Result in ES:
photo credit: <a href="http://www.flickr.com/photos/
calamity_photography/4778766879/">Www.CourtneyCarmody.com/</a>
via <a href="http://photopin.com">photopin</a> <a href="http://
creativecommons.org/licenses/by/2.0/">cc</a>

25. Copyright 2014 Solinea, Inc.
Querying ES for Logs
{
"query": {
"bool": {
"must": [
{"range": {"@timestamp": {"gte": "2014-05-08T16:31:07+00:00", "lte": "2014-05-15T16:31:07+00:00"}}},
{"terms": {"type": ["openstack_log"]}}
]
}
},
"aggs": {
"events_by_time": {
"date_histogram": {"field": "@timestamp", "interval": "5448.648648648648s", "min_doc_count": 0},
"aggs": {
"events_by_loglevel": {"terms": {"field": "loglevel"}}
}
}
}
}

26. Copyright 2014 Solinea, Inc.
Querying Nova API Stats
{
"query": {
"filtered": {
"filter": {"match_all": {}},
"query": {"bool":
"must": [
{"range": {"@timestamp": {"gte": "2014-04-15T16:45:53+00:00", "lte": "2014-05-15T16:45:53+00:00"}}},
{"term": {"component": "nova"}}]}
}}},
"aggs": {
"events_by_date": {
"date_histogram": {"field": "@timestamp", "interval": "32400s", "min_doc_count": 0},
"aggs": {"range": {"range": {
"ranges": [{"to": 299, "from": 200}, {"to": 399, "from": 300}, {"to": 499, "from": 400}, {"to": 599, "from": 500}],
"field": "response_status",
"keyed": true}},
"stats": {"extended_stats": {"field": "response_time"}}
}}}}

27. Copyright 2014 Solinea, Inc.
Manage and Monitor OpenStack
http://gssr.jpl.nasa.gov/index.html
The Goldstone Deep Space Communications Complex
(GDSCC), commonly called the Goldstone Observatory, is
located in the U.S. state of California's Mojave Desert.
Operated for the Jet Propulsion Laboratory, its main purpose
is to track and communicate with space missions.
It is named after Goldstone, California, a nearby gold-mining
ghost town.
(Because everyone asks…)

28. Copyright 2014 Solinea, Inc.
Log Viewing, Filtering, and Searching

29. Copyright 2014 Solinea, Inc.
Key Metric Reporting

30. John Stanford, VP Development; john@solinea.com
Thank You
