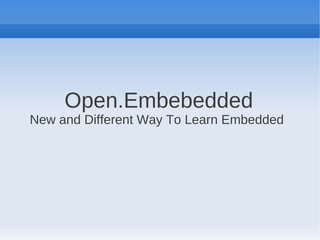

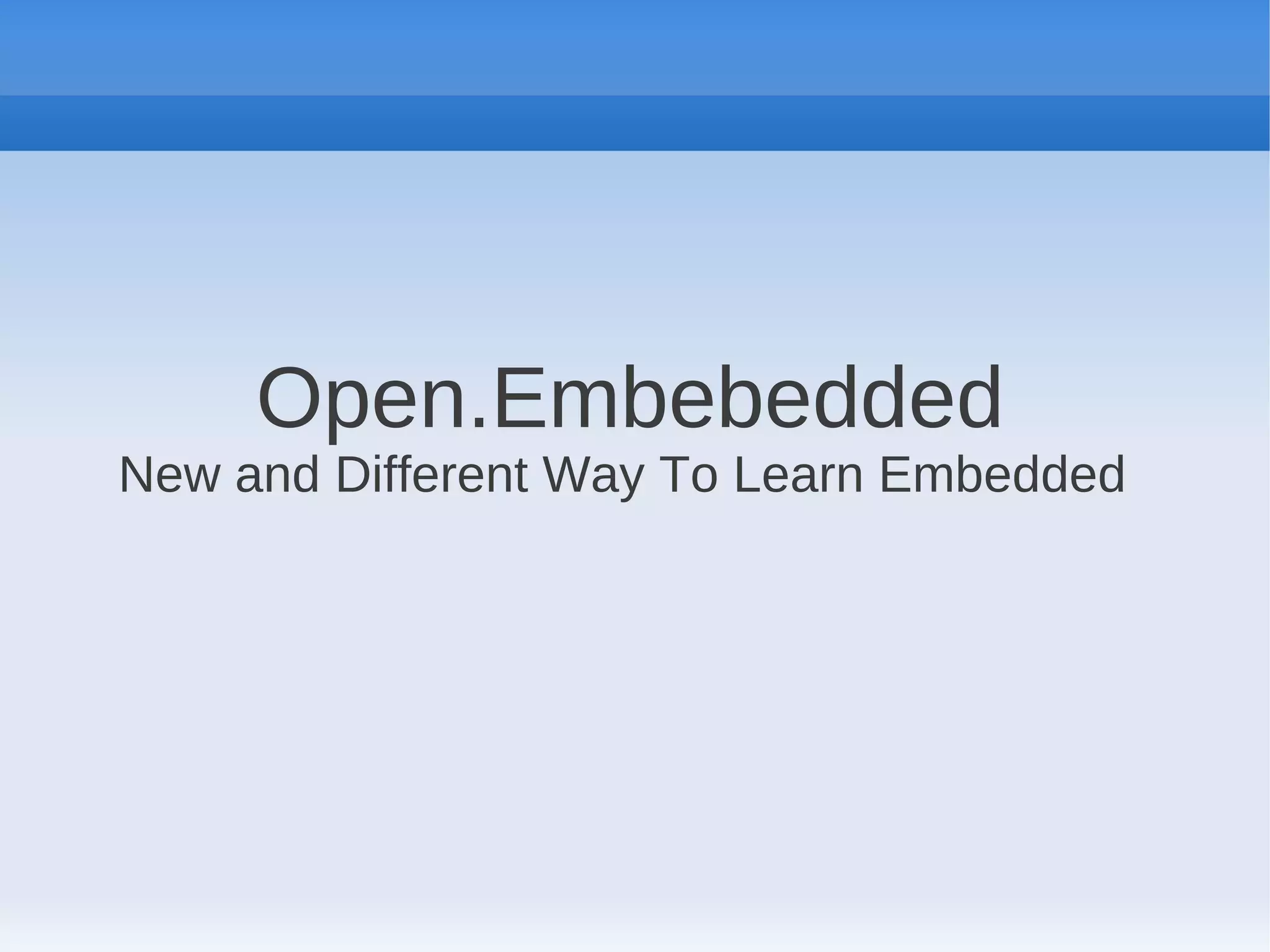

1. Open.Embebedded
New and Different Way To Learn Embedded

2. Products Available Today
 Ask your parents about the changing
technology of products that you use every day
like -
 Telephone
 Air Con
 TV
 Micro Wave Oven
 Washing Machine
 Traffic Lights
 Elevators

3. What's Now
 Landline phones comes with caller ID.
 Airconditioners comes with remote control,
timer and sleep functions.
 Music is stored on Pen Drives and flash
memory cards.
 Radio does not have any tuning knob, just
switches to select next channel.
 Train fare gets deducted at the touch of a card
of the size of visiting card and you can see the
balance on display.

4. How Does It Happen
 It happen due to a small size chip popularly
knows as micro controller.
 This is nothing but a computer in small size.
 With Built in processor, memory, ram, I/O
devices, Timer like in a PC.
 It is programmed in C (or at times in Java or
Python)

5. Let me share my experience
 The first micro processor that I used in year
1979 was Intel 8080 and it was really amazing.
A few ic put togther can be programmed to do
lot of things.
 Very soon it was 8085, less number of Ics and
only 5V supply. The previous version required
three supplies +12V, +5V and -5V.
 And then the wonder of wonder's happened by
8048. Just a single ic compared to minimum of
five for 8085.

6. How it progressed over the years
 During last few years, we have moved from
OTPs / UVEPROM/MASK Ics to Flash
programmed parts.
 From expensive emulators and programmers
now there are low cost tools costing Rs 5,000/-
or even upto Rs 1000/- each.
 Assembly level language is replaced by C and
now there are lot of code generators that
results in quick development.

7. What will happen in future
 Today you find PC in every home and office.
 And around 10 embedded controllers in every
home in devices like car, motorcycle, micro
wave over, washing machine, security systems
and even voltage stabiliser.
 This figure is riseing and you will find even low
cost devices like tube lights to be fitted with
embedded controllers (by the way, we sold over
20,000 controller for a dimmable tube light
ballast last year)

8. The Challenge
 Unfortunately things are not changing in our
colleges. Specially when it comes to
electronics.
 Today a CS students use laptop with i3
processor and work on Windows/Vista and
learn Java and C# and .Net.
 However EC students still study 8051 that I
learned when you were not even born.
 You will not find any commercial product using
8051 today.

9. What Industry is Using
 Like cars and mobiles and Tvs, there are
multiple micro controllers and IDE.
 The range starts from 8 pin IC costing Rs 25/-
upwards.
 Software is developed using variety of IDE and
code generators.
 Focus is on speed and solution and not on
simple and slow development.

10. What is GVC
 GVC is an electronic company
 Founded by Vinay Chaddha with 32 years of
embedded experience
 Over 200 commercial products.
 GVC is incubated in Amity Univeristy Campus
under a DST sponsered scheme.
 And has received seed fund of Rs 15 Lac from
Ministry of Science and Technology
 And 5.25 Lacs from Ministry of MSME.

11. More about Vinay
 Vinay is an hoobyist.
 Believe in sharing knowledge.
 His first commercially successful product SET
TOP BOX was put in public domain within 2
years.
 Another commercially successful product
CALLER ID for landline was in open source
domain withing six months.
 He has filed three patents till now.

12. What we are offering
 Training on Embedded thru Open.Embedded
 This is same as being provided to new
engineers in GVC.
 Is latest, current and result in quick delivery of
products.

13. How it is different
 Let me ask you a simple question – what do
you want to do on day 1 when learning driving
car
 How to change Tyre or
 How to drive first
 Similarly, we do not teach you about internals
of micro controllers on day 1 (in fact, we start
talking about internals only in last week).

14. What happens on Day 1
 You get to start writing program, blink an LED,
switch on/off bulbs, interface with PC, display
your name on LCD
 Yes all this on Day 1 and you will understand
how this is happening.
 And even make some changes and go thru the
excitiment.

15. What happens in Week 1
 You will be able to use at least three types of
micro controller and three kinds of IDEs.
 And upto 10 different modules.

16. And in next few weeks
 With every passing week, you will develop
more muscle and start working on complex
modules and more complicated issues.
 And yes, speed will be slower in later weeks.

17. And by the time it is last week
 You will have access to GSM, USB port and
upto 30 modules.
 And an opportunity to learn about internals.

18. Excited?
 Contact
 Shaleen Mittal
 shaleen@open-embedded.info
 9015866807
 Join
 Facebook.com/open.embedded
