This document discusses using SaltStack to manage an OpenNebula infrastructure. It provides an overview of SaltStack's architecture, key components like states, pillars and grains. It then demonstrates how to use SaltStack to deploy and configure OpenNebula components and automate tasks like provisioning virtual machines.

1. OpenNebula
and
SaltStack
Valentin Bud
CEO
databus.pro | valentin@databus.pro | @databuspro
OpenNebulaConf
Berlin, Germany, September 25th
#OpenNebulaConf

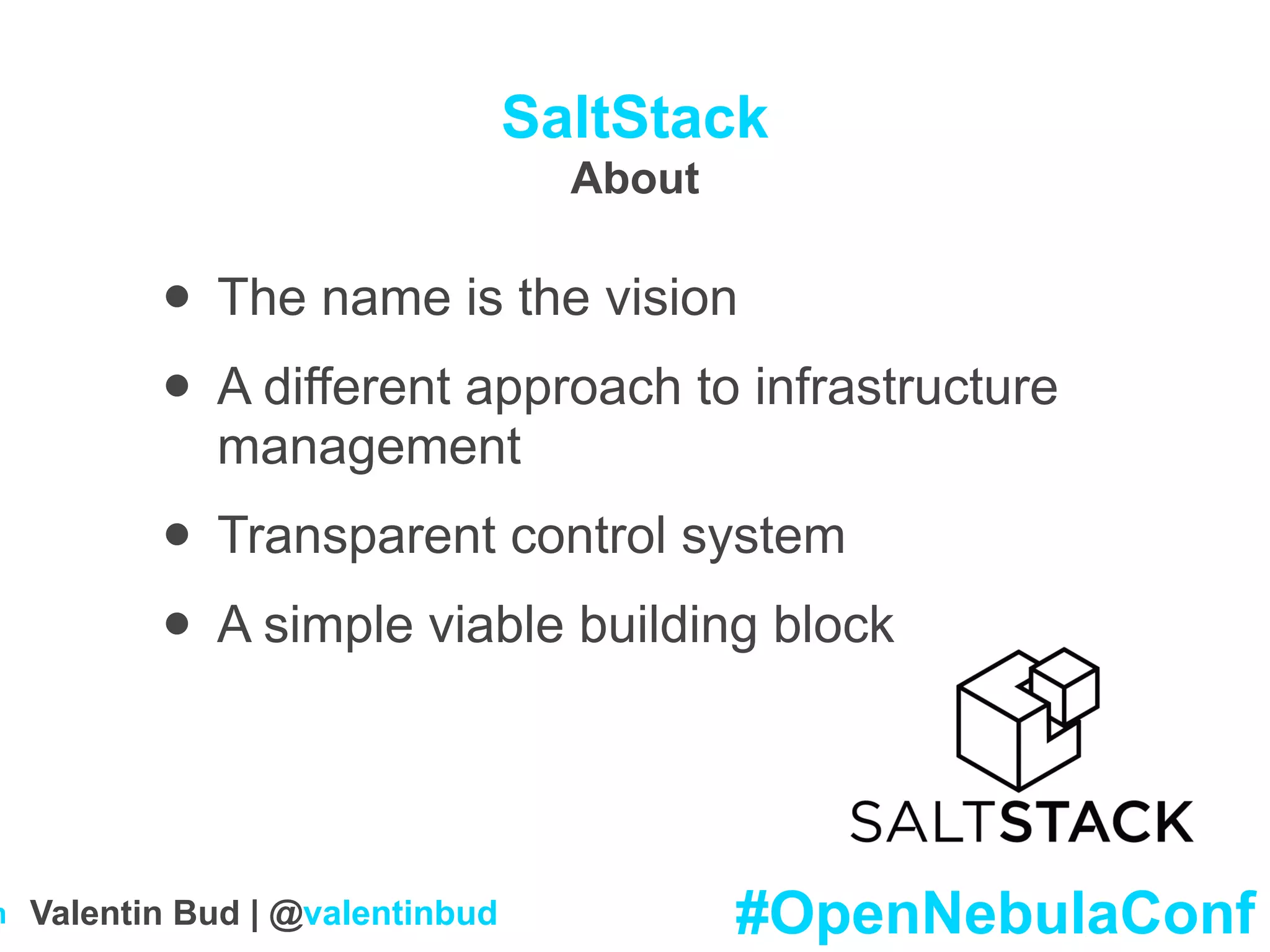

2. SaltStack
About
• The name is the vision
• A different approach to infrastructure
management
• Transparent control system
• A simple viable building block
#OpenNebulaConfValentin Bud | @valentinbudm

3. SaltStack
Standing on the Shoulders of the Giants
• Python
• 0MQ
• MessagePack
• M2Crypto
#OpenNebulaConfValentin Bud | @valentinbud

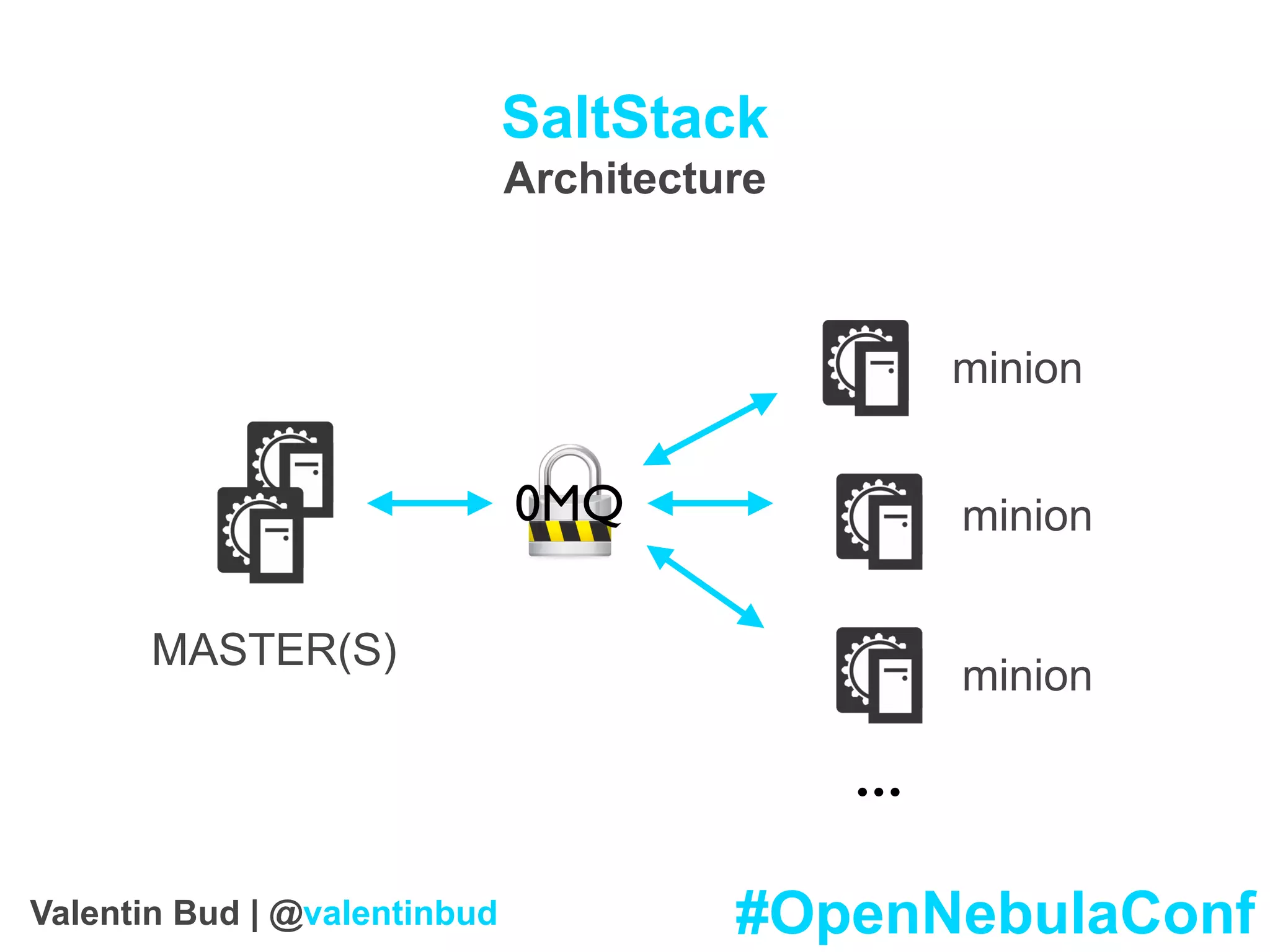

4. SaltStack
Architecture
...
0MQ
MASTER(S)
minion
minion
minion
#OpenNebulaConfValentin Bud | @valentinbud

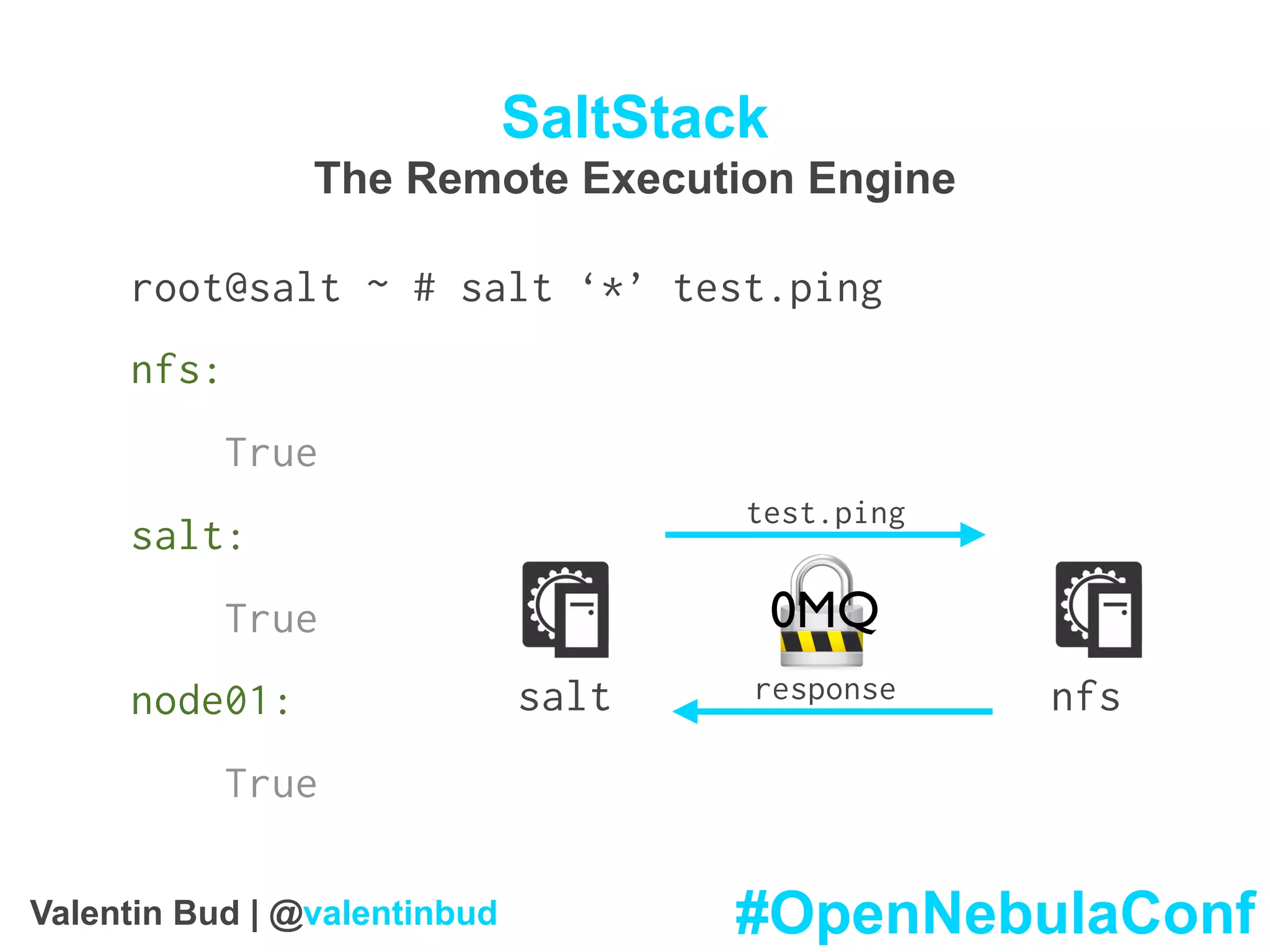

5. SaltStack
The Remote Execution Engine
root@salt ~ # salt ‘*’ test.ping
nfs:
True
salt:
True
node01:
True
salt nfs
test.ping
response
0MQ
#OpenNebulaConfValentin Bud | @valentinbud

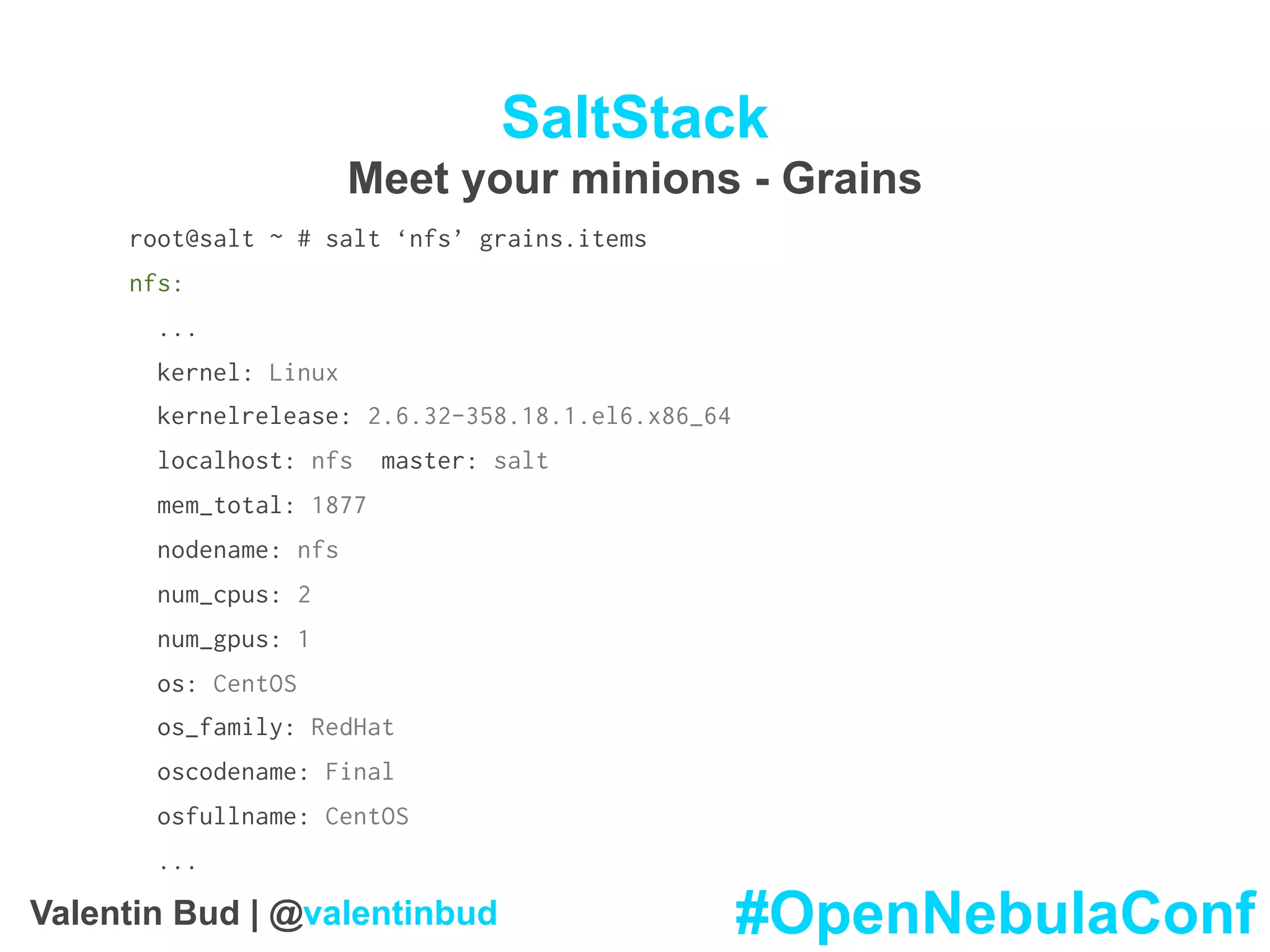

6. SaltStack
Meet your minions - Grains
root@salt ~ # salt ‘nfs’ grains.items
nfs:
...
kernel: Linux
kernelrelease: 2.6.32-358.18.1.el6.x86_64
localhost: nfs master: salt
mem_total: 1877
nodename: nfs
num_cpus: 2
num_gpus: 1
os: CentOS
os_family: RedHat
oscodename: Final
osfullname: CentOS
...
#OpenNebulaConfValentin Bud | @valentinbud

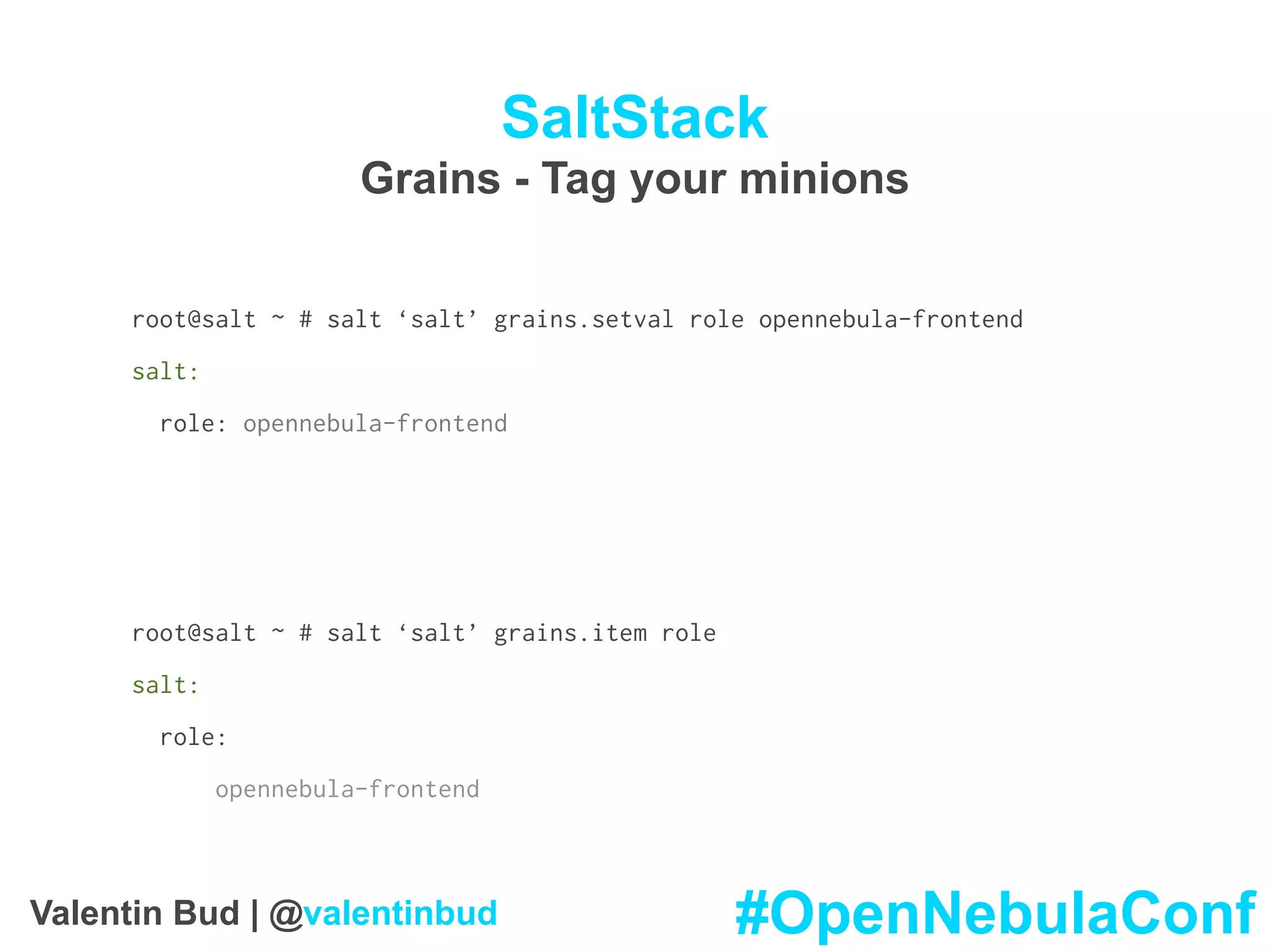

7. SaltStack
Grains - Tag your minions
root@salt ~ # salt ‘salt’ grains.setval role opennebula-frontend
salt:
role: opennebula-frontend
root@salt ~ # salt ‘salt’ grains.item role
salt:
role:
opennebula-frontend
#OpenNebulaConfValentin Bud | @valentinbud

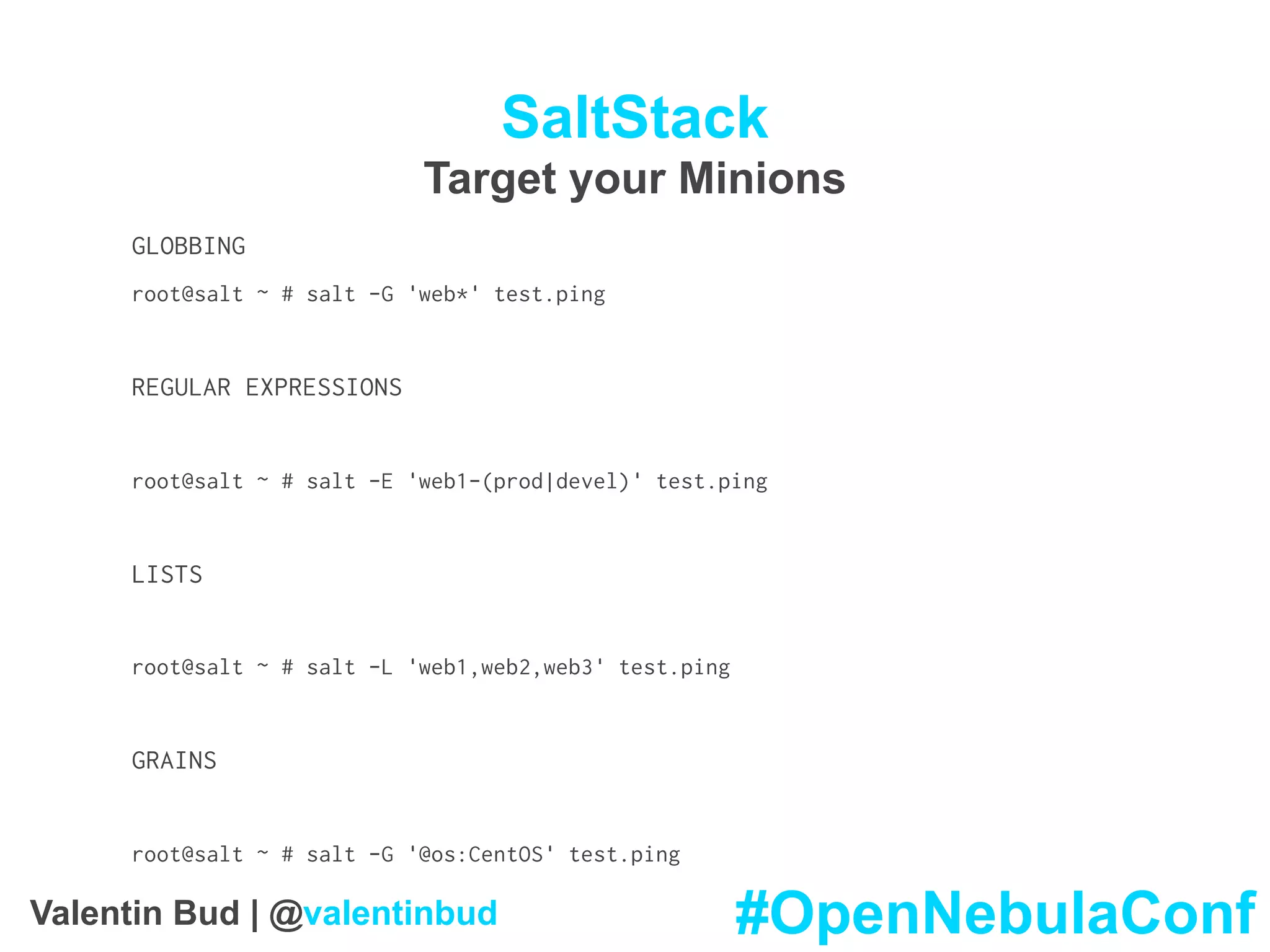

8. SaltStack
Target your Minions
GLOBBING
root@salt ~ # salt -G 'web*' test.ping
REGULAR EXPRESSIONS
root@salt ~ # salt -E 'web1-(prod|devel)' test.ping
LISTS
root@salt ~ # salt -L 'web1,web2,web3' test.ping
GRAINS
root@salt ~ # salt -G '@os:CentOS' test.ping
#OpenNebulaConfValentin Bud | @valentinbud

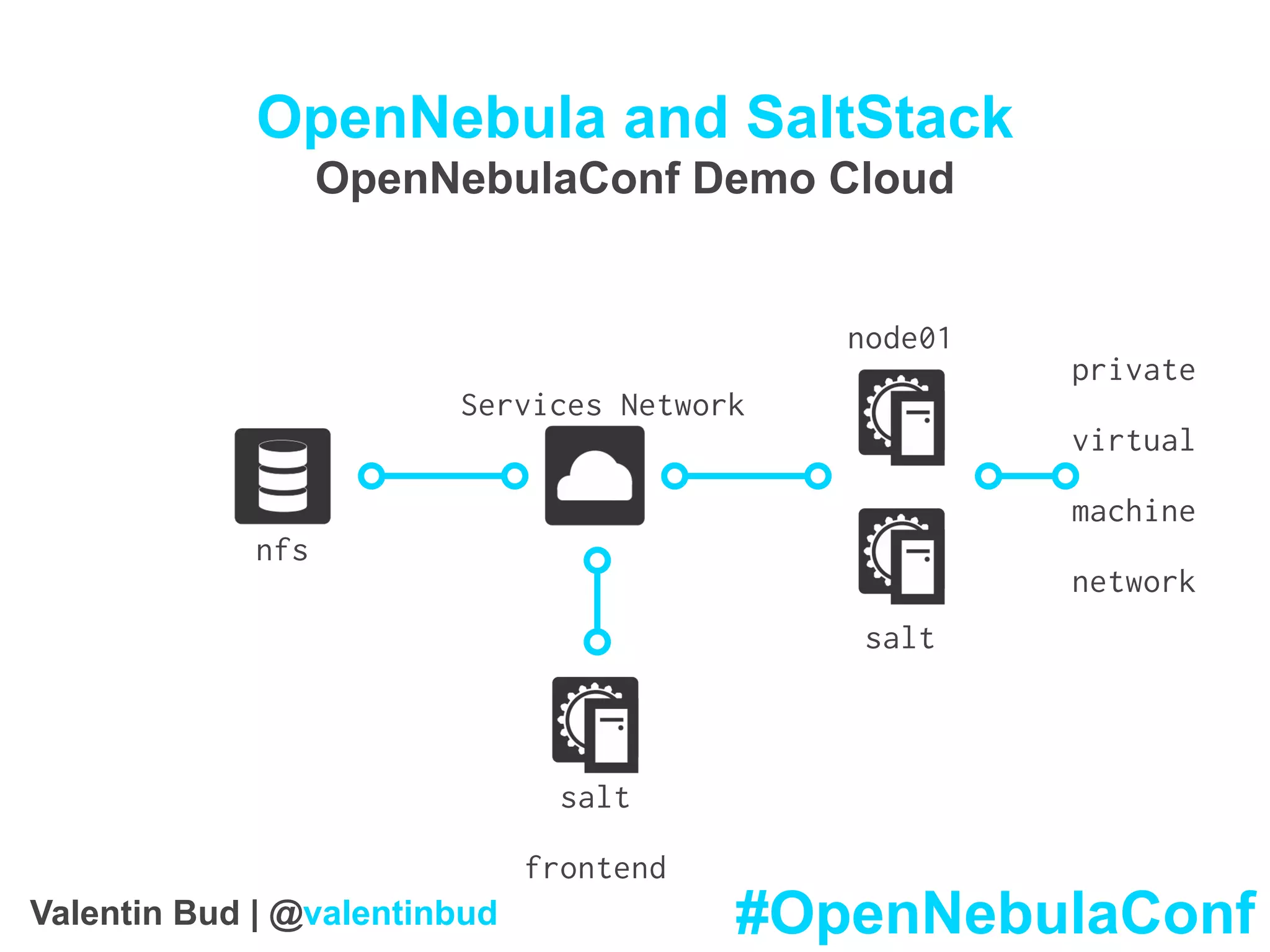

9. OpenNebula and SaltStack
OpenNebulaConf Demo Cloud
salt
frontend
node01
salt
nfs
Services Network
private
virtual
machine
network
#OpenNebulaConfValentin Bud | @valentinbud

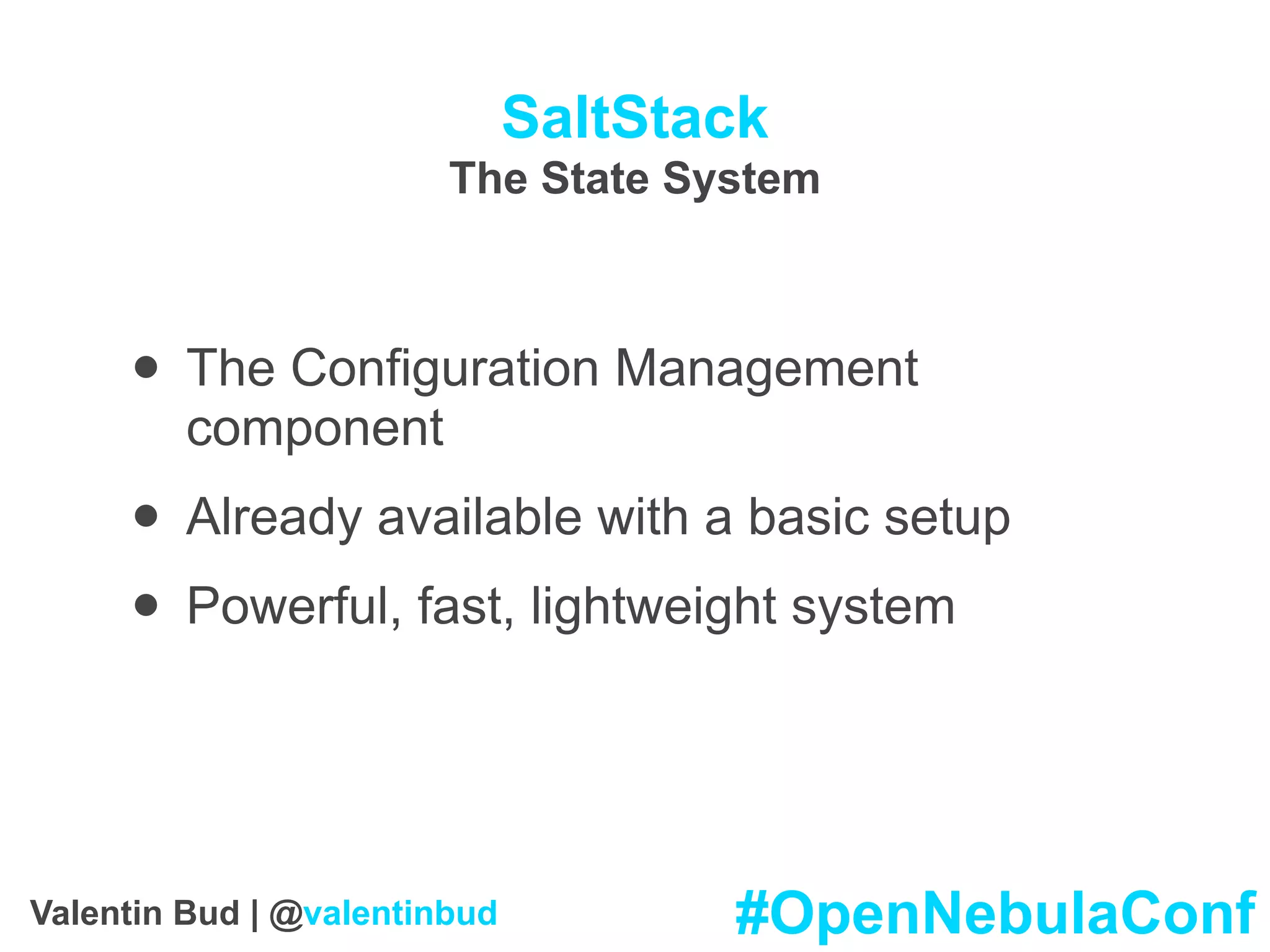

10. SaltStack
The State System
• The Configuration Management
component
• Already available with a basic setup
• Powerful, fast, lightweight system
#OpenNebulaConfValentin Bud | @valentinbud

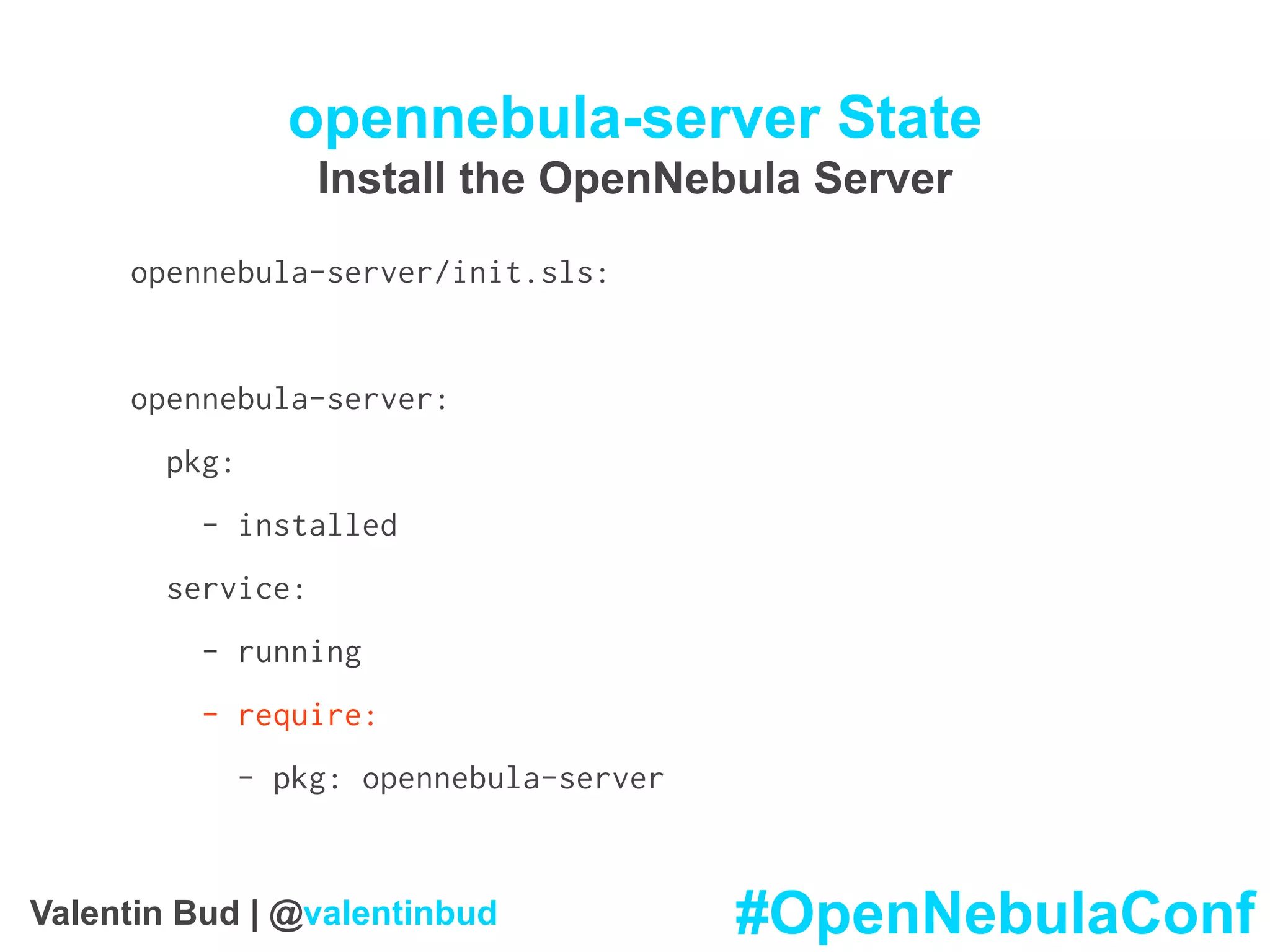

11. opennebula-server State
Install the OpenNebula Server
opennebula-server/init.sls:
opennebula-server:
pkg:
- installed
service:
- running
- require:
- pkg: opennebula-server
#OpenNebulaConfValentin Bud | @valentinbud

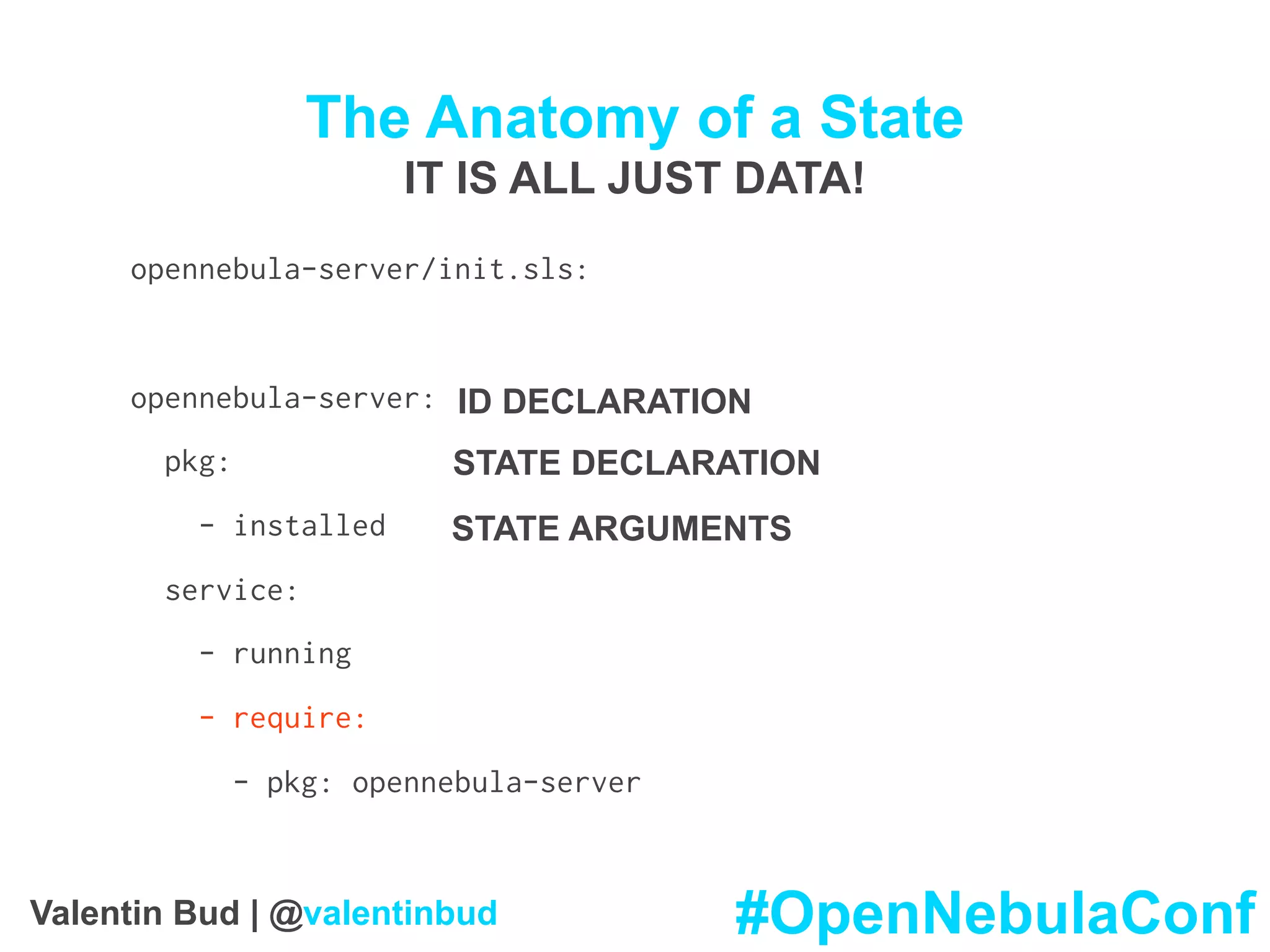

12. The Anatomy of a State
IT IS ALL JUST DATA!
opennebula-server/init.sls:
opennebula-server:
pkg:
- installed
service:
- running
- require:
- pkg: opennebula-server
ID DECLARATION
STATE DECLARATION
STATE ARGUMENTS
#OpenNebulaConfValentin Bud | @valentinbud

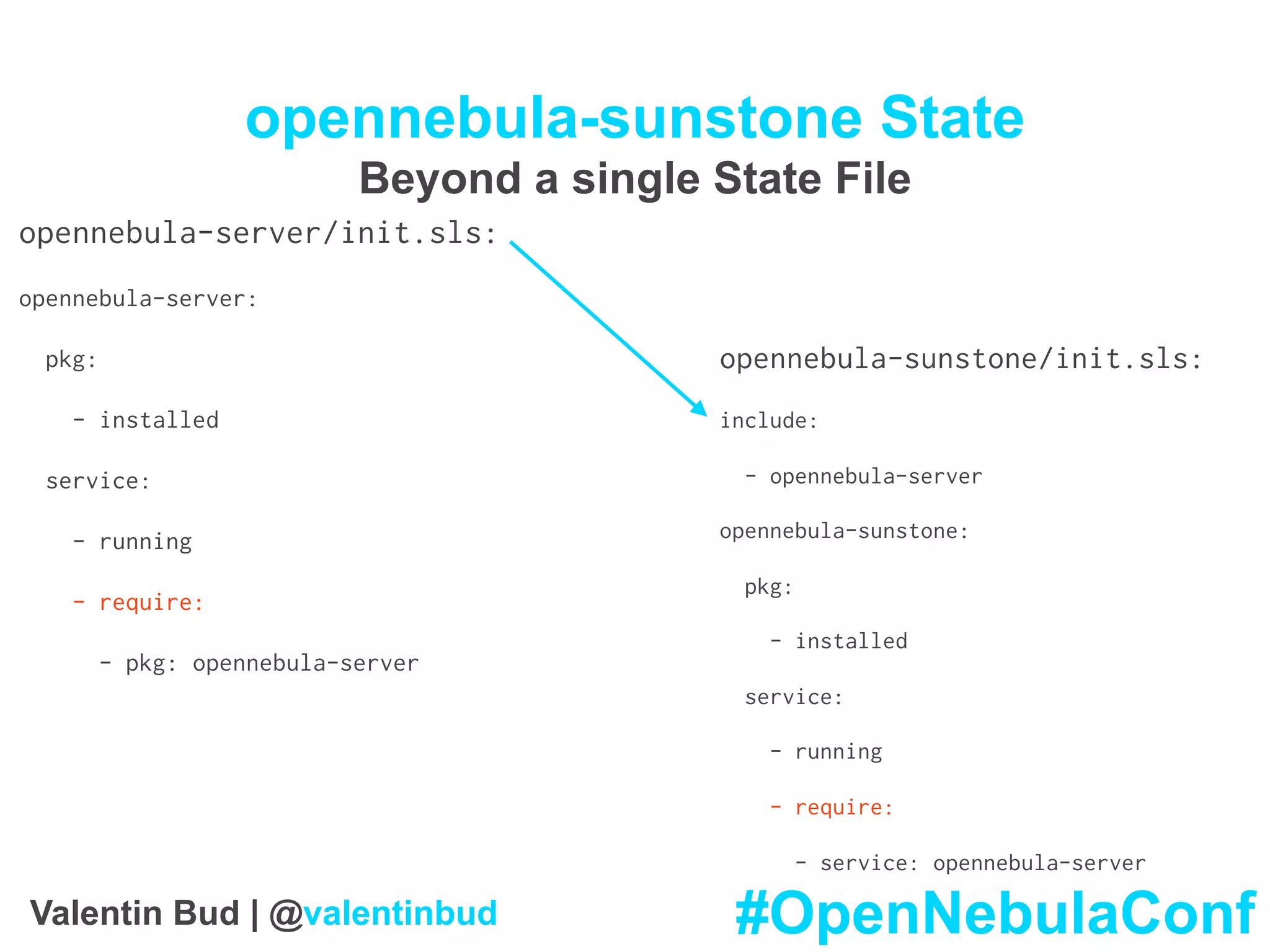

13. opennebula-sunstone State
Beyond a single State File
opennebula-server/init.sls:
opennebula-server:
pkg:
- installed
service:
- running
- require:
- pkg: opennebula-server
opennebula-sunstone/init.sls:
include:
- opennebula-server
opennebula-sunstone:
pkg:
- installed
service:
- running
- require:
- service: opennebula-server
#OpenNebulaConfValentin Bud | @valentinbud

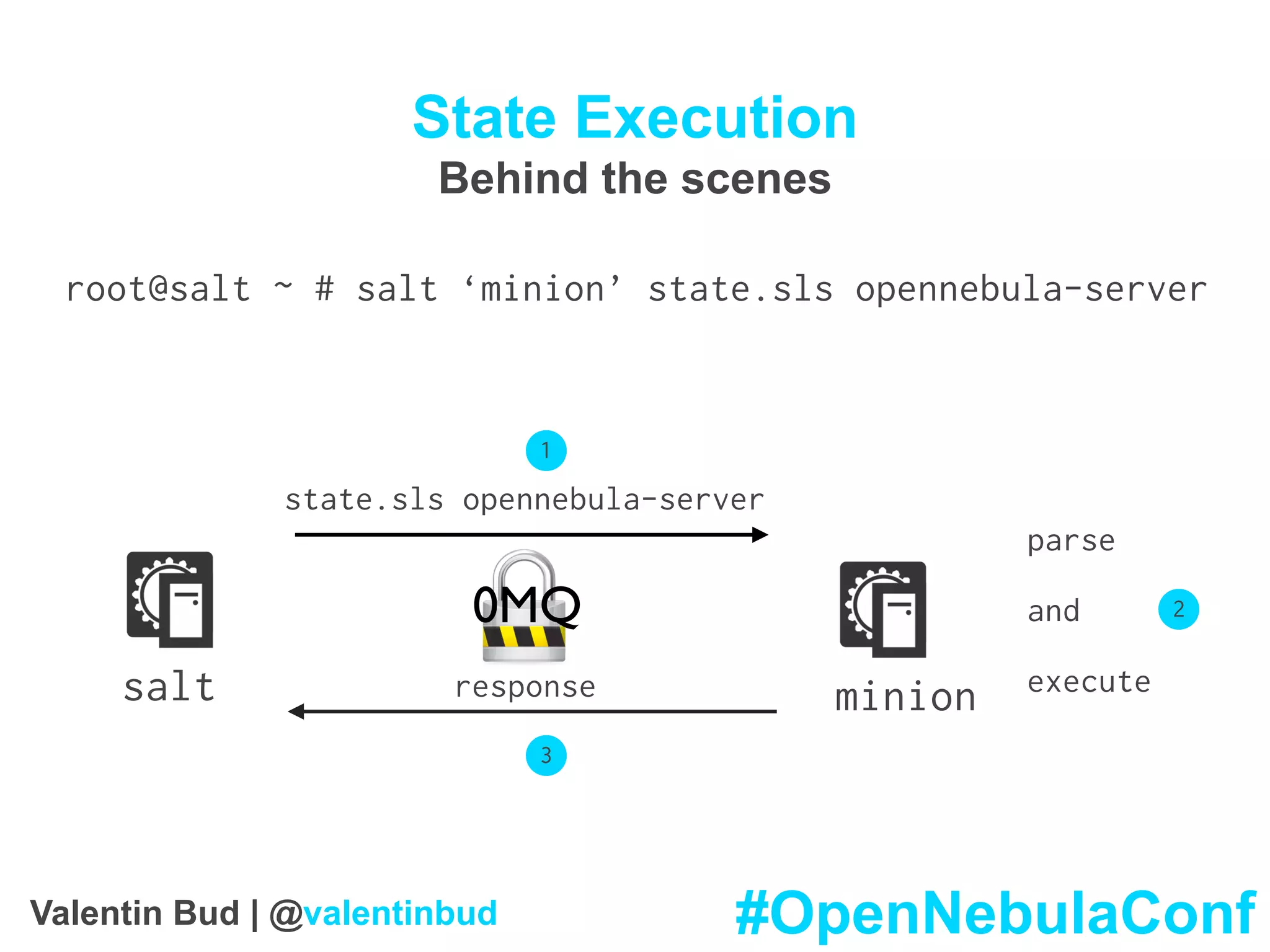

14. State Execution
Behind the scenes
salt minion
state.sls opennebula-server
response
root@salt ~ # salt ‘minion’ state.sls opennebula-server
1
parse
and
execute
2
3
0MQ
#OpenNebulaConfValentin Bud | @valentinbud

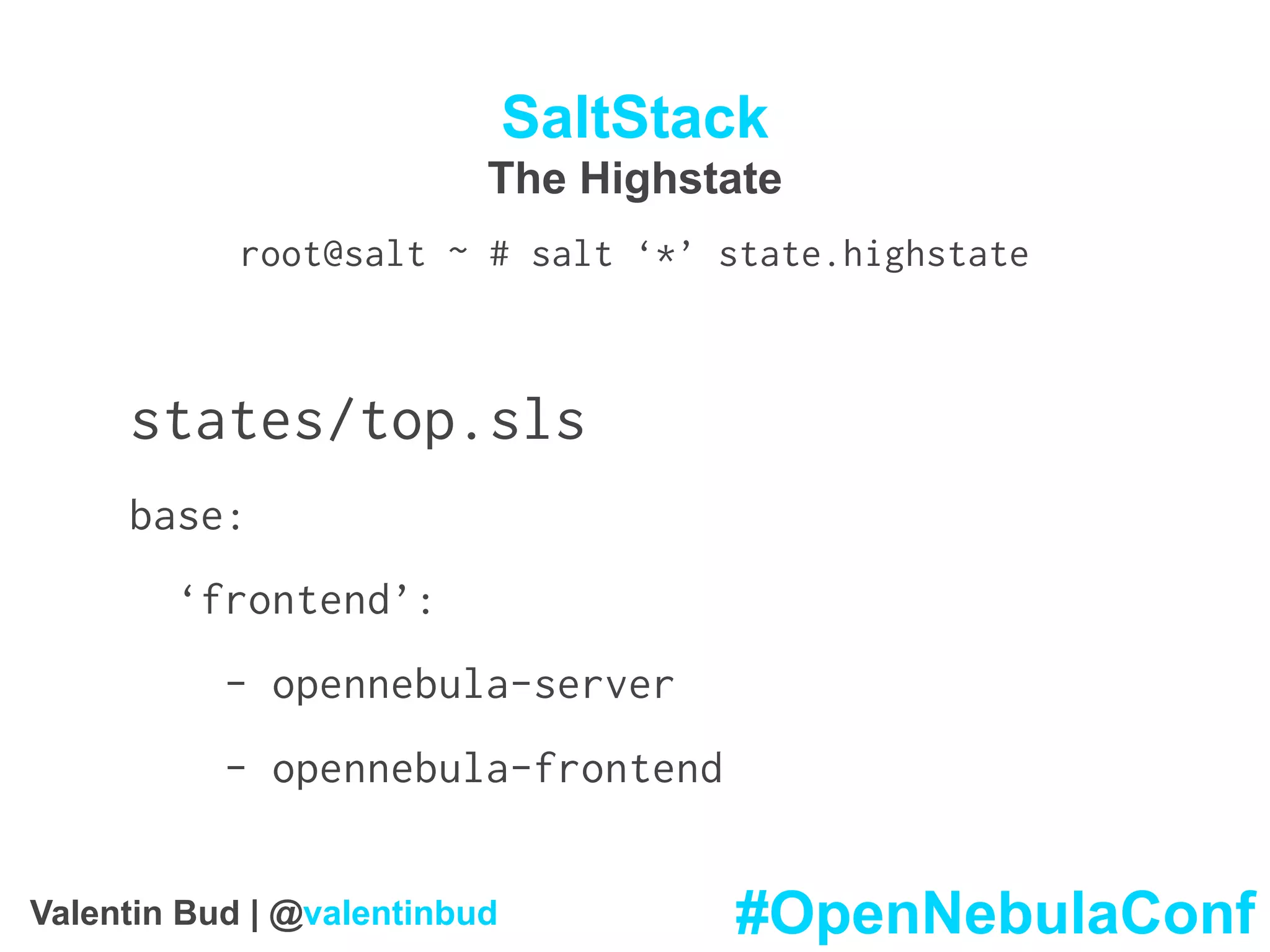

15. SaltStack
The Highstate
root@salt ~ # salt ‘*’ state.highstate
states/top.sls
base:
‘frontend’:
- opennebula-server
- opennebula-frontend
#OpenNebulaConfValentin Bud | @valentinbud

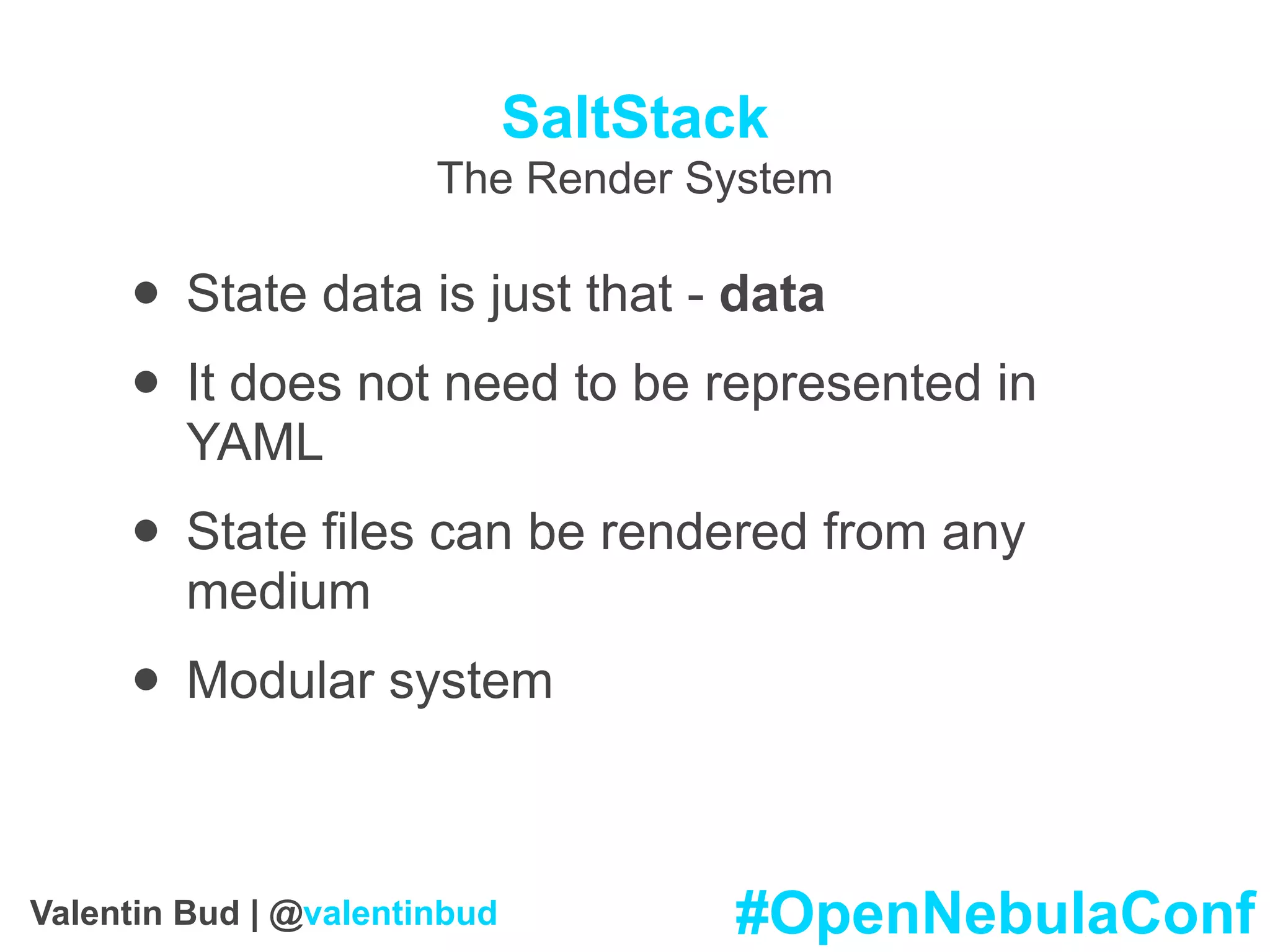

16. SaltStack
The Render System
• State data is just that - data
• It does not need to be represented in
YAML
• State files can be rendered from any
medium
• Modular system
#OpenNebulaConfValentin Bud | @valentinbud

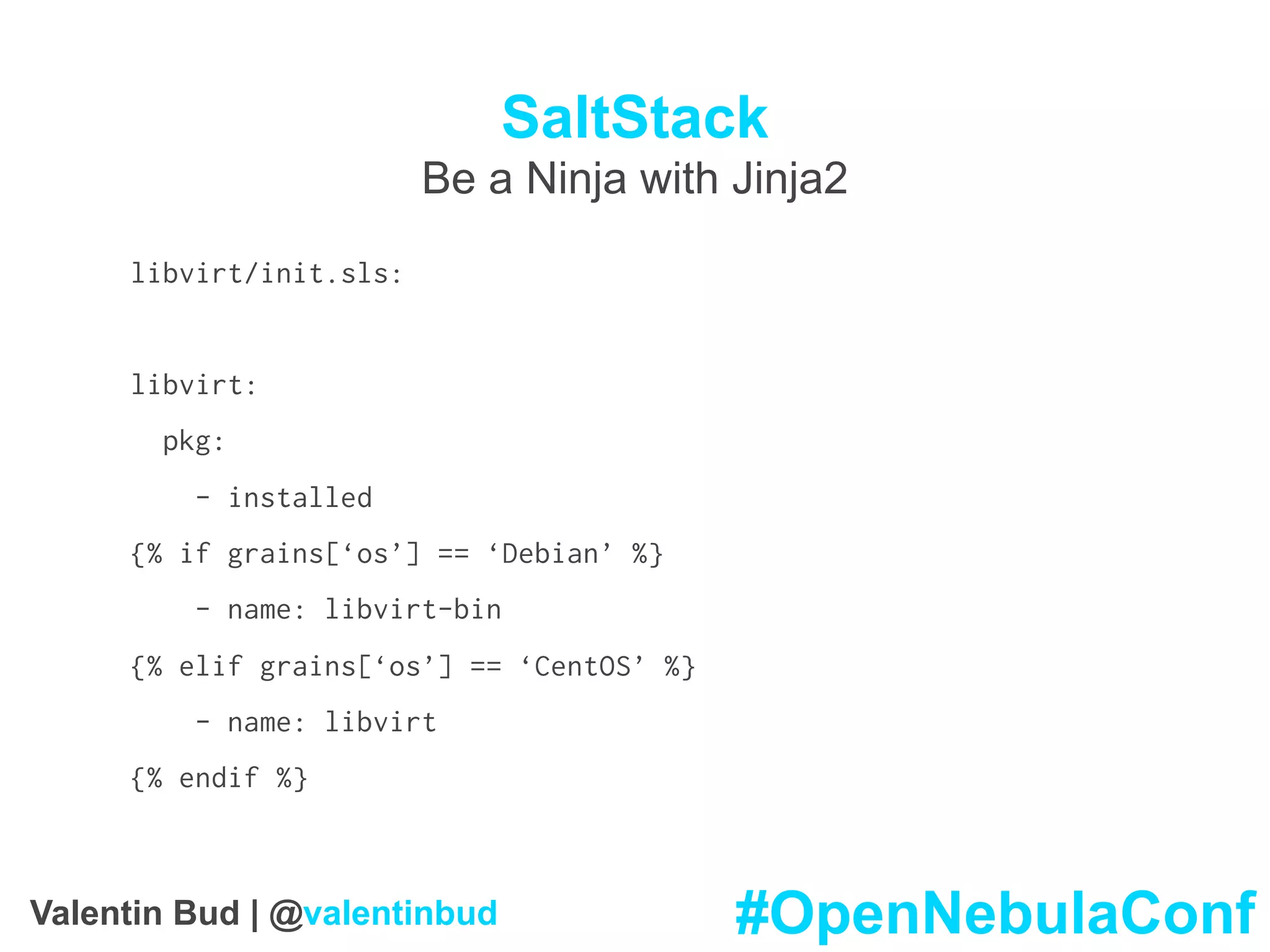

17. SaltStack
Be a Ninja with Jinja2
libvirt/init.sls:
libvirt:
pkg:
- installed
{% if grains[‘os’] == ‘Debian’ %}
- name: libvirt-bin
{% elif grains[‘os’] == ‘CentOS’ %}
- name: libvirt
{% endif %}
#OpenNebulaConfValentin Bud | @valentinbud

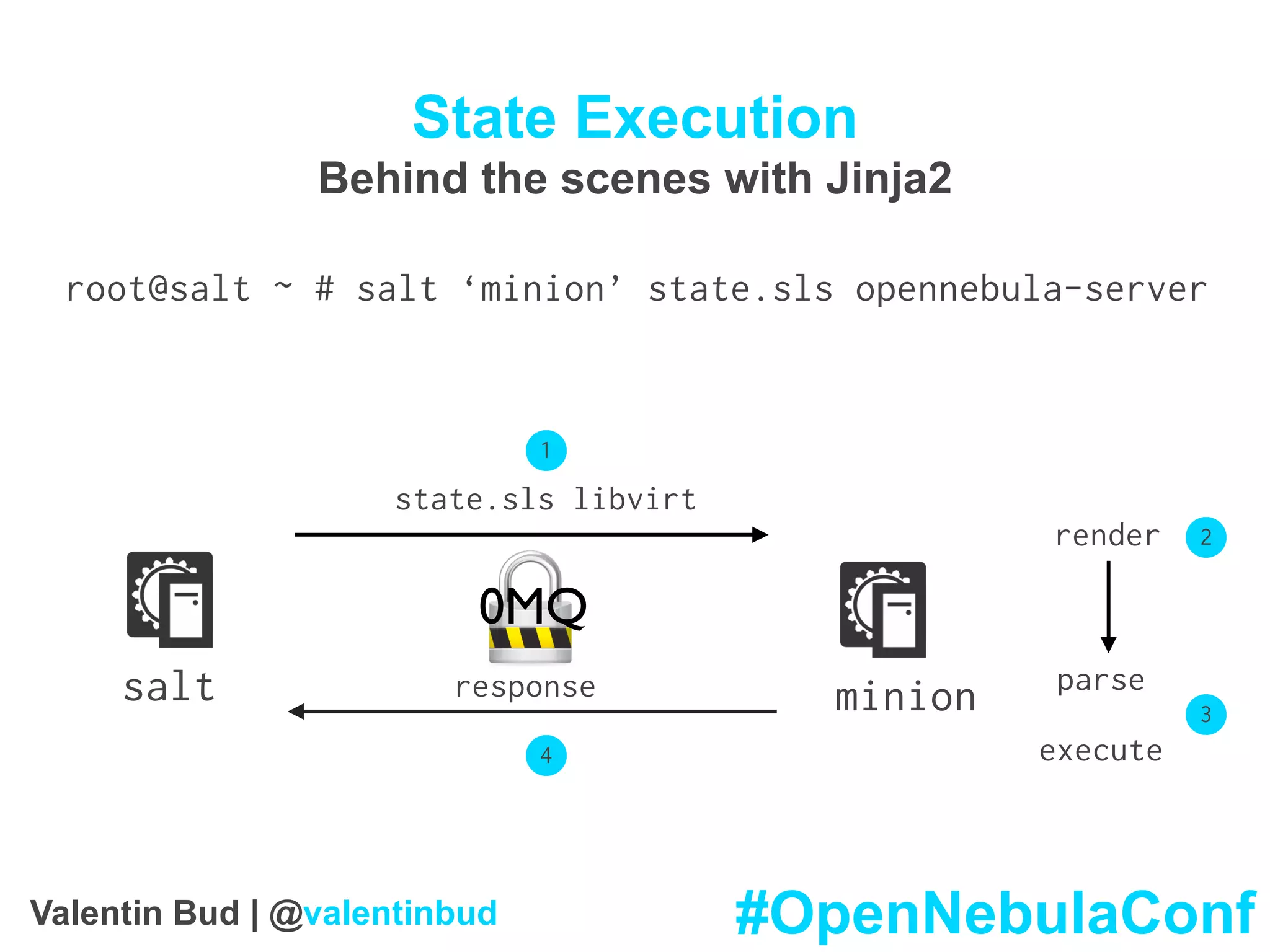

18. State Execution
Behind the scenes with Jinja2
salt minion
state.sls libvirt
response
root@salt ~ # salt ‘minion’ state.sls opennebula-server
1
parse
execute
2
4
render
3
0MQ
#OpenNebulaConfValentin Bud | @valentinbud

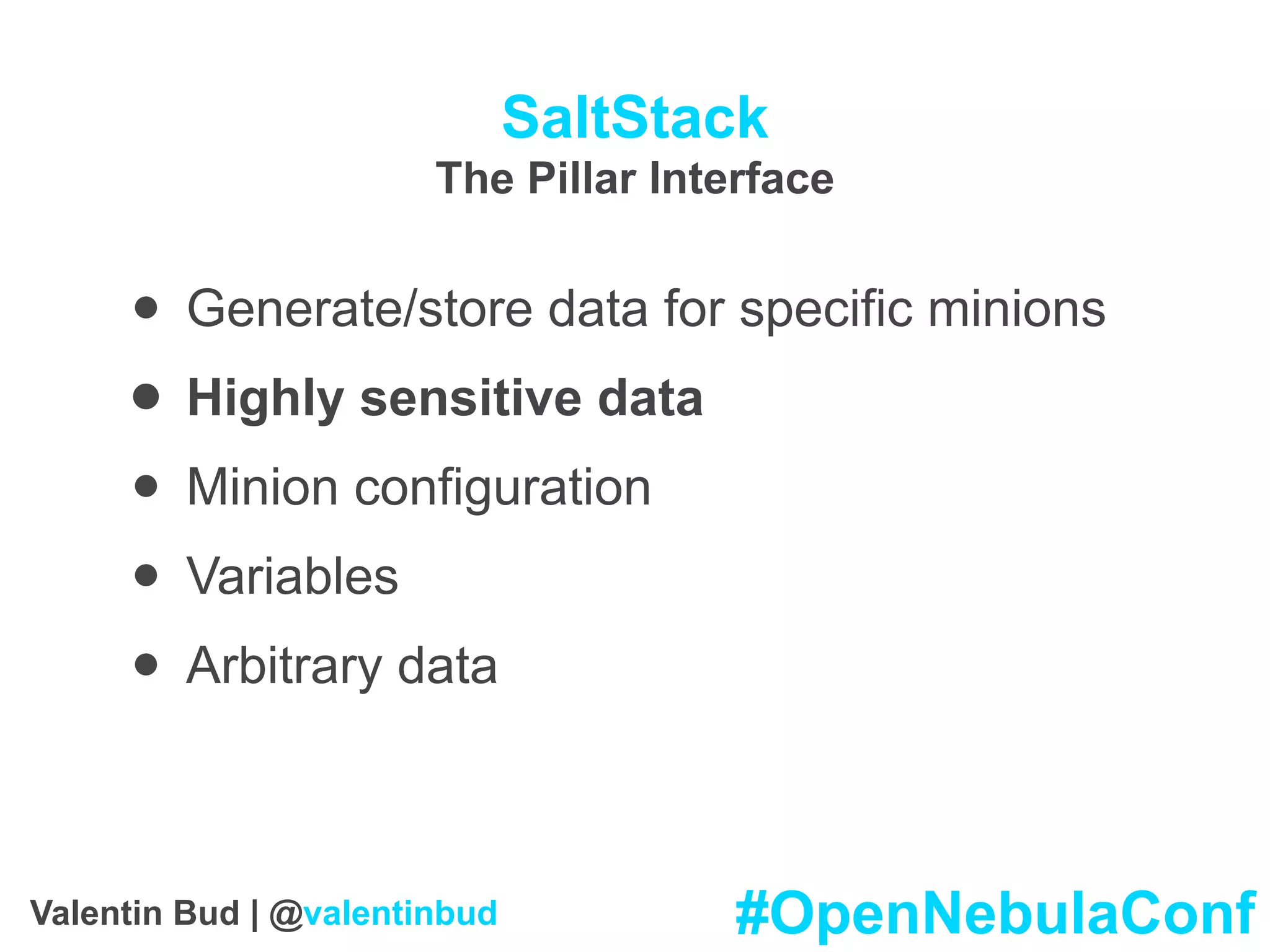

19. SaltStack
The Pillar Interface
• Generate/store data for specific minions
• Highly sensitive data
• Minion configuration
• Variables
• Arbitrary data
#OpenNebulaConfValentin Bud | @valentinbud

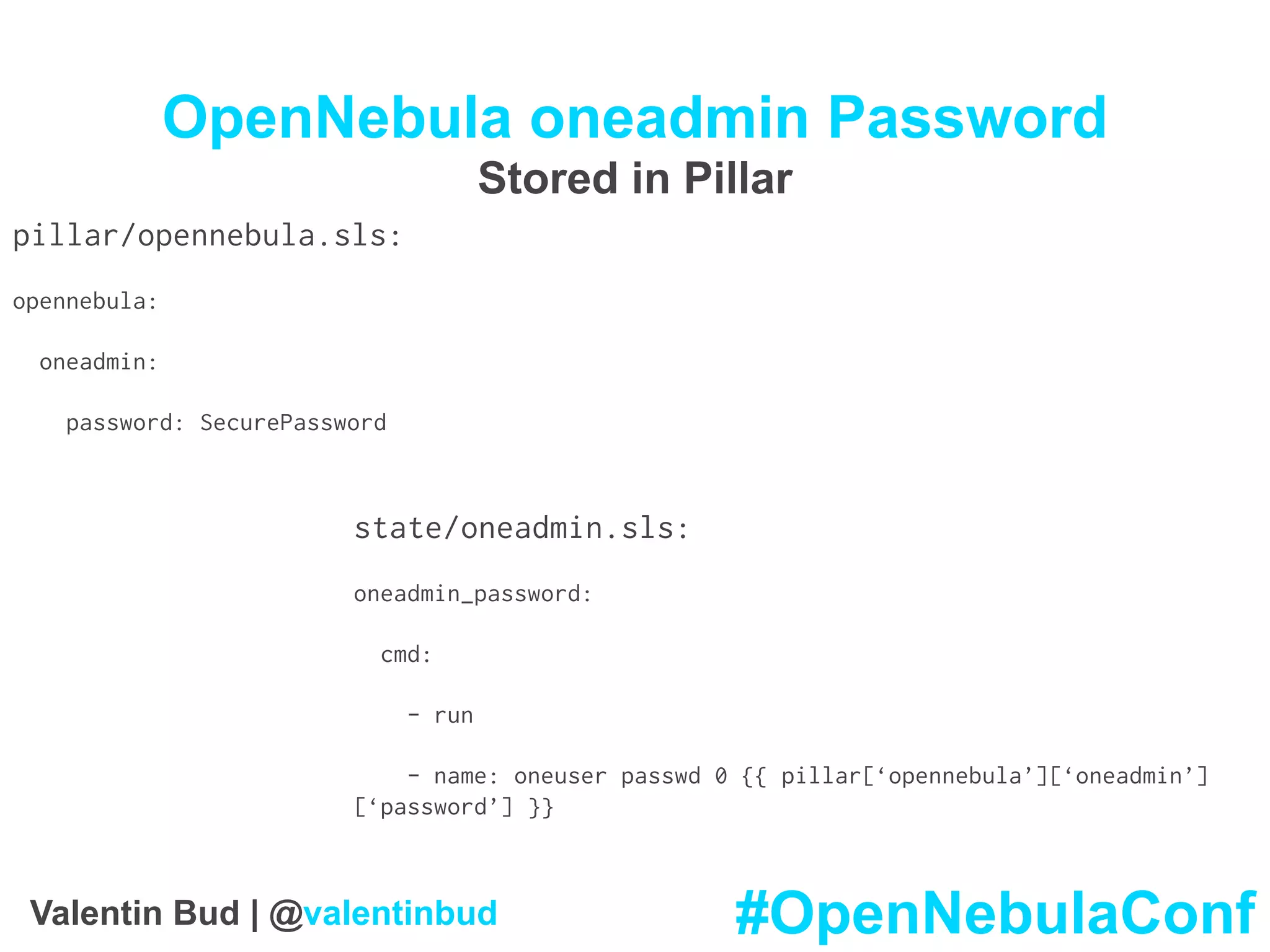

20. OpenNebula oneadmin Password
Stored in Pillar
pillar/opennebula.sls:
opennebula:
oneadmin:
password: SecurePassword
state/oneadmin.sls:
oneadmin_password:
cmd:
- run
- name: oneuser passwd 0 {{ pillar[‘opennebula’][‘oneadmin’]
[‘password’] }}
#OpenNebulaConfValentin Bud | @valentinbud

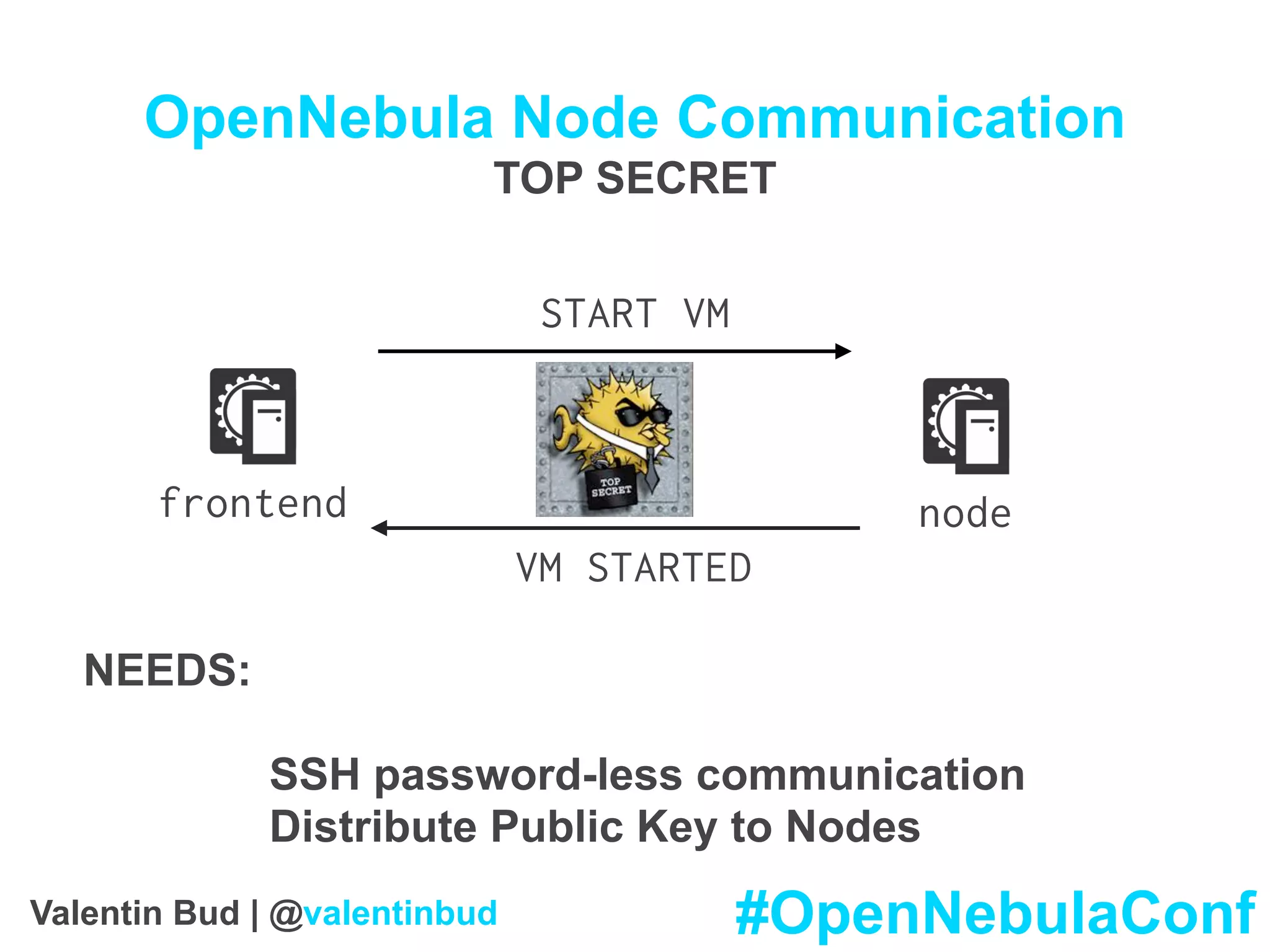

21. OpenNebula Node Communication
TOP SECRET
frontend node
START VM
VM STARTED
NEEDS:
SSH password-less communication
Distribute Public Key to Nodes
#OpenNebulaConfValentin Bud | @valentinbud

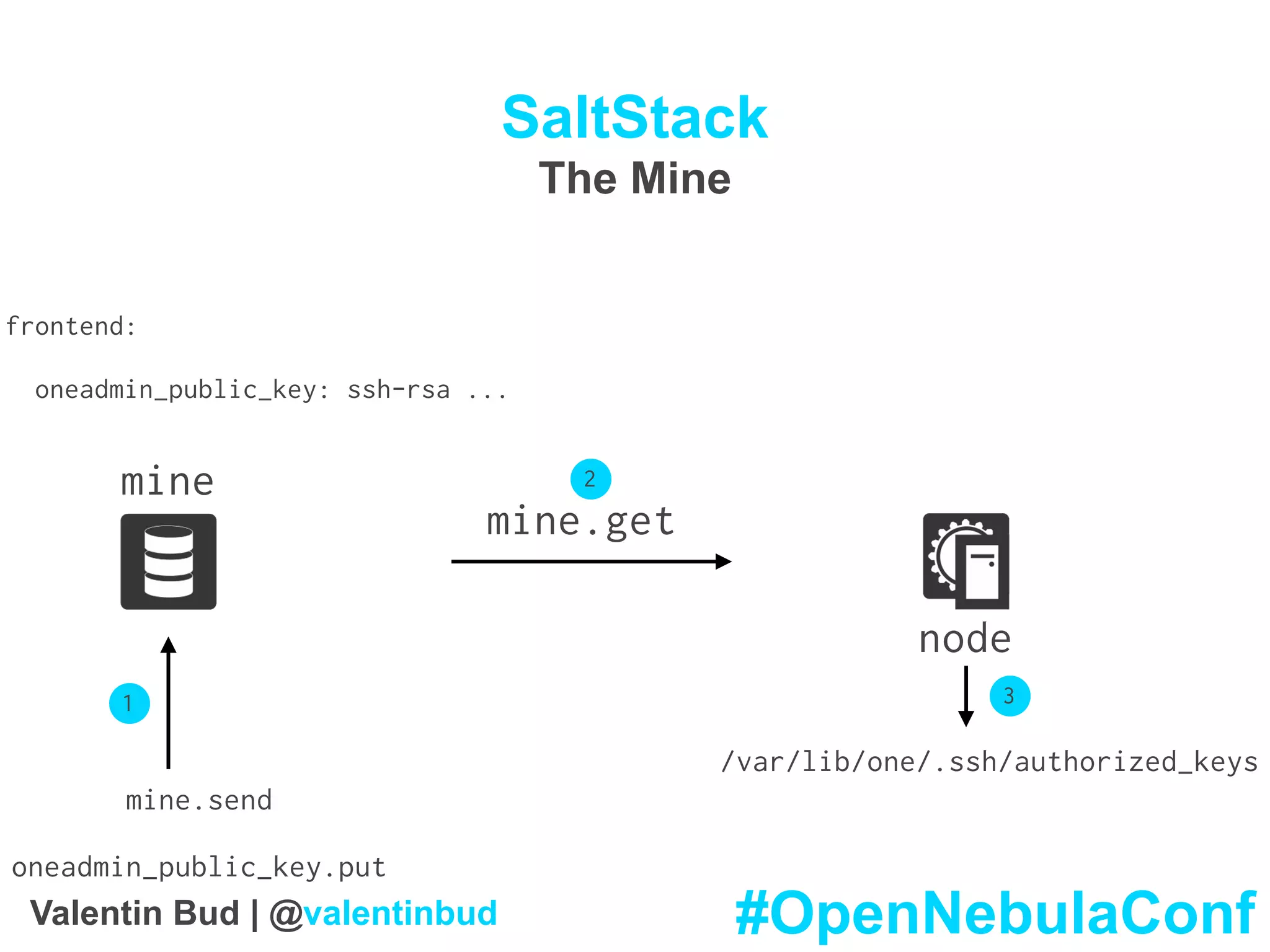

22. SaltStack
The Mine
node
mine
mine.send
oneadmin_public_key.put
1
mine.get
2
/var/lib/one/.ssh/authorized_keys
3
frontend:
oneadmin_public_key: ssh-rsa ...
#OpenNebulaConfValentin Bud | @valentinbud

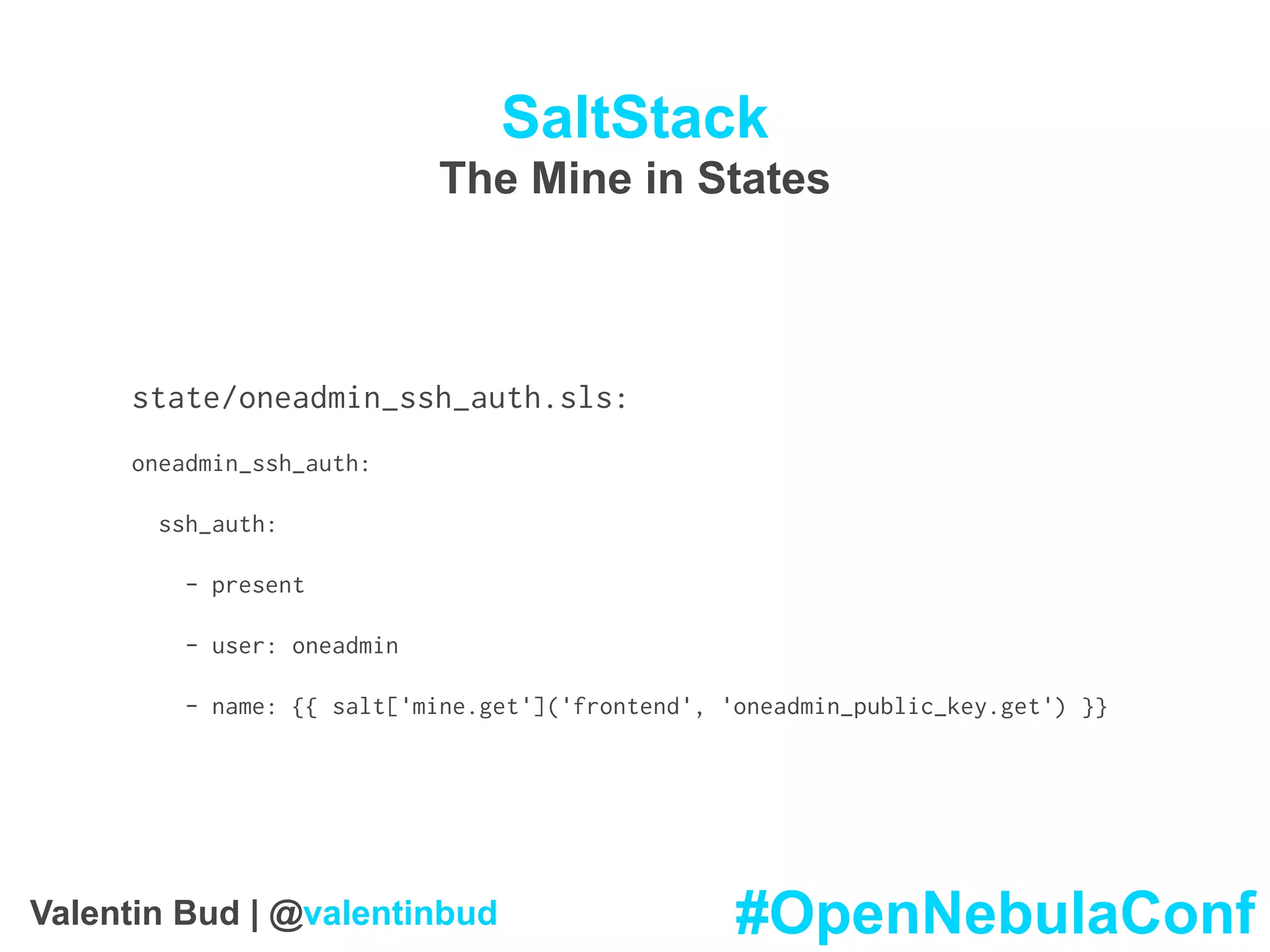

23. SaltStack
The Mine in States
state/oneadmin_ssh_auth.sls:
oneadmin_ssh_auth:
ssh_auth:
- present
- user: oneadmin
- name: {{ salt['mine.get']('frontend', 'oneadmin_public_key.get') }}
#OpenNebulaConfValentin Bud | @valentinbud

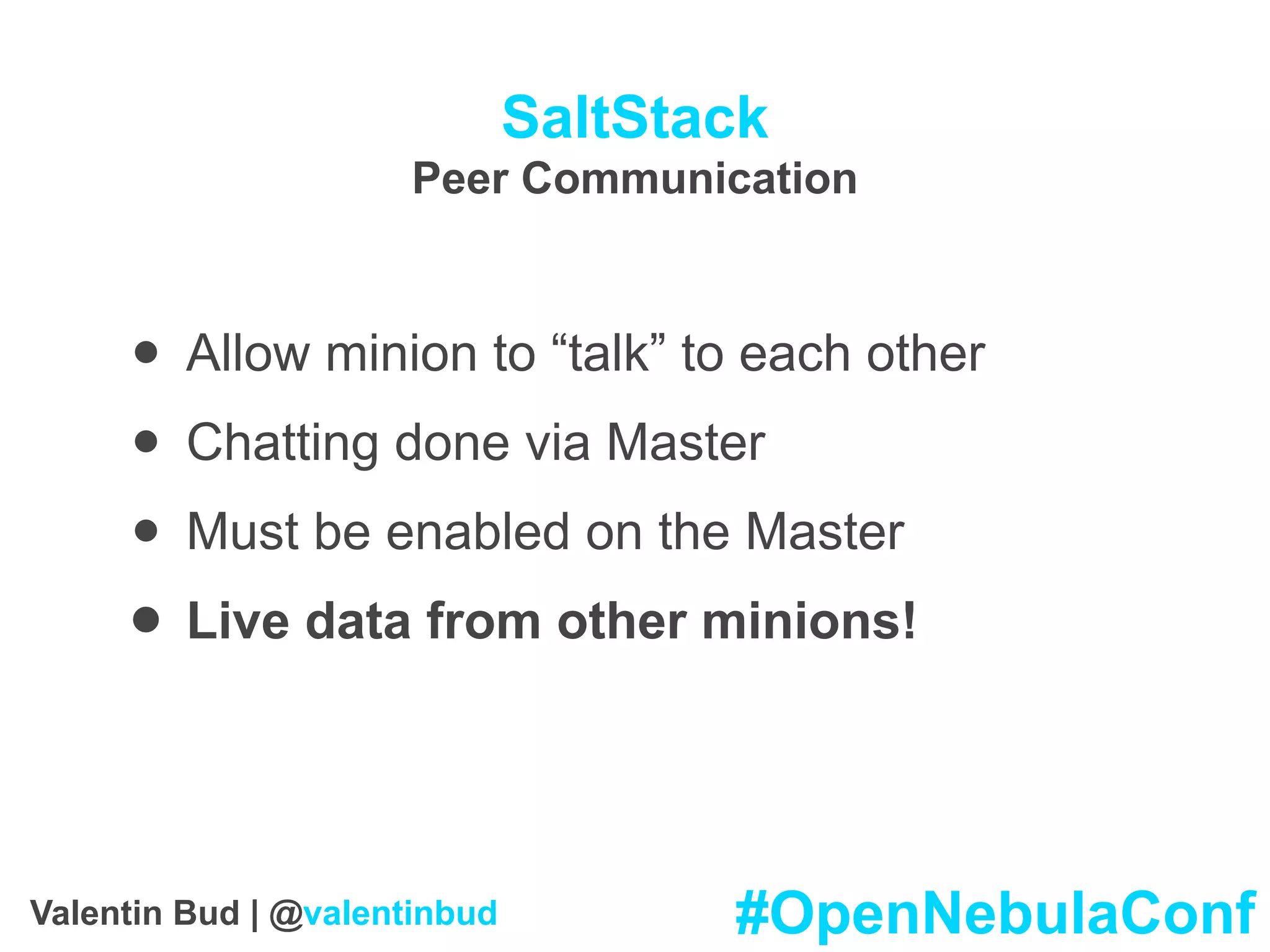

24. SaltStack
Peer Communication
• Allow minion to “talk” to each other
• Chatting done via Master
• Must be enabled on the Master
• Live data from other minions!
#OpenNebulaConfValentin Bud | @valentinbud

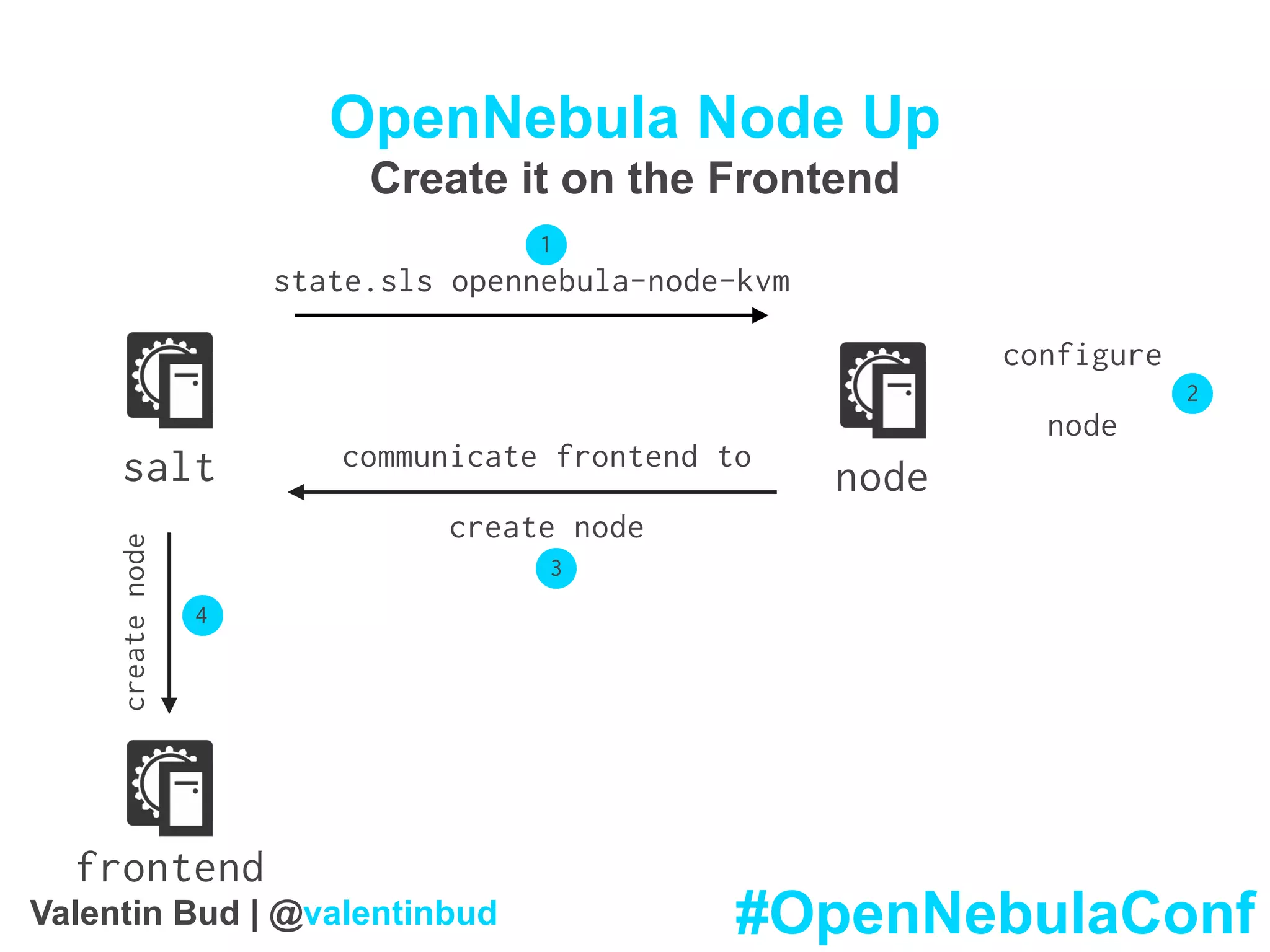

25. OpenNebula Node Up
Create it on the Frontend
salt node
state.sls opennebula-node-kvm
communicate frontend to
create node
1
configure
node
2
4
3
frontend
createnode
#OpenNebulaConfValentin Bud | @valentinbud

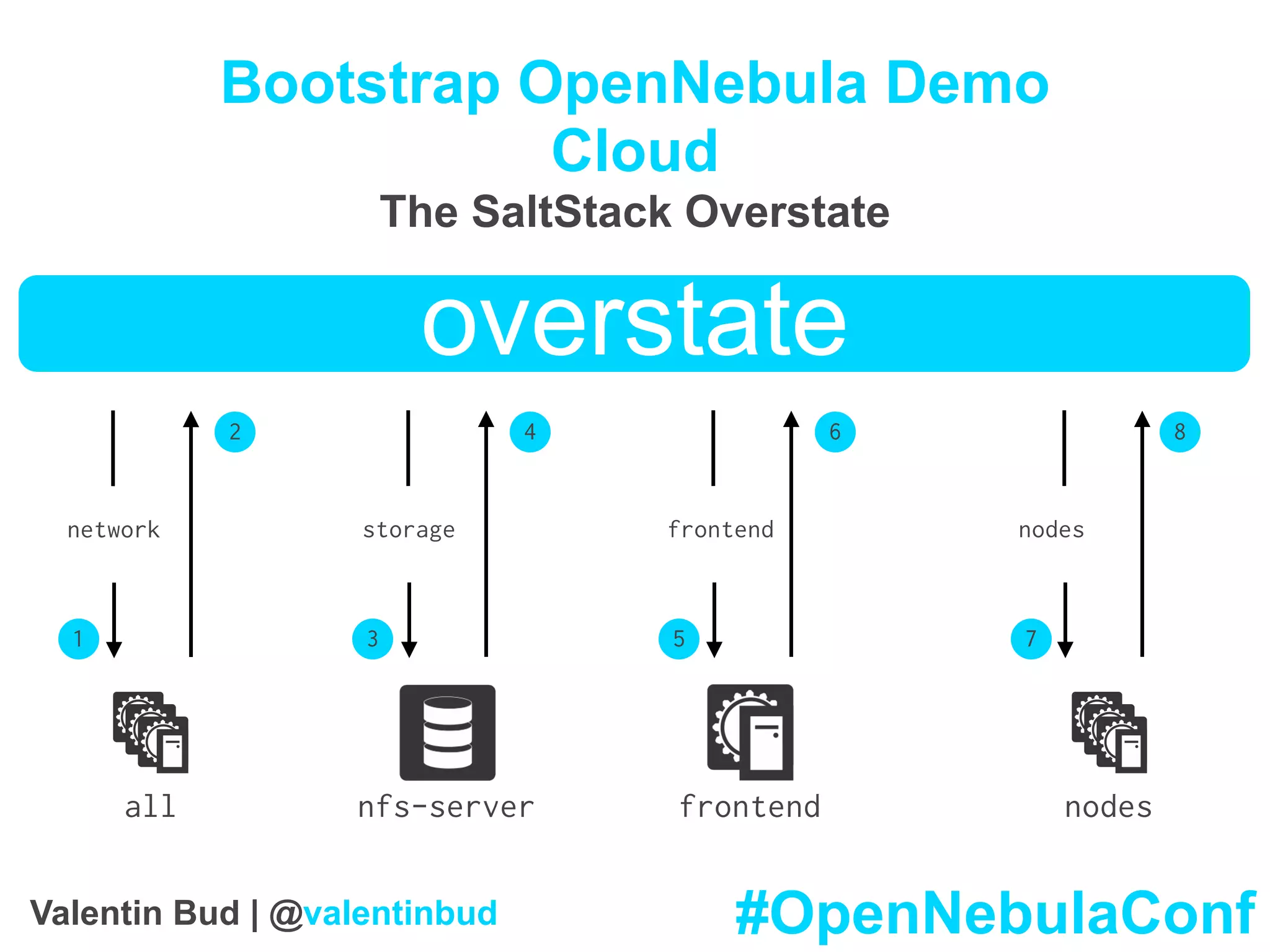

26. Bootstrap OpenNebula Demo
Cloud
The SaltStack Overstate
overstate
all
network
nfs-server
storage
frontend
frontend
nodes
nodes
1
2
3
4
5
6
7
8
#OpenNebulaConfValentin Bud | @valentinbud

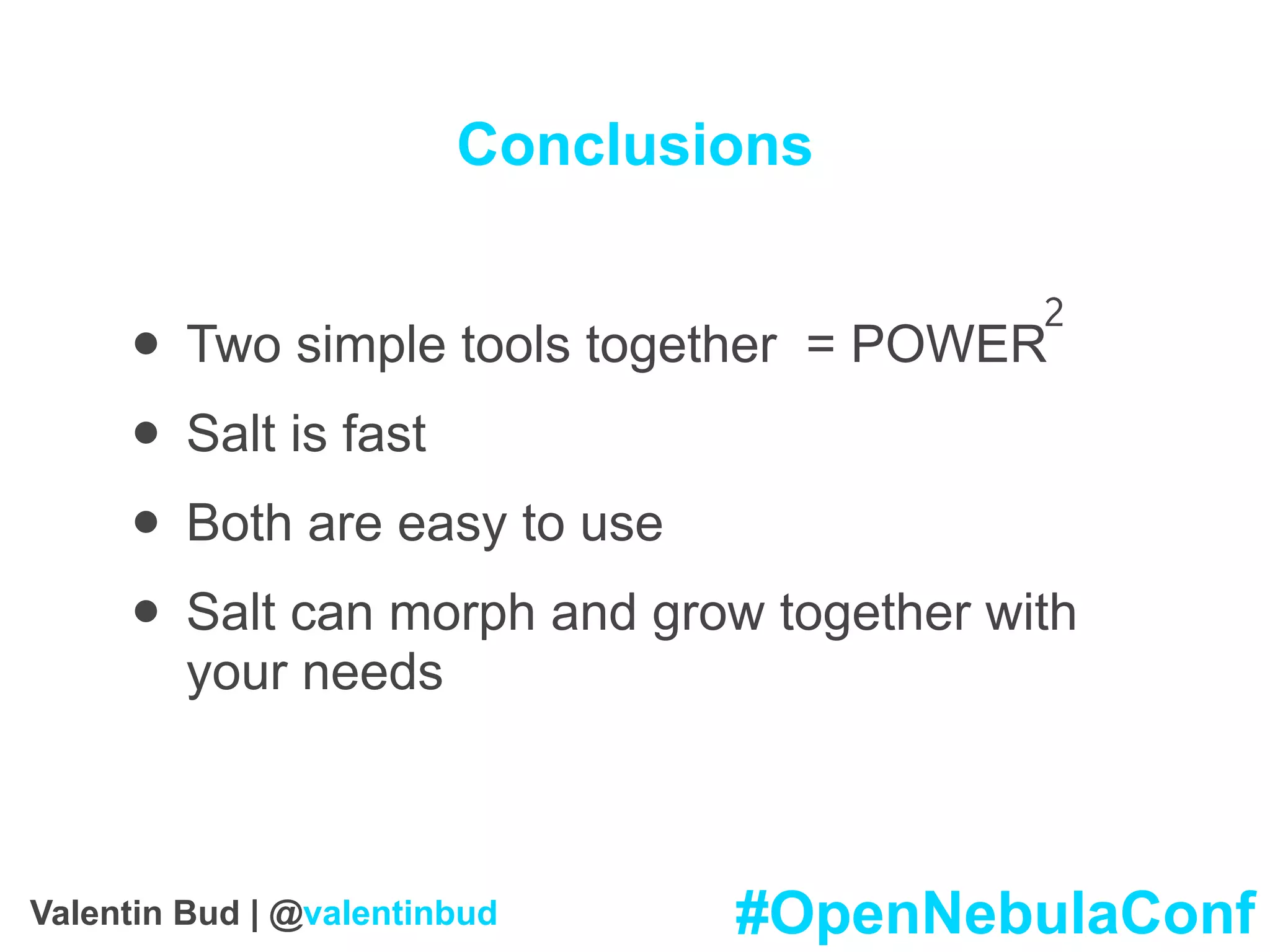

27. Conclusions
• Two simple tools together = POWER
• Salt is fast
• Both are easy to use
• Salt can morph and grow together with
your needs
2
