Oracle 12c Application development

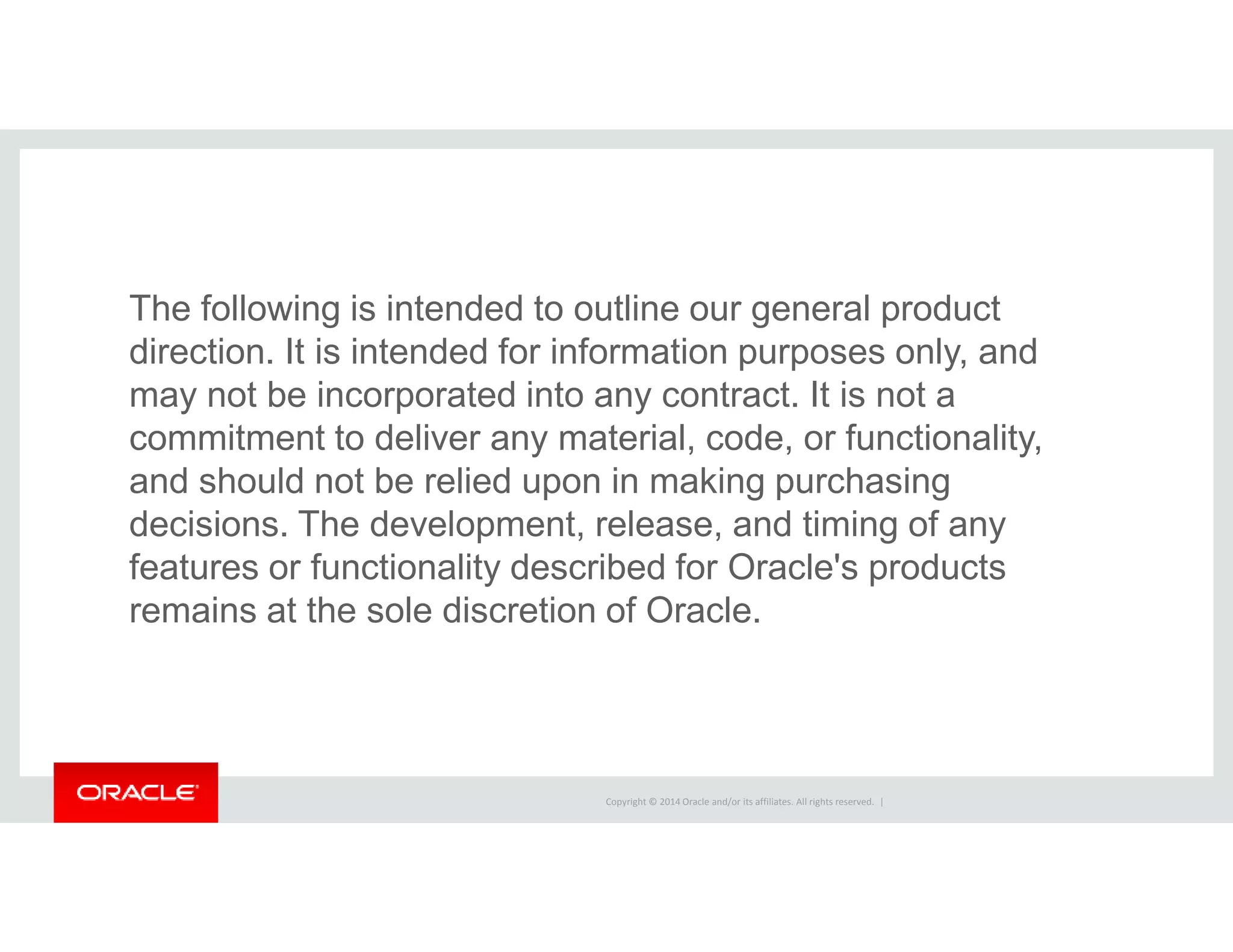

The following is intended to outline our general product
direction. It is intended for information purposes only, and
may not be incorporated into any contract. It is not a
commitment to deliver any material, code, or functionality,
and should not be relied upon in making purchasing
decisions. The development, release, and timing of any
features or functionality described for Oracle's products
remains at the sole discretion of Oracle.
Copyright © 2014 Oracle and/or its affiliates. All rights reserved. |

Oracle Database 12c
Application Development
Saurabh K. Gupta
Oracle Database Product Management

AApppplliiccaattiioonn DDeevveellooppmmeenntt
BBiigg DDaattaa
CCoonnssoolliiddaattiioonn
DDaattaa OOppttiimmiizzaattiioonn
DDaattaa WWaarreehhoouussiinngg
Plug into the Cloud
HHiigghh AAvvaaiillaabbiilliittyy
IInn-MMeemmoorryy
PPeerrffoorrmmaannccee && SSccaallaabbiilliittyy
SSeeccuurriittyy && CCoommpplliiaannccee

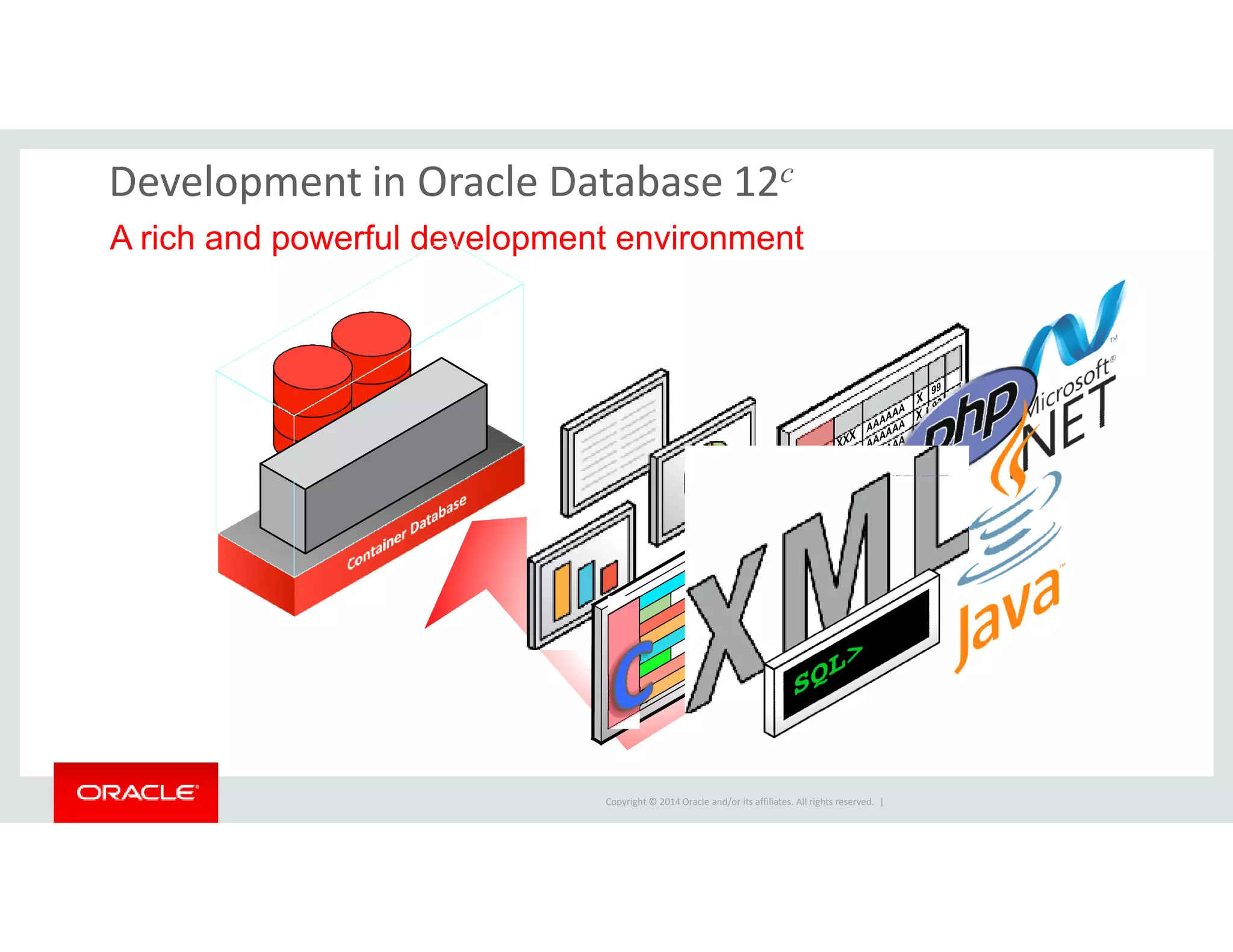

Development in Oracle Database 12c
A rich and powerful development environment

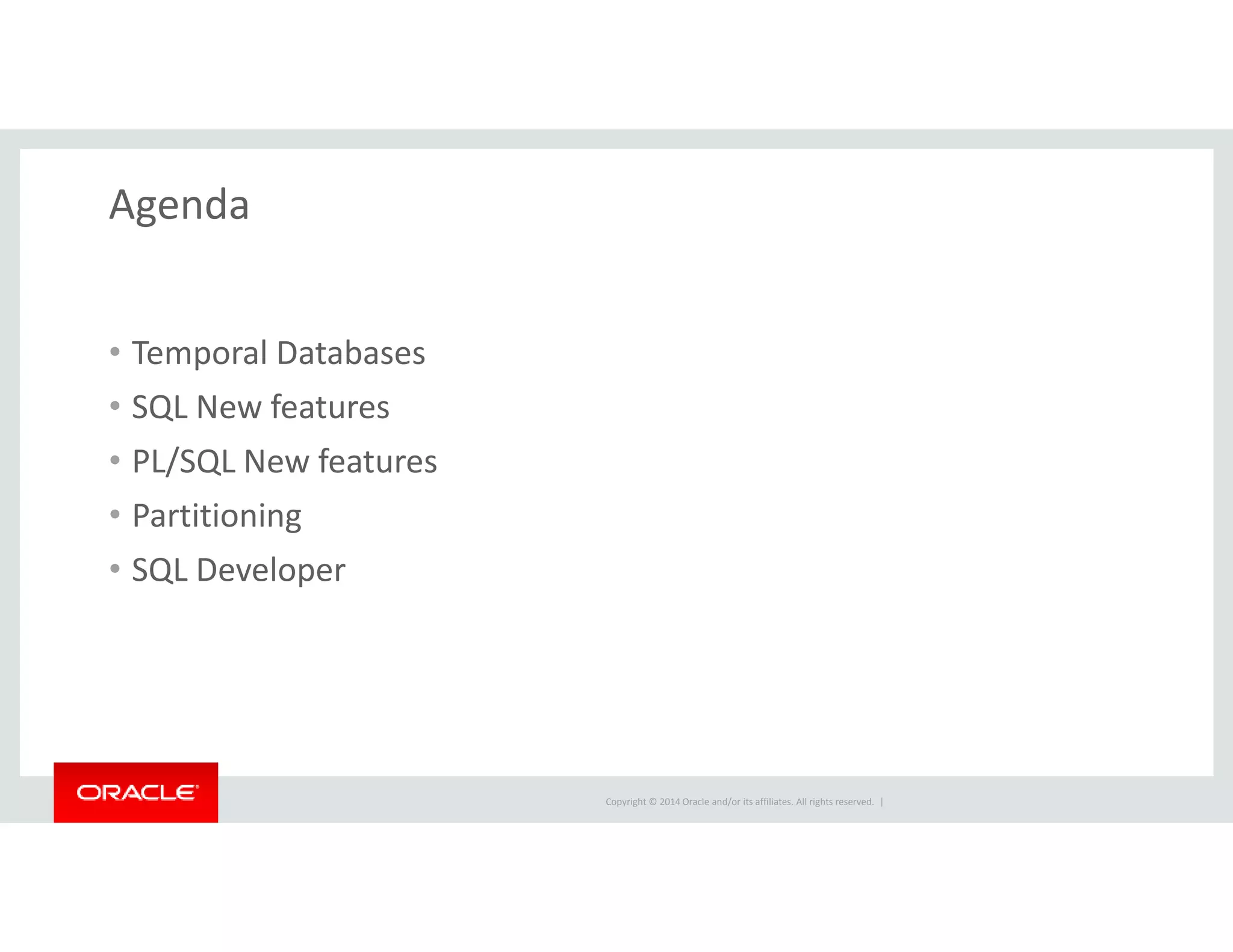

Agenda
• Temporal Databases
• SQL New features
• PL/SQL New features
• Partitioning

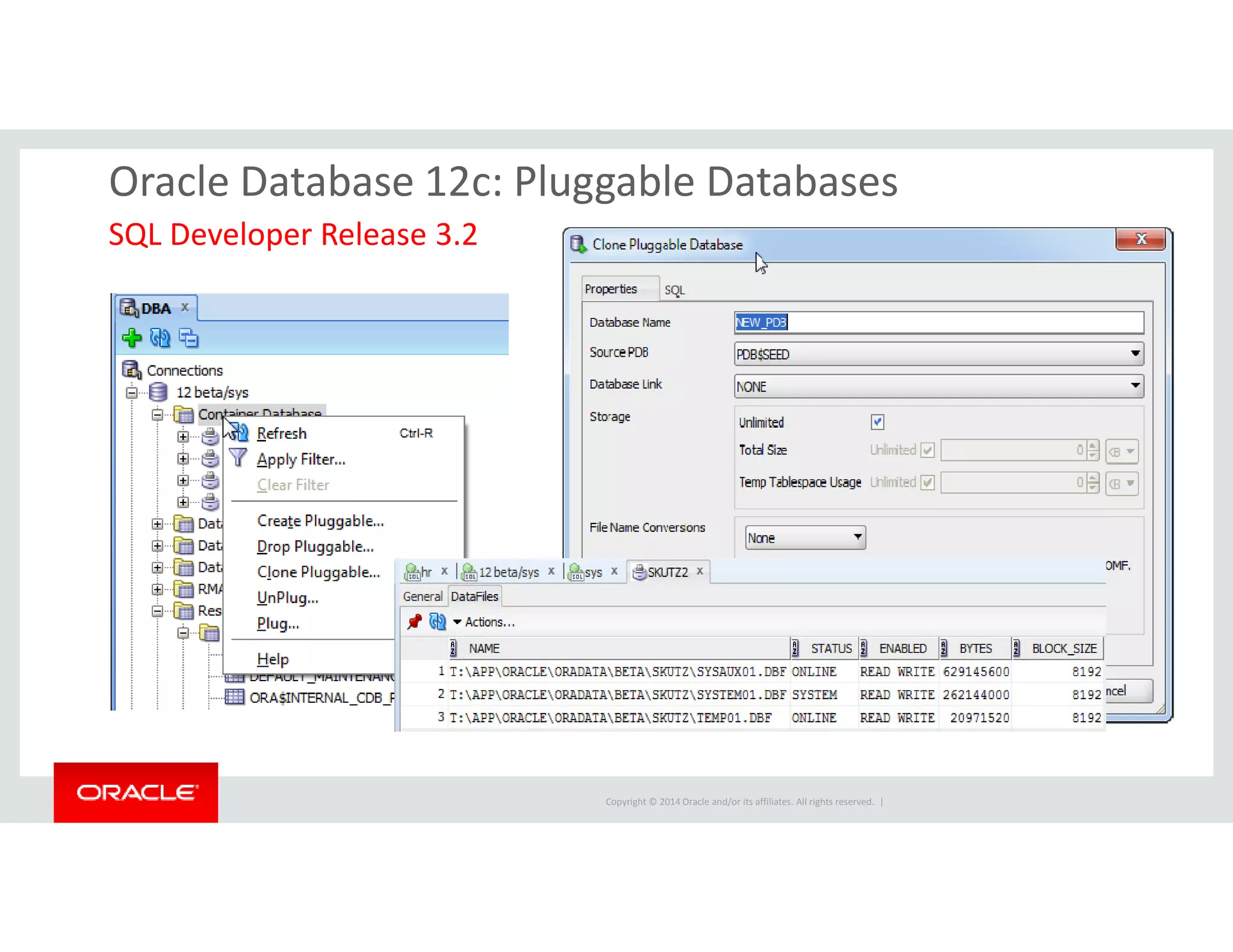

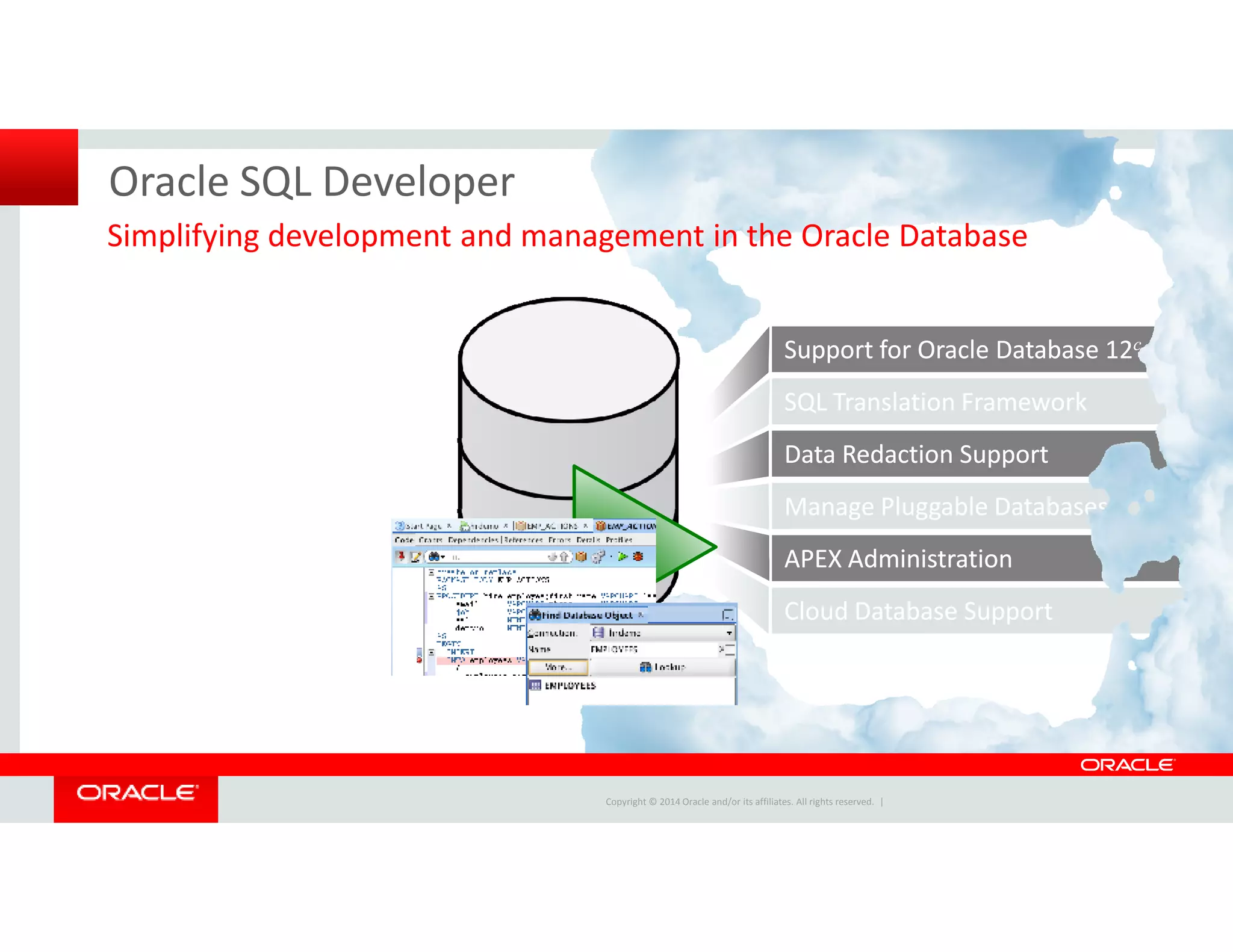

• SQL Developer

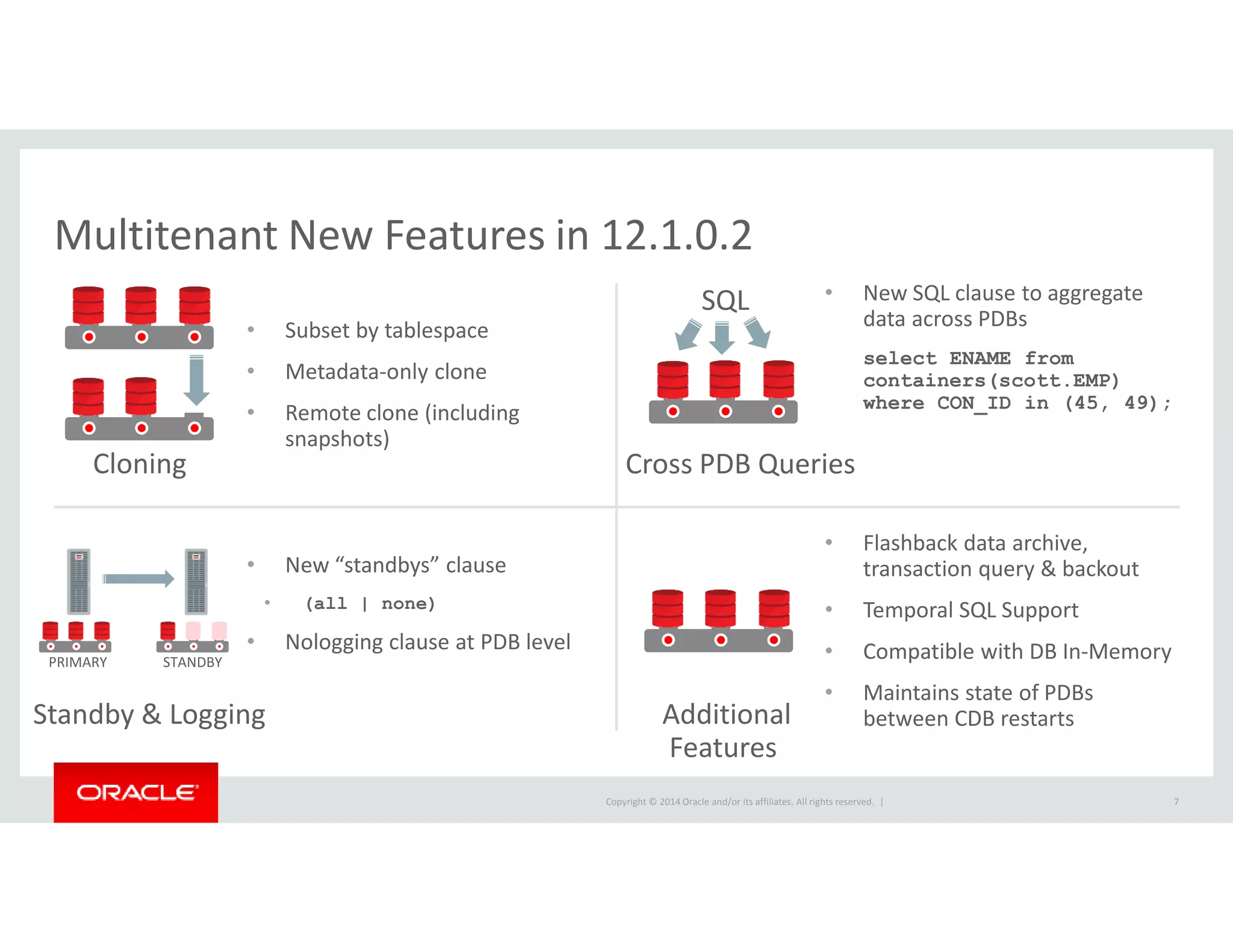

Multitenant New Features in 12.1.0.2
• Subset by tablespace
• Metadata-only clone
• Remote clone (including
snapshots)
• New SQL clause to aggregate
data across PDBs
select ENAME from
containers(scott.EMP)
where CON_ID in (45, 49);
Cloning
SQL
Cross PDB Queries
• New “standbys” clause
• (all | none)
• Nologging clause at PDB level
• Flashback data archive,
transaction query & backout
• Temporal SQL Support
• Compatible with DB In-Memory
• Maintains state of PDBs
between CDB restarts
7
PRIMARY STANDBY
Standby & Logging
Additional
Features

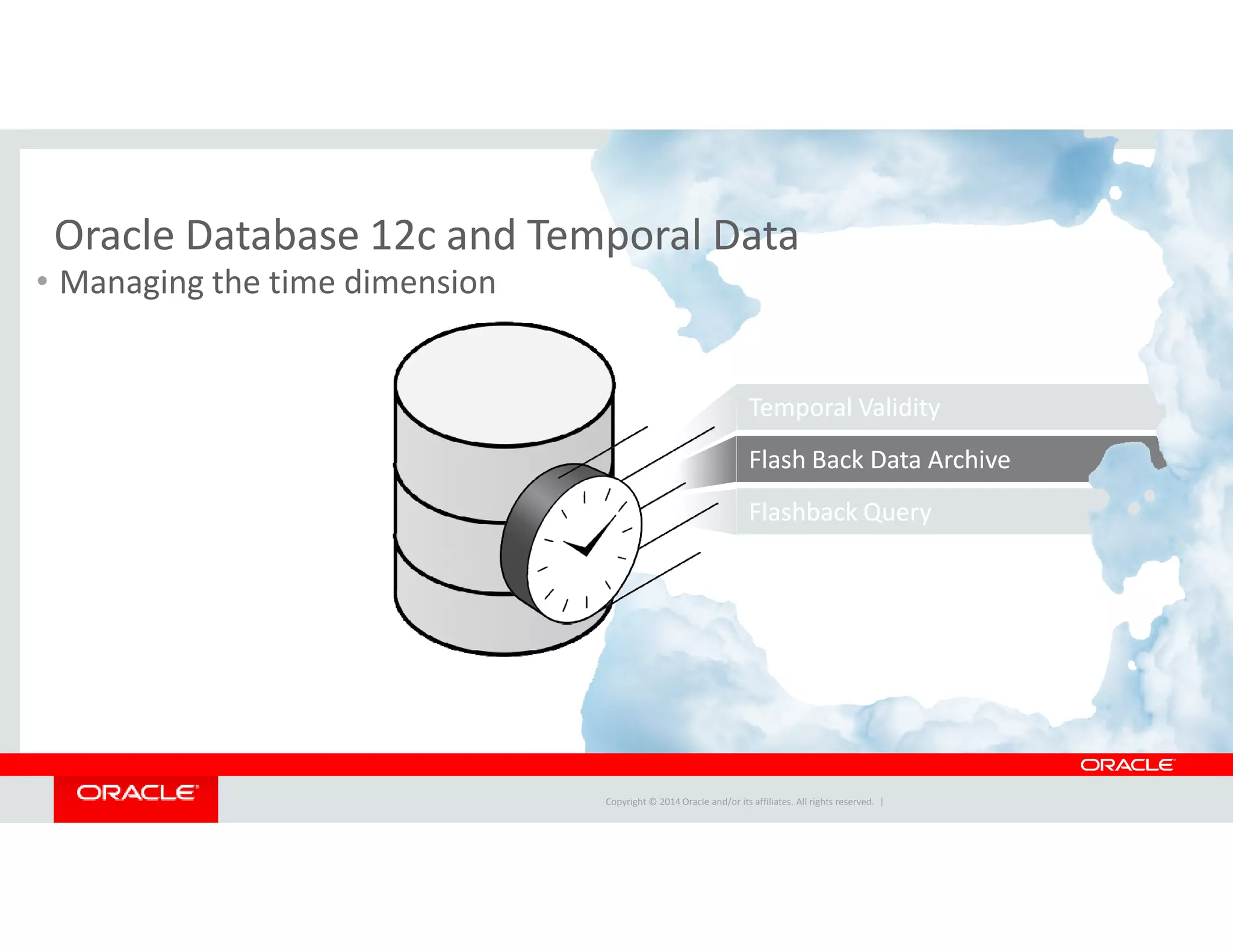

Oracle Database 12c and Temporal Data
• Managing the time dimension
TTeemmppoorraall VVaalliiddiittyy
FFllaasshh BBaacckk DDaattaa AArrcchhiivvee
FFllaasshhbbaacckk QQuueerryy

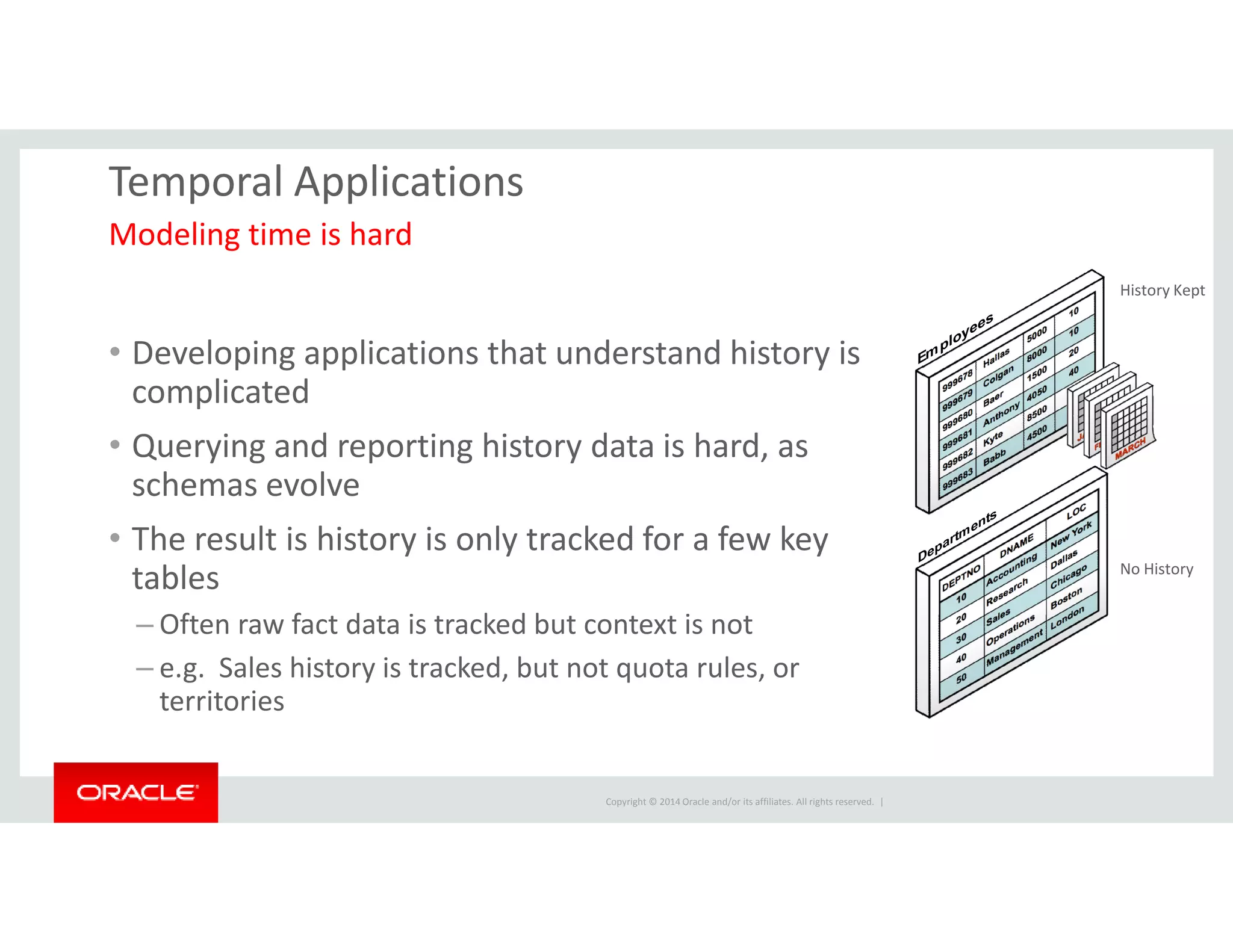

Temporal Applications
Modeling time is hard
• Developing applications that understand history is
complicated
• Querying and reporting history data is hard, as
schemas evolve
Employees
History Kept
• The result is history is only tracked for a few key
tables
– Often raw fact data is tracked but context is not
– e.g. Sales history is tracked, but not quota rules, or
territories
Departments
No History

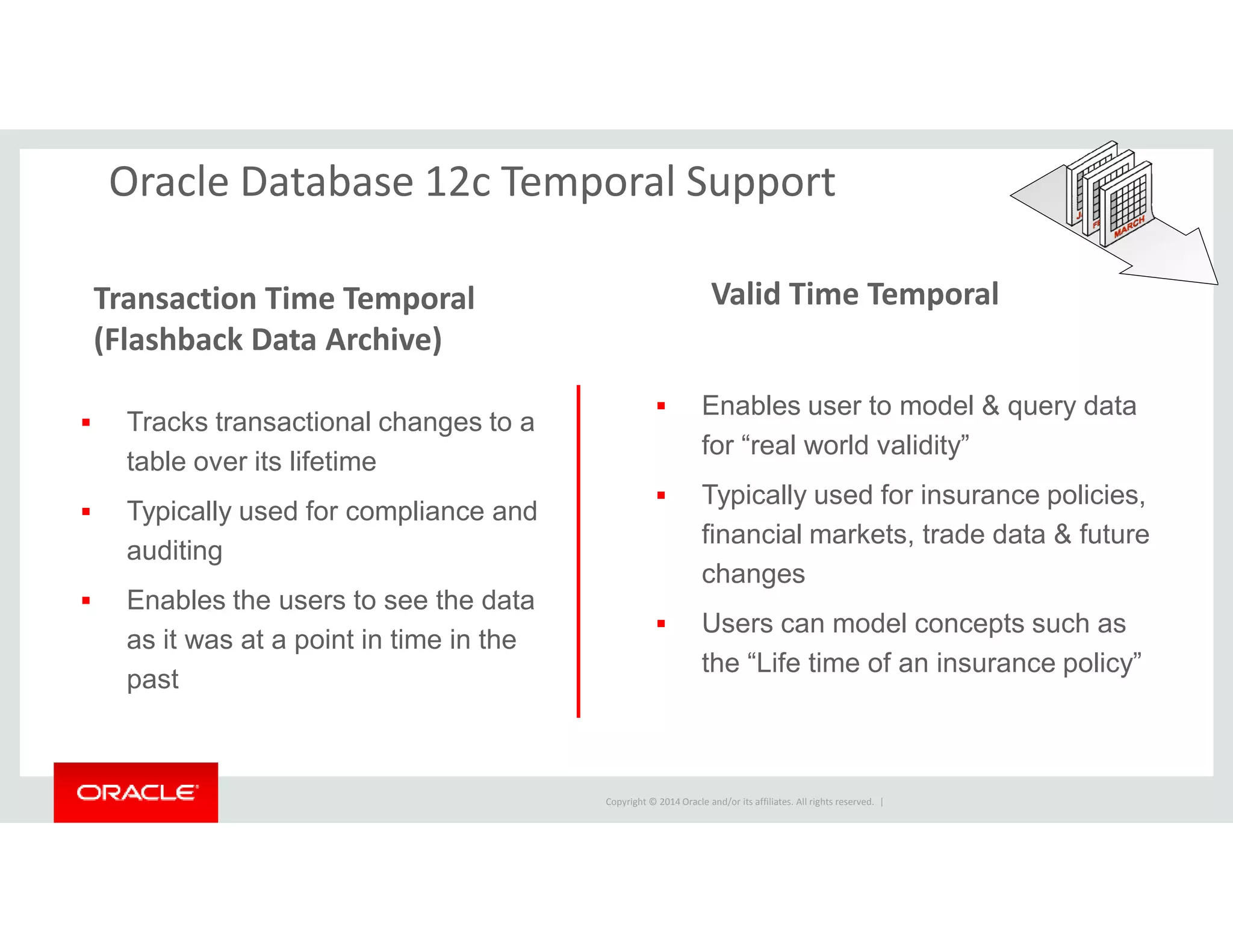

Oracle Database 12c Temporal Support
Transaction Time Temporal
(Flashback Data Archive)
Tracks transactional changes to a
table over its lifetime
Valid Time Temporal
Enables user to model query data
for “real world validity”
Typically used for compliance and
auditing
Enables the users to see the data
as it was at a point in time in the
past
Typically used for insurance policies,
financial markets, trade data future
changes
Users can model concepts such as
the “Life time of an insurance policy”

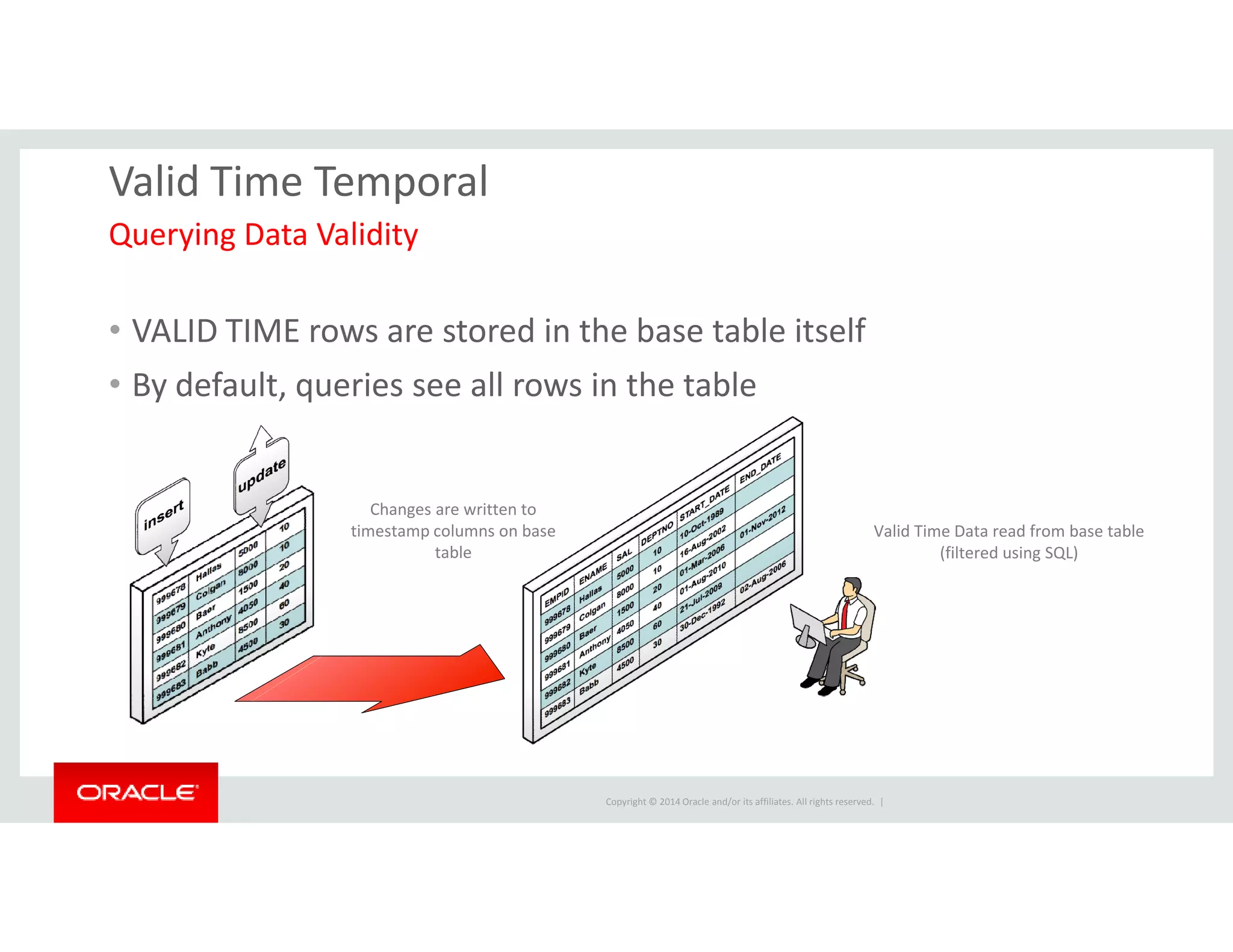

Valid Time Temporal
Querying Data Validity
• VALID TIME rows are stored in the base table itself
• By default, queries see all rows in the table
Changes are written to
timestamp columns on base
table
Valid Time Data read from base table
(filtered using SQL)

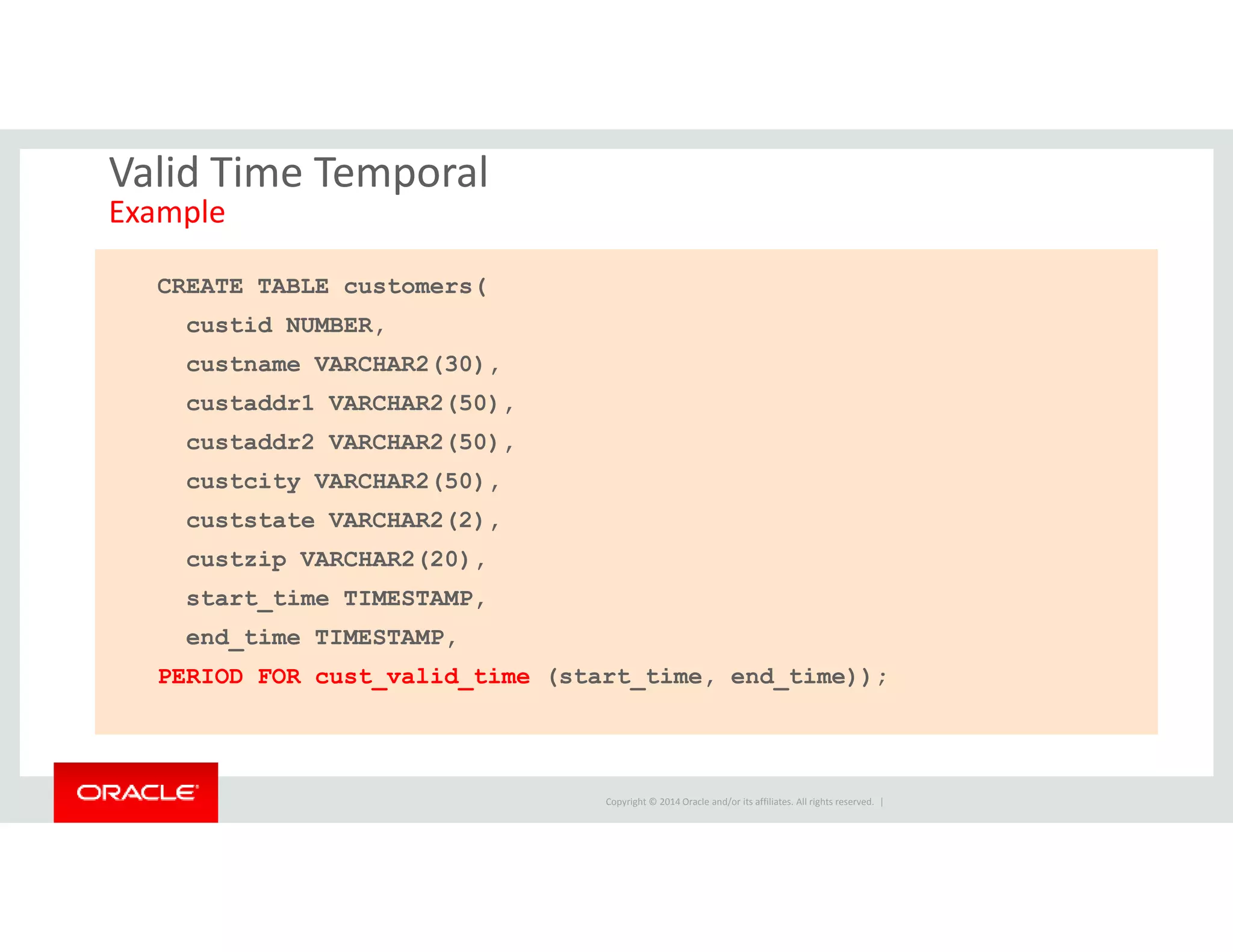

Valid Time Temporal
Example
CREATE TABLE customers(
custid NUMBER,
custname VARCHAR2(30),
custaddr1 VARCHAR2(50),
custaddr2 VARCHAR2(50),
custcity VARCHAR2(50),
custstate VARCHAR2(2),
custzip VARCHAR2(20),
start_time TIMESTAMP,
end_time TIMESTAMP,
PERIOD FOR cust_valid_time (start_time, end_time));

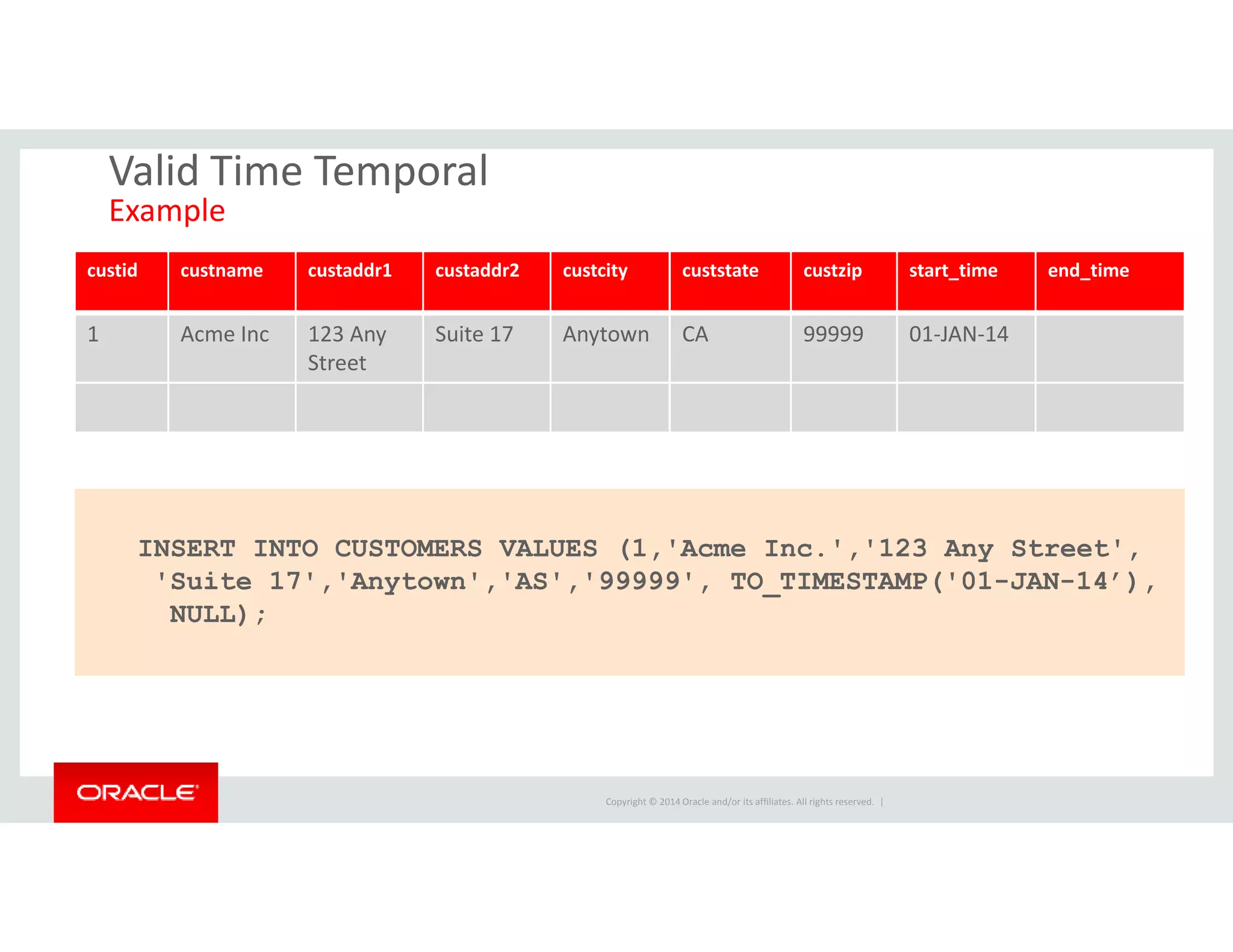

Valid Time Temporal
Example
custid custname custaddr1 custaddr2 custcity custstate custzip start_time end_time
1 Acme Inc 123 Any
Street
Suite 17 Anytown CA 99999 01-JAN-14
INSERT INTO CUSTOMERS VALUES (1,'Acme Inc.','123 Any Street',
'Suite 17','Anytown','AS','99999', TO_TIMESTAMP('01-JAN-14’),
NULL);

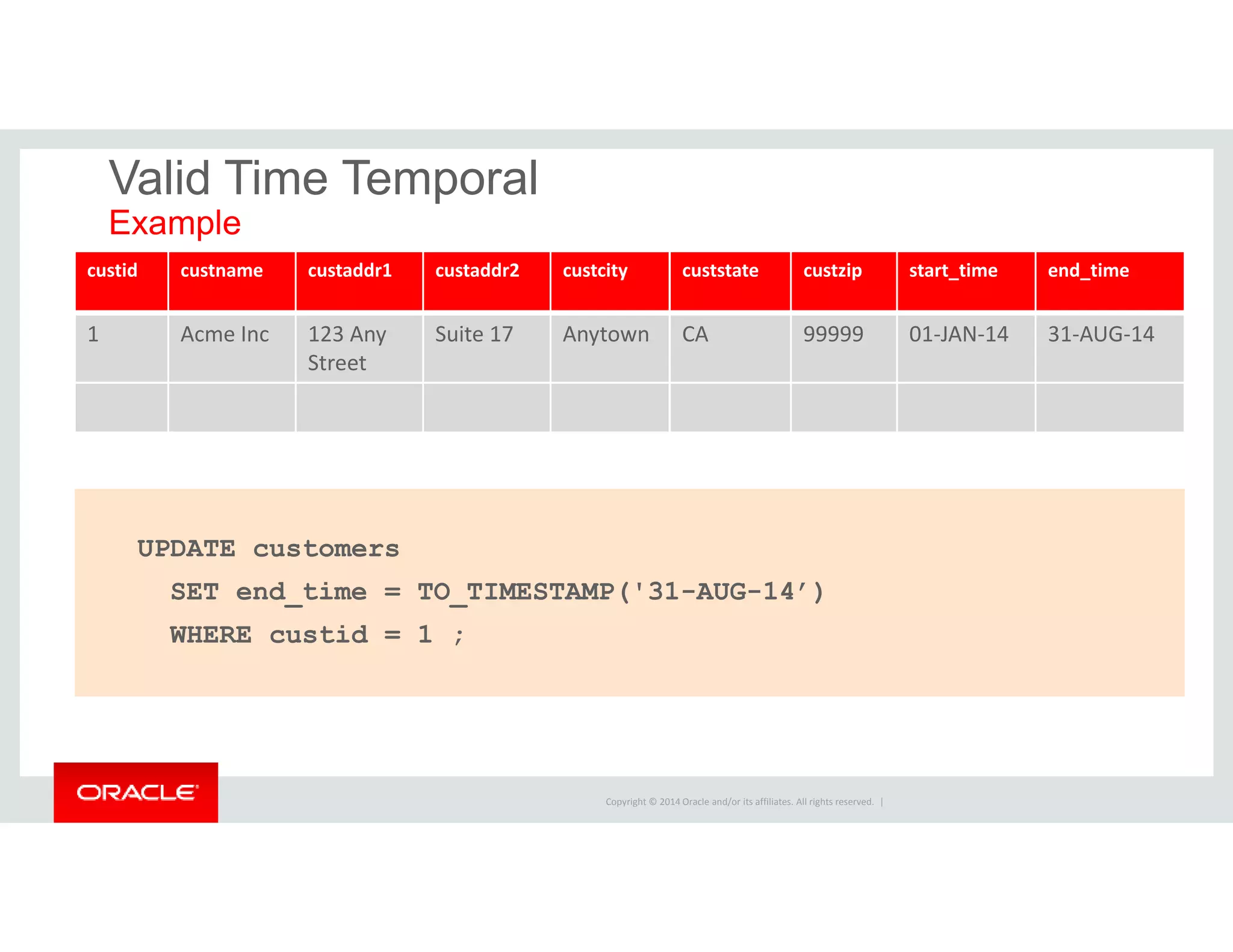

Valid Time Temporal
Example
1 Acme Inc 123 Any
Street
Suite 17 Anytown CA 99999 01-JAN-14 31-AUG-14
UPDATE customers
SET end_time = TO_TIMESTAMP('31-AUG-14’)
WHERE custid = 1 ;

1 Acme Inc 123 Any
Street
1 Acme Inc 456
Another
Street
Anytown CA 99998 01-SEP-14

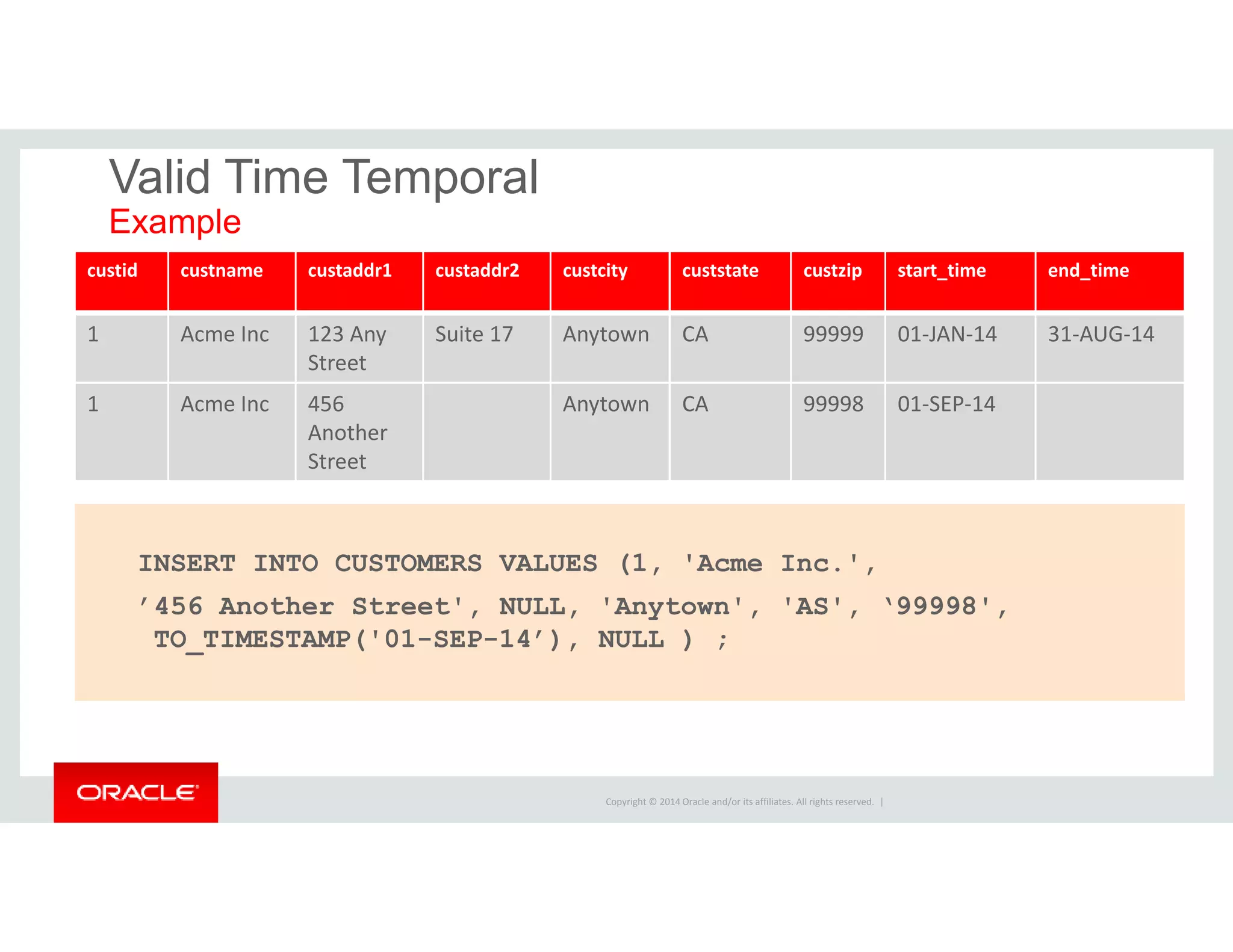

Valid Time Temporal
Example
INSERT INTO CUSTOMERS VALUES (1, 'Acme Inc.',
’456 Another Street', NULL, 'Anytown', 'AS', ‘99998',
TO_TIMESTAMP('01-SEP-14’), NULL ) ;

1 Acme Inc 123 Any
Street
1 Acme Inc 456
Another
Street

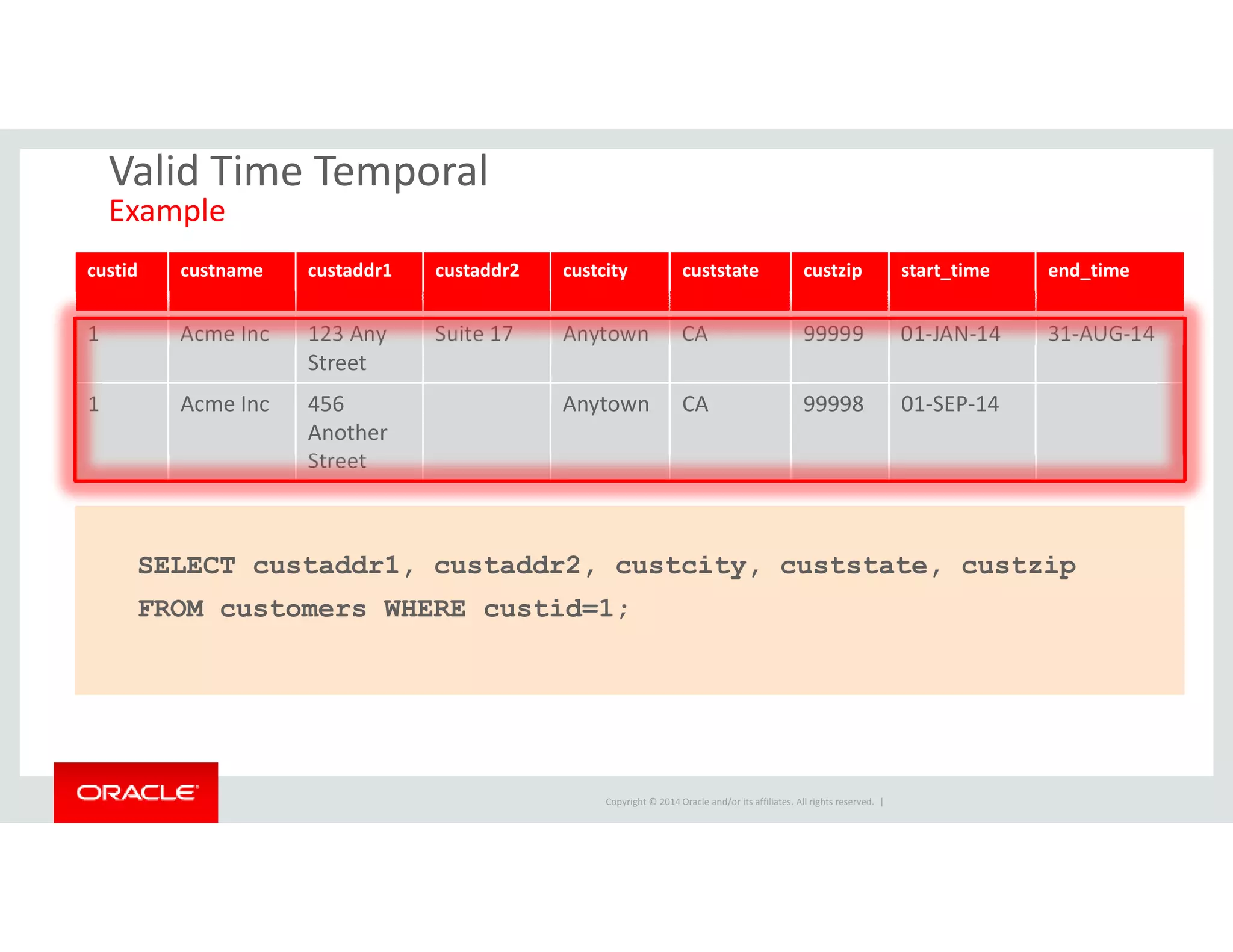

Valid Time Temporal
Example
SELECT custaddr1, custaddr2, custcity, custstate, custzip
FROM customers WHERE custid=1;

1 Acme Inc 123 Any
Street
1 Acme Inc 456
Another
Street

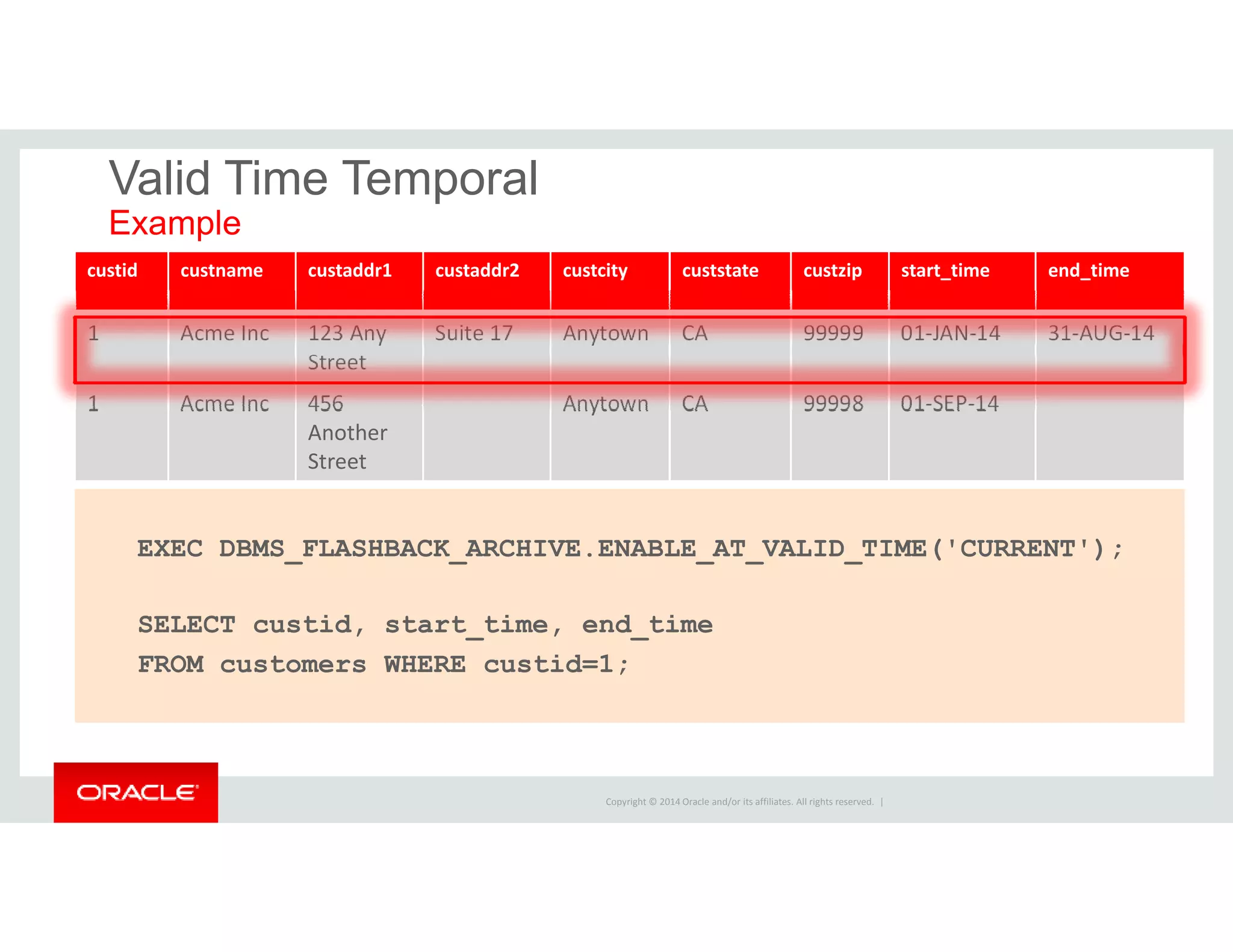

Valid Time Temporal
Example
EXEC DBMS_FLASHBACK_ARCHIVE.ENABLE_AT_VALID_TIME('CURRENT');
SELECT custid, start_time, end_time
FROM customers WHERE custid=1;

1 Acme Inc 123 Any
Street
1 Acme Inc 456
Another
Street

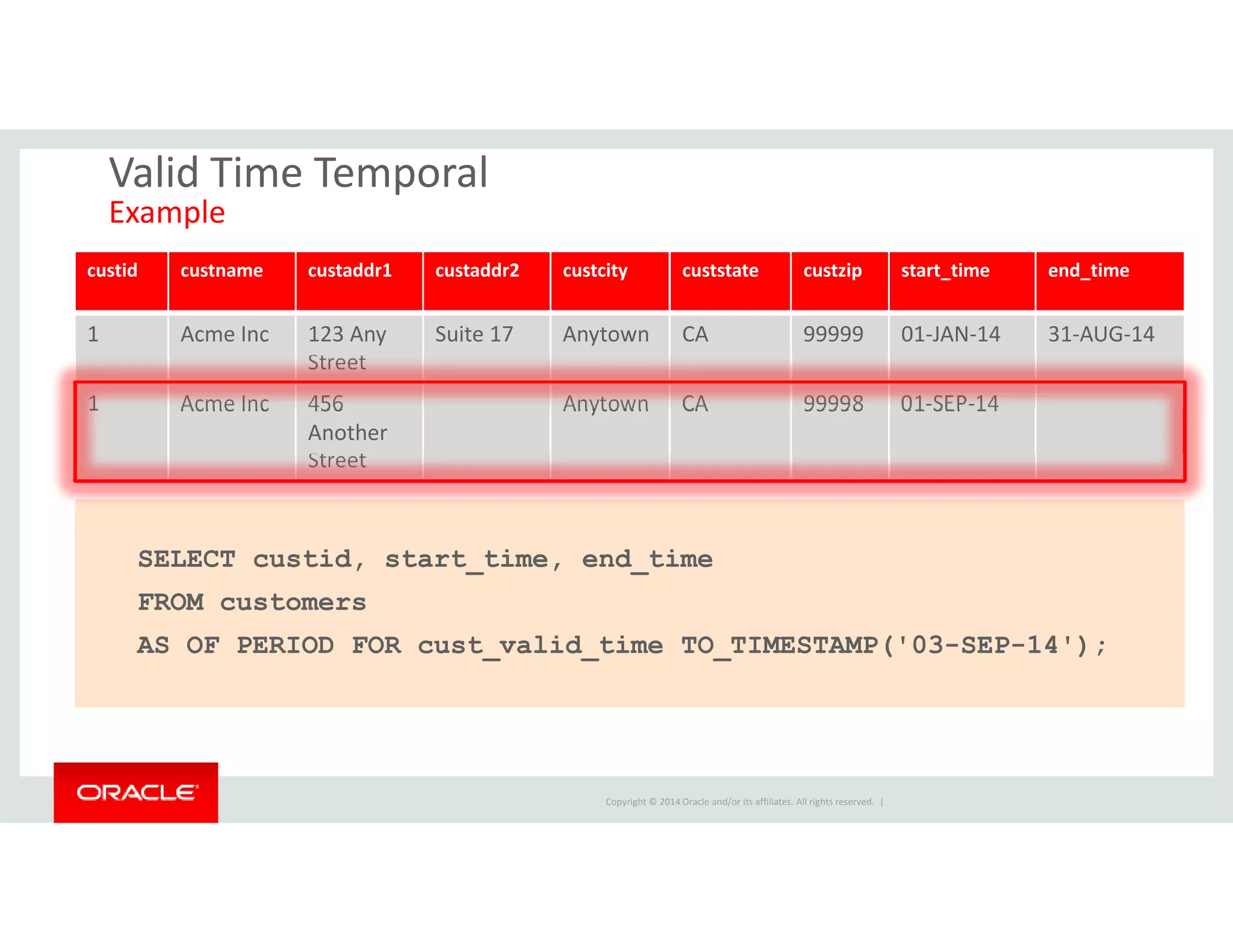

Valid Time Temporal
Example
SELECT custid, start_time, end_time
FROM customers
AS OF PERIOD FOR cust_valid_time TO_TIMESTAMP('03-SEP-14');

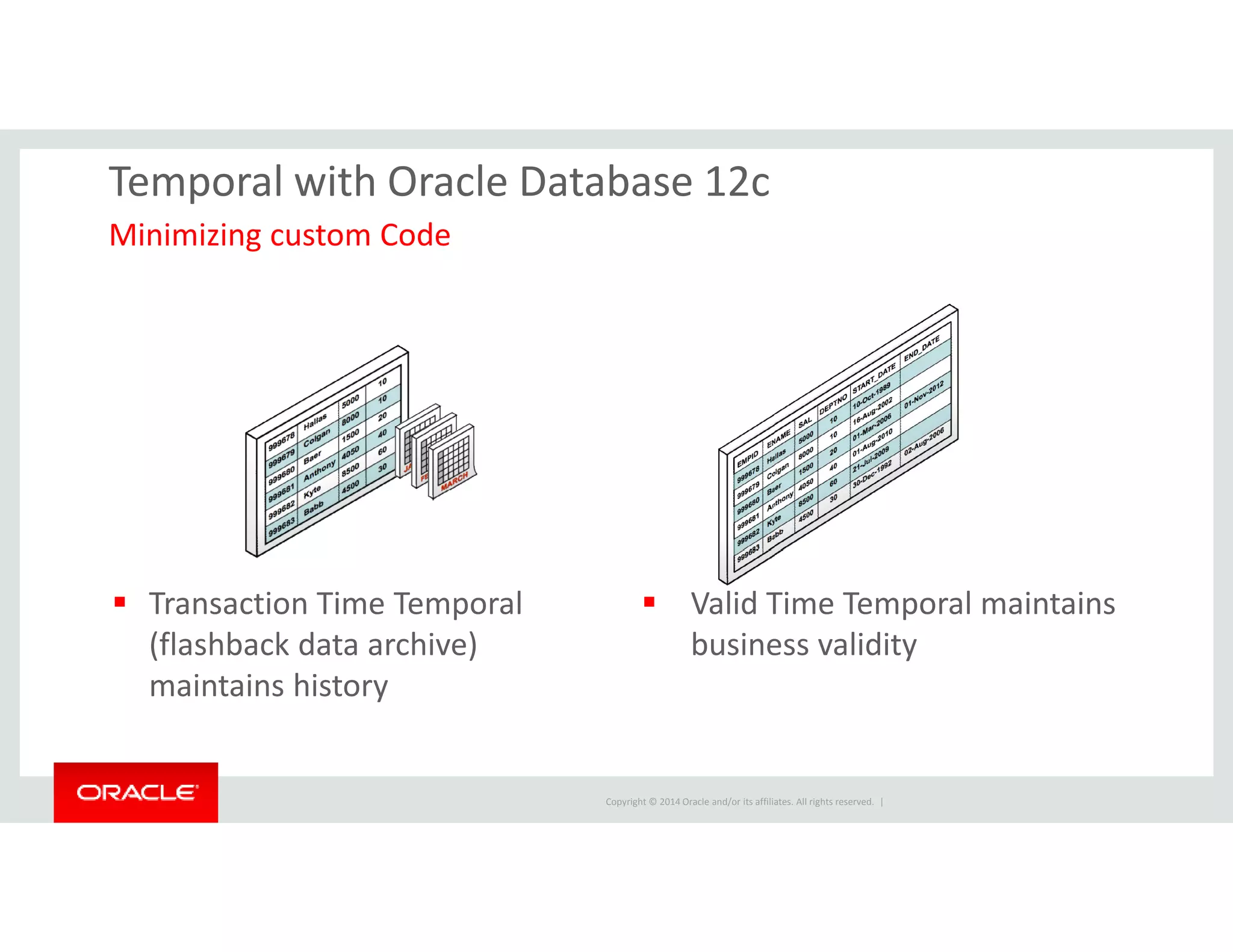

Temporal with Oracle Database 12c
Minimizing custom Code
Transaction Time Temporal
(flashback data archive)
maintains history
Valid Time Temporal maintains
business validity

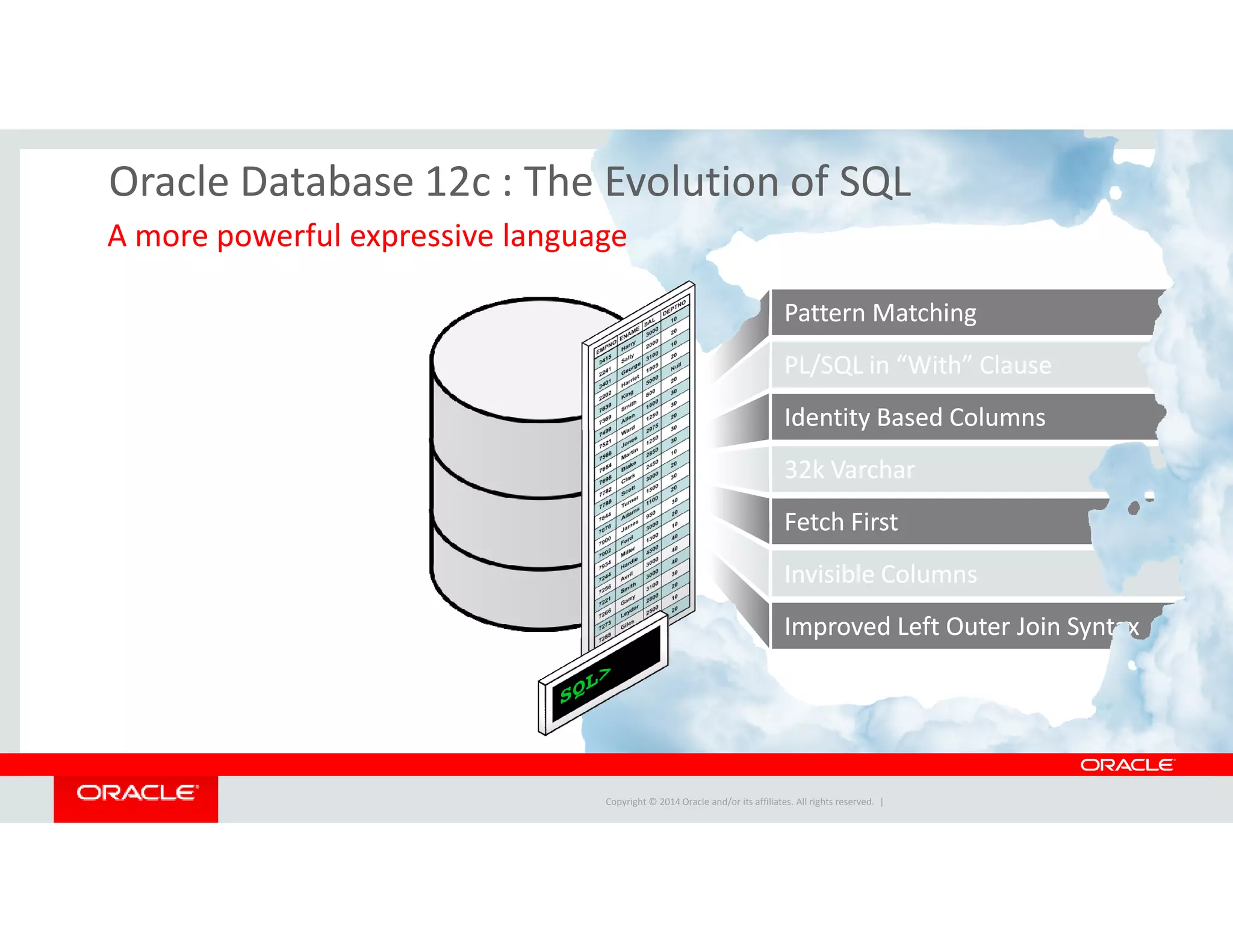

Oracle Database 12c : The Evolution of SQL
PPaatttteerrnn MMaattcchhiinngg
PPLL//SSQQLL iinn ““WWiitthh”” CCllaauussee
IIddeennttiittyy BBaasseedd CCoolluummnnss
3322kk VVaarrcchhaarr
A more powerful expressive language
FFeettcchh FFiirrsstt
IInnvviissiibbllee CCoolluummnnss
IImmpprroovveedd LLeefftt OOuutteerr JJooiinn SSyynnttaaxx

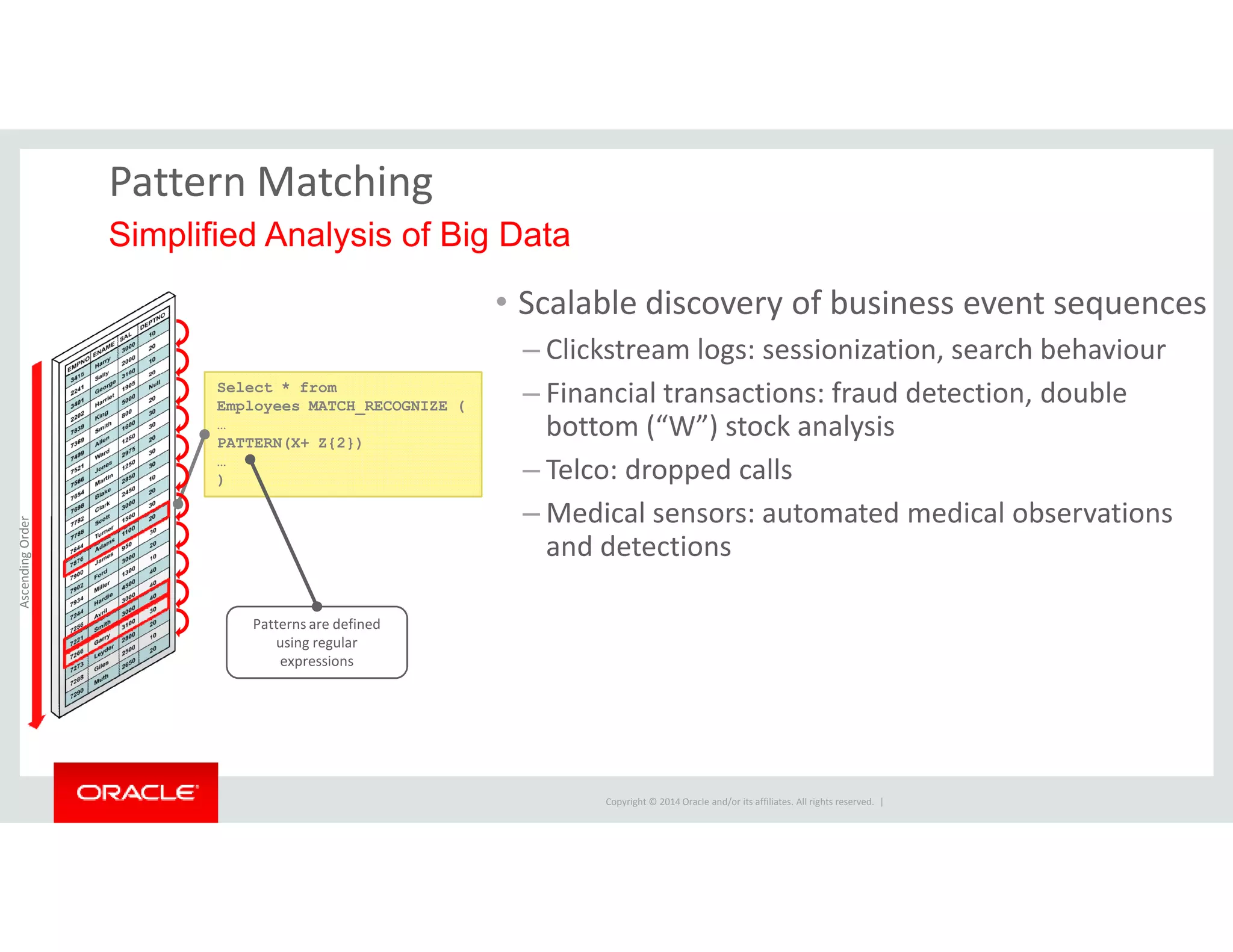

Pattern Matching
Simplified Analysis of Big Data
Select * from
Employees MATCH_RECOGNIZE (
…
PATTERN(X+ Z{2})
…
)
• Scalable discovery of business event sequences
– Clickstream logs: sessionization, search behaviour
– Financial transactions: fraud detection, double
bottom (“W”) stock analysis
– Telco: dropped calls
–Medical sensors: automated medical observations
and detections
Patterns are defined
using regular
expressions
Ascending Order

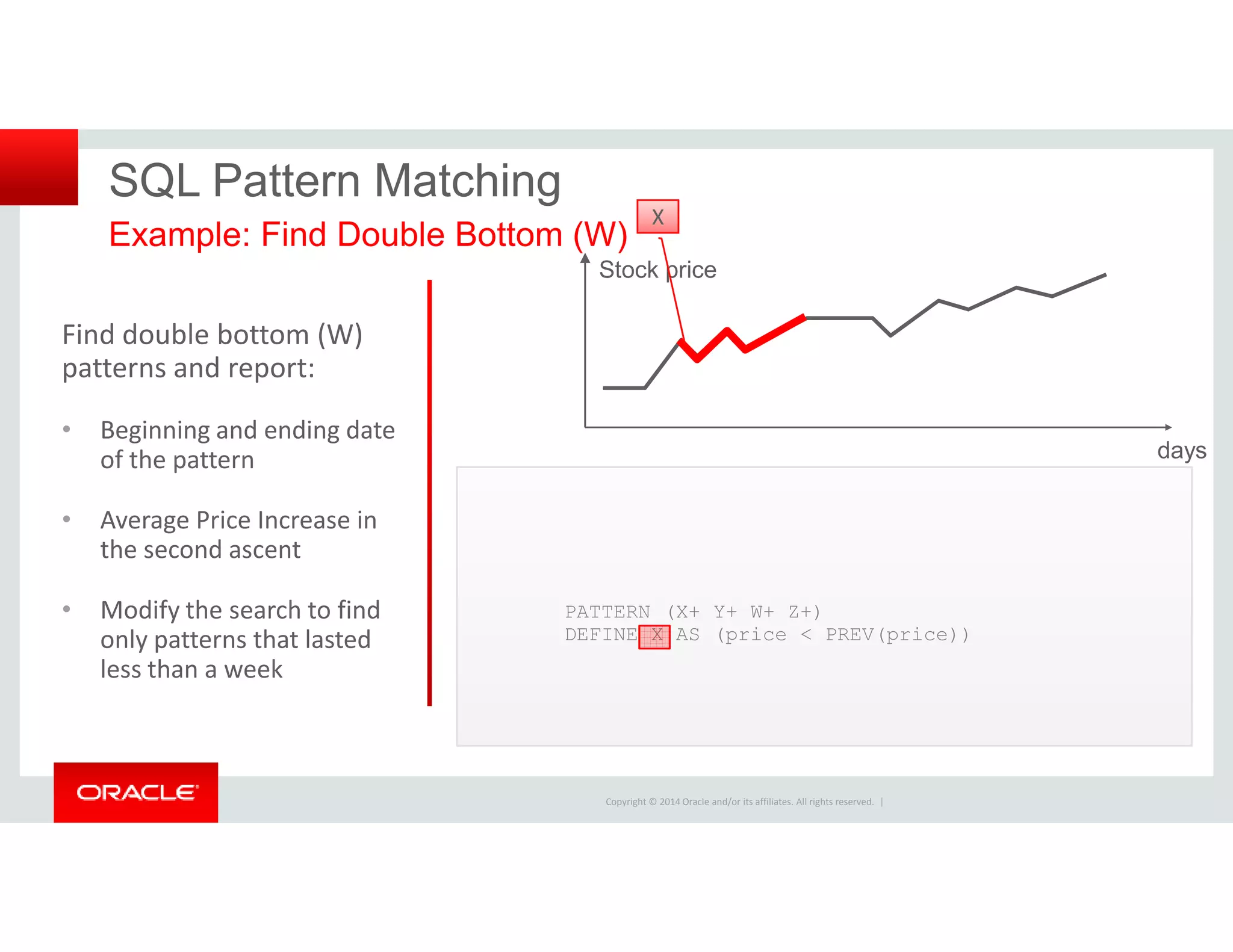

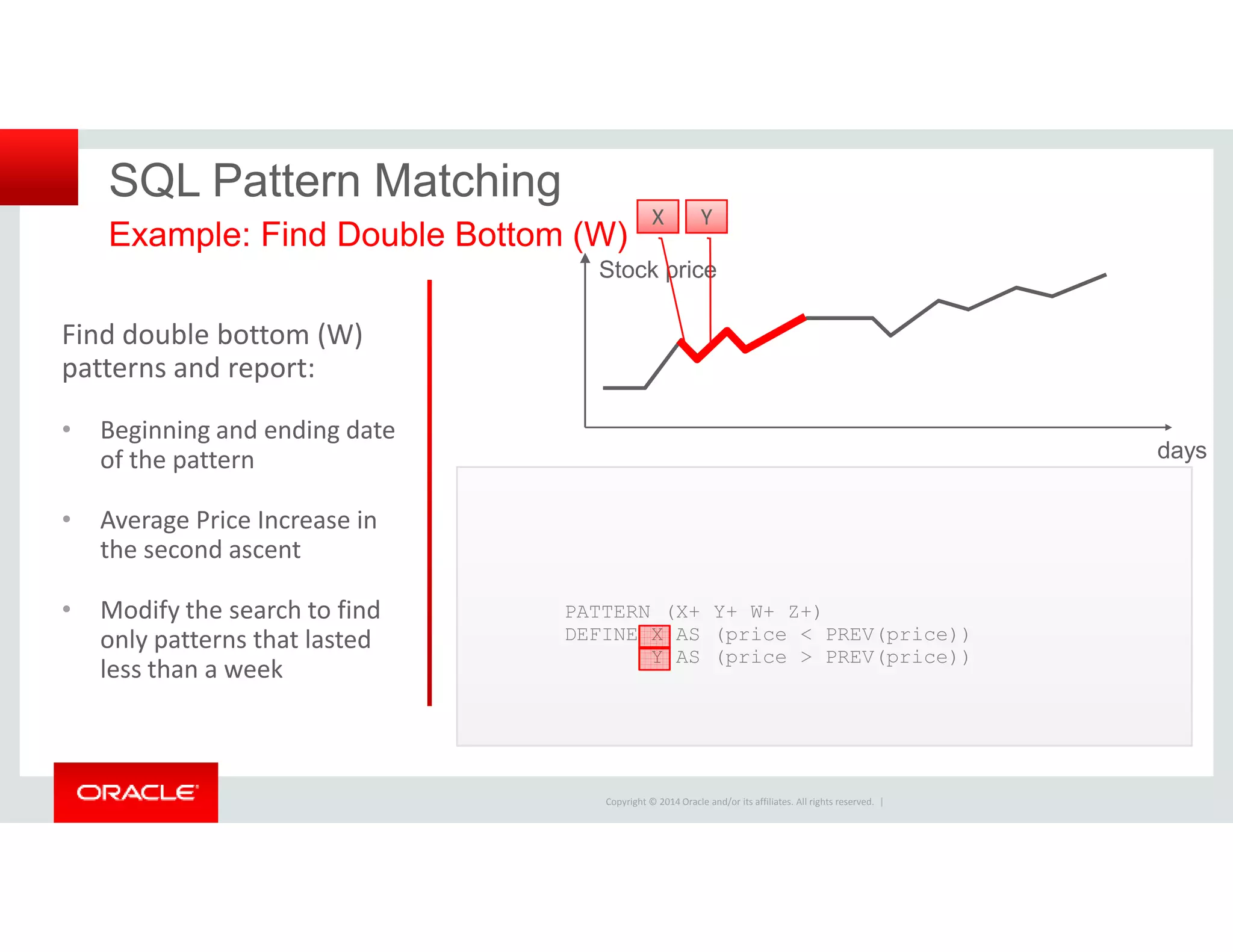

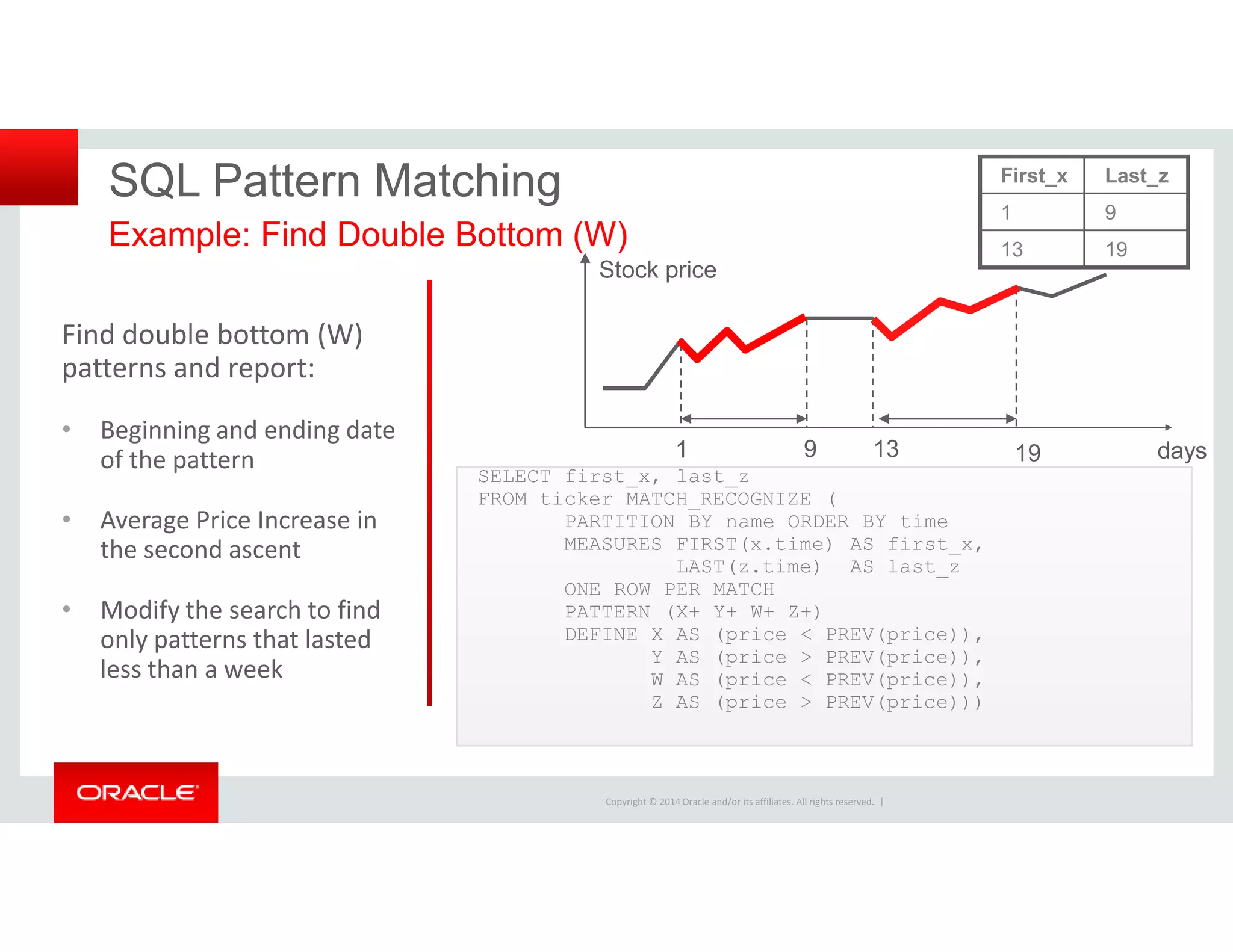

SQL Pattern Matching
Example: Find Double Bottom (W)
Find double bottom (W)
patterns and report:
• Beginning and ending date
of the pattern
days
X
Stock price
• Average Price Increase in
the second ascent
• Modify the search to find
only patterns that lasted
less than a week
PATTERN (X+ Y+ W+ Z+)
DEFINE X AS (price PREV(price))

of the pattern
days
X Y
Stock price
the second ascent
less than a week
Y AS (price PREV(price))

of the pattern
days
X Y W Z
Stock price
SELECT ffiirrsstt__xx,, llaasstt__zz
the second ascent
less than a week
first_x, last_z
FROM ticker MATCH_RECOGNIZE (
PARTITION BY name ORDER BY time
MEASURES FIRST(x.time) AS first_x
LAST(z.time) AS last_z
ONE ROW PER MATCH
Y AS (price PREV(price))
W AS (price PREV(price))
Z AS (price PREV(price))

First_x Last_z
1 9

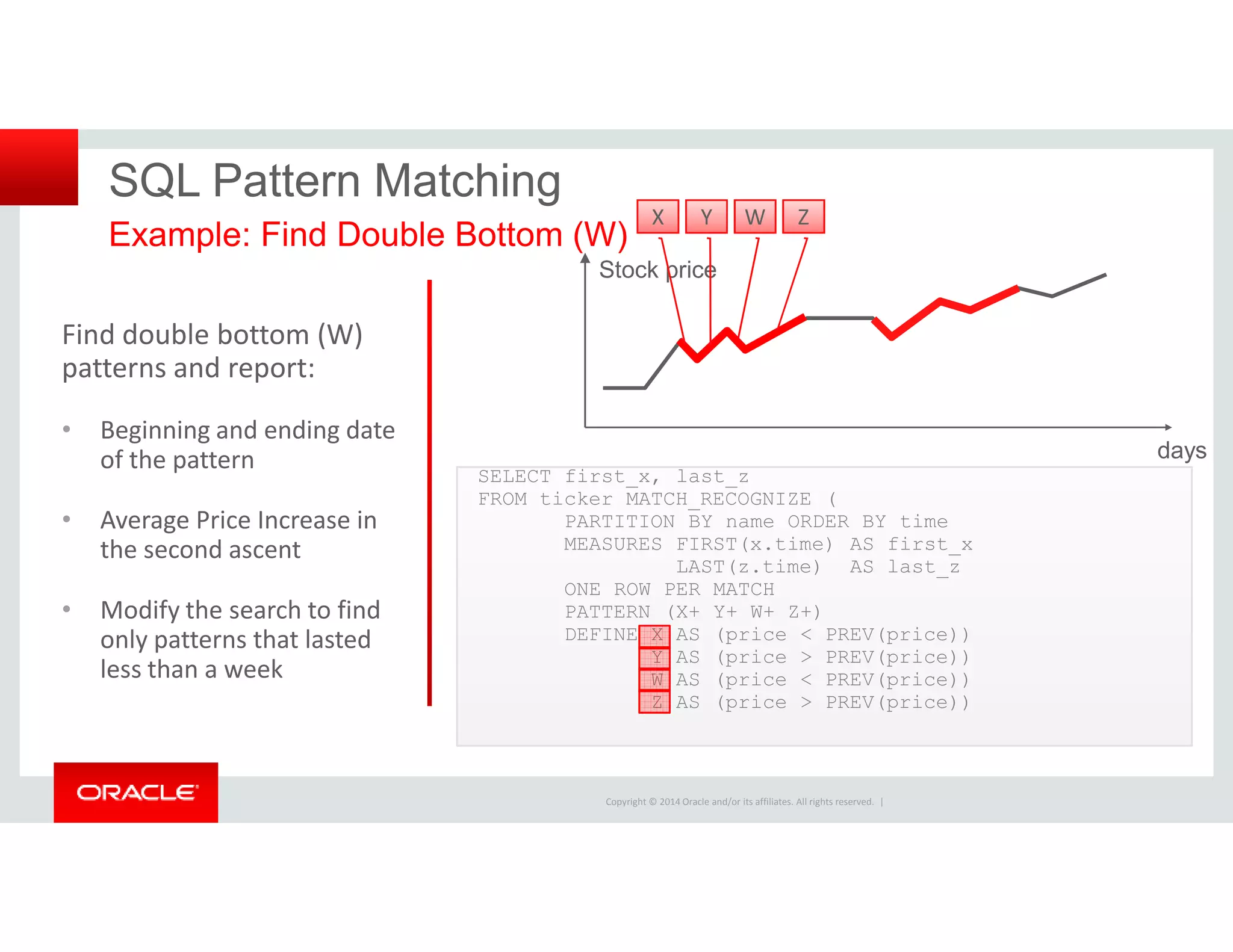

13 19 Example: Find Double Bottom (W)
Stock price
1 9 13 19 days
SELECT ffiirrsstt__xx,, llaasstt__zz
of the pattern
first_x, last_z
MEASURES FIRST(x.time) AS first_x,
ONE ROW PER MATCH
DEFINE X AS (price PREV(price)),
Y AS (price PREV(price)),
W AS (price PREV(price)),
Z AS (price PREV(price)))
the second ascent
less than a week

if (lineNext == null) {
next = ;
} else {
next = lineNext.getQuantity();
}
if (!q.isEmpty() (prev.Pattern isEmpty() || (eq(q, prev) gt(q, next)))) {
state = S;
return state;

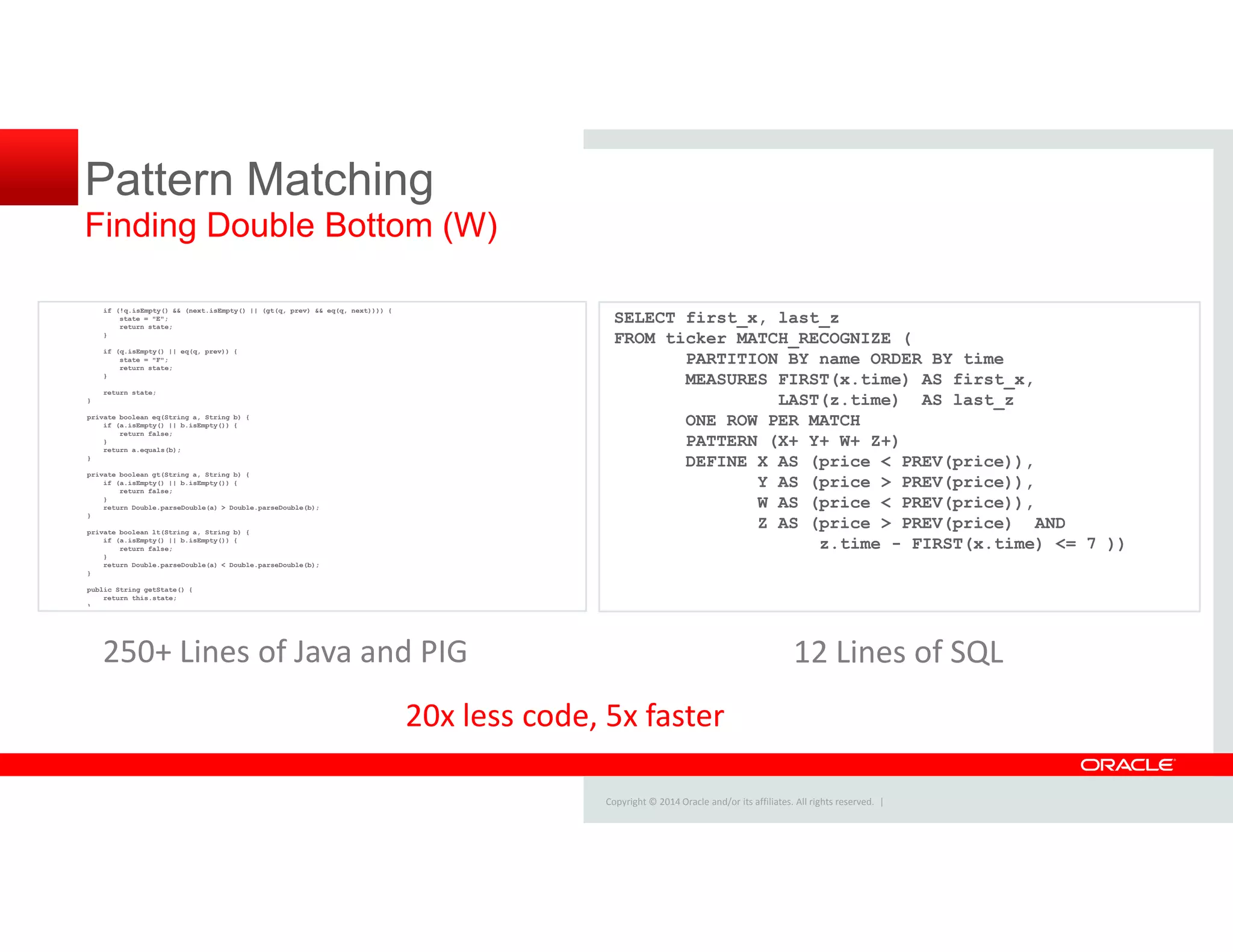

Matching
}
if (gt(q, prev) gt(Finding q, next)) {
Double Bottom (W)
state = T;
return state;
}
if (lt(q, prev) lt(q, next)) {
state = B;
return state;
}
if (!q.isEmpty() (next.isEmpty() || (gt(q, prev) eq(q, next)))) {
state = E;
return state;
}
if (q.isEmpty() || eq(q, prev)) {
state = F;
return state;
}
return state;
}
private boolean eq(String a, String b) {
if (a.isEmpty() || b.isEmpty()) {
return false;
}
return a.equals(b);
}
private boolean gt(String a, String b) {
SELECT first_x, last_z
MEASURES FIRST(x.time) AS first_x,
ONE ROW PER MATCH
DEFINE X AS (price PREV(price)),
Y AS (price PREV(price)),
return false;
}
return Double.parseDouble(a) Double.parseDouble(b);
}
private boolean lt(String a, String b) {
return false;
}
return Double.parseDouble(a) Double.parseDouble(b);
}
public String getState() {
return this.state;
}
}
BagFactory bagFactory = BagFactory.getInstance();
@Override
public Tuple exec(Tuple input) throws IOException {
long c = 0;
String line = ;
String pbkey = ;
V0Line nextLine;
V0Line thisLine;
V0Line processLine;
V0Line evalLine = null;
V0Line prevLine;
boolean noMoreValues = false;
String matchList = ;
ArrayListV0Line lineFifo = new ArrayListV0Line();
boolean finished = false;
DataBag output = bagFactory.newDefaultBag();
if (input == null) {
return null;
}
if (input.size() == 0) {
return null;
W AS (price PREV(price)),
Z AS (price PREV(price) AND
z.time - FIRST(x.time) = 7 ))
250+ Lines of Java and PIG 12 Lines of SQL
20x less code, 5x faster

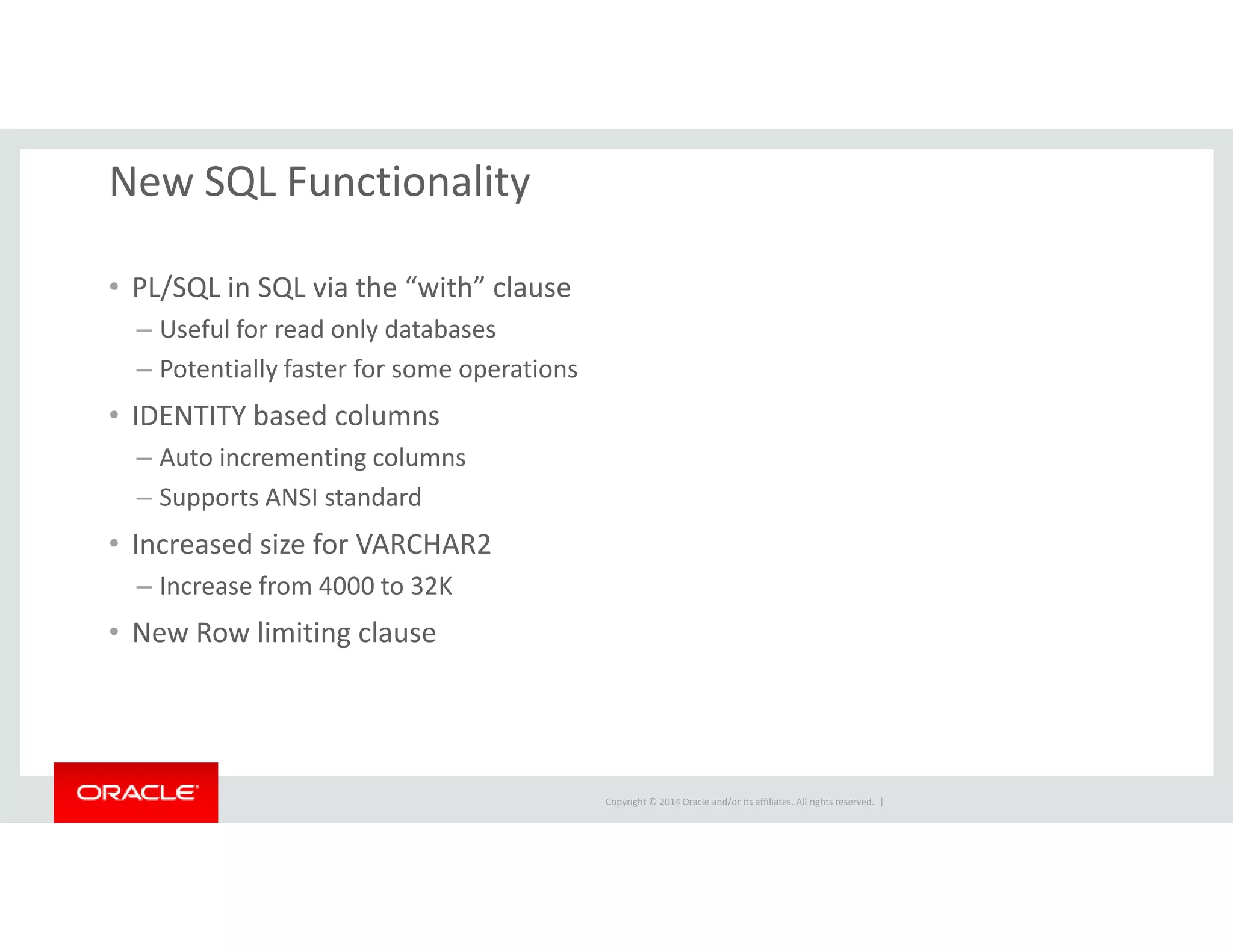

New SQL Functionality
• PL/SQL in SQL via the “with” clause
– Useful for read only databases
– Potentially faster for some operations

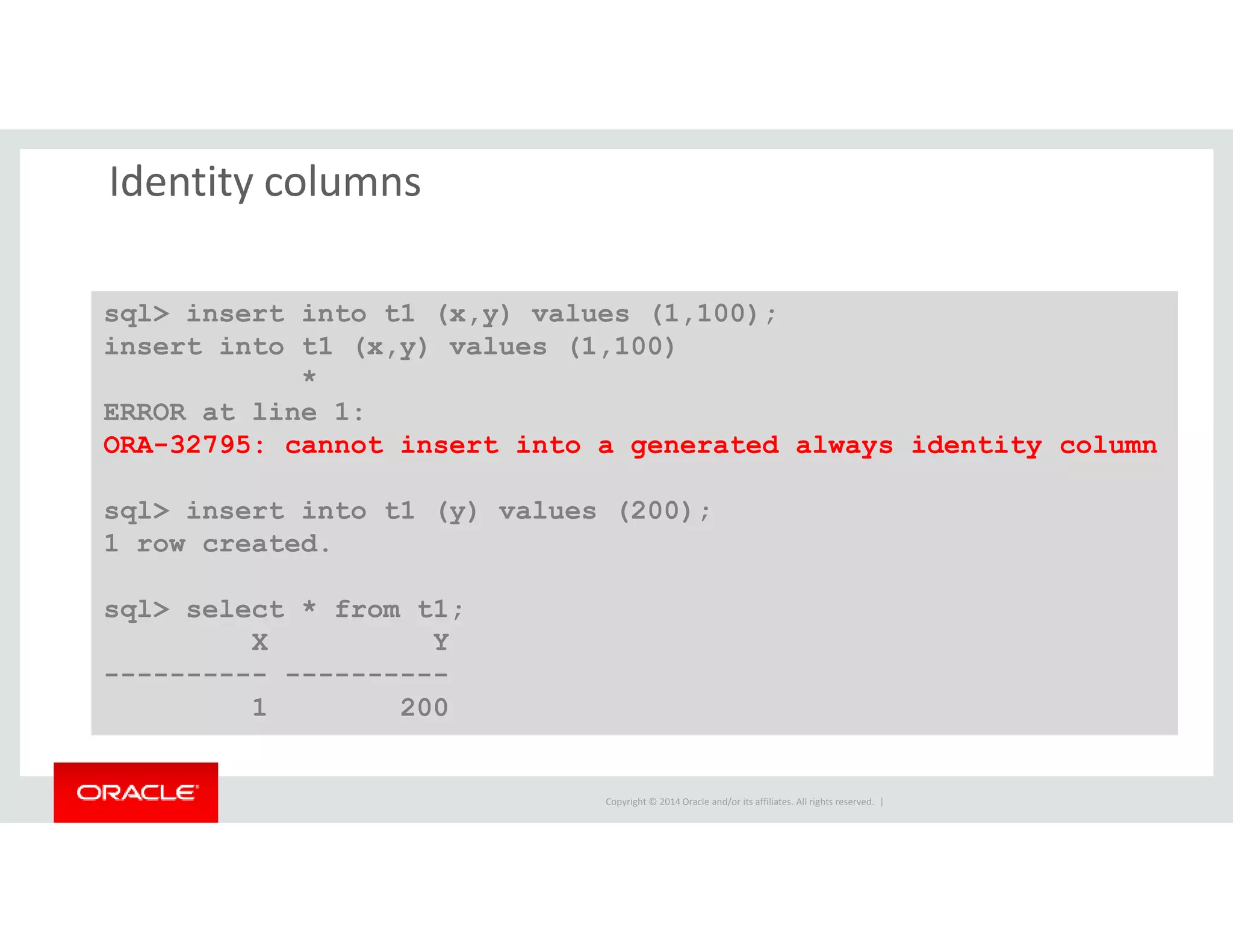

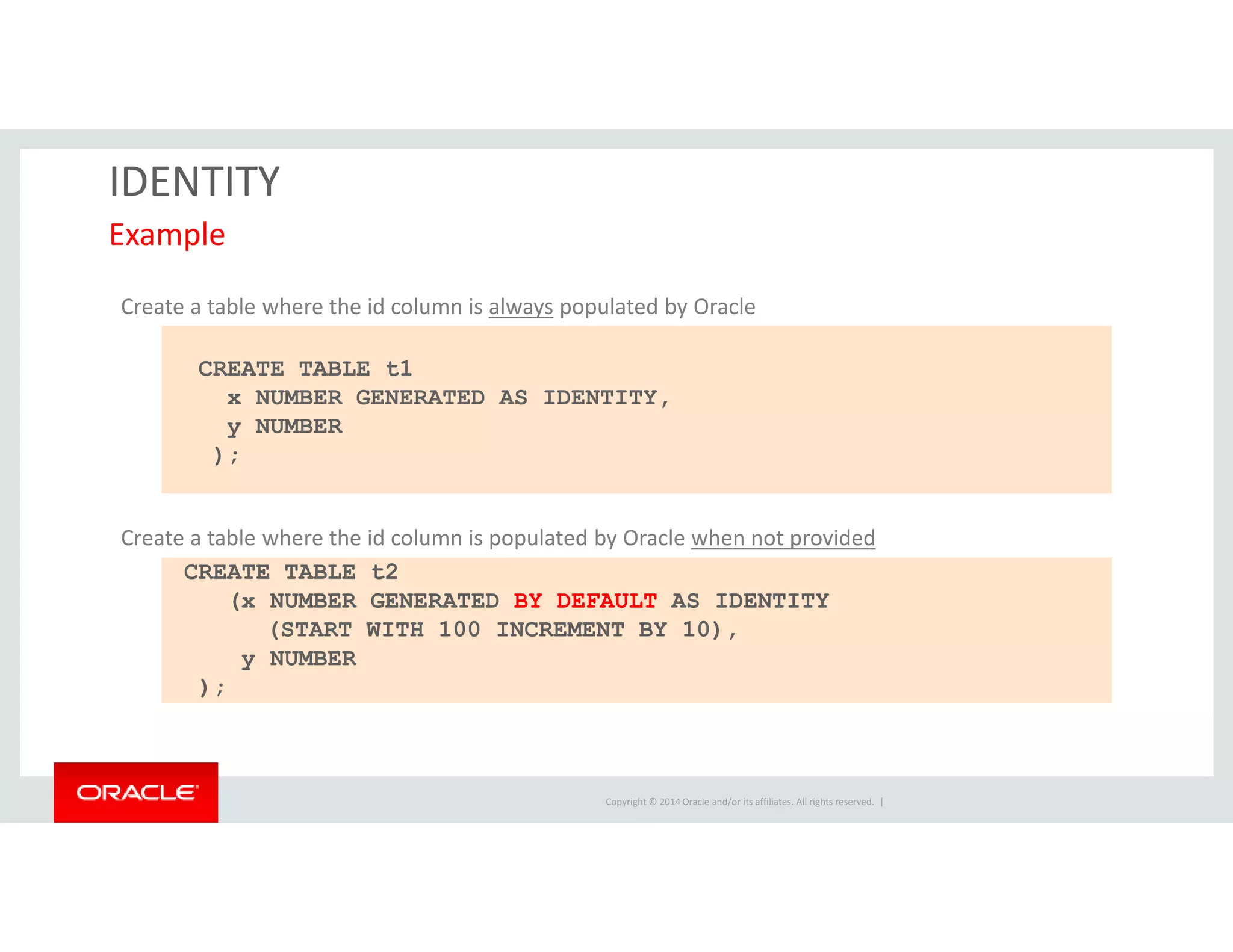

• IDENTITY based columns
– Auto incrementing columns
– Supports ANSI standard

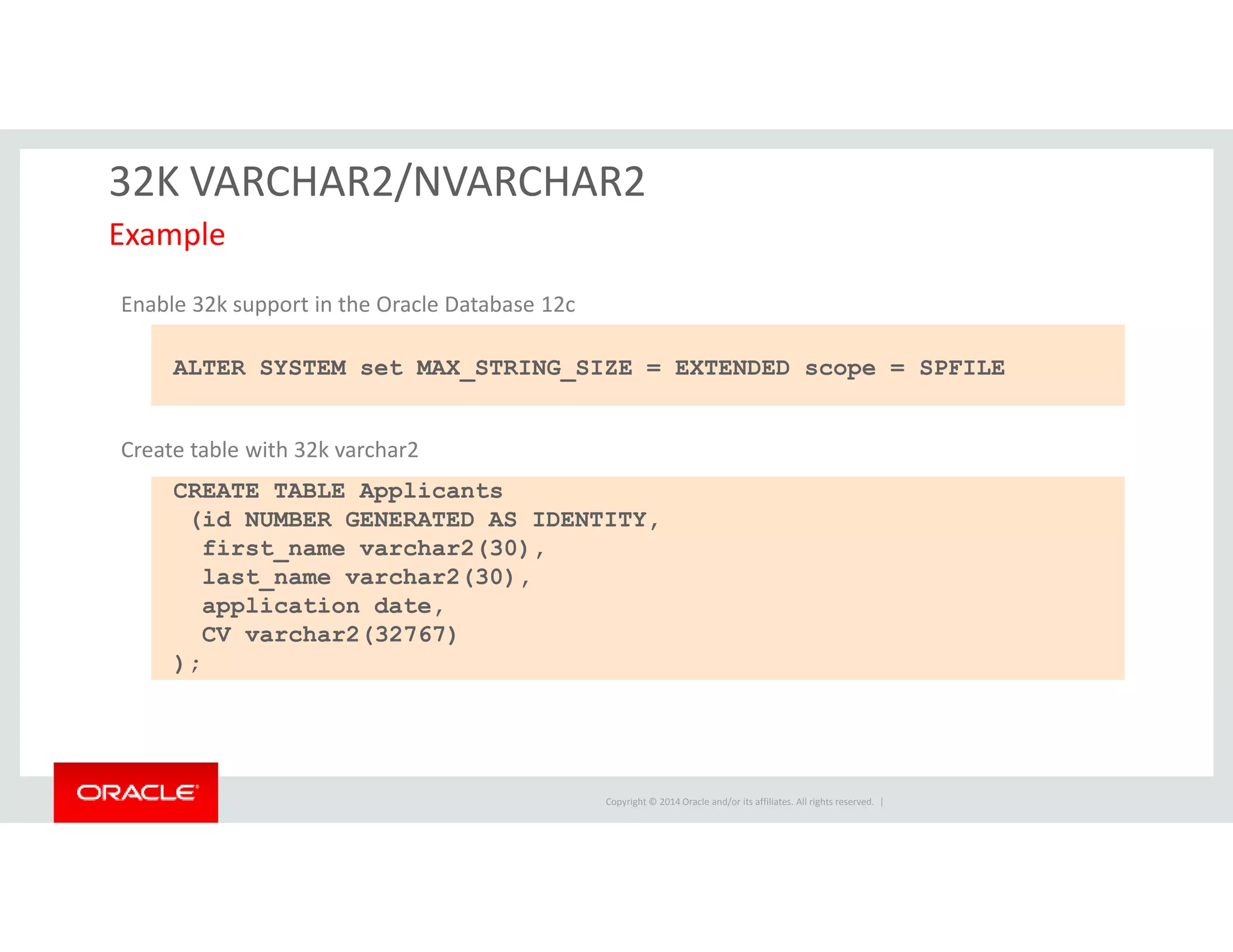

• Increased size for VARCHAR2
– Increase from 4000 to 32K

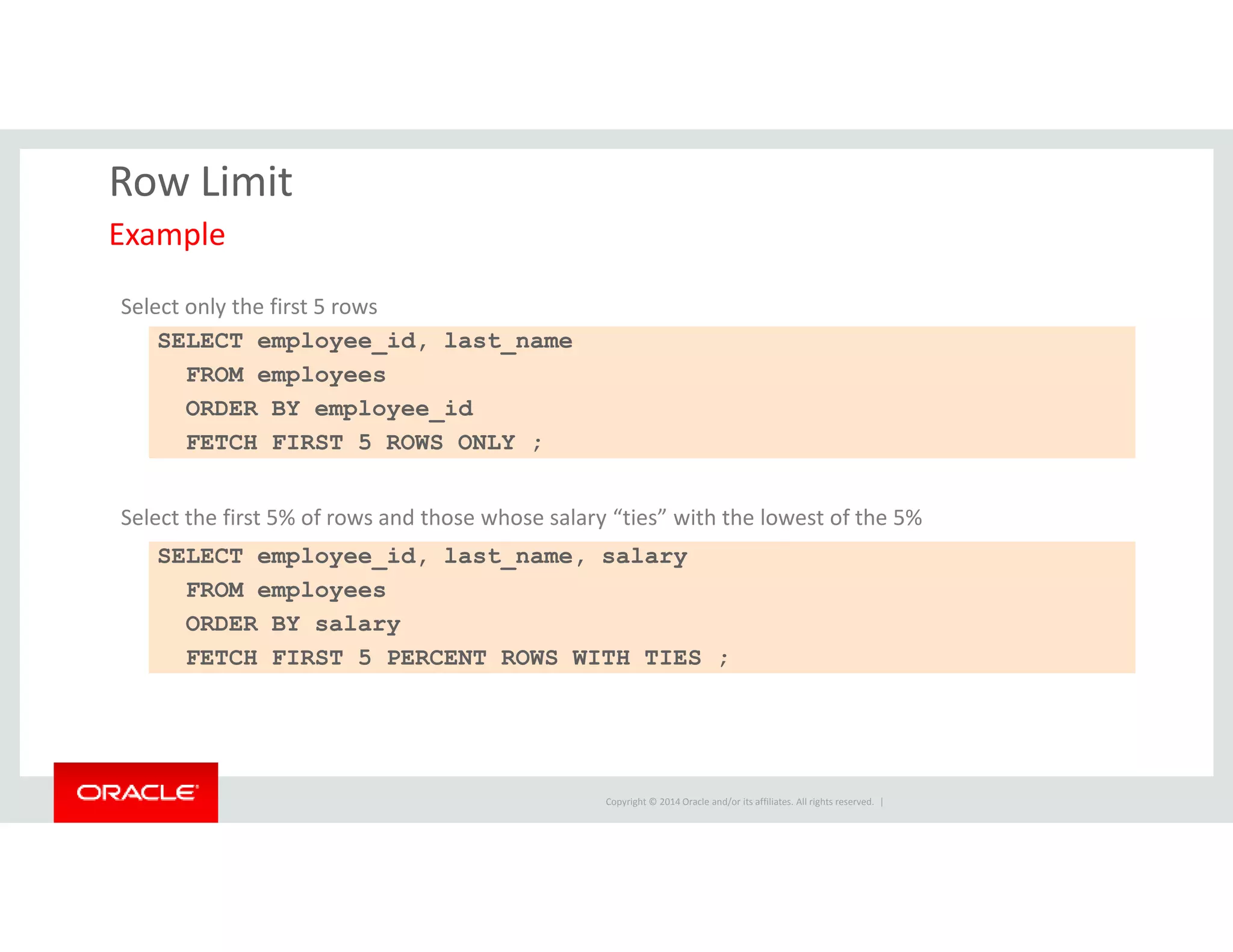

• New Row limiting clause

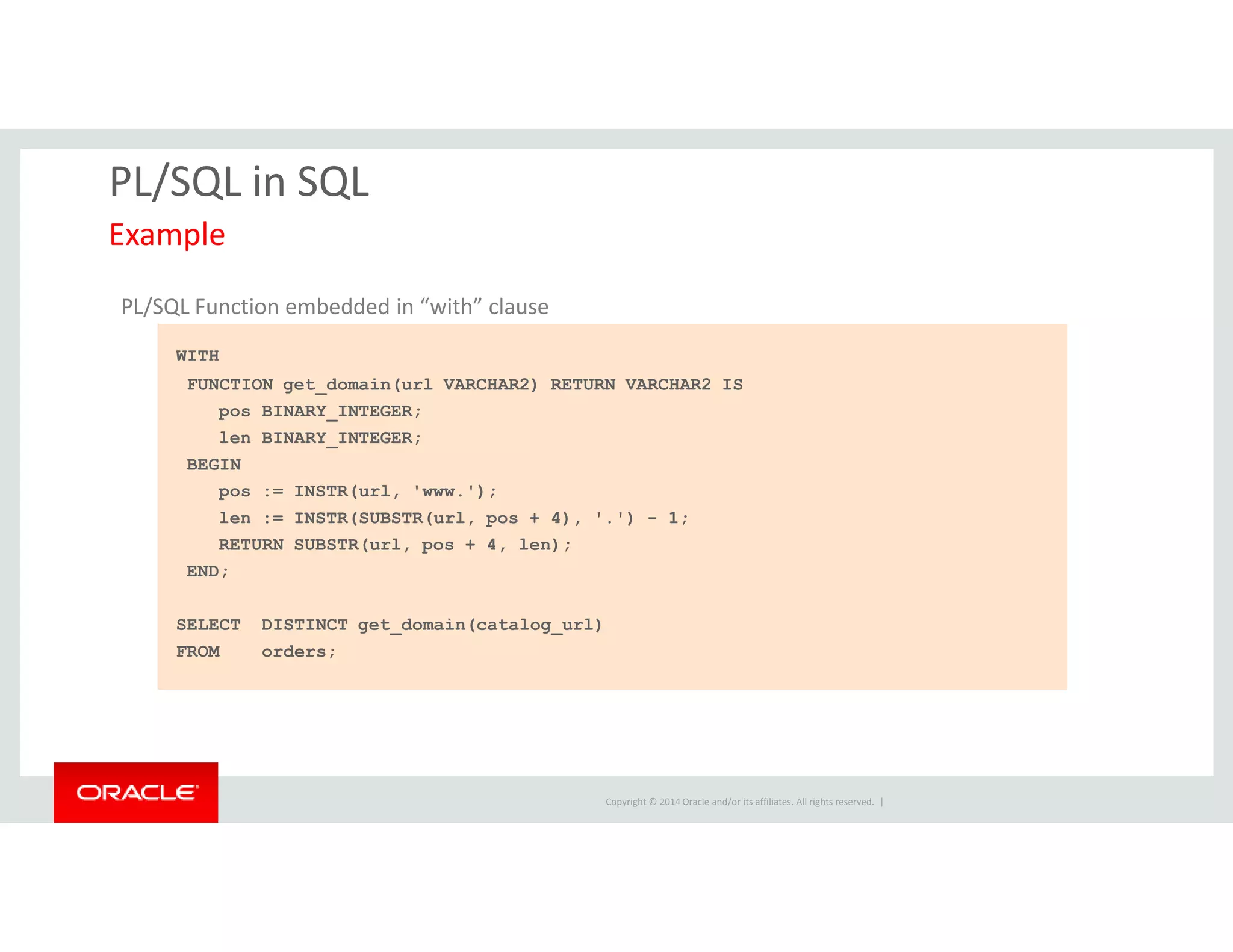

PL/SQL in SQL
Example
PL/SQL Function embedded in “with” clause
WITH
FUNCTION get_domain(url VARCHAR2) RETURN VARCHAR2 IS
pos BINARY_INTEGER;
len BINARY_INTEGER;
BEGIN
pos := INSTR(url, 'www.');
len := INSTR(SUBSTR(url, pos + 4), '.') - 1;
RETURN SUBSTR(url, pos + 4, len);
END;
SELECT DISTINCT get_domain(catalog_url)
FROM orders;

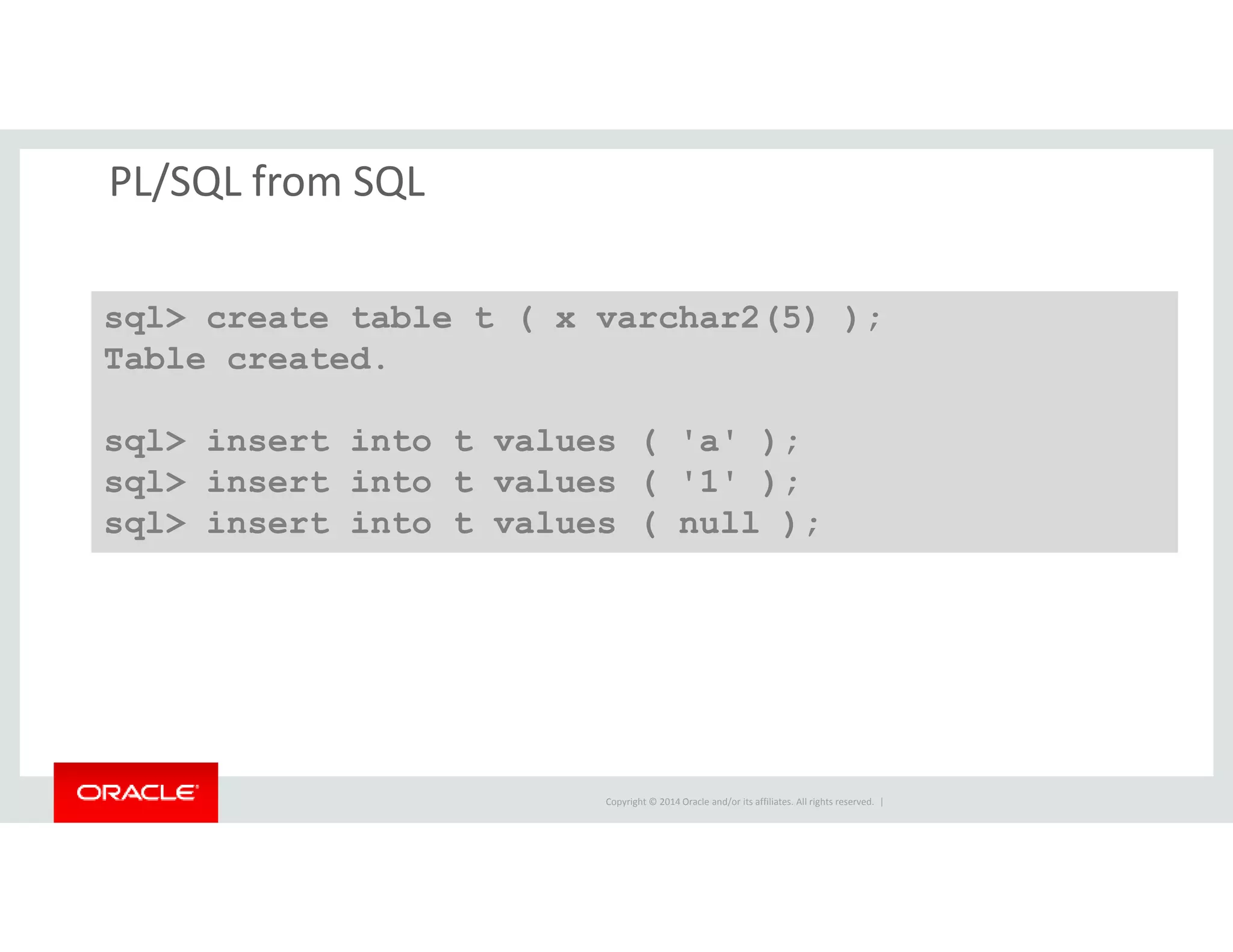

PL/SQL from SQL
sql create table t ( x varchar2(5) );
Table created.
sql insert into t values ( 'a' );
sql insert into t values ( '1' );
sql insert into t values ( null );

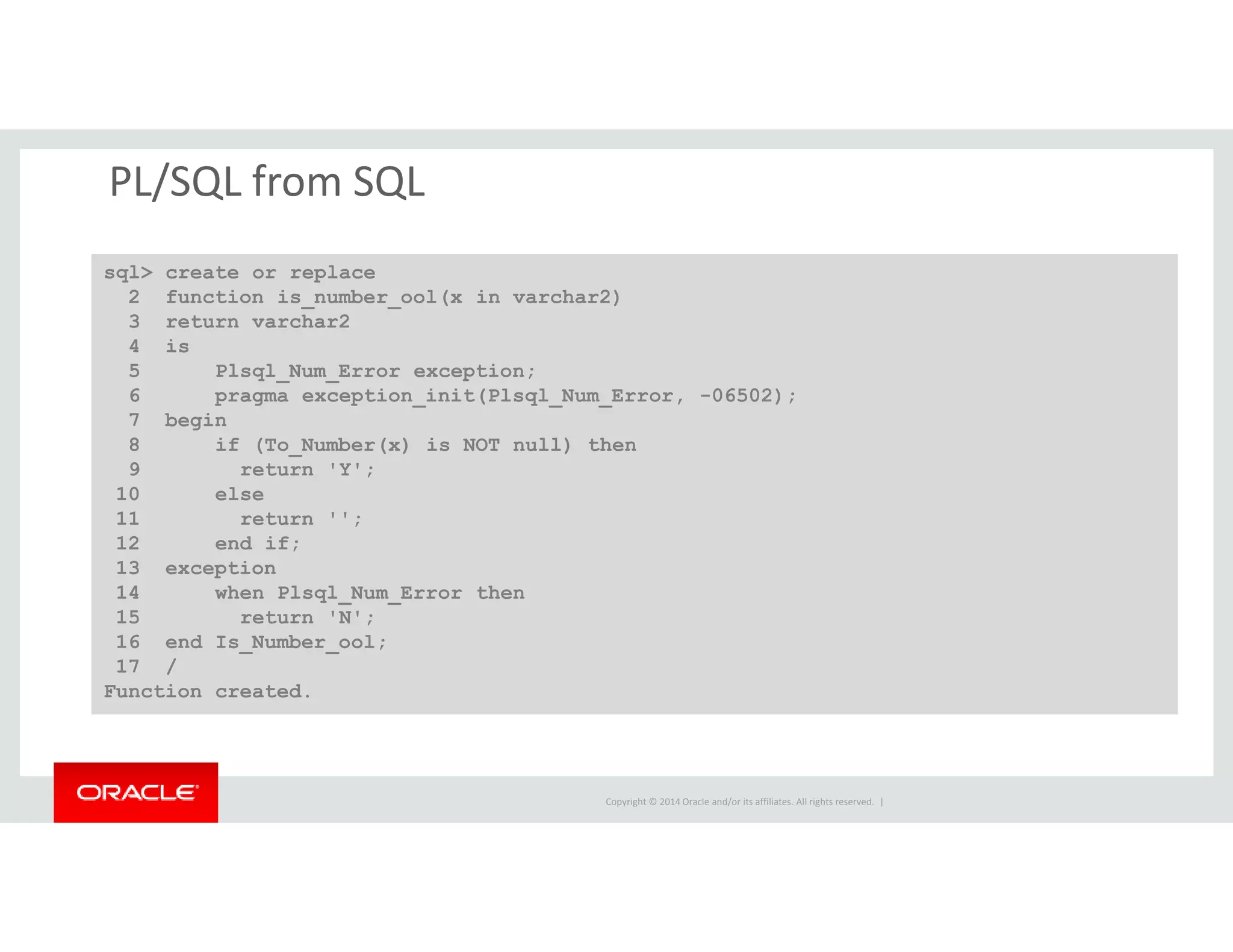

PL/SQL from SQL
sql create or replace
2 function is_number_ool(x in varchar2)
3 return varchar2
4 is
5 Plsql_Num_Error exception;
6 pragma exception_init(Plsql_Num_Error, -06502);
7 begin
8 if (To_Number(x) is NOT null) then
9 return 'Y';
10 else
11 return '';
12 end if;
13 exception
14 when Plsql_Num_Error then
15 return 'N';
16 end Is_Number_ool;
17 /
Function created.

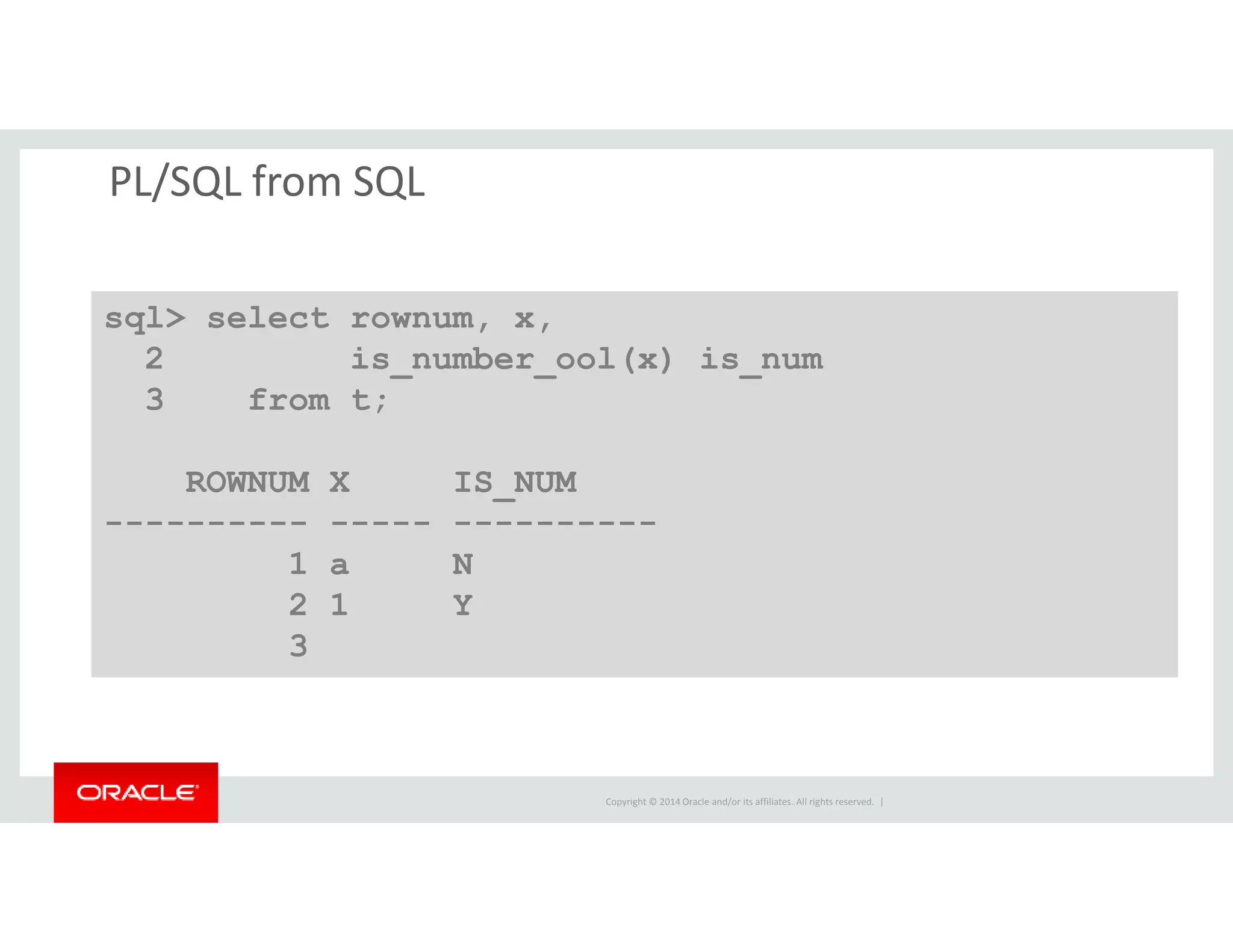

PL/SQL from SQL
sql select rownum, x,
2 is_number_ool(x) is_num
3 from t;
ROWNUM X IS_NUM
---------- ----- ----------
1 a N
2 1 Y
3

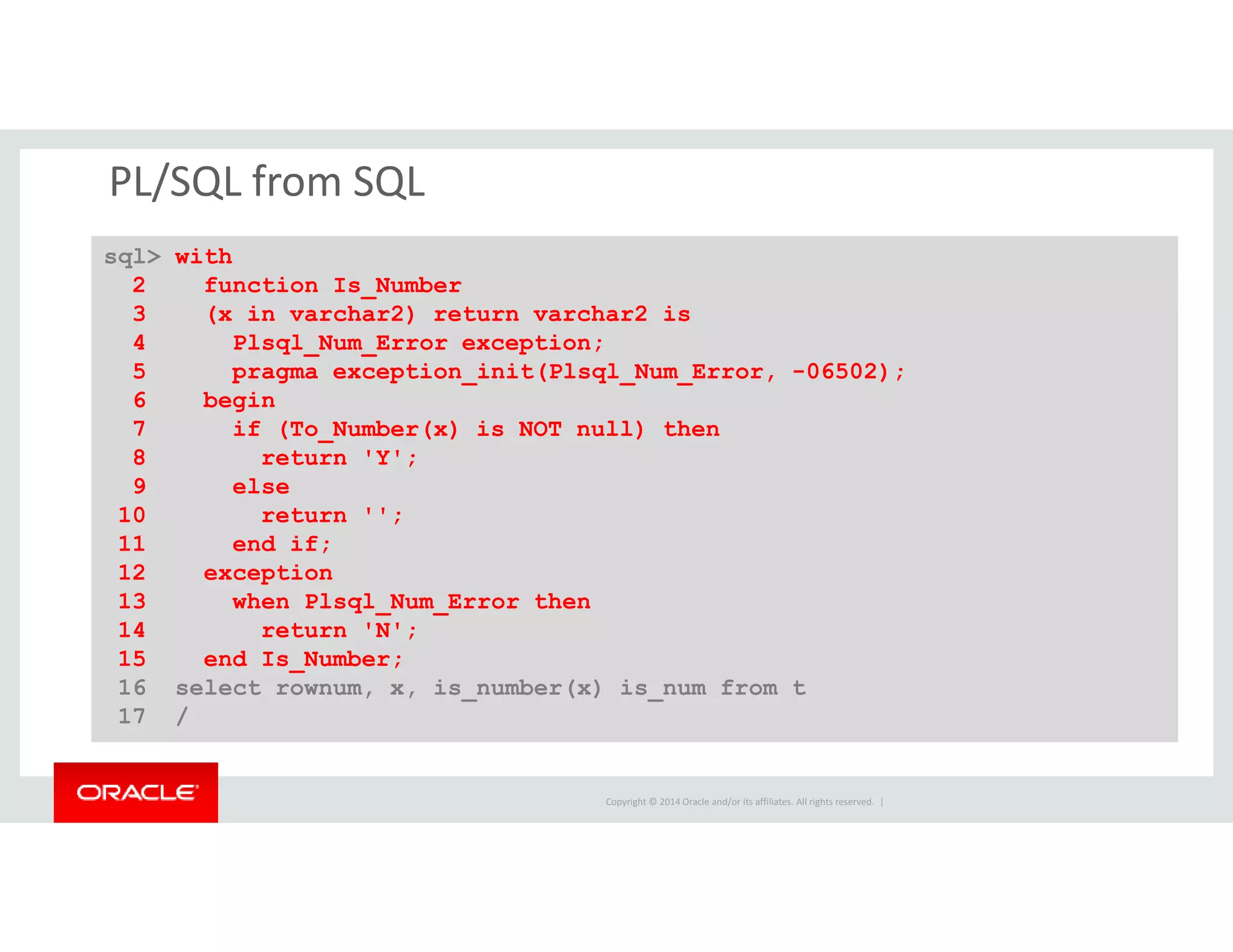

PL/SQL from SQL
sql with
2 function Is_Number
3 (x in varchar2) return varchar2 is
4 Plsql_Num_Error exception;
5 pragma exception_init(Plsql_Num_Error, -06502);
6 begin
7 if (To_Number(x) is NOT null) then
8 return 'Y';
9 else
10 return '';
11 end if;
12 exception
13 when Plsql_Num_Error then
14 return 'N';
15 end Is_Number;
16 select rownum, x, is_number(x) is_num from t
17 /

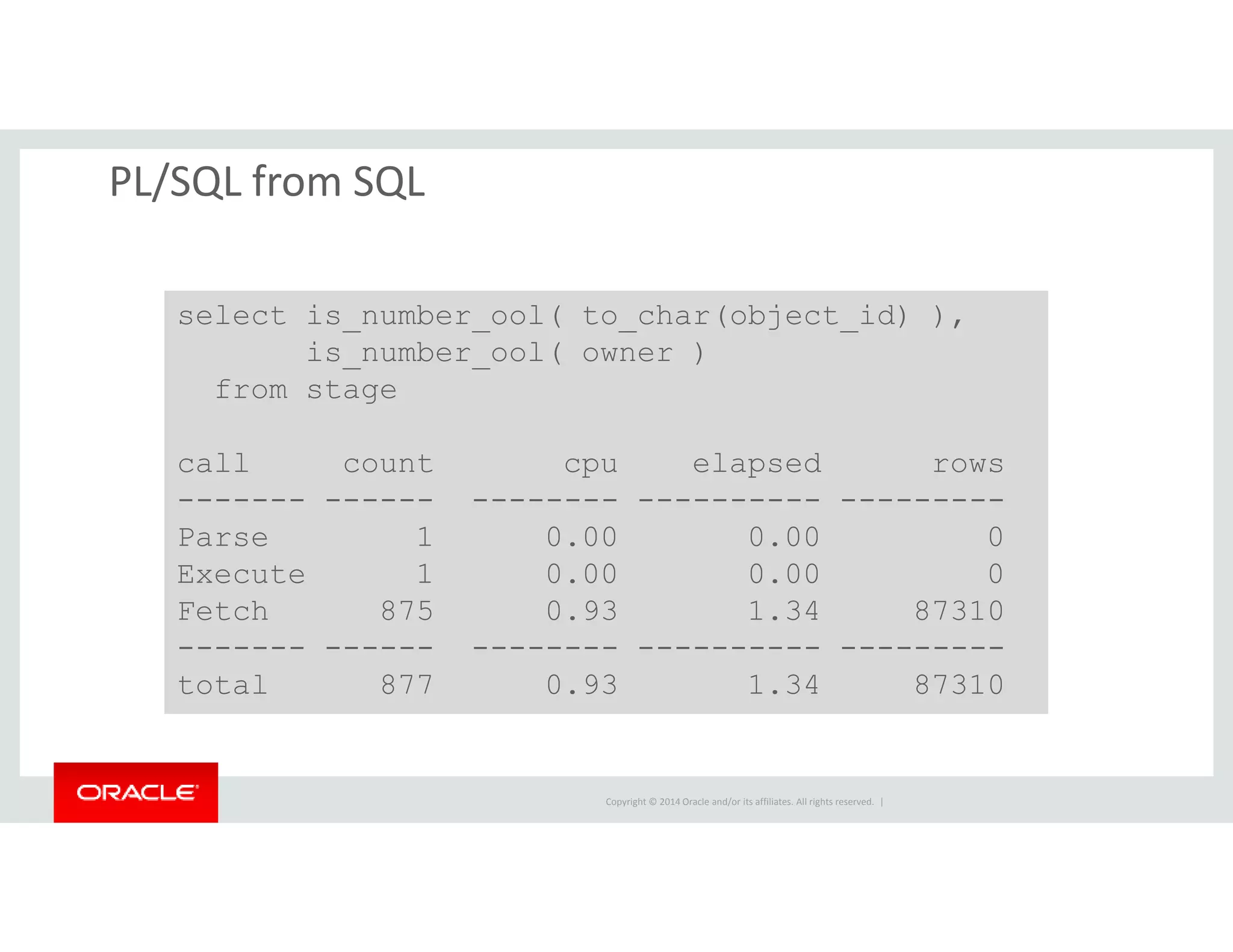

PL/SQL from SQL
select is_number_ool( to_char(object_id) ),
is_number_ool( owner )
from stage
call count cpu elapsed rows
------- ------ -------- ---------- ---------
Parse 1 0.00 0.00 0
Execute 1 0.00 0.00 0
Fetch 875 0.93 1.34 87310
------- ------ -------- ---------- ---------
total 877 0.93 1.34 87310

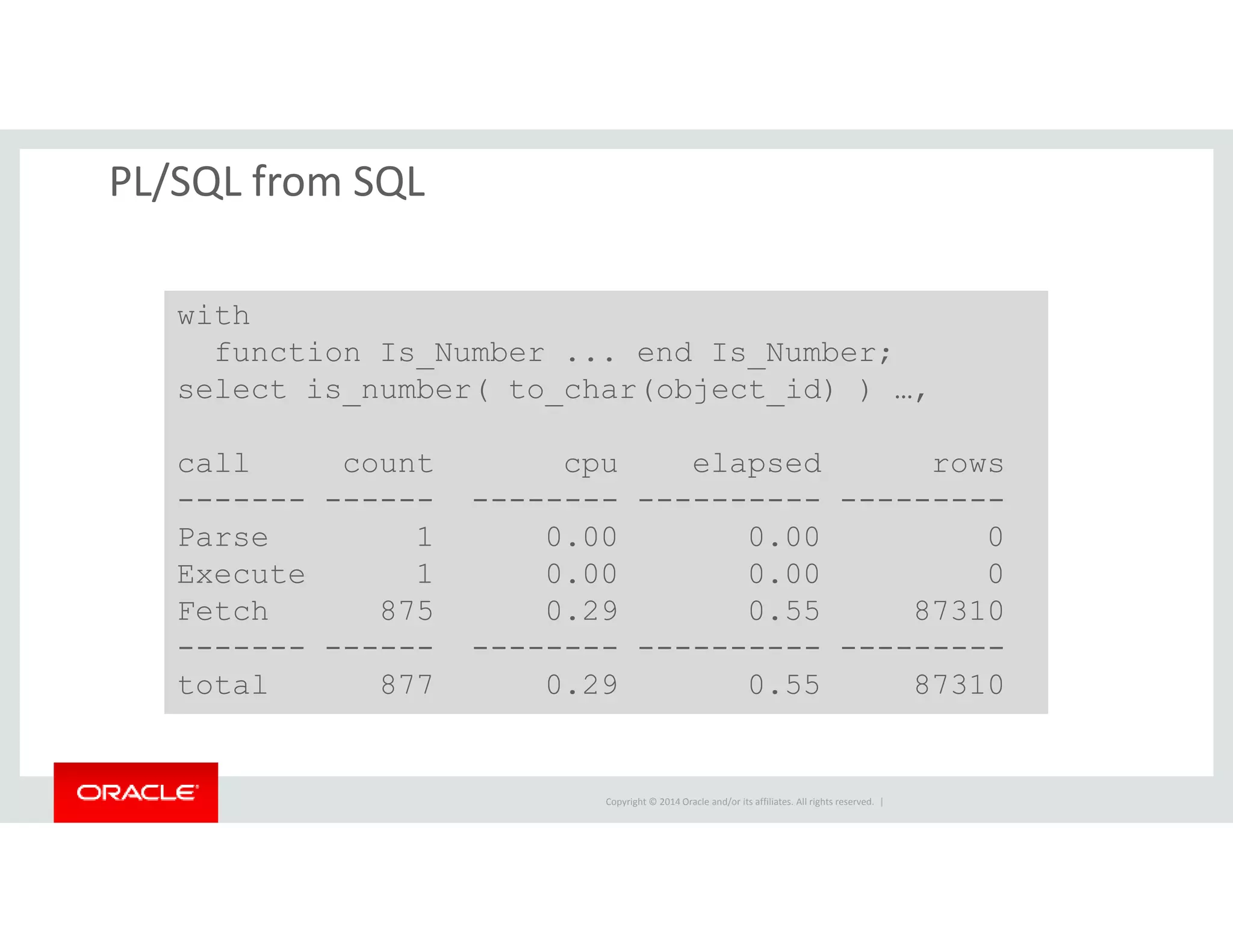

PL/SQL from SQL
with
function Is_Number ... end Is_Number;
select is_number( to_char(object_id) ) …,
call count cpu elapsed rows
------- ------ -------- ---------- ---------
Parse 1 0.00 0.00 0
Execute 1 0.00 0.00 0
Fetch 875 0.29 0.55 87310
------- ------ -------- ---------- ---------
total 877 0.29 0.55 87310

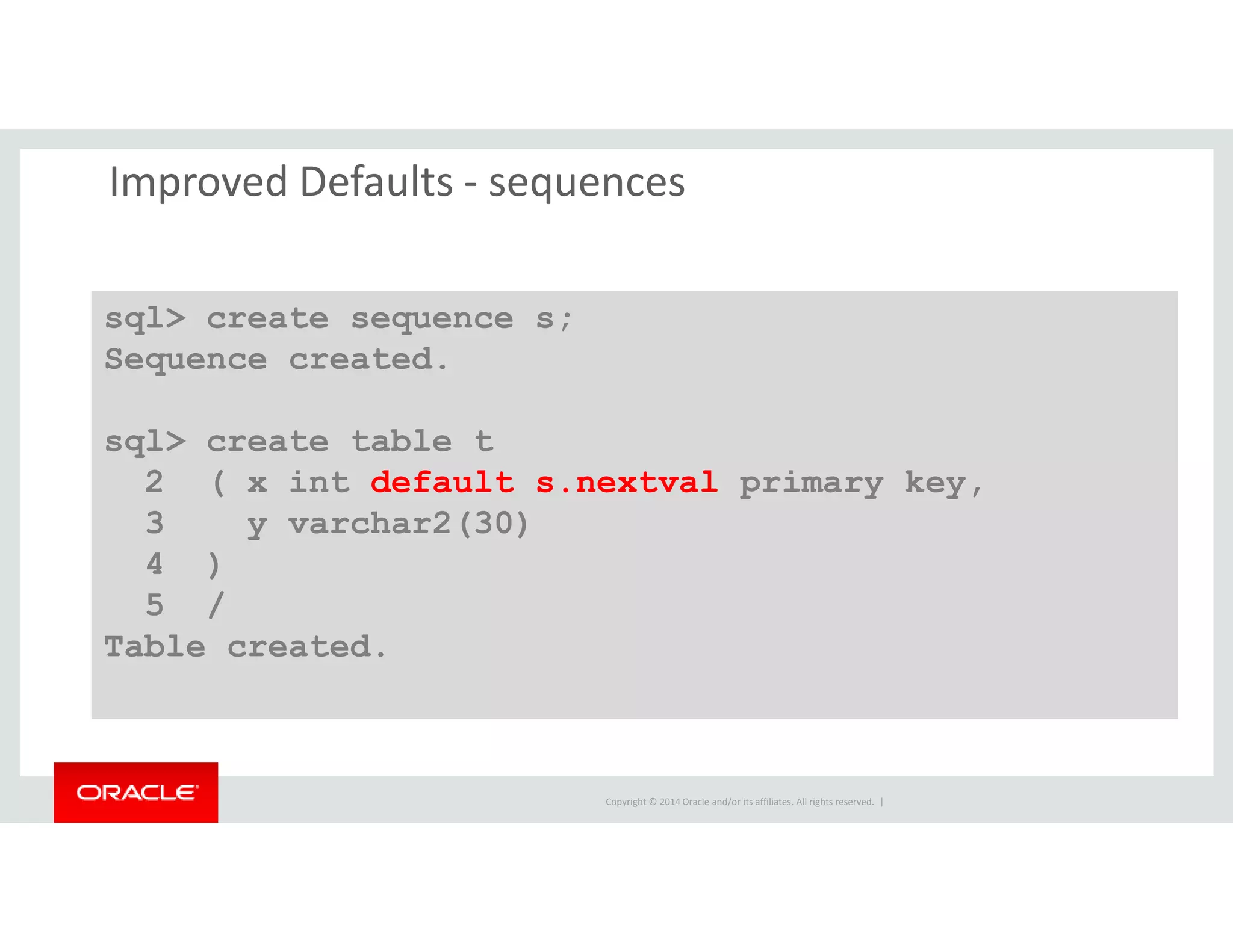

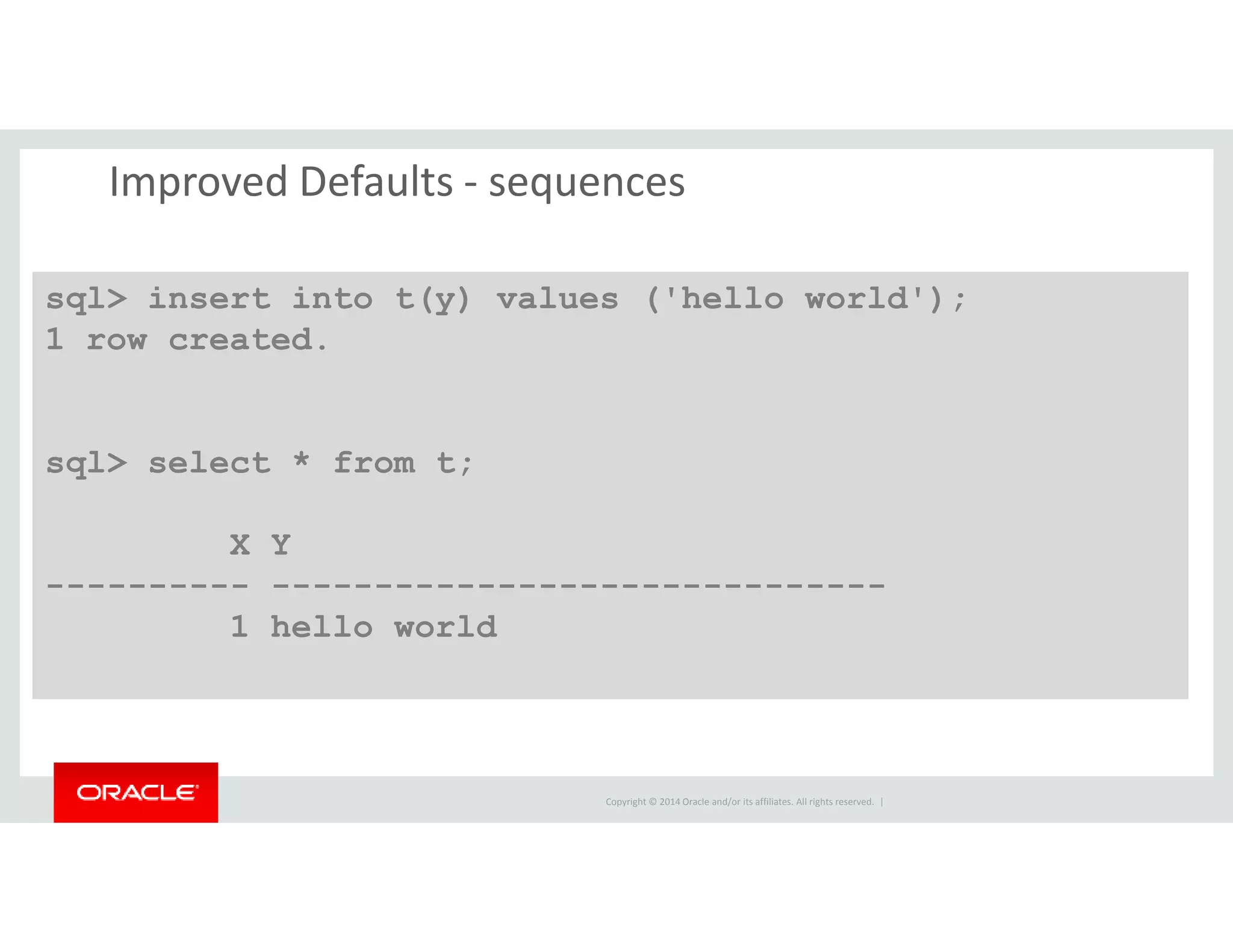

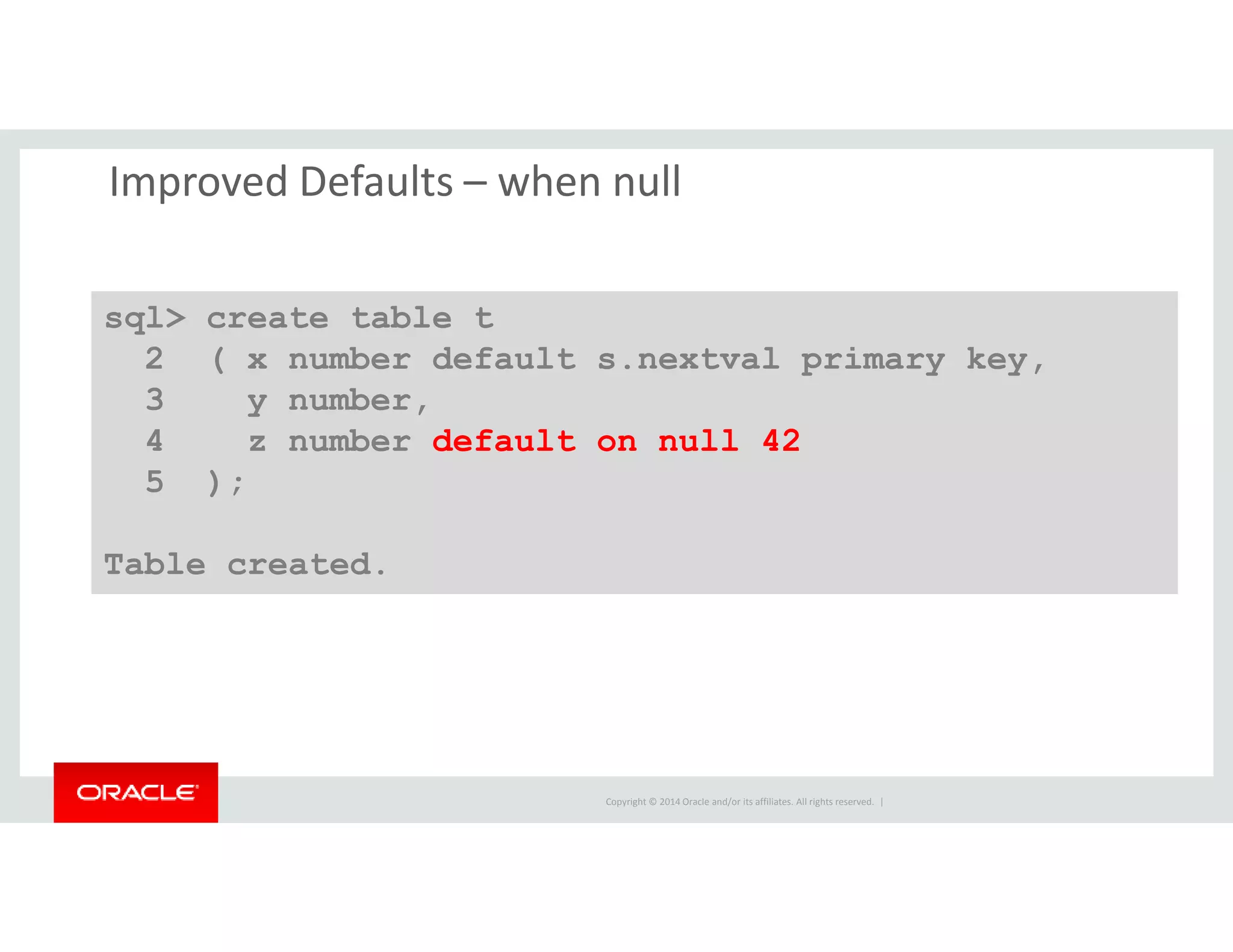

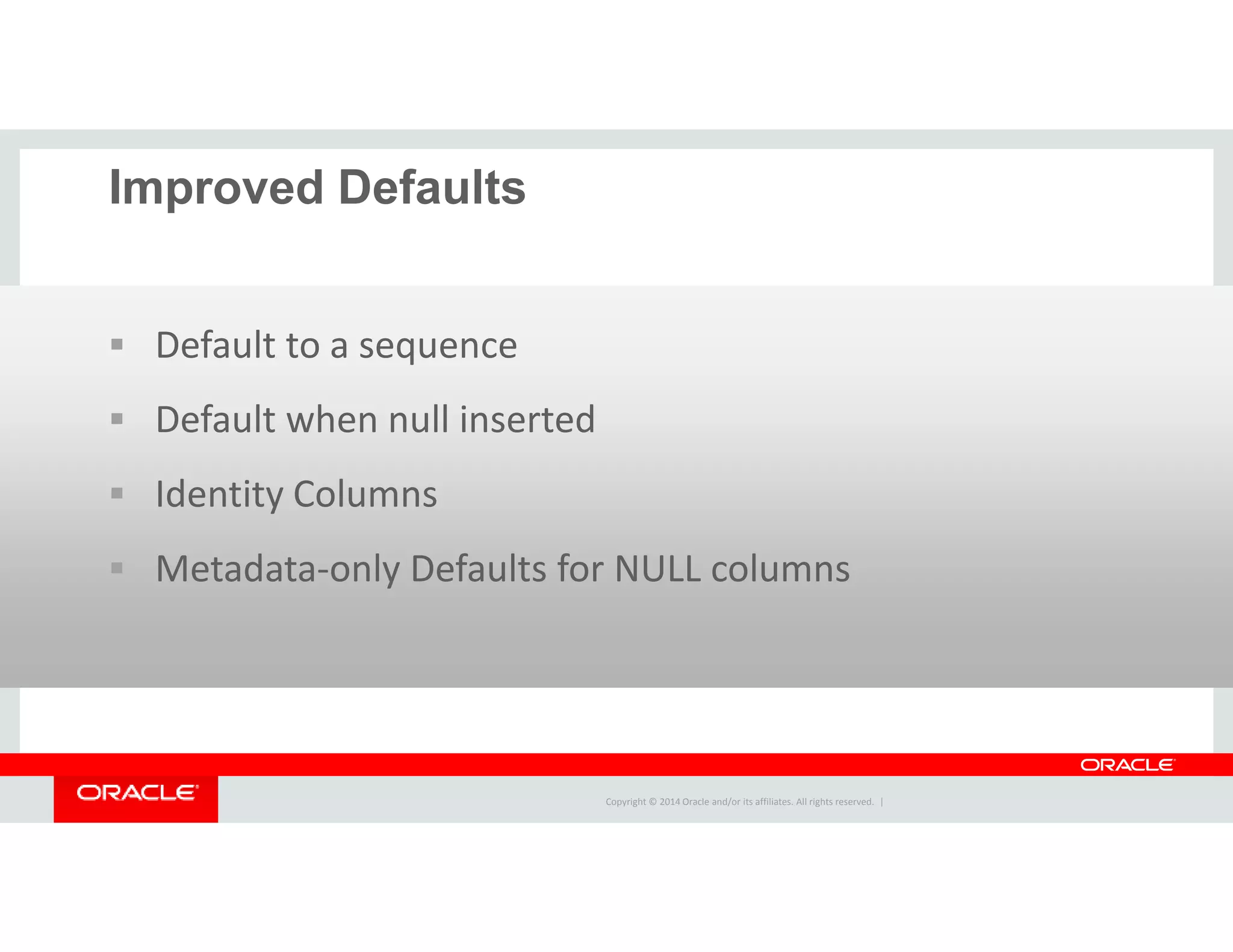

Improved Defaults
Default to a sequence
Default when null inserted
Identity Columns
Metadata-only Defaults for NULL columns

Improved Defaults - sequences
sql create sequence s;
Sequence created.
sql create table t
2 ( x int default s.nextval primary key,
3 y varchar2(30)
4 )
5 /
Table created.

Improved Defaults - sequences
sql insert into t(y) values ('hello world');
1 row created.
sql select * from t;
X Y
---------- ------------------------------
1 hello world

Improved Defaults – when null
sql create table t
2 ( x number default s.nextval primary key,
3 y number,
4 z number default on null 42
5 );
Table created.

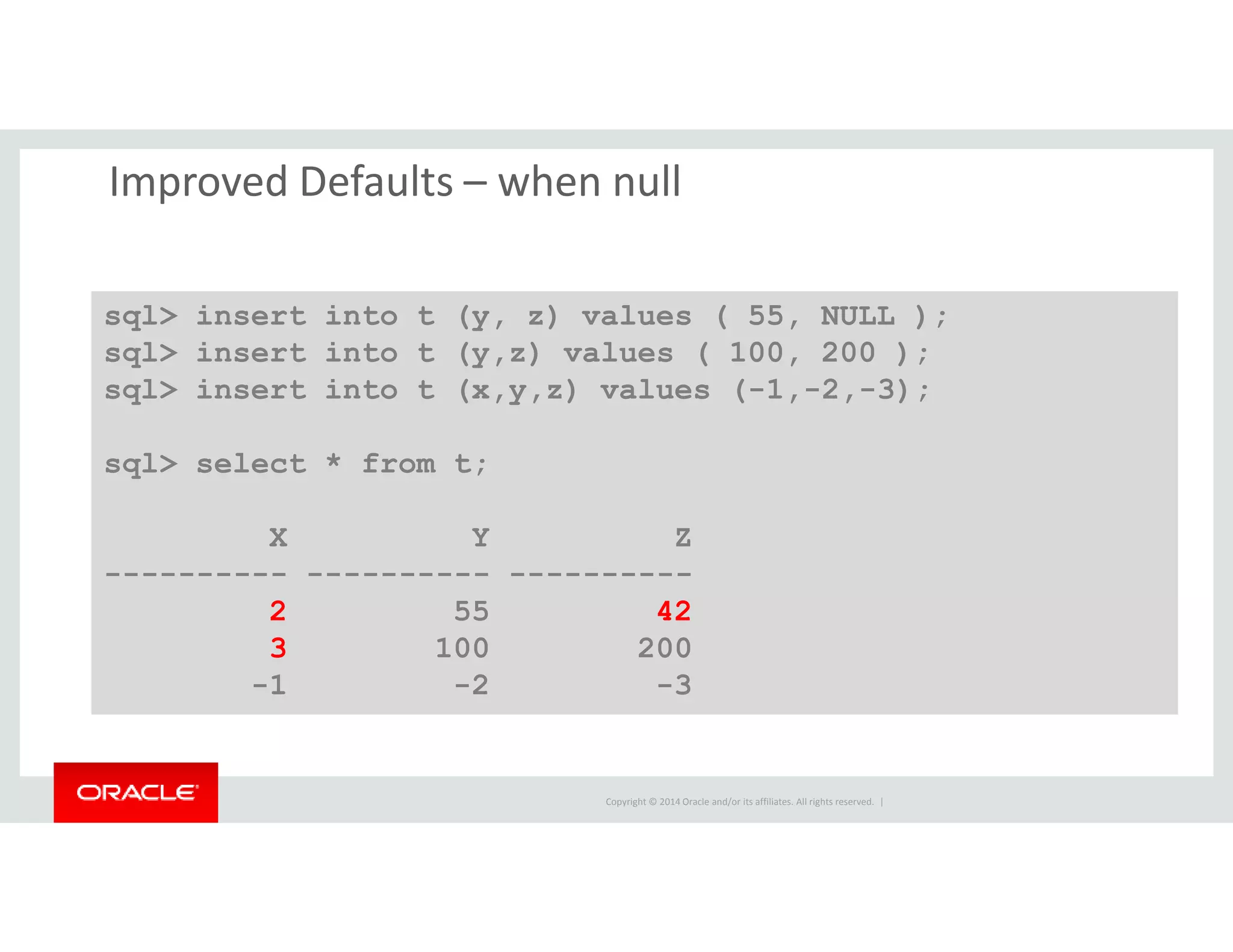

Improved Defaults – when null
sql insert into t (y, z) values ( 55, NULL );
sql insert into t (y,z) values ( 100, 200 );
sql insert into t (x,y,z) values (-1,-2,-3);
sql select * from t;
X Y Z
---------- ---------- ----------
2 55 42
3 100 200
-1 -2 -3

IDENTITY
Example
Create a table where the id column is always populated by Oracle
CREATE TABLE t1
x NUMBER GENERATED AS IDENTITY,
y NUMBER
);
Create a table where the id column is populated by Oracle when not provided
CREATE TABLE t2
(x NUMBER GENERATED BY DEFAULT AS IDENTITY
(START WITH 100 INCREMENT BY 10),
y NUMBER
);

Identity columns
sql insert into t1 (x,y) values (1,100);
insert into t1 (x,y) values (1,100)
*
ERROR at line 1:
ORA-32795: cannot insert into a generated always identity column
sql insert into t1 (y) values (200);
1 row created.
sql select * from t1;
X Y
---------- ----------
1 200

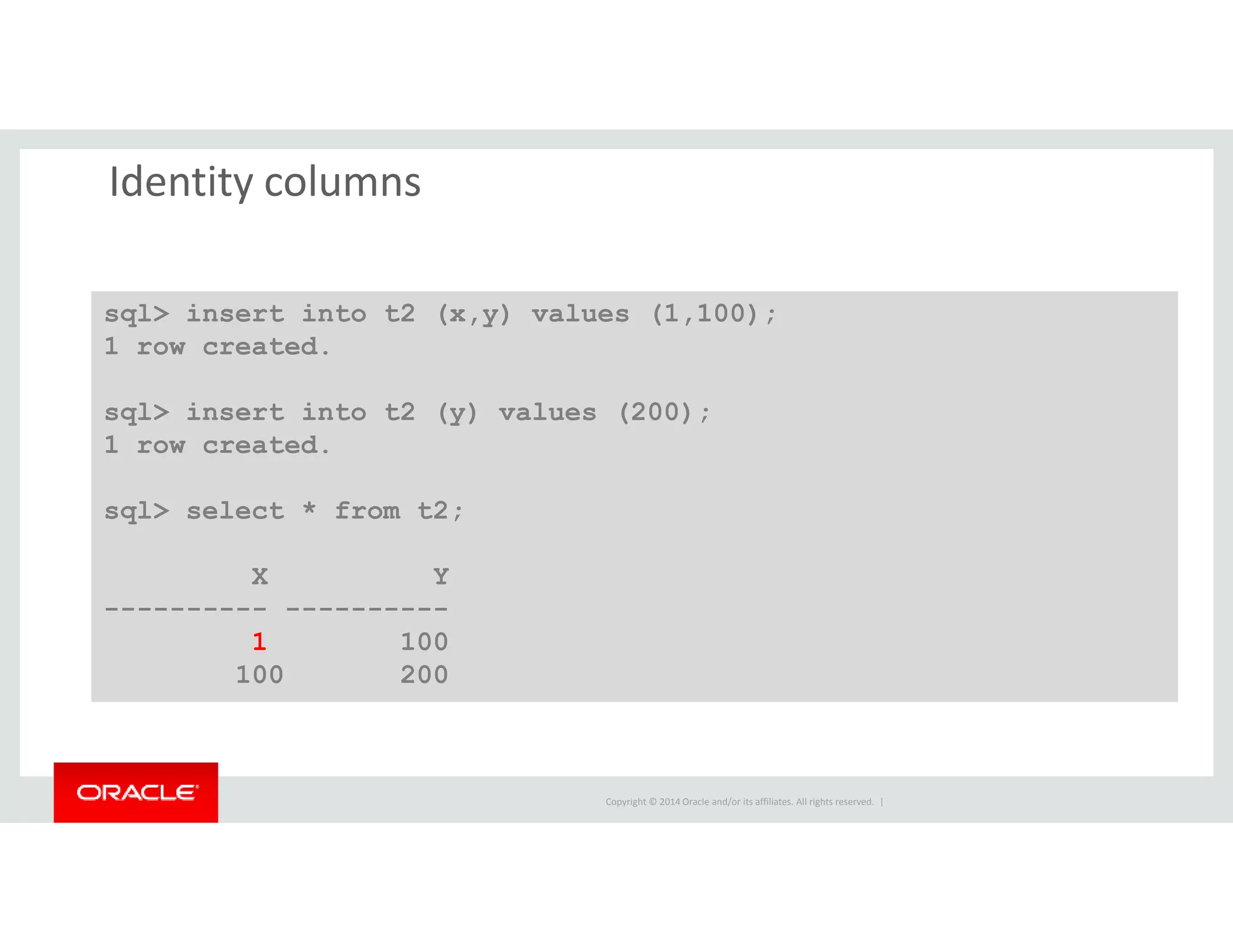

Identity columns
1 row created.
sql insert into t2 (y) values (200);
1 row created.
X Y
---------- ----------
1 100
100 200

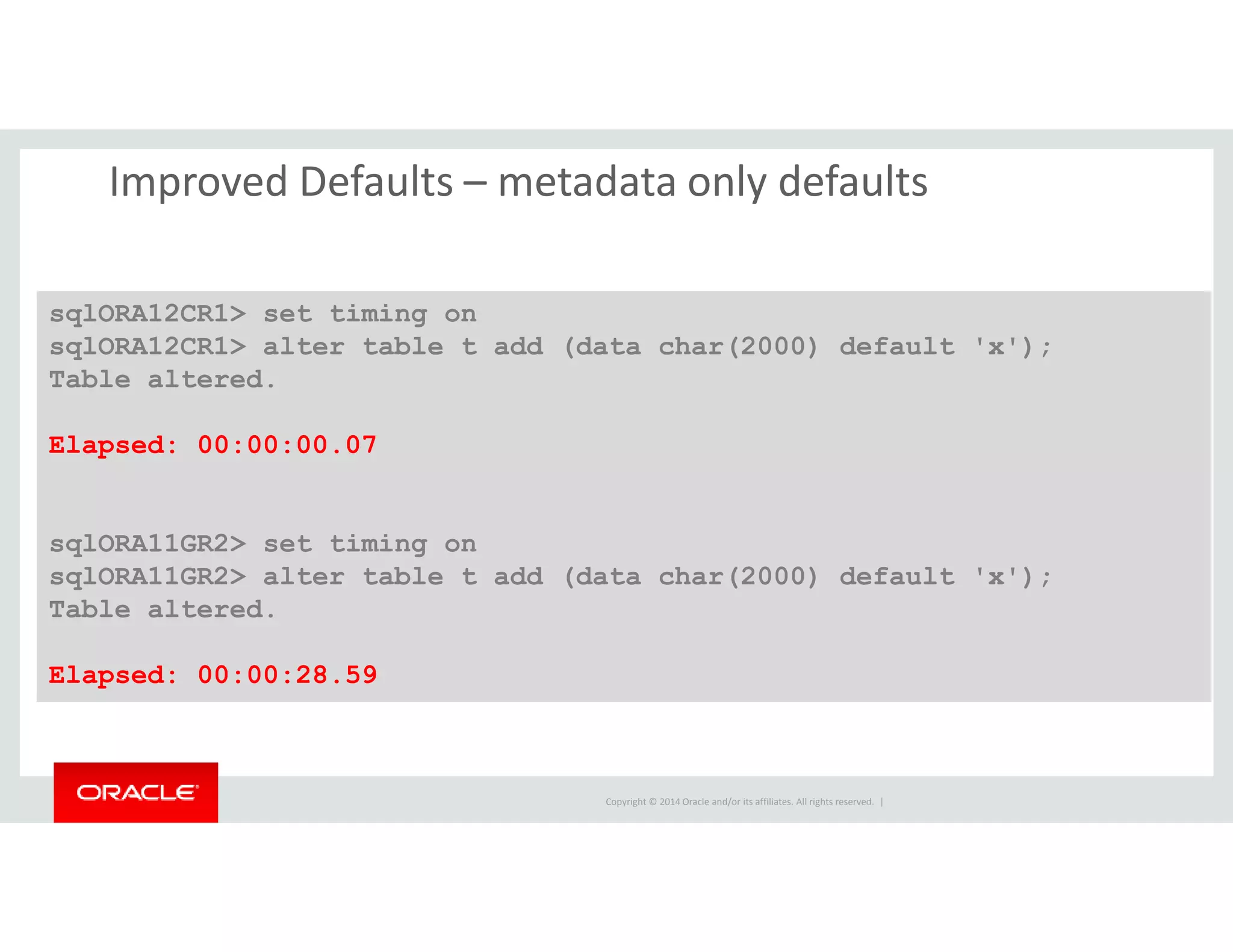

Improved Defaults – metadata only defaults
sqlORA12CR1 set timing on
sqlORA12CR1 alter table t add (data char(2000) default 'x');
Table altered.
Elapsed: 00:00:00.07
sqlORA11GR2 set timing on
sqlORA11GR2 alter table t add (data char(2000) default 'x');
Table altered.
Elapsed: 00:00:28.59

32K VARCHAR2/NVARCHAR2
Example
Enable 32k support in the Oracle Database 12c
ALTER SYSTEM set MAX_STRING_SIZE = EXTENDED ssccooppee == SSPPFFIILLEE
Create table with 32k varchar2
CREATE TABLE Applicants
(id NUMBER GENERATED AS IDENTITY,
first_name varchar2(30),
last_name varchar2(30),
application date,
CV varchar2(32767)
);

Row Limit
Example
Select only the first 5 rows
SELECT employee_id, last_name
FROM employees
ORDER BY employee_id
FETCH FIRST 5 ROWS ONLY ;
Select the first 5% of rows and those whose salary “ties” with the lowest of the 5%
SELECT employee_id, last_name, salary
FROM employees
ORDER BY salary
FETCH FIRST 5 PERCENT ROWS WITH TIES ;

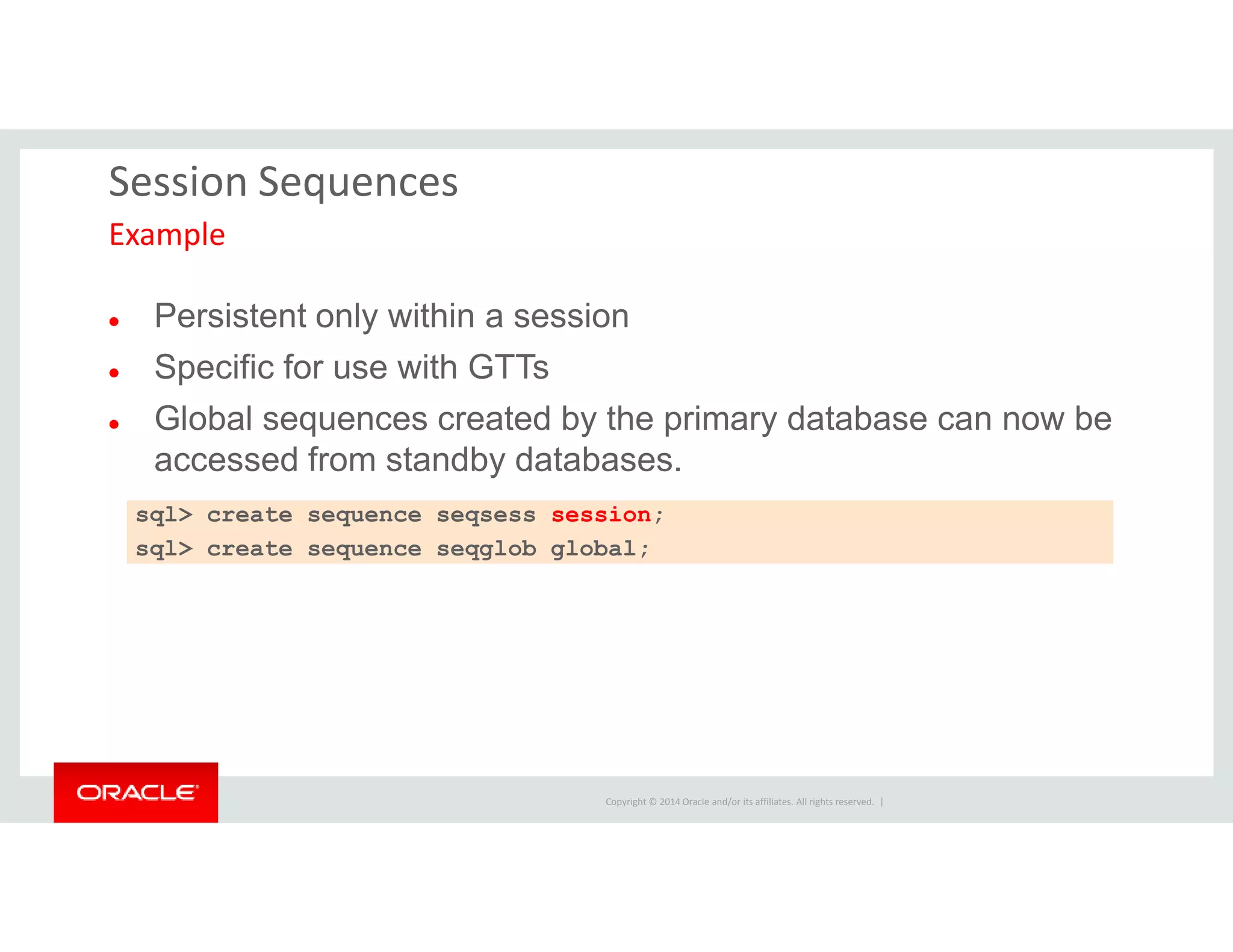

Session Sequences
Example
Persistent only within a session
Specific for use with GTTs
Global sequences created by the primary database can now be
accessed from standby databases.
sql create sequence seqsess session;
sql create sequence seqglob global;

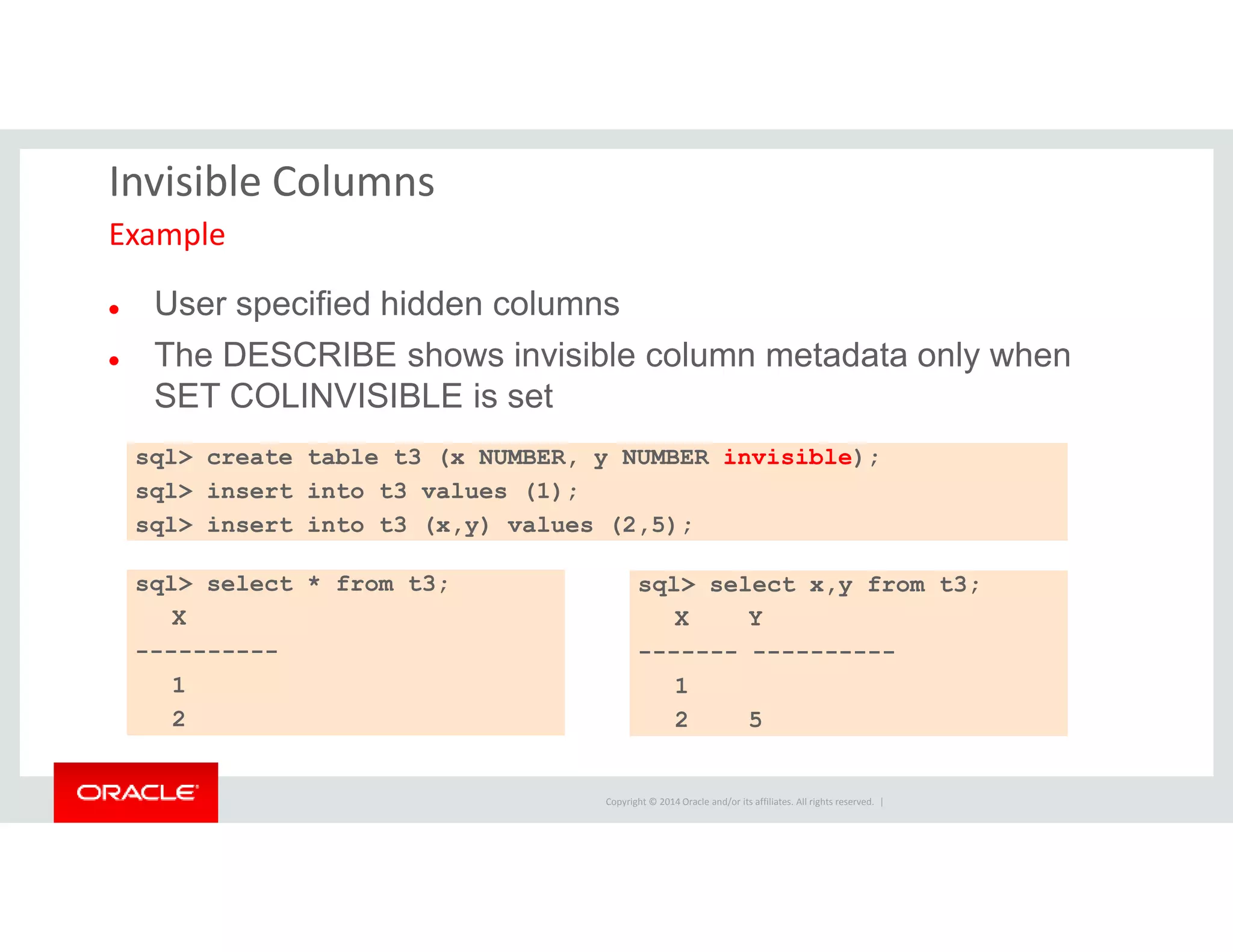

Invisible Columns
Example
User specified hidden columns
The DESCRIBE shows invisible column metadata only when
SET COLINVISIBLE is set
sql create table t3 (x NUMBER, y NNUUMMBBEERR iinnvviissiibbllee));;
sql insert into t3 values (1);
X
----------
1
2
sql select x,y from t3;
X Y
------- ----------
1
2 5

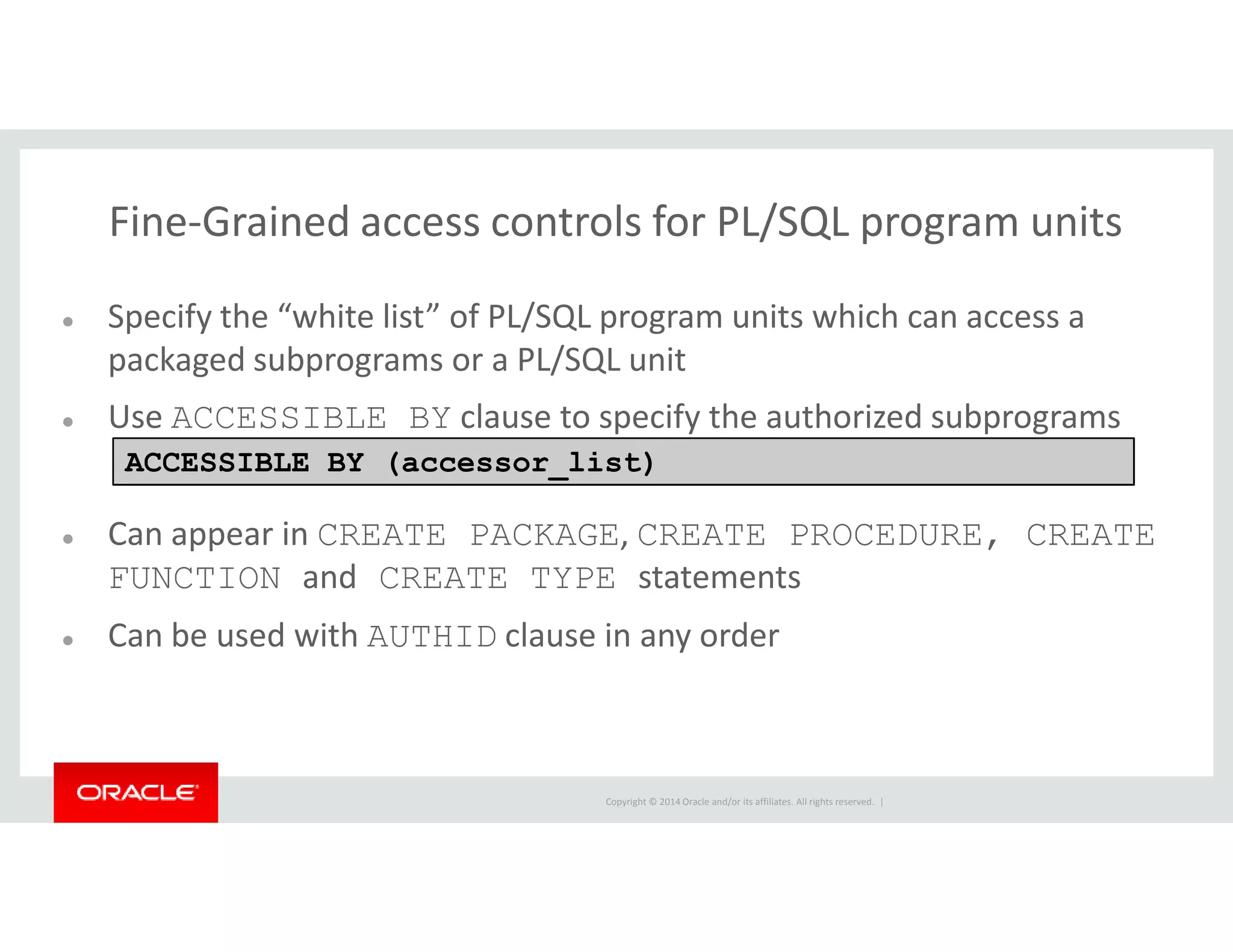

Fine-Grained access controls for PL/SQL program units
Specify the “white list” of PL/SQL program units which can access a
packaged subprograms or a PL/SQL unit
Use ACCESSIBLE BY clause to specify the authorized subprograms
ACCESSIBLE BY (accessor_list)
Can appear in CREATE PACKAGE, CREATE PROCEDURE, CREATE
FUNCTION and CREATE TYPE statements
Can be used with AUTHID clause in any order

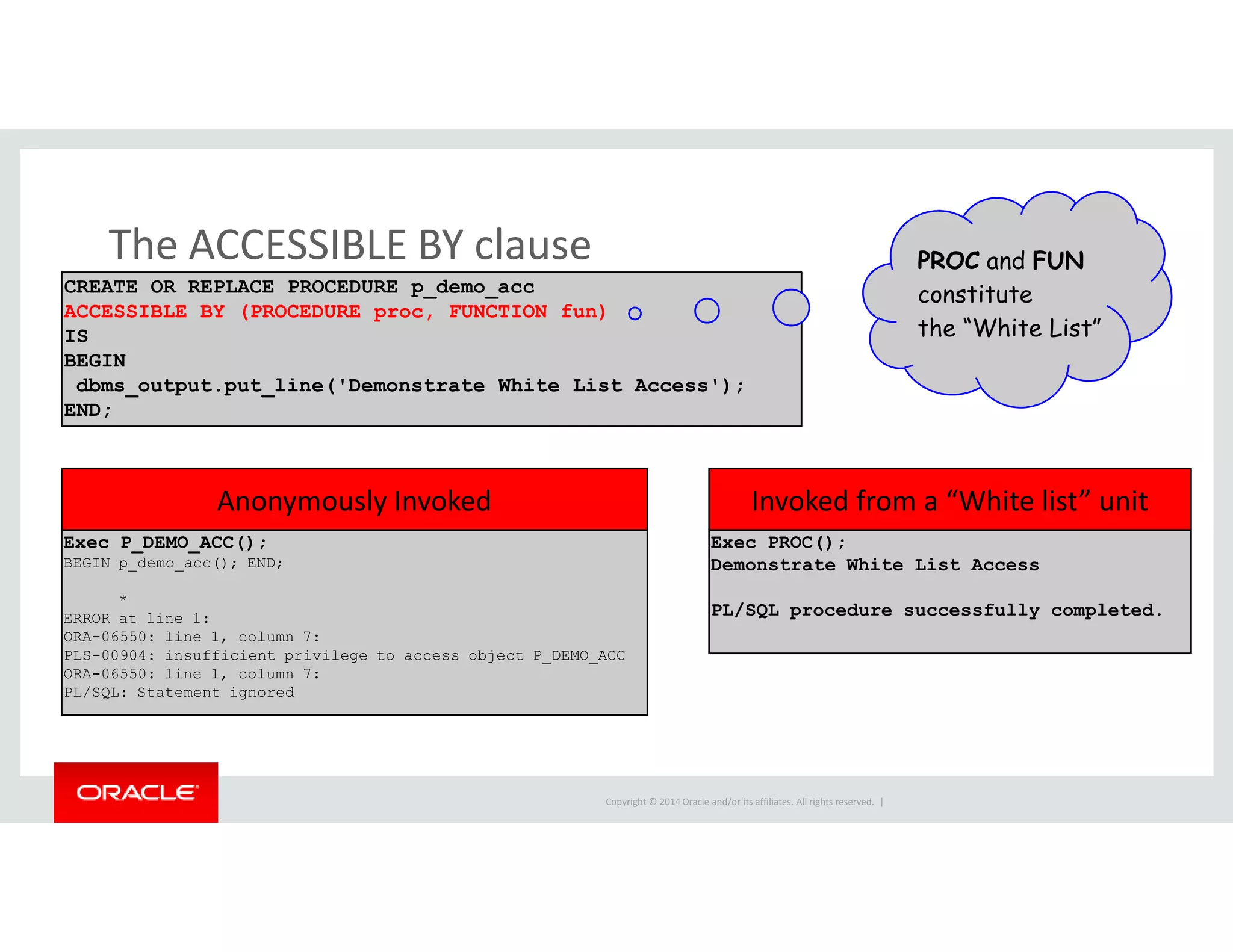

The ACCESSIBLE BY clause
CREATE OR REPLACE PROCEDURE p_demo_acc
ACCESSIBLE BY (PROCEDURE proc, FUNCTION fun)
IS
BEGIN
dbms_output.put_line('Demonstrate White List Access');
END;
PROC and FUN
constitute
the “White List”
Anonymously Invoked Invoked from a “White list” unit
Exec P_DEMO_ACC();
BEGIN p_demo_acc(); END;
*
ERROR at line 1:
ORA-06550: line 1, column 7:
PLS-00904: insufficient privilege to access object P_DEMO_ACC
PL/SQL: Statement ignored
Exec PROC();
Demonstrate White List Access
PL/SQL procedure successfully completed.

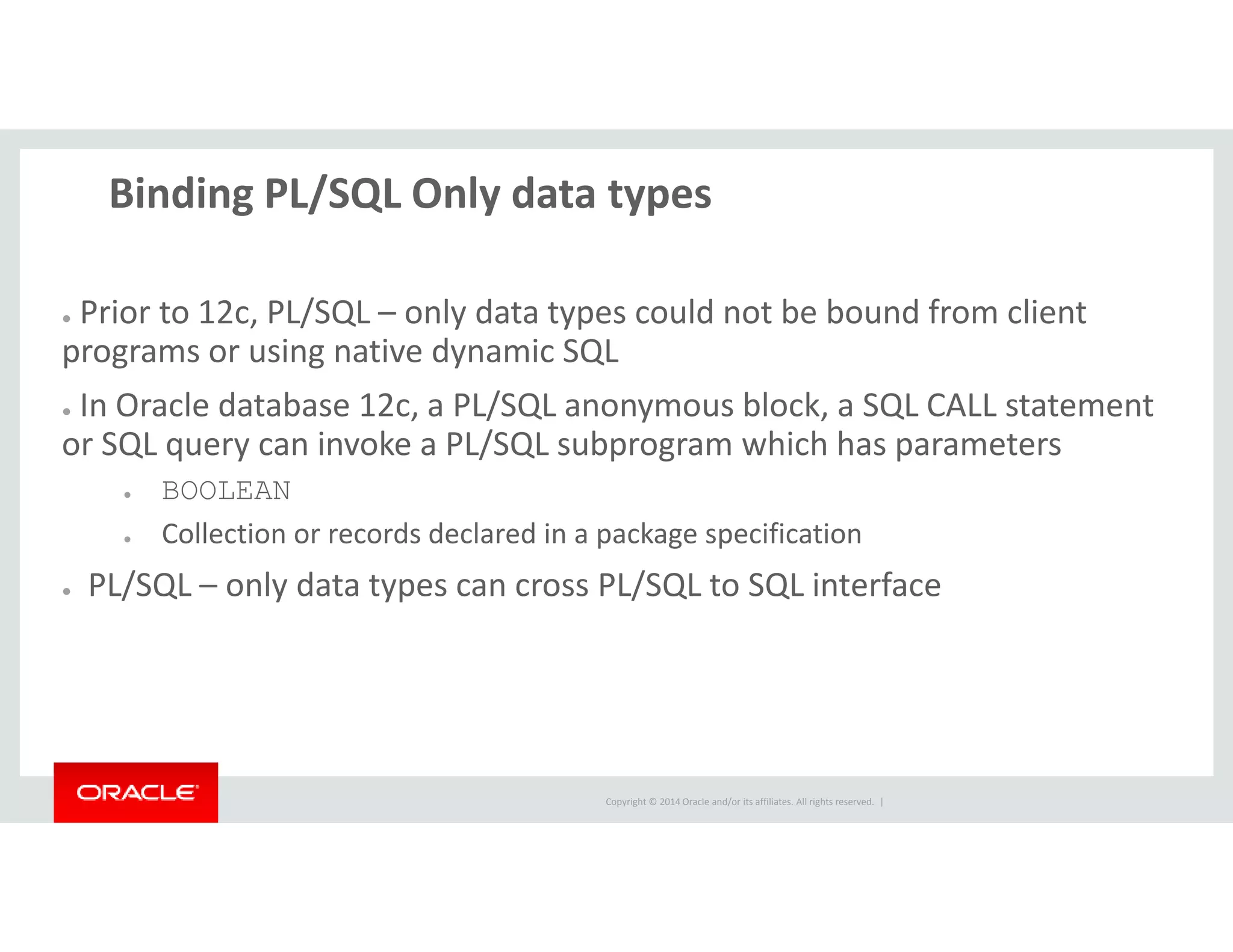

Binding PL/SQL Only data types
● Prior to 12c, PL/SQL – only data types could not be bound from client
programs or using native dynamic SQL
● In Oracle database 12c, a PL/SQL anonymous block, a SQL CALL statement
or SQL query can invoke a PL/SQL subprogram which has parameters
BOOLEAN
● ● Collection or records declared in a package specification
● PL/SQL – only data types can cross PL/SQL to SQL interface

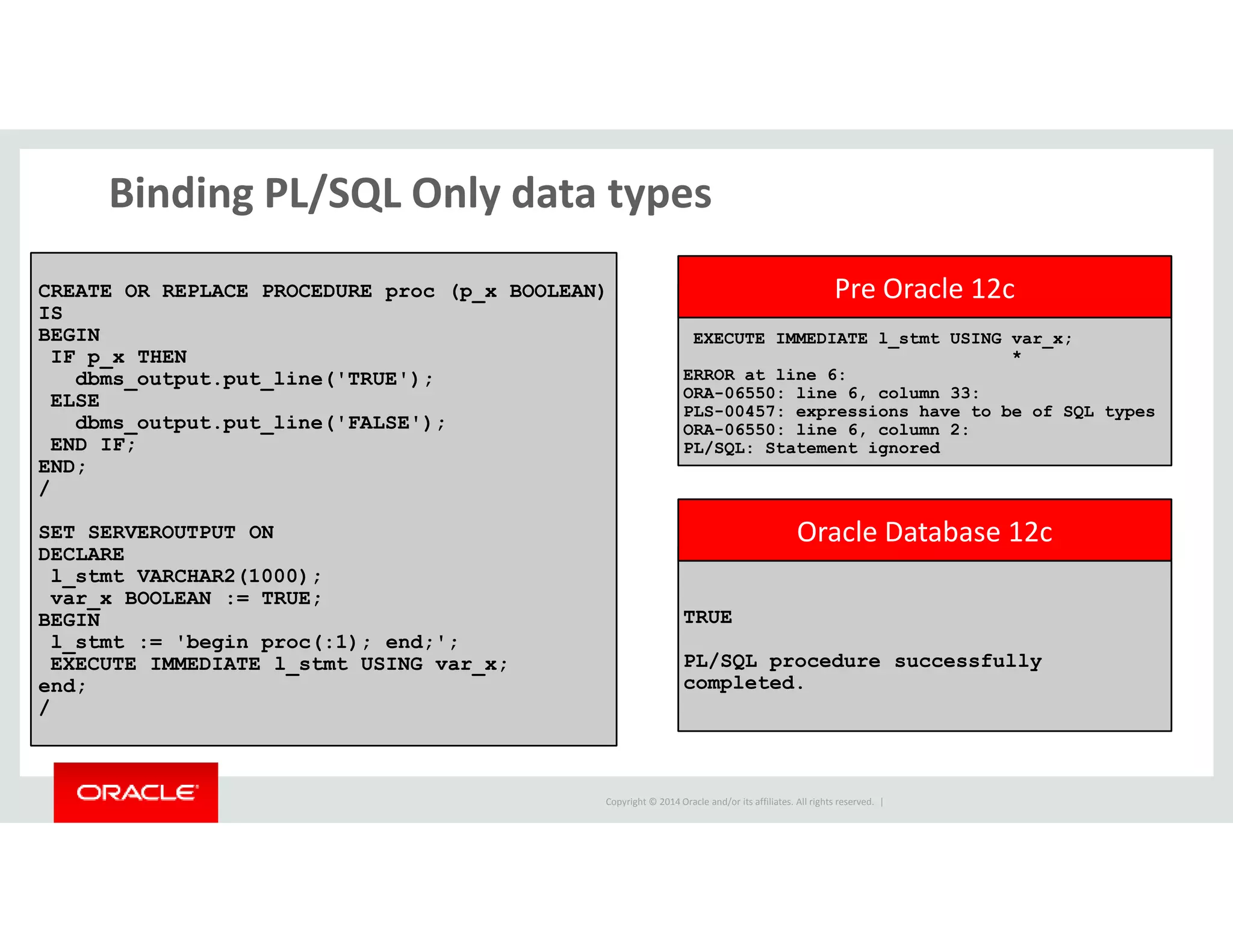

Binding PL/SQL Only data types
EXECUTE IMMEDIATE l_stmt USING var_x;
*
ERROR at line 6:
PLS-00457: expressions have to be of SQL types
PL/SQL: Statement ignored
CREATE OR REPLACE PROCEDURE proc (p_x BOOLEAN)
IS
BEGIN
IF p_x THEN
dbms_output.put_line('TRUE');
ELSE
dbms_output.put_line('FALSE');
END IF;
END;
Pre Oracle 12c
TRUE
PL/SQL procedure successfully
completed.
/
SET SERVEROUTPUT ON
DECLARE
l_stmt VARCHAR2(1000);
var_x BOOLEAN := TRUE;
BEGIN
l_stmt := 'begin proc(:1); end;';
EXECUTE IMMEDIATE l_stmt USING var_x;
end;
/
Oracle Database 12c

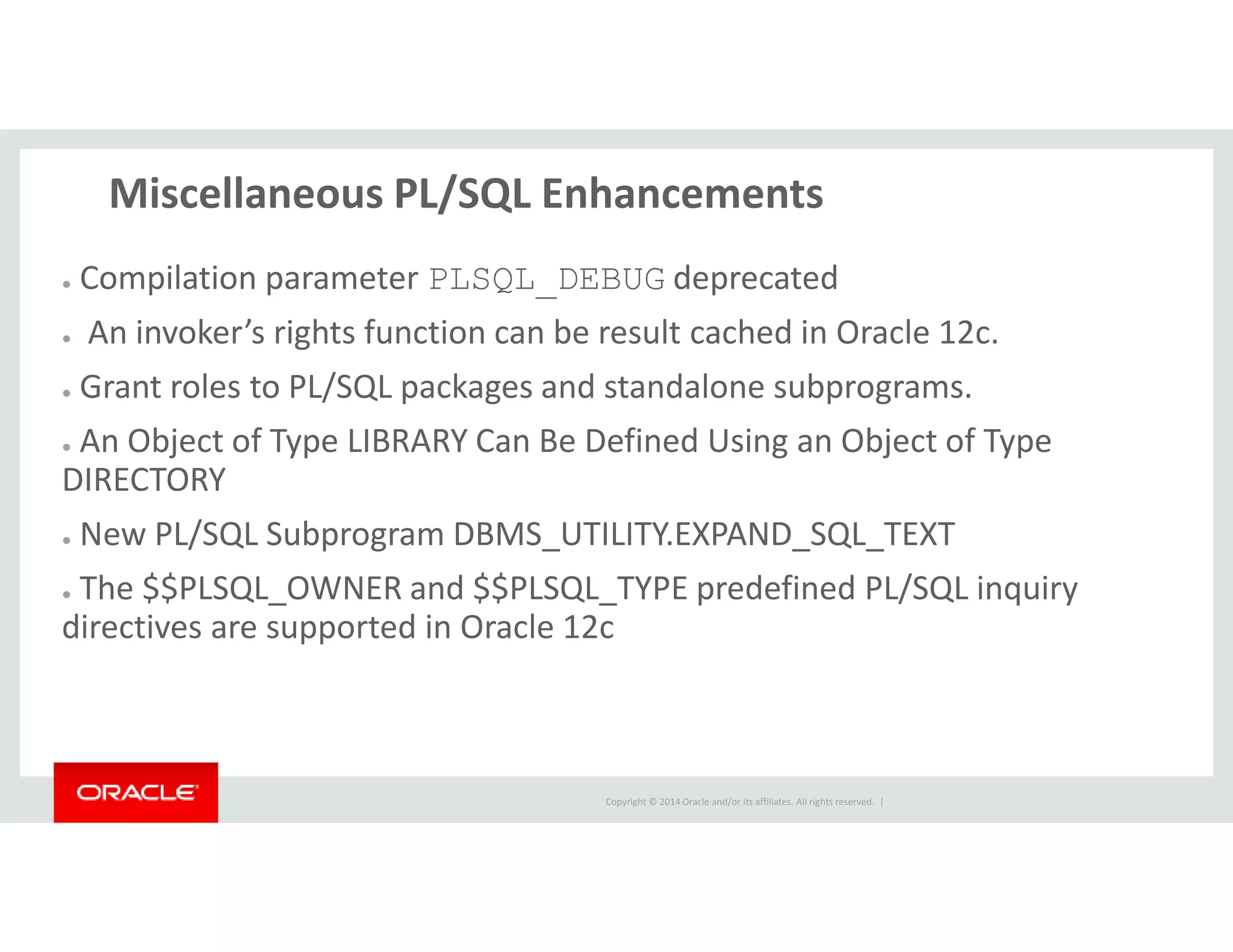

Miscellaneous PL/SQL Enhancements
● Compilation parameter PLSQL_DEBUG deprecated
● An invoker’s rights function can be result cached in Oracle 12c.
● Grant roles to PL/SQL packages and standalone subprograms.
● An Object of Type LIBRARY Can Be Defined Using an Object of Type
DIRECTORY
● New PL/SQL Subprogram DBMS_UTILITY.EXPAND_SQL_TEXT
● The $$PLSQL_OWNER and $$PLSQL_TYPE predefined PL/SQL inquiry
directives are supported in Oracle 12c

Simplifying development and management in the Oracle Database
Support for OOrraaccllee DDaattaabbaassee 1122c
SSQQLL TTrraannssllaattiioonn FFrraammeewwoorrkk
DDaattaa RReeddaaccttiioonn SSuuppppoorrtt
Oracle SQL Developer
MMaannaaggee PPlluuggggaabbllee DDaattaabbaasseess
AAPPEEXX AAddmmiinniissttrraattiioonn
CClloouudd DDaattaabbaassee SSuuppppoorrtt

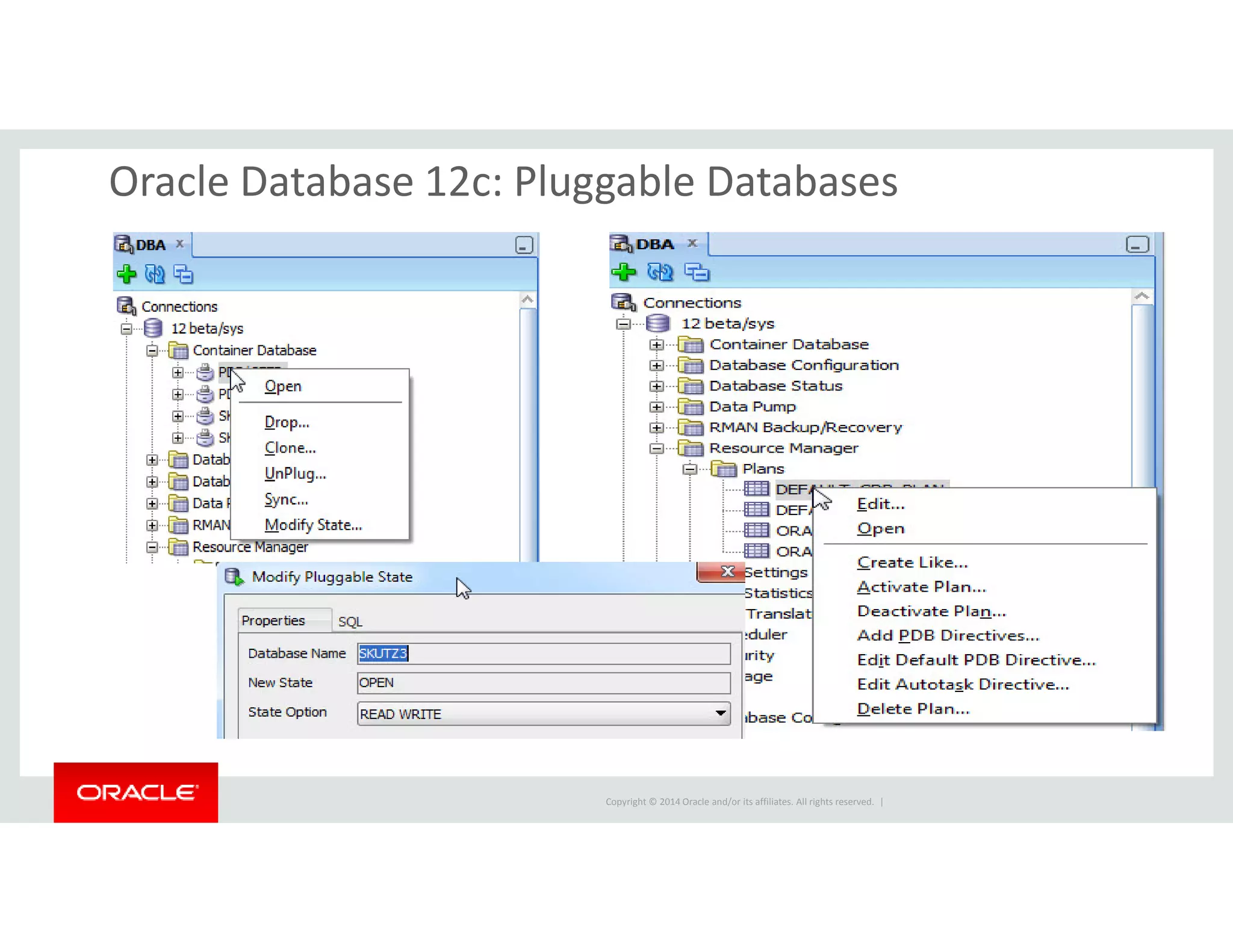

Oracle Database 12c: Pluggable Databases
SQL Developer Release 3.2

Oracle Database 12c: Pluggable Databases

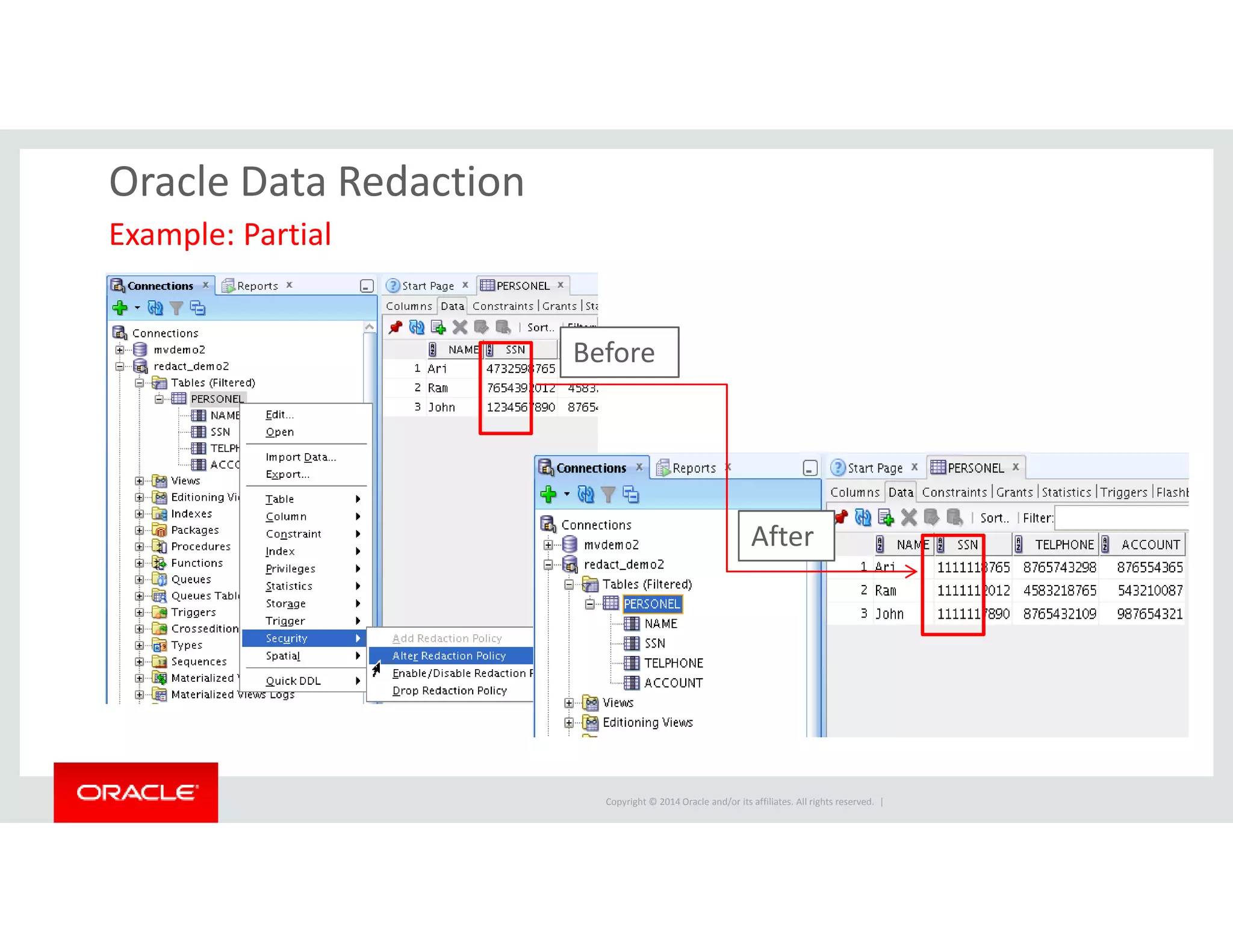

Oracle Data Redaction
Example: Partial
Before
After

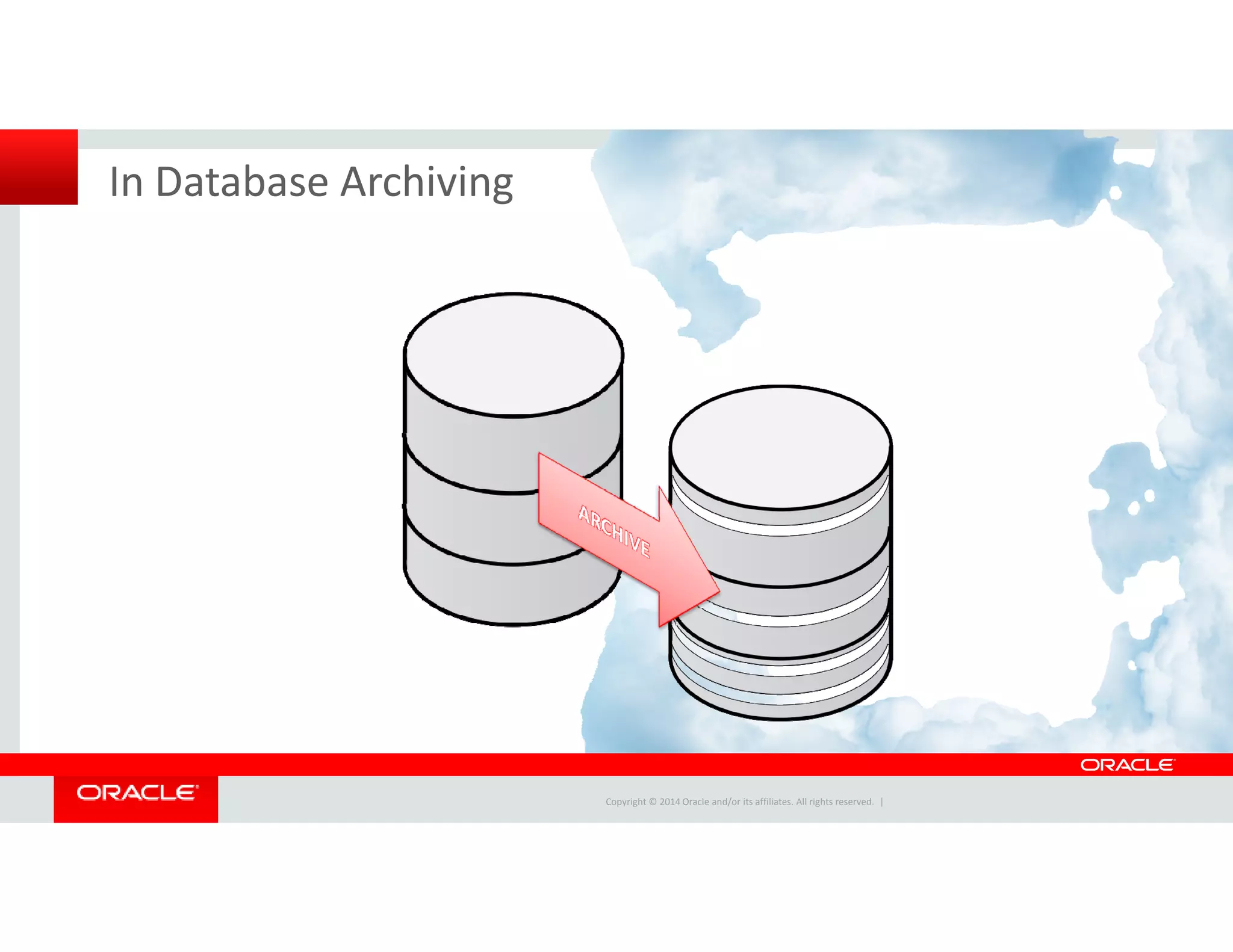

In Database Archiving

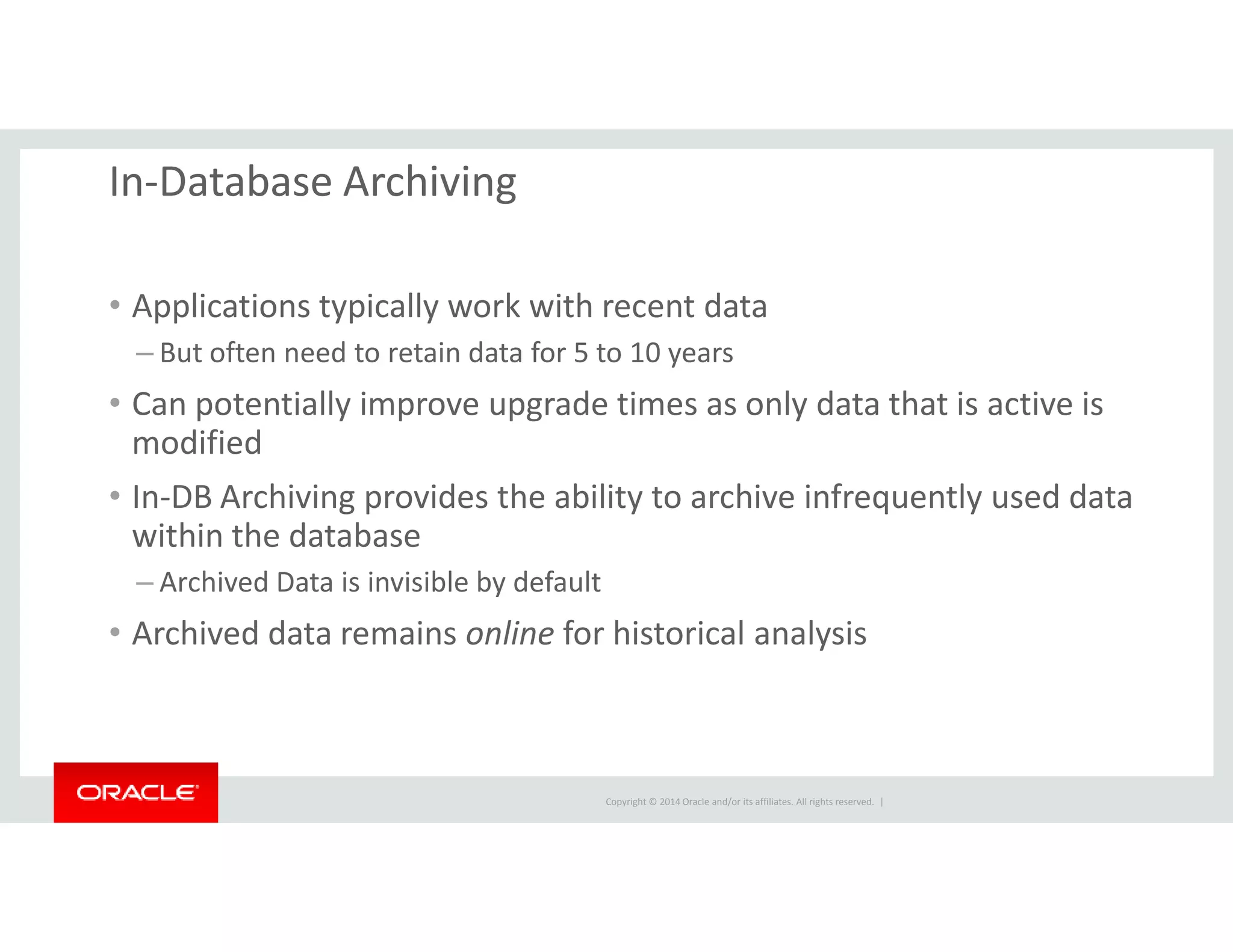

In-Database Archiving
• Applications typically work with recent data
– But often need to retain data for 5 to 10 years
• Can potentially improve upgrade times as only data that is active is
modified
• In-DB Archiving provides the ability to archive infrequently used data
within the database
– Archived Data is invisible by default
• Archived data remains online for historical analysis

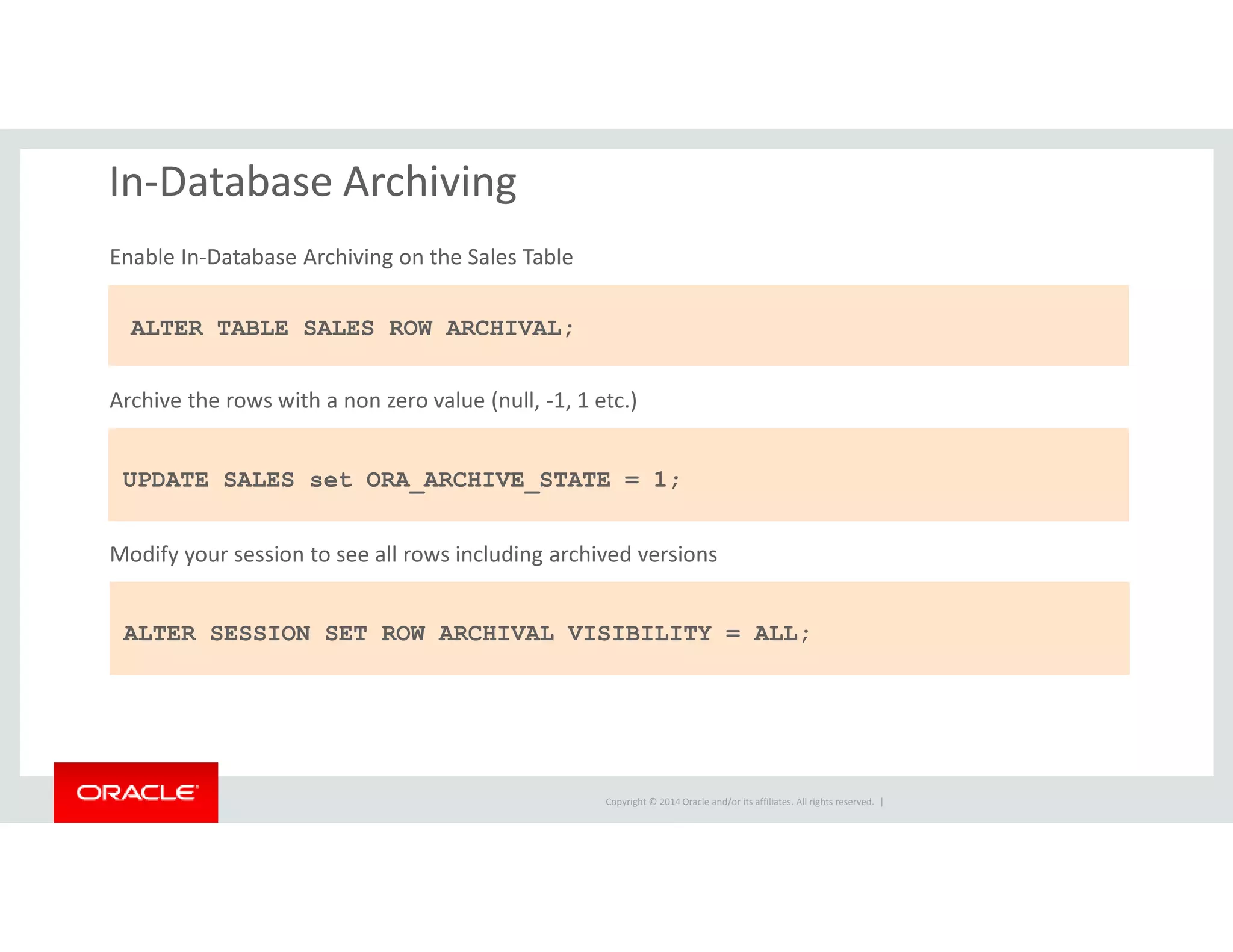

In-Database Archiving
Enable In-Database Archiving on the Sales Table
ALTER TABLE SALES RROOWW AARRCCHHIIVVAALL;;
Archive the rows with a non zero value (null, -1, 1 etc.)
UUPPDDAATTEE SSAALLEESS sseett OORRAA__AARRCCHHIIVVEE__SSTTAATTEE == 11;;
Modify your session to see all rows including archived versions
AALLTTEERR SSEESSSSIIOONN SSEETT RROOWW AARRCCHHIIVVAALL VVIISSIIBBIILLIITTYY == AALLLL;;

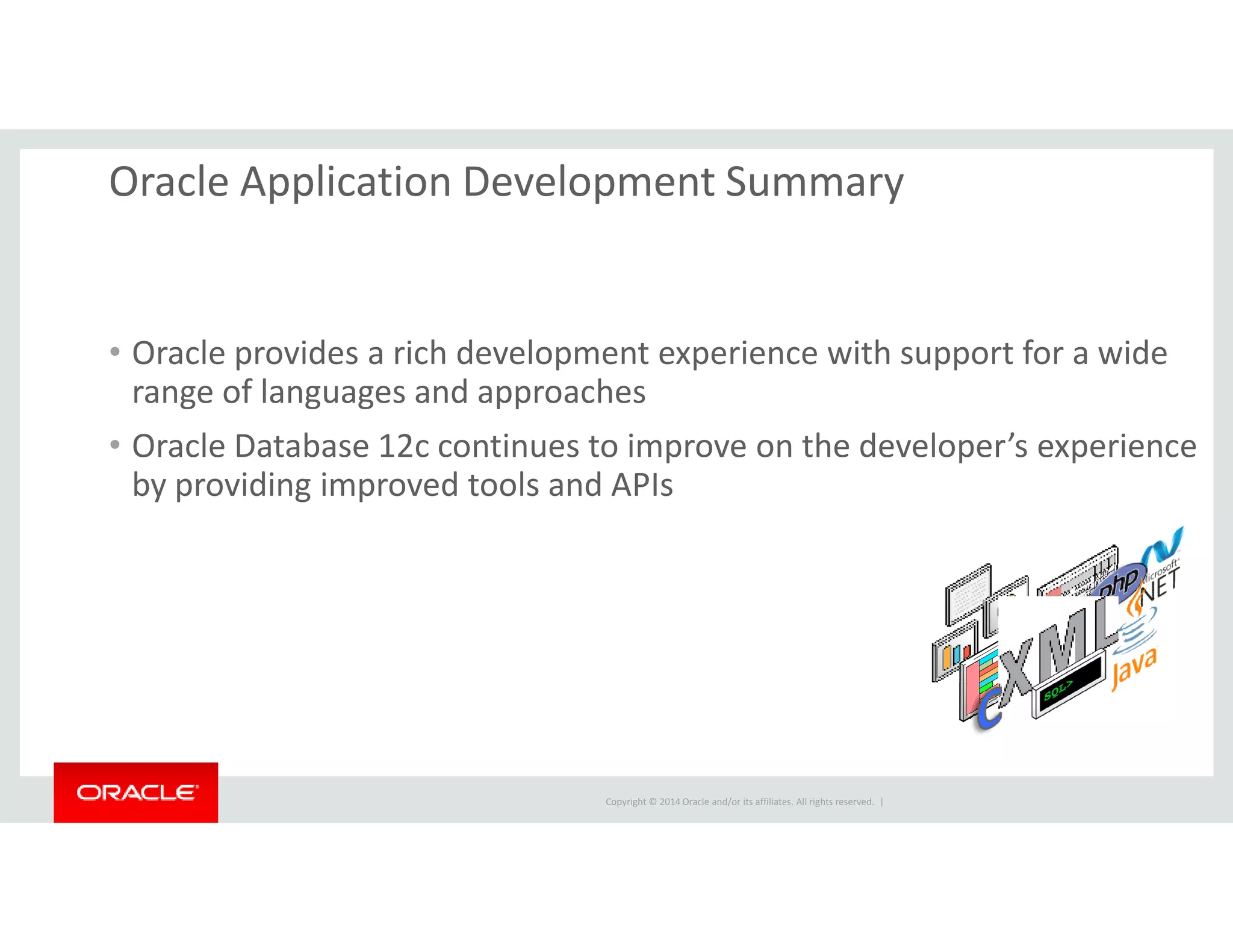

Oracle Application Development Summary
• Oracle provides a rich development experience with support for a wide
range of languages and approaches
• Oracle Database 12c continues to improve on the developer’s experience
by providing improved tools and APIs

Oracle 12c Application development

Recommended

Recommended

More Related Content

What's hot

What's hot (8)

Viewers also liked

Viewers also liked (8)

Similar to Oracle 12c Application development

Similar to Oracle 12c Application development (20)

More from pasalapudi123

More from pasalapudi123 (10)

Recently uploaded

Recently uploaded (20)

Oracle 12c Application development
