Preon is a declarative data binding framework for Java that allows mapping data structures to binary encoded representations. It generates decoders, encoders, and documentation automatically based on annotations on the data structure classes. This avoids the need for manual parsing of bit streams and improves maintainability. Preon uses a chain of Codec objects to handle each encoding/decoding task, keeping the logic encapsulated and modular. It supports features like expressions, lazy loading, inheritance and custom CodecFactories to handle different data types. The goal is to hide the complexity of binary encoding and make working with binary data as easy as working with regular Java objects.

1. Preon
Bit Syntax for Java

2. Preon
A declaratve data binding framework for binary
encoded data

3. Binary Encoded Data?
Any fle for which 'file -bi {filename}' does
not return a mimetype startng with 'text/'
Non-binary: Binary:
text/plain (*.txt) applicaton/pdf (*.pdf)
text/html (*.html) applicaton/octet-stream (*.mp4)
text/xml (*.xml) image/png (*.png)

4. Not only byte stream
Always octects (8 bit values)
8 bits
8
bi
ts

5. But also bit stream
Always octects (8 bit values)
5 bits 5 bi
ts

6. Decoding TomTom Map Files
Approx. 300 pages of C++ source code,
just for decoding only...

7. Compressed Data
2 kg
1021 pages

8. Challenges
● Decoding from bit stream not for the faint-hearted
● Encoding to bit stream not for the faint-hearted
● Hard to maintain
● Hard to extend
● Java doesn't help (Bug 4504839)
● Decoder and encoder easily go out of sync
● Documentaton and sofware easily go out of sync

9. What if....
..this could all be
solved easily?

10. Preon Ambitions
● Declaratvely map data structure to encoded
representaton
● Get the decoder/encoder/documentaton,
free of charge

11. 5-Second User Guide
Decoding a BitM ap:
01 File file = new File(...);
02 Codec<BitMap> codec = Codecs.create(BitMap.class);
03 BitMap bitmap = Codecs.decode(codec, file);

12. What just happened?
Create a Codec for instances of BitMap
01 File file = new File(...);
02 Codec<BitMap> codec = Codecs.create(BitMap.class);
03 BitMap bitmap = Codecs.decode(codec, file);
... and use it to decode a BitMap.

13. Find the specification
The data structure IS the specifcaton:
class BitMap {
@Bound int width;
@Bound int height;
@Bound int nrColors;
@BoundList(size=”nrColors”) Color[];
@BoundList(size=”width*height”) byte[] pixels;
}
class Color {
@Bound int red;
@Bound int green;
@Bound int blue;
}

14. Demo

15. But what is actually happening?
Codec is nothing but a
facade to a chain of
Codecs.
Each Codec only
understands its own task.
Codecs will delegate to
other Codecs

16. While Decoding

17. Codecs
Encapsulate everything there is to know about the
mapping between in-memory representaton and
encoded representaton

18. Demo Generated Documentation

19. So, now....
Forget everything I just told you

20. Preon just works
Annotatons Types
● @Bound int, byte, short, long, Integer,
● @BoundList Byte, Short, Long, boolean,
● @BoundString Boolean, String, List<T>, T[],
● @BoundNumber type-safe enums, Object
● @BoundObject
● @BoundExplicitly
● @If Expressions
● @LazyLoading atributes: .{name}
● @LengthPrefx items: [{number}], or [{expr}]
● @TypePrefx arithmetc: +, -, /, *, ^
● @ByteAlign combinatorial: &&, ||
● @Slice relatonal: >=, <=, ==, <, >
● @Import literals: 'foobar', 0x0f, 0b01101

21. Convention over Configuration
// Default settings for int Codec:
// 32-bits, little endian
@Bound int foo;
// Read an int, but construct the int
// from 5 bits only
@BoundNumber(size=”5”) int foo;

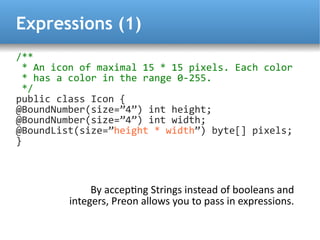

22. Expressions (1)
/**
* An icon of maximal 15 * 15 pixels. Each color
* has a color in the range 0-255.
*/
public class Icon {
@BoundNumber(size=”4”) int height;
@BoundNumber(size=”4”) int width;
@BoundList(size=”height * width”) byte[] pixels;
}
By acceptng Strings instead of booleans and
integers, Preon allows you to pass in expressions.

23. Expressions (2)
@BoundString(size=”{expr}”, ...)
@BoundList(size=”{expr}”, offset=”{expr}”, ...)
@BoundNumber(size=”{expr}”, ...)
@Slice(“{expr}”)
...

24. Boolean expressions
@Bound
private int mapVersion;
@If(“mapVersion >= 700”)
@Bound
private MapFlags flags;
// But also:
// mapVersion + 1 >= 700
// mapVersion > 3 && mapVersion < 300
// etc.

25. References
Backward references only
Reference the “outer” object
addresses[1].street
outer.driversLicenses[1].state
driveresLicenses[nrDriverLicenses - 1].state

26. Variable Introductions
@Bound int[] offsets;
@BoundList(offset=”offsets[index]”,...)
List<Node> nodes;
Introducton
● Preon will inject List implementaton
● List implementaton will load Nodes lazily, on demand
● Calling nodes.get(3) will cause the List implementaton to
– Calculate the node's positon: ofsets[index=3] = 120
– Call Codec<Node> to start decoding from that point

27. Inheritance
Java Classes Preon Perspectve

28. Codecs class is your friend
static <T> T decode(Codec<T> codec, byte[] buffer)
static <T> T decode(Codec<T> codec, ByteBuffer buffer)
static <T> T decode(Codec<T> codec, File file)
static <T> Codec<T> create(Class<T> type)
static <T> Codec<T> create(Class<T> type, CodecFactory...
factories)
static <T> Codec<T> create(Class<T> type, CodecDecorator...
decorators)
static <T> void document(Codec<T> codec, ArticleDocument
document)
static <T> void document(Codec<T> codec, DocumentType type,
OutputStream out)
static <T> void document(Codec<T> codec, DocumentType type, File
file)

29. If not Preon, then what else?
Declaratve approach is not new:
– BSDL (Bitstream Syntax Descripton Language)
– Flavor (htp://favor.sourceforge.net/)
– XFlavor
– BFlavor (htp://multmedialab.elis.ugent.be/bfavor/)
None of them would worked in our case:
– Overly complicated
– No free/solid implementaton
– Assumptons are surreal:
● “everything will just ft in memory”
● “there will only be a single thread”
● “our current feature set is all you ever need”

30. The Preon Answer
“everything will just ft in memory”
Preon is loading data lazily by default, and when it does it relies
on memory mapped data (Default BitBufer implementaton
wraps around ByteBufer, and hence also
MappedByteBufer.)
“there will only be a single thread”
In Preon, every thread can have its own reference to the
current positon in the BitBufer.
“our current feature set is all you ever need”
Preon has incredibly open: implement CodecFactory or
CodecDecorator to create your own codecs based on type
informaton or annotatons.

31. CodecFactory
Annotatons on the object expectng data
to be decoded by the Codec.
interface CodecFactory {
<T> Codec<T> create(AnnotatedElement metadata,
Class<T> type,
ResolverContext context);
}
The type of object to The object for constructng
be decoded. references.
returns null if it does not have a way to construct a Codec

32. Chain of CodecFactories

33. CodecFactory Usage
● CodecFactories can be passed to Codecs.create(...)
● ... which will cause the Codecs class to consider
these factories when constructng the various
Codecs.
● Internally, a big chain of commands

34. Current Status
Preon 1.0 released
(htp://preon.fotsam.nl/)
Big Theme for next Release:
Encoding

35. Other Future Work
● Improved debugging
● Annotaton driven support for other compression
techniques
● More hyperlinking in the documentaton
● Beter algebraic simplifcaton of expressions
● “In-place” editng?

36. Conclusions
● It can be done!!!
● Breaking down Codecs into smaller codecs results
into some interestng propertes
● The ideas in Preon could work in other Java data
binding frameworks as well
● Encoding and decoding bitstream compressed data
is stll hard, but Preon truly hides that complexity
● Preon is interestng enough to deserve more
support

37. Preon
Bit Syntax for Java
http://preon.fotsam.nl/
wilfred@fotsam.nl

38. Preon Layers
Data binding
A fuent interface for
generatng documents.
(pecia.fotsam.nl)
An expression language capable of
BitBufer abstractons rendering itself to human readable
text. (limbo.sourceforge.net)

39. Preon License
GPL + Classpath
Excepton
Apache 2.0
Apache 2.0
GPL + Classpath Excepton
