Unfiltered
Unveiled
  THE UNFRAMEWORK
Whoami
Code / train Scala for a living
Lately for a NYC startup
Using Unfiltered


Currently freelancer
Former Xebia
Former TomTom
Former Sun Microstems
Former ...

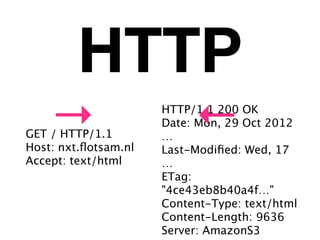

HTTP
    →
GET / HTTP/1.1
Host: nxt.flotsam.nl
                           ←
                      HTTP/1.1 200 OK
                      Date: Mon, 29 Oct 2012
                      …
                      Last-Modified: Wed, 17
Accept: text/html     …
                      ETag:
                      "4ce43eb8b40a4f…"
                      Content-Type: text/html
                      Content-Length: 9636
                      Server: AmazonS3
Frameworks
Solve many
problems around
given domain

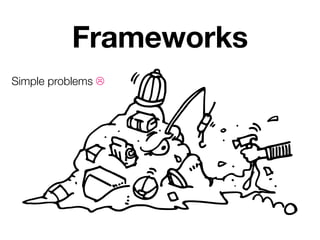

Frameworks
Simple problems ☹
Toolkit



Loosely coupled
components that can be
composed to solve           Simple problems ☺
different problems          Complex problems ☺

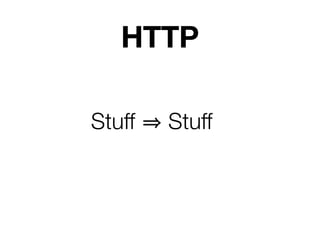

HTTP

Stuff   Stuff
HTTP

Request   Response

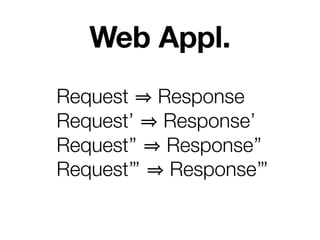

Web Appl.
Request Response
Request’ Response’
Request’’ Response’’
Request’’’ Response’’’

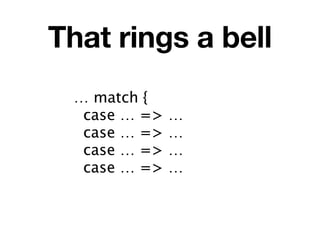

That rings a bell
 … match {
  case … =>   …
  case … =>   …
  case … =>   …
  case … =>   …

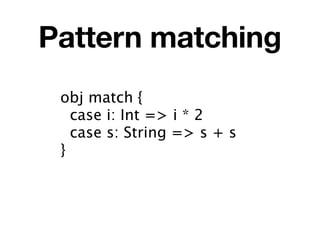

Pattern matching
 obj match {
   case i: Int => i * 2
   case s: String => s + s
 }

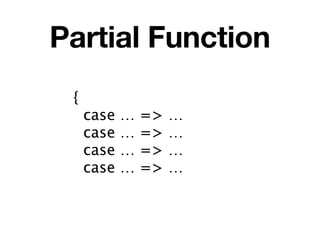

Partial Function
 {
     case   …   =>   …
     case   …   =>   …
     case   …   =>   …
     case   …   =>   …

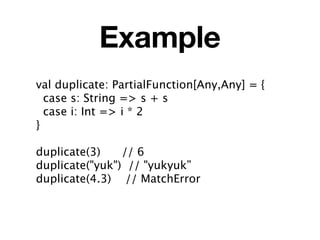

Example
val duplicate: PartialFunction[Any,Any] = {
  case s: String => s + s
  case i: Int => i * 2
}

duplicate(3)    // 6
duplicate("yuk") // "yukyuk”
duplicate(4.3) // MatchError
Unfiltered
{                                         Intent
    case _ => ResponseString(“yay”)
}



    GET / HTTP/           HTTP/1.1 200 OK
                          Content-Length: 3
Hitting the road
 import unfiltered.filter._
 import unfiltered.jetty._
 import unfiltered.response._

 Http(8090).filter(Planify {
   case _ => ResponseString("Ok")
 }).run

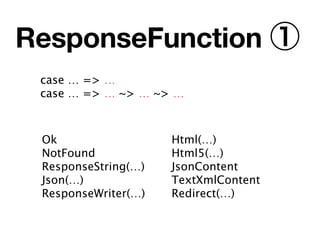

ResponseFunction ①
 case … => …
 case … => … ~> … ~> …



 Ok                  Html(…)
 NotFound            Html5(…)
 ResponseString(…)   JsonContent
 Json(…)             TextXmlContent
 ResponseWriter(…)   Redirect(…)
ResponseFunction ②
 Ok ~> PlainTextContent ~> ResponseString("foo")


 Ok→                      resp.setStatus(SC_OK)

 PlainTextContent→        resp.setContextType("text/plain")

 RepsonseString("foo")→   resp.setCharacterEncoding("UTF-8")
                          val writer = resp.getWriter()
                          writer.print("foo")
                          writer.close

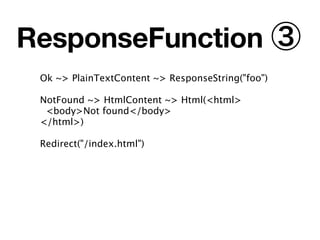

ResponseFunction ③
 Ok ~> PlainTextContent ~> ResponseString("foo")

 NotFound ~> HtmlContent ~> Html(<html>
  <body>Not found</body>
 </html>)

 Redirect("/index.html")

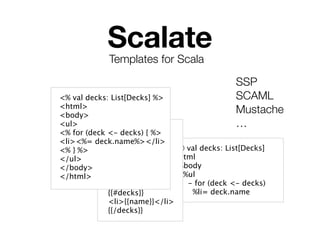

Scalate
             Templates for Scala

                                               SSP
<% val decks: List[Decks] %>                   SCAML
<html>
<body>
                                               Mustache
<ul>                                           …
<% for (deck <- decks) { %>
<li><%= deck.name%></li>
<% } %>                       -@ val decks: List[Decks]
</ul>                         %html
</body>      <html>            %body
</html>      <body>             %ul
             <ul>                - for (deck <- decks)
             {{#decks}}           %li= deck.name
             <li>{{name}}</li>
             {{/decks}}

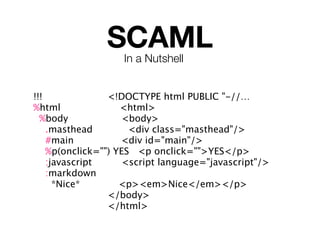

SCAML
                   In a Nutshell


!!!              <!DOCTYPE html PUBLIC "-//…
%html               <html>
  %body              <body>
    .masthead         <div class="masthead"/>
    #main           <div id="main"/>
    %p(onclick="") YES <p onclick="">YES</p>
    :javascript      <script language="javascript"/>
    :markdown
      *Nice*        <p><em>Nice</em></p>
                 </body>
                 </html>

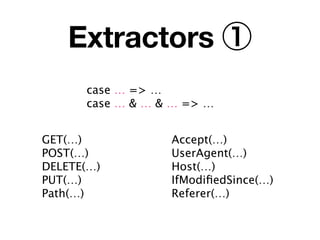

Extractors ①
      case … => …
      case … & … & … => …


GET(…)            Accept(…)
POST(…)           UserAgent(…)
DELETE(…)         Host(…)
PUT(…)            IfModifiedSince(…)
Path(…)           Referer(…)

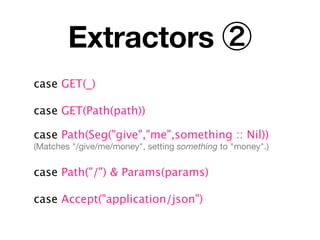

Extractors ②
case GET(_)

case GET(Path(path))

case Path(Seg("give","me",something :: Nil))
(Matches "/give/me/money", setting something to "money".)


case Path("/") & Params(params)

case Accept("application/json")

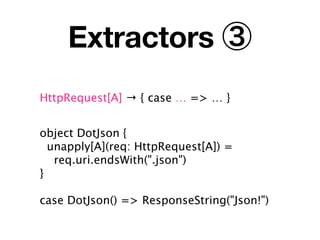

Extractors ③
HttpRequest[A] → { case … => … }


object DotJson {
  unapply[A](req: HttpRequest[A]) =
   req.uri.endsWith(".json")
}

case DotJson() => ResponseString("Json!")

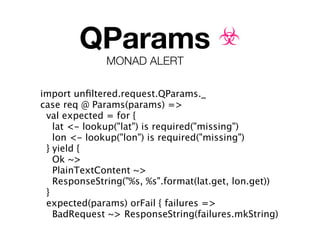

QParams ☣
              MONAD ALERT

import unfiltered.request.QParams._
case req @ Params(params) =>
 val expected = for {
   lat <- lookup("lat") is required("missing")
   lon <- lookup("lon") is required("missing")
 } yield {
   Ok ~>
   PlainTextContent ~>
   ResponseString("%s, %s".format(lat.get, lon.get))
 }
 expected(params) orFail { failures =>
   BadRequest ~> ResponseString(failures.mkString)

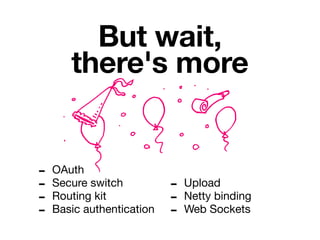

But wait,
       there's more


-   OAuth
-   Secure switch          -   Upload
-   Routing kit            -   Netty binding
-   Basic authentication   -   Web Sockets

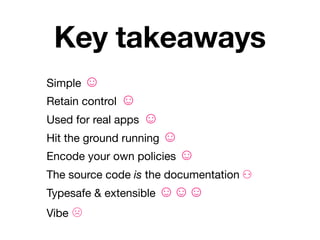

Key takeaways
Simple ☺
Retain control   ☺
Used for real apps   ☺
Hit the ground running ☺
Encode your own policies ☺
The source code is the documentation ⚇
Typesafe & extensible ☺☺☺
Vibe ☹

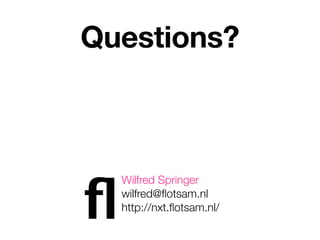

Questions?
