1. Building DSLs with Xtext
Eclipse Modeling Day
New York, 16 November 2009
Toronto, 18 November 2009
Heiko Behrens (itemis)
© itemis AG 2009 – All rights reserved

2. FOUNDATION
MEMBER TM

4. Model-Driven Software Development
with DSLs

6. Suppose...

7. You’d want to core an apple...

8. ... for your kids.

9. ?
Right tool for the job?

10. Your trusty swiss army knife!

11. Suppose...

12. You’d want to core a few more apples...

13. ... for an apple cake.

14. Still the best tool for the job?

15. Better use this one.

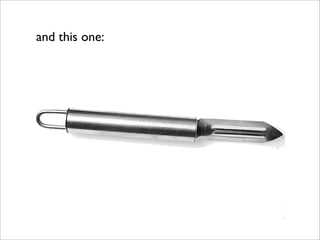

16. and this one:

17. ... a DSL is ...

18. A specific tool
for a specific job

19. A specific tool
for a specific job

20. Domain-Specific Language (DSL)
A DSL is a formal, processable language
targeting at a specific viewpoint or
aspect of a software system.
Its semantics, flexibility and notation is
designed in order to support working
with that viewpoint as good as possible.

21. Rd2-c2

22. “ Queen to c7.
Check.”
“ Rd2-c2 ,
”
rook at d2 moves to c2.

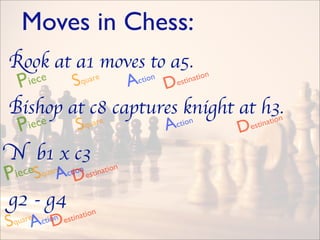

23. Moves in Chess:
!ook at a1 moves to a5.
P
iece S q uare A
ction
De stin ation
"ishop at c8 captures knight at h3.
P
iece S q uare ion
Action
D
es tinat
# b1 x c3
Piece S qua re ction stination
AD e
$2 - g4
ation
S A D
quar
e ction e stin

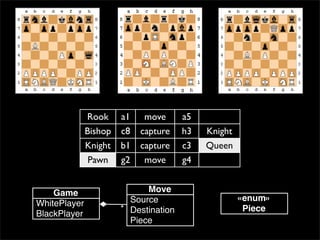

24. Rook a1 move a5
Bishop c8 capture h3 Knight
Knight b1 capture c3 Queen
Pawn g2 move g4
Game Move
Source «enum»
WhitePlayer
* Destination Piece
BlackPlayer
Piece

25. "ishop at c8 captures knight at h3
" c8 x h3

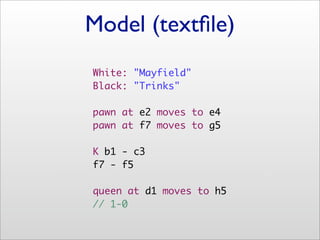

26. Model (textfile)
White: "Mayfield"
Black: "Trinks"
pawn at e2 moves to e4
pawn at f7 moves to g5
K b1 - c3
f7 - f5
queen at d1 moves to h5
// 1-0

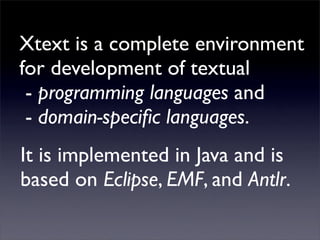

28. Xtext is a complete environment
for development of textual
- programming languages and
- domain-specific languages.
It is implemented in Java and is
based on Eclipse, EMF, and Antlr.

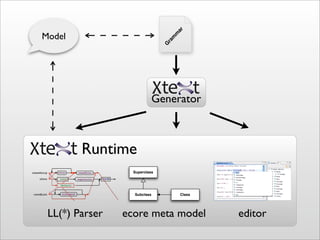

29. ar
Model
m
m
ra
G
Generator
Runtime
Superclass
Subclass Class
LL(*) Parser ecore meta model editor

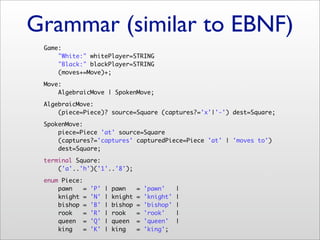

30. Grammar (similar to EBNF)
Game:
! "White:" whitePlayer=STRING
! "Black:" blackPlayer=STRING
! (moves+=Move)+;
!
Move:
! AlgebraicMove | SpokenMove;
AlgebraicMove:
! (piece=Piece)? source=Square (captures?='x'|'-') dest=Square;
!
SpokenMove:
! piece=Piece 'at' source=Square
! (captures?='captures' capturedPiece=Piece 'at' | 'moves to')
! dest=Square;
!
terminal Square:
! ('a'..'h')('1'..'8');
!
enum Piece:
! pawn = 'P' | pawn = 'pawn' |
! knight = 'N' | knight = 'knight' |
! bishop = 'B' | bishop = 'bishop' |
! rook = 'R' | rook = 'rook' |
! queen = 'Q' | queen = 'queen' |
! king = 'K' | king = 'king';

31. Demo
• Model File within Editor + Custom View
• Xtext Grammar for writing simple chess games
• Derived meta model
• Java program that works with textual models
• Xpand-based generator
© itemis AG 2009 – All rights reserved 31

32. Real World DSLs

33. Regular Expressions

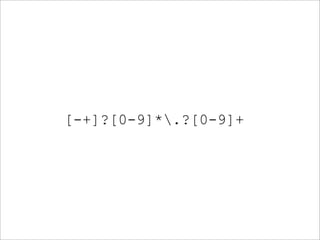

34. [-+]?[0-9]*.?[0-9]+

35. Complex Event Processing

36. from FlightBookings F, CarBookings C, HotelBookings H
matching [24 hours: F, C, H ]
on F.name = C.name = H.name
select F.name, true bookingWithCar,
into TripleBookings
from FlightBookings F, CarBookings C, HotelBookings H
matching [24 hours: F, !C, H ]
on F.name = C.name = H.name
select F.name, false bookingWithCar
into TripleBookings
from TripleBookings
where prev(bookingWithCar) and not bookingWithCar
select name
into LostCustomers

37. internal DSL
(with Java)

38. Mailer.mail()
.to(“you@gmail.com”)
.from(“me@gmail.com”)
.subject(“Writing DSLs in Java”)
.body(“...”)
.send();

39. ANT

40. <project name="MyProject" default="dist" basedir=".">
<property name="src" location="src"/>
<property name="build" location="build"/>
<property name="dist" location="dist"/>
<target name="init">
<mkdir dir="${build}"/>
</target>
<target name="compile" depends="init">
<javac srcdir="${src}" destdir="${build}"/>
</target>
<target name="dist" depends="compile">
<mkdir dir="${dist}/lib"/>
<jar jarfile="${dist}/lib/MyProject.jar"
basedir="${build}"/>
</target>
<target name="clean">
<delete dir="${build}"/>
<delete dir="${dist}"/>
</target>
</project>

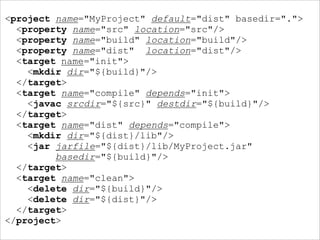

41. ANT
?

42. <project name="MyProject" default="dist" basedir=".">
<property name="src" location="src"/>
<property name="build" location="build"/>
<property name="dist" location="dist"/>
<target name="init">
<mkdir dir="${build}"/>
</target>
<target name="compile" depends="init">
<javac srcdir="${src}" destdir="${build}"/>
</target>
<target name="dist" depends="compile">
<mkdir dir="${dist}/lib"/>
<jar jarfile="${dist}/lib/MyProject.jar"
basedir="${build}"/>
</target>
<target name="clean">
<delete dir="${build}"/>
<delete dir="${dist}"/>
</target>
</project>

43. Entities by Example
vs.

44. package templates;
import java.util.*;
import java.io.Serializable;
import javax.persistence.*;
@SuppressWarnings("serial")
@Entity
public class Customer implements Serializable {
! private Long id;
! private String name;
! private Address address;
! private Set<Order> orders = new HashSet<Order>();
! // No-arg constructor
! public Customer() {
! }
! @Id
! public Long getId() {
! ! return id;
! }
! public void setId(Long id) {
! ! this.id = id;
! }
! public String getName() {
! ! return name;
! }
! public void setName(String name) {
! ! this.name = name;
! }
! public Address getAddress() {
! ! return address;
! }
! public void setAddress(Address address) {
! ! this.address = address;
! }
! @OneToMany
! public Collection<Order> getOrders() {
! ! return orders;
! }
! public void setOrders(Set<Order> orders) {
! ! this.orders = orders;
! }
}

45. package templates;
import java.io.Serializable;
import java.util.*;
import javax.persistence.*;
@SuppressWarnings("serial")
@Entity
public class Customer implements Serializable {
! private Long id;
! private String name;
! private Address address;
! private Set<Order> orders = new HashSet<Order>();
! // No-arg constructor
! public Customer() {
! }
! @Id
! public Long getId() {
! ! return id;
! }
! public void setId(Long id) {
! ! this.id = id;
! }
! public String getName() {
! ! return name;
! }
! public void setName(String name) {
! ! this.name = name;
! }
! public Address getAddress() {
! ! return address;
! }
! public void setAddress(Address address) {
! ! this.address = address;
! }
! @OneToMany
! public Collection<Order> getOrders() {
! ! return orders;
! }
! public void setOrders(Set<Order> orders) {
! ! this.orders = orders;
! }
}

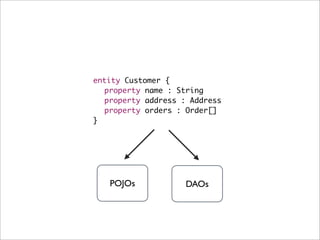

46. entity Customer {
! property name : String
! property address : Address
! property orders : Order[]
}
POJOs DAOs

47. The Finder Method

48. <entity name="Customer">
<attribute type="String" name="name"/>
<findMethod name="findFixed">
<expression>
<equals>
<attributeRef attr="name"/>
<constant val="John Doe"/>
</equals>
</expression>
<findMethod>
</entity>
entity Customer {
! property name : String
! finder findFixed : name = "John Doe"
}

49. Demo
! Implement simple Entity DSL
! Use prepared Generator

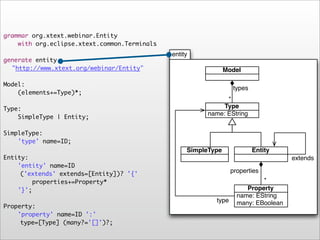

50. grammar org.xtext.webinar.Entity
! with org.eclipse.xtext.common.Terminals
entity
generate entity
"http://www.xtext.org/webinar/Entity" Model
Model:
types
! (elements+=Type)*;
*
Type: Type
name: EString
! SimpleType | Entity;
SimpleType:
! 'type' name=ID;
SimpleType Entity
Entity: extends
! 'entity' name=ID
('extends' extends=[Entity])? '{'
properties
! ! properties+=Property* *
! '}'; Property
name: EString
type many: EBoolean
Property:
! 'property' name=ID ':'
type=[Type] (many?='[]')?;

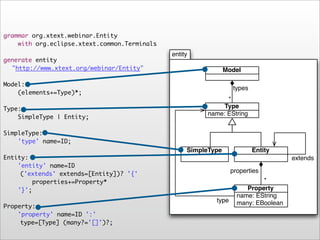

51. grammar org.xtext.webinar.Entity
! with org.eclipse.xtext.common.Terminals
entity
generate entity
"http://www.xtext.org/webinar/Entity" Model
Model:
types
! (elements+=Type)*;
*
Type: Type
name: EString
! SimpleType | Entity;
SimpleType:
! 'type' name=ID;
SimpleType Entity
Entity: extends
! 'entity' name=ID
('extends' extends=[Entity])? '{'
properties
! ! properties+=Property* *
! '}'; Property
name: EString
type many: EBoolean
Property:
! 'property' name=ID ':'
type=[Type] (many?='[]')?;

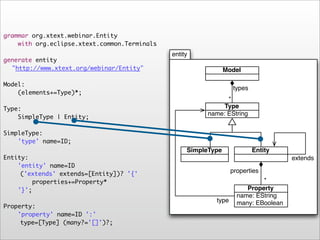

52. grammar org.xtext.webinar.Entity
! with org.eclipse.xtext.common.Terminals
entity
generate entity
"http://www.xtext.org/webinar/Entity" Model
Model:
types
! (elements+=Type)*;
*
Type: Type
name: EString
! SimpleType | Entity;
SimpleType:
! 'type' name=ID;
SimpleType Entity
Entity: extends
! 'entity' name=ID
('extends' extends=[Entity])? '{'
properties
! ! properties+=Property* *
! '}'; Property
name: EString
type many: EBoolean
Property:
! 'property' name=ID ':'
type=[Type] (many?='[]')?;

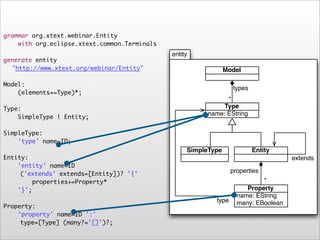

53. grammar org.xtext.webinar.Entity
! with org.eclipse.xtext.common.Terminals
entity
generate entity
"http://www.xtext.org/webinar/Entity" Model
Model:
types
! (elements+=Type)*;
*
Type: Type
name: EString
! SimpleType | Entity;
SimpleType:
! 'type' name=ID;
SimpleType Entity
Entity: extends
! 'entity' name=ID
('extends' extends=[Entity])? '{'
properties
! ! properties+=Property* *
! '}'; Property
name: EString
type many: EBoolean
Property:
! 'property' name=ID ':'
type=[Type] (many?='[]')?;

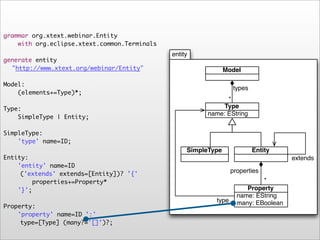

54. grammar org.xtext.webinar.Entity
! with org.eclipse.xtext.common.Terminals
entity
generate entity
"http://www.xtext.org/webinar/Entity" Model
Model:
types
! (elements+=Type)*;
*
Type: Type
name: EString
! SimpleType | Entity;
SimpleType:
! 'type' name=ID;
SimpleType Entity
Entity: extends
! 'entity' name=ID
('extends' extends=[Entity])? '{'
properties
! ! properties+=Property* *
! '}'; Property
name: EString
type many: EBoolean
Property:
! 'property' name=ID ':'
type=[Type] (many?='[]')?;

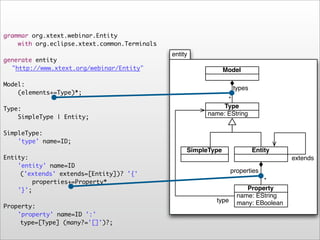

55. grammar org.xtext.webinar.Entity
! with org.eclipse.xtext.common.Terminals
entity
generate entity
"http://www.xtext.org/webinar/Entity" Model
Model:
types
! (elements+=Type)*;
*
Type: Type
name: EString
! SimpleType | Entity;
SimpleType:
! 'type' name=ID;
SimpleType Entity
Entity: extends
! 'entity' name=ID
('extends' extends=[Entity])? '{'
properties
! ! properties+=Property* *
! '}'; Property
name: EString
type many: EBoolean
Property:
! 'property' name=ID ':'
type=[Type] (many?='[]')?;

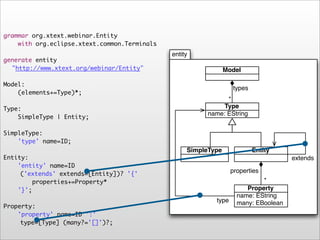

56. grammar org.xtext.webinar.Entity
! with org.eclipse.xtext.common.Terminals
entity
generate entity
"http://www.xtext.org/webinar/Entity" Model
Model:
types
! (elements+=Type)*;
*
Type: Type
name: EString
! SimpleType | Entity;
SimpleType:
! 'type' name=ID;
SimpleType Entity
Entity: extends
! 'entity' name=ID
('extends' extends=[Entity])? '{'
properties
! ! properties+=Property* *
! '}'; Property
name: EString
type many: EBoolean
Property:
! 'property' name=ID ':'
type=[Type] (many?='[]')?;

57. Pimp
my Write

59. Whitespace-Aware
Languages

60. Incremental
Generation

61. Conclusion

62. Abstraction

63. Use a DSL to develop your tools

64. Support
Newsgroup
Community Forum
Professional Support

65. twitter @HBehrens
blog http://HeikoBehrens.net
mail Heiko.Behrens@itemis.de
xing http://www.xing.com/profile/Heiko_Behrens
linkedin http://www.linkedin.com/in/HeikoBehrens
www.xtext.org
The Committer Team twitter @Xtext
Heiko Michael Sven Moritz Peter Dennis Jan Patrick Knut Sebastian
Behrens Clay Efftinge Eysholdt Friese Hübner Köhnlein Schönbach Wannheden Zarnekow
