This document discusses using model-based testing with pattern-directed filmstrips. It proposes incorporating testing into modeling by: 1. Using filmstrips (based on use cases) and snapshot patterns (based on object models) to specify tests in a diagrammatic way. 2. Generating candidate filmstrip tests from models and executing them against the system under test after mapping models to implementation. 3. Defining a filmstrip language and demonstration DSL for specifying and running tests against an example sales system model implemented in Java.

1. Model Based Functional Testing using Pattern Directed FilmstripsTony ClarkCentre for Model Driven Software EngineeringThames Valley Universitytony.clark@tvu.ac.uk1

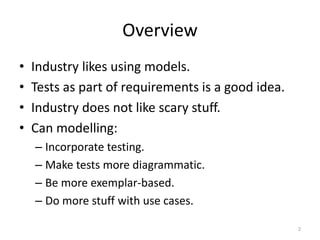

2. OverviewIndustry likes using models.Tests as part of requirements is a good idea.Industry does not like scary stuff.Can modelling:Incorporate testing.Make tests more diagrammatic.Be more exemplar-based.Do more stuff with use cases.2

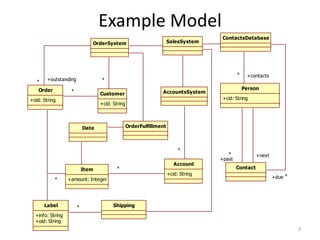

3. Example Model3

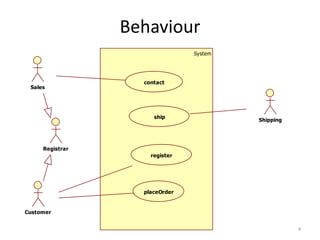

4. Behaviour4

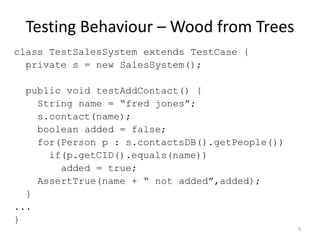

5. Testing Behaviour – Wood from Treesclass TestSalesSystem extends TestCase { private s = new SalesSystem(); public void testAddContact() { String name = “fredjones”;s.contact(name);boolean added = false; for(Person p : s.contactsDB().getPeople()) if(p.getCID().equals(name)) added = true;AssertTrue(name + “ not added”,added); }...}5

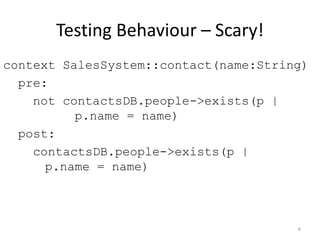

6. Testing Behaviour – Scary!context SalesSystem::contact(name:String) pre: not contactsDB.people->exists(p | p.name = name) post: contactsDB.people->exists(p | p.name = name)6

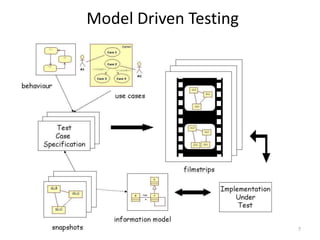

7. Model Driven Testing7

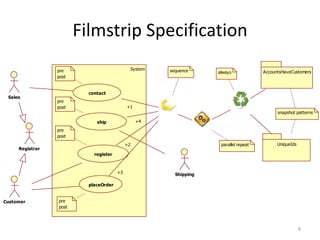

8. Filmstrip Specification8

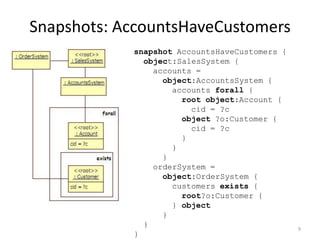

9. Snapshots: AccountsHaveCustomerssnapshotAccountsHaveCustomers {object:SalesSystem { accounts = object:AccountsSystem { accounts forall {rootobject:Account { cid = ?cobject ?o:Customer { cid = ?c } } }orderSystem =object:OrderSystem { customers exists {root?o:Customer { } object } }}9

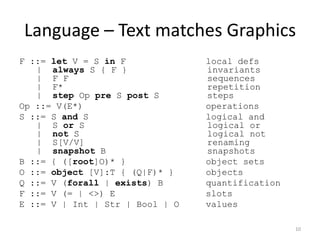

10. Language – Text matches GraphicsF ::= let V = S in F local defs | always S { F } invariants | F F sequences | F* repetition | step Op pre S post S stepsOp ::= V(E*) operationsS ::= S and S logical and | S or S logical or | not S logical not | S[V/V] renaming | snapshot B snapshotsB ::= { ([root]O)* } object setsO ::= object [V]:T { (Q|F)* } objectsQ ::= V (forall | exists) B quantificationF ::= V (= | <>) E slotsE ::= V | Int | Str | Bool | O values10

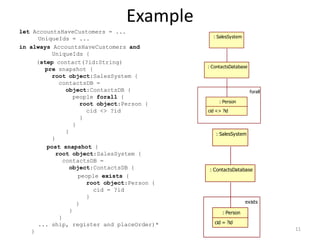

11. ExampleletAccountsHaveCustomers = ...UniqueIds = ...inalwaysAccountsHaveCustomersandUniqueIds { (step contact(?id:String)pre snapshot {rootobject:SalesSystem {contactsDB = object:ContactsDB { people forall {rootobject:Person { cid <> ?id } } } }postsnapshot {rootobject:SalesSystem {contactsDB =object:ContactsDB { people exists {rootobject:Person { cid = ?id } } } } ... ship, register and placeOrder)*}11

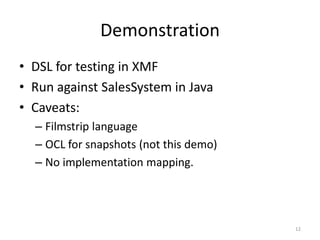

12. DemonstrationDSL for testing in XMFRun against SalesSystem in JavaCaveats:Filmstrip languageOCL for snapshots (not this demo)No implementation mapping.12

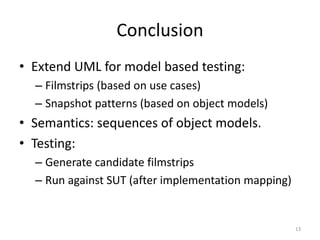

13. ConclusionExtend UML for model based testing:Filmstrips (based on use cases)Snapshot patterns (based on object models)Semantics: sequences of object models.Testing:Generate candidate filmstripsRun against SUT (after implementation mapping)13
