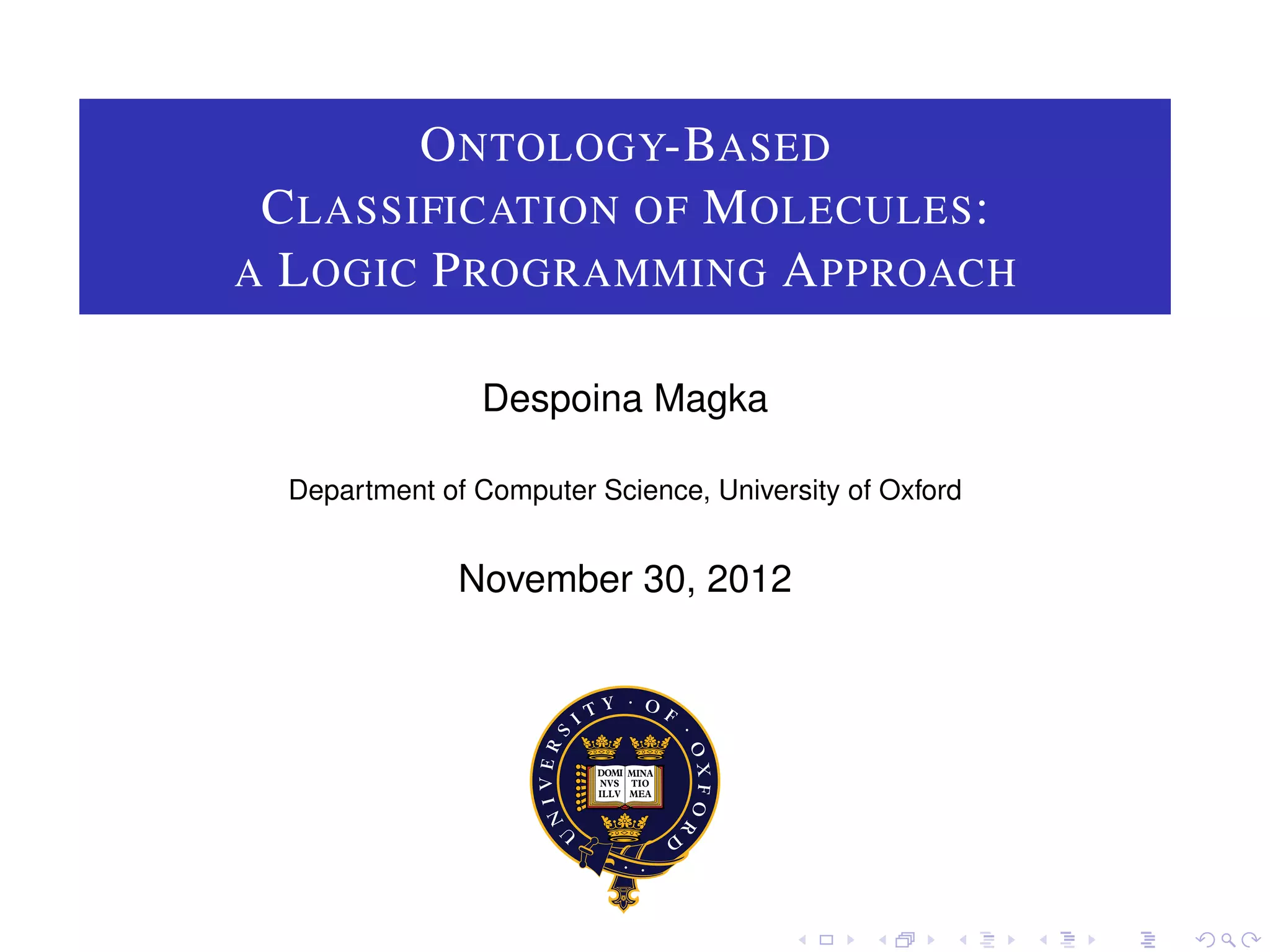

1. O NTOLOGY-BASED
C LASSIFICATION OF M OLECULES :
A L OGIC P ROGRAMMING A PPROACH
Despoina Magka
Department of Computer Science, University of Oxford
November 30, 2012

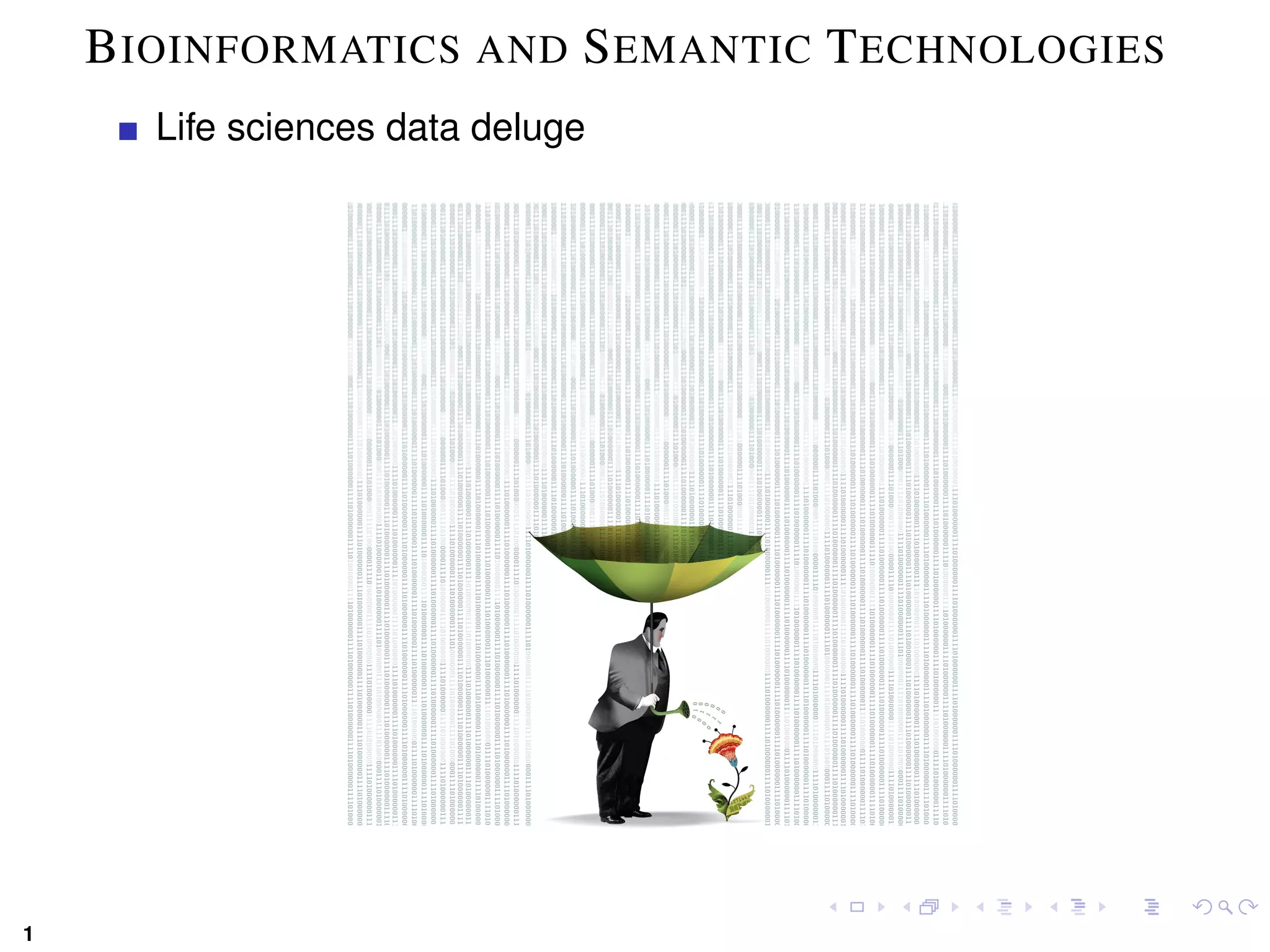

2. B IOINFORMATICS AND S EMANTIC T ECHNOLOGIES
Life sciences data deluge
1

3. B IOINFORMATICS AND S EMANTIC T ECHNOLOGIES
Life sciences data deluge
Hierarchical organisation of biochemical knowledge
1

4. B IOINFORMATICS AND S EMANTIC T ECHNOLOGIES
Life sciences data deluge
Hierarchical organisation of biochemical knowledge
1

5. B IOINFORMATICS AND S EMANTIC T ECHNOLOGIES
Life sciences data deluge
Hierarchical organisation of biochemical knowledge
1

6. B IOINFORMATICS AND S EMANTIC T ECHNOLOGIES
Life sciences data deluge
Hierarchical organisation of biochemical knowledge
Fast, automatic and repeatable classification driven by
Semantic technologies
1

7. B IOINFORMATICS AND S EMANTIC T ECHNOLOGIES
Life sciences data deluge
Hierarchical organisation of biochemical knowledge
Fast, automatic and repeatable classification driven by
Semantic technologies
Web Ontology Language, a W3C standard family
of logic-based formalisms
1

8. B IOINFORMATICS AND S EMANTIC T ECHNOLOGIES
Life sciences data deluge
Hierarchical organisation of biochemical knowledge
Fast, automatic and repeatable classification driven by
Semantic technologies
Web Ontology Language, a W3C standard family
of logic-based formalisms
OWL bio- and chemo-ontologies widely adopted
1

9. T HE C H EBI O NTOLOGY
OWL ontology Chemical Entities of Biological Interest
2

10. T HE C H EBI O NTOLOGY
OWL ontology Chemical Entities of Biological Interest
Dictionary of molecules with taxonomical information
2

11. T HE C H EBI O NTOLOGY
OWL ontology Chemical Entities of Biological Interest
Dictionary of molecules with taxonomical information
caffeine is a cyclic molecule
2

12. T HE C H EBI O NTOLOGY
OWL ontology Chemical Entities of Biological Interest
Dictionary of molecules with taxonomical information
serotonin is an organic molecule
2

13. T HE C H EBI O NTOLOGY
OWL ontology Chemical Entities of Biological Interest
Dictionary of molecules with taxonomical information
ascorbic acid is a carboxylic ester
2

14. T HE C H EBI O NTOLOGY
OWL ontology Chemical Entities of Biological Interest
Dictionary of molecules with taxonomical information
Pharmaceutical design and study of biological pathways
2

15. T HE C H EBI O NTOLOGY
OWL ontology Chemical Entities of Biological Interest
Dictionary of molecules with taxonomical information
Pharmaceutical design and study of biological pathways
ChEBI is manually incremented
2

16. T HE C H EBI O NTOLOGY
OWL ontology Chemical Entities of Biological Interest
Dictionary of molecules with taxonomical information
Pharmaceutical design and study of biological pathways
ChEBI is manually incremented
Currently ~30,000 chemical entities, expands at 3,500/yr
2

17. T HE C H EBI O NTOLOGY
OWL ontology Chemical Entities of Biological Interest
Dictionary of molecules with taxonomical information
Pharmaceutical design and study of biological pathways
ChEBI is manually incremented
Currently ~30,000 chemical entities, expands at 3,500/yr
Existing chemical databases describe millions of molecules
2

18. T HE C H EBI O NTOLOGY
OWL ontology Chemical Entities of Biological Interest
Dictionary of molecules with taxonomical information
Pharmaceutical design and study of biological pathways
ChEBI is manually incremented
Currently ~30,000 chemical entities, expands at 3,500/yr
Existing chemical databases describe millions of molecules
Speed up growth by automating chemical classification
2

19. E XPRESSIVITY L IMITATIONS OF OWL
1 At least one tree-shaped model for each consistent OWL
ontology problematic representation of cycles
3

20. E XPRESSIVITY L IMITATIONS OF OWL
1 At least one tree-shaped model for each consistent OWL
ontology problematic representation of cycles
E XAMPLE
C C
C C
3

21. E XPRESSIVITY L IMITATIONS OF OWL
1 At least one tree-shaped model for each consistent OWL
ontology problematic representation of cycles
E XAMPLE
Cyclobutane ∃(= 4)hasAtom.(Carbon ∃(= 2)hasBond.Carbon)
C C
C C
3

22. E XPRESSIVITY L IMITATIONS OF OWL
1 At least one tree-shaped model for each consistent OWL
ontology problematic representation of cycles
E XAMPLE
Cyclobutane ∃(= 4)hasAtom.(Carbon ∃(= 2)hasBond.Carbon)
C C
C C
3

23. E XPRESSIVITY L IMITATIONS OF OWL
1 At least one tree-shaped model for each consistent OWL
ontology problematic representation of cycles
E XAMPLE
Cyclobutane ∃(= 4)hasAtom.(Carbon ∃(= 2)hasBond.Carbon)
C C
C C
OWL-based reasoning support
1 Is cyclobutane a cyclic molecule?
3

24. E XPRESSIVITY L IMITATIONS OF OWL
1 At least one tree-shaped model for each consistent OWL
ontology problematic representation of cycles
2 No minimality condition on the models hard to axiomatise
classes based on the absence of attributes
E XAMPLE
Cyclobutane ∃(= 4)hasAtom.(Carbon ∃(= 2)hasBond.Carbon)
C C
C C
OWL-based reasoning support
1 Is cyclobutane a cyclic molecule?
3

25. E XPRESSIVITY L IMITATIONS OF OWL
1 At least one tree-shaped model for each consistent OWL
ontology problematic representation of cycles
2 No minimality condition on the models hard to axiomatise
classes based on the absence of attributes
E XAMPLE
Cyclobutane ∃(= 4)hasAtom.(Carbon ∃(= 2)hasBond.Carbon)
Oxygen
C C
C C
OWL-based reasoning support
1 Is cyclobutane a cyclic molecule?
3

26. E XPRESSIVITY L IMITATIONS OF OWL
1 At least one tree-shaped model for each consistent OWL
ontology problematic representation of cycles
2 No minimality condition on the models hard to axiomatise
classes based on the absence of attributes
E XAMPLE
Cyclobutane ∃(= 4)hasAtom.(Carbon ∃(= 2)hasBond.Carbon)
Oxygen
C C
C C
OWL-based reasoning support
1 Is cyclobutane a cyclic molecule?
2 Is cyclobutane a hydrocarbon?
3

27. E XPRESSIVITY L IMITATIONS OF OWL
1 At least one tree-shaped model for each consistent OWL
ontology problematic representation of cycles
2 No minimality condition on the models hard to axiomatise
classes based on the absence of attributes
E XAMPLE
Cyclobutane ∃(= 4)hasAtom.(Carbon ∃(= 2)hasBond.Carbon)
Oxygen
C C
C C
3

28. E XPRESSIVITY L IMITATIONS OF OWL
1 At least one tree-shaped model for each consistent OWL
ontology problematic representation of cycles
2 No minimality condition on the models hard to axiomatise
classes based on the absence of attributes
E XAMPLE
Cyclobutane ∃(= 4)hasAtom.(Carbon ∃(= 2)hasBond.Carbon)
Oxygen
C C
C C
Required reasoning support
1 Is cyclobutane a cyclic molecule?
2 Is cyclobutane a hydrocarbon?
3

29. E XPRESSIVITY L IMITATIONS OF OWL
1 At least one tree-shaped model for each consistent OWL
ontology problematic representation of cycles
2 No minimality condition on the models hard to axiomatise
classes based on the absence of attributes
E XAMPLE
Cyclobutane ∃(= 4)hasAtom.(Carbon ∃(= 2)hasBond.Carbon)
Oxygen
C C
C C
Required reasoning support
1 Is cyclobutane a cyclic molecule?
2 Is cyclobutane a hydrocarbon?
3

30. R ESULTS OVERVIEW
1 Expressive and decidable formalism for modelling complex
objects: Description Graphs Logic Programs
4

31. R ESULTS OVERVIEW
1 Expressive and decidable formalism for modelling complex
objects: Description Graphs Logic Programs
2 Modelling that spans a wide range of structure-dependent
classes of molecules
4

32. R ESULTS OVERVIEW
1 Expressive and decidable formalism for modelling complex
objects: Description Graphs Logic Programs
2 Modelling that spans a wide range of structure-dependent
classes of molecules
3 Implementation that draws upon DLV and performs
structure-based classification with a significant speedup
4

33. R ESULTS OVERVIEW
1 Expressive and decidable formalism for modelling complex
objects: Description Graphs Logic Programs
2 Modelling that spans a wide range of structure-dependent
classes of molecules
3 Implementation that draws upon DLV and performs
structure-based classification with a significant speedup
4 Evaluation over part of the manually curated ChEBI
ontology revealed modelling errors
4

34. R ESULTS OVERVIEW
1 Expressive and decidable formalism for modelling complex
objects: Description Graphs Logic Programs
2 Modelling that spans a wide range of structure-dependent
classes of molecules
3 Implementation that draws upon DLV and performs
structure-based classification with a significant speedup
4 Evaluation over part of the manually curated ChEBI
ontology revealed modelling errors
Language for representing biochemical structures with a
favourable performance/expressivity trade-off
4

35. C LASSIFYING S TRUCTURED O BJECTS
5

36. C LASSIFYING S TRUCTURED O BJECTS
ascorbicAcid : 0
o
6
o c o
o
5 c 11 c 1 c
hasAtom h
2
12 10 7
single c c
13
double 9 8
4 o 3 o
5

37. C LASSIFYING S TRUCTURED O BJECTS
ascorbicAcid : 0
o
6
o c o
o
5 c 11 c 1 c
hasAtom h
2
12 10 7
single c c
13
double 9 8
4 o 3 o
ascorbicAcid(x) →hasAtom(x, f1 (x)) ∧ . . . ∧ hasAtom(x, f13 (x))
o(f1 (x)) ∧ . . . ∧ c(f7 (x)) ∧ . . . ∧
single(f1 (x), f7 (x)) ∧ double(f7 (x), f2 (x)) ∧ . . .
5

38. C LASSIFYING S TRUCTURED O BJECTS
ascorbicAcid : 0
o
6
o c o
o
5 c 11 c 1 c
hasAtom h
2
12 10 7
single c c
13
double 9 8
4 o 3 o
ascorbicAcid(x) →hasAtom(x, f1 (x)) ∧ . . . ∧ hasAtom(x, f13 (x))
o(f1 (x)) ∧ . . . ∧ c(f7 (x)) ∧ . . . ∧
single(f1 (x), f7 (x)) ∧ double(f7 (x), f2 (x)) ∧ . . .
hasAtom(x, y1 ) ∧ hasAtom(x, y2 ) ∧ y1 = y2 → polyatomicEntity(x)
∧5 hasAtom(x, yi ) ∧ c(y1 ) ∧ o(y2 ) ∧ o(y3 )∧
i=1
c(y4 ) ∧ horc(y5 ) ∧ double(y1 , y2 )∧
single(y1 , y3 ) ∧ single(y3 , y4 ) ∧ single(y1 , y5 ) → carboxylicEster(x)
5

39. C LASSIFYING S TRUCTURED O BJECTS
ascorbicAcid : 0
o
6
o c o
o
5 c 11 c 1 c
hasAtom h
2
12 10 7
single c c
13
double 9 8
4 o 3 o
Input fact: ascorbicAcid(a)
Stable model: ascorbicAcid(a), hasAtom(a, af ) for 1 ≤ i ≤ 13,
i
o(af ) for 1 ≤ i ≤ 6, c(af ) for 7 ≤ i ≤ 12, h(af ), single(af , af ),
i i 13 8 3
single(af , af ), single(af , af ) for i ∈ {5, 11}, single(af , af ),
9 4 12 i 11 6
single(af , af ) for i ∈ {1, 9, 11, 13}, single(af , af ) for i ∈ {1, 8},
10 i 7 i
double(af , af ), double(af , af ), horc(af ) for 7 ≤ i ≤ 13,
2 7 8 9 i
polyatomicEntity(a), carboxylicEster(a), cyclic(a)
5

40. C LASSIFYING S TRUCTURED O BJECTS
ascorbicAcid : 0
o
6
o c o
o
5 c 11 c 1 c
hasAtom h
2
12 10 7
single c c
13
double 9 8
4 o 3 o
Input fact: ascorbicAcid(a)
Stable model: ascorbicAcid(a), hasAtom(a, af ) for 1 ≤ i ≤ 13,
i
o(af ) for 1 ≤ i ≤ 6, c(af ) for 7 ≤ i ≤ 12, h(af ), single(af , af ),
i i 13 8 3
single(af , af ), single(af , af ) for i ∈ {5, 11}, single(af , af ),
9 4 12 i 11 6
single(af , af ) for i ∈ {1, 9, 11, 13}, single(af , af ) for i ∈ {1, 8},
10 i 7 i
double(af , af ), double(af , af ), horc(af ) for 7 ≤ i ≤ 13,
2 7 8 9 i
polyatomicEntity(a), carboxylicEster(a), cyclic(a)
Ascorbic acid is a cyclic polyatomic entity and a carboxylic ester
5

41. C HEMICAL C LASSES W E C OVERED
1 Existence of subcomponents
6

42. C HEMICAL C LASSES W E C OVERED
1 Existence of subcomponents
Carbon molecules
6

43. C HEMICAL C LASSES W E C OVERED
1 Existence of subcomponents
Carbon molecules
Carboxylic acids and carboxylic esters
6

44. C HEMICAL C LASSES W E C OVERED
1 Existence of subcomponents
Carbon molecules
Carboxylic acids and carboxylic esters
Ketones and aldehydes
6

45. C HEMICAL C LASSES W E C OVERED
1 Existence of subcomponents
Carbon molecules
Carboxylic acids and carboxylic esters
Ketones and aldehydes
2 Exact cardinality of parts
6

46. C HEMICAL C LASSES W E C OVERED
1 Existence of subcomponents
Carbon molecules
Carboxylic acids and carboxylic esters
Ketones and aldehydes
2 Exact cardinality of parts
Exactly two carbons
6

47. C HEMICAL C LASSES W E C OVERED
1 Existence of subcomponents
Carbon molecules
Carboxylic acids and carboxylic esters
Ketones and aldehydes
2 Exact cardinality of parts
Exactly two carbons
Dicarboxylic acid
6

48. C HEMICAL C LASSES W E C OVERED
1 Existence of subcomponents
Carbon molecules
Carboxylic acids and carboxylic esters
Ketones and aldehydes
2 Exact cardinality of parts
Exactly two carbons
Dicarboxylic acid
3 Exclusive composition
6

49. C HEMICAL C LASSES W E C OVERED
1 Existence of subcomponents
Carbon molecules
Carboxylic acids and carboxylic esters
Ketones and aldehydes
2 Exact cardinality of parts
Exactly two carbons
Dicarboxylic acid
3 Exclusive composition
Inorganic molecules
6

50. C HEMICAL C LASSES W E C OVERED
1 Existence of subcomponents
Carbon molecules
Carboxylic acids and carboxylic esters
Ketones and aldehydes
2 Exact cardinality of parts
Exactly two carbons
Dicarboxylic acid
3 Exclusive composition
Inorganic molecules
Hydrocarbons
6

51. C HEMICAL C LASSES W E C OVERED
1 Existence of subcomponents
Carbon molecules
Carboxylic acids and carboxylic esters
Ketones and aldehydes
2 Exact cardinality of parts
Exactly two carbons
Dicarboxylic acid
3 Exclusive composition
Inorganic molecules
Hydrocarbons
Saturated molecules
6

52. C HEMICAL C LASSES W E C OVERED
1 Existence of subcomponents
Carbon molecules
Carboxylic acids and carboxylic esters
Ketones and aldehydes
2 Exact cardinality of parts
Exactly two carbons
Dicarboxylic acid
3 Exclusive composition
Inorganic molecules
Hydrocarbons
Saturated molecules
4 Cyclicity-related classes
6

53. C HEMICAL C LASSES W E C OVERED
1 Existence of subcomponents
Carbon molecules
Carboxylic acids and carboxylic esters
Ketones and aldehydes
2 Exact cardinality of parts
Exactly two carbons
Dicarboxylic acid
3 Exclusive composition
Inorganic molecules
Hydrocarbons
Saturated molecules
4 Cyclicity-related classes
Benzenes
6

54. C HEMICAL C LASSES W E C OVERED
1 Existence of subcomponents
Carbon molecules
Carboxylic acids and carboxylic esters
Ketones and aldehydes
2 Exact cardinality of parts
Exactly two carbons
Dicarboxylic acid
3 Exclusive composition
Inorganic molecules
Hydrocarbons
Saturated molecules
4 Cyclicity-related classes
Benzenes
Cyclic molecules
6

55. C HEMICAL C LASSES W E C OVERED
1 Existence of subcomponents
Carbon molecules
Carboxylic acids and carboxylic esters
Ketones and aldehydes
2 Exact cardinality of parts
Exactly two carbons
Dicarboxylic acid
3 Exclusive composition
Inorganic molecules
Hydrocarbons
Saturated molecules
4 Cyclicity-related classes
Benzenes
Cyclic molecules
Alkanes
6

56. E MPIRICAL E VALUATION
Draws upon DLV, a deductive databases engine
7

57. E MPIRICAL E VALUATION
Draws upon DLV, a deductive databases engine
Evaluation with data extracted from ChEBI
7

58. E MPIRICAL E VALUATION
Draws upon DLV, a deductive databases engine
Evaluation with data extracted from ChEBI
500 molecules under 51 chemical classes in 40 secs
7

59. E MPIRICAL E VALUATION
Draws upon DLV, a deductive databases engine
Evaluation with data extracted from ChEBI
500 molecules under 51 chemical classes in 40 secs
Quicker than other approaches:
7

60. E MPIRICAL E VALUATION
Draws upon DLV, a deductive databases engine
Evaluation with data extracted from ChEBI
500 molecules under 51 chemical classes in 40 secs
Quicker than other approaches:
[Hastings et al., 2010] 140 molecules in 4 hours
[Magka et al., 2012] 70 molecules in 450 secs
7

61. E MPIRICAL E VALUATION
Draws upon DLV, a deductive databases engine
Evaluation with data extracted from ChEBI
500 molecules under 51 chemical classes in 40 secs
Quicker than other approaches:
[Hastings et al., 2010] 140 molecules in 4 hours
[Magka et al., 2012] 70 molecules in 450 secs
Subsumptions exposed by our prototype:
7

62. E MPIRICAL E VALUATION
Draws upon DLV, a deductive databases engine
Evaluation with data extracted from ChEBI
500 molecules under 51 chemical classes in 40 secs
Quicker than other approaches:
[Hastings et al., 2010] 140 molecules in 4 hours
[Magka et al., 2012] 70 molecules in 450 secs
Subsumptions exposed by our prototype:
ascorbic acid is a polyatomic entity, a carboxylic ester and a
cyclic molecule
missing from the ChEBI OWL ontology
7

63. E MPIRICAL E VALUATION
Draws upon DLV, a deductive databases engine
Evaluation with data extracted from ChEBI
500 molecules under 51 chemical classes in 40 secs
Quicker than other approaches:
[Hastings et al., 2010] 140 molecules in 4 hours
[Magka et al., 2012] 70 molecules in 450 secs
Subsumptions exposed by our prototype:
ascorbic acid is a polyatomic entity, a carboxylic ester and a
cyclic molecule
missing from the ChEBI OWL ontology
Contradictory subclass relation from ChEBI:
7

64. E MPIRICAL E VALUATION
Draws upon DLV, a deductive databases engine
Evaluation with data extracted from ChEBI
500 molecules under 51 chemical classes in 40 secs
Quicker than other approaches:
[Hastings et al., 2010] 140 molecules in 4 hours
[Magka et al., 2012] 70 molecules in 450 secs
Subsumptions exposed by our prototype:
ascorbic acid is a polyatomic entity, a carboxylic ester and a
cyclic molecule
missing from the ChEBI OWL ontology
Contradictory subclass relation from ChEBI:
Ascorbic acid is asserted to be a carboxylic acid (release 95)
Not listed among the subsumptions derived by our prototype
7

65. C ONCLUSION AND F URTHER R ESEARCH
Results
1 Expressive and decidable formalism for complex objects
8

66. C ONCLUSION AND F URTHER R ESEARCH
Results
1 Expressive and decidable formalism for complex objects
2 Wide range of structure-based classes
8

67. C ONCLUSION AND F URTHER R ESEARCH
Results
1 Expressive and decidable formalism for complex objects
2 Wide range of structure-based classes
3 DLV-based implementation exhibits a significant speedup
8

68. C ONCLUSION AND F URTHER R ESEARCH
Results
1 Expressive and decidable formalism for complex objects
2 Wide range of structure-based classes
3 DLV-based implementation exhibits a significant speedup
4 Evaluation over ChEBI ontology revealed modelling errors
8

69. C ONCLUSION AND F URTHER R ESEARCH
Results
1 Expressive and decidable formalism for complex objects
2 Wide range of structure-based classes
3 DLV-based implementation exhibits a significant speedup
4 Evaluation over ChEBI ontology revealed modelling errors
Language for representing biochemical structures with a
favourable performance/expressivity trade-off
8

70. C ONCLUSION AND F URTHER R ESEARCH
Results
1 Expressive and decidable formalism for complex objects
2 Wide range of structure-based classes
3 DLV-based implementation exhibits a significant speedup
4 Evaluation over ChEBI ontology revealed modelling errors
Language for representing biochemical structures with a
favourable performance/expressivity trade-off
Future directions
SMILES-based surface syntax
8

71. C ONCLUSION AND F URTHER R ESEARCH
Results
1 Expressive and decidable formalism for complex objects
2 Wide range of structure-based classes
3 DLV-based implementation exhibits a significant speedup
4 Evaluation over ChEBI ontology revealed modelling errors
Language for representing biochemical structures with a
favourable performance/expressivity trade-off
Future directions
SMILES-based surface syntax
∧5 hasAtom(x, yi ) ∧ c(y1 ) ∧ o(y2 ) ∧ o(y3 ) ∧ c(y4 )∧
i=1
double(y1 , y2 ) ∧ single(y1 , y3 ) ∧ single(y3 , y4 ) ∧ single(y1 , y5 )
→ carboxylicEster(x)
8

72. C ONCLUSION AND F URTHER R ESEARCH
Results
1 Expressive and decidable formalism for complex objects
2 Wide range of structure-based classes
3 DLV-based implementation exhibits a significant speedup
4 Evaluation over ChEBI ontology revealed modelling errors
Language for representing biochemical structures with a
favourable performance/expressivity trade-off
Future directions
SMILES-based surface syntax
define carboxylicEster
some hasAtom SMILES(COC(= O)[∗])
end.
8

73. C ONCLUSION AND F URTHER R ESEARCH
Results
1 Expressive and decidable formalism for complex objects
2 Wide range of structure-based classes
3 DLV-based implementation exhibits a significant speedup
4 Evaluation over ChEBI ontology revealed modelling errors
Language for representing biochemical structures with a
favourable performance/expressivity trade-off
Future directions
SMILES-based surface syntax
Detect subsumptions between classes
8

74. C ONCLUSION AND F URTHER R ESEARCH
Results
1 Expressive and decidable formalism for complex objects
2 Wide range of structure-based classes
3 DLV-based implementation exhibits a significant speedup
4 Evaluation over ChEBI ontology revealed modelling errors
Language for representing biochemical structures with a
favourable performance/expressivity trade-off
Future directions
SMILES-based surface syntax
Detect subsumptions between classes
E.g., Carboxylic ester is an organic molecular entity
8

75. C ONCLUSION AND F URTHER R ESEARCH
Results
1 Expressive and decidable formalism for complex objects
2 Wide range of structure-based classes
3 DLV-based implementation exhibits a significant speedup
4 Evaluation over ChEBI ontology revealed modelling errors
Language for representing biochemical structures with a
favourable performance/expressivity trade-off
Future directions
SMILES-based surface syntax
Detect subsumptions between classes
Extensions with numerical datatypes
8

76. C ONCLUSION AND F URTHER R ESEARCH
Results
1 Expressive and decidable formalism for complex objects
2 Wide range of structure-based classes
3 DLV-based implementation exhibits a significant speedup
4 Evaluation over ChEBI ontology revealed modelling errors
Language for representing biochemical structures with a
favourable performance/expressivity trade-off
Future directions
SMILES-based surface syntax
Detect subsumptions between classes
Extensions with numerical datatypes
E.g., Small molecules if they weigh less than 800 daltons
8

77. C ONCLUSION AND F URTHER R ESEARCH
Results
1 Expressive and decidable formalism for complex objects
2 Wide range of structure-based classes
3 DLV-based implementation exhibits a significant speedup
4 Evaluation over ChEBI ontology revealed modelling errors
Language for representing biochemical structures with a
favourable performance/expressivity trade-off
Future directions
SMILES-based surface syntax
Detect subsumptions between classes
Extensions with numerical datatypes
Classification of complex biological objects
8

78. C ONCLUSION AND F URTHER R ESEARCH
Results
1 Expressive and decidable formalism for complex objects
2 Wide range of structure-based classes
3 DLV-based implementation exhibits a significant speedup
4 Evaluation over ChEBI ontology revealed modelling errors
Language for representing biochemical structures with a
favourable performance/expressivity trade-off
Future directions
SMILES-based surface syntax
Detect subsumptions between classes
Extensions with numerical datatypes
Classification of complex biological objects
Integration with Protégé, Bioclipse, JChemPaint,. . .
8

79. C ONCLUSION AND F URTHER R ESEARCH
Results
1 Expressive and decidable formalism for complex objects
2 Wide range of structure-based classes
3 DLV-based implementation exhibits a significant speedup
4 Evaluation over ChEBI ontology revealed modelling errors
Language for representing biochemical structures with a
favourable performance/expressivity trade-off
Future directions
SMILES-based surface syntax
Detect subsumptions between classes
Extensions with numerical datatypes
Classification of complex biological objects
Integration with Protégé, Bioclipse, JChemPaint,. . .
Mapping from our logic to RDF
8

80. C ONCLUSION AND F URTHER R ESEARCH
Results
1 Expressive and decidable formalism for complex objects
2 Wide range of structure-based classes
3 DLV-based implementation exhibits a significant speedup
4 Evaluation over ChEBI ontology revealed modelling errors
Language for representing biochemical structures with a
favourable performance/expressivity trade-off
Future directions
SMILES-based surface syntax
Detect subsumptions between classes
Extensions with numerical datatypes
Classification of complex biological objects
Integration with Protégé, Bioclipse, JChemPaint,. . .
Mapping from our logic to RDF
Thank you! Questions?!?
8
