- 1. Maintenance of RainGardens, Swales, and Stormwater Planters OLCA Expo December 1, 2011
- 2. Partners Candace Stoughton EMSWCD Gail Shaloum Clackamas WES Rob Emanuel Clean Water Services Damon Richardson Pacific Sports Turf Henry Stevens Portland BES Maria Cahill Green Girl Land Development

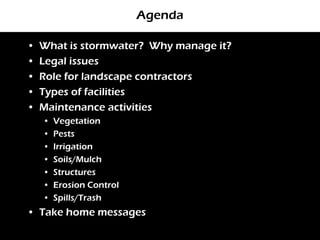

- 3. Agenda • What is stormwater? Why manage it? • Legal issues • Role for landscape contractors • Types of facilities • Maintenance activities • Vegetation • Pests • Irrigation • Soils/Mulch • Structures • Erosion Control • Spills/Trash • Take home messages
- 4. What is Stormwater? Photo:morgueFile Rainfall and snowmelt that runs off instead of seeping into the ground.

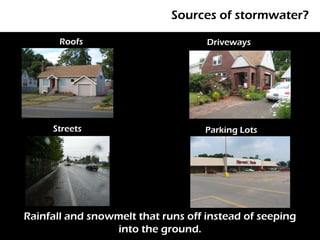

- 5. Sources of stormwater? Roofs Driveways Streets Parking Lots Rainfall and snowmelt that runs off instead of seeping into the ground.

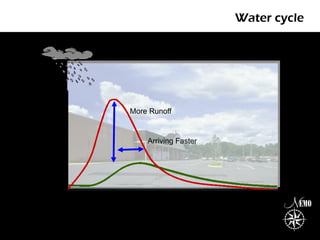

- 6. Water cycle More Runoff Arriving Faster

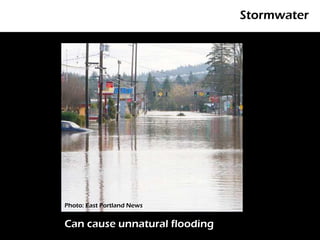

- 7. Stormwater Photo: East PortlandNews Can cause unnatural flooding

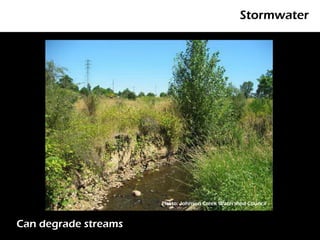

- 8. Stormwater Photo: morgueFile Photo: East Portland News Photo: Johnson Creek Watershed Council Can degrade streams
- 9. Stormwater Carries pollutants towaterways
- 10.

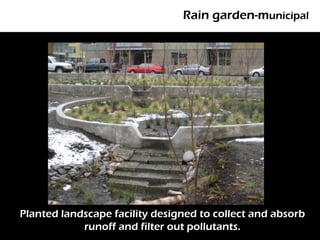

- 11. Rain garden-municipal Photo: EMSWCD Planted landscape facility designed to collect and absorb runoff and filter out pollutants.

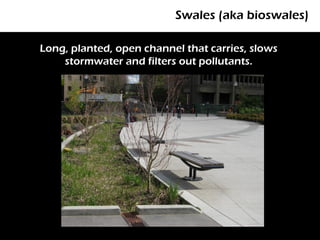

- 12. Swales (aka bioswales) Long,planted, open channel that carries, slows stormwater and filters out pollutants.

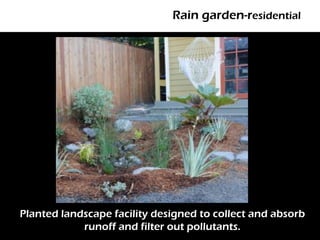

- 13. Rain garden-residential Photo: EMSWCD Planted landscape facility designed to collect and absorb runoff and filter out pollutants.

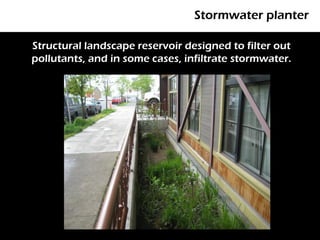

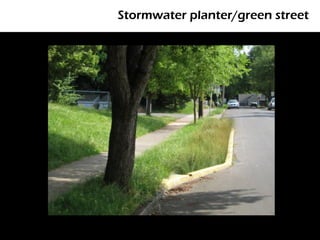

- 14. Stormwater planter Structural landscapereservoir designed to filter out pollutants, and in some cases, infiltrate stormwater.

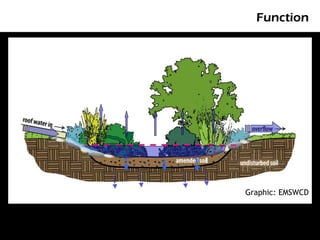

- 15.
- 16.

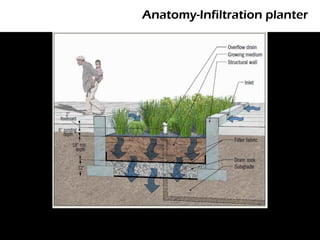

- 17.

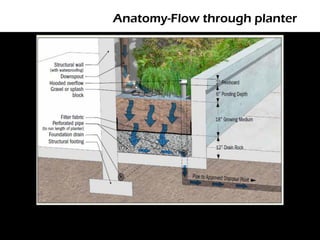

- 18.

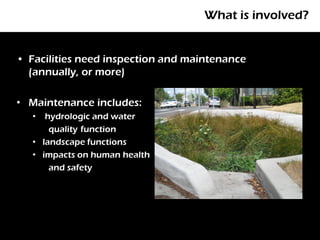

- 19. What is involved? •Facilities need inspection and maintenance (annually, or more) • Maintenance includes: • hydrologic and water quality function • landscape functions • impacts on human health and safety

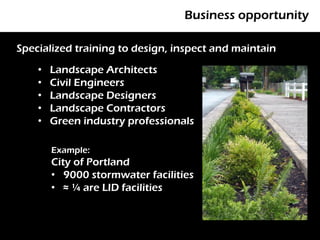

- 20. Business opportunity Specialized trainingto design, inspect and maintain • Landscape Architects P • Civil Engineers • Landscape Designers • Landscape Contractors • Green industry professionals Example: City of Portland • 9000 stormwater facilities • ≈ ¼ are LID facilities
- 21. Legal roles andresponsibilities EPA (US Clean Water Act) ODEQ Jurisdiction Facility Owner Contractor

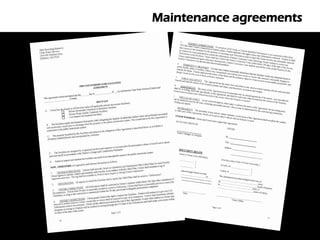

- 22.

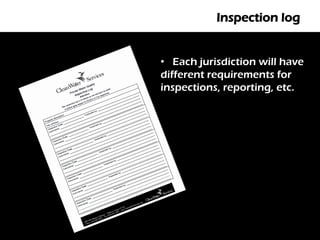

- 23. Inspection log • Eachjurisdiction will have different requirements for inspections, reporting, etc.
- 24. General observations Before yougo… • O & M plan or manual • As-built or design report • Locations of inlets/outlets, plantings, irrigation, historical problems, previous observations

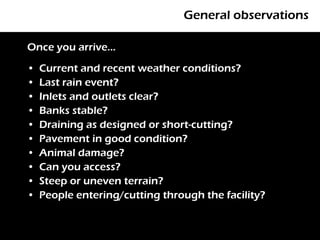

- 25. General observations Once youarrive… • Current and recent weather conditions? • Last rain event? • Inlets and outlets clear? • Banks stable? • Draining as designed or short-cutting? • Pavement in good condition? • Animal damage? • Can you access? • Steep or uneven terrain? • People entering/cutting through the facility?

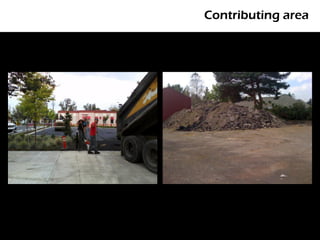

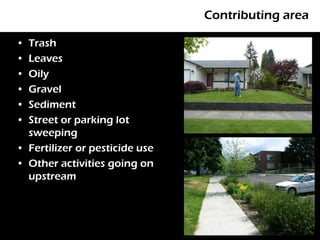

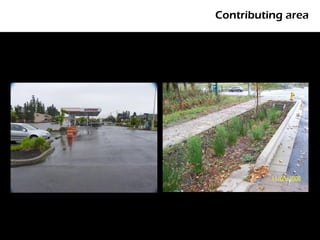

- 26. Contributing area • Trash •Leaves • Oily • Gravel • Sediment • Street or parking lot sweeping • Fertilizer or pesticide use • Other activities going on upstream
- 27.
- 28.

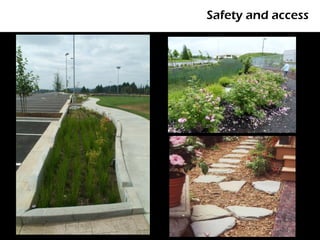

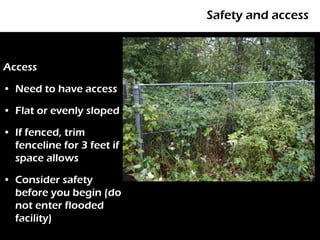

- 29. Safety and access Access •Need to have access • Flat or evenly sloped • If fenced, trim fenceline for 3 feet if space allows • Consider safety before you begin (do not enter flooded facility)
- 30.

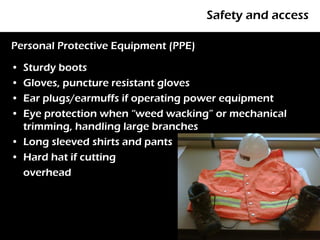

- 31. Safety and access PersonalProtective Equipment (PPE) • Sturdy boots • Gloves, puncture resistant gloves • Ear plugs/earmuffs if operating power equipment • Eye protection when “weed wacking” or mechanical trimming, handling large branches • Long sleeved shirts and pants • Hard hat if cutting overhead 35

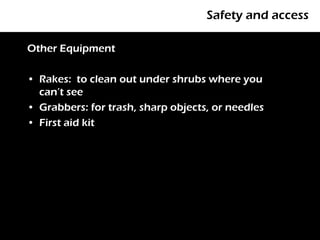

- 32. Safety and access OtherEquipment • Rakes: to clean out under shrubs where you can’t see • Grabbers: for trash, sharp objects, or needles • First aid kit

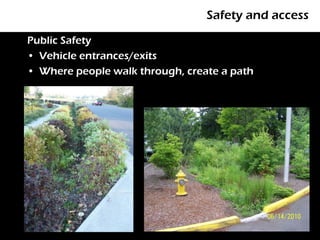

- 33. Safety and access PublicSafety • Vehicle entrances/exits • Where people walk through, create a path

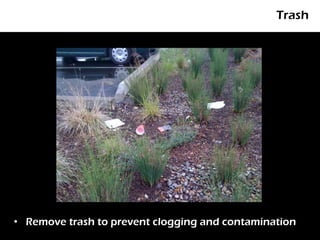

- 34. Trash • Remove trashto prevent clogging and contamination

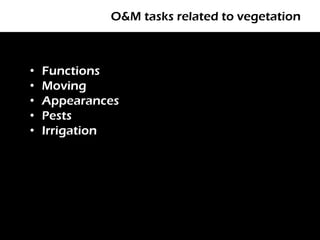

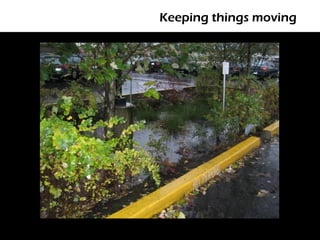

- 35. O&M tasks relatedto vegetation • Functions • Moving • Appearances • Pests • Irrigation
- 36. vegetation can bepart of the solution…… vegetation can be part of the problem.…..…

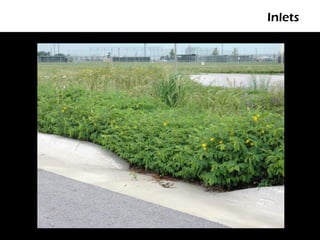

- 37.

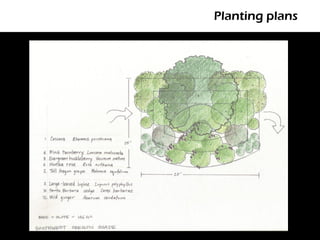

- 38.
- 39.

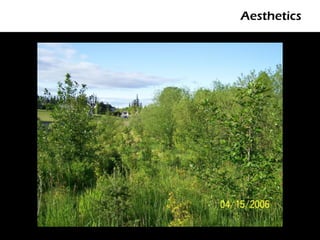

- 40.

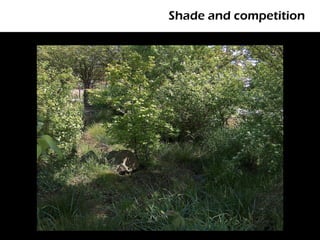

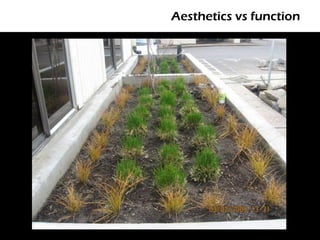

- 41.
- 42.
- 43.
- 44.
- 45.
- 46.

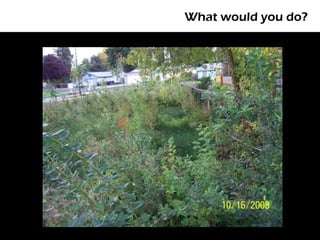

- 47.

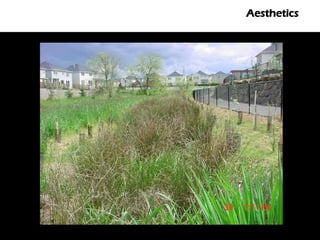

- 48.

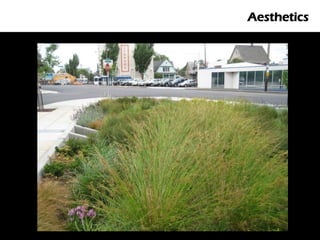

- 49.

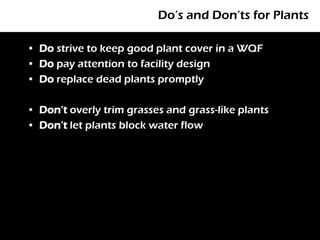

- 50. Do’s and Don’tsfor Plants • Do strive to keep good plant cover in a WQF • Do pay attention to facility design • Do replace dead plants promptly • Don’t overly trim grasses and grass-like plants • Don’t let plants block water flow
- 51.

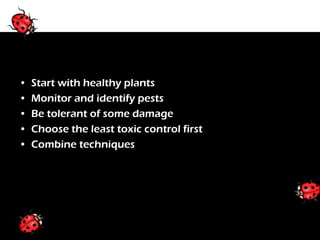

- 52. Principles of IPM • Start with healthy plants • Monitor and identify pests • Be tolerant of some damage • Choose the least toxic control first • Combine techniques
- 53.
- 54.
- 55.

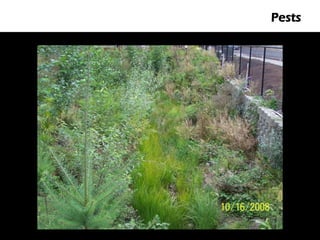

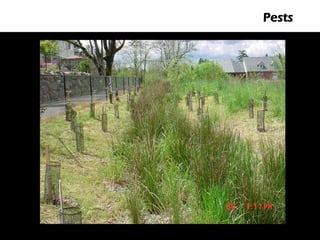

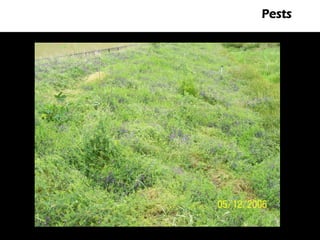

- 56. Pests Canada thistle (Cirsiumarvense) Reed canary grass (Phalaris arundinacea) Red clover (Trifolium pratense) Nightshade (Solanum dulcamara)

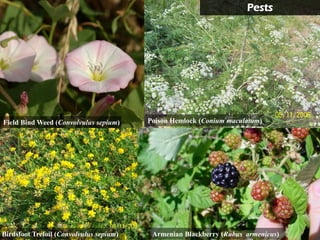

- 57. Pests Field Bind Weed(Convolvulus sepium) Poison Hemlock (Conium maculatum) Birdsfoot Trefoil (Convolvulus sepium) Armenian Blackberry (Rubus armenicus)

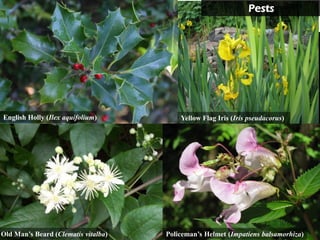

- 58. Pests English Holly (Ilexaquifolium) Yellow Flag Iris (Iris pseudacorus) Old Man’s Beard (Clematis vitalba) Policeman’s Helmet (Impatiens balsamorhiza)

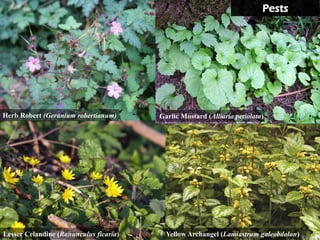

- 59. Pests Herb Robert (Geraniumrobertianum) Garlic Mustard (Alliaria petiolata) Lesser Celandine (Ranunculus ficaria) Yellow Archangel (Lamiastrum galeobdolon)

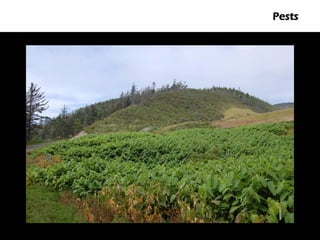

- 60.
- 61.

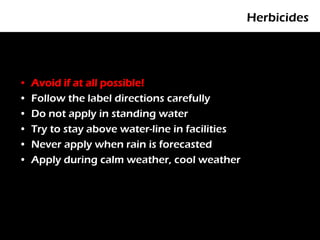

- 62. Herbicides • Avoid if at all possible! • Follow the label directions carefully • Do not apply in standing water • Try to stay above water-line in facilities • Never apply when rain is forecasted • Apply during calm weather, cool weather

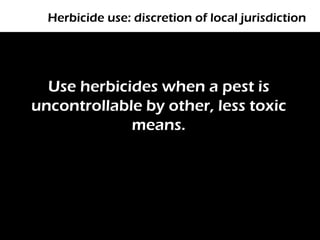

- 63. Herbicide use: discretionof local jurisdiction Use herbicides when a pest is uncontrollable by other, less toxic means.

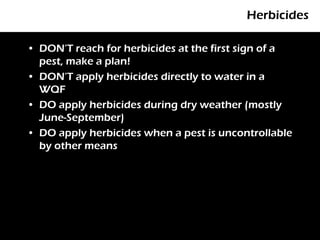

- 64. Herbicides • DON’T reachfor herbicides at the first sign of a pest, make a plan! • DON’T apply herbicides directly to water in a WQF • DO apply herbicides during dry weather (mostly June-September) • DO apply herbicides when a pest is uncontrollable by other means

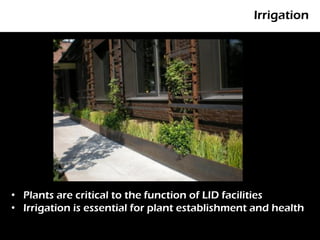

- 65. Irrigation P • Plants are critical to the function of LID facilities • Irrigation is essential for plant establishment and health
- 66. Irrigation • Irrigation especiallyimportant during establishment period (approx. 2 yrs) (true for native plants as well) P • Temporary irrigation fine for facilities with vegetation that can handle OR’s dry summers

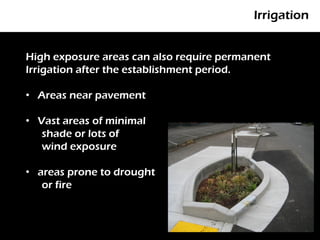

- 67. Irrigation High exposure areascan also require permanent Irrigation after the establishment period. P • Areas near pavement • Vast areas of minimal shade or lots of wind exposure • areas prone to drought or fire

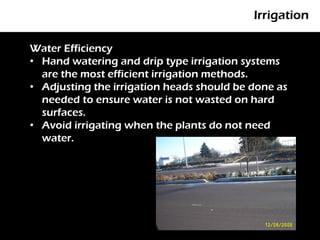

- 68. Irrigation Water Efficiency • Handwatering and drip type irrigation systems P are the most efficient irrigation methods. • Adjusting the irrigation heads should be done as needed to ensure water is not wasted on hard surfaces. • Avoid irrigating when the plants do not need water.

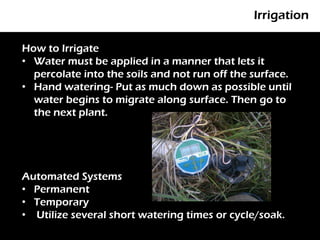

- 69. Irrigation How to Irrigate •Water must be applied in a manner that lets it P percolate into the soils and not run off the surface. • Hand watering- Put as much down as possible until water begins to migrate along surface. Then go to the next plant. Automated Systems • Permanent • Temporary • Utilize several short watering times or cycle/soak.

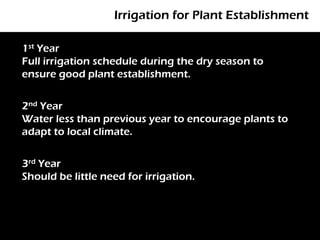

- 70. Irrigation for PlantEstablishment 1st Year Full irrigation schedule during the dry season to P ensure good plant establishment. 2nd Year Water less than previous year to encourage plants to adapt to local climate. 3rd Year Should be little need for irrigation.

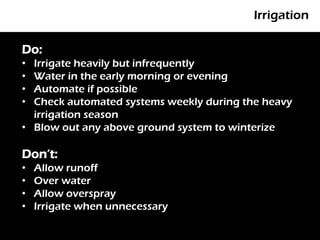

- 71. Irrigation Do: • Irrigate heavilybut infrequently P • Water in the early morning or evening • Automate if possible • Check automated systems weekly during the heavy irrigation season • Blow out any above ground system to winterize Don’t: • Allow runoff • Over water • Allow overspray • Irrigate when unnecessary

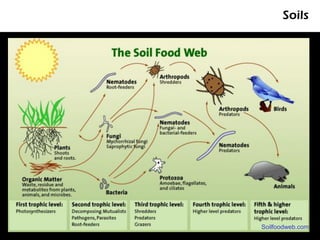

- 72.

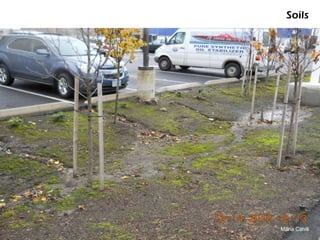

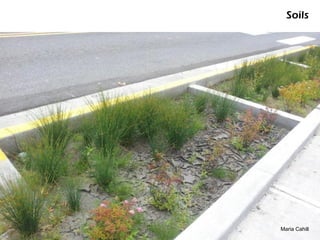

- 73. Soils • Healthy soilshold water, sediment, and pollutants • Too much sediment (and compaction) will clog the system • Regular maintenance will keep the facility working as designed City of Portland Environmental Services

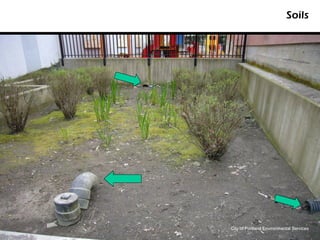

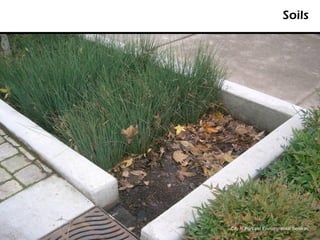

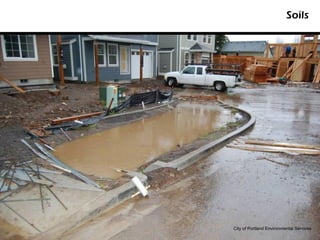

- 74. Soils City of PortlandEnvironmental Services
- 75.
- 76. Soils City of PortlandEnvironmental Services
- 77.

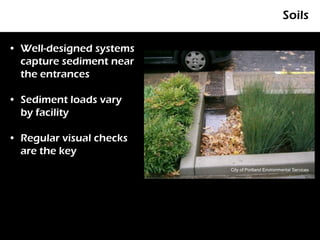

- 78. Soils • Well-designed systems capture sediment near the entrances • Sediment loads vary by facility • Regular visual checks are the key City of Portland Environmental Services
- 79. Soils City of PortlandEnvironmental Services

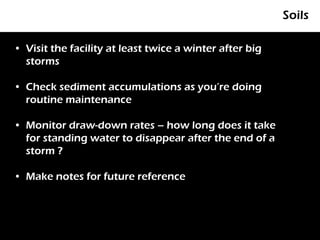

- 80. Soils • Visit thefacility at least twice a winter after big storms • Check sediment accumulations as you’re doing routine maintenance • Monitor draw-down rates – how long does it take for standing water to disappear after the end of a storm ? • Make notes for future reference
- 81. Plants and sedimentcan reduce depth

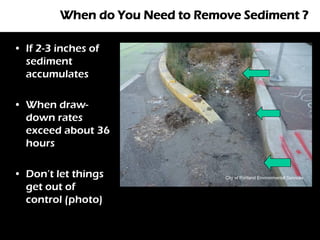

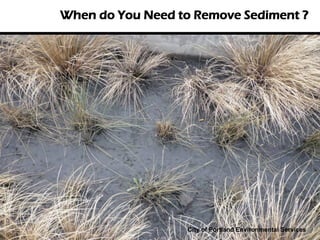

- 82. When do YouNeed to Remove Sediment ? • If 2-3 inches of sediment accumulates • When draw- down rates exceed about 36 hours • Don’t let things City of Portland Environmental Services get out of control (photo)
- 83. When do YouNeed to Remove Sediment ? City of Portland Environmental Services

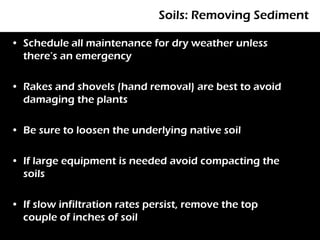

- 84. Soils: Removing Sediment •Schedule all maintenance for dry weather unless there’s an emergency • Rakes and shovels (hand removal) are best to avoid damaging the plants • Be sure to loosen the underlying native soil • If large equipment is needed avoid compacting the soils • If slow infiltration rates persist, remove the top couple of inches of soil
- 85. When to BeConcerned…. Nccwep.org waynedaley.com

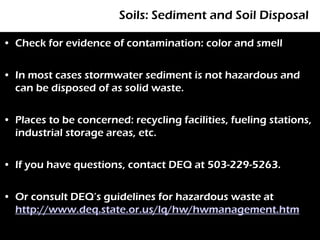

- 86. Soils: Sediment andSoil Disposal • Check for evidence of contamination: color and smell • In most cases stormwater sediment is not hazardous and can be disposed of as solid waste. • Places to be concerned: recycling facilities, fueling stations, industrial storage areas, etc. • If you have questions, contact DEQ at 503-229-5263. • Or consult DEQ’s guidelines for hazardous waste at http://www.deq.state.or.us/lq/hw/hwmanagement.htm

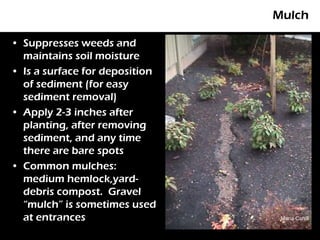

- 87. Mulch • Suppresses weedsand maintains soil moisture • Is a surface for deposition of sediment (for easy sediment removal) • Apply 2-3 inches after planting, after removing sediment, and any time there are bare spots • Common mulches: medium hemlock,yard- debris compost. Gravel “mulch” is sometimes used at entrances Maria Cahill

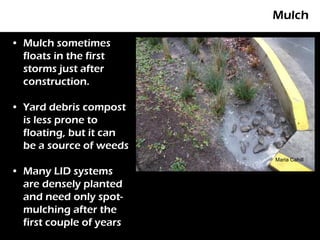

- 88. Mulch • Mulch sometimes floats in the first storms just after construction. • Yard debris compost is less prone to floating, but it can be a source of weeds Maria Cahill • Many LID systems are densely planted and need only spot- mulching after the first couple of years

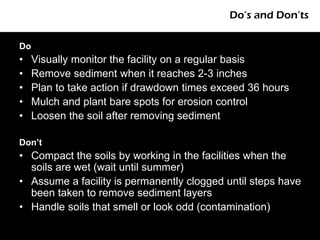

- 89. Do’s and Don’ts Do • Visually monitor the facility on a regular basis • Remove sediment when it reaches 2-3 inches • Plan to take action if drawdown times exceed 36 hours • Mulch and plant bare spots for erosion control • Loosen the soil after removing sediment Don’t • Compact the soils by working in the facilities when the soils are wet (wait until summer) • Assume a facility is permanently clogged until steps have been taken to remove sediment layers • Handle soils that smell or look odd (contamination)

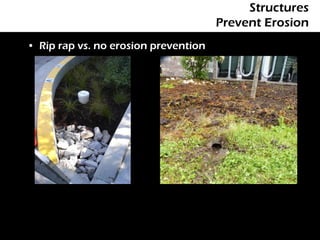

- 90. Structures Prevent Erosion • Rip rap vs. no erosion prevention

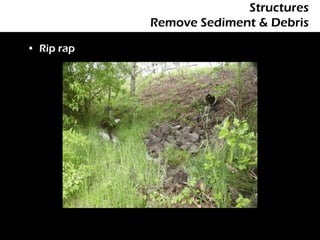

- 91. Structures Remove Sediment & Debris • Rip rap
- 92. Structures Remove Sediment & Debris • Shallow forebay

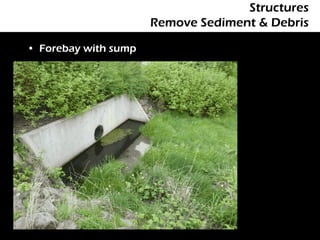

- 93. Structures Remove Sediment & Debris • Forebay with sump
- 94. Structures Remove Sediment & Debris • Curb cuts

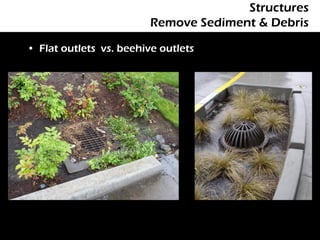

- 95. Structures Remove Sediment & Debris • Flat outlets vs. beehive outlets

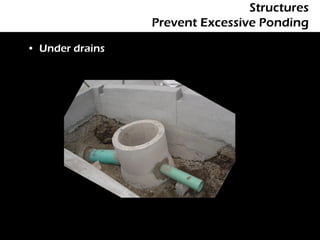

- 96. Structures Prevent Excessive Ponding • Under drains

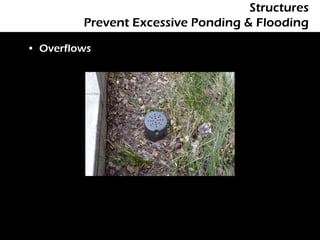

- 97. Structures Prevent Excessive Ponding & Flooding • Overflows

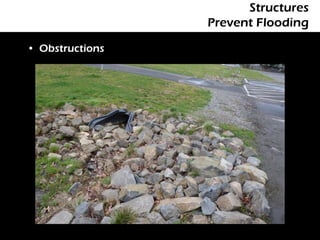

- 98. Structures Prevent Flooding • Obstructions

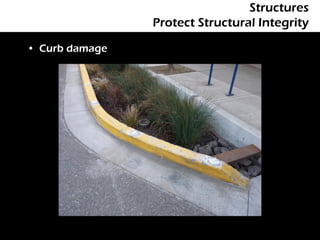

- 99. Structures Protect Structural Integrity • Curb damage

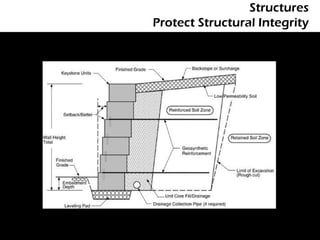

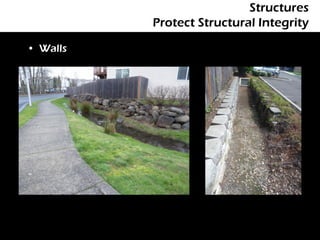

- 100. Structures Protect Structural Integrity • Walls
- 101.

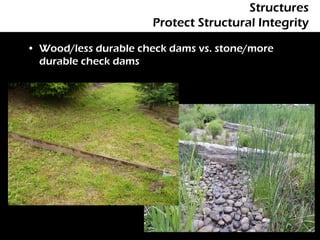

- 102. Structures Protect Structural Integrity • Wood/less durable check dams vs. stone/more durable check dams

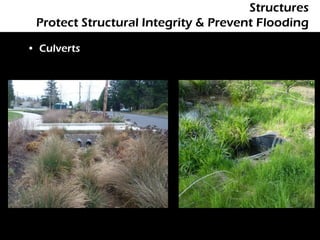

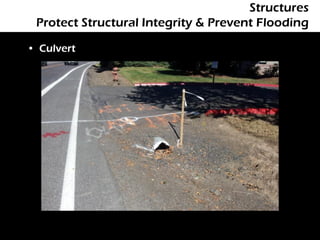

- 103. Structures Protect StructuralIntegrity & Prevent Flooding • Culverts
- 104. Structures Protect StructuralIntegrity & Prevent Flooding • Culvert
- 105. Structures Dos and Don’ts Do’s • Do remove sediment, debris & trash from inlet & outlet structures such as curb cuts, rip rap, sumps & grates. • Do control and handle the removed sediment so it won’t get back into the storm system. • Do prevent excessive ponding by inspecting underdrains. • Do prevent flooding by clearing outlets of obstructions. • Do protect the integrity of structures such as curbs, & walls. • Do inspect less durable materials more often.

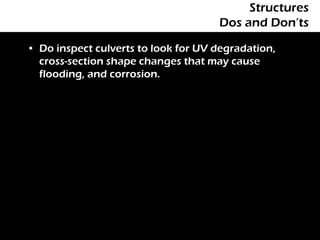

- 106. Structures Dos and Don’ts • Do inspect culverts to look for UV degradation, cross-section shape changes that may cause flooding, and corrosion.

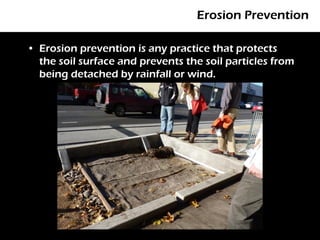

- 107. Erosion Prevention • Erosionprevention is any practice that protects the soil surface and prevents the soil particles from being detached by rainfall or wind.

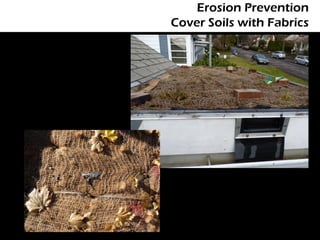

- 108. Erosion Prevention Cover Soilswith Fabrics

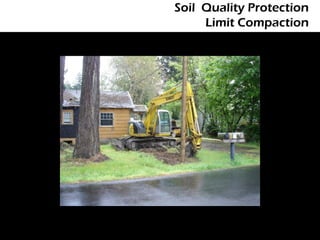

- 109. Soil Quality Protection Limit Compaction
- 110. Sediment (aka Source)Control • “Sediment Control is any practice that traps the soil particles after they have been detached and moved by wind or water”…

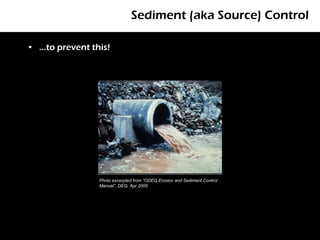

- 111. Sediment (aka Source)Control • …to prevent this! Photo excerpted from “ODEQ Erosion and Sediment Control Manual”, DEQ, Apr 2005

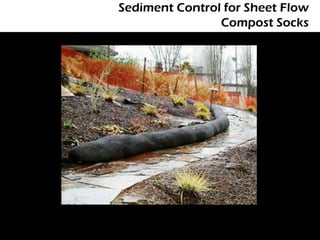

- 112. Sediment Control forSheet Flow Compost Socks

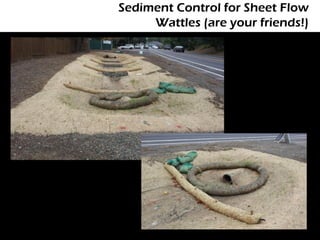

- 113. Sediment Control forSheet Flow Wattles (are your friends!)

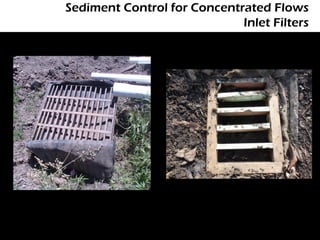

- 114. Sediment Control forConcentrated Flows Inlet Filters

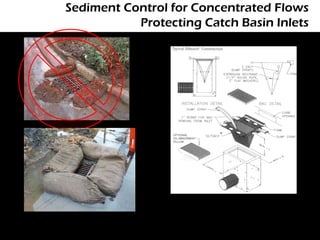

- 115. Sediment Control forConcentrated Flows Protecting Catch Basin Inlets

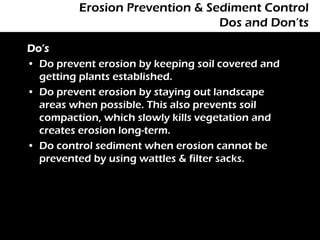

- 116. Erosion Prevention &Sediment Control Dos and Don’ts Do’s • Do prevent erosion by keeping soil covered and getting plants established. • Do prevent erosion by staying out landscape areas when possible. This also prevents soil compaction, which slowly kills vegetation and creates erosion long-term. • Do control sediment when erosion cannot be prevented by using wattles & filter sacks.

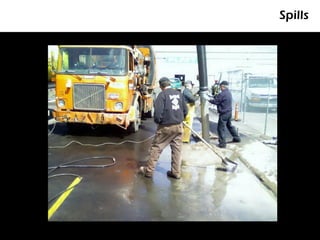

- 117.

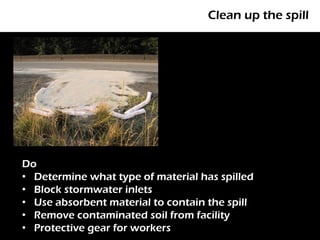

- 118. Clean up thespill Do • Determine what type of material has spilled • Block stormwater inlets • Use absorbent material to contain the spill • Remove contaminated soil from facility • Protective gear for workers
- 119. Clean up thespill Don’t: • Dispose of hazardous material in the garbage. Must be taken to a hazardous waste facility.
- 120. Notify the appropriateauthorities Do • Contact owner of the facility Photo: morgueFile • Contact local jurisdiction emergency response • Contact OR Emergency Response 800-452-0311

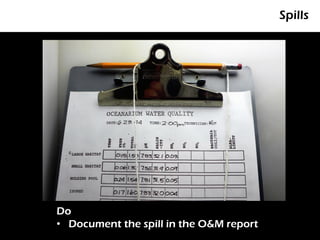

- 121. Spills Do • Document thespill in the O&M report

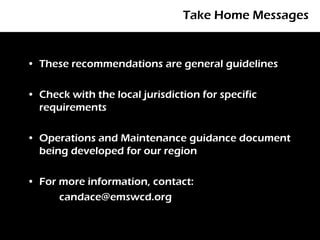

- 122. Take Home Messages •These recommendations are general guidelines • Check with the local jurisdiction for specific requirements • Operations and Maintenance guidance document being developed for our region • For more information, contact: candace@emswcd.org
