The document discusses NoSQL databases, focusing on MongoDB and its relevance in managing big data. It outlines the features, advantages, and use cases of MongoDB, highlighting its scalability, performance, and ease of development compared to traditional relational databases. As data continues to grow exponentially, MongoDB positions itself as an efficient solution for handling diverse data sets and complex applications.

1. NoSQL
Databases
&
Managing Big Data

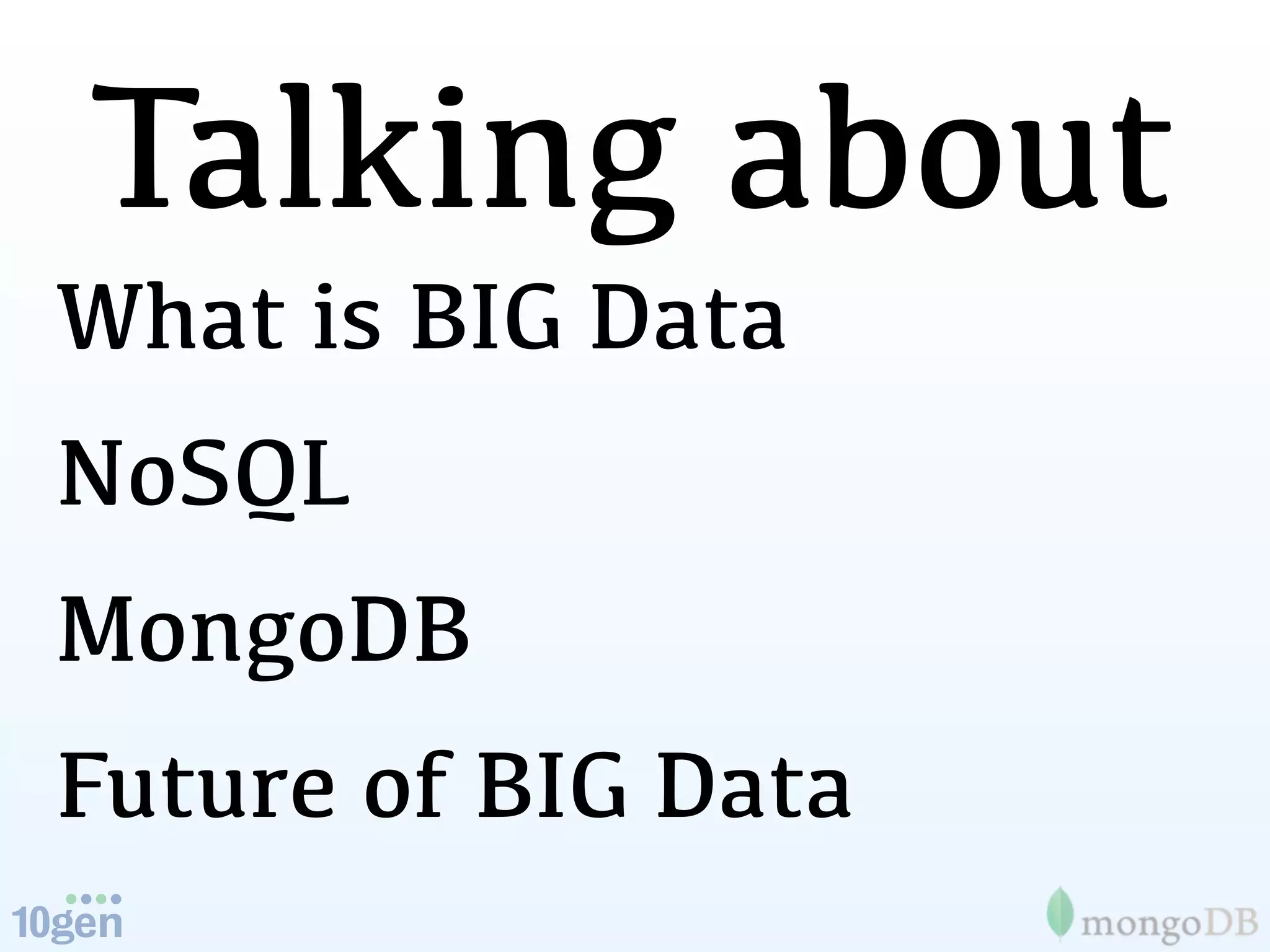

2. Talking about
What is BIG Data
NoSQL
MongoDB
Future of BIG Data

3. @spf13
AKA
Steve Francia
15+ years building
the internet
Father, husband,
skateboarder
Chief Solutions Architect @
responsible for drivers,
integrations, web & docs

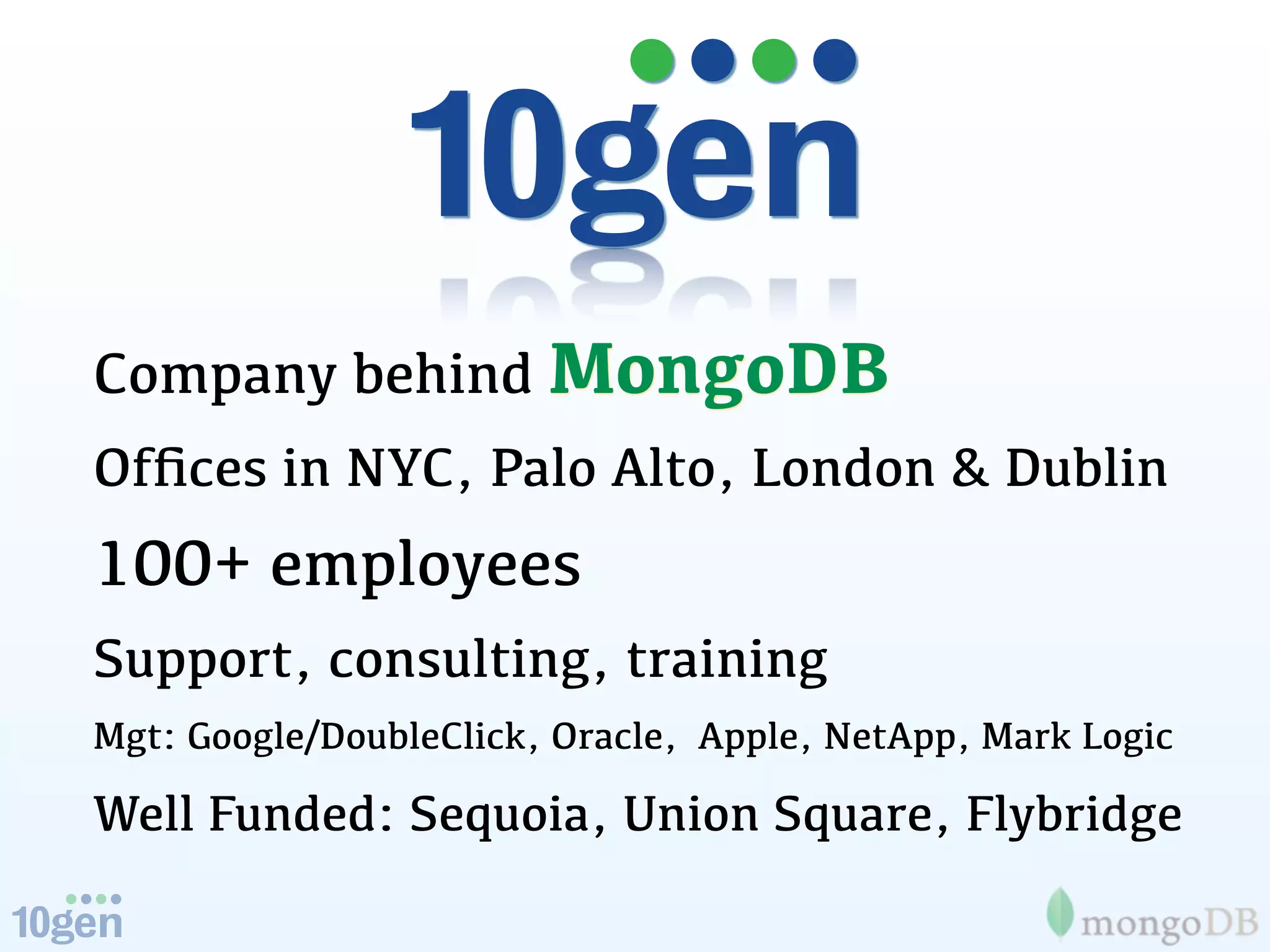

4. Company behind MongoDB
Offices in NYC, Palo Alto, London & Dublin
100+ employees
Support, consulting, training
Mgt: Google/DoubleClick, Oracle, Apple, NetApp, Mark Logic
Well Funded: Sequoia, Union Square, Flybridge

5. What is
BIG
data ?

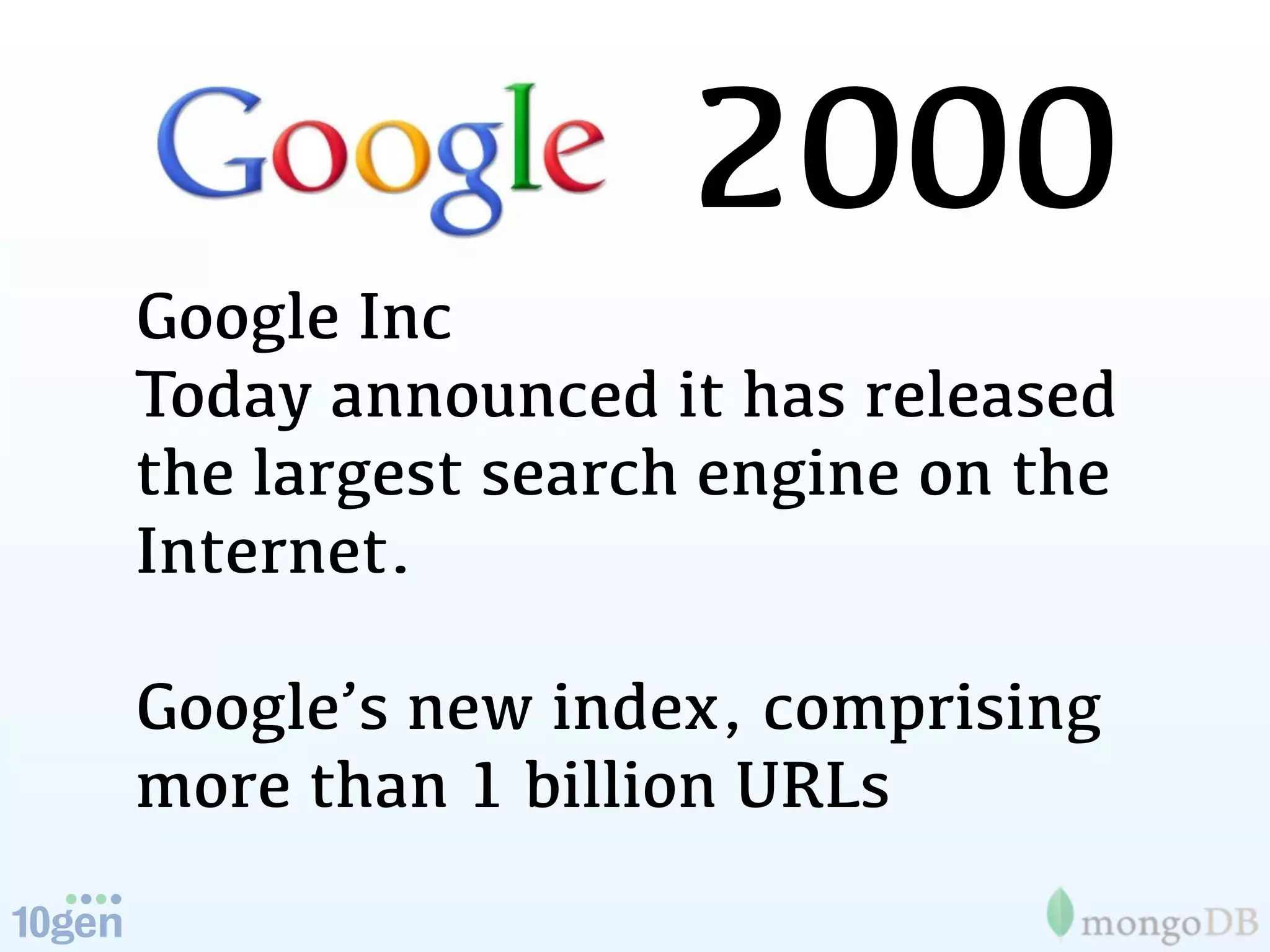

6. 2000
Google Inc
Today announced it has released
the largest search engine on the
Internet.
Google’s new index, comprising
more than 1 billion URLs

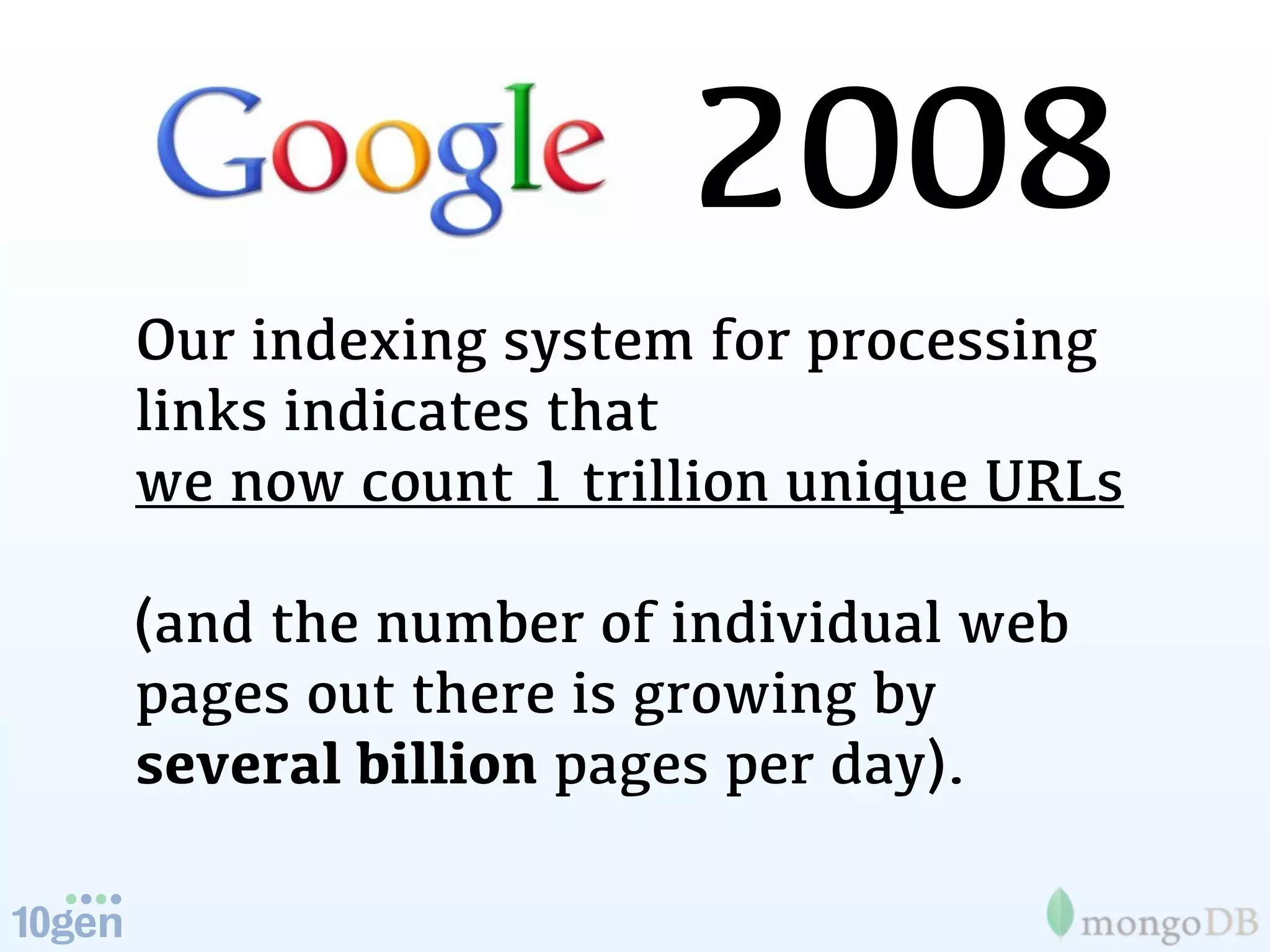

7. 2008
Our indexing system for processing
links indicates that
we now count 1 trillion unique URLs
(and the number of individual web
pages out there is growing by
several billion pages per day).

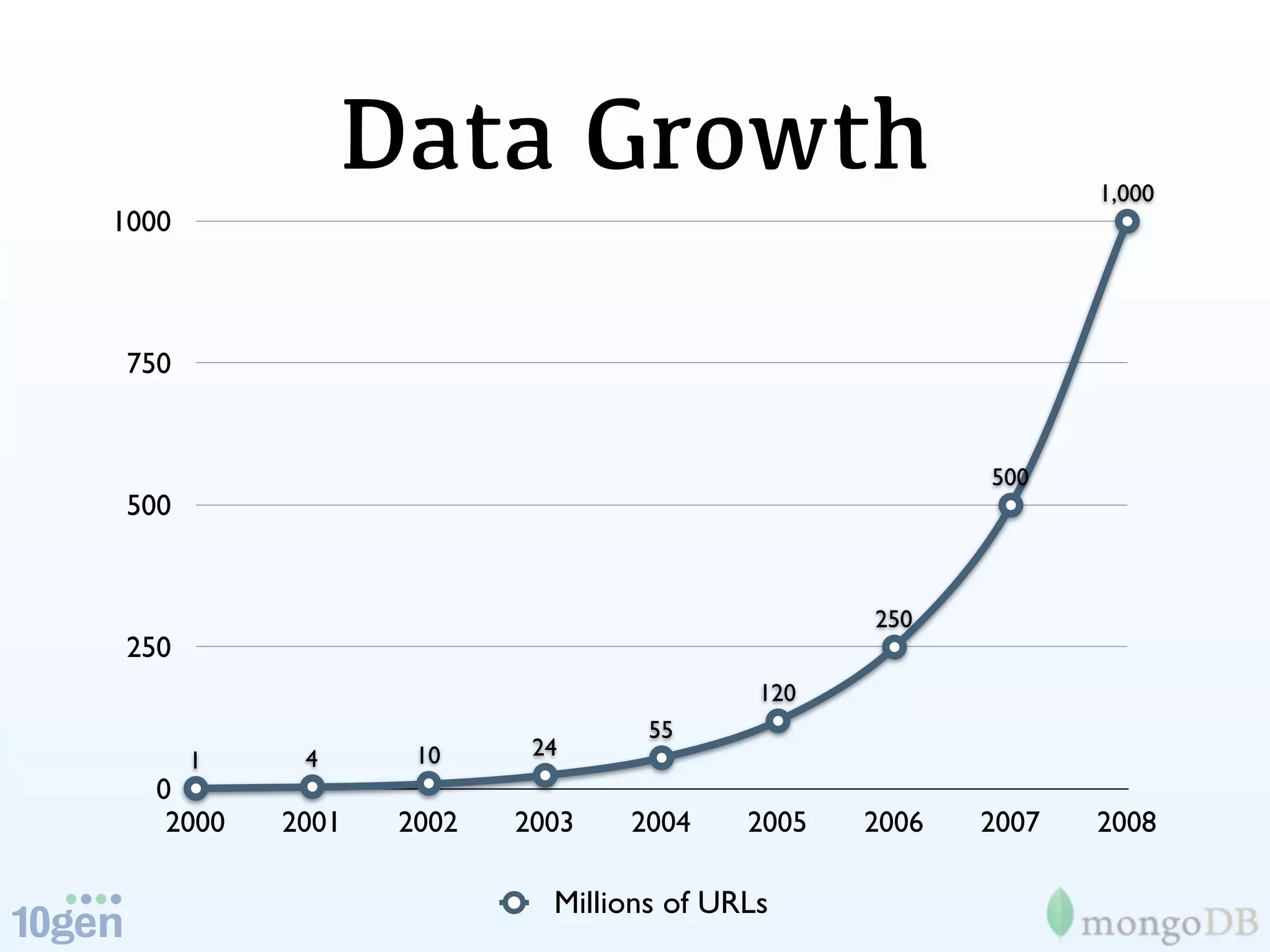

8. Data Growth 1,000
1000
750
500
500
250
250
120
55
4 10 24
1
0
2000 2001 2002 2003 2004 2005 2006 2007 2008
Millions of URLs

9. An unprecedented
amount of data is
being created and is
accessible

10. What good is it if
we can’t utilize this
data?

11. ?
What is
NoSQL

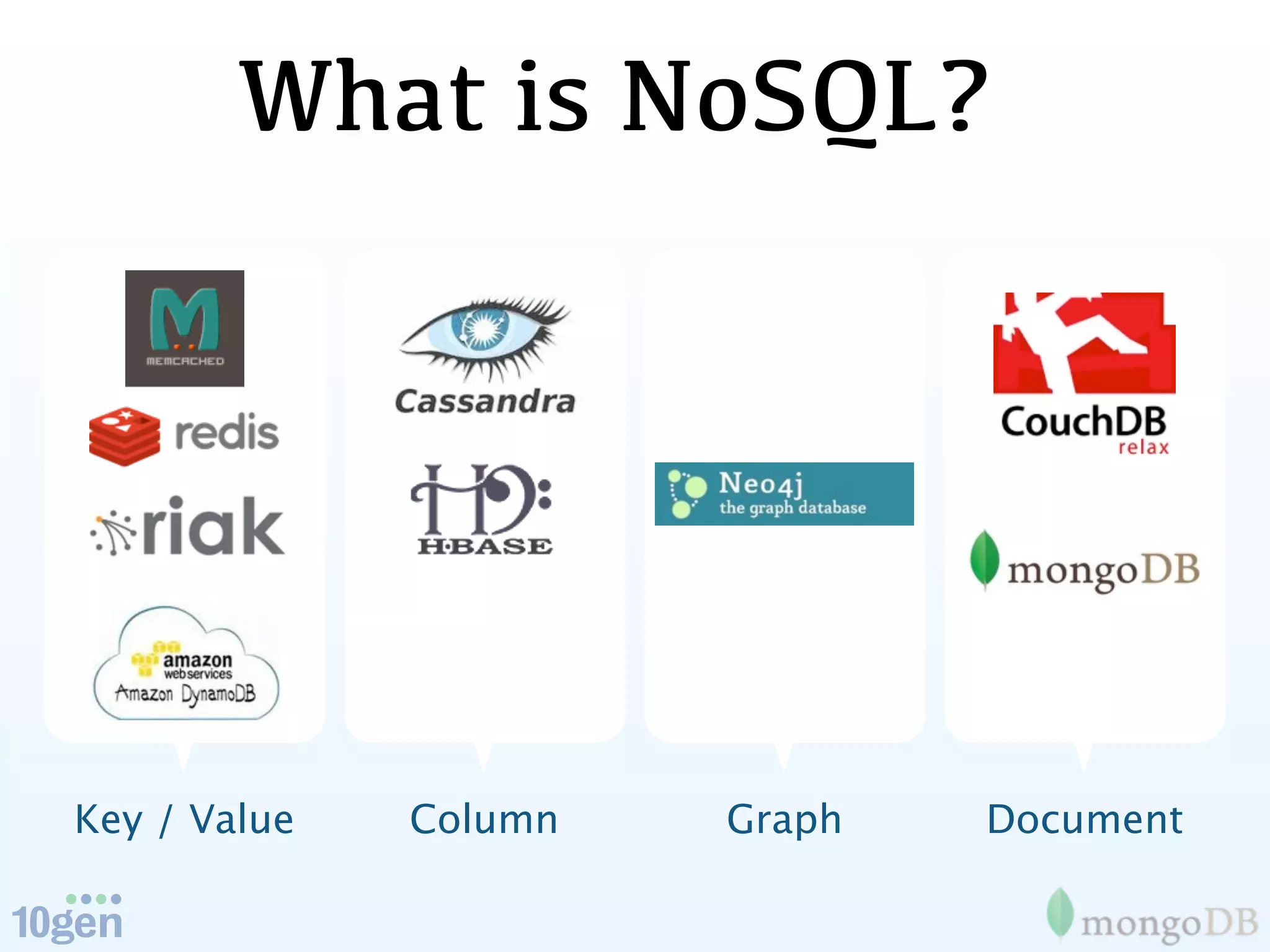

12. What is NoSQL?
Key / Value Column Graph Document

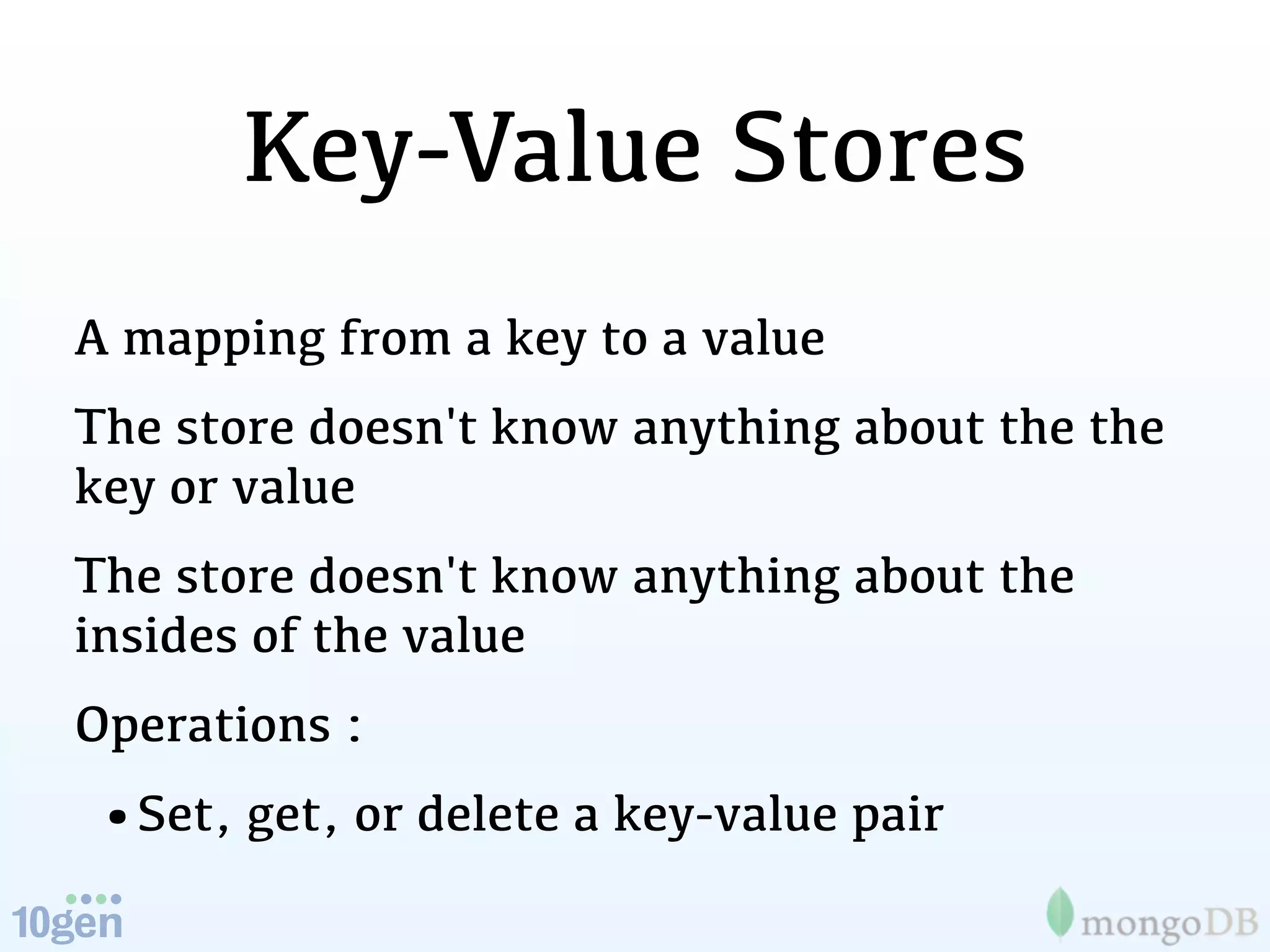

13. Key-Value Stores
A mapping from a key to a value
The store doesn't know anything about the the
key or value
The store doesn't know anything about the
insides of the value
Operations :
•Set, get, or delete a key-value pair

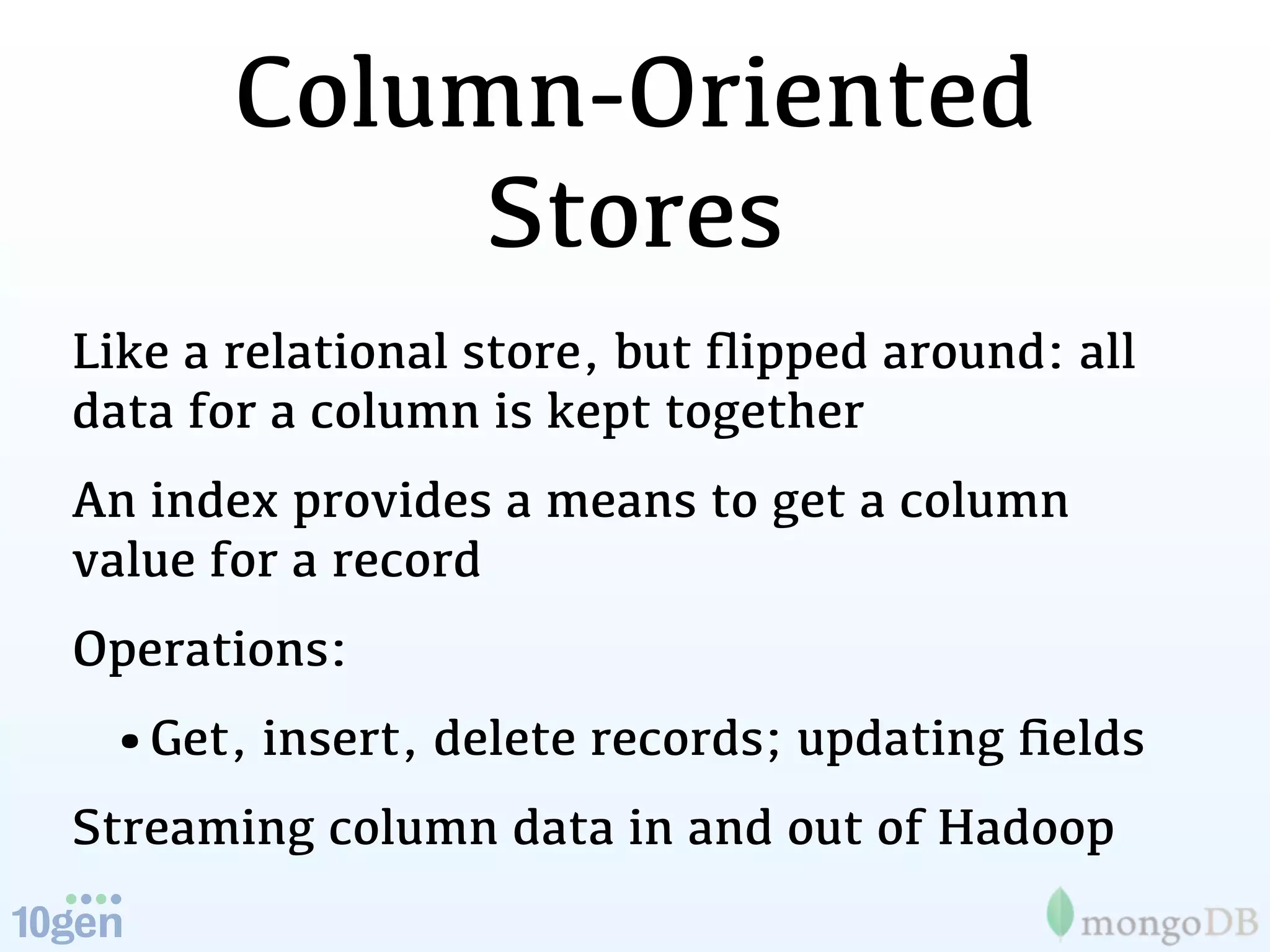

14. Column-Oriented
Stores
Like a relational store, but flipped around: all
data for a column is kept together
An index provides a means to get a column
value for a record
Operations:
•Get, insert, delete records; updating fields
Streaming column data in and out of Hadoop

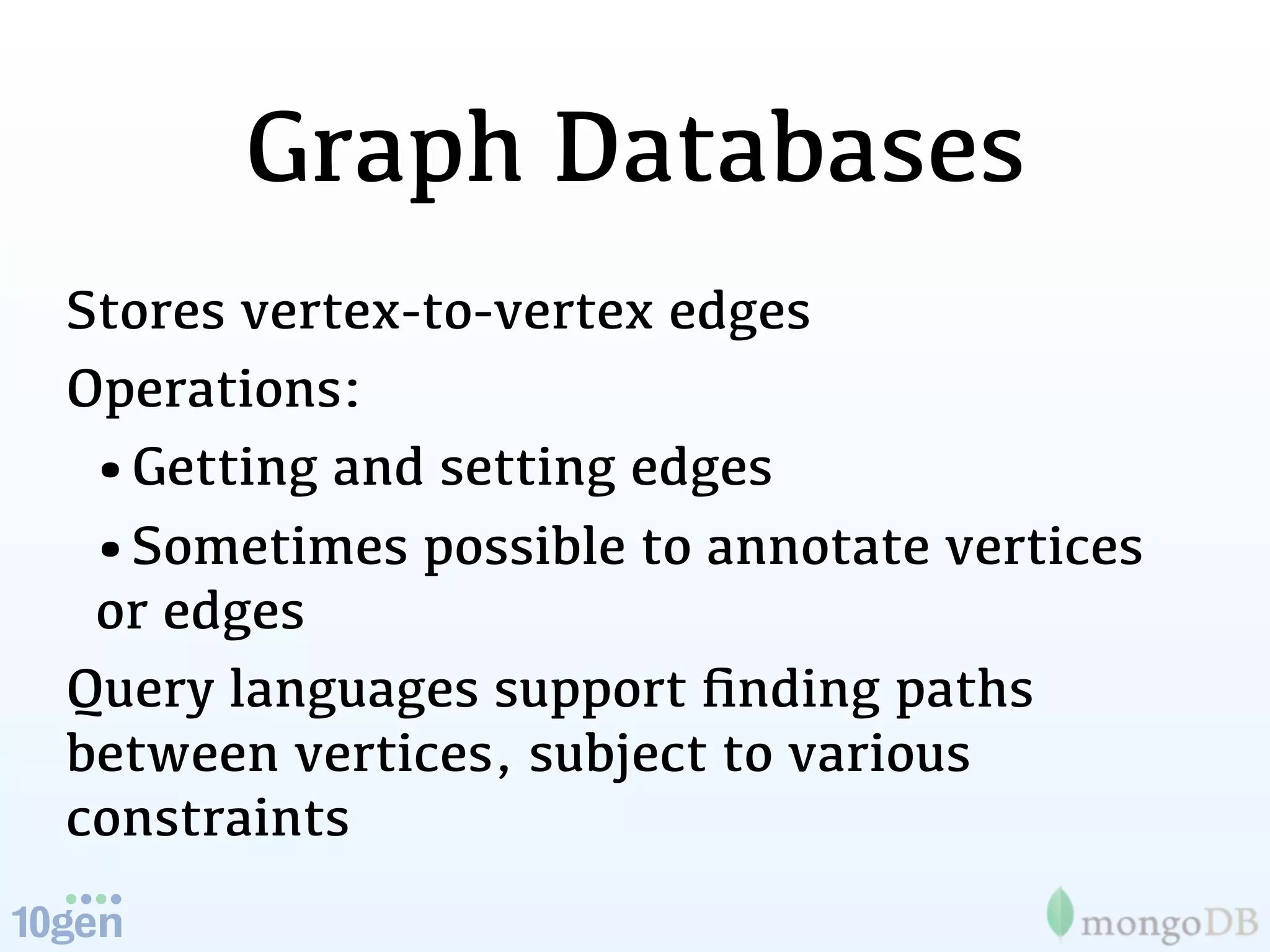

15. Graph Databases
Stores vertex-to-vertex edges
Operations:
•Getting and setting edges
•Sometimes possible to annotate vertices
or edges
Query languages support finding paths
between vertices, subject to various
constraints

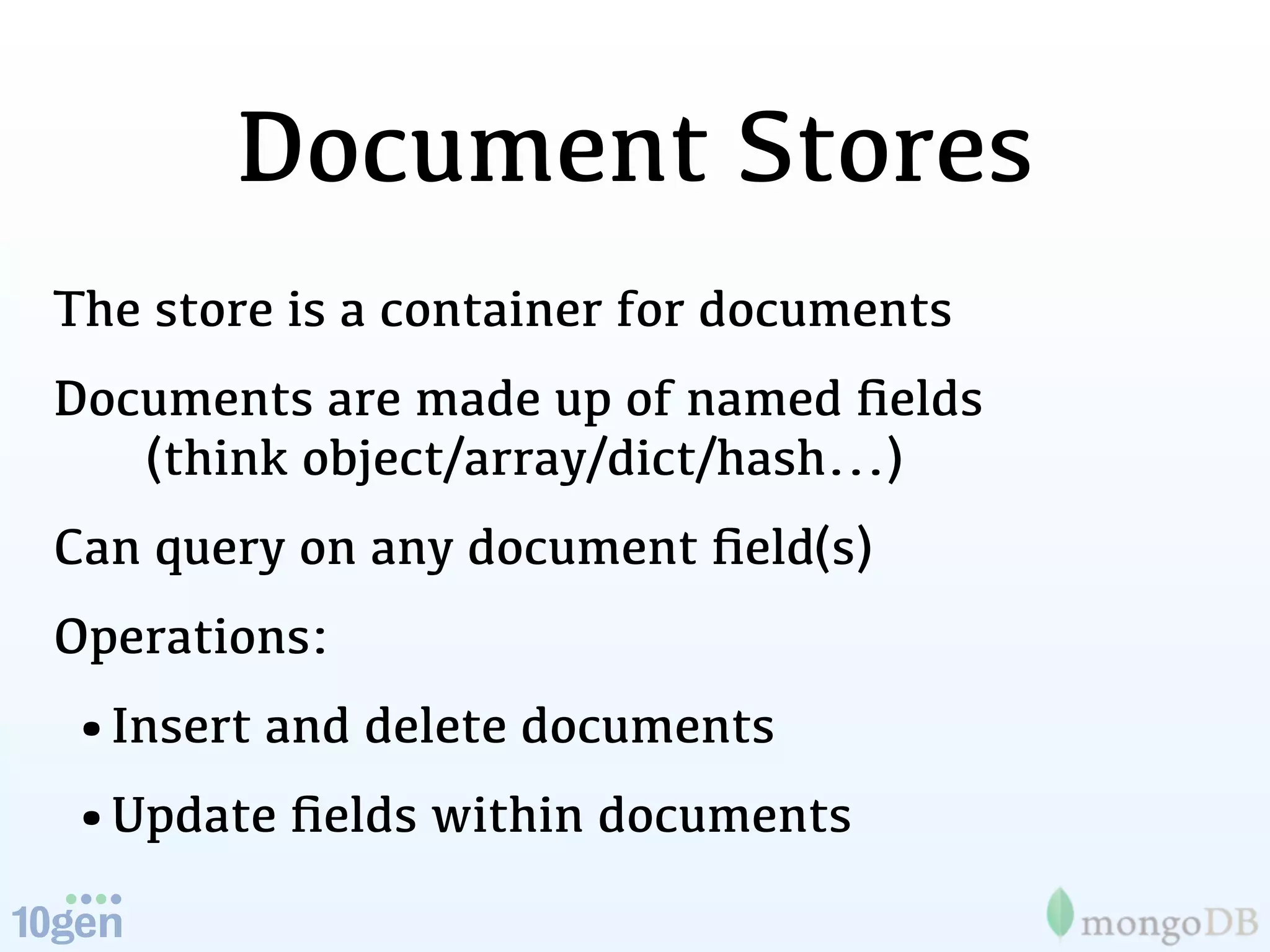

16. Document Stores
The store is a container for documents
Documents are made up of named fields
(think object/array/dict/hash...)
Can query on any document field(s)
Operations:
•Insert and delete documents
•Update fields within documents

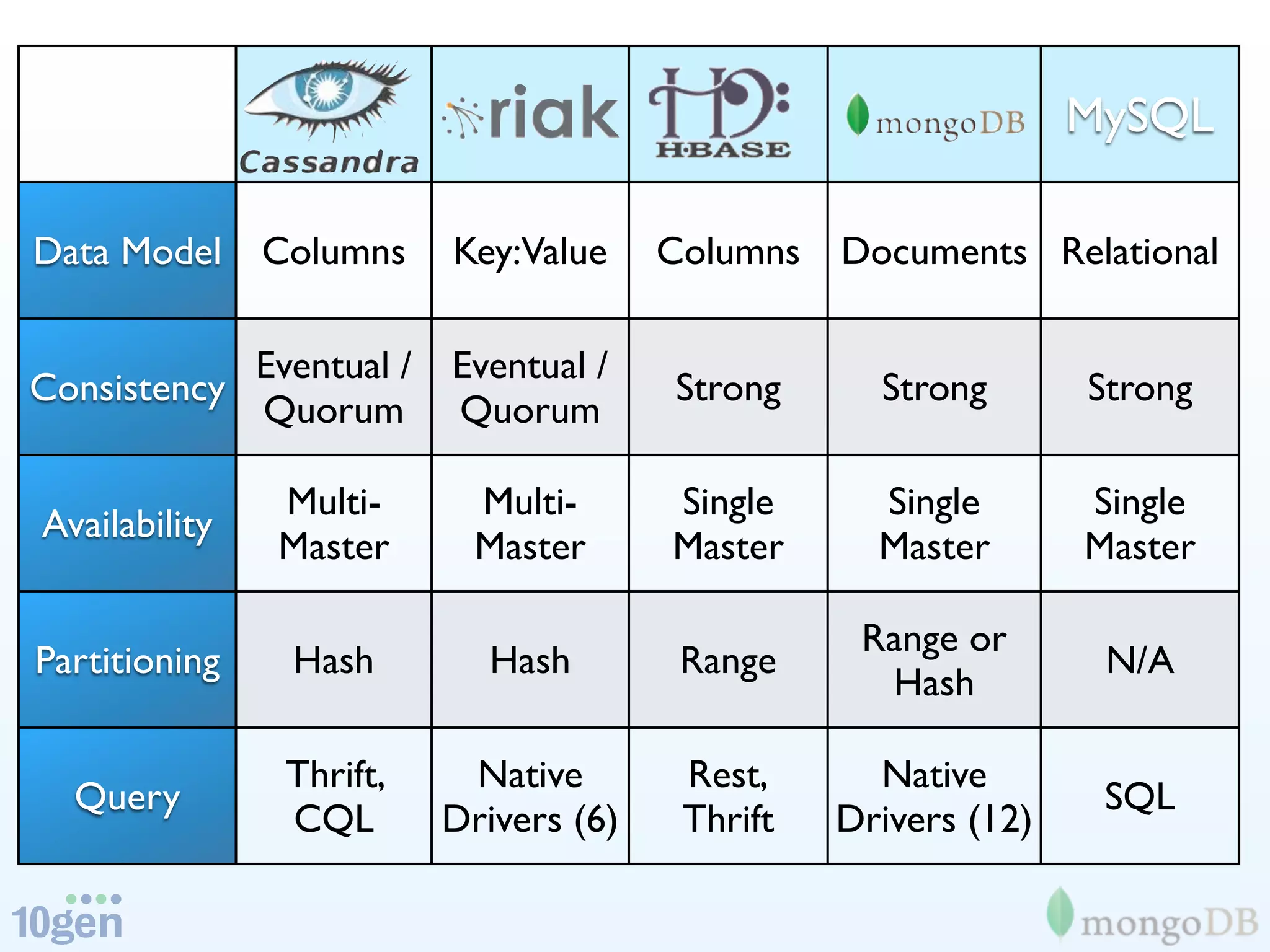

17. MySQL
Data Model Columns Key:Value Columns Documents Relational
Eventual / Eventual /
Consistency Strong Strong Strong
Quorum Quorum
Multi- Multi- Single Single Single
Availability
Master Master Master Master Master
Range or
Partitioning Hash Hash Range N/A
Hash
Thrift, Native Rest, Native
Query SQL
CQL Drivers (6) Thrift Drivers (12)

18. Introduction to
MongoDB

19. What do we want in
an ideal world?

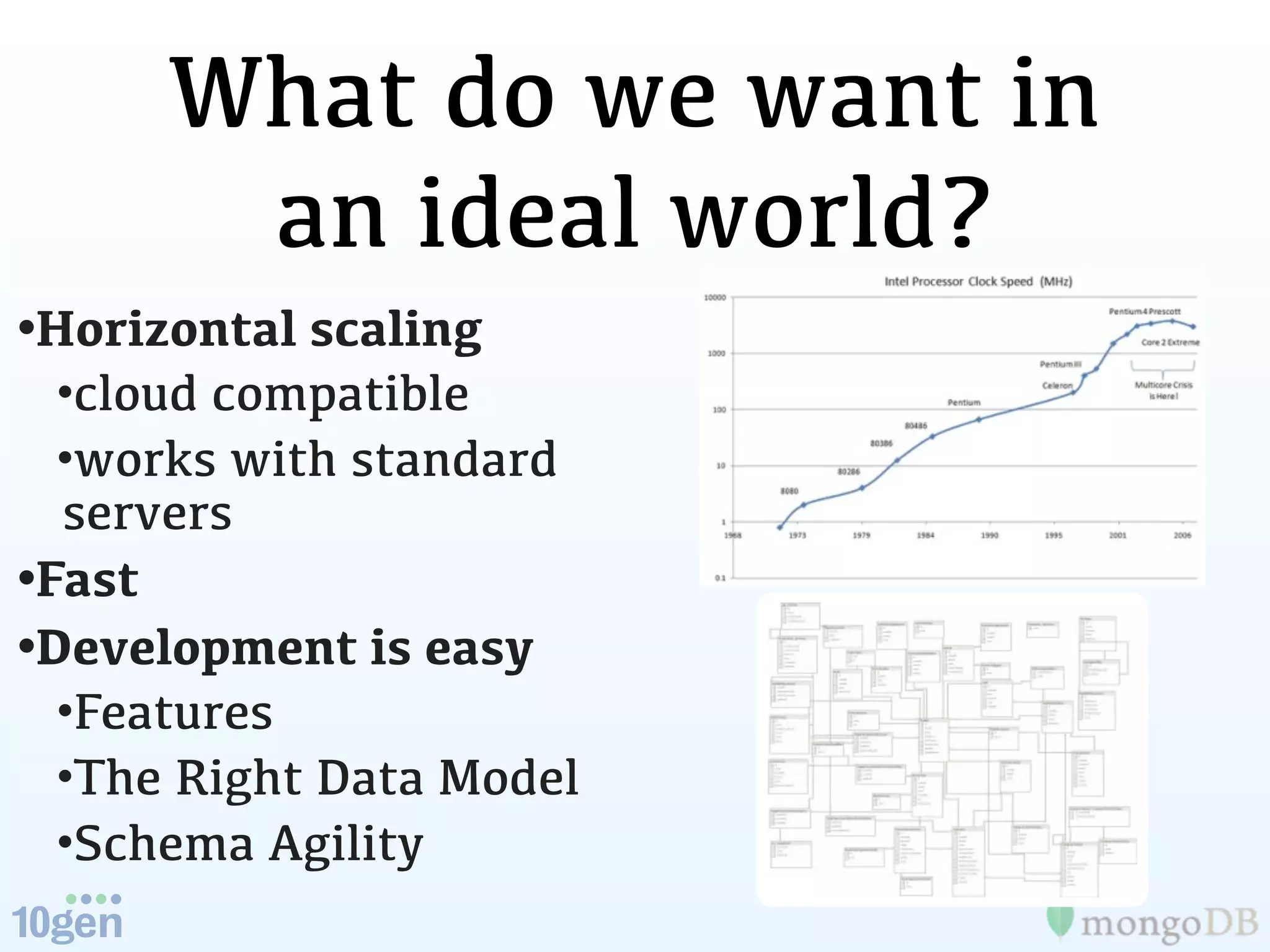

20. What do we want in
an ideal world?
•Horizontal scaling
•cloud compatible
•works with standard
servers
•Fast
•Development is easy
•Features
•The Right Data Model
•Schema Agility

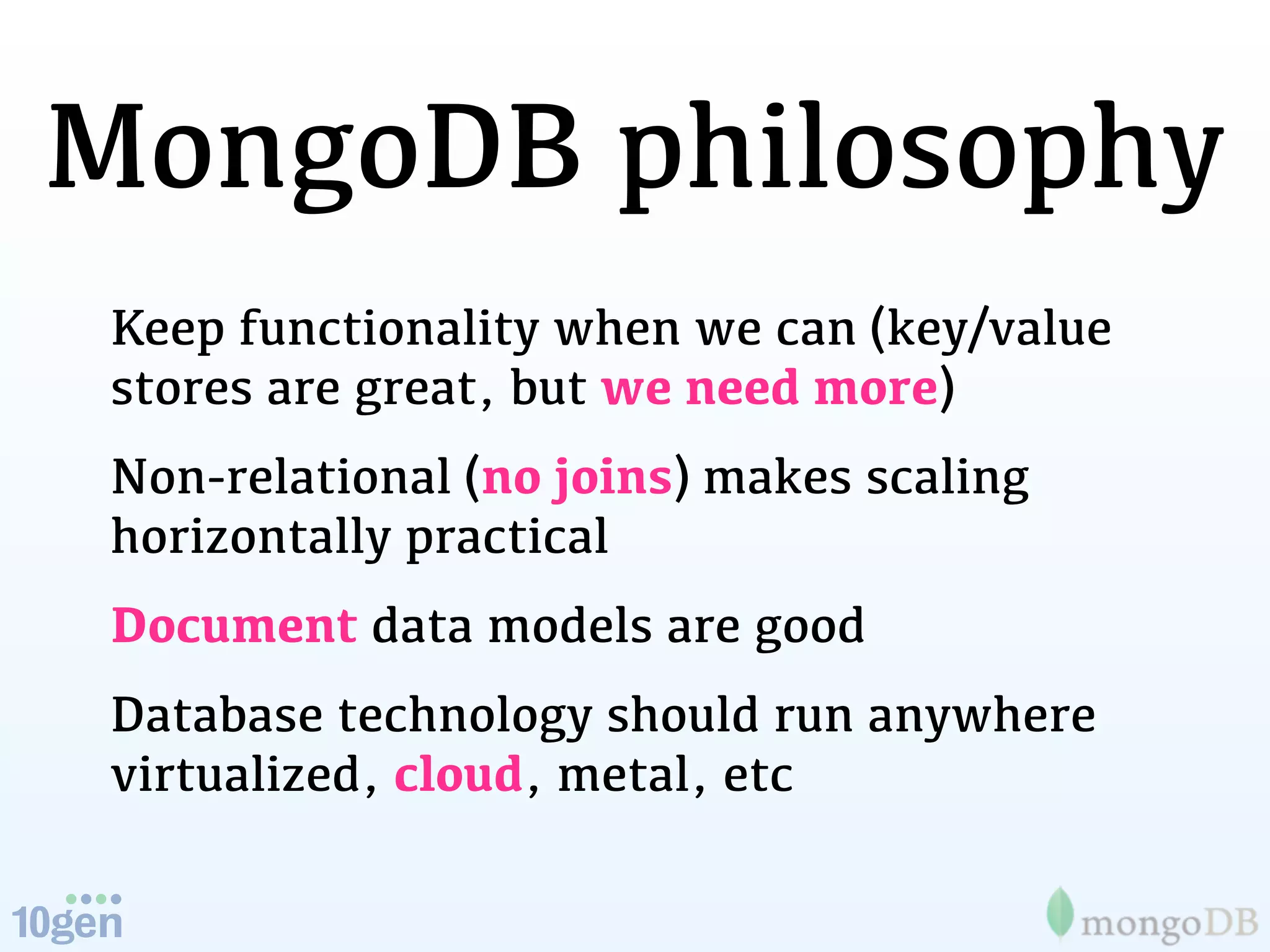

21. MongoDB philosophy
Keep functionality when we can (key/value
stores are great, but we need more)
Non-relational (no joins) makes scaling
horizontally practical
Document data models are good
Database technology should run anywhere
virtualized, cloud, metal, etc

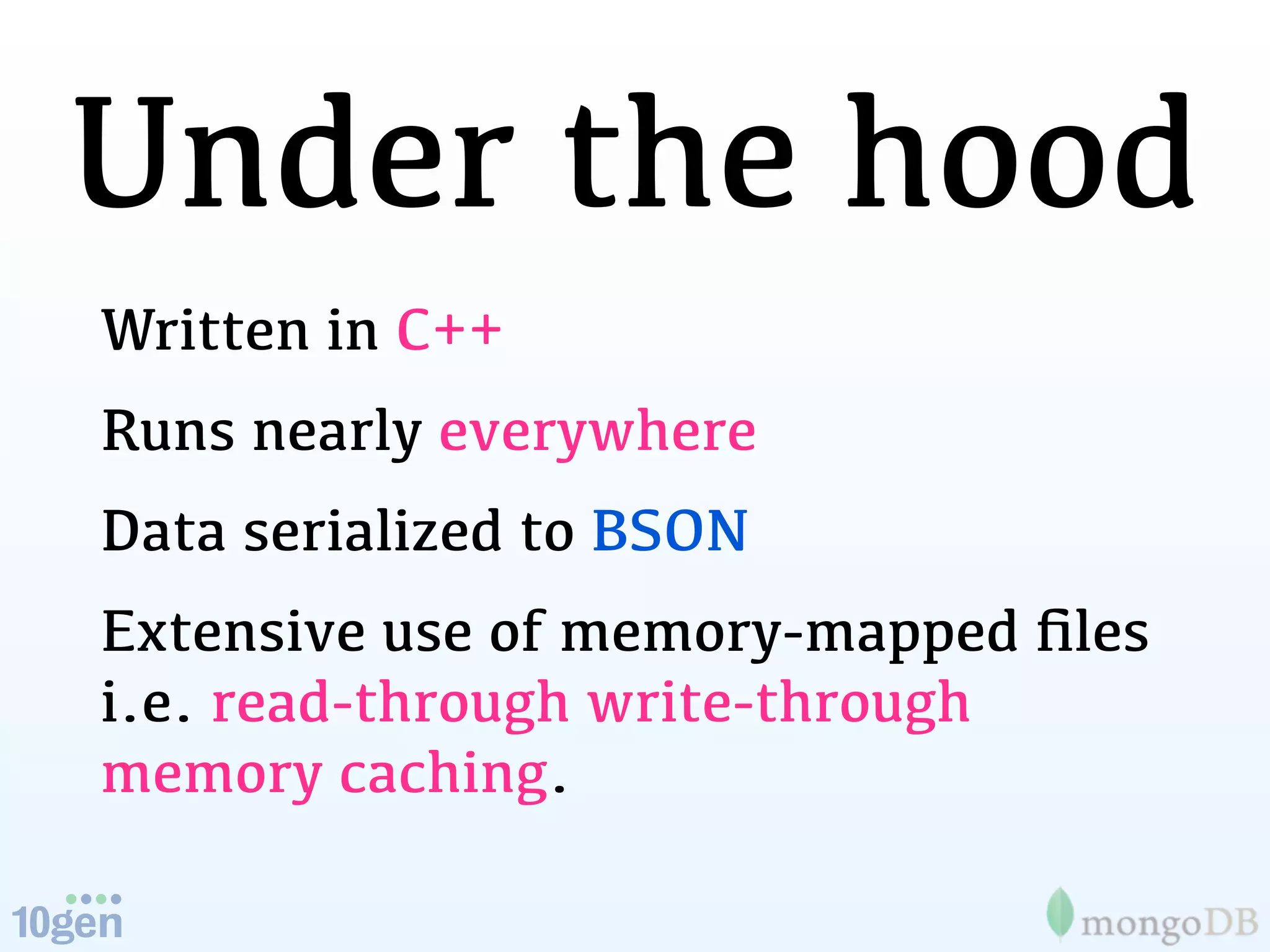

22. Under the hood
Written in C++
Runs nearly everywhere
Data serialized to BSON
Extensive use of memory-mapped files
i.e. read-through write-through
memory caching.

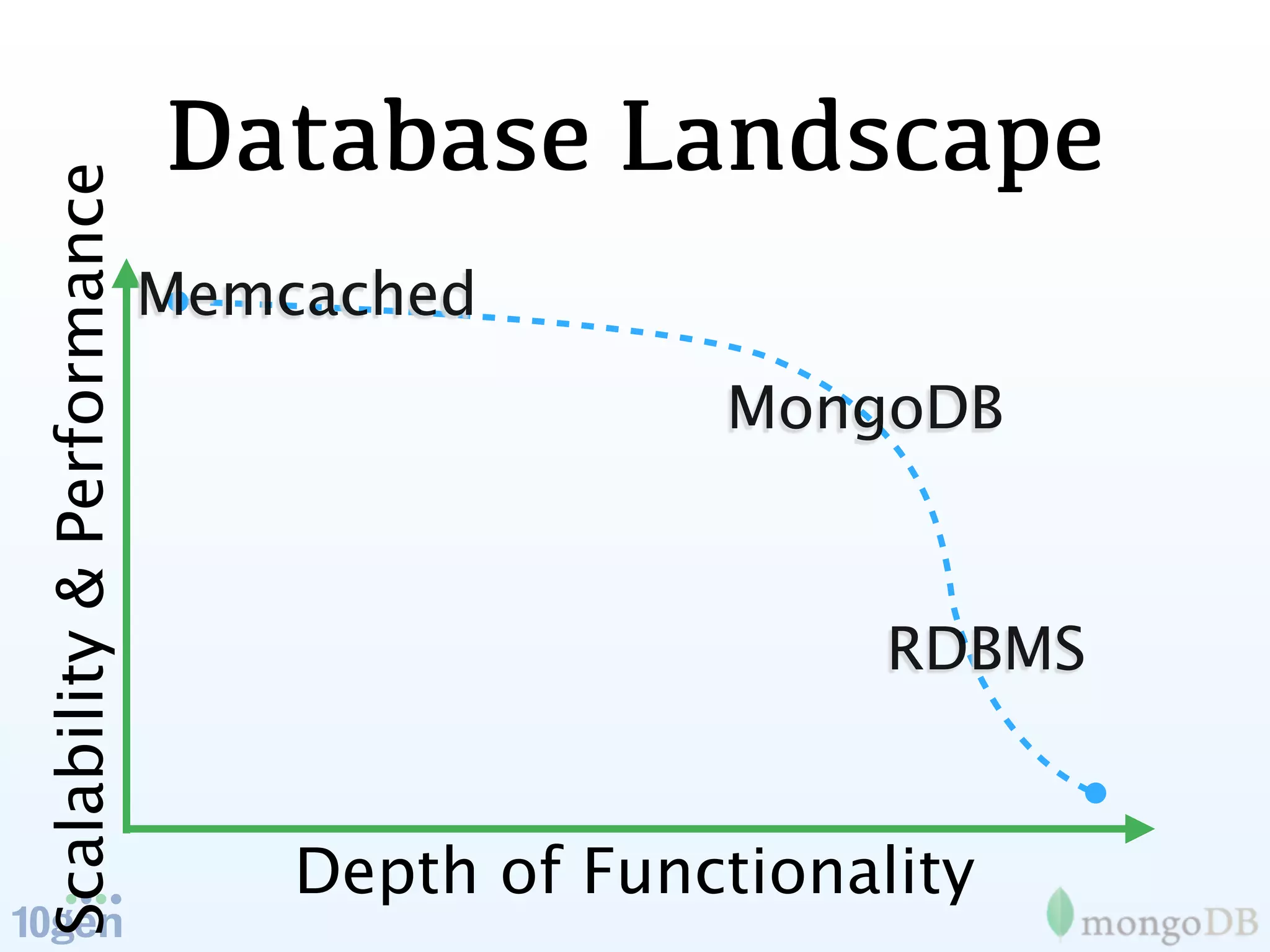

23. Database Landscape
Scalability & Performance
Memcached
MongoDB
RDBMS
Depth of Functionality

24. “
MongoDB has the best
features of key/value
stores, document
databases and
relational databases
in one.
John Nunemaker

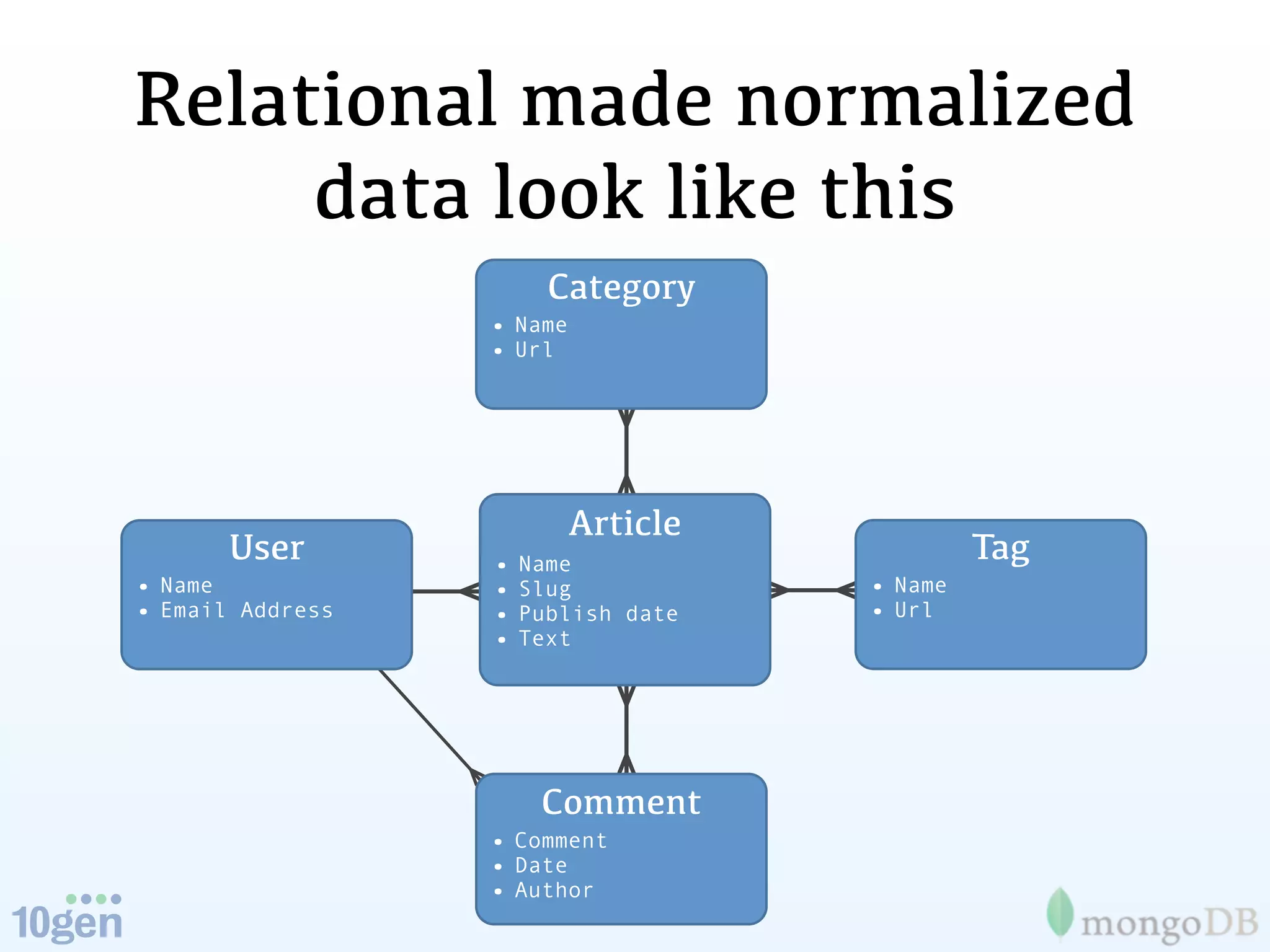

25. Relational made normalized
data look like this
Category
• Name
• Url
Article
User • Name
Tag
• Name • Slug • Name
• Email Address • Publish date • Url
• Text
Comment
• Comment
• Date
• Author

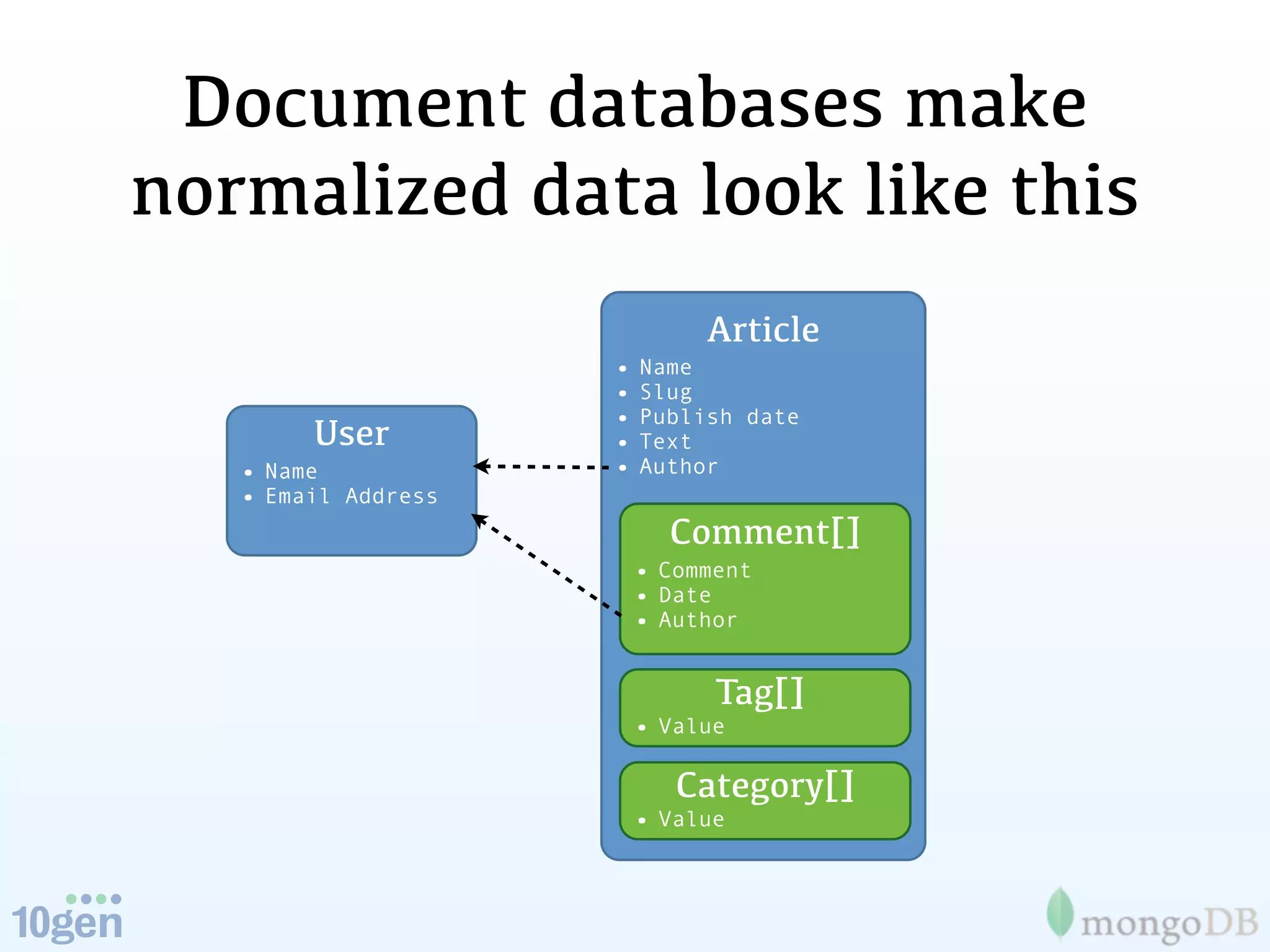

26. Document databases make
normalized data look like this
Article
• Name
• Slug
• Publish date
User • Text
• Name • Author
• Email Address
Comment[]
• Comment
• Date
• Author
Tag[]
• Value
Category[]
• Value

27. MongoD
B

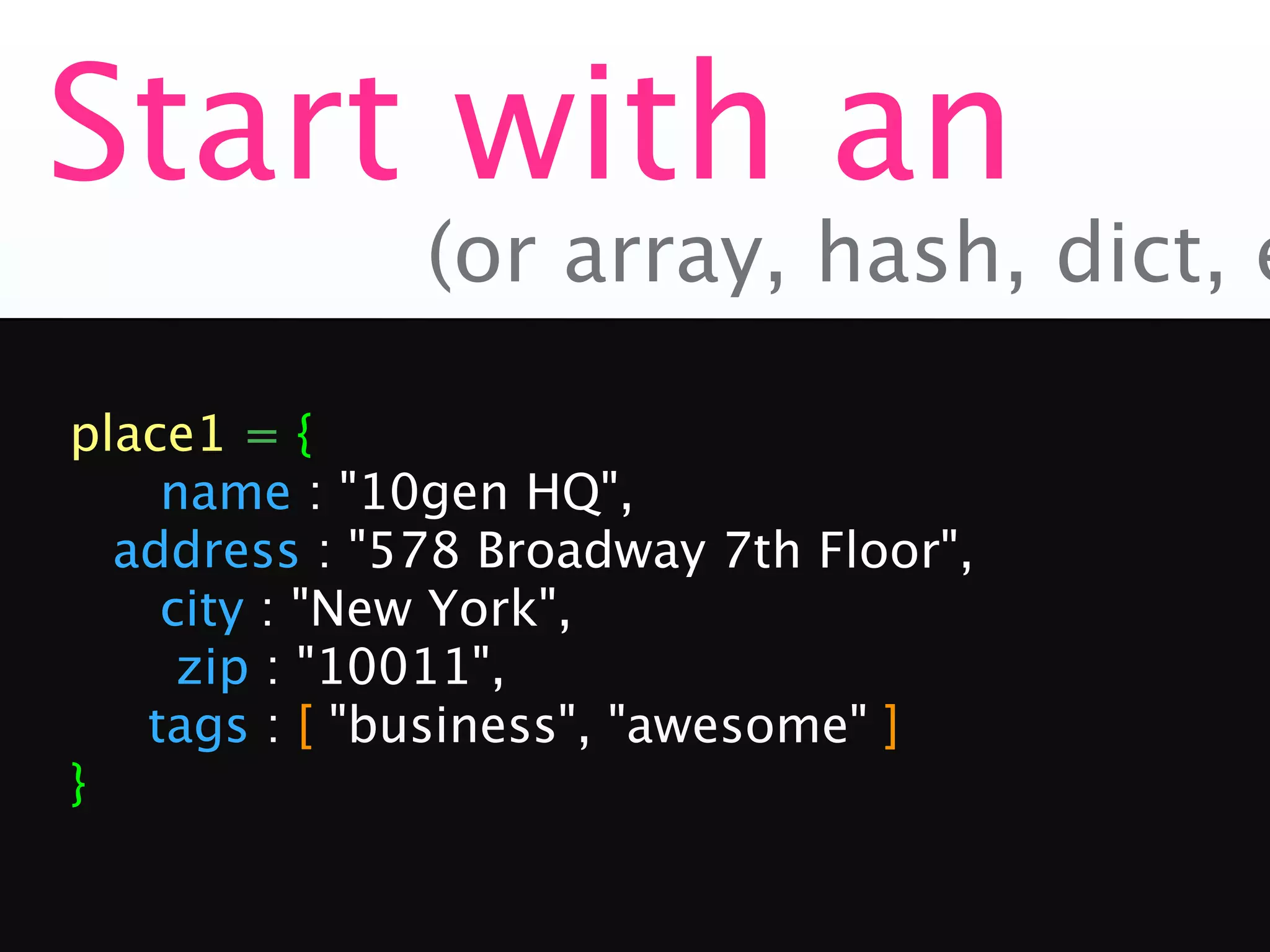

28. Start with an
(or array, hash, dict, e
place1 = {
name : "10gen HQ",
address : "578 Broadway 7th Floor",
city : "New York",
zip : "10011",
tags : [ "business", "awesome" ]
}

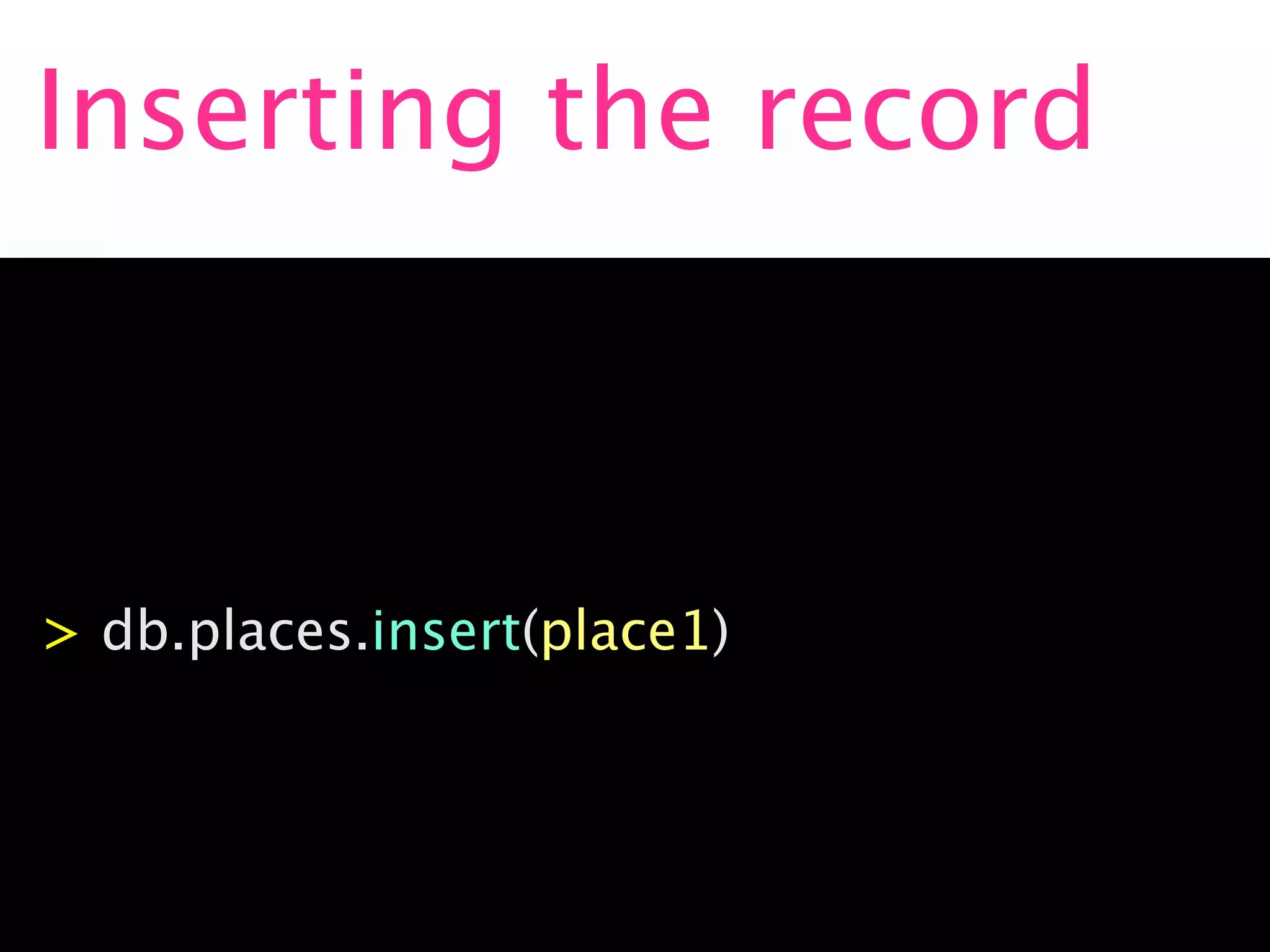

29. Inserting the record
Initial Data Load
> db.places.insert(place1)
> db.places.insert(place1)

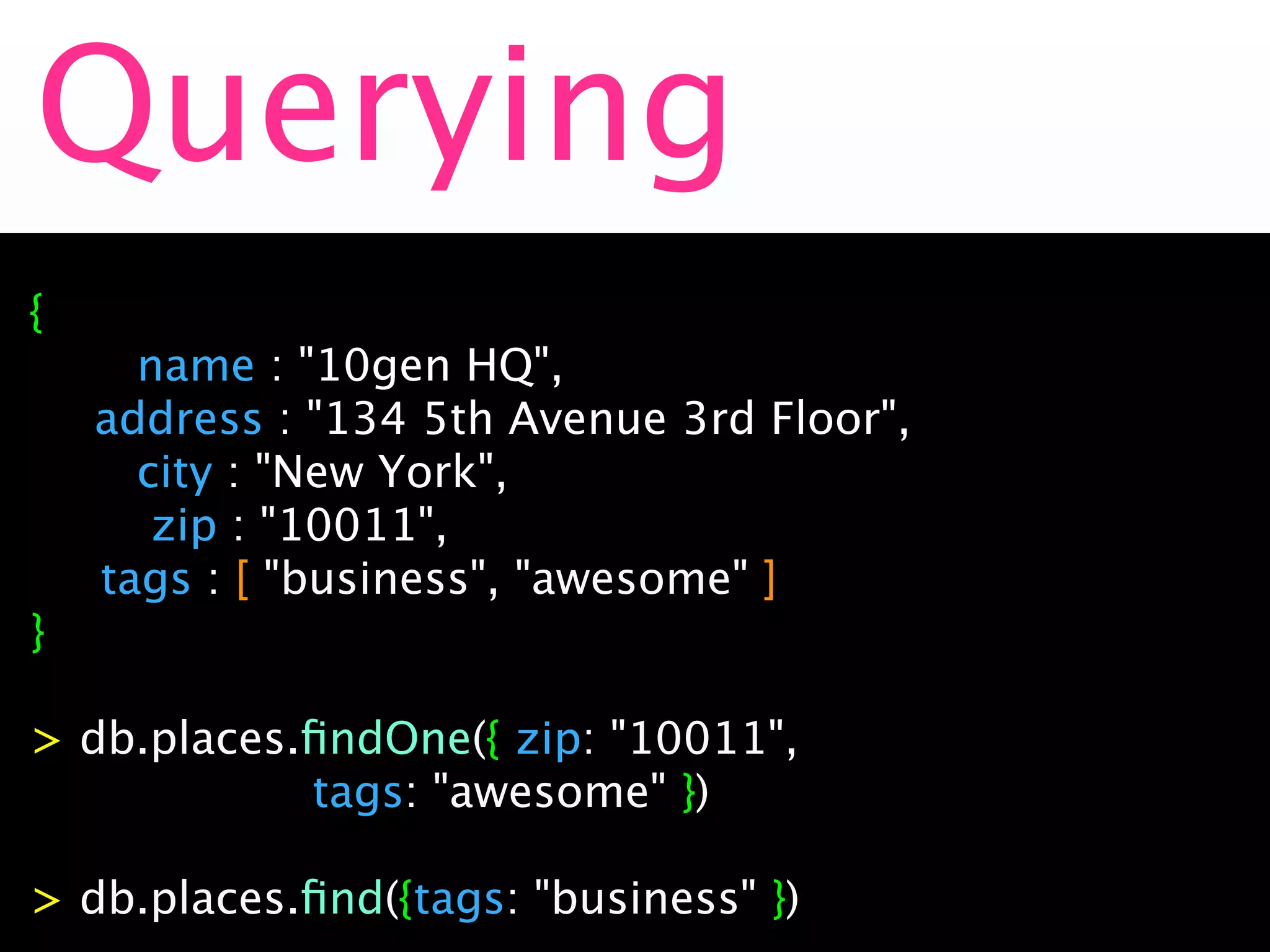

30. Querying
{
name : "10gen HQ",
address : "134 5th Avenue 3rd Floor",
city : "New York",
zip : "10011",
tags : [ "business", "awesome" ]
}
> db.places.findOne({ zip: "10011",
tags: "awesome" })
> db.places.find({tags: "business" })

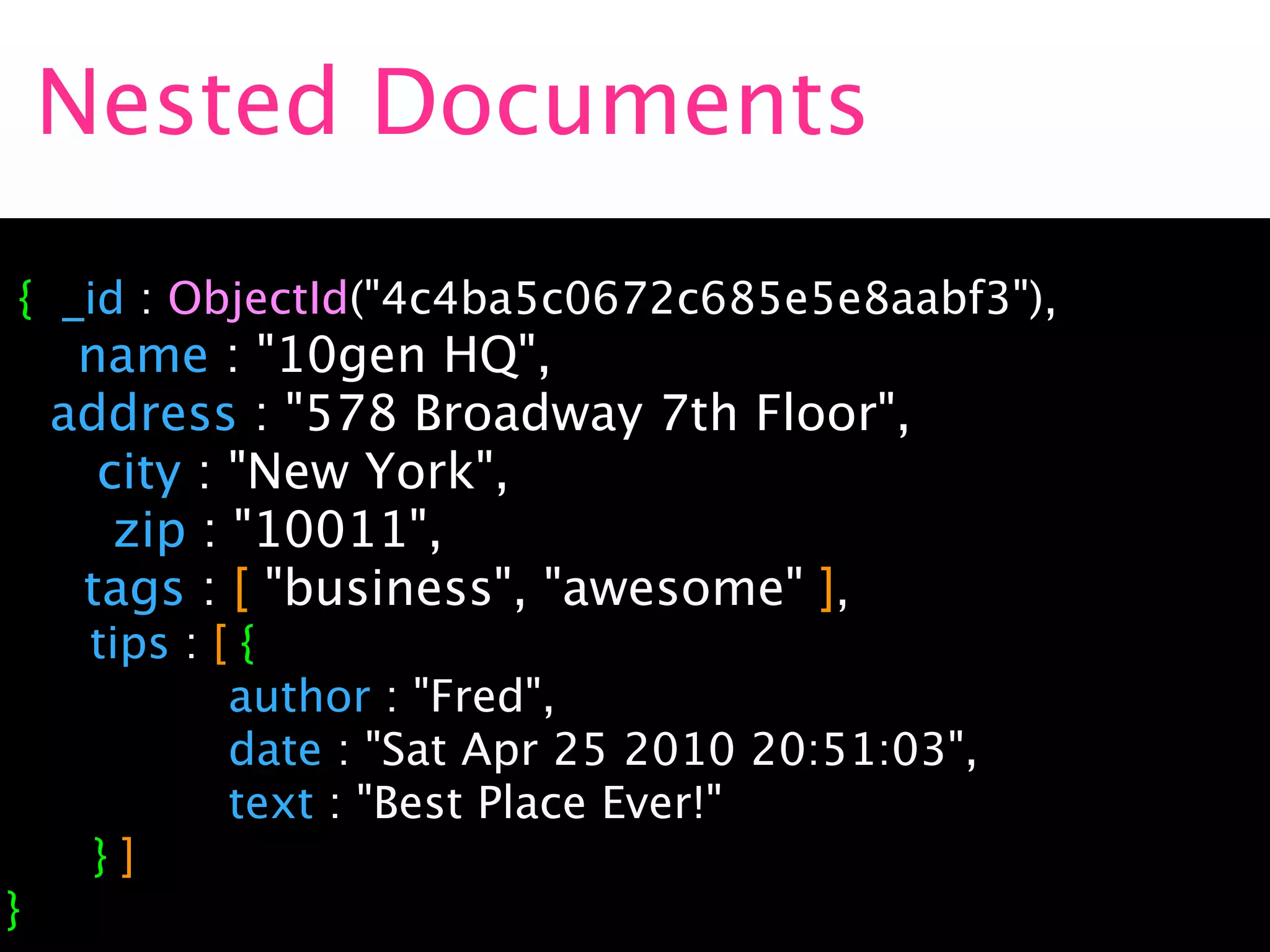

31. Nested Documents
{ _id : ObjectId("4c4ba5c0672c685e5e8aabf3"),
name : "10gen HQ",
address : "578 Broadway 7th Floor",
city : "New York",
zip : "10011",
tags : [ "business", "awesome" ],
tips : [{
author : "Fred",
date : "Sat Apr 25 2010 20:51:03",
text : "Best Place Ever!"
}]
}

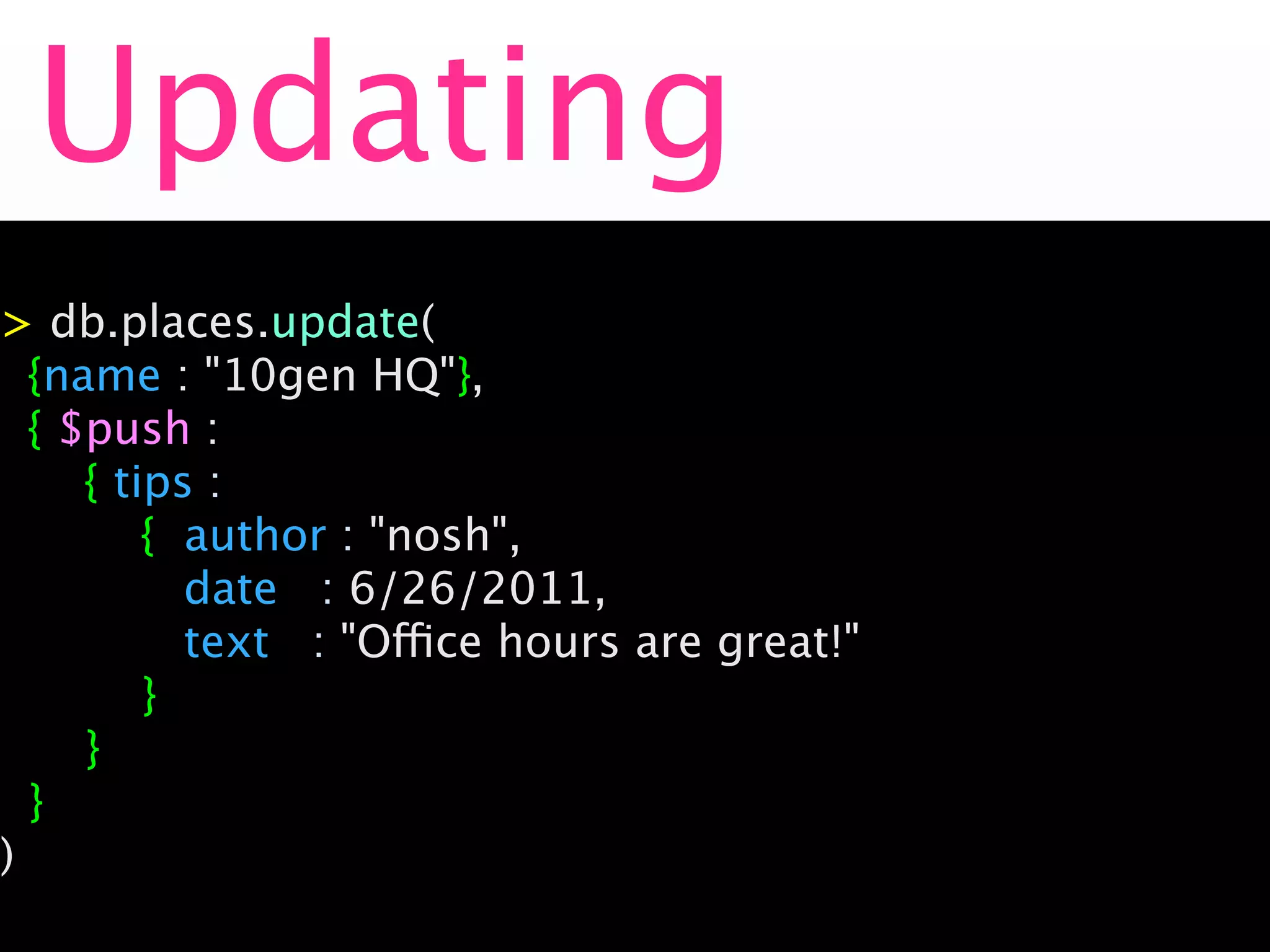

32. Updating
> db.places.update(
{name : "10gen HQ"},
{ $push :
{ tips :
{ author : "nosh",
date : 6/26/2011,
text : "Office hours are great!"
}
}
}
)

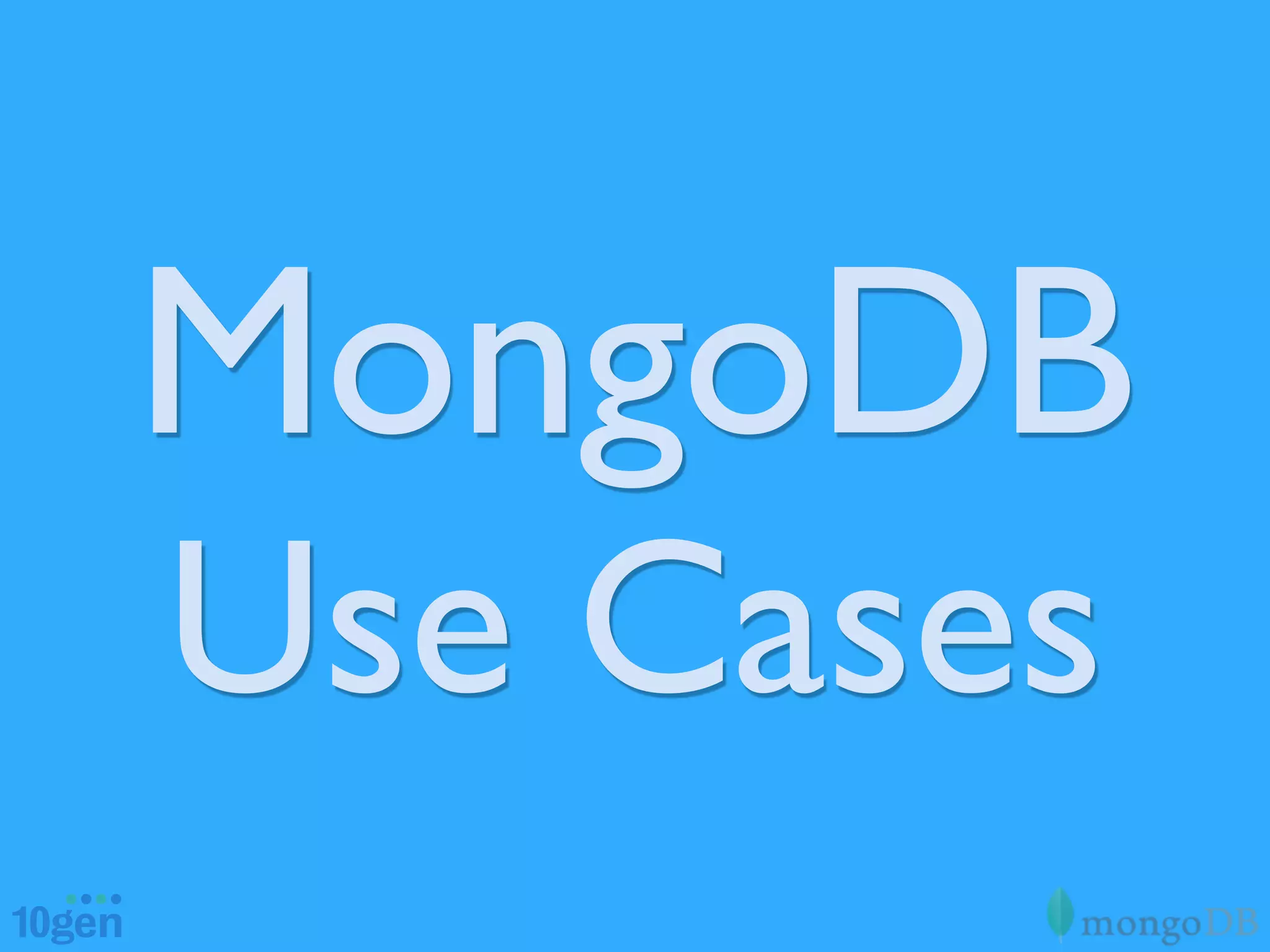

33. MongoDB
Use Cases

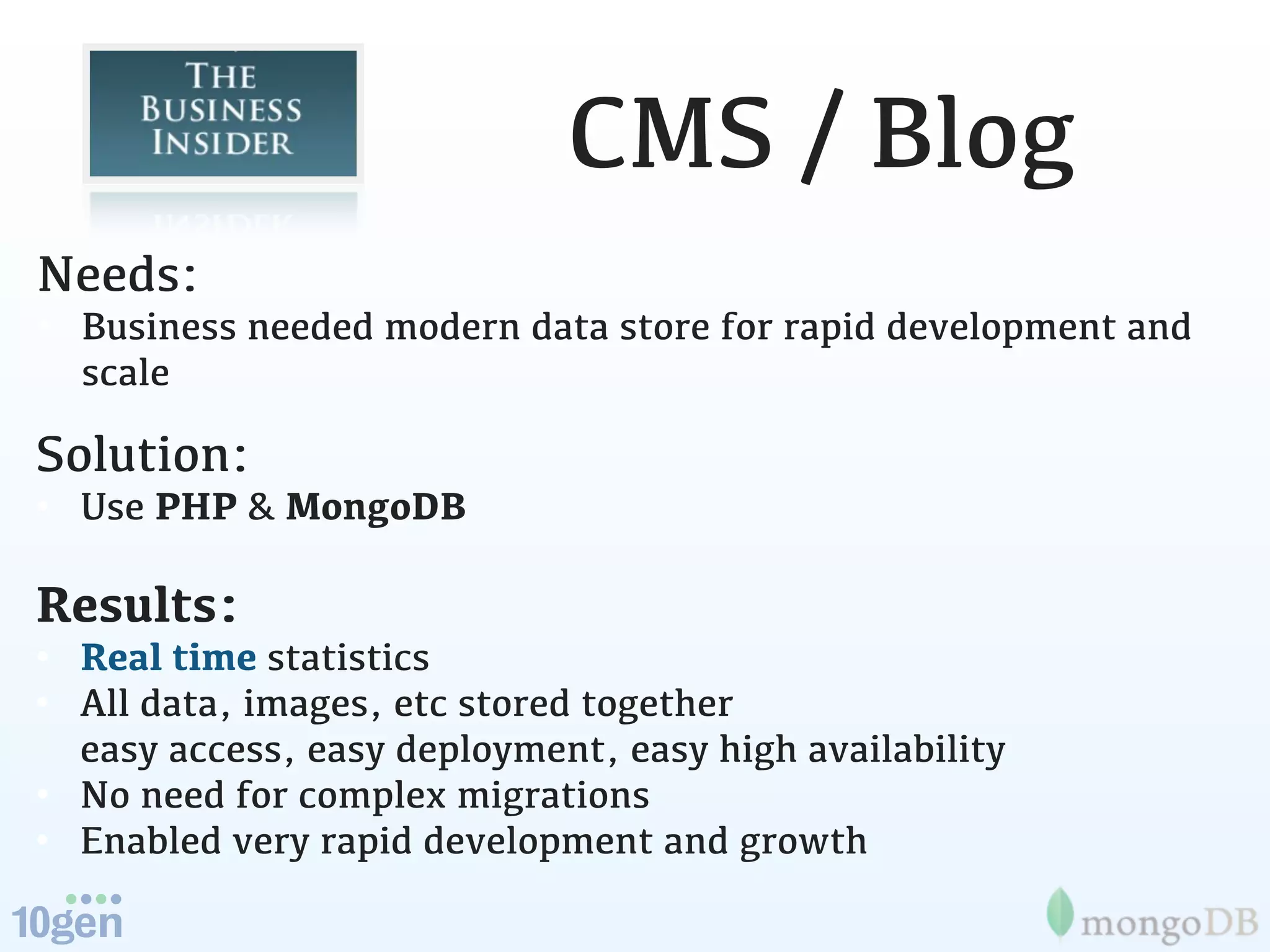

34. CMS / Blog
Needs:
• Business needed modern data store for rapid development and
scale
Solution:
• Use PHP & MongoDB
Results:
• Real time statistics
• All data, images, etc stored together
easy access, easy deployment, easy high availability
• No need for complex migrations
• Enabled very rapid development and growth

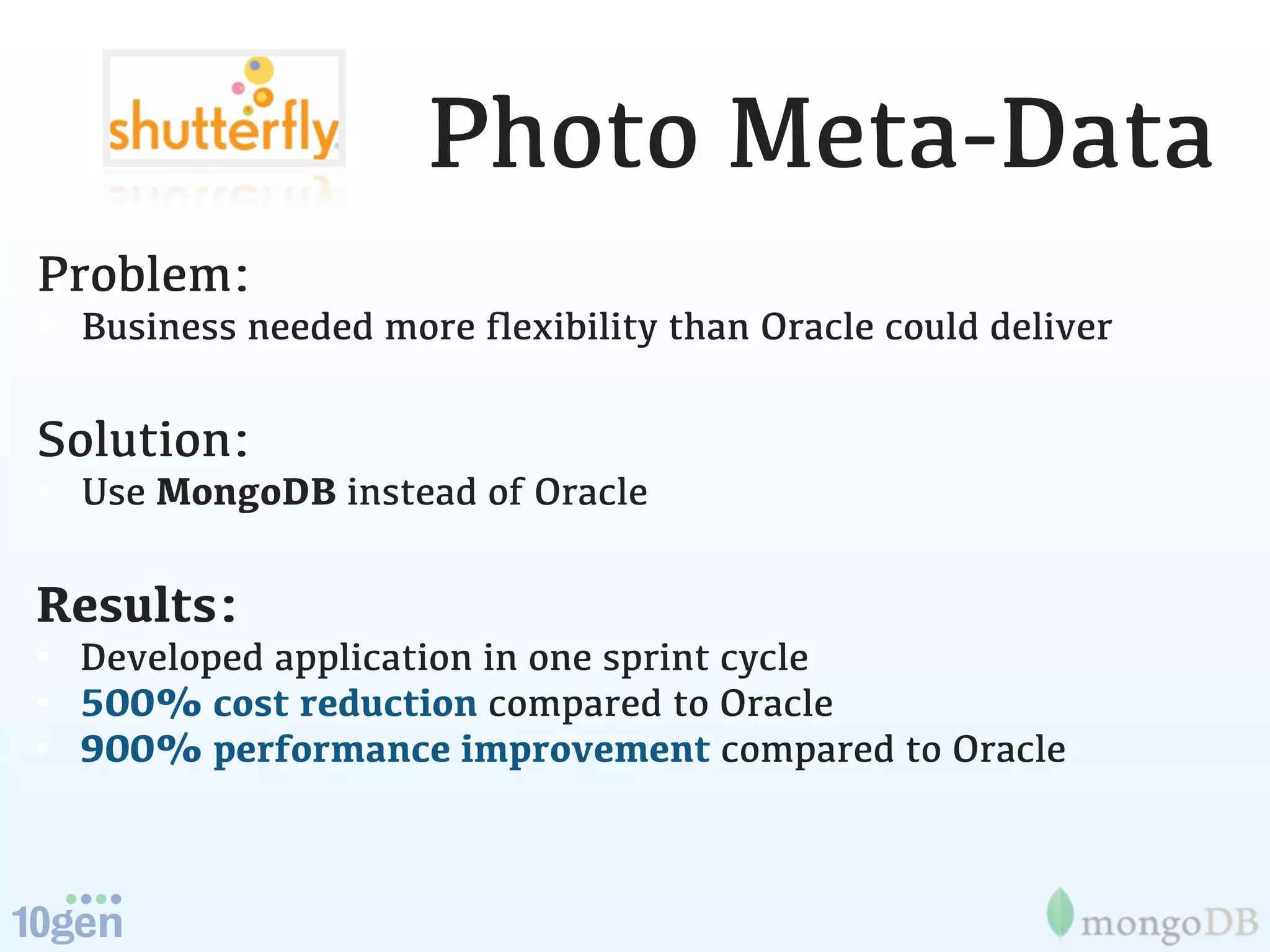

35. Photo Meta-Data
Problem:
• Business needed more flexibility than Oracle could deliver
Solution:
• Use MongoDB instead of Oracle
Results:
• Developed application in one sprint cycle
• 500% cost reduction compared to Oracle
• 900% performance improvement compared to Oracle

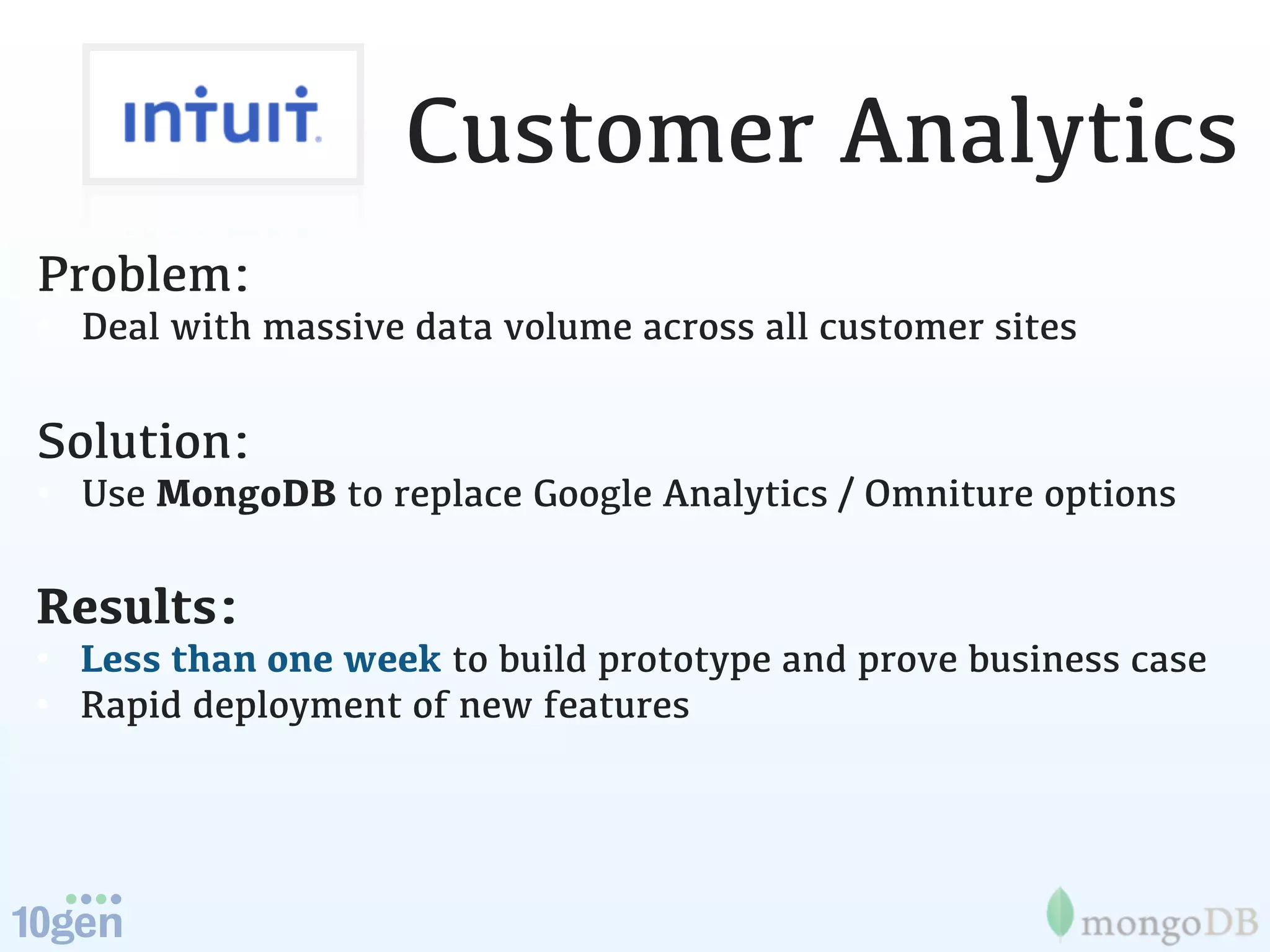

36. Customer Analytics
Problem:
• Deal with massive data volume across all customer sites
Solution:
• Use MongoDB to replace Google Analytics / Omniture options
Results:
• Less than one week to build prototype and prove business case
• Rapid deployment of new features

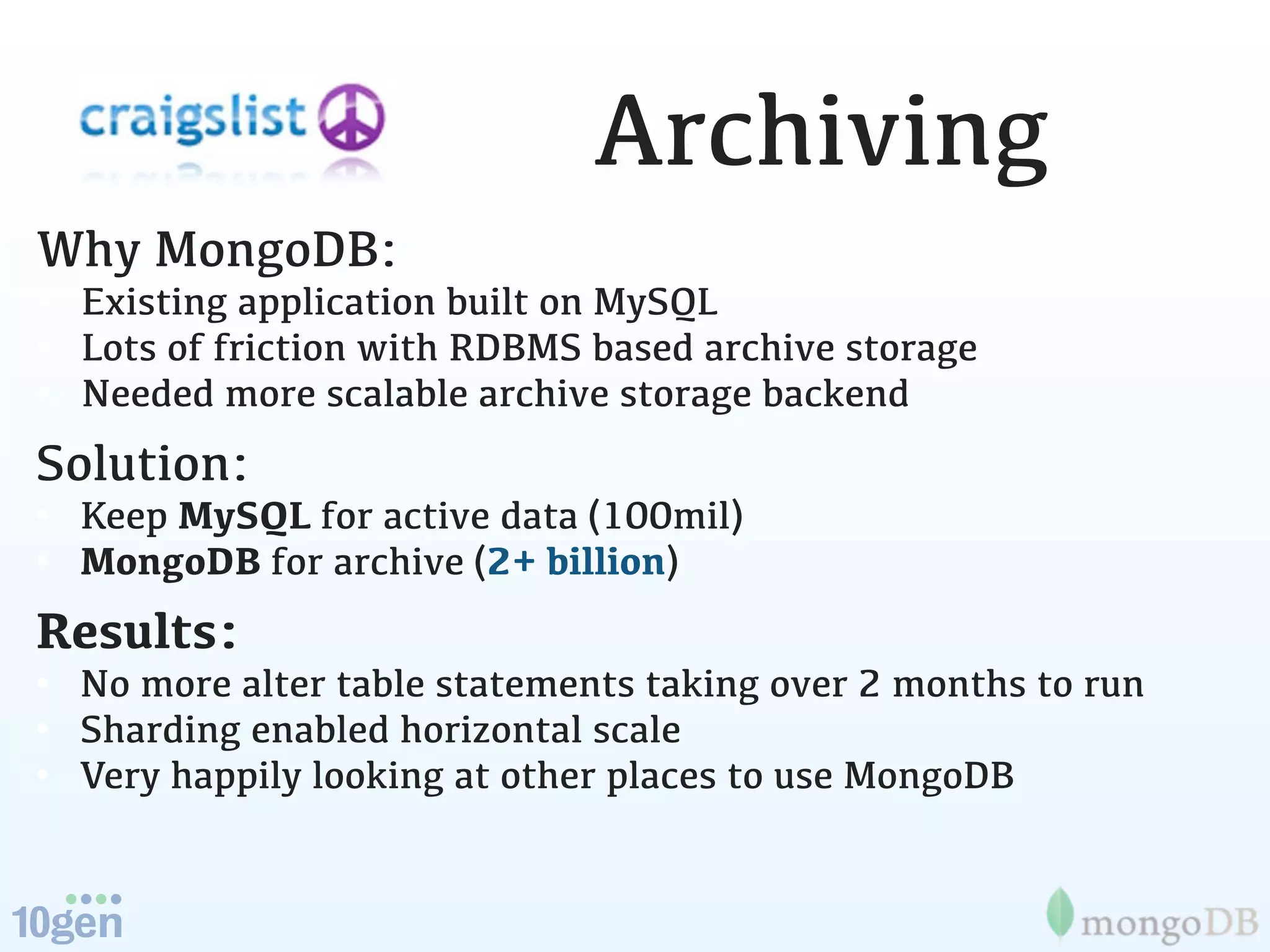

37. Archiving
Why MongoDB:
• Existing application built on MySQL
• Lots of friction with RDBMS based archive storage
• Needed more scalable archive storage backend
Solution:
• Keep MySQL for active data (100mil)
• MongoDB for archive (2+ billion)
Results:
• No more alter table statements taking over 2 months to run
• Sharding enabled horizontal scale
• Very happily looking at other places to use MongoDB

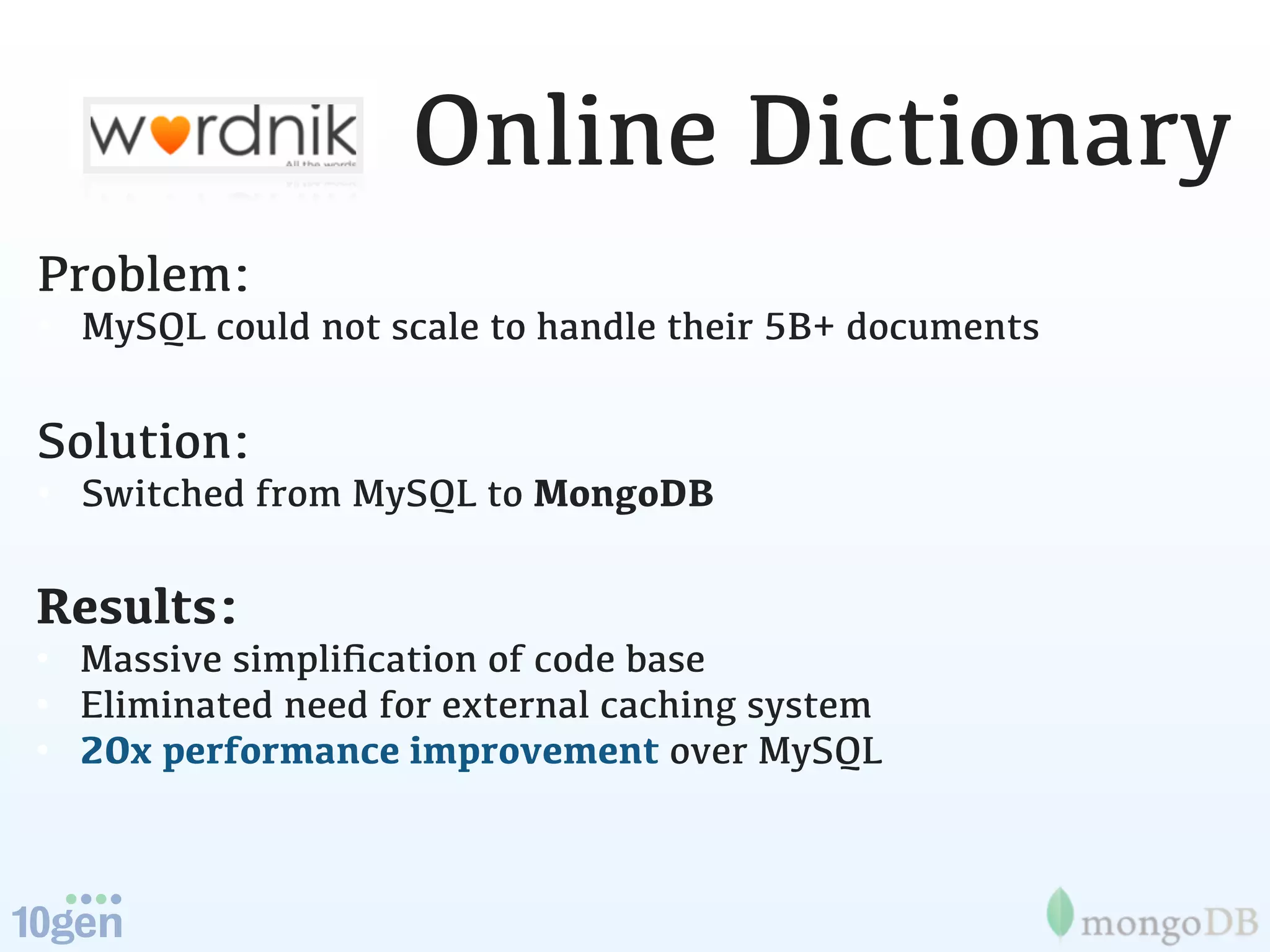

38. Online Dictionary
Problem:
• MySQL could not scale to handle their 5B+ documents
Solution:
• Switched from MySQL to MongoDB
Results:
• Massive simplification of code base
• Eliminated need for external caching system
• 20x performance improvement over MySQL

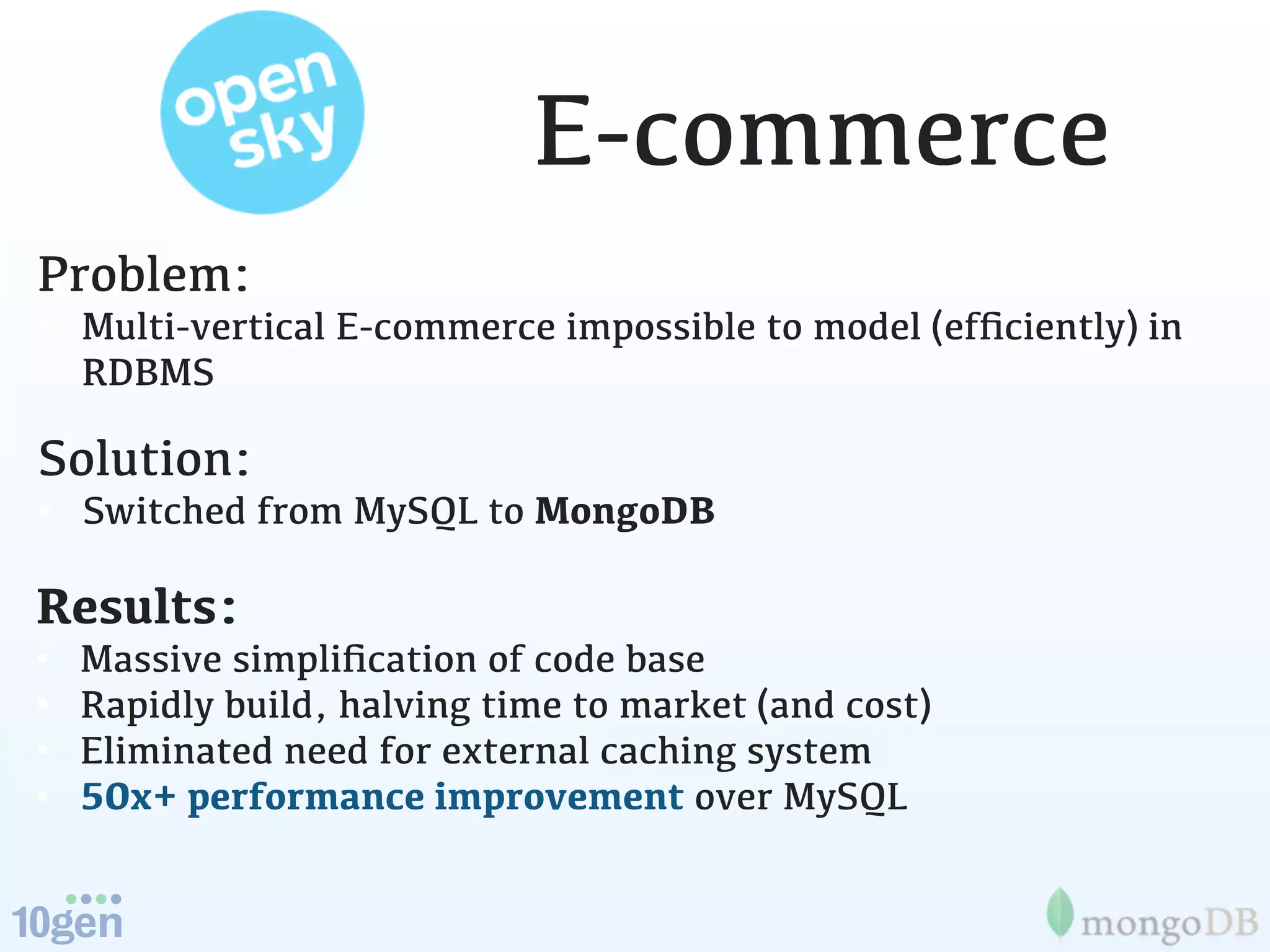

39. E-commerce
Problem:
• Multi-vertical E-commerce impossible to model (efficiently) in
RDBMS
Solution:
• Switched from MySQL to MongoDB
Results:
• Massive simplification of code base
• Rapidly build, halving time to market (and cost)
• Eliminated need for external caching system
• 50x+ performance improvement over MySQL

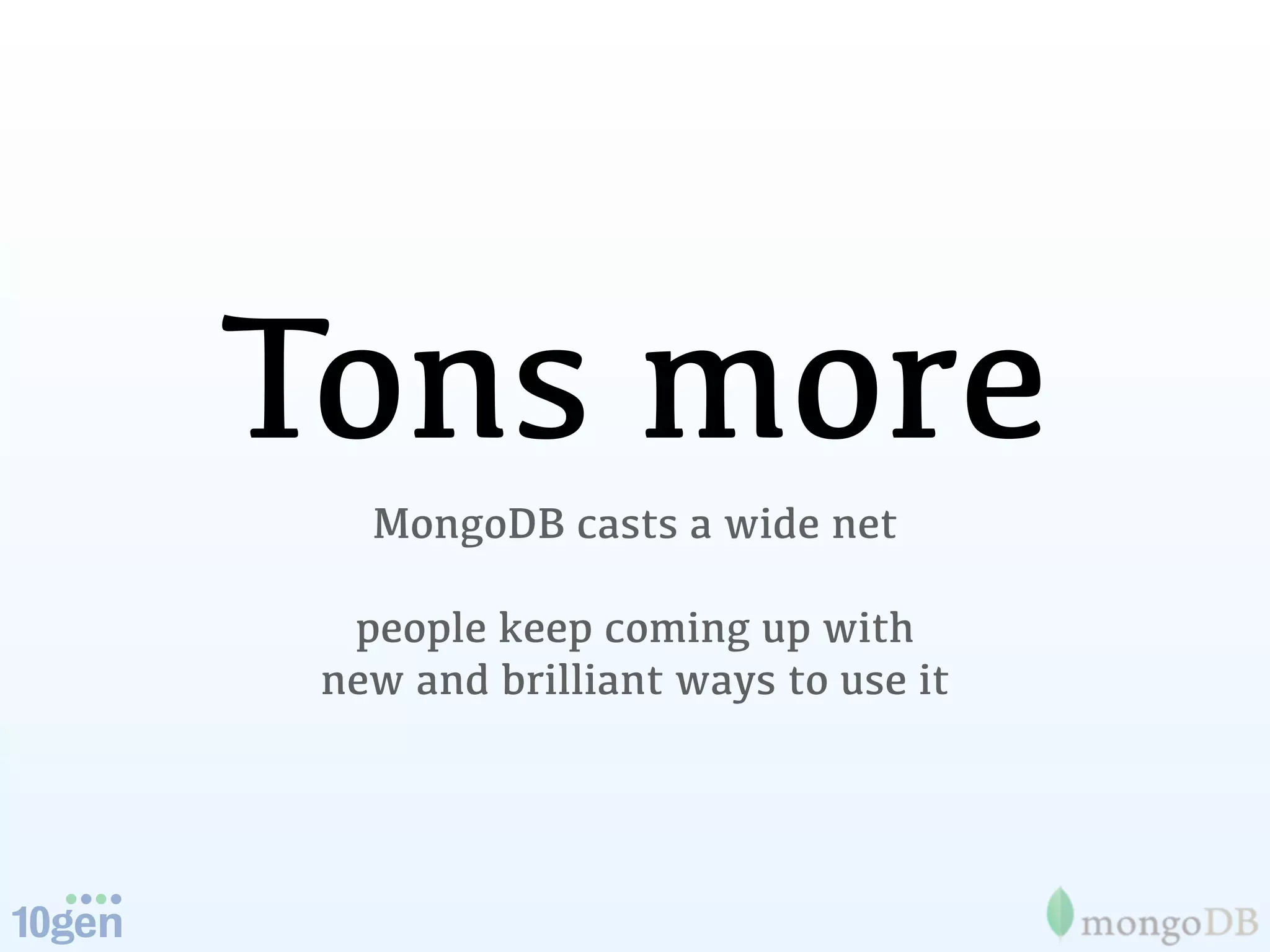

40. Tons more
MongoDB casts a wide net
people keep coming up with
new and brilliant ways to use it

41. In Good Company
and 1000s more

42. The
Futureof
BIGdata

43. What is BIG?
BIG today is
normal tomorrow

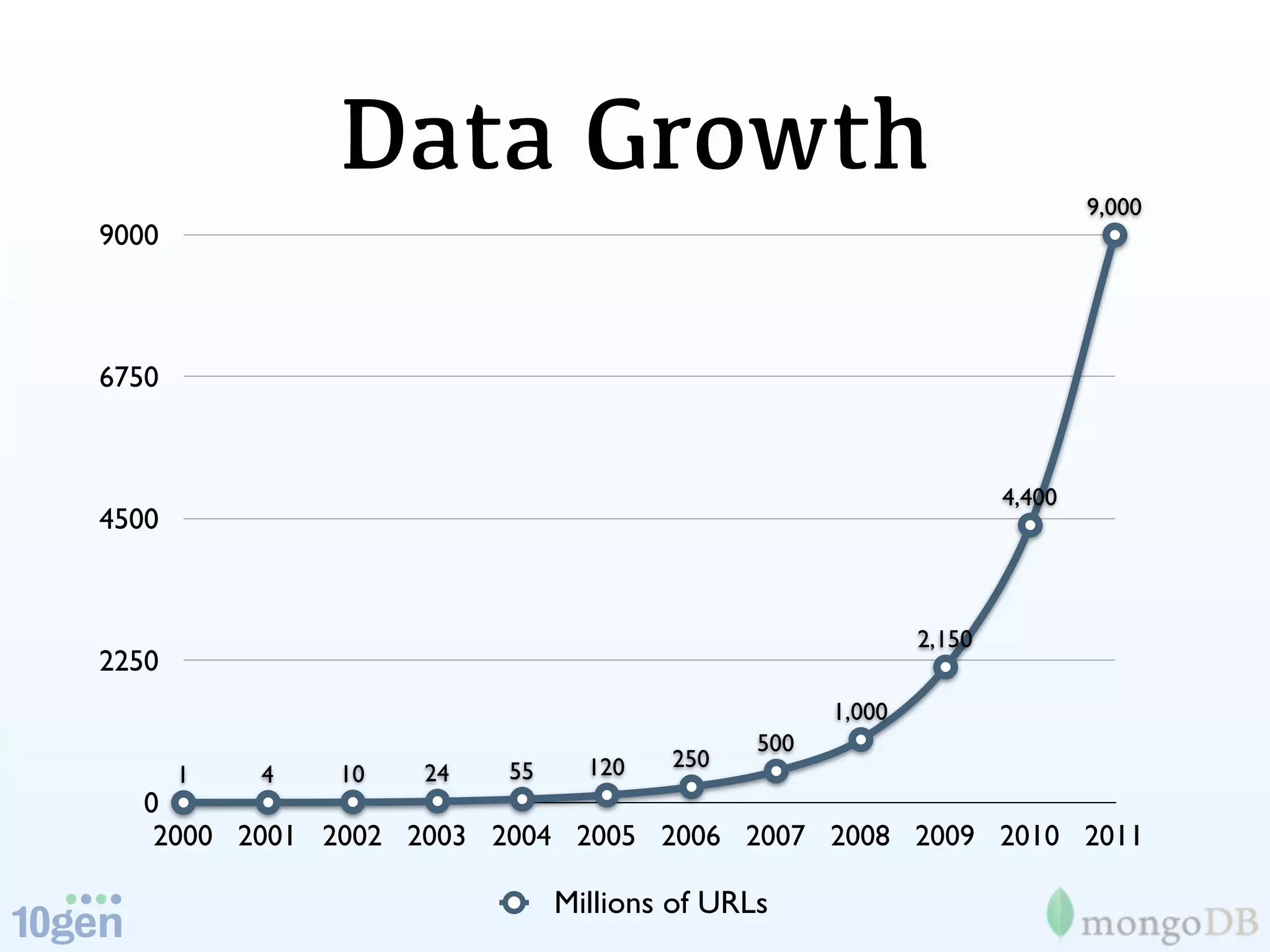

44. Data Growth 9,000
9000
6750
4,400
4500
2,150
2250
1,000
500
55 120 250
1 4 10 24
0
2000 2001 2002 2003 2004 2005 2006 2007 2008 2009 2010 2011
Millions of URLs

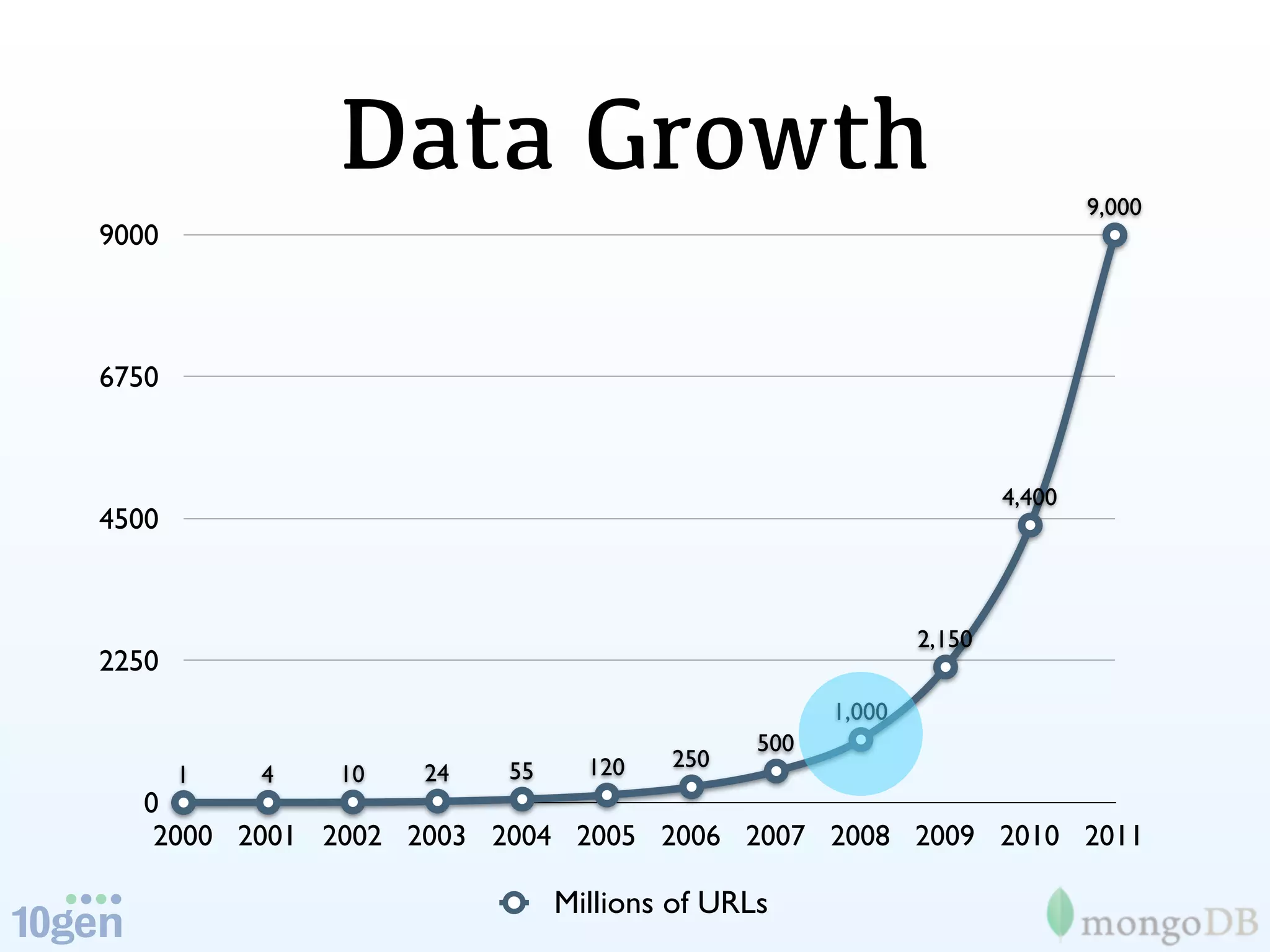

45. Data Growth 9,000
9000
6750
4,400
4500
2,150
2250
1,000
500
55 120 250
1 4 10 24
0
2000 2001 2002 2003 2004 2005 2006 2007 2008 2009 2010 2011
Millions of URLs

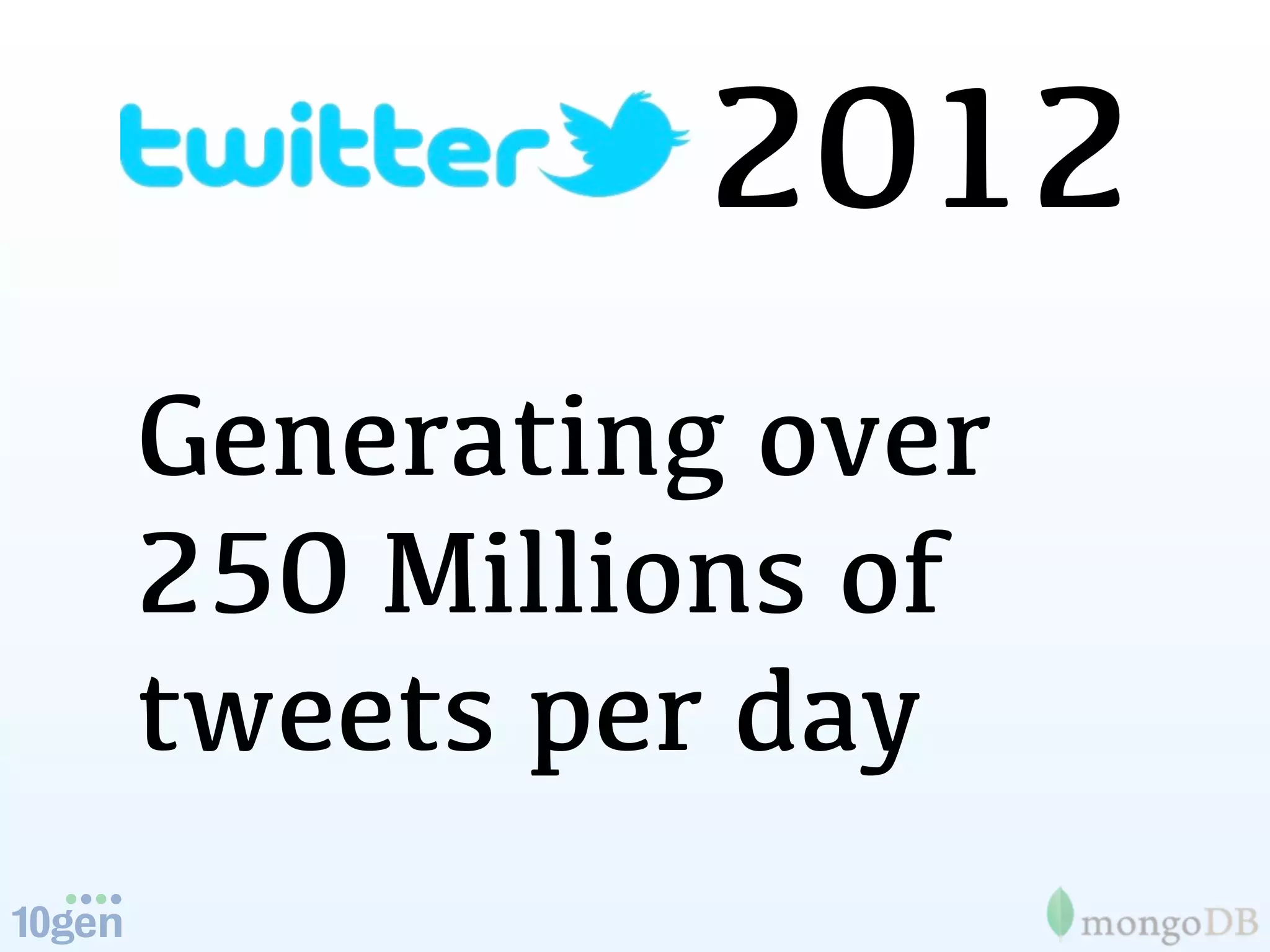

46. 2012
Generating over
250 Millions of
tweets per day

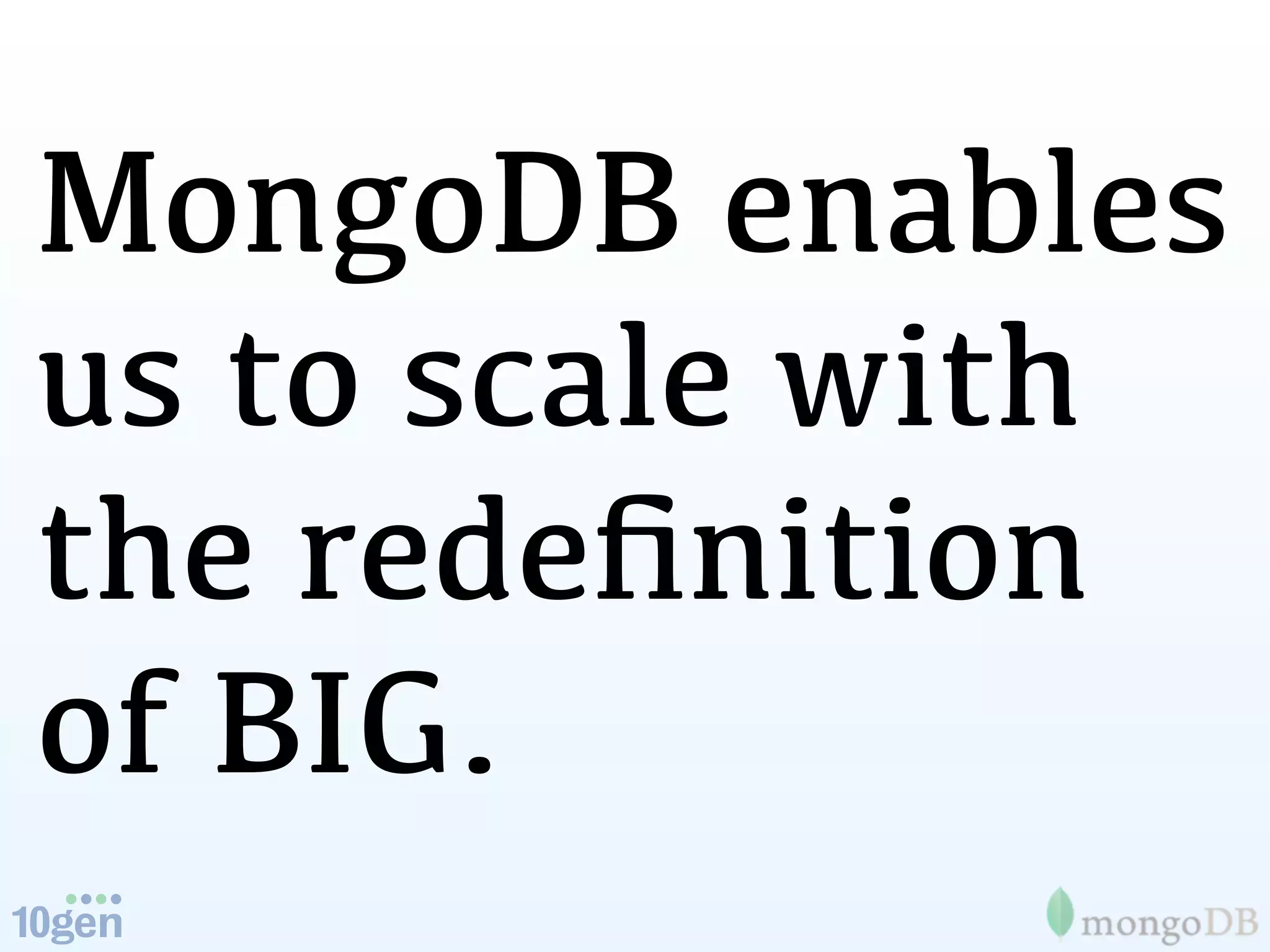

47. MongoDB enables
us to scale with
the redefinition
of BIG.

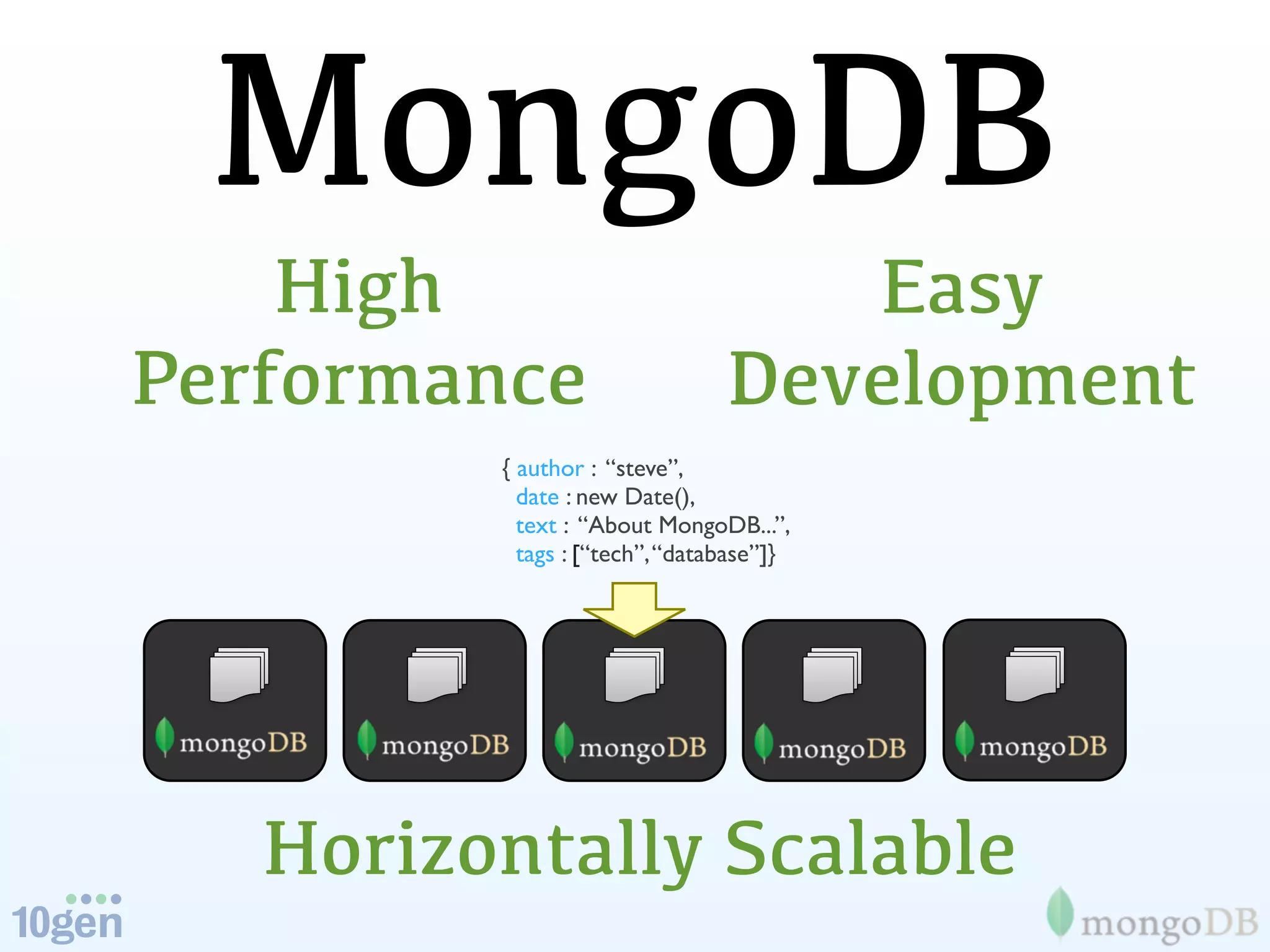

48. MongoDB
High Easy
Performance Development
{ author : “steve”,
date : new Date(),
text : “About MongoDB...”,
tags : [“tech”, “database”]}
Horizontally Scalable

49. http://spf13.com
http://github.com/s
@spf13
Question
download at mongodb.org
We’re hiring!! Contact us at jobs@10gen.com
