Multi Data Center Strategies
This document discusses strategies for using MongoDB in a distributed environment across multiple data centers. It describes setting up MongoDB replica sets in three different locations to allow for local writes and reads while minimizing remote data access. It also covers features like write concern, read preferences, and geo-aware sharding that can be used to control data routing and consistency for scenarios like social networks, analytics, authentication, and administration systems.
More Related Content
Similar to Multi Data Center Strategies
Multi Data Center Strategies
- 1.
- 2. @spf13 AKA Steve Francia 15+ years building the internet Father, husband, skateboarder Chief Solutions Architect @ responsible for drivers, integrations, web & docs

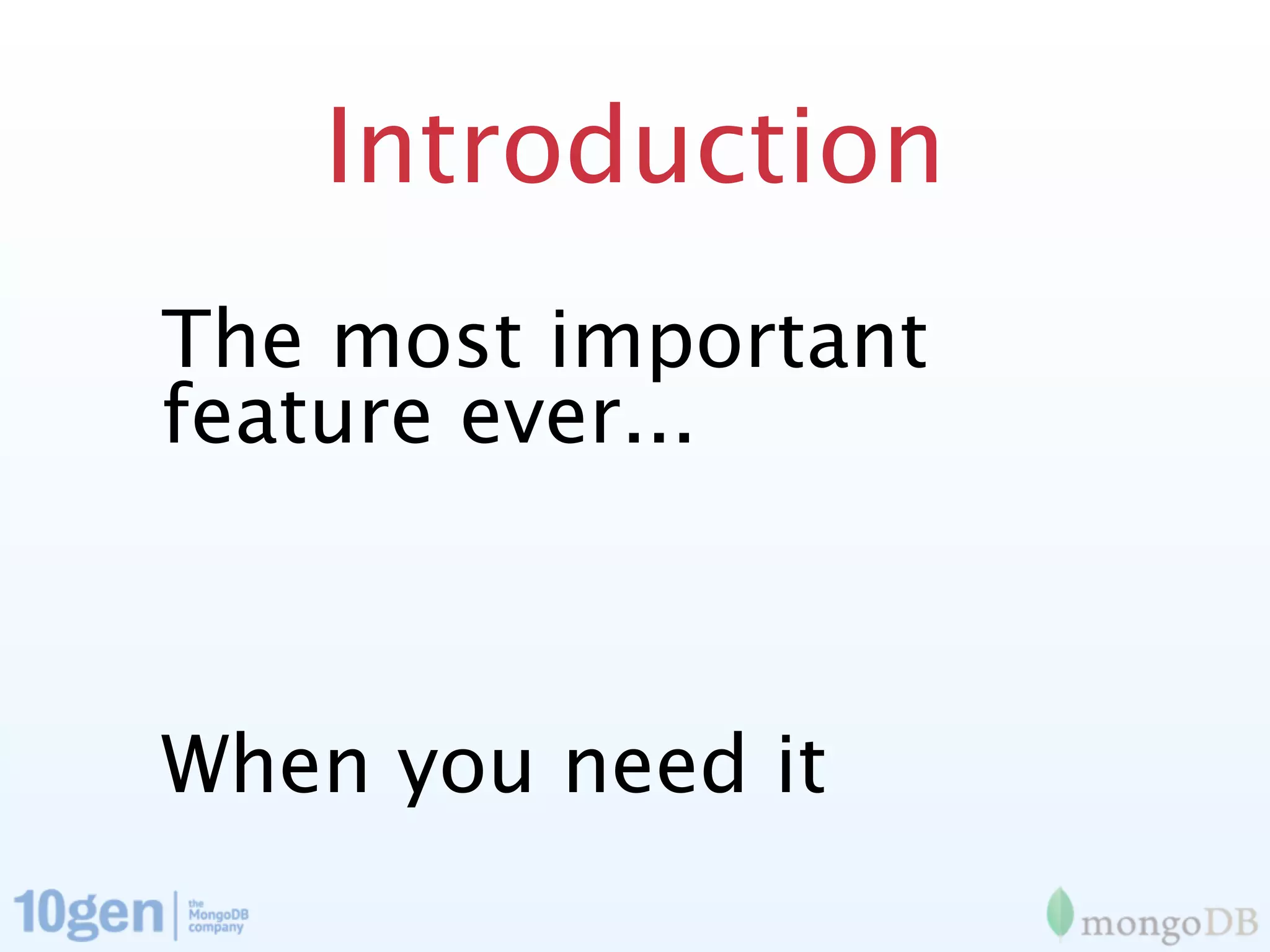

- 3. Introduction The most important featureever... When you need it
- 4. Multiple Data Centers Let’s describeour scenario

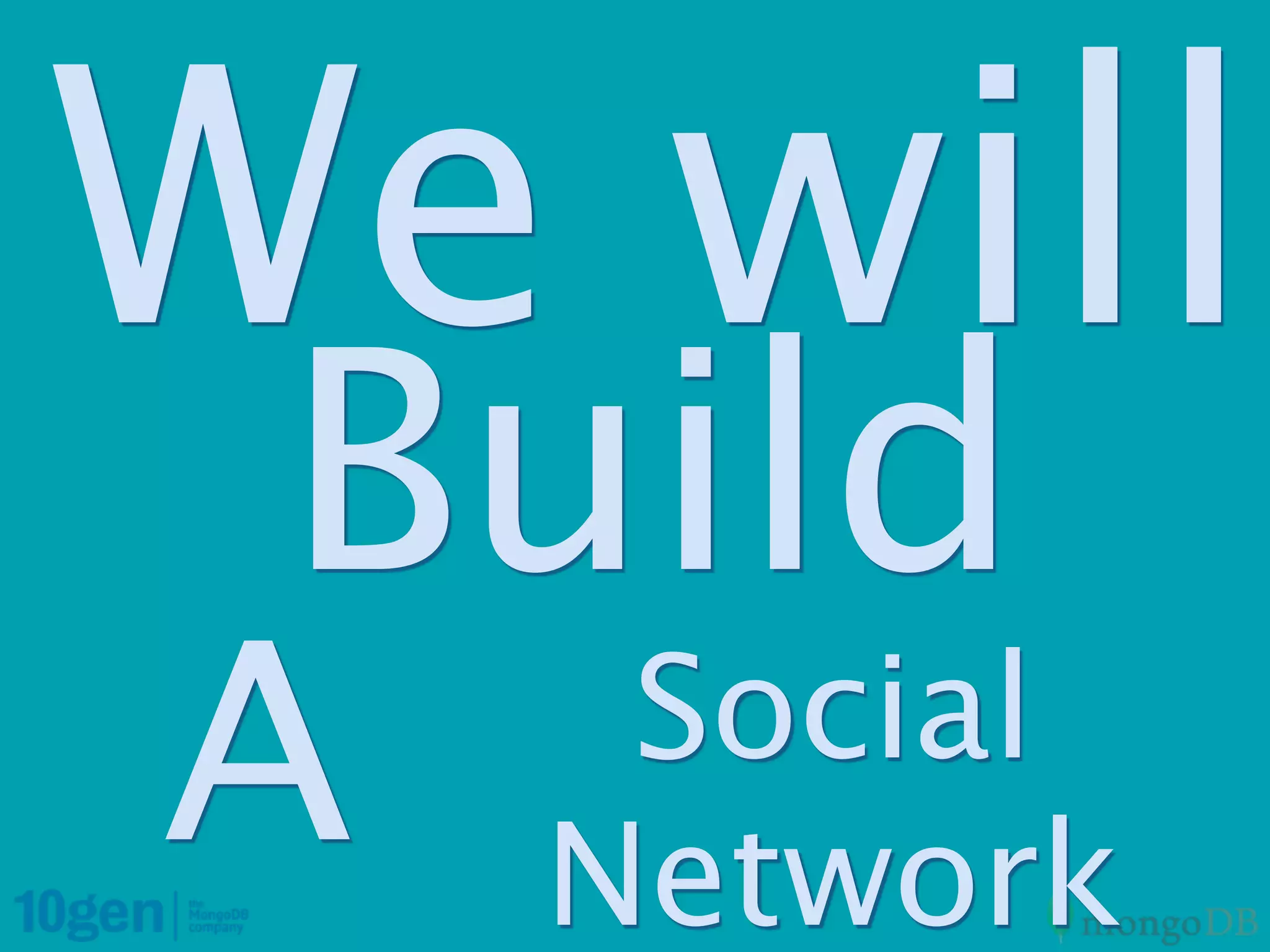

- 5. We will Build A Social Network

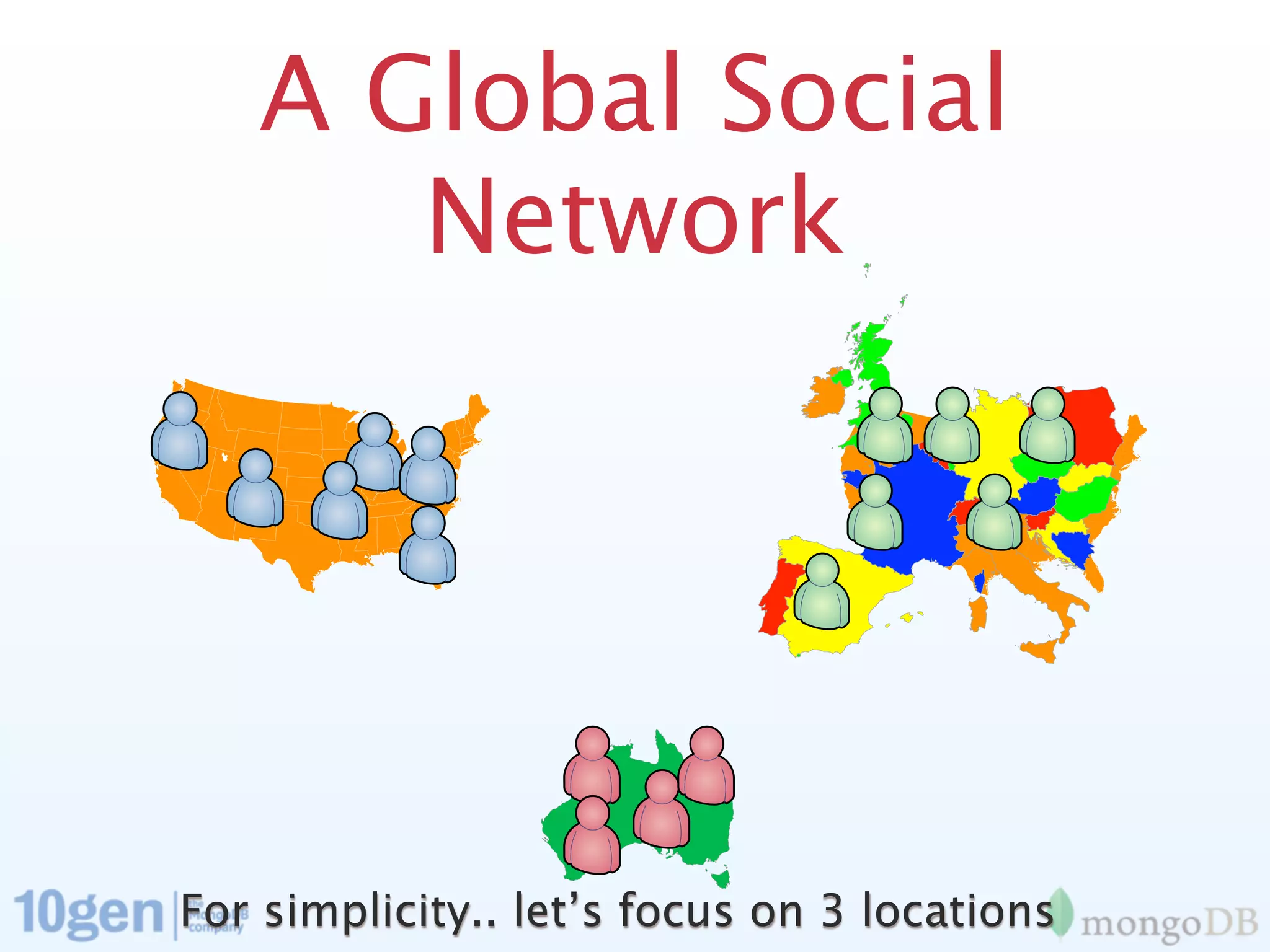

- 6. A Global Social Network For simplicity.. let’s focus on 3 locations

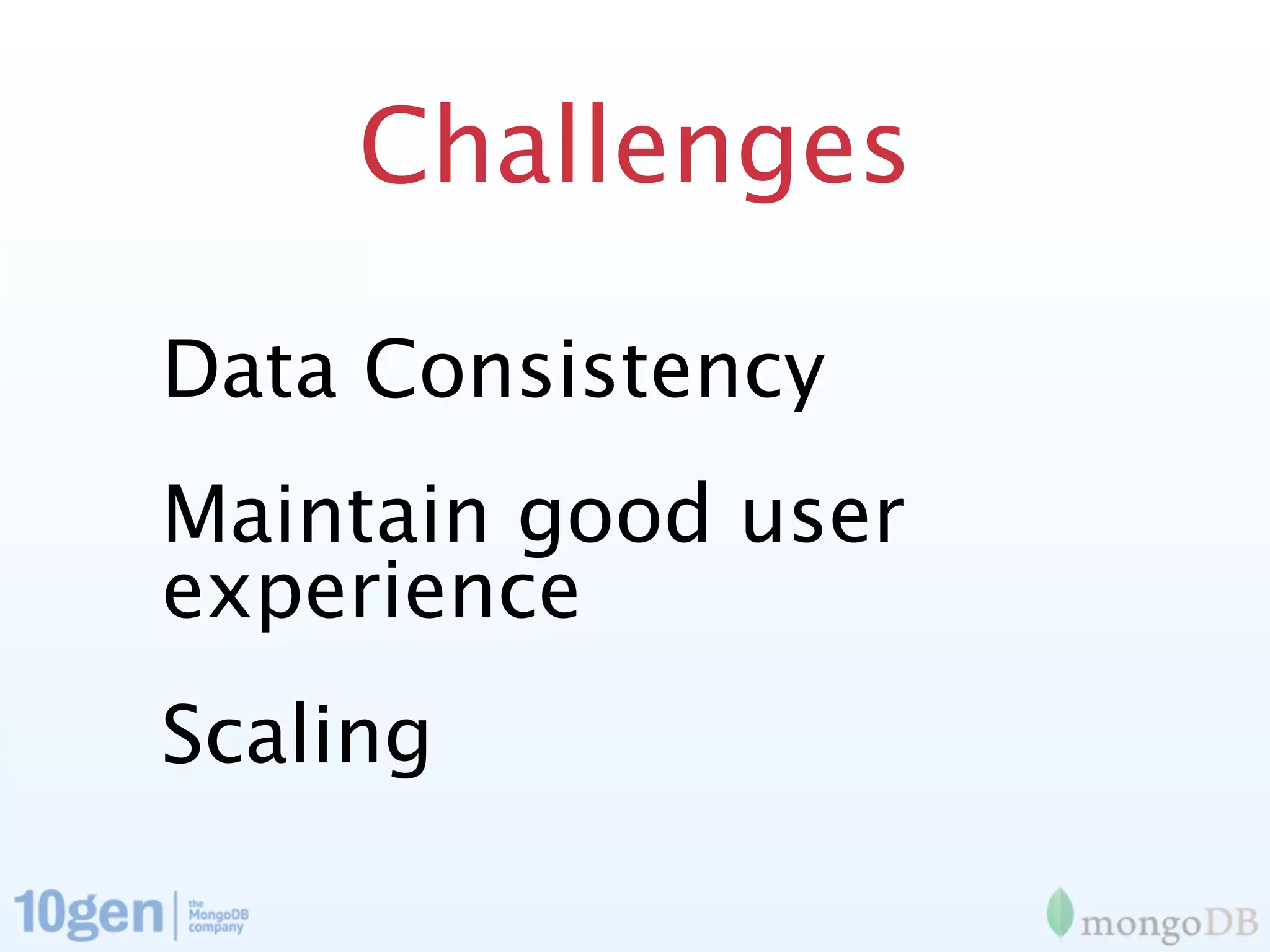

- 7. Challenges Data Consistency Maintain gooduser experience Scaling
- 8.

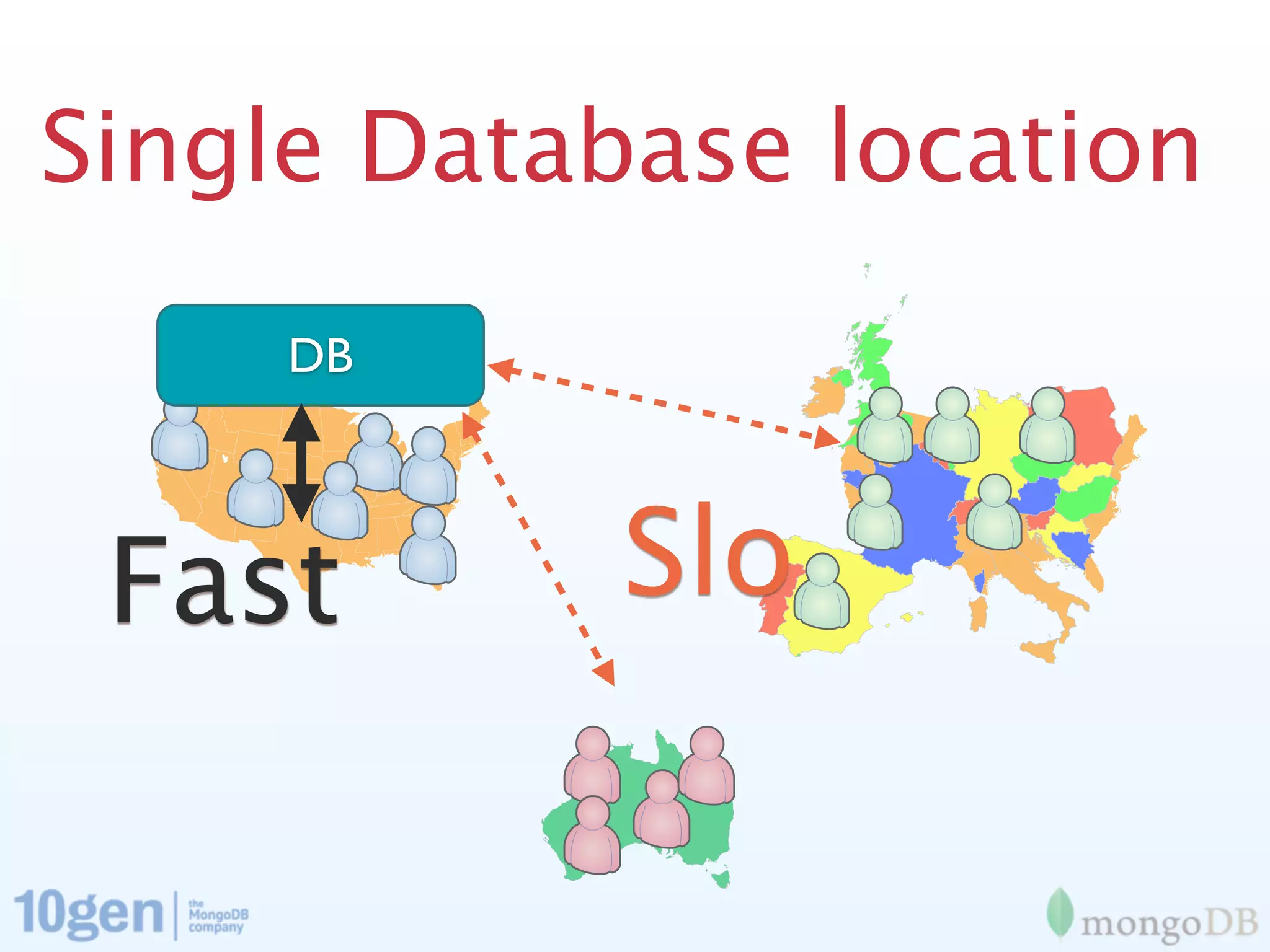

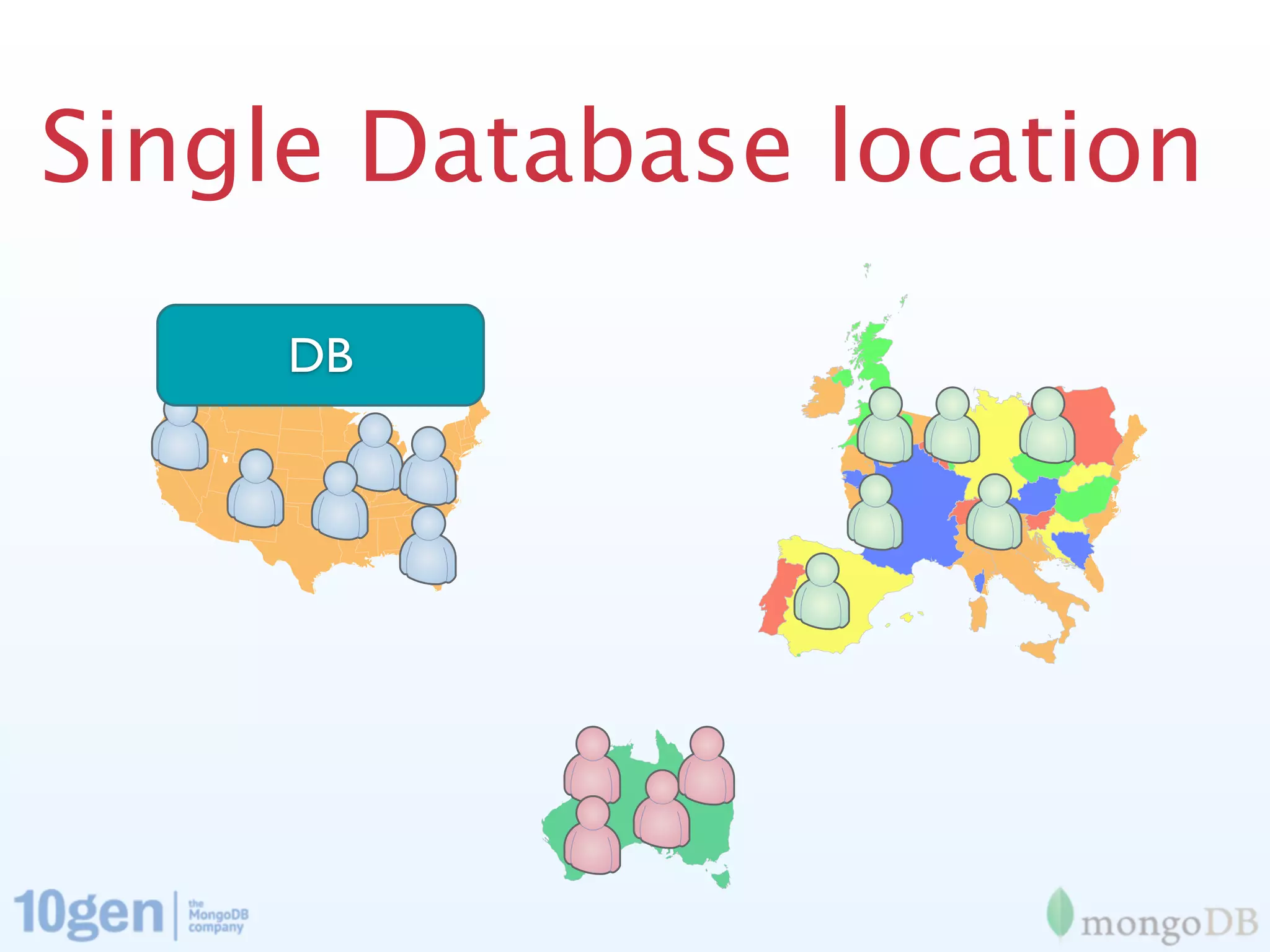

- 9. Single Database location DB Fast Slo

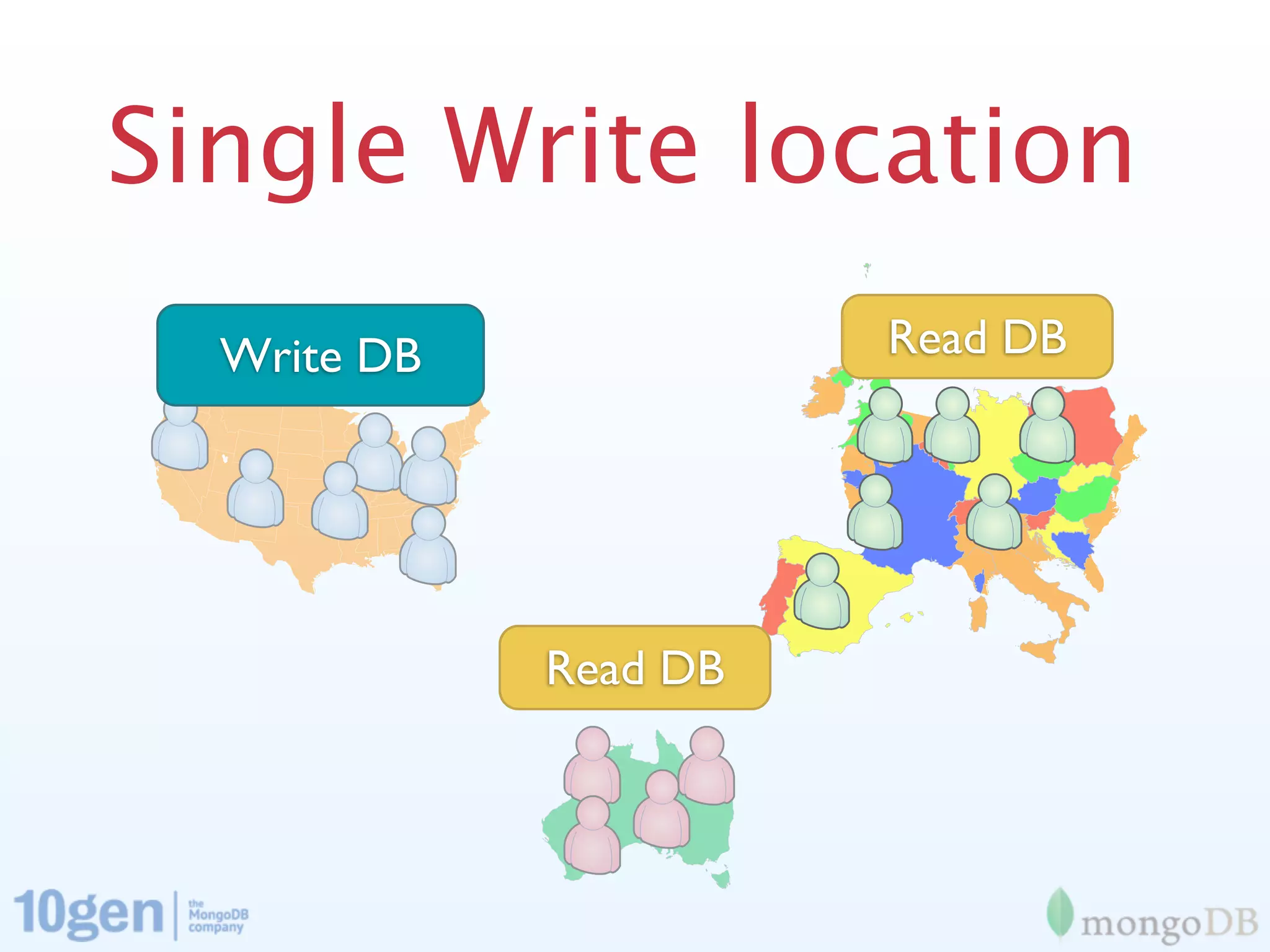

- 10. Single Write location Write DB Read DB Read DB

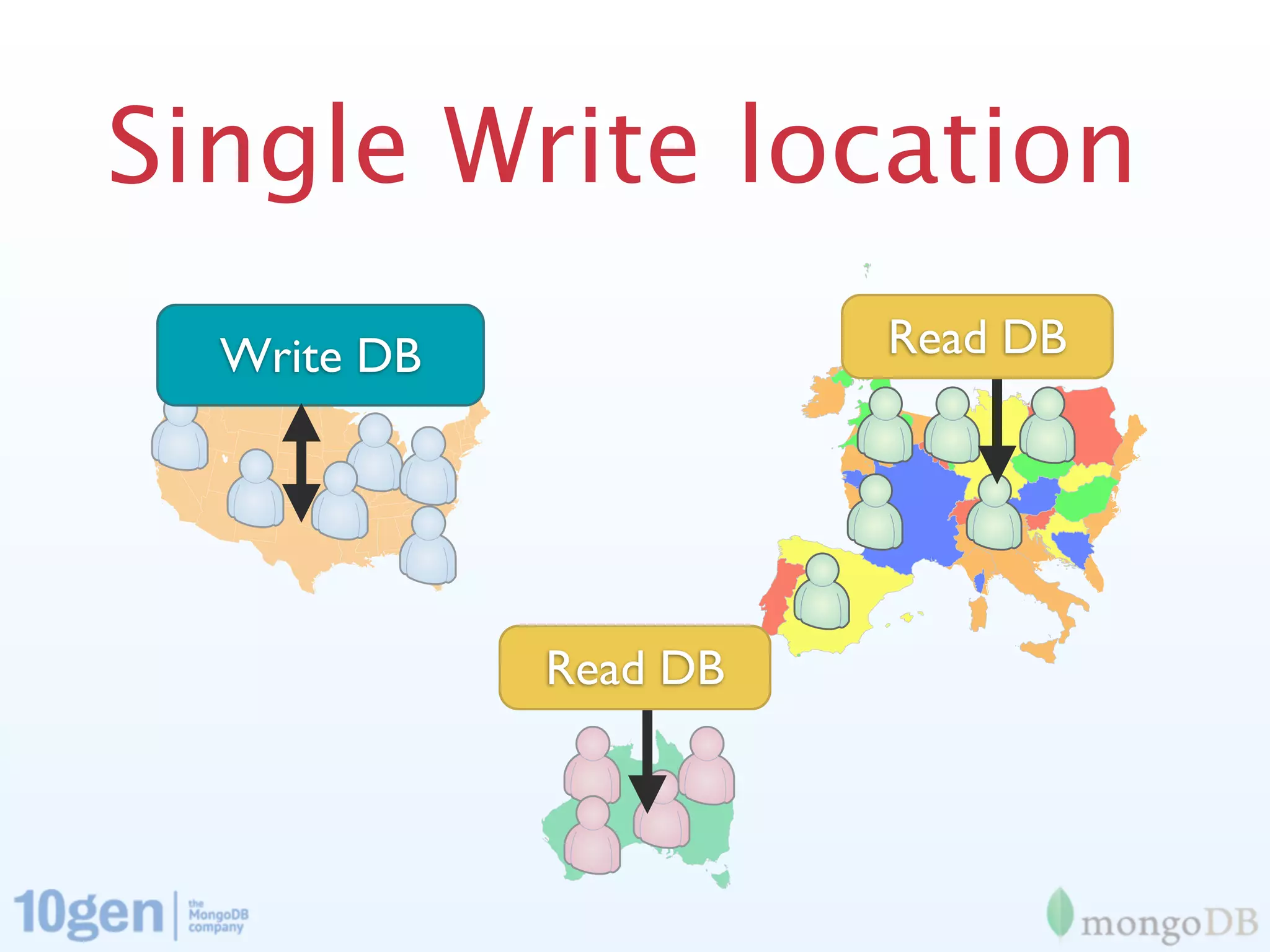

- 11. Single Write location Write DB Read DB Read DB

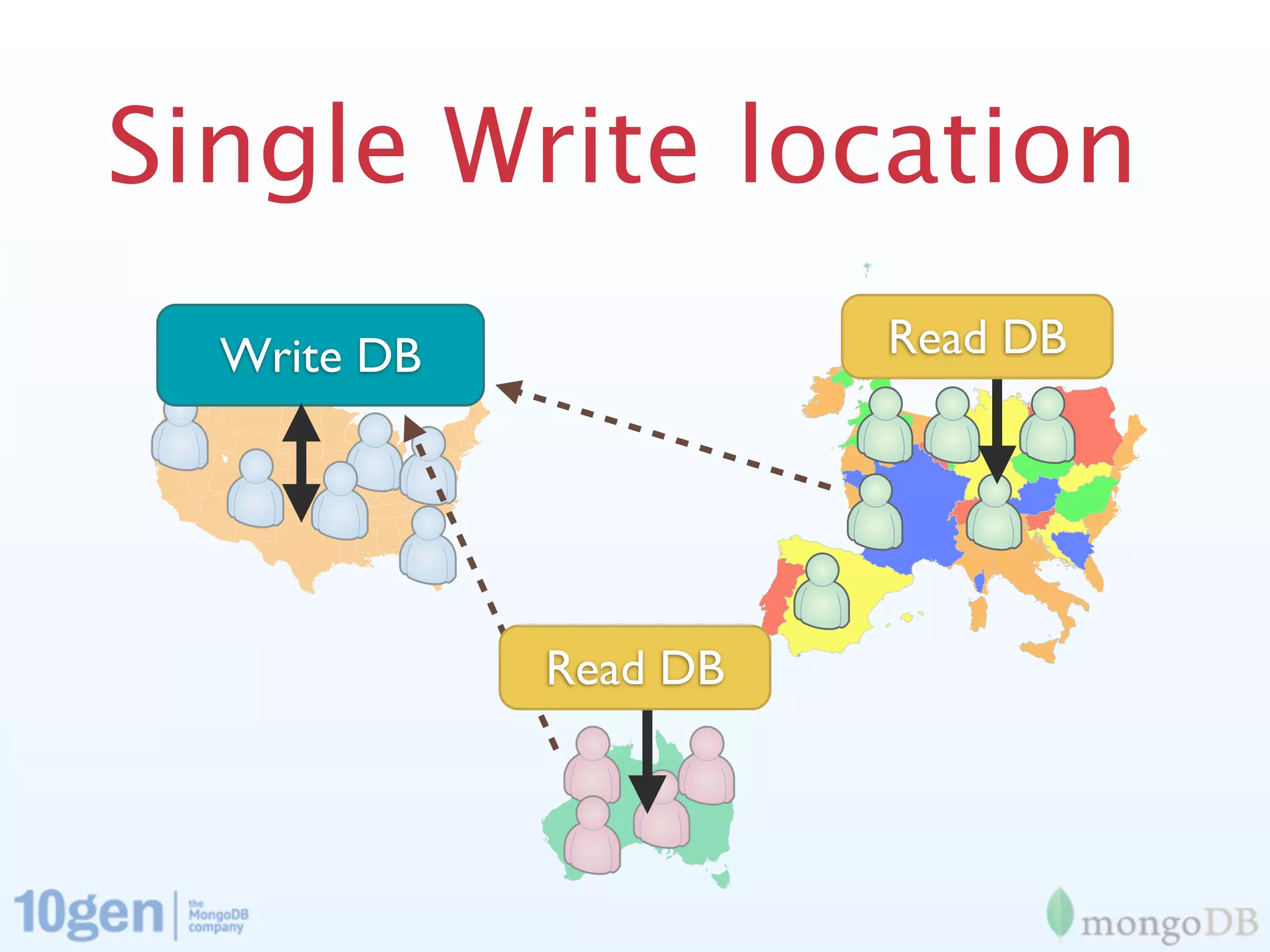

- 12. Single Write location Write DB Read DB Read DB

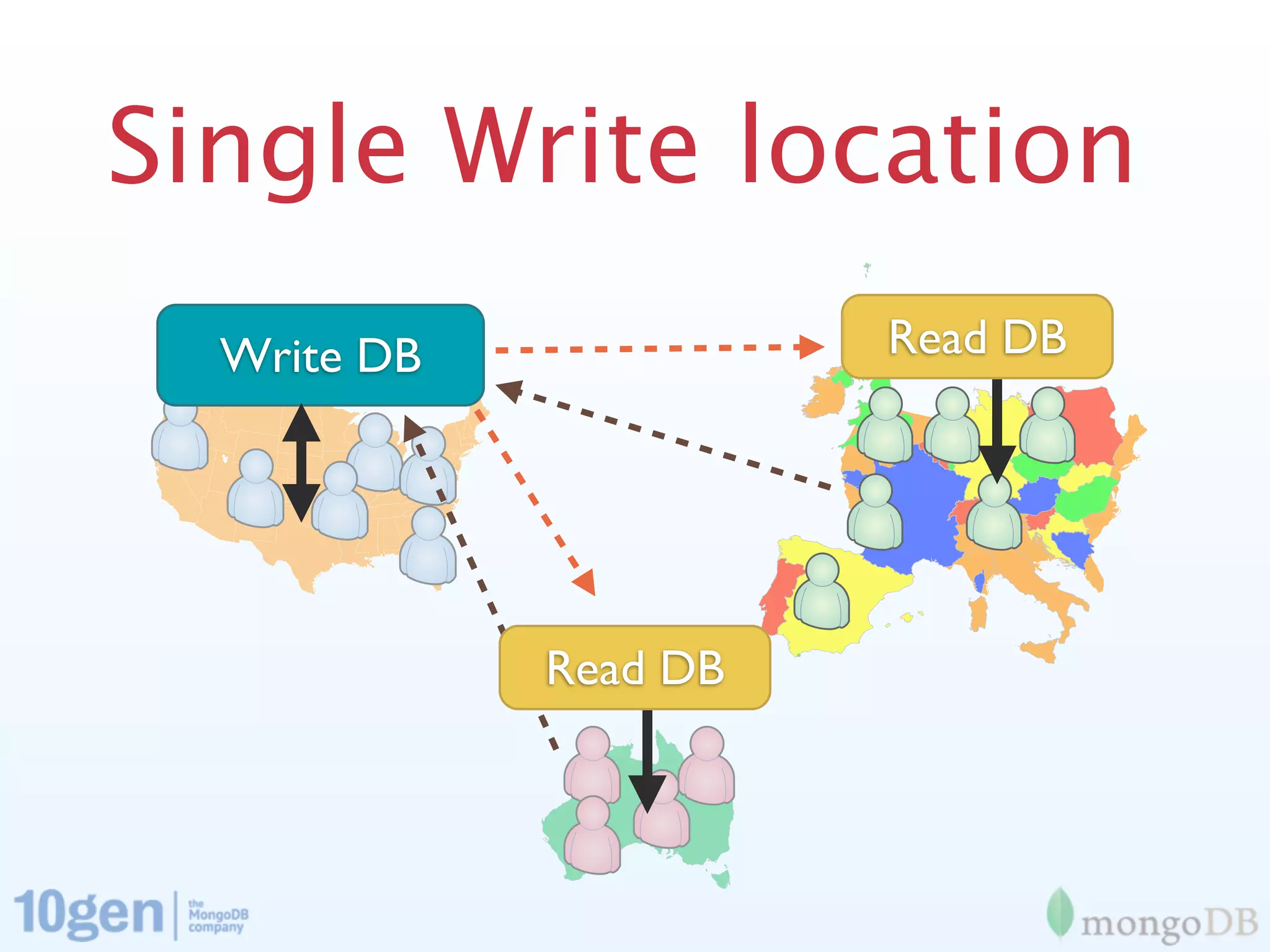

- 13. Single Write location Write DB Read DB Read DB
- 14. We Need More Datais localized (for the most part) Users interact local to region (mostly)
- 15. Goals Route data locally Minimizeglobal failures Remote data low latency Minimize remote data access
- 16.

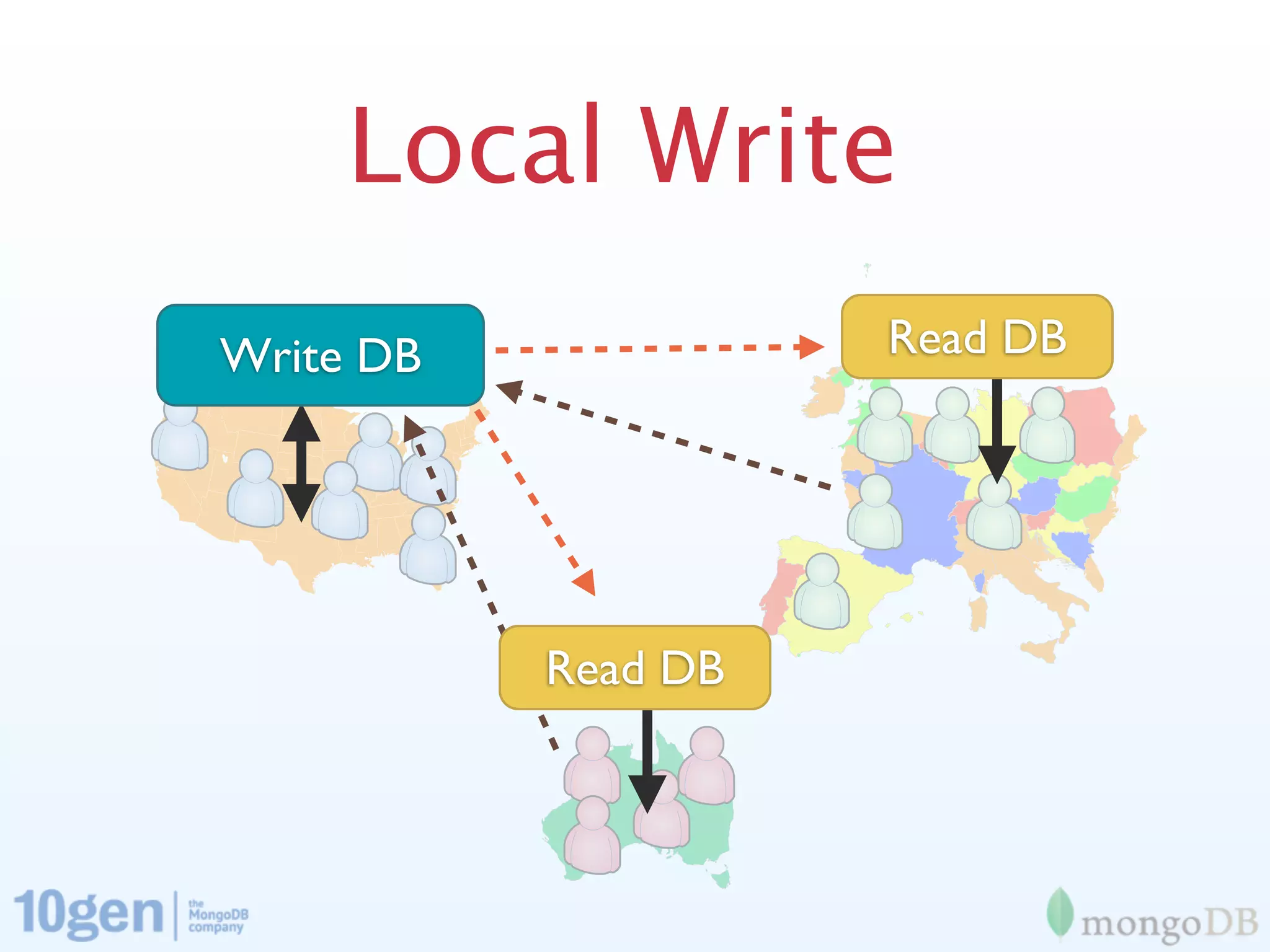

- 17. Local Write Write DB Read DB ReplicaDB Read Set

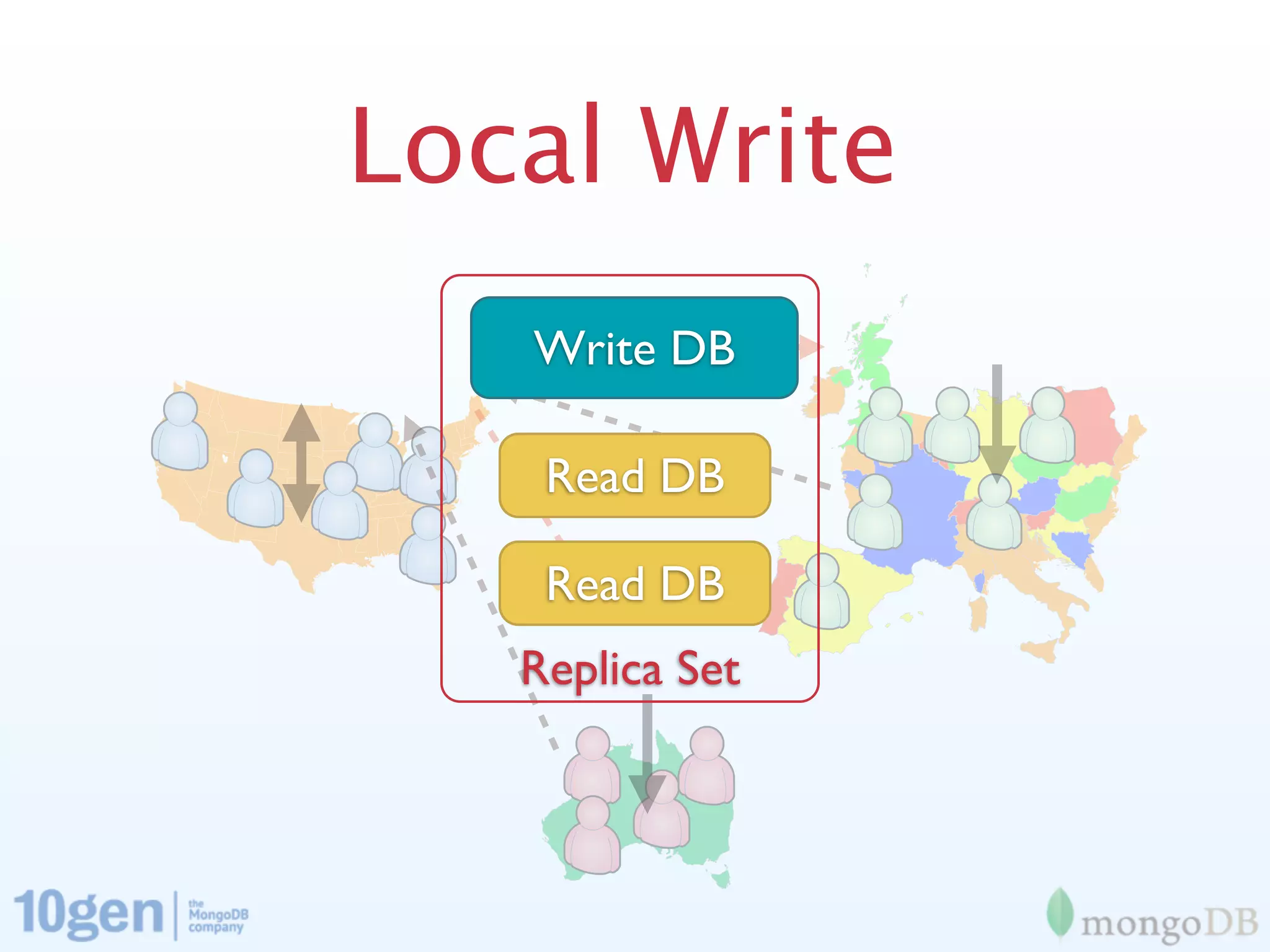

- 18. Local Write Write DB Read DB Read DB Replica Set
- 19. 3 locations 3 Replica Sets Write DB Write DB Write DB Read DB Read DB Read DB Read DB Read DB Read DB Replica Set Replica Set Replica Set

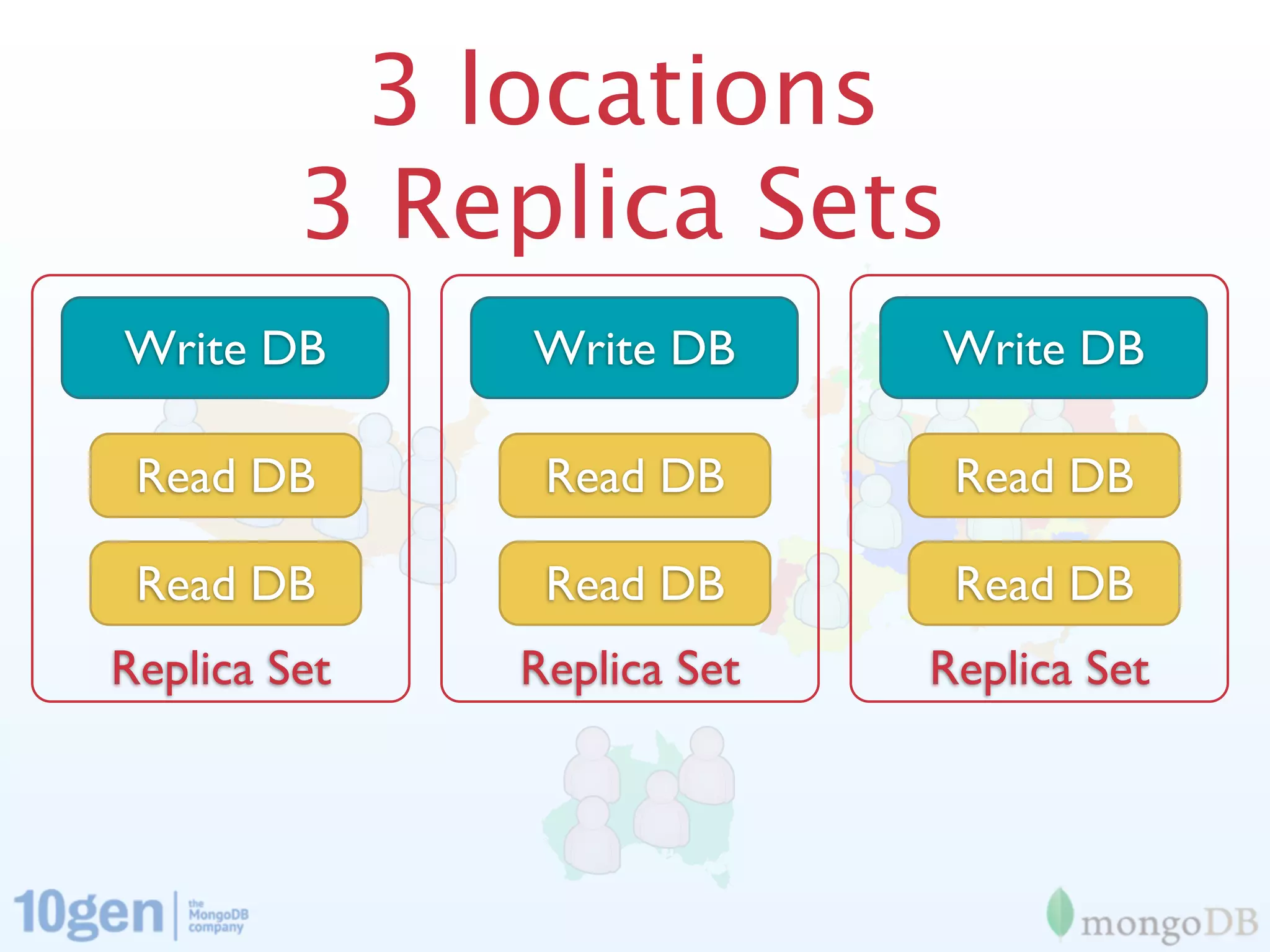

- 20. 3 locations 3 Replica Sets Write DB Write DB Write DB Read DB Read DB Read DB Read DB Read DB Read DB Replica Set Replica Set Replica Set
- 21. 3 locations 3 Replica Sets Read DB Write DB Read DB Write DB Read DB Read DB Replica Set Replica Set Replica Set Read DB Read DB Write DB
- 22. 3 locations 3 Replica Sets Read DB Write DB Read DB Write DB Read DB Read DB Replica Set Replica Set Replica Set Read DB Read DB Write DB

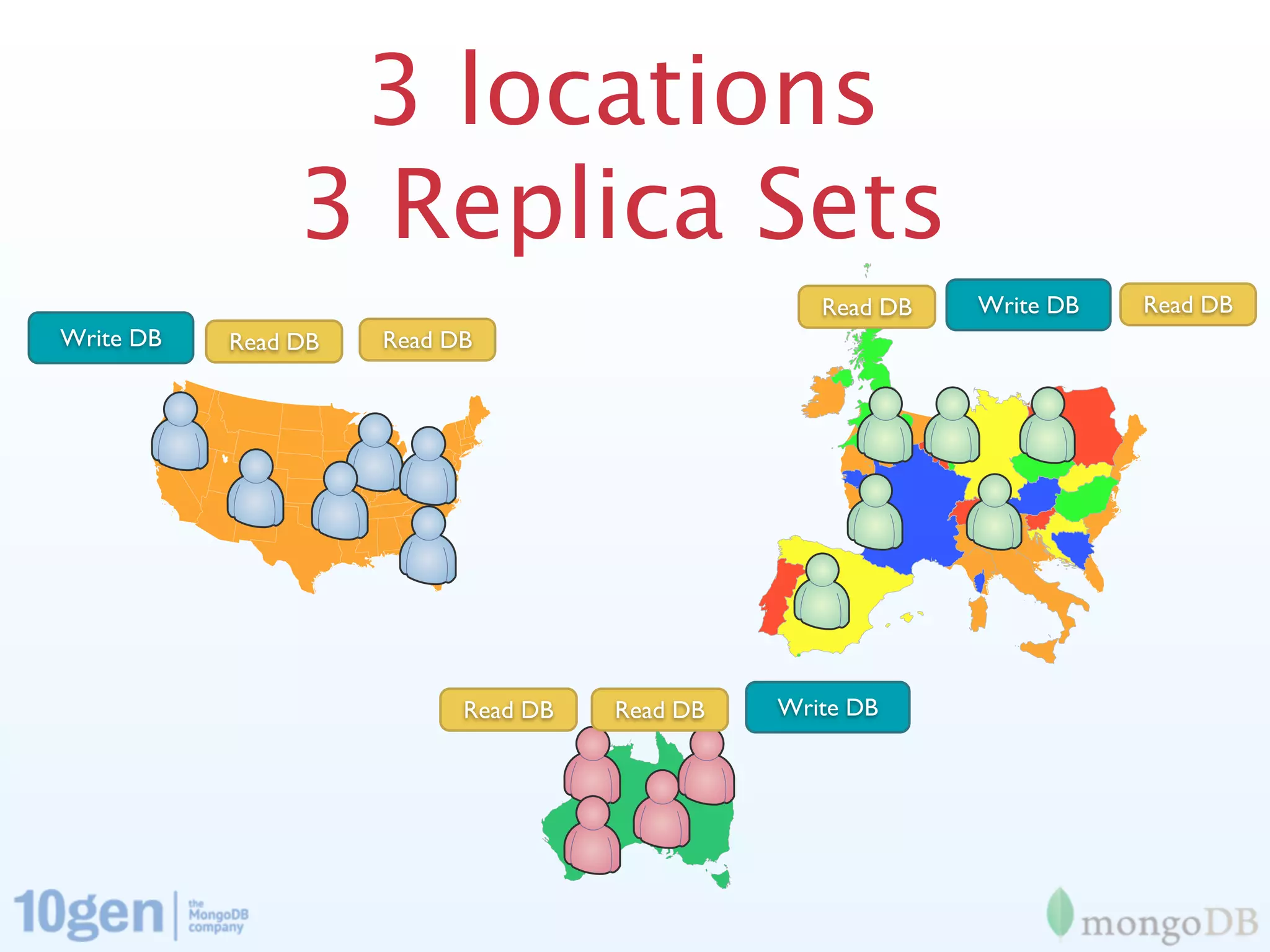

- 23. 3 locations 3 Replica Sets Read DB Write DB Read DB Write DB Read DB Read DB Replica Set Replica Set Replica Set Read DB Read DB Write DB
- 24. 3 locations 3 Replica Sets Read DB Write DB Read DB Write DB Read DB Read DB Replica Set Replica Set Replica Set Read DB Read DB Write DB

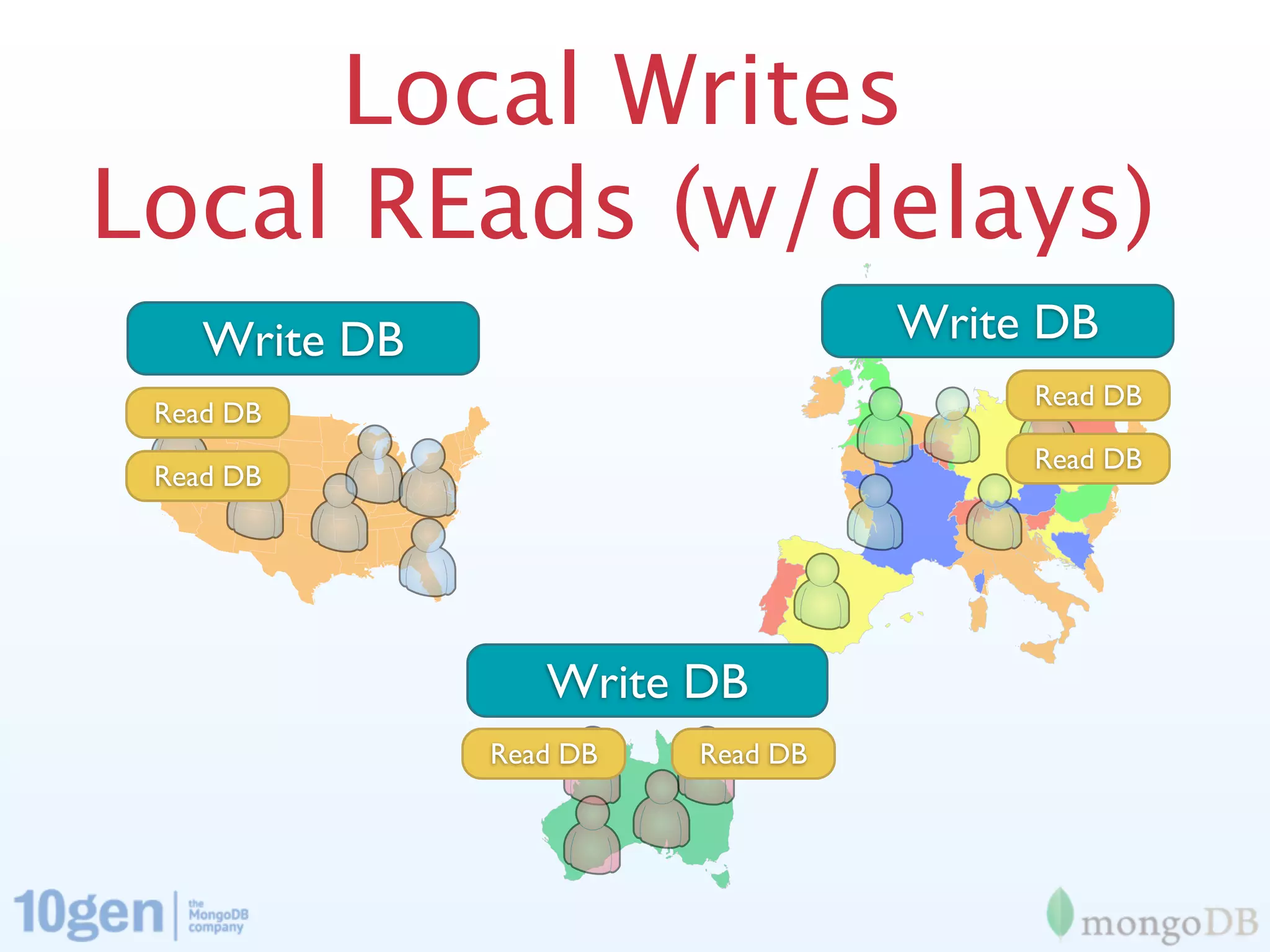

- 25. Local Writes Local REads(w/delays) Write DB Write DB Read DB Read DB Read DB Read DB Write DB Read DB Read DB

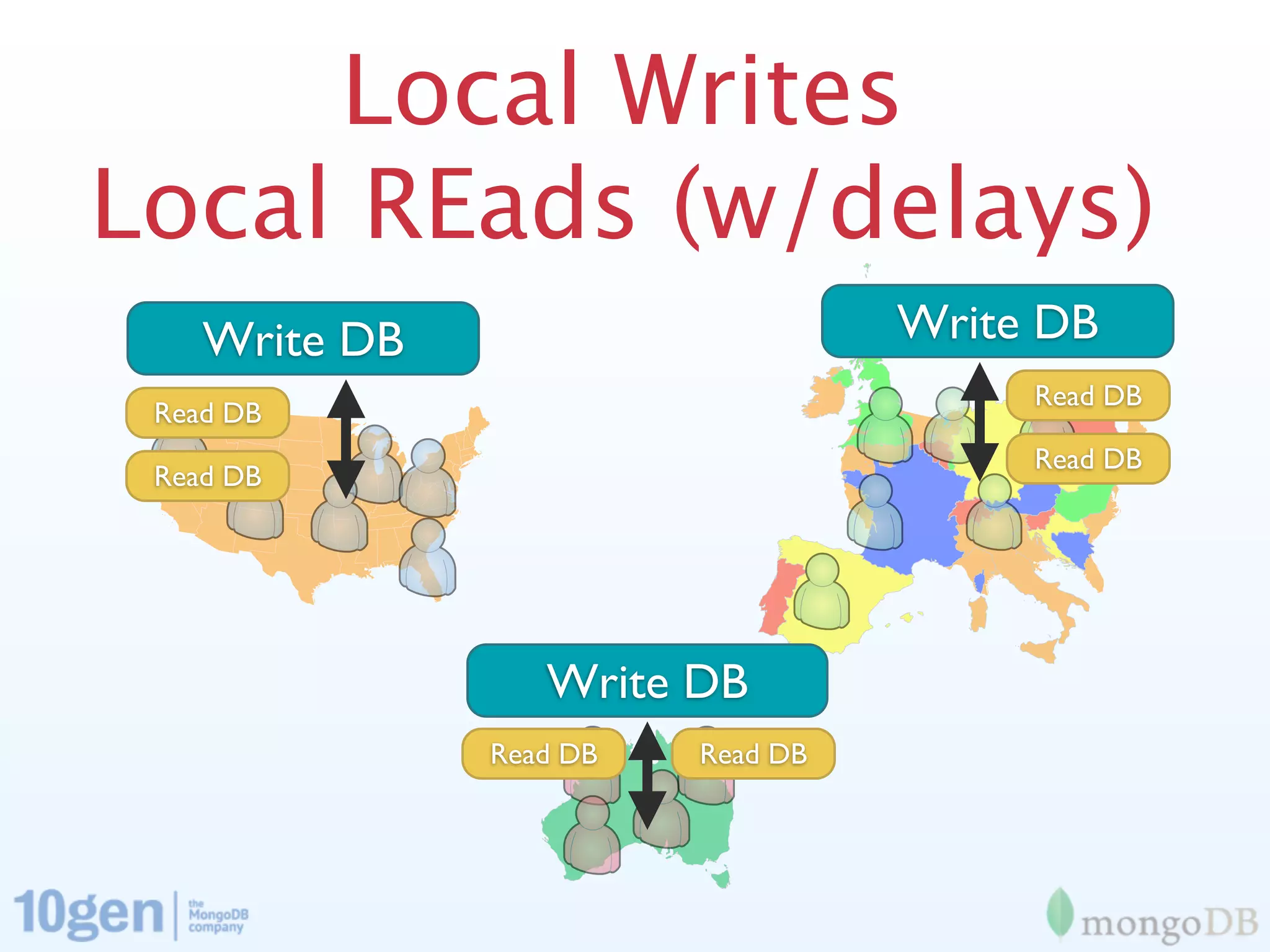

- 26. Local Writes Local REads(w/delays) Write DB Write DB Read DB Read DB Read DB Read DB Write DB Read DB Read DB

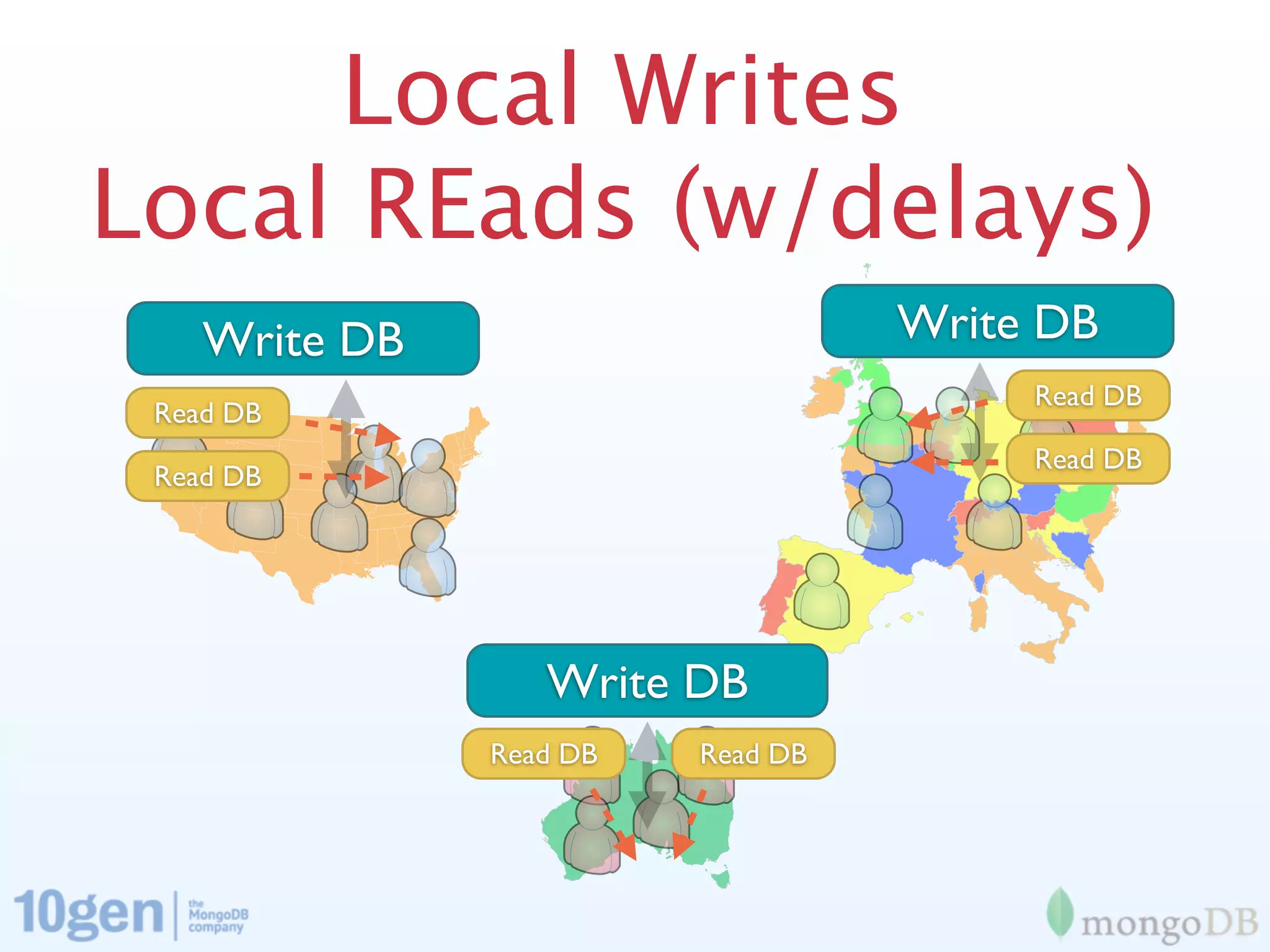

- 27. Local Writes Local REads(w/delays) Write DB Write DB Read DB Read DB Read DB Read DB Write DB Read DB Read DB

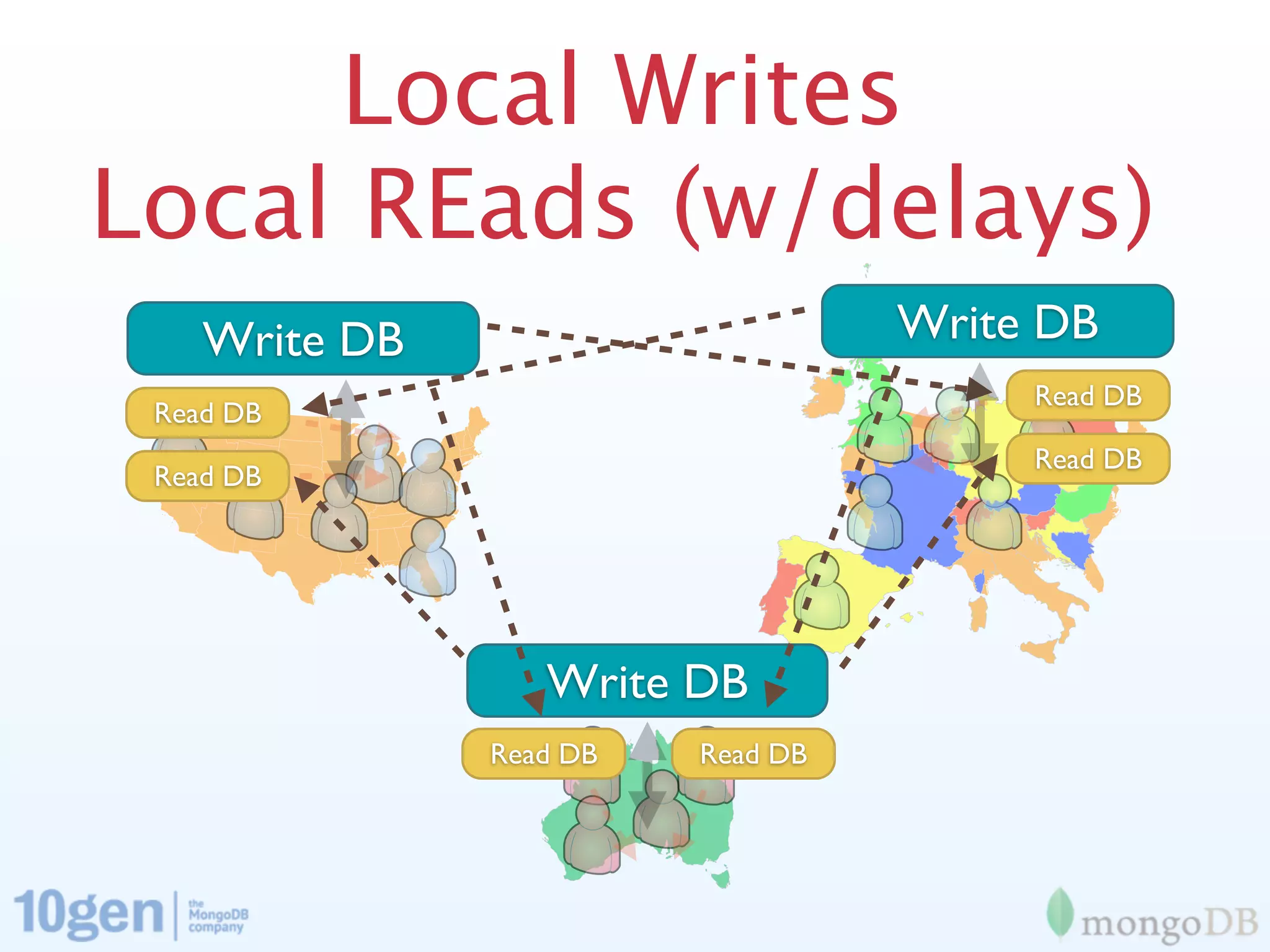

- 28. Local Writes Local REads(w/delays) Write DB Write DB Read DB Read DB Read DB Read DB Write DB Read DB Read DB
- 29.
- 30. Write Concern & If a write requires a return trip What the return trip should depend on

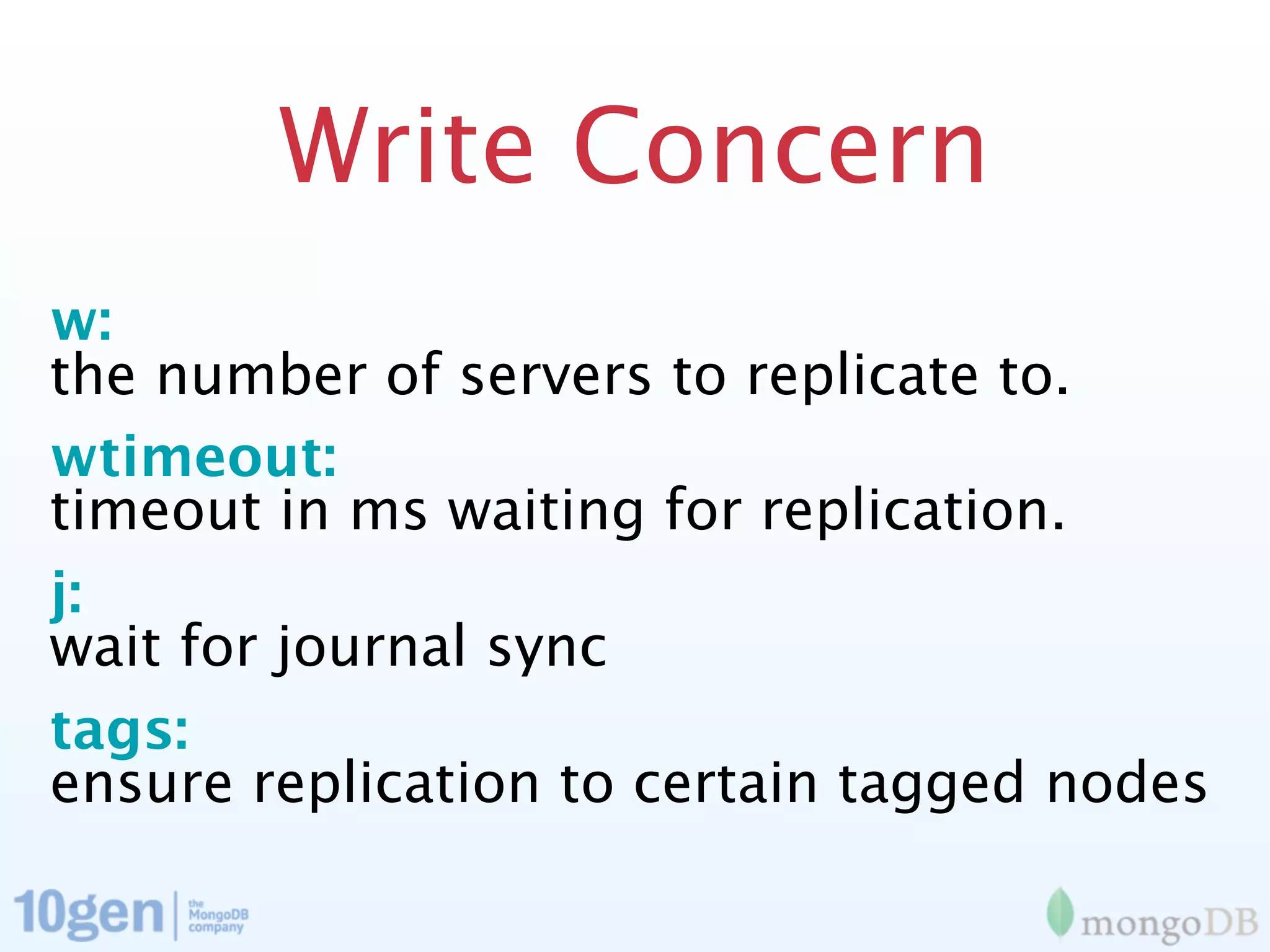

- 31. Write Concern w: the numberof servers to replicate to. wtimeout: timeout in ms waiting for replication. j: wait for journal sync tags: ensure replication to certain tagged nodes

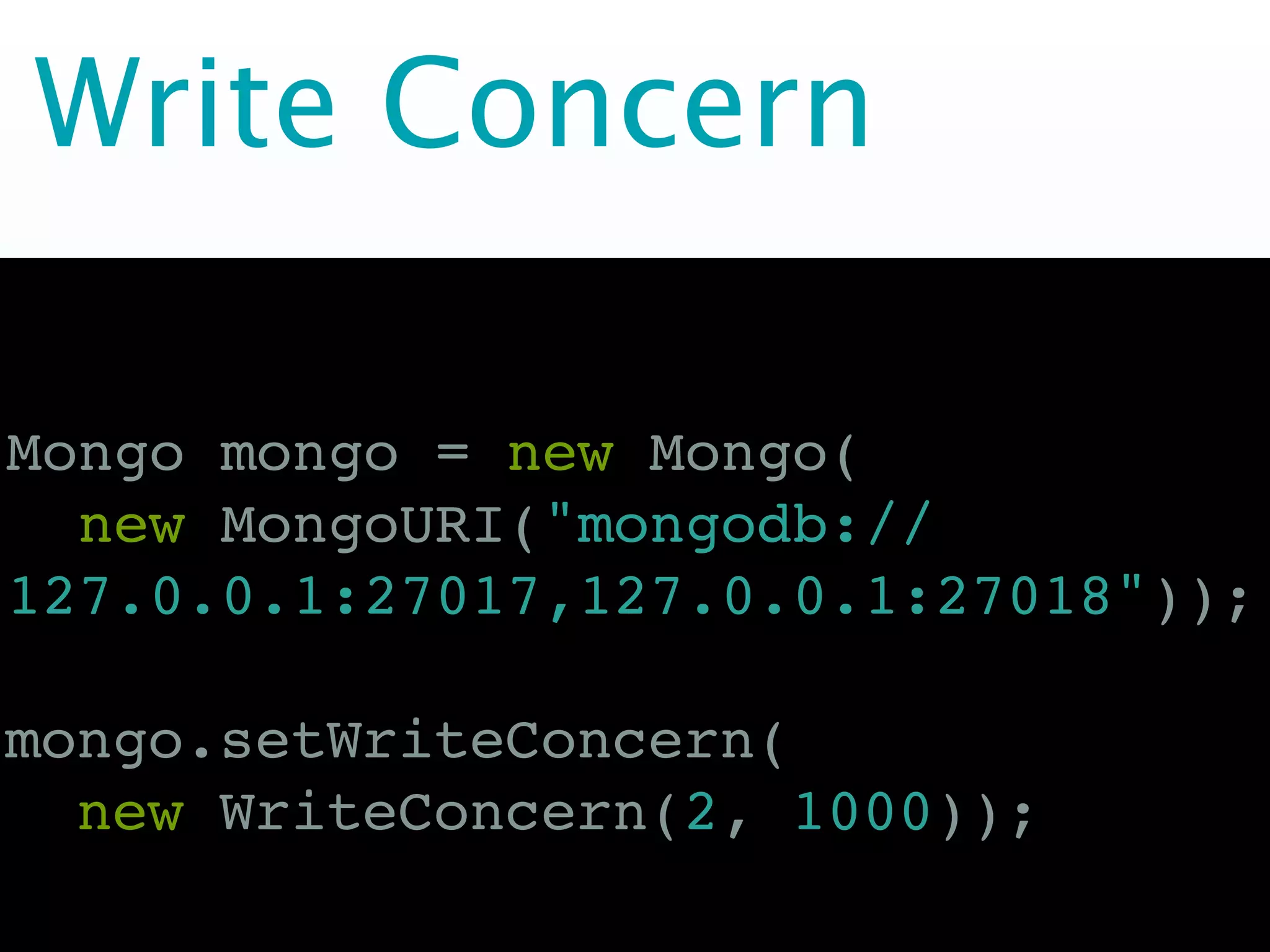

- 32. Write Concern Mongo mongo= new Mongo( new MongoURI("mongodb:// 127.0.0.1:27017,127.0.0.1:27018")); mongo.setWriteConcern( new WriteConcern(2, 1000));

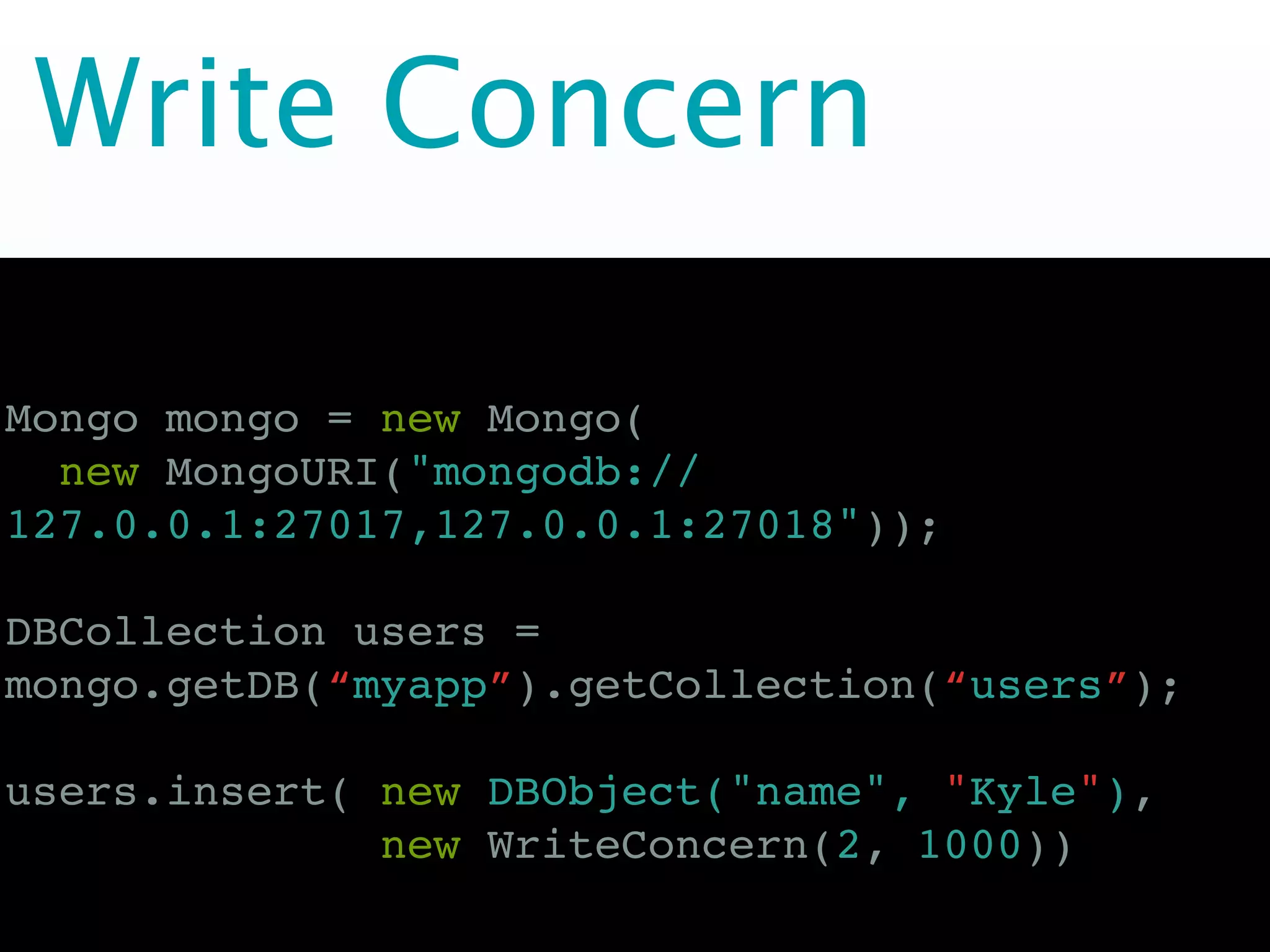

- 33. Write Concern Mongo mongo= new Mongo( new MongoURI("mongodb:// 127.0.0.1:27017,127.0.0.1:27018")); DBCollection users = mongo.getDB(“myapp”).getCollection(“users”); users.insert( new DBObject("name", "Kyle"), new WriteConcern(2, 1000))
- 34. Goals Route data locally Minimizeglobal failures Remote data low latency Minimize remote data access
- 35. Goals Route data locally Minimizeglobal failures Remote data low latency Minimize remote data access
- 36. Goals Route data locally Minimizeglobal failures Remote data low latency Minimize remote data access
- 37. Goals Route data locally Minimizeglobal failures Remote data low latency Minimize remote data access
- 38. Goals Route data locally Minimizeglobal failures Remote data low latency Minimize remote data access
- 39. Issues Doesn’t work with Sharding Can’tcontrol which node to read from App needs to be aware (at some level)
- 40.
- 41. Upcoming Features GeoAware Sharding ReadPreferences
- 42. Geo-Aware sharding Adding second dimension to shard key Second range can be used for locality aware sharding

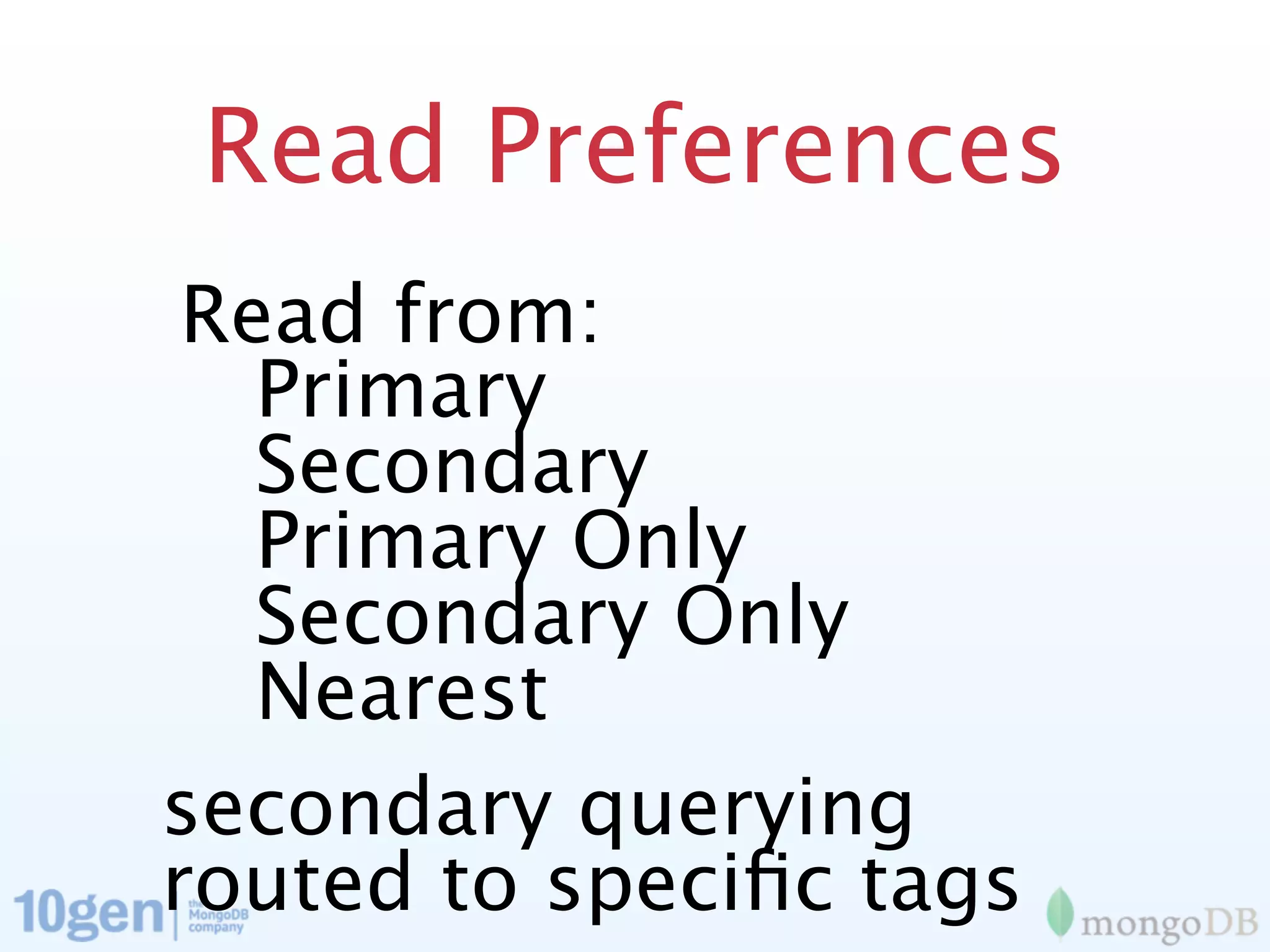

- 43. Read Preferences Readfrom: Primary Secondary Primary Only Secondary Only Nearest secondary querying routed to specific tags
- 44.

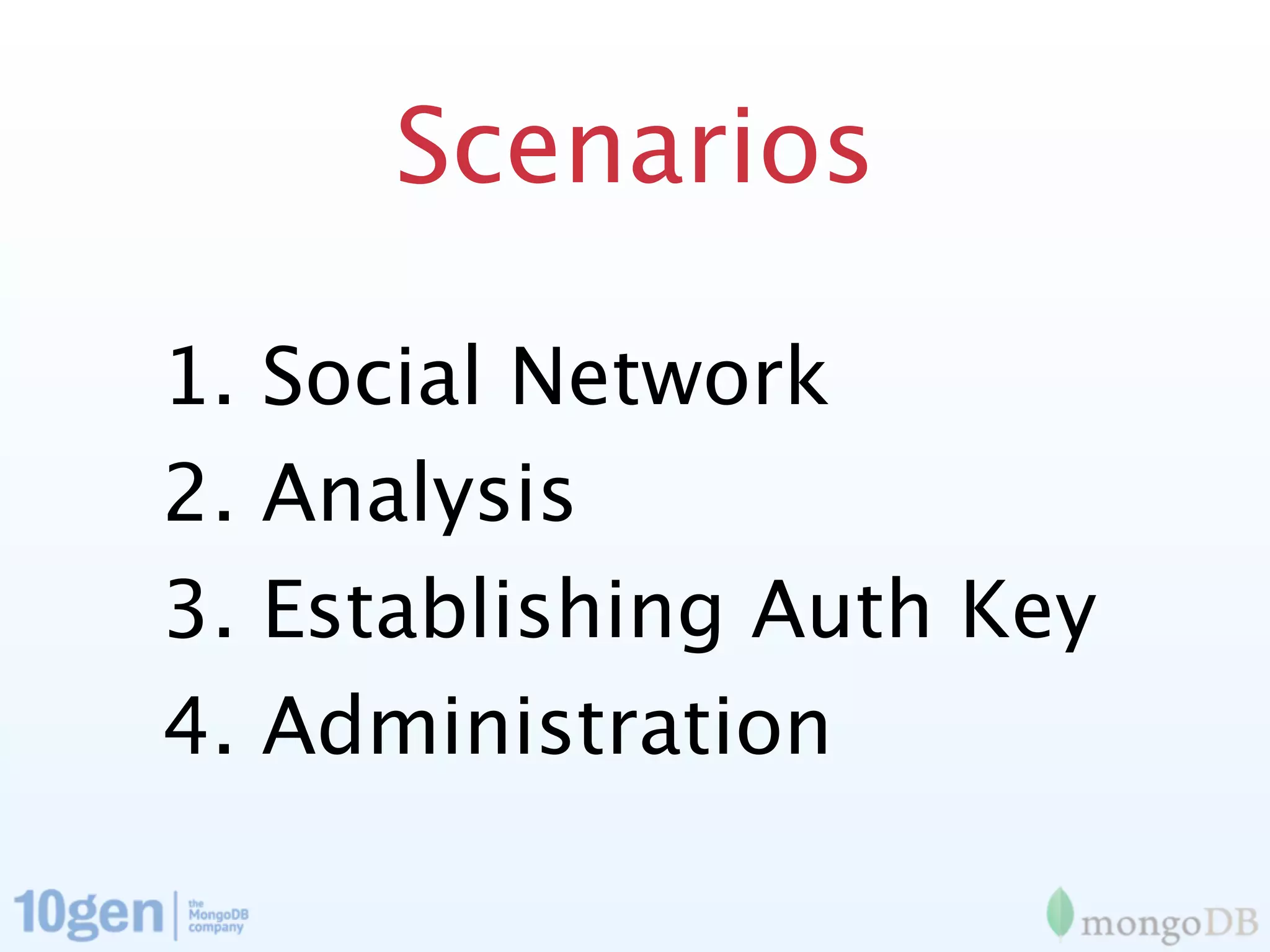

- 45. Scenarios 1. Social Network 2. Analysis 3. Establishing Auth Key 4. Administration

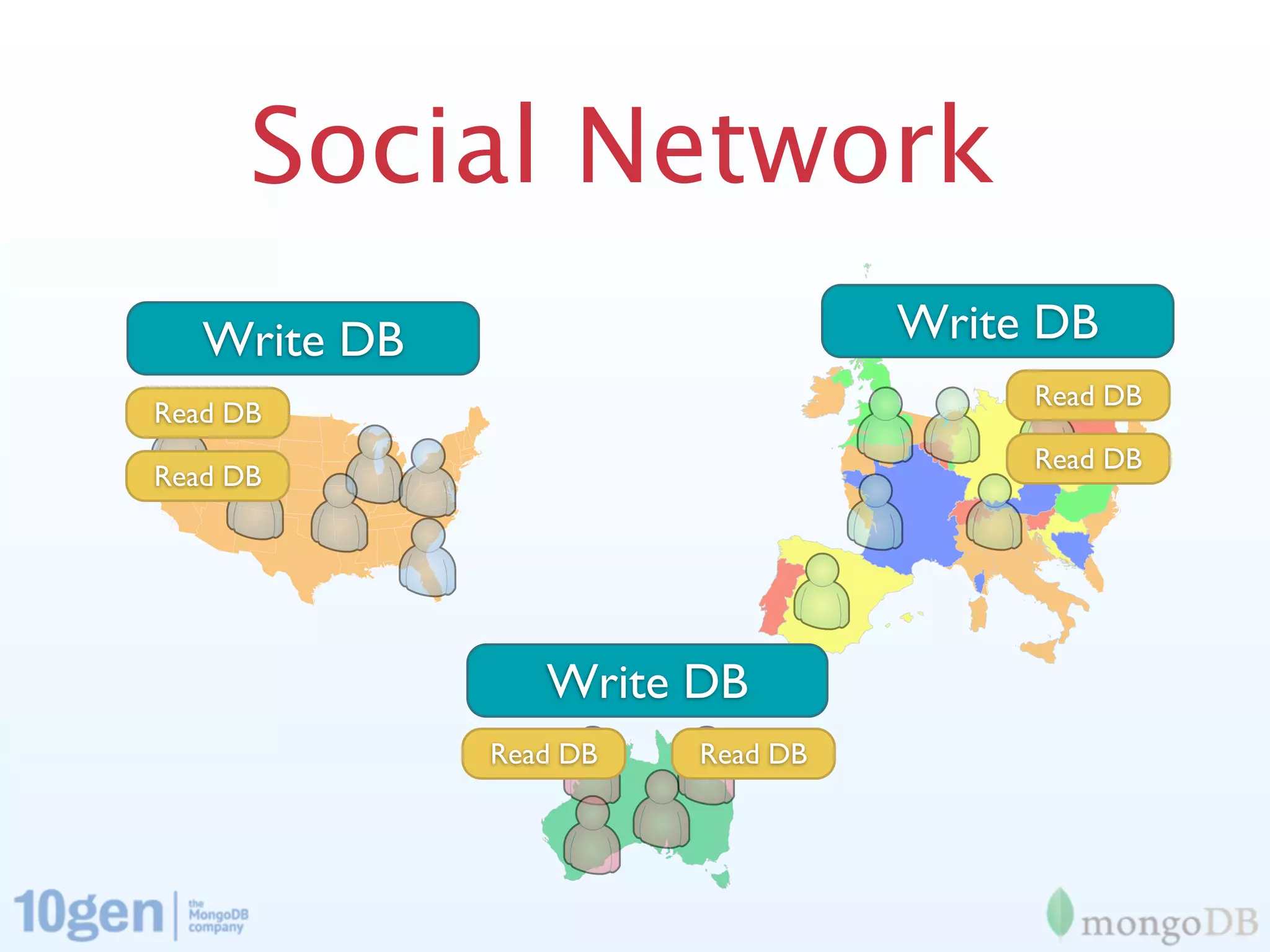

- 46. Social Network Write DB Write DB Read DB Read DB Read DB Read DB Write DB Read DB Read DB
- 47. Social Network Write DB Write DB Read DB Read DB Read DB Read DB Write DB Read DB Read DB
- 48. Social Network Write DB Write DB Read DB Read DB Read DB Read DB Write DB Read DB Read DB
- 49. Social Network Write DB Write DB Read DB Read DB Read DB Read DB Write DB Read DB Read DB

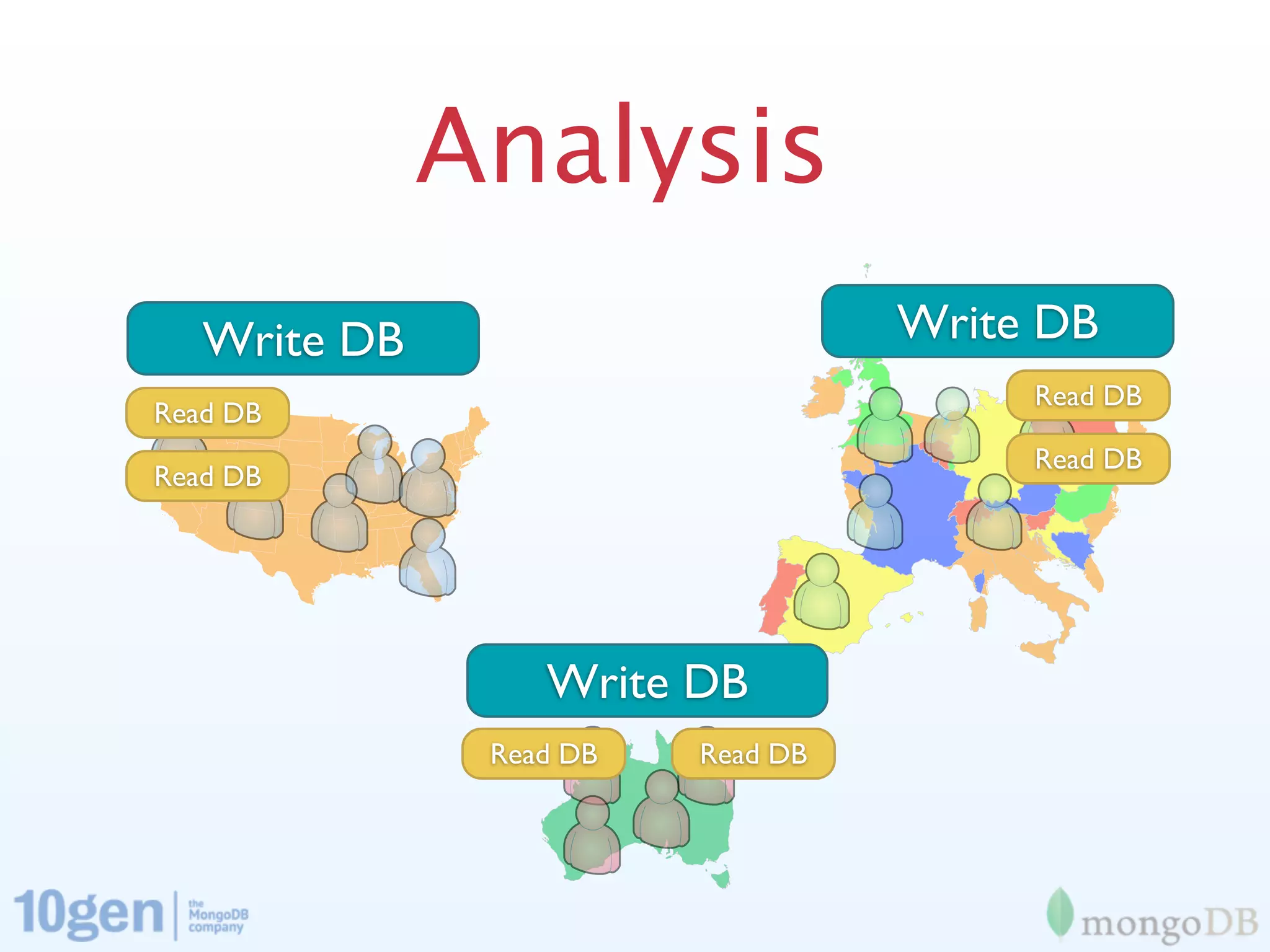

- 50. Analysis Write DB Write DB Read DB Read DB Read DB Read DB Write DB Read DB Read DB
- 51. Analysis Write DB Write DB Read DB Read DB Read DB Read DB Write DB Read DB Read DB

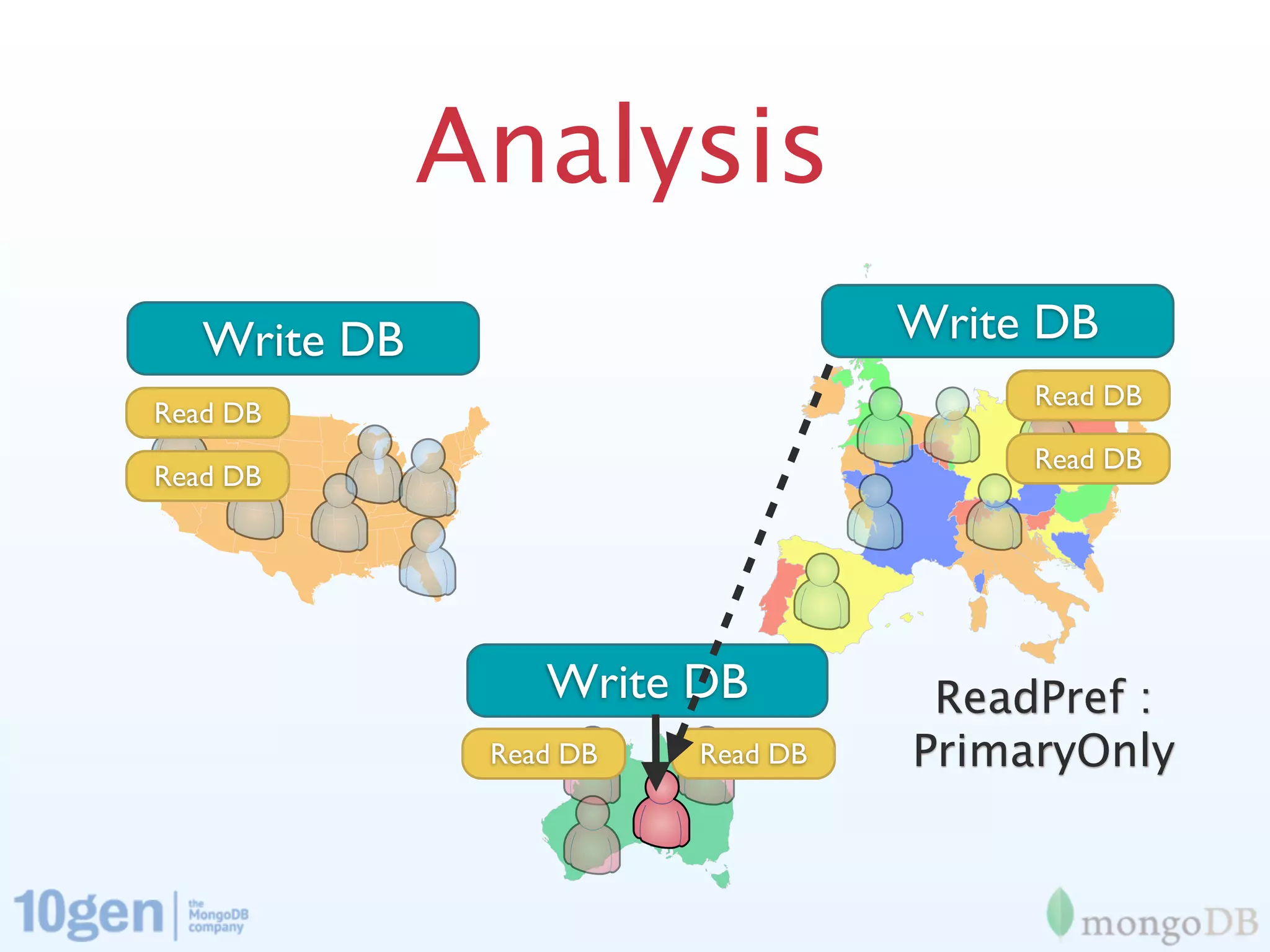

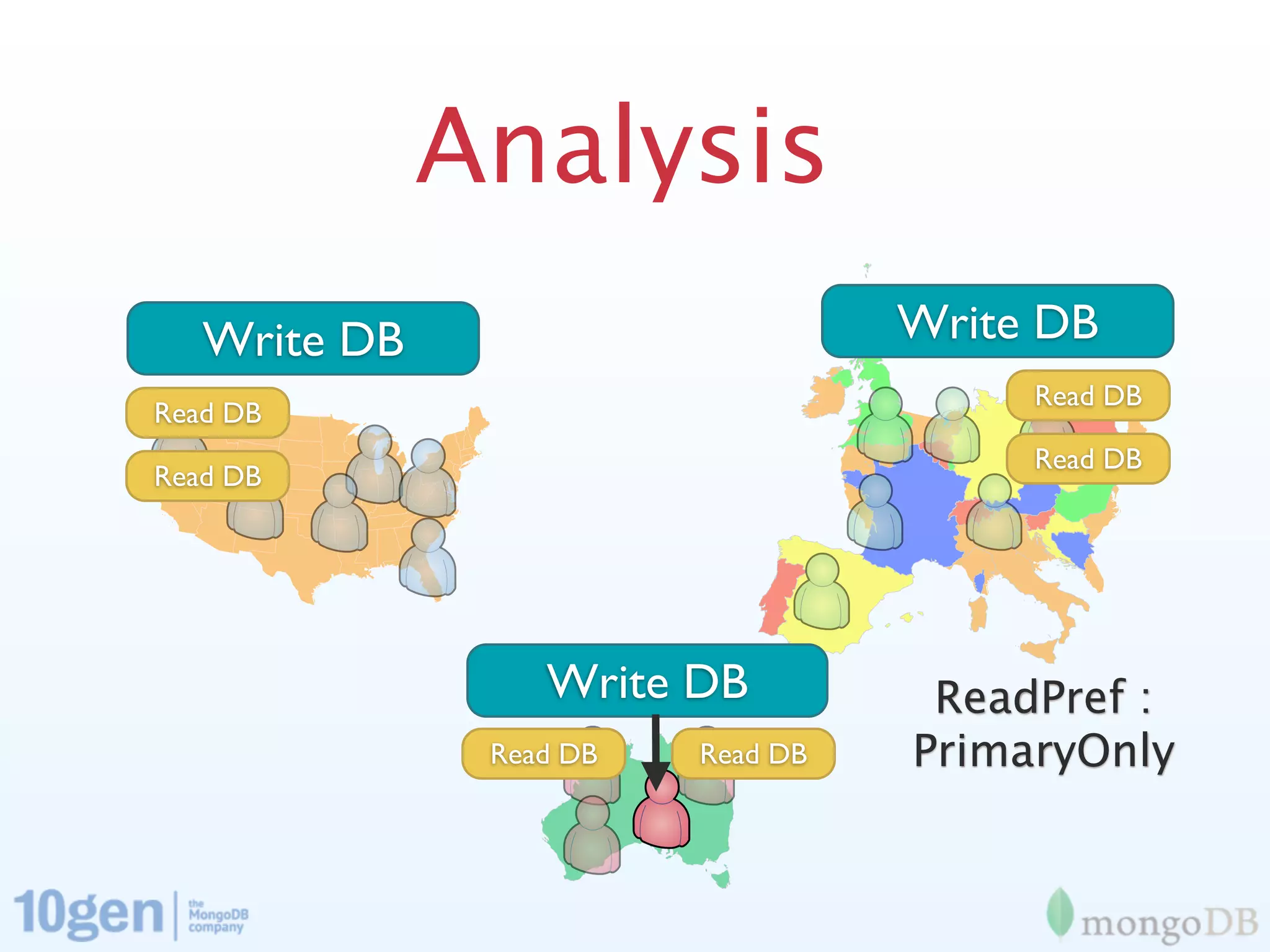

- 52. Analysis Write DB Write DB Read DB Read DB Read DB Read DB Write DB ReadPref : Read DB Read DB PrimaryOnly
- 53. Analysis Write DB Write DB Read DB Read DB Read DB Read DB Write DB ReadPref : Read DB Read DB PrimaryOnly

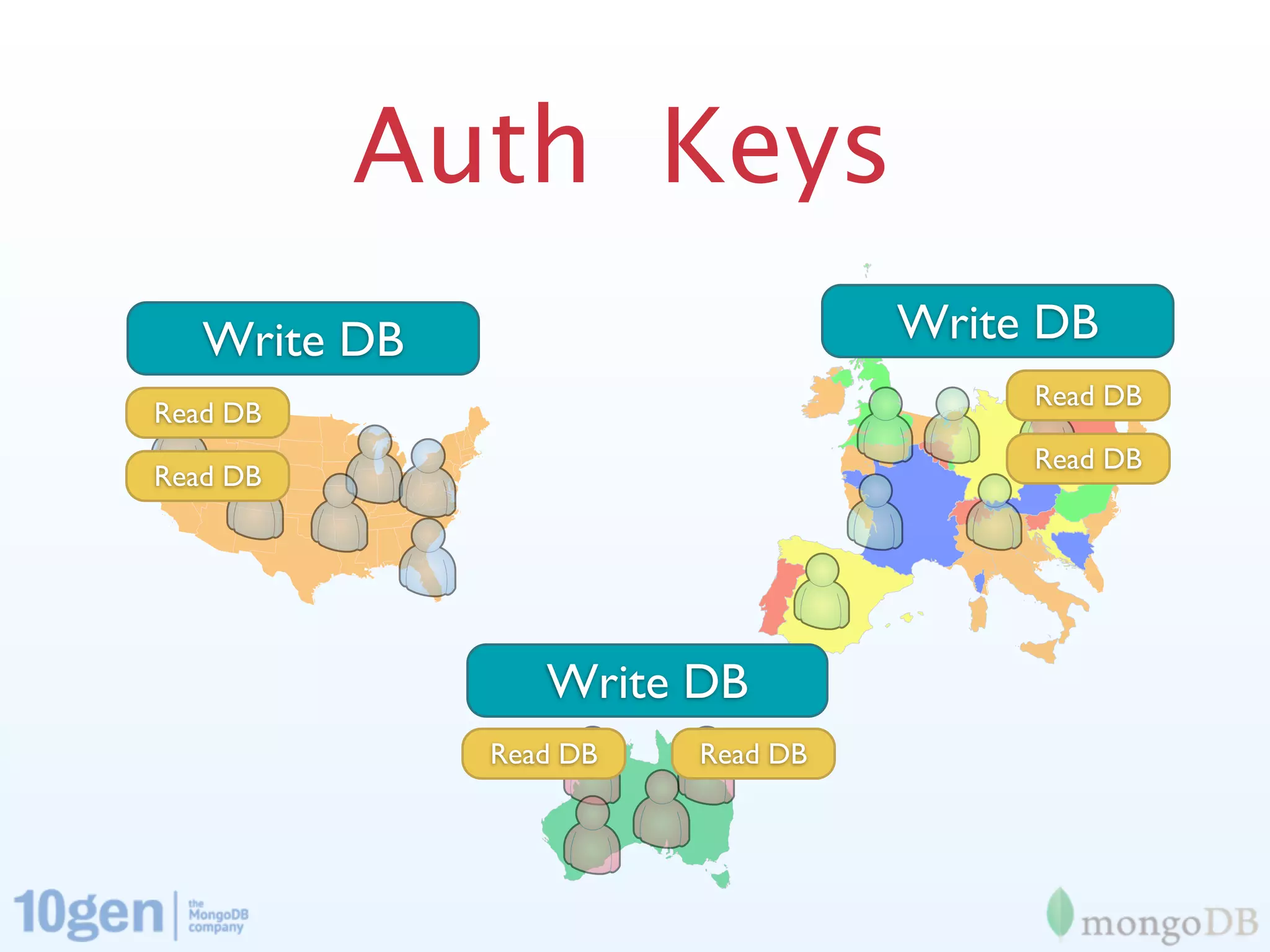

- 54. Auth Keys Write DB Write DB Read DB Read DB Read DB Read DB Write DB Read DB Read DB

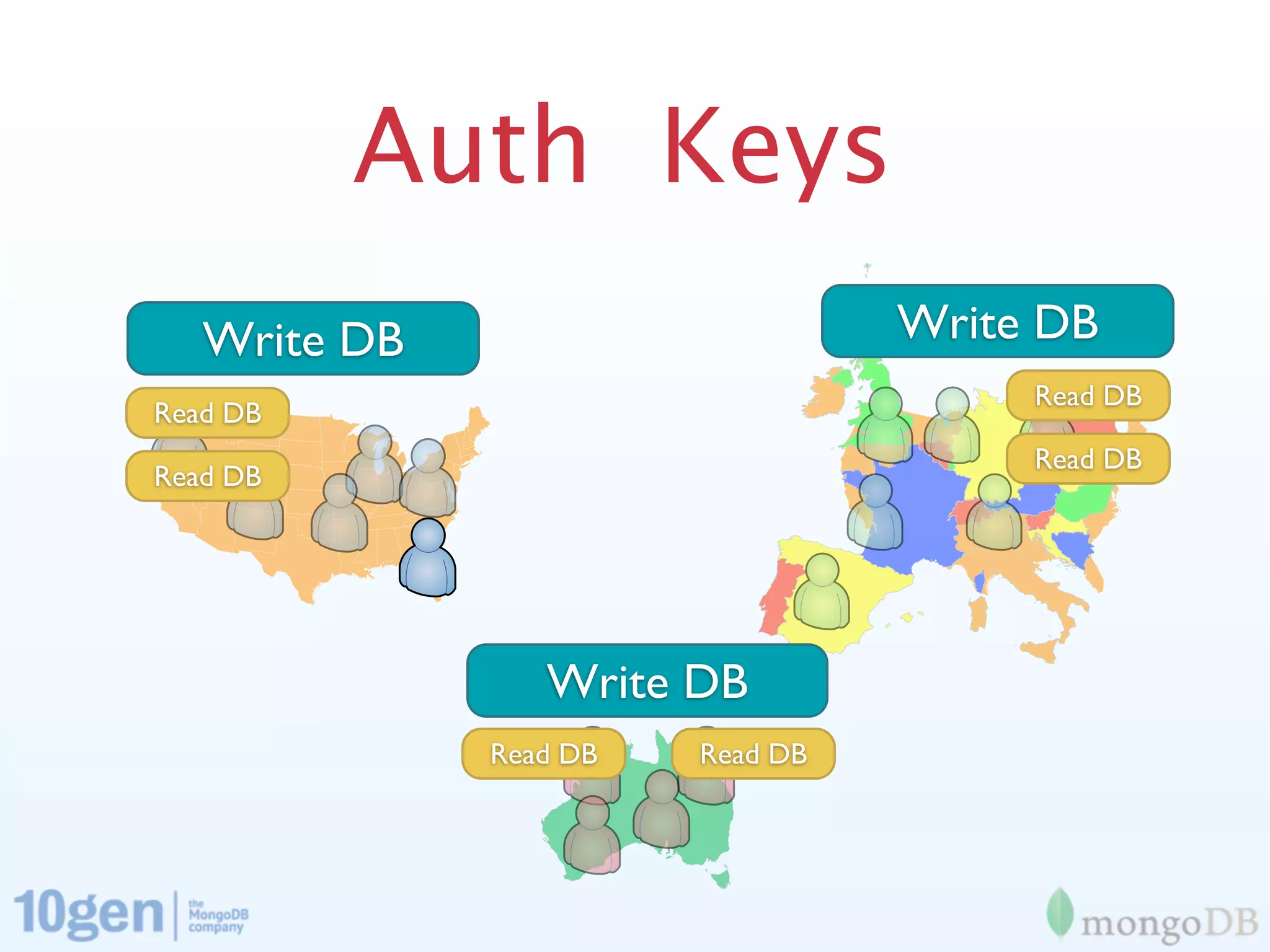

- 55. Auth Keys Write DB Write DB Read DB Read DB Read DB Read DB Write DB Read DB Read DB
- 56. Auth Keys Write DB Write DB Read DB Read DB Read DB Read DB Write DB Read DB Read DB

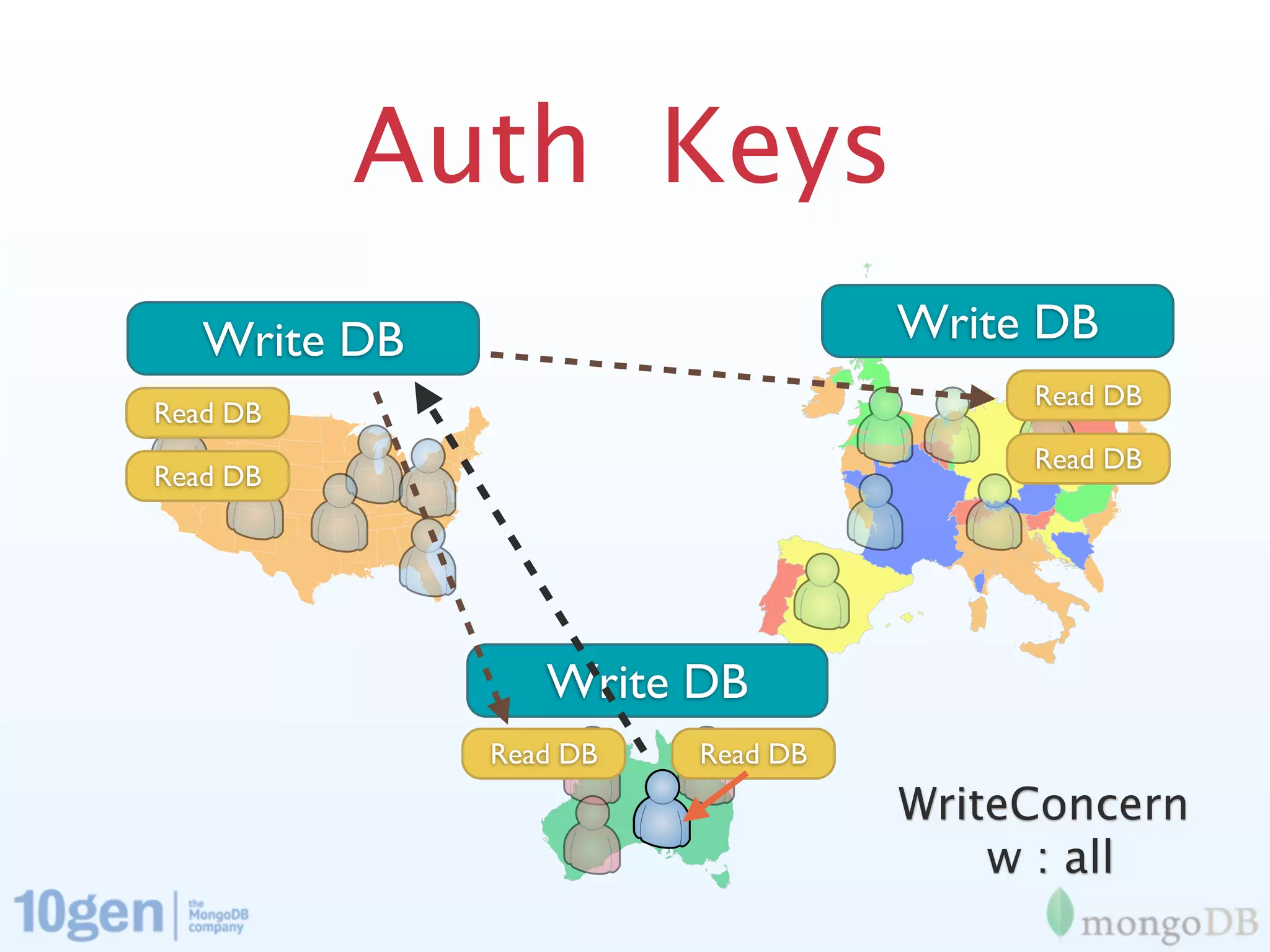

- 57. Auth Keys Write DB Write DB Read DB Read DB Read DB Read DB Write DB Read DB Read DB WriteConcern w : all
- 58. Auth Keys Write DB Write DB Read DB Read DB Read DB Read DB Write DB Read DB Read DB WriteConcern w : all

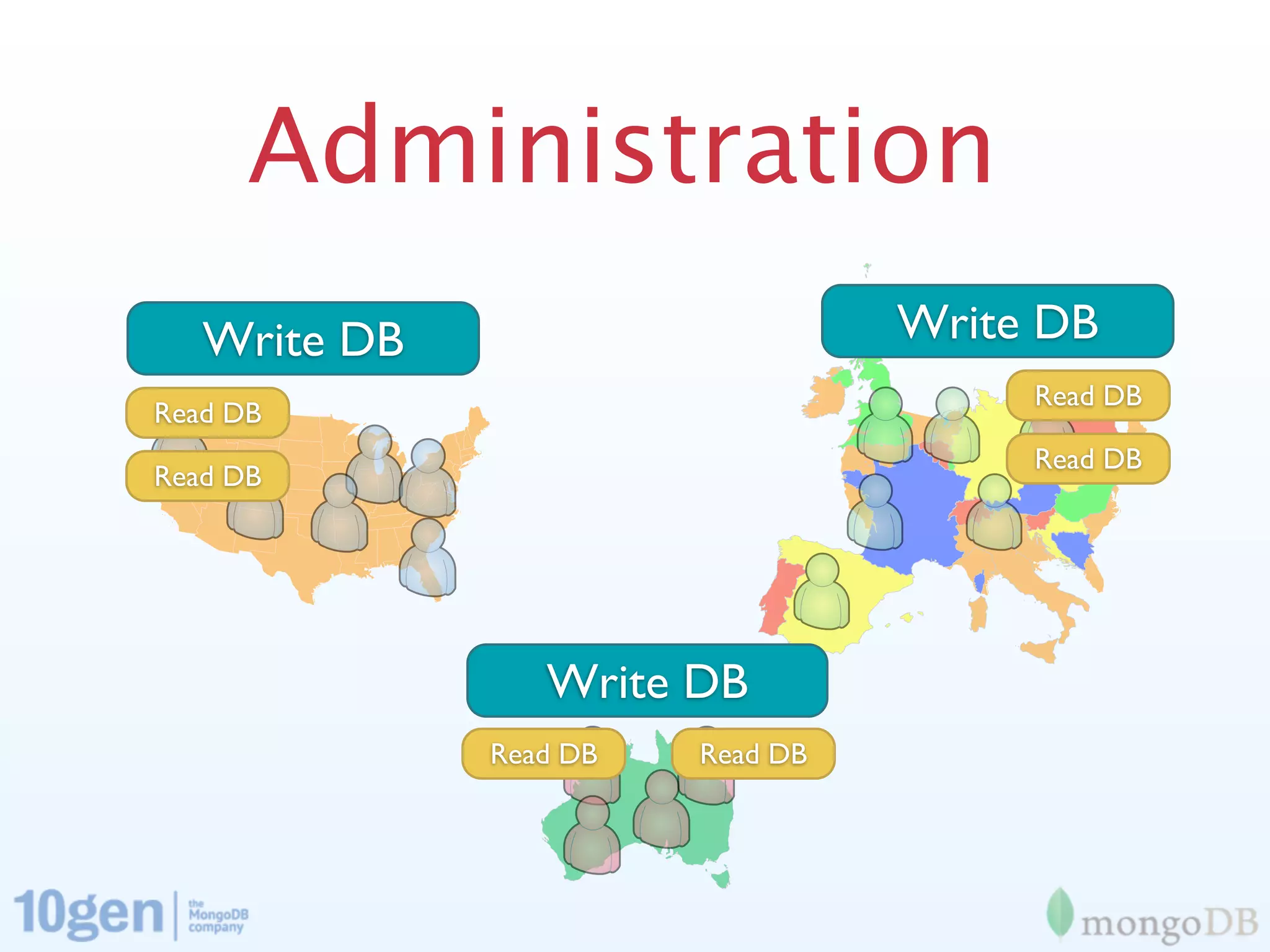

- 59. Administration Write DB Write DB Read DB Read DB Read DB Read DB Write DB Read DB Read DB
- 60. Administration Write DB Write DB Read DB Read DB Read DB Read DB Write DB Read DB Read DB

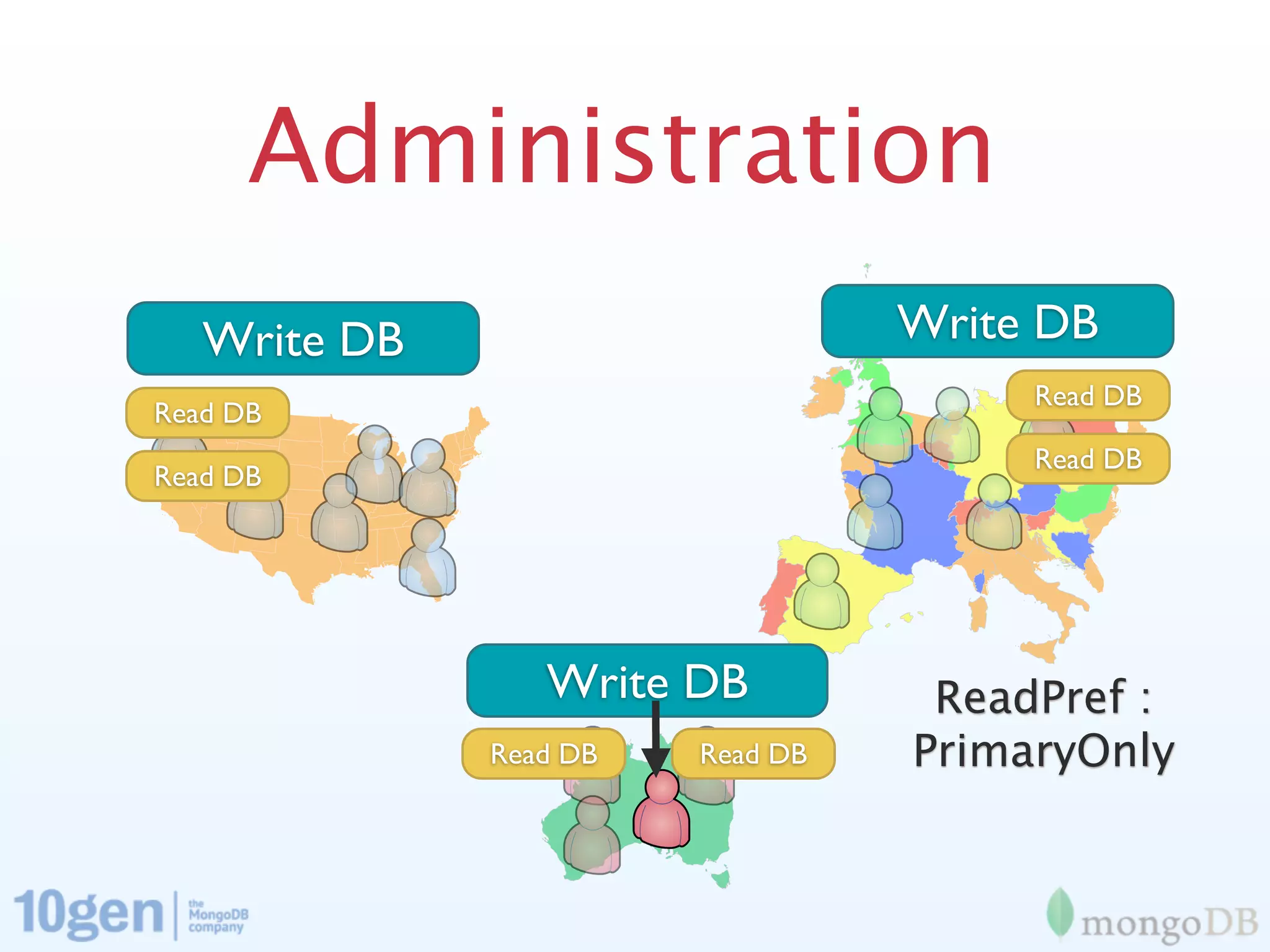

- 61. Administration Write DB Write DB Read DB Read DB Read DB Read DB Write DB ReadPref : Read DB Read DB PrimaryOnly

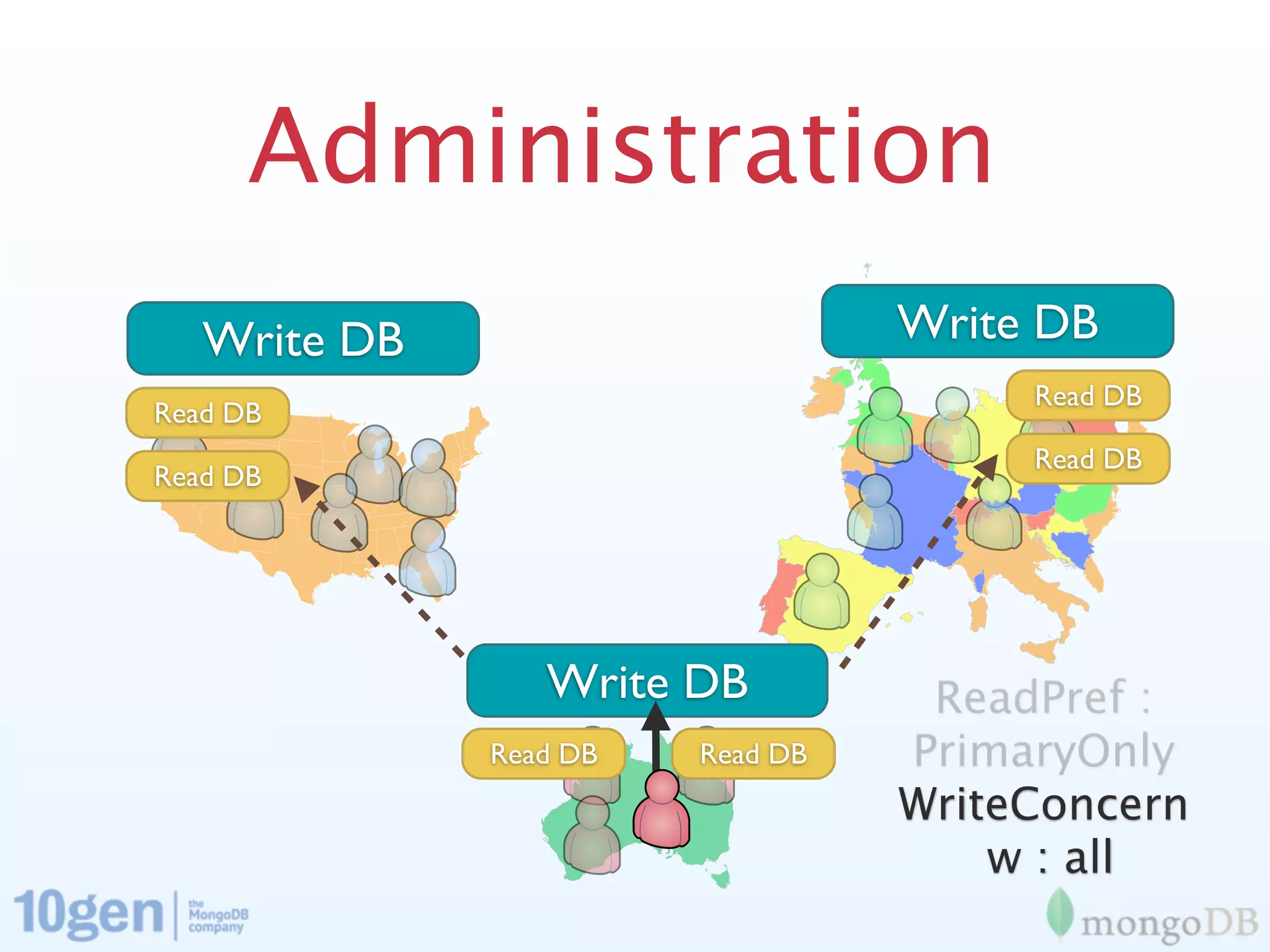

- 62. Administration Write DB Write DB Read DB Read DB Read DB Read DB Write DB ReadPref : Read DB Read DB PrimaryOnly WriteConcern w : all

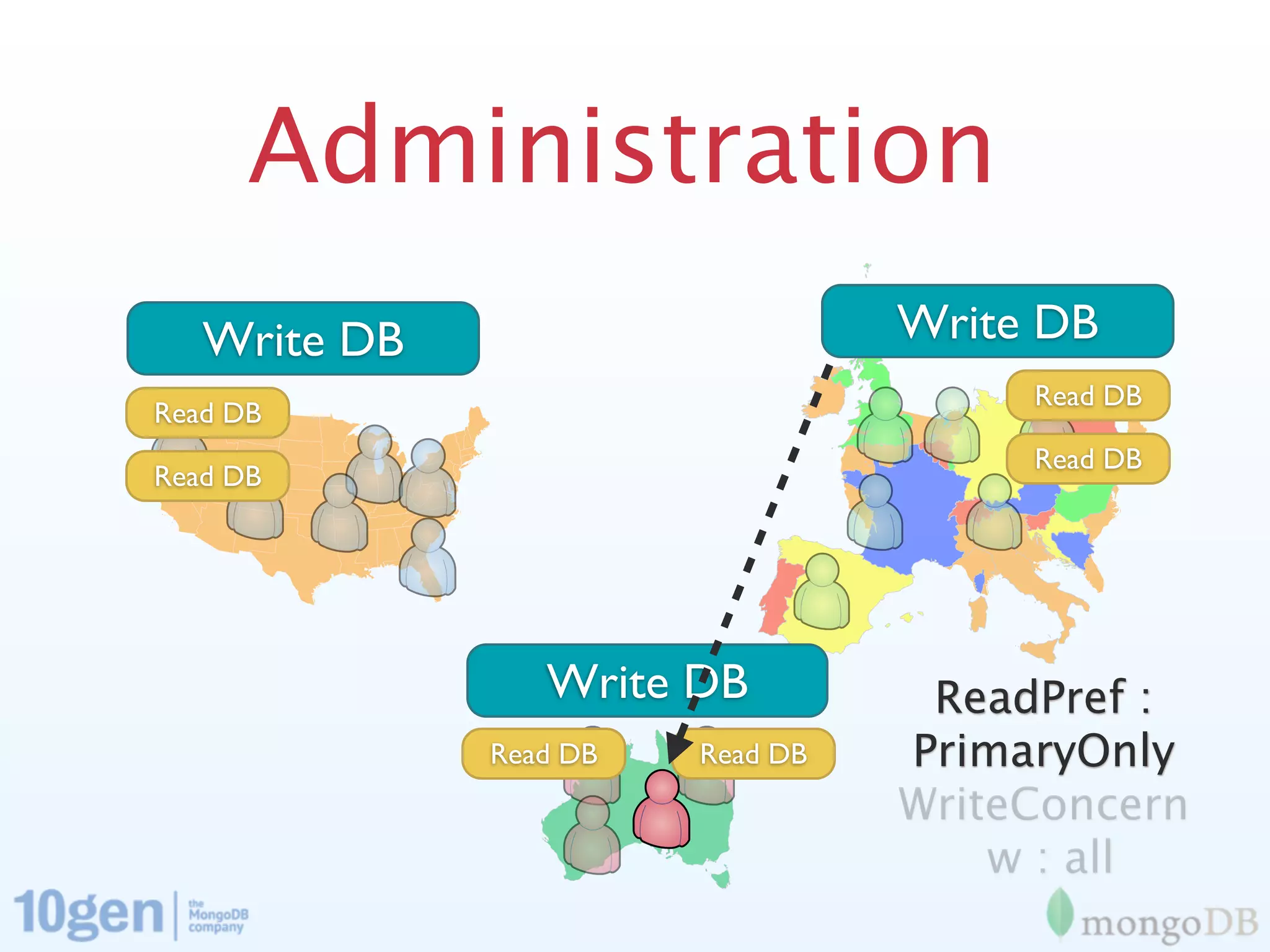

- 63. Administration Write DB Write DB Read DB Read DB Read DB Read DB Write DB ReadPref : Read DB Read DB PrimaryOnly WriteConcern w : all

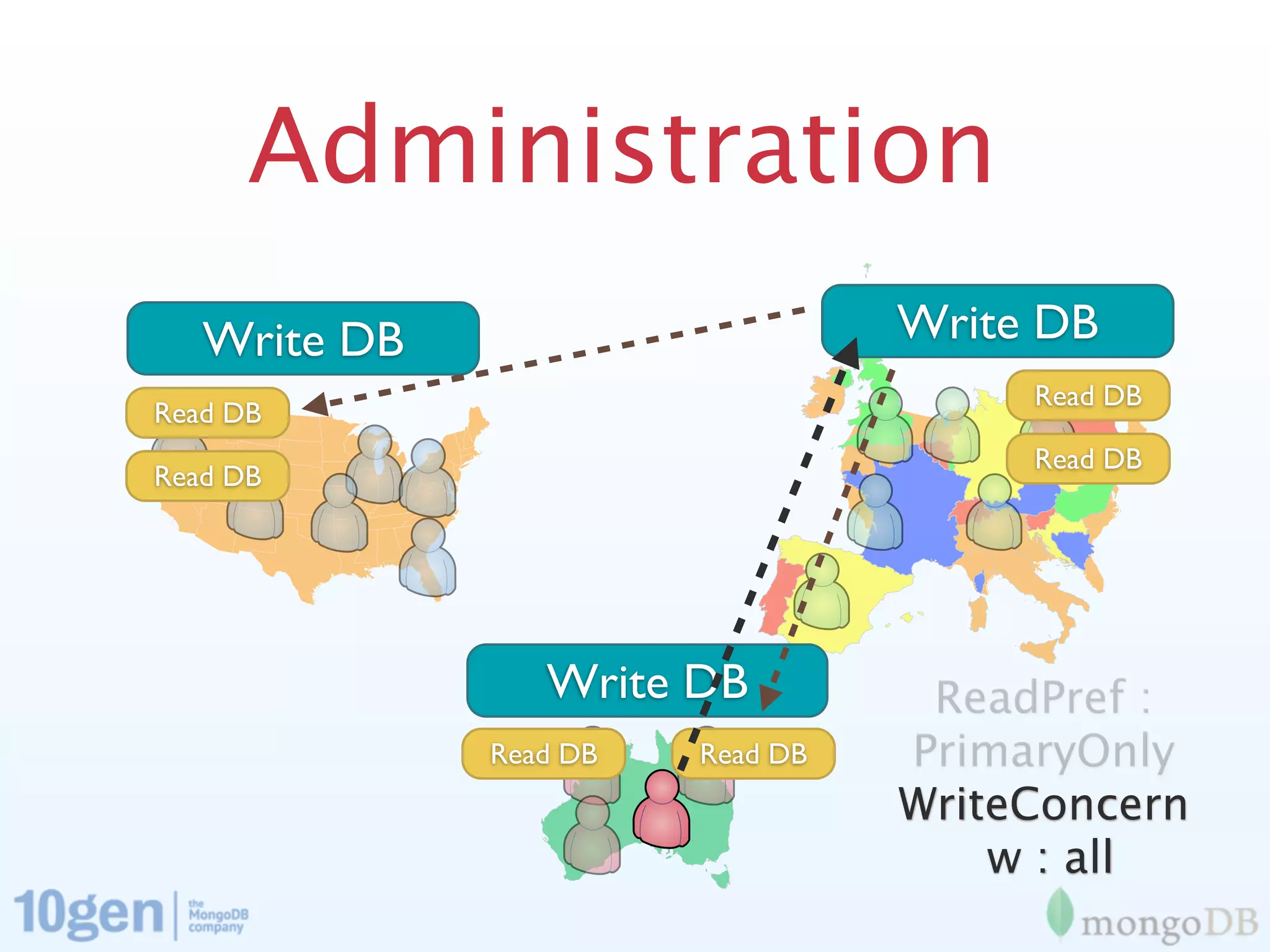

- 64. Administration Write DB Write DB Read DB Read DB Read DB Read DB Write DB ReadPref : Read DB Read DB PrimaryOnly WriteConcern w : all
- 65. Conclusion MongoDB Open source enterprise featuresfor when you need them
- 66. http://spf13.com http://github.com/s @spf13 Questions? download at mongodb.org We’re hiring!! Contact us at jobs@10gen.com
